DESCRIPTION:

DBT Mannering CM96 Operator Manual- CAT 1038 Continuous Miner CM96 – PDF DOWNLOAD

GENERAL

• The Jeffrey Model 1038HHS-R is a radio-controlled drum-type continuous miner with appropriate weight, balance, cutting and loading power to enable the productive mining of coal and other soft mineral seams ranging from 1,500mm up to 4,000mm thick.
• The machine is mounted on crawler tracks which provide full mobility and sharp turning radius in both bord-and-pillar and longwall development mining plans. The ranging cutting head mines material from the solid face using a chainless-drive rotating drum, and a CLA-type gathering head and highspeed conveyor efficiently moves mined material to a haulage system behind the miner.
• The machine’s weight and balance is designed to mine most efficiently by sumping into the face at the top and ripping material to the bottom of the seam. Figure (Mechanical Components) shows a general arrangement of major mechanical components. A full description of the various major sub-systems of the 1038HHS-R follows.

TABLE OF CONTENTS:

DBT Mannering CM96 Operator Manual- CAT 1038 Continuous Miner CM96 – PDF DOWNLOAD

MACHINE DESCRIPTION …………………………………………………………………. 3
GENERAL ………………………………………………………………………………………………………………………….. 4
MAIN CHASSIS …………………………………………………………………………………………………………………. 5
CUTTING HEAD ASSEMBLY ……………………………………………………………………………………………. 6
GATHERING HEAD ASSEMBLY ………………………………………………………………………………………. 8
CONVEYOR ASSEMBLY ………………………………………………………………………………………………….. 9
TRACTION DRIVE SYSTEM …………………………………………………………………………………………… 10
DRIVERS SIDE .. ……………………………………………………………………………………………………………. 12
DRIVERS SIDE ……………………. …………………………… ………………………………………………………….. 13
OPPOSITE DRIVERS SIDE …………………………………………………………………………………………….. 13
HYDRAULIC SYSTEM …………………………………………………………………………………………………….. 14
ACCUMULATOR …………………………………………………………………………………………………………….. 16
WATER SYSTEM …………………………………………………………………………………………………………….. 18
Fan Water Spray Circuit “B” …… ………… …………………………………………………………………………….. 18
Main Spray Circuit “A” ………………………………………………………………….. ……………………………….. 18
Main Spray Circuit “C” ……………………………………………………………………………………………………. 18

Questions? Email us: [email protected]

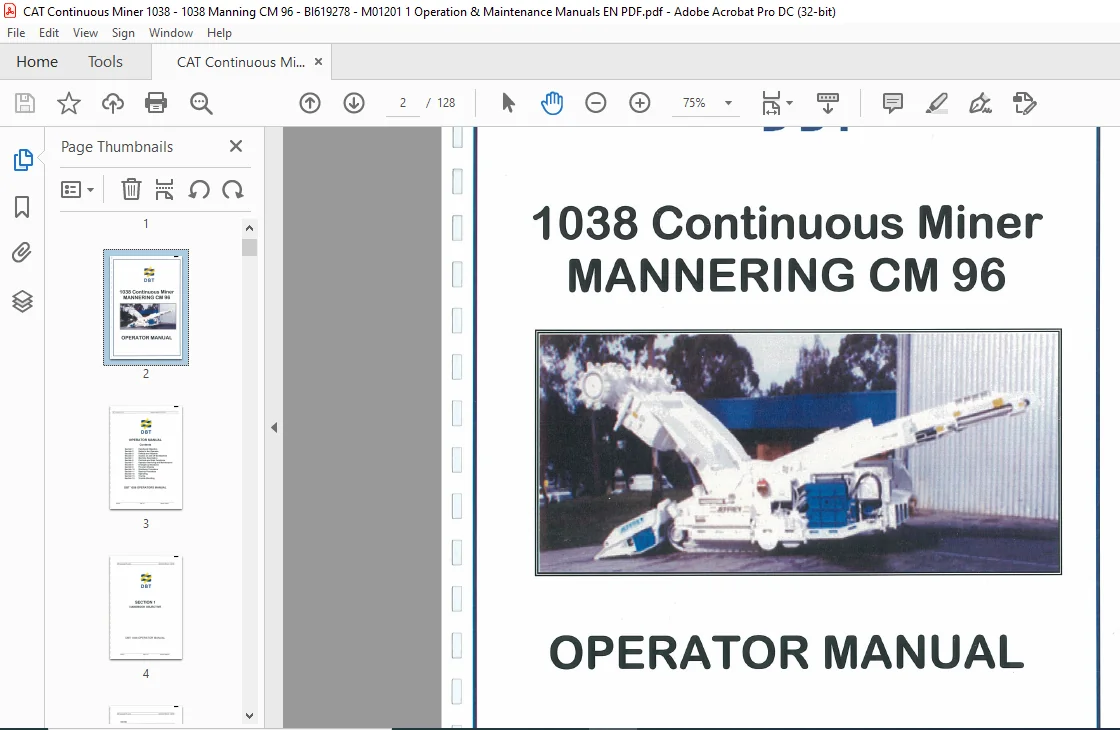

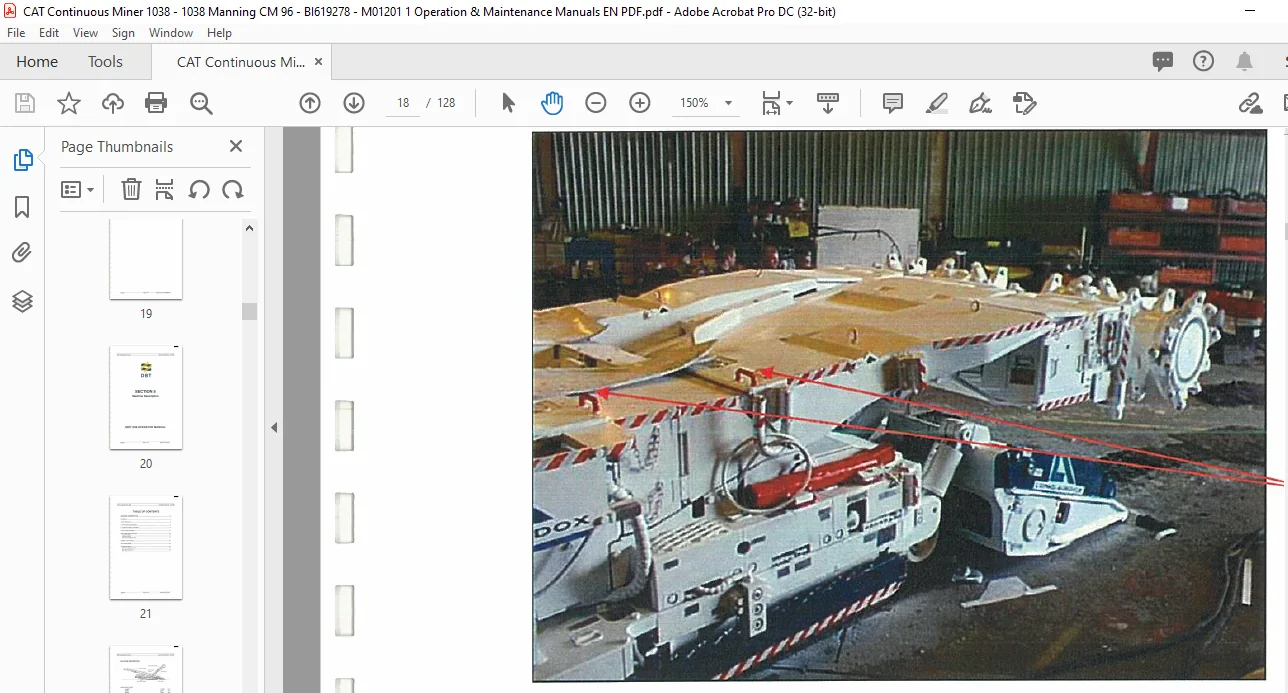

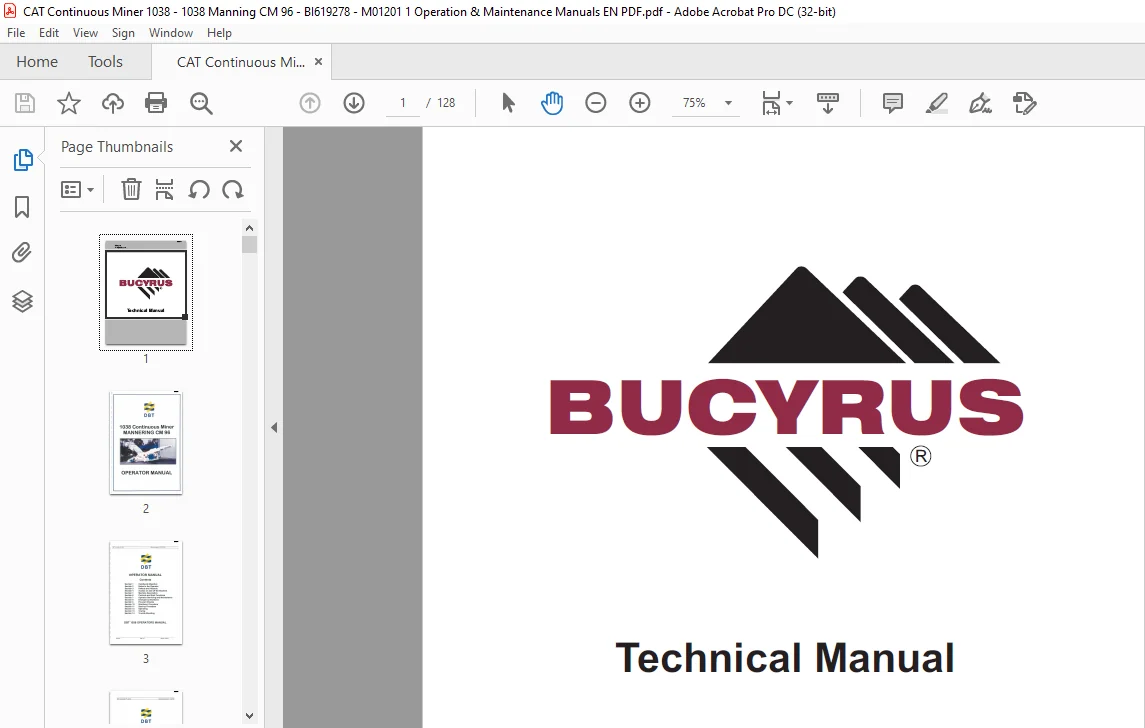

IMAGES PREVIEW OF THE MANUAL:
