Deutz 1012 1013 Workshop Manual – PDF DOWNLOAD

Description

Deutz 1012 1013 Workshop Manual

DEUTZ 1012 1013 WORKSHOP MANUAL – PDF DOWNLOAD:

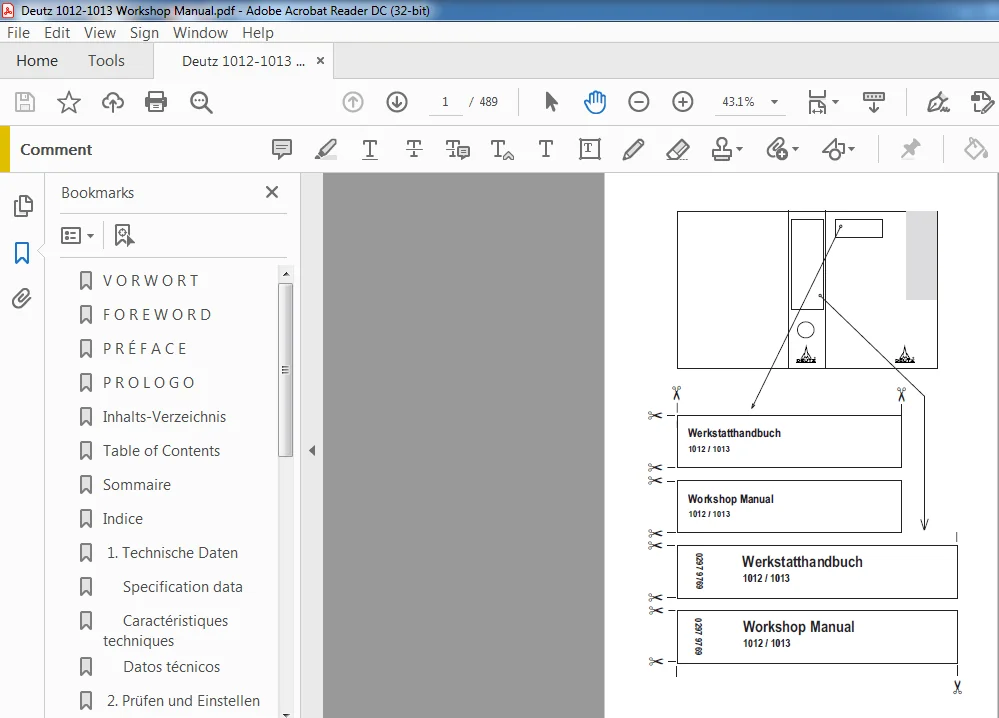

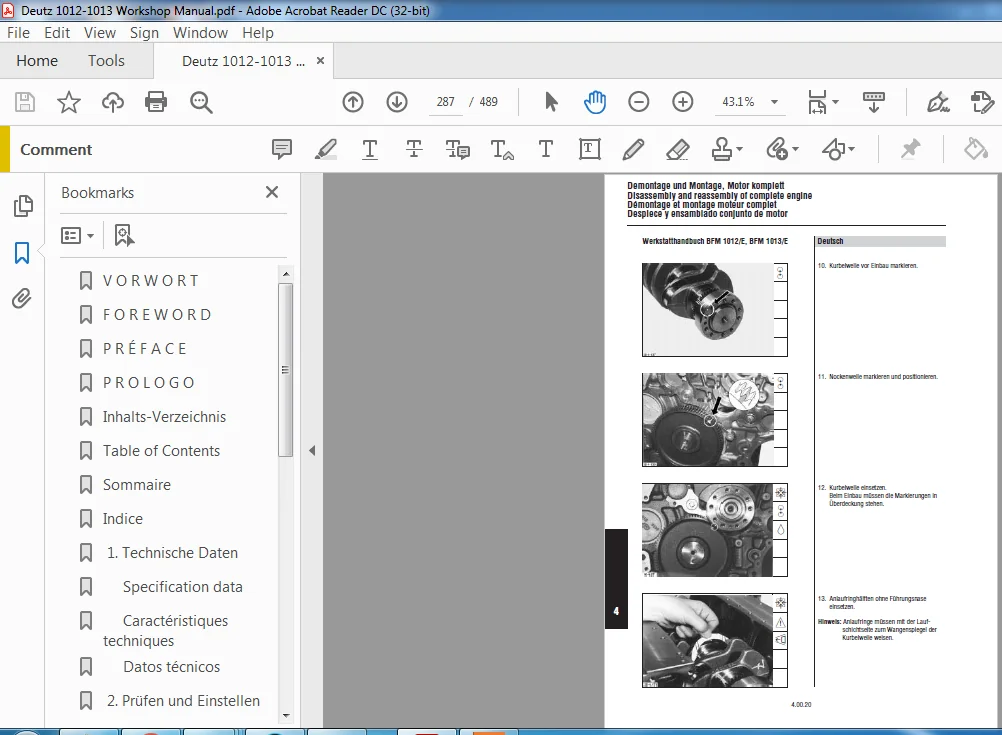

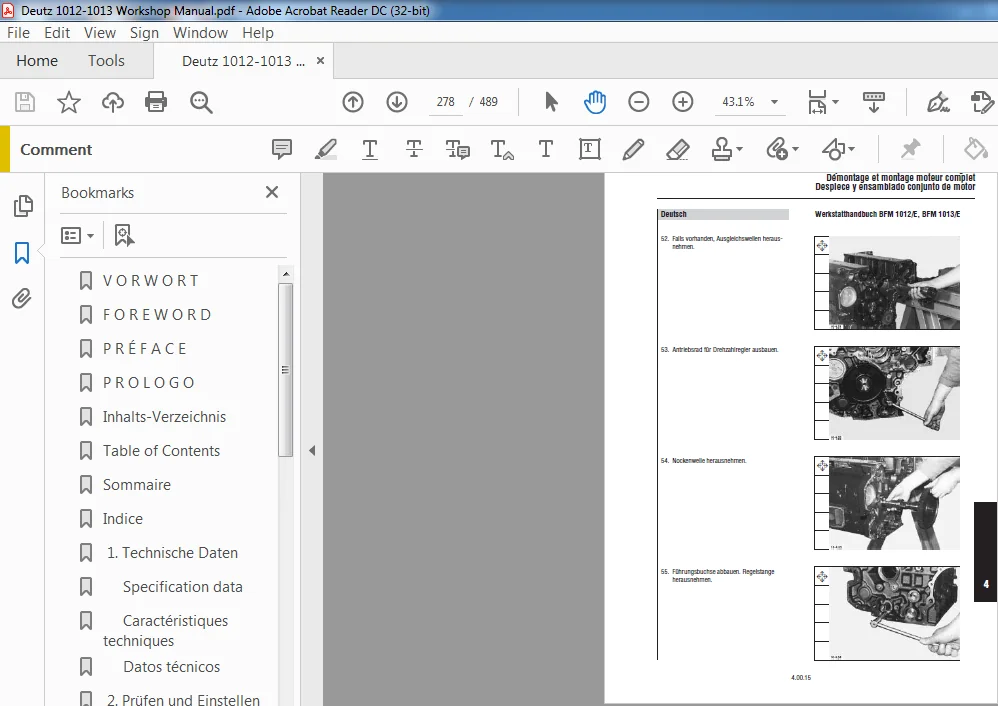

Image Preview:

Table Of Contents:

Deutz 1012 1013 Workshop Manual

Technische Daten Seite
Techn. Daten ________________________________________________________ 1.00.01 – 1.00.07
Ventilspieleinstellschema _______________________________________________ 1.00.09
Reihenfolge beim Anziehen der Zylinderkopfschrauben _______________________ 1.00.11
Ausgleichscheibendicke für Förderbeginn ermitteln
bei Bosch-Einspritzpumpe ______________________________________________ 1.00.13
Ausgleichscheibendicke für Förderbeginn ermitteln bei BFM 1012
Bosch-Einspritzpumpentausch im Servicefall. Grundmaß L0 = 109 mm ___________ 1.00.15
Ausgleichscheibendicke für Förderbeginn ermitteln bei BFM 1012
Bosch-Einspritzpumpentausch im Servicefall. Grundmaß L0 = 119 mm ___________ 1.00.15.1
Ausgleichscheibendicke für Förderbeginn ermitteln bei BFM 1013
Bosch-Einspritzpumpentausch im Servicefall. Grundmaß L0 = 143 mm ___________ 1.00.17
Korrigiertes Einbaumaß und EP-Code ermitteln bei Bosch Einspritzpumpe _________ 1.00.19
Bildzeichenerklärung __________________________________________________ 1.00.21

Description:

Deutz 1012 1013 Workshop Manual

Reliable engine operation is dependent on properly executed repairs as well as adjustment work. This Workshop Manual describes the appropriate operations for any repair and adjustment work on the engine and engine components. It is presumed that this work will be carried out by qualified personnel.

This operation manual has been designed for quick and easy understanding. Therefore the concise text passages are accompanied by pictographs to illustrate the relevant operation. The Workshop Manual has been laid out to ensure quick comprehension of the contents

, i. e illustrations have been placed adjacent to the brief text passages to clearly show the working operations. Aspects of operation and maintenance are dealt with in the respective Operation Manual. For spare parts orders the respective spare parts catalogue should be referred to.

This Workshop Manual is not subject to engineering change service and is valid until next issue. Therefore please refer to the information in our Technical Circulars when carrying out repairs. General information: – Please read carefully and observe the instructions given in this Workshop Manual to avoid accidents and ensure that your engine always functions properly and reliably.

– Make sure that this Workshop Manual is readily available for all those carrying out repairs or adjustments and that the contents are well understood. – Non-compliance with these repair instructions may result in malfunction and engine damage as well as personal injuries for which the manufacturer shall not accept any liability.

– The accident prevention regulations and all other generally recognized regulations on safety and occupational medicine are to be observed. – A prerequisite for successful repair is that all required equipment, hand and special tools are available and in perfect working order.

– Optimal operation economy, reliability and durability of the engine can only be ensured when genuine parts of DEUTZ AG are used. – Engine components such as springs, clamps, snap rings, etc. may cause injury if not handled with care. – Engine repairs must be carried out in accordance with intended use as defined by the equipment manufacturer.

For conversions, only parts approved by DEUTZ AG for a specific purpose should be used
