Deutz Fahr 7545 RTS Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr 7545 RTS Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr 7545 RTS Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 318
Downloadable : Yes
File Type : PDF
Size: 18.9 MB

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Deutz Fahr 7545 RTS Parts Catalog Manual – PDF DOWNLOAD

Accessories 1
Index 1
7545 RTS 2
HU – ATTACHMENTS AND ACCESSORIES 2
GENERAL 2

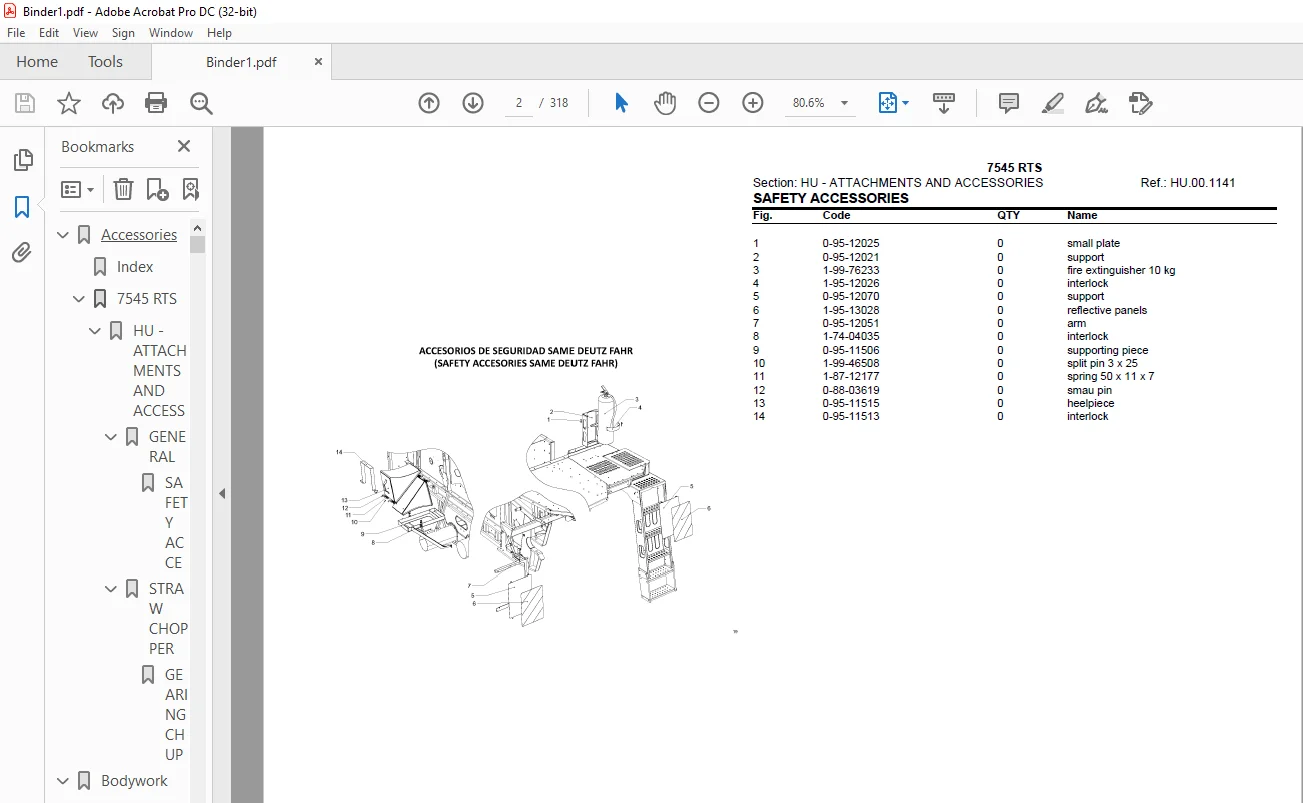

SAFETY ACCESSORIES (HU001141) 2
STRAW CHOPPER 3
GEARING CHUPPER (LH SIDE) (HU021095) 3
Bodywork 4
Index 4
7545 RTS 5
HF – CHASSIS- BODYWORK 5
CHASSIS 5
CHASSIS (HF011053) 5
CHASSIS (HF011054) 6
CHASSIS (HF011055) 7
BODYWORK 8
ACCESS LADDER TO ROTOR (HF021056) 8
REAR COVERS (HF021057) 9
REAR INTERNAL DEFLECTORS (HF021058) 10
HOOD – RIGHT SIDE PANEL (HF021059) 11

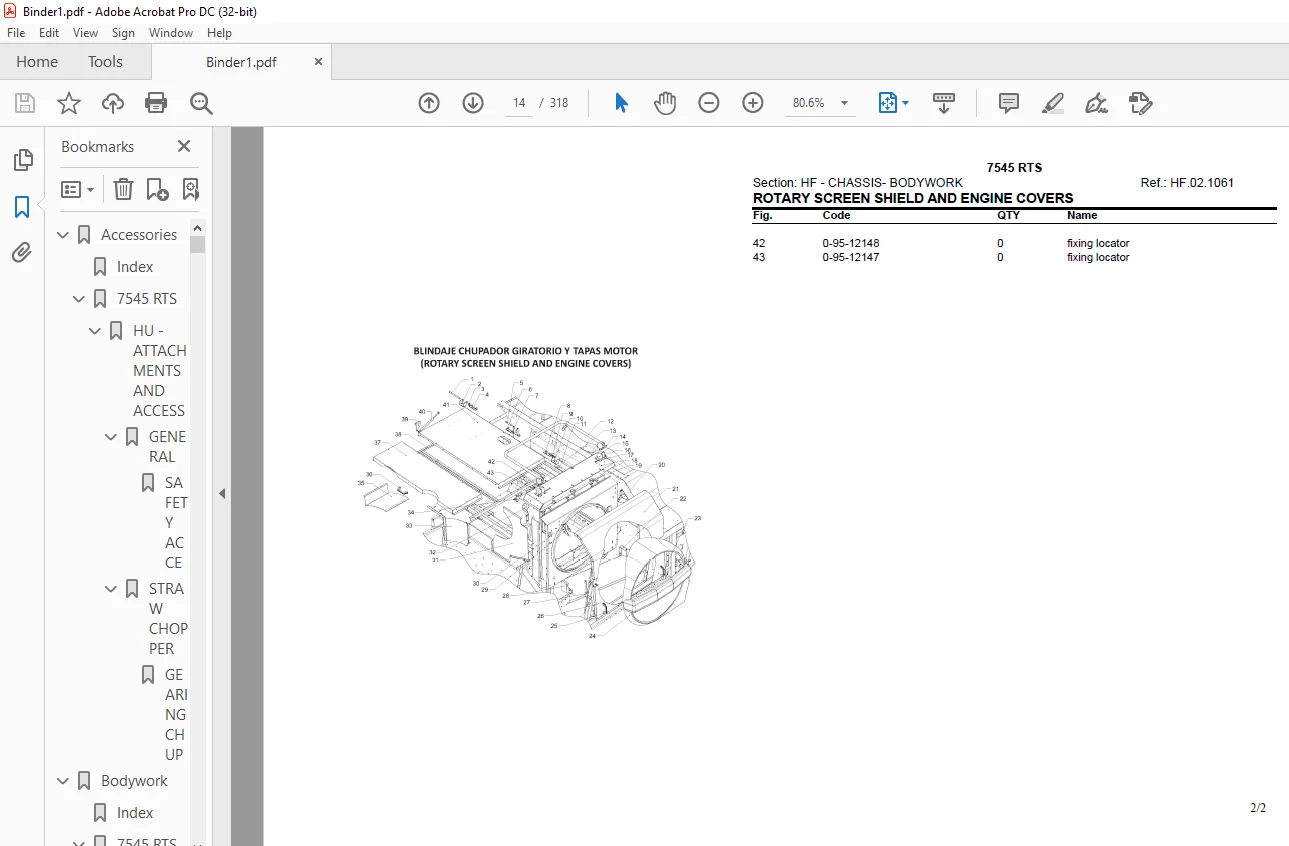

ROTARY SCREEN SHIELD AND ENGINE COVERS (HF021060) 12
ROTARY SCREEN SHIELD AND ENGINE COVERS (HF021061) 13
INTERMEDIATE SHIELD AND REAR ACCESS DOOR (HF021062) 15
HOOD – LEFT SIDE PANEL (HF021064) 16
POWER TAKE-OFF SHIELD AND LEFT CORNER SHIELD (HF021065) 17
REAR COVER (HF021066) 18
UPPER SHIELD AND FRONT ROOF ASSEMBLY (HF021067) 19
PLATFORM 20
REAR ACCESS RIGHT SIDE (HF031063) 20
LADDER (HF031073) 21
Cab 22
Index 22
7545 RTS 23
HG – CAB 23
CAB STRUCTURE 23
CAB METAL STRUCTURES (HG011069) 23
INTERIOR TRIM 24
INTERIOR TRIM (HG031070) 24
EXTERIOR TRIM – ROOF 25

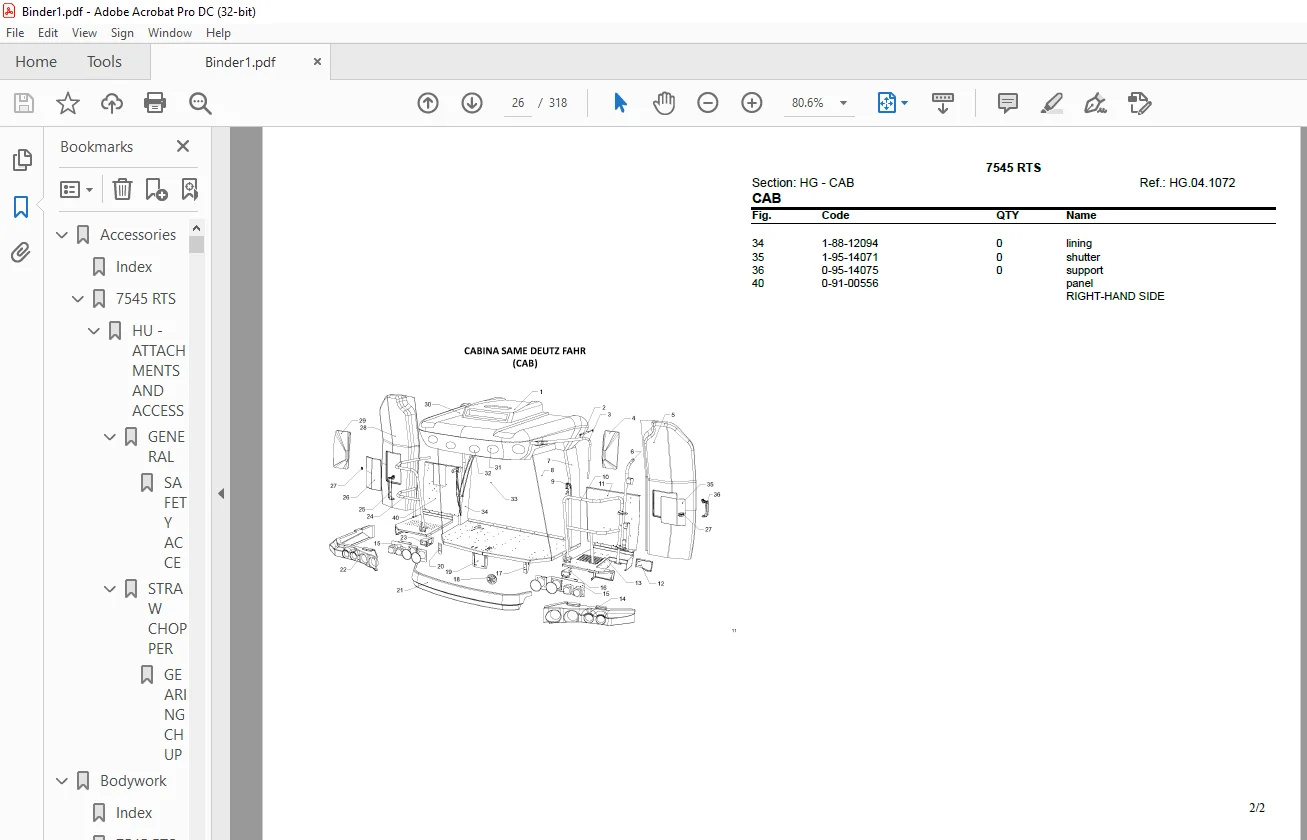

CAB (HG041072) 25
BRAKE CONTROLS 27
HAND BRAKE (HG071038) 27
COMMAND (HG071075) 28
COMMAND (HG071076) 30
STEERING CONTROLS 31
STEERING COLUMN (HG081071) 31
Cleaner_unit 32
Index 32
7545 RTS 33
HL – CLEANER UNIT 33
RETURN SURFACE 33
GRAIN COLLECTOR TRAY ASSEMBLY (HL021132) 33
GRAIN COLLECTOR TRAY ASSEMBLY (HL021133) 34
PREPARATION FLOOR 35
FIRST CLEANING STEP FLOOR (HL031106) 35
FIRST CLEANING STEP FLOOR (HL031107) 37
SIEVE SURFACES 39
RIGHT SIDE THROUGH-SHAFT (HL041096) 39
INTERMEDIATE GEARING TO CLEANING SIEVES (HL041097) 40
FIRST CLEANING SIEVE BOX (HL041109) 42
FIRST CLEANING SIEVE BOX (HL041110) 43
SECOND CLEANING SIEVE BOX (HL041111) 44
FAN 46
FAN SPEED SHIFTER (HL051098) 46
AIR SCREEN TURBINE GEARING (HL051099) 47
FAN (HL051105) 48
RETURN ELEVATORS 50
RETURN ASSEMBLY (HL071108) 50
RETURN ELEVATOR (HL071139) 51
RETURN ELEVATOR (HL071140) 52
Cutter_bar 53
Index 53
7545 RTS 54
HP – CUTTER BAR 54
CUTTER BAR 54
CARDAN SHAFT L = MM 1360 (HP010 (1)) 54
LONG FIXED DIVIDER (HP011 (1)) 55
COMPONENTS 56
SENSOR ARM (HP020 (1)) 56
EQUIPMENT PACKAGES 57
SIDE PANELLING SX/LH/LI (HP040 (1)) 57
SUPPORT SX/LH/LI ( MT 5,4 / MT 7,2 ) (HP041 (1)) 58
SUPPORT SX/LH/LI ( MT 6,3 ) (HP042 (1)) 59
SUPPORT (HP043 (1)) 60
SIDE PANELLING DX/RH/RE (HP044 (1)) 61
SUPPORT DX/RH/RE ( MT 5,4 / MT 7,2 ) (HP045 (1)) 62
SUPPORT DX/RH/RE ( MT 6,3 ) (HP046 (1)) 63
SUPPORTS FOR SEPARATORS – MT 6,3 (HP047 (1)) 64
SEPARATORS – MT 6,3 (HP048 (1)) 65
SUPPORTS FOR SEPARATORS – MT 7,2 (HP049 (1)) 66
SEPARATORS – MT 7,2 (HP0410 (1)) 67
DIVIDERS SX/LH/LI – DX/RH/RE (HP0411 (1)) 68
SHAFTS – MT 6,3 (HP0412 (1)) 69
SHAFTS – MT 7,2 (HP0413 (1)) 70
GEARS (HP0414 (1)) 71
GEARS AND CHAINS (HP0415 (1)) 72
SHAFT WITH BLADES DX/RH/RE ( MT 6,3 ) (HP0416 (1)) 73
SHAFT WITH BLADES SX/LH/LI ( MT 6,3 ) (HP0417 (1)) 74
SHAFT WITH BLADES DX/RH/RE ( MT 7,2 ) (HP0418 (1)) 75
SHAFT WITH BLADES SX/LH/LI ( MT 7,2 ) (HP0419 (1)) 76
Electrical_system 77
Index 77
7545 RTS 78
HH – ELECTRICAL SYSTEM 78
WIRING HARNESSES 78
CUTTING PLATFORM WIRING (HH020 (1)) 78
Engine 79
Index 79
7545 RTS 82
B0 – ENGINE 82
GENERAL 82
DEUTZ ENGINE TCD 2015 (330kW/442HP) (B0000 (1)) 82
CYLINDER BLOCK 83
SUPPORTS (B0011001) 83
TUNNEL COVER (B0011017) 84
GASKET SET (B0011025) 85
GUIDE PIPE (B0011048) 86
COVER PLATE (B0011049) 87
CRANKCASE (B0011068) 88
ENGINE BEARING (B0011086) 90
DIPSTICK (B0011095) 91
PIN (B0011101) 92
PIN (B0011102) 93
CONNECTING PIPE (B0011108) 94
CLOSING COMPONENTS (B0011123) 95
BREATHER (B0011150) 96
CRANKSHAFT 97
CRANKSHAFT (B0021039) 97
VIBRATION DAMPER (B0021057) 98
FLYWHEEL (B0021068) 99
THREADED JOINT (B0021078)100
CYLINDERS – PISTONS – CONNECTING RODS101
PISTON (B0031006)101
CONNECTING ROD (B0031021)102
TIMING103
FASTENINGS (B0041005)103
TUNNEL COVER (B0041026)104
ACCESSORIES (B0041101)105
CAMSHAFT PTO (B0041102)106
MAIN GEARBOX (B0041126)107
DISTRIBUTOR (B0041127)108
CYLINDER HEAD109
FASTENINGS (B0051005)109
PLASTIC PROFILE (B0051021)110
CYLINDER HEAD (B0051038)111
VALVE MECHANCOVER (B0051050)112
VALVE MECHANCOVER (B0051051)113
CYLINDER HEAD COVER (B0051058)114
LUBRICATION115
PRESSURE OIL LINE (B0061022)115
SUPPORT (B0061027)116
OIL RETURN PIPE (B0061030)117
OIL PAN (B0061053)118
LUBRIC OIL FILTER (B0061068)119
LUBRIC OIL COOLER (B0061072)120
OIL LUBRICATION PIPE (B0061073)121
OIL LUBRICATION PIPE (B0061074)122
LUBRICAT OIL PUMP (B0061080)123
SEPARATOR (B0061102)124
HYDRAULIC PUMP (B0061106)125
FUEL INJECTION SYSTEM126
BLOWER (B0071004)126
BLOWER (B0071005)127
FASTENINGS (B0071013)128
HIGH PRESSURE PIPE (B0071024)129
FUEL INJECT PUMP (B0071035)130
FUEL INJECTOR (B0071042)131
FUEL DOUBLE FILTER (B0071053)132
ROLLER TAPPET (B0071132)133
HOSE PIPE (B0071141)134
FUEL PRELIMINARY FILTER (B0071179)135
FUEL SUPPLY PUMP (B0071193)136
AUTO RADIO SYSTEM (B0071205)137
COOLING139
CLUTCH (B0091049)139
HOSE CONNECTION (B0091050)140
HOSE CONNECTION (B0091051)141
THREADED JOINT (B0091072)142
ACCESSORIES (B0091076)143
ACCESSORIES (B0091077)144
BREATHER (B0091086)145
CONNECTION PIECE (B0091090)146
THERMOSTAT (B0091141)147
CONNECTION (B0091147)148
COOLING WATER PUMP (B0091150)149
INTAKE – EXHAUST MANIFOLDS150
EXHAUST PIPE (B0101020)150
EXHAUST PIPE (B0101021)151
FASTENINGS (B0101030)152
FASTENINGS (B0101031)153
FASTENINGS (B0101032)154
ADJUSTMENT SLEEVE (B0101050)155
ADJUSTMENT SLEEVE (B0101051)156
MANIFOLD (B0101081)157
CONNECTING PIPE (B0101103)158
CLOSING COMPONENTS (B0101108)159
EXHAUST PIPE ELBOW (B0101112)160
EXHAUST MANIFOLD (B0101115)161
EXHAUST MANIFOLD (B0101116)162
HEAT SHIELD (B0101123)163
CONNECTION PIECE (B0101124)164
AIR INTAKE TUBE (B0101137)165
CONNECTION (B0101142)166
CONNECTION (B0101143)167
FASTENINGS (B0101144)168
TURBOCHARGER169
TURBOCHARGER (B0111013)169
FASTENINGS (B0111038)170
FUSE 1A – 30A (B0111084)171
SHAFT PROTECTOR – DRIVEN STEERING AXLE (B0111090)172
Electrical accessories173
COVER PLATE (B0121004)173
PLUG-IN CONNECTOR (B0121007)174
BLOWER (B0121008)175
FASTENINGS (B0121018)176
FASTENINGS (B0121019)178
IMPULSETRANSMITTER (B0121050)179
IMPULSETRANSMITTER (B0121051)180
GENERATOR (B0121062)181
ENGINE ELECTRICAL SYSTEM (B0121087)182
STARTER (B0121131)183
ELECTRONIC CONTROL UNIT – ENGINE (B0121135)184
CONNECTING PIPE (B0121138)185
CONNECTING PIPE (B0121139)186
ACCESSORIES (B0121157)187
ACCESSORIES (B0121158)188
OIL PRESSURSWITCH (B0121195)189
CONNECTING PIPE (B0121198)190
PLUG-IN CONNECTOR (B0121208)191
PLUG-IN CONNECTOR (B0121210)192
PLUG-IN CONNECTOR (B0121211)193
PLUG-IN CONNECTOR (B0121212)194
PLUG-IN CONNECTOR (B0121213)195
PLUG-IN CONNECTOR (B0121214)196
TEMPERTRANSMITTER (B0121221)197
SHAFT PROTECTOR – DRIVEN STEERING AXLE (B0121233)198
TEMPERATURE DISPLAY (B0121239)199
Engine_accessories200
Index200
7545 RTS201
C0 – ENGINE ACCESSORIES201
RADIATORS – FANS201
ROTARY AIR SCREEN (C0011003)201
DRIVE AND TIGHTENERS ROTARY Y SCREEN (C0011004)202
SUPPORT, CASES, COOLER, AND A/C CONDENSER (C0011005)203
ENGINE INTERCOOLER (C0011006)204
ENGINE FAN (C0011007)205
ROTARY AIR SCREEN TURBINE (C0011100)206
INTERCOOLER – AIR CLEANER207
ENGINE (C0021001)207
ENGINE (C0021002)208
FUEL SYSTEM209
FUEL COOLING CIRCUIT (C0031009)209
FUEL CIRCUIT (C0031010)210
FUEL TANK AND BATTERY (C0031011)211
AIR COMPRESSOR212
CLOSING COMPONENTS (C0071001)212
ENGINE POWER TAKE-OFF213
POWER TAKE-OFF (C0101008)213
Feed_elevator214
Index214
7545 RTS215
HE – FEED ELEVATOR215
FEED ELEVATOR215
PROTECTIVE COVER (HE010 (1))215
OSCILLATING FRAME (HE011037)216
FEEDER CHANNEL (HE011045)217
FEEDER CHANNEL (HE011046)218
HEADER CLUTCH EXPLODED VIEW (HE011049)219
FEEDER CHANNEL GEARING AND INTERMEDIATE SHAFT EXPLODED VIEW (HE011050)220
BELT STRETCHER (HE011051)221
FEEDER CHANNEL DRIVE (HE011052)222
FEEDER AND REVERSER GEARING CHAIN TIGHTENER (HE011074)225
RIGHT SIDE GEARING ASSEMBLY FOR GUIDING CYLINDER (HE011077)226
LEFT SIDE MOTION ASSEMBLY FOR GUIDING CYLINDER (HE011078)227
GUIDING CYLINDER AND REVERSER GEARING (HE011079)228
FRONT GUIDING CYLINDER ASSEMBLY (HE011080)229
Front_axle230
Index230
7545 RTS231
HB – AXLES231
FRONT AXLE231
FRONT AXLE (HB011014)231
BRAKE ACTUATION DEVICE (HB011016)233
REDUCER AND SHAFT END (HB011017)234
TRANSMISSION236
TRANSMISSION (HB021015)236
REAR AXLE238
REAR AXLE (HB051018)238
TYRES239
TYRES (HB060 (1))239
Grain_tank_Elevator240
Index240
7545 RTS241
HM – GRAIN TANK / ELEVATOR241
ELEVATOR241
GRAIN TANK ELEVATOR (HM011136)241
GRAIN TANK ELEVATOR (HM011137)243
ELEVATOR HEAD (HM011138)244
GRAIN TANK246
GRAIN TANK FLOOR (HM021112)246
INSIDE AUGERS AND VALVES (HM021113)247
GRAIN TANK REINS AND TIGHTENERS (HM021114)248
GRAIN SAMPLE DEVICE (HM021115)249
GRAIN SAMPLE DEVICE (HM021116)250
GRAIN TANK (HM021117)251
GRAIN TANK (HM021118)252
GRAIN TANK EXTENSION (HM021119)253
GRAIN TANK EXTENSION MOTION (HM021120)254
INNER REINFORCEMENTS FOR UNLOAD PIPE PISTON (HM021121)255
GEARING TIGHTENERS FOR GRAIN TANK AUGERS (HM021122)256
GRAIN TANK AUGERS GEARING (HM021128)257
GRAIN TANK CLUTCH, PART 1 (HM021129)258
GRAIN TANK CLUTCH, PART 2 (HM021130)259
CROSS DISTRIBUTION AUGER (HM021131)260
DOUBLE DISTRIBUTION BOX (HM021134)262
DISTRIBUTION BOX AUGER GEARING (HM021135)263
DISCHARGE PIPE264
UNLOAD PIPE ASSEMBLY (HM031123)264
UPPER UNLOAD PIPE ANGLE BOX (HM031124)265
LOWER UNLOAD PIPE ANGLE BOX (HM031125)266
OUTSIDE REINFORCEMENTS FOR UNLOAD PIPE PISTON (HM031126)267
Hydraulic_system268
Index268
7545 RTS269
HD – HYDRAULIC SYSTEM269
HYDRAULIC SYSTEM269
4WD AXLE (HD011013)269
PUMP AND OIL TANK HYDRAULIC CIRCUIT (HD011019)270
HEADER LIFTING SYSTEM (HD011020)271
HYDRAULIC TRANSMISSION OIL COOLING (HD011021)273
HYDRAULIC TRANSMISSION OIL CIRCUIT (HD011022)274
TRANSMISSION CENTERING AND LINDE PUMP PULLEY EXPLODED VIEW (HD011023)275
LINDE PUMP AND ROTOR GEARING TIHGHTENERS (HD011024)276
ROTOR HYDRAULIC OIL COOLING CIRCUIT (HD011025)277
ROTOR HYDRAULIC CIRCUIT, PART 1 (HD011026)278
CENTERING AND LINDE PUMP PULLEY FOR THRESHING ROTOR (HD011027)279
CENTERING AND LINDE PUMP PULLEY FOR THRESHING ROTOR (HD011028)280
ELECTRICAL OPERATED VALVE COMMAND (RH SIDE) (HD011029)281
ELECTRICAL OPERATED VALVE COMMAND (LH SIDE) (HD011030)282
BRAKE HYDRAULIC CIRCUIT (HD011031)283
REVERSER HYDRAULIC CIRCUIT (HD011032)284
ROTOR HYDRAULIC CIRCUIT, PART 2 (HD011033)285
HEADER AND STOP VALVE HYDRAULIC CIRCUIT (HD011034)286
HEADER CLUTCH AND SWINGIN FEEDER CHANEL HYDRAULIC CIRCUIT (HD011035)287
STEERING HYDRAULIC CIRCUIT (HD011036)288
GRAIN TANK CLUTH AND UNLOAD PIPE HYDRAULIC CIRCUIT (HD011039)289
ELECTRO HYDRAULICS COMMANDS (OUTER) (HD011040)290
ELECTRO HYDRAULICS COMMANDS (INNER) (HD011041)291
FIXED FRAME HYDRAULIC SYSTEM (HD011042)292
THRESHING CLUTCH HYDRAULIC CIRCUIT (HD011043)293
DOUBLE TRACTION HYDRAULIC CIRCUIT (HD011047)294
VARIABLE HYDRAULIC FLOW W PUMP CIRCUIT (HD011048)295
GRAIN TANK CLUTCH AND UNLOAD PIPE HYDRAULIC CIRCUIT (HD011127)296
ELECTROHYDRAULICS297
SOLENOID VALVE ASSEMBLY – 4WD (HD051012)297
SOLENOID VALVE ASSEMBLY (HD051044)298
Threshing299
Index299
7545 RTS300
HJ – THRESHING UNIT/ROTOR300
STONE TRAP300
STONE TRAP (HJ011068)300
ROTOR301
FRONT MOTION ASSEMBLY FOR AXIAL ROTOR CYLINDER (HJ021081)301
AXIAL ROTOR CYLINDER ASSEMBLY (HJ021082)302
ROTOR REAR STRAW OUTLET (HJ021088)303
REDUCER BOX AND ROTOR REAR MOTION ASSEMBLY (HJ021089)304
ROTOR´S REDUCER BOX (HJ021090)305
LEFT SIDE THROUGH-SHAFT (HJ021091)306
TRESHING CLUTCH SHIELDS (HJ021092)307
TRESHING CLUTCH (HJ021093)308
INTERMEDIATE GEARING DRIVE THRESHING AND ROTOR PUMP (HJ021094)309
INTERMEDIATE GEARING AND DRIVE STRAW EXTRACTOR CYLINDER (REAR SIDE) (HJ021101)310
INTERMEDIATE GEARING AND DRIVE STRAW EXTRACTOR CYLINDER (FRONT SIDE) (HJ021102)311
STRAW EXTRACTOR CYLINDER (RH SIDE) (HJ021103)312
STRAW EXTRACTOR CYLINDER (LH SIDE) (HJ021104)313
CONCAVE314
LEFT SIDE CONCAVE REGULATOR ASSEMBLY (HJ031083)314
UPPER COVERS AND CONCAVES ASSEMBLY FOR SMALL AND BIG GRAIN (HJ031084)315
CLEANING DEFLECTOR (HJ031085)316
RIGHT SIDE CONCAVE ADJUSTMENT (HJ031086)317
RIGHT SIDE CONCAVE ADJUSTMENT (HJ031087)318

Questions? Email us: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
