Deutz Fahr Agrocompact F75 (20) Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrocompact F75 (20) Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrocompact F75 (20) Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 708
Downloadable : Yes
File Type : PDF
Size: 32.5 MB

IMAGES PREVIEW OF THE MANUAL:

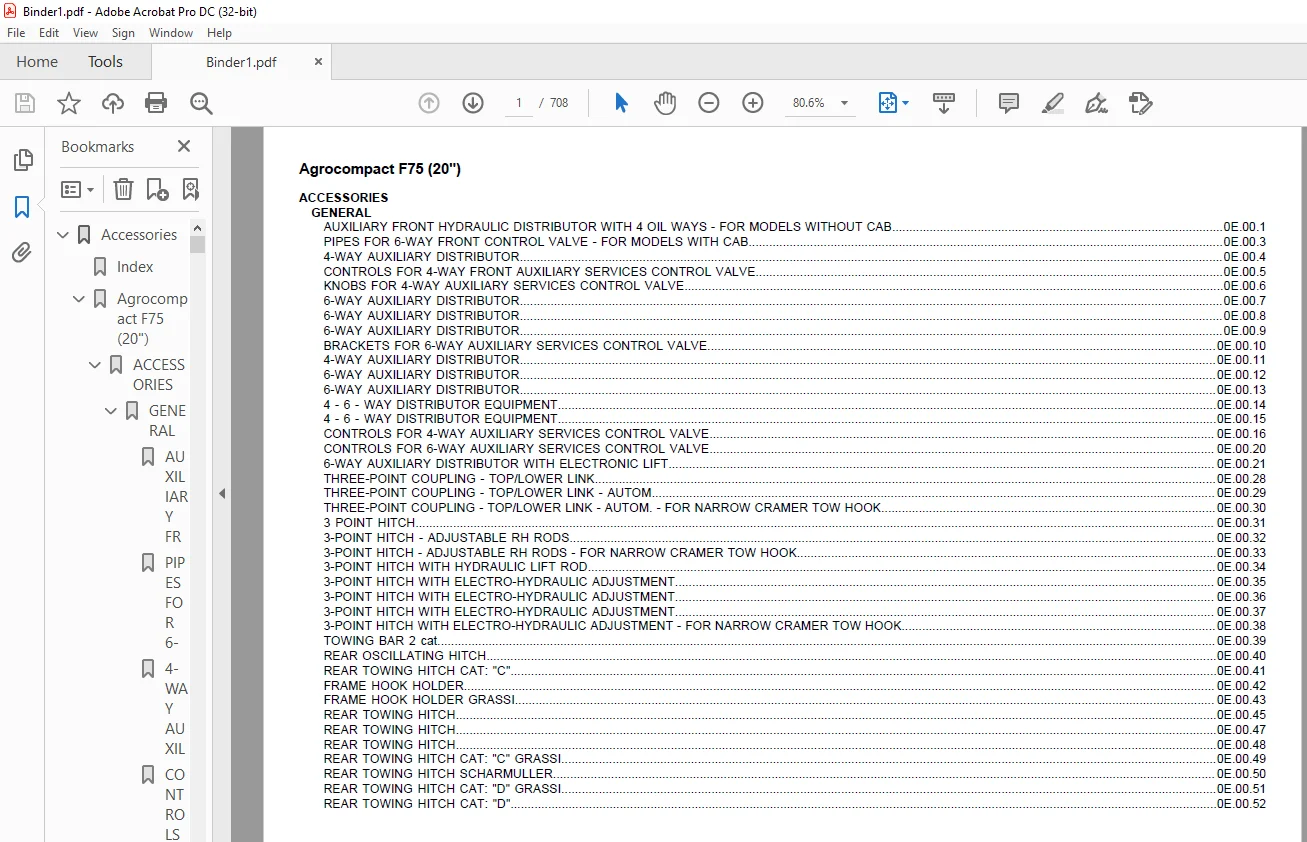

TABLE OF CONTENTS:

Deutz Fahr Agrocompact F75 (20) Parts Catalog Manual – PDF DOWNLOAD

Accessories 1
Index 1
Agrocompact F75 (20″) 4
ACCESSORIES 4
GENERAL 4

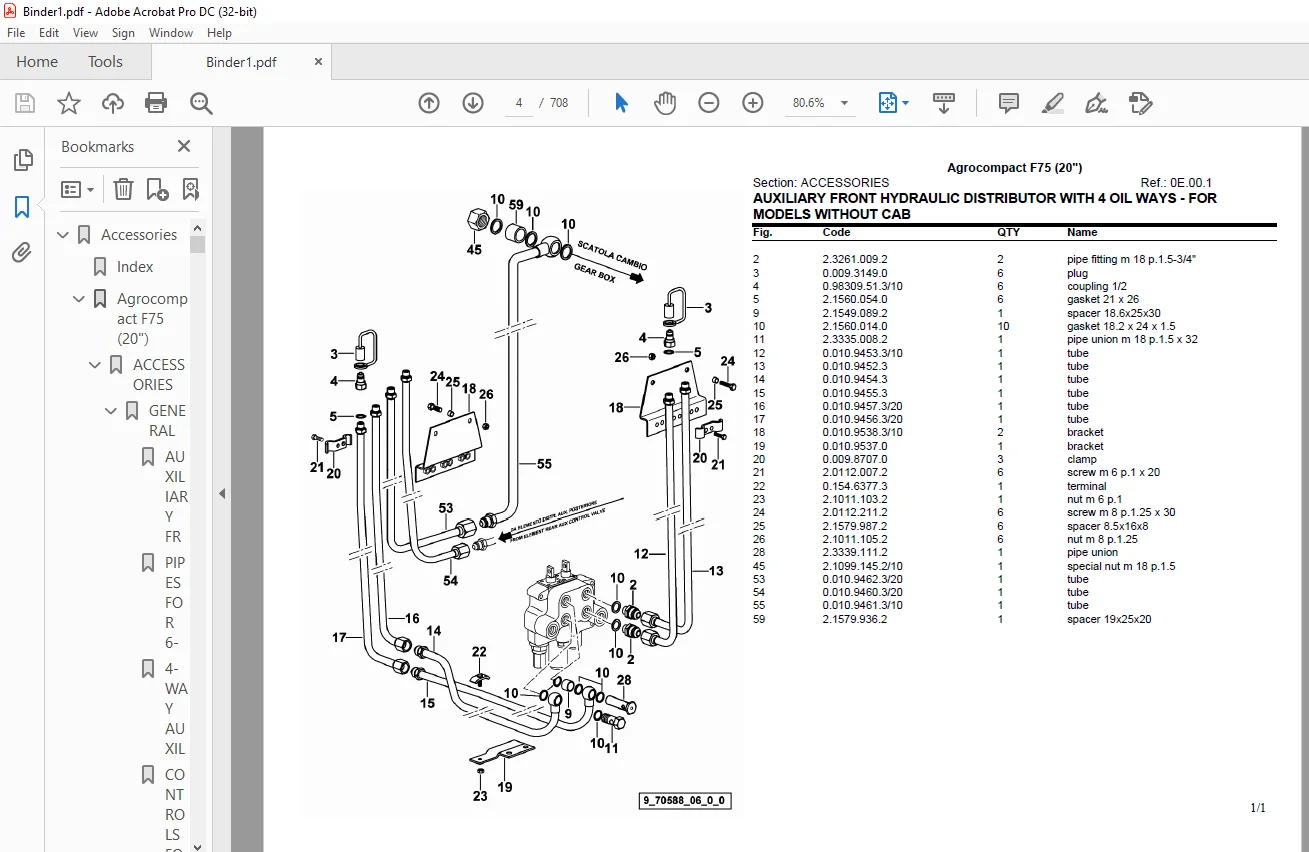

AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – FOR MODELS WITHOUT CAB (0E001) 4

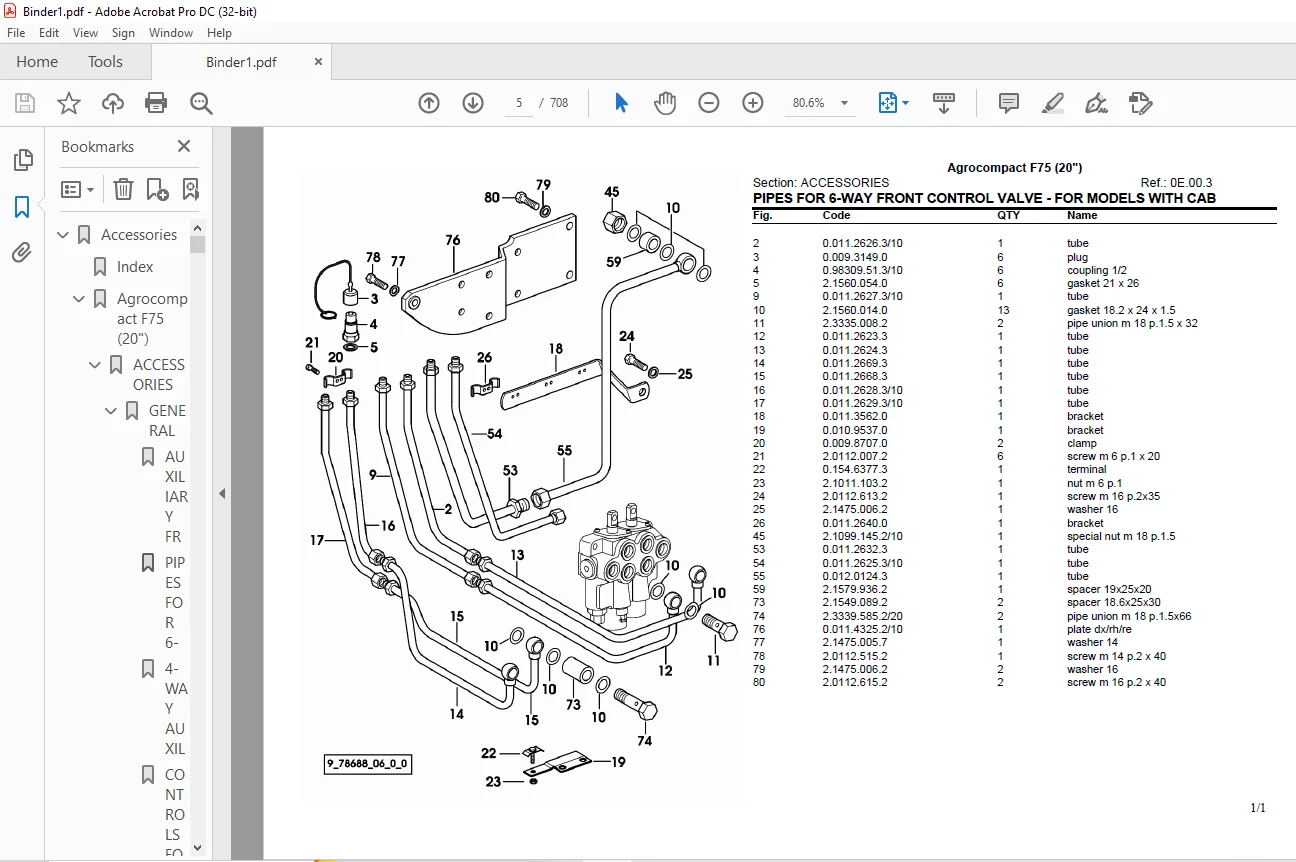

PIPES FOR 6-WAY FRONT CONTROL VALVE – FOR MODELS WITH CAB (0E003) 5
4-WAY AUXILIARY DISTRIBUTOR (0E004) 6
CONTROLS FOR 4-WAY FRONT AUXILIARY SERVICES CONTROL VALVE (0E005) 8
KNOBS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E006) 9
6-WAY AUXILIARY DISTRIBUTOR (0E007) 10
6-WAY AUXILIARY DISTRIBUTOR (0E008) 11
6-WAY AUXILIARY DISTRIBUTOR (0E009) 13
BRACKETS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E0010) 15
4-WAY AUXILIARY DISTRIBUTOR (0E0011) 16
6-WAY AUXILIARY DISTRIBUTOR (0E0012) 17
6-WAY AUXILIARY DISTRIBUTOR (0E0013) 19
4 – 6 – WAY DISTRIBUTOR EQUIPMENT (0E0014) 20
4 – 6 – WAY DISTRIBUTOR EQUIPMENT (0E0015) 21
CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E0016) 22
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E0020) 23
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E0021) 24
THREE-POINT COUPLING – TOP/LOWER LINK (0E0028) 25
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM (0E0029) 26
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM – FOR NARROW CRAMER TOW HOOK (0E0030) 29
3 POINT HITCH (0E0031) 32
3-POINT HITCH – ADJUSTABLE RH RODS (0E0032) 33
3-POINT HITCH – ADJUSTABLE RH RODS – FOR NARROW CRAMER TOW HOOK (0E0033) 34
3-POINT HITCH WITH HYDRAULIC LIFT ROD (0E0034) 35
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0035) 36
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0036) 37
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0037) 38
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT – FOR NARROW CRAMER TOW HOOK (0E0038) 39
TOWING BAR 2 cat (0E0039) 40
REAR OSCILLATING HITCH (0E0040) 41
REAR TOWING HITCH CAT: “C” (0E0041) 42
FRAME HOOK HOLDER (0E0042) 43
FRAME HOOK HOLDER GRASSI (0E0043) 44
REAR TOWING HITCH (0E0045) 45
REAR TOWING HITCH (0E0047) 46
REAR TOWING HITCH (0E0048) 47
REAR TOWING HITCH CAT: “C” GRASSI (0E0049) 48
REAR TOWING HITCH SCHARMULLER (0E0050) 49
REAR TOWING HITCH CAT: “D” GRASSI (0E0051) 50
REAR TOWING HITCH CAT: “D” (0E0052) 51
REAR TOWING HITCH CAT: “D2” GRASSI (0E0053) 52
REAR TOWING HITCH CAT: “D2” (0E0054) 53
REAR TOWING HITCH CAT: “D2” (0E0055) 54
FRONT TOWING HITCH (0E0056) 55
FRONT BALLAST n 8 (0E0057) 56
FRONT WEIGHT CARRIER (0E0058) 57
FROMT PLATE FOR IMPLEMENTS (0E0059) 58
FRONT BALLAST KG 250 (0E0060) 59
BALLAST LOCK BAR (0E0061) 60
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E0062) 61
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (0E0063) 62
HYDRAULIC TRAILER BRAKING PARTS KIT (0E0064) 63
HYDRAULIC TRAILER BRAKING PARTS KIT (0E0065) 64
HYDRAULIC BREAKING FOR TRAILER (0E0066) 65
HYDRAULIC BREAKING FOR TRAILER (0E0067) 66
HYDRAULIC BREAKING FOR TRAILER (0E0068) 67
LUBRICATOR (0E0069) 68
TOOL POUCH (0E0070) 69
VALVE PARTS (000997784A) 70
TOWING HITCH (001017023A) 71
CYLINDER PARTS (001134684/10A) 72
DRAWBAR COUPLING (001136364/30A) 73
3-POINT HITCH – ADJUSTABLE RH RODS (001139883A) 74
CYLINDER PARTS (001149044A) 75
REAR TOWING HITCH CAT: “D” GRASSI (001151434/10A) 76
DRAWBAR COUPLING CAT: “D2” (001151444A) 77
CYLINDER PARTS (001153634A) 78
DRAWBAR COUPLING (001222164A) 79
LINKAGE (001414123A) 80
TOWING HITCH (001414203A) 81
REAR TOWING HITCH CAT: “D” (001444513A) 82
DRAWBAR COUPLING CAT: “D2″ (001444523/10A) 83
DRAWBAR COUPLING D2 (001444613A) 84
DRAWBAR COUPLING (001444704A) 85
SLIDE (001482033/10A) 86
CHASSIS (001482323A) 87
ENGAGEMENT (098308503/10A) 88
ENGAGEMENT (098309503/10A) 89
TRAILER BRAKE VALVE (237195500/40A) 90
HYDRAULIC DISTRIBUTOR-PARTS (237197300/10A) 91
HYDRAULIC DISTRIBUTOR-PARTS (237197400/20A) 92
VALVE PARTS (237198100/10A) 94
SOLENOID VALVE (237293300/40A) 95
SOLENOID VALVE (237293400/40A) 96
DISTRIBUTOR (237295000A) 97
CYLINDER PARTS (237490030A) 98
Bodywork 99
Index 99
Agrocompact F75 (20″)102
BODY WORK102
GENERAL102
HOOD FRONT PART (07001)102
HOOD FRONT PART (07002)103
HOOD UPPER PART (07004)104
HOOD PLUG (07007)105
HOOD – SUPPORTS (07008)106
HOOD – SUPPORTS (07009)107
ENGINE HOOD GASKETS (070010)108
ENGINE HOOD GASKETS (070011)109
ENGINE HOOD GASKETS (070012)110
ENGINE HOOD GASKETS (070013)111
ENGINE HOOD GASKETS (070014)112
ENGINE HOOD GASKETS (070015)113
HOOD – LEFT SIDE PANEL (070018)114
HOOD – RIGHT SIDE PANEL (070019)115
HOOD – SUPPORTS (070020)116
HOOD – SUPPORTS (070021)117
PRODUCT PLATE (070023)118
HOOD SUPPORT (070026)119
HOOD SUPPORT – WITH RESERVE TANK (070027)120
HOOD SUPPORT (070028)121
HOOD – SUPPORTS (070029)122
HOOD – GUARDS (070030)123
HOOD – SUPPORTS (070031)124
HOOD – SUPPORTS (070032)125
DEFLECTORS AND SUPPORTS (070034)126
CABLE CONDUIT (070035)127
CABLE CONDUIT (070036)128
BELT GUARDS (070038)129
BELT GUARDS (070039)130
BELT GUARDS – WITHOUT SUPPLEMENTARY FUEL TANK (070040)131
COOLING – COOLANT RADIATOR (070043)132
COOLING – COOLANT RADIATOR (070044)133
COOLING – EXPANSION TANK (070047)134
COOLING – EXPANSION TANK (070048)135
BATTERY SUPPORT (070049)136
BATTERY COVER (070050)137
BATTERY COVER (070052)138
BATTERY COVER (070053)139
METAL TOOLBOX (070056)140
PEDAL SUPPORT (070057)141
DASHBOARD – WITHOUT FRONT CONTROL VALVE (070058)143
PLATES (070059)144
PLATES (070060)145
DASHBOARD – WITH 6-WAY FRONT CONTROL VALVE (070061)146
DASHBOARD – SEPARATOR – FOR MODELS WITHOUT CAB (070062)147
DASHBOARD – SEPARATOR – FOR MODELS WITH CAB (070063)148
INSTRUMENT PANEL SURROUND (070064)149
CONNECTING PLATE (070065)150
CONNECTIONS SUPPORT PLATE (070066)151
DEFLECTOR (070067)152
DASHBOARD – STEERING COVER (070068)153
PLUG FOR VERSION WITHOUT CIGAR LIGHTER (070069)154
BRACKET – SPEED LABEL (070070)155
SPEED LABEL – 40 KM/H – REFLEX (070071)156
SPEED LABEL – 40 KM/H (070072)157
SPECIAL VERSION (070073)158
INFORMATION PLATE (070074)159
INFORMATION PLATE (070075)160
PLATES OCDE (070076)161
PLATES (070077)162
PLATES (070078)163
THROTTLE – MECHANICAL – (070080)164
THROTTLE – MECHANICAL – (070082)165
ACCELERATOR CONTROL BRACKETS (070083)166
THROTTLE (070084)167
ELECTRONIC ACCELERATOR CONTROL (070085)168
ELECTRONIC ACCELERATOR CONTROL (070086)169
FRONT MUDGUARDS – FOR NARROW TYPES mm 240 (070087)170
FRONT MUDGUARDS mm 240 (070088)171
FRONT MUDGUARDS mm 265 (070089)172
FRONT MUDGUARD SUPPORTS – WITHOUT ROPS (070090)173
TOOL BOX SUPPORT (070091)174
FENDERS (070092)175
BADGE FOR SPLASH GUARDS (070093)176
PLATFORM (070094)177
FLOOR PLUG (070097)178
COVER PLATE – FOR MODELS WITH PLATFORM (070098)179
PLUG (070099)180
PLATTFORM: SUPPORTS (0700100)181
PLATTFORM: SUPPORTS (0700101)182
MUDGUARDS EXTENSIONS mm 50 (0700103)183
MUDGUARDS EXTENSIONS mm 80 (0700104)184
MUDGUARDS EXTENSIONS mm 120 (0700106)185
FENDER MOUNTINGS (0700109)186
LICENCE PLATE HOLDER (0700110)187
REARVIEW MIRROR – FOR TYPES WITH SAFETY FRAME (0700111)188
SAFETY ARCH (0700112)189
SAFETY ROLL BAR SUPPORTS (0700114)190
FUEL TANK (0700115)191
FUEL TANK (0700116)192
FUEL TANK – WITH RESERVE TANK (0700117)193
FUEL TANK – WITH FRONT PTO AND LIFT (0700118)194
FUEL TANK – WITH FRONT PTO AND LIFT (0700119)195
AUXILIARY TANK (0700120)196
AUXILIARY TANK (0700121)198
AUXILIARY TANK (0700122)200
AUXILIARY TANK (0700123)201
AUXILIARY TANK (0700126)202
AUXILIARY TANK (0700127)203
8″ AIR CLEANER (0700128)204
AIR CLEANER HOSE (0700131)205
AIR CLEANER HOSE (0700132)206
AIR PRE-CLEANER (0700133)207
CYCLONE AIR CLEANER EXTENSION (0700134)208
ENGINE HOOD GASKETS (0700135)209
DRIVER’S SEAT – IN BLACK LEATHERETTE GRAMMER MSG83/8 (0700136)210
DRIVER’S SEAT KAB XL2 (0700137)211
DRIVER’S SEAT – IN GREY MATERIAL GRAMMER MSG83/8 (0700138)212
DRIVER’S SEAT PNEUMATIC SPRINGING – IN GREY MATERIAL GRAMMER (0700139)213
DRIVER’S SEAT PNEUMATIC SPRINGING (0700140)214
SAFETY BELT (0700141)215
SEAT SUPPORT PLATE (0700142)216
SEAT SUPPORT PLATE (0700143)217
SEAT SPRINGING (001053564A)218
SEAT (001053624A)219
SEAT-COMPONENTS (001065434/10A)220
SEAT-COMPONENTS (001065434/10B)222
SEAT-COMPONENTS (001086874/10A)223
SEAT-COMPONENTS (001086874/10B)224
SEAT-COMPONENTS (001087214/10A)225
SEAT-COMPONENTS (001087214/10B)226
SEAT-COMPONENTS (001121614/10A)227
SEAT-COMPONENTS (001121614/10B)228
SEAT-COMPONENTS (001247824/10A)229
COOLING SYSTEM EXPANSION TANK (001363224/20A)230
REARVIEW MIRROR (092341474/10A)231
PRE-FILTER – COMPONENTS (242391100A)232
AIR FILTER PARTS (242496000A)233
Cab234
Index234
Agrocompact F75 (20″)236
CAB236
GENERAL236
CAB (0B001)236
FLANGE – FOR VERSIONS WITHOUT OIL RADIATOR (0B003)237
FLANGE – FOR VERSIONS WITH OIL RADIATOR (0B004)238
DOOR HANDLE AND REARVIEW MIRROR SUPPORT BRACKET (0B005)239
REARVIEW MIRROR (0B006)240
GLASSES AND SEALS (0B007)241
GLASSES AND SEALS (0B008)243
HANDLE REAR WINDOW (0B009)245
WINDSCREEN (0B0013)246
WINDSHIELD WIPER SYSTEM (0B0014)247
CAB INTERIOR TRIM (0B0015)248
CAB INTERIOR TRIM – 20″ (0B0016)249
CAB INSTALLATION COMPLETION (0B0019)250
INTERIOR TRIM (0B0022)251
SUN BLIND (0B0025)252
ROOF – FOR TRACTORS WITH AIR HEATING (0B0026)253
ROOF – FOR TYPES WITH HEATING AND AIR CONDITIONING (0B0027)254
GUARD – FOR TRACTORS WITH AIR HEATING (0B0028)255
GUARD – FOR TYPES WITH HEATING AND AIR CONDITIONING (0B0029)256
INTERIOR TRIM (0B0030)257
INTERIOR TRIM – FOR TRACTORS WITH AIR HEATING (0B0031)258
INTERIOR TRIM – FOR TYPES WITH HEATING AND AIR CONDITIONING (0B0032)259
CARBON FILTER (0B0033)260
VENTILATION – HEATING (0B0034)261
CLIMATE CONTROL SYSTEM – FOR TYPES WITH HEATING AND AIR CONDITIONING (0B0035)262
VENTILATION – HEATING (0B0036)263
VENTILATION – HEATING (0B0037)264
VENTILATION – AIR CONDITIONING – HEATING (0B0038)265
CONDENSER – FOR TYPES WITH HEATING AND AIR CONDITIONING (0B0039)266
VENTILATION – AIR CONDITIONING – HEATING (0B0041)267
COMPRESSOR (0B0042)268
AIR CONDITIONING UNIT – LINES (0B0045)269
COMPRESSOR-PARTS (000771974A)270
ENGAGEMENT (000972024/10A)271
ENGAGEMENT (000972034/10A)272
HEATER PARTS (001081084/10A)273
WATER TANK (001084672A)274
AIR CONDITIONER PARTS (001090464/20A)275
AIR-CONDITIONING HEATING PARTS (001092154/10A)276
REARVIEW MIRROR (001141994/20A)278
REARVIEW MIRROR (001142054/20A)279
Electrical_system280
Index280
Agrocompact F75 (20″)282
ELECTRIC AL SYSTEM282
GENERAL282
HEADLAMP FOR RIGHT-HAND DRIVE (08001)282
HEADLAMP FOR LEFT-HAND DRIVE (08002)283
FRONT LIGHTS (08003)284
ELECTRIC LIGHTING SYSTEM – WITH CAB (08004)286
REAR LIGHT (08005)287
WORKING SPOTLIGHT REAR (08006)288
CAB WORKLIGHTS – FOR TRACTORS WITH AIR HEATING (08007)289
CAB WORKLIGHTS – FOR TYPES WITH HEATING AND AIR CONDITIONING (08008)290
LICENCE PLATE LIGHT (08009)291
WARNING BEACON (080010)292
PREARRANGEMENT FOR WARNING BEACON (080011)293
PREARRANGEMENT FOR WARNING BEACON – FOR MODELS WITH CAB (080012)294
ELECTRIC STARTING SYSTEM (080013)295
STARTER (080015)296
ALTERNATOR 65 A (080016)297
ALTERNATOR – FOR TRACTORS WITH AIR CONDITIONING 85 A (080017)298
ALTERNATOR MOUNTINGS – FOR TRACTORS WITHOUT AIR CONDITIONING (080018)299
ALTERNATOR MOUNTINGS – FOR TRACTORS WITH AIR CONDITIONING (080019)300
COMPRESSOR AND ALTERNATOR SUPPORTS – FOR TRACTORS WITH AIR CONDITIONING (080020)302
BATTERY 12V 100Ah 500A (080021)303
BATTERY 12V 100Ah 650A (080022)304
BATTERY LEADS (080023)305
ELECTRICAL SYSTEM (080024)306
DIGITAL INSTRUMENT PANEL (080025)307
ANALOGUE INSTRUMENT PANEL (080026)308
ELECTRONIC CONTROL UNIT – ENGINE (080027)309
PREHEATING ELECTRONIC CONTROL UNIT (080028)310
CONTROL UNIT – GEARS H-M-L (GEARSHIFT) (080029)311
CONTROL UNIT – PTO SHAFT (080030)312
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (080031)313
4WD – ENGAGEMENT CONTROL (080032)314
SWITCH – FOR PTO FRONT (080033)315
SPEED SENSOR (080034)316
SPEED SENSOR (080035)317
CIGAR LIGHTER (080036)318
ELECTRICAL EQUIPMENT FRONT (080038)319
CENTRAL WIRING – FOR MODELS WITH MECHANICAL ENGINE GOVERNOR (080039)320
CENTRAL WIRING – FOR MODELS WITH ELECTRONIC ENGINE GOVERNOR (080040)321
PLATFORM POWER CABLE (080042)322
CAB POWER WIRE (080044)323
CAB ELECTRICAL SYSTEM (080045)324
POWER-LIFT ELECTRONIC SYSTEM (080046)325
ELECTRICAL SYSTEM FOR 6-WAY FRONT CONTROL VALVE (080047)326
ELECTRICAL SYSTEM – 3 POINT HITCH (080048)327
GUARD FOR ELECTRO VALVES (080049)328
HEADLAMP COMPONENTS (000967584/10A)329
BATTERY LEADS (001067083/20A)330
ELECTRICAL SYSTEM (001072624/20A)331
ELECTRICAL LEADS (001090573A)332
ELECTRICAL SYSTEM (001120254/40A)333
FLASHING LIGHT SUPPORT (001178404A)334
ELECTRICAL SYSTEM (001201014A)335
ELECTRICAL SYSTEM (001363264A)336
ELECTRICAL SYSTEM (001383954/20A)337
ELECTRICAL SYSTEM (001383964/10A)338
ELECTRICAL SYSTEM (001383994/10A)339
ELECTRICAL SYSTEM (001384014A)340
HEADLAMP COMPONENTS (280199600A)341
HEADLAMP COMPONENTS (280199700A)342
HEADLAMP COMPONENTS (280292400/10A)343
HEADLAMP COMPONENTS (280293000A)344
HEADLAMP COMPONENTS (280297300A)345
ELECTRIC LIGHTING SYSTEM (280298200/20A)346
ELECTRIC LIGHTING SYSTEM (280298300/20A)347
HEADLAMP COMPONENTS (280595230A)348
HEADLAMP COMPONENTS (280595240A)349
INTERIOR LIGHT (283390320A)350
ALTERNATOR PARTS (294394200/10A)351
ALTERNATOR PARTS (294394600/10A)352
STARTER PARTS (296193900A)353
Engine354
Index354
Agrocompact F75 (20″)356
ENGINE356
GENERAL356
CRANKCASE (01003)356
TIMING CASE (01004)357
CASING COVER (01005)358
GUARD PLATE (01007)359
MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (01008)360
SIDE PLUG FOR CYLINDER BLOCK (01009)361
PLUG (010010)362
CRANKSHAFT (010012)363
CYLINDER – PISTON – CONNECTING ROD (010015)364
CRANKSHAFT PULLEY (010017)365
ENGINE FLYWHEEL (010020)366
COUNTERWEIGHTS (010021)367
CAMSHAFT (010023)368
CYLINDER HEAD (010026)369
OIL PAN (010030)370
LUBRIC OIL FILTER (010031)371
LUBRIC OIL COOLER (010034)372
FITTING FOR ENGINE OIL PRESSURE SWITCH (010035)373
FITTING FOR ENGINE OIL PRESSURE SWITCH (010036)374
OIL PUMP (010040)375
LUBRICATION (010041)376
OIL PUMP (010042)377
INJECTION PUMP – INJECTOR (010049)378
FUEL FEED PUMP (010052)379
FUEL PIPES (010054)380
FUEL FILTER (010055)381
MECHANICAL ENGINE GOVERNOR (010056)382
PLUG FOR MECHANICAL REGULATOR (010057)383
ELECTRONIC MOTOR CONTROLLER (010058)384
PARTS SET – ENGINE MOUNTING (010060)385
COOLING WATER PUMP (010061)386
COOLANT PUMP PULLEY (010062)387
COOLANT PIPE (010064)388
COOLANT PIPE (010065)389
COOLANT PUMP DRIVEBELT (010067)390
COOLANT PUMP DRIVEBELT – FOR MODELS WITH COMPRESSOR (010068)391
COOLING SYSTEM MANIFOLD (010072)392
WATER MANIFOLD COVER (010073)393
WATER MANIFOLD COVER (010074)394
WATER COOLING -SEALING (010077)395
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (010080)396
HEATING ELEMENT EARTH (010083)397
CABLE CONDUIT (010085)398
HEAT SHIELD (010086)399
HEAT SHIELD (010087)400
EXHAUST SILENCER (010090)401
EXHAUST PIPE (010094)402
GASKET SET FOR ENGINE ASSEMBLY (010097)403
GOVERNOR PARTS (001356954/20A)404
GOVERNOR PARTS (001356954/20B)405
GOVERNOR PARTS (001356954/20C)406
FUEL FILTER PARTS (243190600/20A)407
PRE-FILTER – COMPONENTS (243192200A)408
FUEL FEED PUMP (245193300/50A)409
Front_and_rear_pto410
Index410
Agrocompact F75 (20″)412
FRONT AND REAR PTO412
GENERAL412
PTO FRONT (05001)412
PTO FRONT (05002)413
PTO FRONT (05003)415
PTO FRONT (05004)416
PTO FRONT (05005)417
PTO – CLUTCH TRANSMISSION SHAFT (05006)418
PTO – PUMP CONTROL (05007)419
PTO – HYDRAULIC CLUTCH (05008)421
PTO – 540/N – WITH INSERTED END SHAFTS EXPORT USA (05009)422
PTO – WITH N’ 540 – 750 (050010)423
PTO – WITH N’ 540 – 750 + SINCRO (050011)424
PTO – 540-750 – WITH INSERTED END SHAFTS EXPORT USA (050012)426
PTO – 540-750 – WITH INSERTED END SHAFTS + SINCRO (050013)428
PTO – WITH N’ 540 – 1000 (050014)429
PTO – WITH N’ 540 – 1000 + SINCRO (050015)430
PTO – 540/N – WITH INSERTED END SHAFTS EXPORT USA (050016)432
PTO – 540 -1000 WITH INSERTED END SHAFTS (050017)433
PTO – 540-1000 – WITH INSERTED END SHAFTS (050018)435
PTO – 540-1000 – WITH INSERTED END SHAFTS + SINCRO (050019)437
PTO – 540 -1000 WITH INSERTED END SHAFTS EXPORT USA + SINCRO (050020)438
PTO – 2 SPEED TYPE (050022)439
PTO – 540-750 – WITH INSERTED END SHAFTS (050023)440
PTO – 2 SPEED TYPE – FIXED END SHAFT (050024)441
PTO – WITH INSERTED END SHAFTS 540 – 750 + SINCRO (050025)442
PTO – 2 SPEED TYPE + SINCRO – FIXED END SHAFT (050026)443
PTO – 3 SPEED TYPE (050027)444
PTO – 3-SPEED WITH INSERTED END SHAFT (050028)445
PTO – 3-SPEED WITH INSERTED END SHAFT (050029)447
PTO – 3 SPEED TYPE – FIXED END SHAFT (050030)449
PTO – PARTS SET WITH STANDARD SEALS (050032)450
PTO – SEAL RING FOR INSERTED END SHAFT – STANDARD VERSION (050034)451
PTO SHAFT DRIVE (050035)452
PTO – 2 SPEED TYPE (050036)453
PTO – 2 SPEED TYPE + SINCRO – AND 3-SPEED (050037)454
PTO – 2 SPEED TYPE + SINCRO (050038)455
PTO – EXTERNAL CONTROLS 540/N (050039)456
PTO – EXTERNAL CONTROLS 540 – 750 (050040)457
PTO – EXTERNAL CONTROLS 540 – 750 + SINCRO (050041)458
PTO – EXTERNAL CONTROLS 540-1000 (050042)459
PTO – EXTERNAL CONTROLS 540 – 1000 + SYNCRO (050043)460
PTO – EXTERNAL CONTROLS 540 – 750 – 1000 (050044)461
PTO-SYNCHRONIZED CONTROL (050045)462
PTO-SYNCHRONIZED CONTROL (050046)463
PTO – HYDRAULIC CLUTCH (001196864/30A)464
SOLENOID VALVE (237293400/30A)465
Front_axle466
Index466
Agrocompact F75 (20″)468
FRONT AXEL468
GENERAL468
FRONT SUPPORT (04001)468
FRONT SUPPORT (04002)469
FRONT SUPPORT – WITH FRONT PTO AND LIFT (04003)470
4WD – FRONT SUPPORT (04004)471
2WD – EXTENDIBLE AXLE – NARROW TYPE (04005)472
2WD – EXTENDIBLE AXLE – STANDARD TYPE (04006)473
2WD – EXTENDIBLE FRONT AXLE WITH FRONT BRAKES (04007)474
2WD – FRONT BRAKING SYSTEM (04009)475
2WD – POWER STEERING CYLINDER – NARROW TYPE (040010)476
2WD – POWER STEERING CYLINDER – STANDARD TYPE (040011)477
2WD – COMPLETION KIT WITHOUT SOLENOID VALVE (040012)478
4WD – FRONT DRIVE AXLE – NARROW TYPE (040013)479
4WD – FRONT DRIVE AXLE – STANDARD TYPE (040014)480
4WD – FRONT BRAKES – NARROW TYPE (040015)481
4WD – FRONT DRIVE AXLE (040017)482
4WD – FRONT BRAKES – STANDARD TYPE (040018)483
FRONT WHEEL HUB COVER (040019)484
4WD – FRONT BRAKING SYSTEM (040021)485
4WD – POWER STEERING CYLINDER (040022)486
4WD – POWER STEERING CYLINDER (040023)487
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (040024)488
4WD – DIFFERENTIAL (040025)489
BEVEL WHEEL GEAR (040026)490
4WD – FRONT DIFFERENTIAL LOCK- STANDARD SEALING (040027)491
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (040028)492
4WD – PLANETARY GEAR (040029)493
FRONT DIFFERENTIAL LOCK CONTROL LINES (040031)494
FRONT DIFFERENTIAL LOCK CONTROL LINES (040032)495
4WD – AXLESHAFTS – NARROW TYPE (040033)496
4WD – AXLESHAFTS – STANDARD TYPE (040034)497
4WD – TRANSMISSION SHAFT (040035)498
4WD – TRANSMISSION SHAFT (040037)499
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (040038)500
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (040039)501
4WD – AXLESHAFTS L = mm 5705 (001002304/10A)502
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (001004864A)503
CYLINDER PARTS (001005084A)504
ADJUSTABLE LIFT ROD PARTS (001007984/30A)505
ADJUSTABLE LIFT ROD PARTS (001007994/30A)506
CYLINDER PARTS (001013254/10A)507
ADJUSTABLE LIFT ROD PARTS (001013264/20A)508
4WD – AXLESHAFTS L = mm 5705 (001101384/10A)509
CYLINDER PARTS (046763434A)510
CYLINDER PARTS (047963424/10A)511
SOLENOID VALVE (237296970A)512
Front_power-lift513
Index513
Agrocompact F75 (20″)514
FRONT HYDRAULIC POWER-LIFT514
GENERAL514
FRONT HYDRAULIC POWER-LIFT (0C001)514
FRONT POWER LIFT – LEADS (0C002)515
FRONT POWER LIFT – LEADS (0C004)517
FRONT POWER LIFT – LEADS (0C006)518
FRONT POWER LIFT – LEADS (0C008)519
FRONT LIFT – HYDRAULIC SYSTEM (0C009)520
RED AND WHITE STRIPED WARNING SIGN (0C0010)521
PRESSURE CONTROL VALVE (000920384/10A)522
CYLINDER PARTS (026463424/20A)523
Gear524
Index524
Agrocompact F75 (20″)526
GEAR526
GENERAL526
4 SPEED GEARBOX WITH MINI REDUCTION GEAR (02002)526
5 SPEED GEARBOX WITH MINI REDUCTION GEAR (02004)528
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITH H-M-L- (POWERSHIFT) (02006)530
H-M-L – HYDRAULIC CONTROL (GEARSHIFT) (02007)532
CLUTCH 12″ (02009)533
CLUTCH – EXPORT USA 12” (020010)534
CLUTCH CONTROL (020011)535
CLUTCH CONTROL (020012)536
CLUTCH CONTROL (020013)537
GEARBOX – FRONT (020014)538
GEARBOXFIXINGS (020015)539
COMPLETION WITHOUT H-M-L POWERSHIFT (020016)540
GEARBOX – REAR (020017)541
PLUGS FOR REAR GEARBOX CASING (020018)545
SENSOR BRACKET (020019)546
COVER FOR TYPES WITHOUT SYNCHRO PTO (020020)547
4 SPEED GEARBOX WITH MINI REDUCTION GEAR (020021)548
PARTS SET – 4-SPEED WITH UNDERDRIVE (020023)550
5 SPEED GEARBOX WITH MINI REDUCTION GEAR (020024)551
5 SPEED GEARBOX WITH MINI REDUCTION GEAR – “OVER SPEED” (020025)553
PARTS SET – 5-SPEED GEARBOX (020027)555
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITH H-M-L- (POWERSHIFT) (020028)556
5 SPEED GEARBOX – WITH HML POWERSHIFT – “OVER SPEED” (020029)558
PARTS SET – 5-SPEED GEARBOX – FOR TYPES WITH H-M-L- (POWERSHIFT) (020031)560
GEAR LS H-M-L (020032)561
GEAR LS H-M-L (020033)562
GEAR LS H-M-L (020034)563
TRANSMISSION SHAFT – FOR TYPES WITHOUT H-M-L (020035)564
SPEED RANGE REDUCTION GEAR UNIT (020036)565
SPEED RANGE REDUCTION GEAR SHAFT – FOR ELECTROHYDRAULIC CONTROLS (020037)566
2-RANGE BOX (020038)567
COMPLETION FOR 2 SPEED RANGE REDUCTION GEAR UNIT – 40 Km/h (020041)568
3-RANGE BOX – 40 Km\h (020044)569
STANDARD GEARBOX (020045)570
GEARSHIFT LEVER (020046)571
REVERSING GEAR UNIT CONTROLS (020047)572
REDUCTION GEAR CONTROL (020048)573
PARTS SET – 4-SPEED WITH UNDERDRIVE (020049)574
PARTS SET – 5-SPEED WITH UNDERDRIVE (020050)575
PARTS SET – 5-SPEED GEARBOX – FOR TYPES WITH H-M-L- (POWERSHIFT) (020051)576
GEAR SHIFTING (020052)577
4-RANGE GEARBOX COVER (020053)578
5-RANGE GEARBOX COVER (020054)579
GEAR SHIFT – POWERSHIFT H-M-L (020055)580
CONTROLS-MINI REDUCTION REVERSING GEAR UNITS (020056)581
SHUTTLE COVER (020057)582
COVER FOR UNDERDRIVE (020058)583
2-RANGE REDUCTION UNIT COVER (020059)584
3-RANGE REDUCTION UNIT COVER (020060)585
CONTROL FOR 3-RANGE GEARBOX (020061)586
4 SPEED GEARBOX WITH MINI REDUCTION GEAR (020062)587
5 SPEED GEARBOX WITH MINI REDUCTION GEAR (020063)590
5 SPEED GEARBOX WITH MINI REDUCTION GEAR – “OVER SPEED” (020064)593
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITH H-M-L- (POWERSHIFT) (020065)594
5 SPEED GEARBOX – WITH HML POWERSHIFT – “OVER SPEED” (020066)597
SHUTTLE SHAFT (020067)600
DIFFERENTIAL (020068)601
BEVEL WHEEL GEAR Z = 10 / Z = 34 (020070)602
DIFFERENTIAL LOCK CONTROL (020071)603
DIFFERENTIAL LOCK CONTROL (020072)604
CYLINDER PARTS (000719614/20A)605
SYNCHRONIZER PARTS (000776204/10A)606
SYNCHRONIZER PARTS (000776214A)607
PUMP-COMPONENTS (001011484/10A)608
Rear_axle609
Index609
Agrocompact F75 (20″)610
REAR AXLE610
GENERAL610
REAR AXLE – NARROW TYPE (03002)610
REAR AXLE – MOUNTINGS (03003)611
HANDBRAKE BRACKET FOR TRAILER – FOR MODELS WITHOUT CAB (03005)612
HANDBRAKE BRACKET FOR TRAILER – FOR MODELS WITH CAB (03006)613
REAR REDUCTION GEARS AND AXLE SHAFTS – NARROW TYPE (03009)614
REAR BRAKES (030010)615
REAR BRAKES (030011)616
HAND BRAKE (030012)617
BRAKE CONTROLS (030013)620
BRAKING SYSTEM (030014)621
BRAKES CONTROL VALVE (030015)622
HAND BRAKE (030016)623
HAND BRAKE (030017)624
SAC625
Index625
Agrocompact F75 (20″)626
SAC626
GENERAL626
POWER-LIFT CASE (0D001)626
LIFTING (0D002)627
LIFTING WITH ELECTRONIC CONTROL (0D003)628
REGULATING DISTRIBUTOR (0D004)629
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D005)631
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (0D006)632
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (0D007)633
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D008)634
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D009)635
INTERNAL CONTROLS (0D0010)636
CONTROL CONSOLE FOR POWER-LIFT (0D0011)637
CONTROL CONSOLE FOR ELECTRONIC POWER-LIFT (0D0012)638
CONTROL CONSOLE FOR POWER-LIFT – FOR MODELS WITHOUT CAB (0D0013)639
CONTROL CONSOLE FOR POWER-LIFT – FOR MODELS WITH CAB (0D0014)640
CONTROL CONSOLE – LOWER PART – FOR MODELS WITHOUT CAB – X 20″ (0D0015)641
CONTROL TIE RODS AND LEVERS – FOR 20″ PLATFORM (0D0017)642
CONTROL TIE RODS AND LEVERS – FOR 20″ PLATFORM (0D0019)643
SENSITIVE ELEMENTS (0D0022)644
SENSING ELEMENTS WITH ELECTRONIC CONTROL (0D0023)645
DISTRIBUTOR PARTS (237293200A)646
Steering_Hydraulics647
Index647
Agrocompact F75 (20″)649
POWER STEERING – HYDRAULIC SYSTEM649
GENERAL649
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06001)649
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06002)650
STEERING WHEEL CAP (06003)651
2WD – POWER STEERING (06004)652
4WD – POWER STEERING DANFOSS – 80 (06005)653
POWER STEERING (06006)654
POWER STEERING (06007)655
POWER STEERING (06008)656
SEPARATOR – FOR TYPES WITHOUT SAFETY FRAME (06009)657
2WD – POWER STEERING – NARROW TYPE (060013)658
2WD – POWER STEERING – NARROW TYPE (060014)659
2WD – POWER STEERING – STANDARD TYPE (060015)660
4WD – POWER STEERING (060017)661
GEARBOX OIL COOLER (060018)662
GEARBOX OIL COOLER (060019)663
GEARBOX OIL COOLER PIPES (060021)664
COMMON HYDRAULIC SYSTEM (060022)665
GEAR BOX OIL FEED PIPES (060023)666
PUMP FILTER SUCTION (060024)667
OIL FILTER 6 ” (060027)668
COMMON HYDRAULIC SYSTEM (060028)669
HYDRAULIC PUMP 11 cc sx/lh/li (060029)670
HYDRAULIC PUMP 19 cc – dx/rh/re (060030)671
HYDRAULIC PUMP 225 cc – dx/rh/re (060031)672
HYDRAULIC PUMP 14 + 11cc – dx/rh/re (060032)673
STANDARD 14+11/19CC PUMP PARTS KIT (060033)674
STANDARD 225CC PUMP PARTS KIT (060034)675
STANDARD SYSTEM PARTS KIT (060035)676
ELECTRO-HYDRAULIC THREE-POINT HITCH PARTS KIT (060036)677
OIL FLOW CONTROL VALVE CASING – ELECTROHYDR CONTROLS (060037)678
OIL FLOW CONTROL VALVE CASING – ELECTROHYDR CONTROLS (060038)679
OIL FLOW CONTROL VALVE CASING – FOR TYPES WITHOUT H-M-L (POWERSHIFT) (060039)680
H-M-L – HYDRAULIC CONTROL (GEARSHIFT) (060040)681
HYDR STEERING DISTRIBUTOR PARTS (000931414/10A)682
HYDR STEERING DISTRIBUTOR PARTS (029063104/10A)683
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/10A)684
DETAILS OF OIL FILTER (244197200A)685
HYDRAULIC PUMP PARTS (245299500A)686
HYDRAULIC PUMP PARTS (245299600A)687
HYDRAULIC PUMP PARTS (245396200A)688
HYDRAULIC PUMP PARTS (245397000A)689
PUMP-COMPONENTS (245397100A)690
Wheels691
Index691
Agrocompact F75 (20″)692
WHEELS692
GENERAL692
2WD – FRONT WHEEL MOUNTING (09001)692
4WD – FRONT WHEEL MOUNTING (09002)693
REAR WHEEL BOLTS (09003)694
REAR WHEEL BOLTS (09004)695
SPACER FOR REAR WHEEL RIMS (09005)696
WHEELS 700×12″ pr 6 (09006)697
WHEELS 280/60 R155″ (09007)698
WHEELS 27×105-15″ (09008)699
WHEELS 650 R16″ PR 8 (090010)700
WHEELS 240/70 R16″ (090014)701
WHEELS 240/70 R16″ (090015)702
WHEELS 41×1400-20″ (090019)703
WHEELS 380/70 R20″ A8 (090020)704
WHEELS 112 R24″ A8 (090021)705
WHEELS 112 R24″ A8 (090022)706
WHEELS 320/70 R24″ A8 (090025)707
WHEELS 360/60 R24″ (090026)708

Questions? Email us: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
