Deutz Fahr Agrocompact F75 (24-28) Parts Manual – PDF
$32.95
Deutz Fahr Agrocompact F75 (24-28) Parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Deutz Fahr Agrocompact F75 (24-28) Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Deutz Fahr Agrocompact F75 (24-28) Parts Manual – PDF DOWNLOAD
Language : English
Pages : 724
Downloadable : Yes
File Type : PDF

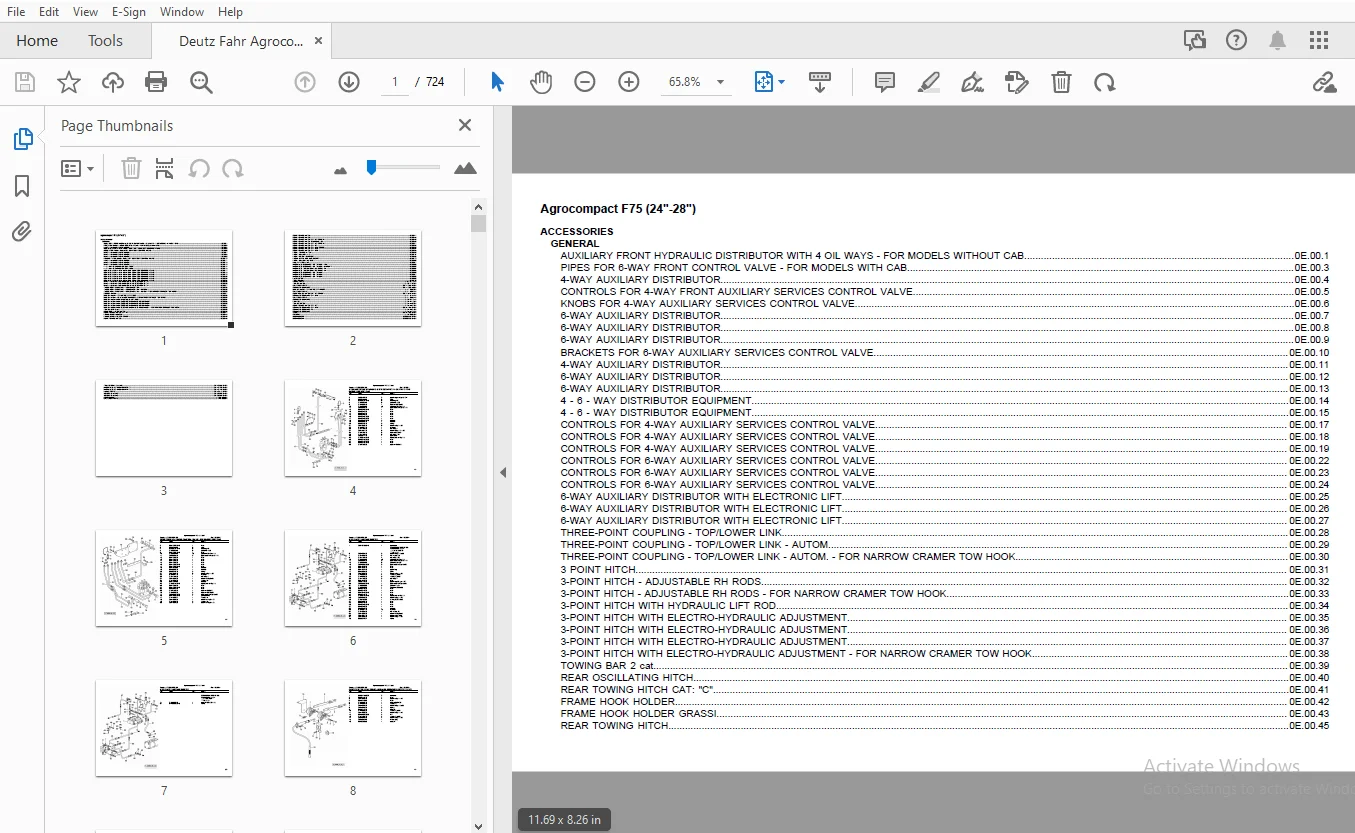

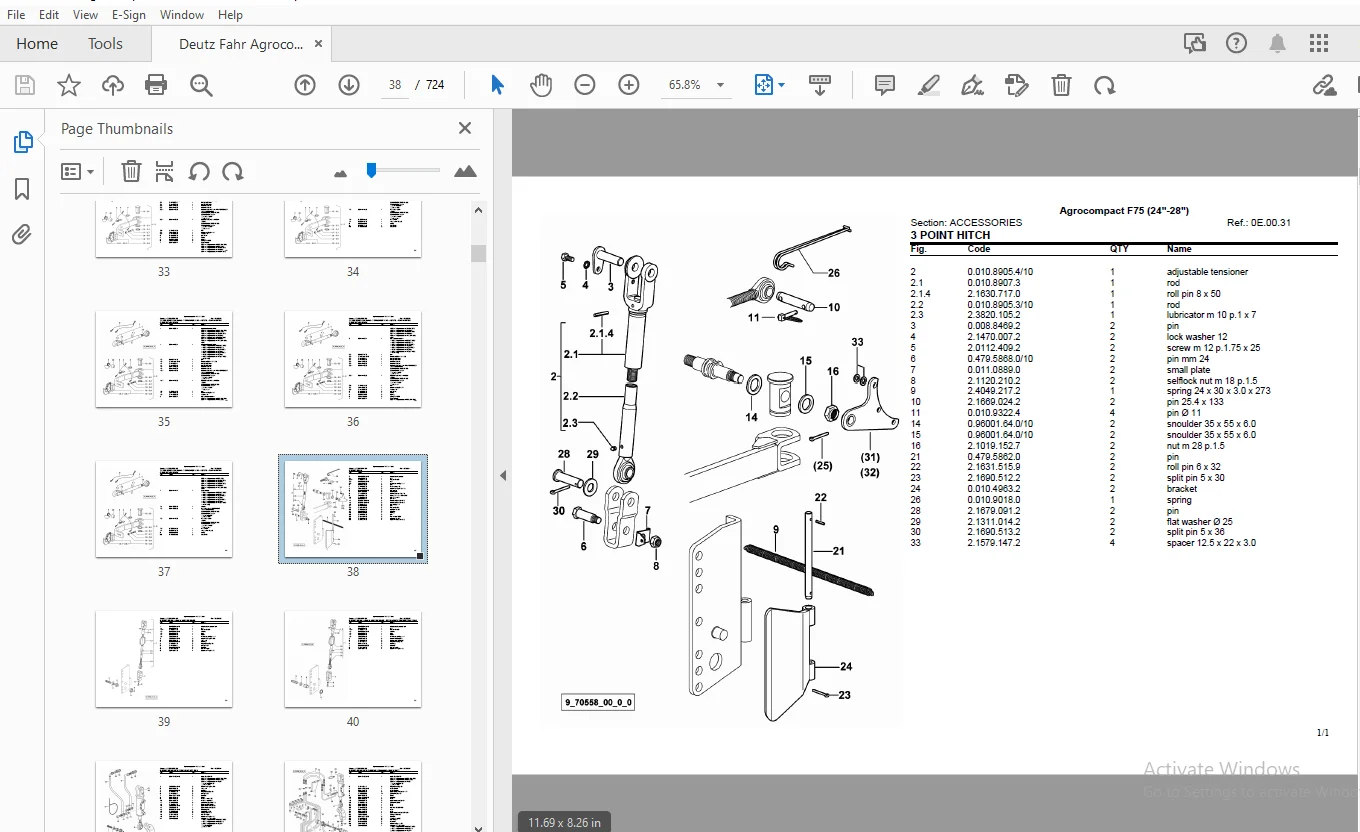

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Deutz Fahr Agrocompact F75 (24-28) Parts Manual – PDF DOWNLOAD
Index................................................................................................... 1 Agrocompact F75 (24"-28")............................................................................... 4 ACCESSORIES......................................................................................... 4 GENERAL......................................................................................... 4 AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS - FOR MODELS WITHOUT CAB (0E.00.1).... 4 PIPES FOR 6-WAY FRONT CONTROL VALVE - FOR MODELS WITH CAB (0E.00.3)......................... 5 4-WAY AUXILIARY DISTRIBUTOR (0E.00.4)....................................................... 6 CONTROLS FOR 4-WAY FRONT AUXILIARY SERVICES CONTROL VALVE (0E.00.5)......................... 8 KNOBS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E.00.6).................................. 9 6-WAY AUXILIARY DISTRIBUTOR (0E.00.7)....................................................... 10 6-WAY AUXILIARY DISTRIBUTOR (0E.00.8)....................................................... 11 6-WAY AUXILIARY DISTRIBUTOR (0E.00.9)....................................................... 13 BRACKETS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E.00.10).............................. 15 4-WAY AUXILIARY DISTRIBUTOR (0E.00.11)...................................................... 16 6-WAY AUXILIARY DISTRIBUTOR (0E.00.12)...................................................... 17 6-WAY AUXILIARY DISTRIBUTOR (0E.00.13)...................................................... 19 4 - 6 - WAY DISTRIBUTOR EQUIPMENT (0E.00.14)................................................ 20 4 - 6 - WAY DISTRIBUTOR EQUIPMENT (0E.00.15)................................................ 21 CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E.00.17).............................. 22 CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E.00.18).............................. 23 CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E.00.19).............................. 24 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E.00.22).............................. 25 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E.00.23).............................. 26 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E.00.24).............................. 27 6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E.00.25)................................. 28 6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E.00.26)................................. 29 6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E.00.27)................................. 30 THREE-POINT COUPLING - TOP/LOWER LINK (0E.00.28)............................................ 31 THREE-POINT COUPLING - TOP/LOWER LINK - AUTOM. (0E.00.29)................................... 32 THREE-POINT COUPLING - TOP/LOWER LINK - AUTOM. - FOR NARROW CRAMER TOW HOOK (0E.00.30)...... 35 3 POINT HITCH (0E.00.31).................................................................... 38 3-POINT HITCH - ADJUSTABLE RH RODS (0E.00.32).............................................. 39 3-POINT HITCH - ADJUSTABLE RH RODS - FOR NARROW CRAMER TOW HOOK (0E.00.33)................. 40 3-POINT HITCH WITH HYDRAULIC LIFT ROD (0E.00.34)............................................ 41 3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E.00.35).................................. 42 3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E.00.36).................................. 43 3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E.00.37).................................. 44 3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT - FOR NARROW CRAMER TOW HOOK (0E.00.38)..... 45 TOWING BAR 2 cat. (0E.00.39)................................................................ 46 REAR OSCILLATING HITCH (0E.00.40)........................................................... 47 REAR TOWING HITCH CAT: "C" (0E.00.41)....................................................... 48 FRAME HOOK HOLDER (0E.00.42)................................................................ 49 FRAME HOOK HOLDER GRASSI (0E.00.43)......................................................... 50 REAR TOWING HITCH (0E.00.45)................................................................ 51 REAR TOWING HITCH (0E.00.47)................................................................ 52 REAR TOWING HITCH (0E.00.48)................................................................ 53 REAR TOWING HITCH CAT: "C" GRASSI (0E.00.49)................................................ 54 REAR TOWING HITCH SCHARMULLER (0E.00.50).................................................... 55 REAR TOWING HITCH CAT: "D" GRASSI (0E.00.51)................................................ 56 REAR TOWING HITCH CAT: "D" (0E.00.52)....................................................... 57 REAR TOWING HITCH CAT: "D2" GRASSI (0E.00.53)............................................... 58 REAR TOWING HITCH CAT: "D2" (0E.00.54)...................................................... 59 REAR TOWING HITCH CAT: "D2" (0E.00.55)...................................................... 60 FRONT TOWING HITCH (0E.00.56)............................................................... 61 FRONT BALLAST n. 8 (0E.00.57)............................................................... 62 FRONT WEIGHT CARRIER (0E.00.58)............................................................. 63 FROMT PLATE FOR IMPLEMENTS (0E.00.59)....................................................... 64 FRONT BALLAST KG. 250 (0E.00.60)............................................................ 65 BALLAST LOCK BAR (0E.00.61)................................................................. 66 HYDRAULIC BREAKING FOR TRAILER - ITALY - (0E.00.62)......................................... 67 HYDRAULIC BREAKING FOR TRAILER - EXPORT F (0E.00.63)........................................ 68 HYDRAULIC TRAILER BRAKING PARTS KIT (0E.00.64).............................................. 69 HYDRAULIC TRAILER BRAKING PARTS KIT (0E.00.65).............................................. 70 HYDRAULIC BREAKING FOR TRAILER (0E.00.66)................................................... 71 HYDRAULIC BREAKING FOR TRAILER (0E.00.67)................................................... 72 HYDRAULIC BREAKING FOR TRAILER (0E.00.68)................................................... 73 LUBRICATOR (0E.00.69)....................................................................... 74 TOOL POUCH (0E.00.70)....................................................................... 75 VALVE PARTS (0.009.9778.4.A)................................................................ 76 TOWING HITCH (0.010.1702.3.A)............................................................... 77 CYLINDER PARTS (0.011.3468.4/10.A).......................................................... 78 DRAWBAR COUPLING (0.011.3636.4/30.A)........................................................ 79 3-POINT HITCH - ADJUSTABLE RH RODS (0.011.3988.3.A)........................................ 80 CYLINDER PARTS (0.011.4904.4.A)............................................................. 81 REAR TOWING HITCH CAT: "D" GRASSI (0.011.5143.4/10.A)....................................... 82 DRAWBAR COUPLING CAT: "D2" (0.011.5144.4.A)................................................. 83 CYLINDER PARTS (0.011.5363.4.A)............................................................. 84 DRAWBAR COUPLING (0.012.2216.4.A)........................................................... 85 LINKAGE (0.014.1412.3.A).................................................................... 86 TOWING HITCH (0.014.1420.3.A)............................................................... 87 REAR TOWING HITCH CAT: "D" (0.014.4451.3.A)................................................. 88 DRAWBAR COUPLING CAT: "D2" (0.014.4452.3/10.A).............................................. 89 DRAWBAR COUPLING D2 (0.014.4461.3.A)........................................................ 90 DRAWBAR COUPLING (0.014.4470.4.A)........................................................... 91 SLIDE (0.014.8203.3/10.A)................................................................... 92 CHASSIS (0.014.8232.3.A).................................................................... 93 ENGAGEMENT (0.98308.50.3/10.A).............................................................. 94 ENGAGEMENT (0.98309.50.3/10.A).............................................................. 95 TRAILER BRAKE VALVE (2.3719.550.0/40.A)..................................................... 96 HYDRAULIC DISTRIBUTOR-PARTS (2.3719.730.0/10.A)............................................. 97 HYDRAULIC DISTRIBUTOR-PARTS (2.3719.740.0/20.A)............................................. 98 VALVE PARTS (2.3719.810.0/10.A).............................................................100 SOLENOID VALVE (2.3729.330.0/40.A)..........................................................101 SOLENOID VALVE (2.3729.340.0/40.A)..........................................................102 DISTRIBUTOR (2.3729.500.0.A)................................................................103 CYLINDER PARTS (2.3749.003.0.A).............................................................104 Index...................................................................................................105 Agrocompact F75 (24"-28")...............................................................................109 BODY WORK..........................................................................................109 GENERAL.........................................................................................109 HOOD FRONT PART (07.00.1)...................................................................109 HOOD FRONT PART (07.00.2)...................................................................110 HOOD UPPER PART (07.00.4)...................................................................111 HOOD PLUG (07.00.7).........................................................................112 HOOD - SUPPORTS (07.00.8)...................................................................113 HOOD - SUPPORTS (07.00.9)...................................................................114 ENGINE HOOD GASKETS (07.00.10)..............................................................115 ENGINE HOOD GASKETS (07.00.11)..............................................................116 ENGINE HOOD GASKETS (07.00.12)..............................................................117 ENGINE HOOD GASKETS (07.00.13)..............................................................118 ENGINE HOOD GASKETS (07.00.14)..............................................................119 ENGINE HOOD GASKETS (07.00.15)..............................................................120 HOOD - LEFT SIDE PANEL (07.00.18)...........................................................121 HOOD - RIGHT SIDE PANEL (07.00.19)..........................................................122 HOOD - SUPPORTS (07.00.20)..................................................................123 HOOD - SUPPORTS (07.00.21)..................................................................124 PRODUCT PLATE (07.00.23)....................................................................125 HOOD SUPPORT (07.00.26).....................................................................126 HOOD SUPPORT - WITH RESERVE TANK (07.00.27).................................................127 HOOD SUPPORT (07.00.28).....................................................................128 HOOD - SUPPORTS (07.00.29)..................................................................129 HOOD - GUARDS (07.00.30)....................................................................130 HOOD - SUPPORTS (07.00.31)..................................................................131 HOOD - SUPPORTS (07.00.32)..................................................................132 DEFLECTORS AND SUPPORTS (07.00.34)..........................................................133 CABLE CONDUIT (07.00.35)....................................................................134 CABLE CONDUIT (07.00.36)....................................................................135 BELT GUARDS (07.00.38)......................................................................136 BELT GUARDS (07.00.39)......................................................................137 BELT GUARDS - WITHOUT SUPPLEMENTARY FUEL TANK (07.00.40)....................................138 COOLING - COOLANT RADIATOR (07.00.43).......................................................139 COOLING - COOLANT RADIATOR (07.00.44).......................................................140 COOLING - EXPANSION TANK (07.00.47).........................................................141 COOLING - EXPANSION TANK (07.00.48).........................................................142 BATTERY SUPPORT (07.00.49)..................................................................143 BATTERY COVER (07.00.51)....................................................................144 BATTERY COVER (07.00.54)....................................................................145 BATTERY COVER (07.00.55)....................................................................146 METAL TOOLBOX (07.00.56)....................................................................147 PEDAL SUPPORT (07.00.57)....................................................................148 DASHBOARD - WITHOUT FRONT CONTROL VALVE (07.00.58)..........................................150 PLATES (07.00.59)...........................................................................151 PLATES (07.00.60)...........................................................................152 DASHBOARD - WITH 6-WAY FRONT CONTROL VALVE (07.00.61).......................................153 DASHBOARD - SEPARATOR - FOR MODELS WITHOUT CAB (07.00.62)...................................154 DASHBOARD - SEPARATOR - FOR MODELS WITH CAB (07.00.63)......................................155 INSTRUMENT PANEL SURROUND (07.00.64)........................................................156 CONNECTING PLATE (07.00.65).................................................................157 CONNECTIONS SUPPORT PLATE (07.00.66)........................................................158 DEFLECTOR (07.00.67)........................................................................159 DASHBOARD - STEERING COVER (07.00.68).......................................................160 PLUG FOR VERSION WITHOUT CIGAR LIGHTER (07.00.69)...........................................161 BRACKET - SPEED LABEL (07.00.70)............................................................162 SPEED LABEL - 40 KM/H - REFLEX (07.00.71)...................................................163 SPEED LABEL - 40 KM/H (07.00.72)............................................................164 SPECIAL VERSION (07.00.73)..................................................................165 INFORMATION PLATE (07.00.74)................................................................166 INFORMATION PLATE (07.00.75)................................................................167 PLATES OCDE (07.00.76)......................................................................168 PLATES (07.00.77)...........................................................................169 PLATES (07.00.78)...........................................................................170 THROTTLE - MECHANICAL - (07.00.79)..........................................................171 THROTTLE - MECHANICAL - (07.00.80)..........................................................172 THROTTLE - MECHANICAL - (07.00.81)..........................................................173 THROTTLE - MECHANICAL - (07.00.82)..........................................................174 ACCELERATOR CONTROL BRACKETS (07.00.83).....................................................175 THROTTLE (07.00.84).........................................................................176 ELECTRONIC ACCELERATOR CONTROL (07.00.85)...................................................177 ELECTRONIC ACCELERATOR CONTROL (07.00.86)...................................................178 FRONT MUDGUARDS mm 240 (07.00.88)...........................................................179 FRONT MUDGUARDS mm 265 (07.00.89)...........................................................180 FRONT MUDGUARD SUPPORTS - WITHOUT ROPS (07.00.90)...........................................181 TOOL BOX SUPPORT (07.00.91).................................................................182 FENDERS (07.00.92)..........................................................................183 BADGE FOR SPLASH GUARDS (07.00.93)..........................................................184 PLATFORM (07.00.95).........................................................................185 PLATFORM (07.00.96).........................................................................186 FLOOR PLUG (07.00.97).......................................................................187 COVER PLATE - FOR MODELS WITH PLATFORM (07.00.98)...........................................188 PLUG (07.00.99).............................................................................189 PLATTFORM: SUPPORTS (07.00.100).............................................................190 PLATTFORM: SUPPORTS (07.00.102).............................................................191 MUDGUARDS EXTENSIONS mm 80 (07.00.105)......................................................192 MUDGUARDS EXTENSIONS mm 120 (07.00.107).....................................................193 MUDGUARDS EXTENSIONS mm 170 (07.00.108).....................................................194 FENDER MOUNTINGS (07.00.109)................................................................195 LICENCE PLATE HOLDER (07.00.110)............................................................196 REARVIEW MIRROR - FOR TYPES WITH SAFETY FRAME (07.00.111)...................................197 SAFETY ARCH (07.00.112).....................................................................198 SAFETY ROLL BAR SUPPORTS (07.00.114)........................................................199 FUEL TANK (07.00.115).......................................................................200 FUEL TANK (07.00.116).......................................................................201 FUEL TANK - WITH RESERVE TANK (07.00.117)...................................................202 FUEL TANK - WITH FRONT PTO AND LIFT (07.00.118).............................................203 FUEL TANK - WITH FRONT PTO AND LIFT (07.00.119).............................................204 AUXILIARY TANK (07.00.120)..................................................................205 AUXILIARY TANK (07.00.121)..................................................................207 AUXILIARY TANK (07.00.122)..................................................................209 AUXILIARY TANK (07.00.123)..................................................................210 AUXILIARY TANK (07.00.126)..................................................................211 AUXILIARY TANK (07.00.127)..................................................................212 8" AIR CLEANER (07.00.128)..................................................................213 AIR CLEANER HOSE (07.00.131)................................................................214 AIR CLEANER HOSE (07.00.132)................................................................215 AIR PRE-CLEANER (07.00.133).................................................................216 CYCLONE AIR CLEANER EXTENSION (07.00.134)...................................................217 ENGINE HOOD GASKETS (07.00.135).............................................................218 DRIVER'S SEAT - IN BLACK LEATHERETTE GRAMMER MSG83/8 (07.00.136)............................219 DRIVER'S SEAT KAB XL2 (07.00.137)...........................................................220 DRIVER'S SEAT - IN GREY MATERIAL GRAMMER MSG83/8 (07.00.138)................................221 DRIVER'S SEAT PNEUMATIC SPRINGING - IN GREY MATERIAL GRAMMER (07.00.139)....................222 DRIVER'S SEAT PNEUMATIC SPRINGING (07.00.140)...............................................223 SEAT SUPPORT PLATE (07.00.142)..............................................................224 SEAT SUPPORT PLATE (07.00.143)..............................................................225 SEAT SPRINGING (0.010.5356.4.A).............................................................226 SEAT (0.010.5362.4.A).......................................................................227 SEAT-COMPONENTS (0.010.6543.4/10.A).........................................................228 SEAT-COMPONENTS (0.010.6543.4/10.B).........................................................230 SEAT-COMPONENTS (0.010.8687.4/10.A).........................................................231 SEAT-COMPONENTS (0.010.8687.4/10.B).........................................................232 SEAT-COMPONENTS (0.010.8721.4/10.A).........................................................233 SEAT-COMPONENTS (0.010.8721.4/10.B).........................................................234 SEAT-COMPONENTS (0.011.2161.4/10.A).........................................................235 SEAT-COMPONENTS (0.011.2161.4/10.B).........................................................236 SEAT-COMPONENTS (0.012.4782.4/10.A).........................................................237 COOLING SYSTEM EXPANSION TANK (0.013.6322.4/20.A)...........................................238 REARVIEW MIRROR (0.9234.147.4/10.A).........................................................239 PRE-FILTER - COMPONENTS (2.4239.110.0.A)....................................................240 AIR FILTER PARTS (2.4249.600.0.A)...........................................................241 Index...................................................................................................242 Agrocompact F75 (24"-28")...............................................................................244 CAB.................................................................................................244 GENERAL.........................................................................................244 CAB (0B.00.2)...............................................................................244 FLANGE - FOR VERSIONS WITHOUT OIL RADIATOR (0B.00.3)........................................245 FLANGE - FOR VERSIONS WITH OIL RADIATOR (0B.00.4)...........................................246 DOOR HANDLE AND REARVIEW MIRROR SUPPORT BRACKET (0B.00.5)...................................247 REARVIEW MIRROR (0B.00.6)...................................................................248 GLASSES AND SEALS (0B.00.10)................................................................249 GLASSES AND SEALS (0B.00.11)................................................................251 HANDLE REAR WINDOW (0B.00.12)...............................................................253 WINDSCREEN (0B.00.13).......................................................................254 WINDSHIELD WIPER SYSTEM (0B.00.14)..........................................................255 CAB INTERIOR TRIM (0B.00.17)................................................................256 CAB INTERIOR TRIM 24" - 28" (0B.00.18)......................................................257 CAB INSTALLATION COMPLETION (0B.00.20)......................................................258 CAB INSTALLATION COMPLETION (0B.00.21)......................................................259 INTERIOR TRIM (0B.00.23)....................................................................260 INTERIOR TRIM (0B.00.24)....................................................................261 SUN BLIND (0B.00.25)........................................................................262 ROOF - FOR TRACTORS WITH AIR HEATING (0B.00.26).............................................263 ROOF - FOR TYPES WITH HEATING AND AIR CONDITIONING (0B.00.27)...............................264 GUARD - FOR TRACTORS WITH AIR HEATING (0B.00.28)............................................265 GUARD - FOR TYPES WITH HEATING AND AIR CONDITIONING (0B.00.29)..............................266 INTERIOR TRIM (0B.00.30)....................................................................267 INTERIOR TRIM - FOR TRACTORS WITH AIR HEATING (0B.00.31)....................................268 INTERIOR TRIM - FOR TYPES WITH HEATING AND AIR CONDITIONING (0B.00.32)......................269 CARBON FILTER (0B.00.33)....................................................................270 VENTILATION - HEATING (0B.00.34)............................................................271 CLIMATE CONTROL SYSTEM - FOR TYPES WITH HEATING AND AIR CONDITIONING (0B.00.35).............272 VENTILATION - HEATING (0B.00.36)............................................................273 VENTILATION - HEATING (0B.00.37)............................................................274 VENTILATION - AIR CONDITIONING - HEATING (0B.00.38).........................................275 CONDENSER - FOR TYPES WITH HEATING AND AIR CONDITIONING (0B.00.39)..........................276 VENTILATION - AIR CONDITIONING - HEATING (0B.00.40).........................................277 COMPRESSOR (0B.00.42).......................................................................278 VENTILATION AND AIR CONDITIONING PIPES (0B.00.43)...........................................279 AIR CONDITIONING UNIT - LINES (0B.00.45)....................................................280 COMPRESSOR-PARTS (0.007.7197.4.A)...........................................................281 ENGAGEMENT (0.009.7202.4/10.A)..............................................................282 ENGAGEMENT (0.009.7203.4/10.A)..............................................................283 WATER TANK (0.010.7963.2.A).................................................................284 HEATER PARTS (0.010.8108.4/10.A)............................................................285 AIR CONDITIONER PARTS (0.010.9046.4/20.A)...................................................286 AIR-CONDITIONING HEATING PARTS (0.010.9215.4/10.A)..........................................287 REARVIEW MIRROR (0.011.4199.4/20.A).........................................................289 REARVIEW MIRROR (0.011.4205.4/20.A).........................................................290 Index...................................................................................................291 Agrocompact F75 (24"-28")...............................................................................293 ELECTRIC AL SYSTEM..................................................................................293 GENERAL.........................................................................................293 HEADLAMP FOR RIGHT-HAND DRIVE (08.00.1).....................................................293 HEADLAMP FOR LEFT-HAND DRIVE (08.00.2)......................................................294 FRONT LIGHTS (08.00.3)......................................................................295 ELECTRIC LIGHTING SYSTEM - WITH CAB (08.00.4)...............................................297 REAR LIGHT (08.00.5)........................................................................298 WORKING SPOTLIGHT REAR (08.00.6)............................................................299 CAB WORKLIGHTS - FOR TRACTORS WITH AIR HEATING (08.00.7)....................................300 CAB WORKLIGHTS - FOR TYPES WITH HEATING AND AIR CONDITIONING (08.00.8)......................301 LICENCE PLATE LIGHT (08.00.9)...............................................................302 WARNING BEACON (08.00.10)...................................................................303 PREARRANGEMENT FOR WARNING BEACON (08.00.11)................................................304 PREARRANGEMENT FOR WARNING BEACON - FOR MODELS WITH CAB (08.00.12)..........................305 ELECTRIC STARTING SYSTEM (08.00.13).........................................................306 STARTER (08.00.15)..........................................................................307 ALTERNATOR 65 A (08.00.16)..................................................................308 ALTERNATOR - FOR TRACTORS WITH AIR CONDITIONING 85 A (08.00.17).............................309 ALTERNATOR MOUNTINGS - FOR TRACTORS WITHOUT AIR CONDITIONING (08.00.18).....................310 ALTERNATOR MOUNTINGS - FOR TRACTORS WITH AIR CONDITIONING (08.00.19)........................311 COMPRESSOR AND ALTERNATOR SUPPORTS - FOR TRACTORS WITH AIR CONDITIONING (08.00.20)..........313 BATTERY 12V 100Ah 500A (08.00.21)...........................................................314 BATTERY 12V 100Ah 650A (08.00.22)...........................................................315 BATTERY LEADS (08.00.23)....................................................................316 ELECTRICAL SYSTEM (08.00.24)................................................................317 DIGITAL INSTRUMENT PANEL (08.00.25).........................................................318 ANALOGUE INSTRUMENT PANEL (08.00.26)........................................................319 ELECTRONIC CONTROL UNIT - ENGINE (08.00.27).................................................320 PREHEATING ELECTRONIC CONTROL UNIT (08.00.28)...............................................321 CONTROL UNIT - GEARS H-M-L (GEARSHIFT) (08.00.29)...........................................322 CONTROL UNIT - P.T.O. SHAFT (08.00.30)......................................................323 DIFFERENTIAL LOCK CONTROL - ELECTROHYDRAUDLIC (08.00.31)....................................324 4WD - ENGAGEMENT CONTROL (08.00.32).........................................................325 SWITCH - FOR P.T.O. FRONT (08.00.33)........................................................326 SPEED SENSOR (08.00.34).....................................................................327 SPEED SENSOR (08.00.35).....................................................................328 CIGAR LIGHTER (08.00.36)....................................................................329 ELECTRICAL EQUIPMENT FRONT (08.00.38).......................................................330 CENTRAL WIRING - FOR MODELS WITH MECHANICAL ENGINE GOVERNOR (08.00.39)......................331 CENTRAL WIRING - FOR MODELS WITH ELECTRONIC ENGINE GOVERNOR (08.00.40)......................332 PLATFORM POWER CABLE (08.00.42).............................................................333 CAB POWER WIRE (08.00.44)...................................................................334 CAB ELECTRICAL SYSTEM (08.00.45)............................................................335 POWER-LIFT ELECTRONIC SYSTEM (08.00.46).....................................................336 ELECTRICAL SYSTEM FOR 6-WAY FRONT CONTROL VALVE (08.00.47)..................................337 ELECTRICAL SYSTEM - 3 POINT HITCH (08.00.48)................................................338 GUARD FOR ELECTRO VALVES (08.00.49).........................................................339 HEADLAMP COMPONENTS (0.009.6758.4/10.A).....................................................340 BATTERY LEADS (0.010.6708.3/20.A)...........................................................341 ELECTRICAL SYSTEM (0.010.7262.4/20.A).......................................................342 ELECTRICAL LEADS (0.010.9057.3.A)...........................................................343 ELECTRICAL SYSTEM (0.011.2025.4/40.A).......................................................344 FLASHING LIGHT SUPPORT (0.011.7840.4.A).....................................................345 ELECTRICAL SYSTEM (0.012.0101.4.A)..........................................................346 ELECTRICAL SYSTEM (0.013.6326.4.A)..........................................................347 ELECTRICAL SYSTEM (0.013.8395.4/20.A).......................................................348 ELECTRICAL SYSTEM (0.013.8396.4/10.A).......................................................349 ELECTRICAL SYSTEM (0.013.8399.4/10.A).......................................................350 ELECTRICAL SYSTEM (0.013.8401.4.A)..........................................................351 HEADLAMP COMPONENTS (2.8019.960.0.A)........................................................352 HEADLAMP COMPONENTS (2.8019.970.0.A)........................................................353 HEADLAMP COMPONENTS (2.8029.240.0/10.A).....................................................354 HEADLAMP COMPONENTS (2.8029.300.0.A)........................................................355 HEADLAMP COMPONENTS (2.8029.730.0.A)........................................................356 ELECTRIC LIGHTING SYSTEM (2.8029.820.0/20.A)................................................357 ELECTRIC LIGHTING SYSTEM (2.8029.830.0/20.A)................................................358 HEADLAMP COMPONENTS (2.8059.523.0.A)........................................................359 HEADLAMP COMPONENTS (2.8059.524.0.A)........................................................360 INTERIOR LIGHT (2.8339.032.0.A).............................................................361 ALTERNATOR PARTS (2.9439.420.0/10.A)........................................................362 ALTERNATOR PARTS (2.9439.460.0/10.A)........................................................363 STARTER PARTS (2.9619.390.0.A)..............................................................364 Index...................................................................................................365 Agrocompact F75 (24"-28")...............................................................................367 ENGINE..............................................................................................367 GENERAL.........................................................................................367 CRANKCASE (01.00.3).........................................................................367 TIMING CASE (01.00.4).......................................................................368 CASING COVER (01.00.5)......................................................................369 GUARD PLATE (01.00.7).......................................................................370 MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (01.00.8).........................................371 SIDE PLUG FOR CYLINDER BLOCK (01.00.9)......................................................372 PLUG (01.00.10).............................................................................373 CRANKSHAFT (01.00.12).......................................................................374 CYLINDER - PISTON - CONNECTING ROD (01.00.15)...............................................375 CRANKSHAFT PULLEY (01.00.17)................................................................376 ENGINE FLYWHEEL (01.00.20)..................................................................377 COUNTERWEIGHTS (01.00.21)...................................................................378 CAMSHAFT (01.00.23).........................................................................379 CYLINDER HEAD (01.00.26)....................................................................380 OIL PAN (01.00.30)..........................................................................381 LUBRIC. OIL FILTER (01.00.31)...............................................................382 LUBRIC. OIL COOLER (01.00.34)...............................................................383 FITTING FOR ENGINE OIL PRESSURE SWITCH (01.00.35)...........................................384 FITTING FOR ENGINE OIL PRESSURE SWITCH (01.00.36)...........................................385 OIL PUMP (01.00.40).........................................................................386 LUBRICATION (01.00.41)......................................................................387 OIL PUMP (01.00.42).........................................................................388 INJECTION PUMP - INJECTOR (01.00.49)........................................................389 FUEL FEED PUMP (01.00.52)...................................................................390 FUEL PIPES (01.00.54).......................................................................391 FUEL FILTER (01.00.55)......................................................................392 MECHANICAL ENGINE GOVERNOR (01.00.56).......................................................393 PLUG FOR MECHANICAL REGULATOR (01.00.57)....................................................394 ELECTRONIC MOTOR CONTROLLER (01.00.58)......................................................395 PARTS SET - ENGINE MOUNTING (01.00.60)......................................................396 COOLING WATER PUMP (01.00.61)...............................................................397 COOLANT PUMP PULLEY (01.00.62)..............................................................398 COOLANT PIPE (01.00.64).....................................................................399 COOLANT PIPE (01.00.65).....................................................................400 COOLANT PUMP DRIVEBELT (01.00.67)...........................................................401 COOLANT PUMP DRIVEBELT - FOR MODELS WITH COMPRESSOR (01.00.68)..............................402 COOLING SYSTEM MANIFOLD (01.00.72)..........................................................403 WATER MANIFOLD COVER (01.00.73).............................................................404 WATER MANIFOLD COVER (01.00.74).............................................................405 WATER COOLING -SEALING (01.00.77)...........................................................406 AIR INTAKE MANIFOLD - EXHAUST MANIFOLD (01.00.80)...........................................407 HEATING ELEMENT EARTH (01.00.83)............................................................408 CABLE CONDUIT (01.00.85)....................................................................409 HEAT SHIELD (01.00.86)......................................................................410 HEAT SHIELD (01.00.87)......................................................................411 EXHAUST SILENCER (01.00.90).................................................................412 EXHAUST PIPE (01.00.94).....................................................................413 GASKET SET FOR ENGINE ASSEMBLY (01.00.97)...................................................414 GOVERNOR PARTS (0.013.5695.4/20.A)..........................................................415 GOVERNOR PARTS (0.013.5695.4/20.B)..........................................................416 GOVERNOR PARTS (0.013.5695.4/20.C)..........................................................417 FUEL FILTER PARTS (2.4319.060.0/20.A).......................................................418 PRE-FILTER - COMPONENTS (2.4319.220.0.A)....................................................419 FUEL FEED PUMP (2.4519.330.0/50.A)..........................................................420 Index...................................................................................................421 Agrocompact F75 (24"-28")...............................................................................423 FRONT AND REAR P.T.O.............................................................................423 GENERAL.........................................................................................423 P.T.O. FRONT (05.00.1)......................................................................423 P.T.O. FRONT (05.00.2)......................................................................424 P.T.O. FRONT (05.00.3)......................................................................426 P.T.O. FRONT (05.00.4)......................................................................427 P.T.O. FRONT (05.00.5)......................................................................428 P.T.O. - CLUTCH TRANSMISSION SHAFT (05.00.6)................................................429 P.T.O. - PUMP CONTROL (05.00.7).............................................................430 P.T.O. - HYDRAULIC CLUTCH (05.00.8).........................................................432 P.T.O. - 540/N - WITH INSERTED END SHAFTS EXPORT U.S.A. (05.00.9)...........................433 P.T.O. - WITH N' 540 - 750 (05.00.10).......................................................434 P.T.O. - WITH N' 540 - 750 + SINCRO (05.00.11)..............................................435 P.T.O. - 540-750 - WITH INSERTED END SHAFTS EXPORT U.S.A. (05.00.12)........................437 P.T.O. - 540-750 - WITH INSERTED END SHAFTS + SINCRO (05.00.13).............................439 P.T.O. - WITH N' 540 - 1000 (05.00.14)......................................................440 P.T.O. - WITH N' 540 - 1000 + SINCRO (05.00.15).............................................441 P.T.O. - 540/N - WITH INSERTED END SHAFTS EXPORT U.S.A. (05.00.16)..........................443 P.T.O. - 540 -1000 WITH INSERTED END SHAFTS (05.00.17).....................................444 P.T.O. - 540-1000 - WITH INSERTED END SHAFTS (05.00.18).....................................446 P.T.O. - 540-1000 - WITH INSERTED END SHAFTS + SINCRO (05.00.19)............................448 P.T.O. - 540 -1000 WITH INSERTED END SHAFTS EXPORT U.S.A. + SINCRO (05.00.20)..............449 P.T.O. - 2 SPEED TYPE (05.00.22)............................................................450 P.T.O. - 540-750 - WITH INSERTED END SHAFTS (05.00.23)......................................451 P.T.O. - 2 SPEED TYPE - FIXED END SHAFT (05.00.24)..........................................452 P.T.O. - WITH INSERTED END SHAFTS 540 - 750 + SINCRO (05.00.25).............................453 P.T.O. - 2 SPEED TYPE + SINCRO - FIXED END SHAFT (05.00.26).................................454 P.T.O. - 3 SPEED TYPE (05.00.27)............................................................455 PTO - 3-SPEED WITH INSERTED END SHAFT (05.00.28)............................................456 PTO - 3-SPEED WITH INSERTED END SHAFT (05.00.29)............................................458 P.T.O. - 3 SPEED TYPE - FIXED END SHAFT (05.00.30)..........................................460 PTO - PARTS SET WITH WATER PROOF SEALS (05.00.31)...........................................461 PTO - PARTS SET WITH STANDARD SEALS (05.00.32)..............................................462 PTO - SEAL RING FOR INSERTED END SHAFT - WATER PROOF VERSION (05.00.33).....................463 PTO - SEAL RING FOR INSERTED END SHAFT - STANDARD VERSION (05.00.34)........................464 P.T.O. SHAFT DRIVE (05.00.35)...............................................................465 P.T.O. - 2 SPEED TYPE (05.00.36)............................................................466 P.T.O. - 2 SPEED TYPE + SINCRO - AND 3-SPEED (05.00.37).....................................467 P.T.O. - 2 SPEED TYPE + SINCRO (05.00.38)...................................................468 P.T.O. - EXTERNAL CONTROLS 540/N (05.00.39).................................................469 P.T.O. - EXTERNAL CONTROLS 540 - 750 (05.00.40).............................................470 P.T.O. - EXTERNAL CONTROLS 540 - 750 + SINCRO (05.00.41)....................................471 P.T.O. - EXTERNAL CONTROLS 540-1000 (05.00.42)..............................................472 P.T.O. - EXTERNAL CONTROLS 540 - 1000 + SYNCRO (05.00.43)...................................473 P.T.O. - EXTERNAL CONTROLS 540 - 750 - 1000 (05.00.44)......................................474 P.T.O.-SYNCHRONIZED CONTROL (05.00.45)......................................................475 P.T.O.-SYNCHRONIZED CONTROL (05.00.46)......................................................476 P.T.O. - HYDRAULIC CLUTCH (0.011.9686.4/30.A)...............................................477 SOLENOID VALVE (2.3729.340.0/30.A)..........................................................478 Index...................................................................................................479 Agrocompact F75 (24"-28")...............................................................................480 FRONT AXEL..........................................................................................480 GENERAL.........................................................................................480 FRONT SUPPORT (04.00.1).....................................................................480 FRONT SUPPORT - WITH FRONT PTO AND LIFT (04.00.3)...........................................481 4WD - FRONT SUPPORT (04.00.4)...............................................................482 2WD - EXTENDIBLE AXLE - STANDARD TYPE (04.00.6).............................................483 2WD - EXTENDIBLE FRONT AXLE WITH FRONT BRAKES (04.00.7).....................................484 2WD - FRONT BRAKING SYSTEM (04.00.9)........................................................485 2WD - POWER STEERING CYLINDER - STANDARD TYPE (04.00.11)....................................486 2WD - COMPLETION KIT WITHOUT SOLENOID VALVE (04.00.12)......................................487 4WD - FRONT DRIVE AXLE - STANDARD TYPE (04.00.14)...........................................488 4WD - FRONT DRIVE AXLE (04.00.17)...........................................................489 4WD - FRONT BRAKES - STANDARD TYPE (04.00.18)...............................................490 FRONT WHEEL HUB COVER (04.00.19)............................................................491 4WD - FRONT BRAKING SYSTEM (04.00.21).......................................................492 4WD - POWER STEERING CYLINDER (04.00.23)....................................................493 4WD - DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (04.00.24).................................494 4WD - DIFFERENTIAL (04.00.25)...............................................................495 BEVEL WHEEL GEAR (04.00.26).................................................................496 4WD - FRONT DIFFERENTIAL LOCK- STANDARD SEALING (04.00.27)..................................497 4WD - DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (04.00.28).................................498 4WD - PLANETARY GEAR (04.00.29).............................................................499 FRONT DIFFERENTIAL LOCK CONTROL LINES (04.00.31)............................................500 FRONT DIFFERENTIAL LOCK CONTROL LINES (04.00.32)............................................501 4WD - AXLESHAFTS - STANDARD TYPE (04.00.34).................................................502 4WD - TRANSMISSION SHAFT (04.00.35).........................................................503 4WD - TRANSMISSION SHAFT (04.00.37).........................................................504 4WD - ELECTROHYDRAULIC ENGAGEMENT CONTROL (04.00.38)........................................505 4WD - ENGAGEMENT CONTROL - STANDARD SEALS (04.00.39)........................................506 4WD - ENGAGEMENT CONTROL - WATERPROOF SEALS (04.00.40)......................................507 4WD - AXLESHAFTS L = mm 570.5 (0.010.0230.4/10.A)...........................................508 STEERING ROD - MECH. STEERING - TELESCOPIC AXLE (0.010.0486.4.A)............................509 CYLINDER PARTS (0.010.0508.4.A).............................................................510 ADJUSTABLE LIFT ROD PARTS (0.010.0798.4/30.A)...............................................511 ADJUSTABLE LIFT ROD PARTS (0.010.0799.4/30.A)...............................................512 CYLINDER PARTS (0.467.6343.4.A).............................................................513 SOLENOID VALVE (2.3729.697.0.A).............................................................514 Index...................................................................................................515 Agrocompact F75 (24"-28")...............................................................................516 FRONT HYDRAULIC POWER-LIFT........................................................................516 GENERAL.........................................................................................516 FRONT HYDRAULIC POWER-LIFT (0C.00.1)........................................................516 FRONT POWER LIFT - LEADS (0C.00.2)..........................................................517 FRONT POWER LIFT - LEADS (0C.00.4)..........................................................519 FRONT POWER LIFT - LEADS (0C.00.6)..........................................................520 FRONT POWER LIFT - LEADS (0C.00.8)..........................................................521 FRONT LIFT - HYDRAULIC SYSTEM (0C.00.9).....................................................522 RED AND WHITE STRIPED WARNING SIGN (0C.00.10)...............................................523 PRESSURE CONTROL VALVE (0.009.2038.4/10.A)..................................................524 CYLINDER PARTS (0.264.6342.4/20.A)..........................................................525 Index...................................................................................................526 Agrocompact F75 (24"-28")...............................................................................528 GEAR................................................................................................528 GENERAL.........................................................................................528 4 SPEED GEARBOX WITH MINI REDUCTION GEAR (02.00.2)..........................................528 5 SPEED GEARBOX WITH MINI REDUCTION GEAR (02.00.4)..........................................530 GEAR CHANGE BOX 5 SPEED - FOR TYPES WITH H-M-L- (POWERSHIFT) (02.00.6)......................532 H-M-L - HYDRAULIC CONTROL (GEARSHIFT) (02.00.7).............................................534 CLUTCH 12" (02.00.9)........................................................................535 CLUTCH - EXPORT U.S.A. 12" (02.00.10).......................................................536 CLUTCH CONTROL (02.00.11)...................................................................537 CLUTCH CONTROL (02.00.12)...................................................................538 CLUTCH CONTROL (02.00.13)...................................................................539 GEARBOX - FRONT (02.00.14)..................................................................540 GEARBOXFIXINGS (02.00.15)...................................................................541 COMPLETION WITHOUT H-M-L POWERSHIFT (02.00.16)..............................................542 GEARBOX - REAR (02.00.17)...................................................................543 PLUGS FOR REAR GEARBOX CASING (02.00.18)....................................................547 SENSOR BRACKET (02.00.19)...................................................................548 COVER FOR TYPES WITHOUT SYNCHRO PTO (02.00.20)..............................................549 4 SPEED GEARBOX WITH MINI REDUCTION GEAR (02.00.21).........................................550 PARTS SET - 4-SPEED WITH UNDERDRIVE (02.00.23)..............................................552 5 SPEED GEARBOX WITH MINI REDUCTION GEAR (02.00.24).........................................553 5 SPEED GEARBOX WITH MINI REDUCTION GEAR - "OVER SPEED" (02.00.25)..........................555 PARTS SET - 5-SPEED GEARBOX (02.00.27)......................................................557 GEAR CHANGE BOX 5 SPEED - FOR TYPES WITH H-M-L- (POWERSHIFT) (02.00.28).....................558 5 SPEED GEARBOX - WITH HML POWERSHIFT - "OVER SPEED" (02.00.29).............................560 PARTS SET - 5-SPEED GEARBOX - FOR TYPES WITH H-M-L- (POWERSHIFT) (02.00.31).................562 GEAR LS H-M-L (02.00.32)....................................................................563 GEAR LS H-M-L (02.00.33)....................................................................564 GEAR LS H-M-L (02.00.34)....................................................................565 TRANSMISSION SHAFT - FOR TYPES WITHOUT H-M-L (02.00.35).....................................566 SPEED RANGE REDUCTION GEAR UNIT (02.00.36)..................................................567 SPEED RANGE REDUCTION GEAR SHAFT - FOR ELECTROHYDRAULIC CONTROLS (02.00.37).................568 2-RANGE BOX (02.00.38)......................................................................569 2-RANGE BOX 30 Km/h (02.00.39)..............................................................570 2-RANGE BOX 40 Km/h (02.00.40)..............................................................571 3-RANGE BOX 30 Km/h (02.00.42)..............................................................572 3-RANGE BOX 40 Km/h (02.00.43)..............................................................573 STANDARD GEARBOX (02.00.45).................................................................574 GEARSHIFT LEVER (02.00.46)..................................................................575 REVERSING GEAR UNIT CONTROLS (02.00.47).....................................................576 REDUCTION GEAR CONTROL (02.00.48)...........................................................577 PARTS SET - 4-SPEED WITH UNDERDRIVE (02.00.49)..............................................578 PARTS SET - 5-SPEED WITH UNDERDRIVE (02.00.50)..............................................579 PARTS SET - 5-SPEED GEARBOX - FOR TYPES WITH H-M-L- (POWERSHIFT) (02.00.51).................580 GEAR SHIFTING (02.00.52)....................................................................581 4-RANGE GEARBOX COVER (02.00.53)............................................................582 5-RANGE GEARBOX COVER (02.00.54)............................................................583 GEAR SHIFT - POWERSHIFT H-M-L (02.00.55)....................................................584 CONTROLS-MINI REDUCTION REVERSING GEAR UNITS (02.00.56).....................................585 SHUTTLE COVER (02.00.57)....................................................................586 COVER FOR UNDERDRIVE (02.00.58).............................................................587 2-RANGE REDUCTION UNIT COVER (02.00.59).....................................................588 3-RANGE REDUCTION UNIT COVER (02.00.60).....................................................589 CONTROL FOR 3-RANGE GEARBOX (02.00.61)......................................................590 4 SPEED GEARBOX WITH MINI REDUCTION GEAR (02.00.62).........................................591 5 SPEED GEARBOX WITH MINI REDUCTION GEAR (02.00.63).........................................594 5 SPEED GEARBOX WITH MINI REDUCTION GEAR - "OVER SPEED" (02.00.64)..........................597 GEAR CHANGE BOX 5 SPEED - FOR TYPES WITH H-M-L- (POWERSHIFT) (02.00.65).....................598 5 SPEED GEARBOX - WITH HML POWERSHIFT - "OVER SPEED" (02.00.66).............................601 SHUTTLE SHAFT (02.00.67)....................................................................604 DIFFERENTIAL (02.00.68).....................................................................605 BEVEL WHEEL GEAR z=8 z=36 (02.00.69)........................................................606 BEVEL WHEEL GEAR Z = 10 / Z = 34 (02.00.70).................................................607 DIFFERENTIAL LOCK CONTROL (02.00.71)........................................................608 DIFFERENTIAL LOCK CONTROL (02.00.72)........................................................609 CYLINDER PARTS (0.007.1961.4/20.A)..........................................................610 SYNCHRONIZER PARTS (0.007.7620.4/10.A)......................................................611 SYNCHRONIZER PARTS (0.007.7621.4.A).........................................................612 PUMP-COMPONENTS (0.010.1148.4/10.A).........................................................613 Index...................................................................................................614 Agrocompact F75 (24"-28")...............................................................................615 REAR AXLE...........................................................................................615 GENERAL.........................................................................................615 REAR AXLE - STANDARD TYPE (03.00.1).........................................................615 REAR AXLE - MOUNTINGS (03.00.3).............................................................616 PARTS SET FOR REAR AXLE - STANDARD SEAL (03.00.4)...........................................617 HANDBRAKE BRACKET FOR TRAILER - FOR MODELS WITHOUT CAB (03.00.5)............................618 HANDBRAKE BRACKET FOR TRAILER - FOR MODELS WITH CAB (03.00.6)...............................619 REAR REDUCTION GEARS AND AXLE SHAFTS - STANDARD TYPE (03.00.7)..............................620 HALF AXLES - STANDARD TYPE (03.00.8)........................................................621 REAR BRAKES (03.00.10)......................................................................622 REAR BRAKES (03.00.11)......................................................................623 HAND BRAKE (03.00.12).......................................................................624 BRAKE CONTROLS (03.00.13)...................................................................627 BRAKING SYSTEM (03.00.14)...................................................................628 BRAKES CONTROL VALVE (03.00.15).............................................................629 HAND BRAKE (03.00.16).......................................................................630 HAND BRAKE (03.00.17).......................................................................631 Index...................................................................................................632 Agrocompact F75 (24"-28")...............................................................................633 S.A.C...............................................................................................633 GENERAL.........................................................................................633 POWER-LIFT CASE (0D.00.1)...................................................................633 LIFTING (0D.00.2)...........................................................................634 LIFTING WITH ELECTRONIC CONTROL (0D.00.3)...................................................635 REGULATING DISTRIBUTOR (0D.00.4)............................................................636 REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D.00.5)....................................638 FLOW CONTROL VALVE WITH MECHANICAL CONTROL (0D.00.6)........................................639 FLOW CONTROL VALVE WITH MECHANICAL CONTROL (0D.00.7)........................................640 REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D.00.8)....................................641 REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D.00.9)....................................642 INTERNAL CONTROLS (0D.00.10)................................................................643 CONTROL CONSOLE FOR POWER-LIFT (0D.00.11)...................................................644 CONTROL CONSOLE FOR ELECTRONIC POWER-LIFT (0D.00.12)........................................645 CONTROL CONSOLE FOR POWER-LIFT - FOR MODELS WITHOUT CAB (0D.00.13)..........................646 CONTROL CONSOLE FOR POWER-LIFT - FOR MODELS WITH CAB (0D.00.14).............................647 CONTROL CONSOLE - LOWER PART - FOR MODELS WITHOUT CAB - X 24" - 28" (0D.00.16)..............648 CONTROL TIE RODS AND LEVERS - FOR 24" - 28" PLATFORM (0D.00.18).............................649 CONTROL TIE RODS AND LEVERS - FOR 24" PLATFORM (0D.00.20)...................................650 CONTROL TIE RODS AND LEVERS - FOR 28" PLATFORM (0D.00.21)...................................651 SENSITIVE ELEMENTS (0D.00.22)...............................................................652 SENSING ELEMENTS WITH ELECTRONIC CONTROL (0D.00.23).........................................653 DISTRIBUTOR PARTS (2.3729.320.0.A)..........................................................654 Index...................................................................................................655 Agrocompact F75 (24"-28")...............................................................................657 POWER STEERING - HYDRAULIC SYSTEM...................................................................657 GENERAL.........................................................................................657 STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06.00.1)...................................657 STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06.00.2)...................................658 STEERING WHEEL CAP (06.00.3)................................................................659 2WD - POWER STEERING (06.00.4)..............................................................660 4WD - POWER STEERING DANFOSS - 80 (06.00.5).................................................661 POWER STEERING (06.00.6)....................................................................662 POWER STEERING (06.00.7)....................................................................663 POWER STEERING (06.00.8)....................................................................664 SEPARATOR - FOR TYPES WITHOUT SAFETY FRAME (06.00.9)........................................665 2WD - POWER STEERING - STANDARD TYPE (06.00.15).............................................666 4WD - POWER STEERING (06.00.17).............................................................667 GEARBOX OIL COOLER (06.00.18)...............................................................668 GEARBOX OIL COOLER (06.00.19)...............................................................669 GEARBOX OIL COOLER PIPES (06.00.21).........................................................670 COMMON HYDRAULIC SYSTEM (06.00.22)..........................................................671 GEAR BOX OIL FEED PIPES (06.00.23)..........................................................672 PUMP FILTER SUCTION (06.00.25)..............................................................673 OIL FILTER 8 " (06.00.26)...................................................................674 OIL FILTER 6 " (06.00.27)...................................................................675 COMMON HYDRAULIC SYSTEM (06.00.28)..........................................................676 HYDRAULIC PUMP 11 cc sx/lh/li (06.00.29)....................................................677 HYDRAULIC PUMP 19 cc - dx/rh/re (06.00.30)..................................................678 HYDRAULIC PUMP 22.5 cc - dx/rh/re (06.00.31)................................................679 HYDRAULIC PUMP 14 + 11cc - dx/rh/re (06.00.32)..............................................680 STANDARD 14+11/19CC PUMP PARTS KIT (06.00.33)...............................................681 STANDARD 22.5CC PUMP PARTS KIT (06.00.34)...................................................682 STANDARD SYSTEM PARTS KIT (06.00.35)........................................................683 ELECTRO-HYDRAULIC THREE-POINT HITCH PARTS KIT (06.00.36)....................................684 OIL FLOW CONTROL VALVE CASING - ELECTROHYDR. CONTROLS (06.00.37)............................685 OIL FLOW CONTROL VALVE CASING - ELECTROHYDR. CONTROLS (06.00.38)............................686 OIL FLOW CONTROL VALVE CASING - FOR TYPES WITHOUT H-M-L (POWERSHIFT) (06.00.39).............687 H-M-L - HYDRAULIC CONTROL (GEARSHIFT) (06.00.40)............................................688 HYDR. STEERING DISTRIBUTOR PARTS (0.009.3141.4/10.A)........................................689 HYDR. STEERING DISTRIBUTOR PARTS (0.290.6310.4/10.A)........................................690 SOLENOID VALVE 13 V - 20 W, ON/OFF 3/2 (2.3729.697.0/10.A)..................................691 DETAILS OF OIL FILTER (2.4419.610.0.A)......................................................692 DETAILS OF OIL FILTER (2.4419.720.0.A)......................................................693 HYDRAULIC PUMP PARTS (2.4529.950.0.A).......................................................694 HYDRAULIC PUMP PARTS (2.4529.960.0.A).......................................................695 HYDRAULIC PUMP PARTS (2.4539.620.0.A).......................................................696 HYDRAULIC PUMP PARTS (2.4539.700.0.A).......................................................697 PUMP-COMPONENTS (2.4539.710.0.A)............................................................698 Index...................................................................................................699 Agrocompact F75 (24"-28")...............................................................................700 WHEELS..............................................................................................700 GENERAL.........................................................................................700 2WD - FRONT WHEEL MOUNTING (09.00.1)........................................................700 4WD - FRONT WHEEL MOUNTING (09.00.2)........................................................701 REAR WHEEL BOLTS (09.00.3)..................................................................702 REAR WHEEL BOLTS (09.00.4)..................................................................703 SPACER FOR REAR WHEEL RIMS (09.00.5)........................................................704 WHEELS 7.00x12" pr 6 (09.00.6)..............................................................705 WHEELS 6.50 R16" PR 8 (09.00.9).............................................................706 WHEELS 6.50 R16" PR 8 (09.00.10)............................................................707 WHEELS 7.50 x 16'' pr 6 (09.00.11)..........................................................708 WHEELS 7.50 x 16'' pr 8 (09.00.12)..........................................................709 WHEELS 8.25x16" pr 4 (09.00.13).............................................................710 WHEELS 240/70 R16" (09.00.14)...............................................................711 WHEELS 260/70 R16" (09.00.16)...............................................................712 WHEELS 280/70 R16" (09.00.17)...............................................................713 WHEELS 280/70 R18" (09.00.18)...............................................................714 WHEELS 12.4 R24" A8 (09.00.23)..............................................................715 WHEELS 12.4 R24" A8 (09.00.24)..............................................................716 WHEELS 360/70x24" pr 6 (09.00.27)...........................................................717 WHEELS 380/70 R24'' A8 (09.00.28)...........................................................718 WHEELS 420/70 R24" A8 (09.00.29)............................................................719 WHEELS 13.6R-28" a8 (09.00.30)..............................................................720 WHEELS 12.4 R28" A8 (09.00.31)..............................................................721 WHEELS 13.6R-28" a8 (09.00.32)..............................................................722 WHEELS 380/70 R28" A8 (09.00.33)............................................................723 WHEELS 420/70 R28" A8 (09.00.34)............................................................724
