Deutz Fahr AgroCompact F90 (20-24-28) Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr AgroCompact F90 (20-24-28) Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr AgroCompact F90 (20-24-28) Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 1550
Downloadable : Yes
File Type : PDF
Size: 34.0 mb

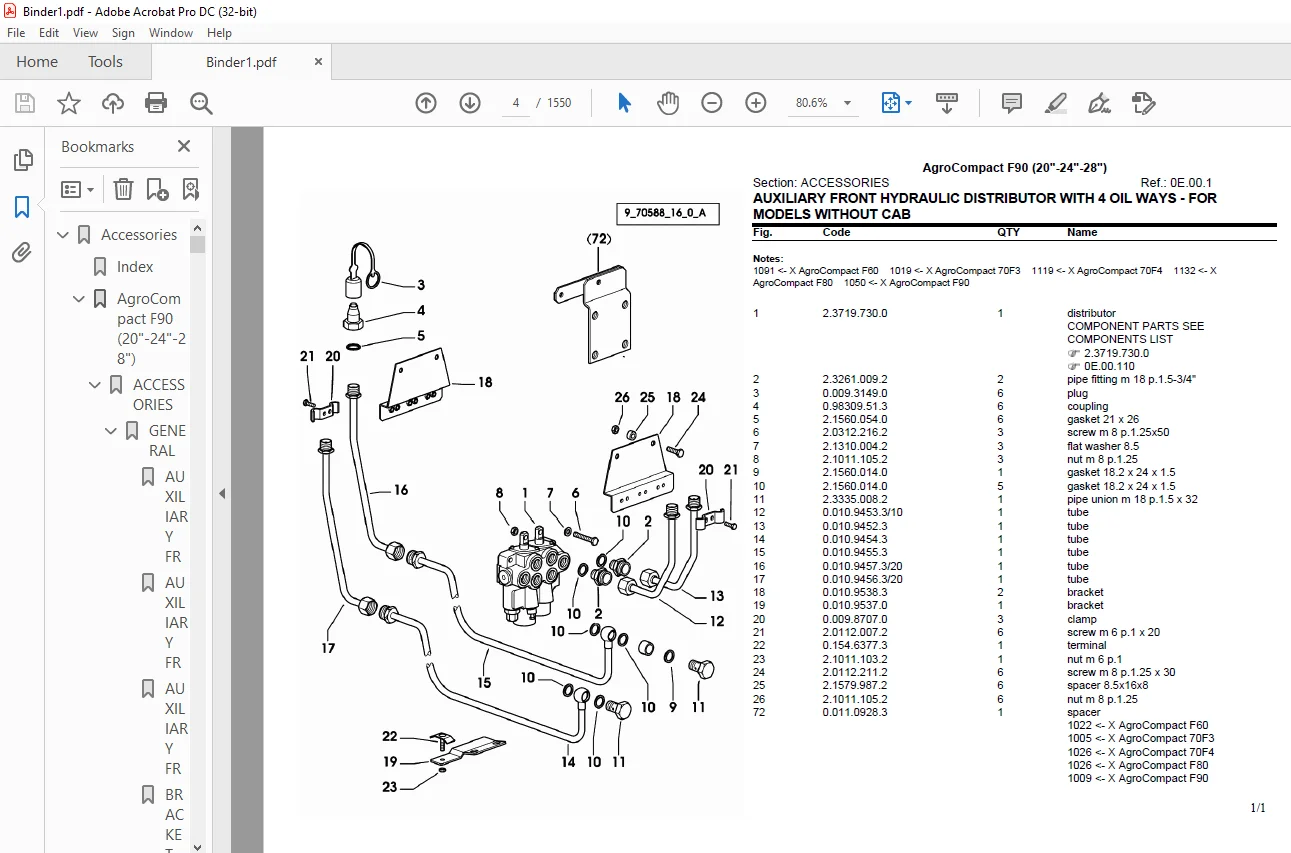

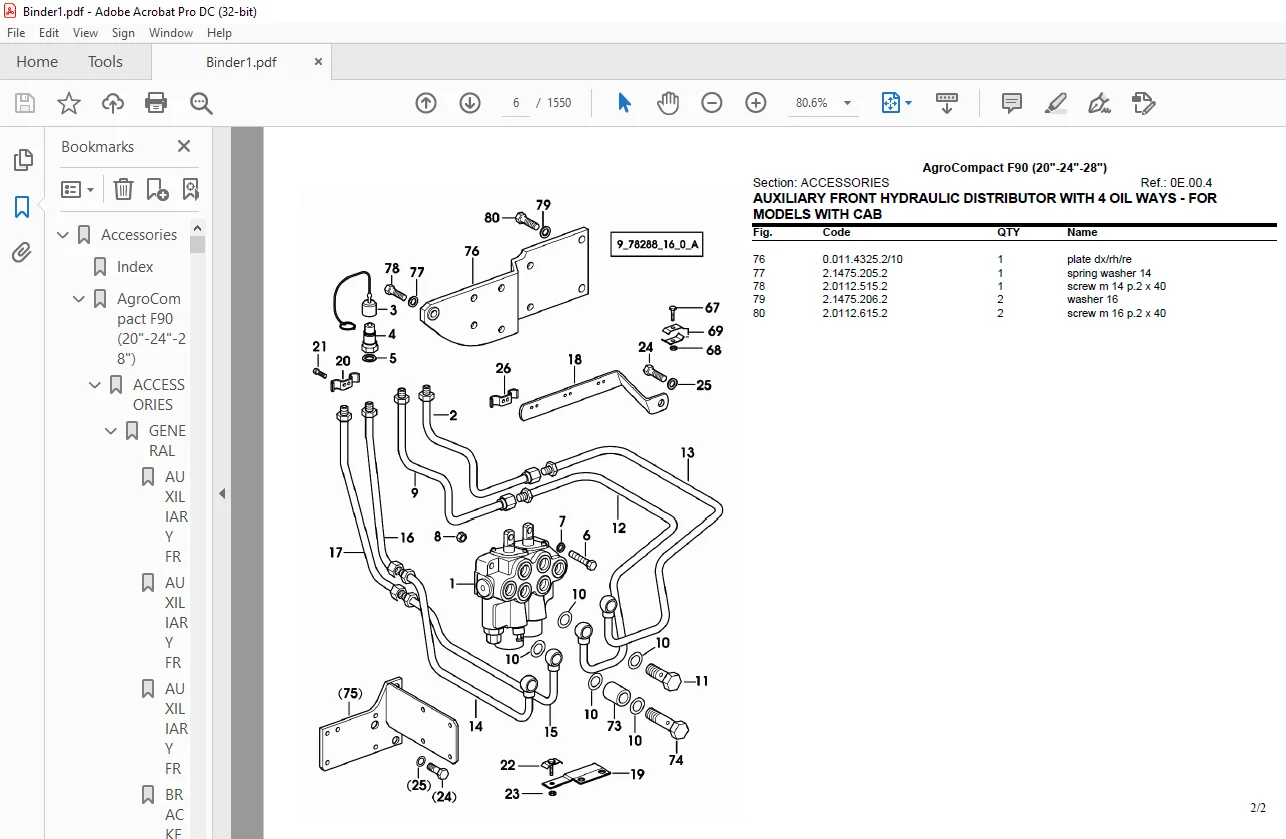

IMAGES PREVIEW OF THE MANUAL:

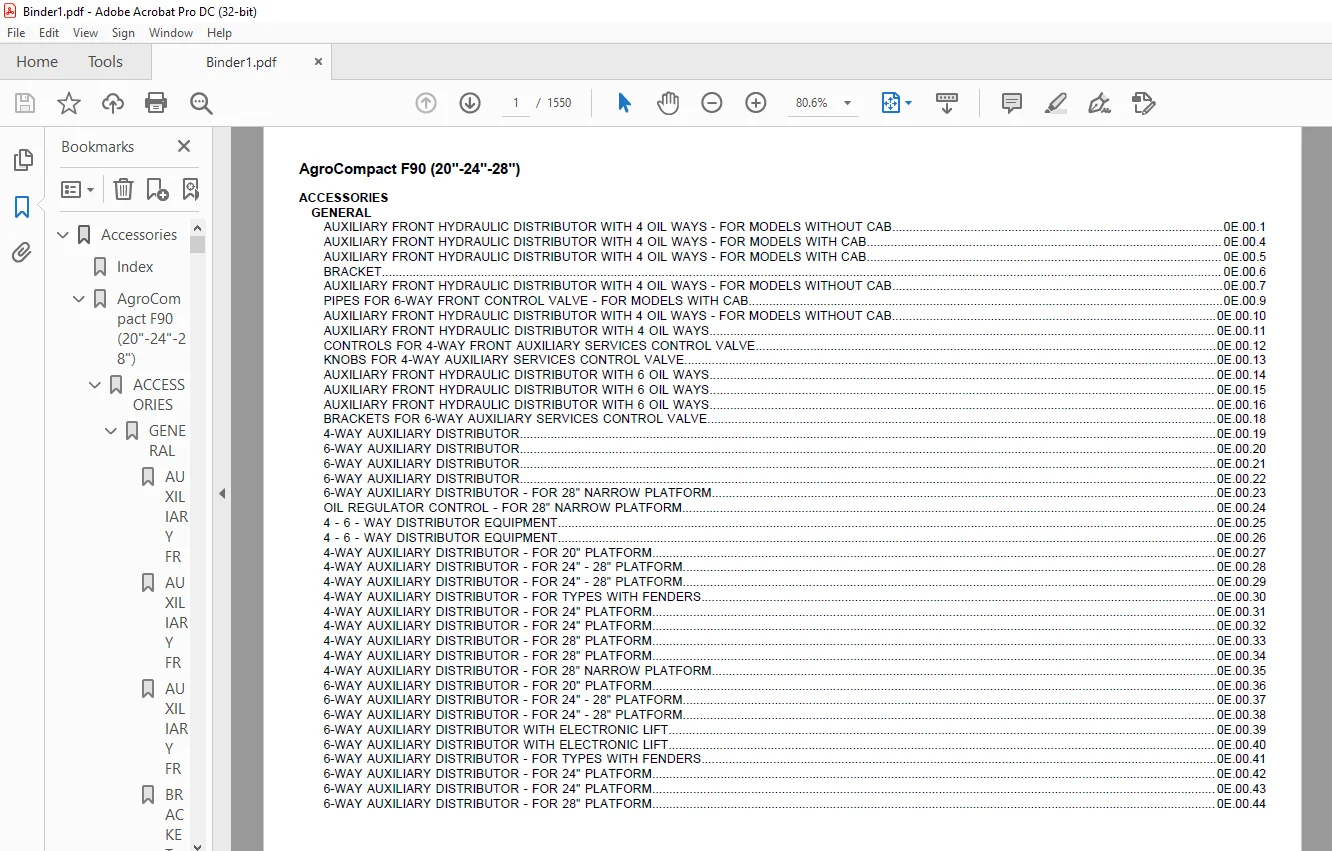

TABLE OF CONTENTS:

Deutz Fahr AgroCompact F90 (20-24-28) Parts Catalog Manual – PDF DOWNLOAD

Accessories 1
Index 1
AgroCompact F90 (20″-24″-28″) 4
ACCESSORIES 4
GENERAL 4
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – FOR MODELS WITHOUT CAB (0E001) 4
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – FOR MODELS WITH CAB (0E004) 5
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – FOR MODELS WITH CAB (0E005) 7
BRACKET (0E006) 9
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – FOR MODELS WITHOUT CAB (0E007) 10
PIPES FOR 6-WAY FRONT CONTROL VALVE – FOR MODELS WITH CAB (0E009) 11
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – FOR MODELS WITHOUT CAB (0E0010) 12
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS (0E0011) 15
CONTROLS FOR 4-WAY FRONT AUXILIARY SERVICES CONTROL VALVE (0E0012) 17
KNOBS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E0013) 18
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 6 OIL WAYS (0E0014) 19
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 6 OIL WAYS (0E0015) 22
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 6 OIL WAYS (0E0016) 26
BRACKETS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E0018) 32
4-WAY AUXILIARY DISTRIBUTOR (0E0019) 33
6-WAY AUXILIARY DISTRIBUTOR (0E0020) 34
6-WAY AUXILIARY DISTRIBUTOR (0E0021) 36
6-WAY AUXILIARY DISTRIBUTOR (0E0022) 38
6-WAY AUXILIARY DISTRIBUTOR – FOR 28″ NARROW PLATFORM (0E0023) 40
OIL REGULATOR CONTROL – FOR 28″ NARROW PLATFORM (0E0024) 42
4 – 6 – WAY DISTRIBUTOR EQUIPMENT (0E0025) 43
4 – 6 – WAY DISTRIBUTOR EQUIPMENT (0E0026) 45
4-WAY AUXILIARY DISTRIBUTOR – FOR 20″ PLATFORM (0E0027) 46
4-WAY AUXILIARY DISTRIBUTOR – FOR 24″ – 28″ PLATFORM (0E0028) 47
4-WAY AUXILIARY DISTRIBUTOR – FOR 24″ – 28″ PLATFORM (0E0029) 48
4-WAY AUXILIARY DISTRIBUTOR – FOR TYPES WITH FENDERS (0E0030) 49
4-WAY AUXILIARY DISTRIBUTOR – FOR 24″ PLATFORM (0E0031) 50
4-WAY AUXILIARY DISTRIBUTOR – FOR 24″ PLATFORM (0E0032) 51
4-WAY AUXILIARY DISTRIBUTOR – FOR 28″ PLATFORM (0E0033) 52
4-WAY AUXILIARY DISTRIBUTOR – FOR 28″ PLATFORM (0E0034) 53
4-WAY AUXILIARY DISTRIBUTOR – FOR 28″ NARROW PLATFORM (0E0035) 54
6-WAY AUXILIARY DISTRIBUTOR – FOR 20″ PLATFORM (0E0036) 55
6-WAY AUXILIARY DISTRIBUTOR – FOR 24″ – 28″ PLATFORM (0E0037) 56
6-WAY AUXILIARY DISTRIBUTOR – FOR 24″ – 28″ PLATFORM (0E0038) 57
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E0039) 58
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E0040) 60
6-WAY AUXILIARY DISTRIBUTOR – FOR TYPES WITH FENDERS (0E0041) 61
6-WAY AUXILIARY DISTRIBUTOR – FOR 24″ PLATFORM (0E0042) 62
6-WAY AUXILIARY DISTRIBUTOR – FOR 24″ PLATFORM (0E0043) 63
6-WAY AUXILIARY DISTRIBUTOR – FOR 28″ PLATFORM (0E0044) 64
6-WAY AUXILIARY DISTRIBUTOR – FOR 28″ PLATFORM (0E0045) 65
6-WAY AUXILIARY DISTRIBUTOR – FOR 28″ NARROW PLATFORM (0E0046) 66
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E0047) 67
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E0048) 68
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT – FOR 28″ NARROW PLATFORM (0E0049) 69
THREE-POINT COUPLING – TOP/LOWER LINK (0E0050) 70
THREE-POINT COUPLING – TOP/LOWER LINK (0E0051) 71
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM (0E0052) 72
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM X 24″ – 28″ (0E0053) 74
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM (0E0054) 76
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM (0E0055) 78
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM – FOR NARROW CRAMER TOW HOOK (0E0056) 80
3 POINT HITCH (0E0057) 82
3-POINT HITCH – ADJUSTABLE RH RODS (0E0058) 84
3-POINT HITCH – ADJUSTABLE RH RODS – FOR NARROW CRAMER TOW HOOK (0E0059) 85
3-POINT HITCH WITH HYDRAULIC LIFT ROD (0E0060) 86
3-POINT HITCH WITH HYDRAULIC LIFT ROD (0E0061) 87
3-POINT HITCH WITH HYDRAULIC LIFT ROD (0E0062) 88
3-POINT HITCH WITH HYDRAULIC LIFT ROD (0E0063) 89
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0064) 91
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0065) 92
3-POINT HITCH WITH HYDRAULIC LIFT ROD – FOR NARROW CRAMER TOW HOOK (0E0066) 94
3-POINT HITCH WITH HYDRAULIC LIFT ROD – FOR NARROW CRAMER TOW HOOK (0E0067) 95
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT – FOR NARROW CRAMER TOW HOOK (0E0068) 96
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT – FOR NARROW CRAMER TOW HOOK (0E0069) 97
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0070) 99
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0071) 101
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0072) 103
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0073) 104
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0074) 105
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT – FOR NARROW CRAMER TOW HOOK (0E0075) 106
TOWING BAR 2 cat (0E0076) 107
REAR OSCILLATING HITCH (0E0077) 108
REAR TOWING HITCH CAT: “C” (0E0078) 109
FRAME HOOK HOLDER (0E0079) 110
FRAME HOOK HOLDER GRASSI (0E0080) 111
REAR TOWING HITCH (CRAMER) (0E0081) 112
REAR TOWING HITCH (CRAMER) (0E0082) 113
REAR TOWING HITCH CAT: “C” GRASSI (0E0083) 114
REAR TOWING HITCH SCHARMULLER (0E0084) 115
REAR TOWING HITCH CAT: “D” GRASSI (0E0085) 116
REAR TOWING HITCH CAT: “D2″ GRASSI (0E0086) 117
FRONT TOWING HITCH (0E0088) 118
FRONT BALLAST (0E0089) 119
FRONT BALLAST n 8 (0E0090) 120
FRONT WEIGHT CARRIER (0E0091) 121
FROMT PLATE FOR IMPLEMENTS (0E0092) 122
FRONT BALLAST KG 250 (0E0093) 123
BALLAST LOCK BAR (0E0094) 124
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E0095) 125
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (0E0096) 127
LUBRICATOR (0E0097) 128
TOOL POUCH (0E0098) 129
ENGAGEMENT (098308503/10A) 130
Binder1 131
Accessories 131
Index 131
AgroCompact F90 (20″-24″-28″) 134
ACCESSORIES 134
GENERAL 134
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – FOR MODELS WITHOUT CAB (0E001) 134
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – FOR MODELS WITH CAB (0E004) 135
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – FOR MODELS WITH CAB (0E005) 137
BRACKET (0E006) 139
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – FOR MODELS WITHOUT CAB (0E007) 140
PIPES FOR 6-WAY FRONT CONTROL VALVE – FOR MODELS WITH CAB (0E009) 141
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – FOR MODELS WITHOUT CAB (0E0010) 142
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS (0E0011) 145
CONTROLS FOR 4-WAY FRONT AUXILIARY SERVICES CONTROL VALVE (0E0012) 147
KNOBS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E0013) 148
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 6 OIL WAYS (0E0014) 149
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 6 OIL WAYS (0E0015) 152
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 6 OIL WAYS (0E0016) 156
BRACKETS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E0018) 162
4-WAY AUXILIARY DISTRIBUTOR (0E0019) 163
6-WAY AUXILIARY DISTRIBUTOR (0E0020) 164
6-WAY AUXILIARY DISTRIBUTOR (0E0021) 166
6-WAY AUXILIARY DISTRIBUTOR (0E0022) 168
6-WAY AUXILIARY DISTRIBUTOR – FOR 28″ NARROW PLATFORM (0E0023) 170
OIL REGULATOR CONTROL – FOR 28″ NARROW PLATFORM (0E0024) 172
4 – 6 – WAY DISTRIBUTOR EQUIPMENT (0E0025) 173
4 – 6 – WAY DISTRIBUTOR EQUIPMENT (0E0026) 175
4-WAY AUXILIARY DISTRIBUTOR – FOR 20″ PLATFORM (0E0027) 176
4-WAY AUXILIARY DISTRIBUTOR – FOR 24″ – 28″ PLATFORM (0E0028) 177
4-WAY AUXILIARY DISTRIBUTOR – FOR 24″ – 28″ PLATFORM (0E0029) 178
4-WAY AUXILIARY DISTRIBUTOR – FOR TYPES WITH FENDERS (0E0030) 179
4-WAY AUXILIARY DISTRIBUTOR – FOR 24″ PLATFORM (0E0031) 180
4-WAY AUXILIARY DISTRIBUTOR – FOR 24″ PLATFORM (0E0032) 181
4-WAY AUXILIARY DISTRIBUTOR – FOR 28″ PLATFORM (0E0033) 182
4-WAY AUXILIARY DISTRIBUTOR – FOR 28″ PLATFORM (0E0034) 183
4-WAY AUXILIARY DISTRIBUTOR – FOR 28″ NARROW PLATFORM (0E0035) 184
6-WAY AUXILIARY DISTRIBUTOR – FOR 20″ PLATFORM (0E0036) 185
6-WAY AUXILIARY DISTRIBUTOR – FOR 24″ – 28″ PLATFORM (0E0037) 186
6-WAY AUXILIARY DISTRIBUTOR – FOR 24″ – 28″ PLATFORM (0E0038) 187
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E0039) 188
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E0040) 190
6-WAY AUXILIARY DISTRIBUTOR – FOR TYPES WITH FENDERS (0E0041) 191
6-WAY AUXILIARY DISTRIBUTOR – FOR 24″ PLATFORM (0E0042) 192
6-WAY AUXILIARY DISTRIBUTOR – FOR 24″ PLATFORM (0E0043) 193
6-WAY AUXILIARY DISTRIBUTOR – FOR 28″ PLATFORM (0E0044) 194
6-WAY AUXILIARY DISTRIBUTOR – FOR 28″ PLATFORM (0E0045) 195
6-WAY AUXILIARY DISTRIBUTOR – FOR 28″ NARROW PLATFORM (0E0046) 196
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E0047) 197
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E0048) 198
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT – FOR 28″ NARROW PLATFORM (0E0049) 199
THREE-POINT COUPLING – TOP/LOWER LINK (0E0050) 200
THREE-POINT COUPLING – TOP/LOWER LINK (0E0051) 201
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM (0E0052) 202
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM X 24″ – 28” (0E0053) 204
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM (0E0054) 206
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM (0E0055) 208
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM – FOR NARROW CRAMER TOW HOOK (0E0056) 210
3 POINT HITCH (0E0057) 212
3-POINT HITCH – ADJUSTABLE RH RODS (0E0058) 214
3-POINT HITCH – ADJUSTABLE RH RODS – FOR NARROW CRAMER TOW HOOK (0E0059) 215
3-POINT HITCH WITH HYDRAULIC LIFT ROD (0E0060) 216
3-POINT HITCH WITH HYDRAULIC LIFT ROD (0E0061) 217
3-POINT HITCH WITH HYDRAULIC LIFT ROD (0E0062) 218
3-POINT HITCH WITH HYDRAULIC LIFT ROD (0E0063) 219
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0064) 221
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0065) 222
3-POINT HITCH WITH HYDRAULIC LIFT ROD – FOR NARROW CRAMER TOW HOOK (0E0066) 224
3-POINT HITCH WITH HYDRAULIC LIFT ROD – FOR NARROW CRAMER TOW HOOK (0E0067) 225
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT – FOR NARROW CRAMER TOW HOOK (0E0068) 226
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT – FOR NARROW CRAMER TOW HOOK (0E0069) 227
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0070) 229
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0071) 231
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0072) 233
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0073) 234
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (0E0074) 235
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT – FOR NARROW CRAMER TOW HOOK (0E0075) 236
TOWING BAR 2 cat (0E0076) 237
REAR OSCILLATING HITCH (0E0077) 238
REAR TOWING HITCH CAT: “C” (0E0078) 239
FRAME HOOK HOLDER (0E0079) 240
FRAME HOOK HOLDER GRASSI (0E0080) 241
REAR TOWING HITCH (CRAMER) (0E0081) 242
REAR TOWING HITCH (CRAMER) (0E0082) 243
REAR TOWING HITCH CAT: “C” GRASSI (0E0083) 244
REAR TOWING HITCH SCHARMULLER (0E0084) 245
REAR TOWING HITCH CAT: “D” GRASSI (0E0085) 246
REAR TOWING HITCH CAT: “D2″ GRASSI (0E0086) 247
FRONT TOWING HITCH (0E0088) 248
FRONT BALLAST (0E0089) 249
FRONT BALLAST n 8 (0E0090) 250
FRONT WEIGHT CARRIER (0E0091) 251
FROMT PLATE FOR IMPLEMENTS (0E0092) 252
FRONT BALLAST KG 250 (0E0093) 253
BALLAST LOCK BAR (0E0094) 254
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E0095) 255
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (0E0096) 257
LUBRICATOR (0E0097) 258
TOOL POUCH (0E0098) 259
ENGAGEMENT (098308503/10A) 260
Bodywork 261
Index 261
AgroCompact F90 (20″-24″-28″) 264
BODY WORK 264
GENERAL 264
HOOD FRONT PART (07001) 264
HOOD (07003) 265
HOOD PLUG (07004) 266
PRODUCT PLATE (07009) 267
HOOD – SUPPORTS (070011) 268
DEFLECTORS AND SUPPORTS (070013) 270
BELT GUARDS – FOR TRACTORS WITHOUT AIR CONDITIONING (070014) 271
BELT GUARDS – FOR TRACTORS WITH AIR CONDITIONING (070015) 272
COOLING – COOLANT RADIATOR (070018) 273
COOLING – EXPANSION TANK (070019) 274
BATTERY SUPPORT (070020) 275
SUPPORTS FOR BATTERY – FOR 28″ NARROW PLATFORM (070021) 276
BATTERY COVER (070022) 277
BATTERY COVER (070023) 279
BATTERY COVER (070024) 281
BATTERY COVER (070025) 282
BATTERY COVER (070026) 283
BATTERY COVER (070027) 284
BATTERY COVER – FOR 28″ NARROW PLATFORM (070028) 285
BATTERY COVER – FOR 28″ NARROW PLATFORM (070029) 286
BATTERY COVER – FOR 28″ NARROW PLATFORM (070030) 287
BATTERY COVER – FOR TYPES WITH FENDERS (070031) 288
METAL TOOLBOX (070032) 289
METAL TOOLBOX (070033) 290
PEDAL SUPPORT – FOR TYPES WITH FENDERS (070034) 291
PEDAL SUPPORT – FOR MODELS WITH PLATFORM (070035) 292
REAR INSTRUMENT PANEL SURROUND – FOR TYPES WITH FENDERS (070036) 293
REAR INSTRUMENT PANEL SURROUND – FOR MODELS WITH PLATFORM (070037) 294
DASHBOARD – FOR TYPES WITH FENDERS (070038) 295
DASHBOARD – FOR TYPES WITHOUT FRONT ELECTROHYDRAULIC CONTROL VALVE (070039) 296
DASHBOARD (070040) 297
DASHBOARD – FOR 28″ NARROW PLATFORM (070041) 298
SPEED LABEL km/h (070042) 299
SPEED LABEL MPH (070043) 300
DASHBOARD – STEERING COVER (070044) 301
DASHBOARD – SEPARATOR – FOR MODELS WITH CAB (070045) 302
PLUG FOR VERSION WITHOUT CIGAR LIGHTER (070046) 303
BRACKET – SPEED LABEL (070047) 304
SPEED LABEL – 40 KM/H – REFLEX ITALY (070048) 305
SPEED LABEL – 40 KM/H (070049) 306
PLATES EXPORT D (070050) 307
INFORMATION PLATE (070051) 308
THROTTLE – MECHANICAL – (070052) 309
THROTTLE – MECHANICAL – (070053) 311
THROTTLE – FOR TYPES WITH FENDERS (070054) 312
THROTTLE – FOR MODELS WITH PLATFORM (070055) 313
ELECTRONIC ACCELERATOR CONTROL (070056) 314
ELECTRONIC ACCELERATOR CONTROL (070057) 315
ELECTRONIC ACCELERATOR CONTROL (070058) 317
ELECTRONIC ACCELERATOR CONTROL (070059) 318
FRONT MUDGUARDS mm 240 – 310 (070060) 319
FRONT MUDGUARDS mm 265 – 310 (070061) 320
FRONT MUDGUARDS mm 240 (070062) 321
FRONT MUDGUARDS mm 265 (070063) 322
FRONT MUDGUARDS – FOR NARROW TYPES (070064) 323
FRONT MUDGUARD SUPPORTS – WITHOUT ROPS (070065) 324
FOOT BOARD AND COVER (070066) 325
FOOT BOARD AND COVER (070067) 327
FOOT BOARD AND COVER (070068) 328
GUARD (070069) 329
GUARD (070070) 330
REAR MUDGUARDS (070071) 331
FENDERS (070072) 332
FENDERS (070073) 333
PLATFORM (070074) 334
PLATFORM 24″ (070075) 335
PLATFORM 28″ (070076) 336
PLATFORM – FOR 28″ NARROW PLATFORM (070077) 337
COVER PLATE – FOR MODELS WITH PLATFORM (070078) 338
PLATTFORM: SUPPORTS (070079) 339
PLATTFORM: SUPPORTS (070080) 340
PLATTFORM: SUPPORTS (070081) 341
MUDGUARDS EXTENSIONS mm 50 (070082) 342
MUDGUARDS EXTENSIONS mm 50 (070083) 343
EXTENSION FOR WING – FOR 28″ NARROW PLATFORM mm 50 (070084) 344
MUDGUARDS EXTENSIONS mm 80 (070085) 345
MUDGUARDS EXTENSIONS mm 80 (070086) 346
MUDGUARDS EXTENSIONS mm 120 (070087) 347
MUDGUARDS EXTENSIONS mm 120 (070088) 348
MUDGUARDS EXTENSIONS mm 170 (070089) 349
MUDGUARDS EXTENSIONS mm 170 (070090) 350
EXTENSION FOR WING (070091) 351
LICENCE PLATE HOLDER EXPORT F (070092) 352
LICENCE PLATE HOLDER (070093) 353
LICENCE PLATE HOLDER – HOOD (070094) 354
REARVIEW MIRROR – FOR TYPES WITH SAFETY FRAME dx/rh/re (070095) 355
REARVIEW MIRROR – FOR TYPES WITH SAFETY FRAME dx/rh/re (070096) 357
SAFETY ROLL BAR WITH HYDRAULIC LIFTING (070097) 358
SAFETY ROLL BAR WITH HYDRAULIC LIFTING (070098) 359
SAFETY ARCH (070099) 360
SAFETY ARCH (0700100) 361
SAFETY ROLL BAR SUPPORTS – WITH HYDRAULIC LIFT (0700102) 362
SAFETY ROLL BAR SUPPORTS (0700105) 363
SAFETY ROLL BAR SUPPORTS (0700106) 364
FUEL TANK – FOR MODELS WITHOUT FRONT PTO (0700107) 365
FUEL TANK – FOR MODELS EQUIPPED WITH FRONT PTO (0700108) 367
AUXILIARY TANK (0700109) 369
AUXILIARY TANK – FOR MODELS WITH PLATFORM (0700110) 371
AUXILIARY TANK – FOR MODELS WITH CAB (0700111) 373
AUXILIARY TANK – FOR MODELS WITH CAB (0700112) 375
AUXILIARY TANK – FOR MODELS WITH PLATFORM (0700113) 377
AUXILIARY TANK (0700114) 378
FUEL SYSTEM – TANK – NARROW TYPE 2wd (0700119) 380
FUEL SYSTEM – TANK – STANDARD TYPE 2wd (0700120) 381
FUEL SYSTEM – TANK – FOR MODELS WITHOUT FRONT PTO 4 WD (0700121) 382
FUEL SYSTEM – TANK – FOR MODELS EQUIPPED WITH FRONT PTO 4 WD (0700122) 383
FUEL SUPPLY – AIR FILTER (0700123) 384
FUEL SUPPLY – AIR FILTER (0700125) 385
AIR PRE-CLEANER (0700126) 386
DRIVER’S SEAT – IN BLACK LEATHERETTE GRAMMER MSG83/8 (0700127) 387
DRIVER’S SEAT KAB XL2 (0700128) 388
DRIVER’S SEAT – IN GREY MATERIAL GRAMMER MSG83/8 (0700129) 389
DRIVER’S SEAT PNEUMATIC SPRINGING – IN GREY MATERIAL GRAMMER (0700130) 390
SAFETY BELT – FOR GRAMMER SEAT MSG 83/8 (0700131) 391
SEAT SUPPORT PLATE (0700132) 392
Cab 393
Index 393
AgroCompact F90 (20″-24″-28″) 395
CAB 395
GENERAL 395
CAB – FOR 20″ PLATFORM (0B001) 395
CAB – FOR 24″ – 28″ PLATFORM (0B002) 396
CAB – FOR 28″ NARROW PLATFORM (0B003) 397
FLANGE – FOR VERSIONS WITHOUT OIL RADIATOR (0B004) 398
FLANGE – FOR VERSIONS WITH OIL RADIATOR (0B005) 399
DOOR HANDLE AND REARVIEW MIRROR SUPPORT BRACKET (0B006) 400
GLASSES AND SEALS (0B007) 401
GLASSES AND SEALS (0B008) 406
HANDLE REAR WINDOW (0B009) 411
GLASSES AND SEALS (0B0010) 412
GLASSES AND SEALS (0B0011) 414
HANDLE REAR WINDOW (0B0012) 416
GLASSES AND SEALS (0B0013) 417
GLASSES AND SEALS (0B0014) 422
HANDLE REAR WINDOW (0B0015) 427
GLASSES AND SEALS (0B0016) 428
GLASSES AND SEALS (0B0017) 431
HANDLE REAR WINDOW (0B0018) 434
GLASSES AND SEALS – FOR 28″ NARROW PLATFORM (0B0019) 435
GLASSES AND SEALS – FOR 28″ NARROW PLATFORM (0B0020) 438
HANDLE REAR WINDOW – FOR 28″ NARROW PLATFORM (0B0021) 441
WINDSCREEN (0B0022) 442
WINDSCREEN (0B0023) 443
REARVIEW MIRROR (0B0024) 444
INTERIOR TRIM – FOR 20″ PLATFORM (0B0025) 445
CAB INTERIOR TRIM – 20″ (0B0026) 449
INTERIOR TRIM – FOR 24″ – 28″ PLATFORM (0B0027) 452
CAB INTERIOR TRIM 24″ – 28″ (0B0028) 456
INTERIOR TRIM – FOR 28″ NARROW PLATFORM (0B0029) 459
INTERIOR TRIM (0B0030) 460
INTERIOR TRIM (0B0031) 461
INTERIOR TRIM (0B0032) 462
INTERIOR TRIM – FOR 28″ NARROW PLATFORM (0B0033) 463
SUN BLIND (0B0034) 464
INTERIOR TRIM (0B0035) 465
INTERIOR TRIM (0B0036) 467
CARBON FILTER (0B0037) 469
ROOF (0B0038) 470
ROOF – AIR CONDITIONING UNIT (0B0039) 471
CAB INSTALLATION COMPLETION (0B0040) 472
CAB INSTALLATION COMPLETION (0B0041) 473
CAB INSTALLATION COMPLETION (0B0042) 474
CAB INSTALLATION COMPLETION (0B0043) 476
CAB INSTALLATION COMPLETION (0B0044) 477
CAB INSTALLATION COMPLETION (0B0045) 478
CAB INSTALLATION COMPLETION – FOR 28″ NARROW PLATFORM (0B0046) 479
WINDSHIELD WIPER SYSTEM (0B0047) 480
VENTILATION-AIR CONDITIONING-HEATING (0B0048) 482
VENTILATION-AIR CONDITIONING-HEATING (0B0049) 484
VENTILATION – AIR CONDITIONING (0B0050) 487
VENTILATION – AIR CONDITIONING (0B0051) 490
COMPRESSOR (0B0052) 493
VENTILATION – AIR CONDITIONING (0B0054) 494
VENTILATION – HEATING (0B0055) 495
VENTILATION – AIR CONDITIONING – HEATING (0B0056) 498
VENTILATION – HEATING (0B0057) 501
Electrical_system 502
Index 502
AgroCompact F90 (20″-24″-28”) 504
ELECTRIC AL SYSTEM 504
GENERAL 504
HEADLAMP FOR RIGHT-HAND DRIVE (08001) 504
HEADLAMP FOR LEFT-HAND DRIVE (08002) 505
ELECTRIC LIGHTING SYSTEM – WITH FOLD-DOWN ROPS (08003) 506
ELECTRIC LIGHTING SYSTEM – WITH CAB (08004) 508
WORKING SPOTLIGHT FRONT (08005) 511
WORKING SPOTLIGHT REAR – FOR TYPES WITH FENDERS (08006) 512
WORKING SPOTLIGHT REAR (08007) 513
WORKING SPOTLIGHT REAR (08008) 514
LICENCE PLATE LIGHT (08009) 515
WARNING BEACON (080010) 516
PREARRANGEMENT FOR WARNING BEACON – FOR MODELS WITH CAB (080011) 517
ELECTRIC STARTING SYSTEM (080012) 518
STARTER (080015) 519
STARTER (080016) 520
ALTERNATOR 65 A (080017) 521
ALTERNATOR PULLEY 65 A (080018) 522
ALTERNATOR MOUNTINGS (080019) 523
ELECTRIC STARTING SYSTEM – FOR TRACTORS WITH AIR CONDITIONING (080020) 524
COMPRESSOR AND ALTERNATOR SUPPORTS (080021) 525
BATTERY 12V 100Ah 500A (080022) 526
BATTERY 12V 100Ah 650A (080023) 527
ELECTRICAL SYSTEM (080024) 528
ANALOGUE INSTRUMENT PANEL 30 Km/h – 40 Km/h (080025) 529
DIGITAL INSTRUMENT PANEL (080026) 530
ELECTRONIC CONTROL UNIT – ENGINE 30 KM/h + HML (080027) 531
ELECTRONIC CONTROL UNIT – ENGINE 40 KM/h + HML (080028) 532
ELECTRONIC CONTROL UNIT – ENGINE (080029) 533
PREHEATING CONTROL UNIT (080030) 534
CONTROL UNIT – GEARS H-M-L (080031) 535
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (080032) 536
4WD – ENGAGEMENT CONTROL – FOR TYPES WITH “SBA SYSTEM” (080033) 537
SWITCH – FOR PTO FRONT (080034) 538
SPEED SENSOR (080036) 539
CIGAR LIGHTER (080037) 540
REAR LIGHTS AND BATTERY LEADS (080038) 541
ELECTRICAL EQUIPMENT FRONT (080039) 542
ELECTRICAL SYSTEM – FOR MODELS WITH MECHANICAL ENGINE GOVERNOR (080040) 543
ELECTRICAL SYSTEM – FOR MODELS WITH MECHANICAL ENGINE GOVERNOR + H-M-L (080041) 544
ELECTRICAL SYSTEM – FOR MODELS WITH ELECTRONIC ENGINE GOVERNOR (080042) 546
CAB ELECTRICAL SYSTEM (080043) 548
POWER-LIFT ELECTRONIC SYSTEM (080044) 550
ELECTRICAL SYSTEM FOR 6-WAY FRONT CONTROL VALVE (080045) 552
ELECTRICAL SYSTEM – 3 POINT HITCH (080046) 553
GUARD FOR ELECTRO VALVES (080047) 554
STARTER PARTS (296193900A) 555
Engine 556
Index 556
AgroCompact F90 (20″-24″-28″) 558
ENGINE 558
GENERAL 558
ENGINE BEARING (01003) 558
TIMING CASE (01004) 559
CASING COVER (01006) 560
GUARD PLATE (01007) 561
MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (01008) 562
PLUG (010010) 563
CRANKSHAFT (010012) 564
CYLINDER – PISTON – CONNECTING ROD (010016) 565
CRANKSHAFT PULLEY (010017) 566
ENGINE SHAFT – FRONT PTO PULLEYS (010018) 567
PULSE WHEEL (010019) 568
ENGINE FLYWHEEL (010022) 569
COUNTERWEIGHTS (010023) 570
CAMSHAFT (010026) 571
CAMSHAFT (010027) 572
CYLINDER HEAD (010031) 573
INLET AND EXHAUST VALVES (010035) 575
INLET AND EXHAUST VALVE SPRINGS (010037) 576
OIL PAN (010040) 577
LUBRIC OIL FILTER (010042) 578
LUBRIC OIL COOLER (010044) 579
LUBRICATION (010049) 580
OIL PUMP (010051) 581
LUBRICATION (010053) 582
LUBRICATION – EXPORT USA (010058) 583
OIL PIPES FOR TURBOCHARGER (010060) 584
INJECTION PUMP – INJECTOR (010063) 585
INJECTION PUMP – INJECTOR (010064) 586
FUEL FEED PUMP (010066) 587
FUEL PIPES (010069) 588
INJECTION LINES (010070) 589
INJECTION LINES (010072) 590
FUEL FILTER (010073) 591
MECHANICAL ENGINE GOVERNOR (010074) 592
PLUG FOR MECHANICAL REGULATOR (010076) 593
ELECTRONIC MOTOR CONTROLLER (010077) 594
ELECTRONIC MOTOR CONTROLLER (010078) 595
THERMO STARTER (010080) 596
PARTS SET – ENGINE MOUNTING (010082) 597
COOLING WATER PUMP (010084) 598
COOLANT PUMP PULLEY (010085) 599
COOLANT PIPE (010087) 600
COOLANT PUMP DRIVEBELT (010089) 601
COOLANT PUMP DRIVEBELT (010090) 602
V-BELT – FOR TRACTORS WITH AIR CONDITIONING (010091) 603
COOLING SYSTEM MANIFOLD (010095) 604
COOLANT PIPE (010096) 605
WATER COOLING -SEALING (010098) 606
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (0100106) 607
INTAKE AND EXHAUST MANIFOLD GASKETS (0100107) 608
EXHAUST SILENCER (0100111) 609
EXHAUST PIPE (0100115) 610
GASKET SET FOR ENGINE ASSEMBLY (0100116) 611
PRE-FILTER – COMPONENTS (243192200A) 612
INJECTOR NOZZLE HOLDER COMPONENTS (247191900A) 613
Front_and_rear_pto 614
Index 614
AgroCompact F90 (20″-24″-28″) 616
FRONT AND REAR PTO 616
GENERAL 616
PTO FRONT (05001) 616
PTO FRONT (05002) 617
PTO FRONT (05003) 619
PTO FRONT (05004) 620
PTO FRONT (05005) 621
PTO – CLUTCH TRANSMISSION SHAFT (05006) 622
PTO – PUMP CONTROL (05007) 623
PTO – ELECTROHYDRAULICALLY CONTROLLED HYDRAULIC CLUTCH (05008) 624
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050011) 625
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050012) 626
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050013) 627
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050014) 629
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050015) 630
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050016) 631
PTO – 2 SPEED TYPE + SINCRO 540 – 1000 (050019) 632
PTO – 2 SPEED TYPE + SINCRO 540 – 1000 (050020) 633
PTO – 2 SPEED TYPE + SINCRO 540 – 1000 (050021) 634
PTO – 2 SPEED TYPE 540 – 1000 + SYNCRO (050022) 636
PTO – 2 SPEED TYPE 540 – 1000 + SYNCRO (050023) 637
PTO – 2 SPEED TYPE 540 – 1000 + SYNCRO (050024) 638
PTO – 3 SPEED TYPE 540 – 750 – 1000 (050030) 639
PTO – 3 SPEED TYPE 540 – 750 – 1000 (050031) 640
PTO – 3-SPEED WITH INSERTED END SHAFT 540 – 750 – 1000 (050032) 641
PTO – 3-SPEED WITH INSERTED END SHAFT 540 – 750 – 1000 (050033) 642
PTO – 3-SPEED WITH INSERTED END SHAFT 540 – 750 – 1000 (050034) 643
PTO SHAFT DRIVE (050036) 644
PTO – EXTERNAL CONTROLS 540 – 750 + SINCRO (050039) 645
PTO – EXTERNAL CONTROLS 540 – 1000 + SYNCRO (050040) 646
PTO SHAFT DRIVE 540 – 750 – 1000 (050042) 647
PTO – SYNCHRONIZED (050043) 648
TUNNEL COVER PTO (050044) 649
REAR SYNCHRO PTO COVER – STANDARD SEAL (050045) 650
REAR SYNCHRO PTO COVER – WATERPROOF SEAL (050046) 651
PTO – PARTS SET WITH STANDARD SEALS (050047) 652
PTO – PARTS SET WITH WATER PROOF SEALS (050048) 653
PTO – SEAL RING FOR INSERTED END SHAFT – STANDARD VERSION (050049) 654
PTO – SEAL RING FOR INSERTED END SHAFT – WATER PROOF VERSION (050050) 655
COVER FOR TYPES WITHOUT SYNCHRO PTO (050051) 656
PTO-SYNCHRONIZED CONTROL – FOR TYPES WITH FENDERS (050052) 657
PTO-SYNCHRONIZED CONTROL – FOR MODELS WITH PLATFORM (050053) 658
PTO-SYNCHRONIZED CONTROL – FOR MODELS WITH PLATFORM (050054) 659
Front_axle 660
Index 660
AgroCompact F90 (20″-24″-28″) 662
FRONT AXEL 662
GENERAL 662
FRONT SUPPORT (04001) 662
4WD – FRONT SUPPORT WITH FRONT PTO (04002) 663
4WD – FRONT SUPPORT (04003) 664
2WD – EXTENDIBLE AXLE – NARROW TYPE (04004) 665
2WD – EXTENDIBLE AXLE – STANDARD TYPE (04005) 666
2WD – EXTENDIBLE FRONT AXLE WITHOUT FRONT BRAKES (04006) 667
2WD – EXTENDIBLE FRONT AXLE WITH FRONT BRAKES (04007) 668
2WD – FRONT BRAKING SYSTEM (04009) 669
2WD – POWER STEERING CYLINDER – NARROW TYPE (040010) 670
2WD – POWER STEERING CYLINDER – STANDARD TYPE (040011) 671
2WD – COMPLETION KIT WITHOUT SOLENOID VALVE (040012) 672
4WD – FRONT DRIVE AXLE – NARROW TYPE (040013) 673
4WD – FRONT DRIVE AXLE – STANDARD TYPE (040014) 674
4WD – FRONT BRAKES – NARROW TYPE (040015) 675
4WD – FRONT BRAKES – STANDARD TYPE (040016) 676
FRONT WHEEL HUB COVER (040017) 677
4WD – FRONT BRAKING SYSTEM (040019) 678
4WD – POWER STEERING CYLINDER – NARROW TYPE (040020) 679
4WD – POWER STEERING CYLINDER – STANDARD TYPE (040021) 681
4WD – DIFFERENTIAL LOCK CONTROL-MECHANICAL (040022) 682
4WD – DIFFERENTIAL LOCK CONTROL-MECHANICAL (040023) 683
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (040024) 684
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (040025) 685
4WD – DIFFERENTIAL (040026) 686
4WD – PLANETARY GEAR (040027) 687
4WD – BEVEL WHEEL GEAR (040028) 688
4WD – FRONT DIFFERENTIAL LOCK- STANDARD SEALING (040029) 689
4WD – FRONT DIFFERENTIAL LOCK- WATER PROOF SEALING (040030) 690
FRONT DIFFERENTIAL LOCK CONTROL LINES (040032) 691
FRONT DIFFERENTIAL LOCK CONTROL LINES (040033) 692
4WD – DIFFERENTIAL LOCK CONTROL-FRONT (040035) 693
4WD – AXLESHAFTS – NARROW TYPE (040036) 694
4WD – AXLESHAFTS – STANDARD TYPE (040037) 695
4WD – TRANSMISSION SHAFT (040038) 696
4WD – TRANSMISSION SHAFT (040040) 697
4WD – MECHANICAL ENGAGEMENT CONTROL (040041) 698
4WD – MECHANICAL ENGAGEMENT CONTROL (040042) 700
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (040043) 701
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (040044) 704
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (040045) 705
4WD – ENGAGEMENT CONTROL – WATERPROOF SEALS (040046) 706
4WD – ENGAGEMENT CONTROL – WATERPROOF SEALS (040047) 707
Front_power-lift 708
Index 708
AgroCompact F90 (20″-24″-28″) 709
FRONT HYDRAULIC POWER-LIFT 709
GENERAL 709
FRONT HYDRAULIC POWER-LIFT (0C001) 709
FRONT POWER LIFT – LEADS (0C002) 711
FRONT LIFT – HYDRAULIC SYSTEM (0C004) 714
FRONT LIFT – HYDRAULIC SYSTEM (0C005) 715
PRESSURE CONTROL VALVE (000920384/10A) 716
Gear 717
Index 717
AgroCompact F90 (20″-24″-28″) 719
GEAR 719
GENERAL 719
CLUTCH 12″ (02002) 719
CLUTCH 12″ (02003) 720
CLUTCH CONTROL – FOR TYPES WITH FENDERS (02004) 721
CLUTCH CONTROL – FOR MODELS WITH PLATFORM (02005) 722
CLUTCH CONTROL – FOR 28″ NARROW PLATFORM (02006) 723
CLUTCH CONTROL (02007) 724
CLUTCH CONTROL (02008) 725
GEARBOX (02009) 726
GEARBOXFIXINGS (020010) 727
GEARBOX REAR (020011) 728
REAR GEARBOX CASE PTO + SINCRO (020012) 729
REAR GEARBOX CASE (020013) 730
COMPLETION WITHOUT H-M-L (020014) 731
STANDARD GEARBOX (020015) 732
STANDARD GEARBOX (020016) 734
4 SPEED GEARBOX WITH MINI REDUCTION GEAR (020018) 735
5 SPEED GEARBOX – WITHOUT MINI REDUCTION GEAR (020021) 736
5 SPEED GEARBOX WITH MINI REDUCTION GEAR (020022) 737
GEAR CHANGE BOX H-M-L (020023) 739
GEAR CHANGE BOX H-M-L (020024) 740
GEAR CHANGE BOX H-M-L (020025) 741
TRANSMISSION SHAFT – FOR TYPES WITHOUT H-M-L (020026) 742
SPEED RANGE REDUCTION GEAR UNIT (020027) 743
SPEED RANGE REDUCTION GEAR SHAFT – FOR MECHANICAL CONTROLS (020028) 744
SPEED RANGE REDUCTION GEAR SHAFT – FOR ELECTROHYDRAULIC CONTROLS (020029) 745
2-RANGE BOX (020030) 746
2-RANGE BOX 30 Km/h (020031) 747
2-RANGE BOX 40 Km/h (020032) 748
3-RANGE BOX 30 Km/h (020033) 749
3-RANGE BOX 40 Km/h (020034) 750
GEARSHIFT LEVER (020035) 751
REVERSING GEAR UNIT CONTROLS (020036) 752
REDUCTION GEAR CONTROL (020037) 753
GEAR SHIFTING (020038) 754
GEAR SHIFTING H – M – L (020039) 755
CONTROLS-MINI REDUCTION REVERSING GEAR UNITS (020040) 756
CONTROL FOR 3-RANGE GEARBOX (020041) 757
DIFFERENTIAL (020042) 758
DIFFERENTIAL LOCK CONTROL (020043) 759
DIFFERENTIAL LOCK CONTROL – MECHANICAL (020044) 760
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (020045) 761
BEVEL WHEEL GEAR z=8 z=36 (020046) 762
BEVEL WHEEL GEAR z=9 z=32 (020047) 763
BEVEL WHEEL GEAR Z = 12 / Z = 45 (020048) 764
DIFFERENTIAL LOCK CONTROL – MECHANICAL – FOR TYPES WITH FENDERS (020049) 765
DIFFERENTIAL LOCK CONTROL – MECHANICAL – FOR TYPES WITH FENDERS (020050) 766
4-RANGE GEARBOX COVER (020051) 767
5-RANGE GEARBOX COVER (020052) 768
COVER FOR UNDERDRIVE (020053) 769
SHUTTLE COVER (020054) 770
2-RANGE REDUCTION UNIT COVER (020055) 771
3-RANGE REDUCTION UNIT COVER (020056) 772
Rear_axle 773
Index 773
AgroCompact F90 (20″-24″-28″) 774
REAR AXLE 774
GENERAL 774
REAR AXLE – NARROW TYPE (03001) 774
REAR AXLE – STANDARD TYPE (03002) 775
REAR AXLE – MOUNTINGS (03003) 776
PARTS SET FOR REAR AXLE – STANDARD SEAL (03004) 777
PARTS SET FOR REAR AXLE – WATERPROOF SEAL (03005) 778
HANDBRAKE BRACKET FOR TRAILER ITALY (03006) 779
HANDBRAKE BRACKET FOR TRAILER – FOR MODELS WITHOUT CAB (03007) 780
HANDBRAKE BRACKET FOR TRAILER – FOR MODELS WITH CAB (03008) 781
REAR REDUCTION GEARS AND AXLE SHAFTS – NARROW TYPE (030010) 782
REAR REDUCTION GEARS AND AXLE SHAFTS – STANDARD TYPE (030012) 783
HALF AXLES – STANDARD TYPE (030013) 784
REAR BRAKES (030014) 785
REAR BRAKES (030015) 786
HAND BRAKE (030016) 787
BRAKE CONTROLS – FOR TYPES WITH FENDERS (030017) 788
BRAKE CONTROLS – FOR MODELS WITH PLATFORM (030018) 790
BRAKE CONTROLS – FOR 28″ NARROW PLATFORM (030019) 792
BRAKING SYSTEM (030020) 793
BRAKES CONTROL VALVE (030022) 794
HAND BRAKE – FOR TYPES WITH FENDERS (030023) 795
HAND BRAKE – FOR MODELS WITH PLATFORM (030024) 797
HAND BRAKE (030025) 799
SAC 800
Index 800
AgroCompact F90 (20″-24″-28″) 801
SAC 801
GENERAL 801
POWER-LIFT CASE (0D001) 801
POWER-LIFT CASE (0D002) 802
LIFTING (0D003) 803
LIFTING WITH ELECTRONIC CONTROL (0D004) 805
REGULATING DISTRIBUTOR (0D005) 807
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D006) 809
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (0D007) 811
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (0D008) 812
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D009) 813
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D0010) 814
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D0011) 815
INTERNAL CONTROLS (0D0012) 816
CONTROL CONSOLE FOR POWER-LIFT (0D0013) 817
CONTROL CONSOLE FOR ELECTRONIC POWER-LIFT (0D0014) 820
CONTROL CONSOLE FOR POWER-LIFT – FOR MODELS WITHOUT CAB (0D0015) 822
CONTROL CONSOLE FOR POWER-LIFT – FOR MODELS WITH CAB (0D0016) 823
CONTROL CONSOLE – LOWER PART – FOR MODELS WITHOUT CAB – X 20″ (0D0017) 824
CONTROL CONSOLE – LOWER PART – FOR MODELS WITHOUT CAB – X 24″ – 28″ (0D0018) 825
CONTROL CONSOLE – LOWER PART – FOR 28″ NARROW PLATFORM (0D0019) 826
CONTROL TIE RODS AND LEVERS – FOR TYPES WITH FENDERS (0D0020) 827
CONTROL TIE RODS AND LEVERS – FOR 20″ PLATFORM (0D0021) 828
CONTROL TIE RODS AND LEVERS – FOR 24″ – 28″ PLATFORM (0D0022) 829
CONTROL TIE RODS AND LEVERS – FOR 20″ PLATFORM (0D0023) 830
CONTROL TIE RODS AND LEVERS – FOR 24″ PLATFORM (0D0024) 833
CONTROL TIE RODS AND LEVERS – FOR 28″ PLATFORM (0D0025) 834
CONTROL TIE RODS AND LEVERS – FOR 28″ NARROW PLATFORM (0D0026) 835
SENSITIVE ELEMENTS (0D0027) 836
SENSING ELEMENTS WITH ELECTRONIC CONTROL (0D0028) 837
Steering_Hydraulics 838
Index 838
AgroCompact F90 (20″-24″-28″) 839
POWER STEERING – HYDRAULIC SYSTEM 839
GENERAL 839
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06001) 839
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06002) 840
STEERING WHEEL CAP (06003) 841
4WD – POWER STEERING DANFOSS – 80 (06005) 842
POWER STEERING (06006) 843
POWER STEERING – FOR TYPES WITH RADIATOR (06007) 844
POWER STEERING – FOR TYPES WITHOUT RADIATOR (06008) 845
2WD – POWER STEERING – NARROW TYPE (060011) 846
2WD – POWER STEERING – STANDARD TYPE (060012) 847
4WD – POWER STEERING (060014) 848
GEARBOX OIL COOLER (060015) 849
GEAR BOX OIL RADIATOR TUBES (060017) 850
PUMP FILTER SUCTION (060018) 851
PUMP FILTER SUCTION – NARROW TYPE (060019) 855
PUMP FILTER SUCTION – STANDARD TYPE (060020) 857
HYDRAULIC PUMP 11 cc sx/lh/li (060021) 858
HYDRAULIC PUMP 19 cc – dx/rh/re (060022) 859
HYDRAULIC PUMP 14 cc dx/rh/re (060023) 860
HYDRAULIC PUMP 11+ 11 cc (060024) 861
OIL FLOW CONTROL VALVE CASING – MECHANICAL CONTROLS (060025) 862
OIL FLOW CONTROL VALVE CASING – MECHANICAL CONTROLS (060026) 864
OIL FLOW CONTROL VALVE CASING – ELECTROHYDR CONTROLS (060027) 866
OIL FLOW CONTROL VALVE CASING – ELECTROHYDR CONTROLS (060028) 868
OIL FLOW CONTROL VALVE CASING – FOR TYPES WITHOUT H-M-L (060029) 870
H-M-L – HYDRAULIC CONTROL (060030) 871
GEAR BOX OIL FEED PIPES (060031) 872
HYDRAULIC PUMP PARTS (245299500A) 873
HYDRAULIC PUMP PARTS (245299600A) 874
Wheels 875
Index 875
AgroCompact F90 (20″-24″-28″) 876
WHEELS 876
GENERAL 876
4WD – FRONT WHEEL MOUNTING (09002) 876
REAR WHEEL BOLTS (09003) 877
REAR WHEEL BOLTS (09004) 878
SPACER FOR REAR WHEEL RIMS (09005) 879
WHEELS 27×105-15″ (09009) 880
WHEELS 280/60 R155″ (090010) 881
WHEELS 650 R16″ PR 8 (090011) 882
WHEELS 750 x 16” pr 6 (090012) 883
WHEELS 200/70R-16″ (090014) 884
WHEELS 210/80R-16″ a8 (090015) 885
WHEELS 240/70 R16″ (090016) 886
WHEELS 240/70 R16″ (090017) 887
WHEELS 260/70 R16″ (090018) 888
WHEELS 280/70 R16″ (090019) 889
WHEELS 280/70 R18″ (090020) 890
WHEELS 41×1400-20″ (090021) 891
WHEELS 375/75R-20″ (090022) 892
WHEELS 380/70 R20″ A8 (090023) 893
WHEELS 112 R24″ A8 (090024) 894
WHEELS 124 R24″ A8 (090025) 895
WHEELS 320/70 R24″ A8 (090026) 896
WHEELS 360/60 R24″ (090027) 897
WHEELS 360/70×24″ pr 6 (090028) 898
WHEELS 380/70 R24” A8 (090029) 899
WHEELS 420/70 R24″ A8 (090030) 900
WHEELS 95R-28″ a8 (090031) 901
WHEELS 112R28″ (090032) 902
WHEELS 124 R28″ A8 (090033) 903
WHEELS 380/70 R28″ A8 (090035) 904
WHEELS 420/70 R28″ A8 (090036) 905
Bodywork 906
Index 906
AgroCompact F90 (20″-24″-28″) 909
BODY WORK 909
GENERAL 909
HOOD FRONT PART (07001) 909
HOOD (07003) 910
HOOD PLUG (07004) 911
PRODUCT PLATE (07009) 912
HOOD – SUPPORTS (070011) 913
DEFLECTORS AND SUPPORTS (070013) 915
BELT GUARDS – FOR TRACTORS WITHOUT AIR CONDITIONING (070014) 916
BELT GUARDS – FOR TRACTORS WITH AIR CONDITIONING (070015) 917
COOLING – COOLANT RADIATOR (070018) 918
COOLING – EXPANSION TANK (070019) 919
BATTERY SUPPORT (070020) 920
SUPPORTS FOR BATTERY – FOR 28″ NARROW PLATFORM (070021) 921
BATTERY COVER (070022) 922
BATTERY COVER (070023) 924
BATTERY COVER (070024) 926
BATTERY COVER (070025) 927
BATTERY COVER (070026) 928
BATTERY COVER (070027) 929
BATTERY COVER – FOR 28″ NARROW PLATFORM (070028) 930
BATTERY COVER – FOR 28″ NARROW PLATFORM (070029) 931
BATTERY COVER – FOR 28″ NARROW PLATFORM (070030) 932
BATTERY COVER – FOR TYPES WITH FENDERS (070031) 933
METAL TOOLBOX (070032) 934
METAL TOOLBOX (070033) 935
PEDAL SUPPORT – FOR TYPES WITH FENDERS (070034) 936
PEDAL SUPPORT – FOR MODELS WITH PLATFORM (070035) 937
REAR INSTRUMENT PANEL SURROUND – FOR TYPES WITH FENDERS (070036) 938
REAR INSTRUMENT PANEL SURROUND – FOR MODELS WITH PLATFORM (070037) 939
DASHBOARD – FOR TYPES WITH FENDERS (070038) 940
DASHBOARD – FOR TYPES WITHOUT FRONT ELECTROHYDRAULIC CONTROL VALVE (070039) 941
DASHBOARD (070040) 942
DASHBOARD – FOR 28″ NARROW PLATFORM (070041) 943
SPEED LABEL km/h (070042) 944
SPEED LABEL MPH (070043) 945
DASHBOARD – STEERING COVER (070044) 946
DASHBOARD – SEPARATOR – FOR MODELS WITH CAB (070045) 947
PLUG FOR VERSION WITHOUT CIGAR LIGHTER (070046) 948
BRACKET – SPEED LABEL (070047) 949
SPEED LABEL – 40 KM/H – REFLEX ITALY (070048) 950
SPEED LABEL – 40 KM/H (070049) 951
PLATES EXPORT D (070050) 952
INFORMATION PLATE (070051) 953
THROTTLE – MECHANICAL – (070052) 954
THROTTLE – MECHANICAL – (070053) 956
THROTTLE – FOR TYPES WITH FENDERS (070054) 957
THROTTLE – FOR MODELS WITH PLATFORM (070055) 958
ELECTRONIC ACCELERATOR CONTROL (070056) 959
ELECTRONIC ACCELERATOR CONTROL (070057) 960
ELECTRONIC ACCELERATOR CONTROL (070058) 962
ELECTRONIC ACCELERATOR CONTROL (070059) 963
FRONT MUDGUARDS mm 240 – 310 (070060) 964
FRONT MUDGUARDS mm 265 – 310 (070061) 965
FRONT MUDGUARDS mm 240 (070062) 966
FRONT MUDGUARDS mm 265 (070063) 967
FRONT MUDGUARDS – FOR NARROW TYPES (070064) 968
FRONT MUDGUARD SUPPORTS – WITHOUT ROPS (070065) 969
FOOT BOARD AND COVER (070066) 970
FOOT BOARD AND COVER (070067) 972
FOOT BOARD AND COVER (070068) 973
GUARD (070069) 974
GUARD (070070) 975
REAR MUDGUARDS (070071) 976
FENDERS (070072) 977
FENDERS (070073) 978
PLATFORM (070074) 979
PLATFORM 24″ (070075) 980
PLATFORM 28″ (070076) 981
PLATFORM – FOR 28″ NARROW PLATFORM (070077) 982
COVER PLATE – FOR MODELS WITH PLATFORM (070078) 983
PLATTFORM: SUPPORTS (070079) 984
PLATTFORM: SUPPORTS (070080) 985
PLATTFORM: SUPPORTS (070081) 986
MUDGUARDS EXTENSIONS mm 50 (070082) 987
MUDGUARDS EXTENSIONS mm 50 (070083) 988
EXTENSION FOR WING – FOR 28″ NARROW PLATFORM mm 50 (070084) 989
MUDGUARDS EXTENSIONS mm 80 (070085) 990
MUDGUARDS EXTENSIONS mm 80 (070086) 991
MUDGUARDS EXTENSIONS mm 120 (070087) 992
MUDGUARDS EXTENSIONS mm 120 (070088) 993
MUDGUARDS EXTENSIONS mm 170 (070089) 994
MUDGUARDS EXTENSIONS mm 170 (070090) 995
EXTENSION FOR WING (070091) 996
LICENCE PLATE HOLDER EXPORT F (070092) 997
LICENCE PLATE HOLDER (070093) 998
LICENCE PLATE HOLDER – HOOD (070094) 999
REARVIEW MIRROR – FOR TYPES WITH SAFETY FRAME dx/rh/re (070095)1000
REARVIEW MIRROR – FOR TYPES WITH SAFETY FRAME dx/rh/re (070096)1002
SAFETY ROLL BAR WITH HYDRAULIC LIFTING (070097)1003
SAFETY ROLL BAR WITH HYDRAULIC LIFTING (070098)1004
SAFETY ARCH (070099)1005
SAFETY ARCH (0700100)1006
SAFETY ROLL BAR SUPPORTS – WITH HYDRAULIC LIFT (0700102)1007
SAFETY ROLL BAR SUPPORTS (0700105)1008
SAFETY ROLL BAR SUPPORTS (0700106)1009
FUEL TANK – FOR MODELS WITHOUT FRONT PTO (0700107)1010
FUEL TANK – FOR MODELS EQUIPPED WITH FRONT PTO (0700108)1012
AUXILIARY TANK (0700109)1014
AUXILIARY TANK – FOR MODELS WITH PLATFORM (0700110)1016
AUXILIARY TANK – FOR MODELS WITH CAB (0700111)1018
AUXILIARY TANK – FOR MODELS WITH CAB (0700112)1020
AUXILIARY TANK – FOR MODELS WITH PLATFORM (0700113)1022
AUXILIARY TANK (0700114)1023
FUEL SYSTEM – TANK – NARROW TYPE 2wd (0700119)1025
FUEL SYSTEM – TANK – STANDARD TYPE 2wd (0700120)1026
FUEL SYSTEM – TANK – FOR MODELS WITHOUT FRONT PTO 4 WD (0700121)1027
FUEL SYSTEM – TANK – FOR MODELS EQUIPPED WITH FRONT PTO 4 WD (0700122)1028
FUEL SUPPLY – AIR FILTER (0700123)1029
FUEL SUPPLY – AIR FILTER (0700125)1030
AIR PRE-CLEANER (0700126)1031
DRIVER’S SEAT – IN BLACK LEATHERETTE GRAMMER MSG83/8 (0700127)1032
DRIVER’S SEAT KAB XL2 (0700128)1033
DRIVER’S SEAT – IN GREY MATERIAL GRAMMER MSG83/8 (0700129)1034
DRIVER’S SEAT PNEUMATIC SPRINGING – IN GREY MATERIAL GRAMMER (0700130)1035
SAFETY BELT – FOR GRAMMER SEAT MSG 83/8 (0700131)1036
SEAT SUPPORT PLATE (0700132)1037
Cab1038
Index1038
AgroCompact F90 (20″-24″-28″) 1040
CAB1040
GENERAL1040
CAB – FOR 20″ PLATFORM (0B001)1040
CAB – FOR 24″ – 28″ PLATFORM (0B002)1041
CAB – FOR 28″ NARROW PLATFORM (0B003)1042
FLANGE – FOR VERSIONS WITHOUT OIL RADIATOR (0B004)1043
FLANGE – FOR VERSIONS WITH OIL RADIATOR (0B005)1044
DOOR HANDLE AND REARVIEW MIRROR SUPPORT BRACKET (0B006)1045
GLASSES AND SEALS (0B007)1046
GLASSES AND SEALS (0B008)1051
HANDLE REAR WINDOW (0B009)1056
GLASSES AND SEALS (0B0010)1057
GLASSES AND SEALS (0B0011)1059
HANDLE REAR WINDOW (0B0012)1061
GLASSES AND SEALS (0B0013)1062
GLASSES AND SEALS (0B0014)1067
HANDLE REAR WINDOW (0B0015)1072
GLASSES AND SEALS (0B0016)1073
GLASSES AND SEALS (0B0017)1076
HANDLE REAR WINDOW (0B0018)1079
GLASSES AND SEALS – FOR 28″ NARROW PLATFORM (0B0019)1080
GLASSES AND SEALS – FOR 28″ NARROW PLATFORM (0B0020)1083
HANDLE REAR WINDOW – FOR 28″ NARROW PLATFORM (0B0021)1086
WINDSCREEN (0B0022)1087
WINDSCREEN (0B0023)1088
REARVIEW MIRROR (0B0024)1089
INTERIOR TRIM – FOR 20″ PLATFORM (0B0025)1090
CAB INTERIOR TRIM – 20″ (0B0026)1094
INTERIOR TRIM – FOR 24″ – 28″ PLATFORM (0B0027)1097
CAB INTERIOR TRIM 24″ – 28″ (0B0028)1101
INTERIOR TRIM – FOR 28″ NARROW PLATFORM (0B0029)1104
INTERIOR TRIM (0B0030)1105
INTERIOR TRIM (0B0031)1106
INTERIOR TRIM (0B0032)1107
INTERIOR TRIM – FOR 28″ NARROW PLATFORM (0B0033)1108
SUN BLIND (0B0034)1109
INTERIOR TRIM (0B0035)1110
INTERIOR TRIM (0B0036)1112
CARBON FILTER (0B0037)1114
ROOF (0B0038)1115
ROOF – AIR CONDITIONING UNIT (0B0039)1116
CAB INSTALLATION COMPLETION (0B0040)1117
CAB INSTALLATION COMPLETION (0B0041)1118
CAB INSTALLATION COMPLETION (0B0042)1119
CAB INSTALLATION COMPLETION (0B0043)1121
CAB INSTALLATION COMPLETION (0B0044)1122
CAB INSTALLATION COMPLETION (0B0045)1123
CAB INSTALLATION COMPLETION – FOR 28″ NARROW PLATFORM (0B0046)1124
WINDSHIELD WIPER SYSTEM (0B0047)1125
VENTILATION-AIR CONDITIONING-HEATING (0B0048)1127
VENTILATION-AIR CONDITIONING-HEATING (0B0049)1129
VENTILATION – AIR CONDITIONING (0B0050)1132
VENTILATION – AIR CONDITIONING (0B0051)1135
COMPRESSOR (0B0052)1138
VENTILATION – AIR CONDITIONING (0B0054)1139
VENTILATION – HEATING (0B0055)1140
VENTILATION – AIR CONDITIONING – HEATING (0B0056)1143
VENTILATION – HEATING (0B0057)1146
Electrical_system1147
Index1147
AgroCompact F90 (20″-24″-28″) 1149
ELECTRIC AL SYSTEM1149
GENERAL1149
HEADLAMP FOR RIGHT-HAND DRIVE (08001)1149
HEADLAMP FOR LEFT-HAND DRIVE (08002)1150
ELECTRIC LIGHTING SYSTEM – WITH FOLD-DOWN ROPS (08003)1151
ELECTRIC LIGHTING SYSTEM – WITH CAB (08004)1153
WORKING SPOTLIGHT FRONT (08005)1156
WORKING SPOTLIGHT REAR – FOR TYPES WITH FENDERS (08006)1157
WORKING SPOTLIGHT REAR (08007)1158
WORKING SPOTLIGHT REAR (08008)1159
LICENCE PLATE LIGHT (08009)1160
WARNING BEACON (080010)1161
PREARRANGEMENT FOR WARNING BEACON – FOR MODELS WITH CAB (080011)1162
ELECTRIC STARTING SYSTEM (080012)1163
STARTER (080015)1164
STARTER (080016)1165
ALTERNATOR 65 A (080017)1166
ALTERNATOR PULLEY 65 A (080018)1167
ALTERNATOR MOUNTINGS (080019)1168
ELECTRIC STARTING SYSTEM – FOR TRACTORS WITH AIR CONDITIONING (080020)1169
COMPRESSOR AND ALTERNATOR SUPPORTS (080021)1170
BATTERY 12V 100Ah 500A (080022)1171
BATTERY 12V 100Ah 650A (080023)1172
ELECTRICAL SYSTEM (080024)1173
ANALOGUE INSTRUMENT PANEL 30 Km/h – 40 Km/h (080025)1174
DIGITAL INSTRUMENT PANEL (080026)1175
ELECTRONIC CONTROL UNIT – ENGINE 30 KM/h + HML (080027)1176
ELECTRONIC CONTROL UNIT – ENGINE 40 KM/h + HML (080028)1177
ELECTRONIC CONTROL UNIT – ENGINE (080029)1178
PREHEATING CONTROL UNIT (080030)1179
CONTROL UNIT – GEARS H-M-L (080031)1180
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (080032)1181
4WD – ENGAGEMENT CONTROL – FOR TYPES WITH “SBA SYSTEM” (080033)1182
SWITCH – FOR PTO FRONT (080034)1183
SPEED SENSOR (080036)1184
CIGAR LIGHTER (080037)1185
REAR LIGHTS AND BATTERY LEADS (080038)1186
ELECTRICAL EQUIPMENT FRONT (080039)1187
ELECTRICAL SYSTEM – FOR MODELS WITH MECHANICAL ENGINE GOVERNOR (080040)1188
ELECTRICAL SYSTEM – FOR MODELS WITH MECHANICAL ENGINE GOVERNOR + H-M-L (080041)1189
ELECTRICAL SYSTEM – FOR MODELS WITH ELECTRONIC ENGINE GOVERNOR (080042)1191
CAB ELECTRICAL SYSTEM (080043)1193
POWER-LIFT ELECTRONIC SYSTEM (080044)1195
ELECTRICAL SYSTEM FOR 6-WAY FRONT CONTROL VALVE (080045)1197
ELECTRICAL SYSTEM – 3 POINT HITCH (080046)1198
GUARD FOR ELECTRO VALVES (080047)1199
STARTER PARTS (296193900A)1200
Engine1201
Index1201
AgroCompact F90 (20″-24″-28″) 1203
ENGINE1203
GENERAL1203
ENGINE BEARING (01003)1203
TIMING CASE (01004)1204
CASING COVER (01006)1205
GUARD PLATE (01007)1206
MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (01008)1207
PLUG (010010)1208
CRANKSHAFT (010012)1209
CYLINDER – PISTON – CONNECTING ROD (010016)1210
CRANKSHAFT PULLEY (010017)1211
ENGINE SHAFT – FRONT PTO PULLEYS (010018)1212
PULSE WHEEL (010019)1213
ENGINE FLYWHEEL (010022)1214
COUNTERWEIGHTS (010023)1215
CAMSHAFT (010026)1216
CAMSHAFT (010027)1217
CYLINDER HEAD (010031)1218
INLET AND EXHAUST VALVES (010035)1220
INLET AND EXHAUST VALVE SPRINGS (010037)1221
OIL PAN (010040)1222
LUBRIC OIL FILTER (010042)1223
LUBRIC OIL COOLER (010044)1224
LUBRICATION (010049)1225
OIL PUMP (010051)1226
LUBRICATION (010053)1227
LUBRICATION – EXPORT USA (010058)1228
OIL PIPES FOR TURBOCHARGER (010060)1229
INJECTION PUMP – INJECTOR (010063)1230
INJECTION PUMP – INJECTOR (010064)1231
FUEL FEED PUMP (010066)1232
FUEL PIPES (010069)1233
INJECTION LINES (010070)1234
INJECTION LINES (010072)1235
FUEL FILTER (010073)1236
MECHANICAL ENGINE GOVERNOR (010074)1237
PLUG FOR MECHANICAL REGULATOR (010076)1238
ELECTRONIC MOTOR CONTROLLER (010077)1239
ELECTRONIC MOTOR CONTROLLER (010078)1240
THERMO STARTER (010080)1241
PARTS SET – ENGINE MOUNTING (010082)1242
COOLING WATER PUMP (010084)1243
COOLANT PUMP PULLEY (010085)1244
COOLANT PIPE (010087)1245
COOLANT PUMP DRIVEBELT (010089)1246
COOLANT PUMP DRIVEBELT (010090)1247
V-BELT – FOR TRACTORS WITH AIR CONDITIONING (010091)1248
COOLING SYSTEM MANIFOLD (010095)1249
COOLANT PIPE (010096)1250
WATER COOLING -SEALING (010098)1251
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (0100106)1252
INTAKE AND EXHAUST MANIFOLD GASKETS (0100107)1253
EXHAUST SILENCER (0100111)1254
EXHAUST PIPE (0100115)1255
GASKET SET FOR ENGINE ASSEMBLY (0100116)1256
PRE-FILTER – COMPONENTS (243192200A)1257
INJECTOR NOZZLE HOLDER COMPONENTS (247191900A)1258
Front_and_rear_pto1259
Index1259
AgroCompact F90 (20″-24″-28″) 1261
FRONT AND REAR PTO1261
GENERAL1261
PTO FRONT (05001)1261
PTO FRONT (05002)1262
PTO FRONT (05003)1264
PTO FRONT (05004)1265
PTO FRONT (05005)1266
PTO – CLUTCH TRANSMISSION SHAFT (05006)1267
PTO – PUMP CONTROL (05007)1268
PTO – ELECTROHYDRAULICALLY CONTROLLED HYDRAULIC CLUTCH (05008)1269
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050011)1270
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050012)1271
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050013)1272
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050014)1274
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050015)1275
PTO – 2 SPEED TYPE 540 – 750 + SINCRO (050016)1276
PTO – 2 SPEED TYPE + SINCRO 540 – 1000 (050019)1277
PTO – 2 SPEED TYPE + SINCRO 540 – 1000 (050020)1278
PTO – 2 SPEED TYPE + SINCRO 540 – 1000 (050021)1279
PTO – 2 SPEED TYPE 540 – 1000 + SYNCRO (050022)1281
PTO – 2 SPEED TYPE 540 – 1000 + SYNCRO (050023)1282
PTO – 2 SPEED TYPE 540 – 1000 + SYNCRO (050024)1283
PTO – 3 SPEED TYPE 540 – 750 – 1000 (050030)1284
PTO – 3 SPEED TYPE 540 – 750 – 1000 (050031)1285
PTO – 3-SPEED WITH INSERTED END SHAFT 540 – 750 – 1000 (050032)1286
PTO – 3-SPEED WITH INSERTED END SHAFT 540 – 750 – 1000 (050033)1287
PTO – 3-SPEED WITH INSERTED END SHAFT 540 – 750 – 1000 (050034)1288
PTO SHAFT DRIVE (050036)1289
PTO – EXTERNAL CONTROLS 540 – 750 + SINCRO (050039)1290
PTO – EXTERNAL CONTROLS 540 – 1000 + SYNCRO (050040)1291
PTO SHAFT DRIVE 540 – 750 – 1000 (050042)1292
PTO – SYNCHRONIZED (050043)1293
TUNNEL COVER PTO (050044)1294
REAR SYNCHRO PTO COVER – STANDARD SEAL (050045)1295
REAR SYNCHRO PTO COVER – WATERPROOF SEAL (050046)1296
PTO – PARTS SET WITH STANDARD SEALS (050047)1297
PTO – PARTS SET WITH WATER PROOF SEALS (050048)1298
PTO – SEAL RING FOR INSERTED END SHAFT – STANDARD VERSION (050049)1299
PTO – SEAL RING FOR INSERTED END SHAFT – WATER PROOF VERSION (050050)1300
COVER FOR TYPES WITHOUT SYNCHRO PTO (050051)1301
PTO-SYNCHRONIZED CONTROL – FOR TYPES WITH FENDERS (050052)1302
PTO-SYNCHRONIZED CONTROL – FOR MODELS WITH PLATFORM (050053)1303
PTO-SYNCHRONIZED CONTROL – FOR MODELS WITH PLATFORM (050054)1304
Front_axle1305
Index1305
AgroCompact F90 (20″-24″-28″) 1307
FRONT AXEL1307
GENERAL1307
FRONT SUPPORT (04001)1307
4WD – FRONT SUPPORT WITH FRONT PTO (04002)1308
4WD – FRONT SUPPORT (04003)1309
2WD – EXTENDIBLE AXLE – NARROW TYPE (04004)1310
2WD – EXTENDIBLE AXLE – STANDARD TYPE (04005)1311
2WD – EXTENDIBLE FRONT AXLE WITHOUT FRONT BRAKES (04006)1312
2WD – EXTENDIBLE FRONT AXLE WITH FRONT BRAKES (04007)1313
2WD – FRONT BRAKING SYSTEM (04009)1314
2WD – POWER STEERING CYLINDER – NARROW TYPE (040010)1315
2WD – POWER STEERING CYLINDER – STANDARD TYPE (040011)1316
2WD – COMPLETION KIT WITHOUT SOLENOID VALVE (040012)1317
4WD – FRONT DRIVE AXLE – NARROW TYPE (040013)1318
4WD – FRONT DRIVE AXLE – STANDARD TYPE (040014)1319
4WD – FRONT BRAKES – NARROW TYPE (040015)1320
4WD – FRONT BRAKES – STANDARD TYPE (040016)1321
FRONT WHEEL HUB COVER (040017)1322
4WD – FRONT BRAKING SYSTEM (040019)1323
4WD – POWER STEERING CYLINDER – NARROW TYPE (040020)1324
4WD – POWER STEERING CYLINDER – STANDARD TYPE (040021)1326
4WD – DIFFERENTIAL LOCK CONTROL-MECHANICAL (040022)1327
4WD – DIFFERENTIAL LOCK CONTROL-MECHANICAL (040023)1328
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (040024)1329
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (040025)1330
4WD – DIFFERENTIAL (040026)1331
4WD – PLANETARY GEAR (040027)1332
4WD – BEVEL WHEEL GEAR (040028)1333
4WD – FRONT DIFFERENTIAL LOCK- STANDARD SEALING (040029)1334
4WD – FRONT DIFFERENTIAL LOCK- WATER PROOF SEALING (040030)1335
FRONT DIFFERENTIAL LOCK CONTROL LINES (040032)1336
FRONT DIFFERENTIAL LOCK CONTROL LINES (040033)1337
4WD – DIFFERENTIAL LOCK CONTROL-FRONT (040035)1338
4WD – AXLESHAFTS – NARROW TYPE (040036)1339
4WD – AXLESHAFTS – STANDARD TYPE (040037)1340
4WD – TRANSMISSION SHAFT (040038)1341
4WD – TRANSMISSION SHAFT (040040)1342
4WD – MECHANICAL ENGAGEMENT CONTROL (040041)1343
4WD – MECHANICAL ENGAGEMENT CONTROL (040042)1345
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (040043)1346
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (040044)1349
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (040045)1350
4WD – ENGAGEMENT CONTROL – WATERPROOF SEALS (040046)1351
4WD – ENGAGEMENT CONTROL – WATERPROOF SEALS (040047)1352
Front_power-lift1353
Index1353
AgroCompact F90 (20″-24″-28″) 1354
FRONT HYDRAULIC POWER-LIFT1354
GENERAL1354
FRONT HYDRAULIC POWER-LIFT (0C001)1354
FRONT POWER LIFT – LEADS (0C002)1356
FRONT LIFT – HYDRAULIC SYSTEM (0C004)1359
FRONT LIFT – HYDRAULIC SYSTEM (0C005)1360
PRESSURE CONTROL VALVE (000920384/10A)1361
Gear1362
Index1362
AgroCompact F90 (20″-24″-28″) 1364
GEAR1364
GENERAL1364
CLUTCH 12″ (02002)1364
CLUTCH 12″ (02003)1365
CLUTCH CONTROL – FOR TYPES WITH FENDERS (02004)1366
CLUTCH CONTROL – FOR MODELS WITH PLATFORM (02005)1367
CLUTCH CONTROL – FOR 28″ NARROW PLATFORM (02006)1368
CLUTCH CONTROL (02007)1369
CLUTCH CONTROL (02008)1370
GEARBOX (02009)1371
GEARBOXFIXINGS (020010)1372
GEARBOX REAR (020011)1373
REAR GEARBOX CASE PTO + SINCRO (020012)1374
REAR GEARBOX CASE (020013)1375
COMPLETION WITHOUT H-M-L (020014)1376
STANDARD GEARBOX (020015)1377
STANDARD GEARBOX (020016)1379
4 SPEED GEARBOX WITH MINI REDUCTION GEAR (020018)1380
5 SPEED GEARBOX – WITHOUT MINI REDUCTION GEAR (020021)1381
5 SPEED GEARBOX WITH MINI REDUCTION GEAR (020022)1382
GEAR CHANGE BOX H-M-L (020023)1384
GEAR CHANGE BOX H-M-L (020024)1385
GEAR CHANGE BOX H-M-L (020025)1386
TRANSMISSION SHAFT – FOR TYPES WITHOUT H-M-L (020026)1387
SPEED RANGE REDUCTION GEAR UNIT (020027)1388
SPEED RANGE REDUCTION GEAR SHAFT – FOR MECHANICAL CONTROLS (020028)1389
SPEED RANGE REDUCTION GEAR SHAFT – FOR ELECTROHYDRAULIC CONTROLS (020029)1390
2-RANGE BOX (020030)1391
2-RANGE BOX 30 Km/h (020031)1392
2-RANGE BOX 40 Km/h (020032)1393
3-RANGE BOX 30 Km/h (020033)1394
3-RANGE BOX 40 Km/h (020034)1395
GEARSHIFT LEVER (020035)1396
REVERSING GEAR UNIT CONTROLS (020036)1397
REDUCTION GEAR CONTROL (020037)1398
GEAR SHIFTING (020038)1399
GEAR SHIFTING H – M – L (020039)1400
CONTROLS-MINI REDUCTION REVERSING GEAR UNITS (020040)1401
CONTROL FOR 3-RANGE GEARBOX (020041)1402
DIFFERENTIAL (020042)1403
DIFFERENTIAL LOCK CONTROL (020043)1404
DIFFERENTIAL LOCK CONTROL – MECHANICAL (020044)1405
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (020045)1406
BEVEL WHEEL GEAR z=8 z=36 (020046)1407
BEVEL WHEEL GEAR z=9 z=32 (020047)1408
BEVEL WHEEL GEAR Z = 12 / Z = 45 (020048)1409
DIFFERENTIAL LOCK CONTROL – MECHANICAL – FOR TYPES WITH FENDERS (020049)1410
DIFFERENTIAL LOCK CONTROL – MECHANICAL – FOR TYPES WITH FENDERS (020050)1411
4-RANGE GEARBOX COVER (020051)1412
5-RANGE GEARBOX COVER (020052)1413
COVER FOR UNDERDRIVE (020053)1414
SHUTTLE COVER (020054)1415
2-RANGE REDUCTION UNIT COVER (020055)1416
3-RANGE REDUCTION UNIT COVER (020056)1417
Rear_axle1418
Index1418
AgroCompact F90 (20″-24″-28″) 1419
REAR AXLE1419
GENERAL1419
REAR AXLE – NARROW TYPE (03001)1419
REAR AXLE – STANDARD TYPE (03002)1420
REAR AXLE – MOUNTINGS (03003)1421
PARTS SET FOR REAR AXLE – STANDARD SEAL (03004)1422
PARTS SET FOR REAR AXLE – WATERPROOF SEAL (03005)1423
HANDBRAKE BRACKET FOR TRAILER ITALY (03006)1424
HANDBRAKE BRACKET FOR TRAILER – FOR MODELS WITHOUT CAB (03007)1425
HANDBRAKE BRACKET FOR TRAILER – FOR MODELS WITH CAB (03008)1426
REAR REDUCTION GEARS AND AXLE SHAFTS – NARROW TYPE (030010)1427
REAR REDUCTION GEARS AND AXLE SHAFTS – STANDARD TYPE (030012)1428
HALF AXLES – STANDARD TYPE (030013)1429
REAR BRAKES (030014)1430
REAR BRAKES (030015)1431
HAND BRAKE (030016)1432
BRAKE CONTROLS – FOR TYPES WITH FENDERS (030017)1433
BRAKE CONTROLS – FOR MODELS WITH PLATFORM (030018)1435
BRAKE CONTROLS – FOR 28″ NARROW PLATFORM (030019)1437
BRAKING SYSTEM (030020)1438
BRAKES CONTROL VALVE (030022)1439
HAND BRAKE – FOR TYPES WITH FENDERS (030023)1440
HAND BRAKE – FOR MODELS WITH PLATFORM (030024)1442
HAND BRAKE (030025)1444
SAC1445
Index1445
AgroCompact F90 (20″-24″-28″) 1446
SAC1446
GENERAL1446
POWER-LIFT CASE (0D001)1446
POWER-LIFT CASE (0D002)1447
LIFTING (0D003)1448
LIFTING WITH ELECTRONIC CONTROL (0D004)1450
REGULATING DISTRIBUTOR (0D005)1452
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D006)1454
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (0D007)1456
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (0D008)1457
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D009)1458
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D0010)1459
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D0011)1460
INTERNAL CONTROLS (0D0012)1461
CONTROL CONSOLE FOR POWER-LIFT (0D0013)1462
CONTROL CONSOLE FOR ELECTRONIC POWER-LIFT (0D0014)1465
CONTROL CONSOLE FOR POWER-LIFT – FOR MODELS WITHOUT CAB (0D0015)1467
CONTROL CONSOLE FOR POWER-LIFT – FOR MODELS WITH CAB (0D0016)1468
CONTROL CONSOLE – LOWER PART – FOR MODELS WITHOUT CAB – X 20″ (0D0017)1469
CONTROL CONSOLE – LOWER PART – FOR MODELS WITHOUT CAB – X 24″ – 28″ (0D0018)1470
CONTROL CONSOLE – LOWER PART – FOR 28″ NARROW PLATFORM (0D0019)1471
CONTROL TIE RODS AND LEVERS – FOR TYPES WITH FENDERS (0D0020)1472
CONTROL TIE RODS AND LEVERS – FOR 20″ PLATFORM (0D0021)1473
CONTROL TIE RODS AND LEVERS – FOR 24″ – 28″ PLATFORM (0D0022)1474
CONTROL TIE RODS AND LEVERS – FOR 20″ PLATFORM (0D0023)1475
CONTROL TIE RODS AND LEVERS – FOR 24″ PLATFORM (0D0024)1478
CONTROL TIE RODS AND LEVERS – FOR 28″ PLATFORM (0D0025)1479
CONTROL TIE RODS AND LEVERS – FOR 28″ NARROW PLATFORM (0D0026)1480
SENSITIVE ELEMENTS (0D0027)1481
SENSING ELEMENTS WITH ELECTRONIC CONTROL (0D0028)1482
Steering_Hydraulics1483
Index1483
AgroCompact F90 (20″-24″-28″) 1484
POWER STEERING – HYDRAULIC SYSTEM1484
GENERAL1484
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06001)1484
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06002)1485
STEERING WHEEL CAP (06003)1486
4WD – POWER STEERING DANFOSS – 80 (06005)1487
POWER STEERING (06006)1488
POWER STEERING – FOR TYPES WITH RADIATOR (06007)1489
POWER STEERING – FOR TYPES WITHOUT RADIATOR (06008)1490
2WD – POWER STEERING – NARROW TYPE (060011)1491
2WD – POWER STEERING – STANDARD TYPE (060012)1492
4WD – POWER STEERING (060014)1493
GEARBOX OIL COOLER (060015)1494
GEAR BOX OIL RADIATOR TUBES (060017)1495
PUMP FILTER SUCTION (060018)1496
PUMP FILTER SUCTION – NARROW TYPE (060019)1500
PUMP FILTER SUCTION – STANDARD TYPE (060020)1502
HYDRAULIC PUMP 11 cc sx/lh/li (060021)1503
HYDRAULIC PUMP 19 cc – dx/rh/re (060022)1504
HYDRAULIC PUMP 14 cc dx/rh/re (060023)1505
HYDRAULIC PUMP 11+ 11 cc (060024)1506
OIL FLOW CONTROL VALVE CASING – MECHANICAL CONTROLS (060025)1507
OIL FLOW CONTROL VALVE CASING – MECHANICAL CONTROLS (060026)1509
OIL FLOW CONTROL VALVE CASING – ELECTROHYDR CONTROLS (060027)1511
OIL FLOW CONTROL VALVE CASING – ELECTROHYDR CONTROLS (060028)1513
OIL FLOW CONTROL VALVE CASING – FOR TYPES WITHOUT H-M-L (060029)1515
H-M-L – HYDRAULIC CONTROL (060030)1516
GEAR BOX OIL FEED PIPES (060031)1517
HYDRAULIC PUMP PARTS (245299500A)1518
HYDRAULIC PUMP PARTS (245299600A)1519
Wheels1520
Index1520
AgroCompact F90 (20″-24″-28″) 1521
WHEELS1521
GENERAL1521
4WD – FRONT WHEEL MOUNTING (09002)1521
REAR WHEEL BOLTS (09003)1522
REAR WHEEL BOLTS (09004)1523
SPACER FOR REAR WHEEL RIMS (09005)1524
WHEELS 27×105-15″ (09009)1525
WHEELS 280/60 R155″ (090010)1526
WHEELS 650 R16″ PR 8 (090011)1527
WHEELS 750 x 16” pr 6 (090012)1528
WHEELS 200/70R-16″ (090014)1529
WHEELS 210/80R-16″ a8 (090015)1530
WHEELS 240/70 R16″ (090016)1531
WHEELS 240/70 R16″ (090017)1532
WHEELS 260/70 R16″ (090018)1533
WHEELS 280/70 R16″ (090019)1534
WHEELS 280/70 R18″ (090020)1535
WHEELS 41×1400-20″ (090021)1536
WHEELS 375/75R-20″ (090022)1537
WHEELS 380/70 R20″ A8 (090023)1538
WHEELS 112 R24″ A8 (090024)1539
WHEELS 124 R24″ A8 (090025)1540
WHEELS 320/70 R24″ A8 (090026)1541
WHEELS 360/60 R24″ (090027)1542
WHEELS 360/70×24″ pr 6 (090028)1543
WHEELS 380/70 R24” A8 (090029)1544
WHEELS 420/70 R24″ A8 (090030)1545
WHEELS 95R-28″ a8 (090031)1546
WHEELS 112R28″ (090032)1547
WHEELS 124 R28″ A8 (090033)1548
WHEELS 380/70 R28″ A8 (090035)1549
WHEELS 420/70 R28″ A8 (090036)1550

Customer Support: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
