Deutz Fahr AGROFARM 420 – 20001 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr AGROFARM 420 – 20001 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr AGROFARM 420 – 20001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 1114
Downloadable : Yes
File Type : PDF
Size: 44.0 MB

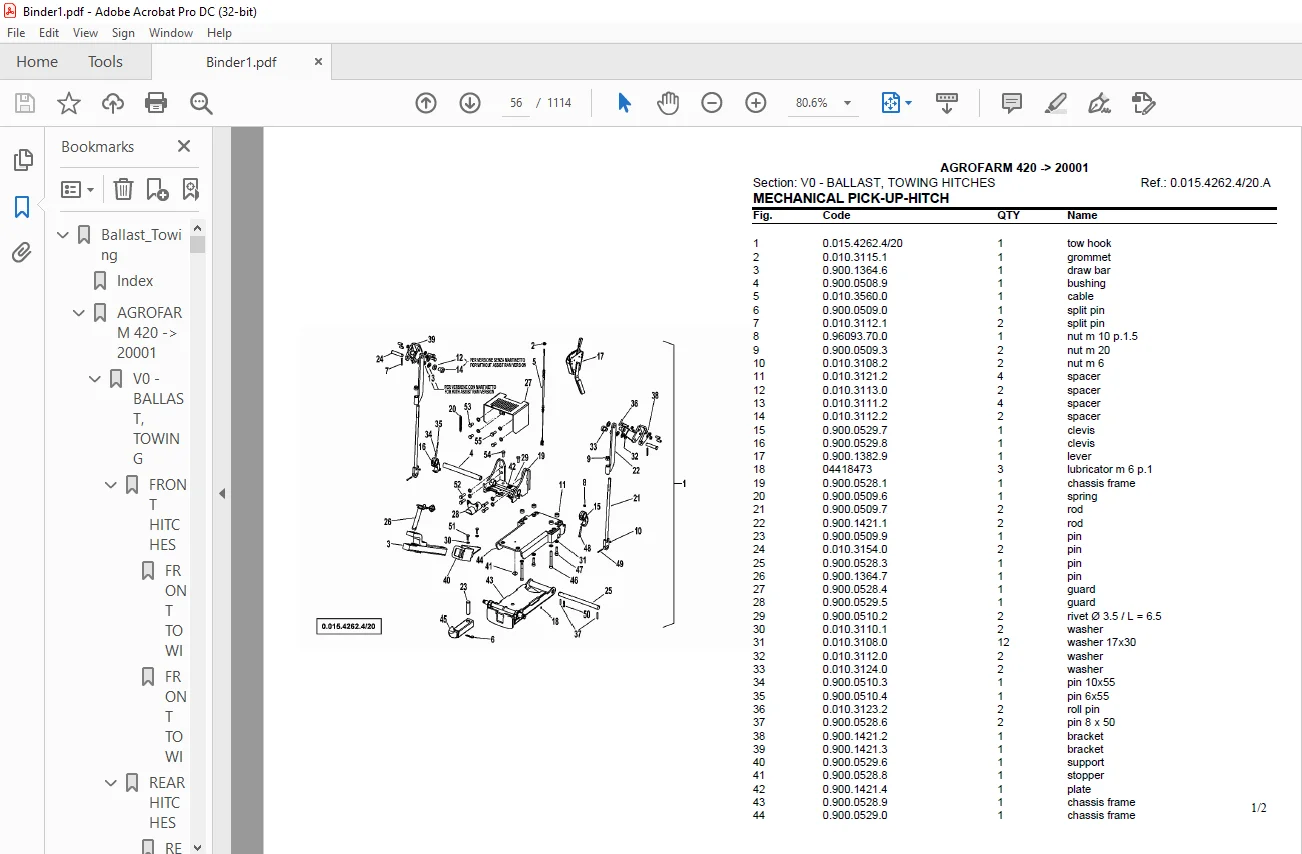

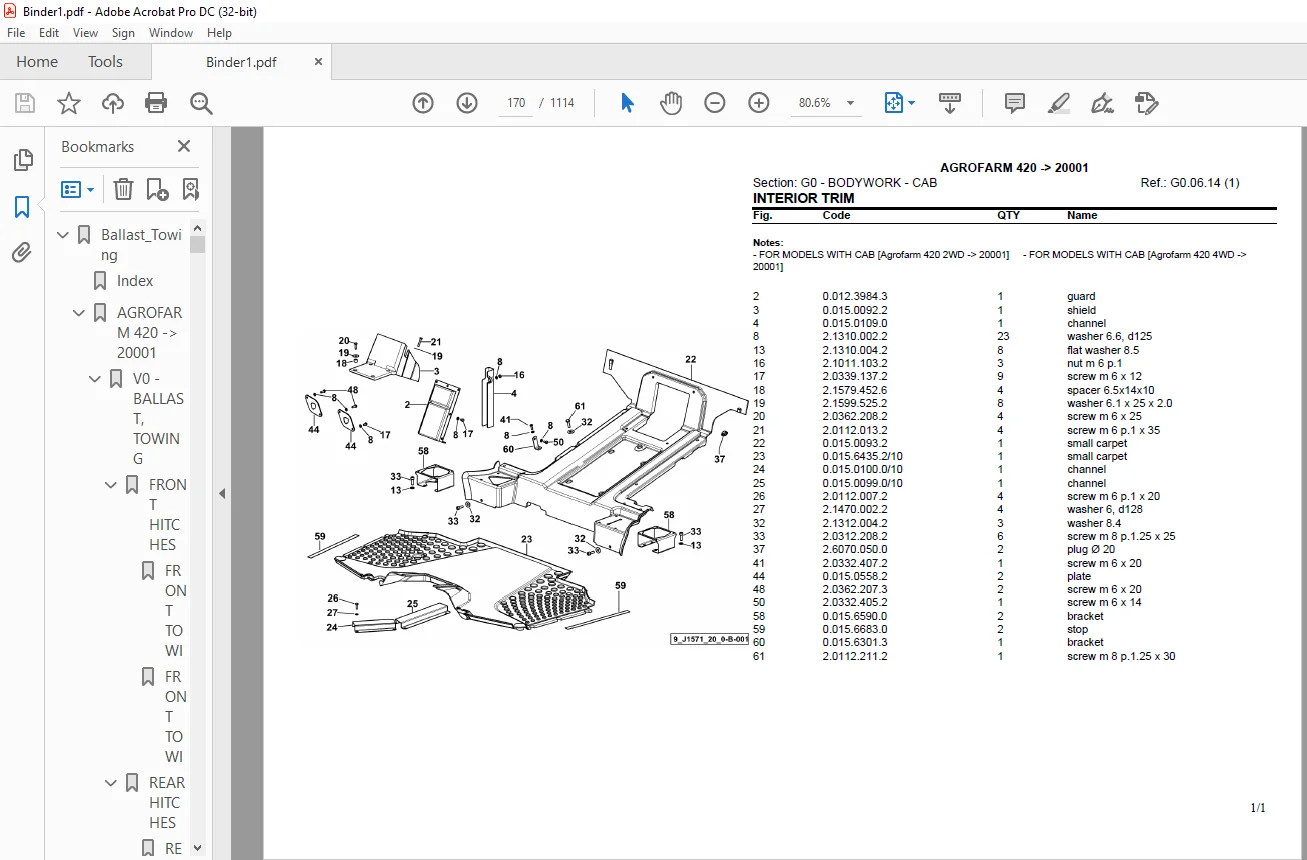

IMAGES PREVIEW OF THE MANUAL:

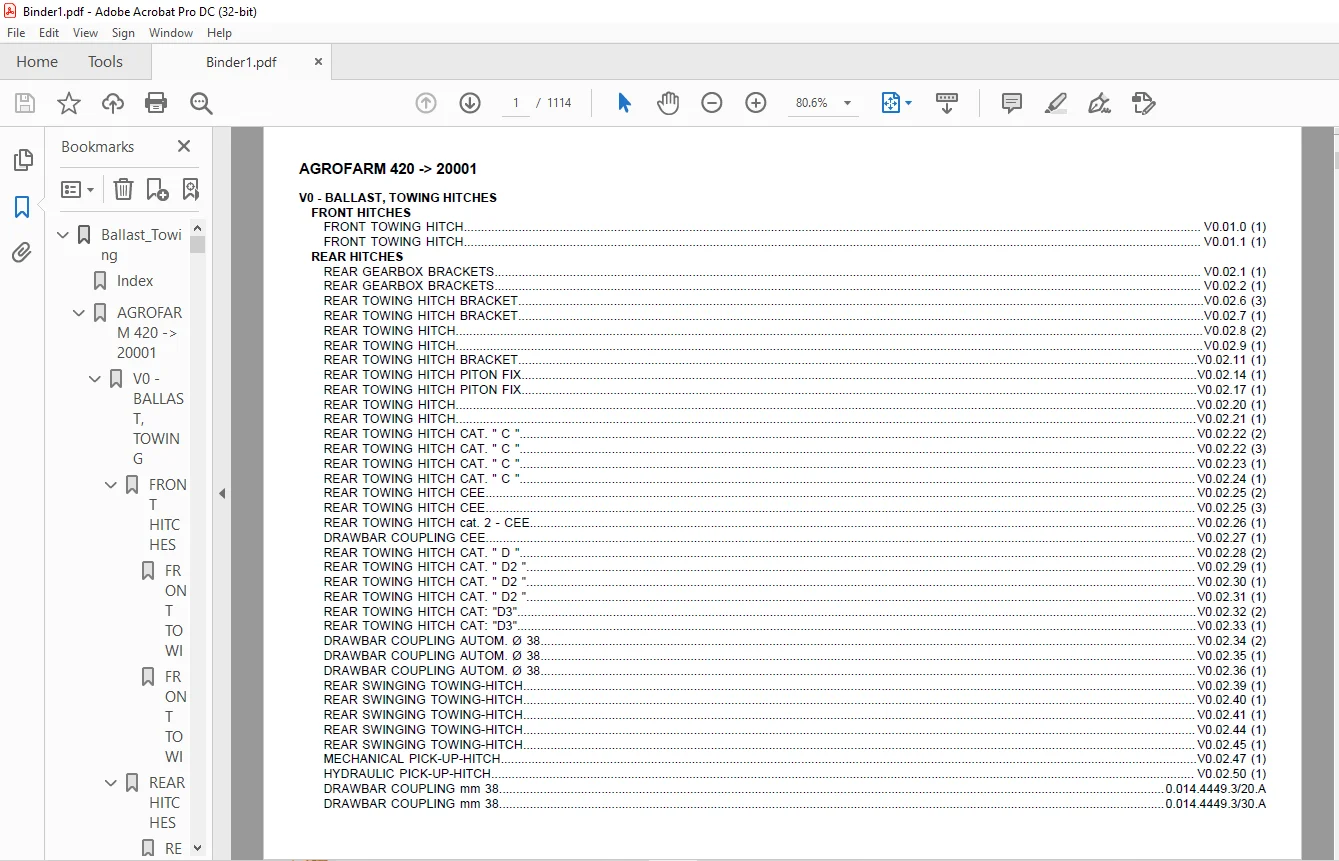

TABLE OF CONTENTS:

Deutz Fahr AGROFARM 420 – 20001 Parts Catalog Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
AGROFARM 420 -> 20001 3
V0 – BALLAST, TOWING HITCHES 3
FRONT HITCHES 3
FRONT TOWING HITCH (V0010 (1)) 3
FRONT TOWING HITCH (V0011 (1)) 4
REAR HITCHES 5
REAR GEARBOX BRACKETS (V0021 (1)) 5
REAR GEARBOX BRACKETS (V0022 (1)) 6
REAR TOWING HITCH BRACKET (V0026 (3)) 7
REAR TOWING HITCH BRACKET (V0027 (1)) 8
REAR TOWING HITCH (V0028 (2)) 9
REAR TOWING HITCH (V0029 (1)) 10
REAR TOWING HITCH BRACKET (V00211 (1)) 11
REAR TOWING HITCH PITON FIX (V00214 (1)) 12
REAR TOWING HITCH PITON FIX (V00217 (1)) 13
REAR TOWING HITCH (V00220 (1)) 14
REAR TOWING HITCH (V00221 (1)) 15
REAR TOWING HITCH CAT ” C ” (V00222 (2)) 16
REAR TOWING HITCH CAT ” C ” (V00222 (3)) 17
REAR TOWING HITCH CAT ” C ” (V00223 (1)) 18
REAR TOWING HITCH CAT ” C ” (V00224 (1)) 19
REAR TOWING HITCH CEE (V00225 (2)) 20
REAR TOWING HITCH CEE (V00225 (3)) 21
REAR TOWING HITCH cat 2 – CEE (V00226 (1)) 22
DRAWBAR COUPLING CEE (V00227 (1)) 23
REAR TOWING HITCH CAT ” D ” (V00228 (2)) 24
REAR TOWING HITCH CAT ” D2 ” (V00229 (1)) 25
REAR TOWING HITCH CAT ” D2 ” (V00230 (1)) 26
REAR TOWING HITCH CAT ” D2 ” (V00231 (1)) 27
REAR TOWING HITCH CAT: “D3” (V00232 (2)) 28
REAR TOWING HITCH CAT: “D3” (V00233 (1)) 29
DRAWBAR COUPLING AUTOM Ø 38 (V00234 (2)) 30
DRAWBAR COUPLING AUTOM Ø 38 (V00235 (1)) 31
DRAWBAR COUPLING AUTOM Ø 38 (V00236 (1)) 32
REAR SWINGING TOWING-HITCH (V00239 (1)) 33
REAR SWINGING TOWING-HITCH (V00240 (1)) 34
REAR SWINGING TOWING-HITCH (V00241 (1)) 35
REAR SWINGING TOWING-HITCH (V00244 (1)) 36
REAR SWINGING TOWING-HITCH (V00245 (1)) 37
MECHANICAL PICK-UP-HITCH (V00247 (1)) 38
HYDRAULIC PICK-UP-HITCH (V00250 (1)) 39
DRAWBAR COUPLING mm 38 (001444493/20A) 40
DRAWBAR COUPLING mm 38 (001444493/30A) 41
REAR TOWING HITCH CAT: “C” (001444503A) 42
REAR TOWING HITCH CAT: “C” (001444503/10A) 43
REAR TOWING HITCH CAT: “D” (001444513A) 44
DRAWBAR COUPLING (001444533/10A) 45
DRAWBAR COUPLING (001444533/20A) 46
DRAWBAR COUPLING (001444543/20A) 47
DRAWBAR COUPLING (001444553A) 48
CHASSIS (001444594/10A) 49
DRAWBAR COUPLING D2 (001444613A) 50
TRAILER STAND – DRAWBAR COUPLING (001444833/10A) 51
CHASSIS (001444843/10A) 52
SLIDE mm 320 (001444853A) 53
HYDRAULIC PICK-UP-HITCH (001533744/20A) 54
MECHANICAL PICK-UP-HITCH (001542624/20A) 56
DRAWBAR COUPLING AUTOM Ø 38 (001796193A) 58
FRONT BALLAST WEIGHTS 59
FRONT WEIGHT CARRIER (V0030 (1)) 59
FRONT WEIGHT CARRIER (V0031 (1)) 60
BALLAST 264 Kg (V0032 (1)) 61
FRONT BALLAST 320 Kg (V0033 (1)) 62
BALLAST LOCK BAR mm 30×780 (V0034 (1)) 63
FRONT BALLAST 400 Kg (V0035 (1)) 64
BALLAST LOCK BAR mm 30×680 (V0036 (1)) 65
FRONT BALLAST 600 kg (V0037 (1)) 66
WHEEL BALLAST 67
WHEEL BALLAST 80 Kg (V0050 (1)) 67
WHEEL BALLAST 172 Kg (V0051 (1)) 68
Bodywork_Cab 69
Index 69
AGROFARM 420 -> 20001 75
G0 – BODYWORK – CAB 75
HOOD – SIDE PANELS – SUPPORTS 75
HOOD (G0010 (2)) 75
HOOD FRONT PART (G0015 (1)) 76
HOOD – RIGHT SIDE PANEL (G0019 (2)) 77
HOOD – LEFT SIDE PANEL (G00112 (2)) 78
HOOD FASTENER (G00117 (1)) 79
HOOD – SUPPORTS (G00120 (1)) 80
ENGINE HOOD GASKETS (G00122 (1)) 81
HOOD INSULATION PANEL (G00123 (1)) 82
CONNECTION FRAME (G00126 (1)) 83
CONNECTION FRAME (G00128 (1)) 84
BATTERY SUPPORT (G00129 (1)) 85
BATTERY SUPPORT (G00129 (2)) 86
BATTERY SUPPORT (G00130 (1)) 87
LETTERING 88
MODEL PLATE (G00210 (1)) 88
PRODUCT PLATE (G00214 (1)) 89
PRODUCT PLATE (G00215 (1)) 90
WARNING PLATES (G00221 (1)) 91
WARNING PLATES (G00221 (2)) 92
WARNING PLATES (G00221 (3)) 93
PTO WARNING PLATE FRONT (G00222 (1)) 94
WATER COOLER IDENTIFICATION PLATE (G00223 (1)) 95
PLATES (G00224 (1)) 96
POTENTIOMETER MOUNTING INDICATOR PLATE (G00226 (1)) 97
START ENABLE PLATE (G00228 (1)) 98
START ENABLE PLATE (G00230 (1)) 99
COVER FOR REDUCTION UNIT (G00235 (1)) 100
COVER FOR REDUCTION UNIT (G00236 (1)) 101
4WD ENGAGEMENT COVER (G00241 (1)) 102
ECONOMY PTO COVER (G00242 (1)) 103
GROUNDSPEED PTO COVER (G00244 (1)) 104
PTO DATA PLATE (G00247 (1)) 105
PTO DATA PLATE (G00248 (1)) 106
HEATING CONTROL IDENTIFICATION PLATE (G00249 (1)) 107
AIR CONDITIONING DATA PLATE (G00250 (1)) 108
HEATING CONTROL IDENTIFICATION PLATE (G00251 (1)) 109
AIR CONDITIONING DATA PLATE (G00252 (1)) 110
AIR CONDITIONING DATA PLATE (G00253 (1)) 111
FUSEBOX IDENTIFICATION PLATE (G00254 (1)) 112
FUSEBOX IDENTIFICATION PLATE (G00255 (1)) 113
REAR LIFT GROUND CONTROL COVER (G00256 (1)) 114
REAR LIFT GROUND CONTROL COVER (G00257 (1)) 115
REAR LIFT GROUND CONTROL COVER (G00258 (1)) 116
REAR LIFT GROUND CONTROL COVER (G00259 (1)) 117
PLATES- FOR 4-WAY DISTRIBUTOR (G00260 (1)) 118
PLATES- FOR 4-WAY DISTRIBUTOR (G00261 (1)) 119
PLATES- FOR 6-WAY DISTRIBUTOR (G00263 (1)) 120
PLATES- FOR 6-WAY DISTRIBUTOR (G00264 (1)) 121
PLATE FOR 6-WAY REMOTE VALVE (G00265 (1)) 122
SPEED DATA PLATES (G00267 (1)) 123
SPEED DATA PLATES (G00270 (1)) 124
SPEED LABEL – 40 KM/H (G00271 (1)) 125
SPEED LABEL – 40 KM/H – REFLEX (G00272 (1)) 126
CAB STRUCTURE – PLATFORM -SUSPENSION 127
PLATFORM (G0030 (1)) 127
SINGLE-STRUCTURE CAB (G0031 (1)) 128
PLUGS (G0032 (1)) 129
SUPPORTS (G0034 (1)) 130
LADDER (G0036 (1)) 131
SPREADER PLATES (G0038 (1)) 132
FENDERS – FOOTSTEPS – EXTENSIONS 133
2WD – FRONT MUDGUARDS (G0040 (1)) 133
4WD – FRONT MUDGUARDS mm 355 (G0041 (1)) 134
4WD – FRONT MUDGUARDS mm 410 (G0042 (1)) 136
4WD – FRONT MUDGUARDS mm 470 (G0043 (1)) 138
MUDGUARDS EXTENSIONS L=180 (G0044 (1)) 140
MUDGUARDS EXTENSIONS L = mm 240 (G0045 (1)) 141
FENDERS SX/LH/LI – DX/RH/RE (G00412 (1)) 142
FENDERS SX/LH/LI – DX/RH/RE (G00413 (1)) 143
SUPPORTS FOR SPRAY GUARDS (G00415 (2)) 144
REFLECTOR SUPPORT – SX/LH/LI (G00416 (1)) 145
REFLECTOR SUPPORT (G00417 (1)) 146
WING HOLDER sx/lh/li (001542323A) 147
WING HOLDER dx/rh/re (001542333A) 148
DOORS – WINDOWS – WIPERS 149
WINDSCREEN (G0050 (1)) 149
CAB DOOR DX/RH/RE (G0051 (1)) 150
CAB DOOR SX/LH/LI (G0052 (1)) 151
REAR WINDOW (G0053 (1)) 152
HANDLE REAR WINDOW (G0054 (1)) 153
DAMPER FOR REAR WINDOW HATCH (G0055 (1)) 154
DAMPER FOR REAR WINDOW HATCH (G0056 (1)) 155
SCREEN WIPER FRONT / REAR (G0058 (1)) 156
SCREEN WIPER FRONT / REAR (G0059 (1)) 157
WATER TANK (G00511 (1)) 158
SPRAYERS (G00512 (1)) 159
PISTON COOLNOZZLE (G00515 (1)) 160
SCREEN WASH SYSTEM (G00516 (1)) 161
PISTON COOLNOZZLE (G00517 (1)) 162
PISTON COOLNOZZLE (G00518 (1)) 163
TANK – PARTS (001573952A) 164
INTERIOR TRIM 165
DASHBOARD (G0060 (1)) 165
INSTRUMENT PANEL SURROUND (G0068 (1)) 166
INSTRUMENT PANEL SURROUND (G0069 (1)) 167
STEERING COLUMN SHROUD (G00610 (1)) 168
STEERING COLUMN SHROUD (G00611 (1)) 169
INTERIOR TRIM (G00614 (1)) 170
INTERIOR TRIM (G00616 (1)) 171
ENGINE CONTROL UNIT COVER (G00617 (1)) 172
COVER PLATE (G00620 (1)) 173
COVER PLATE (G00621 (1)) 174
INTERIOR TRIM (G00622 (1)) 175
INTERIOR TRIM (G00623 (1)) 176
CONTROL CONSOLE – SX/LH/LI (G00624 (1)) 177
CONTROL CONSOLE – DX/RH/RE (G00626 (2)) 178
CONTROL CONSOLE – DX/RH/RE (G00626 (3)) 179
STORAGE COMPARTMENT (G00627 (1)) 180
PROVISION FOR FRONT LOADER CONTROL SWITCHES (G00628 (1)) 181
PLUG FOR VERSION WITHOUT CIGAR LIGHTER (G00630 (1)) 182
INTERIOR TRIM (G00631 (1)) 183
INTERIOR TRIM (G00632 (1)) 184
INTERIOR TRIM (G00633 (1)) 185
INTERIOR TRIM (G00633 (2)) 186
COVER (G00635 (1)) 187
INTERIOR TRIM (G00638 (1)) 188
INTERIOR TRIM (G00638 (2)) 189
INTERIOR TRIM (G00639 (1)) 190
INTERIOR TRIM (G00639 (2)) 191
INTERIOR TRIM (G00640 (1)) 192
INTERIOR TRIM (G00641 (1)) 193
BRACKET (G00642 (1)) 194
BRACKET (G00643 (1)) 195
BRACKET (G00644 (1)) 196
EXTERIOR TRIM – ROOF 197
SUN GUARD ROOF (G0070 (1)) 197
DRIVER’S CAB ROOF (G0071 (1)) 198
DRIVER’S CAB ROOF (G0071 (2)) 199
DRIVER’S CAB ROOF (G0072 (1)) 200
DRIVER’S CAB ROOF (G0072 (2)) 201
SPIN-ON FILTER (G0073 (1)) 202
SPIN-ON FILTER (G0073 (2)) 203
SPIN-ON FILTER (G0074 (1)) 204
SPIN-ON FILTER (G0074 (2)) 205
CARBON FILTER (G0077 (1)) 206
CAB INTERIOR TRIM (G0078 (1)) 207
CAB INTERIOR TRIM (G0078 (2)) 208
DRIVER’S CAB ROOF (G00710 (1)) 209
FASTENINGS (G00711 (1)) 210
SKYLIGHT WITH GLASS (G00712 (1)) 211
SPIN-ON FILTER (G00713 (1)) 212
CARBON FILTER (G00714 (1)) 213
FLASHING LIGHT SUPPORT (G00715 (1)) 214
EXTENDING REARVIEW MIRROR SX/LH/LI – DX/RH/RE (G00716 (1)) 215
REARVIEW MIRROR (001016044/40A) 216
REARVIEW MIRROR (001016054/40A) 217
SEATS 218
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION MSG83/721 (G0082 (1)) 218
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION MSG83/721 (G0083 (1)) 219
DRIVER’S SEAT – PNEUMATIC SPRINGING MSG 93/721 (G0084 (1)) 220
HEAD REST (G0087 (1)) 221
HEAD REST (G0088 (1)) 222
SAFETY BELT (G00813 (1)) 223
SEAT SUPPORT PLATE (G00815 (1)) 224
SEAT FOR 2ND OPERATOR (G00816 (1)) 225
HEAD REST (G00817 (1)) 226
SAFETY BELT (G00818 (1)) 227
SEAT-COMPONENTS (001430604/10A) 228
SEAT-COMPONENTS (001430604/10B) 229
SEAT-COMPONENTS (001430624/20A) 230
SEAT-COMPONENTS (001430624/20B) 232
SEAT-COMPONENTS (001457674A) 233
SEAT-COMPONENTS (001457674B) 234
HEATING AND AIR CONDITIONING 235
HEATING SYSTEM (G0090 (1)) 235
HEATING SYSTEM (G0090 (2)) 236
MANUAL CLIMATE CONTROL SYSTEM (G0091 (1)) 237
MANUAL CLIMATE CONTROL SYSTEM (G0091 (2)) 238
MANUAL CLIMATE CONTROL SYSTEM (G0092 (1)) 239
VENTILATION – AIR CONDITIONING – HEATING (G0093 (1)) 240
VENTILATION – AIR CONDITIONING – HEATING (G0094 (1)) 241
VENTILATION – AIR CONDITIONING – HEATING (G0094 (2)) 242
VENTILATION – HEATING (G0096 (1)) 243
VENTILATION – HEATING (G0096 (2)) 244
VENTILATION – AIR CONDITIONING – HEATING (G0098 (1)) 245
VENTILATION – AIR CONDITIONING – HEATING (G0098 (2)) 246
CONDENSER – AIR CONDITIONING UNIT (G0099 (1)) 247
CONDENSER – AIR CONDITIONING UNIT (G00910 (1)) 248
CONDENSER (G00911 (1)) 249
HEATING SYSTEM (G00913 (1)) 250
HEATING SYSTEM (G00914 (1)) 251
HEATING AND AIR CONDITIONING SYSTEM (G00915 (1)) 252
HEATING AND AIR CONDITIONING SYSTEM (G00916 (1)) 253
AIR CONDITIONING UNIT – LINES – WITH MANUAL AIR CONDITIONING (G00917 (1)) 254
AIR CONDITIONING UNIT – LINES – WITH MANUAL AIR CONDITIONING (G00918 (1)) 255
PIPES FOR HEATING SYSTEM (G00919 (1)) 256
AIR CONDITIONING SYSTEM PIPES (G00920 (1)) 257
VENTILATION AND AIR CONDITIONING PIPES (G00921 (1)) 258
AIR CONDITIONING SYSTEM PIPES (G00922 (1)) 259
COMPRESSOR (G00923 (1)) 260
ENGAGEMENT (000972024/20A) 261
ENGAGEMENT (000972034/20A) 262
HEATER PARTS (001081084/30A) 263
AIR-CONDITIONING HEATING PARTS (001092154/30A) 264
CONDENSER (001485254A) 266
CLIMATE CONTROL (001555494/10A) 267
HEATING CONTROL (001555944/10A) 268
COMPRESSOR-PARTS (04437338A) 269
MECHANICAL CLUTCH CONTROLS 270
CLUTCH CONTROL (G0100 (1)) 270
MECHANICAL BRAKE CONTROLS 271
BRAKE CONTROLS (G0110 (1)) 271
BRAKE FLUID RESERVOIR (G0112 (1)) 272
HAND BRAKE (G0115 (1)) 273
HAND BRAKE (G0116 (2)) 274
TRAILER HANDBRAKE CONTROL CABLE (G0117 (1)) 275
AIR TRAILER BRAKING CONTROL CABLE ITALY (G0118 (1)) 276
AIR TRAILER BRAKING CONTROL CABLE EXPORT D (G0119 (1)) 277
HANDBRAKE BRACKET FOR TRAILER (G01110 (1)) 278
MECHANICAL – ELECTRONIC THROTTLE CONTROLS 279
HAND & FOOT THROTTLE ASSEMBLY (G0120 (1)) 279
THROTTLE (G0121 (1)) 280
STEERING CONTROLS 281
STEERING WHEEL (G0130 (1)) 281
STEERING WHEEL CAP (G0137 (1)) 282
STEERING WHEEL CAP (G0138 (1)) 283
STEERING COLUMN (G01310 (1)) 284
STEERING COLUMN (G01310 (2)) 285
STEERING ADJUSTMENT (G01312 (1)) 286
MECHANICAL GEARSHIFT CONTROLS 287
GEAR SHIFTING (G0140 (1)) 287
GEAR SHIFTING (G0141 (1)) 288
4WD – DIFFERENTIAL LOCK CONTROLS 289
4WD – ENGAGEMENT CONTROL (G0150 (1)) 289
4WD – ENGAGEMENT CONTROL (G0152 (2)) 290
PTO CONTROLS 291
540/1000 RPM PTO CONTROL (G0160 (1)) 291
BOWDEN REACTION BRACKET FOR 2-SPEED PTO (G0167 (1)) 292
BOWDEN REACTION BRACKET FOR 4-SPEED PTO (G0168 (1)) 293
PTO – ECONOMICAL CONTROL (G01610 (1)) 294
PTO – ECONOMICAL CONTROL (G01613 (1)) 295
PTO – SYNCHRONIZED CONTROL (G01615 (1)) 296
PTO – SYNCHRONIZED CONTROL (G01618 (1)) 297
PTO LEVERS SUPPORT (G01620 (1)) 298
LIFT CONTROLS 299
CONTROL TIE RODS AND LEVERS (G0172 (3)) 299
CONTROL TIE RODS AND LEVERS (G0173 (1)) 301
SAC GROUND CONTROL (G0176 (1)) 303
SAC GROUND CONTROL (G0177 (1)) 304
SAC GROUND CONTROL (G0178 (1)) 305
SAC GROUND CONTROL (G0179 (1)) 306
REMOTE VALVE CONTROLS 307
DISTRIBUTOR CONTROL (G0180 (1)) 307
6 WAY SPOOL VALVES CONTROL (G0183 (1)) 308
LINKAGE (001491564A) 309
ACCESSORIES 310
SUN BLIND (G0190 (1)) 310
SUN BLIND (G0191 (1)) 311
SUN BLIND (G0192 (1)) 312
ASHTRAY (G0193 (1)) 313
METAL TOOLBOX (G0194 (1)) 314
FRONT NUMBER PLATE BRACKET (G0195 (1)) 315
FRONT NUMBER PLATE BRACKET (G0196 (1)) 316
LICENCE PLATE HOLDER (G0197 (1)) 317
TRIANGLE SUPPORT (G0198 (1)) 318
HOLDING DEVICE – WHEEL CHOCK (G0199 (1)) 319
LUBRICATOR (G01910 (1)) 320
SAFETY ROLL BAR 321
FIXED SAFETY ROLL BAR (G0200 (1)) 321
Electrical_system 322
Index 322
AGROFARM 420 -> 20001 326
L0 – ELECTRIC AL SYSTEM 326
BATTERY – ALTERNATOR 326
BATTERY 12V 100Ah 650A (L0010 (1)) 326
BATTERY 12V 180Ah 800A (L0011 (1)) 327
WIRING LOOMS 328
HEADLIGHTS / HORN WIRING (L0020 (1)) 328
HEADLIGHTS / HORN WIRING (L0021 (1)) 329
WIRING FOR HEADLIGHTS IN BASSO (L0028 (1)) 330
WIRING FOR HEADLIGHTS IN BASSO (L0029 (1)) 331
WIRING FOR WORKLIGHTS AND FLASHING LIGHT (L00210 (1)) 332
wiring for front sidelights and direction indicators (L00211 (1)) 333
BOTTOM FRONT WORK LIGHTS WIRING (L00212 (1)) 334
ELECTRICAL WIRING (L00213 (1)) 335
ELECTRICAL SYSTEM FOR REAR/FRONT LIGHTS (L00214 (1)) 336
ELECTRICAL EQUIPMENT ROTARY WARN LAMP (L00215 (1)) 337
WIRING FOR HYDRAULIC SHUTTLE (L00217 (2)) 338
WIRING FOR HYDRAULIC SHUTTLE (L00218 (1)) 339
ENGINE AND CAB POWER SUPPLY WIRING (L00220 (1)) 340
ENGINE AND PLATFORM / CAB POWER SUPPLY WIRING LOOM (L00222 (1)) 341
CAB POWER SUPPLY WIRING (L00223 (1)) 342
CAB POWER SUPPLY WIRING (L00224 (1)) 343
CENTRAL WIRING LOOM (L00227 (1)) 344
CENTRAL WIRING LOOM (L00228 (1)) 345
ELECTRICAL EQUIPMENT REAR (L00229 (1)) 346
ELECTRICAL EQUIPMENT REAR (L00230 (1)) 347
CABLES FOR FRONT BATTERY (L00231 (1)) 348
CABLES FOR FRONT BATTERY (L00231 (2)) 349
CABLES FOR UNDER STEP BATTERY (L00232 (1)) 350
CABLES FOR UNDER STEP BATTERY (L00232 (2)) 351
TRAILER SOCKET-OUTLET (L00234 (1)) 352
TRAILER SOCKET FIXING (L00235 (2)) 353
TRAILER SOCKET-OUTLET (L00236 (1)) 354
CAB ELECTRICAL SYSTEM (L00239 (1)) 355
CAB ELECTRICAL SYSTEM (L00240 (1)) 356
CAB ELECTRICAL SYSTEM (L00242 (1)) 357
CAB ELECTRICAL SYSTEM (L00243 (1)) 358
CABLE HARNESS – AIR CONDITIONING SYSTEM (L00244 (1)) 359
WIRING FOR WINDSCREEN WIPER MOTOR (L00245 (1)) 360
WIRING FOR PNEUMATIC SEAT MSG 93/721 (L00246 (1)) 361
FRONT PTO SOLENOID VALVE ELECTRICAL CABLE (L00248 (1)) 362
WIRING HARNESS FOR HYDRAULIC TRAILER BRAKING – ITALY VERSION (L00249 (1)) 363
PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM ITALY (L00253 (2)) 364
PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM EXPORT D (L00255 (2)) 365
ELECTRICAL SYSTEM (000978533/20A) 366
ELECTRIC WIRING FOR PARKING LIGHTS AND DIRECTION INDICATORS, FRONT AND REAR (001349104A) 367
BATTERY LEADS (001488064/20A) 368
ELECTRICAL SYSTEM (001491954/20A) 369
ELECTRICAL SYSTEM (001519834/10A) 370
PARTS FOR ELECTRICAL SYSTEM (001608654/10A) 371
ECUs 372
CONTROL UNIT – PTO SHAFT (L0030 (1)) 372
CONTROL UNIT – PTO SHAFT (L0031 (1)) 373
SENSORS – POTENTIOMETERS – ENABLING SWITCHES 374
SPEED SENSOR (L0042 (1)) 374
SPEED SENSOR (L0043 (1)) 375
SPEED SENSOR (L0045 (1)) 376
HYDRAULIC SHUTTLE SENSOR (L0048 (1)) 377
5-SPEED GEARBOX START ENABLE SWITCH (L00412 (1)) 378
5-SPEED GEARBOX START ENABLE SWITCH (L00416 (1)) 379
GEARBOX OIL PRESSURE SWITCH (L00417 (1)) 380
SHUTTLE CONTROL ASSEMBLY PRESSURE SWITCH / OIL TEMPERATURE SENSOR (L00420 (1)) 381
OIL FILTER CLOGGING SENSOR (L00421 (1)) 382
HYDRAULIC SERVICES OIL PRESSURE SWITCH 11 Bar (L00427 (1)) 383
PRESSURE SWITCH FOR AIR CLEANER CLOGGED WARNING LIGHT (L00429 (1)) 384
PRESSURE SWITCH FOR AIR CLEANER CLOGGED WARNING LIGHT (L00430 (1)) 385
PICK-UP (L00432 (1)) 386
ELECTRONIC ACCELERATOR CONTROL SENSOR (L00433 (1)) 387
PRESSURE SWITCH FOR HYDRAULIC TRAILER BRAKING SYSTEM ITALY (L00436 (1)) 388
PRESSURE SWITCH FOR AIR BRAKING SYSTEM ITALY (L00439 (1)) 389
PRESSURE SWITCH FOR AIR BRAKING SYSTEM EXPORT D (L00441 (1)) 390
CLUTCH AND STOP LIGHT SWITCHES (L00444 (1)) 391
CLUTCH AND STOP LIGHT SWITCHES (L00445 (1)) 392
HAND BRAKE SWITCHES (L00446 (1)) 393
4WD CONTROL SWITCH (L00448 (1)) 394
PTO SWITCH 540/1000 (L00449 (1)) 395
ECONOMY PTO SWITCH (L00453 (1)) 396
GROUNDSPEED PTO SWITCH (L00455 (1)) 397
AIR DUCT RESISTOR (L00457 (1)) 398
INSTRUMENT PANEL 399
DIGITAL INSTRUMENT PANEL (L0050 (1)) 399
ELECTRICAL CONTROLS – PUSHBUTTONS 400
STEERING COLUMN SWITCH UNIT – REVERSING GEAR UNIT CONTROL (L0071 (1)) 400
STEERING COLUMN SWITCH UNIT – REVERSING GEAR UNIT CONTROL (L0072 (1)) 401
GEARSHIFT LEVER (L0073 (1)) 402
GEARSHIFT LEVER (L0075 (1)) 403
SWITCHES / IGNITION BLOCK (L0078 (1)) 404
SWITCHES / IGNITION BLOCK (L0078 (2)) 405
SWITCHES / IGNITION BLOCK (L0079 (1)) 406
SWITCHES / IGNITION BLOCK (L0079 (2)) 407
LOW FRONT WORKLIGHTS SWITCH (L00710 (1)) 408
LOW FRONT WORKLIGHTS SWITCH (L00711 (1)) 409
4WD CONTROL SWITCH (L00712 (1)) 410
SWITCH – FOR PTO FRONT (L00713 (1)) 411
SWITCHES FOR WORKLIGHTS AND FLASHING LIGHT (L00715 (1)) 412
WORKLIGHTS SWITCH (L00716 (1)) 413
CAB TOP SWITCHES (L00717 (1)) 414
CAB TOP SWITCHES (L00718 (1)) 415
CAB TOP SWITCHES (L00719 (1)) 416
CAB TOP SWITCHES (L00721 (1)) 417
TOP SWITCH (L00722 (1)) 418
SHUTTLE LEVER (001503634/60A) 419
LIGHTING AND SIGNALLING 420
HEADLIGHTS \ HORN (L0080 (1)) 420
HEADLIGHTS \ HORN (L0081 (1)) 421
FRONT/REAR LIGHTS (L0088 (1)) 422
FRONT/REAR LIGHTS (L0089 (1)) 423
FRONT/REAR LIGHTS (L00810 (1)) 424
REAR LIGHTS / REFLECTORS – EXPORT USA (L00811 (1)) 425
LIGHT SUPPORT WITH FIXED SAFETY ROLL BAR (L00812 (1)) 426
WORKING SPOTLIGHT FRONT/REAR (L00814 (1)) 427
WORKING SPOTLIGHT FRONT/REAR (L00814 (2)) 428
WORKING SPOTLIGHT FRONT/REAR (L00816 (1)) 429
WORKING SPOTLIGHT FRONT/REAR (L00816 (2)) 430
WORKING SPOTLIGHT REAR (L00817 (1)) 431
WORKING SPOTLIGHT FRONT BOTTOM (L00818 (1)) 432
WORKING SPOTLIGHT FRONT BOTTOM (L00819 (1)) 433
FRONT/REAR WORKLIGHTSAND INTERIOR ROOF LIGHT (L00820 (1)) 434
TOP LIGHT GROUP FOR DRIVING ON RIGHT – WORK LIGHTS (L00821 (1)) 435
TOP SPOTLIGHT LEFT TRAFFIC – WORKING SPOTLIGHT (L00822 (1)) 436
COURTESY LIGHT (L00824 (1)) 437
COURTESY LIGHT (L00825 (1)) 438
COURTESY LIGHT (L00826 (1)) 439
COURTESY LIGHT (L00827 (1)) 440
WARNING BEACON (L00828 (1)) 441
WARNING BEACON (L00829 (1)) 442
LICENCE PLATE LIGHT (L00830 (1)) 443
RETROREFLECTOR (L00831 (1)) 444
WARNING BEACON (001308684A) 445
HEADLAMP COMPONENTS (044119204A) 446
HEADLAMP COMPONENTS (044119214A) 447
HEADLAMP COMPONENTS (280199600A) 448
HEADLAMP COMPONENTS (280199700A) 449
HEADLAMP COMPONENTS (280297300A) 450
HEADLAMP COMPONENTS (280391600A) 451
HEADLAMP COMPONENTS (280391800/10A) 452
FRONT LIGHTS (280392400A) 453
FRONT LIGHTS (280392500A) 454
HEADLAMP COMPONENTS (280392990A) 455
HEADLAMP COMPONENTS (280590800A) 456
HEADLAMP COMPONENTS (280590900A) 457
HEADLAMP COMPONENTS (280594400/10A) 458
HEADLAMP COMPONENTS (280594500A) 459
HEADLAMP COMPONENTS (280594600A) 460
HEADLAMP COMPONENTS (280594900A) 461
LICENCE PLATE LIGHT (280595260A) 462
WORKING SPOTLIGHT sx/lh/li (280595270A) 463
WORKING SPOTLIGHT dx/rh/re (280595280A) 464
INTERIOR LIGHT (283390320A) 465
ACCESSORIES 466
CIGAR LIGHTER (L0090 (1)) 466
CIGAR LIGHTER (L0091 (1)) 467
LOUDSPEAKERS AND RADIO ANTENNA (L0092 (1)) 468
LOUDSPEAKERS (L0093 (1)) 469
LOUDSPEAKERS (L0094 (1)) 470
RADIO ANTENNA (L0095 (1)) 471
RADIO ANTENNA (L0095 (2)) 472
RADIO ANTENNA (L0096 (1)) 473
RADIO ANTENNA (L0096 (2)) 474
Engine 475
Index 475
AGROFARM 420 -> 20001 478
B0 – ENGINE 478
GENERAL 478
ENGINE (B0004 (1)) 478
CYLINDER BLOCK 479
SUPPORTS (B0010 (1)) 479
FASTENINGS (B0011007) 480
BLEEDING TUBE (B0011034) 483
CRANKCASE BREATHER (B0011051) 485
CRANKCASE (B0011065) 488
CRANKCASE (B0011082) 489
OIL FILLER NECK (B0011089) 492
ACCESSORIES (B0011134) 495
ACCESSORIES (B0011135) 498
ACCESSORIES (B0011137) 501
FILLER CAP (B0011143) 504
PISTON COOLNOZZLE (B0011160) 506
FLANGE (B0011168) 508
FLANGE (B0011169) 510
CRANKSHAFT 511
COOLANT PUMP DRIVEBELT AND BELT TENSIONER (B0020 (1)) 511
COOLANT PUMP AND COMPRESSOR DRIVEBELT (B0021 (1)) 512
FASTENINGS (B0021002) 513
V-GROOVED PULLEY (B0021020) 515
CRANKSHAFT (B0021040) 518
CRANKSHAFT (B0021047) 519
FLYWHEEL (B0021069) 522
PLUG (B0021077) 524
COUNTERWEIGHTS (B0021086) 527
CYLINDERS – PISTONS – CONNECTING RODS 530
PISTON (B0031002) 530
CONNECTING ROD (B0031023) 533
TIMING 536
FASTENINGS (B0041011) 536
BUSH (B0041023) 539
CAMSHAFT (B0041070) 541
CAMSHAFT (B0041077) 542
VALVE DRIVE (B0041088) 544
GEARCASE (B0041108) 546
GEARCASE (B0041122) 548
CYLINDER HEAD 549
FASTENINGS (B0051007) 549
ENGINE MOUNTING (B0051015) 552
CLOSING COMPONENTS (B0051025) 555
CYLINDER HEAD (B0051042) 558
ROCKER ARMS COVER (B0051061) 561
LUBRICATION 564
FASTENINGS (B0061006) 564
OIL SUCTION PIPE (B0061035) 567
OIL PAN (B0061050) 570
CLOSING COMPONENTS (B0061082) 573
CLOSING COMPONENTS (B0061084) 576
CLOSING COMPONENTS (B0061087) 579
CLOSING COMPONENTS (B0061090) 582
ACCESSORIES (B0061104) 585
OIL COOLER BOX (B0061125) 587
OIL COOLER BOX (B0061140) 589
OIL COOLER BOX (B0061149) 592
OIL RETURN (B0061156) 594
FUEL INJECTION SYSTEM 597
FASTENINGS (B0071007) 597
FASTENINGS (B0071009) 600
FASTENINGS (B0071012) 603
HIGH PRESSURE PIPE (B0071021) 610
FUEL INJECT PUMP (B0071033) 612
FUEL INJECTOR (B0071046) 615
FUEL FILTER (B0071056) 618
FUEL LINE (B0071074) 621
FUEL PUMP (B0071118) 624
ROLLER TAPPET (B0071131) 627
ROLLER TAPPET (B0071135) 628
PILOTED CHECK VALVE (B0071139) 630
NARROW V-BELT (B0071142) 632
CLOSING COMPONENTS (B0071157) 634
ACCESSORIES (B0071168) 637
ACCESSORIES (B0071170) 638
HOLDING DEVICE FOR LEADS (B0071187) 641
MECHANICAL – ELECTRONIC GOVERNOR 643
FASTENINGS (B0081001) 643
CONTROL ROD (B0081010) 646
ELECTRONIC CONTROL UNIT – ENGINE (B0081017) 649
ELECTRONIC CONTROL UNIT – ENGINE (B0081023) 650
ELECTRONIC CONTROL UNIT – ENGINE (B0081025) 652
CLOSING COMPONENTS (B0081033) 653
CLOSING COMPONENTS (B0081034) 656
CLOSING COMPONENTS (B0081037) 659
ACTUATOR (B0081042) 661
COOLING 663
FASTENINGS (B0091014) 663
FASTENINGS (B0091018) 666
SCREW PLUG (B0091071) 669
CLOSING COMPONENTS (B0091073) 672
DRIVING PARTS (B0091080) 675
FAN SUPPORT (B0091115) 677
COOLING WATER PUMP (B0091149) 680
COOLING WATER PUMP (B0091153) 682
INTAKE – EXHAUST MANIFOLDS 683
EXHAUST PIPE (B0101007) 683
EXHAUST PIPE (B0101016) 684
FASTENINGS (B0101035) 687
MANIFOLD (B0101085) 690
MANIFOLD (B0101091) 691
CLOSING COMPONENTS (B0101105) 694
CLOSING COMPONENTS (B0101107) 696
CLOSING COMPONENTS (B0101110) 699
CHARGED AIR MANIFOLD (B0101129) 700
CHARGED AIR MANIFOLD (B0101133) 701
TURBOCHARGER 704
TURBOCHARGER (B0111023) 704
RETURN LINE (B0111051) 707
OIL LUBRICATION PIPE (B0111074) 710
CLOSING COMPONENTS (B0111085) 713
CLOSING COMPONENTS (B0111086) 716
Electrical accessories 719
FASTENINGS (B0121010) 719
FASTENINGS (B0121021) 721
FASTENINGS (B0121032) 723
IMPULSETRANSMITTER (B0121053) 725
GENERATOR (B0121059) 727
GENERATOR (B0121067) 728
GENERATOR (B0121076) 730
ENGINE ELECTRICAL SYSTEM (B0121096) 731
ENGINE ELECTRICAL SYSTEM (B0121102) 732
V-GROOVED PULLEY (B0121114) 735
STARTER (B0121127) 737
STARTER (B0121133) 738
ACCESSORIES (B0121145) 740
ACCESSORIES (B0121155) 742
OIL PRESSURSWITCH (B0121205) 745
TEMPERTRANSMITTER (B0121222) 747
IMPULSETRANSMITTER (B0121234) 749
Engine_accessories 750
Index 750
AGROFARM 420 -> 20001 751
C0 – ENGINE ACCESSORIES 751
RADIATORS – FANS 751
ENGINE FAN (C0011 (1)) 751
COOLING – COOLANT RADIATOR (C0014 (1)) 752
TANK – PARTS (001480234/10A) 753
INTERCOOLER – AIR CLEANER 754
8″ AIR CLEANER (C0020 (1)) 754
8″ AIR CLEANER WITH DUST EXHAUSTER (C0021 (1)) 755
OIL VAPOUR RECOVERY PIPES (C0022 (1)) 756
INTERCOOLER (C0023 (1)) 757
AIR CLEANER (242497180A) 758
FUEL SYSTEM 759
FUEL COOLER (C0031 (1)) 759
FUEL COOLER PIPES (C0032 (1)) 760
FUEL SYSTEM – TANK (C0033 (1)) 761
FUEL SYSTEM – TANK (C0035 (1)) 762
FUEL FILTER SUPPLY (C0036 (1)) 763
FUEL FILTER SUPPLY (C0036 (2)) 764
PRE-FILTER – COMPONENTS (243192900/10A) 765
STARTER MOTOR 766
STARTER MOTOR COVER (C0051 (1)) 766
STARTER MOTOR COVER (C0053 (1)) 767
EXHAUST SILENCER 768
EXHAUST SILENCER (C0060 (1)) 768
EXHAUST SILENCER (C0061 (1)) 769
AIR COMPRESSOR 770
AIR COMPRESSOR (C0070 (1)) 770
COMPRESSOR-PARTS (044284084A) 771
Front_axle 772
Index 772
AGROFARM 420 -> 20001 773
F0 – FRONT AXLE 773
FRONT SUPPORT 773
FRONT SUPPORT (F0010 (1)) 773
4WD – FRONT SUPPORT WITH FRONT PTO (F0011 (1)) 774
PROVISION FOR FRONT PTO MOUNTING (F0012 (1)) 775
2WD – FRONT SUPPORT (F0013 (1)) 776
4WD – FRONT SUPPORT (F0015 (1)) 777
2WD FRONT AXLE 778
2WD – ADJUSTABLE AXLE WITH BRAKES (F0020 (1)) 778
2WD – EXTENDIBLE AXLE (001602204/30A) 779
2WD – EXTENDIBLE AXLE (001602204/30B) 780
4WD FRONT AXLE 781
4WD – FRONT DRIVE AXLE (F0031 (1)) 781
PIN (F0032 (1)) 782
4WD – FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0034 (1)) 783
AIR BREATHER AND STEERING STOP – 4WD (F0037 (1)) 784
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (001004884/10A) 785
FRONT DIFFERENTIAL 786
4WD – FLANGE (F0040 (1)) 786
FLANGE FASTENERS (F0042 (1)) 787
4WD – BEVEL WHEEL GEAR – 40 Km\h (F0044 (1)) 788
DIFFERENTIAL SEAL RINGS (F0045 (1)) 789
4WD – FRONT DIFFERENTIAL (F0047 (1)) 790
4WD – FRONT DIFFERENTIAL (F0049 (2)) 791
4WD – TRANSMISSION SHAFT (F00412 (1)) 792
4WD – TRANSMISSION SHAFT (F00413 (1)) 793
STEERING CYLINDER 794
4WD – POWER STEERING CYLINDER (F0051 (1)) 794
CYLINDER PARTS (001061104/20A) 795
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS 796
4 WD – FRONT REDUCTION UNIT AND HALFSHAFTS (F0061 (2)) 796
4WD – FRONT REDUCTION UNIT FOR TYPES WITH BRAKES (F0064 (1)) 797
REDUCTION GEAR SEAL RINGS (F0065 (1)) 798
FRONT WHEEL HUB COVER (F0066 (1)) 799
4WD – AXLESHAFTS (001054134/10A) 800
4WD – AXLESHAFTS (001054134/20A) 801
FRONT BRAKES 802
4WD – FRONT BRAKES (F0072 (1)) 802
Front_lift 803
Index 803
AGROFARM 420 -> 20001 804
N0 – FRONT LIFT 804
LIFT ASSEMBLY 804
FRONT HYDRAULIC POWER-LIFT (N0010 (1)) 804
TOWING HITCH (001017023A) 806
ADJUSTABLE LIFT ROD PARTS (001327703A) 807
Front_loader 808
Index 808
AGROFARM 420 -> 20001 810
P0 – FRONT LOADER 810
STRUCTURE – LETTERING 810
FIXED FRAME (P0010 (2)) 810
CHASSIS FIXINGS (P0011 (1)) 811
CHASSIS FIXINGS (P0011 (2)) 812
FRONT LOADER ARM 15F1HMS (P0013 (1)) 813
LOCKING SYSTEM (P0014 (1)) 814
MECHANICAL IMPLEMENT HITCH (P0015 (1)) 815
PRODUCT PLATE (P0016 (1)) 816
MODEL PLATE (P00111 (1)) 817
MODEL PLATE (P00112 (1)) 818
IDENTIFICATION PLATE ( + ) (P00113 (1)) 819
SIGN SET EXPORT NL (P00114 (1)) 820
SIGN SET – EXPORT F (P00115 (1)) 821
IDENTIFICATION PLATE (P00118 (1)) 822
IDENTIFICATION PLATE (P00119 (1)) 823
IDENTIFICATION PLATE (P00121 (1)) 824
INFORMATION PLATE (P00122 (1)) 825
WARNING PLATE (P00123 (1)) 826
WARNING PLATE (P00124 (1)) 827
WARNING PLATES (P00125 (1)) 828
WARNING PLATES (P00126 (1)) 829
HYDRAULIC SYSTEM 830
DISTRIBUTOR (P0020 (1)) 830
CONTROL VALVE WITH “+” FUNCTION (P0021 (1)) 831
HYDROFIX HYDRAULIC COUPLER 3 (P0022 (1)) 832
HYDRAULIC SYSTEM (P0023 (1)) 833
DELIVERY PIPE – FOR TYPES WITHOUT HYDRAULIC BRAKING (P0026 (1)) 834
DELIVERY PIPE – FOR TYPES WITH HYDRAULIC BRAKES (P0028 (1)) 835
ELECTRICAL SYSTEM 836
PROVISION FOR FRONT LOADER (P0030 (1)) 836
PROVISION FOR FRONT LOADER (P0031 (1)) 837
FRONT LOADER SWITCH (P0032 (1)) 838
FRONT LOADER SWITCH (P0033 (1)) 839
ELECTRICAL SYSTEM (001793114A) 840
LOADER CONTROLS 841
CONTROL LEVER (P0040 (1)) 841
DRIVE (001447954/20A) 842
ATTACHMENTS 843
UNIVERSAL SHOVEL – UNBU 150 R (P0050 (1)) 843
UNIVERSAL SHOVEL UNBU 170 R (P0051 (1)) 844
EARTH SHOVEL EABU 150 R (P0052 (1)) 845
EARTH SHOVEL EABU 170 R (P0053 (1)) 846
BUCKET EBWT 150 R (P0054 (1)) 847
BUCKET EBWT 170 R (P0055 (1)) 848
SHOVEL WITH LOAD HOLDER – SBWG 160 N (P0056 (1)) 849
SHOVEL WITH LOAD HOLDER – BWGR 170 N (P0057 (1)) 850
SHOVEL WITH LOAD HOLDER – BWGR 205 R (P0058 (1)) 851
FORK WITH LOAD HOLDER – SIGR 150 N (P0059 (1)) 852
FORK WITH LOAD HOLDER – FWGR 170 N (P00510 (1)) 853
FORK WITH LOAD HOLDER – FWGR 205 R (P00511 (1)) 854
PLATE (P00512 (1)) 855
SHOVEL AND FORK PROTECTION A = mm 1310 (P00513 (1)) 856
SHOVEL AND FORK PROTECTION A = mm 1510 (P00514 (1)) 857
SHOVEL AND FORK PROTECTION A = mm 1710 (P00515 (1)) 858
SHOVEL AND FORK PROTECTION A = mm 1910 (P00516 (1)) 859
FORK-LIFT FOR MANURE – MAFO 150 N (P00517 (1)) 860
FORK-LIFT FOR MANURE – MAFO 150 L (P00518 (1)) 861
SHREDDER – SCGR 150 N (P00519 (1)) 862
PALLET FORK – PAFO 090 H (P00520 (1)) 863
BAIL FORK – BBFO 120 H (P00521 (1)) 864
FOLDING BAIL FORK – BBFA 120 H (P00522 (1)) 865
BAIL FORK – RBHA 185 N (P00523 (1)) 866
TRUNK FORK – STFH 104 N (P00524 (1)) 867
TRUNK FORK – STFO 130 N (P00525 (1)) 868
BAIL FORK – BACL 160 N (P00526 (1)) 869
BAIL FORK – BACL 205 H (P00527 (1)) 870
Front_pto 871
Index 871
AGROFARM 420 -> 20001 872
M0 – FRONT PTO 872
PTO INPUT SHAFT 872
DRIVE SHAFT – FRONT PTO SHAFT (M0010 (1)) 872
FRONT PTO COVER – PROTECTIONS 873
PTO FRONT (M0020 (1)) 873
FRONT PTO FIXING COMPONENTS (M0021 (1)) 874
PTO SHAFT PROTECTOR FRONT (M0022 (1)) 875
PTO FRONT (001492624/40A) 876
PTO FRONT (001492624/40B) 877
PTO FRONT (001492624/40C) 879
SOLENOID VALVE (237294000/20A) 880
HYDRAULIC SYSTEM 881
FRONT PTO – PIPES (M0040 (1)) 881
FRONT PTO – PIPES (M0040 (2)) 882
Hydraulic_and_pneumatic_system 883
Index 883
AGROFARM 420 -> 20001 886
H0 – HYDRAULIC AND PNEUMATIC SYSTEM| 886
HYDRAULIC SYSTEM 886
GEARBOX OIL COOLER PIPES (H0010 (1)) 886
GEARBOX OIL COOLER PIPES (H0013 (1)) 887
HYDRAULIC PUMP 14 cc – sx/lh/li (H0015 (1)) 888
HYDRAULIC PUMP 225 cc – dx/rh/re (H0016 (1)) 889
PUMP FILTER SUCTION (H0019 (1)) 890
PUMP FILTER SUCTION (H00110 (1)) 891
OIL SUCTION (H00113 (1)) 892
BRAKES LUBRICATION PIPE (H00121 (1)) 893
OIL TRANSFER PUMP HYDRAULIC SYSTEM (H00122 (1)) 894
GEARBOX BREATHER SYSTEM (H00123 (1)) 895
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H00126 (1)) 896
PTO HYDRAULIC CLUTCH LUBRICATION PIPE (H00127 (1)) 897
DIFFERENTIAL LOCK / PTO ASSEMBLY (H00130 (2)) 898
HI-LO HYDRAULIC SYSTEM (H00133 (1)) 899
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (H00135 (1)) 900
FRONT DIFFERENTIAL LOCK CONTROL LINES (H00137 (1)) 901
HYDRAULIC SHUTTLE OIL FEED SYSTEM (H00145 (1)) 902
OIL FILTER (H00146 (1)) 903
REDUCE AND OLD VALVE (H00147 (1)) 904
FREE OIL RETURN (H00150 (1)) 905
SAC HYDRAULIC SYSTEM (H00152 (1)) 906
SYSTEM FROM HYDRAULIC PUMP TO 4-WAY DIRECTIONAL CONTROL VALVE (H00158 (2)) 907
SYSTEM FROM HYDRAULIC PUMP TO 6-WAY DIRECTIONAL CONTROL VALVE (H00162 (1)) 908
SYSTEM FROM HYDRAULIC PUMP TO 6-WAY DIRECTIONAL CONTROL VALVE (H00163 (2)) 909
PTO BEARING LUBRICATION SYSTEM (H00170 (1)) 910
DETAILS OF OIL FILTER (244194900/30A) 911
HYDRAULIC PUMP PARTS (245391200/10A) 912
HYDRAULIC PUMP PARTS (245396200/10A) 913
STEERING SYSTEM 914
HYDROSTATIC STEERING CONTROL VALVE (H0021 (1)) 914
PIPES FOR HYDROSTATIC STEERING (H0023 (1)) 915
2WD – POWER STEERING (H0024 (1)) 916
4WD – POWER STEERING (H0025 (1)) 917
HYDRAULIC STEERING GEAR (245690050A) 918
TRANSMISSION – PTO COOLERS 919
GEARBOX OIL COOLER (H0031 (1)) 919
FRONT PTO OIL COOLER (H0032 (1)) 920
FRONT LIFT 921
FRONT LIFT – HYDRAULIC SYSTEM (H0052 (1)) 921
FRONT LIFT – HYDRAULIC SYSTEM (H0055 (1)) 922
FRONT LIFT – HYDRAULIC SYSTEM (H0056 (1)) 923
PRESSURE CONTROL VALVE (000920384/10A) 924
REAR REMOTE CONTROL VALVES 925
4-WAY AUXILIARY DISTRIBUTOR (H0070 (1)) 925
4-WAY AUXILIARY DISTRIBUTOR (H0071 (1)) 926
6-WAY AUXILIARY DISTRIBUTOR (H0072 (1)) 927
6-WAY AUXILIARY DISTRIBUTOR (H0074 (1)) 928
6-WAY AUXILIARY DISTRIBUTOR (H0075 (1)) 929
4 – 6 – WAY DISTRIBUTOR EQUIPMENT (H0076 (1)) 930
REAR CONTROL VALVE SUPPORT AND FIXINGS (H0078 (1)) 931
REAR CONTROL VALVE SUPPORT AND FIXINGS (H0079 (1)) 932
4-WAY QUICK COUPLERS (H00710 (2)) 933
6-WAY QUICK COUPLERS (H00712 (2)) 934
CONNECTOR OIL COLLECTION SYSTEM (H00713 (2)) 935
CONNECTOR OIL COLLECTION SYSTEM (H00714 (2)) 936
ENGAGEMENT (001084730A) 937
DISTRIBUTOR (237297060/10A) 938
DISTRIBUTOR (237297200/20A) 939
BRAKING SYSTEM AND PNEUMATIC SYSTEM| 940
2WD – FRONT BRAKES (H0094 (1)) 940
4WD – FRONT BRAKES (H0096 (1)) 941
BRAKING SYSTEM (H0097 (1)) 942
REAR BRAKING SYSTEM (H00913 (1)) 943
REAR BRAKING SYSTEM (H00915 (1)) 944
FLOW CONTROL VALVE (H00920 (1)) 945
BLAKES BLOCK (H00922 (1)) 946
BLAKES BLOCK (H00925 (1)) 947
HYDRAULIC BREAKING FOR TRAILER – ITALY – (H00929 (1)) 948
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (H00932 (1)) 949
SYSTEM FROM HYDRAULIC PUMP TO HYDRAULIC BRAKES (H00937 (1)) 950
HYDRAULIC BRAKING PARTS KIT WITH 4-WAY DIRECTIONAL CONTROL VALVE (H00941 (1)) 951
HYDRAULIC BRAKING PARTS KIT WITH 6-WAY DIRECTIONAL CONTROL VALVE (H00943 (1)) 952
HYDRAULIC BRAKING PARTS KIT WITH 6-WAY DIRECTIONAL CONTROL VALVE (H00944 (1)) 953
HYDRAULIC BREAKING FOR TRAILER (H00947 (1)) 954
AIR BRAKING FOR ‘ITALY’ TRAILER (H00954 (1)) 955
AIR BRAKING FOR ‘ITALY’ TRAILER (H00955 (1)) 956
AIR BRAKING FOR ‘ITALY’ TRAILER (H00956 (2)) 957
AIR BRAKING FOR ‘EXPORT D’ TRAILER (H00960 (1)) 958
AIR BRAKING FOR ‘EXPORT D’ TRAILER (H00961 (1)) 959
AIR BRAKING FOR ‘EXPORT D’ TRAILER (H00962 (2)) 960
PNEUMATIC TRAILER BRAKING (H00964 (1)) 961
AIR PRESSURE GAUGE FOR AIR BRAKING SYSTEM ITALY (H00965 (1)) 962
PRESSURE GAUGE FOR AIR BRAKING SYSTEM EXPORT D (H00967 (1)) 963
COUPLING PARTS CUNA (001045824A) 964
TRAILER BRAKE VALVE (001186334A) 965
VALVE PARTS (04398756A) 966
TRAILER BRAKE VALVE (237195500/50A) 967
TRAILER BRAKE VALVE (237297080/10A) 968
ELECTROHYDRAULICS 969
HYDRAULIC SHUTTLE CONTROL (H0101 (1)) 969
HOUSING OF VALVES AND HYDRAULIC SERVICES / SOLENOID VALVES (H0103 (1)) 970
HI-LO HYDRAULIC SYSTEM SOLENOID VALVE (H0104 (1)) 971
4WD ENGAGEMENT SOLENOID VALVE (H0106 (1)) 972
ELECTROHYDRAULIC SERVICES ASSEMBLY PLUGS (H0108 (1)) 973
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/20A) 974
SOLENOID VALVE (237296980/10A) 975
SOLENOID VALVE (237297090A) 976
Rear_axle 977
Index 977
AGROFARM 420 -> 20001 978
E0 – REAR AXLE 978
REAR AXLE 978
REAR AXLE (E0011 (1)) 978
REAR AXLE CROWN WHEEL (E0013 (1)) 979
REAR AXLE – MOUNTINGS (E0016 (1)) 980
REAR DIFFERENTIAL / HALF-SHAFTS 981
4-PLANET PINION DIFFERENTIAL (E0020 (1)) 981
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (E0024 (1)) 982
REAR REDUCTION GEARS AND AXLE SHAFTS (E0027 (1)) 983
HALF AXLES (E0028 (1)) 984
REAR BRAKES 985
REAR BRAKES (E0031 (2)) 985
REAR BRAKES (E0034 (1)) 986
Rear_lift 987
Index 987
AGROFARM 420 -> 20001 988
R0 – REAR LIFT 988
LIFT COVER 988
SAC CASE (R0010 (1)) 988
LIFT FIXING COMPONENTS (R0013 (1)) 989
LIFT ASSEMBLY 990
LIFTING (R0021 (1)) 990
HYDRAULIC CYLINDERS (R0024 (1)) 991
CYLINDER SUPPORT BRACKETS (R0025 (1)) 992
LIFT CONTROL VALVE 993
REGULATING DISTRIBUTOR (R0030 (1)) 993
REGULATING DISTRIBUTOR (R0031 (1)) 994
DISTRIBUTOR (090874204/30A) 996
IN-CAB CONTROLS 997
INTERNAL AND EXTERNAL CONTROLS (R0041 (1)) 997
INTERNAL AND EXTERNAL CONTROLS (R0042 (1)) 998
INTERNAL AND EXTERNAL CONTROLS (R0045 (1)) 999
SENSOR1000
SENSITIVE ELEMENTS (R0051 (1))1000
THREE-POINT LINKAGE – LINK ARMS1001
3 POINT HITCH (R0061 (2))1001
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD (R0063 (1))1002
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD (R0063 (2))1003
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD dx/rh/re (R0066 (1))1004
3 POINT HITCH (R00610 (1))1005
3 POINT HITCH (R00612 (1))1006
3-POINT LINKAGE WITH AUTOMATIC COUPLERS A = mm 34 (R00617 (1))1007
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R00618 (1))1008
THREE-POINT HITCH – MANUAL LATERAL STABILIZERS (R00620 (1))1009
AUTOMATIC LATERAL STABILIZERS (R00621 (2))1010
TOWING BAR (R00622 (1))1011
3-POINT HITCH – ADJUSTABLE RH RODS (001019593A)1012
LINKAGE (001414053A)1013
TOWING HITCH (001414203A)1014
STABILIZER (001541944/10A)1015
Transmission1016
Index1016
AGROFARM 420 -> 200011018
D0 – TRANSMISSION1018
CLUTCH HOUSING1018
JUNCTION CASE (D0023 (2))1018
JUNCTION CASE (D0023 (3))1019
HYDRAULIC SHUTTLE ASSEMBLY1020
HYDRAULIC SHUTTLE (D0032 (1))1020
HYDRAULIC SHUTTLE (D0033 (2))1021
HML – HI-LO – SHML1022
CLUTCHES UNIT (D0042 (1))1022
CLUTCHES ASSEMBLY KIT (D0043 (1))1023
GEARBOX INPUT SHAFT1024
5-SPEED GEARBOX INPUT SHAFT (D0055 (1))1024
5-SPEED GEARBOX INPUT SHAFT (D0057 (1))1025
PTO INPUT SHAFT1026
PTO – CLUTCH TRANSMISSION SHAFT (D0062 (1))1026
MAIN SHAFT1027
5-SPEED GEARBOX PRIMARY SHAFT (D0075 (2))1027
5-SPEED GEARBOX PRIMARY SHAFT (D0077 (1))1028
SECONDARY SHAFT1029
5-SPEED GEARBOX SECONDARY SHAFT (D0086 (1))1029
5-SPEED GEARBOX SECONDARY SHAFT (D0087 (3))1030
SYNCHRONIZER PARTS (001298484A)1031
SYNCHRONIZER PARTS (001298524A)1032
GEARBOX1033
GEARBOX REAR (D0093 (1))1033
5-SPEED GEARBOX INTERNAL FLANGES (D00911 (1))1034
5-SPEED GEARBOX INTERNAL FLANGES (D00911 (2))1035
5-SPEED GEARBOX INTERNAL FLANGES (D00913 (1))1036
5-SPEED GEARBOX INTERNAL FLANGES (D00913 (2))1037
GEARBOX LOWER COVER (D00917 (1))1038
GEARBOX LOWER COVER (D00918 (1))1039
PLUG FOR 4-WAY CONTROL VALVE VERSION (D00921 (1))1040
PLUG FOR 6-WAY CONTROL VALVE VERSION (D00925 (1))1041
PLUG FOR 6-WAY CONTROL VALVE VERSION (D00926 (1))1042
DIPSTICK (D00927 (1))1043
DIPSTICK (D00928 (1))1044
REAR GEARBOX PLUG (D00930 (1))1045
2WD – COMPLETION (D00934 (1))1046
COVER FOR TYPES WITHOUT SYNCHRO PTO (D00935 (1))1047
INTERNAL AND EXTERNAL GEARBOX CONTROLS1048
5-SPEED GEARBOX INTERNAL CONTROLS (D0100 (1))1048
5-SPEED GEARBOX INTERNAL CONTROLS (D0100 (2))1049
5-SPEED GEARBOX INTERNAL CONTROLS (D0107 (2))1050
5-SPEED GEARBOX INTERNAL CONTROLS (D0107 (3))1051
5-SPEED GEARBOX INTERNAL CONTROLS (D0109 (1))1052
5-SPEED GEARBOX INTERNAL CONTROLS (D0109 (2))1053
REDUCTION GEAR CONTROL (D01014 (1))1054
BRACKET (D01015 (1))1055
LOW SPEED RANGES1056
BEVEL WHEEL GEAR – 40Km/h (D0111 (1))1056
BEVEL DRIVE PINION BEARING (D0114 (1))1057
SPEED RANGE REDUCTION GEAR UNIT (D0118 (1))1058
COMPLETION FOR 4 SPEED RANGE REDUCTION GEAR UNIT (D01113 (1))1059
SPEED RANGE REDUCTION GEAR SHAFT (D01114 (1))1060
SPEED RANGE REDUCTION GEAR SHAFT (D01115 (1))1061
BEARING FOR RANGE GEARBOX SHAFT (D01116 (1))1062
HYDRAULIC REAR PTO CLUTCH1063
PTO – HYDRAULIC CLUTCH (D0121 (1))1063
PTO – CLUTCH-PARTS (001271034/20A)1064
PTO – CLUTCH-PARTS (001271034/50A)1065
HYDRAULIC PUMP DRIVE1066
PTO – PUMP CONTROL (D0133 (1))1066
OIL TRANSFER PUMP ASSY (D0134 (1))1067
PTO/GROUNDPSPEED DRIVE1068
PTO – 2 SPEED TYPE (D0142 (2))1068
4 SPEED PTO (D0144 (1))1069
4 SPEED PTO (D0145 (1))1070
PTO – 2-SPEED WITH INSERTED END SHAFT (D01410 (1))1071
PTO – 2-SPEED WITH INSERTED END SHAFT (D01411 (1))1072
PTO – 4-SPEED WITH INSERTED END SHAFT (D01414 (1))1073
PTO – 4-SPEED WITH INSERTED END SHAFT (D01415 (1))1074
PTO – SEAL RING FOR INSERTED END SHAFT – STANDARD VERSION (D01416 (1))1075
PTO – SYNCHRONIZED (D01417 (1))1076
PTO – SYNCHRONIZED (D01421 (1))1077
PTO – SYNCHRONIZED – WITH STANDARD SEALS (D01423 (1))1078
PTO SHAFT PROTECTOR REAR (D01424 (1))1079
PTO SHAFT PROTECTOR REAR (D01426 (1))1080
PTO SHAFT PROTECTOR REAR (D01427 (1))1081
PTO SHAFT PROTECTOR REAR (D01428 (1))1082
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE1083
4WD – ENGAGEMENT CONTROL (D0151 (1))1083
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (D0152 (2))1084
INDEPENDENT HAND BRAKE (D0154 (1))1085
Wheels1086
Index1086
AGROFARM 420 -> 200011087
S0 – WHEELS1087
FRONT WHEEL BOLTS1087
2WD – FRONT WHEEL MOUNTING (S0010 (1))1087
4WD – FRONT WHEEL MOUNTING (S0011 (1))1088
REAR WHEEL BOLTS1089
REAR WHEEL BOLTS (S0020 (1))1089
FLANGE (S0021 (2))1090
2WD FRONT WHEELS1091
2WD – WHEELS 1100×16″ pr 8 (S0030 (1))1091
WHEELS1092
WHEELS 380/85R24″(149R24″) (S0043 (1))1092
WHEELS 420/70 R24″ A8 (S0047 (1))1093
WHEELS 420/85R24″(169R24″ a8) (S0049 (1))1094
WHEELS 480/65R-24″ (S00410 (1))1095
WHEELS 480/70r24″ a8 (S00411 (1))1096
WHEELS 280/85R28″(112R28″) (S00412 (1))1097
WHEELS 340/85R28″(136R28″) (S00414 (2))1098
WHEELS 340/85R28″(136R28″) (S00415 (2))1099
WHEELS 360/70R28″-125A8 (S00416 (1))1100
WHEELS 380/70 R28″ A8 (S00417 (1))1101
WHEELS 440/65R-28″ a8 (S00418 (1))1102
WHEELS 420/85R34(169R34) (S00422 (1))1103
WHEELS 460/85R34″(184R34″) (S00427 (2))1104
WHEELS 460/85R34″(184R34″) (S00428 (1))1105
WHEELS 480/70R34″ (S00429 (1))1106
WHEELS 520/70R34″-148A8-TL (S00431 (1))1107
WHEELS 520/70R34″-148A8-TL (S00432 (1))1108
WHEELS 540/65R34″ (S00433 (1))1109
WHEELS 340/85R38″(136R38″) (S00435 (1))1110
WHEELS 149R-38″ (S00436 (1))1111
WHEELS 420/85R38″ (169R38″) (S00437 (1))1112
WHEELS 480/70R-38″ a8 (S00438 (2))1113
WHEELS 540/65R-38″ (S00439 (1))1114

Contact us: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
