Deutz Fahr Agrofarm 420 Profiline -> 25001 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrofarm 420 Profiline -> 25001 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrofarm 420 Profiline -> 25001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 752
Downloadable : Yes
File Type : PDF
Size: 36.4 MB

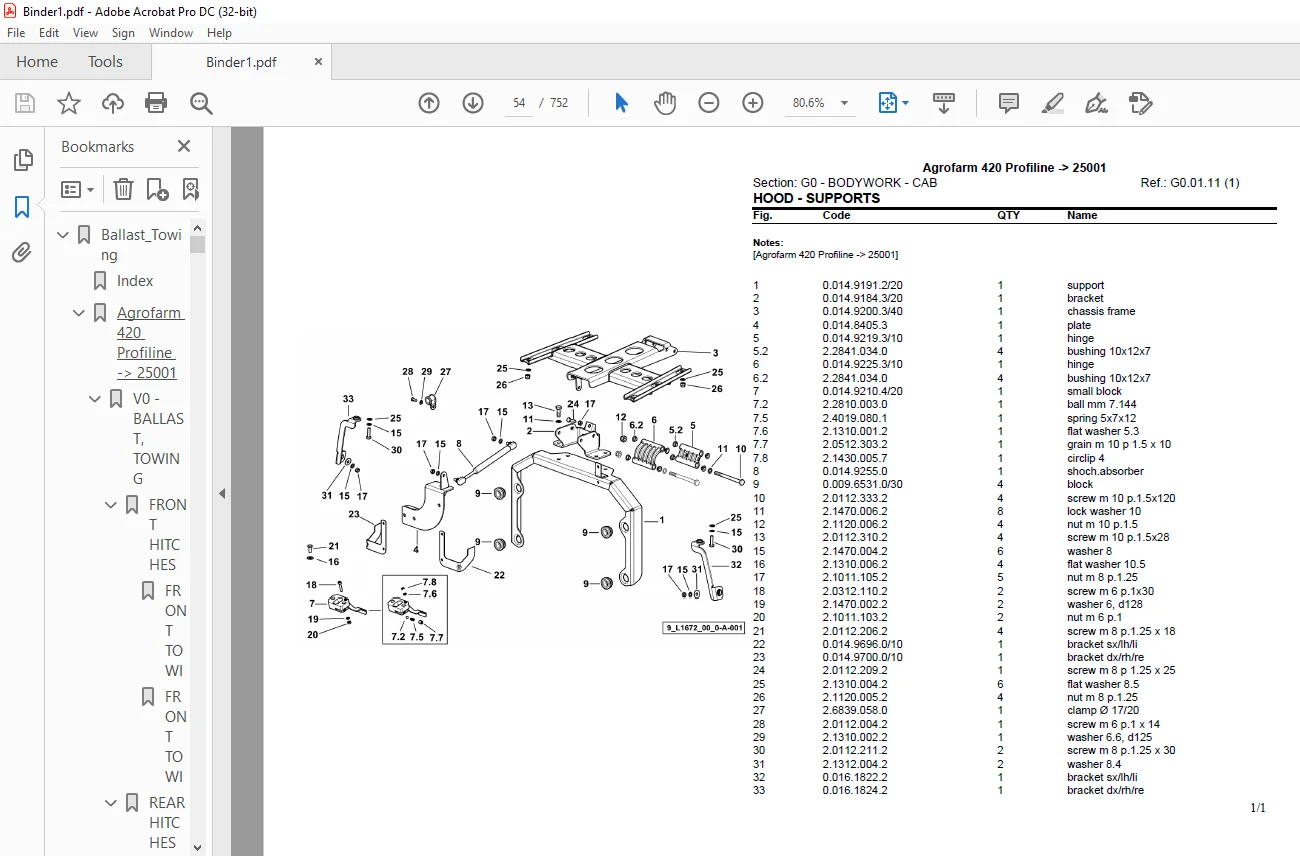

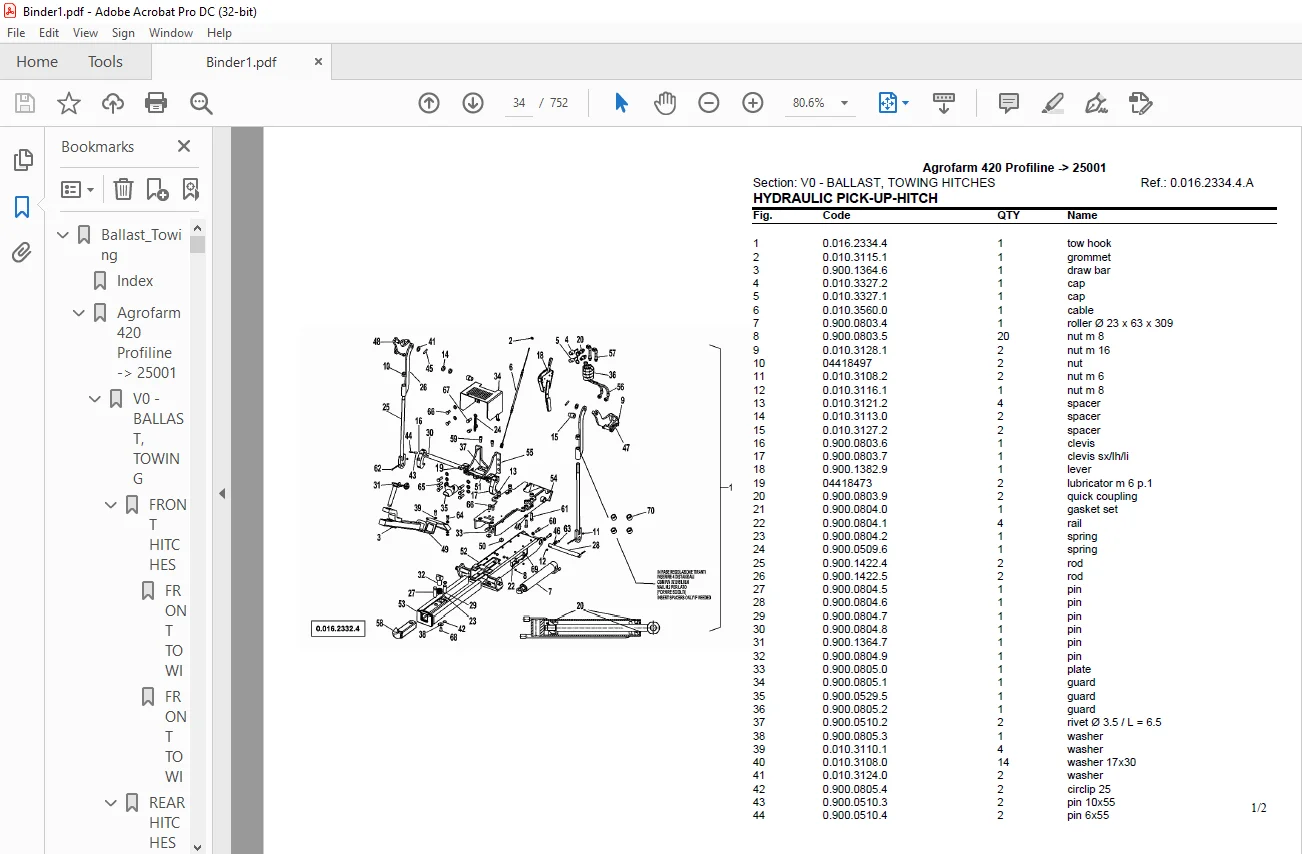

IMAGES PREVIEW OF THE MANUAL:

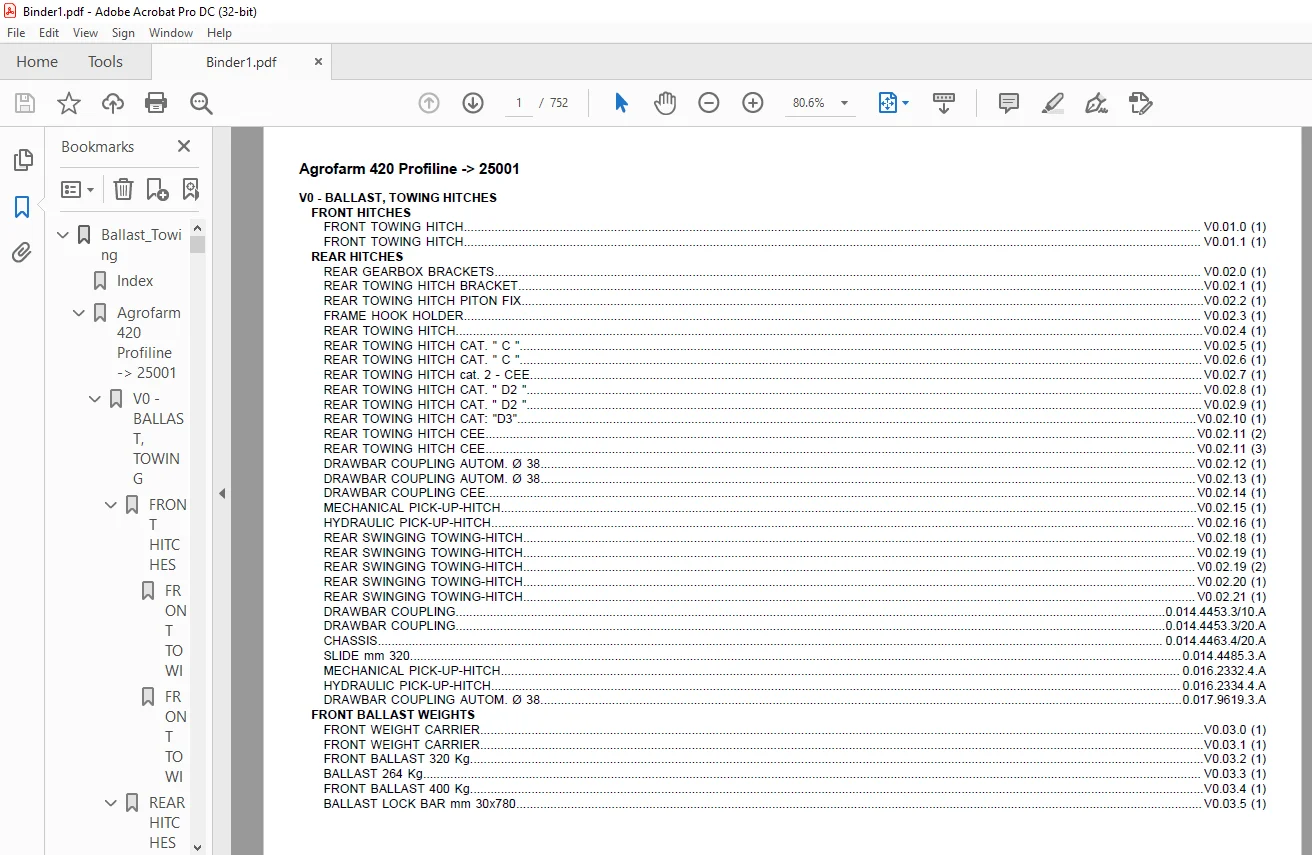

TABLE OF CONTENTS:

Deutz Fahr Agrofarm 420 Profiline -> 25001 Parts Catalog Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
Agrofarm 420 Profiline -> 25001 3
V0 – BALLAST, TOWING HITCHES 3
FRONT HITCHES 3
FRONT TOWING HITCH (V0010 (1)) 3
FRONT TOWING HITCH (V0011 (1)) 4
REAR HITCHES 5
REAR GEARBOX BRACKETS (V0020 (1)) 5
REAR TOWING HITCH BRACKET (V0021 (1)) 6
REAR TOWING HITCH PITON FIX (V0022 (1)) 7
FRAME HOOK HOLDER (V0023 (1)) 8
REAR TOWING HITCH (V0024 (1)) 9
REAR TOWING HITCH CAT ” C ” (V0025 (1)) 10
REAR TOWING HITCH CAT ” C ” (V0026 (1)) 11
REAR TOWING HITCH cat 2 – CEE (V0027 (1)) 12
REAR TOWING HITCH CAT ” D2 ” (V0028 (1)) 13
REAR TOWING HITCH CAT ” D2 ” (V0029 (1)) 14
REAR TOWING HITCH CAT: “D3″ (V00210 (1)) 15
REAR TOWING HITCH CEE (V00211 (2)) 16
REAR TOWING HITCH CEE (V00211 (3)) 17
DRAWBAR COUPLING AUTOM Ø 38 (V00212 (1)) 18
DRAWBAR COUPLING AUTOM Ø 38 (V00213 (1)) 19
DRAWBAR COUPLING CEE (V00214 (1)) 20
MECHANICAL PICK-UP-HITCH (V00215 (1)) 21
HYDRAULIC PICK-UP-HITCH (V00216 (1)) 22
REAR SWINGING TOWING-HITCH (V00218 (1)) 23
REAR SWINGING TOWING-HITCH (V00219 (1)) 24
REAR SWINGING TOWING-HITCH (V00219 (2)) 25
REAR SWINGING TOWING-HITCH (V00220 (1)) 26
REAR SWINGING TOWING-HITCH (V00221 (1)) 27
DRAWBAR COUPLING (001444533/10A) 28
DRAWBAR COUPLING (001444533/20A) 29
CHASSIS (001444634/20A) 30
SLIDE mm 320 (001444853A) 31
MECHANICAL PICK-UP-HITCH (001623324A) 32
HYDRAULIC PICK-UP-HITCH (001623344A) 34
DRAWBAR COUPLING AUTOM Ø 38 (001796193A) 36
FRONT BALLAST WEIGHTS 37
FRONT WEIGHT CARRIER (V0030 (1)) 37
FRONT WEIGHT CARRIER (V0031 (1)) 38
FRONT BALLAST 320 Kg (V0032 (1)) 39
BALLAST 264 Kg (V0033 (1)) 40
FRONT BALLAST 400 Kg (V0034 (1)) 41
BALLAST LOCK BAR mm 30×780 (V0035 (1)) 42
FRONT BALLAST 600 kg (V0036 (1)) 43
BALLAST LOCK BAR mm 30×680 (V0037 (1)) 44
WHEEL BALLAST 45
WHEEL BALLAST 172 Kg (V0050 (1)) 45
WHEEL BALLAST 80 Kg (V0051 (1)) 46
Bodywork_Cab 47
Index 47
Agrofarm 420 Profiline -> 25001 51
G0 – BODYWORK – CAB 51
HOOD – SIDE PANELS – SUPPORTS 51
HOOD (G0012 (2)) 51
HOOD – RIGHT SIDE PANEL (G0016 (2)) 52
HOOD – LEFT SIDE PANEL (G00110 (2)) 53
HOOD – SUPPORTS (G00111 (1)) 54
HOOD FRONT PART (G00115 (1)) 55
HOOD FASTENER (G00118 (1)) 56
ENGINE HOOD GASKETS (G00119 (1)) 57
HOOD INSULATION PANEL (G00120 (1)) 58
BATTERY SUPPORT (G00122 (1)) 59
BATTERY SUPPORT (G00123 (2)) 60
LETTERING 61
MODEL PLATE (G0026 (1)) 61
PRODUCT PLATE (G00215 (1)) 62
PRODUCT PLATE (G00216 (1)) 63
POTENTIOMETER MOUNTING INDICATOR PLATE (G00217 (1)) 64
GROUNDSPEED PTO COVER (G00219 (1)) 65
ECONOMY PTO COVER (G00220 (1)) 66
PTO DATA PLATE (G00221 (1)) 67
PTO DATA PLATE – FRONT 2300 (G00222 (1)) 68
START ENABLE AND FUSE BOX LABELS (G00223 (1)) 69
START ENABLE AND FUSE BOX LABELS (G00224 (1)) 70
PLATES (G00225 (1)) 71
PLATES (G00226 (1)) 72
WARNING NOTICES ON RADIATOR AND EXPANSION TANK (G00227 (1)) 73
HEATING CONTROL IDENTIFICATION PLATE (G00228 (1)) 74
AIR CONDITIONING DATA PLATE (G00229 (1)) 75
AIR CONDITIONING DATA PLATE (G00230 (1)) 76
WARNING PLATES (G00231 (2)) 77
WARNING PLATES (G00231 (3)) 78
SPEED LABEL – 40 KM/H (G00232 (1)) 79
SPEED LABEL – 40 KM/H – REFLEX (G00233 (1)) 80
SPEED DATA PLATES (G00235 (1)) 81
IDENTIFICATION PLATE (G00220000 (1)) 82
CAB STRUCTURE – PLATFORM -SUSPENSION 83
CAB STRUCTURE (G0030 (1)) 83
PLUGS (G0031 (1)) 84
LADDER (G0032 (1)) 85
SUPPORTS (G0033 (1)) 86
FENDERS – FOOTSTEPS – EXTENSIONS 87
4WD – FRONT MUDGUARDS mm 355 (G0040 (1)) 87
4WD – FRONT MUDGUARDS mm 410 (G0041 (1)) 89
4WD – FRONT MUDGUARDS mm 470 (G0042 (1)) 91
MUDGUARDS EXTENSIONS L=180 (G0043 (1)) 93
MUDGUARDS EXTENSIONS L = mm 240 (G0044 (1)) 94
FENDERS (G00412 (1)) 95
FENDERS (G00413 (1)) 96
SUPPORTS FOR SPRAY GUARDS (G00414 (2)) 97
SUPPORTS FOR SPRAY GUARDS (G00415 (1)) 98
REFLECTOR SUPPORT – SX/LH/LI (G00416 (1)) 99
REFLECTOR SUPPORT (G00417 (1))100
WING HOLDER sx/lh/li (001542323A)101
WING HOLDER dx/rh/re (001542333A)102
DOORS – WINDOWS – WIPERS103
WINDSCREEN (G0050 (1))103
CAB DOOR DX / RH / RE (G0051 (1))104
CAB DOOR – SX/LH/LI (G0052 (1))105
REAR WINDOW (G0053 (1))106
DAMPER FOR REAR WINDOW HATCH (G0054 (1))107
HANDLE REAR WINDOW (G0055 (1))108
SCREEN WIPER FRONT / REAR (G0056 (1))109
WATER TANK (G0057 (1))110
SPRAYERS (G0058 (1))111
TANK – PARTS (001573952A)112
INTERIOR TRIM113
DASHBOARD (G0060 (1))113
INSTRUMENT PANEL SURROUND (G0068 (1))114
INSTRUMENT PANEL SURROUND (G0069 (1))115
STEERING COLUMN SHROUD (G00610 (1))116
GRILLE FOR CONTROLS GROUP – RH SIDE (G00611 (1))117
GRILLE FOR CONTROLS GROUP – RH SIDE (G00612 (1))118
CONTROL CONSOLE DX/RH/RE (G00613 (1))119
CONTROL CONSOLE – SX/LH/LI (G00614 (1))120
BRACKET (G00615 (1))121
BRACKET (G00616 (1))122
BRACKET (G00617 (1))123
ENGINE CONTROL UNIT COVER (G00618 (1))124
INTERIOR TRIM (G00619 (1))125
INTERIOR TRIM (G00620 (1))126
INTERIOR TRIM (G00621 (1))127
CAB SOUNDPROOF PANELS (G00622 (1))128
MAT FOR CAB (G00623 (1))129
FENDER COATINGS (G00624 (1))130
FENDER COATINGS (G00625 (1))131
CAB SOUNDPROOF PANELS (G00626 (1))132
CAB SOUNDPROOF PANELS (G00626 (2))133
EXTERIOR TRIM – ROOF134
DRIVER’S CAB ROOF (G0070 (1))134
SKYLIGHT WITH GLASS (G0071 (1))135
FASTENINGS (G0072 (1))136
SPIN-ON FILTER (G0073 (1))137
CARBON FILTER (G0074 (1))138
REARVIEW MIRRORS (G0075 (1))139
FLASHING LIGHT SUPPORT (G0076 (1))140
SEATS141
DRIVER’S SEAT – PNEUMATIC SPRINGING MSG 93/721 (G0080 (1))141
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION MSG83/721 (G0081 (1))142
MULTIFUNCTION ARMREST BRACKET (G0082 (1))143
SEAT SUPPORT PLATE (G0083 (1))144
SAFETY BELT (G0084 (1))145
HEAD REST (G0089 (1))146
HEAD REST (G00810 (1))147
SEAT FOR 2ND OPERATOR (G00813 (1))148
SAFETY BELT (G00814 (1))149
SEAT-COMPONENTS (001430624/20A)150
SEAT-COMPONENTS (001430624/20B)152
SEAT-COMPONENTS (001457674A)153
SEAT-COMPONENTS (001457674B)154
HEATING AND AIR CONDITIONING155
HEATING SYSTEM (G0090 (1))155
HEATING SYSTEM (G0090 (2))156
MANUAL CLIMATE CONTROL SYSTEM (G0091 (1))157
MANUAL CLIMATE CONTROL SYSTEM (G0092 (1))158
CONDENSER – AIR CONDITIONING UNIT (G0093 (1))159
CONDENSER – AIR CONDITIONING UNIT (G0094 (1))160
VENTILATION – AIR CONDITIONING – HEATING (G0095 (1))161
VENTILATION – AIR CONDITIONING – HEATING (G0095 (2))162
VENTILATION – AIR CONDITIONING – HEATING (G0096 (1))163
VENTILATION – AIR CONDITIONING – HEATING (G0097 (1))164
COMPRESSOR (G0098 (1))165
AIR CONDITIONING SYSTEM PIPES (G0099 (1))166
VENTILATION AND AIR CONDITIONING PIPES (G00910 (1))167
HEATING SYSTEM (G00911 (1))168
HEATING AND AIR CONDITIONING SYSTEM (G00912 (1))169
HEATING AND AIR CONDITIONING SYSTEM (G00913 (1))170
AIR CONDITIONING UNIT – LINES – WITH MANUAL AIR CONDITIONING (G00914 (1))171
AIR CONDITIONING UNIT – LINES – WITH MANUAL AIR CONDITIONING (G00915 (1))172
PIPES FOR HEATING SYSTEM (G00916 (1))173
ENGAGEMENT (000972024/20A)174
ENGAGEMENT (000972034/20A)175
CLIMATE CONTROL (001555494/10A)176
HEATING CONTROL (001555944/10A)177
COMPRESSOR-PARTS (04437338A)178
MECHANICAL CLUTCH CONTROLS179
CLUTCH CONTROL (G0100 (1))179
MECHANICAL BRAKE CONTROLS180
BRAKE CONTROLS (G0110 (1))180
BRAKE FLUID RESERVOIR (G0111 (1))181
PARK CONTROL – BRAKE (G0112 (1))182
HANDBRAKE BRACKET FOR TRAILER (G0113 (1))183
MECHANICAL – ELECTRONIC THROTTLE CONTROLS184
THROTTLE (G0120 (1))184
STEERING CONTROLS185
STEERING WHEEL (G0130 (1))185
STEERING WHEEL CAP (G0138 (1))186
STEERING WHEEL CAP (G0139 (1))187
STEERING COLUMN (G01310 (2))188
STEERING ADJUSTMENT (G01311 (1))189
MECHANICAL GEARSHIFT CONTROLS190
GEARSHIFT LEVER (G0140 (1))190
GEARSHIFT LEVER (G0141 (1))191
LEVER GAITER (G0142 (1))192
LEVER GAITER (G0143 (1))193
LEVER GAITER (G0144 (1))194
PTO CONTROLS195
540/1000 RPM PTO CONTROL (G0160 (1))195
PTO – ECONOMICAL CONTROL (G0161 (1))196
PTO – ECONOMICAL CONTROL (G0162 (1))197
PTO – SYNCHRONIZED CONTROL (G0163 (1))198
GROUNDSPEED – PTO – CONTROL (G0164 (1))199
BOWDEN REACTION BRACKET (G0168 (1))200
ACCESSORIES201
METAL TOOLBOX (G0190 (1))201
SUN BLIND (G0191 (1))202
LICENCE PLATE HOLDER (G0192 (1))203
FRONT NUMBER PLATE BRACKET (G0193 (1))204
ASHTRAY (G0194 (1))205
TRIANGLE SUPPORT (G0195 (1))206
HOLDING DEVICE – WHEEL CHOCK (G0196 (1))207
LUBRICATOR (G0197 (1))208
Electrical_system209
Index209
Agrofarm 420 Profiline -> 25001212
L0 – ELECTRIC AL SYSTEM212
BATTERY – ALTERNATOR212
BATTERY 12V 100Ah 650A (L0010 (1))212
BATTERY 12V 180Ah 800A (L0011 (1))213
WIRING LOOMS214
HEADLIGHTS / HORN WIRING (L0022 (1))214
HEADLIGHTS / HORN WIRING (L0023 (1))215
WIRING FOR HEADLIGHTS IN BASSO (L0024 (1))216
ELECTRICAL EQUIPMENT ROTARY WARN LAMP (L0025 (1))217
BOTTOM FRONT WORK LIGHTS WIRING (L0026 (1))218
ELECTRICAL SYSTEM FOR REAR/FRONT LIGHTS (L0027 (1))219
TRAILER SOCKET-OUTLET (L0028 (1))220
TRAILER SOCKET FIXING (L0029 (2))221
ENGINE AND CAB POWER SUPPLY WIRING (L00210 (1))222
ENGINE AND CAB POWER SUPPLY WIRING (L00211 (1))223
CAB POWER SUPPLY WIRING (L00212 (1))224
CABLES FOR FRONT BATTERY (L00213 (1))225
CABLES FOR UNDER STEP BATTERY (L00214 (1))226
GEARBOX ELECTRICAL SYSTEM (L00215 (1))227
GEARBOX ELECTRICAL SYSTEM (L00216 (1))228
CAB ELECTRICAL SYSTEM (L00217 (1))229
CAB ELECTRICAL SYSTEM (L00218 (1))230
CAB ELECTRICAL SYSTEM (L00219 (1))231
CAB POWER SUPPLY WIRING (L00220 (1))232
RIGHT-HAND CONSOLE ELECTRICAL SYSTEM (L00221 (1))233
RIGHT-HAND CONSOLE ELECTRICAL SYSTEM (L00222 (1))234
ELECTRICAL SYSTEM ISO 11786 (L00223 (1))235
WIRING FOR WINDSCREEN WIPER MOTOR (L00224 (1))236
CABLE HARNESS – AIR CONDITIONING SYSTEM (L00225 (1))237
FRONT PTO SOLENOID VALVE ELECTRICAL CABLE (L00226 (1))238
WIRING FOR PNEUMATIC SEAT MSG 93/721 (L00227 (1))239
ELECTRICAL LEAD FOR HYDRAULIC TRAILER BRAKING (L00228 (1))240
PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM ITALY (L00229 (1))241
PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM EXPORT D (L00230 (1))242
TRAILER SOCKET-OUTLET (L00231 (1))243
ELECTRICAL SYSTEM (001491954/20A)244
ELECTRICAL SYSTEM (001519834/10A)245
CENTRAL WIRING LOOM (001590404/60A)246
ELECTRICAL SYSTEM (001784274/30A)247
ECUs248
CONTROL UNIT SUPPORT (L0030 (1))248
CONTROL UNIT SUPPORT (L0031 (1))249
CONTROL UNIT HLHP (L0032 (1))250
CONTROL UNIT HLHP (L0033 (1))251
CONTROL UNIT HLHP (L0034 (1))252
CONTROL UNIT HLHP – ISO11786 (L0035 (1))253
SENSORS – POTENTIOMETERS – ENABLING SWITCHES254
5-SPEED GEARBOX START ENABLE SWITCH H-M-L (L0042 (1))254
SPEED SENSOR (L0043 (1))255
SPEED SENSOR (L0044 (1))256
SHUTTLE CONTROL ASSEMBLY PRESSURE SWITCH / OIL TEMPERATURE SENSOR (L0045 (1))257
GEARBOX OIL PRESSURE SWITCH (L0046 (1))258
GEARBOX OIL PRESSURE SWITCH (L0047 (1))259
HYDRAULIC SERVICES OIL PRESSURE SWITCH (L0048 (1))260
OIL FILTER CLOGGING SENSOR (L0049 (1))261
CLUTCH AND BRAKE PEDAL SWITCH (L00410 (1))262
CLUTCH AND BRAKE PEDAL SWITCH (L00411 (1))263
PTO SWITCH 540/1000 (L00412 (1))264
ECONOMY PTO SWITCH (L00413 (1))265
GROUNDSPEED PTO SWITCH (L00414 (1))266
PARK PRESSURE SWITCH – BRAKE (L00415 (1))267
PICK-UP (L00416 (1))268
PRESSURE SWITCH FOR AIR CLEANER CLOGGED WARNING LIGHT (L00417 (1))269
PRESSURE SWITCH FOR AIR CLEANER CLOGGED WARNING LIGHT (L00418 (1))270
ELECTRONIC ACCELERATOR CONTROL SENSOR (L00419 (1))271
BRAKING SYSTEM SENSOR (L00420 (1))272
REAR LIFT POSITION SENSOR (L00421 (1))273
PRESSURE SWITCH FOR HYDRAULIC TRAILER BRAKING SYSTEM – ITALY (L00422 (1))274
PRESSURE SWITCH FOR AIR BRAKING SYSTEM ITALY (L00423 (1))275
PRESSURE SWITCH FOR AIR BRAKING SYSTEM EXPORT D (L00424 (1))276
AIR DUCT RESISTOR (L00425 (1))277
INSTRUMENT PANEL278
DIGITAL INSTRUMENT PANEL (L0050 (1))278
MULTIFUNCTION ARMREST279
MULTIFUNCTION CONTROL UNIT (L0060 (1))279
MULTIFUNCTION CONTROL UNIT (001517764/70A)280
ELECTRICAL CONTROLS – PUSHBUTTONS281
STEERING COLUMN SWITCH UNIT – REVERSING GEAR UNIT CONTROL (L0070 (1))281
SWITCHES / IGNITION BLOCK (L0071 (1))282
SWITCHES / IGNITION BLOCK (L0072 (1))283
CONSOLE CONTROLS – RH SIDE (L0073 (1))284
CONSOLE CONTROLS – RH SIDE (L0074 (1))285
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (L0075 (1))286
CONTROLS FOR 8-WAY AUXILIARY SERVICES CONTROL VALVE (L0076 (1))287
CAB TOP SWITCHES (L0077 (1))288
CAB TOP SWITCHES (L0078 (1))289
LOW FRONT WORKLIGHTS SWITCH (L0079 (1))290
WORKLIGHTS SWITCH (L00710 (1))291
FRONT LIFT SWITCH (L00711 (1))292
CAB TOP SWITCHES (L00712 (1))293
BATTERY DISCONECT SWITCH (L00713 (1))294
BATTERY DISCONECT SWITCH (L00714 (1))295
LIGHTING AND SIGNALLING296
HEADLIGHTS \ HORN (L0082 (1))296
HEADLIGHTS \ HORN (L0083 (1))297
WORKING SPOTLIGHT FRONT BOTTOM (L0084 (1))298
TOP LIGHT GROUP FOR DRIVING ON RIGHT – WORK LIGHTS (L0085 (1))299
TOP SPOTLIGHT LEFT TRAFFIC – WORKING SPOTLIGHT (L0086 (1))300
FRONT/REAR LIGHTS (L0087 (1))301
FRONT/REAR LIGHTS (L0088 (1))302
FRONT/REAR WORKLIGHTSAND INTERIOR ROOF LIGHT (L0089 (1))303
WARNING BEACON (L00810 (1))304
LICENCE PLATE LIGHT (L00811 (1))305
COURTESY LIGHT (L00812 (1))306
COURTESY LIGHT (L00813 (1))307
COURTESY LIGHT (L00814 (1))308
RETROREFLECTOR (L00815 (1))309
WARNING BEACON (001308684A)310
HEADLAMP COMPONENTS (044119204A)311
HEADLAMP COMPONENTS (044119214A)312
HEADLAMP COMPONENTS (280391600A)313
HEADLAMP COMPONENTS (280391800/10A)314
FRONT LIGHTS (280392400A)315
FRONT LIGHTS (280392500A)316
HEADLAMP COMPONENTS (280392990A)317
HEADLAMP COMPONENTS (280590800A)318
HEADLAMP COMPONENTS (280590900A)319
HEADLAMP COMPONENTS (280594400/10A)320
HEADLAMP COMPONENTS (280594500A)321
LICENCE PLATE LIGHT (280595260A)322
WORKING SPOTLIGHT sx/lh/li (280595270A)323
WORKING SPOTLIGHT dx/rh/re (280595280A)324
INTERIOR LIGHT (283390320A)325
ACCESSORIES326
LOUDSPEAKERS AND RADIO ANTENNA (L0090 (1))326
CIGAR LIGHTER (L0091 (1))327
CIGAR LIGHTER (L0092 (1))328
Engine329
Index329
Agrofarm 420 Profiline -> 25001332
B0 – ENGINE332
GENERAL332
ENGINE (B0000 (1))332
CYLINDER BLOCK333
SUPPORTS (B0010 (1))333
FASTENINGS (B0011007)334
BLEEDING TUBE (B0011034)335
CRANKCASE BREATHER (B0011051)336
CRANKCASE (B0011065)337
CRANKCASE (B0011082)338
OIL FILLER NECK (B0011089)340
ACCESSORIES (B0011134)341
ACCESSORIES (B0011135)342
ACCESSORIES (B0011137)343
FILLER CAP (B0011143)345
PISTON COOLNOZZLE (B0011160)346
FLANGE (B0011168)347
FLANGE (B0011169)348
CRANKSHAFT349
COOLANT PUMP DRIVEBELT AND BELT TENSIONER (B0020 (1))349
COOLANT PUMP AND COMPRESSOR DRIVEBELT (B0021 (1))350
FASTENINGS (B0021002)351
V-GROOVED PULLEY (B0021020)352
CRANKSHAFT (B0021040)353
CRANKSHAFT (B0021047)354
FLYWHEEL (B0021069)355
PLUG (B0021077)356
COUNTERWEIGHTS (B0021086)357
CYLINDERS – PISTONS – CONNECTING RODS358
PISTON (B0031002)358
CONNECTING ROD (B0031023)359
TIMING360
FASTENINGS (B0041011)360
BUSH (B0041023)361
CAMSHAFT (B0041070)362
CAMSHAFT (B0041077)363
VALVE DRIVE (B0041088)364
GEARCASE (B0041108)365
GEARCASE (B0041122)366
CYLINDER HEAD367
FASTENINGS (B0051007)367
ENGINE MOUNTING (B0051015)368
CLOSING COMPONENTS (B0051025)369
CYLINDER HEAD (B0051042)370
ROCKER ARMS COVER (B0051061)372
LUBRICATION373
FASTENINGS (B0061006)373
OIL SUCTION PIPE (B0061035)374
OIL PAN (B0061050)375
CLOSING COMPONENTS (B0061082)376
CLOSING COMPONENTS (B0061084)377
CLOSING COMPONENTS (B0061087)378
CLOSING COMPONENTS (B0061090)380
ACCESSORIES (B0061104)381
OIL COOLER BOX (B0061125)382
OIL COOLER BOX (B0061140)383
OIL COOLER BOX (B0061149)385
OIL RETURN (B0061156)386
FUEL INJECTION SYSTEM387
FASTENINGS (B0071007)387
FASTENINGS (B0071009)388
FASTENINGS (B0071012)389
HIGH PRESSURE PIPE (B0071021)394
FUEL INJECT PUMP (B0071033)395
FUEL INJECTOR (B0071046)396
FUEL FILTER (B0071056)397
FUEL LINE (B0071074)399
FUEL PUMP (B0071118)400
ROLLER TAPPET (B0071131)401
ROLLER TAPPET (B0071135)402
PILOTED CHECK VALVE (B0071139)403
NARROW V-BELT (B0071142)404
CLOSING COMPONENTS (B0071157)405
ACCESSORIES (B0071168)406
ACCESSORIES (B0071170)407
HOLDING DEVICE FOR LEADS (B0071187)408
MECHANICAL – ELECTRONIC GOVERNOR409
FASTENINGS (B0081001)409
CONTROL ROD (B0081010)410
ELECTRONIC CONTROL UNIT – ENGINE (B0081017)411
ELECTRONIC CONTROL UNIT – ENGINE (B0081023)412
ELECTRONIC CONTROL UNIT – ENGINE (B0081025)413
CLOSING COMPONENTS (B0081033)414
CLOSING COMPONENTS (B0081034)415
CLOSING COMPONENTS (B0081037)416
ACTUATOR (B0081042)417
COOLING418
FASTENINGS (B0091014)418
FASTENINGS (B0091018)419
SCREW PLUG (B0091071)420
CLOSING COMPONENTS (B0091073)421
DRIVING PARTS (B0091080)422
FAN SUPPORT (B0091115)423
COOLING WATER PUMP (B0091149)425
COOLING WATER PUMP (B0091153)426
INTAKE – EXHAUST MANIFOLDS427
EXHAUST PIPE (B0101007)427
EXHAUST PIPE (B0101016)428
FASTENINGS (B0101035)429
MANIFOLD (B0101085)430
MANIFOLD (B0101091)431
CLOSING COMPONENTS (B0101105)432
CLOSING COMPONENTS (B0101107)433
CLOSING COMPONENTS (B0101110)434
CHARGED AIR MANIFOLD (B0101129)435
CHARGED AIR MANIFOLD (B0101133)436
TURBOCHARGER438
TURBOCHARGER (B0111023)438
RETURN LINE (B0111051)439
OIL LUBRICATION PIPE (B0111074)440
CLOSING COMPONENTS (B0111085)441
CLOSING COMPONENTS (B0111086)442
Electrical accessories443
FASTENINGS (B0121010)443
FASTENINGS (B0121021)444
FASTENINGS (B0121032)445
IMPULSETRANSMITTER (B0121053)446
GENERATOR (B0121059)447
GENERATOR (B0121067)448
GENERATOR (B0121076)449
ENGINE ELECTRICAL SYSTEM (B0121096)450
ENGINE ELECTRICAL SYSTEM (B0121102)451
V-GROOVED PULLEY (B0121114)453
STARTER (B0121127)454
STARTER (B0121133)455
ACCESSORIES (B0121145)456
ACCESSORIES (B0121155)457
OIL PRESSURSWITCH (B0121205)458
TEMPERTRANSMITTER (B0121222)459
IMPULSETRANSMITTER (B0121234)460
Engine_accessories461
Index461
Agrofarm 420 Profiline -> 25001462
C0 – ENGINE ACCESSORIES462
RADIATORS – FANS462
WATER COOLER (C0010 (1))462
PIPES FOR WATER COOLER AND TANK (C0011 (1))463
ENGINE FAN (C0012 (1))464
TANK – PARTS (001480234/10A)465
INTERCOOLER – AIR CLEANER466
INTERCOOLER (C0020 (1))466
8″ AIR CLEANER (C0021 (1))467
8″ AIR CLEANER WITH DUST EXHAUSTER (C0022 (1))468
AIR CLEANER (242497180A)469
FUEL SYSTEM470
FUEL SYSTEM – TANK (C0030 (1))470
FUEL SYSTEM – TANK (C0031 (1))471
FUEL COOLER PIPES (C0032 (1))472
FUEL COOLER (C0033 (1))473
FUEL FILTER SUPPLY (C0034 (1))474
FUEL FILTER SUPPLY (C0034 (2))475
PRE-FILTER – COMPONENTS (243192900/10A)476
STARTER MOTOR477
STARTER MOTOR COVER (C0050 (1))477
STARTER MOTOR COVER (C0051 (1))478
EXHAUST SILENCER479
EXHAUST SILENCER (C0060 (1))479
AIR COMPRESSOR480
AIR COMPRESSOR (C0070 (1))480
COMPRESSOR-PARTS (044284084A)481
Front_axle482
Index482
Agrofarm 420 Profiline -> 25001483
F0 – FRONT AXLE483
FRONT SUPPORT483
FRONT SUPPORT (F0010 (1))483
4WD – FRONT SUPPORT WITH FRONT PTO (F0011 (1))484
4WD – FRONT SUPPORT (F0012 (1))485
PROVISION FOR FRONT PTO MOUNTING (F0013 (1))486
4WD FRONT AXLE487
4WD – FRONT DRIVE AXLE (F0030 (1))487
PIN (F0031 (1))488
4WD – FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0032 (1))489
AIR BREATHER AND STEERING STOP – 4WD (F0033 (1))490
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (001004884/10A)491
FRONT DIFFERENTIAL492
4WD – FLANGE (F0040 (1))492
FLANGE FASTENERS (F0041 (1))493
4WD – BEVEL WHEEL GEAR – 40 Km\h (F0042 (1))494
DIFFERENTIAL SEAL RINGS (F0043 (1))495
4WD – FRONT DIFFERENTIAL (F0044 (1))496
4WD – FRONT DIFFERENTIAL (F0045 (2))497
4WD – TRANSMISSION SHAFT (F0046 (1))498
4WD – TRANSMISSION SHAFT (F0047 (1))499
STEERING CYLINDER500
4WD – POWER STEERING CYLINDER (F0050 (1))500
CYLINDER PARTS (001061104/20A)501
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS502
4 WD – FRONT REDUCTION UNIT AND HALFSHAFTS (F0060 (2))502
4WD – FRONT REDUCTION UNIT FOR TYPES WITH BRAKES (F0061 (1))503
REDUCTION GEAR SEAL RINGS (F0062 (1))504
FRONT WHEEL HUB COVER (F0063 (1))505
4WD – AXLESHAFTS (001054134/10A)506
4WD – AXLESHAFTS (001054134/20A)507
FRONT BRAKES508
4WD – FRONT BRAKES (F0070 (1))508
Front_lift509
Index509
Agrofarm 420 Profiline -> 25001510
N0 – FRONT LIFT510
LIFT ASSEMBLY510
FRONT HYDRAULIC POWER-LIFT (N0010 (1))510
TOWING HITCH (001017023A)512
ADJUSTABLE LIFT ROD PARTS (001327703A)513
Front_pto514
Index514
Agrofarm 420 Profiline -> 25001515
M0 – FRONT PTO515
PTO INPUT SHAFT515
DRIVE SHAFT – FRONT PTO SHAFT (M0010 (1))515
FRONT PTO COVER – PROTECTIONS516
FRONT PTO FIXING COMPONENTS (M0020 (1))516
FRONT PTO CASING (M0021 (1))517
PTO SHAFT PROTECTOR FRONT (M0022 (1))518
GEARS AND CLUTCH519
FRONT PTO PACKAGE 2300/N (M0030 (1))519
PTO FRONT (M0031 (1))520
PTO FRONT (M0032 (1))521
PTO FRONT (M0033 (1))522
HYDRAULIC SYSTEM523
FRONT PTO HYDRAULIC SYSTEM (M0040 (1))523
FRONT PTO HYDRAULIC SYSTEM (M0041 (1))524
FRONT PTO HYDRAULIC SYSTEM (M0042 (1))525
SOLENOID VALVE (M0043 (1))526
FRONT PTO HYDRAULIC SYSTEM (M0044 (1))527
Hydraulic_and_pneumatic_system528
Index528
Agrofarm 420 Profiline -> 25001531
H0 – HYDRAULIC AND PNEUMATIC SYSTEM|531
HYDRAULIC SYSTEM531
GEARBOX OIL COOLER PIPES (H0010 (1))531
GEARBOX OIL HEAT EXCHANGER SYSTEM (H0011 (1))532
HYDRAULIC PUMP 225 cc – dx/rh/re (H0012 (1))533
HYDRAULIC PUMP 16 cc – sx/lh/li (H0013 (2))534
HYDRAULIC PUMP 14 cc dx/rh/re (H0014 (1))535
PUMP FILTER SUCTION (H0015 (1))536
PUMP FILTER SUCTION (H0016 (1))537
PUMP FILTER SUCTION 225 CC (H0017 (1))538
PUMP FILTER SUCTION 16 CC (H0018 (1))539
PUMP FILTER SUCTION 14 CC (H0019 (1))540
HYDRAULIC SYSTEM FOR SECOND PUMP – 14 cc (H00110 (1))541
OIL SUCTION (H00111 (1))542
OIL SUCTION (H00112 (1))543
OIL FILTER (H00113 (1))544
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H00114 (1))545
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H00115 (1))546
OIL TRANSFER PUMP HYDRAULIC SYSTEM (H00117 (1))547
OIL CONTROL VALVES HOUSING PIPES (H00118 (1))548
GEARBOX BREATHER SYSTEM (H00119 (1))549
REDUCE AND OLD VALVE (H00120 (1))550
PRESSURE CONTROL VALVE (H00121 (1))551
HYDRAULIC SYSTEM H-M-L (H00122 (1))552
DIFFERENTIAL LOCK/PTO SOLENOID VALVES ASSEMBLY (H00123 (1))553
PTO HYDRAULIC CLUTCH LUBRICATION PIPE (H00124 (1))554
PTO BEARING LUBRICATION SYSTEM (H00125 (1))555
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (H00126 (1))556
FRONT DIFFERENTIAL LOCK CONTROL LINES (H00127 (1))557
PARK SYSTEM – BRAKE (H00128 (1))558
BRAKES LUBRICATION PIPE (H00129 (1))559
CYLINDER HOSES W/ ELECTRONIC LIFT (H00130 (1))560
PIPES FROM HYDRAULIC PUMP TO AUXILIARY CONTROL VALVE (H00131 (1))561
SYSTEM FROM HYDRAULIC PUMP TO HYDRAULIC BRAKES (H00132 (1))562
PIPE FROM AUXILIARY CONTROL VALVE TO ELECTRONIC ACS (H00133 (1))563
AUXILIARY CONTROL VALVE SYSTEM (H00134 (1))564
PIPE FROM AUXILIARY CONTROL VALVE TO ELECTRONIC ACS – POWER BEYOND (H00135 (1))565
HYDRAULIC SYSTEM FOR SECOND PUMP (H00136 (1))566
DETAILS OF OIL FILTER (244194900/30A)567
HYDRAULIC PUMP PARTS (245393100/10A)568
HYDRAULIC PUMP (245394800/10A)569
HYDRAULIC PUMP PARTS (245396200/10A)570
STEERING SYSTEM571
HYDROSTATIC STEERING CONTROL VALVE (H0020 (1))571
PIPES FOR HYDROSTATIC STEERING (H0021 (1))572
POWER STEERING (H0022 (1))573
TRANSMISSION – PTO COOLERS574
GEARBOX OIL COOLER (H0030 (1))574
FRONT LIFT575
FRONT LIFT – HYDRAULIC SYSTEM (H0050 (1))575
FRONT LIFT – HYDRAULIC SYSTEM (H0051 (1))576
FRONT LIFT – HYDRAULIC SYSTEM (H0052 (1))577
PRESSURE CONTROL VALVE (000920384/10A)578
REAR REMOTE CONTROL VALVES579
6-WAY AUXILIARY DISTRIBUTOR (H0070 (1))579
6-WAY AUXILIARY DISTRIBUTOR (H0070 (2))580
8-WAY AUXILIARY DISTRIBUTOR (H0071 (1))581
8-WAY AUXILIARY DISTRIBUTOR (H0071 (2))582
8-WAY AUXILIARY DISTRIBUTOR (H0072 (1))583
8-WAY AUXILIARY DISTRIBUTOR (H0072 (2))584
8-WAY REMOTE CONTROL VALVE + FRONT LIFT (H0073 (1))585
8-WAY REMOTE CONTROL VALVE + FRONT LIFT (H0073 (2))586
8-WAY REMOTE CONTROL VALVE WITH FRONT LIFT OR FRONT LOADER (H0074 (1))587
8-WAY REMOTE CONTROL VALVE WITH FRONT LIFT OR FRONT LOADER (H0074 (2))588
CONTROL VALVE SUPPORT AND BRACKETS (H0075 (1))589
6-WAY QUICK COUPLERS (H0076 (1))590
8-WAY QUICK COUPLERS (H0077 (1))591
REAR QUICK ACTION COUPLERS – POWERBEYOND (H0078 (1))592
FREE OIL RETURN (H0079 (1))593
CONNECTOR OIL COLLECTION SYSTEM (H00710 (1))594
CONNECTOR OIL COLLECTION SYSTEM (H00711 (1))595
ENGAGEMENT (001084730A)596
DISTRIBUTOR (237290070A)597
ENGAGEMENT (237295602A)598
ENGAGEMENT (237295702A)599
BRAKING SYSTEM AND PNEUMATIC SYSTEM|600
4WD – FRONT BRAKES (H0090 (1))600
FRONT BRAKING SYSTEM (H0091 (1))601
VALVE FOR FRONT BRAKES (H0092 (1))602
BRAKING SYSTEM (H0093 (1))603
BLEEDING TUBE (H0094 (1))604
BRAKES + STOP&GO BLOCK (H0095 (1))605
PARK SYSTEM – BRAKE (H0096 (2))606
HYDRAULIC TRAILER BRAKING PARTS KIT (H0097 (1))607
HYDRAULIC TRAILER BRAKING PARTS KIT (H0098 (1))608
COMPLETION WITH HYDRAULIC TRAILER BRAKING (H0099 (1))609
HYDRAULIC BREAKING FOR TRAILER (H00910 (1))610
HYDRAULIC BREAKING FOR TRAILER – ITALY – (H00911 (1))611
HYDRAULIC BREAKING FOR TRAILER (H00912 (1))612
AIR BRAKING FOR ‘ITALY’ TRAILER (H00913 (1))613
AIR BRAKING FOR ‘ITALY’ TRAILER (H00914 (1))614
AIR BRAKING FOR ‘ITALY’ TRAILER (H00915 (1))616
AIR BRAKING FOR ‘EXPORT D’ TRAILER (H00916 (1))617
AIR BRAKING FOR ‘EXPORT D’ TRAILER (H00917 (1))618
AIR BRAKING FOR ‘EXPORT D’ TRAILER (H00918 (1))619
AIR PRESSURE GAUGE FOR AIR BRAKING SYSTEM ITALY (H00919 (1))620
PRESSURE GAUGE FOR AIR BRAKING SYSTEM EXPORT D (H00920 (1))621
COUPLING PARTS CUNA (001045824A)622
TRAILER BRAKE VALVE (001186334A)623
VALVE PARTS (04398756A)624
TRAILER BRAKE VALVE (237195500/50A)625
BRAKES CONTROL VALVE (237297220/20A)626
ELECTROHYDRAULICS627
HOUSING OF VALVES AND HYDRAULIC SERVICES / SOLENOID VALVES (H0100 (1))627
H-M-L UNIT (H0101 (1))628
HYDRAULIC SHUTTLE CONTROL (H0102 (1))629
SOLENOID VALVE – 4WD (H0103 (1))630
SOLENOID VALVE FOR 6-WAY REMOTE CONTROL VALVE (H0104 (1))631
SOLENOID VALVE FOR 8-WAY REMOTE CONTROL VALVE (H0105 (1))632
SOLENOID VALVE FOR 8-WAY REMOTE CONTROL VALVE (H0106 (1))633
SOLENOID VALVE FOR 8-WAY REMOTE CONTROL VALVE + FRONT LIFT (H0107 (1))634
SOLENOID VALVE FOR 8-WAY REMOTE CONTROL VALVE WITH FRONT LIFT OR FRONT LOADER (H0108 (1))635
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/20A)636
SOLENOID VALVE (237296980/10A)637
SOLENOID VALVE (237297090A)638
Rear_axle639
Index639
Agrofarm 420 Profiline -> 25001640
E0 – REAR AXLE640
REAR AXLE640
REAR AXLE (E0010 (1))640
REAR AXLE – MOUNTINGS (E0011 (1))641
REAR AXLE CROWN WHEEL (E0012 (1))642
REAR DIFFERENTIAL / HALF-SHAFTS643
4-PLANET PINION DIFFERENTIAL (E0020 (1))643
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (E0021 (1))644
REAR REDUCTION GEARS AND AXLE SHAFTS (E0022 (1))645
HALF AXLES (E0023 (1))646
REAR BRAKES647
REAR BRAKES (E0030 (1))647
Rear_lift648
Index648
Agrofarm 420 Profiline -> 25001649
R0 – REAR LIFT649
LIFT COVER649
SAC CASE (R0010 (1))649
REAR LIFT HOUSING BREATHER VALVE AND FIXTURES (R0011 (1))650
PLUG (R0012 (1))651
LIFT ASSEMBLY652
RAISE (R0020 (1))652
HYDRAULIC CYLINDERS (R0021 (1))653
CYLINDER PARTS (091233304/30A)654
LIFT CONTROL VALVE655
REGULATING DISTRIBUTOR (R0030 (1))655
DISTRIBUTOR (04454146A)656
SENSOR657
SENSING ELEMENTS WITH ELECTRONIC CONTROL (R0050 (1))657
DRAFT SENSOR (R0051 (1))658
DRAFT SENSOR (R0052 (1))659
THREE-POINT LINKAGE – LINK ARMS660
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD (R0060 (1))660
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD (R0061 (1))661
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD dx/rh/re (R0062 (1))662
3-POINT HITCH WITH HYDRAULIC LIFT ROD dx/rh/re (R0063 (1))663
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R0064 (1))664
3-POINT HITCH WITH HYDRAULIC LIFT ROD (R0065 (1))665
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R0066 (1))666
THREE-POINT HITCH – MANUAL LATERAL STABILIZERS (R0067 (1))667
AUTOMATIC LATERAL STABILIZERS (R0068 (2))668
TOWING BAR (R0069 (1))669
CYLINDER PARTS (001008834/30A)670
TOWING HITCH (001017023A)671
3-POINT HITCH – ADJUSTABLE RH RODS (001019593A)672
CYLINDER PARTS (001110534/10A)673
LINKAGE (001414053A)674
TOWING HITCH (001414203A)675
STABILIZER (001541944/10A)676
Transmission677
Index677
Agrofarm 420 Profiline -> 25001679
D0 – TRANSMISSION679
CLUTCH HOUSING679
JUNCTION CASE (D0020 (3))679
HYDRAULIC SHUTTLE ASSEMBLY680
HYDRAULIC SHUTTLE (D0030 (1))680
HYDRAULIC SHUTTLE (D0031 (2))681
HML – HI-LO – SHML682
H-M-L UNIT (D0040 (1))682
H-M-L UNIT (D0041 (1))683
GEARBOX INPUT SHAFT685
INPUT SHAFT FOR 5 SPEED GEARBOX WITH H-M-L (D0050 (1))685
PTO INPUT SHAFT686
PTO – CLUTCH TRANSMISSION SHAFT (D0060 (1))686
MAIN SHAFT687
PRIMARY SHAFT FOR 5 SPEED GEARBOX WITH H-M-L (D0070 (1))687
SECONDARY SHAFT688
SECONDARY SHAFT FOR 5 SPEED GEARBOX WITH H-M-L (D0080 (1))688
SYNCHRONIZER PARTS (001298484A)689
SYNCHRONIZER PARTS (001298524A)690
GEARBOX691
REAR GEARBOX CASE (D0090 (1))691
INTERNAL FLANGES FOR 5 SPEED GEARBOX WITH H-M-L (D0091 (1))692
PLUGS FOR GEARBOX (D0092 (1))693
GEARBOX LOWER COVER (D0093 (1))694
REAR GEARBOX PLUG (D0094 (1))695
END COVERS (D0095 (1))696
COVER FOR TYPES WITHOUT SYNCHRO PTO (D0096 (1))697
FASTENINGS (D00917 (1))698
INTERNAL AND EXTERNAL GEARBOX CONTROLS699
INTERNAL CONTROLS FOR 5 SPEED GEARBOX WITH H-M-L (D0100 (1))699
REDUCTION GEAR CONTROL (D0101 (1))701
BRACKET (D0102 (1))702
LOW SPEED RANGES703
SPEED RANGE REDUCTION GEAR UNIT (D0110 (1))703
COMPLETION FOR 4 SPEED RANGE REDUCTION GEAR UNIT (D0111 (1))704
SPEED RANGE REDUCTION GEAR SHAFT (D0112 (1))705
BEARING FOR RANGE GEARBOX SHAFT (D0113 (1))706
BEVEL WHEEL GEAR – 40Km/h (D0114 (1))707
BEVEL DRIVE PINION BEARING (D0115 (1))708
HYDRAULIC REAR PTO CLUTCH709
PTO – HYDRAULIC CLUTCH (D0120 (1))709
PTO – CLUTCH-PARTS (001271034/20A)710
PTO – CLUTCH-PARTS (001271034/50A)711
HYDRAULIC PUMP DRIVE712
PUMP DRIVE (D0130 (1))712
ADDITIONAL PUMP ONTROL FOR AUXILIARY SERVICES (D0131 (1))713
OIL TRANSFER PUMP ASSY (D01316 (1))714
PTO/GROUNDPSPEED DRIVE715
4 SPEED PTO (D0140 (1))715
4 SPEED PTO (D0141 (1))716
PTO – WITH INSERTED END SHAFTS (D0142 (1))717
PTO – WITH INSERTED END SHAFTS (D0143 (1))718
PTO – SEAL RING FOR INSERTED END SHAFT – STANDARD VERSION (D0144 (1))719
ROAD PTO SHAFT (D0145 (1))720
PTO – SYNCHRONIZED (D0146 (1))721
PTO – SYNCHRONIZED – WITH STANDARD SEALS (D0147 (1))722
PTO SHAFT PROTECTOR REAR (D0149 (1))723
PTO SHAFT PROTECTOR REAR (D01410 (1))724
PTO SHAFT PROTECTOR REAR (D01411 (1))725
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE726
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (D0150 (2))726
Wheels727
Index727
Agrofarm 420 Profiline -> 25001728
S0 – WHEELS728
FRONT WHEEL BOLTS728
4WD – FRONT WHEEL MOUNTING (S0010 (1))728
REAR WHEEL BOLTS729
REAR WHEEL BOLTS (S0020 (1))729
FLANGE (S0021 (2))730
WHEELS731
WHEELS 380/85R24″(149R24″) (S0040 (1))731
WHEELS 420/85R24″(169R24″ a8) (S0041 (1))732
WHEELS 420/70 R24″ A8 (S0042 (1))733
WHEELS 480/65R-24″ (S0043 (1))734
WHEELS 480/70r24″ a8 (S0044 (1))735
WHEELS 280/85R28″(112R28″) (S0045 (1))736
WHEELS 340/85R28″(136R28″) (S0046 (2))737
WHEELS 340/85R28″(136R28″) (S0047 (2))738
WHEELS 360/70R28″-125A8 (S0048 (1))739
WHEELS 380/70 R28″ A8 (S0049 (1))740
WHEELS 440/65R-28″ a8 (S00410 (1))741
WHEELS 420/85R34(169R34) (S00411 (1))742
WHEELS 460/85R34″(184R34″) (S00412 (2))743
WHEELS 480/70R34″ (S00413 (1))744
WHEELS 460/85R34″(184R34″) (S00414 (1))745
WHEELS 520/70R34″-148A8-TL (S00415 (1))746
WHEELS 520/70R34″-148A8-TL (S00416 (1))747
WHEELS 540/65R34″ (S00417 (1))748
WHEELS 340/85R38″(136R38″) (S00418 (1))749
WHEELS 420/85R38″ (169R38″) (S00419 (1))750
WHEELS 480/70R-38″ a8 (S00420 (2))751
WHEELS 540/65R-38” (S00421 (1))752

Contact us: [email protected]

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.M
