Deutz Fahr Agrofarm 420 TB Parts Manual 1001 – PDF
$30.95
Deutz Fahr Agrofarm 420 TB Parts Manual 1001 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Deutz Fahr Agrofarm 420 TB Parts Manual 1001 – PDF DOWNLOAD
FILE DETAILS:
Deutz Fahr Agrofarm 420 TB Parts Manual 1001 – PDF DOWNLOAD
Language : English
Pages : 548
Downloadable : Yes
File Type : PDF

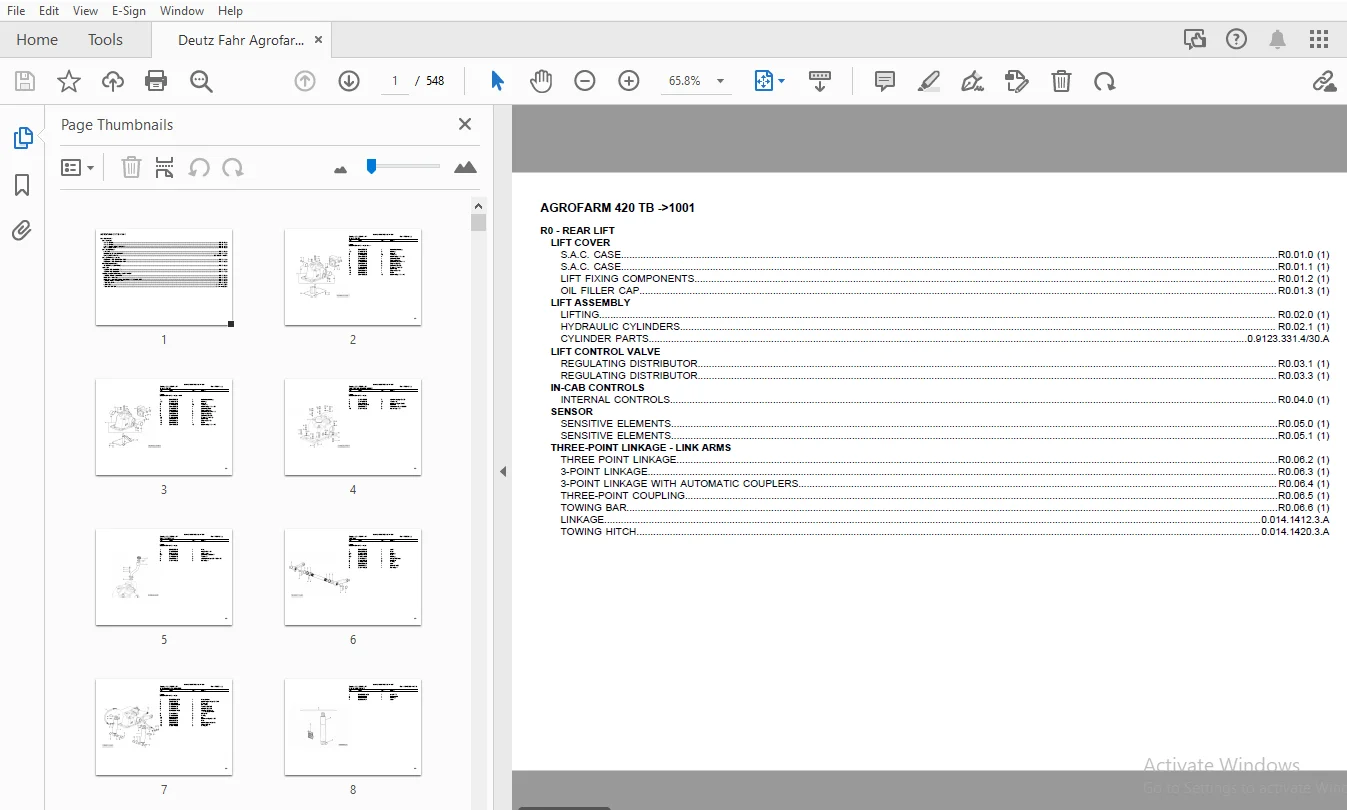

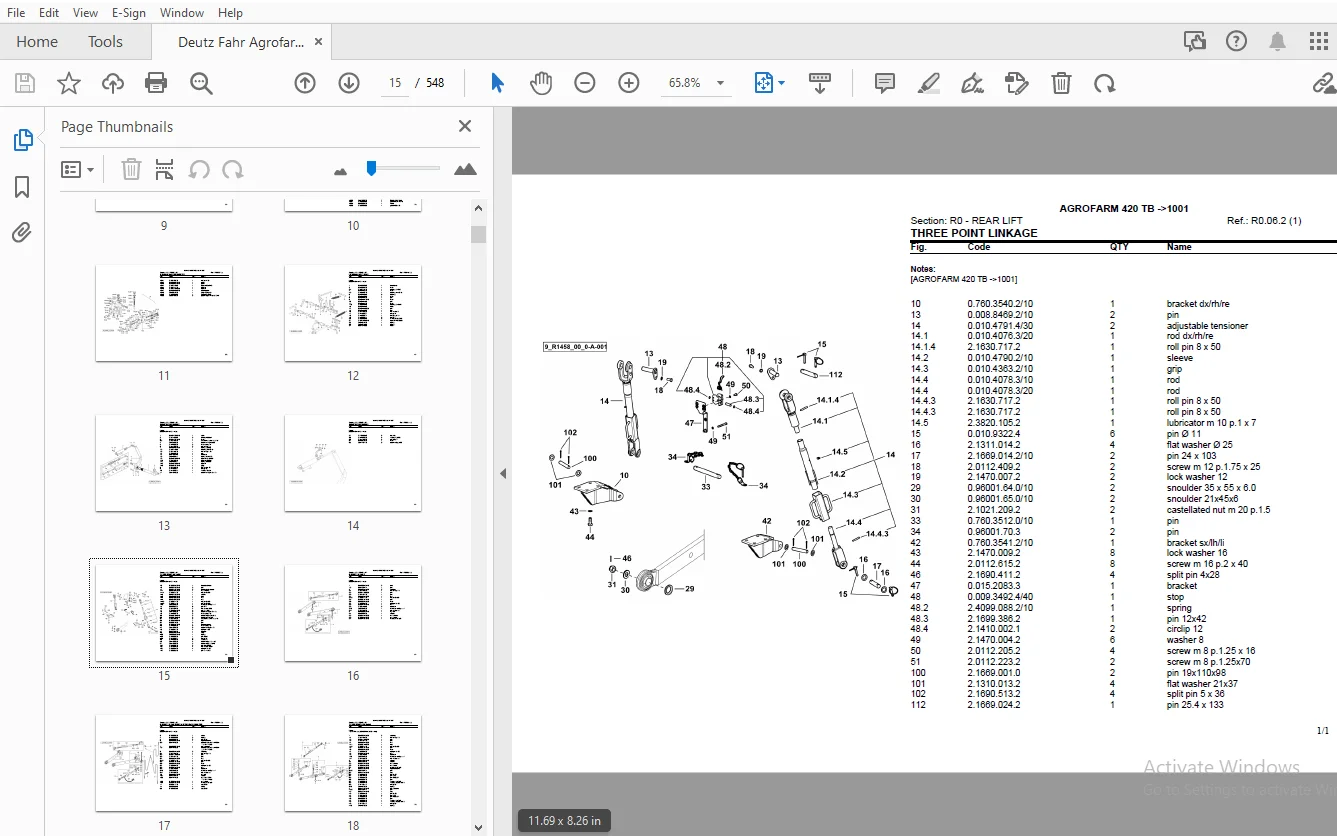

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Deutz Fahr Agrofarm 420 TB Parts Manual 1001 – PDF DOWNLOAD
Index............................................................................................. 1 AGROFARM 420 TB ->1001............................................................................ 2 R0 - REAR LIFT................................................................................ 2 LIFT COVER................................................................................ 2 S.A.C. CASE (R0.01.0 (1))............................................................. 2 S.A.C. CASE (R0.01.1 (1))............................................................. 3 LIFT FIXING COMPONENTS (R0.01.2 (1)).................................................. 4 OIL FILLER CAP (R0.01.3 (1)).......................................................... 5 LIFT ASSEMBLY............................................................................. 6 LIFTING (R0.02.0 (1))................................................................. 6 HYDRAULIC CYLINDERS (R0.02.1 (1))..................................................... 7 CYLINDER PARTS (0.9123.331.4/30.A).................................................... 8 LIFT CONTROL VALVE........................................................................ 9 REGULATING DISTRIBUTOR (R0.03.1 (1)).................................................. 9 REGULATING DISTRIBUTOR (R0.03.3 (1)).................................................. 10 IN-CAB CONTROLS........................................................................... 12 INTERNAL CONTROLS (R0.04.0 (1))....................................................... 12 SENSOR.................................................................................... 13 SENSITIVE ELEMENTS (R0.05.0 (1))...................................................... 13 SENSITIVE ELEMENTS (R0.05.1 (1))...................................................... 14 THREE-POINT LINKAGE - LINK ARMS........................................................... 15 THREE POINT LINKAGE (R0.06.2 (1))..................................................... 15 3-POINT LINKAGE (R0.06.3 (1))......................................................... 16 3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R0.06.4 (1))................................. 17 THREE-POINT COUPLING (R0.06.5 (1)).................................................... 18 TOWING BAR (R0.06.6 (1)).............................................................. 20 LINKAGE (0.014.1412.3.A).............................................................. 21 TOWING HITCH (0.014.1420.3.A)......................................................... 22 Index............................................................................................. 23 AGROFARM 420 TB ->1001............................................................................ 25 D0 - TRANSMISSION............................................................................. 25 MAIN CLUTCH............................................................................... 25 CLUTCH 13" (D0.01.1 (1)).............................................................. 25 CLUTCH CONTROL (D0.01.3 (1)).......................................................... 26 CLUTCH HOUSING............................................................................ 27 JUNCTION CASE (D0.02.1 (2))........................................................... 27 JUNCTION CASE (D0.02.1 (3))........................................................... 28 COVER (D0.02.4 (1))................................................................... 29 GEARBOX INPUT SHAFT....................................................................... 30 5-SPEED GEARBOX INPUT SHAFT (D0.05.1 (1))............................................. 30 GEARBOX INPUT SHAFT KIT (D0.05.6 (1))................................................. 31 SYNCHRONIZER PARTS (0.011.8631.4.A)................................................... 32 PTO INPUT SHAFT........................................................................... 33 P.T.O. - CLUTCH TRANSMISSION SHAFT (D0.06.0 (1))...................................... 33 MAIN SHAFT................................................................................ 34 5-SPEED GEARBOX PRIMARY SHAFT (D0.07.1 (1))........................................... 34 SECONDARY SHAFT........................................................................... 35 5-SPEED GEARBOX SECONDARY SHAFT (D0.08.1 (1))......................................... 35 SYNCHRONIZER PARTS (0.012.9848.4.A)................................................... 36 SYNCHRONIZER PARTS (0.012.9852.4.A)................................................... 37 GEARBOX................................................................................... 38 REAR GEARBOX CASE (D0.09.2 (1))....................................................... 38 GEARBOX LOWER COVER (D0.09.5 (1))..................................................... 39 COVER FOR TYPES WITHOUT SYNCHRO PTO (D0.09.7 (1))..................................... 40 PLUG (D0.09.8 (1)).................................................................... 41 5-SPEED GEARBOX INTERNAL FLANGES (D0.09.10 (1))....................................... 42 INTERNAL AND EXTERNAL GEARBOX CONTROLS.................................................... 43 5-SPEED GEARBOX INTERNAL CONTROLS (D0.10.1 (1))....................................... 43 5-SPEED GEARBOX INTERNAL CONTROLS (D0.10.1 (2))....................................... 44 INTERNAL GEARBOX AND REVERSE GEAR CONTROLS (D0.10.7 (1)).............................. 45 INTERNAL GEARBOX AND REVERSE GEAR CONTROLS (D0.10.7 (2)).............................. 46 REDUCTION GEAR CONTROL (D0.10.9 (1)).................................................. 47 LOW SPEED RANGES.......................................................................... 48 SPEED RANGE REDUCTION GEAR UNIT (D0.11.1 (1))......................................... 48 COMPLETION FOR 3 SPEED RANGE REDUCTION GEAR UNIT (D0.11.3 (1))........................ 49 COMPLETION FOR 4 SPEED RANGE REDUCTION GEAR UNIT (D0.11.5 (1))........................ 50 SPEED RANGE REDUCTION GEAR SHAFT (D0.11.6 (1))........................................ 51 BEARING FOR RANGE GEARBOX SHAFT (D0.11.7 (1))......................................... 52 BEVEL WHEEL GEAR - 40Km/h (D0.11.9 (1))............................................... 53 BEVEL DRIVE PINION BEARING (D0.11.11 (1))............................................. 54 HYDRAULIC REAR PTO CLUTCH................................................................ 55 P.T.O. - HYDRAULIC CLUTCH (D0.12.1 (1))............................................... 55 P.T.O. - CLUTCH-PARTS (0.012.7103.4/20.A)............................................. 56 P.T.O. - CLUTCH-PARTS (0.012.7103.4/50.A)............................................. 57 HYDRAULIC PUMP DRIVE...................................................................... 58 P.T.O. - PUMP CONTROL (D0.13.1 (1))................................................... 58 PTO/GROUNDPSPEED DRIVE.................................................................. 59 PTO CONNECTION SHAFT 540-N / 540-1000 (D0.14.1 (1))................................... 59 PTO CONNECTION SHAFT (D0.14.3 (1)).................................................... 60 P.T.O. SHAFT 540/N (D0.14.4 (1))...................................................... 61 P.T.O. SHAFT 540 - 1000 (D0.14.5 (1))................................................. 62 4 SPEED P.T.O. (D0.14.6 (1)).......................................................... 63 PTO - 2-SPEED WITH INSERTED END SHAFT (D0.14.7 (1))................................... 64 PTO - 2-SPEED WITH INSERTED END SHAFT (D0.14.8 (1))................................... 65 P.T.O - 4-SPEED WITH INSERTED END SHAFT (D0.14.9 (1))................................. 66 P.T.O - 4-SPEED WITH INSERTED END SHAFT (D0.14.10 (1))................................ 67 PTO - SEAL RING FOR INSERTED END SHAFT - STANDARD VERSION (D0.14.11 (1)).............. 68 P.T.O. - FIXED END SHAFT - FOR 2-SPEED STANDARD SEALS (D0.14.12 (1)).................. 69 P.T.O. - FIXED END SHAFT - FOR 4-SPEED STANDARD SEALS (D0.14.13 (1)).................. 70 P.T.O. - SYNCHRONIZED (D0.14.16 (1)).................................................. 71 P.T.O. - SYNCHRONIZED (D0.14.17 (1)).................................................. 72 P.T.O. - SYNCHRONIZED - WITH STANDARD SEALS (D0.14.18 (1))............................ 73 P.T.O. SHAFT PROTECTOR REAR (D0.14.19 (1))............................................ 74 P.T.O. SHAFT PROTECTOR REAR (D0.14.20 (1))............................................ 75 4WD ENGAGEMENT POWER TAKE-OFF - 4WD PARKING BRAKE......................................... 76 4WD - ENGAGEMENT CONTROL (D0.15.1 (1))................................................ 76 INDEPENDENT HAND BRAKE (D0.15.3 (1)).................................................. 77 INDEPENDENT HAND BRAKE (D0.15.4 (1)).................................................. 78 Index............................................................................................. 79 AGROFARM 420 TB ->1001............................................................................ 81 H0 - HYDRAULIC AND PNEUMATIC SYSTEM|.......................................................... 81 HYDRAULIC SYSTEM.......................................................................... 81 FRONT DIFFERENTIAL LOCK CONTROL LINES (H0.01.0 (1))................................... 81 FRONT DIFFERENTIAL LOCK CONTROL LINES (H0.01.2 (1))................................... 82 GEARBOX OIL COOLER PIPES (H0.01.4 (1))................................................ 83 GEARBOX OIL COOLER PIPES (H0.01.6 (1))................................................ 84 HYDRAULIC PUMP 14 cc - sx/lh/li (H0.01.9 (1))......................................... 85 HYDRAULIC PUMP 22.5 cc - dx/rh/re (H0.01.10 (1))...................................... 86 PUMP FILTER SUCTION (H0.01.12 (1)).................................................... 87 POWER STEERING OIL FEED HYDRAULIC SYSTEM (H0.01.15 (1))............................... 88 SUCTION HYDRAULIC SYSTEM (H0.01.24 (1))............................................... 89 REDUCE AND OLD VALVE (H0.01.26 (1))................................................... 90 OIL CONTROL VALVES HOUSING PIPES (H0.01.30 (1))....................................... 91 DIFFERENTIAL LOCK / P.T.O. ASSEMBLY (H0.01.32 (2)).................................... 92 PTO HYDRAULIC CLUTCH LUBRICATION PIPE (H0.01.36 (1)).................................. 93 P.T.O. BEARING LUBRICATION SYSTEM (H0.01.38 (1))...................................... 94 LUBRICATION - P.T.O. AND REAR BRAKES (H0.01.40 (1))................................... 95 LUBRICATION - P.T.O. AND REAR BRAKES (H0.01.40 (2))................................... 96 HYDRAULIC SYSTEM - FOR 4-6 WAY CONTROL VALVE (H0.01.41 (2))........................... 97 SUPPLY LINE TO REMOTE CONTROL VALVE (H0.01.43 (1)).................................... 98 HOSE FROM HYDRAULIC PUMP TO AUXILIARY HYDRAULIC CONTROL VALVE (H0.01.47 (1)).......... 99 HOSE FROM HYDRAULIC PUMP TO AUXILIARY HYDRAULIC CONTROL VALVE (H0.01.48 (1))..........100 SYSTEM FROM HYDRAULIC PUMP TO HYDRAULIC BRAKES (H0.01.49 (1)).........................101 HYDRAULIC PUMP PARTS (2.4539.120.0/10.A)..............................................102 HYDRAULIC PUMP PARTS (2.4539.620.0/10.A)..............................................103 STEERING SYSTEM...........................................................................104 HYDROSTATIC STEERING CONTROL VALVE (H0.02.0 (1))......................................104 PIPES FOR HYDROSTATIC STEERING (H0.02.1 (1))..........................................105 STEERING CYLINDER PIPES (H0.02.2 (1)).................................................106 HYDRAULIC STEERING GEAR (2.4569.007.0.A)..............................................107 TRANSMISSION - PTO COOLERS...............................................................108 GEARBOX OIL COOLER (H0.03.1 (1))......................................................108 REAR REMOTE CONTROL VALVES................................................................109 4-WAY AUXILIARY DISTRIBUTOR (H0.07.0 (1)).............................................109 4-WAY AUXILIARY DISTRIBUTOR (H0.07.1 (1)).............................................110 6-WAY AUXILIARY DISTRIBUTOR (H0.07.2 (1)).............................................111 6-WAY AUXILIARY DISTRIBUTOR (H0.07.3 (1)).............................................112 SUPPORT AND FIXTURE OF REAR 4-6 WAY CONTROL VALVE (H0.07.4 (1))......................113 4-WAY QUICK COUPLERS (H0.07.5 (1))....................................................114 4-WAY QUICK COUPLERS (H0.07.6 (2))....................................................115 6-WAY QUICK COUPLERS (H0.07.7 (2))....................................................116 4 - 6 - WAY DISTRIBUTOR EQUIPMENT (H0.07.8 (1)).......................................117 CONNECTOR OIL COLLECTION SYSTEM (H0.07.9 (2)).........................................118 OIL DRAIN PIPES (H0.07.10 (1))........................................................119 ENGAGEMENT (0.010.8473.0.A)...........................................................120 ENGAGEMENT (0.98308.50.3/10.A)........................................................121 DISTRIBUTOR (2.3729.706.0/10.A).......................................................122 DISTRIBUTOR (2.3729.707.0/10.A).......................................................123 BRAKING SYSTEM AND PNEUMATIC SYSTEM|......................................................124 4WD - FRONT BRAKING SYSTEM (H0.09.0 (1))..............................................124 FRONT BRAKE PIPES (H0.09.2 (1)).......................................................125 BLAKES BLOCK (H0.09.3 (1))............................................................126 BLAKES BLOCK (H0.09.4 (1))............................................................127 BLAKES BLOCK (H0.09.5 (1))............................................................128 BRAKES CONTROL VALVE (H0.09.6 (1))....................................................129 BRAKES BLOCK BRACKET (H0.09.7 (1))....................................................130 REAR BRAKES (H0.09.9 (1)).............................................................131 BLEEDING TUBE (H0.09.11 (1))..........................................................132 HYDRAULIC BREAKING FOR TRAILER (H0.09.13 (1)).........................................133 HYDRAULIC BREAKING FOR TRAILER - ITALY - (H0.09.14 (1))...............................134 HYDRAULIC BREAKING FOR TRAILER - EXPORT F (H0.09.15 (1))..............................135 HYDRAULIC BRAKING PARTS KIT WITH 4-WAY DIRECTIONAL CONTROL VALVE (H0.09.16 (1)).......136 HYDRAULIC BRAKING PARTS KIT WITH 6-WAY DIRECTIONAL CONTROL VALVE (H0.09.17 (1)).......137 TRAILER BRAKE VALVE (2.3719.550.0/50.A)...............................................138 TRAILER BRAKE VALVE (2.3729.708.0/10.A)...............................................139 ELECTROHYDRAULICS.........................................................................140 HOUSING OF VALVES AND HYDRAULIC SERVICES / SOLENOID VALVES (H0.10.4 (1))..............140 SOLENOID VALVE 13 V - 20 W, ON/OFF 3/2 (2.3729.697.0/20.A)............................141 Index.............................................................................................142 AGROFARM 420 TB ->1001............................................................................143 F0 - FRONT AXLE...............................................................................143 FRONT SUPPORT.............................................................................143 FRONT SUPPORT (F0.01.0 (1))...........................................................143 4WD - FRONT SUPPORT (F0.01.1 (1)).....................................................144 4WD FRONT AXLE............................................................................145 4WD - FRONT DRIVE AXLE (F0.03.0 (1))..................................................145 4WD - FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0.03.1 (1))............................146 AIR BREATHER (F0.03.2 (1))............................................................147 STEERING ROD - MECH. STEERING - TELESCOPIC AXLE (0.010.0488.4/10.A)...................148 FRONT DIFFERENTIAL........................................................................149 4WD - FLANGE (F0.04.0 (1))............................................................149 FLANGE FASTENERS (F0.04.1 (1))........................................................150 4WD - BEVEL WHEEL GEAR (F0.04.3 (1))..................................................151 4WD - FRONT DIFFERENTIAL (F0.04.4 (1))................................................152 4WD - DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (F0.04.5 (1))........................153 4WD - TRANSMISSION SHAFT (F0.04.7 (1))................................................154 4WD - TRANSMISSION SHAFT (F0.04.9 (1))................................................155 STEERING CYLINDER.........................................................................156 4WD - POWER STEERING CYLINDER (F0.05.0 (1))...........................................156 CYLINDER PARTS (0.007.2706.4/10.A)....................................................157 FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS...............................................158 4 WD - FRONT REDUCTION UNIT AND HALFSHAFTS (F0.06.0 (1))..............................158 4WD - AXLESHAFTS (F0.06.1 (1))........................................................159 4WD - PLANETARY GEAR (F0.06.2 (1))....................................................160 4WD - FRONT REDUCTION UNIT FOR TYPES WITH BRAKES (F0.06.3 (1))........................161 FRONT WHEEL HUB COVER (F0.06.4 (1))...................................................162 FRONT BRAKES..............................................................................163 4WD - FRONT BRAKES (F0.07.0 (1))......................................................163 Index.............................................................................................164 AGROFARM 420 TB ->1001............................................................................167 B0 - ENGINE...................................................................................167 GENERAL...................................................................................167 ENGINE (B0.00.2 (1))..................................................................167 CYLINDER BLOCK............................................................................168 SUPPORTS (B0.01.0 (1))................................................................168 FASTENINGS (B0.01.1007)...............................................................169 BLEEDING TUBE (B0.01.1034)............................................................170 CRANKCASE BREATHER (B0.01.1051).......................................................171 CRANKCASE (B0.01.1082)................................................................172 OIL FILLER NECK (B0.01.1090)..........................................................173 ACCESSORIES (B0.01.1134)..............................................................174 ACCESSORIES (B0.01.1135)..............................................................175 ACCESSORIES (B0.01.1137)..............................................................176 FILLER CAP (B0.01.1146)...............................................................177 PISTON COOL.NOZZLE (B0.01.1160).......................................................178 FLANGE (B0.01.1168)...................................................................179 FLANGE (B0.01.1169)...................................................................180 CRANKSHAFT................................................................................181 COOLANT PUMP DRIVEBELT AND BELT TENSIONER (B0.02.0 (1))...............................181 FASTENINGS (B0.02.1005)...............................................................182 V-GROOVED PULLEY (B0.02.1020).........................................................183 CRANKSHAFT (B0.02.1040)...............................................................184 CRANKSHAFT (B0.02.1047)...............................................................185 FLYWHEEL (B0.02.1067).................................................................186 COUNTERWEIGHTS (B0.02.1086)...........................................................187 CYLINDERS - PISTONS - CONNECTING RODS...................................................188 PISTON (B0.03.1002)...................................................................188 CONNECTING ROD (B0.03.1023)...........................................................189 TIMING....................................................................................190 FASTENINGS (B0.04.1011)...............................................................190 BUSH (B0.04.1023).....................................................................191 CAMSHAFT (B0.04.1070).................................................................192 CAMSHAFT (B0.04.1077).................................................................193 VALVE DRIVE (B0.04.1088)..............................................................194 GEARCASE (B0.04.1108).................................................................195 GEARCASE (B0.04.1122).................................................................196 CYLINDER HEAD.............................................................................197 FASTENINGS (B0.05.1007)...............................................................197 ENGINE MOUNTING (B0.05.1015)..........................................................198 CLOSING COMPONENTS (B0.05.1025).......................................................199 CYLINDER HEAD (B0.05.1042)............................................................200 ROCKER ARMS COVER (B0.05.1061).......................................................201 LUBRICATION...............................................................................202 FASTENINGS (B0.06.1006)...............................................................202 OIL SUCTION PIPE (B0.06.1042).........................................................203 OIL PAN (B0.06.1059)..................................................................204 OIL PAN (B0.06.1062)..................................................................205 CLOSING COMPONENTS (B0.06.1082).......................................................206 CLOSING COMPONENTS (B0.06.1084).......................................................207 CLOSING COMPONENTS (B0.06.1087).......................................................208 CLOSING COMPONENTS (B0.06.1090).......................................................209 ACCESSORIES (B0.06.1104)..............................................................210 OIL COOLER BOX (B0.06.1125)...........................................................211 OIL COOLER BOX (B0.06.1140)...........................................................212 OIL COOLER BOX (B0.06.1149)...........................................................213 OIL RETURN (B0.06.1156)...............................................................214 FUEL INJECTION SYSTEM.....................................................................215 FASTENINGS (B0.07.1007)...............................................................215 FASTENINGS (B0.07.1009)...............................................................216 FASTENINGS (B0.07.1012)...............................................................217 HIGH PRESSURE PIPE (B0.07.1021).......................................................222 FUEL INJECT. PUMP (B0.07.1033)........................................................223 FUEL INJECTOR (B0.07.1046)............................................................224 FUEL FILTER (B0.07.1056)..............................................................225 FUEL LINE (B0.07.1074)................................................................226 FUEL PUMP (B0.07.1118)................................................................227 ROLLER TAPPET (B0.07.1131)............................................................228 ROLLER TAPPET (B0.07.1135)............................................................229 PILOTED CHECK VALVE (B0.07.1139)......................................................230 NARROW V-BELT (B0.07.1142)............................................................231 CLOSING COMPONENTS (B0.07.1157).......................................................232 ACCESSORIES (B0.07.1170)..............................................................233 HOLDING DEVICE FOR LEADS (B0.07.1187).................................................234 MECHANICAL - ELECTRONIC GOVERNOR..........................................................235 FASTENINGS (B0.08.1001)...............................................................235 CONTROL ROD (B0.08.1010)..............................................................236 ELECTRONIC CONTROL UNIT - ENGINE (B0.08.1017).........................................237 ELECTRONIC CONTROL UNIT - ENGINE (B0.08.1023).........................................238 ELECTRONIC CONTROL UNIT - ENGINE (B0.08.1025).........................................239 CLOSING COMPONENTS (B0.08.1033).......................................................240 CLOSING COMPONENTS (B0.08.1034).......................................................241 CLOSING COMPONENTS (B0.08.1037).......................................................242 ACTUATOR (B0.08.1042).................................................................243 COOLING...................................................................................244 HEAT SHIELD (B0.09.0 (1)).............................................................244 FASTENINGS (B0.09.1014)...............................................................245 FASTENINGS (B0.09.1018)...............................................................246 SCREW PLUG (B0.09.1071)...............................................................247 CLOSING COMPONENTS (B0.09.1073).......................................................248 DRIVING PARTS (B0.09.1080)............................................................249 FAN SUPPORT (B0.09.1115)..............................................................250 COOLING WATER PUMP (B0.09.1149).......................................................251 COOLING WATER PUMP (B0.09.1153).......................................................252 INTAKE - EXHAUST MANIFOLDS................................................................253 EXHAUST PIPE (B0.10.1016).............................................................253 FASTENINGS (B0.10.1035)...............................................................254 MANIFOLD (B0.10.1091).................................................................255 CLOSING COMPONENTS (B0.10.1105).......................................................256 CLOSING COMPONENTS (B0.10.1107).......................................................257 CLOSING COMPONENTS (B0.10.1110).......................................................258 CHARGED AIR MANIFOLD (B0.10.1133).....................................................259 TURBOCHARGER..............................................................................260 TURBOCHARGER (B0.11.1023).............................................................260 RETURN LINE (B0.11.1051)..............................................................261 OIL LUBRICATION PIPE (B0.11.1074).....................................................262 CLOSING COMPONENTS (B0.11.1085).......................................................263 CLOSING COMPONENTS (B0.11.1086).......................................................264 Electrical accessories....................................................................265 FASTENINGS (B0.12.1010)...............................................................265 FASTENINGS (B0.12.1021)...............................................................266 FASTENINGS (B0.12.1032)...............................................................267 IMPULSETRANSMITTER (B0.12.1053).......................................................268 GENERATOR (B0.12.1067)................................................................269 GENERATOR (B0.12.1076)................................................................270 ENGINE ELECTRICAL SYSTEM (B0.12.1102).................................................271 V-GROOVED PULLEY (B0.12.1114).........................................................272 STARTER (B0.12.1127)..................................................................273 STARTER (B0.12.1133)..................................................................274 ACCESSORIES (B0.12.1145)..............................................................275 ACCESSORIES (B0.12.1155)..............................................................276 OIL PRESSUR.SWITCH (B0.12.1205).......................................................277 TEMPER.TRANSMITTER (B0.12.1222).......................................................278 IMPULSETRANSMITTER (B0.12.1234).......................................................279 Index.............................................................................................280 AGROFARM 420 TB ->1001............................................................................283 L0 - ELECTRIC AL SYSTEM.......................................................................283 BATTERY - ALTERNATOR......................................................................283 BATTERY 12V 100Ah 650A (L0.01.0 (1))..................................................283 WIRING LOOMS..............................................................................284 HEADLIGHTS / HORN WIRING (L0.02.2 (1))................................................284 HEADLIGHTS / HORN WIRING (L0.02.3 (1))................................................285 ENGINE ELECTRICAL SYSTEM (L0.02.5 (1))................................................286 CAB POWER SUPPLY WIRING (L0.02.6 (1)).................................................287 CABLES FOR FRONT BATTERY (L0.02.7 (1))................................................288 PLATFORM ELECTRIC WIRING WITH FUSE BOX (L0.02.8 (1))..................................289 PLATFORM ELECTRIC WIRING WITH FUSE BOX (L0.02.10 (1)).................................290 PLATFORM ELECTRIC WIRING WITH FUSE BOX (L0.02.11 (1)).................................291 ELECTRICAL SYSTEM - SOCKETS AND BRACKETS (L0.02.12 (1))...............................292 ELECTRICAL SYSTEM - SOCKETS AND BRACKETS (L0.02.14 (1))...............................293 ELECTRICAL SYSTEM - SOCKETS AND BRACKETS (L0.02.15 (1))...............................294 ELECTRICAL SYSTEM - LIGHTING (L0.02.18 (1))...........................................295 ELECTRICAL SYSTEM FOR REAR LIGHTS (L0.02.19 (1))......................................296 PREARRANGEMENT FOR WARNING BEACON (L0.02.20 (1))......................................297 ELECTRIC LEAD FOR PTO. 540/1000 (L0.02.21 (1))........................................298 PRESSURE SWITCH WIRING FOR TRAILER HYDRAULIC BRAKING SYSTEM - ITALY (L0.02.22 (1))....299 TRAILER SOCKET-OUTLET (L0.02.23 (1))..................................................300 TRAILER SOCKET-OUTLET (L0.02.24 (1))..................................................301 TRAILER SOCKET BRACKET (L0.02.25 (1)).................................................302 ELECTRICAL LEADS (0.010.9057.3.A).....................................................303 FLASHING LIGHT SUPPORT (0.011.7840.4.A)...............................................304 ELECTRICAL LEADS (0.014.7263.4.A).....................................................305 ELECTRICAL SYSTEM (0.014.9195.4/20.A).................................................306 ELECTRICAL SYSTEM (0.015.1983.4/10.A).................................................307 ELECTRICAL SYSTEM (0.016.8720.4/20.A).................................................308 ELECTRICAL SYSTEM (0.016.8720.4/30.A).................................................309 ELECTRICAL SYSTEM (0.016.9041.4/10.A).................................................310 ELECTRICAL SYSTEM (0.016.9041.4/40.A).................................................311 ECUs......................................................................................312 CONTROL UNIT - P.T.O. SHAFT (L0.03.0 (1)).............................................312 CONTROL UNIT - P.T.O. SHAFT (L0.03.2 (1)).............................................313 CONTROL UNIT - P.T.O. SHAFT (L0.03.3 (1)).............................................314 SENSORS - POTENTIOMETERS - ENABLING SWITCHES..............................................315 WATER TEMPERATURE SENSOR (L0.04.0 (1))................................................315 ELECTRONIC ACCELERATOR CONTROL SENSOR (L0.04.2 (1))...................................316 ELECTRONIC ACCELERATOR CONTROL SENSOR (L0.04.4 (1))...................................317 ELECTRONIC ACCELERATOR CONTROL SENSOR (L0.04.5 (1))...................................318 SENSOR FOR ACCELERATOR PEDAL WITH ELECTRONIC CONTROL (L0.04.6 (1))....................319 5-SPEED GEARBOX START ENABLE SWITCH (L0.04.8 (1)).....................................320 SWITCHES (L0.04.17 (1))...............................................................321 SHUTTLE SENSOR AND SWITCHES (L0.04.19 (1))............................................322 SHUTTLE SENSOR AND SWITCHES (L0.04.20 (1))............................................323 P.T.O. SWITCH 540 - 1000 (L0.04.21 (1))...............................................324 HYDRAULIC SERVICES OIL PRESSURE SWITCH (L0.04.25 (1)).................................325 GEARBOX OIL PRESSURE SWITCH (L0.04.28 (1))............................................326 GEARBOX OIL PRESSURE SWITCH (L0.04.29 (1))............................................327 PRESSURE SWITCH FOR AIR CLEANER CLOGGED WARNING LIGHT (L0.04.32 (1))..................328 PRESSURE SWITCH FOR HYDRAULIC TRAILER BRAKING SYSTEM - ITALY (L0.04.33 (1))...........329 PICK-UP (L0.04.34 (1))................................................................330 INSTRUMENT PANEL..........................................................................331 ANALOGUE INSTRUMENT PANEL (L0.05.0 (1))...............................................331 DIGITAL INSTRUMENT PANEL (L0.05.1 (1))................................................332 ELECTRICAL CONTROLS - PUSHBUTTONS........................................................333 IGNITION BLOCK AND CONSOLE BUTTONS (L0.07.0 (1))......................................333 IGNITION BLOCK AND CONSOLE BUTTONS (L0.07.2 (1))......................................334 IGNITION BLOCK AND CONSOLE BUTTONS (L0.07.3 (1))......................................335 STEERING COLUMN SWITCH UNIT (L0.07.5 (1)).............................................336 DIFFERENTIAL LOCK CONTROL - ELECTROHYDRAUDLIC (L0.07.7 (1))...........................337 P.T.O. SHAFT DRIVE - REAR (L0.07.9 (1))...............................................338 SWITCH FOR ROTATING BEACON (L0.07.10 (1)).............................................339 LIGHTING AND SIGNALLING...................................................................340 HEADLIGHTS \ HORN (L0.08.2 (2)).......................................................340 HEADLIGHTS \ HORN (L0.08.3 (2)).......................................................341 LIGHTING SYSTEM (L0.08.5 (1)).........................................................342 REAR LIGHTS (L0.08.6 (1)).............................................................343 REAR WORKLIGHT (L0.08.7 (1))..........................................................344 WORKING SPOTLIGHT REAR (L0.08.9 (1))..................................................345 REAR WORKLIGHT (L0.08.10 (1)).........................................................346 WARNING BEACON (L0.08.11 (1)).........................................................347 LICENCE PLATE LIGHT (L0.08.12 (1))....................................................348 RETROREFLECTOR (L0.08.13 (1)).........................................................349 REAR REFLECTORS (L0.08.14 (1))........................................................350 WARNING BEACON (0.013.0868.4.A).......................................................351 HEADLAMP COMPONENTS (2.8019.960.0.A)..................................................352 HEADLAMP COMPONENTS (2.8019.970.0.A)..................................................353 HEADLAMP COMPONENTS (2.8029.300.0.A)..................................................354 FRONT LIGHTS (2.8039.240.0.A).........................................................355 FRONT LIGHTS (2.8039.250.0.A).........................................................356 HEADLAMP COMPONENTS (2.8059.450.0.A)..................................................357 HEADLAMP COMPONENTS (2.8059.470.0.A)..................................................358 HEADLAMP COMPONENTS (2.8059.480.0.A)..................................................359 HEADLAMP COMPONENTS (2.8059.523.0.A)..................................................360 HEADLAMP COMPONENTS (2.8059.524.0.A)..................................................361 LICENCE PLATE LIGHT (2.8059.526.0.A)..................................................362 Index.............................................................................................363 AGROFARM 420 TB ->1001............................................................................367 G0 - BODYWORK - CAB...........................................................................367 HOOD - SIDE PANELS - SUPPORTS.............................................................367 HOOD - SUPPORTS (G0.01.2 (1)).........................................................367 HOOD - SUPPORTS (G0.01.2 (2)).........................................................368 BONNET - FRONT PORTION (G0.01.5 (1))..................................................369 HOOD CATCH (G0.01.7 (1))..............................................................370 HOOD SEAL AND REINFORCEMENT (G0.01.8 (1)).............................................371 CONNECTION FRAME (G0.01.9 (1))........................................................372 HOOD SEAL AND REINFORCEMENT (G0.01.11 (1))............................................373 HOOD - SUPPORTS (G0.01.12 (1))........................................................374 HOOD - SUPPORTS (G0.01.13 (1))........................................................375 PEDAL SUPPORT (G0.01.15 (1))..........................................................376 FAN BELT GUARD (G0.01.16 (1)).........................................................377 HOOD INSULATION PANEL (G0.01.17 (1))..................................................378 BATTERY SUPPORT (G0.01.18 (1))........................................................379 CONTROL UNIT SUPPORT (G0.01.19 (1))...................................................380 LETTERING.................................................................................381 PRODUCT PLATE (G0.02.5 (1))...........................................................381 PRODUCT PLATE (G0.02.10 (1))..........................................................382 FUSEBOX AND IGNITION SWITCH PRINTING (G0.02.13 (1))...................................383 FUSEBOX AND IGNITION SWITCH PRINTING (G0.02.15 (1))...................................384 FUSEBOX AND IGNITION SWITCH PRINTING (G0.02.16 (1))...................................385 ELECTRONIC ACCELERATOR CONTROL IDENTIFICATION PLATE (G0.02.17 (1))....................386 SPEED LABEL - 40 KM/H (G0.02.18 (1))..................................................387 SPEED LABEL - 40 KM/H - REFLEX (G0.02.19 (1)).........................................388 WARNING PLATES (G0.02.20 (1)).........................................................389 WARNING PLATES (G0.02.20 (2)).........................................................390 WARNING PLATES (G0.02.20 (3)).........................................................391 WATER COOLER IDENTIFICATION PLATE (G0.02.21 (1))......................................392 PLATES (G0.02.23 (1)).................................................................393 PLATES (G0.02.24 (1)).................................................................394 PLATES (G0.02.25 (1)).................................................................395 IDENTIFICATION PLATE (G0.02.26 (1))...................................................396 TRANSMISSION CONTROL COVERS (G0.02.30 (1))............................................397 3-RANGE REDUCTION UNIT COVER (G0.02.31 (1))...........................................398 COVER FOR 4-RANGE UNDERDRIVE (G0.02.34 (1))...........................................399 4WD ENGAGEMENT COVER (G0.02.35 (1))...................................................400 ECONOMY P.T.O. COVER (G0.02.36 (1))...................................................401 GROUNDSPEED P.T.O. COVER (G0.02.37 (1))...............................................402 REAR LIFT GROUND CONTROL COVER (G0.02.38 (1)).........................................403 PTO DATA PLATE (G0.02.39 (1)).........................................................404 PTO DATA PLATE (G0.02.40 (1)).........................................................405 PTO DATA PLATE (G0.02.41 (1)).........................................................406 PLATES- FOR 4-WAY DISTRIBUTOR (G0.02.42 (1))..........................................407 PLATES- FOR 4-WAY DISTRIBUTOR (G0.02.43 (1))..........................................408 PLATES- FOR 6-WAY DISTRIBUTOR (G0.02.44 (1))..........................................409 PLATES- FOR 6-WAY DISTRIBUTOR (G0.02.45 (1))..........................................410 REAR 4 WAY AUXILIARY CONTROL VALVE SYMBOLS (G0.02.46 (1)).............................411 WARNING PLATE (G0.02.49 (1))..........................................................412 SPEEDS PLATE km/h (G0.02.50 (1))......................................................413 SPEED DATA PLATES MPH (G0.02.51 (1))..................................................414 CAB STRUCTURE - PLATFORM -SUSPENSION......................................................415 SPREADER PLATES (G0.03.0 (1)).........................................................415 SPREADER PLATES (G0.03.0 (2)).........................................................416 SPREADER PLATES (G0.03.1 (1)).........................................................417 SPREADER PLATES (G0.03.1 (2)).........................................................418 LADDER (G0.03.3 (1))..................................................................419 FENDERS - FOOTSTEPS - EXTENSIONS..........................................................420 4WD - FRONT MUDGUARDS mm 355 (G0.04.0 (1))............................................420 4WD - FRONT MUDGUARDS mm 410 (G0.04.1 (1))............................................422 REAR MUDGUARDS (G0.04.3 (1))..........................................................424 REAR MUDGUARDS (G0.04.7 (1))..........................................................425 FIXING PARTS - WING REAR (G0.04.8 (1))................................................426 REAR FENDER ANCILLARY PARTS KIT (G0.04.9 (1)).........................................427 FENDERS (G0.04.10 (1))................................................................428 MUDGUARDS EXTENSIONS mm 108 (G0.04.11 (1))............................................429 REFLECTOR SUPPORT - SX/LH/LI (G0.04.12 (1))...........................................430 REFLECTOR SUPPORT (G0.04.13 (1))......................................................431 DEFLECTORS AND SUPPORTS (G0.04.15 (1))................................................432 FOOT BOARDS (G0.04.16 (1))............................................................433 WING HOLDER sx/lh/li (0.015.4232.3.A).................................................434 WING HOLDER dx/rh/re (0.015.4233.3.A).................................................435 INTERIOR TRIM.............................................................................436 DASHBOARD (G0.06.0 (1))...............................................................436 INSTRUMENT PANEL - BLANKING PLUGS (G0.06.1 (1)).......................................437 INSTRUMENT PANEL - BLANKING PLUGS (G0.06.3 (1)).......................................438 INSTRUMENT PANEL - BLANKING PLUGS (G0.06.4 (1)).......................................439 TUNNEL CLADDING (G0.06.6 (1)).........................................................440 CONTROL CONSOLE FOR POWER-LIFT (G0.06.7 (1))..........................................441 EXTERIOR TRIM - ROOF......................................................................442 REARVIEW MIRROR - SX/LH/LI (G0.07.0 (1))..............................................442 PREARRANGEMENT FOR WARNING BEACON (G0.07.1 (1)).......................................443 REARVIEW MIRROR (0.010.1604.4/40.A)...................................................444 SEATS.....................................................................................445 DRIVER'S SEAT (G0.08.0 (1))...........................................................445 SEAT SUPPORT BRACKET (G0.08.1 (1))....................................................446 SAFETY BELT (G0.08.2 (1)).............................................................447 DRIVER'S SEAT KAB XH2 (G0.08.3 (1))...................................................448 SEAT SPRINGING KAB XH2 (G0.08.4 (1))..................................................449 SEAT SUPPORT PLATE (G0.08.5 (1))......................................................450 SEAT SPRINGING (0.010.5356.4.A).......................................................451 SEAT (0.010.5361.4/10.A)..............................................................452 DRIVER'S SEAT (0.017.1381.4/20.A).....................................................453 DRIVER'S SEAT (0.017.1381.4/20.B).....................................................454 MECHANICAL CLUTCH CONTROLS................................................................456 CLUTCH CONTROL (G0.10.0 (1))..........................................................456 CLUTCH CONTROL (G0.10.3 (1))..........................................................457 PUMP-COMPONENTS (0.010.1148.4/10.A)...................................................458 CYLINDER PARTS (0.255.6537.4/60.A)....................................................459 MECHANICAL BRAKE CONTROLS.................................................................460 BRAKE CONTROLS (G0.11.0 (1))..........................................................460 BRAKE AND CLUTCH FLUID RESERVOIR (G0.11.1 (1))........................................461 HAND BRAKE (G0.11.3 (1))..............................................................462 HAND BRAKE (G0.11.4 (1))..............................................................463 TRAILER HANDBRAKE CONTROL CABLE (G0.11.5 (1)).........................................464 HANDBRAKE BRACKET FOR TRAILER (G0.11.6 (1))...........................................465 MECHANICAL - ELECTRONIC THROTTLE CONTROLS.................................................466 HAND CONTROL FOR ELECTRONIC THROTTLE (G0.12.0 (1))....................................466 CONTROL PEDAL FOR ELECTRONIC THROTTLE (G0.12.1 (1))...................................467 STEERING CONTROLS.........................................................................468 STEERING CONTROL (G0.13.0 (1))........................................................468 MECHANICAL GEARSHIFT CONTROLS.............................................................469 GEARSHIFT AND REVERSING GEAR UNIT CONTROL (G0.14.11 (1))..............................469 RANGE CONTROL (G0.14.12 (1))..........................................................470 KNOB FOR 3-RANGE GEARBOX (G0.14.13 (1))...............................................471 KNOB FOR 4-SPEED RANGE GEARBOX (G0.14.14 (1)).........................................472 4WD - DIFFERENTIAL LOCK CONTROLS..........................................................473 4WD - ENGAGEMENT CONTROL (G0.15.0 (1))................................................473 PTO CONTROLS..............................................................................474 P.T.O. SHAFT DRIVE (G0.16.0 (1))......................................................474 P.T.O. - ECONOMICAL CONTROL (G0.16.1 (1)).............................................475 GROUNDSPEED - PTO - CONTROL (G0.16.2 (1)).............................................476 SUPPORT FOR P.T.O. CONTROLS (G0.16.3 (1)).............................................477 LIFT CONTROLS.............................................................................478 REAR LIFT CONTROL (G0.17.0 (1)).......................................................478 TIE-ROD AND CONTROL LEVERS (G0.17.1 (1))..............................................479 S.A.C. GROUND CONTROL (G0.17.2 (1))...................................................480 REMOTE VALVE CONTROLS.....................................................................481 CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.1 (1)).....................481 6-WAY DISTRIBUTOR EQUIPMENT (G0.18.3 (1)).............................................482 ACCESSORIES...............................................................................483 METAL TOOLBOX (G0.19.0 (1))...........................................................483 LICENCE PLATE HOLDER (G0.19.1 (1))....................................................484 CHOCK (G0.19.2 (1))...................................................................485 HOLDING DEVICE - WHEEL CHOCK (G0.19.3 (1))............................................486 TRIANGLE SUPPORT (G0.19.4 (1))........................................................487 HAZARD WARNING TRIANGLE SUPPORT AND CHOCK SUPPORT (G0.19.5 (1))......................488 LUBRICATOR (G0.19.6 (1))..............................................................489 SAFETY ROLL BAR...........................................................................490 SAFETY ARCH (G0.20.0 (1)).............................................................490 SAFETY ARCH (G0.20.1 (1)).............................................................491 ROPS (G0.20.2 (1))....................................................................492 Index.............................................................................................493 AGROFARM 420 TB ->1001............................................................................494 V0 - BALLAST, TOWING HITCHES..................................................................494 FRONT HITCHES.............................................................................494 FRONT TOWING HITCH (V0.01.0 (1))......................................................494 REAR HITCHES..............................................................................495 REAR GEARBOX BRACKETS (V0.02.0 (1))...................................................495 REAR GEARBOX BRACKETS (V0.02.1 (1))...................................................496 REAR TOWING HITCH (V0.02.2 (1)).......................................................497 REAR TOWING HITCH CAT. " C " (V0.02.3 (1))............................................498 REAR TOWING HITCH CAT. " C " (V0.02.4 (1))............................................499 REAR TOWING HITCH CAT. " D2 " (V0.02.5 (1))...........................................500 REAR TOWING HITCH CAT. " D2 " (V0.02.6 (1))...........................................501 DRAWBAR COUPLING AUTOM. Ø 38 (V0.02.7 (1))............................................502 DRAWBAR COUPLING AUTOM. Ø 38 (V0.02.8 (1))............................................503 REAR TOWING HITCH cat. 2 - CEE (V0.02.9 (1))..........................................504 DRAWBAR COUPLING CEE (V0.02.10 (1))...................................................505 REAR TOWING HITCH BRACKET (V0.02.11 (1))..............................................506 REAR TOWING HITCH PITON FIX (V0.02.12 (1))............................................507 REAR SWINGING TOWING-HITCH (V0.02.13 (1)).............................................508 REAR SWINGING TOWING-HITCH (V0.02.14 (1)).............................................509 DRAWBAR COUPLING AUTOM. Ø 38 (0.017.9619.3.A).........................................510 FRONT BALLAST WEIGHTS.....................................................................511 FRONT WEIGHT CARRIER (V0.03.0 (1))....................................................511 FRONT BALLAST 320 Kg (V0.03.1 (1))....................................................512 FRONT WEIGHT CARRIER (V0.03.2 (1))....................................................513 FRONT BALLAST (V0.03.3 (1))...........................................................514 FRONT BALLAST KG. 70 (V0.03.4 (1))....................................................515 Index.............................................................................................516 AGROFARM 420 TB ->1001............................................................................517 C0 - ENGINE ACCESSORIES.......................................................................517 RADIATORS - FANS..........................................................................517 COOLING - COOLANT RADIATOR (C0.01.2 (1))..............................................517 ENGINE FAN (C0.01.4 (1))..............................................................518 TANK - PARTS (0.014.8023.4/10.A)......................................................519 INTERCOOLER - AIR CLEANER.................................................................520 INTERCOOLER (C0.02.0 (1)).............................................................520 8" AIR CLEANER WITH DUST EXHAUSTER (C0.02.1 (1))......................................521 OIL VAPOUR RECOVERY PIPES (C0.02.2 (1))...............................................522 AIR CLEANER (2.4249.718.0.A)..........................................................523 FUEL SYSTEM...............................................................................524 FUEL COOLER (C0.03.1 (1)).............................................................524 FUEL COOLER PIPES (C0.03.2 (1)).......................................................525 FUEL FILTER SUPPLY (C0.03.3 (1))......................................................526 FUEL FILTER SUPPLY (C0.03.3 (2))......................................................527 FUEL SYSTEM - TANK (C0.03.4 (1))......................................................528 PRE-FILTER - COMPONENTS (2.4319.290.0/10.A)...........................................529 STARTER MOTOR.............................................................................530 STARTER MOTOR COVER (C0.05.1 (1)).....................................................530 EXHAUST SILENCER..........................................................................531 EXHAUST SILENCER (C0.06.0 (1))........................................................531 Index.............................................................................................532 AGROFARM 420 TB ->1001............................................................................533 E0 - REAR AXLE................................................................................533 REAR AXLE.................................................................................533 REAR AXLE (E0.01.0 (1))...............................................................533 REAR AXLE - MOUNTINGS (E0.01.1 (1))...................................................534 REAR DIFFERENTIAL / HALF-SHAFTS...........................................................535 4-PLANET PINION DIFFERENTIAL (E0.02.1 (1))............................................535 HALF AXLES (E0.02.2 (1))..............................................................536 REAR REDUCTION GEARS AND AXLE SHAFTS (E0.02.3 (1))....................................537 REAR BRAKES...............................................................................538 REAR BRAKES (E0.03.0 (1)).............................................................538 REAR BRAKES (E0.03.2 (1)).............................................................539 REAR BRAKES (E0.03.3 (1)).............................................................540 Index.............................................................................................541 AGROFARM 420 TB ->1001............................................................................542 S0 - WHEELS...................................................................................542 FRONT WHEEL BOLTS.........................................................................542 4WD - FRONT WHEEL MOUNTING (S0.01.0 (1))..............................................542 REAR WHEEL BOLTS..........................................................................543 REAR WHEEL BOLTS (S0.02.0 (1))........................................................543 WHEELS....................................................................................544 WHEELS 260/80R20" a8 (S0.04.0 (1))....................................................544 WHEELS 300/70R20" (S0.04.1 (1)).......................................................545 WHEELS 360/70R20"a8 (S0.04.2 (1)).....................................................546 WHEELS 420/70 R24" A8 (S0.04.4 (1))...................................................547 WHEELS 420/70 R28" (S0.04.5 (1))......................................................548
