Deutz Fahr Agrofarm 85 after 5001 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrofarm 85 after 5001 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrofarm 85 after 5001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 967
Downloadable : Yes
File Type : PDF
Size: 38.7 MB

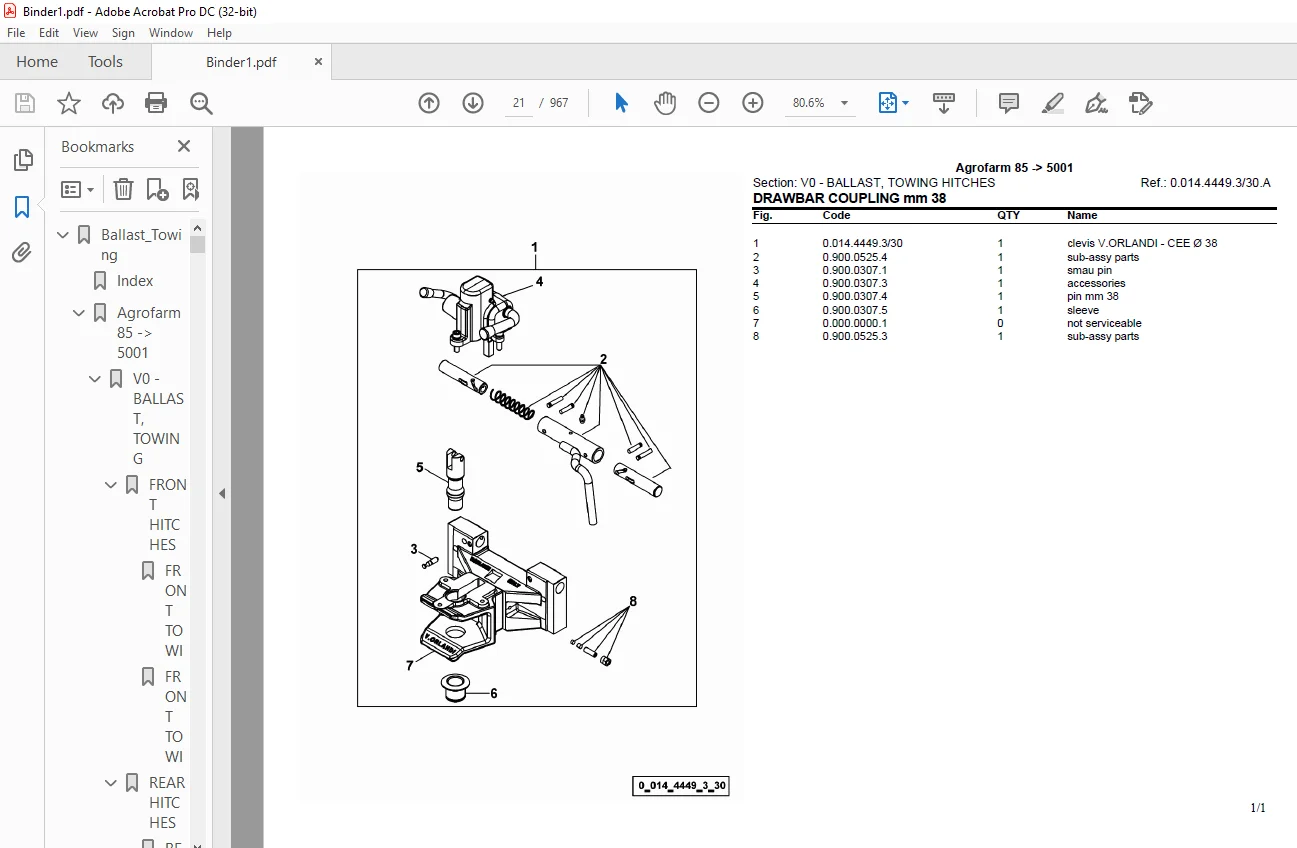

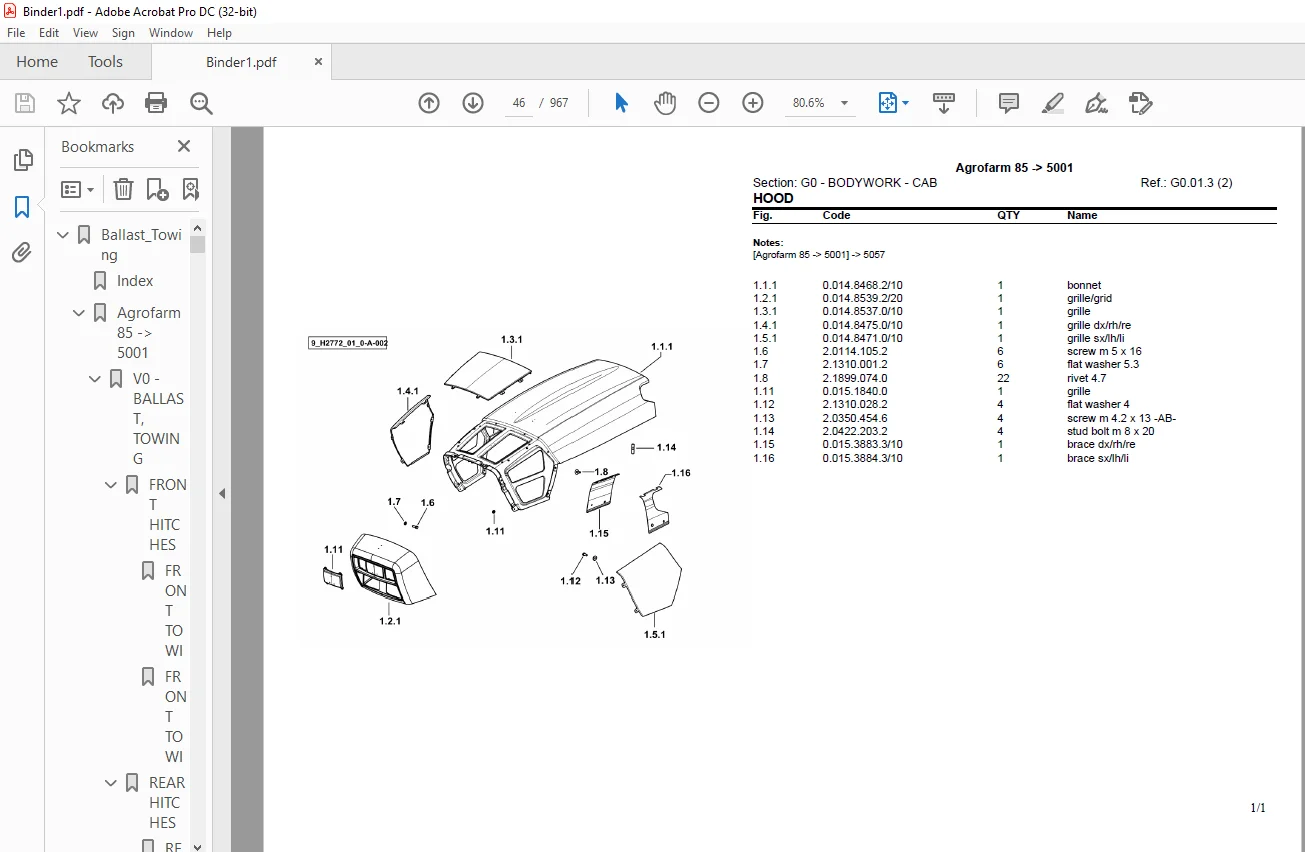

IMAGES PREVIEW OF THE MANUAL:

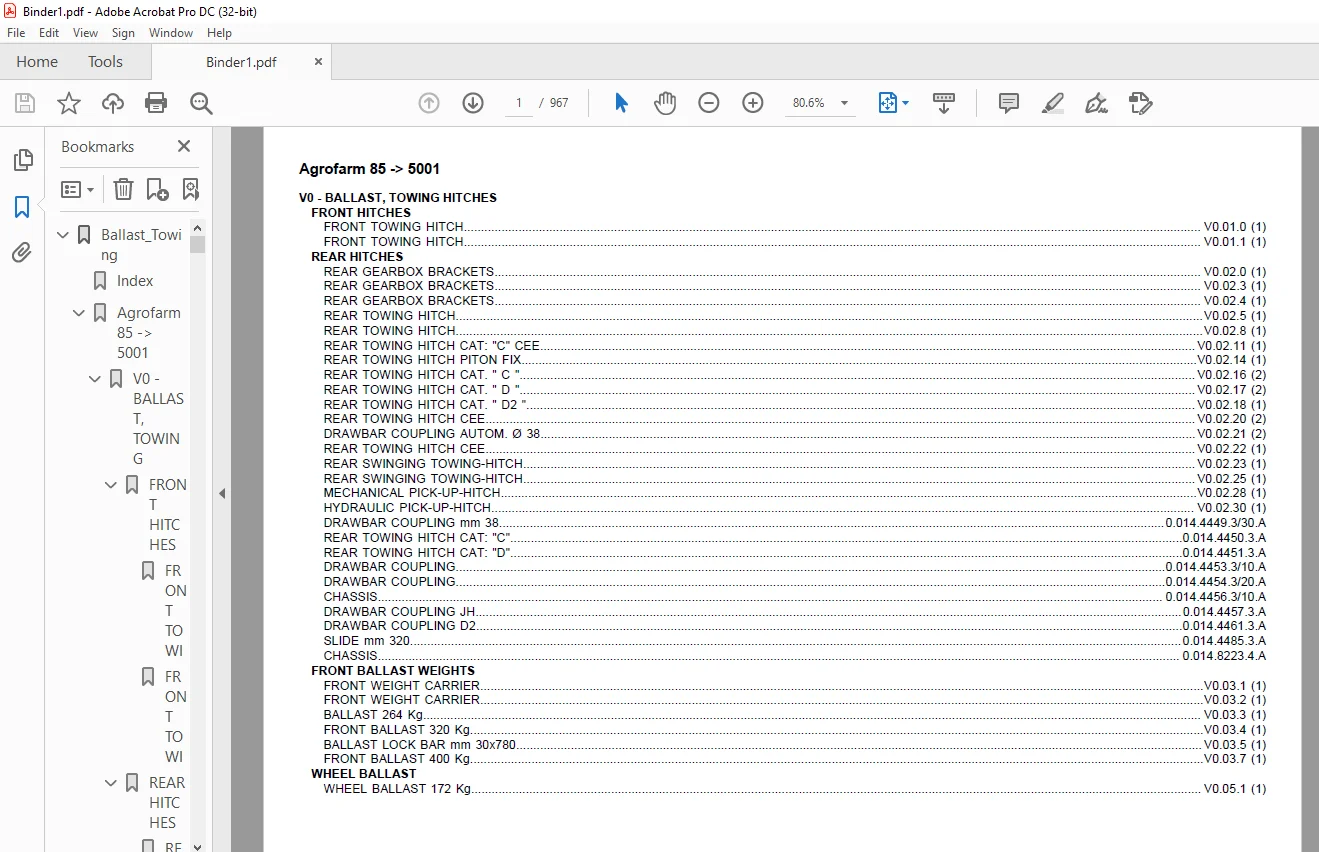

TABLE OF CONTENTS:

Deutz Fahr Agrofarm 85 after 5001 Parts Catalog Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
Agrofarm 85 -> 5001 2
V0 – BALLAST, TOWING HITCHES 2
FRONT HITCHES 2
FRONT TOWING HITCH (V0010 (1)) 2
FRONT TOWING HITCH (V0011 (1)) 3
REAR HITCHES 4
REAR GEARBOX BRACKETS (V0020 (1)) 4
REAR GEARBOX BRACKETS (V0023 (1)) 5
REAR GEARBOX BRACKETS (V0024 (1)) 6
REAR TOWING HITCH (V0025 (1)) 7
REAR TOWING HITCH (V0028 (1)) 8
REAR TOWING HITCH CAT: “C” CEE (V00211 (1)) 9
REAR TOWING HITCH PITON FIX (V00214 (1)) 10
REAR TOWING HITCH CAT ” C ” (V00216 (2)) 11
REAR TOWING HITCH CAT ” D ” (V00217 (2)) 12
REAR TOWING HITCH CAT ” D2 ” (V00218 (1)) 13
REAR TOWING HITCH CEE (V00220 (2)) 14
DRAWBAR COUPLING AUTOM Ø 38 (V00221 (2)) 15
REAR TOWING HITCH CEE (V00222 (1)) 16
REAR SWINGING TOWING-HITCH (V00223 (1)) 17
REAR SWINGING TOWING-HITCH (V00225 (1)) 18
MECHANICAL PICK-UP-HITCH (V00228 (1)) 19
HYDRAULIC PICK-UP-HITCH (V00230 (1)) 20
DRAWBAR COUPLING mm 38 (001444493/30A) 21
REAR TOWING HITCH CAT: “C” (001444503A) 22
REAR TOWING HITCH CAT: “D” (001444513A) 23
DRAWBAR COUPLING (001444533/10A) 24
DRAWBAR COUPLING (001444543/20A) 25
CHASSIS (001444563/10A) 26
DRAWBAR COUPLING JH (001444573A) 27
DRAWBAR COUPLING D2 (001444613A) 28
SLIDE mm 320 (001444853A) 29
CHASSIS (001482234A) 30
FRONT BALLAST WEIGHTS 31
FRONT WEIGHT CARRIER (V0031 (1)) 31
FRONT WEIGHT CARRIER (V0032 (1)) 32
BALLAST 264 Kg (V0033 (1)) 33
FRONT BALLAST 320 Kg (V0034 (1)) 34
BALLAST LOCK BAR mm 30×780 (V0035 (1)) 35
FRONT BALLAST 400 Kg (V0037 (1)) 36
WHEEL BALLAST 37
WHEEL BALLAST 172 Kg (V0051 (1)) 37
Bodywork_Cab 38
Index 38
Agrofarm 85 -> 5001 45
G0 – BODYWORK – CAB 45
HOOD – SIDE PANELS – SUPPORTS 45
HOOD (G0013 (1)) 45
HOOD (G0013 (2)) 46
HOOD FASTENER (G0017 (1)) 47
HOOD FRONT PART (G00111 (1)) 48
HOOD – RIGHT SIDE PANEL (G00118 (1)) 49
HOOD – RIGHT SIDE PANEL (G00118 (2)) 50
HOOD – LEFT SIDE PANEL (G00119 (1)) 51
HOOD – LEFT SIDE PANEL (G00119 (2)) 52
HOOD – SUPPORTS (G00120 (1)) 53
ENGINE HOOD GASKETS (G00121 (1)) 54
CONNECTION FRAME (G00122 (1)) 55
CONNECTION FRAME (G00124 (1)) 56
BATTERY SUPPORT (G00126 (1)) 57
BATTERY SUPPORT (G00127 (1)) 58
LETTERING 59
MODEL PLATE (G0026 (1)) 59
PRODUCT PLATE (G00215 (1)) 60
PRODUCT PLATE (G00216 (1)) 61
IDENTIFICATION PLATE ” CE ” (G00217 (1)) 62
PLATES (G00219 (1)) 63
PLATES (G00219 (2)) 64
WARNING PLATES (G00220 (1)) 65
PLATES (G00221 (1)) 66
WARNING NOTICES ON RADIATOR AND EXPANSION TANK (G00222 (1)) 67
WATER COOLER IDENTIFICATION PLATE (G00223 (1)) 68
PTO WARNING PLATE FRONT (G00224 (1)) 69
POTENTIOMETER MOUNTING INDICATOR PLATE (G00225 (1)) 70
START ENABLE PLATE (G00226 (1)) 71
START ENABLE PLATE (G00227 (1)) 72
COVER FOR REDUCTION UNIT (G00230 (1)) 73
COVER FOR REDUCTION UNIT (G00232 (1)) 74
COVER FOR 4-RANGE UNDERDRIVE (G00234 (1)) 75
4WD ENGAGEMENT COVER (G00237 (1)) 76
ECONOMY PTO COVER (G00238 (1)) 77
GROUNDSPEED PTO COVER (G00240 (1)) 78
PTO DATA PLATE (G00242 (1)) 79
PTO DATA PLATE (G00243 (1)) 80
HEATING CONTROL IDENTIFICATION PLATE (G00244 (1)) 81
VENTILATION AND CONDITIONING CONTROL IDENTIFICATION PLATE (G00245 (1)) 82
REAR LIFT GROUND CONTROL COVER (G00246 (1)) 83
REAR LIFT GROUND CONTROL COVER (G00247 (1)) 84
REAR LIFT GROUND CONTROL COVER (G00248 (1)) 85
PLATES- FOR 4-WAY DISTRIBUTOR (G00249 (1)) 86
PLATES- FOR 4-WAY DISTRIBUTOR (G00250 (1)) 87
PLATES- FOR 6-WAY DISTRIBUTOR (G00251 (1)) 88
PLATES- FOR 6-WAY DISTRIBUTOR (G00252 (1)) 89
SPEED DATA PLATES (G00253 (1)) 90
SPEED DATA PLATES (G00254 (1)) 91
SPEED LABEL – 40 KM/H – REFLEX (G00257 (1)) 92
SPEED LABEL – 40 KM/H (G00258 (1)) 93
CAB STRUCTURE – PLATFORM -SUSPENSION 94
PLATFORM (G0030 (1)) 94
SINGLE-STRUCTURE CAB (G0031 (1)) 95
PLUGS (G0032 (1)) 96
SUPPORTS (G0033 (1)) 97
LADDER (G0035 (1)) 98
SPREADER PLATES (G0036 (1)) 99
FENDERS – FOOTSTEPS – EXTENSIONS100
4WD – SELF-ADJUSTING FRONT FENDERS mm 355 (G0043 (1))100
4WD – FRONT MUDGUARDS mm 355 (G0044 (1))101
4WD – SELF-ADJUSTING FRONT FENDERS mm 410 (G0045 (1))103
4WD – FRONT MUDGUARDS mm 410 (G0046 (1))104
4WD – SELF-ADJUSTING FRONT FENDERS mm 470 (G0047 (1))106
4WD – FRONT MUDGUARDS mm 470 (G0048 (1))107
MUDGUARDS EXTENSIONS L=180 (G0049 (1))109
MUDGUARDS EXTENSIONS L = mm 240 (G00410 (1))110
FENDERS SX/LH/LI – DX/RH/RE (G00418 (1))111
FENDERS SX/LH/LI – DX/RH/RE (G00419 (1))112
SUPPORTS FOR SPRAY GUARDS (G00420 (1))113
SUPPORTS FOR SPRAY GUARDS (G00420 (2))114
REFLECTOR SUPPORT – SX/LH/LI (G00421 (1))115
REFLECTOR SUPPORT (G00422 (1))116
WING HOLDER dx/rh/re (001134524/10A)117
WING HOLDER sx/lh/li (001134574/10A)118
WING HOLDER sx/lh/li (001542323A)119
WING HOLDER dx/rh/re (001542333A)120
DOORS – WINDOWS – WIPERS121
WINDSCREEN (G0050 (1))121
GLASSES AND SEALS SX/LH/LI – DX/RH/RE (G0051 (1))122
PILLAR COVER PLATE (G0052 (1))124
HINGE FOR LH CAB WINDOW (G0053 (1))125
HINGE FOR LH CAB WINDOW (G0054 (1))126
DRIVERS’S CAB DOOR LOCK (G0055 (1))127
REAR WINDOW (G0056 (1))128
REAR WINDOW (G0056 (2))129
HANDLE REAR WINDOW (G0057 (1))130
DAMPER FOR REAR WINDOW HATCH (G0058 (1))131
DAMPER FOR REAR WINDOW HATCH (G0059 (1))132
SCREEN WIPER FRONT / REAR (G00510 (1))133
SCREEN WIPER FRONT / REAR (G00510 (2))134
SCREEN WIPER FRONT / REAR (G00511 (1))135
SCREEN WIPER FRONT / REAR (G00511 (2))136
WATER TANK (G00512 (1))137
WATER TANK (G00512 (2))138
WATER TANK (G00513 (1))139
WATER TANK (G00514 (1))140
SCREEN WASH SYSTEM (G00514 (2))141
PISTON COOLNOZZLE (G00515 (1))142
PISTON COOLNOZZLE (G00516 (1))143
PISTON COOLNOZZLE (G00517 (1))144
PISTON COOLNOZZLE (G00518 (1))145
PISTON COOLNOZZLE (G00519 (1))146
WINDSCREEN WIPER BLADE (001113924A)147
TANK – PARTS (001491632A)148
INTERIOR TRIM149
DASHBOARD (G0060 (1))149
INSTRUMENT PANEL SURROUND (G0068 (1))150
INSTRUMENT PANEL SURROUND (G0069 (1))151
STEERING COLUMN SHROUD (G00611 (1))152
INTERIOR TRIM (G00612 (1))153
INTERIOR TRIM (G00614 (1))154
COVER PLATE (G00616 (1))155
COVER PLATE (G00617 (1))156
INTERIOR TRIM (G00620 (1))157
CONTROL CONSOLE – SX/LH/LI (G00621 (1))158
CONTROL CONSOLE – DX/RH/RE (G00622 (1))159
CONTROL CONSOLE – DX/RH/RE (G00622 (2))160
PLUG FOR VERSION WITHOUT CIGAR LIGHTER (G00625 (1))161
INTERNAL CAB LININGS (G00626 (1))162
INTERNAL CAB LININGS (G00627 (1))163
INTERIOR TRIM (G00628 (1))164
INTERIOR TRIM (G00629 (1))165
COVER (G00630 (1))166
INTERIOR TRIM (G00631 (1))167
ROOF COVERING (G00632 (1))168
ROOF COVERING (G00633 (1))169
ROOF COVERING (G00634 (1))170
ROOF COVERING (G00635 (1))171
INTERIOR TRIM (G00636 (1))172
INTERIOR TRIM (G00637 (1))173
INTERIOR TRIM (G00638 (1))174
COVER (G00639 (1))175
COVER (G00639 (2))176
INTERNAL CAB LININGS (G00640 (2))177
INTERIOR TRIM (G00641 (1))178
INTERIOR TRIM (G00642 (1))179
INTERIOR TRIM (G00643 (2))180
BRACKETS FOR SUPPORTING CAB ROOF WIRING (G00644 (1))181
WIRING SUPPORT BRACKETS (G00645 (1))182
EXTERIOR TRIM – ROOF183
SUN GUARD ROOF (G0070 (1))183
DRIVER’S CAB ROOF (G0071 (1))184
DRIVER’S CAB ROOF (G0072 (1))185
CAB INTERIOR TRIM (G0073 (1))186
CAB AIR FILTER (G0074 (1))187
CAB AIR FILTER (G0075 (1))188
CARBON FILTER (G0076 (1))189
DRIVER’S CAB ROOF (G0077 (1))190
DRIVER’S CAB ROOF (G0078 (1))191
SKYLIGHT WITH GLASS (G0079 (1))192
SKYLIGHT WITH GLASS (G00710 (1))193
SPIN-ON FILTER (G00711 (1))194
CARBON FILTER (G00712 (1))195
REARVIEW MIRROR dx/rh/re (G00714 (1))196
EXTENDING REARVIEW MIRROR SX/LH/LI – DX/RH/RE (G00715 (1))197
FLASHING LIGHT SUPPORT (G00716 (1))198
FLASHING LIGHT SUPPORT (G00717 (1))199
REARVIEW MIRROR (000761004/10A)200
REARVIEW MIRROR (001016044/40A)201
REARVIEW MIRROR (001016054/40A)202
SEATS203
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION MSG83/721 (G0080 (1))203
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION MSG83/721 (G0081 (1))204
DRIVER’S SEAT – PNEUMATIC SPRINGING MSG 95A/721 (G0082 (1))205
DRIVER’S SEAT – PNEUMATIC SPRINGING MSG 93/721 (G0083 (1))206
HEAD REST (G0087 (1))207
SAFETY BELT (G0089 (1))208
SEAT SUPPORT BRACKET (G00810 (1))209
SEAT SUPPORT PLATE (G00811 (1))210
SEAT FOR 2ND OPERATOR (G00812 (1))211
SEAT FOR 2ND OPERATOR (G00813 (1))212
SEAT-COMPONENTS (001430604/10A)213
SEAT-COMPONENTS (001430604/10B)214
SEAT-COMPONENTS (001430614/20A)215
SEAT-COMPONENTS (001430614/20B)217
SEAT-COMPONENTS (001430624/20A)219
SEAT-COMPONENTS (001430624/20B)221
SEAT-COMPONENTS (001457674A)222
SEAT-COMPONENTS (001457674B)223
HEATING AND AIR CONDITIONING224
VENTILATION – HEATING (G0090 (1))224
VENTILATION – AIR CONDITIONING – HEATING (G0091 (1))225
VENTILATION – HEATING (G0092 (1))226
VENTILATION – AIR CONDITIONING – HEATING (G0093 (1))227
CONDENSER (G0094 (1))228
CONDENSER (G0095 (1))229
HEATING SYSTEM (G0096 (1))230
HEATING SYSTEM (G0096 (2))231
HEATING SYSTEM (G0097 (1))232
HEATING SYSTEM (G0097 (2))233
HEATING AND AIR CONDITIONING SYSTEM (G0098 (1))234
HEATING AND AIR CONDITIONING SYSTEM (G0099 (1))235
HEATING AND AIR CONDITIONING SYSTEM (G0099 (2))236
PIPES FOR HEATING SYSTEM (G00910 (1))237
AIR CONDITIONING SYSTEM PIPES (G00911 (1))238
AIR CONDITIONING SYSTEM PIPES (G00912 (1))239
AIR CONDITIONING SYSTEM PIPES (G00912 (2))240
AIR CONDITIONING SYSTEM PIPES (G00913 (1))241
COMPRESSOR (G00914 (1))242
ENGAGEMENT (000972024/20A)243
ENGAGEMENT (000972034/20A)244
HEATER PARTS (001081084/10A)245
HEATER PARTS (001081084/30A)246
HEATER PARTS (001089934/50A)247
AIR CONDITIONER PARTS (001089954/50A)248
AIR-CONDITIONING HEATING PARTS (001092154/10A)250
AIR-CONDITIONING HEATING PARTS (001092154/30A)252
FAN PARTS (001119614/30A)254
CONDENSER (001485254A)255
COMPRESSOR-PARTS (04437338A)256
MECHANICAL CLUTCH CONTROLS257
CLUTCH CONTROL (G0101 (1))257
CLUTCH CONTROL (G0101 (2))258
MECHANICAL BRAKE CONTROLS259
BRAKE CONTROLS (G0110 (1))259
BRAKE FLUID RESERVOIR (G0111 (1))260
HAND BRAKE (G0113 (1))261
HAND BRAKE (G0114 (1))262
HAND BRAKE (G0115 (1))263
HAND BRAKE (G0115 (2))264
TRAILER HANDBRAKE CONTROL CABLE (G0116 (1))265
AIR TRAILER BRAKING CONTROL CABLE ITALY (G0117 (1))266
AIR TRAILER BRAKING CONTROL CABLE EXPORT D (G0118 (1))267
HANDBRAKE BRACKET FOR TRAILER (G0119 (1))268
MECHANICAL – ELECTRONIC THROTTLE CONTROLS269
THROTTLE – MECHANICAL – (G0120 (1))269
THROTTLE – MECHANICAL – (G0120 (2))270
THROTTLE (G0121 (1))271
STEERING CONTROLS272
STEERING WHEEL (G0130 (1))272
STEERING WHEEL CAP (G0138 (1))273
STEERING WHEEL CAP (G0139 (1))274
STEERING COLUMN (G01310 (1))275
STEERING ADJUSTMENT (G01311 (1))276
MECHANICAL GEARSHIFT CONTROLS277
GEAR SHIFTING (G0144 (1))277
GEAR SHIFTING (G0145 (1))278
4WD – DIFFERENTIAL LOCK CONTROLS279
4WD – ENGAGEMENT CONTROL (G0150 (1))279
4WD – ENGAGEMENT CONTROL (G0151 (1))280
4WD – ENGAGEMENT CONTROL (G0151 (2))281
PTO CONTROLS282
540/1000 RPM PTO CONTROL (G0160 (1))282
PTO – ECONOMICAL CONTROL (G0161 (1))283
PTO – ECONOMICAL CONTROL (G0162 (1))284
PTO – SYNCHRONIZED CONTROL (G0165 (1))285
PTO – SYNCHRONIZED CONTROL (G0166 (1))286
BOWDEN REACTION BRACKET FOR 2-SPEED PTO (G01610 (1))287
BOWDEN REACTION BRACKET FOR 4-SPEED PTO (G01612 (1))288
LIFT CONTROLS289
CONTROL TIE RODS AND LEVERS (G0170 (1))289
CONTROL TIE RODS AND LEVERS (G0170 (2))291
CONTROL TIE RODS AND LEVERS (G0170 (3))293
CONTROL TIE RODS AND LEVERS (G0172 (1))295
SAC GROUND CONTROL (G0173 (1))296
SAC GROUND CONTROL (G0174 (1))297
SAC GROUND CONTROL (G0175 (1))298
REMOTE VALVE CONTROLS299
DISTRIBUTOR CONTROL (G0180 (1))299
6 WAY SPOOL VALVES CONTROL (G0181 (1))300
LINKAGE (001491564A)301
ACCESSORIES302
SUN BLIND (G0190 (1))302
SUN BLIND (G0191 (1))303
METAL TOOLBOX (G0192 (1))304
LICENCE PLATE HOLDER (G0195 (1))305
FRONT NUMBER PLATE BRACKET (G0196 (1))306
FRONT NUMBER PLATE BRACKET (G0197 (1))307
HOLDING DEVICE – WHEEL CHOCK (G01910 (1))308
TRIANGLE SUPPORT (G01911 (1))309
TRIANGLE SUPPORT (G01911 (2))310
TRIANGLE SUPPORT (G01912 (1))311
TOOL POUCH (G01916 (1))312
LUBRICATOR (G01917 (1))313
SAFETY ROLL BAR314
FIXED SAFETY ROLL BAR (G0200 (1))314
Electrical_system315
Index315
Agrofarm 85 -> 5001319
L0 – ELECTRIC AL SYSTEM319
BATTERY – ALTERNATOR319
BATTERY 12V 100Ah 650A (L0010 (1))319
BATTERY 12V 180Ah 800A (L0012 (1))320
WIRING LOOMS321
HEADLIGHTS / HORN WIRING (L0022 (1))321
HEADLIGHTS / HORN WIRING (L0023 (1))322
wiring for front sidelights and direction indicators (L0024 (1))323
wiring for front sidelights and direction indicators (L0025 (1))324
wiring for front sidelights and direction indicators (L0026 (1))325
ELECTRIC WIRING FOR PARKING LIGHTS AND DIRECTION INDICATORS, FRONT AND REAR (L0026 (2))326
WIRING FOR WORKLIGHTS AND FLASHING LIGHT (L0027 (1))327
WIRING FOR HEADLIGHTS IN BASSO (L0028 (1))328
WIRING FOR HEADLIGHTS IN BASSO (L0029 (1))329
BOTTOM FRONT WORK LIGHTS WIRING (L00210 (1))330
ELECTRICAL SYSTEM FOR REAR/FRONT LIGHTS (L00211 (1))331
CENTRAL WIRING LOOM (L00212 (1))332
CENTRAL WIRING LOOM (L00212 (2))333
CENTRAL WIRING LOOM (L00212 (3))334
CENTRAL WIRING LOOM (L00213 (1))335
CENTRAL WIRING LOOM (L00213 (2))336
CENTRAL WIRING LOOM (L00213 (3))337
TRAILER SOCKET-OUTLET (L00214 (1))338
TRAILER SOCKET BRACKET (L00215 (1))339
TRAILER SOCKET FIXING (L00215 (3))340
TRAILER SOCKET FIXING (L00216 (1))341
TRAILER SOCKET FIXING (L00216 (2))342
WIRING FOR HYDRAULIC SHUTTLE (L00217 (1))343
WIRING FOR HYDRAULIC SHUTTLE (L00219 (1))344
GEARBOX ELECTRICAL SYSTEM (L00220 (1))345
GEARBOX ELECTRICAL SYSTEM (L00221 (1))346
ENGINE AND CAB POWER SUPPLY WIRING (L00222 (1))347
ENGINE AND CAB POWER SUPPLY WIRING (L00223 (1))348
CAB POWER SUPPLY WIRING (L00224 (1))349
CAB POWER SUPPLY WIRING (L00225 (1))350
CAB POWER SUPPLY WIRING (L00226 (1))351
CAB POWER SUPPLY WIRING (L00227 (1))352
CAB POWER SUPPLY WIRING (L00228 (1))353
CAB ELECTRICAL SYSTEM (L00229 (1))354
CAB ELECTRICAL SYSTEM (L00229 (2))355
CAB ELECTRICAL SYSTEM (L00230 (1))356
CAB ELECTRICAL SYSTEM (L00230 (2))357
CAB ELECTRICAL SYSTEM (L00231 (1))358
CAB ELECTRICAL SYSTEM (L00232 (1))359
CAB ELECTRICAL SYSTEM (L00233 (1))360
WIRING FOR WINDSCREEN WIPER AND FLASHING LIGHT (L00234 (1))361
WIRING FOR WINDSCREEN WIPER AND FLASHING LIGHT (L00234 (2))362
CABLES FOR FRONT BATTERY (L00235 (1))363
CABLES FOR UNDER STEP BATTERY (L00236 (1))364
WIRING FOR PNEUMATIC SEAT MSG 93/721 (L00237 (1))365
PRESSURE SWITCH WIRING FOR HYDRAULIC BRAKING SYSTEM ITALY (L00239 (2))366
PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM ITALY (L00240 (1))367
PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM ITALY (L00240 (2))368
PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM EXPORT D (L00241 (1))369
PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM EXPORT D (L00241 (2))370
FRONT PTO SOLENOID VALVE ELECTRICAL CABLE (L00242 (1))371
PARTS FOR ELECTRICAL SYSTEM (000978504/50A)372
ELECTRICAL SYSTEM (000978533/20A)373
PARTS FOR ELECTRICAL SYSTEM (001136064/50A)374
ELECTRICAL SYSTEM (001136103/20A)375
ELECTRIC WIRING FOR PARKING LIGHTS AND DIRECTION INDICATORS, FRONT AND REAR (001349104A)376
ELECTRICAL SYSTEM (001486284/20A)377
ELECTRICAL SYSTEM (001486284/30A)378
ELECTRICAL SYSTEM (001486284/40A)379
ELECTRICAL SYSTEM (001486284/60A)380
PARTS FOR ELECTRICAL SYSTEM (001486294/30A)381
BATTERY LEADS (001488064/20A)382
ELECTRICAL SYSTEM (001491954/20A)383
ELECTRICAL SYSTEM (001519834/10A)384
ELECTRICAL SYSTEM (001542584A)385
ELECTRICAL SYSTEM (001542584/20A)386
ECUs387
CONTROL UNIT PTO SHAFT (L0030 (1))387
CONTROL UNIT – PTO SHAFT (L0031 (1))388
SENSORS – POTENTIOMETERS – ENABLING SWITCHES389
SPEED SENSOR (L0040 (1))389
SPEED SENSOR (L0041 (1))390
SPEED SENSOR (L0043 (1))391
OIL FILTER CLOGGING SENSOR (L0045 (1))392
GEARBOX OIL PRESSURE SWITCH (L0048 (1))393
SHUTTLE CONTROL ASSEMBLY PRESSURE SWITCH / OIL TEMPERATURE SENSOR (L00411 (1))394
SHUTTLE CONTROL ASSEMBLY PRESSURE SWITCH / OIL TEMPERATURE SENSOR (L00412 (1))395
HYDRAULIC SERVICES OIL PRESSURE SWITCH 11 Bar (L00415 (1))396
PRESSURE SWITCH FOR HYDRAULIC BRAKING SYSTEM ITALY (L00416 (1))397
PRESSURE SWITCH FOR AIR BRAKING SYSTEM ITALY (L00418 (1))398
PRESSURE SWITCH FOR AIR BRAKING SYSTEM EXPORT D (L00419 (1))399
PRESSURE SWITCH FOR AIR CLEANER CLOGGED WARNING LIGHT (L00420 (1))400
PRESSURE SWITCH FOR AIR CLEANER CLOGGED WARNING LIGHT (L00421 (1))401
5-SPEED GEARBOX START ENABLE SWITCH (L00425 (1))402
5-SPEED GEARBOX START ENABLE SWITCH (L00427 (1))403
PICK-UP (L00430 (1))404
HYDRAULIC SHUTTLE SENSOR (L00431 (1))405
CLUTCH AND STOP LIGHT SWITCHES (L00432 (1))406
CLUTCH AND STOP LIGHT SWITCHES (L00433 (1))407
4WD CONTROL SWITCH (L00434 (1))408
HAND BRAKE SWITCH (L00436 (1))409
PTO SWITCH 540/1000 (L00437 (1))410
ECONOMY PTO SWITCH (L00438 (1))411
GROUNDSPEED PTO SWITCH (L00440 (1))412
INSTRUMENT PANEL413
DIGITAL INSTRUMENT PANEL (L0050 (1))413
ELECTRICAL CONTROLS – PUSHBUTTONS414
STEERING COLUMN SWITCH UNIT – REVERSING GEAR UNIT CONTROL (L0071 (1))414
SWITCHES / IGNITION BLOCK (L0072 (1))415
SWITCHES / IGNITION BLOCK (L0072 (2))416
SWITCHES / IGNITION BLOCK (L0073 (1))417
SWITCHES / IGNITION BLOCK (L0073 (2))418
SWITCHES FOR WORKLIGHTS AND FLASHING LIGHT (L0075 (1))419
LOW FRONT WORKLIGHTS SWITCH (L0076 (1))420
LOW FRONT WORKLIGHTS SWITCH (L0077 (1))421
4WD CONTROL SWITCH (L0078 (1))422
SWITCH – FOR PTO FRONT (L0079 (1))423
CAB TOP SWITCHES (L00710 (1))424
CAB TOP SWITCHES (L00711 (1))425
SWITCHES (L00712 (1))426
CAB TOP SWITCHES (L00713 (1))427
GEARSHIFT LEVER (L00715 (1))428
GEARSHIFT LEVER (L00717 (1))429
SHUTTLE LEVER (001503634/60A)430
LIGHTING AND SIGNALLING431
HEADLIGHTS \ HORN (L0082 (1))431
HEADLIGHTS \ HORN (L0083 (1))432
LIGHT SUPPORT WITH FIXED SAFETY ROLL BAR (L0084 (1))433
FRONT/REAR LIGHTS (L0085 (1))434
FRONT/REAR LIGHTS (L0086 (1))435
FRONT/REAR LIGHTS (L0087 (1))436
FRONT/REAR LIGHTS (L0088 (1))437
FRONT/REAR LIGHTS (L0089 (1))438
WORKING SPOTLIGHT REAR (L00810 (1))439
WORKING SPOTLIGHT FRONT BOTTOM (L00811 (1))440
WORKING SPOTLIGHT FRONT BOTTOM (L00812 (1))441
WORKING SPOTLIGHT TOP FRONT/REAR (L00813 (1))442
WORKING SPOTLIGHT TOP FRONT/REAR (L00814 (1))443
WORKING SPOTLIGHT FRONT/REAR (L00815 (1))444
WORKING SPOTLIGHT FRONT/REAR (L00816 (1))445
WARNING BEACON (L00819 (1))446
WARNING BEACON (L00820 (1))447
COURTESY LIGHT (L00821 (1))448
COURTESY LIGHT (L00822 (1))449
LICENCE PLATE LIGHT (L00824 (1))450
RETROREFLECTOR (L00825 (1))451
HEADLAMP COMPONENTS (000967584/10A)452
HEADLAMP COMPONENTS (044119204A)453
HEADLAMP COMPONENTS (044119214A)454
HEADLAMP COMPONENTS (280199600A)455
HEADLAMP COMPONENTS (280199700A)456
HEADLAMP COMPONENTS (280297300A)457
HEADLAMP COMPONENTS (280391600A)458
HEADLAMP COMPONENTS (280391800/10A)459
FRONT LIGHTS (280392400A)460
FRONT LIGHTS (280392500A)461
HEADLAMP COMPONENTS (280392990A)462
HEADLAMP COMPONENTS (280590800A)463
HEADLAMP COMPONENTS (280590900A)464
HEADLAMP COMPONENTS (280594400/10A)465
HEADLAMP COMPONENTS (280594500A)466
HEADLAMP COMPONENTS (280594600A)467
HEADLAMP COMPONENTS (280594900A)468
LICENCE PLATE LIGHT (280595260A)469
INTERIOR LIGHT (283390320A)470
ACCESSORIES471
CIGAR LIGHTER (L0090 (1))471
CIGAR LIGHTER (L0091 (1))472
LOUDSPEAKERS (L0092 (1))473
LOUDSPEAKERS AND RADIO ANTENNA (L0092 (2))474
LOUDSPEAKERS (L0093 (1))475
LOUDSPEAKERS AND RADIO ANTENNA (L0093 (2))476
LOUDSPEAKERS (L0094 (1))477
RADIO ANTENNA (L0095 (1))478
RADIO ANTENNA (L0096 (1))479
RADIO ANTENNA (L0096 (2))480
ANTENNA SUPPORT (L0097 (1))481
Engine482
Index482
Agrofarm 85 -> 5001485
B0 – ENGINE485
GENERAL485
ENGINE (B0002 (1))485
ENGINE (B0003 (1))486
CYLINDER BLOCK487
SUPPORTS (B0010 (1))487
FASTENINGS (B0011007)488
BUSH (B0011015)490
GASKET SET (B0011021)492
BLEEDING TUBE (B0011034)494
CRANKCASE BREATHER (B0011051)496
CRANKCASE (B0011065)498
CRANKCASE (B0011082)501
OIL FILLER NECK (B0011089)502
ACCESSORIES (B0011134)504
ACCESSORIES (B0011135)506
ACCESSORIES (B0011137)508
FILLER CAP (B0011143)510
PISTON COOLNOZZLE (B0011160)512
FLANGE (B0011168)514
CRANKSHAFT516
COOLANT PUMP DRIVEBELT AND BELT TENSIONER (B0020 (1))516
COOLANT PUMP AND COMPRESSOR DRIVEBELT (B0021 (1))517
FASTENINGS (B0021002)518
V-GROOVED PULLEY (B0021020)520
CRANKSHAFT (B0021040)522
FLYWHEEL (B0021069)524
PLUG (B0021077)526
COUNTERWEIGHTS (B0021086)528
CYLINDERS – PISTONS – CONNECTING RODS530
PISTON (B0031002)530
CONNECTING ROD (B0031023)532
TIMING534
FASTENINGS (B0041011)534
BUSH (B0041023)536
CAMSHAFT (B0041065)538
VALVE DRIVE (B0041088)540
GEARCASE (B0041108)542
CYLINDER HEAD544
FASTENINGS (B0051003)544
FASTENINGS (B0051007)545
ENGINE MOUNTING (B0051015)547
CLOSING COMPONENTS (B0051025)549
CYLINDER HEAD (B0051032)551
ROCKER ARMS COVER (B0051061)555
LUBRICATION557
FASTENINGS (B0061006)557
OIL SUCTION PIPE (B0061035)559
OIL PAN (B0061050)561
CLOSING COMPONENTS (B0061082)563
CLOSING COMPONENTS (B0061084)565
CLOSING COMPONENTS (B0061087)567
CLOSING COMPONENTS (B0061090)569
ACCESSORIES (B0061104)571
OIL COOLER BOX (B0061125)573
OIL COOLER BOX (B0061149)575
OIL RETURN (B0061156)577
FUEL INJECTION SYSTEM579
FASTENINGS (B0071007)579
FASTENINGS (B0071009)581
FASTENINGS (B0071010)583
FASTENINGS (B0071012)586
HIGH PRESSURE PIPE (B0071021)591
FUEL INJECT PUMP (B0071032)593
FUEL INJECT PUMP (B0071033)595
FUEL INJECTOR (B0071043)596
FUEL FILTER (B0071055)598
FUEL FILTER (B0071056)600
FUEL LINE (B0071074)602
FUEL PUMP (B0071118)604
ROLLER TAPPET (B0071130)606
ROLLER TAPPET (B0071131)608
ROLLER TAPPET (B0071134)609
PILOTED CHECK VALVE (B0071139)610
NARROW V-BELT (B0071142)612
CLOSING COMPONENTS (B0071157)614
HOLDING DEVICE FOR LEADS (B0071187)615
CONNECTION (B0071207)617
MECHANICAL – ELECTRONIC GOVERNOR619
FASTENINGS (B0081002)619
FASTENINGS (B0081003)621
SHUTDOWN DEVICE (B0081006)623
SHUTDOWN DEVICE (B0081007)624
CONTROL ROD (B0081010)625
CONTROLLER (B0081012)627
CONTROLLER (B0081013)629
PIPING (B0081029)631
INTERMEDIATE GEAR (B0081039)633
ACCESSORIES (B0081040)635
COOLING637
FASTENINGS (B0091014)637
FASTENINGS (B0091018)639
SCREW PLUG (B0091071)641
CLOSING COMPONENTS (B0091073)643
DRIVING PARTS (B0091079)645
DRIVING PARTS (B0091080)646
FAN SUPPORT (B0091114)648
FAN SUPPORT (B0091115)649
COOLING WATER PUMP (B0091149)651
INTAKE – EXHAUST MANIFOLDS653
EXHAUST PIPE (B0101007)653
FASTENINGS (B0101029)655
THERMO STARTER (B0101060)657
MANIFOLD (B0101083)659
MANIFOLD (B0101085)660
CLOSING COMPONENTS (B0101105)661
CLOSING COMPONENTS (B0101107)663
TURBOCHARGER665
TURBOCHARGER (B0111016)665
RETURN LINE (B0111046)667
OIL LUBRICATION PIPE (B0111069)669
CLOSING COMPONENTS (B0111085)671
CLOSING COMPONENTS (B0111086)673
Electrical accessories675
FASTENINGS (B0121010)675
FASTENINGS (B0121021)677
GENERATOR (B0121059)679
GENERATOR (B0121067)681
V-GROOVED PULLEY (B0121114)682
STARTER (B0121127)684
CLOSING COMPONENTS (B0121144)686
ACCESSORIES (B0121145)688
ACCESSORIES (B0121155)690
OIL PRESSURSWITCH (B0121201)692
OIL PRESSURSWITCH (B0121205)693
TEMPERTRANSMITTER (B0121222)695
Engine_accessories697
Index697
Agrofarm 85 -> 5001698
C0 – ENGINE ACCESSORIES698
RADIATORS – FANS698
ENGINE FAN (C0010 (1))698
COOLING – COOLANT RADIATOR (C0011 (1))699
COOLING – EXPANSION TANK (C0012 (1))700
TANK – PARTS (001480234/10A)701
INTERCOOLER – AIR CLEANER702
8″ AIR CLEANER (C0020 (1))702
8″ AIR CLEANER WITH DUST EXHAUSTER (C0021 (1))703
OIL VAPOUR RECOVERY PIPES (C0022 (1))704
AIR CLEANER (242497180A)705
FUEL SYSTEM706
FUEL COOLER (C0030 (1))706
FUEL COOLER PIPES (C0031 (1))707
FUEL TANK (C0032 (1))708
FUEL TANK (C0032 (2))709
FUEL FILTER SUPPLY (C0034 (1))710
PRE-FILTER – COMPONENTS (243192900/10A)711
STARTER MOTOR712
STARTER MOTOR COVER (C0050 (1))712
STARTER MOTOR COVER (C0051 (1))713
EXHAUST SILENCER714
EXHAUST SILENCER (C0060 (1))714
EXHAUST SILENCER (C0061 (1))715
AIR COMPRESSOR716
AIR COMPRESSOR (C0070 (1))716
COMPRESSOR-PARTS (044284084A)717
Front_axle718
Index718
Agrofarm 85 -> 5001719
F0 – FRONT AXLE719
FRONT SUPPORT719
FRONT SUPPORT (F0010 (1))719
4WD – FRONT SUPPORT WITH FRONT PTO (F0011 (1))720
PROVISION FOR FRONT PTO MOUNTING (F0012 (1))721
4WD – FRONT SUPPORT (F0014 (1))722
4WD FRONT AXLE723
4WD – FRONT DRIVE AXLE (F0030 (1))723
PIN (F0031 (1))724
4WD – FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0033 (1))725
AIR BREATHER (F0035 (1))726
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (001004884/10A)727
FRONT DIFFERENTIAL728
4WD – FLANGE (F0040 (1))728
FLANGE FASTENERS (F0042 (1))729
4WD – BEVEL WHEEL GEAR (F0043 (1))730
4WD – FRONT DIFFERENTIAL (F0046 (1))731
4WD – FRONT DIFFERENTIAL (F0047 (1))732
4WD – FRONT DIFFERENTIAL (F0047 (2))733
4WD – TRANSMISSION SHAFT (F00410 (1))734
STEERING CYLINDER735
4WD – POWER STEERING CYLINDER (F0051 (1))735
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS736
4 WD – FRONT REDUCTION UNIT AND HALFSHAFTS (F0060 (2))736
4WD – FRONT REDUCTION UNIT FOR TYPES WITH BRAKES (F0062 (1))737
FRONT WHEEL HUB COVER (F0065 (1))738
4WD – AXLESHAFTS (001054134/10A)739
4WD – AXLESHAFTS (001054134/20A)740
FRONT BRAKES741
4WD – FRONT BRAKES (F0071 (1))741
Front_lift742
Index742
Agrofarm 85 -> 5001743
N0 – FRONT LIFT743
LIFT ASSEMBLY743
FRONT HYDRAULIC POWER-LIFT (N0010 (1))743
TOWING HITCH (001017023A)745
ADJUSTABLE LIFT ROD PARTS (001327703A)746
Front_pto747
Index747
Agrofarm 85 -> 5001748
M0 – FRONT PTO748
PTO INPUT SHAFT748
DRIVE SHAFT – FRONT PTO SHAFT (M0010 (1))748
FRONT PTO COVER – PROTECTIONS749
PTO FRONT (M0020 (1))749
FRONT PTO FIXING COMPONENTS (M0021 (1))750
PTO SHAFT PROTECTOR FRONT (M0022 (1))751
PTO FRONT (001492624/40A)752
PTO FRONT (001492624/40B)753
PTO FRONT (001492624/40C)755
SOLENOID VALVE (237294000/20A)756
HYDRAULIC SYSTEM757
FRONT PTO – PIPES (M0040 (1))757
Hydraulic_and_pneumatic_system758
Index758
Agrofarm 85 -> 5001761
H0 – HYDRAULIC AND PNEUMATIC SYSTEM|761
HYDRAULIC SYSTEM761
GEARBOX OIL COOLER PIPES (H0010 (1))761
GEARBOX OIL COOLER PIPES (H0012 (1))762
HYDRAULIC PUMP 16 cc – sx/lh/li (H0015 (1))763
HYDRAULIC PUMP 14 cc – sx/lh/li (H0017 (1))764
HYDRAULIC PUMP 225 cc – dx/rh/re (H0018 (1))765
BRAKES LUBRICATION PIPE (H00111 (1))766
PUMP FILTER SUCTION (H00115 (1))767
PUMP FILTER SUCTION (H00117 (1))768
OIL SUCTION (H00119 (1))769
SYSTEM FROM HYDRAULIC PUMP TO 4-WAY DIRECTIONAL CONTROL VALVE (H00121 (1))770
SYSTEM FROM HYDRAULIC PUMP TO 4-WAY DIRECTIONAL CONTROL VALVE (H00121 (2))771
SYSTEM FROM HYDRAULIC PUMP TO 6-WAY DIRECTIONAL CONTROL VALVE (H00124 (1))772
SYSTEM FROM HYDRAULIC PUMP TO 6-WAY DIRECTIONAL CONTROL VALVE (H00124 (2))773
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H00128 (1))774
OIL FILTER (H00131 (1))775
HYDRAULIC SHUTTLE OIL FEED SYSTEM (H00134 (1))776
HYDRAULIC SHUTTLE OIL FEED SYSTEM (H00134 (2))777
REDUCE AND OLD VALVE (H00136 (1))778
GEARBOX BREATHER SYSTEM (H00137 (1))779
OIL TRANSFER PUMP HYDRAULIC SYSTEM (H00138 (1))780
PTO HYDRAULIC CLUTCH LUBRICATION PIPE (H00139 (1))781
DIFFERENTIAL LOCK / PTO ASSEMBLY (H00141 (1))782
DIFFERENTIAL LOCK / PTO ASSEMBLY (H00141 (2))783
HI-LO HYDRAULIC SYSTEM (H00143 (1))784
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (H00145 (1))785
FRONT DIFFERENTIAL LOCK CONTROL LINES (H00148 (1))786
HYDRAULIC SYSTEM – FOR 4-6 WAY CONTROL VALVE (H00151 (1))787
HYDRAULIC SYSTEM – FOR 4-6 WAY CONTROL VALVE (H00151 (2))788
FREE OIL RETURN (H00153 (1))789
PTO BEARING LUBRICATION SYSTEM (H00156 (1))790
DETAILS OF OIL FILTER (244194900/30A)791
HYDRAULIC PUMP PARTS (245299200A)792
HYDRAULIC PUMP PARTS (245391200/10A)793
HYDRAULIC PUMP PARTS (245393100/10A)794
HYDRAULIC PUMP PARTS (245396200/10A)795
STEERING SYSTEM796
HYDROSTATIC STEERING CONTROL VALVE (H0024 (1))796
PIPES FOR HYDROSTATIC STEERING (H0026 (1))797
4WD – POWER STEERING (H0028 (1))798
HYDRAULIC STEERING GEAR (245690050A)799
TRANSMISSION – PTO COOLERS800
GEARBOX OIL COOLER (H0030 (1))800
FRONT PTO OIL COOLER (H0031 (1))801
FRONT LIFT802
FRONT LIFT – HYDRAULIC SYSTEM (H0050 (1))802
FRONT LIFT – HYDRAULIC SYSTEM (H0051 (1))803
FRONT LIFT – HYDRAULIC SYSTEM (H0051 (2))804
FRONT LIFT – HYDRAULIC SYSTEM (H0052 (1))805
PRESSURE CONTROL VALVE (000920384/10A)806
REAR REMOTE CONTROL VALVES807
4-WAY AUXILIARY DISTRIBUTOR (H0070 (1))807
4-WAY AUXILIARY DISTRIBUTOR (H0071 (1))808
6-WAY AUXILIARY DISTRIBUTOR (H0072 (1))809
6-WAY AUXILIARY DISTRIBUTOR (H0073 (1))810
4 – 6 – WAY DISTRIBUTOR EQUIPMENT (H0074 (1))811
4-WAY QUICK COUPLERS (H0075 (2))812
6-WAY QUICK COUPLERS (H0076 (1))813
6-WAY QUICK COUPLERS (H0076 (2))814
SUPPORT AND FIXTURE OF REAR 4-6 WAY CONTROL VALVE (H0077 (1))815
CONNECTOR OIL COLLECTION SYSTEM (H0079 (1))816
CONNECTOR OIL COLLECTION SYSTEM (H00710 (1))817
CONNECTOR OIL COLLECTION SYSTEM (H00710 (2))818
ENGAGEMENT (001084730A)819
TANK – PARTS (001102123A)820
DISTRIBUTOR (237297060/10A)821
DISTRIBUTOR (237297070/10A)822
BRAKING SYSTEM AND PNEUMATIC SYSTEM|823
4WD – FRONT BRAKES (H0092 (1))823
BRAKING SYSTEM (H0094 (1))824
REAR BRAKING SYSTEM (H0096 (1))825
BRAKING SYSTEM (H0099 (1))826
BLAKES BLOCK (H00912 (1))827
BLAKES BLOCK (H00913 (1))828
FLOW CONTROL VALVE (H00915 (1))829
HYDRAULIC BREAKING FOR TRAILER – ITALY – (H00916 (1))830
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (H00918 (1))831
SYSTEM FROM HYDRAULIC PUMP TO HYDRAULIC BRAKES (H00920 (1))832
HYDRAULIC BREAKING FOR TRAILER (H00924 (1))833
HYDRAULIC BRAKING PARTS KIT WITH 4-WAY DIRECTIONAL CONTROL VALVE (H00927 (1))834
HYDRAULIC BRAKING PARTS KIT WITH 6-WAY DIRECTIONAL CONTROL VALVE (H00929 (1))835
PNEUMATIC TRAILER BRAKING (H00931 (1))836
AIR BRAKING FOR ‘ITALY’ TRAILER (H00933 (1))837
AIR BRAKING FOR ‘ITALY’ TRAILER (H00934 (1))838
AIR BRAKING FOR ‘ITALY’ TRAILER (H00935 (1))839
AIR BRAKING FOR ‘ITALY’ TRAILER (H00935 (2))840
AIR BRAKING FOR ‘EXPORT D’ TRAILER (H00936 (1))841
AIR BRAKING FOR ‘EXPORT D’ TRAILER (H00937 (1))842
AIR BRAKING FOR ‘EXPORT D’ TRAILER (H00938 (1))843
AIR BRAKING FOR ‘EXPORT D’ TRAILER (H00938 (2))844
AIR PRESSURE GAUGE FOR AIR BRAKING SYSTEM ITALY (H00939 (1))845
PRESSURE GAUGE FOR AIR BRAKING SYSTEM EXPORT D (H00940 (1))846
COUPLING PARTS CUNA (001045824A)847
TRAILER BRAKE VALVE (001186334A)848
VALVE PARTS (04398756A)849
TRAILER BRAKE VALVE (237195500/50A)850
VALVE PARTS (237198100/20A)851
ELECTROHYDRAULICS852
HYDRAULIC SHUTTLE CONTROL (H0100 (1))852
HYDRAULIC SHUTTLE CONTROL (H0101 (1))853
HOUSING OF VALVES AND HYDRAULIC SERVICES / SOLENOID VALVES (H0104 (1))854
4WD ENGAGEMENT SOLENOID VALVE (H0105 (1))855
HI-LO HYDRAULIC SYSTEM SOLENOID VALVE (H0107 (1))856
ELECTROHYDRAULIC SERVICES ASSEMBLY PLUGS (H0109 (1))857
SOLENOID VALVE (237197500/40A)858
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/20A)859
SOLENOID VALVE (237296980A)860
SOLENOID VALVE (237296980/10A)861
Rear_axle862
Index862
Agrofarm 85 -> 5001863
E0 – REAR AXLE863
REAR AXLE863
REAR AXLE (E0010 (1))863
REAR AXLE – MOUNTINGS (E0013 (1))864
REAR DIFFERENTIAL / HALF-SHAFTS865
2-PLANET PINION DIFFERENTIAL (E0020 (1))865
REAR REDUCTION GEARS AND AXLE SHAFTS (E0023 (1))866
HALF AXLES (E0025 (1))867
REAR BRAKES868
REAR BRAKES (E0030 (1))868
REAR BRAKES (E0031 (1))869
Rear_lift870
Index870
Agrofarm 85 -> 5001871
R0 – REAR LIFT871
LIFT COVER871
SAC CASE (R0010 (1))871
LIFT FIXING COMPONENTS (R0011 (1))872
LIFT ASSEMBLY873
RAISE (R0020 (1))873
HYDRAULIC CYLINDERS (R0022 (1))874
HYDRAULIC CYLINDERS (R0023 (1))875
CYLINDER PARTS (091233304/30A)876
CYLINDER PARTS (091233314/30A)877
LIFT CONTROL VALVE878
REGULATING DISTRIBUTOR (R0030 (1))878
REGULATING DISTRIBUTOR (R0032 (1))880
REGULATING DISTRIBUTOR (R0032 (2))881
IN-CAB CONTROLS882
INTERNAL CONTROLS (R0040 (1))882
SENSOR883
SENSITIVE ELEMENTS (R0050 (1))883
SENSITIVE ELEMENTS (R0051 (1))884
THREE-POINT LINKAGE – LINK ARMS885
3 POINT HITCH (R0061 (1))885
3 POINT HITCH (R0066 (1))886
THREE-POINT COUPLING (R0068 (1))887
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R00610 (1))889
TOWING BAR (R00615 (1))890
LINKAGE (001414123A)891
TOWING HITCH (001414203A)892
Transmission893
Index893
Agrofarm 85 -> 5001895
D0 – TRANSMISSION895
CLUTCH HOUSING895
JUNCTION CASE (D0021 (1))895
JUNCTION CASE (D0021 (2))896
HYDRAULIC SHUTTLE ASSEMBLY897
HYDRAULIC SHUTTLE (D0030 (1))897
HYDRAULIC SHUTTLE (D0031 (1))898
HYDRAULIC SHUTTLE (D0031 (2))899
HML – HI-LO – SHML900
CLUTCHES UNIT (D0040 (1))900
GEARBOX INPUT SHAFT902
5-SPEED GEARBOX INPUT SHAFT (D0053 (1))902
5-SPEED GEARBOX INPUT SHAFT (D0054 (1))903
PTO INPUT SHAFT904
PTO – CLUTCH TRANSMISSION SHAFT (D0061 (1))904
MAIN SHAFT905
5-SPEED GEARBOX PRIMARY SHAFT (D0073 (1))905
5-SPEED GEARBOX PRIMARY SHAFT (D0074 (1))906
SECONDARY SHAFT907
5-SPEED GEARBOX SECONDARY SHAFT (D0083 (1))907
5-SPEED GEARBOX SECONDARY SHAFT (D0083 (2))908
5-SPEED GEARBOX SECONDARY SHAFT (D0084 (1))909
5-SPEED GEARBOX SECONDARY SHAFT (D0084 (2))910
GEARBOX911
GEARBOX REAR (D0091 (1))911
5-SPEED GEARBOX INTERNAL FLANGES (D0098 (1))912
5-SPEED GEARBOX INTERNAL FLANGES (D00910 (1))913
GEARBOX LOWER COVER (D00913 (1))914
GEARBOX LOWER COVER (D00915 (1))915
COVER (D00918 (1))916
COVER FOR TYPES WITHOUT SYNCHRO PTO (D00923 (1))917
INTERNAL AND EXTERNAL GEARBOX CONTROLS918
5-SPEED GEARBOX INTERNAL CONTROLS (D0103 (1))918
5-SPEED GEARBOX INTERNAL CONTROLS (D0103 (2))919
5-SPEED GEARBOX INTERNAL CONTROLS (D0104 (1))920
5-SPEED GEARBOX INTERNAL CONTROLS (D0104 (2))921
5-SPEED GEARBOX INTERNAL CONTROLS (D0108 (1))922
REDUCTION GEAR CONTROL (D01010 (1))923
REDUCTION GEAR CONTROL (D01011 (1))924
LOW SPEED RANGES925
BEVEL WHEEL GEAR – 40Km/h (D0111 (1))925
BEVEL DRIVE PINION BEARING (D0114 (1))926
SPEED RANGE REDUCTION GEAR UNIT (D0115 (1))927
SPEED RANGE REDUCTION GEAR UNIT (D0116 (1))928
4-RANGE BOX (D01110 (1))929
HYDRAULIC REAR PTO CLUTCH930
PTO – HYDRAULIC CLUTCH (D0120 (1))930
PTO – CLUTCH-PARTS (001499364/10A)931
HYDRAULIC PUMP DRIVE932
PTO – PUMP CONTROL (D0131 (1))932
OIL TRANSFER PUMP ASSY (D0134 (1))933
PTO/GROUNDPSPEED DRIVE934
PTO – 2 SPEED TYPE (D0140 (1))934
PTO – 2 SPEED TYPE (D0140 (2))935
4 SPEED PTO (D0142 (1))936
4 SPEED PTO (D0143 (1))937
PTO – 2-SPEED WITH INSERTED END SHAFT (D0146 (1))938
PTO – 2-SPEED WITH INSERTED END SHAFT (D0147 (1))939
PTO – 4-SPEED WITH INSERTED END SHAFT (D0148 (1))940
PTO – 4-SPEED WITH INSERTED END SHAFT (D0149 (1))941
PTO – SEAL RING FOR INSERTED END SHAFT – STANDARD VERSION (D01410 (1))942
PTO – SYNCHRONIZED (D01411 (1))943
PTO – SYNCHRONIZED (D01412 (1))944
PTO SHAFT PROTECTOR REAR (D01416 (1))945
PTO SHAFT PROTECTOR REAR (D01418 (1))946
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE947
4WD – ENGAGEMENT CONTROL (D0150 (1))947
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (D0152 (1))948
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (D0152 (2))949
INDEPENDENT HAND BRAKE (D0153 (1))950
Wheels951
Index951
Agrofarm 85 -> 5001952
S0 – WHEELS952
FRONT WHEEL BOLTS952
4WD – FRONT WHEEL MOUNTING (S0011 (1))952
REAR WHEEL BOLTS953
REAR WHEEL BOLTS (S0020 (1))953
FLANGE (S0021 (2))954
WHEELS955
WHEELS 320/85R24″(124R24″) a8 (S0040 (1))955
WHEELS 360/70 R24″ (S0041 (1))956
WHEELS 380/85R24″(149R-24″ a8) (S0042 (2))957
WHEELS 420/70 R24″ A8 (S0045 (1))958
WHEELS 480/65R-24″ (S0047 (1))959
WHEELS 280/85R28″(112R28″) (S0049 (1))960
WHEELS 320/85R28″(124R28″) (S00410 (1))961
WHEELS 420/85R30″(169R30″) (S00416 (1))962
WHEELS 480/70R-30″ a8 (S00417 (1))963
WHEELS 420/85R34(169R34) (S00420 (1))964
WHEELS 480/70R34″ (S00423 (1))965
WHEELS 540/65R34″ (S00427 (1))966
WHEELS 340/85R38″(136R38″) (S00429 (1))967

Contact us: [email protected]

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.M
