Deutz Fahr Agrokid 25 After 2001 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrokid 25 After 2001 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrokid 25 After 2001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 222
Downloadable : Yes
File Type : PDF
Size: 9.75 MB

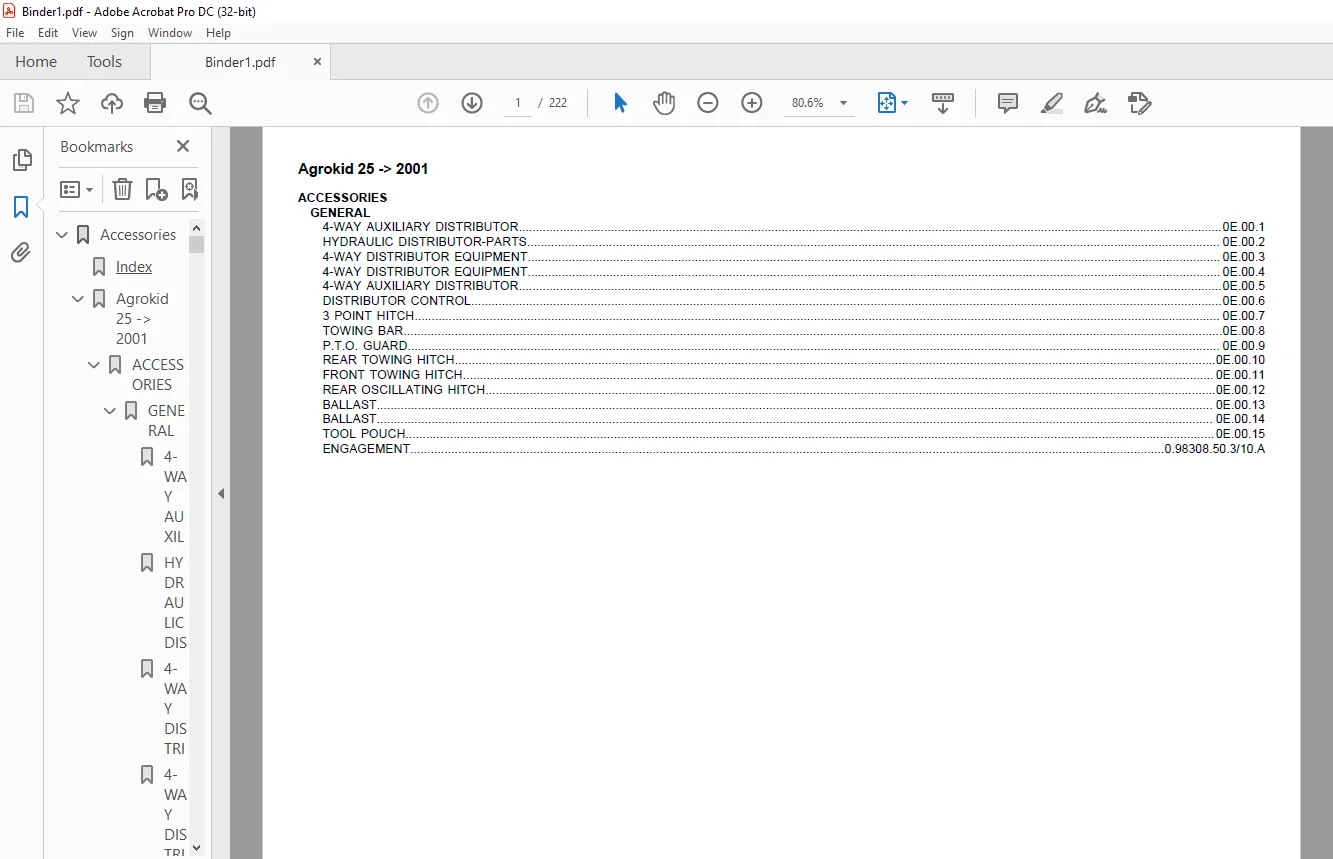

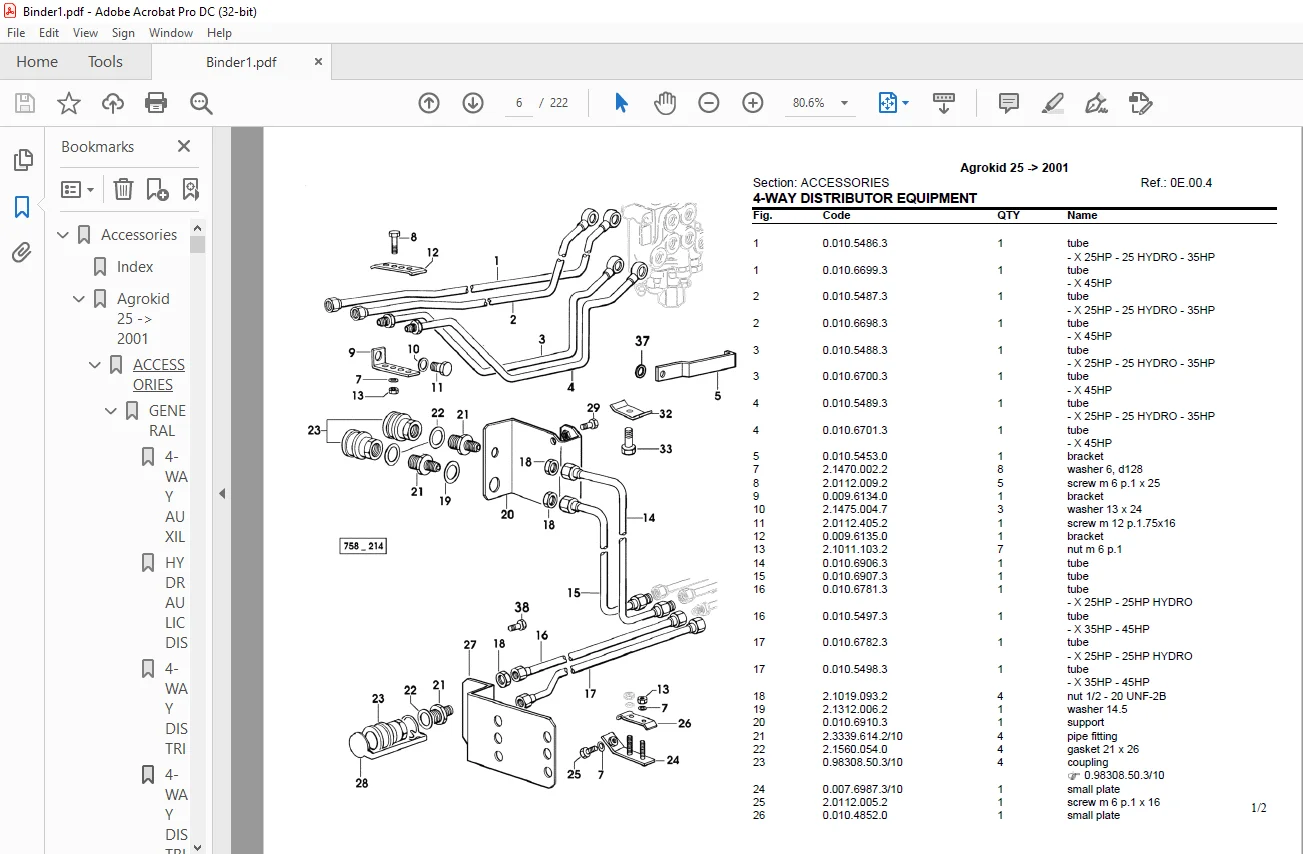

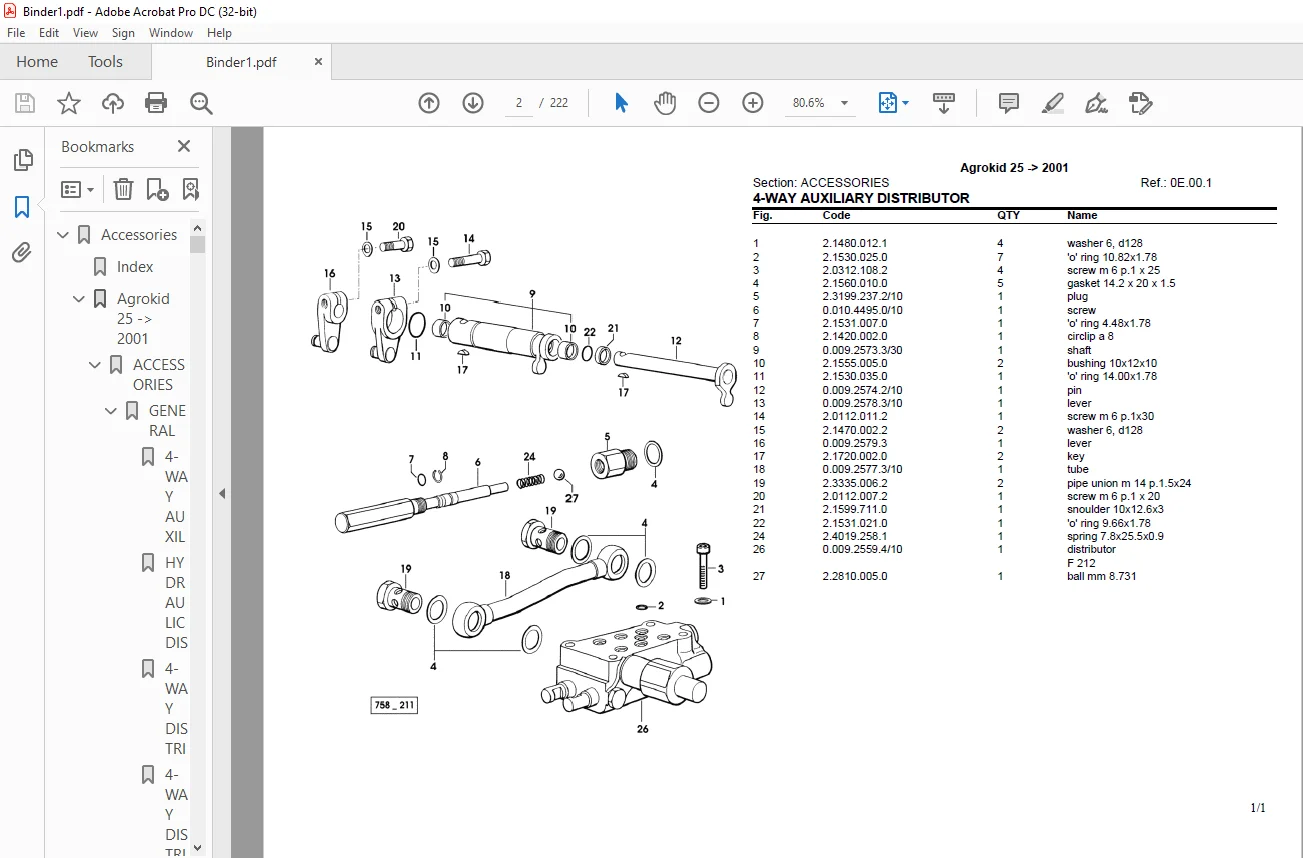

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

https://vimeo.com/810060745

TABLE OF CONTENTS:

Deutz Fahr Agrokid 25 After 2001 Parts Catalog Manual – PDF DOWNLOAD

Accessories 1
Index 1
Agrokid 25 -> 2001 2
ACCESSORIES 2
GENERAL 2
4-WAY AUXILIARY DISTRIBUTOR (0E 00 1) 2
HYDRAULIC DISTRIBUTOR-PARTS (0E 00 2) 3
4-WAY DISTRIBUTOR EQUIPMENT (0E 00 3) 4
4-WAY DISTRIBUTOR EQUIPMENT (0E 00 4) 6
4-WAY AUXILIARY DISTRIBUTOR (0E 00 5) 8
DISTRIBUTOR CONTROL (0E 00 6) 9
3 POINT HITCH (0E 00 7) 10
TOWING BAR (0E 00 8) 12
P T O GUARD (0E 00 9) 13
REAR TOWING HITCH (0E 00 10) 14
FRONT TOWING HITCH (0E 00 11) 15
REAR OSCILLATING HITCH (0E 00 12) 16
BALLAST (0E 00 13) 17
BALLAST (0E 00 14) 18
TOOL POUCH (0E 00 15) 19
ENGAGEMENT (0 98308 50 3/10 A) 20
Body_work 21
Index 21
Agrokid 25 -> 2001 23
BODY WORK 23
GENERAL 23
HOOD (07 00 1) 23
HOOD (07 00 2) 24
HOOD (07 00 3) 25
PEDAL SUPPORT (07 00 5) 26
WATER COOLING (07 00 6) 27
WATER COOLING (07 00 8) 29
FAN BELT GUARD (07 00 10) 30
FAN BELT GUARD (07 00 11) 31
DASHBOARD (07 00 12) 32
DASHBOARD (07 00 13) 33
PLATES (07 00 14) 34
THROTTLE (07 00 15) 35
THROTTLE (07 00 17) 36
FRONT MUDGUARDS (07 00 18) 37
FOOT BOARD AND COVER (07 00 19) 39
FOOT BOARD AND COVER (07 00 21) 41
PLATFORM (07 00 22) 42
MUDGUARDS EXTENSIONS (07 00 23) 43
FENDERS (07 00 24) 44
SAFETY ARCH (07 00 25) 45
SAFETY ARCH (07 00 26) 46
SAFETY ARCH (07 00 27) 47
SUNROOF FRAME (07 00 29) 48
SUNROOF (07 00 30) 49
REARVIEW MIRROR (07 00 31) 50
LICENSE PLATE FRAME AND SUPPORT (07 00 32) 51
SPECIAL VERSION FOR EXPORT D (07 00 33) 52
SPECIAL VERSION FOR EXPORT CH (07 00 34) 53
SPECIAL VERSION FOR EXPORT I (07 00 35) 54
FUEL SUPPLY SYSTEM (07 00 36) 55
FUEL SUPPLY SYSTEM (07 00 37) 56
AIR FILTER PARTS (07 00 38) 57
SEAT (07 00 39) 58
SEAT (07 00 40) 59
SEAT (07 00 41) 60
SEAT SPRINGING (07 00 42) 61
SEAT SPRINGING (07 00 43) 62
SEAT SPRINGING (07 00 44) 63
SEAT SPRINGING (0 010 5356 4 A) 64
SEAT SPRINGING (0 010 5357 4 A) 65
SEAT (0 010 5362 4 A) 66
SEAT SPRINGING (0 010 6032 4 A) 67
WATER COOLER (0 011 5413 4/10 A) 68
AIR FILTER PARTS (2 4249 160 0 A) 69
Cab 70
Index 70
Agrokid 25 -> 2001 71
CAB 71
GENERAL 71
METALLIC STRUCTURES (0B 00 1) 71
CAB – SUPPORTS (0B 00 2) 72
CAB – SUPPORTS (0B 00 3) 73
GLASSES AND SEALS (0B 00 4) 74
GLASSES AND SEALS (0B 00 5) 75
GLASSES AND SEALS (0B 00 6) 76
INTERIOR TRIM (0B 00 7) 77
INTERIOR TRIM (0B 00 8) 78
WINDSHIELD WIPER SYSTEM (0B 00 10) 79
ELECTRICAL SYSTEM (0B 00 11) 80
VENTILATION-HEATING (0B 00 12) 81
FAN PARTS (0B 00 13) 82
HEADLAMP COMPONENTS (0 009 6758 4/10 A) 83
FAN PARTS (0 010 9560 4 A) 84
Electrical_system 85
Index 85
Agrokid 25 -> 2001 86
ELECTRIC AL SYSTEM 86
GENERAL 86
ELECTRIC LIGHTING SYSTEM (08 00 1) 86
HEADLAMP COMPONENTS (08 00 2) 88
ELECTRICAL SYSTEM (08 00 3) 89
STARTER PARTS (08 00 4) 90
STARTER PARTS (08 00 5) 91
ALTERNATOR PARTS (08 00 6) 92
ELECTRIC STARTING SYSTEM (08 00 7) 93
ELECTRIC STARTING SYSTEM (08 00 8) 95
ELECTRICAL SYSTEM (0 008 1939 4/10 A) 96
ELECTRICAL SYSTEM (0 008 1940 4/80 A) 97
ELECTRICAL SYSTEM (0 010 7554 4/30 A) 98
POWER OUTLET SOCKET (2 6032 011 0 A) 99
HEADLAMP COMPONENTS (2 8019 800 0 A) 100
HEADLAMP COMPONENTS (2 8029 240 0/10 A) 101
HEADLAMP COMPONENTS (2 8029 300 0 A) 102
ELECTRIC LIGHTING SYSTEM (2 8029 820 0/20 A) 103
ELECTRIC LIGHTING SYSTEM (2 8029 830 0/20 A) 104
REAR LIGHT (2 8039 090 0 A) 105
REAR LIGHT (2 8039 100 0 A) 106
HEADLAMP COMPONENTS (2 8059 220 0/10 A) 107
HEADLAMP COMPONENTS (2 8059 230 0 A) 108
HEADLAMP COMPONENTS (2 8059 240 0 A) 109
ELECTRIC REV-HOUR RECORDER TACHOMETER (2 8339 224 0 A) 110
Engine 111
Index 111
Agrokid 25 -> 2001 112
ENGINE 112
GENERAL 112
CRANKCASE (01 00 1) 112
CRANKCASE (01 00 3) 113
TIMING CASE (01 00 5) 114
CRANKSHAFT (01 00 6) 115
CAMSHAFT (01 00 8) 116
CAMSHAFT (01 00 10) 117
CYLINDER HEAD (01 00 11) 118
CYLINDER HEAD (01 00 13) 119
OIL PAN (01 00 16) 120
LUBRICATION (01 00 18) 121
LUBRICATION (01 00 20) 122
FUEL SUPPLY SYSTEM (01 00 22) 123
INJECTOR NOZZLE HOLDER COMPONENTS (01 00 23) 124
INJECTION PUMP PARTS (01 00 25) 125
CONTROLLER (01 00 28) 126
CONTROLLER (01 00 29) 128
SOLENOID VALVE (01 00 30) 130
ACCESSORIES (01 00 32) 131
THERMOSTAT (01 00 34) 132
COOLING (01 00 35) 133
INTAKE AND EXHAUST (01 00 37) 134
GASKET SET FOR ENGINE ASSEMBLY (01 00 41) 135
INTAKE AND EXHAUST (01 00 43) 137
HYDRAULIC PUMP POWER TAKEOFF (01 00 44) 138
EXHAUST SILENCER (01 00 45) 139
FUEL FEED PUMP (0 008 6957 4 A) 140
Front_and_rear_pto 141
Index 141
Agrokid 25 -> 2001 142
FRONT AND REAR P T O 142
GENERAL 142
P T O FRONT (05 00 1) 142
CENTRAL P T O (05 00 2) 143
P T O – CLUTCH TRANSMISSION SHAFT (05 00 5) 144
P T O – WITH N’ 540 – 1000 (05 00 6) 145
P T O – SYNCHRONIZED (05 00 7) 146
P T O SELECTION CONTROL (05 00 9) 147
DRIVE SHAFT – FRONT P T O SHAFT (0 007 7094 4 A) 148
DRIVE SHAFT – FRONT P T O SHAFT (0 007 7095 4 A) 149
DRIVE SHAFT – FRONT P T O SHAFT (0 007 7096 4 A) 150
Front_axle 151
Index 151
Agrokid 25 -> 2001 152
FRONT AXEL 152
GENERAL 152
FRONT SUPPORT (04 00 1) 152
JUNCTION CASE (04 00 2) 154
4WD – NARROW FRONT DRIVE AXLE (04 00 3) 155
4WD – FRONT DRIVE AXLE (04 00 5) 156
4WD – POWER STEERING CYLINDER (04 00 6) 157
4WD – DIFFERENTIAL (04 00 7) 158
4WD – FRONT REDUCTION GEARBOX (04 00 8) 159
4WD – FRONT DIFFERENTIAL LOCK (04 00 9) 160
4WD – DIFFERENTIAL LOCK CONTROL-FRONT (04 00 10) 161
4WD – TRANSMISSION SHAFT (04 00 11) 162
4WD – ENGAGEMENT CONTROL (04 00 12) 163
4WD – ENGAGEMENT CONTROL (04 00 13) 164
CYLINDER PARTS (0 008 7679 4/20 A) 165
ADJUSTABLE LIFT ROD PARTS (0 008 7734 4/20 A) 166
SOLENOID VALVE (2 3729 400 0 A) 167
Front_power-lift 168
Index 168
Agrokid 25 -> 2001 169
FRONT HYDRAULIC POWER-LIFT 169
GENERAL 169
FRONT HYDRAULIC POWER-LIFT (0C 00 1) 169
CYLINDER PARTS (0 008 7741 4 A) 170
Gear 171
Index 171
Agrokid 25 -> 2001 172
GEAR 172
GENERAL 172
CLUTCH (02 00 1) 172
CLUTCH CONTROL (02 00 3) 173
CLUTCH CONTROL (02 00 4) 174
CLUTCH CONTROL (02 00 5) 175
INDEPENDENT CLUTCH CONTROL FOR P T O (02 00 6) 176
GEARBOX (02 00 7) 177
GEARBOX (02 00 8) 178
MAIN GEARBOX AND REVERSE SHUTTLE GEARS (02 00 13) 179
MAIN GEARBOX (02 00 15) 180
REDUCTION GEAR UNIT (02 00 18) 181
GEARSHIFT LEVER (02 00 19) 182
REVERSING GEAR UNIT CONTROLS (02 00 20) 183
REDUCTION GEAR CONTROL (02 00 22) 184
DIFFERENTIAL (02 00 27) 185
DIFFERENTIAL LOCK CONTROL (02 00 28) 186
SYNCHRONIZER PARTS (0 008 4951 4 A) 187
Rear_axle 188
Index 188
Agrokid 25 -> 2001 189
REAR AXLE 189
GENERAL 189
REAR AXLE (03 00 1) 189
REAR REDUCTION GEARS AND AXLE SHAFTS (03 00 2) 190
REAR BRAKES (03 00 3) 191
BRAKE CONTROLS (03 00 4) 192
BRAKE CONTROLS (03 00 5) 193
HAND BRAKE (03 00 7) 194
BRAKES TITAN ITALIA (0 011 3169 4 A) 195
SAC 196
Index 196
Agrokid 25 -> 2001 197
S A C 197
GENERAL 197
POWER-LIFT CASE (0D 00 1) 197
HYDRAULIC PUMP (0D 00 2) 198
HYDRAULIC PUMP PARTS (0D 00 3) 200
LIFTING (0D 00 4) 201
REGULATING DISTRIBUTOR (0D 00 5) 202
INTERNAL CONTROLS (0D 00 6) 203
CONTROL TIE RODS AND LEVERS (0D 00 7) 204
CONTROL TIE RODS AND LEVERS (0D 00 8) 205
SENSITIVE ELEMENTS (0D 00 9) 206
HYDRAULIC PUMP PARTS (2 4529 950 0 A) 207
HYDRAULIC PUMP PARTS (2 4529 960 0 A) 208
HYDRAULIC PUMP PARTS (2 4539 510 0 A) 209
HYDRAULIC PUMP (2 4539 520 0 A) 210
Steering_Hydraulics 211
Index 211
Agrokid 25 -> 2001 212
POWER STEERING – HYDRAULIC SYSTEM 212
GENERAL 212
STEERING CONTROL (06 00 1) 212
POWER STEERING (06 00 2) 213
HYDR STEERING DISTRIBUTOR PARTS (06 00 4) 214
POWER STEERING (06 00 5) 215
HYDR STEERING DISTRIBUTOR PARTS (0 008 7155 4/10 A) 216
VALVE PARTS (2 3719 430 0 A) 217
Wheels 218
Index 218
Agrokid 25 -> 2001 219
WHEELS 219
GENERAL 219
FRONT WHEELS (09 00 1) 219
REAR WHEELS (09 00 2) 221
