Deutz Fahr Agrokid 35 After 2001 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrokid 35 After 2001 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrokid 35 After 2001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 226
Downloadable : Yes
File Type : PDF
Size: 9.83 MB

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

https://vimeo.com/810065883

TABLE OF CONTENTS:

Deutz Fahr Agrokid 35 After 2001 Parts Catalog Manual – PDF DOWNLOAD

Accessories 1
Index 1
Agrokid 35 -> 2001 2
ACCESSORIES 2
GENERAL 2

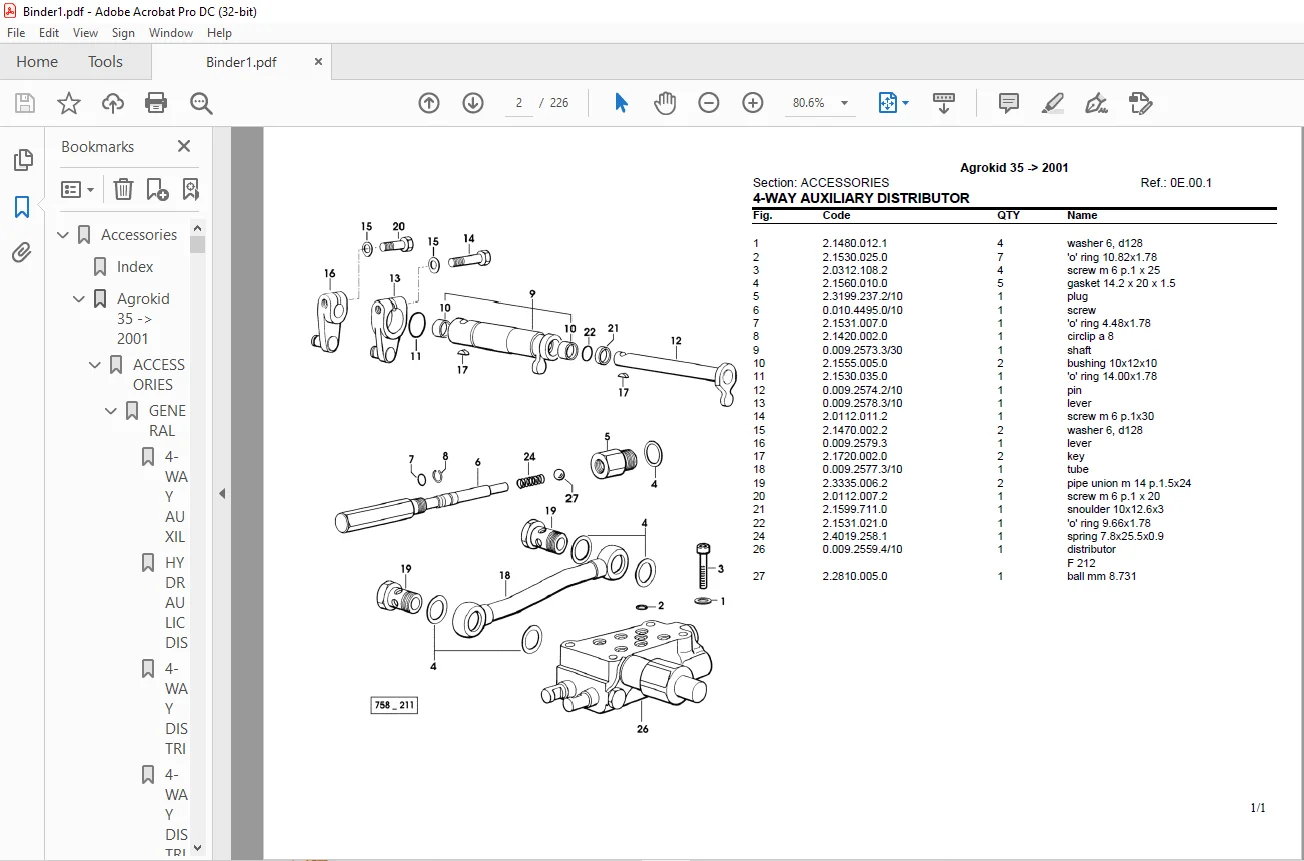

4-WAY AUXILIARY DISTRIBUTOR (0E 00 1) 2

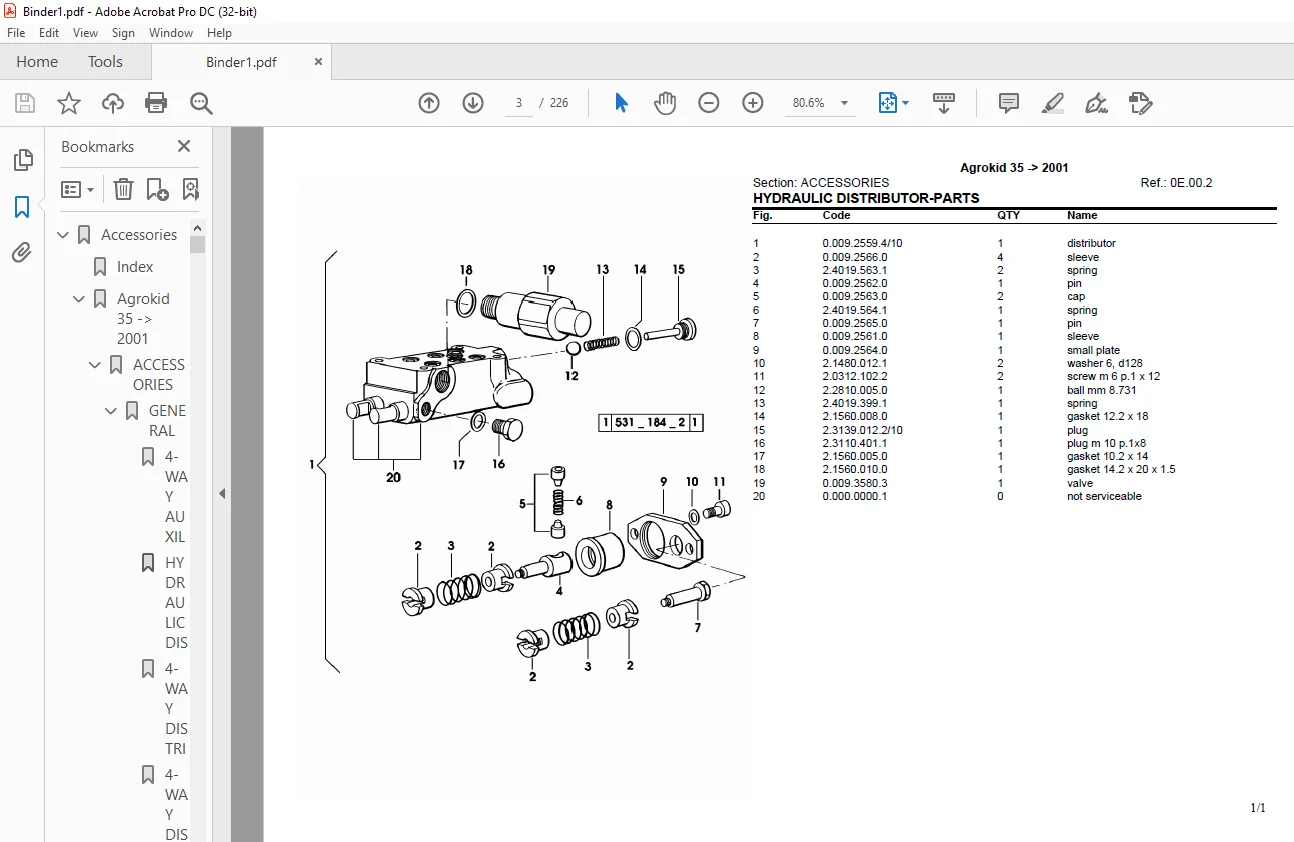

HYDRAULIC DISTRIBUTOR-PARTS (0E 00 2) 3

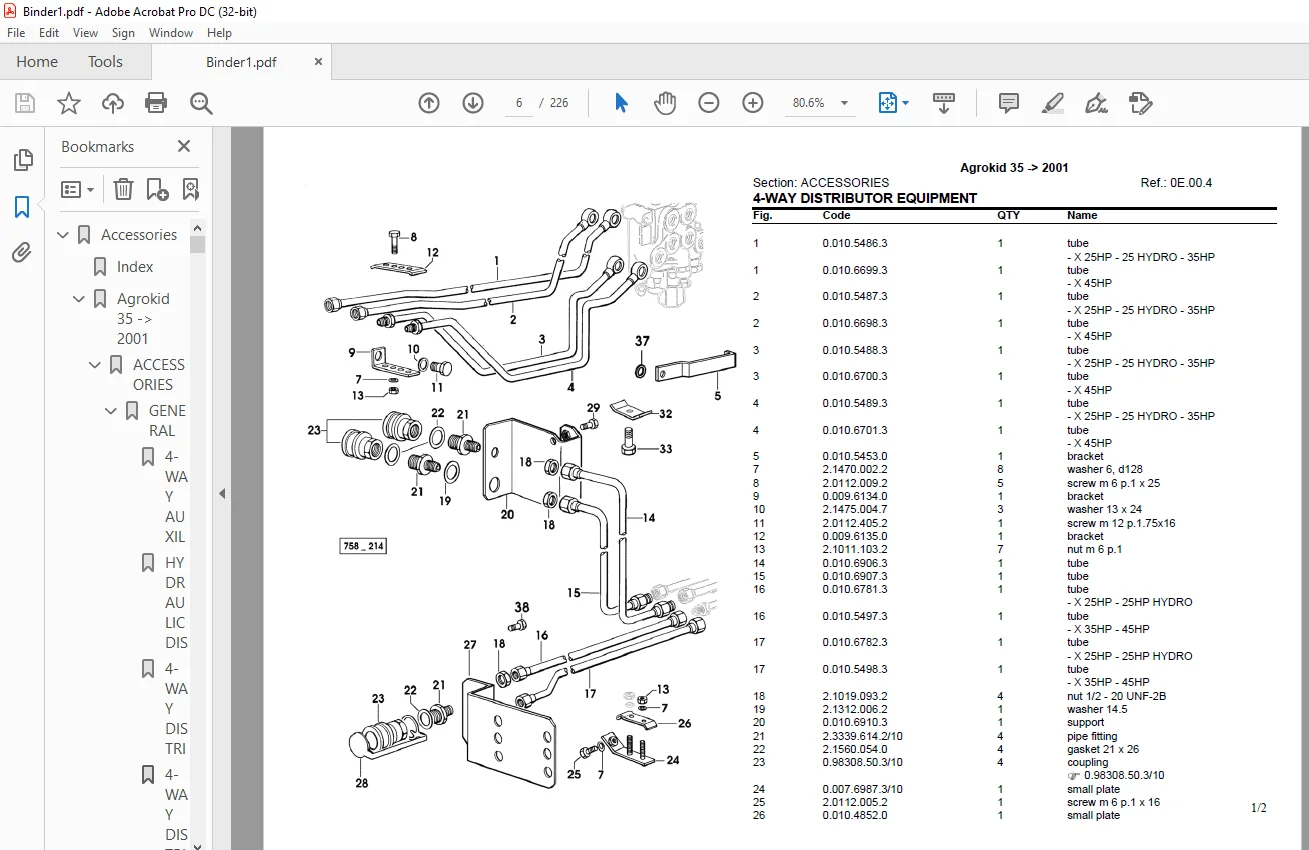

4-WAY DISTRIBUTOR EQUIPMENT (0E 00 3) 4
4-WAY DISTRIBUTOR EQUIPMENT (0E 00 4) 6
4-WAY AUXILIARY DISTRIBUTOR (0E 00 5) 8
DISTRIBUTOR CONTROL (0E 00 6) 9
3 POINT HITCH (0E 00 7) 10
TOWING BAR (0E 00 8) 12
P T O GUARD (0E 00 9) 13
REAR TOWING HITCH (0E 00 10) 14
FRONT TOWING HITCH (0E 00 11) 15
REAR OSCILLATING HITCH (0E 00 12) 16
BALLAST (0E 00 13) 17
BALLAST (0E 00 14) 18
TOOL POUCH (0E 00 15) 19
ENGAGEMENT (0 98308 50 3/10 A) 20
Bodywork 21
Index 21
Agrokid 35 -> 2001 23
BODY WORK 23
GENERAL 23
HOOD (07 00 1) 23
HOOD (07 00 2) 24
HOOD (07 00 3) 25
PEDAL SUPPORT (07 00 5) 26
WATER COOLING (07 00 6) 27
WATER COOLING (07 00 8) 29
FAN BELT GUARD (07 00 10) 30
FAN BELT GUARD (07 00 11) 31
DASHBOARD (07 00 12) 32
DASHBOARD (07 00 13) 33
PLATES (07 00 14) 34
THROTTLE (07 00 15) 35
THROTTLE (07 00 17) 36
FRONT MUDGUARDS (07 00 18) 37
FOOT BOARD AND COVER (07 00 19) 39
FOOT BOARD AND COVER (07 00 21) 41
PLATFORM (07 00 22) 42
MUDGUARDS EXTENSIONS (07 00 23) 43
FENDERS (07 00 24) 44
SAFETY ARCH (07 00 25) 45
SAFETY ARCH (07 00 26) 46
SAFETY ARCH (07 00 27) 47
SUNROOF FRAME (07 00 29) 48
SUNROOF (07 00 30) 49
REARVIEW MIRROR (07 00 31) 50
LICENSE PLATE FRAME AND SUPPORT (07 00 32) 51
SPECIAL VERSION FOR EXPORT D (07 00 33) 52
SPECIAL VERSION FOR EXPORT CH (07 00 34) 53
SPECIAL VERSION FOR EXPORT I (07 00 35) 54
FUEL SUPPLY SYSTEM (07 00 36) 55
FUEL SUPPLY SYSTEM (07 00 37) 56
AIR FILTER PARTS (07 00 38) 57
SEAT (07 00 39) 58
SEAT (07 00 40) 59
SEAT (07 00 41) 60
SEAT SPRINGING (07 00 42) 61
SEAT SPRINGING (07 00 43) 62
SEAT SPRINGING (07 00 44) 63
SEAT SPRINGING (0 010 5356 4 A) 64
SEAT SPRINGING (0 010 5357 4 A) 65
SEAT (0 010 5362 4 A) 66
SEAT SPRINGING (0 010 6032 4 A) 67
WATER COOLER (0 011 5413 4/10 A) 68
AIR FILTER PARTS (2 4249 160 0 A) 69
Cab 70
Index 70
Agrokid 35 -> 2001 71
CAB 71
GENERAL 71
METALLIC STRUCTURES (0B 00 1) 71
CAB – SUPPORTS (0B 00 2) 72
CAB – SUPPORTS (0B 00 3) 73
GLASSES AND SEALS (0B 00 4) 74
GLASSES AND SEALS (0B 00 5) 75
GLASSES AND SEALS (0B 00 6) 76
INTERIOR TRIM (0B 00 7) 77
INTERIOR TRIM (0B 00 8) 78
WINDSHIELD WIPER SYSTEM (0B 00 10) 79
ELECTRICAL SYSTEM (0B 00 11) 80
VENTILATION-HEATING (0B 00 12) 81
FAN PARTS (0B 00 13) 82
HEADLAMP COMPONENTS (0 009 6758 4/10 A) 83
FAN PARTS (0 010 9560 4 A) 84
Electrical_system 85
Index 85
Agrokid 35 -> 2001 86
ELECTRIC AL SYSTEM 86
GENERAL 86
ELECTRIC LIGHTING SYSTEM (08 00 1) 86
HEADLAMP COMPONENTS (08 00 2) 88
ELECTRICAL SYSTEM (08 00 3) 89
STARTER PARTS (08 00 4) 90
STARTER PARTS (08 00 5) 91
ALTERNATOR PARTS (08 00 6) 92
ELECTRIC STARTING SYSTEM (08 00 7) 93
ELECTRIC STARTING SYSTEM (08 00 8) 95
ELECTRICAL SYSTEM (0 008 1939 4/10 A) 96
ELECTRICAL SYSTEM (0 008 1940 4/80 A) 97
ELECTRICAL SYSTEM (0 010 7554 4/30 A) 98
POWER OUTLET SOCKET (2 6032 011 0 A) 99
HEADLAMP COMPONENTS (2 8019 800 0 A) 100
HEADLAMP COMPONENTS (2 8029 240 0/10 A) 101
HEADLAMP COMPONENTS (2 8029 300 0 A) 102
ELECTRIC LIGHTING SYSTEM (2 8029 820 0/20 A) 103
ELECTRIC LIGHTING SYSTEM (2 8029 830 0/20 A) 104
REAR LIGHT (2 8039 090 0 A) 105
REAR LIGHT (2 8039 100 0 A) 106
HEADLAMP COMPONENTS (2 8059 220 0/10 A) 107
HEADLAMP COMPONENTS (2 8059 230 0 A) 108
HEADLAMP COMPONENTS (2 8059 240 0 A) 109
ELECTRIC REV-HOUR RECORDER TACHOMETER (2 8339 224 0 A) 110
Engine 111
Index 111
Agrokid 35 -> 2001 112
ENGINE 112
GENERAL 112
CRANKCASE (01 00 2) 112
CRANKCASE (01 00 4) 113
TIMING CASE (01 00 5) 114
CRANKSHAFT (01 00 7) 115
CAMSHAFT (01 00 8) 116
CAMSHAFT (01 00 9) 117
CYLINDER HEAD (01 00 12) 118
CYLINDER HEAD (01 00 14) 119
CYLINDER HEAD (01 00 15) 120
OIL PAN (01 00 17) 121
LUBRICATION (01 00 18) 122
LUBRICATION (01 00 20) 123
FUEL SUPPLY SYSTEM (01 00 21) 124
INJECTOR NOZZLE HOLDER COMPONENTS (01 00 24) 126
INJECTION PUMP PARTS (01 00 26) 127
CONTROLLER (01 00 28) 128
CONTROLLER (01 00 29) 130
SOLENOID VALVE (01 00 31) 132
ACCESSORIES (01 00 33) 133
THERMOSTAT (01 00 34) 134
COOLING (01 00 35) 135
INTAKE AND EXHAUST (01 00 38) 136
GASKET SET FOR ENGINE ASSEMBLY (01 00 41) 137
INTAKE AND EXHAUST (01 00 43) 139
HYDRAULIC PUMP POWER TAKEOFF (01 00 44) 140
EXHAUST SILENCER (01 00 45) 141
FUEL FEED PUMP (0 008 6957 4 A) 142
Front_and_rear_pto 143
Index 143
Agrokid 35 -> 2001 144
FRONT AND REAR P T O 144
GENERAL 144
P T O FRONT (05 00 1) 144
CENTRAL P T O (05 00 2) 145
P T O – CLUTCH TRANSMISSION SHAFT (05 00 5) 146
P T O – WITH N’ 540 – 1000 (05 00 6) 147
P T O – SYNCHRONIZED (05 00 7) 148
P T O SELECTION CONTROL (05 00 9) 149
DRIVE SHAFT – FRONT P T O SHAFT (0 007 7094 4 A) 150
DRIVE SHAFT – FRONT P T O SHAFT (0 007 7095 4 A) 151
DRIVE SHAFT – FRONT P T O SHAFT (0 007 7096 4 A) 152
Front_axle 153
Index 153
Agrokid 35 -> 2001 154
FRONT AXEL 154
GENERAL 154
FRONT SUPPORT (04 00 1) 154
JUNCTION CASE (04 00 2) 156
4WD – NARROW FRONT DRIVE AXLE (04 00 3) 157
4WD – STANDARD FRONT DRIVE AXLE (04 00 4) 158
4WD – FRONT DRIVE AXLE (04 00 5) 159
4WD – POWER STEERING CYLINDER (04 00 6) 160
4WD – DIFFERENTIAL (04 00 7) 161
4WD – FRONT REDUCTION GEARBOX (04 00 8) 162
4WD – FRONT DIFFERENTIAL LOCK (04 00 9) 163
4WD – DIFFERENTIAL LOCK CONTROL-FRONT (04 00 10) 164
4WD – TRANSMISSION SHAFT (04 00 11) 165
4WD – ENGAGEMENT CONTROL (04 00 12) 166
4WD – ENGAGEMENT CONTROL (04 00 13) 167
CYLINDER PARTS (0 008 7679 4/20 A) 168
ADJUSTABLE LIFT ROD PARTS (0 008 7720 4/20 A) 169
ADJUSTABLE LIFT ROD PARTS (0 008 7734 4/20 A) 170
SOLENOID VALVE (2 3729 400 0 A) 171
Front_power-lift 172
Index 172
Agrokid 35 -> 2001 173
FRONT HYDRAULIC POWER-LIFT 173
GENERAL 173
FRONT HYDRAULIC POWER-LIFT (0C 00 1) 173
CYLINDER PARTS (0 008 7741 4 A) 174
Gear 175
Index 175
Agrokid 35 -> 2001 176
GEAR 176
GENERAL 176
CLUTCH (02 00 1) 176
CLUTCH CONTROL (02 00 3) 177
CLUTCH CONTROL (02 00 4) 178
CLUTCH CONTROL (02 00 5) 179
INDEPENDENT CLUTCH CONTROL FOR P T O (02 00 6) 180
GEARBOX (02 00 7) 181
GEARBOX (02 00 8) 182
MAIN GEARBOX AND REVERSE SHUTTLE GEARS (02 00 13) 183
MAIN GEARBOX (02 00 15) 184
REDUCTION GEAR UNIT (02 00 18) 185
GEARSHIFT LEVER (02 00 19) 186
REVERSING GEAR UNIT CONTROLS (02 00 20) 187
REDUCTION GEAR CONTROL (02 00 22) 188
DIFFERENTIAL (02 00 27) 189
DIFFERENTIAL LOCK CONTROL (02 00 28) 190
SYNCHRONIZER PARTS (0 008 4951 4 A) 191
Rear_axle 192
Index 192
Agrokid 35 -> 2001 193
REAR AXLE 193
GENERAL 193
REAR AXLE (03 00 1) 193
REAR REDUCTION GEARS AND AXLE SHAFTS (03 00 2) 194
REAR BRAKES (03 00 3) 195
BRAKE CONTROLS (03 00 4) 196
BRAKE CONTROLS (03 00 5) 197
HAND BRAKE (03 00 7) 198
BRAKES TITAN ITALIA (0 011 3169 4 A) 199
SAC 200
Index 200
Agrokid 35 -> 2001 201
S A C 201
GENERAL 201
POWER-LIFT CASE (0D 00 1) 201
HYDRAULIC PUMP (0D 00 2) 202
HYDRAULIC PUMP PARTS (0D 00 3) 204
LIFTING (0D 00 4) 205
REGULATING DISTRIBUTOR (0D 00 5) 206
INTERNAL CONTROLS (0D 00 6) 207
CONTROL TIE RODS AND LEVERS (0D 00 7) 208
CONTROL TIE RODS AND LEVERS (0D 00 8) 209
SENSITIVE ELEMENTS (0D 00 9) 210
HYDRAULIC PUMP PARTS (2 4529 950 0 A) 211
HYDRAULIC PUMP PARTS (2 4529 960 0 A) 212
HYDRAULIC PUMP PARTS (2 4539 510 0 A) 213
HYDRAULIC PUMP (2 4539 520 0 A) 214
Steering_Hydraulics 215
Index 215
Agrokid 35 -> 2001 216
POWER STEERING – HYDRAULIC SYSTEM 216
GENERAL 216
STEERING CONTROL (06 00 1) 216
POWER STEERING (06 00 2) 217
HYDR STEERING DISTRIBUTOR PARTS (06 00 4) 218
POWER STEERING (06 00 5) 219
HYDR STEERING DISTRIBUTOR PARTS (0 008 7155 4/10 A) 220
VALVE PARTS (2 3719 430 0 A) 221
Wheels 222
Index 222
Agrokid 35 -> 2001 223
WHEELS 223
GENERAL 223
FRONT WHEELS (09 00 1) 223
REAR WHEELS (09 00 2) 225
