DEUTZ FAHR AGROKID 40 PARTS MANUAL 6001 – PDF
$28.95
DEUTZ FAHR AGROKID 40 PARTS MANUAL 6001 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
DEUTZ FAHR AGROKID 40 PARTS MANUAL 6001 – PDF DOWNLOAD
FILE DETAILS:
DEUTZ FAHR AGROKID 40 PARTS MANUAL 6001 – PDF DOWNLOAD
Language : English
Pages : 388
Downloadable : Yes
File Type : PDF

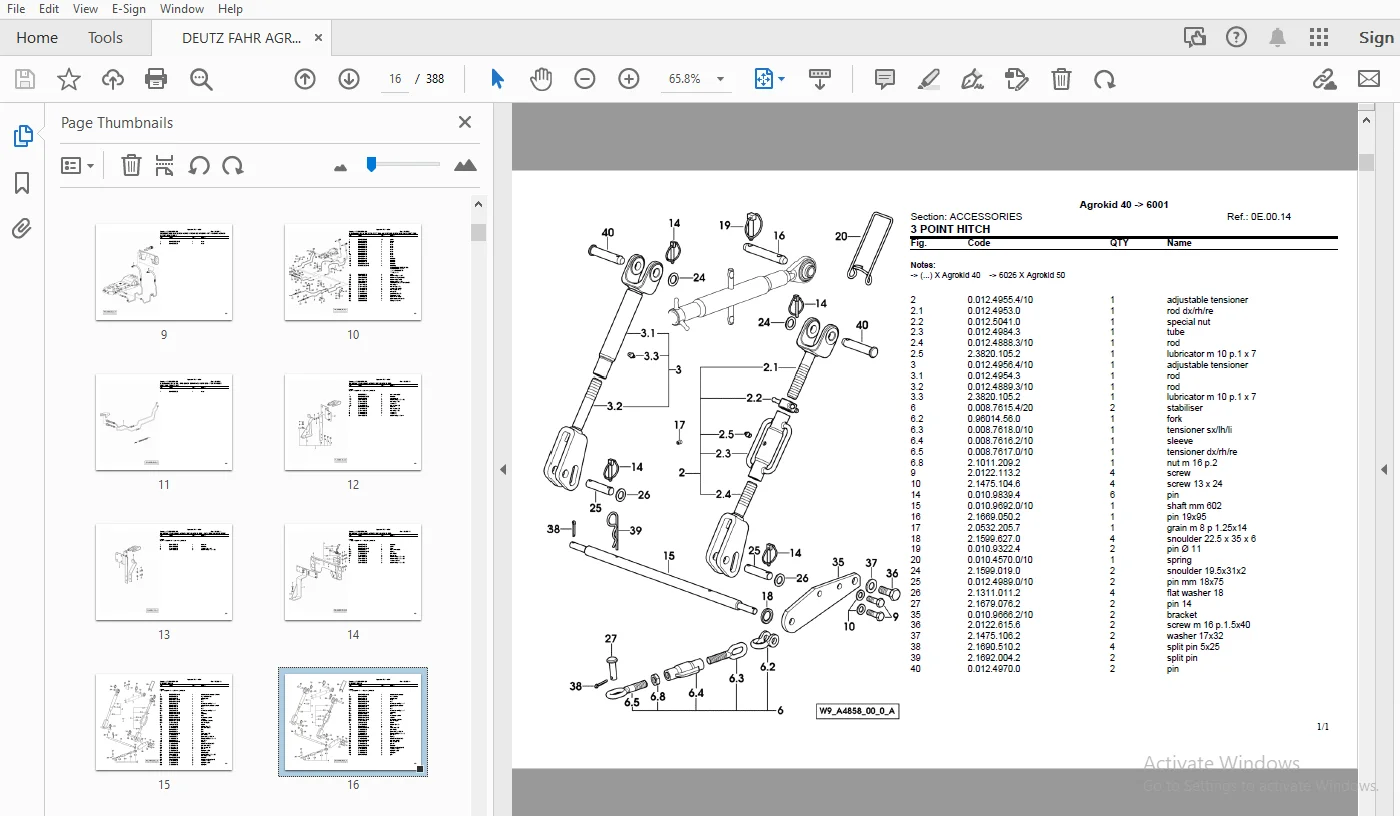

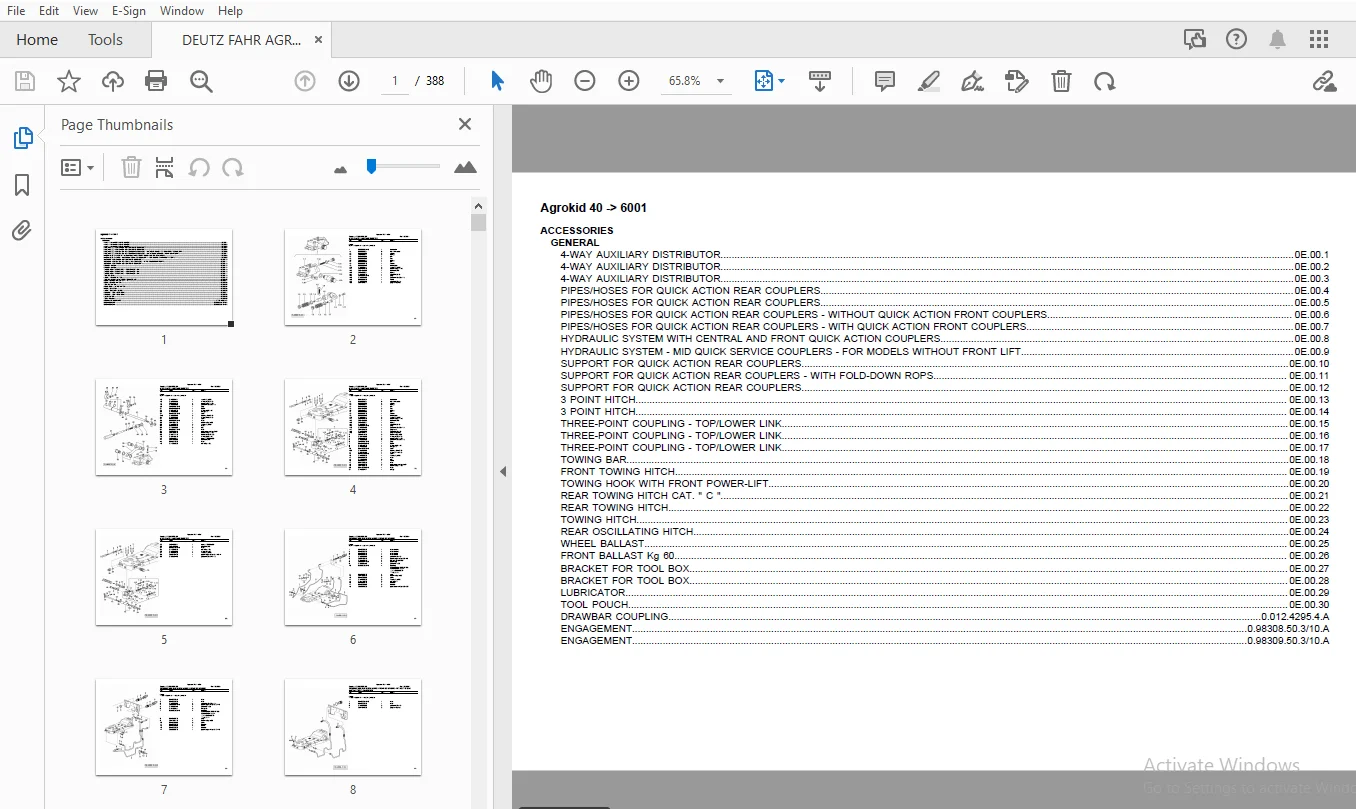

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
DEUTZ FAHR AGROKID 40 PARTS MANUAL 6001 – PDF DOWNLOAD
Index..................................................................................................... 1 Agrokid 40 -> 6001........................................................................................ 2 ACCESSORIES........................................................................................... 2 GENERAL........................................................................................... 2 4-WAY AUXILIARY DISTRIBUTOR (0E.00.1)......................................................... 2 4-WAY AUXILIARY DISTRIBUTOR (0E.00.2)......................................................... 3 4-WAY AUXILIARY DISTRIBUTOR (0E.00.3)......................................................... 4 PIPES/HOSES FOR QUICK ACTION REAR COUPLERS (0E.00.4).......................................... 6 PIPES/HOSES FOR QUICK ACTION REAR COUPLERS (0E.00.5).......................................... 7 PIPES/HOSES FOR QUICK ACTION REAR COUPLERS - WITHOUT QUICK ACTION FRONT COUPLERS (0E.00.6).... 8 PIPES/HOSES FOR QUICK ACTION REAR COUPLERS - WITH QUICK ACTION FRONT COUPLERS (0E.00.7)....... 9 HYDRAULIC SYSTEM WITH CENTRAL AND FRONT QUICK ACTION COUPLERS (0E.00.8)....................... 10 HYDRAULIC SYSTEM - MID QUICK SERVICE COUPLERS - FOR MODELS WITHOUT FRONT LIFT (0E.00.9)....... 11 SUPPORT FOR QUICK ACTION REAR COUPLERS (0E.00.10)............................................. 12 SUPPORT FOR QUICK ACTION REAR COUPLERS - WITH FOLD-DOWN ROPS (0E.00.11)....................... 13 SUPPORT FOR QUICK ACTION REAR COUPLERS (0E.00.12)............................................. 14 3 POINT HITCH (0E.00.13)...................................................................... 15 3 POINT HITCH (0E.00.14)...................................................................... 16 THREE-POINT COUPLING - TOP/LOWER LINK (0E.00.15).............................................. 17 THREE-POINT COUPLING - TOP/LOWER LINK (0E.00.16).............................................. 18 THREE-POINT COUPLING - TOP/LOWER LINK (0E.00.17).............................................. 19 TOWING BAR (0E.00.18)......................................................................... 20 FRONT TOWING HITCH (0E.00.19)................................................................. 21 TOWING HOOK WITH FRONT POWER-LIFT (0E.00.20).................................................. 22 REAR TOWING HITCH CAT. " C " (0E.00.21)....................................................... 23 REAR TOWING HITCH (0E.00.22).................................................................. 24 TOWING HITCH (0E.00.23)....................................................................... 25 REAR OSCILLATING HITCH (0E.00.24)............................................................. 26 WHEEL BALLAST (0E.00.25)...................................................................... 27 FRONT BALLAST Kg 60 (0E.00.26)................................................................ 28 BRACKET FOR TOOL BOX (0E.00.27)............................................................... 29 BRACKET FOR TOOL BOX (0E.00.28)............................................................... 30 LUBRICATOR (0E.00.29)......................................................................... 31 TOOL POUCH (0E.00.30)......................................................................... 32 DRAWBAR COUPLING (0.012.4295.4.A)............................................................. 33 ENGAGEMENT (0.98308.50.3/10.A)................................................................ 34 ENGAGEMENT (0.98309.50.3/10.A)................................................................ 35 Index..................................................................................................... 36 Agrokid 40 -> 6001........................................................................................ 39 BODY WORK............................................................................................ 39 GENERAL........................................................................................... 39 HOOD (07.00.1)................................................................................ 39 HOOD - SUPPORTS (07.00.2)..................................................................... 40 UNDER HOOD WIRING FIXING (07.00.3)............................................................ 41 ENGINE HOOD GASKETS (07.00.4)................................................................. 42 HOOD SOUNDPROOFING (07.00.5).................................................................. 43 SOUND/THERMAL INSULATION PANELS (07.00.6)..................................................... 44 PRODUCT PLATE (07.00.7)....................................................................... 45 PRODUCT PLATE - REAR (07.00.9)................................................................ 46 HOOD HINGES (07.00.10)........................................................................ 47 HOOD - SUPPORTS - FOR MODELS WITHOUT FRONT P.T.O. (07.00.11).................................. 48 HOOD - SUPPORTS - FOR MODELS EQUIPPED WITH FRONT P.T.O. (07.00.12)............................ 49 HOOD CATCH (07.00.13)......................................................................... 50 HOOD - SUPPORTS (07.00.14).................................................................... 51 HOOD GAS SPRING (07.00.15).................................................................... 52 BATTERY SUPPORT - FOR MODELS WITHOUT FRONT P.T.O. (07.00.16).................................. 53 BATTERY SUPPORT - FOR MODELS EQUIPPED WITH FRONT P.T.O. (07.00.17)............................ 54 PEDAL SUPPORT (07.00.19)...................................................................... 55 WATER COOLER - FOR MODELS WITHOUT FRONT P.T.O. (07.00.20)..................................... 56 WATER COOLER - FOR MODELS EQUIPPED WITH FRONT P.T.O. (07.00.22)............................... 57 COOLING - COOLANT RADIATOR (07.00.23)......................................................... 58 COLLECTION TANK (07.00.24).................................................................... 59 AIR DUCTING HOOD (07.00.25)................................................................... 60 BELTS GUARD (07.00.26)........................................................................ 61 DASHBOARD (07.00.27).......................................................................... 62 PLATES (07.00.28)............................................................................. 63 INFORMATION PLATE (07.00.29).................................................................. 64 INFORMATION PLATE (07.00.30).................................................................. 65 INFORMATION PLATE EXPORT PT (07.00.31)........................................................ 66 INFORMATION PLATE EXPORT PT (07.00.32)........................................................ 67 INFORMATION PLATE (07.00.33).................................................................. 68 INFORMATION PLATE (07.00.34).................................................................. 69 INFORMATION PLATE (07.00.35).................................................................. 70 PTO DATA PLATE 540 (07.00.36)................................................................. 71 PTO DATA PLATE 540 - 750 (07.00.37)........................................................... 72 PTO DATA PLATE 540 - 750 + SINCRO (07.00.38).................................................. 73 PTO DATA PLATE 540 - 1000 (07.00.39).......................................................... 74 PTO DATA PLATE 540 - 1000 + SYNCRO (07.00.40)................................................. 75 INFORMATION PLATE - FOR MODELS WITHOUT FRONT LIFT (07.00.41).................................. 76 INFORMATION PLATE - FOR MODELS WITH FRONT LIFT (07.00.42)..................................... 77 PTO DATA PLATE - FRONT (07.00.43)............................................................. 78 THROTTLE (07.00.44)........................................................................... 79 THROTTLE (07.00.45)........................................................................... 80 THROTTLE (07.00.46)........................................................................... 81 FOOTPLATE COVER dx/rh/re (07.00.48)........................................................... 82 FOOTPLATE COVER - WITHOUT SUPPLEMENTARY FUEL TANK sx/lh/li (07.00.49)......................... 83 FOOTPLATE COVER dx/rh/re (07.00.50)........................................................... 84 FOOTPLATE COVER sx/lh/li (07.00.51)........................................................... 85 FOOTPLATE COVER - WITH RESERVE TANK sx/lh/li (07.00.52)....................................... 86 FRONT MUDGUARDS mm 225 (07.00.53)............................................................. 87 FRONT MUDGUARDS mm 225 (07.00.54)............................................................. 88 FRONT MUDGUARDS - FOR TYRE EQUIPMENT 6.50-16" mm 225 (07.00.55)............................... 89 FRONT MUDGUARDS mm 310 (07.00.56)............................................................. 90 FRONT MUDGUARDS mm 310 (07.00.57)............................................................. 91 PLATTFORM: SUPPORTS (07.00.58)................................................................ 92 PLATFORM (07.00.59)........................................................................... 93 LADDER (07.00.60)............................................................................. 94 REAR BEACON MOUNTING (07.00.61)............................................................... 95 LH LIGHT HOLDER FOR EXTINGUISHER AND WARNING TRIANGLE SUPPORT (07.00.62)...................... 96 WARNING TRIANGLES AND EXTINGUISHER (07.00.63)................................................. 97 COVER PLATE (07.00.64)........................................................................ 98 MUDGUARDS EXTENSIONS mm 85 (07.00.65)......................................................... 99 MUDGUARDS EXTENSIONS mm 145 (07.00.66)........................................................100 FENDERS (07.00.67)............................................................................101 SAFETY ARCH - FRONT (07.00.68)................................................................102 SAFETY ROLL BAR SUPPORTS (07.00.69)...........................................................103 SAFETY ARCH - REAR (07.00.70).................................................................104 SAFETY ARCH - REAR (07.00.71).................................................................105 GUARD (07.00.72)..............................................................................106 SAFETY ROLL BAR SUPPORTS (07.00.73)...........................................................107 SAFETY ARCH (07.00.74)........................................................................108 REARVIEW MIRROR (07.00.75)....................................................................110 REARVIEW MIRROR (07.00.76)....................................................................111 LICENCE PLATE HOLDER (07.00.77)...............................................................112 EXTENSION FOR WING (07.00.78).................................................................113 SPEED LABEL - 40 KM/H (07.00.79)..............................................................114 SPECIAL VERSION FOR EXPORT D (07.00.80).......................................................115 SPECIAL VERSION FOR EXPORT D (07.00.81).......................................................116 TRIANGLE SUPPORT (07.00.82)...................................................................117 TRIANGLE SUPPORT (07.00.83)...................................................................118 FUEL SYSTEM - TANK (07.00.84).................................................................119 TANK FLOAT (07.00.85).........................................................................120 FUEL TANK FIXING PARTS (07.00.86).............................................................121 TANK SEALS (07.00.87).........................................................................122 AUXILIARY TANK (07.00.88).....................................................................123 FUEL SUPPLY - AIR FILTER 7" (07.00.89)........................................................124 AIR CLEANER HOSE (07.00.90)...................................................................125 DRIVER'S SEAT (07.00.92)......................................................................126 SEAT SPRINGING (0.010.5356.4.A)...............................................................127 SEAT-COMPONENTS (0.012.4782.4/10.A)...........................................................128 SEAT-COMPONENTS (0.012.4782.4/20.A)...........................................................129 WATER COOLER (0.013.6828.4/40.A)..............................................................130 WATER COOLER (0.014.0416.4.A).................................................................131 REARVIEW MIRROR (0.9234.147.4/10.A)...........................................................132 AIR FILTER PARTS (2.4249.610.0.A).............................................................133 Index.....................................................................................................134 Agrokid 40 -> 6001........................................................................................135 ELECTRIC AL SYSTEM....................................................................................135 GENERAL...........................................................................................135 HEADLAMP FOR RIGHT-HAND DRIVE (08.00.1).......................................................135 HEADLAMP FOR LEFT-HAND DRIVE (08.00.2)........................................................136 LIGHT FIXINGS (08.00.3).......................................................................137 SIDE LIGHTS ON ROLL BAR (08.00.4).............................................................138 SIDE LIGHTS (08.00.5).........................................................................139 FRONT/REAR LIGHTS (08.00.6)...................................................................140 REAR LIGHTS (08.00.7).........................................................................141 FRONT/REAR LIGHTS (08.00.8)...................................................................142 WORKING SPOTLIGHT (08.00.9)...................................................................143 WORKING SPOTLIGHT (08.00.10)..................................................................144 LICENCE PLATE LIGHT (08.00.11)................................................................145 WARNING BEACON (08.00.12).....................................................................146 PREARRANGEMENT FOR WARNING BEACON (08.00.13)..................................................147 PREARRANGEMENT FOR WARNING BEACON (08.00.14)..................................................148 INSTRUMENTATION (08.00.15)....................................................................149 ELECTRICAL SYSTEM - STEERING COLUMN SWITCH UNIT (08.00.16)....................................150 PTO CLUTCH ENGAGED INDICATOR FIXING (08.00.17)................................................152 ELECTRICAL EQUIPMENT REAR (08.00.18)..........................................................153 BATTERY (08.00.21)............................................................................154 ELECTRICAL EQUIPMENT FRONT - BATTERY LEADS (08.00.22).........................................155 ELECTRICAL SYSTEM P.T.O. (08.00.23)...........................................................156 HEADLAMP COMPONENTS (0.009.6758.4/10.A).......................................................157 ELECTRICAL SYSTEM (0.012.6948.4/70.A).........................................................158 ELECTRICAL SYSTEM (0.012.6948.4/90.A).........................................................159 ELECTRICAL SYSTEM (0.012.6951.4/60.A).........................................................160 ELECTRICAL SYSTEM (0.013.1452.4.A)............................................................161 FLASHING LIGHT SUPPORT (0.013.2605.4.A).......................................................162 POWER OUTLET SOCKET (2.6032.011.0.A)..........................................................163 HEADLAMP COMPONENTS (2.8029.240.0/10.A).......................................................164 HEADLAMP COMPONENTS (2.8029.300.0.A)..........................................................165 REAR LIGHT (2.8039.090.0.A)...................................................................166 REAR LIGHT (2.8039.100.0.A)...................................................................167 HEADLAMP FOR RIGHT-HAND DRIVE (2.8039.230.0.A)................................................168 HEADLAMP FOR LEFT-HAND DRIVE (2.8039.290.0.A).................................................169 FRONT LIGHTS dx/rh/re (2.8039.293.0/10.A).....................................................170 FRONT LIGHTS sx/lh/li (2.8039.294.0/10.A).....................................................171 HEADLAMP COMPONENTS (2.8059.220.0/20.A).......................................................172 HEADLAMP COMPONENTS (2.8059.230.0.A)..........................................................173 HEADLAMP COMPONENTS (2.8059.240.0.A)..........................................................174 ELECTRIC REV-HOUR RECORDER TACHOMETER (2.8339.230.0/60.A).....................................175 Index.....................................................................................................176 Agrokid 40 -> 6001........................................................................................178 ENGINE................................................................................................178 GENERAL...........................................................................................178 CYLINDER HEAD (01.00.1).......................................................................178 CYLINDER HEAD (01.00.3).......................................................................179 CYLINDER HEAD COVER (01.00.4).................................................................180 CAMSHAFT (01.00.5)............................................................................181 CRANKCASE (01.00.6)...........................................................................182 MAIN BEARINGS (01.00.8).......................................................................183 TIMING CASE (01.00.9).........................................................................184 FLYWHEEL HOUSING (01.00.10)...................................................................185 OIL PAN (01.00.11)............................................................................186 PISTON - CONNECTING ROD (01.00.12)............................................................187 CRANKSHAFT - FLYWHEEL (01.00.14)..............................................................188 CAMSHAFT (01.00.16)...........................................................................189 INTAKE AND EXHAUST (01.00.17).................................................................190 OIL PUMP (01.00.19)...........................................................................191 LUBRICATION (01.00.20)........................................................................192 OIL PIPES FOR TURBOCHARGER (01.00.21).........................................................193 LUBRIC. OIL COOLER (01.00.23).................................................................194 LUBRIC. OIL FILTER (01.00.25).................................................................195 COOLING (01.00.26)............................................................................196 FUEL SUPPLY SYSTEM (01.00.27).................................................................197 INJECTOR NOZZLE HOLDER COMPONENTS (01.00.28)..................................................198 INJECTION PUMP PARTS (01.00.29)...............................................................199 FUEL FILTER (01.00.31)........................................................................200 CONTROLLER (01.00.32).........................................................................201 ELECTRICAL SYSTEM (01.00.34)..................................................................202 STARTER PARTS (01.00.35)......................................................................203 ALTERNATOR PARTS (01.00.36)...................................................................204 SOLENOID VALVE (01.00.37).....................................................................205 THERMOSTAT (01.00.38).........................................................................206 ACCESSORIES (01.00.39)........................................................................207 GASKET SET FOR ENGINE ASSEMBLY (01.00.41).....................................................208 HYDRAULIC PUMP POWER TAKEOFF (01.00.43).......................................................209 OIL FILLER NECK (01.00.44)....................................................................210 SCREENING (01.00.45)..........................................................................211 BLOWER (01.00.46).............................................................................212 COOLING (01.00.49)............................................................................213 PARTS SET - ENGINE MOUNTING (01.00.50)........................................................214 EXHAUST SILENCER (01.00.51)...................................................................215 FLANGE FOR EXHAUST SILENCER (01.00.52)........................................................216 FUEL SUPPLY SYSTEM (01.00.54).................................................................217 ENGINE MOUNTING (01.00.55)....................................................................218 FUEL FEED PUMP (0.008.6957.4.A)...............................................................219 Index.....................................................................................................220 Agrokid 40 -> 6001........................................................................................221 FRONT AND REAR P.T.O...............................................................................221 GENERAL...........................................................................................221 P.T.O. FRONT (05.00.1)........................................................................221 P.T.O. FRONT (05.00.2)........................................................................222 P.T.O. FRONT - GUARD (05.00.3)................................................................223 P.T.O. FRONT (05.00.4)........................................................................224 P.T.O. FRONT (05.00.5)........................................................................225 CENTRAL P.T.O. (05.00.6)......................................................................226 CENTRAL P.T.O. (05.00.7)......................................................................227 PLUG FOR TYPES WITHOUT MID PTO (05.00.8)......................................................228 MID PTO - STANDARD OIL SEAL (05.00.9).........................................................229 MID PTO - WATERPROOF OIL SEAL (05.00.10)......................................................230 P.T.O. - CLUTCH TRANSMISSION SHAFT (05.00.11).................................................231 P.T.O. - CLUTCH TRANSMISSION SHAFT (05.00.12).................................................232 P.T.O. SHAFT REAR 540 - 1000 (05.00.13).......................................................233 P.T.O. SHAFT REAR (05.00.14)..................................................................234 P.T.O. - WITH N' 540 (05.00.15)...............................................................235 P.T.O. - WITH N' 540 - 750 (05.00.16).........................................................236 P.T.O. - WITH N' 540 - 1000 (05.00.17)........................................................237 PTO PACKAGE WITHOUT GROUNDSPEED (05.00.18)....................................................238 PTO - PARTS SET WITH STANDARD SEALS (05.00.19)................................................239 PTO - PARTS SET WITH WATER PROOF SEALS (05.00.20).............................................240 PTO - PARTS SET WITH STANDARD SEALS (05.00.21)................................................241 PTO - PARTS SET WITH WATER PROOF SEALS (05.00.22).............................................242 P.T.O. - SYNCHRONIZED (05.00.23)..............................................................243 P.T.O. - SYNCHRONIZED (05.00.24)..............................................................244 P.T.O. - SYNCHRONIZED 540 - 750 (05.00.25)....................................................245 P.T.O. - SYNCHRONIZED 540 - 1000 (05.00.26)...................................................246 P.T.O. ENGAGEMENT CONTROL (05.00.27)..........................................................247 P.T.O. SHAFT PROTECTOR REAR - WITH FOLD-DOWN ROPS (05.00.28)..................................249 P.T.O. SHAFT PROTECTOR REAR (05.00.29)........................................................250 Index.....................................................................................................251 Agrokid 40 -> 6001........................................................................................252 FRONT AXEL............................................................................................252 GENERAL...........................................................................................252 FRONT SUPPORT - FOR NARROW TYPES (04.00.1)....................................................252 FRONT SUPPORT (04.00.2).......................................................................253 FRONT SUPPORT - FOR MODELS EQUIPPED WITH FRONT P.T.O. (04.00.3)...............................254 AIR DUCT WALL (04.00.4).......................................................................255 FRONT SUPPORT (04.00.5).......................................................................256 BRACKET - FOR MODELS WITHOUT FRONT P.T.O. (04.00.6)...........................................257 BRACKET - FOR MODELS EQUIPPED WITH FRONT P.T.O. (04.00.7).....................................258 JUNCTION CASE (04.00.8).......................................................................259 CLUTCH HOUSING FIXINGS (04.00.9)..............................................................260 4WD - NARROW FRONT DRIVE AXLE (04.00.10)......................................................261 4WD - AXLESHAFTS WITH DIFFERENTIAL LOCK - FOR NARROW TYPES (04.00.11).........................262 4WD - FRONT DRIVE AXLE (04.00.12).............................................................263 4WD - AXLESHAFTS WITH DIFFERENTIAL LOCK (04.00.13)............................................264 4WD - FRONT DRIVE AXLE (04.00.14).............................................................265 DIFFERENTIAL - WITH DIFFERENTIAL LOCK (04.00.15)..............................................266 4WD - POWER STEERING CYLINDER - FOR NARROW TYPES (04.00.16)...................................267 4WD - POWER STEERING CYLINDER (04.00.17)......................................................268 DIFFERENTIAL BEVEL GEAR PAIR (04.00.18).......................................................269 4WD - DIFFERENTIAL (04.00.19).................................................................270 4WD - FRONT REDUCTION GEARBOX - FOR NARROW TYPES (04.00.20)...................................271 4WD - FRONT REDUCTION GEARBOX (04.00.21)......................................................272 4WD - STANDARD SEALING (04.00.22).............................................................273 4WD - WATER PROOF SEALING (04.00.23)..........................................................274 4WD - TRANSMISSION SHAFT (04.00.24)...........................................................275 4WD - TRANSMISSION SHAFT (04.00.25)...........................................................276 4WD - ENGAGEMENT CONTROL (04.00.26)...........................................................277 4WD - ENGAGEMENT CONTROL (04.00.27)...........................................................278 4WD PACKAGE WITHOUT GROUNDPSEED PTO (04.00.28)................................................279 4WD - ENGAGEMENT CONTROL - STANDARD SEALS (04.00.29)..........................................280 4WD - ENGAGEMENT CONTROL - WATERPROOF SEALS (04.00.30)........................................281 4WD - ENGAGEMENT CONTROL (04.00.31)...........................................................282 CYLINDER PARTS (0.008.7679.4/20.A)............................................................283 ADJUSTABLE LIFT ROD PARTS (0.008.7734.4/30.A).................................................284 CYLINDER PARTS (0.012.8878.4/10.A)............................................................285 LINKAGE (0.012.8957.4/10.A)...................................................................286 LINKAGE (0.012.8958.4/10.A)...................................................................287 Index.....................................................................................................288 Agrokid 40 -> 6001........................................................................................289 FRONT HYDRAULIC POWER-LIFT..........................................................................289 GENERAL...........................................................................................289 FRONT HYDRAULIC POWER-LIFT (0C.00.1)..........................................................289 FRONT LIFT - HYDRAULIC SYSTEM (0C.00.2).......................................................290 CYLINDER PARTS (0.008.7741.4.A)...............................................................291 Index.....................................................................................................292 Agrokid 40 -> 6001........................................................................................293 GEAR..................................................................................................293 GENERAL...........................................................................................293 DOUBLE COUPLING - LUK (02.00.1)...............................................................293 CLUTCH CONTROL (02.00.2)......................................................................294 CLUTCH CONTROL (02.00.3)......................................................................295 INDEPENDENT CLUTCH CONTROL FOR P.T.O. (02.00.4)...............................................296 GEARBOX (02.00.5).............................................................................297 GEARBOX (02.00.6).............................................................................298 REAR GEARBOX BRACKETS - WITH FOLD-DOWN ROPS (02.00.7).........................................299 REAR GEARBOX BRACKETS (02.00.8)...............................................................300 MAIN GEARBOX AND REVERSE SHUTTLE GEARS (02.00.9)..............................................301 MAIN GEARBOX (02.00.10).......................................................................302 REDUCTION GEAR UNIT (02.00.11)................................................................303 GEAR SHIFTING (02.00.12)......................................................................304 REVERSE GEAR CONTROL (02.00.13)...............................................................305 REVERSE GEAR CONTROL (02.00.14)...............................................................306 REDUCTION GEAR CONTROL (02.00.15).............................................................307 DIFFERENTIAL BEVEL GEAR PAIR (02.00.16).......................................................308 DIFFERENTIAL LOCK CONTROL (02.00.18)..........................................................309 SYNCHRONIZER PARTS (0.008.4951.4.A)...........................................................310 DOUBLE COUPLING - LUK (0.012.5851.4/20.A).....................................................311 Index.....................................................................................................312 Agrokid 40 -> 6001........................................................................................313 REAR AXLE.............................................................................................313 GENERAL...........................................................................................313 REAR AXLE (03.00.1)...........................................................................313 REAR AXLE - STANDARD SEALS (03.00.2)..........................................................314 REAR AXLE - WATER PROOF SEALS (03.00.3).......................................................315 HALF AXLES (03.00.4)..........................................................................316 HALF AXLES (03.00.5)..........................................................................317 REDUCTION GEAR UNIT (03.00.6).................................................................318 HANDBRAKE BRACKET FOR TRAILER (03.00.7).......................................................319 HANDBRAKE BRACKET FOR TRAILER (03.00.8).......................................................320 REAR BRAKES (03.00.9).........................................................................321 BRAKE CONTROLS (03.00.10).....................................................................322 HAND BRAKE (03.00.11).........................................................................323 BRAKES TITAN ITALIA (0.011.3169.4.A)..........................................................324 BRAKES URSUS (0.012.4930.4.A).................................................................325 Index.....................................................................................................326 Agrokid 40 -> 6001........................................................................................327 S.A.C.................................................................................................327 GENERAL...........................................................................................327 S.A.C. CASE (0D.00.1).........................................................................327 S.A.C. CASE (0D.00.2).........................................................................328 S.A.C. CASE (0D.00.3).........................................................................329 FASTENINGS (0D.00.4)..........................................................................330 FASTENINGS (0D.00.5)..........................................................................331 OIL FILLER NECK - AIR BREATHER (0D.00.6)......................................................332 LIFTING (0D.00.7).............................................................................333 LIFTING (0D.00.8).............................................................................334 LIFTING (0D.00.9).............................................................................335 REGULATING DISTRIBUTOR (0D.00.10).............................................................336 INTERNAL AND EXTERNAL CONTROLS (0D.00.11).....................................................338 INTERNAL AND EXTERNAL CONTROLS (0D.00.12).....................................................340 CONTROL TIE RODS AND LEVERS (0D.00.13)........................................................342 CONTROL TIE RODS AND LEVERS (0D.00.14)........................................................344 CONTROL TIE RODS AND LEVERS (0D.00.15)........................................................346 SENSITIVE ELEMENTS (0D.00.16).................................................................347 SENSITIVE ELEMENTS (0D.00.17).................................................................348 Index.....................................................................................................349 Agrokid 40 -> 6001........................................................................................350 POWER STEERING - HYDRAULIC SYSTEM.....................................................................350 GENERAL...........................................................................................350 STEERING WHEEL (06.00.1)......................................................................350 STEERING WHEEL CAP (06.00.2)..................................................................351 HYDRAULIC STEERING GEAR STEERING COLUMN (06.00.3).............................................352 HYDRAULIC STEERING GEAR (06.00.4).............................................................353 PIPES FOR HYDROSTATIC STEERING (06.00.5)......................................................354 POWER STEERING (06.00.6)......................................................................355 HYDRAULIC PUMP 11+5.5 sx/lh/li bosch (06.00.7)................................................356 PUMP FILTER SUCTION (06.00.8).................................................................357 S.A.C. AND POWER STEERING HYDRAULIC SYSTEM (06.00.9)..........................................358 HYDRAULIC SYSTEM - FOR MODELS WITHOUT FRONT P.T.O. (06.00.10).................................359 HYDRAULIC SYSTEM - FOR MODELS EQUIPPED WITH FRONT P.T.O. (06.00.11)...........................360 FRONT PTO HYDRAULIC SYSTEM (06.00.12)........................................................361 FRONT PTO HYDRAULIC SYSTEM (06.00.13)........................................................362 4WD - DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (06.00.14)...................................363 DIFFERENTIAL LOCK (06.00.15)..................................................................364 S.A.C. HYDRAULIC SYSTEM (06.00.16)............................................................365 HYDR. STEERING DISTRIBUTOR PARTS (0.009.3141.4/10.A)..........................................366 SOLENOID VALVE (2.3729.410.0/20.A)............................................................367 SOLENOID VALVE (2.3729.697.0.A)...............................................................368 HYDRAULIC PUMP 11+5.5 sx/lh/li bosch (2.4539.884.0.A).........................................369 POWER STEERING (2.4569.001.0.A)...............................................................370 Index.....................................................................................................371 Agrokid 40 -> 6001........................................................................................372 WHEELS................................................................................................372 GENERAL...........................................................................................372 FRONT WHEEL MOUNTING (09.00.1)................................................................372 REAR WHEEL BOLTS (09.00.2)....................................................................373 WHEELS 6.50/80 R12" PR 4 (09.00.3)............................................................374 WHEELS 7.00x12" pr 4 (09.00.4)................................................................375 WHEELS 27-8.50-15" pr 4 (09.00.5).............................................................376 WHEELS 6.50 R16" PR 8 (09.00.6)...............................................................377 WHEELS 13.6-16" pr4 (09.00.7).................................................................378 WHEELS 200/70R-16" (09.00.8)..................................................................379 WHEELS 240/70 R16" (09.00.9)..................................................................380 WHEELS 260/70 R16" (09.00.10).................................................................381 WHEELS 280/70 R18" (09.00.11).................................................................382 WHEELS 11.2R20" (09.00.12)....................................................................383 WHEELS 38-14.00-20" pr 4 (09.00.13)...........................................................384 WHEELS 320/70 R20" A8 (09.00.14)..............................................................385 WHEELS 360/70R-20" (09.00.15).................................................................386 WHEELS 11.2 R24" A8 (09.00.16)................................................................387 WHEELS 320/70R-24" (09.00.17).................................................................388
