Deutz Fahr Agrolux 60 E After D10S553WTE1001 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrolux 60 E After D10S553WTE1001 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrolux 60 E After D10S553WTE1001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 623
Downloadable : Yes
File Type : PDF
Size: 33.2 MB

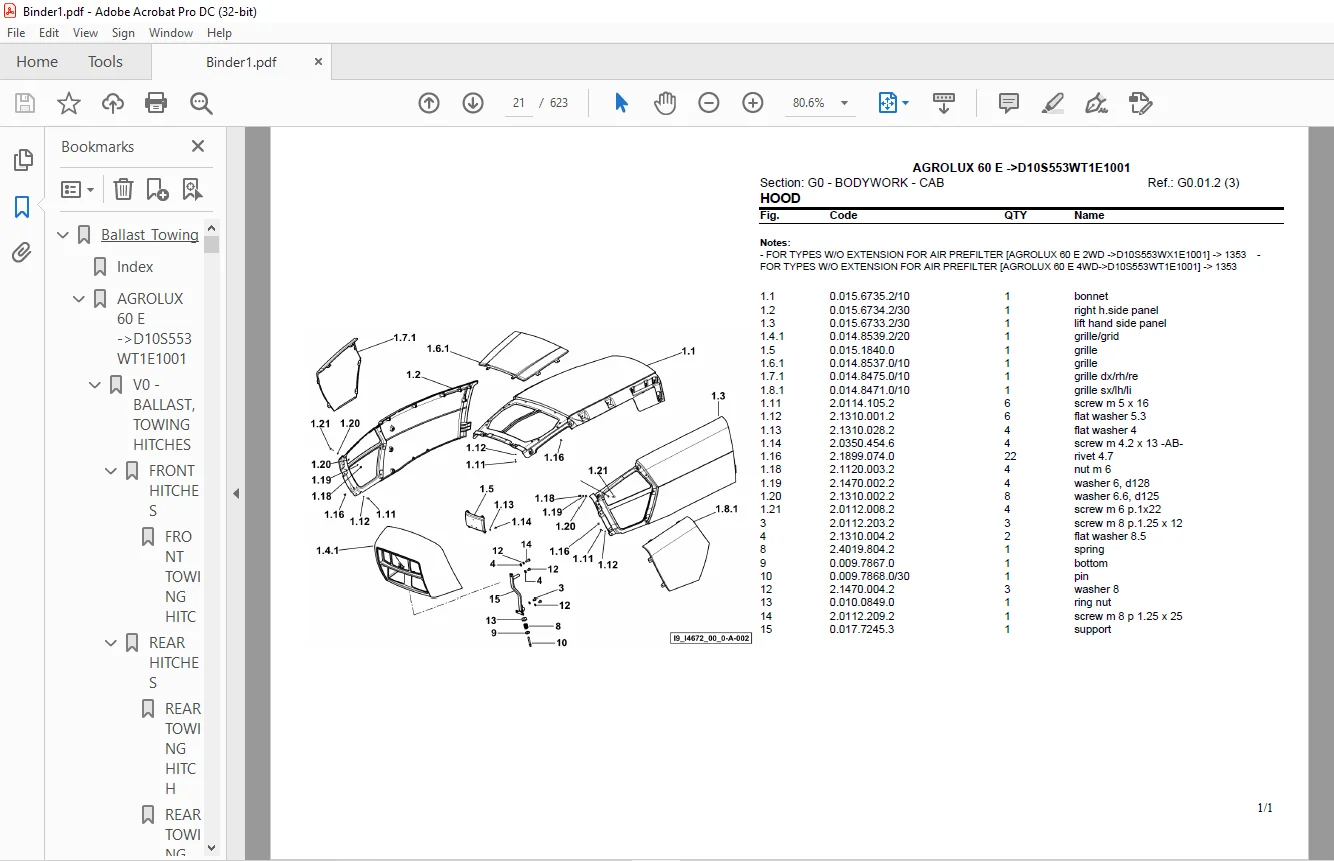

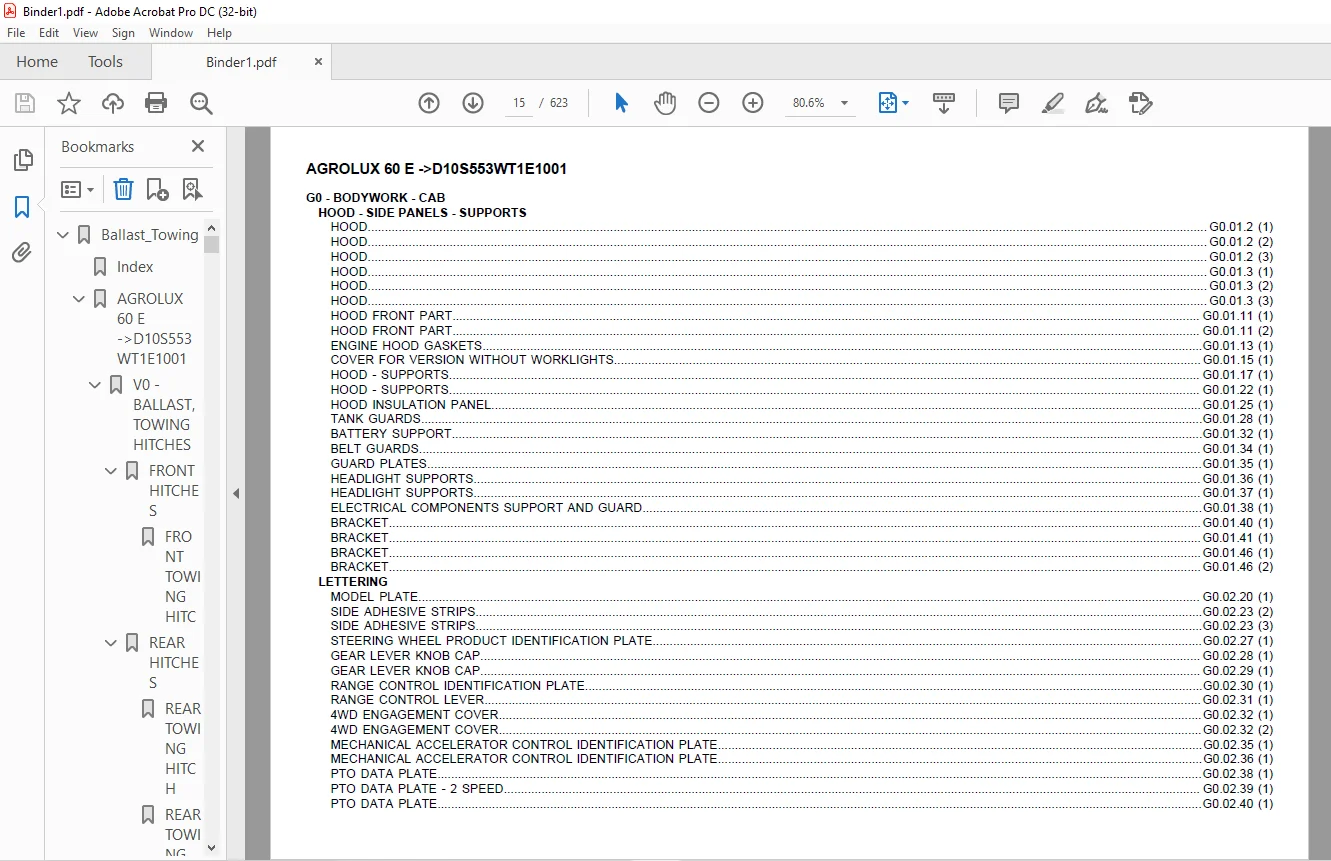

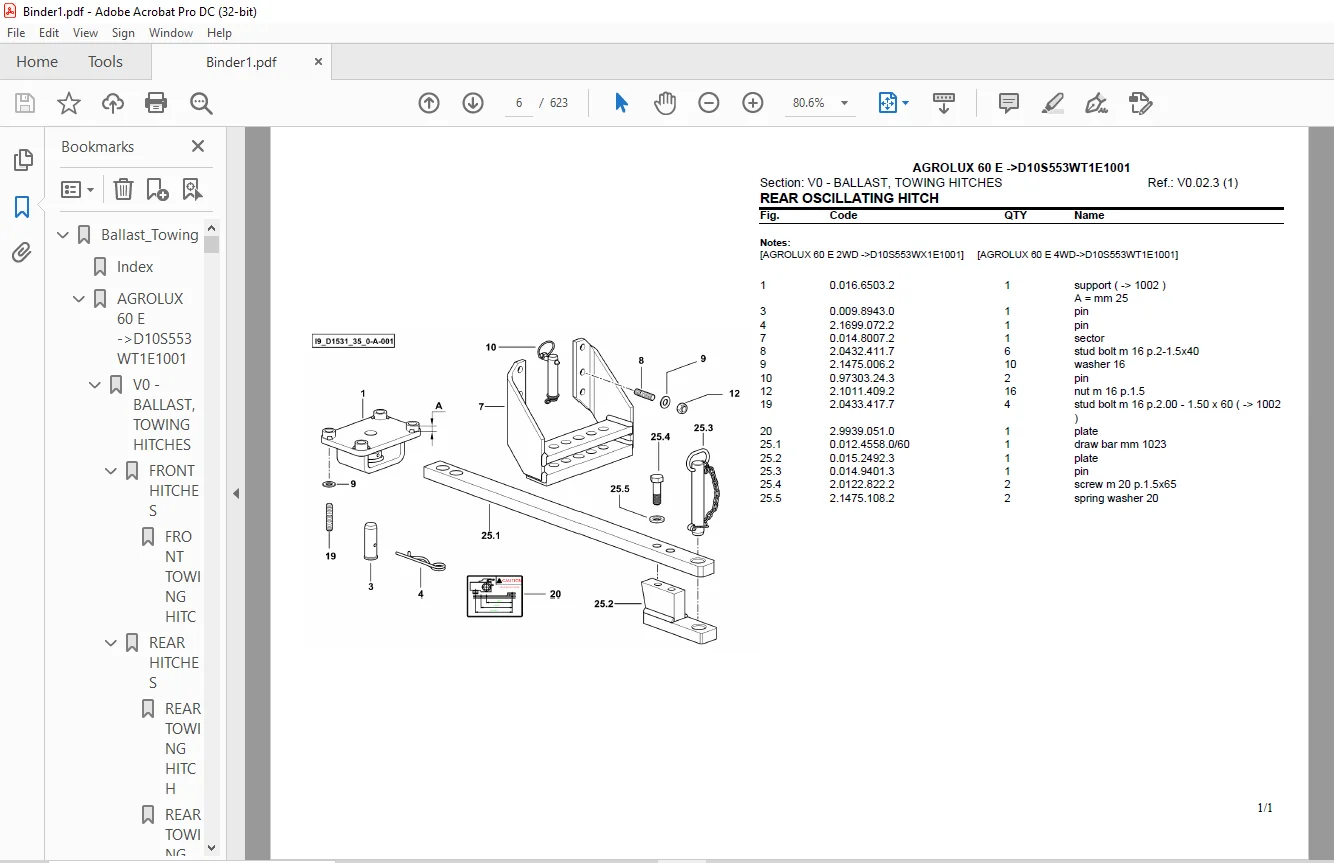

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

https://vimeo.com/810463244

TABLE OF CONTENTS:

Deutz Fahr Agrolux 60 E After D10S553WTE1001 Parts Catalog Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
AGROLUX 60 E ->D10S553WT1E1001 2
V0 – BALLAST, TOWING HITCHES 2
FRONT HITCHES 2
FRONT TOWING HITCH (V0 01 0 (1)) 2
REAR HITCHES 3
REAR TOWING HITCH (V0 02 0 (1)) 3
REAR TOWING HITCH (V0 02 1 (1)) 4
REAR GEARBOX BRACKETS (V0 02 2 (1)) 5
REAR OSCILLATING HITCH (V0 02 3 (1)) 6
FRONT BALLAST WEIGHTS 7
FRONT WEIGHT CARRIER (V0 03 0 (1)) 7
FRONT BALLAST (V0 03 1 (1)) 8
FRONT BALLAST (V0 03 2 (1)) 9
FRONT BALLAST (V0 03 3 (1)) 10
WHEEL BALLAST 11
WHEEL BALLAST REAR 172 Kg (V0 05 0 (1)) 11
WHEEL BALLAST 172 Kg (V0 05 1 (1)) 12
WHEEL BALLAST REAR 344 Kg (V0 05 2 (1)) 13
WHEEL BALLAST 344 Kg (V0 05 3 (1)) 14
Bodywork_Cab 15
Index 15
AGROLUX 60 E ->D10S553WT1E1001 19
G0 – BODYWORK – CAB 19
HOOD – SIDE PANELS – SUPPORTS 19
HOOD (G0 01 2 (1)) 19
HOOD (G0 01 2 (2)) 20
HOOD (G0 01 2 (3)) 21
HOOD (G0 01 3 (1)) 22
HOOD (G0 01 3 (2)) 23
HOOD (G0 01 3 (3)) 24
HOOD FRONT PART (G0 01 11 (1)) 25
HOOD FRONT PART (G0 01 11 (2)) 26
ENGINE HOOD GASKETS (G0 01 13 (1)) 27
COVER FOR VERSION WITHOUT WORKLIGHTS (G0 01 15 (1)) 28
HOOD – SUPPORTS (G0 01 17 (1)) 29
HOOD – SUPPORTS (G0 01 22 (1)) 30
HOOD INSULATION PANEL (G0 01 25 (1)) 31
TANK GUARDS (G0 01 28 (1)) 32
BATTERY SUPPORT (G0 01 32 (1)) 33
BELT GUARDS (G0 01 34 (1)) 34
GUARD PLATES (G0 01 35 (1)) 35
HEADLIGHT SUPPORTS (G0 01 36 (1)) 36
HEADLIGHT SUPPORTS (G0 01 37 (1)) 37
ELECTRICAL COMPONENTS SUPPORT AND GUARD (G0 01 38 (1)) 38
BRACKET (G0 01 40 (1)) 39
BRACKET (G0 01 41 (1)) 40
BRACKET (G0 01 46 (1)) 41
BRACKET (G0 01 46 (2)) 42
LETTERING 43
MODEL PLATE (G0 02 20 (1)) 43
SIDE ADHESIVE STRIPS (G0 02 23 (2)) 44
SIDE ADHESIVE STRIPS (G0 02 23 (3)) 45
STEERING WHEEL PRODUCT IDENTIFICATION PLATE (G0 02 27 (1)) 46
GEAR LEVER KNOB CAP (G0 02 28 (1)) 47
GEAR LEVER KNOB CAP (G0 02 29 (1)) 48
RANGE CONTROL IDENTIFICATION PLATE (G0 02 30 (1)) 49
RANGE CONTROL LEVER (G0 02 31 (1)) 50
4WD ENGAGEMENT COVER (G0 02 32 (1)) 51
4WD ENGAGEMENT COVER (G0 02 32 (2)) 52
MECHANICAL ACCELERATOR CONTROL IDENTIFICATION PLATE (G0 02 35 (1)) 53
MECHANICAL ACCELERATOR CONTROL IDENTIFICATION PLATE (G0 02 36 (1)) 54
PTO DATA PLATE (G0 02 38 (1)) 55
PTO DATA PLATE – 2 SPEED (G0 02 39 (1)) 56
PTO DATA PLATE (G0 02 40 (1)) 57
PTO DATA PLATE (G0 02 41 (1)) 58
WARNING PLATE (G0 02 43 (1)) 59
FOLDING ROLL BAR WARNING PLATE (G0 02 44 (1)) 60
WARNING PLATES (G0 02 46 (1)) 61
WARNING PLATES (G0 02 46 (2)) 62
WARNING PLATES (G0 02 48 (1)) 63
WATER COOLER IDENTIFICATION PLATE (G0 02 50 (1)) 64
BRAKE FLUID DECAL (G0 02 51 (1)) 65
IDENTIFICATION PLATE (G0 02 52 (1)) 66
IDENTIFICATION PLATE (G0 02 53 (1)) 67
DIFFERENTIAL LOCK IDENTIFICATION PLATE (G0 02 57 (1)) 68
DIFFERENTIAL LOCK IDENTIFICATION PLATE (G0 02 58 (1)) 69
DIFFERENTIAL LOCK IDENTIFICATION PLATE (G0 02 59 (1)) 70
DIFFERENTIAL LOCK IDENTIFICATION PLATE (G0 02 60 (1)) 71
DIFFERENTIAL LOCK IDENTIFICATION PLATE (G0 02 61 (1)) 72
REAR LIFT DECAL (G0 02 65 (1)) 73
REAR LIFT DECAL (G0 02 66 (1)) 74
REAR LIFT DECAL (G0 02 67 (1)) 75
CAB STRUCTURE – PLATFORM -SUSPENSION 76
LADDER (G0 03 0 (1)) 76
STEP (G0 03 1 (1)) 77
STEP (G0 03 2 (1)) 78
STEP (G0 03 3 (1)) 79
LADDER (G0 03 4 (1)) 80
FENDERS – FOOTSTEPS – EXTENSIONS 81
4WD – FRONT MUDGUARDS (G0 04 0 (1)) 81
REAR MUDGUARDS A: mm 668 (G0 04 4 (1)) 83
REAR MUDGUARDS A: mm 668 (G0 04 5 (1)) 84
REAR MUDGUARDS A: mm 668 (G0 04 6 (1)) 85
REAR MUDGUARDS A: mm 718 (G0 04 10 (1)) 86
REAR MUDGUARDS A: mm 718 (G0 04 11 (1)) 87
REAR MUDGUARDS A: mm 718 (G0 04 12 (1)) 88
REAR MUDGUARDS A: mm 753 (G0 04 15 (1)) 89
REAR MUDGUARDS A: mm 753 (G0 04 16 (1)) 90
REAR MUDGUARDS A: mm 753 (G0 04 17 (1)) 91
FENDER SPACERS (G0 04 21 (1)) 92
MUDGUARDS EXTENSIONS (G0 04 22 (1)) 93
MUDGUARDS EXTENSIONS (G0 04 23 (1)) 94
REAR SPLASHGUARDS (G0 04 24 (1)) 95
HEADLIGHT SUPPORTS (G0 04 25 (1)) 96
REAR LIGHT SUPPORTS (G0 04 26 (1)) 97
FOOT PLATES AND PLATFORM (G0 04 27 (1)) 98
FOOT PLATES AND PLATFORM (G0 04 28 (1)) 99
FOOT PLATES AND PLATFORM (G0 04 29 (1)) 100
FOOT PLATES AND PLATFORM (G0 04 31 (1)) 101
FOOT PLATES AND PLATFORM (G0 04 32 (1)) 102
STONE GUARD (G0 04 38 (1)) 103
INTERIOR TRIM 104
DASHBOARD (G0 06 0 (1)) 104
DASHBOARD (G0 06 1 (1)) 105
INSTRUMENT PANEL AND SUPPORTS (G0 06 4 (1)) 106
CONVEYOR (G0 06 6 (1)) 107
EXTERIOR TRIM – ROOF 108
SUN GUARD ROOF (G0 07 0 (1)) 108
SUNBLIND ROOF SUPPORT (G0 07 1 (1)) 109
REARVIEW MIRROR (G0 07 2 (1)) 110
REARVIEW MIRROR (G0 07 3 (1)) 111
REARVIEW MIRROR (G0 07 4 (1)) 112
REARVIEW MIRROR (G0 07 5 (1)) 113
REARVIEW MIRROR (0 010 1604 4/40 A) 114
REARVIEW MIRROR (0 010 1605 4/40 A) 115
SEATS 116
FIXED DRIVER’S SEAT (G0 08 0 (1)) 116
ADJUSTABLE DRIVER’S SEAT (G0 08 2 (1)) 117
DRIVER’S SEAT MSG 83/7L (G0 08 3 (1)) 118
DRIVER’S SEAT KAB XH2 (G0 08 4 (1)) 119
SAFETY BELT (G0 08 5 (1)) 120
SEAT SUPPORT PLATE (G0 08 6 (1)) 121
PASSENGER SEAT BACK FRAME (G0 08 8 (1)) 122
PASSENGER SEAT BACK FRAME (G0 08 9 (1)) 123
SEAT-COMPONENTS (0 007 5683 4/20 A) 124
SEAT SPRINGING (0 010 5356 4 A) 125
SEAT-COMPONENTS (0 012 4782 4/20 A) 126
MECHANICAL CLUTCH CONTROLS 127
CLUTCH CONTROL (G0 10 0 (1)) 127
CLUTCH CONTROL (G0 10 1 (1)) 128
MECHANICAL BRAKE CONTROLS 129
BRAKE CONTROLS (G0 11 0 (1)) 129
BRAKE CONTROLS (G0 11 1 (1)) 130
HANDBRAKE LEVER (G0 11 5 (1)) 131
MECHANICAL – ELECTRONIC THROTTLE CONTROLS 132
MECHANICAL ACCELERATOR CONTROL AND ENGINE STOP (G0 12 1 (1)) 132
MECHANICAL ACCELERATOR CONTROL AND ENGINE STOP (G0 12 1 (2)) 133
MECHANICAL ACCELERATOR CONTROL AND ENGINE STOP (G0 12 2 (1)) 134
MECHANICAL ACCELERATOR CONTROL AND ENGINE STOP (G0 12 2 (2)) 135
HAND CONTROL FOR MECHANICAL THROTTLE (G0 12 4 (1)) 136
HAND CONTROL FOR MECHANICAL THROTTLE (G0 12 5 (1)) 137
STEERING CONTROLS 138
STEERING WHEEL (G0 13 0 (1)) 138
STEERING COLUMN (G0 13 4 (1)) 139
STEERING BOX – STEERING CONTROLS (G0 13 7 (1)) 140
LATERAL STEERING LINKAGE (G0 13 9 (1)) 141
MECHANICAL GEARSHIFT CONTROLS 142
GEARSHIFT LEVER (G0 14 0 (2)) 142
GEARSHIFT LEVER (G0 14 1 (2)) 143
RANGE CONTROL (G0 14 2 (2)) 144
4WD – DIFFERENTIAL LOCK CONTROLS 145
4WD – ENGAGEMENT CONTROL (G0 15 0 (1)) 145
REAR DIFFERENTIAL LOCK CONTROL (G0 15 1 (1)) 146
REAR DIFFERENTIAL LOCK CONTROL (G0 15 2 (1)) 147
FRONT DIFFERENTIAL LOCK CONTROL (G0 15 3 (1)) 148
PTO CONTROLS 149
P T O SHAFT DRIVE (G0 16 0 (1)) 149
P T O SHAFT DRIVE (G0 16 1 (1)) 150
P T O SHAFT DRIVE – 2 SPEED (G0 16 2 (1)) 151
PTO CLUTCH (G0 16 3 (1)) 152
LIFT CONTROLS 153
LIFT CONTROL LEVERS (G0 17 0 (2)) 153
LIFT CONTROL LEVERS (G0 17 1 (1)) 154
LIFT CONTROL LEVERS (G0 17 2 (1)) 155
LIFT CONTROL LEVERS (G0 17 2 (2)) 156
REMOTE VALVE CONTROLS 157
2-WAY REMOTE CONTROL VALVE (G0 18 0 (1)) 157
4 WAY SPOOL VALVES CONTROL (G0 18 3 (1)) 158
ACCESSORIES 159
METAL TOOLBOX (G0 19 0 (1)) 159
METAL TOOLBOX (G0 19 1 (1)) 160
METAL TOOLBOX (G0 19 2 (1)) 161
METAL TOOLBOX (G0 19 2 (2)) 162
TOOLBOX SUPPORT (G0 19 3 (1)) 163
TOOLBOX SUPPORT (G0 19 4 (1)) 164
WARNING TRIANGLE (G0 19 5 (1)) 165
WARNING TRIANGLE (G0 19 6 (1)) 166
LICENCE PLATE HOLDER (G0 19 8 (1)) 167
LICENCE PLATE HOLDER (G0 19 9 (1)) 168
LICENCE PLATE HOLDER (G0 19 10 (1)) 169
TOOL POUCH (G0 19 12 (1)) 170
SAFETY ROLL BAR 171
SAFETY ARCH (G0 20 0 (1)) 171
SAFETY ARCH FOLDING (G0 20 1 (1)) 172
SAFETY ARCH FOLDING (G0 20 2 (1)) 173
SAFETY ROLL BAR MOUNTINGS (G0 20 4 (1)) 174
Electrical_system 175
Index 175
AGROLUX 60 E ->D10S553WT1E1001 177
L0 – ELECTRIC AL SYSTEM 177
BATTERY – ALTERNATOR 177
BATTERY 12V 64Ah 410A (L0 01 0 (1)) 177
ALTERNATOR (L0 01 3 (1)) 178
ALTERNATOR (L0 01 4 (1)) 179
ALTERNATOR 14V – 65A (L0 01 5 (1)) 180
ALTERNATOR AND BELT TENSIONER SUPPORT (L0 01 7 (1)) 181
ALTERNATOR PULLEY (L0 01 9 (1)) 182
ALTERNATOR PARTS (2 9439 420 0/10 A) 183
WIRING LOOMS 184
HEADLIGHTS / HORN WIRING (L0 02 2 (1)) 184
HEADLIGHTS / HORN WIRING (L0 02 3 (1)) 185
ELECTRICAL EQUIPMENT FRONT (L0 02 4 (1)) 186
WIRING AND RELAY FOR FRONT WORK LIGHTS (L0 02 9 (1)) 187
CENTRAL WIRING (L0 02 13 (1)) 188
CENTRAL WIRING LOOM (L0 02 14 (1)) 189
ELECTRICAL EQUIPMENT REAR (L0 02 18 (1)) 190
ELECTRICAL EQUIPMENT REAR (L0 02 18 (2)) 191
PREARRANGEMENT FOR WARNING BEACON (L0 02 19 (1)) 192
PREARRANGEMENT FOR WARNING BEACON (L0 02 20 (1)) 193
REAR LIGHTS ELECTRICAL SYSTEM – SINGLE POLE SOCKET (L0 02 21 (1)) 194
REAR LIGHTS ELECTRICAL SYSTEM – SINGLE POLE SOCKET (L0 02 21 (2)) 195
REAR LIGHTS ELECTRICAL SYSTEM (L0 02 22 (1)) 196
REAR LIGHTS ELECTRICAL SYSTEM (L0 02 23 (1)) 197
TRAILER SOCKET BRACKET (L0 02 26 (1)) 198
TRAILER SOCKET BRACKET (L0 02 26 (2)) 199
TRAILER SOCKET-OUTLET (L0 02 27 (1)) 200
ELETRICAL EQIPMENT FOR 2 – SPEED P T O (L0 02 28 (1)) 201
FLASHING LIGHT SUPPORT (0 011 7840 4 A) 202
CENTRAL WIRING LOOM (0 015 3646 4/20 A) 203
ELECTRICAL SYSTEM (0 015 3649 4/10 A) 204
SENSORS – POTENTIOMETERS – ENABLING SWITCHES 205
COOLING SYSTEM MANIFOLD SENSOR (L0 04 0 (1)) 205
COOLING SYSTEM MANIFOLD SENSOR (L0 04 1 (1)) 206
START ENABLE SWITCH (L0 04 6 (1)) 207
START ENABLE SWITCH (L0 04 7 (1)) 208
PTO CONTROL SWITCH (L0 04 9 (1)) 209
PTO CONTROL SWITCH (L0 04 10 (1)) 210
PTO CLUTCH SENSOR (L0 04 11 (1)) 211
PRESSURE SWITCH FOR BRAKE LIGHTS (L0 04 13 (1)) 212
FISSAGGIO PROTEZIONE PRESSOSTATO PER LUCI STOP (L0 04 13 (2)) 213
PRESSURE SWITCH FOR BRAKE LIGHTS (L0 04 14 (1)) 214
PRESSURE SWITCH FOR BRAKE LIGHTS (L0 04 15 (1)) 215
HAND BRAKE SWITCHES (L0 04 20 (1)) 216
AIR FILTER BLOCKAGE SENSOR (L0 04 23 (1)) 217
OIL FILTER CLOGGING SENSOR (L0 04 27 (1)) 218
ENGINE OIL PRESSURE SENSOR SENSORS (L0 04 30 (1)) 219
ENGINE OIL PRESSURE SWITCH (L0 04 31 (1)) 220
INSTRUMENT PANEL 221
DASHBOARD BOX INSTRUMENT PANEL (L0 05 1 (1)) 221
ELECTRICAL CONTROLS – PUSHBUTTONS 222
ELECTRICAL CONTROLS (L0 07 0 (1)) 222
ELECTRICAL CONTROLS (L0 07 1 (1)) 223
SWITCH – WORKING SPOTLIGHT FRONT (L0 07 6 (1)) 224
IGNITION BLOCK (2 7659 147 0/10 A) 225
LIGHTING AND SIGNALLING 226
HEADLIGHTS \ HORN (L0 08 4 (1)) 226
HEADLIGHTS \ HORN (L0 08 5 (1)) 227
WORKING SPOTLIGHT FRONT (L0 08 6 (1)) 228
WARNING BEACON (L0 08 8 (1)) 229
LIGHTING SYSTEM (L0 08 9 (1)) 230
LIGHTING SYSTEM (L0 08 10 (1)) 231
FRONT SIDELIGHTS AND TURN INDICATORS (L0 08 13 (1)) 232
REAR SIDELIGHTS AND TURN INDICATORS (L0 08 14 (1)) 233
LICENCE PLATE LIGHT (L0 08 15 (1)) 234
REAR WORKLIGHT (L0 08 16 (1)) 235
BUZZER (L0 08 17 (1)) 236
BUZZER (L0 08 17 (2)) 237
TOP REFLECTORS (L0 08 18 (1)) 238
REAR REFLECTORS (L0 08 19 (1)) 239
RETROREFLECTOR (L0 08 21 (1)) 240
HEADLAMP COMPONENTS (2 8039 160 0 A) 241
FRONT LIGHTS (2 8039 240 0 A) 242
FRONT LIGHTS (2 8039 250 0 A) 243
Engine 244
Index 244
AGROLUX 60 E ->D10S553WT1E1001 246
B0 – ENGINE 246
CYLINDER BLOCK 246
CRANKCASE (B0 01 0 (1)) 246
FLANGE (B0 01 3 (1)) 247
FITTING FOR ENGINE OIL PRESSURE SWITCH (B0 01 6 (1)) 248
CRANKSHAFT 249
CRANKSHAFT (B0 02 0 (1)) 249
ENGINE FLYWHEEL (B0 02 3 (1)) 250
ENGINE FLYWHEEL (B0 02 4 (1)) 251
CRANKSHAFT PULLEY (B0 02 6 (1)) 252
COOLANT PUMP DRIVEBELT (B0 02 8 (1)) 253
COOLANT PUMP DRIVEBELT (B0 02 9 (1)) 254
CYLINDERS – PISTONS – CONNECTING RODS 255
CYLINDER – PISTON – CONNECTING ROD (B0 03 0 (1)) 255
TIMING 256
CAMSHAFT (B0 04 0 (2)) 256
TIMING CASE (B0 04 4 (1)) 257
CYLINDER HEAD 258
CYLINDER HEAD (B0 05 0 (1)) 258
LUBRICATION 259
ENGINE OIL PUMP (B0 06 0 (1)) 259
LUBRICATION (B0 06 4 (1)) 260
LUBRICATION (B0 06 8 (1)) 261
LUBRICANT OIL SUCTION PIPE (B0 06 13 (1)) 262
ENGINE OIL FILTER (B0 06 14 (1)) 263
ENGINE OIL FILTER (B0 06 15 (1)) 264
ENGINE OIL FILTER (B0 06 16 (1)) 265
ENGINE OIL PAN (B0 06 17 (1)) 266
PIPE FOR OIL PRESSURE SENSOR (B0 06 20 (1)) 267
SEDIMENTER BOWL BREATHER PIPE (B0 06 22 (1)) 268
FUEL SETTLING FILTER VENT HOSE BRACKET (B0 06 25 (1)) 269
FUEL INJECTION SYSTEM 270
INJECTION PUMP – INJECTOR (B0 07 0 (1)) 270
INJECTION PUMP DRIVE (B0 07 3 (1)) 271
INJECTION PUMP PARTS – 555 – BOSCH (2 4619 030 0/30 A) 272
INJECTOR NOZZLE HOLDER COMPONENTS (2 4719 190 0 A) 273
MECHANICAL – ELECTRONIC GOVERNOR 274
MECHANICAL ENGINE GOVERNOR (B0 08 0 (1)) 274
GOVERNOR PARTS (0 014 8125 4 A) 275
GOVERNOR PARTS (0 014 8125 4 B) 276
GOVERNOR PARTS (0 014 8125 4 C) 277
COOLING 278
CYLINDER HEAD WATER OUTLET MANIFOLD (B0 09 0 (1)) 278
CYLINDER HEAD WATER OUTLET MANIFOLD (B0 09 1 (1)) 279
COOLING WATER PUMP – V-GROOVED PULLEY (B0 09 5 (1)) 280
COOLING WATER PUMP – V-GROOVED PULLEY (B0 09 6 (1)) 281
COOLING WATER PUMP (0 014 3346 4 A) 282
INTAKE – EXHAUST MANIFOLDS 283
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (B0 10 0 (1)) 283
Engine_accessories 284
Index 284
AGROLUX 60 E ->D10S553WT1E1001 285
C0 – ENGINE ACCESSORIES 285
RADIATORS – FANS 285
WATER COOLER (C0 01 0 (1)) 285
WATER COOLER (C0 01 1 (1)) 286
WATER COOLER (C0 01 4 (1)) 287
WATER COOLER (C0 01 4 (2)) 288
BLOWER (C0 01 7 (1)) 289
BLOWER (C0 01 8 (1)) 290
INTERCOOLER – AIR CLEANER 291
AIR FILTER 7″ (C0 02 0 (1)) 291
OIL-BATH AIR FILTER (C0 02 5 (1)) 292
AIR PRE-CLEANER (C0 02 6 (1)) 293
AIR PRE-CLEANER (C0 02 7 (1)) 294
AIR CLEANER (2 4219 270 0 A) 295
AIR CLEANER (2 4249 721 0 A) 296
FUEL SYSTEM 297
FUEL TANK (C0 03 0 (2)) 297
FUEL TANK (C0 03 0 (3)) 298
DIESEL HOSE (C0 03 4 (1)) 299
GUARD (C0 03 6 (1)) 300
FUEL SUPPLY PUMP (C0 03 7 (1)) 301
FUEL PRELIMINARY FILTER (C0 03 10 (1)) 302
FUEL PRELIMINARY FILTER (C0 03 10 (2)) 303
FUEL FILTER WITH PIPES (C0 03 11 (1)) 304
FUEL PIPES (C0 03 14 (1)) 305
WATER SEPARATOR (C0 03 17 (1)) 306
WATER SEPARATOR HOSE (C0 03 18 (1)) 307
PRE-FILTER – COMPONENTS (2 4319 220 0 A) 308
FUEL FILTER (2 4319 250 0 A) 309
STARTER MOTOR 310
STARTER (C0 05 1 (1)) 310
STARTER (C0 05 2 (1)) 311
STARTER MOTOR COVER (C0 05 4 (1)) 312
EXHAUST SILENCER 313
EXHAUST SILENCER (C0 06 0 (2)) 313
EXHAUST PIPE (C0 06 4 (1)) 314
EXHAUST PIPE (C0 06 7 (1)) 315
SEALING SET 316
GASKET SET FOR ENGINE ASSEMBLY (C0 09 0 (1)) 316
Front_axle 317
Index 317
AGROLUX 60 E ->D10S553WT1E1001 319
F0 – FRONT AXLE 319
FRONT SUPPORT 319
FRONT SUPPORT (F0 01 0 (1)) 319
4WD – FRONT SUPPORT (F0 01 2 (1)) 320
2WD FRONT AXLE 321
2WD – AXLE (F0 02 0 (1)) 321
2WD – AXLE (F0 02 1 (1)) 322
2WD – AXLE (F0 02 2 (1)) 323
2WD – EXTENDIBLE AXLE (F0 02 3 (1)) 325
2WD – EXTENDIBLE AXLE (F0 02 4 (1)) 327
2WD – EXTENDIBLE AXLE (F0 02 6 (1)) 329
2WD – STEERING LEVERS (F0 02 8 (1)) 330
2WD – STEERING LEVERS (F0 02 9 (1)) 331
4WD FRONT AXLE 332
4WD – FRONT DRIVE AXLE (F0 03 0 (1)) 332
4WD – FRONT AXLE YOKES (F0 03 1 (1)) 333
4WD – FORCELLE PONTE ANTERIORE PER TIPI SENZA FRENI (F0 03 2 (1)) 334
4WD – FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0 03 3 (1)) 335
4WD – WATER PROOF SEALING (F0 03 4 (1)) 336
BLEED SCREW (F0 03 5 (1)) 337
4WD – COMPLETION (F0 03 6 (1)) 338
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (0 010 0488 4/10 A) 339
FRONT DIFFERENTIAL 340
DIFFERENTIAL BEVEL GEAR PAIR (F0 04 0 (2)) 340
4WD – FRONT DIFFERENTIAL LOCK- WATER PROOF SEALING (F0 04 1 (1)) 341
4WD – DIFFERENTIAL LOCK CONTROL-FRONT (F0 04 2 (1)) 342
4WD – FLANGE (F0 04 3 (1)) 343
4WD – TRANSMISSION SHAFT (F0 04 4 (2)) 344
4WD – TRANSMISSION SHAFT (F0 04 4 (3)) 345
4WD – PROPELLER SHAFT – GUARDS (F0 04 7 (1)) 346
STEERING CYLINDER 347
2WD – POWER STEERING CYLINDER (F0 05 0 (1)) 347
4WD – POWER STEERING CYLINDER (F0 05 2 (1)) 348
CYLINDER PARTS (0 009 9892 4/10 A) 349
CYLINDER PARTS (0 467 6342 4 A) 350
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS 351
4WD – FRONT REDUCTION GEARBOX (F0 06 0 (2)) 351
4WD – FRONT REDUCTION GEARBOX (F0 06 0 (3)) 352
4WD – AXLESHAFTS (F0 06 1 (1)) 353
4WD – AXLESHAFTS (F0 06 2 (1)) 354
FRONT WHEEL HUB COVER (F0 06 3 (1)) 355
4WD – AXLESHAFTS (0 009 6694 4/30 B) 356
FRONT BRAKES 357
4WD – FRONT BRAKES (F0 07 0 (1)) 357
Hydraulic_and_pneumatic_system 358
Index 358
AGROLUX 60 E ->D10S553WT1E1001 360
H0 – HYDRAULIC AND PNEUMATIC SYSTEM| 360
HYDRAULIC SYSTEM 360
HYDRAULIC SYSTEM (H0 01 0 (1)) 360
HYDRAULIC SYSTEM (H0 01 0 (2)) 361
HYDRAULIC SYSTEM (H0 01 1 (1)) 362
HYDRAULIC SYSTEM (H0 01 1 (2)) 363
HYDRAULIC SYSTEM (H0 01 1 (3)) 364
HYDRAULIC SYSTEM (H0 01 4 (1)) 365
HYDRAULIC PUMP 14 cc dx/rh/re (H0 01 7 (1)) 366
HYDRAULIC PUMP 8 cc – sx/lh/li (H0 01 9 (1)) 367
INTAKE HOSE FROM FILTER TO SAC PUMP – FIRST SECTION (H0 01 10 (1)) 368
SAC DELIVERY HOSE – FIRST SECTION (H0 01 11 (1)) 369
LUBRIC OIL FILTER (H0 01 12 (1)) 370
LUBRIC OIL FILTER (H0 01 13 (1)) 371
OIL FILTER BRACKET (H0 01 14 (1)) 372
OIL FILTER BRACKET (H0 01 15 (1)) 373
HOSE FROM REAR LIFT CYLINDER TO REAR CONTROL VALVE (H0 01 17 (1)) 374
HYDRAULICS FROM LIFT CYLINDER TO TRAILER (H0 01 19 (1)) 375
HYDRAULICS FROM LIFT CYLINDER TO TRAILER (H0 01 20 (1)) 376
SUPPLY LINE TO REMOTE CONTROL VALVE (H0 01 21 (1)) 377
HYDRAULIC SYSTEM – FOR 2-WAY AUXILIARY CONTROL VALVE (H0 01 22 (1)) 378
HYDRAULIC SYSTEM – FOR 2-WAY AUXILIARY CONTROL VALVE (H0 01 22 (2)) 379
HYDRAULIC SYSTEM – FOR 2-WAY AUXILIARY CONTROL VALVE (H0 01 22 (3)) 380
HYDRAULIC SYSTEM – FOR 4-WAY DISTRIBUTOR (H0 01 23 (1)) 381
HYDRAULIC SYSTEM – FOR 4-WAY DISTRIBUTOR (H0 01 23 (2)) 382
HYDRAULIC SYSTEM – FOR 4-WAY DISTRIBUTOR (H0 01 23 (3)) 383
SUPPLY LINE TO REMOTE CONTROL VALVE (H0 01 24 (1)) 384
GEARBOX LUBRICATION HOSE (H0 01 31 (1)) 385
LUBRICAT OIL LINE (H0 01 33 (1)) 386
LUBRICAT OIL LINE (H0 01 34 (1)) 387
GEARBOX LUBRICATION HOSE (H0 01 36 (1)) 388
PLUG (H0 01 37 (1)) 389
BRAKE COOLING VESSEL (H0 01 38 (1)) 390
BRAKE COOLING VESSEL (H0 01 39 (1)) 391
BRAKES LUBRICATION PIPE (H0 01 40 (1)) 392
BRAKES LUBRICATION PIPE (H0 01 41 (1)) 393
BRAKES LUBRICATION PIPE (H0 01 41 (2)) 394
HYDRAULIC PUMP PARTS (2 4539 190 0 A) 395
STEERING SYSTEM 396
HYDRAULIC STEERING GEAR – 2WD (H0 02 0 (1)) 396
HYDRAULIC STEERING GEAR – 2WD (H0 02 2 (1)) 397
HYDRAULIC STEERING GEAR – 4WD (H0 02 3 (1)) 398
HYDRAULIC STEERING GEAR – 4WD (H0 02 4 (1)) 399
PIPES FOR HYDROSTATIC STEERING (H0 02 6 (1)) 400
PIPES FOR HYDROSTATIC STEERING (H0 02 6 (2)) 401
PIPES FOR HYDROSTATIC STEERING – 2WD (H0 02 9 (1)) 402
PIPES FOR HYDROSTATIC STEERING – 4WD (H0 02 12 (1)) 403
PIPES FOR HYDROSTATIC STEERING – 4WD (H0 02 12 (2)) 404
GUARD PLATE (H0 02 14 (1)) 405
GUARD PLATE (H0 02 15 (1)) 406
HYDR STEERING DISTRIBUTOR PARTS (0 009 3141 4/10 A) 407
HYDR STEERING DISTRIBUTOR PARTS (0 290 6310 4/10 A) 408
POWER STEERING (2 4569 001 0 A) 409
HYDRAULIC STEERING GEAR (2 4569 004 0 A) 410
REAR REMOTE CONTROL VALVES 411
2-WAY AUXILIARY DISTRIBUTOR (H0 07 0 (1)) 411
4-WAY AUXILIARY DISTRIBUTOR (H0 07 2 (2)) 412
HYDRAULIC DISTRIBUTOR-PARTS (0 009 2006 4 A) 413
ENGAGEMENT (0 98308 50 3/10 A) 415
HYDRAULIC DISTRIBUTOR-PARTS (2 3719 380 0 A) 416
BRAKING SYSTEM AND PNEUMATIC SYSTEM| 417
BRAKING SYSTEM (H0 09 0 (1)) 417
BRAKING SYSTEM (H0 09 1 (1)) 418
BRAKE PIPES (H0 09 5 (1)) 419
BRAKE PIPES (H0 09 7 (1)) 420
FRONT BRAKING SYSTEM (H0 09 10 (1)) 421
FLOW CONTROL VALVE (H0 09 12 (1)) 422
BLAKES BLOCK (H0 09 13 (1)) 423
BLAKES BLOCK (H0 09 14 (1)) 424
BRAKES BLOCK BRACKET (H0 09 16 (1)) 425
BRAKES BLOCK BRACKET (H0 09 17 (1)) 426
Rear_axle 427
Index 427
AGROLUX 60 E ->D10S553WT1E1001 428
E0 – REAR AXLE 428
REAR AXLE 428
REAR AXLE (E0 01 0 (2)) 428
REAR AXLE (E0 01 1 (1)) 429
PARTS SET FOR REAR AXLE – WATERPROOF SEAL (E0 01 2 (1)) 430
PARTS SET FOR REAR AXLE – WATERPROOF SEAL (E0 01 3 (1)) 431
REAR DIFFERENTIAL / HALF-SHAFTS 432
DIFFERENTIAL (E0 02 0 (1)) 432
DIFFERENTIAL (E0 02 0 (2)) 433
DIFFERENTIAL (E0 02 0 (3)) 434
DIFFERENTIAL (E0 02 1 (1)) 435
DIFFERENTIAL (E0 02 2 (1)) 436
DIFFERENTIAL LOCK CONTROL (E0 02 3 (1)) 437
DIFFERENTIAL LOCK CONTROL (E0 02 4 (1)) 438
REAR REDUCTION GEARS AND AXLE SHAFTS (E0 02 5 (1)) 439
REAR REDUCTION GEARS AND AXLE SHAFTS (E0 02 7 (1)) 440
REAR BRAKES 441
REAR BRAKES (E0 03 0 (1)) 441
REAR BRAKES (E0 03 0 (2)) 442
REAR BRAKES (E0 03 1 (1)) 443
REAR BRAKES (E0 03 2 (1)) 444
REAR BRAKES (E0 03 2 (2)) 445
REAR BRAKES (E0 03 3 (1)) 446
REAR BRAKES (E0 03 3 (2)) 447
Rear_lift 448
Index 448
AGROLUX 60 E ->D10S553WT1E1001 449
R0 – REAR LIFT 449
LIFT COVER 449
S A C CASE (R0 01 0 (1)) 449
LUBRIC OIL FILTER (R0 01 1 (1)) 450
LIFT ASSEMBLY 451
LIFTING (R0 02 0 (2)) 451
PLUG (R0 02 2 (1)) 452
LIFT CONTROL VALVE 453
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (R0 03 0 (1)) 453
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (R0 03 1 (1)) 455
IN-CAB CONTROLS 457
INTERNAL AND EXTERNAL CONTROLS (R0 04 0 (1)) 457
SENSOR 458
SENSITIVE ELEMENTS (R0 05 0 (1)) 458
SENSITIVE ELEMENTS (R0 05 0 (2)) 459
SENSITIVE ELEMENTS (R0 05 1 (1)) 460
THREE-POINT LINKAGE – LINK ARMS 461
3 POINT HITCH (R0 06 0 (1)) 461
THREE-POINT COUPLING (R0 06 1 (1)) 462
THREE-POINT COUPLING (R0 06 2 (1)) 463
THREE-POINT COUPLING (R0 06 2 (2)) 464
THREE-POINT HITCH COMPLEMENT (R0 06 7 (1)) 465
3-POINT HITCH – SIDE STABILIZERS (R0 06 8 (1)) 466
3-POINT HITCH – SIDE STABILIZERS (R0 06 9 (1)) 467
3-POINT HITCH – SIDE STABILIZERS (R0 06 10 (1)) 468
TOP LINK COUPLING SPRING (R0 06 14 (1)) 469
TOP LINK COUPLING SPRING (R0 06 15 (1)) 470
TOP LINK LOCK – FOR 2-WAY CONTROL VALVE (R0 06 16 (1)) 471
TOP LINK LOCK – FOR 4-WAY CONTROL VALVE (R0 06 17 (1)) 472
TOWING BAR (R0 06 20 (1)) 473
Transmission 474
Index 474
AGROLUX 60 E ->D10S553WT1E1001 477
D0 – TRANSMISSION 477
MAIN CLUTCH 477
CLUTCH (D0 01 0 (1)) 477
DOUBLE COUPLING (D0 01 2 (1)) 478
CLUTCH CONTROL (D0 01 5 (1)) 479
CLUTCH CONTROL (D0 01 6 (1)) 480
CLUTCH ANCILLARY PARTS KIT (D0 01 7 (1)) 481
GEARBOX INPUT SHAFT 482
GEARBOX INPUT SHAFT (D0 05 0 (1)) 482
GEARBOX INPUT SHAFT (D0 05 2 (1)) 483
PTO INPUT SHAFT 484
DRIVE SHAFT – P T O SHAFT REAR (D0 06 0 (1)) 484
DRIVE SHAFT – P T O SHAFT REAR (D0 06 1 (1)) 485
MAIN SHAFT 486
MAIN SHAFT (D0 07 0 (1)) 486
MAIN SHAFT (D0 07 1 (1)) 487
MAIN SHAFT (D0 07 2 (1)) 488
MAIN SHAFT (D0 07 3 (1)) 489
MAIN SHAFT (D0 07 4 (1)) 490
MAIN SHAFT (D0 07 5 (1)) 491
MAIN SHAFT (D0 07 6 (1)) 492
MAIN SHAFT (D0 07 7 (1)) 493
SECONDARY SHAFT 494
TRANSMISSION SHAFT (D0 08 0 (1)) 494
TRANSMISSION SHAFT (D0 08 1 (1)) 495
TRANSMISSION SHAFT (D0 08 2 (1)) 496
TRANSMISSION SHAFT (D0 08 3 (1)) 497
TRANSMISSION SHAFT (D0 08 4 (1)) 498
TRANSMISSION SHAFT (D0 08 5 (1)) 499
SYNCHRONIZER PARTS (0 009 6825 4 A) 500
GEARBOX 501
GEARBOX – FRONT (D0 09 0 (1)) 501
REAR GEARBOX CASE (D0 09 3 (1)) 502
REAR GEARBOX CASE (D0 09 3 (2)) 503
REAR GEARBOX CASE (D0 09 3 (3)) 504
GEARBOX UPPER COVER (D0 09 5 (1)) 505
GEARBOX UPPER COVER (D0 09 6 (1)) 506
AIR DUCT WALL (D0 09 8 (1)) 507
AIR DUCT WALL (D0 09 9 (1)) 508
2WD – COMPLETION (D0 09 10 (1)) 509
PLUGS FOR REAR GEARBOX CASING (D0 09 11 (1)) 510
PLUGS FOR GEARBOX (D0 09 12 (1)) 511
CAPTIVE BOLT ON REAR GEARBOX (D0 09 13 (1)) 512
INTERNAL AND EXTERNAL GEARBOX CONTROLS 513
IN-CAB GEAR CONTROLS (D0 10 1 (1)) 513
IN-CAB GEAR CONTROLS (D0 10 2 (2)) 514
IN-CAB REDUCTION GEAR CONTROLS (D0 10 4 (2)) 515
IN-CAB REDUCTION GEAR CONTROLS (D0 10 6 (1)) 516
CONTROL FOR 2-RANGE GEARBOX (D0 10 8 (1)) 517
CONTROL FOR 2-RANGE GEARBOX (D0 10 8 (2)) 518
CONTROL FOR 3-RANGE GEARBOX (D0 10 9 (1)) 519
CONTROL FOR 3-RANGE GEARBOX (D0 10 9 (2)) 520
INTERNAL CONTROLS (D0 10 10 (1)) 521
INTERNAL CONTROLS (D0 10 11 (1)) 522
INTERNAL CONTROLS (D0 10 12 (1)) 523
INTERNAL CONTROLS (D0 10 13 (1)) 524
INTERNAL CONTROLS (D0 10 14 (1)) 525
INTERNAL CONTROLS (D0 10 15 (1)) 526
LOW SPEED RANGES 527
BEVEL WHEEL GEAR (D0 11 0 (1)) 527
BEVEL WHEEL GEAR (D0 11 1 (1)) 528
BEVEL WHEEL GEAR (D0 11 2 (1)) 529
BEVEL WHEEL GEAR (D0 11 3 (1)) 530
BEVEL DRIVE PINION BEARING (D0 11 4 (1)) 531
BEVEL DRIVE PINION BEARING (D0 11 5 (1)) 532
BEVEL DRIVE PINION BEARING (D0 11 6 (1)) 533
ORDINARY 2 SPEED RANGE REDUCTION GEAR UNIT (D0 11 7 (1)) 534
2-RANGE BOX – 2WD (D0 11 8 (1)) 535
2-RANGE BOX – 4WD (D0 11 9 (1)) 536
ORDINARY 3 SPEED RANGE REDUCTION GEAR UNIT (D0 11 10 (1)) 537
3-RANGE BOX – 4WD (D0 11 11 (1)) 538
3-RANGE BOX – 2WD (D0 11 12 (1)) 539
HYDRAULIC PUMP DRIVE 540
HYDRAULIC PUMP POWER TAKEOFF (D0 13 0 (1)) 540
HYDRAULIC PUMP POWER TAKEOFF (D0 13 1 (1)) 541
PTO/GROUNDPSPEED DRIVE 542
P T O – FIXED END SHAFT 540 (D0 14 0 (1)) 542
P T O – 2 SPEED TYPE – FIXED END SHAFT 540/750 (D0 14 1 (1)) 543
P T O – 540 RPM (D0 14 2 (1)) 544
P T O – WITH N’ 540 – 750 (D0 14 3 (1)) 545
COMPLETION (D0 14 4 (1)) 546
COMPLETION (D0 14 5 (1)) 547
PTO – PARTS SET WITH STANDARD SEALS (D0 14 6 (1)) 548
PTO – PARTS SET WITH WATER PROOF SEALS (D0 14 7 (1)) 549
REAR PTO COVER (D0 14 8 (1)) 550
REAR PTO COVER (D0 14 9 (1)) 551
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE 552
4WD – ENGAGEMENT CONTROL (D0 15 0 (1)) 552
4WD – ENGAGEMENT CONTROL – WATERPROOF SEALS (D0 15 1 (1)) 553
INDEPENDENT HAND BRAKE (D0 15 2 (1)) 554
REVERSE| 555
REVERSE GEAR INTERMEDIATE SHAFT (D0 20 0 (1)) 555
REVERSE GEAR INTERMEDIATE SHAFT (D0 20 1 (1)) 556
REVERSE GEAR INTERMEDIATE SHAFT (D0 20 2 (1)) 557
REVERSE GEAR INTERMEDIATE SHAFT (D0 20 3 (1)) 558
REVERSE GEAR INTERMEDIATE SHAFT (D0 20 4 (1)) 559
REVERSE GEAR INTERMEDIATE SHAFT (D0 20 5 (1)) 560
Wheels 561
Index 561
AGROLUX 60 E ->D10S553WT1E1001 563
S0 – WHEELS 563
FRONT WHEEL BOLTS 563
2WD – FRONT WHEEL MOUNTING (S0 01 0 (1)) 563
2WD – FRONT WHEEL MOUNTING (S0 01 1 (1)) 564
2WD – FRONT WHEEL MOUNTING (S0 01 2 (1)) 565
4WD – FRONT WHEEL MOUNTING (S0 01 3 (1)) 566
REAR WHEEL BOLTS 567
REAR WHEEL BOLTS (S0 02 0 (1)) 567
REAR WHEEL BOLTS (S0 02 1 (1)) 568
2WD FRONT WHEELS 569
2WD – FRONT WHEELS 6 00 – 16 (S0 03 0 (1)) 569
2WD – FRONT WHEELS 6 00 – 16 PR8 (S0 03 1 (1)) 570
2WD – FRONT WHEELS 6 50 R20″ (S0 03 3 (1)) 571
2WD – FRONT WHEELS 6 50-20″ PR 8 (S0 03 4 (1)) 572
2WD – FRONT WHEELS 6 50-20″ PR 8 (S0 03 5 (1)) 573
2WD – FRONT WHEELS 7 50 x 16” pr 8 (S0 03 6 (1)) 574
2WD – FRONT WHEELS 7 50 x 16” pr 8 (S0 03 7 (1)) 575
2WD – FRONT WHEELS 7 50 x 16” pr 8 (S0 03 8 (1)) 576
2WD – FRONT WHEELS 7 50 x 16” pr 8 (S0 03 9 (1)) 577
WHEELS 578
WHEELS 7 50 x 20” PR6 (S0 04 0 (2)) 578
WHEELS 7 50-20″ PR8 (S0 04 1 (1)) 579
WHEELS 8 00 – 20″ (S0 04 2 (1)) 580
WHEELS 9 5-20″ PR8 A6 (S0 04 3 (1)) 581
WHEELS 250/85R20″(9 5R20″) (S0 04 4 (1)) 582
WHEELS 250/85R20″(9 5R20″) (S0 04 4 (2)) 583
WHEELS 280/85R20″ (11 2R20″) (S0 04 5 (1)) 584
WHEELS 11 2-20″ (S0 04 6 (1)) 585
WHEELS 11 2-20″ (S0 04 6 (2)) 586
WHEELS 320/85R20″(12 4R20″) (S0 04 7 (1)) 587
WHEELS 12 5-20″ (S0 04 8 (1)) 588
WHEELS 12 5-20″ (S0 04 8 (2)) 589
WHEELS 9 5-24″ (S0 04 9 (1)) 590
WHEELS 11 2-24″ (S0 04 11 (1)) 591
WHEELS 11 2-24″ (S0 04 11 (2)) 592
WHEELS 280/85R24″(11 2R24″) (S0 04 12 (1)) 593
WHEELS 320/85R28″(12 4R28″) (S0 04 13 (1)) 594
WHEELS 12 4-28″ (S0 04 14 (1)) 595
WHEELS 12 4-28″ (S0 04 15 (1)) 596
WHEELS 12 4-28″ (S0 04 16 (1)) 597
WHEELS 12 4-28″ (S0 04 17 (1)) 598
WHEELS 340/85R28″(13 6R28″) (S0 04 18 (1)) 599
WHEELS 340/85R28″(13 6R28″) (S0 04 19 (1)) 600
WHEELS 13 6-28″ (S0 04 20 (1)) 601
WHEELS 13 6-28″ (S0 04 21 (1)) 602
WHEELS 380/85R28″(14 9R28″) (S0 04 23 (1)) 603
WHEELS 380/85R28″(14 9R28″) (S0 04 24 (1)) 604
WHEELS 14 9-28″ (S0 04 25 (1)) 605
WHEELS 14 9-28″ (S0 04 26 (1)) 606
WHEELS 14 9-28″ (S0 04 27 (1)) 607
WHEELS 16 9-28″ (S0 04 28 (1)) 608
WHEELS 420/85R28 (16 9R28) TL (S0 04 29 (1)) 609
WHEELS 420/85R28 (16 9R28) TL (S0 04 30 (1)) 610
WHEELS 16 9-28″ (S0 04 31 (1)) 611
WHEELS 16 9-28″ (S0 04 32 (1)) 612
WHEELS 14 9-28″ (S0 04 33 (1)) 613
WHEELS 16 9-28″ (S0 04 34 (1)) 614
WHEELS 13 6-28″ (S0 04 35 (1)) 615
WHEELS 320/85R28″(12 4R28″) (S0 04 36 (1)) 616
WHEELS 13 6-28″PR12 A6 (S0 04 37 (1)) 617
WHEELS 13 6-28″PR12 A6 (S0 04 38 (1)) 618
WHEELS 420/85R30″(16 9R30″) (S0 04 39 (1)) 619
WHEELS 420/85R30″(16 9R30″) (S0 04 40 (1)) 620
WHEELS 16 9-30″ (S0 04 41 (1)) 621
WHEELS 16 9-30″ (S0 04 42 (1)) 622
WHEELS 320/85R36(12 4R36) (S0 04 43 (1)) 623

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
