Deutz Fahr Agrolux F 60 After 6001 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrolux F 60 After 6001 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrolux F 60 After 6001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 501
Downloadable : Yes
File Type : PDF
Size: 22.2 MB

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

https://vimeo.com/810480328

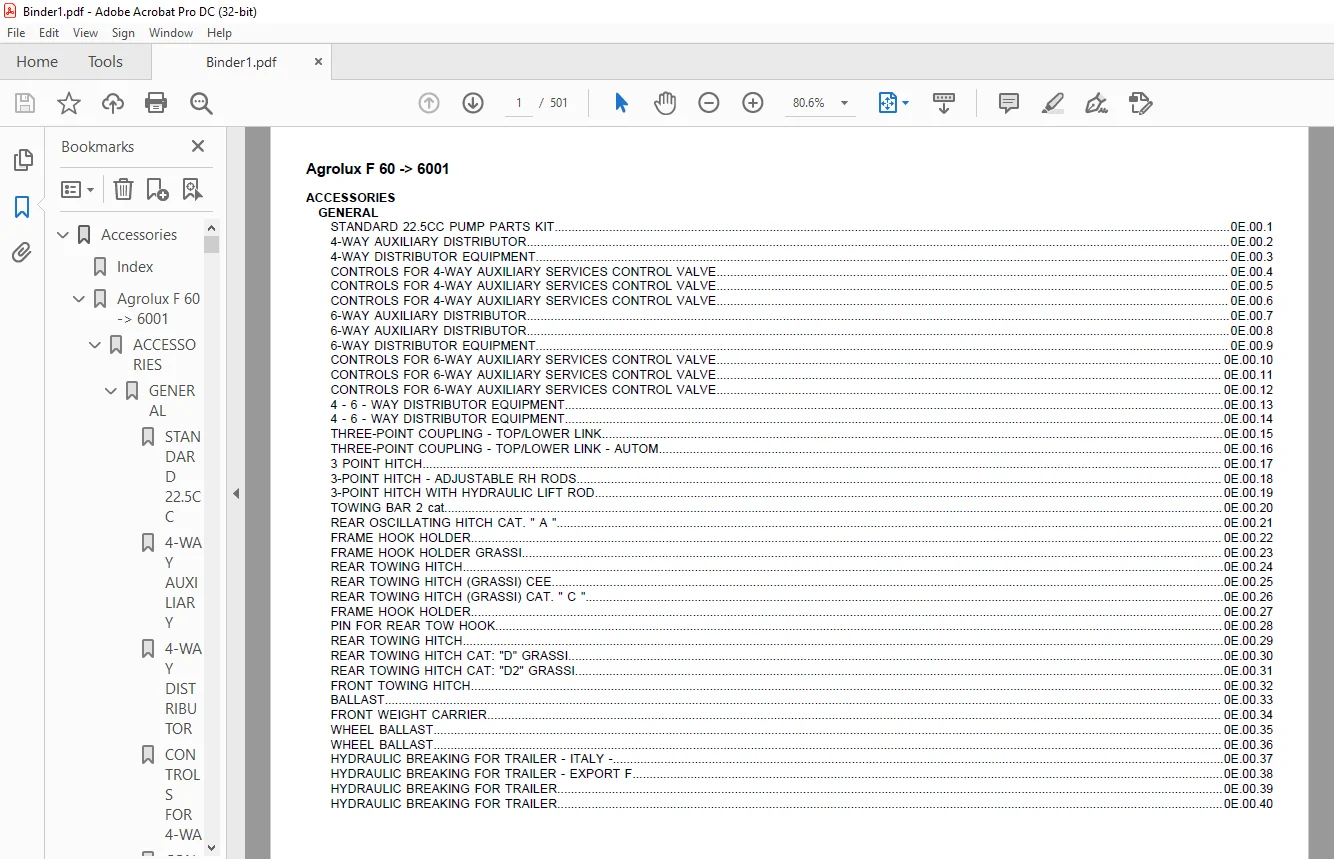

TABLE OF CONTENTS:

Deutz Fahr Agrolux F 60 After 6001 Parts Catalog Manual – PDF DOWNLOAD

Accessories 1
Index 1
Agrolux F 60 -> 6001 3
ACCESSORIES 3
GENERAL 3
STANDARD 22 5CC PUMP PARTS KIT (0E 00 1) 3
4-WAY AUXILIARY DISTRIBUTOR (0E 00 2) 4
4-WAY DISTRIBUTOR EQUIPMENT (0E 00 3) 5

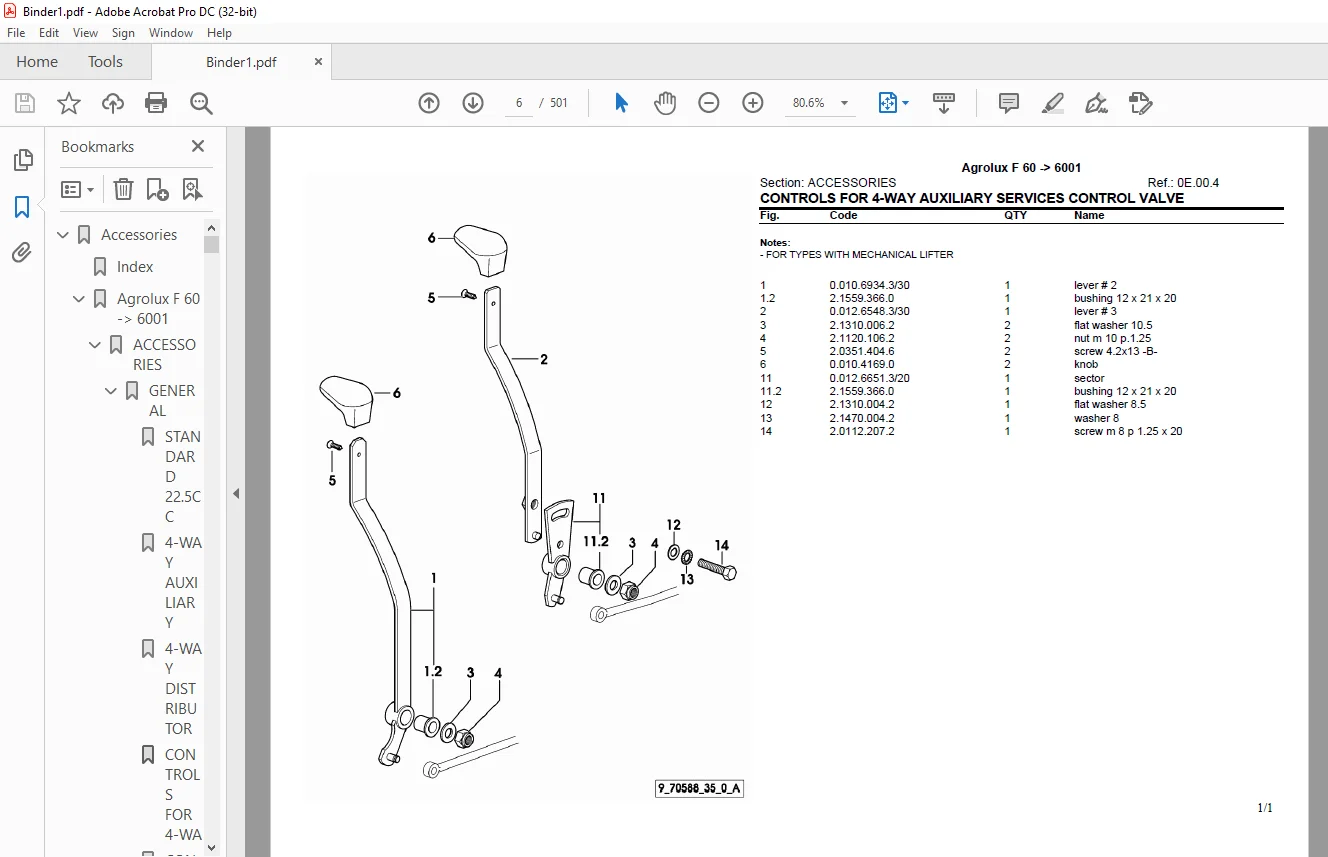

CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E 00 4) 6
CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E 00 5) 7
CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E 00 6) 8

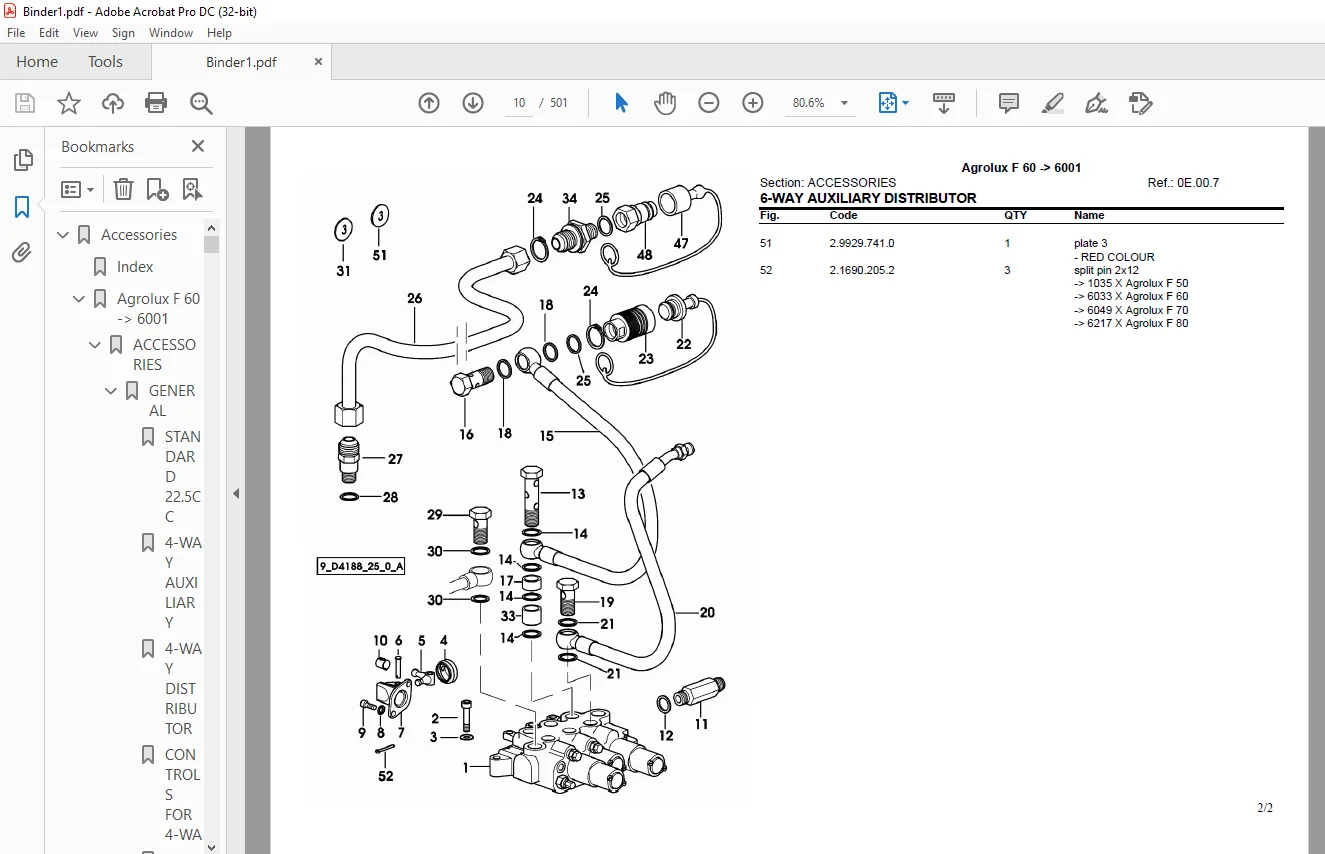

6-WAY AUXILIARY DISTRIBUTOR (0E 00 7) 9
6-WAY AUXILIARY DISTRIBUTOR (0E 00 8) 11
6-WAY DISTRIBUTOR EQUIPMENT (0E 00 9) 12
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E 00 10) 13
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E 00 11) 14
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E 00 12) 15
4 – 6 – WAY DISTRIBUTOR EQUIPMENT (0E 00 13) 16
4 – 6 – WAY DISTRIBUTOR EQUIPMENT (0E 00 14) 17
THREE-POINT COUPLING – TOP/LOWER LINK (0E 00 15) 18
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM (0E 00 16) 19
3 POINT HITCH (0E 00 17) 22
3-POINT HITCH – ADJUSTABLE RH RODS (0E 00 18) 23
3-POINT HITCH WITH HYDRAULIC LIFT ROD (0E 00 19) 24
TOWING BAR 2 cat (0E 00 20) 25
REAR OSCILLATING HITCH CAT ” A ” (0E 00 21) 26
FRAME HOOK HOLDER (0E 00 22) 27
FRAME HOOK HOLDER GRASSI (0E 00 23) 28
REAR TOWING HITCH (0E 00 24) 29
REAR TOWING HITCH (GRASSI) CEE (0E 00 25) 30
REAR TOWING HITCH (GRASSI) CAT ” C ” (0E 00 26) 31
FRAME HOOK HOLDER (0E 00 27) 32
PIN FOR REAR TOW HOOK (0E 00 28) 33
REAR TOWING HITCH (0E 00 29) 34
REAR TOWING HITCH CAT: “D” GRASSI (0E 00 30) 35
REAR TOWING HITCH CAT: “D2” GRASSI (0E 00 31) 36
FRONT TOWING HITCH (0E 00 32) 37
BALLAST (0E 00 33) 38
FRONT WEIGHT CARRIER (0E 00 34) 39
WHEEL BALLAST (0E 00 35) 40
WHEEL BALLAST (0E 00 36) 41
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E 00 37) 42
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (0E 00 38) 43
HYDRAULIC BREAKING FOR TRAILER (0E 00 39) 44
HYDRAULIC BREAKING FOR TRAILER (0E 00 40) 45
HYDRAULIC BREAKING FOR TRAILER (0E 00 41) 46
LUBRICATOR (0E 00 42) 47
TOOL POUCH (0E 00 43) 48
TOWING HITCH (0 010 1702 3 A) 49
CYLINDER PARTS (0 011 3468 4/10 A) 50
3-POINT HITCH – ADJUSTABLE RH RODS (0 011 3988 3 A) 51
REAR TOWING HITCH CAT: “D” GRASSI (0 011 5143 4/10 A) 52
DRAWBAR COUPLING CAT: “D2″ (0 011 5144 4 A) 53
FRAME HOOK HOLDER (0 012 6368 4/10 A) 54
MECH DRAWBAR COUPLING EXPORT (0 012 6369 4/10 A) 55
DRAWBAR COUPLING GRASSI (0 012 6375 4 A) 56
DRAWBAR COUPLING – V ORLANDI – (0 012 6638 4/10 A) 57
DRAWBAR COUPLING CRAMER (0 012 6876 4 A) 58
LINKAGE (0 014 1412 3 A) 59
TOWING HITCH (0 014 1420 3 A) 60
ENGAGEMENT (0 98309 50 3/10 A) 61
VALVE PARTS (2 3719 550 0/30 A) 62
TRAILER BRAKE VALVE (2 3719 550 0/40 A) 63
HYDRAULIC DISTRIBUTOR-PARTS (2 3719 730 0/10 A) 64
HYDRAULIC DISTRIBUTOR-PARTS (2 3719 740 0/20 A) 65
VALVE PARTS (2 3719 810 0/10 A) 67
Bodywork 68
Index 68
Agrolux F 60 -> 6001 70
BODY WORK 70
GENERAL 70
HOOD FRONT PART (07 00 1) 70
HOOD (07 00 2) 71
HOOD PLUG (07 00 4) 72
PLATES (07 00 6) 73
HOOD – SUPPORTS (07 00 9) 74
CABLE CONDUIT (07 00 10) 76
CABLE CONDUIT (07 00 12) 77
CABLE CONDUIT (07 00 13) 78
SUPPORTS (07 00 14) 79
BATTERY SUPPORT (07 00 15) 81
BATTERY COVER – WITH REAR 4-WAY HYDRAULIC CONTROL VALVE (07 00 16) 82
BATTERY COVER – WITH REAR 6-WAY HYDRAULIC CONTROL VALVE (07 00 17) 83
METAL TOOLBOX – WITH FOLD-DOWN ROPS (07 00 18) 84
METAL TOOLBOX (07 00 19) 85
TOOL BOX SUPPORT (07 00 20) 86
PEDAL SUPPORT (07 00 21) 87
DEFLECTOR (07 00 22) 88
DASHBOARD (07 00 23) 89
DASHBOARD – STEERING COVER (07 00 24) 90
INSTRUMENT PANEL SURROUND (07 00 25) 91
PLUG FOR VERSION WITHOUT CIGAR LIGHTER (07 00 27) 92
BRACKET – SPEED LABEL (07 00 28) 93
SPEED LABEL – 40 KM/H – REFLEX (07 00 29) 94
SPEED LABEL – 40 KM/H (07 00 30) 95
PLATES OCDE (07 00 31) 96
LUBRICANT OILS DATA PLATE (07 00 32) 97
INFORMATION PLATE (07 00 33) 98
INFORMATION PLATE (07 00 34) 99
SPEED DATA PLATES km/h (07 00 35) 100
SPEED DATA PLATES MPH (07 00 36) 101
THROTTLE – MECHANICAL – (07 00 37) 102
THROTTLE – MECHANICAL – (07 00 38) 103
THROTTLE (07 00 39) 104
FENDERS (07 00 41) 105
PLATFORM (07 00 42) 106
PLATFORM (07 00 43) 107
LADDER sx/lh/li (07 00 44) 108
COVER PLATE (07 00 45) 109
SUPPORTS (07 00 46) 110
SUPPORTS (07 00 47) 111
MUDGUARDS EXTENSIONS mm 80 (07 00 48) 112
MUDGUARDS EXTENSIONS mm 120 (07 00 49) 113
MUDGUARDS EXTENSIONS mm 170 (07 00 50) 114
FENDER MOUNTINGS (07 00 51) 115
LICENCE PLATE HOLDER (07 00 52) 116
LICENCE PLATE HOLDER – HOOD (07 00 53) 117
REARVIEW MIRROR (07 00 54) 118
SAFETY ARCH (07 00 55) 119
FUEL SYSTEM – TANK (07 00 56) 120
FUEL SUPPLY – AIR FILTER 7″ (07 00 57) 121
FUEL SUPPLY – AIR FILTER 8 ” (07 00 58) 122
FUEL SUPPLY – AIR FILTER (07 00 59) 123
AIR PRE-CLEANER (07 00 60) 124
AIR PRE-CLEANER (07 00 61) 125
DRIVER’S SEAT GRAMMER MSG83/8 (07 00 62) 126
DRIVER’S SEAT GRAMMER MSG83/8 (07 00 63) 127
DRIVER’S SEAT PNEUMATIC SPRINGING GRAMMER (07 00 64) 128
DRIVER’S SEAT KAB XL2 (07 00 65) 129
SAFETY BELT (07 00 66) 130
SEAT SUPPORT PLATE (07 00 67) 131
SEAT SPRINGING (0 010 5356 4 A) 132
SEAT (0 010 5362 4 A) 133
SEAT-COMPONENTS (0 010 8687 4 A) 134
SEAT-COMPONENTS (0 010 8687 4 B) 135
SEAT-COMPONENTS (0 010 8687 4/10 A) 136
SEAT-COMPONENTS (0 010 8687 4/10 B) 137
SEAT-COMPONENTS (0 010 8721 4 A) 138
SEAT-COMPONENTS (0 010 8721 4 B) 139
SEAT-COMPONENTS (0 010 8721 4/10 A) 140
SEAT-COMPONENTS (0 010 8721 4/10 B) 141
SEAT-COMPONENTS (0 011 2161 4 A) 142
SEAT-COMPONENTS (0 011 2161 4 B) 143
SEAT-COMPONENTS (0 011 2161 4/10 A) 144
SEAT-COMPONENTS (0 011 2161 4/10 B) 145
SEAT-COMPONENTS (0 012 4782 4/10 A) 146
SEAT-COMPONENTS (0 012 4782 4/20 A) 147
REARVIEW MIRROR (0 9234 147 4/10 A) 148
PRE-FILTER – COMPONENTS (2 4239 110 0 A) 149
AIR FILTER PARTS (2 4249 600 0 A) 150
AIR FILTER PARTS (2 4249 610 0 A) 151
Electrical_system 152
Index 152
Agrolux F 60 -> 6001 154
ELECTRIC AL SYSTEM 154
GENERAL 154
HEADLAMP FOR RIGHT-HAND DRIVE (08 00 1) 154
HEADLAMP FOR LEFT-HAND DRIVE (08 00 2) 155
ELECTRIC LIGHTING SYSTEM (08 00 3) 156
REAR LIGHT (08 00 4) 157
WORKING SPOTLIGHT REAR (08 00 5) 158
LICENCE PLATE LIGHT (08 00 6) 159
WARNING BEACON (08 00 7) 160
PREARRANGEMENT FOR WARNING BEACON (08 00 8) 161
PREARRANGEMENT FOR WARNING BEACON (08 00 9) 162
ELECTRIC STARTING SYSTEM (08 00 10) 163
ALTERNATOR 65A (08 00 11) 164
BATTERY 12V 100Ah 500A (08 00 12) 165
BATTERY 12V 100Ah 650A (08 00 13) 166
ELECTRICAL SYSTEM – STEERING COLUMN SWITCH UNIT (08 00 14) 167
DASHBOARD BOX (08 00 15) 168
CONTROL UNIT – GEARS H-M-L (08 00 16) 169
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (08 00 17) 170
4WD – ENGAGEMENT CONTROL (08 00 18) 171
PREHEATING CONTROL UNIT (08 00 19) 172
BATTERY LEADS (08 00 20) 173
ELECTRICAL EQUIPMENT FRONT (08 00 21) 174
CENTRAL WIRING – FOR MODELS WITH MECHANICAL ENGINE GOVERNOR (08 00 23) 175
PLATFORM POWER CABLE (08 00 24) 176
POWER-LIFT ELECTRONIC SYSTEM (08 00 26) 177
HEADLAMP COMPONENTS (0 009 6758 4/10 A) 178
BATTERY LEADS (0 010 6708 3/20 A) 179
ELECTRICAL SYSTEM (0 011 2025 4/40 A) 180
FLASHING LIGHT SUPPORT (0 011 7840 4 A) 181
ELECTRICAL SYSTEM (0 013 5869 4/10 A) 182
ELECTRICAL SYSTEM (0 013 5871 4/20 A) 183
ELECTRICAL SYSTEM (0 013 6326 4 A) 184
HEADLAMP COMPONENTS (2 8019 960 0 A) 185
HEADLAMP COMPONENTS (2 8019 970 0 A) 186
HEADLAMP COMPONENTS (2 8029 240 0/10 A) 187
HEADLAMP COMPONENTS (2 8029 300 0 A) 188
ELECTRIC LIGHTING SYSTEM (2 8029 820 0/20 A) 189
ELECTRIC LIGHTING SYSTEM (2 8029 830 0/20 A) 190
HEADLAMP COMPONENTS (2 8059 523 0 A) 191
HEADLAMP COMPONENTS (2 8059 524 0 A) 192
DASHBOARD BOX (2 8339 246 0 A) 193
ALTERNATOR PARTS (2 9439 420 0/10 A) 194
Engine 195
Index 195
Agrolux F 60 -> 6001 198
ENGINE 198
GENERAL 198
PARTS SET – ENGINE MOUNTING (01 00 1) 198
FUEL PIPES (01 00 2) 200
EXHAUST SILENCER (01 00 4) 201
EXHAUST PIPE (01 00 5) 202
METAL SILENCER GUARD (01 00 6) 203
PRE-FILTER – COMPONENTS (2 4319 220 0 A) 204
FUEL FILTER PARTS (2 4319 230 0 A) 205
Crankcase 206
LOCK (01 01 1) 206
BLEEDING TUBE (01 01 2) 207
FRONT COVER (01 01 3) 208
FASTENINGS (01 01 4) 209
CLOSING COMPONENTS (01 01 5) 210
CLOSING COMPONENTS (01 01 6) 211
ACCESSORIES (01 01 7) 212
TUNNEL COVER (01 01 8) 213
SEALING (01 01 9) 214
DIPSTICK (01 01 10) 215
CLOSING COMPONENTS (01 01 11) 216
CRANKCASE (01 01 12) 217
IDLER BEARING (01 01 13) 218
COVER (01 01 14) 219
NOZZLE (01 01 15) 220
Oil pan 221
OIL PAN (01 02 1) 221
Cylinder 222
CYLINDER (01 04 1) 222
Crankshaft 223
V-GROOVED PULLEY (01 05 1) 223
FLYWHEEL (01 05 2) 224
CRANKSHAFT (01 05 3) 225
Connecting rod 227
CONNECTING ROD (01 06 1) 227
Piston 228
PISTON (01 07 1) 228
Cylinder head 229
FASTENINGS (01 08 1) 229
VALVE MECHAN COVER (01 08 2) 230
CYLINDER HEAD (01 08 3) 231
Camshaft 233
CAMSHAFT (01 10 1) 233
Timing gears 234
VALVE DRIVE (01 11 1) 234
CONDUIT (01 11 2) 235
Lube oil pump 236
LUBRICAT OIL PUMP (01 14 1) 236
Oil cooler, Lube oil filter 237
LUBRIC OIL COOLER (01 15 1) 237
FILTER CARRIER (01 15 2) 238
FILTER CARTRIDGE (01 15 3) 239
Oil pipes 240
PRESSURE OIL LINE (01 16 1) 240
OIL INTAKE LINE (01 16 2) 241
Injection pump 242
OIL LUBRICATION PIPE (01 17 1) 242
IN LINE INJECTION PUMP (01 17 2) 243
Injection pump drive 244
INJECTION CONTROL (01 18 1) 244
INJECTION CONTROL (01 18 2) 245
INJECTION CONTROL (01 18 3) 246
Injector 247
FUEL INJECTOR (01 19 1) 247
Fuel pipes 248
HIGH PRESSURE PIPE (01 21 1) 248
Air intake, Air cleaner 249
AIR INTAKE TUBE (01 22 1) 249
Air compressor 250
CLOSING COMPONENTS (01 33 1) 250
Cooling air blower 251
COOLING FAN (01 39 1) 251
Cooling air ducting 252
AIR DUCT WALL (01 40 1) 252
AIR INTAKE HOSE LOWER PART (01 40 2) 253
COOL AIR FEED DUCT (01 40 3) 254
COOLING AIR BAFFLE (01 40 4) 255
AIR DUCTING RAIL (01 40 5) 256
AIR DUCT WALL (01 40 6) 257
END PANEL COVER (01 40 7) 258
COOL AIR FEED DUCT (01 40 8) 259
AIR INTAKE HOSE LOWER PART (01 40 9) 260
Exhaust manifold 261
EXHAUST MANIFOLD (01 41 2) 261
Generator, Startet motor 262
DRIVING PARTS (01 44 1) 262
ACCESSORIES (01 44 2) 263
STARTER (01 44 3) 264
Electrical accessories 265
OIL PRESSUR SWITCH (01 48 1) 265
Measuring instruments 266
TEMPER TRANSMITTER (01 51 1) 266
THERMOSTAT (01 51 2) 267
THERMOSTAT (01 51 3) 268
CLOSING COMPONENTS (01 51 4) 269
Engine shutdown 270
SHUTDOWN DEVICE (01 56 1) 270
Starting aid 271
SOLENOID VALVE (01 63 1) 271
FLAME GLOW PLUG (01 63 2) 272
FUEL LINE (01 63 3) 273
Hydraulic pump 274
CLOSING COMPONENTS (01 83 1) 274
Sealing set 275
GASKET SET (01 90 1) 275
GASKET SET (01 90 2) 276
Front_and_rear_pto 277
Index 277
Agrolux F 60 -> 6001 278
FRONT AND REAR P T O 278
GENERAL 278
P T O – CLUTCH TRANSMISSION SHAFT (05 00 1) 278
P T O – PUMP CONTROL (05 00 2) 279
P T O – HYDRAULIC CLUTCH (05 00 3) 280
P T O – WITH N’ 540 – 750 (05 00 4) 281
P T O – 540-750 – WITH INSERTED END SHAFTS EXPORT U S A (05 00 5) 282
P T O – WITH N’ 540 – 750 + SINCRO (05 00 6) 283
P T O – 540-750 – WITH INSERTED END SHAFTS + SINCRO (05 00 7) 285
P T O – WITH N’ 540 – 1000 (05 00 8) 286
P T O – 540 -1000 WITH INSERTED END SHAFTS (05 00 9) 287
P T O – 540-1000 – WITH INSERTED END SHAFTS (05 00 10) 288
P T O – WITH N’ 540 – 1000 + SINCRO (05 00 11) 289
P T O – 540-1000 – WITH INSERTED END SHAFTS + SINCRO (05 00 12) 291
P T O – 540 -1000 WITH INSERTED END SHAFTS EXPORT U S A + SINCRO (05 00 13) 292
P T O – 2 SPEED TYPE – FIXED END SHAFT (05 00 14) 293
P T O – 2 SPEED TYPE + SINCRO – FIXED END SHAFT (05 00 15) 294
P T O – 2 SPEED TYPE (05 00 16) 295
P T O – 3 SPEED TYPE (05 00 18) 296
P T O – 3 SPEED TYPE – FIXED END SHAFT (05 00 19) 297
PTO – 3-SPEED WITH INSERTED END SHAFT (05 00 20) 298
PTO – 3-SPEED WITH INSERTED END SHAFT (05 00 21) 299
COVER FOR TYPES WITHOUT SYNCHRO PTO (05 00 22) 300
P T O – 2 SPEED TYPE + SINCRO (05 00 23) 301
P T O – 2 SPEED TYPE (05 00 24) 302
P T O – 2 SPEED TYPE + SINCRO (05 00 25) 303
P T O – EXTERNAL CONTROLS 540 – 750 (05 00 26) 304
P T O – EXTERNAL CONTROLS 540 – 750 + SINCRO (05 00 27) 305
P T O – EXTERNAL CONTROLS 540-1000 (05 00 28) 306
P T O – EXTERNAL CONTROLS 540 – 1000 + SYNCRO (05 00 29) 307
P T O – EXTERNAL CONTROLS 540 – 750 – 1000 (05 00 30) 308
ROAD P T O SHAFT (05 00 31) 309
PTO – PARTS SET WITH STANDARD SEALS (05 00 32) 310
PTO – PARTS SET WITH WATER PROOF SEALS (05 00 33) 311
PTO – SEAL RING FOR INSERTED END SHAFT – STANDARD VERSION (05 00 34) 312
PTO – SEAL RING FOR INSERTED END SHAFT – WATER PROOF VERSION (05 00 35) 313
P T O GUARD (05 00 36) 314
P T O GUARD EXPORT GB – WITH OSCILLATING REAR TWO HOOK CAT A (05 00 37) 315
P T O GUARD EXPORT GB (05 00 38) 316
P T O – HYDRAULIC CLUTCH (0 011 9686 4/30 A) 317
Front_axle 318
Index 318
Agrolux F 60 -> 6001 319
FRONT AXEL 319
GENERAL 319
FRONT SUPPORT (04 00 1) 319
4WD – FRONT SUPPORT (04 00 2) 320
FRONT SUPPORT (04 00 3) 321
4WD – FRONT DRIVE AXLE (04 00 4) 322
4WD – FRONT BRAKES (04 00 5) 324
4WD – POWER STEERING CYLINDER (04 00 6) 325
FRONT WHEEL HUB COVER (04 00 7) 326
4WD – FRONT BRAKES (04 00 8) 327
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (04 00 10) 328
4WD – DIFFERENTIAL LOCK CONTROL-FRONT (04 00 11) 329
4WD – FRONT REDUCTION GEARBOX (04 00 12) 330
BEVEL WHEEL GEAR Z = 16 / 33 (04 00 13) 331
4WD – STANDARD SEALING (04 00 14) 332
4WD – WATER PROOF SEALING (04 00 15) 333
FRONT DIFFERENTIAL PIPES (04 00 16) 334
FRONT DIFFERENTIAL LOCK CONTROL LINES (04 00 18) 335
SOLENOID VALVE 4 WD (04 00 19) 336
4WD – AXLESHAFTS (04 00 20) 337
4WD – TRANSMISSION SHAFT (04 00 21) 338
4WD-P T O (04 00 23) 339
4WD – ENGAGEMENT CONTROL (04 00 24) 340
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (04 00 25) 341
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (04 00 26) 342
4WD – ENGAGEMENT CONTROL – WATERPROOF SEALS (04 00 27) 343
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (0 010 0488 4/10 A) 344
4WD – AXLESHAFTS (0 011 9971 4 A) 345
CYLINDER PARTS (0 467 6343 4 A) 346
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/10 A) 347
Gear 348
Index 348
Agrolux F 60 -> 6001 350
GEAR 350
GENERAL 350
4 SPEED GEARBOX WITH MINI REDUCTION GEAR (SYNCHROSPLIT) (02 00 1) 350
5 SPEED GEARBOX WITH MINI REDUCTION GEAR (SYNCHROSPLIT) (02 00 3) 352
5 SPEED GEARBOX – WITH HML (GEARSHIFT) (02 00 5) 354
H-M-L – HYDRAULIC CONTROL (GEARSHIFT) (02 00 7) 356
CLUTCH 11″ (02 00 8) 357
CLUTCH – EXPORT U S A 12″ (02 00 10) 358
CLUTCH CONTROL (02 00 11) 359
CLUTCH CONTROL (02 00 12) 360
CLUTCH CONTROL (02 00 13) 361
GEARBOX FRONT (02 00 14) 362
GEARBOXFIXINGS (02 00 15) 363
GEARBOX REAR (02 00 16) 364
GEARBOX REAR (02 00 17) 365
COMPLETION WITHOUT H-M-L (02 00 18) 366
4 SPEED GEARBOX WITH MINI REDUCTION GEAR (SYNCHROSPLIT) (02 00 19) 367
PARTS SET – 4-SPEED WITH UNDERDRIVE (SYNCHROSPLIT) (02 00 20) 368
5 SPEED GEARBOX WITH MINI REDUCTION GEAR (SYNCHROSPLIT) (02 00 22) 369
PARTS SET – 5-SPEED GEARBOX – FOR TYPES WITH MINREDUCTION – ( SYNCHROSPLIT ) (02 00 23) 371
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITH H-M-L- (POWERSHIFT) (02 00 25) 372
PARTS SET – 5-SPEED GEARBOX – FOR TYPES WITH H-M-L- (POWERSHIFT) (02 00 26) 373
SHUTTLE SHAFT (02 00 28) 374
STANDARD GEARBOX (02 00 29) 375
4 SPEED GEARBOX WITH MINI REDUCTION GEAR (SYNCHROSPLIT) (02 00 30) 376
PARTS SET – 4-SPEED WITH UNDERDRIVE (SYNCHROSPLIT) (02 00 31) 378
5 SPEED GEARBOX WITH MINI REDUCTION GEAR (SYNCHROSPLIT) (02 00 32) 379
PARTS SET – 5-SPEED WITH UNDERDRIVE (SYNCHROSPLIT) (02 00 33) 381
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITH H-M-L- (POWERSHIFT) (02 00 34) 382
PARTS SET – 5-SPEED GEARBOX – FOR TYPES WITH H-M-L- (POWERSHIFT) (02 00 35) 384
GEAR CHANGE BOX (GEARSHIFT) H-M-L (02 00 36) 385
GEAR CHANGE BOX (GEARSHIFT) H-M-L (02 00 37) 386
GEAR CHANGE BOX (GEARSHIFT) H-M-L (02 00 38) 387
TRANSMISSION SHAFT (02 00 39) 388
SPEED RANGE REDUCTION GEAR UNIT (02 00 40) 389
SPEED RANGE REDUCTION GEAR SHAFT – FOR MECHANICAL CONTROLS (02 00 41) 390
SPEED RANGE REDUCTION GEAR SHAFT – FOR ELECTROHYDRAULIC CONTROLS (02 00 42) 391
2-RANGE BOX (02 00 43) 392
2-RANGE BOX 30 Km/h (02 00 44) 393
2-RANGE BOX 40 Km/h (02 00 45) 394
3-RANGE BOX 30 Km/h (02 00 46) 395
3-RANGE BOX 40 Km/h (02 00 47) 396
INTERNAL GEARBOX AND REVERSE GEAR CONTROLS (02 00 48) 397
RODS SUPPORT (02 00 49) 398
INTERNAL GEARBOX AND REVERSE GEAR CONTROLS (02 00 50) 399
GEAR SHIFTING (02 00 51) 400
4-RANGE GEARBOX COVER (02 00 52) 401
5-RANGE GEARBOX COVER (02 00 53) 402
GEAR SHIFTING H-M-L (02 00 54) 403
SHUTTLE LEVER (02 00 55) 404
REDUCTION GEAR CONTROL (02 00 56) 405
COVER FOR UNDERDRIVE (02 00 57) 406
SHUTTLE COVER (02 00 58) 407
2-RANGE REDUCTION UNIT COVER (02 00 59) 408
3-RANGE REDUCTION UNIT COVER (02 00 60) 409
LEVER GAITER (02 00 61) 410
CONTROL FOR 3-RANGE GEARBOX (02 00 62) 411
DIFFERENTIAL (02 00 63) 412
BEVEL WHEEL GEAR z=8 z=36 (02 00 64) 413
BEVEL WHEEL GEAR Z = 10 / Z = 34 (02 00 65) 414
DIFFERENTIAL LOCK CONTROL (02 00 66) 415
DIFFERENTIAL LOCK CONTROL (02 00 67) 416
SYNCHRONIZER PARTS (0 007 7620 4/10 A) 417
SYNCHRONIZER PARTS (0 009 6825 4 A) 418
SYNCHRONIZER PARTS (0 009 6826 4 A) 419
PUMP-COMPONENTS (0 010 1148 4/10 A) 420
CYLINDER PARTS (0 255 6537 4/60 A) 421
Rear_axle 422
Index 422
Agrolux F 60 -> 6001 423
REAR AXLE 423
GENERAL 423
REAR AXLE (03 00 1) 423
REAR AXLE – MOUNTINGS (03 00 2) 424
PARTS SET FOR REAR AXLE – STANDARD SEAL (03 00 3) 425
PARTS SET FOR REAR AXLE – WATERPROOF SEAL (03 00 4) 426
HANDBRAKE BRACKET FOR TRAILER ITALY (03 00 5) 427
REAR REDUCTION GEARS AND AXLE SHAFTS (03 00 6) 428
REAR REDUCTION GEARS AND AXLE SHAFTS (03 00 7) 429
REAR BRAKES (03 00 8) 430
REAR BRAKES (03 00 9) 431
HAND BRAKE (03 00 10) 432
BRAKE CONTROLS (03 00 11) 434
BRAKING SYSTEM (03 00 12) 435
BRAKING SYSTEM (03 00 13) 436
BRAKES CONTROL VALVE (03 00 14) 437
HAND BRAKE (03 00 15) 438
HAND BRAKE (03 00 16) 439
SAC 440
Index 440
Agrolux F 60 -> 6001 441
S A C 441
GENERAL 441
POWER-LIFT CASE (0D 00 1) 441
LIFTING (0D 00 2) 442
REGULATING DISTRIBUTOR (0D 00 3) 443
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (0D 00 4) 445
INTERNAL CONTROLS (0D 00 5) 446
CONTROL CONSOLE FOR POWER-LIFT (0D 00 6) 447
CONTROL CONSOLE FOR POWER-LIFT (0D 00 7) 448
CONTROL CONSOLE – LOWER PART (0D 00 8) 449
CONTROL TIE RODS AND LEVERS (0D 00 9) 450
CONTROL TIE RODS AND LEVERS (0D 00 10) 451
CONTROL TIE RODS AND LEVERS (0D 00 11) 452
SENSITIVE ELEMENTS (0D 00 12) 453
Steering_Hydraulics 454
Index 454
Agrolux F 60 -> 6001 455
POWER STEERING – HYDRAULIC SYSTEM 455
GENERAL 455
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06 00 1) 455
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06 00 2) 456
STEERING WHEEL CAP (06 00 3) 457
4WD – POWER STEERING DANFOSS – 80 (06 00 4) 458
POWER STEERING (06 00 5) 459
POWER STEERING (06 00 6) 460
POWER STEERING (06 00 7) 461
4WD – POWER STEERING (06 00 8) 462
GEARBOX OIL COOLER (06 00 10) 463
PUMP FILTER SUCTION (06 00 11) 464
PUMP FILTER SUCTION (06 00 12) 465
HYDRAULIC PUMP 11 cc sx/lh/li (06 00 13) 466
HYDRAULIC PUMP 22 5 cc – dx/rh/re (06 00 14) 467
OIL FLOW CONTROL VALVE CASING – ELECTROHYDR CONTROLS (06 00 15) 468
OIL FLOW CONTROL VALVE CASING – ELECTROHYDR CONTROLS (06 00 16) 469
GUARD FOR ELECTRO VALVES (06 00 17) 471
H-M-L – HYDRAULIC CONTROL (06 00 18) 472
OIL FLOW CONTROL VALVE CASING – FOR TYPES WITHOUT H-M-L (06 00 19) 473
OIL FLOW CONTROL VALVE CASING – FOR TYPES WITHOUT H-M-L (06 00 20) 474
GEAR BOX OIL FEED PIPES (06 00 21) 475
HYDR STEERING DISTRIBUTOR PARTS (0 290 6310 4/10 A) 476
SOLENOID VALVE (2 3729 697 0 A) 477
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/10 A) 478
DETAILS OF OIL FILTER (2 4419 490 0/20 A) 479
HYDRAULIC PUMP PARTS (2 4529 950 0 A) 480
HYDRAULIC PUMP PARTS (2 4529 960 0 A) 481
HYDRAULIC PUMP PARTS (2 4539 620 0 A) 482
Wheels 483
Index 483
Agrolux F 60 -> 6001 484
WHEELS 484
GENERAL 484
4WD – FRONT WHEEL MOUNTING (09 00 1) 484
REAR WHEEL BOLTS (09 00 2) 485
WHEELS 9 0/75×16″ (09 00 3) 486
WHEELS 240/70 R16″ (09 00 4) 487
WHEELS 260/65R16″ (09 00 5) 488
WHEELS 280/70 R16″ (09 00 6) 489
WHEELS 280/70 R18″ (09 00 7) 490
WHEELS 300/65R18″ (09 00 8) 491
WHEELS 380/70 R20″ A8 (09 00 12) 492
WHEELS 440/65R20″ (09 00 13) 493
WHEELS 14 9R-24″ a8 (09 00 14) 494
WHEELS 320/70R-24″ a8 (09 00 16) 495
WHEELS 360/70×24″ pr 6 (09 00 17) 496
WHEELS 380/70 R24” A8 (09 00 18) 497
WHEELS 420/70 R24″ A8 (09 00 19) 498
WHEELS 440/65R24″ (09 00 20) 499
WHEELS 480/65R-24″ a8 (09 00 21) 500
WHEELS 380/70 R28″ A8 (09 00 23) 501

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V
