Deutz Fahr Agroplus 310 After 5001 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agroplus 310 After 5001 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agroplus 310 After 5001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 772
Downloadable : Yes
File Type : PDF
Size: 35.5 MB

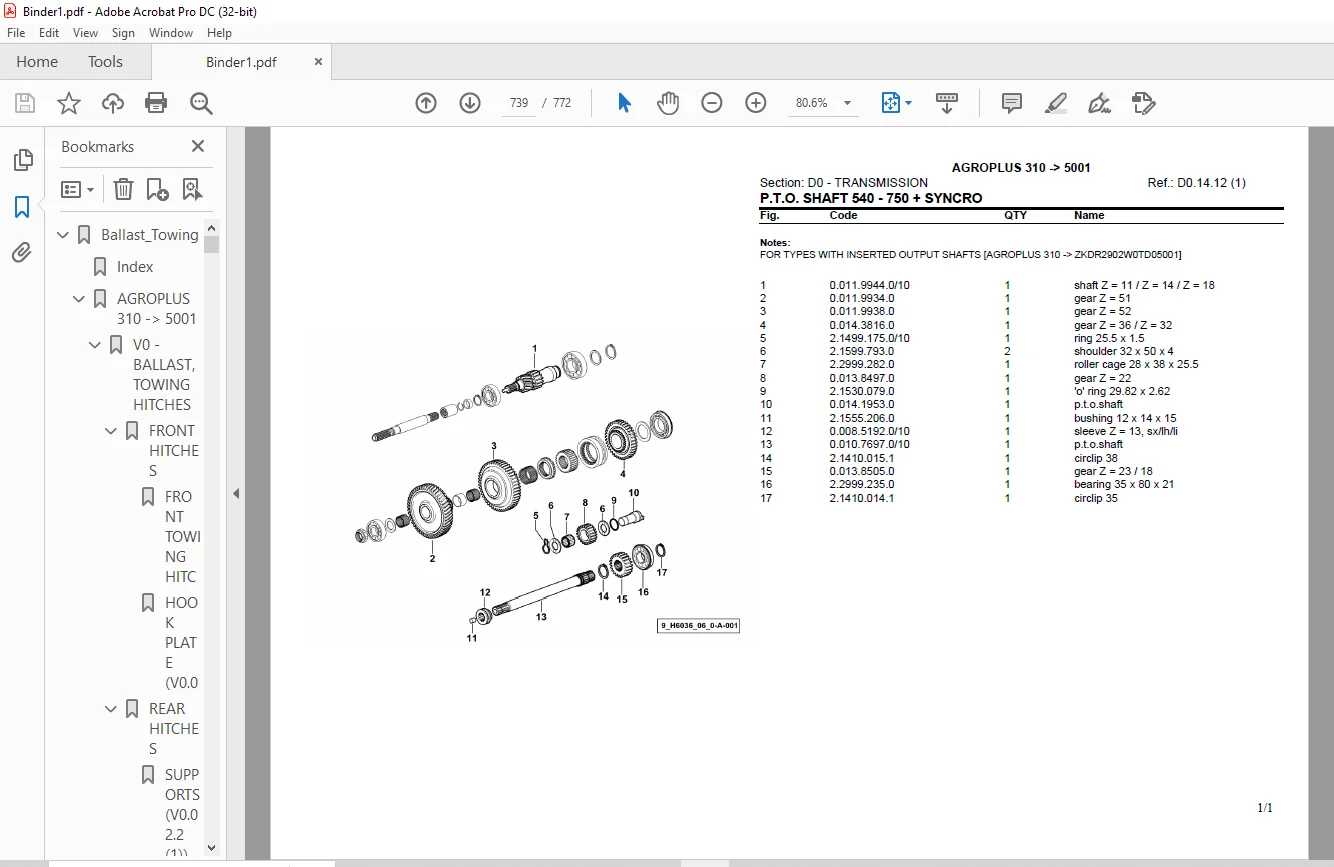

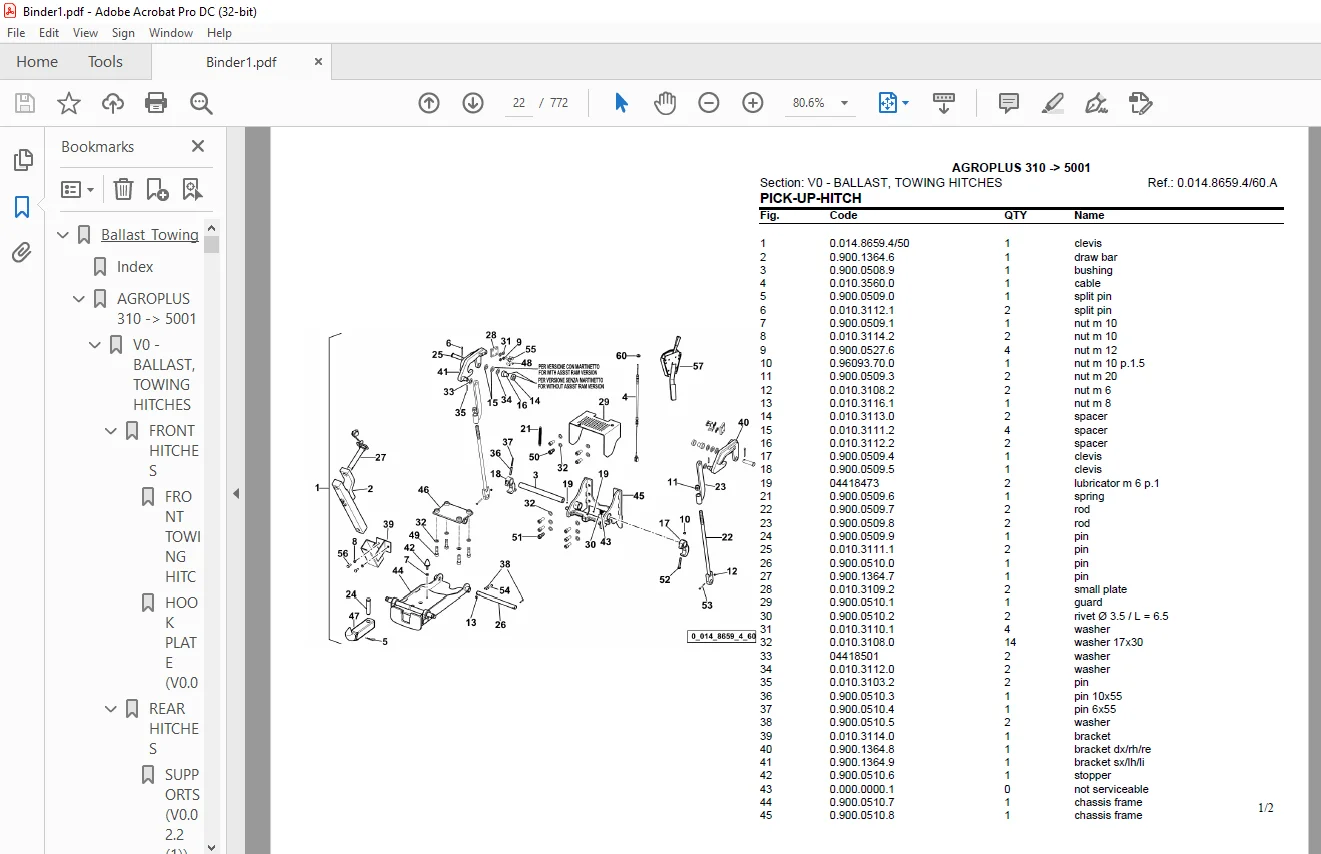

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

https://vimeo.com/810510742

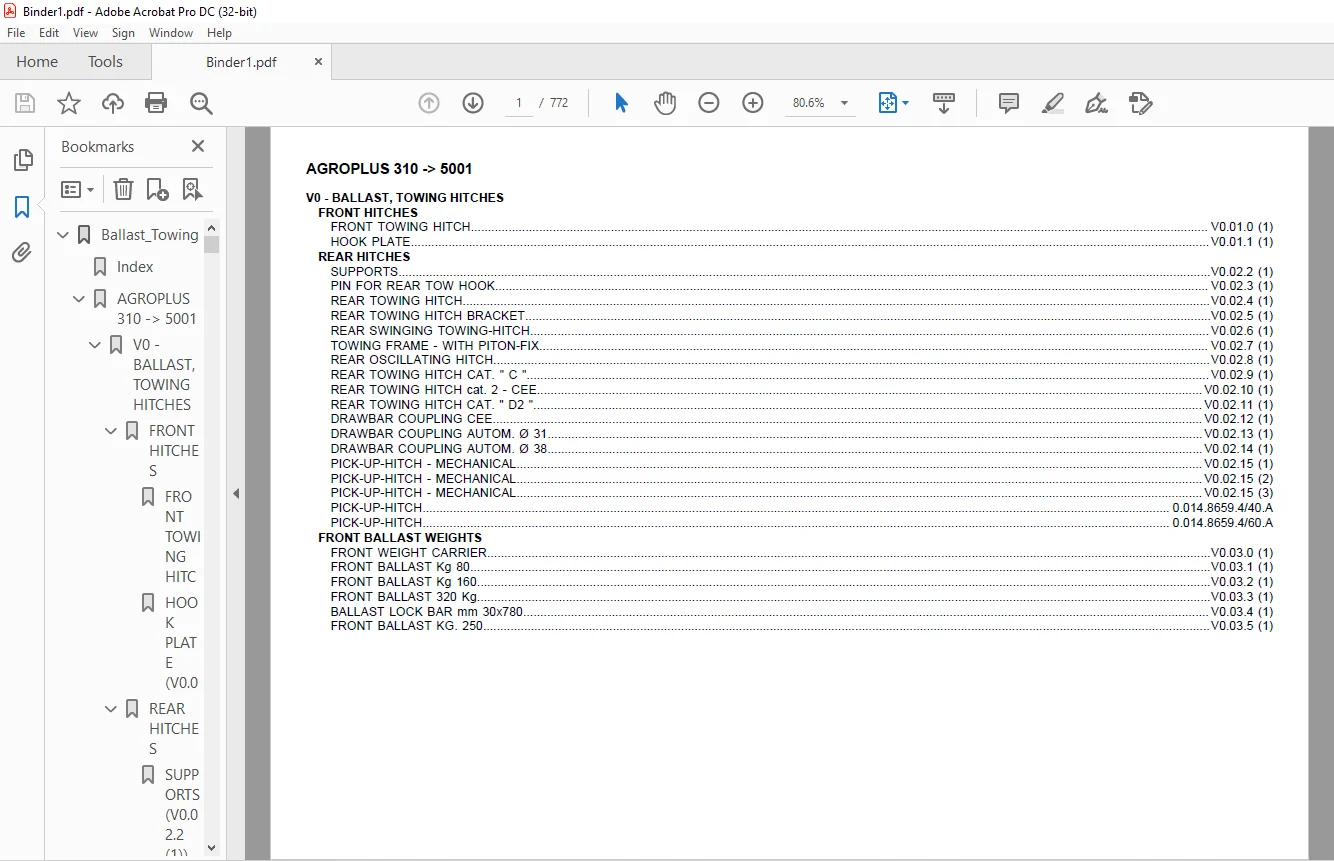

TABLE OF CONTENTS:

Deutz Fahr Agroplus 310 After 5001 Parts Catalog Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
AGROPLUS 310 -> 5001 2
V0 – BALLAST, TOWING HITCHES 2
FRONT HITCHES 2
FRONT TOWING HITCH (V0 01 0 (1)) 2
HOOK PLATE (V0 01 1 (1)) 3
REAR HITCHES 4
SUPPORTS (V0 02 2 (1)) 4
PIN FOR REAR TOW HOOK (V0 02 3 (1)) 5
REAR TOWING HITCH (V0 02 4 (1)) 6
REAR TOWING HITCH BRACKET (V0 02 5 (1)) 7
REAR SWINGING TOWING-HITCH (V0 02 6 (1)) 8
TOWING FRAME – WITH PITON-FIX (V0 02 7 (1)) 9
REAR OSCILLATING HITCH (V0 02 8 (1)) 10
REAR TOWING HITCH CAT ” C ” (V0 02 9 (1)) 11
REAR TOWING HITCH cat 2 – CEE (V0 02 10 (1)) 12
REAR TOWING HITCH CAT ” D2 ” (V0 02 11 (1)) 13
DRAWBAR COUPLING CEE (V0 02 12 (1)) 14
DRAWBAR COUPLING AUTOM Ø 31 (V0 02 13 (1)) 15
DRAWBAR COUPLING AUTOM Ø 38 (V0 02 14 (1)) 16
PICK-UP-HITCH – MECHANICAL (V0 02 15 (1)) 17
PICK-UP-HITCH – MECHANICAL (V0 02 15 (2)) 18
PICK-UP-HITCH – MECHANICAL (V0 02 15 (3)) 19
PICK-UP-HITCH (0 014 8659 4/40 A) 20
PICK-UP-HITCH (0 014 8659 4/60 A) 22
FRONT BALLAST WEIGHTS 24
FRONT WEIGHT CARRIER (V0 03 0 (1)) 24
FRONT BALLAST Kg 80 (V0 03 1 (1)) 25
FRONT BALLAST Kg 160 (V0 03 2 (1)) 26
FRONT BALLAST 320 Kg (V0 03 3 (1)) 27
BALLAST LOCK BAR mm 30×780 (V0 03 4 (1)) 28
FRONT BALLAST KG 250 (V0 03 5 (1)) 29
Bodywork_Cab 30
Index 30
AGROPLUS 310 -> 5001 36
G0 – BODYWORK – CAB 36
HOOD – SIDE PANELS – SUPPORTS 36
HOOD – SUPPORTS (G0 01 4 (1)) 36
BONNET – FRONT PORTION (G0 01 8 (1)) 37
HOOD INSULATION PANEL (G0 01 9 (1)) 38
HOOD SEAL AND REINFORCEMENT (G0 01 11 (1)) 39
HOOD – SUPPORTS (G0 01 12 (1)) 40
ENGINE HOOD GASKETS (G0 01 14 (1)) 41
HOOD SUPPORT (G0 01 16 (1)) 42
HOOD CATCH (G0 01 18 (1)) 43
CONNECTION FRAME (G0 01 19 (1)) 44
CONNECTION FRAME (G0 01 20 (1)) 45
BELT GUARD SUPPORT BRACKET (G0 01 21 (1)) 46
FAN BELT GUARD (G0 01 22 (1)) 47
FAN BELT GUARD (G0 01 23 (1)) 48
SUPPORT (G0 01 24 (1)) 49
FUEL FILTER SUPPORT (G0 01 27 (1)) 50
FUSE AND RELAY SUPPORTS (G0 01 29 (1)) 51
CABLE CONDUIT (G0 01 30 (1)) 52
BATTERY SUPPORT (G0 01 32 (1)) 53
LETTERING 54
MODEL PLATE (G0 02 4 (1)) 54
PRODUCT PLATE (G0 02 18 (1)) 55
WARNING PLATES (G0 02 20 (1)) 56
WATER COOLER IDENTIFICATION PLATE (G0 02 22 (1)) 57
WARNING PLATES (G0 02 23 (1)) 58
WARNING PLATES (G0 02 23 (2)) 59
WARNING PLATES (G0 02 23 (3)) 60
P T O WARNING PLATE FRONT (G0 02 24 (1)) 61
WARNING PLATE (G0 02 29 (1)) 62
REAR LIFT MOVEMENT WARNING LABEL (G0 02 31 (1)) 63
REAR LIFT MOVEMENT WARNING LABEL (G0 02 32 (1)) 64
SHUTTLE AND CREEPER KNOB COVER (G0 02 33 (1)) 65
SHUTTLE COVER (G0 02 34 (1)) 66
3-RANGE REDUCTION UNIT COVER (G0 02 36 (1)) 67
START ENABLE PLATE (G0 02 39 (1)) 68
START ENABLE PLATE (G0 02 40 (1)) 69
PREHEATER BUTTON PLATE (G0 02 43 (1)) 70
PREHEATER BUTTON PLATE (G0 02 44 (1)) 71
HEATING CONTROL IDENTIFICATION PLATE (G0 02 46 (1)) 72
VENTILATION AND CONDITIONING CONTROL IDENTIFICATION PLATE (G0 02 47 (1)) 73
HEATING CONTROL IDENTIFICATION PLATE (G0 02 48 (1)) 74
AIR CONDITIONING DATA PLATE (G0 02 49 (1)) 75
AIR CONDITIONING DATA PLATE (G0 02 50 (1)) 76
SPEED DATA PLATES (G0 02 51 (1)) 77
PTO DATA PLATE 540/N (G0 02 52 (1)) 78
PTO DATA PLATE 540 – 750 (G0 02 53 (1)) 79
PTO DATA PLATE 540 – 750 + SYNCRO (G0 02 54 (1)) 80
PTO DATA PLATE 540 – 750 – 1000 (G0 02 55 (1)) 81
PRINTING FOR FUSE BOX (G0 02 58 (1)) 82
PRINTING FOR FUSE BOX (G0 02 59 (1)) 83
IDENTIFICATION PLATES FOR REAR CONNECTORS (G0 02 60 (1)) 84
SPEED LABEL – 40 KM/H – REFLEX (G0 02 61 (1)) 85
SPEED LABEL – 40 KM/H (G0 02 62 (1)) 86
CAB STRUCTURE – PLATFORM -SUSPENSION 87
PLATFORM (G0 03 0 (1)) 87
CAB STRUCTURE (G0 03 1 (1)) 88
GEAR LEVERS BASE (G0 03 2 (1)) 89
SUPPORTS (G0 03 3 (1)) 90
SPREADER PLATES (G0 03 4 (1)) 91
LADDER (G0 03 5 (1)) 92
CABLE GROMMET (G0 03 8 (1)) 93
CABLE GROMMET (G0 03 9 (1)) 94
FLOOR HOLE REDUCTION PLATE W/ ELECTRONIC REAR LIFT (G0 03 10 (1)) 95
FENDERS – FOOTSTEPS – EXTENSIONS 96
4WD – FRONT MUDGUARDS mm 355 (G0 04 1 (1)) 96
4WD – FRONT MUDGUARDS mm 410 (G0 04 2 (1)) 98
MUDGUARDS EXTENSIONS mm 108 (G0 04 3 (1)) 100
MUDGUARDS EXTENSIONS L=180 (G0 04 4 (1)) 101
MUDGUARDS EXTENSIONS mm 200 (G0 04 5 (1)) 102
MUDGUARDS EXTENSIONS L = mm 240 (G0 04 6 (1)) 103
FENDERS (G0 04 7 (1)) 104
FENDERS (G0 04 8 (1)) 105
PLUGS (G0 04 9 (2)) 106
BRACKET – SPEED LABEL – DX/RH/RE (G0 04 10 (1)) 107
REFLECTOR SUPPORT – SX/LH/LI (G0 04 11 (1)) 108
REFLECTOR SUPPORT (G0 04 12 (1)) 109
WING HOLDER sx/lh/li (0 015 4232 3 A) 110
WING HOLDER dx/rh/re (0 015 4233 3 A) 111
DOORS – WINDOWS – WIPERS 112
WINDSCREEN (G0 05 0 (1)) 112
CAB DOOR DX/RH/RE (G0 05 1 (1)) 113
CAB DOOR SX/LH/LI (G0 05 2 (1)) 114
REAR WINDOW (G0 05 3 (1)) 115
DAMPER FOR REAR WINDOW HATCH (G0 05 4 (1)) 116
DAMPER FOR REAR WINDOW HATCH (G0 05 5 (1)) 117
HANDLE REAR WINDOW (G0 05 6 (1)) 118
SCREEN WIPER FRONT / REAR (G0 05 7 (1)) 119
SCREEN WIPER FRONT / REAR (G0 05 8 (1)) 120
SCREEN WASH SYSTEM (G0 05 9 (1)) 121
PISTON COOL NOZZLE (G0 05 10 (1)) 122
PISTON COOL NOZZLE (G0 05 11 (1)) 123
PISTON COOL NOZZLE (G0 05 12 (1)) 124
SCREEN WASH SYSTEM (G0 05 13 (1)) 125
SPRAYERS (G0 05 14 (1)) 126
INTERIOR TRIM 127
DASHBOARD (G0 06 0 (1)) 127
INSTRUMENT PANEL – BLANKING PLUGS (G0 06 1 (1)) 128
STEERING COLUMN SHROUD (G0 06 2 (1)) 129
CONTROL CONSOLE – DX/RH/RE (G0 06 6 (1)) 130
CONTROL CONSOLE – DX/RH/RE (G0 06 7 (1)) 131
PLUG FOR VERSION WITHOUT CIGAR LIGHTER (G0 06 8 (1)) 132
MECHANICAL LIFT LEVER PANEL WITH GUIDE SLOTS – DX/RH/RE (G0 06 9 (1)) 133
ELECTRONIC LIFT LEVER PANEL WITH GUIDE SLOTS DX/RH/RE (G0 06 10 (1)) 134
CONTROL CONSOLE FOR 6-WAY REMOTE VALVE DX/RH/RE (G0 06 11 (1)) 135
CONTROL CONSOLE FOR 6-WAY REMOTE VALVE DX/RH/RE (G0 06 12 (1)) 136
INTERIOR TRIM (G0 06 13 (1)) 137
INTERIOR TRIM (G0 06 14 (1)) 138
INTERIOR TRIM (G0 06 15 (1)) 139
FLOOR PLUG (G0 06 16 (1)) 140
FLOOR PLUG (G0 06 17 (1)) 141
SOUNDPROOFING FOR GEAR LEVERS (G0 06 18 (1)) 142
INTERIOR TRIM (G0 06 20 (1)) 143
INTERIOR TRIM (G0 06 21 (1)) 144
INTERIOR TRIM (G0 06 22 (1)) 145
INTERIOR TRIM (G0 06 23 (1)) 146
INTERIOR TRIM (G0 06 23 (2)) 147
INTERIOR TRIM (G0 06 24 (1)) 148
INTERIOR TRIM (G0 06 24 (2)) 149
INTERIOR TRIM (G0 06 25 (1)) 150
INTERIOR TRIM (G0 06 25 (2)) 151
COVER (G0 06 26 (1)) 152
INTERIOR TRIM (G0 06 27 (1)) 153
INTERIOR TRIM (G0 06 28 (1)) 154
BRACKET (G0 06 29 (1)) 155
BRACKET (G0 06 30 (1)) 156
BRACKET (G0 06 31 (1)) 157
EXTERIOR TRIM – ROOF 158
SUN GUARD ROOF (G0 07 0 (1)) 158
SUPPORTS FOR SUNBLIND ROOF AND ROTATING BEACON (G0 07 1 (1)) 159
DRIVER’S CAB ROOF (G0 07 2 (1)) 160
DRIVER’S CAB ROOF (G0 07 2 (2)) 161
DRIVER’S CAB ROOF (G0 07 3 (1)) 162
DRIVER’S CAB ROOF (G0 07 3 (2)) 163
CAB INTERIOR TRIM (G0 07 4 (1)) 164
CAB INTERIOR TRIM (G0 07 4 (2)) 165
DRIVER’S CAB ROOF (G0 07 5 (1)) 166
FASTENINGS (G0 07 6 (1)) 167
SKYLIGHT WITH GLASS (G0 07 7 (1)) 168
FLASHING LIGHT SUPPORT (G0 07 8 (1)) 169
SPIN-ON FILTER (G0 07 9 (1)) 170
SPIN-ON FILTER (G0 07 9 (2)) 171
SPIN-ON FILTER (G0 07 10 (1)) 172
SPIN-ON FILTER (G0 07 10 (2)) 173
SPIN-ON FILTER (G0 07 11 (1)) 174
CARBON FILTER (G0 07 12 (1)) 175
CARBON FILTER (G0 07 13 (1)) 176
REARVIEW MIRROR – SX/LH/LI (G0 07 14 (1)) 177
REARVIEW MIRROR AND ROTATING BEACON SUPPORT SX/LH/LI (G0 07 15 (1)) 178
EXTENDING REARVIEW MIRROR SX/LH/LI – DX/RH/RE (G0 07 16 (1)) 179
REARVIEW MIRROR (0 009 7547 4/20 A) 180
REARVIEW MIRROR (0 010 1604 4/40 A) 181
REARVIEW MIRROR (0 010 1605 4/40 A) 182
SEATS 183
DRIVER’S SEAT GRAMMER MSG 83/7L (G0 08 0 (2)) 183
DRIVER’S SEAT GRAMMER MSG 83/7L (G0 08 1 (1)) 184
DRIVER’S SEAT – PNEUMATIC SPRINGING MSG 93/721 (G0 08 4 (1)) 185
HEAD REST (G0 08 11 (1)) 186
HEAD REST (G0 08 12 (1)) 187
SAFETY BELT (G0 08 13 (1)) 188
SAFETY BELT (G0 08 14 (1)) 189
SEAT SUPPORT PLATE (G0 08 15 (1)) 190
SEAT-COMPONENTS (0 007 5683 4/20 A) 191
SEAT-COMPONENTS (0 014 3062 4/20 A) 192
SEAT-COMPONENTS (0 014 3062 4/20 B) 194
HEATING AND AIR CONDITIONING 195
VENTILATION – HEATING (G0 09 0 (1)) 195
VENTILATION – HEATING (G0 09 0 (2)) 196
VENTILATION – AIR CONDITIONING – HEATING (G0 09 1 (1)) 197
VENTILATION – AIR CONDITIONING – HEATING (G0 09 1 (2)) 198
CONDENSER (G0 09 2 (1)) 199
AIR CONDITIONING SYSTEM PIPES (G0 09 3 (1)) 200
HEATING SYSTEM (G0 09 4 (1)) 201
HEATING AND AIR CONDITIONING SYSTEM (G0 09 5 (1)) 202
HEATING SYSTEM (G0 09 6 (1)) 203
HEATING SYSTEM (G0 09 6 (2)) 204
MANUAL CLIMATE CONTROL SYSTEM (G0 09 7 (1)) 205
MANUAL CLIMATE CONTROL SYSTEM (G0 09 7 (2)) 206
MANUAL CLIMATE CONTROL SYSTEM (G0 09 8 (1)) 207
VENTILATION – AIR CONDITIONING – HEATING (G0 09 9 (1)) 208
VENTILATION – AIR CONDITIONING – HEATING (G0 09 10 (1)) 209
VENTILATION – AIR CONDITIONING – HEATING (G0 09 10 (2)) 210
CONDENSER – AIR CONDITIONING UNIT (G0 09 11 (1)) 211
CONDENSER – AIR CONDITIONING UNIT (G0 09 12 (1)) 212
HEATING SYSTEM (G0 09 13 (1)) 213
HEATING AND AIR CONDITIONING SYSTEM (G0 09 14 (1)) 214
AIR CONDITIONING UNIT – LINES – WITH MANUAL AIR CONDITIONING (G0 09 15 (1)) 215
AIR CONDITIONING UNIT – LINES – WITH MANUAL AIR CONDITIONING (G0 09 16 (1)) 216
HEATING SYSTEM (G0 09 17 (1)) 217
HEATING AND AIR CONDITIONING SYSTEM (G0 09 18 (1)) 218
COMPRESSOR PIPES (G0 09 19 (1)) 219
COMPRESSOR (G0 09 21 (1)) 220
COMPRESSOR SUPPORTS (G0 09 22 (1)) 221
COMPRESSOR-PARTS (0 007 7197 4 A) 222
HEATER PARTS (0 010 8108 4/30 A) 223
AIR-CONDITIONING HEATING PARTS (0 010 9215 4/30 A) 224
CONDENSER (0 014 8525 4 A) 226
CLIMATE CONTROL (0 015 5549 4/10 A) 227
HEATING CONTROL (0 015 5594 4/10 A) 228
MECHANICAL CLUTCH CONTROLS 229
CLUTCH CONTROL (G0 10 0 (1)) 229
CLUTCH CONTROL (G0 10 2 (1)) 230
CYLINDER PARTS (0 007 1961 4/20 A) 231
PUMP-COMPONENTS (0 255 6538 4/50 A) 232
MECHANICAL BRAKE CONTROLS 233
BRAKE AND CLUTCH FLUID RESERVOIR (G0 11 1 (1)) 233
BRAKE CONTROLS (G0 11 2 (1)) 234
HAND BRAKE (G0 11 3 (1)) 235
BRACKET FOR HANDBRAKE (G0 11 4 (1)) 236
TRAILER HANDBRAKE CONTROL CABLE – ITALY (G0 11 5 (1)) 237
HANDBRAKE BRACKET FOR TRAILER (G0 11 6 (1)) 238
MECHANICAL – ELECTRONIC THROTTLE CONTROLS 239
ELECTRONIC ACCELERATOR CONTROL (G0 12 0 (1)) 239
ELECTRONIC ACCELERATOR CONTROL (G0 12 1 (1)) 240
STEERING CONTROLS 241
STEERING WHEEL CAP (G0 13 0 (1)) 241
STEERING WHEEL (G0 13 4 (1)) 242
STEERING COLUMN (G0 13 5 (1)) 243
STEERING COLUMN (G0 13 5 (2)) 244
STEERING ADJUSTMENT (G0 13 6 (1)) 245
MECHANICAL GEARSHIFT CONTROLS 246
GEAR SHIFTING (G0 14 0 (1)) 246
GEARSHIFT LEVER – FOR TYPES WITH MINREDUCTION (G0 14 3 (1)) 247
KNOB FOR MECHANICAL SHUTTLE (G0 14 4 (1)) 248
KNOB FOR 3-RANGE GEARBOX (G0 14 5 (1)) 249
PTO CONTROLS 250
P T O SHAFT DRIVE (G0 16 0 (1)) 250
P T O SHAFT DRIVE (G0 16 1 (1)) 251
P T O SHAFT DRIVE (G0 16 1 (2)) 252
LIFT CONTROLS 253
SLIDER FOR LIFT CONTROL LEVERS (G0 17 0 (1)) 253
LIFT CONTROL LEVERS (G0 17 1 (1)) 254
TIE RODS FOR LIFT CONTROL LEVERS (G0 17 2 (1)) 255
S A C GROUND CONTROL (G0 17 3 (1)) 256
S A C GROUND CONTROL (G0 17 4 (1)) 257
S A C GROUND CONTROL (G0 17 5 (1)) 258
S A C GROUND CONTROL (G0 17 6 (1)) 259
REMOTE VALVE CONTROLS 260
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0 18 0 (1)) 260
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0 18 1 (1)) 261
OIL REGULATOR CONTROL (G0 18 2 (1)) 262
ACCESSORIES 263
ASHTRAY (G0 19 0 (1)) 263
SUN BLIND (G0 19 1 (1)) 264
SUN BLIND (G0 19 2 (1)) 265
LICENCE PLATE HOLDER (G0 19 3 (1)) 266
FRONT NUMBER PLATE BRACKET (G0 19 4 (1)) 267
FRONT NUMBER PLATE BRACKET (G0 19 5 (1)) 268
METAL TOOLBOX (G0 19 6 (1)) 269
HOLDING DEVICE – WHEEL CHOCK (G0 19 7 (1)) 270
TRIANGLE SUPPORT (G0 19 8 (1)) 271
LUBRICATOR (G0 19 9 (1)) 272
SAFETY ROLL BAR 273
FIXED SAFETY ROLL BAR (G0 20 0 (2)) 273
SAFETY ARCH FOLDING (G0 20 1 (1)) 274
Electrical_system 275
Index 275
AGROPLUS 310 -> 5001 279
L0 – ELECTRIC AL SYSTEM 279
BATTERY – ALTERNATOR 279
BATTERY 12V 88Ah 580A (L0 01 0 (1)) 279
ALTERNATOR 14V – 65A – ISKRA (L0 01 1 (1)) 280
ALTERNATOR 85A (L0 01 2 (1)) 281
ALTERNATOR AND PULLEY SUPPORTS (L0 01 3 (2)) 282
ALTERNATOR AND PULLEY SUPPORTS (L0 01 4 (2)) 283
ALTERNATOR PARTS (2 9439 420 0/10 A) 284
ALTERNATOR PARTS (2 9439 460 0/10 A) 285
WIRING LOOMS 286
HEADLIGHTS / HORN WIRING (L0 02 2 (1)) 286
HEADLIGHTS / HORN WIRING (L0 02 3 (1)) 287
wiring for front sidelights and direction indicators (L0 02 4 (1)) 288
ELECTRICAL SYSTEM FOR REAR/FRONT LIGHTS (L0 02 5 (1)) 289
wiring for front sidelights and direction indicators (L0 02 6 (1)) 290
wiring for front sidelights and direction indicators (L0 02 7 (1)) 291
WIRING FOR HEADLIGHTS IN BASSO (L0 02 8 (1)) 292
ELECTRICAL SYSTEM FOR REAR LIGHTS (L0 02 9 (1)) 293
WIRING FOR WORKLIGHTS AND FLASHING LIGHT (L0 02 10 (1)) 294
ELECTRICAL WIRE FOR REAR WORKLIGHT (L0 02 11 (1)) 295
PREARRANGEMENT FOR WARNING BEACON (L0 02 12 (1)) 296
ELECTRICAL EQUIPMENT ROTARY WARN LAMP (L0 02 13 (1)) 297
ELECTRICAL EQUIPMENT FRONT – BATTERY LEADS (L0 02 14 (1)) 298
CENTRAL WIRING LOOM (L0 02 17 (1)) 299
CENTRAL WIRING LOOM (L0 02 19 (1)) 300
TRAILER SOCKET-OUTLET (L0 02 20 (1)) 301
TRAILER SOCKET FIXING (L0 02 21 (1)) 302
ELECTRICAL EQUIPMENT REAR (L0 02 23 (1)) 303
ELECTRICAL EQUIPMENT REAR (L0 02 25 (1)) 304
CAB POWER SUPPLY WIRING (L0 02 26 (1)) 305
CAB ELECTRICAL SYSTEM (L0 02 27 (1)) 306
CAB ELECTRICAL SYSTEM (L0 02 28 (1)) 307
CAB ELECTRICAL SYSTEM (L0 02 29 (1)) 308
CAB ELECTRICAL SYSTEM (L0 02 30 (1)) 309
WIRING FOR WINDSCREEN WIPER MOTOR (L0 02 31 (1)) 310
CABLE HARNESS – AIR CONDITIONING SYSTEM (L0 02 32 (1)) 311
SINGLE POLE SOCKET – DOUBLE POLE SOCKET – LIGHTS FLASHER RELAY (L0 02 34 (1)) 312
SINGLE POLE SOCKET – DOUBLE POLE SOCKET – LIGHTS FLASHER RELAY (L0 02 36 (1)) 313
POWER SUPPLY ELECTRICAL SYSTEM (L0 02 37 (1)) 314
ELECTRICAL WIRE FOR OIL FILTER CLOGGING SENSOR 8″ (L0 02 39 (1)) 315
ELECTRICAL CABLE FOR OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L0 02 40 (1)) 316
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 02 41 (1)) 317
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 02 41 (2)) 318
ELECTRICAL SWITCH WIRE P T O 540/N (L0 02 42 (1)) 319
ELECTRIC LEAD FOR PTO (L0 02 43 (1)) 320
ELECTRIC LEAD FOR PTO (L0 02 44 (1)) 321
PRESSURE SWITCH WIRING FOR TRAILER HYDRAULIC BRAKING SYSTEM – ITALY (L0 02 45 (1)) 322
FRONT P T O SOLENOID VALVE ELECTRICAL CABLE (L0 02 46 (1)) 323
GEARBOX CONTROL ELECTRIC CABLE (L0 02 47 (1)) 324
WIRING FOR PNEUMATIC SEAT MSG 93/721 (L0 02 48 (1)) 325
ELECTRICAL SYSTEM (0 009 7853 3/20 A) 326
FLASHING LIGHT SUPPORT (0 011 7840 4 A) 327
ELECTRIC WIRING FOR PARKING LIGHTS AND DIRECTION INDICATORS, FRONT AND REAR (0 013 4910 4 A) 328
BATTERY LEADS (0 014 1647 4 A) 329
PARTS FOR ELECTRICAL SYSTEM (0 016 0865 4/10 A) 330
POWER SUPPLY ELECTRICAL SYSTEM (0 016 6285 4 A) 331
ELECTRICAL EQUIPMENT FRONT (0 016 6287 4 A) 332
CENTRAL WIRING LOOM (0 016 6290 4/10 A) 333
CENTRAL WIRING LOOM (0 016 6299 4/10 A) 334
ECUs 335
ELECTRONICS BOX (L0 03 0 (1)) 335
CONTROL UNIT SUPPORT (L0 03 1 (1)) 336
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 03 2 (1)) 337
ECU SUPPORT FOR ELECTRONIC REAR LIFT (L0 03 3 (1)) 338
CONTROL UNIT – P T O SHAFT (L0 03 5 (1)) 339
CONTROL UNIT – P T O SHAFT (L0 03 7 (1)) 340
SENSORS – POTENTIOMETERS – ENABLING SWITCHES 341
COOLING SYSTEM MANIFOLD SENSORS (L0 04 0 (1)) 341
AIR CLEANER AND ENGINE OIL FILTER CLOGGING PRESSURE SWITCH (L0 04 2 (1)) 342
ENGINE OIL PRESSURE SWITCH (L0 04 3 (1)) 343
HYDRAULIC SYSTEM PRESSURE SWITCH (L0 04 7 (1)) 344
OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L0 04 9 (1)) 345
OIL FILTER CLOGGING SENSOR 8″ (L0 04 10 (1)) 346
START ENABLE SWITCH (L0 04 11 (1)) 347
SPEED SENSOR (L0 04 16 (1)) 348
SPEED SENSOR (L0 04 17 (1)) 349
PTO SPEED SENSOR 540/N WITH INTERCHANGEABLE OUTPUT SHAFTS (L0 04 18 (1)) 350
P T O SWITCH (L0 04 19 (1)) 351
SWITCHES FOR 2-SPEED PTO WITH FIXED OUTPUT SHAFT 540-750 (L0 04 20 (1)) 352
SWITCH FOR 2-SPEED P T O WITH INSERTED END SHAFTS 540-750 (L0 04 21 (1)) 353
SWITCHES FOR 2-SPEED WITH FIXED OUTPUT SHAFT + SYNCRO AND 3 SPEEDS (L0 04 22 (1)) 354
SWITCH FOR P T O WITH INSERTED END SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (L0 04 23 (1)) 355
SWITCHES AND SENSOR FOR 3-SPEED P T O WITH INSERTED OUTPUT SHAFTS 540-750-1000 (L0 04 24 (1)) 356
ELECTRONIC ACCELERATOR CONTROL SENSOR (L0 04 25 (1)) 357
ELECTRONIC ACCELERATOR CONTROL SENSOR (L0 04 26 (1)) 358
PRESSURE SWITCH FOR HYDRAULIC TRAILER BRAKING SYSTEM – ITALY (L0 04 29 (1)) 359
CLUTCH AND BRAKE LIGHT SWITCHES (L0 04 31 (1)) 360
HAND BRAKE SWITCHES (L0 04 33 (1)) 361
HANDBRAKE SWITCH / CLUTCH SWITCH (L0 04 35 (1)) 362
REAR LIFT POSITION SENSOR (L0 04 36 (1)) 363
REAR LIFT POSITION SENSOR (L0 04 37 (1)) 364
AIR DUCT RESISTOR (L0 04 38 (1)) 365
INSTRUMENT PANEL 366
DIGITAL INSTRUMENT PANEL (L0 05 0 (1)) 366
ELECTRICAL CONTROLS – PUSHBUTTONS 367
GEAR SHIFTING (L0 07 2 (1)) 367
STEERING COLUMN SWITCH UNIT (L0 07 3 (1)) 368
KEYSWITCH BLOCK AND PUSHBUTTONS (L0 07 8 (1)) 369
KEYSWITCH BLOCK AND PUSHBUTTONS (L0 07 10 (1)) 370
STARTER SWITCH BLOCK COVER (L0 07 11 (1)) 371
STARTER SWITCH BLOCK COVER (L0 07 12 (1)) 372
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (L0 07 13 (1)) 373
OPERATION – FRONTP T O SHAFT (L0 07 14 (1)) 374
SWITCHES FOR WORKLIGHTS AND FLASHING LIGHT (L0 07 15 (1)) 375
REAR WORKLIGHT SWITCH (L0 07 16 (1)) 376
LOW FRONT WORKLIGHTS SWITCH (L0 07 17 (1)) 377
PRE-HEATER BUTTON (L0 07 19 (1)) 378
PRE-HEATER BUTTON (L0 07 21 (1)) 379
ELECTRONIC ACCELERATOR MEMORY PUSHBUTTON (L0 07 22 (1)) 380
CAB TOP SWITCHES (L0 07 23 (1)) 381
CAB TOP SWITCHES (L0 07 24 (1)) 382
CAB TOP SWITCHES (L0 07 25 (1)) 383
CAB TOP SWITCHES (L0 07 26 (1)) 384
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 07 27 (1)) 385
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 07 27 (2)) 386
LIGHTING AND SIGNALLING 387
HEADLIGHTS \ HORN (L0 08 2 (2)) 387
HEADLIGHTS \ HORN (L0 08 3 (2)) 388
FRONT/REAR LIGHTS (L0 08 4 (1)) 389
FRONT/REAR LIGHTS (L0 08 5 (1)) 390
LIGHT SUPPORT WITH FIXED SAFETY ROLL BAR (L0 08 6 (1)) 391
LIGHT SUPPORT WITH FOLDING SAFETY ROLL BAR (L0 08 7 (1)) 392
FRONT SIDELIGHTS AND TURN INDICATORS (L0 08 8 (1)) 393
FRONT SIDELIGHTS AND TURN INDICATORS (L0 08 9 (1)) 394
FRONT/REAR LIGHTS (L0 08 10 (1)) 395
REAR LIGHTS / REFLECTORS (L0 08 11 (1)) 396
WORKING SPOTLIGHT REAR (L0 08 12 (1)) 397
REAR WORKLIGHT (L0 08 13 (1)) 398
WORKING SPOTLIGHT FRONT/REAR (L0 08 14 (1)) 399
WORKING SPOTLIGHT FRONT/REAR (L0 08 14 (2)) 400
WORKING SPOTLIGHT FRONT/REAR (L0 08 15 (1)) 401
WORKING SPOTLIGHT FRONT/REAR (L0 08 15 (2)) 402
WORKING SPOTLIGHT FRONT BOTTOM (L0 08 16 (1)) 403
FRONT/REAR WORKLIGHTSAND INTERIOR ROOF LIGHT (L0 08 17 (1)) 404
WARNING BEACON (L0 08 18 (1)) 405
WARNING BEACON (L0 08 19 (1)) 406
LICENCE PLATE LIGHT (L0 08 20 (1)) 407
RETROREFLECTOR (L0 08 21 (1)) 408
COURTESY LIGHT (L0 08 22 (1)) 409
COURTESY LIGHT (L0 08 23 (1)) 410
COURTESY LIGHT (L0 08 24 (1)) 411
COURTESY LIGHT (L0 08 25 (1)) 412
WARNING BEACON (0 013 0868 4 A) 413
HEADLAMP COMPONENTS (04411920 4 A) 414
HEADLAMP COMPONENTS (04411921 4 A) 415
HEADLAMP COMPONENTS (2 8019 180 0 A) 416
HEADLAMP COMPONENTS (2 8019 190 0 A) 417
HEADLAMP COMPONENTS (2 8019 200 0 A) 418
HEADLAMP COMPONENTS (2 8019 960 0 A) 419
HEADLAMP COMPONENTS (2 8019 970 0 A) 420
HEADLAMP COMPONENTS (2 8029 300 0 A) 421
HEADLAMP COMPONENTS (2 8029 730 0 A) 422
HEADLAMP COMPONENTS (2 8039 180 0/10 A) 423
FRONT LIGHTS (2 8039 240 0 A) 424
FRONT LIGHTS (2 8039 250 0 A) 425
HEADLAMP COMPONENTS (2 8039 299 0 A) 426
HEADLAMP COMPONENTS (2 8059 440 0/10 A) 427
HEADLAMP COMPONENTS (2 8059 450 0 A) 428
HEADLAMP COMPONENTS (2 8059 460 0 A) 429
HEADLAMP COMPONENTS (2 8059 490 0 A) 430
LICENCE PLATE LIGHT (2 8059 526 0 A) 431
INTERIOR LIGHT (2 8339 032 0 A) 432
ACCESSORIES 433
CIGAR LIGHTER (L0 09 0 (1)) 433
LOUDSPEAKERS AND RADIO ANTENNA (L0 09 1 (1)) 434
LOUDSPEAKERS (L0 09 2 (1)) 435
LOUDSPEAKERS (L0 09 3 (1)) 436
RADIO ANTENNA (L0 09 4 (1)) 437
RADIO ANTENNA (L0 09 4 (2)) 438
RADIO ANTENNA (L0 09 5 (1)) 439
RADIO ANTENNA (L0 09 5 (2)) 440
Engine 441
Index 441
AGROPLUS 310 -> 5001 443
B0 – ENGINE 443
CYLINDER BLOCK 443
CRANKCASE (B0 01 0 (1)) 443
MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (B0 01 2 (1)) 444
CRANKSHAFT 445
CRANKSHAFT PULLEY (B0 02 0 (1)) 445
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0 02 1 (1)) 446
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0 02 3 (1)) 447
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0 02 4 (1)) 448
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0 02 5 (1)) 449
CRANKSHAFT (B0 02 6 (1)) 450
ENGINE FLYWHEEL (B0 02 9 (1)) 451
CYLINDERS – PISTONS – CONNECTING RODS 452
CYLINDER – PISTON – CONNECTING ROD (B0 03 0 (1)) 452
TIMING 453
TIMING CASE (B0 04 0 (1)) 453
TIMING COVER FIXING (B0 04 2 (1)) 454
CASING COVER (B0 04 3 (1)) 455
CAMSHAFT (B0 04 4 (1)) 456
CYLINDER HEAD 457
CYLINDER HEAD (B0 05 0 (1)) 457
LUBRICATION 458
ENGINE OIL PUMP (B0 06 0 (1)) 458
LUBRICATION (B0 06 4 (1)) 459
BLOW-BY HOSE BRACKET (B0 06 8 (1)) 460
LUBRICANT OIL SUCTION PIPE (B0 06 10 (1)) 461
LUBRICATION (B0 06 12 (1)) 462
ENGINE OIL FILTER (B0 06 16 (1)) 463
ENGINE OIL PAN (B0 06 17 (1)) 464
OIL PIPES FOR TURBOCHARGER (B0 06 19 (1)) 465
FUEL INJECTION SYSTEM 466
INJECTION PUMP – INJECTOR (B0 07 0 (1)) 466
INJECTION PUMP DRIVE (B0 07 3 (1)) 467
MECHANICAL – ELECTRONIC GOVERNOR 468
ELECTRONIC MOTOR CONTROLLER (B0 08 0 (1)) 468
COOLING 469
COOLING SYSTEM MANIFOLD (B0 09 0 (1)) 469
ENGINE COOLING WATER PUMP (B0 09 2 (1)) 470
COOLANT PIPE (B0 09 3 (1)) 471
WATER PUMP HOSES (B0 09 5 (1)) 472
COOLANT PUMP PULLEY (B0 09 7 (1)) 473
WATER COOLING -SEALING (B0 09 9 (1)) 474
HEAT EXCHANGER (B0 09 11 (1)) 475
LUBRIC OIL COOLER (0 007 0172 0 A) 476
COOLING WATER PUMP (0 016 0460 4 A) 477
INTAKE – EXHAUST MANIFOLDS 478
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (B0 10 0 (1)) 478
TURBOCHARGER 479
TURBOCHARGER (B0 11 0 (1)) 479
Engine_accessories 480
Index 480
AGROPLUS 310 -> 5001 481
C0 – ENGINE ACCESSORIES 481
RADIATORS – FANS 481
BLOWER (C0 01 0 (1)) 481
COOLING – COOLANT RADIATOR (C0 01 2 (1)) 482
COOLING – EXPANSION TANK (C0 01 4 (1)) 483
COOLING SYSTEM EXPANSION TANK (0 016 1528 4 A) 484
INTERCOOLER – AIR CLEANER 485
8″ AIR CLEANER (C0 02 1 (1)) 485
8″ AIR CLEANER WITH DUST EXHAUSTER (C0 02 2 (1)) 486
AIR CLEANER HOSE (C0 02 3 (1)) 487
AIR CLEANER (2 4249 718 0 A) 488
FUEL SYSTEM 489
FUEL TANK (C0 03 0 (1)) 489
FUEL TANK (C0 03 0 (2)) 490
FUEL TANK SUPPORTS (C0 03 1 (1)) 491
FUEL FEED PUMP (C0 03 2 (1)) 492
FUEL FILTER (C0 03 4 (1)) 493
FUEL FEED PIPES AND PREFILTER (C0 03 6 (1)) 494
FUEL PIPES (C0 03 8 (1)) 495
PRE-FILTER – COMPONENTS (2 4319 220 0 A) 496
FUEL FILTER PARTS (2 4319 230 0 A) 497
FUEL FEED PUMP (2 4519 330 0/50 A) 498
PREHEATING 499
HEATING ELEMENT (C0 04 0 (1)) 499
HEATING ELEMENT EARTH (C0 04 3 (1)) 500
STARTER MOTOR 501
STARTER (C0 05 0 (1)) 501
STARTER (C0 05 0 (2)) 502
STARTER MOTOR COVER (C0 05 2 (1)) 503
STARTER PARTS (2 9619 400 0 A) 504
EXHAUST SILENCER 505
EXHAUST SILENCER (C0 06 0 (1)) 505
EXHAUST SILENCER PIPE (C0 06 2 (1)) 506
VERICAL EXHAUST SILENCER (C0 06 3 (1)) 507
VERICAL EXHAUST SILENCER (C0 06 4 (1)) 508
ELECTRICAL ACCESSORIES 509
SOLENOID VALVE (C0 08 0 (1)) 509
SOLENOID VALVE PROTECTION (C0 08 4 (1)) 510
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/20 A) 511
SEALING SET 512
GASKET SET FOR ENGINE ASSEMBLY (C0 09 0 (1)) 512
Front_axle 513
Index 513
AGROPLUS 310 -> 5001 514
F0 – FRONT AXLE 514
FRONT SUPPORT 514
FRONT SUPPORT (F0 01 0 (1)) 514
FRONT SUPPORT – WITH FRONT PTO AND LIFT (F0 01 1 (1)) 515
BLANKING PLUGS FOR TYPES WITHOUT FRONT PTO BUT WITH PROVISION FOR FUTURE INSTALLATION (F0 01 2 (1)) 516
4WD – FRONT SUPPORT (F0 01 4 (1)) 517
FRONT SUPPORT – FIXINGS (F0 01 5 (1)) 518
4WD FRONT AXLE 519
4WD – FRONT DRIVE AXLE (F0 03 0 (1)) 519
4WD – FRONT DRIVE AXLE (F0 03 1 (1)) 520
4WD – FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0 03 2 (1)) 521
4WD – FRONT AXLE YOKES KIT (F0 03 3 (1)) 522
4WD – STANDARD SEALING (F0 03 4 (1)) 523
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (0 010 0488 4/10 A) 524
FRONT DIFFERENTIAL 525
4WD – BEVEL WHEEL GEAR Z = 15 / Z = 33 (F0 04 0 (1)) 525
4WD – FRONT DIFFERENTIAL LOCK- STANDARD SEALING (F0 04 1 (1)) 526
DIFFERENTIAL BEVEL GEAR PAIR (F0 04 2 (1)) 527
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (F0 04 3 (2)) 528
4WD – FLANGE (F0 04 4 (1)) 530
4WD – TRANSMISSION SHAFT (F0 04 5 (1)) 531
4WD – PROPELLER SHAFT (F0 04 6 (1)) 532
STEERING CYLINDER 533
STEERING CYLINDER – 4WD (F0 05 0 (1)) 533
CYLINDER PARTS (0 009 9892 4/10 A) 534
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS 535
4WD – FRONT REDUCTION GEARBOX (F0 06 0 (2)) 535
4WD – FRONT REDUCTION GEARBOX (F0 06 0 (3)) 536
4WD – AXLESHAFTS (F0 06 1 (1)) 537
FRONT WHEEL HUB COVER (F0 06 2 (1)) 538
4WD – AXLESHAFTS (0 009 6694 4/30 B) 539
FRONT BRAKES 540
4WD – FRONT BRAKES (F0 07 0 (1)) 540
Front_lift 541
Index 541
AGROPLUS 310 -> 5001 542
N0 – FRONT LIFT 542
LIFT ASSEMBLY 542
FRONT HYDRAULIC POWER-LIFT (N0 01 0 (1)) 542
HYDRAULIC CYLINDER (2 3749 007 0 A) 543
Front_pto 544
Index 544
AGROPLUS 310 -> 5001 545
M0 – FRONT PTO 545
PTO INPUT SHAFT 545
PTO INPUT SHAFT (M0 01 0 (1)) 545
FRONT PTO COVER – PROTECTIONS 546
P T O GUARD (M0 02 0 (1)) 546
GEARS AND CLUTCH 547
P T O FRONT (M0 03 0 (1)) 547
P T O FRONT (M0 03 1 (1)) 549
HYDRAULIC SYSTEM 550
FRONT PTO HYDRAULIC SYSTEM (M0 04 0 (1)) 550
FRONT PTO HYDRAULIC SYSTEM (M0 04 1 (1)) 551
FRONT PTO HYDRAULIC SYSTEM (M0 04 1 (2)) 552
CONNECTION (M0 04 3 (1)) 553
FITTING WITH CHOKE SCREW (M0 04 4 (1)) 554
FRONT PTO PACKAGE (M0 04 5 (1)) 555
VALVE (M0 04 6 (1)) 556
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/20 A) 557
Hydraulic_and_pneumatic_system 558
Index 558
AGROPLUS 310 -> 5001 560
H0 – HYDRAULIC AND PNEUMATIC SYSTEM| 560
HYDRAULIC SYSTEM 560
GEARBOX OIL COOLER PIPES (H0 01 0 (1)) 560
HYDRAULIC PUMP 14 cc – sx/lh/li (H0 01 2 (1)) 561
HYDRAULIC PUMP 22 5 cc – dx/rh/re (H0 01 5 (1)) 562
SUCTION HYDRAULIC SYSTEM (H0 01 6 (1)) 563
SUCTION HYDRAULIC SYSTEM WITH 22 5 CC PUMP (H0 01 7 (1)) 564
GEAR BOX OIL FEED PIPES (H0 01 8 (1)) 565
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H0 01 9 (1)) 566
LUBRIC OIL FILTER 8 ” (H0 01 10 (1)) 567
BYPASS VALVE ASSEMBLY (H0 01 11 (1)) 568
BYPASS VALVE ASSEMBLY (H0 01 12 (1)) 569
OIL CONTROL VALVES HOUSING PIPES (H0 01 13 (1)) 570
HYDRAULIC SYSTEM (H0 01 16 (1)) 571
HYDRAULIC SYSTEM (H0 01 17 (1)) 572
LUBRICATION (H0 01 18 (1)) 573
LUBRICATION (H0 01 19 (1)) 574
LUBRICATION WITH FRONT PTO (H0 01 20 (1)) 575
LUBRICATION WITH FRONT PTO (H0 01 21 (1)) 576
SUPPLY LINE TO REMOTE CONTROL VALVE (H0 01 23 (1)) 577
PIPE FROM AUX CONTROL VALVE TO MECHANICAL REAR LIFT CONTROL VALVE (H0 01 24 (1)) 578
PIPE FROM AUX CONTROL VALVE TO ELECTRONIC REAR LIFT CONTROL VALVE (H0 01 25 (1)) 579
FRONT DIFFERENTIAL LOCK PIPE (H0 01 26 (1)) 580
FRONT DIFFERENTIAL LOCK PIPE (H0 01 27 (1)) 581
FRONT DIFFERENTIAL LOCK PIPE (H0 01 28 (1)) 582
REAR LIFT CYLINDER BARREL (H0 01 30 (1)) 583
REAR LIFT CYLINDER BARREL (H0 01 31 (1)) 584
REAR LIFT CYLINDER BARREL (H0 01 32 (1)) 585
DETAILS OF OIL FILTER (2 4419 490 0/30 A) 586
HYDRAULIC PUMP PARTS (2 4539 120 0/10 A) 587
HYDRAULIC PUMP PARTS (2 4539 620 0/10 A) 588
STEERING SYSTEM 589
HYDROSTATIC STEERING CONTROL VALVE (H0 02 0 (1)) 589
HYDRAULIC SYSTEM OF POWER STEERING DELIVERY AND RADIATOR RETURN (H0 02 1 (1)) 590
PIPES FOR HYDROSTATIC STEERING – 4WD (H0 02 4 (1)) 591
HYDRAULIC STEERING GEAR (2 4569 005 0 A) 592
TRANSMISSION – PTO COOLERS 593
GEARBOX OIL COOLER (H0 03 0 (1)) 593
FRONT LIFT 594
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 0 (1)) 594
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 1 (1)) 595
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 1 (2)) 596
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 2 (1)) 597
PRESSURE CONTROL VALVE (0 009 2038 4/10 A) 598
REAR REMOTE CONTROL VALVES 599
6-WAY AUXILIARY DISTRIBUTOR (H0 07 0 (1)) 599
6-WAY AUXILIARY DISTRIBUTOR (H0 07 1 (1)) 600
6-WAY AUXILIARY DISTRIBUTOR (H0 07 2 (1)) 601
AUXILIARY CONTROL VALVE SYSTEM (H0 07 3 (1)) 602
AUXILIARY CONTROL VALVE SYSTEM (H0 07 4 (1)) 603
QUICK-ACTION PROTECTIONS – 6-WAY (H0 07 5 (1)) 604
EXHAUST SYSTEM (H0 07 6 (1)) 605
EXHAUST SYSTEM (H0 07 7 (1)) 606
TANK – PARTS (0 011 0212 3 A) 607
ENGAGEMENT (0 98309 50 3/10 A) 608
DISTRIBUTOR (2 3729 720 0/20 A) 609
BRAKING SYSTEM AND PNEUMATIC SYSTEM| 610
FLOW CONTROL VALVE (H0 09 0 (1)) 610
BLAKES BLOCK (H0 09 2 (1)) 611
BRAKING SYSTEM (H0 09 3 (1)) 612
BRAKE PIPES – FRONT (H0 09 5 (1)) 613
HYDRAULIC BREAKING FOR TRAILER – ITALY (H0 09 7 (1)) 614
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (H0 09 8 (1)) 615
SYSTEM FROM HYDRAULIC PUMP TO HYDRAULIC BRAKES (H0 09 9 (1)) 616
HYDRAULIC TRAILER BRAKING SYSTEM (H0 09 11 (1)) 617
HYDRAULIC TRAILER BRAKING SYSTEM (H0 09 11 (2)) 618
TRAILER BRAKE VALVE (2 3719 550 0/50 A) 619
VALVE PARTS (2 3719 810 0/20 A) 620
ELECTROHYDRAULICS 621
H-M-L CONTROL (H0 10 1 (1)) 621
OIL FLOW CONTROL VALVE CASING (H0 10 2 (1)) 622
SOLENOID VALVE – 4WD (H0 10 3 (1)) 623
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/20 A) 624
Rear_lift 625
Index 625
AGROPLUS 310 -> 5001 626
R0 – REAR LIFT 626
LIFT COVER 626
POWER-LIFT CASE (R0 01 0 (1)) 626
PLUG (R0 01 1 (1)) 627
REAR ELECTRONIC LIFT PLUG (R0 01 2 (1)) 628
LIFT FIXING COMPONENTS (R0 01 3 (1)) 629
LIFT ASSEMBLY 630
LIFTING (R0 02 0 (1)) 630
LIFTING (R0 02 1 (1)) 631
RAISE (R0 02 2 (1)) 632
LIFT CONTROL VALVE 633
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (R0 03 0 (1)) 633
MECHANICAL LIFT CONTROL VALVE FIXING (R0 03 1 (1)) 635
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (R0 03 2 (1)) 636
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (R0 03 3 (1)) 637
DISTRIBUTOR (2 3729 460 0 A) 638
IN-CAB CONTROLS 639
INTERNAL CONTROLS (R0 04 0 (1)) 639
SENSOR 640
SENSITIVE ELEMENTS (R0 05 0 (1)) 640
SENSING ELEMENTS WITH ELECTRONIC CONTROL (R0 05 1 (1)) 641
THREE-POINT LINKAGE – LINK ARMS 642
LIFT ARMS TO GEARBOX LOCK PINS (R0 06 0 (1)) 642
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD (R0 06 2 (1)) 643
3-POINT HITCH WITH HYDRAULIC LIFT ROD (R0 06 3 (1)) 644
TOP LINKATTACHMENT SPRING WITH MECHANICAL REAR LIFT (R0 06 4 (1)) 645
THREE POINT LINKAGE (R0 06 5 (1)) 646
3-POINT LINKAGE (R0 06 6 (1)) 647
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R0 06 7 (2)) 648
TOWING BAR (R0 06 8 (1)) 649
CYLINDER PARTS (0 010 7534 4 A) 650
LINKAGE (0 014 1412 3 A) 651
TOWING HITCH (0 014 1420 3 A) 652
Rear-axle 653
Index 653
AGROPLUS 310 -> 5001 654
E0 – REAR AXLE 654
REAR AXLE 654
REAR AXLE (E0 01 0 (1)) 654
PARTS SET FOR REAR AXLE – STANDARD SEAL (E0 01 1 (1)) 655
REAR AXLE CROWN WHEEL (E0 01 2 (1)) 656
REAR AXLE – MOUNTINGS (E0 01 3 (1)) 657
REAR DIFFERENTIAL / HALF-SHAFTS 658
DIFFERENTIAL (E0 02 0 (1)) 658
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (E0 02 1 (1)) 659
REAR REDUCTION GEARS AND AXLE SHAFTS (E0 02 2 (1)) 660
HALF AXLES (E0 02 3 (1)) 661
REAR BRAKES 662
REAR BRAKES (E0 03 0 (2)) 662
REAR BRAKES (E0 03 0 (3)) 663
REAR BRAKES (E0 03 1 (1)) 664
Transmission 665
Index 665
AGROPLUS 310 -> 5001 668
D0 – TRANSMISSION 668
MAIN CLUTCH 668
CLUTCH 11″ (D0 01 0 (1)) 668
CLUTCH CONTROL (D0 01 3 (1)) 669
CLUTCH CONTROL (D0 01 4 (2)) 670
HML – HI-LO – SHML 671
H-M-L UNIT (D0 04 2 (1)) 671
H-M-L UNIT (D0 04 3 (1)) 672
GEARBOX INPUT SHAFT 673
GEARBOX INPUT SHAFT (D0 05 2 (1)) 673
GEARBOX INPUT SHAFT (D0 05 3 (1)) 674
SHUTTLE SHAFT (D0 05 4 (1)) 675
SHUTTLE FOR 5-SPEED TRANSMISSION (D0 05 6 (1)) 676
SHUTTLE FOR 5-SPEED TRANSMISSION W/ UNDERDRIVE (D0 05 8 (1)) 677
SYNCHRONISERS (D0 05 10 (1)) 678
SYNCHRONIZER PARTS (0 007 7620 4/10 A) 679
SYNCHRONIZER PARTS (0 009 6826 4 A) 680
PTO INPUT SHAFT 681
P T O – CLUTCH TRANSMISSION SHAFT (D0 06 1 (1)) 681
P T O – CLUTCH TRANSMISSION SHAFT (D0 06 2 (1)) 682
MAIN SHAFT 683
5-SPEED GEARBOX PRIMARY SHAFT (D0 07 2 (1)) 683
5-SPEED GEARBOX PRIMARY SHAFT WITH UNDERDRIVE (D0 07 3 (1)) 684
SECONDARY SHAFT 685
TRANSMISSION SHAFT (D0 08 0 (1)) 685
TRANSMISSION SHAFT – FOR TYPES WITHOUT H-M-L (POWERSHIFT) (D0 08 1 (1)) 686
H-M-L GEARBOX SECONDARY SHAFT (D0 08 3 (2)) 687
5-SPEED GEARBOX SECONDARY SHAFT (D0 08 5 (1)) 688
5-SPEED GEARBOX SECONDARY SHAFT WITH UNDERDRIVE (D0 08 7 (1)) 689
SYNCHRONISERS (D0 08 8 (1)) 690
SYNCHRONISERS (D0 08 9 (1)) 691
SYNCHRONIZER PARTS (0 009 6825 4 A) 692
SYNCHRONIZER PARTS (0 009 6826 4 A) 693
GEARBOX 694
GEARBOX FRONT- FIXINGS (D0 09 0 (1)) 694
GEARBOX FRONT (D0 09 2 (1)) 695
GEARBOX REAR (D0 09 3 (2)) 696
GEARBOX REAR (D0 09 3 (3)) 697
FRONT GEARBOX PLUG (D0 09 5 (1)) 698
PLUG FOR GEARBOX WITHH-M-L (D0 09 7 (1)) 699
PLUGS FOR GEARBOX (D0 09 8 (1)) 700
FRONT GEARBOX PLUG (D0 09 9 (1)) 701
PLUGS FOR GEARBOX (D0 09 10 (1)) 702
GEARBOX UPPER COVER (D0 09 12 (1)) 703
REAR GEARBOX PLUG (D0 09 13 (1)) 704
FRONT GEARBOX PLUG (D0 09 14 (1)) 705
REAR GEARBOX PLUG (D0 09 15 (1)) 706
PLUG FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D0 09 16 (1)) 707
REAR GEARBOX PLUG (D0 09 17 (1)) 708
SENSOR BRACKET (D0 09 18 (1)) 709
INTERNAL AND EXTERNAL GEARBOX CONTROLS 710
GEARBOX CONTROL ROD (D0 10 0 (1)) 710
5-SPEED GEARBOX INTERNAL CONTROLS (D0 10 3 (2)) 711
INTERNAL CONTROLS OF 5-SPEED GEARBOX WITH UNDERDRIVE (D0 10 4 (2)) 712
GEAR SHIFTING (D0 10 7 (1)) 713
PARTS SET – 5-SPEED GEARBOX (D0 10 8 (1)) 715
PARTS SET – 5-SPEED WITH UNDERDRIVE (D0 10 9 (1)) 716
SPEED RANGE REDUCTION GEAR SHAFT (D0 10 10 (1)) 717
3-RANGE BOX (D0 10 11 (1)) 718
LOW SPEED RANGES 719
BEVEL WHEEL GEAR Z = 12 / Z = 44 (D0 11 0 (1)) 719
BEVEL DRIVE PINION BEARING (D0 11 1 (1)) 720
SPEED RANGE REDUCTION GEAR UNIT (D0 11 2 (1)) 721
3-RANGE BOX 40 Km\h (D0 11 3 (1)) 722
PHONIC WHEEL FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D0 11 5 (1)) 723
HYDRAULIC REAR PTO CLUTCH 724
P T O – HYDRAULIC CLUTCH (D0 12 0 (2)) 724
P T O – HYDRAULIC CLUTCH (0 011 9686 4/40 A) 725
P T O – HYDRAULIC CLUTCH (0 011 9686 4/40 B) 726
HYDRAULIC PUMP DRIVE 727
P T O – PUMP CONTROL (D0 13 0 (2)) 727
PTO/GROUNDPSPEED DRIVE 728
CONTROL LEVER P T O (D0 14 0 (1)) 728
CONTROL LEVER P T O (D0 14 1 (1)) 729
BEARINGS OF – 2-SPEED P T O (D0 14 2 (1)) 730
P T O – 540/N – WITH INSERTED END SHAFTS (D0 14 4 (1)) 731
CONTROL LEVER P T O (D0 14 5 (1)) 732
P T O – 540/N – WITH INSERTED END SHAFTS (D0 14 6 (1)) 733
P T O – 2 SPEED TYPE 540-750 (D0 14 7 (1)) 734
2-SPEED – PTO WITH FIXED OUTPUT SHAFT 540-750 (D0 14 8 (2)) 735
PTO – 2-SPEED WITH INSERTED END SHAFT 540-750 (D0 14 9 (1)) 736
PTO – 2-SPEED WITH INSERTED END SHAFT 540-750 (D0 14 10 (1)) 737
P T O SHAFT 540 – 750 + SYNCRO (D0 14 11 (1)) 738
P T O SHAFT 540 – 750 + SYNCRO (D0 14 12 (1)) 739
3-SPEED P T O WITH FIXED OUTPUT SHAFT 540-750-1000 (D0 14 13 (1)) 740
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 14 (1)) 741
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 15 (1)) 742
P T O WITH FIXED OUTPUT SHAFT – 2 SPEEDS + SINCRO AND 3 SPEEDS (D0 14 16 (2)) 743
P T O WITH INSERTED END SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (D0 14 17 (1)) 744
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 18 (2)) 745
REAR PTO COVER WITH STANDARD SEAL (D0 14 19 (1)) 746
P T O – 2 SPEED TYPE + SINCRO (D0 14 20 (1)) 747
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 21 (1)) 748
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 22 (1)) 749
GUARD PLATE P T O (D0 14 23 (1)) 750
GUARD PLATE P T O (D0 14 24 (1)) 751
GUARD PLATE P T O (D0 14 25 (1)) 752
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE 753
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (D0 15 0 (1)) 753
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (D0 15 1 (1)) 754
HAND BRAKE (D0 15 2 (2)) 755
Wheels 756
Index 756
AGROPLUS 310 -> 5001 757
S0 – WHEELS 757
FRONT WHEEL BOLTS 757
4WD – FRONT WHEEL MOUNTING (S0 01 1 (1)) 757
REAR WHEEL BOLTS 758
REAR WHEEL BOLTS (S0 02 0 (1)) 758
WHEELS 759
WHEELS 320/70 R20″ A8 (S0 04 0 (1)) 759
WHEELS 320/85R20″(12 4R20″) (S0 04 1 (2)) 760
WHEELS 360/70R20″a8 (S0 04 2 (1)) 761
WHEELS 380/70 R20″ A8 (S0 04 4 (1)) 762
WHEELS 405/70 R20″ (S0 04 5 (1)) 763
WHEELS 420/65R20″ A8 (S0 04 6 (1)) 764
WHEELS 320/70 R24″ A8 (S0 04 7 (1)) 765
WHEELS 420/70 R28″ A8 (S0 04 8 (1)) 766
WHEELS 540/65R28″ A8 (S0 04 9 (1)) 767
WHEELS 380/85R30″(14 9R30″) (S0 04 10 (3)) 768
WHEELS 420/70 R30″ A8 (S0 04 11 (1)) 769
WHEELS 480/70R-30″ a8 (S0 04 12 (1)) 770
WHEELS 480/70R30 GRUNLAND (S0 04 13 (1)) 771
WHEELS 13 6R36″ a8 (S0 04 15 (1)) 772

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.V
