Deutz Fahr Agroplus 60 After 2001 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agroplus 60 After 2001 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agroplus 60 After 2001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 513
Downloadable : Yes
File Type : PDF
Size: 23.5 MB

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

https://vimeo.com/810486132

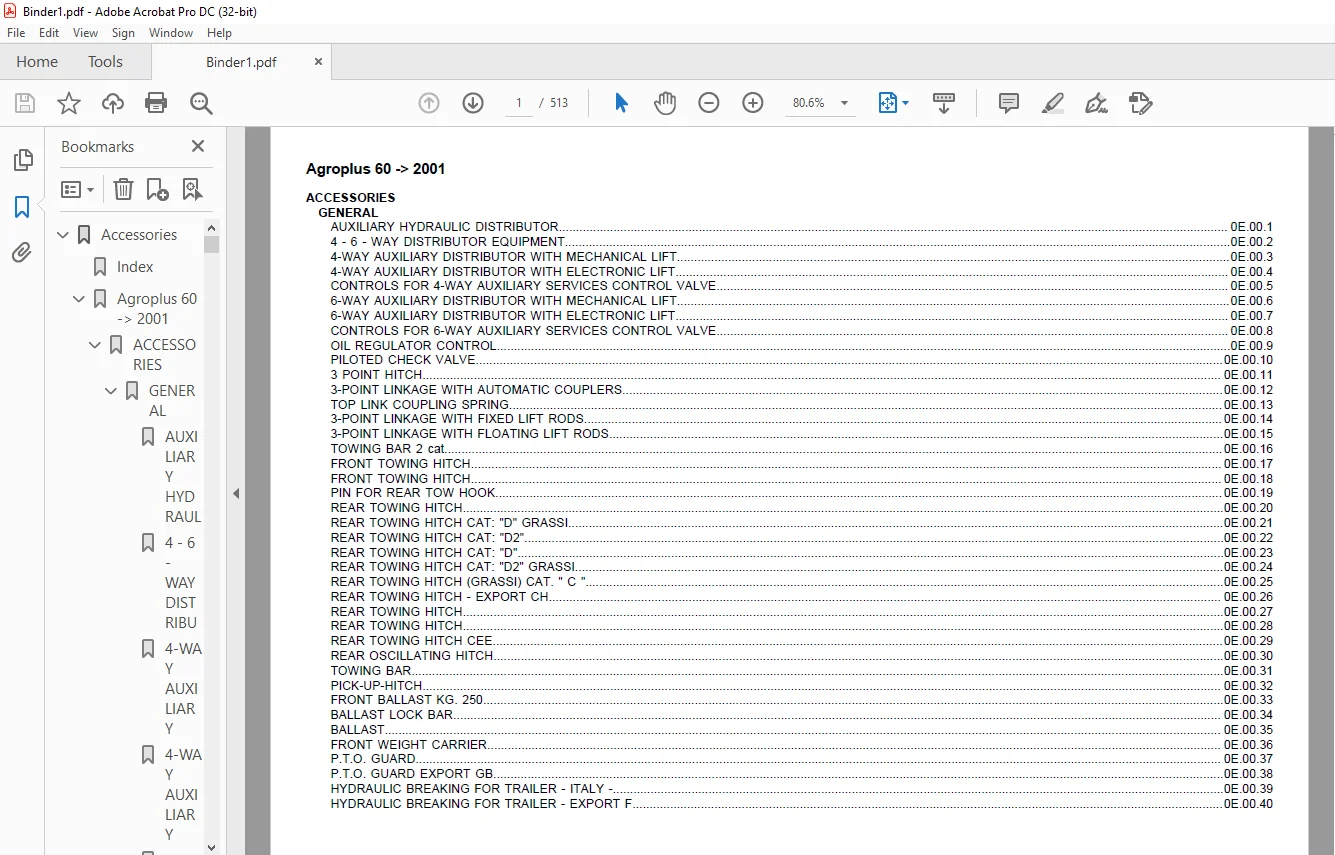

TABLE OF CONTENTS:

Deutz Fahr Agroplus 60 After 2001 Parts Catalog Manual – PDF DOWNLOAD

Accessories 1
Index 1
Agroplus 60 -> 2001 3
ACCESSORIES 3
GENERAL 3

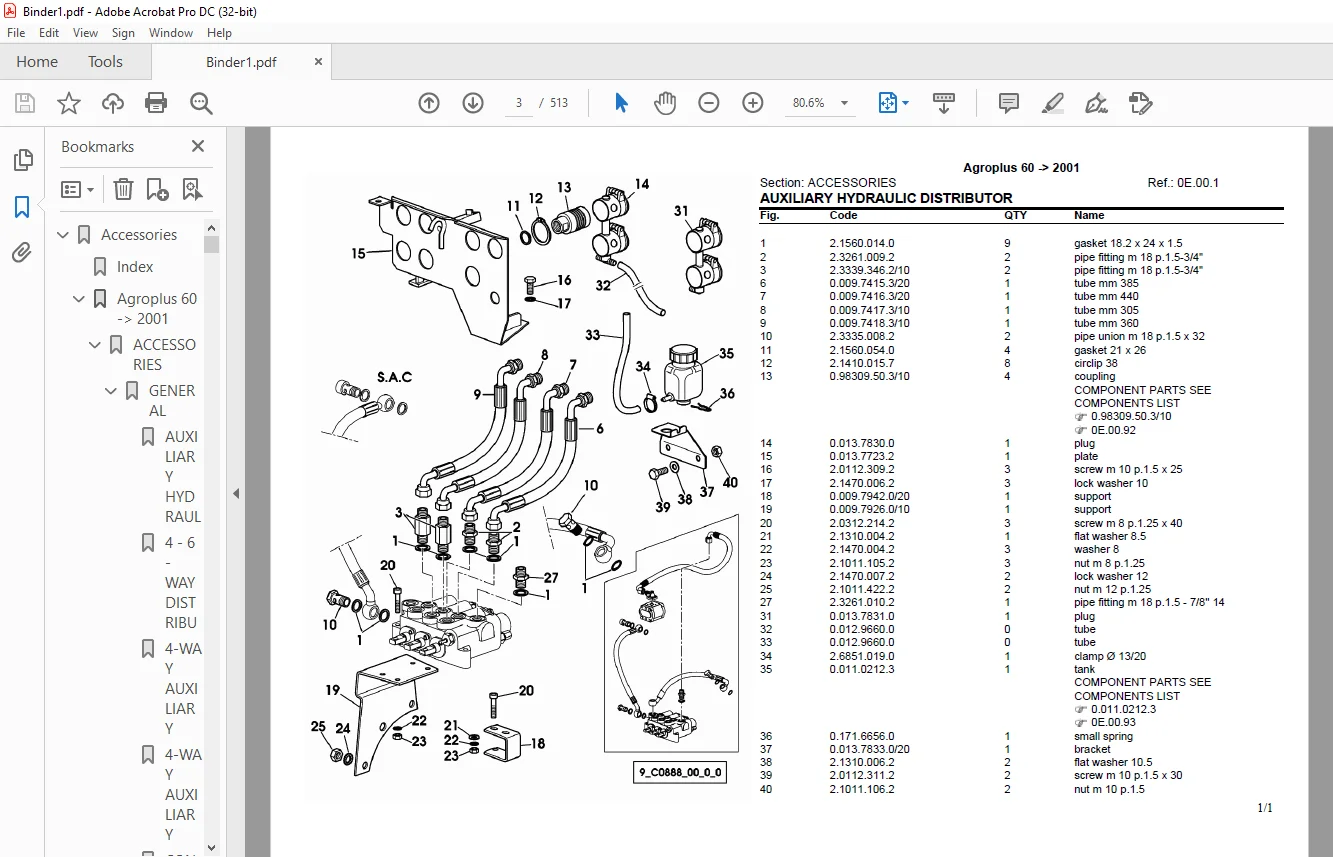

AUXILIARY HYDRAULIC DISTRIBUTOR (0E 00 1) 3
4 – 6 – WAY DISTRIBUTOR EQUIPMENT (0E 00 2) 4
4-WAY AUXILIARY DISTRIBUTOR WITH MECHANICAL LIFT (0E 00 3) 5
4-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E 00 4) 6
CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (0E 00 5) 7

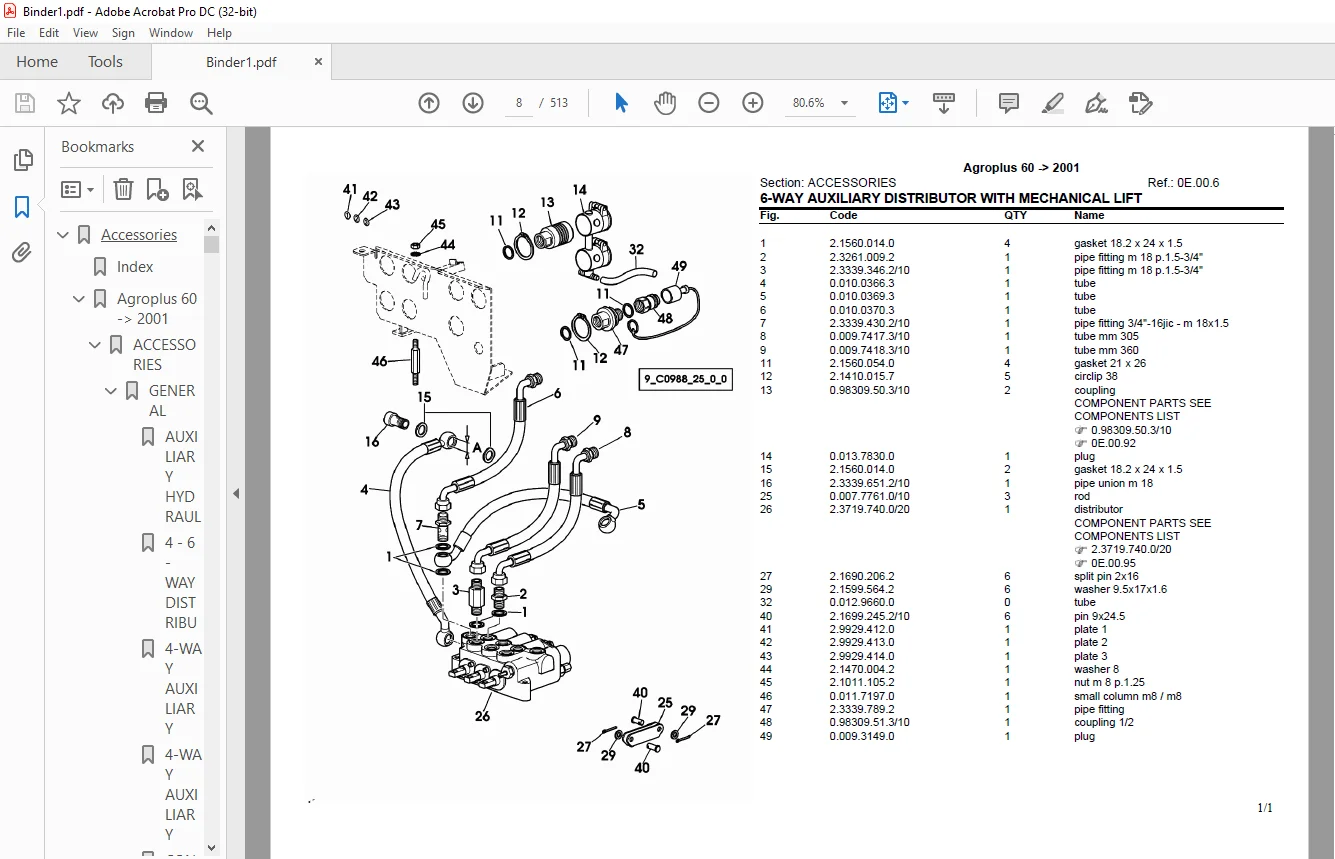

6-WAY AUXILIARY DISTRIBUTOR WITH MECHANICAL LIFT (0E 00 6) 8
6-WAY AUXILIARY DISTRIBUTOR WITH ELECTRONIC LIFT (0E 00 7) 9
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (0E 00 8) 10
OIL REGULATOR CONTROL (0E 00 9) 11
PILOTED CHECK VALVE (0E 00 10) 12
3 POINT HITCH (0E 00 11) 13
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (0E 00 12) 14
TOP LINK COUPLING SPRING (0E 00 13) 16
3-POINT LINKAGE WITH FIXED LIFT RODS (0E 00 14) 17
3-POINT LINKAGE WITH FLOATING LIFT RODS (0E 00 15) 18
TOWING BAR 2 cat (0E 00 16) 19
FRONT TOWING HITCH (0E 00 17) 20
FRONT TOWING HITCH (0E 00 18) 21
PIN FOR REAR TOW HOOK (0E 00 19) 22
REAR TOWING HITCH (0E 00 20) 23
REAR TOWING HITCH CAT: “D” GRASSI (0E 00 21) 24
REAR TOWING HITCH CAT: “D2” (0E 00 22) 25
REAR TOWING HITCH CAT: “D” (0E 00 23) 26
REAR TOWING HITCH CAT: “D2″ GRASSI (0E 00 24) 27
REAR TOWING HITCH (GRASSI) CAT ” C ” (0E 00 25) 28
REAR TOWING HITCH – EXPORT CH (0E 00 26) 29
REAR TOWING HITCH (0E 00 27) 30
REAR TOWING HITCH (0E 00 28) 31
REAR TOWING HITCH CEE (0E 00 29) 32
REAR OSCILLATING HITCH (0E 00 30) 33
TOWING BAR (0E 00 31) 34
PICK-UP-HITCH (0E 00 32) 35
FRONT BALLAST KG 250 (0E 00 33) 36
BALLAST LOCK BAR (0E 00 34) 37
BALLAST (0E 00 35) 38
FRONT WEIGHT CARRIER (0E 00 36) 39
P T O GUARD (0E 00 37) 40
P T O GUARD EXPORT GB (0E 00 38) 41
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E 00 39) 42
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (0E 00 40) 43
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E 00 41) 44
HYDRAULIC TRAILER BRAKING PARTS KIT (0E 00 42) 45
LUBRICATOR (0E 00 43) 46
TOOL POUCH (0E 00 44) 47
Bodywork 48
Index 48
Agroplus 60 -> 2001 50
BODY WORK 50
GENERAL 50
HOOD (07 00 1) 50
HOOD – GUARDS (07 00 2) 51
HOOD FRONT PART (07 00 7) 52
HOOD PLUG (07 00 8) 53
HOOD SUPPORT (07 00 9) 54
BRAKE FLUID RESERVOIR SUPPORT (07 00 10) 56
DEFLECTORS AND SUPPORTS (07 00 11) 57
ENGINE HOOD GASKETS (07 00 12) 58
STEERING COLUMN SHROUD (07 00 13) 59
DASHBOARD (07 00 14) 60
PLUG FOR VERSION WITHOUT CIGAR LIGHTER (07 00 15) 61
INSTRUMENT PANEL SURROUND (07 00 16) 62
THROTTLE – MECHANICAL – (07 00 17) 63
THROTTLE – MECHANICAL – (07 00 18) 64
ACCELERATOR PEDAL GASKET (07 00 19) 65
THROTTLE (07 00 20) 66
BATTERY SUPPORT (07 00 22) 67
BATTERY SUPPORT WITH FRONT PTO (07 00 23) 68
METAL TOOLBOX (07 00 24) 69
CABLE CONDUIT (07 00 25) 70
COVER PLATE – FOR TRACTORS WITHOUT AIR CONDITIONING (07 00 27) 71
SPECIAL VERSION – FOR MODELS WITH PLATFORM EXPORT I (07 00 28) 72
SPECIAL VERSION FOR EXPORT I – FOR MODELS WITH CAB (07 00 29) 73
SPECIAL VERSION FOR EXPORT D (07 00 30) 74
CHOCK (07 00 31) 75
LICENCE PLATE HOLDER (07 00 32) 76
PLATES (07 00 33) 77
PLATES (07 00 34) 78
INFORMATION PLATE (07 00 35) 79
SPEED LABEL – 40 KM/H – REFLEX (07 00 36) 80
SPEED LABEL – 40 KM/H (07 00 37) 81
PLATES OCDE (07 00 38) 82
MAT FOR PLATOFRM (07 00 39) 83
PLATES (07 00 40) 84
PLATFORM (07 00 41) 85
FLOOR PLUG (07 00 42) 86
LADDER sx/lh/li (07 00 43) 87
LADDER dx/rh/re (07 00 44) 88
SUPPORTS (07 00 45) 89
FENDERS – FOR TYPES WITH MECHANICAL LIFTER (07 00 46) 90
FENDERS – FOR TYPES WITH ELECTRONIC LIFTER (07 00 47) 91
EXTENSION FOR WING mm 108 (07 00 48) 92
EXTENSION FOR WING mm 200 (07 00 49) 93
2WD – FRONT MUDGUARDS mm 240 (07 00 50) 94
SELF-ADJUSTING FRONT FENDERS mm 355 (07 00 51) 95
SELF-ADJUSTING FRONT FENDERS mm 310 (07 00 52) 97
SAFETY ARCH (07 00 53) 99
REARVIEW MIRROR – FOR MODELS WITH PLATFORM sx/lh/li (07 00 54) 100
REARVIEW MIRROR – FOR MODELS WITH PLATFORM dx/rh/re (07 00 55) 101
SEAT FOR 2ND OPERATOR (07 00 56) 102
PASSENGER SEAT – PLATFORM (07 00 57) 103
FUEL TANK (07 00 58) 104
FUEL TANK GUARD (07 00 59) 105
FUEL TANK GUARD EXPORT D (07 00 60) 106
AIR CLEANER HOSE (07 00 61) 107
DRY AIR FILTER 7″ (07 00 62) 108
DRY AIR FILTER 8 ” (07 00 63) 109
AIR PRE-CLEANER (07 00 64) 110
SEAT SUPPORT PLATE (07 00 65) 111
DRIVER’S SEAT GRAMMER MSG83/20 (07 00 66) 112
DRIVER’S SEAT KAB XL2 (07 00 67) 113
SEAT SPRINGING (07 00 68) 114
DRIVER’S SEAT (07 00 69) 115
DRIVER’S SEAT GRAMMER MSG 83/7L (07 00 70) 116
DRIVER’S SEAT – PNEUMATIC SPRINGING GRAMMER MSG 93/20 (07 00 71) 117
SAFETY BELT (07 00 72) 118
SAFETY BELT (07 00 73) 119
SAFETY BELT (07 00 74) 120
Cab 121
Index 121
Agroplus 60 -> 2001 123
CAB 123
GENERAL 123
METALLIC STRUCTURES (0B 00 1) 123
REARVIEW MIRROR (0B 00 2) 124
EXTENDING REARVIEW MIRROR (0B 00 3) 125
DOOR HANDLE – CAB DOOR RIGHT/LEFT (0B 00 4) 126
WINDSCREEN (0B 00 5) 127
GLASSES AND SEALS (0B 00 6) 128
REAR WINDOW (0B 00 7) 130
DAMPER FOR REAR WINDOW HATCH (0B 00 8) 131
DAMPER FOR REAR WINDOW HATCH – ROOF GREY (0B 00 9) 132
SIDE PLATE RIGHT/LEFT (0B 00 10) 133
FRONT WINDSHIELD WIPER SYSTEM (0B 00 11) 134
FRONT WINDSHIELD WIPER SYSTEM “HIGHT VISIBILITY” (0B 00 12) 135
REAR WIPER WIRING SYSTEM (0B 00 13) 136
REAR WIPER WIRING SYSTEM “HIGHT VISIBILITY” (0B 00 14) 137
CAB SOUNDPROOF PANELS (0B 00 15) 138
CAB SOUNDPROOF PANELS (0B 00 16) 139
CAB INSTALLATION COMPLETION (0B 00 17) 140
CAB INSTALLATION COMPLETION – ROOF GREY (0B 00 18) 141
CAB INTERIOR TRIM (0B 00 19) 142
INTERIOR TRIM (0B 00 20) 143
INTERIOR TRIM (0B 00 21) 144
CARBON FILTER – ROOF GREY (0B 00 22) 145
CARBON FILTER (0B 00 23) 146
CAB INSTALLATION COMPLETION (0B 00 24) 147
INTERIOR TRIM “HIGHT VISIBILITY” (0B 00 25) 148
CAB ROOF “HIGHT VISIBILITY” (0B 00 26) 149
CAB ROOF “HIGHT VISIBILITY” – FOR TRACTORS WITH AIR CONDITIONING (0B 00 27) 150
CAB ROOF “HIGHT VISIBILITY” (0B 00 28) 151
CAB ROOF “HIGHT VISIBILITY” (0B 00 29) 152
CAB ROOF “HIGHT VISIBILITY” (0B 00 30) 153
INTERIOR TRIM – GREY (0B 00 31) 155
ROOF WITH SKYLIGHT (0B 00 32) 156
CAB ROOF – FOR TRACTORS WITHOUT AIR CONDITIONING (0B 00 33) 157
CAB ROOF – FOR TRACTORS WITH AIR CONDITIONING (0B 00 34) 158
CAB ROOF – FOR TRACTORS WITH AIR CONDITIONING (0B 00 35) 159
SUN BLIND (0B 00 36) 160
SUN BLIND – FOR “HIGH VISIBILITY” CAB (0B 00 37) 161
COMPRESSOR – AIR CONDITIONING UNIT (0B 00 38) 162
LINE AIR CONDITIONING UNIT (0B 00 39) 163
CONDENSER – AIR CONDITIONING UNIT (0B 00 40) 164
CONDENSER – AIR CONDITIONING UNIT – ROOF GREY (0B 00 41) 165
VENTILATION AND AIR CONDITIONING PIPES (0B 00 42) 166
VENTILATION – AIR CONDITIONING “HIGHT VISIBILITY” (0B 00 43) 167
ELETRIC HEATING (0B 00 44) 168
ELETRIC HEATING “HIGHT VISIBILITY” (0B 00 45) 169
VENTILATION – AIR CONDITIONING – HEATING (0B 00 46) 170
VENTILATION – AIR CONDITIONING – HEATING “HIGHT VISIBILITY” (0B 00 47) 171
Electrical_system 172
Index 172
Agroplus 60 -> 2001 174
ELECTRIC AL SYSTEM 174
GENERAL 174
ELECTRICAL CAB LIGTHING SYSTEM (08 00 1) 174
ELECTRICAL LIGHTING SYSTEM WITH VERTICAL EXHAUST SILENCER (08 00 2) 175
HEADLAMP FOR RIGHT-HAND DRIVE (08 00 3) 176
HEADLAMP FOR LEFT-HAND DRIVE (08 00 4) 177
RETROREFLECTOR EXPORT CH (08 00 5) 178
LICENCE PLATE LIGHT (08 00 6) 179
ELECTRIC LIGHTING SYSTEM FOR TYPE WITH PLATFORM (08 00 7) 180
WORKING SPOTLIGHT (08 00 8) 181
WARNING BEACON (08 00 9) 182
PREARRANGEMENT FOR WARNING BEACON (08 00 10) 183
FLASHING LIGHT SUPPORT – FOR TYPES WITH GREY ROOF (08 00 11) 184
FLASHING LIGHT SUPPORT (08 00 12) 185
WORKING SPOTLIGHT REAR – FOR TYPES WITH GREY ROOF (08 00 13) 186
WORKING SPOTLIGHT FRONT – FOR TYPES WITH GREY ROOF (08 00 14) 187
WORKING SPOTLIGHT REAR (08 00 15) 188
WORKING SPOTLIGHT FRONT (08 00 16) 189
WORKLIGHTS FOR “HIGH VISIBILITY” CAB (08 00 17) 190
PREARRANGED FOR RADIO INSTALLATION (08 00 18) 191
ANALOGUE INSTRUMENT PANEL (08 00 19) 192
DIGITAL INSTRUMENT PANEL (08 00 20) 193
CENTRAL WIRING (08 00 21) 194
ELECTRICAL EQUIPMENT FRONT (08 00 22) 195
ELECTRICAL SYSTEM (08 00 24) 196
ELECTRICAL SYSTEM FOR TYPE WITH PLATFORM (08 00 25) 197
ELECTRICAL SYSTEM FOR TYPE WITH CAB (08 00 27) 198
CAB ELECTRICAL SYSTEM (08 00 29) 199
ELECTRICAL SYSTEM FOR TYPE WITH CAB “HIGHT VISIBILITY” (08 00 30) 200
ELECTRICAL CONTROLS (08 00 31) 201
PREHEATING CONTROL UNIT (08 00 32) 202
TRANSMISSION CONTROL UNIT (08 00 33) 203
POWER-LIFT ELECTRONIC SYSTEM (08 00 34) 204
BATTERY 12V 100Ah 500A (08 00 35) 205
BATTERY 12V 100Ah 650A (08 00 36) 206
DIAGNOSTICS LEAD FOR ELECTRONIC LIFT (08 00 37) 207
SPEED SENSOR (08 00 38) 208
ELECTRICAL LEAD FOR HYDRAULIC TRAILER BRAKING (08 00 39) 209
4WD – ENGAGEMENT CONTROL (08 00 40) 210
SWITCH – FOR P T O FRONT (08 00 41) 211
CIGAR LIGHTER (08 00 42) 212
ALTERNATOR – FOR TRACTORS WITHOUT AIR CONDITIONING 65A (08 00 43) 213
ALTERNATOR – FOR TRACTORS WITH AIR CONDITIONING 85A (08 00 44) 214
ALTERNATOR – FOR TRACTORS WITH AIR HEATING 70A (08 00 45) 215
Engine 216
Index 216
Agroplus 60 -> 2001 219
ENGINE 219
GENERAL 219
PARTS SET – ENGINE MOUNTING (01 00 1) 219
SIDE EXHAUST SILENCER (01 00 4) 220
REAR EXHAUST SILENCER (01 00 6) 221
EXHAUST SILENCER (01 00 7) 222
Crankcase 223
LOCK (01 01 1) 223
BLEEDING TUBE (01 01 2) 224
FRONT COVER (01 01 3) 225
FASTENINGS (01 01 4) 226
CLOSING COMPONENTS (01 01 5) 227
CLOSING COMPONENTS (01 01 6) 228
ACCESSORIES (01 01 7) 229
TUNNEL COVER (01 01 8) 230
SEALING (01 01 9) 231
DIPSTICK (01 01 10) 232
CLOSING COMPONENTS (01 01 11) 233
CRANKCASE (01 01 12) 234
IDLER BEARING (01 01 13) 235
COVER (01 01 14) 236
NOZZLE (01 01 15) 237
Oil pan 238
OIL PAN (01 02 1) 238
Cylinder 239
CYLINDER (01 04 1) 239
Crankshaft 240
V-GROOVED PULLEY (01 05 1) 240
FLYWHEEL (01 05 2) 241
CRANKSHAFT (01 05 3) 242
Connecting rod 244
CONNECTING ROD (01 06 1) 244
Piston 245
PISTON (01 07 1) 245
Cylinder head 246
FASTENINGS (01 08 1) 246
VALVE MECHAN COVER (01 08 2) 247
CYLINDER HEAD (01 08 3) 248
Camshaft 250
CAMSHAFT (01 10 1) 250
Timing gears 251
VALVE DRIVE (01 11 1) 251
CONDUIT (01 11 2) 252
Lube oil pump 253
LUBRICAT OIL PUMP (01 14 1) 253
Oil cooler, Lube oil filter 254
LUBRIC OIL COOLER (01 15 1) 254
FILTER CARRIER (01 15 2) 255
FILTER CARTRIDGE (01 15 3) 256
Oil pipes 257
PRESSURE OIL LINE (01 16 1) 257
OIL INTAKE LINE (01 16 2) 258
Injection pump 259
OIL LUBRICATION PIPE (01 17 1) 259
IN LINE INJECTION PUMP (01 17 2) 260
IN LINE INJECTION PUMP (01 17 3) 261
PARTS OF GOVERNOR (01 17 5) 262
Injection pump drive 264
INJECTION CONTROL (01 18 1) 264
INJECTION CONTROL (01 18 2) 265
Injector 266
FUEL INJECTOR (01 19 1) 266
Fuel pipes 267
HIGH PRESSURE PIPE (01 21 1) 267
Air intake, Air cleaner 268
AIR INTAKE TUBE (01 22 1) 268
Air compressor 269
CLOSING COMPONENTS (01 33 1) 269
Cooling air blower 270
COOLING FAN (01 39 1) 270
Cooling air ducting 271
AIR DUCT WALL (01 40 1) 271
AIR INTAKE HOSE LOWER PART (01 40 2) 272
COOL AIR FEED DUCT (01 40 3) 273
COOLING AIR BAFFLE (01 40 4) 274
AIR DUCTING RAIL (01 40 5) 275
AIR DUCT WALL (01 40 6) 276
END PANEL COVER (01 40 7) 277
COOL AIR FEED DUCT (01 40 8) 278
AIR INTAKE HOSE LOWER PART (01 40 9) 279
Exhaust manifold 280
EXHAUST MANIFOLD (01 41 1) 280
Generator, Startet motor 281
DRIVING PARTS (01 44 1) 281
ACCESSORIES (01 44 2) 282
STARTER (01 44 3) 283
Electrical accessories 284
OIL PRESSUR SWITCH (01 48 1) 284
OIL PRESSUR SWITCH (01 48 2) 285
Measuring instruments 286
TEMPER TRANSMITTER (01 51 1) 286
THERMOSTAT (01 51 2) 287
THERMOSTAT (01 51 3) 288
CLOSING COMPONENTS (01 51 4) 289
Engine shutdown 290
SHUTDOWN DEVICE (01 56 1) 290
Starting aid 291
SOLENOID VALVE (01 63 1) 291
FLAME GLOW PLUG (01 63 2) 292
FUEL LINE (01 63 3) 293
Hydraulic pump 294
CLOSING COMPONENTS (01 83 1) 294
Sealing set 295
GASKET SET (01 90 1) 295
GASKET SET (01 90 2) 296
Front_and_rear_pto 297
Index 297
Agroplus 60 -> 2001 298
FRONT AND REAR P T O 298
GENERAL 298
P T O FRONT (05 00 1) 298
P T O FRONT (05 00 2) 300
SEPARATOR (05 00 3) 301
P T O – HYDRAULIC CLUTCH (05 00 4) 302
P T O – CLUTCH TRANSMISSION SHAFT (05 00 5) 303
P T O – PUMP CONTROL (05 00 6) 304
P T O – WITH N’ 540 – 750 (05 00 7) 305
P T O – WITH N’ 540 – 750 + SINCRO (05 00 8) 306
P T O – 540-750 – WITH INSERTED END SHAFTS EXPORT U S A (05 00 9) 308
P T O – 540-750 – WITH INSERTED END SHAFTS + SINCRO (05 00 10) 309
P T O – WITH N’ 540 – 1000 (05 00 11) 310
P T O – WITH N’ 540 – 1000 + SINCRO (05 00 12) 311
P T O – 540 -1000 WITH INSERTED END SHAFTS (05 00 13) 313
P T O – 540-1000 – WITH INSERTED END SHAFTS + SINCRO (05 00 14) 314
P T O – 540-1000 – WITH INSERTED END SHAFTS (05 00 15) 315
P T O – 540 -1000 WITH INSERTED END SHAFTS EXPORT U S A + SINCRO (05 00 16) 316
P T O – 2 SPEED TYPE (05 00 17) 317
P T O – 2 SPEED TYPE – FIXED END SHAFT (05 00 19) 318
P T O – 2 SPEED TYPE + SINCRO – FIXED END SHAFT (05 00 20) 319
P T O – 3 SPEED TYPE (05 00 21) 320
P T O – 3 SPEED TYPE – FIXED END SHAFT (05 00 22) 321
PTO – 3-SPEED WITH INSERTED END SHAFT (05 00 23) 322
PTO – 3-SPEED WITH INSERTED END SHAFT (05 00 24) 323
PTO – PARTS SET WITH STANDARD SEALS (05 00 25) 324
PTO – PARTS SET WITH WATER PROOF SEALS (05 00 26) 325
PTO – SEAL RING FOR INSERTED END SHAFT – STANDARD VERSION (05 00 27) 326
PTO – SEAL RING FOR INSERTED END SHAFT – WATER PROOF VERSION (05 00 28) 327
P T O – 2 SPEED TYPE + SINCRO (05 00 29) 328
COVER FOR TYPES WITHOUT SYNCHRO PTO (05 00 30) 329
P T O SHAFT DRIVE (05 00 31) 330
PTO CONTROL FOR TYPES WITH CAB (05 00 32) 331
P T O SHAFT DRIVE – 2 SPEED + SYNCHRO AND 3-SPEED (05 00 33) 332
P T O SHAFT DRIVE – 2 SPEED (05 00 34) 333
P T O SHAFT DRIVE (05 00 35) 334
PTO DATA PLATE 540 – 750 (05 00 36) 335
PTO DATA PLATE 540 – 1000 (05 00 37) 336
PTO DATA PLATE 540 – 750 + SINCRO (05 00 38) 337
PTO DATA PLATE 540 – 1000 + SYNCRO (05 00 39) 338
PTO DATA PLATE 540 – 750 – 1000 (05 00 40) 339
Front_axle 340
Index 340
Agroplus 60 -> 2001 341
FRONT AXEL 341
GENERAL 341
FRONT SUPPORT (04 00 1) 341
FRONT SUPPORT (04 00 2) 342
4WD – PLUGS FOR FRONT SUPPORT (04 00 3) 343
2WD – FRONT SUPPORT (04 00 4) 344
4WD – FRONT SUPPORT (04 00 5) 345
FRONT SUPPORT (04 00 6) 346
2WD – EXTENDIBLE AXLE (04 00 7) 347
2WD – EXTENDIBLE AXLE – FOR TYPES WITHOUT FRONT BRAKES (04 00 8) 348
2WD – EXTENDIBLE FRONT AXLE WITH FRONT BRAKES (04 00 9) 349
2WD – POWER STEERING CYLINDER (04 00 10) 350
4WD – POWER STEERING CYLINDER (04 00 11) 351
4WD – DOUBLE CYLINDER – STEERING (04 00 12) 352
4WD – FRONT DRIVE AXLE (04 00 13) 353
4WD – FRONT DRIVE AXLE – FOR MODELS WITHOUT FRONT LIFT (04 00 14) 354
4WD – FLANGE (04 00 15) 355
BEVEL WHEEL GEAR Z = 15 / Z = 33 (04 00 16) 356
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (04 00 17) 357
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (04 00 18) 358
4WD – DIFFERENTIAL LOCK CONTROL-FRONT (04 00 19) 359
4WD – FRONT REDUCTION GEARBOX (04 00 20) 360
4WD – STANDARD SEALING (04 00 21) 361
4WD – WATER PROOF SEALING (04 00 22) 362
4WD – AXLESHAFTS (04 00 23) 363
FRONT WHEEL HUB COVER (04 00 24) 364
4WD – TRANSMISSION SHAFT (04 00 25) 365
2WD – FRONT BRAKING SYSTEM (04 00 27) 366
4WD – FRONT BRAKES (04 00 29) 367
4WD – FRONT BRAKES (04 00 31) 368
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (04 00 32) 369
4WD – ENGAGEMENT CONTROL – WATERPROOF SEALS (04 00 33) 370
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (04 00 34) 371
4WD – ENGAGEMENT CONTROL (04 00 35) 372
2WD – COMPLETION KIT WITHOUT SOLENOID VALVE (04 00 36) 373
DIFFERENTIAL LOCK CONTROL (04 00 37) 374
Front_power-lift 375
Index 375
Agroplus 60 -> 2001 376
FRONT HYDRAULIC POWER-LIFT 376
GENERAL 376
FRONT POWER LIFT – CONTROL CYLINDER (0C 00 1) 376
FRONT LIFT – HYDRAULIC SYSTEM (0C 00 2) 378
FRONT POWER LIFT – LEADS (0C 00 3) 379
BRACKET FOR FRONT LIFT (0C 00 4) 380
Gear 381
Index 381
Agroplus 60 -> 2001 383
GEAR 383
GENERAL 383
CLUTCH 11″ (02 00 1) 383
CLUTCH CONTROL (02 00 3) 384
CLUTCH CONTROL (02 00 4) 385
CLUTCH CONTROL (02 00 5) 386
GEARBOX (02 00 6) 387
GEARBOX (02 00 7) 388
GEAR BOX OIL FEED PIPES (02 00 8) 389
GEARBOXFIXINGS (02 00 9) 390
SEPARATOR – FOR TYPES WITH ELECTRONIC LIFTER (02 00 10) 391
SUPPORTS (02 00 11) 392
SUPPORTS FOR CLASS “D” TOWING HITCH (02 00 12) 393
GEAR CHANGE BOX 5 SPEED – POWERSHIFT H – M – L (02 00 13) 394
GEAR CHANGE BOX 5 SPEED – POWERSHIFT H – M – L (02 00 14) 395
SHAFTS FOR 5-SPEED GEARBOX H – M – L (02 00 15) 396
COMPLETION – FOR TYPES WITHOUT H-M-L (POWERSHIFT) (02 00 16) 397
TRANSMISSION SHAFT (02 00 17) 398
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITH H-M-L- (POWERSHIFT) (02 00 18) 399
PARTS SET – 5-SPEED GEARBOX – FOR TYPES WITH H-M-L- (POWERSHIFT) (02 00 19) 400
5 SPEED GEARBOX WITH MINI REDUCTION GEAR (SYNCHROSPLIT) (02 00 21) 401
PARTS SET – 5-SPEED GEARBOX – FOR TYPES WITH MINREDUCTION – ( SYNCHROSPLIT ) (02 00 22) 403
SHUTTLE SHAFT (02 00 24) 404
STANDARD GEARBOX (02 00 25) 405
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITH H-M-L- (POWERSHIFT) (02 00 26) 406
5 SPEED GEARBOX WITH MINI REDUCTION GEAR (SYNCHROSPLIT) (02 00 27) 408
PARTS SET – 5-SPEED WITH UNDERDRIVE – FOR TYPES WITH MINREDUCTION – ( SYNCHROSPLIT ) (02 00 28) 410
PARTS SET – 5-SPEED GEARBOX – FOR TYPES WITH H-M-L- (POWERSHIFT) (02 00 29) 411
SPEED RANGE REDUCTION GEAR UNIT (02 00 30) 412
2-RANGE BOX (02 00 31) 413
3-RANGE BOX (02 00 32) 414
2-RANGE BOX 30 Km/h (02 00 33) 415
2-RANGE BOX 40 Km/h (02 00 34) 416
3-RANGE BOX 30 Km/h (02 00 35) 417
3-RANGE BOX 40 Km/h (02 00 36) 418
REVERSING GEAR UNIT CONTROL (02 00 37) 419
REDUCTION GEAR CONTROL (02 00 38) 420
GEAR SHIFTING (02 00 39) 421
DRIVE FOR GEAR CHANGE BOX (02 00 40) 422
GEAR LEVER KNOB – FOR TYPES WITH H-M-L- (POWERSHIFT) (02 00 41) 423
DRIVE – FOR TYPES WITH H-M-L- (POWERSHIFT) (02 00 42) 424
GEAR LEVER KNOB – FOR TYPES WITH MINREDUCTION – ( SYNCHROSPLIT ) (02 00 43) 425
KNOB FOR 2-RANGE GEARBOX (02 00 44) 426
KNOB FOR 3-RANGE GEARBOX (02 00 45) 427
GEAR LEVERS BASE (02 00 46) 428
DIFFERENTIAL (02 00 47) 429
DIFFERENTIAL LOCK CONTROL (02 00 48) 430
BEVEL WHEEL GEAR – 30Km/h (02 00 49) 431
BEVEL WHEEL GEAR – 40Km/h (02 00 50) 432
DIFFERENTIAL LOCK CONTROL (02 00 51) 433
Rear_axle 434
Index 434
Agroplus 60 -> 2001 435
REAR AXLE 435
GENERAL 435
REAR AXLE – MOUNTINGS (03 00 1) 435
REAR AXLE (03 00 2) 436
PARTS SET FOR REAR AXLE – STANDARD SEAL (03 00 3) 437
PARTS SET FOR REAR AXLE – WATERPROOF SEAL (03 00 4) 438
HANDBRAKE BRACKET FOR TRAILER (03 00 5) 439
REAR REDUCTION GEARS AND AXLE SHAFTS (03 00 6) 440
REAR REDUCTION GEARS AND AXLE SHAFTS (03 00 8) 441
REAR BRAKES (03 00 9) 442
REAR BRAKES (03 00 10) 443
BRAKE CONTROLS (03 00 11) 444
BRAKE PIPES (03 00 12) 445
BLAKES BLOCK 2wd (03 00 13) 446
BRAKES CONTROL VALVE (03 00 14) 447
INDEPENDENT HAND BRAKE (03 00 15) 448
HAND BRAKE (03 00 16) 450
BRACKET FOR HANDBRAKE (03 00 17) 452
SAC 453
Index 453
Agroplus 60 -> 2001 454
S A C 454
GENERAL 454
POWER-LIFT CASE (0D 00 1) 454
LIFTING (0D 00 2) 455
LIFTING WITH ELECTRONIC CONTROL (0D 00 3) 456
HYDRAULIC CYLINDERS (0D 00 4) 457
REGULATING DISTRIBUTOR (0D 00 5) 458
INTERNAL CONTROLS (0D 00 6) 460
DISTRIBUTOR WITH ELECTRONIC LIFT (0D 00 7) 461
CONSOLE WITH MECHANICAL LIFT (0D 00 8) 462
CONSOLE WITH ELECTRONIC LIFT (0D 00 9) 463
MECHANICAL LIFT LEVER PANEL WITH GUIDE SLOTS (0D 00 10) 464
ELECTRONIC LIFT LEVER PANEL WITH GUIDE SLOTS (0D 00 11) 465
CONTROL TIE RODS AND LEVERS (0D 00 12) 466
CONTROL TIE RODS AND LEVERS (0D 00 13) 467
SENSITIVE ELEMENTS (0D 00 14) 468
SENSING ELEMENTS WITH ELECTRONIC CONTROL (0D 00 15) 469
S A C GROUND CONTROL (0D 00 16) 470
Steering_Hydraulics 471
Index 471
Agroplus 60 -> 2001 472
POWER STEERING – HYDRAULIC SYSTEM 472
GENERAL 472
STEERING WHEEL (06 00 1) 472
STEERING WHEEL CAP (06 00 2) 473
STEERING CONTROL (06 00 3) 474
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06 00 4) 475
HYDROSTATIC STEERING SUPPORT (06 00 5) 476
2WD – POWER STEERING (06 00 6) 477
POWER STEERING (06 00 7) 478
PIPES FOR HYDROSTATIC STEERING (06 00 8) 479
2WD CONTROL PIPES (06 00 9) 480
4WD – CONTROL PIPES (06 00 11) 481
4WD – POWER STEERING (06 00 13) 482
GEARBOX OIL COOLER (06 00 14) 483
GEAR BOX OIL RADIATOR TUBES (06 00 15) 484
OIL FLOW CONTROL VALVE CASING (06 00 17) 485
OIL FLOW CONTROL VALVE CASING (06 00 18) 486
HYDRAULIC SYSTEM – FOR TYPES WITHOUT H-M-L (POWERSHIFT) (06 00 19) 487
HYDRAULIC SYSTEM – FOR TYPES WITH H-M-L- (POWERSHIFT) (06 00 20) 488
COMMON HYDRAULIC SYSTEM (06 00 21) 489
PUMP FILTER SUCTION (06 00 22) 490
PUMP FILTER SUCTION (06 00 23) 491
HYDRAULIC PUMP 22 5 cc – dx/rh/re (06 00 24) 492
HYDRAULIC PUMP 14 cc sx/lh/li (06 00 25) 493
Wheels 494
Index 494
Agroplus 60 -> 2001 495
WHEELS 495
GENERAL 495
WHEELS 6 50 R20″ PR 8 (09 00 1) 495
WHEELS 7 50 x 16” pr 8 (09 00 2) 496
WHEELS 11 2×20″ pr6 (09 00 4) 497
WHEELS 12 4/11×20″ a8 (09 00 5) 498
WHEELS 320/70 R20″ A8 (09 00 6) 499
WHEELS 335/80R-20″ (09 00 7) 500
WHEELS 360/70R20″a8 (09 00 8) 501
WHEELS 405/70 R20″ (09 00 10) 502
WHEELS 11 2 R24″ A8 (09 00 11) 503
WHEELS 14 9R-28″ a8 (09 00 14) 504
WHEELS 420/70 R28″ A8 (09 00 15) 505
WHEELS 540/65R28″ (09 00 16) 506
WHEELS 14 9R-30″ a8 (09 00 17) 507
WHEELS 420/70 R30″ A8 (09 00 20) 508
WHEELS 12 4R36″ a8 (09 00 25) 509
2WD – FRONT WHEEL MOUNTING (09 00 29) 510
4WD – FRONT WHEEL MOUNTING (09 00 30) 511
REAR WHEEL BOLTS (09 00 31) 512
REAR WHEEL BOLTS (09 00 32) 513

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
