Deutz Fahr Agroplus 87 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agroplus 87 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agroplus 87 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 1035
Downloadable : Yes
File Type : PDF
Size: 45.4 MB

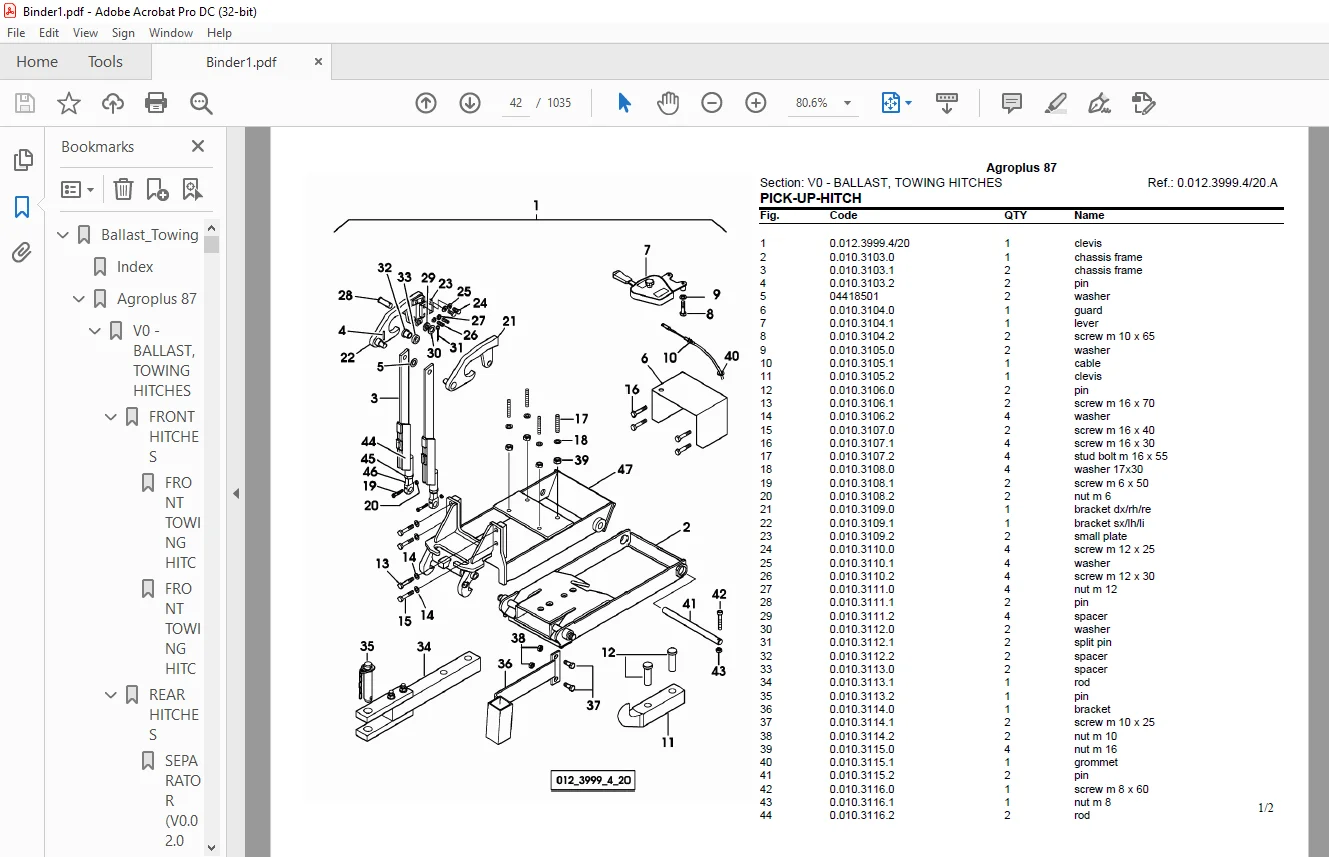

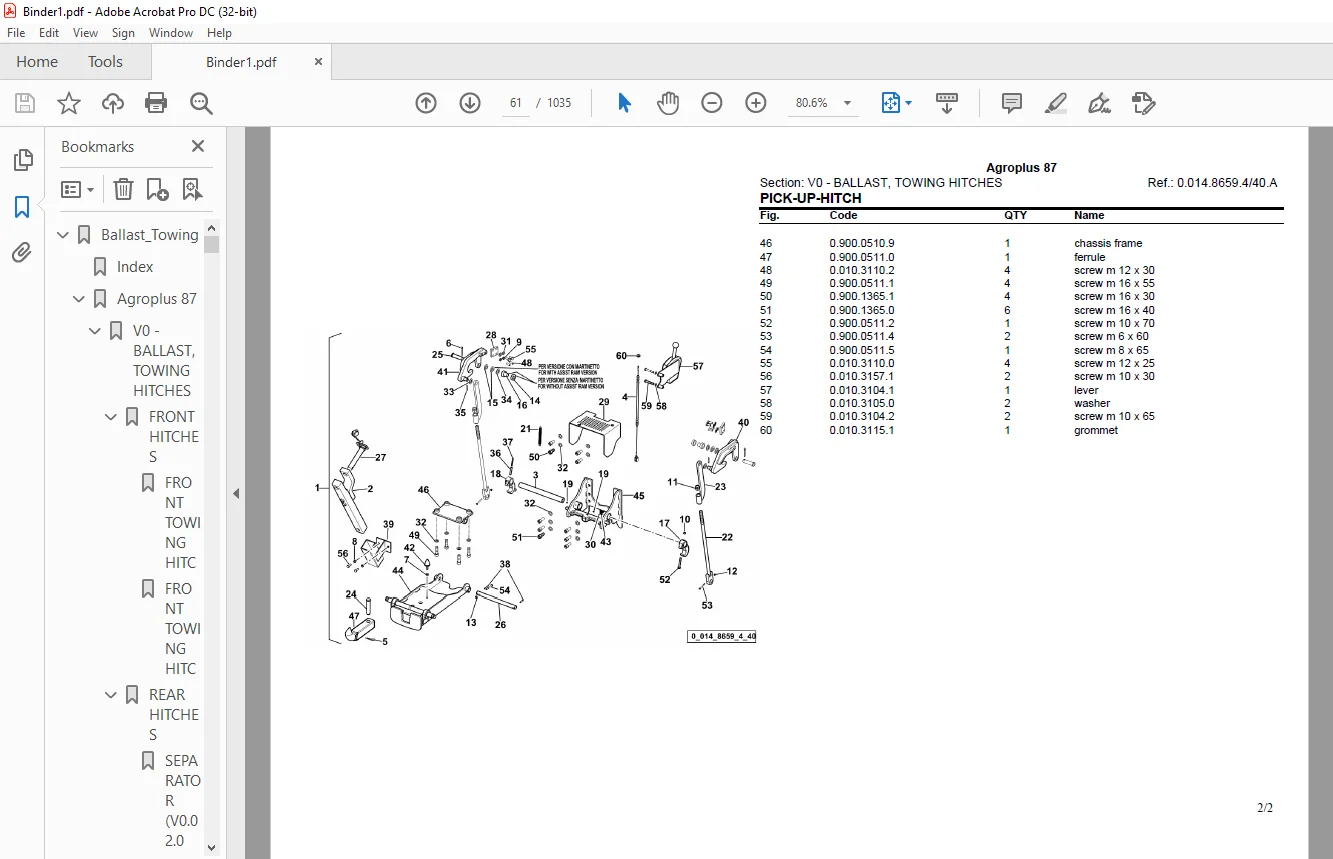

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

https://vimeo.com/810502021

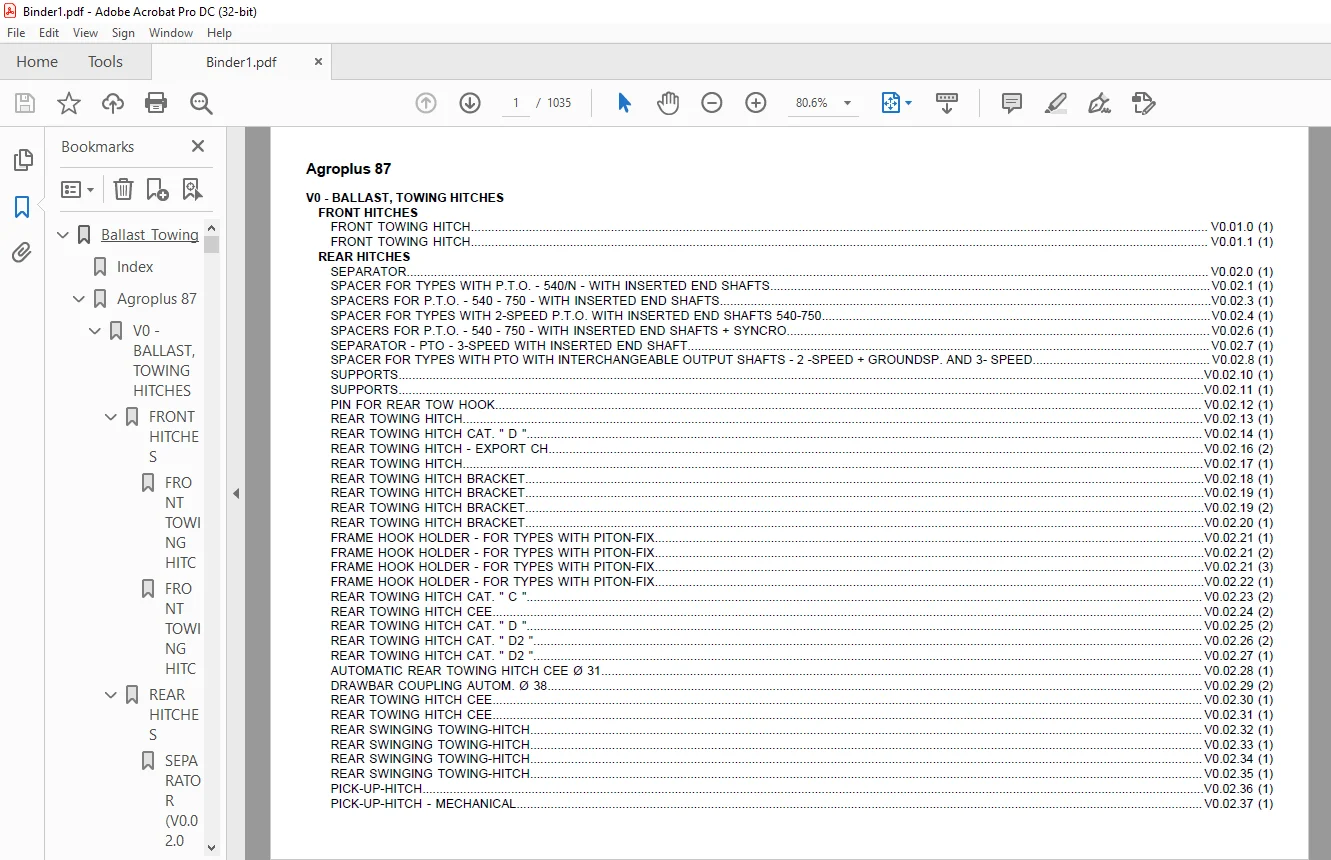

TABLE OF CONTENTS:

Deutz Fahr Agroplus 87 Parts Catalog Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
Agroplus 87 3
V0 – BALLAST, TOWING HITCHES 3
FRONT HITCHES 3
FRONT TOWING HITCH (V0 01 0 (1)) 3
FRONT TOWING HITCH (V0 01 1 (1)) 4
REAR HITCHES 5
SEPARATOR (V0 02 0 (1)) 5
SPACER FOR TYPES WITH P T O – 540/N – WITH INSERTED END SHAFTS (V0 02 1 (1)) 6
SPACERS FOR P T O – 540 – 750 – WITH INSERTED END SHAFTS (V0 02 3 (1)) 7
SPACER FOR TYPES WITH 2-SPEED P T O WITH INSERTED END SHAFTS 540-750 (V0 02 4 (1)) 8
SPACERS FOR P T O – 540 – 750 – WITH INSERTED END SHAFTS + SYNCRO (V0 02 6 (1)) 9
SEPARATOR – PTO – 3-SPEED WITH INSERTED END SHAFT (V0 02 7 (1)) 10
SPACER FOR TYPES WITH PTO WITH INTERCHANGEABLE OUTPUT SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (V0 02 8 (1)) 11
SUPPORTS (V0 02 10 (1)) 12
SUPPORTS (V0 02 11 (1)) 13
PIN FOR REAR TOW HOOK (V0 02 12 (1)) 14
REAR TOWING HITCH (V0 02 13 (1)) 15
REAR TOWING HITCH CAT ” D ” (V0 02 14 (1)) 16
REAR TOWING HITCH – EXPORT CH (V0 02 16 (2)) 17
REAR TOWING HITCH (V0 02 17 (1)) 18
REAR TOWING HITCH BRACKET (V0 02 18 (1)) 19
REAR TOWING HITCH BRACKET (V0 02 19 (1)) 20
REAR TOWING HITCH BRACKET (V0 02 19 (2)) 21
REAR TOWING HITCH BRACKET (V0 02 20 (1)) 22
FRAME HOOK HOLDER – FOR TYPES WITH PITON-FIX (V0 02 21 (1)) 23
FRAME HOOK HOLDER – FOR TYPES WITH PITON-FIX (V0 02 21 (2)) 24
FRAME HOOK HOLDER – FOR TYPES WITH PITON-FIX (V0 02 21 (3)) 25
FRAME HOOK HOLDER – FOR TYPES WITH PITON-FIX (V0 02 22 (1)) 26
REAR TOWING HITCH CAT ” C ” (V0 02 23 (2)) 27
REAR TOWING HITCH CEE (V0 02 24 (2)) 28
REAR TOWING HITCH CAT ” D ” (V0 02 25 (2)) 29
REAR TOWING HITCH CAT ” D2 ” (V0 02 26 (2)) 30
REAR TOWING HITCH CAT ” D2 ” (V0 02 27 (1)) 31
AUTOMATIC REAR TOWING HITCH CEE Ø 31 (V0 02 28 (1)) 32
DRAWBAR COUPLING AUTOM Ø 38 (V0 02 29 (2)) 33
REAR TOWING HITCH CEE (V0 02 30 (1)) 34
REAR TOWING HITCH CEE (V0 02 31 (1)) 35
REAR SWINGING TOWING-HITCH (V0 02 32 (1)) 36
REAR SWINGING TOWING-HITCH (V0 02 33 (1)) 37
REAR SWINGING TOWING-HITCH (V0 02 34 (1)) 38
REAR SWINGING TOWING-HITCH (V0 02 35 (1)) 39
PICK-UP-HITCH (V0 02 36 (1)) 40
PICK-UP-HITCH – MECHANICAL (V0 02 37 (1)) 41
PICK-UP-HITCH (0 012 3999 4/20 A) 42
DRAWBAR COUPLING mm 38 (0 014 4449 3/20 A) 44
DRAWBAR COUPLING mm 38 (0 014 4449 3/30 A) 45
REAR TOWING HITCH CAT: “C” (0 014 4450 3 A) 46
REAR TOWING HITCH CAT: “D” (0 014 4451 3 A) 47
DRAWBAR COUPLING CAT: “D2″ (0 014 4452 3/10 A) 48
DRAWBAR COUPLING (0 014 4453 3/10 A) 49
DRAWBAR COUPLING (0 014 4454 3/20 A) 50
DRAWBAR COUPLING JH (0 014 4457 3 A) 51
DRAWBAR COUPLING D2 (0 014 4461 3 A) 52
TRAILER STAND – DRAWBAR COUPLING (0 014 4483 3/30 A) 53
SLIDE mm 320 (0 014 4485 3 A) 54
TRAILER STAND – DRAWBAR COUPLING (0 014 5718 4/20 A) 55
CHASSIS (0 014 5718 4/30 A) 56
SLIDE (0 014 8203 3/20 A) 57
DRAWBAR COUPLING Ø 31, kpl (0 014 8208 3 A) 58
CHASSIS (0 014 8233 3 A) 59
PICK-UP-HITCH (0 014 8659 4/40 A) 60
FRONT BALLAST WEIGHTS 62
FRONT WEIGHT CARRIER (V0 03 0 (1)) 62
FRONT WEIGHT CARRIER (V0 03 1 (1)) 63
FRONT BALLAST Kg 160 (V0 03 3 (1)) 64
BALLAST 264 Kg (V0 03 4 (1)) 65
FRONT BALLAST 320 Kg (V0 03 5 (1)) 66
BALLAST LOCK BAR mm 30×780 (V0 03 6 (1)) 67
FRONT BALLAST KG 250 (V0 03 7 (1)) 68
Bodywork_Cab 69
Index 69
Agroplus 87 77
G0 – BODYWORK – CAB 77
HOOD – SIDE PANELS – SUPPORTS 77
HOOD FRONT PART (G0 01 5 (1)) 77
HOOD FRONT PART (G0 01 6 (1)) 78
BONNET – TOP PORTION (G0 01 17 (1)) 79
BONNET – TOP PORTION (G0 01 18 (1)) 80
HOOD – RIGHT SIDE PANEL (G0 01 45 (1)) 81
HOOD – LEFT SIDE PANEL (G0 01 46 (1)) 82
HOOD – SUPPORTS (G0 01 49 (1)) 83
FRONT HOOD FASTENERS (G0 01 50 (1)) 84
HOOD PLUG (G0 01 54 (1)) 85
CONNECTION FRAME (G0 01 56 (1)) 86
CONNECTION FRAME (G0 01 58 (1)) 87
CONNECTION FRAME (G0 01 60 (1)) 88
CABLE CONDUIT (G0 01 63 (1)) 89
BELT GUARDS (G0 01 65 (1)) 90
BELT GUARDS (G0 01 66 (1)) 91
BATTERY SUPPORT (G0 01 68 (1)) 92
BATTERY SUPPORT (G0 01 70 (1)) 93
BATTERY SUPPORT (G0 01 70 (2)) 94
BATTERY SUPPORT (G0 01 71 (1)) 95
BATTERY SUPPORT (G0 01 71 (2)) 96
LETTERING 97
FRONT HOOD PRODUCT IDENTIFICATION PLATE (G0 02 5 (2)) 97
FRONT HOOD PRODUCT IDENTIFICATION PLATE (G0 02 6 (1)) 98
PRODUCT PLATE (G0 02 41 (1)) 99
BADGE FOR SPLASH GUARDS DEUTZ-FAHR (G0 02 50 (1)) 100
SHUTTLE COVER (G0 02 56 (1)) 101
SHUTTLE COVER (G0 02 57 (1)) 102
SHUTTLE AND CREEPER KNOB COVER (G0 02 58 (1)) 103
2-RANGE REDUCTION UNIT COVER (G0 02 60 (1)) 104
3-RANGE REDUCTION UNIT COVER (G0 02 62 (1)) 105
START ENABLE PLATE (G0 02 63 (1)) 106
START ENABLE PLATE (G0 02 64 (1)) 107
PREHEATER BUTTON PLATE (G0 02 66 (1)) 108
PREHEATER BUTTON PLATE (G0 02 67 (1)) 109
HEATING CONTROL IDENTIFICATION PLATE (G0 02 68 (1)) 110
VENTILATION AND CONDITIONING CONTROL IDENTIFICATION PLATE (G0 02 69 (1)) 111
DECALS WITH 4 WAY AUXILIARY CONTROL VALVE (G0 02 70 (1)) 112
DECALS WITH 4 WAY AUXILIARY CONTROL VALVE (G0 02 71 (1)) 113
DECALS WITH 6 WAY AUXILIARY CONTROL VALVE (G0 02 72 (1)) 114
DECALS WITH 6 WAY AUXILIARY CONTROL VALVE (G0 02 73 (1)) 115
IDENTIFICATION PLATE ” CE ” (G0 02 74 (1)) 116
WARNING PLATES (G0 02 75 (1)) 117
WARNING PLATES (G0 02 75 (2)) 118
WARNING PLATES (G0 02 75 (3)) 119
WARNING PLATES (G0 02 76 (1)) 120
INFORMATION PLATE (G0 02 77 (1)) 121
INFORMATION PLATE (G0 02 77 (2)) 122
P T O WARNING PLATE FRONT (G0 02 78 (1)) 123
WATER COOLER IDENTIFICATION PLATE (G0 02 79 (1)) 124
WARNING SIGNS ON WATER RADIATOR (G0 02 81 (1)) 125
INFORMATION PLATE (G0 02 82 (1)) 126
REAR LIFT MOVEMENT WARNING LABEL SX/LH/LI – DX/RH/RE (G0 02 83 (1)) 127
REAR LIFT MOVEMENT WARNING LABEL – DX/RH/RE (G0 02 84 (1)) 128
REAR LIFT MOVEMENT WARNING LABEL SX/LH/LI – DX/RH/RE (G0 02 84 (2)) 129
REAR LIFT MOVEMENT WARNING LABEL SX/LH/LI – DX/RH/RE (G0 02 85 (1)) 130
SOLENOID VALVE IDENTIFICATION PLATES (G0 02 86 (1)) 131
PTO DATA PLATE 540/N (G0 02 87 (1)) 132
PTO DATA PLATE 540 – 750 (G0 02 88 (1)) 133
PTO DATA PLATE 540 – 750 + SYNCRO (G0 02 90 (1)) 134
PTO DATA PLATE 540 – 750 – 1000 (G0 02 92 (1)) 135
SPEED DATA PLATES (G0 02 93 (1)) 136
SPEED LABEL – 40 KM/H – REFLEX (G0 02 94 (1)) 137
SPEED LABEL – 40 KM/H – REFLEX (G0 02 95 (1)) 138
SPEED LABEL – 40 KM/H (G0 02 96 (1)) 139
CAB STRUCTURE – PLATFORM -SUSPENSION 140
PLATFORM (G0 03 3 (1)) 140
CAB STRUCTURE (G0 03 4 (1)) 141
FLOOR PLUG (G0 03 5 (1)) 142
FLOOR HOLE REDUCTION PLATE W/ ELECTRONIC REAR LIFT (G0 03 6 (1)) 143
GEAR LEVERS BASE (G0 03 7 (1)) 144
SPREADER PLATES (G0 03 9 (1)) 145
LADDER – DX/RH/RE (G0 03 10 (1)) 146
LADDER – SX/LH/LI (G0 03 11 (1)) 147
SILENTBLOCK AND SUPPORTS (G0 03 12 (1)) 148
FENDERS – FOOTSTEPS – EXTENSIONS 149
2WD – FRONT MUDGUARDS mm 240 (G0 04 0 (1)) 149
2WD – FRONT MUDGUARDS mm 240 (G0 04 1 (1)) 150
4WD – FRONT MUDGUARDS mm 310 (G0 04 4 (1)) 151
4WD – FRONT MUDGUARDS mm 355 (G0 04 5 (1)) 152
4WD – SELF-ADJUSTING FRONT FENDERS mm 310 (G0 04 6 (1)) 153
4WD – SELF-ADJUSTING FRONT FENDERS mm 355 (G0 04 7 (1)) 155
MUDGUARDS EXTENSIONS mm 108 (G0 04 8 (1)) 157
MUDGUARDS EXTENSIONS L=180 (G0 04 9 (1)) 158
MUDGUARDS EXTENSIONS mm 200 (G0 04 10 (1)) 159
MUDGUARDS EXTENSIONS L = mm 240 (G0 04 11 (1)) 160
FENDERS SX/LH/LI – DX/RH/RE (G0 04 12 (1)) 161
FENDERS SX/LH/LI – DX/RH/RE (G0 04 13 (1)) 162
FENDERS SX/LH/LI – DX/RH/RE (G0 04 13 (2)) 163
FENDERS SX/LH/LI – DX/RH/RE (G0 04 14 (1)) 164
LICENSE PLATE HOLDER SUPPORT (G0 04 16 (1)) 165
BRACKET – SPEED LABEL (G0 04 17 (1)) 166
DOORS – WINDOWS – WIPERS 167
WINDSCREEN (G0 05 0 (1)) 167
GLASSES AND SEALS (G0 05 1 (1)) 168
GLASSES AND SEALS (G0 05 1 (2)) 169
GLASSES AND SEALS (G0 05 1 (3)) 170
GLASSES AND SEALS (G0 05 2 (1)) 171
GLASSES AND SEALS (G0 05 2 (2)) 172
GLASSES AND SEALS SX/LH/LI – DX/RH/RE (G0 05 3 (1)) 173
GLASSES AND SEALS SX/LH/LI – DX/RH/RE (G0 05 4 (1)) 175
DOOR HANDLE SX/LH/LI – DX/RH/RE (G0 05 8 (1)) 177
WINDOW FIXING PLATE (G0 05 9 (1)) 178
WINDOW FIXING PLATE (G0 05 10 (1)) 179
WINDOW FIXING PLATE (G0 05 11 (1)) 180
WINDOW FIXING PLATE (G0 05 12 (1)) 181
WINDOW FIXING PLATE (G0 05 13 (1)) 182
REAR WINDOW (G0 05 14 (1)) 183
REAR WINDOW (G0 05 15 (1)) 185
DAMPER FOR REAR WINDOW HATCH (G0 05 16 (1)) 187
DAMPER FOR REAR WINDOW HATCH (G0 05 17 (1)) 188
FRONT AND REAR WINDSCREEN WIPER SYSTEM (G0 05 19 (1)) 189
FRONT AND REAR WINDSCREEN WIPER SYSTEM (G0 05 20 (1)) 190
SCREEN WIPER FRONT / REAR (G0 05 21 (2)) 191
FRONT AND REAR WINDSCREEN WIPER SYSTEM (G0 05 22 (1)) 192
FRONT AND REAR WINDSCREEN WIPER SYSTEM (G0 05 23 (1)) 193
SCREEN WIPER FRONT / REAR (G0 05 24 (2)) 194
SCREEN WASH SYSTEM (G0 05 25 (1)) 195
PISTON COOL NOZZLE (G0 05 27 (1)) 196
PISTON COOL NOZZLE (G0 05 28 (1)) 197
PISTON COOL NOZZLE (G0 05 29 (1)) 198
PISTON COOL NOZZLE (G0 05 30 (1)) 199
SCREEN WASH SYSTEM (G0 05 31 (2)) 200
PISTON COOL NOZZLE (G0 05 32 (1)) 201
SPRAYERS (G0 05 33 (1)) 202
SPRAYERS (G0 05 34 (1)) 203
WINDSCREEN WIPER BLADE (0 011 1392 4 A) 204
INTERIOR TRIM 205
DASHBOARD (G0 06 0 (1)) 205
DASHBOARD (G0 06 1 (1)) 206
PLUG FOR VERSION WITHOUT CIGAR LIGHTER (G0 06 2 (1)) 207
STEERING COLUMN SHROUD (G0 06 3 (1)) 208
STEERING COLUMN SHROUD (G0 06 5 (1)) 209
CONTROL CONSOLE – DX/RH/RE (G0 06 6 (1)) 210
CONTROL CONSOLE – DX/RH/RE (G0 06 7 (1)) 211
CONTROL CONSOLE FOR 4-WAY REMOTE VALVE (G0 06 9 (1)) 212
CONTROL CONSOLE FOR 6-WAY REMOTE VALVE (G0 06 11 (1)) 213
MECHANICAL LIFT LEVER PANEL WITH GUIDE SLOTS (G0 06 12 (1)) 214
MECHANICAL LIFT GRILLE FIXING (G0 06 14 (1)) 215
ELECTRONIC LIFT LEVER PANEL WITH GUIDE SLOTS (G0 06 15 (1)) 216
INTERIOR TRIM (G0 06 17 (1)) 217
INTERIOR TRIM (G0 06 18 (1)) 218
INTERIOR TRIM (G0 06 21 (1)) 219
INTERIOR TRIM (G0 06 22 (1)) 220
INTERNAL CAB LININGS (G0 06 23 (1)) 221
INTERIOR TRIM – FOR TRACTORS WITH AIR HEATING (G0 06 24 (1)) 222
INTERIOR TRIM – FOR TYPES WITH HEATING AND AIR CONDITIONING (G0 06 25 (1)) 223
SOUNDPROOFING FOR GEAR LEVERS (G0 06 26 (1)) 224
SOUNDPROOFING FOR GEAR LEVERS (G0 06 26 (2)) 225
SOUNDPROOFING FOR GEAR LEVERS (G0 06 27 (1)) 226
PLUG (G0 06 30 (1)) 227
FLOOR PLUGS FOR TYPES WITH 4-WAY REMOTE VALVE (G0 06 32 (1)) 228
FENDER COATINGS (G0 06 33 (1)) 229
INTERNAL CAB LININGS (G0 06 34 (1)) 230
INTERNAL CAB LININGS (G0 06 35 (1)) 231
INTERNAL CAB LININGS (G0 06 36 (1)) 232
INTERNAL CAB LININGS (G0 06 37 (1)) 233
INTERNAL CAB LININGS (G0 06 38 (1)) 234
INTERNAL CAB LININGS (G0 06 39 (1)) 235
COVER (G0 06 41 (1)) 236
COVER (G0 06 42 (1)) 237
ROOF COVERING FOR SKYLIGHT (G0 06 43 (1)) 238
ROOF COVERING FOR SKYLIGHT (G0 06 44 (1)) 239
ROOF COVERING FOR SKYLIGHT (G0 06 45 (1)) 240
ROOF COVERING FOR SKYLIGHT (G0 06 46 (1)) 241
INTERIOR TRIM (G0 06 47 (1)) 242
COVER (G0 06 48 (1)) 243
COVER (G0 06 49 (2)) 244
INTERNAL CAB LININGS (G0 06 50 (2)) 245
AIR GUIDANCE (G0 06 51 (1)) 246
AIR GUIDANCE (G0 06 52 (1)) 247
AIR GUIDANCE (G0 06 53 (1)) 248
EXTERIOR TRIM – ROOF 249
SUN GUARD ROOF (G0 07 0 (1)) 249
SUPPORTS FOR SUNBLIND ROOF AND ROTATING BEACON (G0 07 1 (1)) 250
DRIVER’S CAB ROOF (G0 07 2 (1)) 251
DRIVER’S CAB ROOF (G0 07 3 (1)) 252
DRIVER’S CAB ROOF (G0 07 4 (1)) 253
DRIVER’S CAB ROOF (G0 07 5 (1)) 254
CAB INTERIOR TRIM (G0 07 6 (1)) 255
DRIVER’S CAB ROOF (G0 07 7 (1)) 256
DRIVER’S CAB ROOF (G0 07 8 (1)) 257
SKYLIGHT WITH GLASS (G0 07 9 (1)) 258
SKYLIGHT WITH GLASS (G0 07 10 (1)) 259
CAB AIR FILTER (G0 07 11 (1)) 260
CAB AIR FILTER (G0 07 12 (1)) 261
CAB AIR FILTER (G0 07 13 (1)) 262
CAB AIR FILTER (G0 07 14 (1)) 263
SPIN-ON FILTER (G0 07 15 (1)) 264
CARBON FILTER (G0 07 16 (1)) 265
CARBON FILTER (G0 07 17 (1)) 266
FLASHING LIGHT SUPPORT (G0 07 18 (1)) 267
FLASHING LIGHT SUPPORT (G0 07 19 (1)) 268
REARVIEW MIRROR – SX/LH/LI (G0 07 20 (1)) 269
EXTENDING REARVIEW MIRROR SX/LH/LI – DX/RH/RE (G0 07 22 (1)) 270
REARVIEW MIRROR (0 009 7547 4/20 A) 271
REARVIEW MIRROR (0 010 1604 4/40 A) 272
REARVIEW MIRROR (0 010 1605 4/40 A) 273
SEATS 274
SEAT FOR 2ND OPERATOR (G0 08 0 (1)) 274
DRIVER’S SEAT KAB XH2 (G0 08 1 (1)) 275
DRIVER’S SEAT KAB XH2 (G0 08 2 (1)) 276
SEAT SPRINGING (G0 08 3 (1)) 277
DRIVER’S SEAT GRAMMER MSG 83/7L (G0 08 5 (1)) 278
DRIVER’S SEAT GRAMMER MSG 83/7L (G0 08 5 (2)) 279
SAFETY BELT (G0 08 6 (1)) 280
DRIVER’S SEAT – PNEUMATIC SPRINGING GRAMMER MSG95A/20 (G0 08 7 (1)) 281
DRIVER’S SEAT – PNEUMATIC SPRINGING GRAMMER MSG 95A/721 (G0 08 7 (2)) 282
DRIVER’S SEAT – PNEUMATIC SPRINGING GRAMMER MSG 93/20 (G0 08 8 (1)) 283
DRIVER’S SEAT – PNEUMATIC SPRINGING GRAMMER MSG 93/721 (G0 08 8 (2)) 284
SAFETY BELT (G0 08 9 (1)) 285
HEAD REST (G0 08 12 (1)) 286
SEAT SUPPORT BRACKET (G0 08 16 (1)) 287
SEAT SUPPORT PLATE (G0 08 17 (1)) 288
SEAT-COMPONENTS (0 007 5683 4/10 A) 289
SEAT-COMPONENTS (0 007 5683 4/20 A) 290
SEAT-COMPONENTS (0 010 4792 4/20 A) 291
SEAT SPRINGING (0 010 5356 4 A) 292
SEAT (0 010 5361 4/10 A) 293
SEAT-COMPONENTS (0 010 6543 4/10 A) 294
SEAT-COMPONENTS (0 010 6543 4/10 B) 296
SEAT-COMPONENTS (0 010 7727 4/20 A) 297
SEAT-COMPONENTS (0 010 7727 4/20 B) 299
SEAT-COMPONENTS (0 010 7727 4/30 A) 300
SEAT-COMPONENTS (0 010 7727 4/30 B) 301
SEAT-COMPONENTS (0 015 0945 4 A) 302
SEAT-COMPONENTS (0 015 0945 4 B) 304
HEATING AND AIR CONDITIONING 306
HEATING SYSTEM (G0 09 0 (1)) 306
VENTILATION – HEATING (G0 09 1 (1)) 307
VENTILATION – HEATING (G0 09 2 (1)) 308
VENTILATION – AIR CONDITIONING – HEATING (G0 09 3 (1)) 309
VENTILATION – AIR CONDITIONING – HEATING (G0 09 4 (1)) 310
PIPES FOR HEATING SYSTEM (G0 09 5 (1)) 311
PIPES FOR A/C AND HEATING SYSTEM (G0 09 6 (1)) 312
CONDENSER (G0 09 7 (2)) 313
CONDENSER (G0 09 8 (1)) 314
AIR CONDITIONING SYSTEM PIPES (G0 09 9 (1)) 315
HEATING SYSTEM (G0 09 10 (1)) 316
VENTILATION – HEATING (G0 09 11 (1)) 317
VENTILATION – HEATING (G0 09 11 (2)) 318
VENTILATION – HEATING (G0 09 12 (1)) 319
PIPES FOR HEATING SYSTEM (G0 09 13 (1)) 320
VENTILATION – AIR CONDITIONING – HEATING (G0 09 14 (1)) 321
VENTILATION – AIR CONDITIONING – HEATING (G0 09 14 (2)) 322
VENTILATION – AIR CONDITIONING – HEATING (G0 09 14 (3)) 323
VENTILATION – AIR CONDITIONING – HEATING (G0 09 15 (1)) 324
CONDENSER (G0 09 16 (1)) 325
AIR CONDITIONING SYSTEM PIPES (G0 09 17 (1)) 326
COMPRESSOR PIPES (G0 09 19 (1)) 327
COMPRESSOR (G0 09 20 (1)) 328
COMPRESSOR SUPPORT (G0 09 21 (1)) 329
ENGAGEMENT (0 009 7202 4/20 A) 330
ENGAGEMENT (0 009 7203 4/20 A) 331
COMPRESSOR-PARTS (0 009 7660 4 A) 332
HEATER PARTS (0 010 8108 4/10 A) 333
HEATER PARTS (0 010 8108 4/30 A) 334
HEATER PARTS (0 010 8993 4/40 A) 335
HEATER PARTS (0 010 8993 4/50 A) 336
AIR CONDITIONER PARTS (0 010 8995 4/40 A) 337
AIR CONDITIONER PARTS (0 010 8995 4/50 A) 339
AIR-CONDITIONING HEATING PARTS (0 010 9215 4/10 A) 341
AIR-CONDITIONING HEATING PARTS (0 010 9215 4/30 A) 343
FAN PARTS (0 011 1961 4/30 A) 345
CONDENSER (0 014 8525 4 A) 346
MECHANICAL CLUTCH CONTROLS 347
PIPE FROM OIL TANK TO PUMP (G0 10 0 (1)) 347
CLUTCH CONTROL (G0 10 1 (1)) 348
CLUTCH CONTROL (G0 10 2 (1)) 349
CYLINDER PARTS (0 007 1961 4/20 A) 350
PUMP-COMPONENTS (0 255 6538 4/50 A) 351
MECHANICAL BRAKE CONTROLS 352
BRAKE CONTROLS (G0 11 0 (1)) 352
OIL TANK SUPPORT (G0 11 2 (1)) 353
HAND BRAKE (G0 11 3 (1)) 354
HAND BRAKE (G0 11 3 (2)) 355
HAND BRAKE (G0 11 4 (1)) 356
BRACKET FOR HANDBRAKE (G0 11 5 (1)) 357
TRAILER HANDBRAKE CONTROL CABLE – ITALY (G0 11 6 (1)) 358
HANDBRAKE BRACKET FOR TRAILER (G0 11 7 (1)) 359
MECHANICAL – ELECTRONIC THROTTLE CONTROLS 360
CONTROL PEDAL FOR ELECTRONIC THROTTLE (G0 12 3 (1)) 360
HAND CONTROL FOR ELECTRONIC THROTTLE (G0 12 4 (1)) 361
ACCELERATOR PEDAL GASKET (G0 12 5 (1)) 362
STEERING CONTROLS 363
STEERING WHEEL CAP (G0 13 4 (1)) 363
STEERING WHEEL CAP (G0 13 6 (1)) 364
STEERING WHEEL (G0 13 7 (1)) 365
STEERING CONTROL (G0 13 8 (1)) 366
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (G0 13 9 (1)) 367
STEERING ADJUSTMENT (G0 13 10 (1)) 368
MECHANICAL GEARSHIFT CONTROLS 369
GEAR SHIFTING (G0 14 2 (1)) 369
GEARSHIFT LEVER – FOR TYPES WITH MINREDUCTION (G0 14 6 (1)) 370
KNOB FOR MECHANICAL SHUTTLE (G0 14 7 (1)) 371
KNOB FOR MECHANICAL SHUTTLE (G0 14 8 (1)) 372
KNOB FOR 2-RANGE GEARBOX (G0 14 9 (1)) 373
KNOB FOR 3-RANGE GEARBOX (G0 14 10 (1)) 374
PTO CONTROLS 375
P T O SHAFT DRIVE (G0 16 2 (1)) 375
P T O SHAFT DRIVE (G0 16 3 (1)) 376
P T O SHAFT DRIVE (G0 16 4 (1)) 377
LIFT CONTROLS 378
LIFT CONTROL LEVERS (G0 17 1 (1)) 378
TIE RODS FOR LIFT CONTROL LEVERS (G0 17 2 (1)) 379
SLIDER FOR LIFT CONTROL LEVERS (G0 17 3 (1)) 380
S A C GROUND CONTROL (G0 17 5 (1)) 381
REMOTE VALVE CONTROLS 382
CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (G0 18 1 (1)) 382
CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (G0 18 2 (1)) 383
CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (G0 18 3 (1)) 384
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0 18 5 (1)) 385
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0 18 6 (1)) 386
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0 18 7 (1)) 387
OIL REGULATOR CONTROL (G0 18 8 (1)) 388
ACCESSORIES 389
SUN BLIND (G0 19 0 (1)) 389
SUN BLIND (G0 19 1 (1)) 390
LICENCE PLATE HOLDER (G0 19 2 (1)) 391
NUMBER PLATE HOLDER FASTENERS (G0 19 3 (1)) 392
METAL TOOLBOX (G0 19 4 (1)) 393
TRIANGLE SUPPORT (G0 19 5 (1)) 394
TRIANGLE SUPPORT (G0 19 6 (1)) 395
HOLDING DEVICE – WHEEL CHOCK (G0 19 9 (1)) 396
TRIANGLE SUPPORT (G0 19 10 (1)) 397
TRIANGLE SUPPORT (G0 19 10 (2)) 398
LUBRICATOR (G0 19 11 (1)) 399
SAFETY ROLL BAR 400
FIXED SAFETY ROLL BAR (G0 20 0 (1)) 400
SAFETY ARCH FOLDING (G0 20 1 (1)) 401
Electrical_system 402
Index 402
Agroplus 87 407
L0 – ELECTRIC AL SYSTEM 407
BATTERY – ALTERNATOR 407
BATTERY 12V 88Ah 580A (L0 01 2 (1)) 407
ALTERNATOR 14V – 65A – ISKRA (L0 01 3 (1)) 408
ALTERNATOR 14V – 85A – ISKRA (L0 01 4 (1)) 409
ALTERNATOR AND PULLEY SUPPORTS (L0 01 5 (1)) 410
ALTERNATOR AND PULLEY SUPPORTS (L0 01 6 (1)) 411
ALTERNATOR PARTS (2 9439 420 0/10 A) 412
ALTERNATOR PARTS (2 9439 460 0/10 A) 413
WIRING LOOMS 414
wiring for front sidelights and direction indicators (L0 02 0 (1)) 414
ELECTRIC WIRING FOR PARKING LIGHTS AND DIRECTION INDICATORS, FRONT AND REAR (L0 02 1 (1)) 415
wiring for front sidelights and direction indicators (L0 02 2 (1)) 416
ELECTRIC WIRING FOR PARKING LIGHTS AND DIRECTION INDICATORS, FRONT AND REAR (L0 02 3 (1)) 417
ELECTRIC WIRING FOR PARKING LIGHTS AND DIRECTION INDICATORS, FRONT AND REAR (L0 02 4 (1)) 418
ELECTRICAL EQUIPMENT FRONT – BATTERY LEADS (L0 02 6 (1)) 419
POWER SUPPLY ELECTRICAL SYSTEM (L0 02 8 (1)) 420
POWER SUPPLY ELECTRICAL SYSTEM (L0 02 10 (1)) 421
CENTRAL WIRING (L0 02 12 (1)) 422
CENTRAL WIRING LOOM (L0 02 13 (1)) 423
FASTENINGS (L0 02 14 (1)) 424
SINGLE POLE SOCKET – LIGHTS FLASHER RELAY (L0 02 15 (1)) 425
SINGLE POLE SOCKET – LIGHTS FLASHER RELAY (L0 02 16 (1)) 426
TRAILER SOCKET-OUTLET (L0 02 17 (1)) 427
TRAILER SOCKET BRACKET PFOR TYPES WITH HYDRAULIC TRAILER BRAKING – ITALY (L0 02 19 (1)) 428
TRAILER SOCKET BRACKET (L0 02 20 (1)) 429
TRAILER SOCKET BRACKET (L0 02 21 (1)) 430
WIRING FOR CAB WITH VENTILATION – HEATING (L0 02 22 (1)) 431
WIRING FOR CAB WITH VENTILATION – HEATING (L0 02 23 (1)) 432
WIRING FOR CAB WITH VENTILATION – AC – HEATING (L0 02 24 (1)) 433
WIRING FOR CAB WITH VENTILATION – AC – HEATING (L0 02 25 (1)) 434
CAB ELECTRICAL SYSTEM (L0 02 26 (1)) 435
CAB ELECTRICAL SYSTEM (L0 02 27 (1)) 436
CAB ELECTRICAL SYSTEM (L0 02 28 (1)) 437
CAB ELECTRICAL SYSTEM (L0 02 29 (1)) 438
CAB ELECTRICAL SYSTEM (L0 02 30 (1)) 439
CAB ELECTRICAL SYSTEM (L0 02 31 (1)) 440
CAB ELECTRICAL SYSTEM (L0 02 32 (1)) 441
CAB ELECTRICAL SYSTEM (L0 02 32 (2)) 442
CAB ELECTRICAL SYSTEM (L0 02 33 (1)) 443
CAB ELECTRICAL SYSTEM (L0 02 34 (1)) 444
CAB ELECTRICAL SYSTEM (L0 02 34 (2)) 445
WIRING FOR WINDSCREEN WIPER AND FLASHING LIGHT (L0 02 35 (1)) 446
WIRING FOR WINDSCREEN WIPER AND FLASHING LIGHT (L0 02 36 (1)) 447
WIRING FOR WINDSCREEN WIPER AND FLASHING LIGHT (L0 02 37 (1)) 448
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 02 38 (1)) 449
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 02 38 (2)) 450
ELECTRICAL WIRE FOR OIL FILTER CLOGGING SENSOR 8″ (L0 02 40 (1)) 451
ELECTRICAL CABLE FOR OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L0 02 41 (1)) 452
FRONT P T O SOLENOID VALVE ELECTRICAL CABLE (L0 02 43 (1)) 453
PRESSURE SWITCH WIRING FOR TRAILER HYDRAULIC BRAKING SYSTEM – ITALY (L0 02 44 (1)) 454
GEARBOX CONTROL ELECTRIC CABLE (L0 02 46 (1)) 455
P T O BUTTON ELECTRIC CABLE (L0 02 47 (1)) 456
P T O BUTTON ELECTRIC CABLE (L0 02 48 (1)) 457
P T O BUTTON ELECTRIC CABLE (L0 02 49 (1)) 458
ELECTRICAL WIRE FOR REAR WORKLIGHT (L0 02 50 (1)) 459
ELECTRICAL WIRE FOR REAR WORKLIGHT (L0 02 51 (1)) 460
PREARRANGEMENT FOR WARNING BEACON (L0 02 52 (1)) 461
PREARRANGEMENT FOR WARNING BEACON (L0 02 53 (1)) 462
WIRING FOR PNEUMATIC SEAT (L0 02 54 (1)) 463
PARTS FOR ELECTRICAL SYSTEM (0 009 7850 4/50 A) 464
ELECTRICAL SYSTEM (0 009 7853 3/20 A) 465
PARTS FOR ELECTRICAL SYSTEM (0 011 3606 4/50 A) 466
ELECTRICAL SYSTEM (0 011 3610 3/20 A) 467
FLASHING LIGHT SUPPORT (0 011 7840 4 A) 468
ELECTRIC WIRING FOR PARKING LIGHTS AND DIRECTION INDICATORS, FRONT AND REAR (0 013 4910 4 A) 469
ELECTRICAL SYSTEM (0 013 9032 4/20 A) 470
ELECTRICAL SYSTEM (0 013 9038 4/30 A) 471
ELECTRICAL SYSTEM (0 013 9039 4/30 A) 472
BATTERY LEADS (0 013 9041 4 A) 473
CENTRAL WIRING LOOM (0 013 9044 4/20 A) 474
ELECTRICAL SYSTEM (0 014 4848 4 A) 475
ECUs 476
CONTROL UNIT SUPPORT (L0 03 3 (1)) 476
CONTROL UNIT SUPPORT (L0 03 4 (1)) 477
ELECTRONICS BOX (L0 03 5 (1)) 478
ELECTRONICS BOX (L0 03 6 (1)) 479
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 03 7 (1)) 480
ECU SUPPORT FOR ELECTRONIC REAR LIFT (L0 03 8 (1)) 481
CONTROL UNIT – P T O SHAFT (L0 03 9 (1)) 482
CONTROL UNIT – P T O SHAFT (L0 03 10 (1)) 483
CONTROL UNIT – P T O SHAFT (L0 03 11 (1)) 484
SENSORS – POTENTIOMETERS – ENABLING SWITCHES 485
COOLING SYSTEM MANIFOLD SENSORS (L0 04 5 (1)) 485
COOLING SYSTEM MANIFOLD SENSORS (L0 04 6 (1)) 486
ENGINE OIL PRESSURE SWITCH (L0 04 9 (1)) 487
AIR CLEANER AND ENGINE OIL FILTER CLOGGING PRESSURE SWITCH (L0 04 10 (1)) 488
OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L0 04 11 (1)) 489
OIL FILTER CLOGGING SENSOR 8″ (L0 04 12 (1)) 490
PRESSURE SWITCH FOR HYDRAULIC TRAILER BRAKING SYSTEM – ITALY (L0 04 13 (1)) 491
SPEED SENSOR (L0 04 14 (1)) 492
SPEED SENSOR (L0 04 15 (1)) 493
START ENABLE SWITCH (L0 04 17 (1)) 494
P T O SWITCH (L0 04 18 (1)) 495
SWITCHES FOR 2-SPEED P T O 540 – 750 (L0 04 19 (1)) 496
SWITCHES FOR 2-SPEED PTO WITH FIXED OUTPUT SHAFT 540-750 (L0 04 20 (1)) 497
SWITCH FOR 2-SPEED P T O WITH INSERTED END SHAFTS 540-750 (L0 04 21 (1)) 498
SWITCHES FOR 2-SPEED P T O 540 – 750 + SYNCRO (L0 04 23 (1)) 499
SWITCHES FOR 2-SPEED WITH FIXED OUTPUT SHAFT + SYNCRO AND 3 SPEEDS (L0 04 25 (1)) 500
SWITCH FOR P T O WITH INSERTED END SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (L0 04 26 (1)) 501
SWITCHES AND SENSOR FOR 3-SPEED P T O WITH INSERTED OUTPUT SHAFTS 540-750-1000 (L0 04 27 (1)) 502
SWITCHES FOR 3-SPEED P T O 540-750-1000 (L0 04 28 (1)) 503
REAR LIFT POSITION SENSOR (L0 04 29 (1)) 504
SENSOR FOR ACCELERATOR PEDAL WITH ELECTRONIC CONTROL (L0 04 30 (1)) 505
ELECTRONIC ACCELERATOR CONTROL SENSOR (L0 04 31 (1)) 506
ELECTRONIC ACCELERATOR CONTROL SENSOR (L0 04 32 (1)) 507
CLUTCH AND BRAKE PEDAL SWITCH (L0 04 34 (1)) 508
CLUTCH AND BRAKE PEDAL SWITCH (L0 04 35 (1)) 509
HAND BRAKE SWITCHES (L0 04 37 (1)) 510
HAND BRAKE SWITCHES (L0 04 38 (1)) 511
INSTRUMENT PANEL 512
DIGITAL INSTRUMENT PANEL (L0 05 2 (1)) 512
ELECTRICAL CONTROLS – PUSHBUTTONS 513
GEAR LEVER KNOB (L0 07 1 (1)) 513
GEAR SHIFTING (L0 07 2 (1)) 514
KEYSWITCH BLOCK – STEERING COLUMN SWITCH UNIT – INSTRUMENT PANEL BUTTONS (L0 07 3 (1)) 515
KEYSWITCH BLOCK – STEERING COLUMN SWITCH UNIT – INSTRUMENT PANEL BUTTONS (L0 07 3 (2)) 516
KEYSWITCH BLOCK – STEERING COLUMN SWITCH UNIT – INSTRUMENT PANEL BUTTONS (L0 07 4 (1)) 517
KEYSWITCH BLOCK – STEERING COLUMN SWITCH UNIT – INSTRUMENT PANEL BUTTONS (L0 07 4 (2)) 518
PRE-HEATER BUTTON (L0 07 6 (1)) 519
PRE-HEATER BUTTON (L0 07 6 (2)) 520
PRE-HEATER BUTTON (L0 07 7 (1)) 521
ELECTRONIC ACCELERATOR MEMORY PUSHBUTTON (L0 07 8 (1)) 522
ELECTRONIC ACCELERATOR MEMORY PUSHBUTTON (L0 07 9 (1)) 523
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (L0 07 11 (1)) 524
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (L0 07 12 (1)) 525
DIFFERENTIAL LOCK SWITCH (L0 07 13 (1)) 526
DIFFERENTIAL LOCK SWITCH (L0 07 14 (1)) 527
SWITCH – FOR P T O FRONT (L0 07 15 (1)) 528
P T O SHAFT DRIVE – REAR (L0 07 18 (1)) 529
P T O BUTTON (L0 07 19 (1)) 530
P T O BUTTON (L0 07 20 (1)) 531
P T O BUTTON (L0 07 21 (2)) 532
AUTOMATIC P T O CONTROL (L0 07 22 (1)) 533
WORKLIGHTS SWITCH (L0 07 23 (1)) 534
WORKLIGHTS SWITCH (L0 07 24 (1)) 535
CAB TOP SWITCHES (L0 07 25 (1)) 536
CAB TOP SWITCHES (L0 07 26 (1)) 537
CAB TOP SWITCHES (L0 07 27 (1)) 538
CAB TOP SWITCHES (L0 07 28 (1)) 539
CAB TOP SWITCHES (L0 07 29 (1)) 540
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 07 31 (1)) 541
LIGHTING AND SIGNALLING 542
FRONT LIGHTS – FOR LEFT-HAND DRIVE (L0 08 0 (1)) 542
FRONT LIGHTS – FOR RIGHT-HAND DRIVE (L0 08 1 (1)) 543
FRONT/REAR LIGHTS (L0 08 4 (1)) 544
FRONT/REAR LIGHTS (L0 08 5 (1)) 545
LIGHT SUPPORT WITH FIXED SAFETY ROLL BAR (L0 08 6 (1)) 546
LIGHT SUPPORT WITH FOLDING SAFETY ROLL BAR (L0 08 7 (1)) 547
FRONT/REAR LIGHTS (L0 08 8 (1)) 548
FRONT/REAR LIGHTS (L0 08 9 (1)) 549
FRONT/REAR LIGHTS (L0 08 10 (1)) 550
FRONT/REAR LIGHTS (L0 08 11 (1)) 551
WORKING SPOTLIGHT TOP FRONT/REAR (L0 08 12 (1)) 552
WORKING SPOTLIGHT TOP FRONT/REAR (L0 08 13 (1)) 553
WORKING SPOTLIGHT FRONT/REAR (L0 08 14 (1)) 554
WORKING SPOTLIGHT TOP FRONT/REAR (L0 08 15 (1)) 555
WORKING SPOTLIGHT TOP FRONT/REAR (L0 08 16 (1)) 556
WORKING SPOTLIGHT FRONT/REAR (L0 08 17 (1)) 557
REAR WORKLIGHT (L0 08 18 (1)) 558
REAR WORKLIGHT (L0 08 19 (1)) 559
WARNING BEACON (L0 08 20 (1)) 560
LICENCE PLATE LIGHT (L0 08 21 (1)) 561
COURTESY LIGHT (L0 08 22 (1)) 562
COURTESY LIGHT (L0 08 23 (1)) 563
COURTESY LIGHT (L0 08 24 (1)) 564
COURTESY LIGHT (L0 08 25 (1)) 565
COURTESY LIGHT (L0 08 26 (1)) 566
COURTESY LIGHT (L0 08 27 (1)) 567
HORN (L0 08 28 (1)) 568
REAR REFLECTORS (L0 08 30 (1)) 569
RETROREFLECTOR (L0 08 31 (1)) 570
RETROREFLECTOR (L0 08 32 (1)) 571
HEADLAMP COMPONENTS (04411920 4 A) 572
HEADLAMP COMPONENTS (04411921 4 A) 573
HEADLAMP COMPONENTS (2 8019 180 0 A) 574
HEADLAMP COMPONENTS (2 8019 190 0 A) 575
HEADLAMP COMPONENTS (2 8019 200 0 A) 576
HEADLAMP COMPONENTS (2 8019 960 0 A) 577
HEADLAMP COMPONENTS (2 8019 970 0 A) 578
HEADLAMP COMPONENTS (2 8029 240 0/10 A) 579
HEADLAMP COMPONENTS (2 8029 300 0 A) 580
HEADLAMP COMPONENTS (2 8029 730 0 A) 581
ELECTRIC LIGHTING SYSTEM (2 8029 820 0/20 A) 582
ELECTRIC LIGHTING SYSTEM (2 8029 830 0/20 A) 583
HEADLAMP COMPONENTS (2 8039 180 0/10 A) 584
HEADLAMP COMPONENTS (2 8059 440 0/10 A) 585
HEADLAMP COMPONENTS (2 8059 450 0 A) 586
HEADLAMP COMPONENTS (2 8059 460 0 A) 587
HEADLAMP COMPONENTS (2 8059 490 0 A) 588
FRONT LIGHTS (2 8059 520 0 A) 589
INTERIOR LIGHT (2 8339 032 0 A) 590
ACCESSORIES 591
DIGITAL CLOCK (L0 09 0 (1)) 591
DIGITAL CLOCK (L0 09 1 (1)) 592
CIGAR LIGHTER (L0 09 2 (1)) 593
LOUDSPEAKERS (L0 09 3 (1)) 594
LOUDSPEAKERS (L0 09 4 (1)) 595
LOUDSPEAKERS (L0 09 5 (1)) 596
RADIO ANTENNA (L0 09 6 (1)) 597
LOUDSPEAKERS (L0 09 8 (1)) 598
LOUDSPEAKERS AND RADIO ANTENNA (L0 09 8 (2)) 599
LOUDSPEAKERS (L0 09 9 (1)) 600
LOUDSPEAKERS AND RADIO ANTENNA (L0 09 9 (2)) 601
RADIO ANTENNA (L0 09 10 (1)) 602
RADIO ANTENNA (L0 09 10 (2)) 603
ANTENNA SUPPORT (L0 09 11 (1)) 604
Engine 605
Index 605
Agroplus 87 607
B0 – ENGINE 607
CYLINDER BLOCK 607
CRANKCASE (B0 01 2 (1)) 607
CRANKCASE (B0 01 3 (1)) 608
MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (B0 01 4 (1)) 609
ENGINE OIL AND TURBO PRESSURE SWITCH UNION (B0 01 9 (1)) 610
PLUG (B0 01 11 (1)) 611
CRANKSHAFT 612
CRANKSHAFT PULLEY (B0 02 0 (1)) 612
CRANKSHAFT PULLEY (B0 02 1 (1)) 613
PULSE WHEEL (B0 02 2 (1)) 614
ENGINE CRANKSHAFT PULLEY WITH RING-FEEDER RINGS (B0 02 3 (1)) 615
ENGINE CRANKSHAFT PULLEY WITH RING-FEEDER RINGS (B0 02 4 (1)) 616
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0 02 5 (1)) 617
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0 02 6 (1)) 618
CRANKSHAFT (B0 02 9 (1)) 619
ENGINE FLYWHEEL (B0 02 12 (1)) 620
COUNTERWEIGHTS (B0 02 13 (1)) 621
CYLINDERS – PISTONS – CONNECTING RODS 622
CYLINDER – PISTON – CONNECTING ROD (B0 03 3 (1)) 622
TIMING 623
TIMING CASE (B0 04 1 (1)) 623
TIMING CASE (B0 04 3 (1)) 624
GUARD PLATE (B0 04 4 (1)) 625
CASING COVER (B0 04 6 (1)) 626
CAMSHAFT (B0 04 10 (1)) 627
CYLINDER HEAD 628
CYLINDER HEAD (B0 05 3 (1)) 628
LUBRICATION 629
ENGINE OIL PUMP (B0 06 5 (1)) 629
ENGINE OIL PUMP (B0 06 6 (1)) 630
LUBRICATION (B0 06 12 (1)) 631
LUBRICATION (B0 06 13 (1)) 632
LUBRICANT OIL SUCTION PIPE (B0 06 15 (1)) 633
LUBRICATION (B0 06 21 (1)) 634
LUBRICATION (B0 06 22 (1)) 635
OIL DIPSTICK COVER (B0 06 25 (1)) 636
ENGINE OIL FILTER (B0 06 27 (1)) 637
ENGINE OIL PAN (B0 06 29 (1)) 638
OIL PIPES FOR TURBOCHARGER (B0 06 31 (1)) 639
FUEL INJECTION SYSTEM 640
INJECTION PUMP – INJECTOR (B0 07 5 (1)) 640
INJECTION PUMP – INJECTOR (B0 07 6 (1)) 641
INJECTION PUMP DRIVE (B0 07 9 (1)) 642
INJECTION PUMP DRIVE (B0 07 10 (1)) 643
MECHANICAL – ELECTRONIC GOVERNOR 644
ELECTRONIC MOTOR CONTROLLER (B0 08 2 (1)) 644
COOLING 645
COOLING SYSTEM MANIFOLD (B0 09 6 (1)) 645
COOLING SYSTEM MANIFOLD (B0 09 7 (1)) 646
WATER MANIFOLD BREATHER PIPE (B0 09 8 (1)) 647
ENGINE COOLING WATER PUMP (B0 09 10 (1)) 648
ENGINE COOLING WATER PUMP (B0 09 11 (1)) 649
COOLANT PIPE (B0 09 13 (1)) 650
WATER PUMP HOSES (B0 09 18 (1)) 651
WATER PUMP HOSES (B0 09 19 (1)) 652
COOLANT PUMP PULLEY (B0 09 20 (1)) 653
COOLANT PUMP PULLEY (B0 09 22 (1)) 654
WATER COOLING -SEALING (B0 09 24 (1)) 655
HEAT EXCHANGER (B0 09 26 (1)) 656
HEAT EXCHANGER (B0 09 27 (1)) 657
COOLING WATER PUMP (0 015 2993 4 A) 658
INTAKE – EXHAUST MANIFOLDS 659
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (B0 10 3 (1)) 659
INTAKE AND EXHAUST MANIFOLD GASKETS (B0 10 5 (1)) 660
TURBOCHARGER 661
TURBOCHARGER (B0 11 1 (1)) 661
Engine_accessories 662
Index 662
Agroplus 87 664
C0 – ENGINE ACCESSORIES 664
RADIATORS – FANS 664
BLOWER (C0 01 4 (1)) 664
WATER COOLER (C0 01 6 (2)) 665
PIPES FOR WATER COOLER AND TANK (C0 01 9 (1)) 667
AIR DUCTING HOOD (C0 01 10 (1)) 668
WATER COOLER (0 013 7134 4/30 A) 669
INTERCOOLER – AIR CLEANER 670
CYCLONE FILTER (C0 02 0 (1)) 670
ENGINE HOOD GASKETS (C0 02 1 (1)) 671
DRY AIR FILTER 8″ (C0 02 4 (1)) 672
AIR CLEANER HOSE (C0 02 6 (1)) 673
PRE-FILTER – COMPONENTS (2 4239 110 0 A) 674
AIR FILTER PARTS (2 4249 600 0 A) 675
FUEL SYSTEM 676
FUEL TANK (C0 03 1 (1)) 676
FUEL TANK GUARD (C0 03 3 (1)) 678
FUEL TANK GUARD (C0 03 4 (1)) 679
FUEL FEED PUMP (C0 03 7 (1)) 680
FUEL FEED PUMP (C0 03 8 (1)) 681
FUEL FILTER – PIPES (C0 03 9 (1)) 682
FUEL FEED PIPES AND PREFILTER (C0 03 14 (1)) 683
PREFILTER FASTENER (C0 03 15 (1)) 684
FUEL PIPES (C0 03 18 (1)) 685
FUEL PIPES (C0 03 20 (1)) 686
PRE-FILTER – COMPONENTS (2 4319 220 0 A) 687
FUEL FILTER PARTS (2 4319 230 0 A) 688
FUEL FEED PUMP (2 4519 330 0/50 A) 689
PREHEATING 690
HEATING ELEMENT 12 V (C0 04 3 (1)) 690
HEATING ELEMENT EARTH (C0 04 4 (1)) 691
STARTER MOTOR 692
STARTER (C0 05 1 (1)) 692
STARTER MOTOR COVER (C0 05 2 (1)) 693
STARTER PARTS (2 9619 390 0 A) 694
EXHAUST SILENCER 695
EXHAUST SILENCER (C0 06 3 (1)) 695
EXHAUST SILENCER PIPE (C0 06 7 (1)) 696
VERICAL EXHAUST SILENCER (C0 06 12 (1)) 697
ELECTRICAL ACCESSORIES 698
SOLENOID VALVE (C0 08 2 (1)) 698
SOLENOID VALVE PROTECTION (C0 08 3 (1)) 699
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/20 A) 700
SEALING SET 701
GASKET SET FOR ENGINE ASSEMBLY (C0 09 1 (1)) 701
Front_axle 702
Index 702
Agroplus 87 704
F0 – FRONT AXLE 704
FRONT SUPPORT 704
FRONT SUPPORT (F0 01 1 (1)) 704
FRONT SUPPORT (F0 01 2 (1)) 705
4WD – FRONT SUPPORT – WITH FRONT PTO AND LIFT (F0 01 3 (1)) 706
4WD – FRONT SUPPORT – WITH FRONT PTO AND LIFT (F0 01 4 (1)) 707
4WD – PLUGS FOR FRONT SUPPORT (F0 01 5 (1)) 708
2WD – FRONT SUPPORT (F0 01 7 (1)) 709
4WD – FRONT SUPPORT (F0 01 8 (1)) 710
FRONT SUPPORT – FIXINGS (F0 01 9 (1)) 711
2WD FRONT AXLE 712
2WD – EXTENDIBLE AXLE (F0 02 0 (1)) 712
2WD – AXLE SHAFT WITH FRONT BRAKES (F0 02 1 (1)) 713
BREATHER VALVE – 2WD (F0 02 3 (1)) 714
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (0 010 0486 4 A) 715
4WD FRONT AXLE 716
4WD – FRONT DRIVE AXLE (F0 03 1 (1)) 716
4WD – FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0 03 2 (1)) 717
4WD – FRONT AXLE YOKES (F0 03 3 (1)) 718
BREATHER (F0 03 5 (1)) 719
4WD – FRONT AXLE YOKES KIT (F0 03 6 (1)) 720
4WD – FRONT AXLE YOKES KIT (F0 03 7 (1)) 721
4WD – STANDARD SEALING (F0 03 8 (1)) 722
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (0 010 0488 4/10 A) 723
FRONT DIFFERENTIAL 724
4WD – BEVEL WHEEL GEAR Z = 15 / Z = 33 (F0 04 0 (1)) 724
DIFFERENTIAL BEVEL GEAR PAIR (F0 04 1 (1)) 725
4WD – FRONT DIFFERENTIAL LOCK- STANDARD SEALING (F0 04 2 (1)) 726
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (F0 04 4 (1)) 727
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (F0 04 4 (2)) 729
4WD – FLANGE (F0 04 5 (1)) 731
4WD – TRANSMISSION SHAFT (F0 04 7 (1)) 732
STEERING CYLINDER 733
2WD – POWER STEERING CYLINDER (F0 05 1 (1)) 733
4WD – POWER STEERING CYLINDER (F0 05 2 (1)) 734
4WD – POWER STEERING CYLINDER (F0 05 3 (1)) 735
CYLINDER PARTS (0 009 9892 4/10 A) 736
CYLINDER PARTS (0 010 1235 4/20 A) 737
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS 738
4WD – FRONT REDUCTION GEARBOX (F0 06 0 (1)) 738
4WD – FRONT REDUCTION GEARBOX (F0 06 0 (2)) 739
4WD – FRONT REDUCTION GEARBOX (F0 06 0 (3)) 740
4WD – AXLESHAFTS (F0 06 1 (1)) 741
FRONT WHEEL HUB COVER (F0 06 4 (1)) 742
4WD – AXLESHAFTS (0 009 6694 4/30 B) 743
FRONT BRAKES 744
2WD – FRONT BRAKES (F0 07 0 (1)) 744
4WD – FRONT BRAKES (F0 07 1 (1)) 745
Front_lift 746
Index 746
Agroplus 87 747
N0 – FRONT LIFT 747
LIFT ASSEMBLY 747
FRONT HYDRAULIC POWER-LIFT (N0 01 0 (1)) 747
PREDISPOSITION FOR FRONT LIFT (N0 01 1 (1)) 749
BRACKET FOR FRONT LIFT (N0 01 2 (1)) 750
RED AND WHITE STRIPED WARNING SIGN (N0 01 3 (1)) 751
CYLINDER PARTS (0 275 6342 4 A) 752
Front_pto 753
Index 753
Agroplus 87 754
M0 – FRONT PTO 754
PTO INPUT SHAFT 754
FILEX COUPLING (M0 01 0 (1)) 754
DRIVE SHAFT – FRONT P T O SHAFT (M0 01 1 (1)) 755
FRONT PTO COVER – PROTECTIONS 756
P T O SHAFT PROTECTOR FRONT (M0 02 0 (1)) 756
P T O FRONT (M0 02 1 (1)) 757
P T O FRONT (0 011 9177 4/30 A) 758
P T O FRONT (0 011 9177 4/30 B) 759
P T O FRONT (0 011 9177 4/30 C) 761
P T O FRONT (0 011 9177 4/60 A) 762
P T O FRONT (0 011 9177 4/60 B) 763
P T O FRONT (0 011 9177 4/60 C) 765
P T O FRONT (0 016 0697 4/20 A) 766
P T O FRONT (0 016 0697 4/20 B) 767
P T O FRONT (0 016 0697 4/20 C) 769
HYDRAULIC SYSTEM 770
FRONT PTO HYDRAULIC SYSTEM (M0 04 0 (1)) 770
SOLENOID VALVE (2 3729 400 0/20 A) 771
Hydraulic_and_pneumatic_system 772
Index 772
Agroplus 87 774
H0 – HYDRAULIC AND PNEUMATIC SYSTEM| 774
HYDRAULIC SYSTEM 774
GEAR BOX OIL RADIATOR TUBES (H0 01 1 (1)) 774
HYDRAULIC PUMP 14 cc – sx/lh/li (H0 01 2 (1)) 775
HYDRAULIC PUMP 22 5 cc – dx/rh/re (H0 01 3 (1)) 776
SUCTION HYDRAULIC SYSTEM (H0 01 4 (1)) 777
GEAR BOX OIL FEED PIPES (H0 01 5 (1)) 778
GEAR BOX OIL FEED PIPES (H0 01 6 (1)) 779
GEAR BOX OIL FEED PIPES (H0 01 7 (1)) 780
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H0 01 8 (1)) 781
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H0 01 8 (2)) 782
HYDRAULIC SYSTEM (H0 01 9 (1)) 783
HYDRAULIC SYSTEM (H0 01 9 (2)) 784
HYDRAULIC SYSTEM (H0 01 9 (3)) 785
HYDRAULIC SYSTEM (H0 01 9 (4)) 786
HYDRAULIC SYSTEM (H0 01 10 (1)) 787
HYDRAULIC SYSTEM (H0 01 10 (2)) 788
LUBRIC OIL FILTER 8 ” (H0 01 11 (1)) 789
OIL CONTROL VALVES HOUSING PIPES (H0 01 12 (1)) 790
OIL CONTROL VALVES HOUSING PIPES (H0 01 12 (2)) 791
SUPPLY LINE TO REMOTE CONTROL VALVE (H0 01 13 (1)) 792
AUXILIARY CONTROL VALVE SYSTEM (H0 01 14 (1)) 793
HYDRAULIC SYSTEM FOR 4-WAY REMOTE VALVE (H0 01 15 (1)) 794
HYDRAULIC SYSTEM FOR 4-WAY REMOTE VALVE (H0 01 16 (1)) 795
HYDRAULIC SYSTEM FOR 6-WAY REMOTE VALVE (H0 01 17 (1)) 796
HYDRAULIC SYSTEM FOR 6-WAY REMOTE VALVE (H0 01 18 (1)) 797
FRONT DIFFERENTIAL LOCK PIPE (H0 01 19 (1)) 798
FRONT DIFFERENTIAL LOCK CONTROL LINES (H0 01 21 (1)) 799
REAR LIFT CYLINDER BARREL (H0 01 22 (1)) 800
REAR LIFT CYLINDER BARREL (H0 01 23 (1)) 801
DETAILS OF OIL FILTER (2 4419 490 0/30 A) 802
HYDRAULIC PUMP PARTS (2 4539 120 0/10 A) 803
HYDRAULIC PUMP PARTS (2 4539 620 0/10 A) 804
STEERING SYSTEM 805
HYDROSTATIC STEERING CONTROL VALVE (H0 02 0 (1)) 805
HYDROSTATIC STEERING CONTROL VALVE (H0 02 1 (1)) 806
PIPES FOR HYDROSTATIC STEERING (H0 02 2 (1)) 807
PIPES FOR HYDROSTATIC STEERING – 2WD (H0 02 4 (1)) 808
PIPES FOR HYDROSTATIC STEERING – 4WD (H0 02 6 (1)) 809
PIPES FOR HYDROSTATIC STEERING (H0 02 7 (1)) 810
PIPES FOR HYDROSTATIC STEERING – 4WD (H0 02 8 (1)) 811
HYDR STEERING DISTRIBUTOR PARTS (0 009 3141 4/10 A) 812
HYDR STEERING DISTRIBUTOR PARTS (0 010 8555 4 A) 813
TRANSMISSION – PTO COOLERS 814
GEARBOX OIL COOLER (H0 03 1 (1)) 814
FRONT LIFT 815
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 0 (1)) 815
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 2 (1)) 816
PRESSURE CONTROL VALVE (0 009 2038 4/10 A) 817
REAR REMOTE CONTROL VALVES 818
4-WAY AUXILIARY DISTRIBUTOR (H0 07 0 (1)) 818
4-WAY AUXILIARY DISTRIBUTOR (H0 07 1 (1)) 819
6-WAY AUXILIARY DISTRIBUTOR (H0 07 2 (1)) 820
6-WAY AUXILIARY DISTRIBUTOR (H0 07 3 (1)) 821
AUXILIARY CONTROL VALVE SYSTEM (H0 07 4 (1)) 822
QUICK COUPLER GUARDS AND OIL DRIP COLLECTOR (H0 07 5 (1)) 823
TANK – PARTS (0 011 0212 3 A) 824
ENGAGEMENT (0 98309 50 3/10 A) 825
HYDRAULIC DISTRIBUTOR-PARTS (2 3719 730 0/10 A) 826
HYDRAULIC DISTRIBUTOR-PARTS (2 3719 740 0/20 A) 827
BRAKING SYSTEM AND PNEUMATIC SYSTEM| 829
BRAKE PIPES (H0 09 0 (1)) 829
BRAKING SYSTEM (H0 09 1 (1)) 830
REAR BRAKE PIPE – SX/LH/LI (H0 09 2 (1)) 831
FLOW CONTROL VALVE (H0 09 3 (1)) 832
2WD – FRONT BRAKING SYSTEM (H0 09 5 (1)) 833
2WD – FRONT BRAKING SYSTEM (H0 09 6 (1)) 834
BRAKE PIPES – FRONT (H0 09 8 (1)) 835
SYSTEM FROM HYDRAULIC PUMP TO HYDRAULIC BRAKES (H0 09 9 (1)) 836
HYDRAULIC TRAILER BRAKING SYSTEM – ITALY (H0 09 10 (1)) 837
HYDRAULIC TRAILER BRAKING SYSTEM – EXPORT F (H0 09 11 (1)) 838
TRAILER BRAKE VALVE (2 3719 550 0/50 A) 839
VALVE PARTS (2 3719 810 0/20 A) 840
ELECTROHYDRAULICS 841
OIL FLOW CONTROL VALVE CASING (H0 10 0 (1)) 841
OIL FLOW CONTROL VALVE CASING (H0 10 0 (2)) 842
SOLENOID VALVE – 4WD (H0 10 1 (1)) 843
PLUG FOR OIL REGULATING VALVE (H0 10 3 (1)) 844
H-M-L CONTROL (H0 10 4 (1)) 845
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/10 A) 846
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/20 A) 847
Rear_axle 848
Index 848
Agroplus 87 849
E0 – REAR AXLE 849
REAR AXLE 849
REAR AXLE CROWN WHEEL (E0 01 1 (1)) 849
REAR AXLE (E0 01 2 (1)) 850
PARTS SET FOR REAR AXLE – STANDARD SEAL (E0 01 3 (1)) 851
REAR AXLE – MOUNTINGS (E0 01 5 (1)) 852
REAR DIFFERENTIAL / HALF-SHAFTS 853
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (E0 02 0 (1)) 853
DIFFERENTIAL (E0 02 1 (1)) 854
REAR REDUCTION GEARS AND AXLE SHAFTS (E0 02 3 (1)) 855
HALF AXLES (E0 02 5 (1)) 856
REAR BRAKES 857
REAR BRAKES (E0 03 0 (1)) 857
REAR BRAKES (E0 03 1 (2)) 858
BREATHER (E0 03 2 (1)) 859
Rear_lift 860
Index 860
Agroplus 87 861
R0 – REAR LIFT 861
LIFT COVER 861
POWER-LIFT CASE (R0 01 0 (1)) 861
LIFT FIXING COMPONENTS (R0 01 1 (1)) 862
PLUG (R0 01 2 (1)) 863
LIFT ASSEMBLY 864
LIFTING (R0 02 0 (1)) 864
LIFTING (R0 02 1 (1)) 865
LIFT CONTROL VALVE 866
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (R0 03 0 (1)) 866
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (R0 03 1 (1)) 868
FIXING FOR MECHANICAL LIFT CONTROL VALVE WITH 4-WAY REMOTE VALVE (R0 03 2 (1)) 870
FIXING FOR MECHANICAL LIFT CONTROL VALVE WITH 6-WAY REMOTE VALVE (R0 03 3 (1)) 871
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (R0 03 4 (1)) 872
DISTRIBUTOR (2 3729 460 0 A) 873
IN-CAB CONTROLS 874
INTERNAL CONTROLS (R0 04 0 (1)) 874
SENSOR 875
SENSITIVE ELEMENTS (R0 05 0 (1)) 875
SENSING ELEMENTS WITH ELECTRONIC CONTROL (R0 05 1 (1)) 876
THREE-POINT LINKAGE – LINK ARMS 877
LIFT ARMS TO GEARBOX LOCK PINS (R0 06 0 (1)) 877
TOP LINKATTACHMENT SPRING WITH MECHANICAL REAR LIFT (R0 06 1 (1)) 878
TOP LINK SPRING W/ ELECTRONIC REAR LIFT (R0 06 2 (1)) 879
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD (R0 06 4 (1)) 880
3-POINT HITCH WITH HYDRAULIC LIFT ROD (R0 06 5 (1)) 881
THREE POINT LINKAGE (R0 06 6 (1)) 882
3-POINT LINKAGE (R0 06 7 (1)) 883
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R0 06 8 (2)) 884
TOWING BAR (R0 06 9 (1)) 885
CYLINDER PARTS (0 010 7534 4 A) 886
LINKAGE (0 014 1412 3 A) 887
TOWING HITCH (0 014 1420 3 A) 888
Transmission 889
Index 889
Agroplus 87 892
D0 – TRANSMISSION 892
MAIN CLUTCH 892
CLUTCH 12″ (D0 01 2 (1)) 892
CLUTCH 12″ (D0 01 3 (1)) 893
CLUTCH CONTROL (D0 01 4 (2)) 894
CLUTCH CONTROL (D0 01 5 (1)) 895
HML – HI-LO – SHML 896
H-M-L UNIT (D0 04 0 (1)) 896
H-M-L UNIT (D0 04 1 (1)) 897
GEARBOX INPUT SHAFT 898
GEARBOX INPUT SHAFT (D0 05 0 (1)) 898
SHUTTLE SHAFT (D0 05 1 (1)) 899
GEARBOX INPUT SHAFT (D0 05 2 (1)) 900
SHUTTLE FOR 5-SPEED TRANSMISSION W/ UNDERDRIVE (D0 05 6 (1)) 901
SHUTTLE FOR 5-SPEED TRANSMISSION W/ UNDERDRIVE (D0 05 7 (1)) 902
SYNCHRONISERS (D0 05 9 (1)) 903
SHUTTLE FOR 5-SPEED TRANSMISSION (D0 05 11 (1)) 904
SYNCHRONIZER PARTS (0 007 7620 4/10 A) 905
SYNCHRONIZER PARTS (0 007 7621 4 A) 906
PTO INPUT SHAFT 907
P T O – CLUTCH TRANSMISSION SHAFT (D0 06 0 (1)) 907
P T O – CLUTCH TRANSMISSION SHAFT (D0 06 1 (1)) 908
MAIN SHAFT 909
5-SPEED GEARBOX PRIMARY SHAFT WITH UNDERDRIVE (D0 07 1 (1)) 909
5-SPEED GEARBOX PRIMARY SHAFT WITH UNDERDRIVE (D0 07 2 (1)) 910
5-SPEED GEARBOX PRIMARY SHAFT (D0 07 4 (1)) 911
SECONDARY SHAFT 912
TRANSMISSION SHAFT (D0 08 0 (1)) 912
TRANSMISSION SHAFT (D0 08 1 (1)) 913
H-M-L GEARBOX SECONDARY SHAFT (D0 08 2 (2)) 914
5-SPEED GEARBOX SECONDARY SHAFT WITH UNDERDRIVE (D0 08 4 (1)) 915
5-SPEED GEARBOX SECONDARY SHAFT WITH UNDERDRIVE (D0 08 5 (1)) 916
5-SPEED GEARBOX SECONDARY SHAFT (D0 08 7 (1)) 917
SYNCHRONISERS (D0 08 11 (1)) 918
SYNCHRONISERS (D0 08 13 (1)) 919
SYNCHRONIZER PARTS (0 007 7620 4/10 A) 920
SYNCHRONIZER PARTS (0 007 7621 4 A) 921
GEARBOX 922
GEARBOX FRONT- FIXINGS (D0 09 1 (1)) 922
GEARBOX (D0 09 2 (1)) 923
GEARBOX UPPER COVER (D0 09 3 (1)) 924
PLUGS FOR GEARBOX (D0 09 5 (1)) 925
FRONT GEARBOX PLUG (D0 09 6 (1)) 926
FRONT GEARBOX PLUG (D0 09 7 (1)) 927
PLUGS FOR GEARBOX (D0 09 8 (1)) 928
PLUG FOR GEARBOX WITHH-M-L (D0 09 9 (1)) 929
PLUGS FOR GEARBOX (D0 09 11 (1)) 930
PLUG FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D0 09 13 (1)) 931
SENSOR BRACKET (D0 09 15 (1)) 932
INTERNAL AND EXTERNAL GEARBOX CONTROLS 933
GEARBOX CONTROL ROD (D0 10 0 (1)) 933
INTERNAL CONTROLS OF 5-SPEED GEARBOX WITH UNDERDRIVE (D0 10 2 (2)) 934
INTERNAL CONTROLS OF 5-SPEED GEARBOX WITH UNDERDRIVE (D0 10 3 (2)) 935
5-SPEED GEARBOX INTERNAL CONTROLS (D0 10 5 (2)) 936
SPEED RANGE REDUCTION GEAR SHAFT (D0 10 6 (1)) 937
3-RANGE BOX (D0 10 7 (1)) 938
PARTS SET – 5-SPEED WITH UNDERDRIVE (D0 10 9 (1)) 939
PARTS SET – 5-SPEED GEARBOX (D0 10 10 (1)) 940
2-RANGE BOX (D0 10 11 (1)) 941
GEAR SHIFTING (D0 10 12 (1)) 942
REVERSING GEAR UNIT CONTROL (D0 10 13 (1)) 943
REDUCTION GEAR CONTROL (D0 10 14 (1)) 944
GEAR SHIFTING (D0 10 15 (1)) 945
GEAR SHIFTING (D0 10 16 (1)) 947
PLUG FRO TYPES W/O START ENABLING SWITCH (D0 10 17 (1)) 949
LOW SPEED RANGES 950
BEVEL WHEEL GEAR Z = 12 / Z = 44 (D0 11 0 (1)) 950
BEVEL DRIVE PINION BEARING (D0 11 1 (1)) 951
SPEED RANGE REDUCTION GEAR UNIT (D0 11 2 (1)) 952
2-RANGE BOX 40 Km\h (D0 11 3 (1)) 953
2-RANGE BOX (D0 11 4 (1)) 954
3-RANGE BOX 40 Km\h (D0 11 5 (1)) 955
PULSE WHEEL (D0 11 7 (1)) 956
PHONIC WHEEL FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D0 11 9 (1)) 957
HYDRAULIC REAR PTO CLUTCH 958
P T O – HYDRAULIC CLUTCH (D0 12 0 (1)) 958
P T O – HYDRAULIC CLUTCH (D0 12 0 (2)) 959
P T O – HYDRAULIC CLUTCH (0 011 9686 4/40 A) 960
P T O – HYDRAULIC CLUTCH (0 011 9686 4/40 B) 961
HYDRAULIC PUMP DRIVE 962
P T O – PUMP CONTROL (D0 13 0 (2)) 962
PTO/GROUNDPSPEED DRIVE 963
CONTROL LEVER P T O (D0 14 0 (1)) 963
CONTROL LEVER P T O (D0 14 1 (1)) 964
BEARINGS OF – 2-SPEED P T O (D0 14 3 (1)) 965
P T O – 540/N – WITH FIXED OUTPUT SHAFT (D0 14 4 (1)) 966
P T O – 540/N – WITH FIXED OUTPUT SHAFT (D0 14 4 (2)) 967
P T O – 540/N – WITH INSERTED END SHAFTS (D0 14 5 (1)) 968
CONTROL LEVER P T O (D0 14 6 (1)) 969
P T O – 2 SPEED TYPE 540 – 750 (D0 14 7 (1)) 970
PTO – 2-SPEED WITH INSERTED END SHAFT 540 – 750 (D0 14 9 (1)) 971
P T O – 2 SPEED TYPE – FIXED END SHAFT (D0 14 11 (1)) 972
P T O – 2 SPEED TYPE 540-750 (D0 14 13 (1)) 973
2-SPEED – PTO WITH FIXED OUTPUT SHAFT 540-750 (D0 14 14 (1)) 974
2-SPEED – PTO WITH FIXED OUTPUT SHAFT 540-750 (D0 14 14 (2)) 975
PTO – 2-SPEED WITH INSERTED END SHAFT 540-750 (D0 14 15 (1)) 976
PTO – 2-SPEED WITH INSERTED END SHAFT 540-750 (D0 14 16 (1)) 977
BLANKING PLUGS FOR TYPES WITHOUT SYNCHRONIZED P T O (D0 14 17 (1)) 978
P T O SHAFT 540 – 750 + SYNCRO (D0 14 18 (1)) 979
P T O – WITH INSERTED END SHAFTS 540 – 750 + SYNCRO (D0 14 19 (1)) 980
P T O – 2 SPEED TYPE + SINCRO – FIXED END SHAFT (D0 14 20 (1)) 981
P T O SHAFT 540 – 750 + SYNCRO (D0 14 22 (1)) 982
P T O SHAFT 540 – 750 + SYNCRO (D0 14 23 (1)) 983
P T O – 2 SPEED TYPE + SINCRO (D0 14 24 (1)) 984
P T O – 3 SPEED TYPE 540-750-1000 (D0 14 25 (1)) 985
P T O – 3 SPEED TYPE – FIXED END SHAFT (D0 14 26 (1)) 986
PTO – 3-SPEED WITH INSERTED END SHAFT (D0 14 27 (1)) 987
3-SPEED P T O WITH FIXED OUTPUT SHAFT 540-750-1000 (D0 14 28 (1)) 988
P T O WITH FIXED OUTPUT SHAFT – 2 SPEEDS + SINCRO AND 3 SPEEDS (D0 14 29 (1)) 989
P T O WITH FIXED OUTPUT SHAFT – 2 SPEEDS + SINCRO AND 3 SPEEDS (D0 14 29 (2)) 990
P T O WITH INSERTED END SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (D0 14 30 (1)) 991
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 31 (1)) 992
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 32 (1)) 993
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 33 (1)) 994
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 33 (2)) 995
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 34 (1)) 996
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 35 (1)) 997
PTO – SEAL RING FOR INSERTED END SHAFT – STANDARD VERSION (D0 14 36 (1)) 998
PTO – PARTS SET WITH STANDARD SEALS (D0 14 37 (1)) 999
REAR PTO COVER WITH STANDARD SEAL (D0 14 38 (1)) 1000
P T O GUARD (D0 14 40 (1)) 1001
GUARD PLATE P T O (D0 14 41 (1)) 1002
GUARD PLATE P T O (D0 14 42 (1)) 1003
P T O GUARD (D0 14 43 (1)) 1004
GUARD PLATE P T O (D0 14 44 (1)) 1005
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE 1006
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (D0 15 1 (1)) 1006
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (D0 15 2 (1)) 1007
HAND BRAKE (D0 15 4 (1)) 1008
HAND BRAKE (D0 15 4 (2)) 1009
Wheels 1010
Index 1010
Agroplus 87 1011
S0 – WHEELS 1011
FRONT WHEEL BOLTS 1011
2WD – FRONT WHEEL MOUNTING (S0 01 0 (1)) 1011
4WD – FRONT WHEEL MOUNTING (S0 01 1 (1)) 1012
REAR WHEEL BOLTS 1013
REAR WHEEL BOLTS (S0 02 1 (1)) 1013
2WD FRONT WHEELS 1014
2WD – FRONT WHEELS 7 50-18″ pr 8 (S0 03 1 (1)) 1014
2WD – FRONT WHEELS 7 50 x 20” pr 6 (S0 03 3 (1)) 1015
WHEELS 1016
WHEELS 320/85R20″(12 4R20″) (S0 04 4 (2)) 1016
WHEELS 360/70R20″a8 (S0 04 7 (1)) 1017
WHEELS 380/70 R20″ A8 (S0 04 8 (1)) 1018
WHEELS 405/70 R20” (S0 04 10 (1)) 1019
WHEELS 420/65R20″ A8 (S0 04 11 (1)) 1020
WHEELS 11 2-24″ PR10 A8 (S0 04 12 (1)) 1021
WHEELS 280/85R24″(11 2R24″) (S0 04 13 (1)) 1022
WHEELS 320/70 R24″ A8 (S0 04 14 (1)) 1023
WHEELS 420/70 R28″ A8 (S0 04 16 (1)) 1024
WHEELS 540/65R28″ A8 (S0 04 18 (1)) 1025
WHEELS 16 9R-30″ PR10A8 (S0 04 19 (1)) 1026
WHEELS 380/85R30″(14 9R30″) (S0 04 21 (1)) 1027
WHEELS 380/85R30″(14 9R30″) (S0 04 21 (2)) 1028
WHEELS 420/70 R30″ A8 (S0 04 23 (1)) 1029
WHEELS 420/85R30″(16 9R30″) (S0 04 24 (1)) 1030
WHEELS 480/70R-30″ a8 (S0 04 25 (1)) 1031
WHEELS 540/65R30″ (S0 04 27 (1)) 1032
WHEELS 12 4R36″ a8 (S0 04 28 (1)) 1033
WHEELS 12 4R36″ a8 (S0 04 28 (2)) 1034
WHEELS 13 6R36″ a8 (S0 04 30 (1)) 1035

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
