Deutz Fahr Agroplus 95 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agroplus 95 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agroplus 95 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 912
Downloadable : Yes
File Type : PDF
Size: 42.4 MB

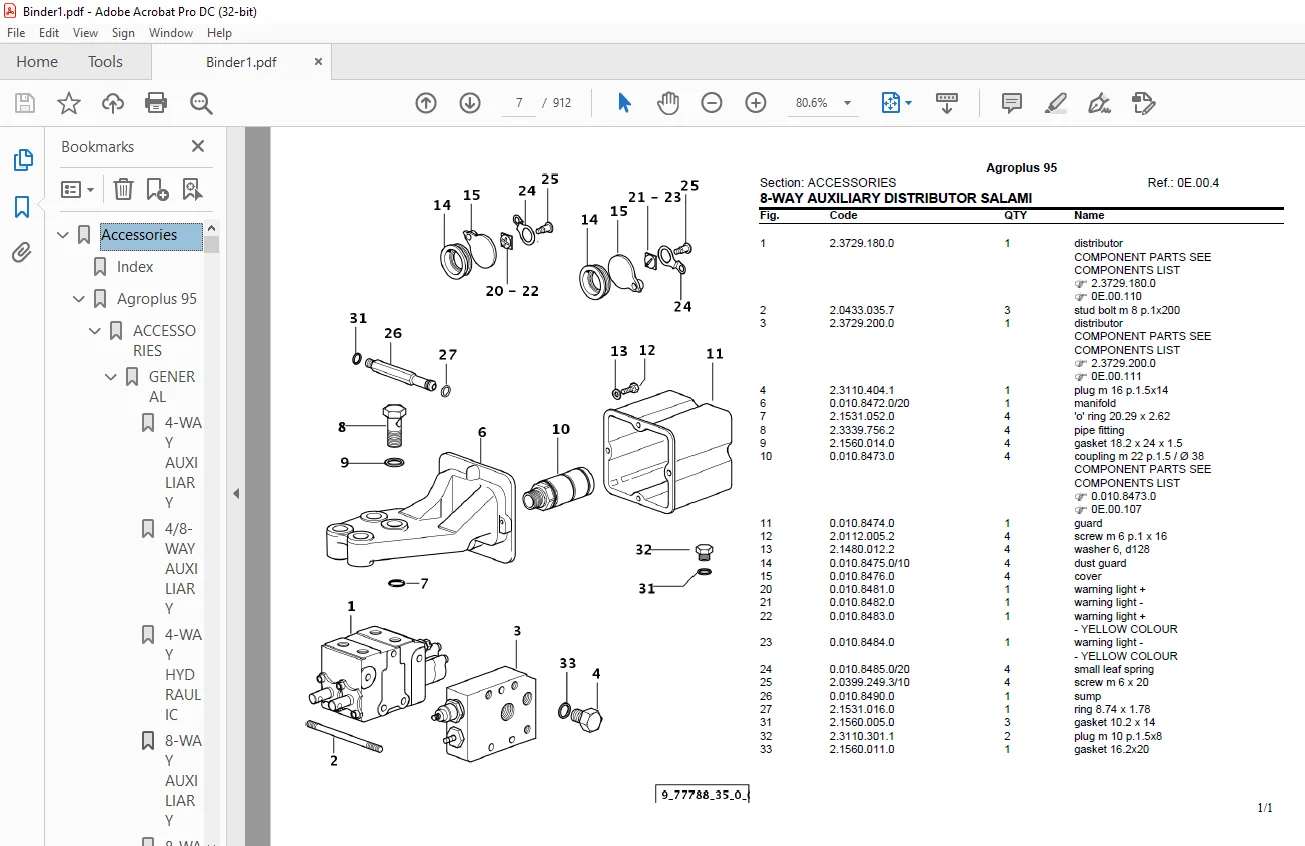

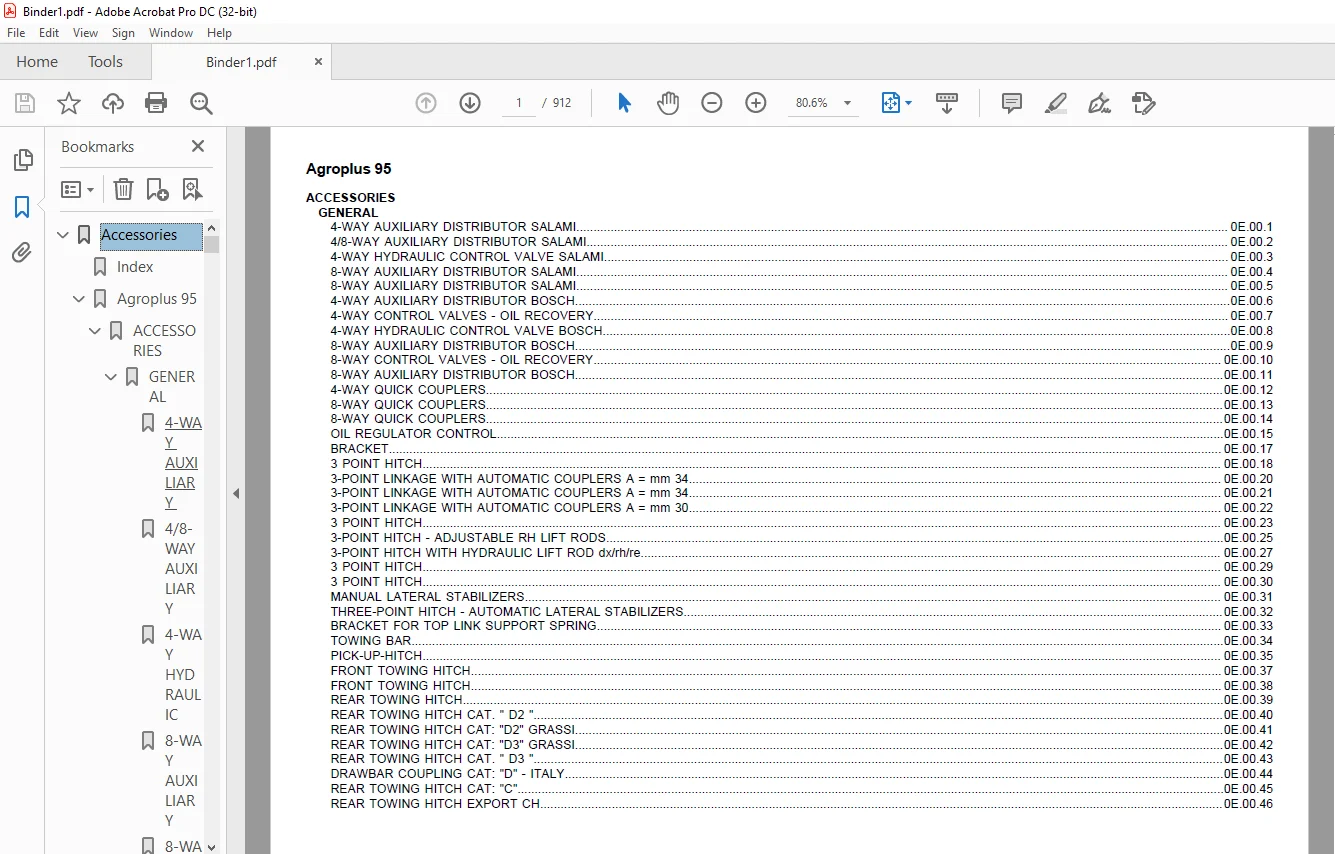

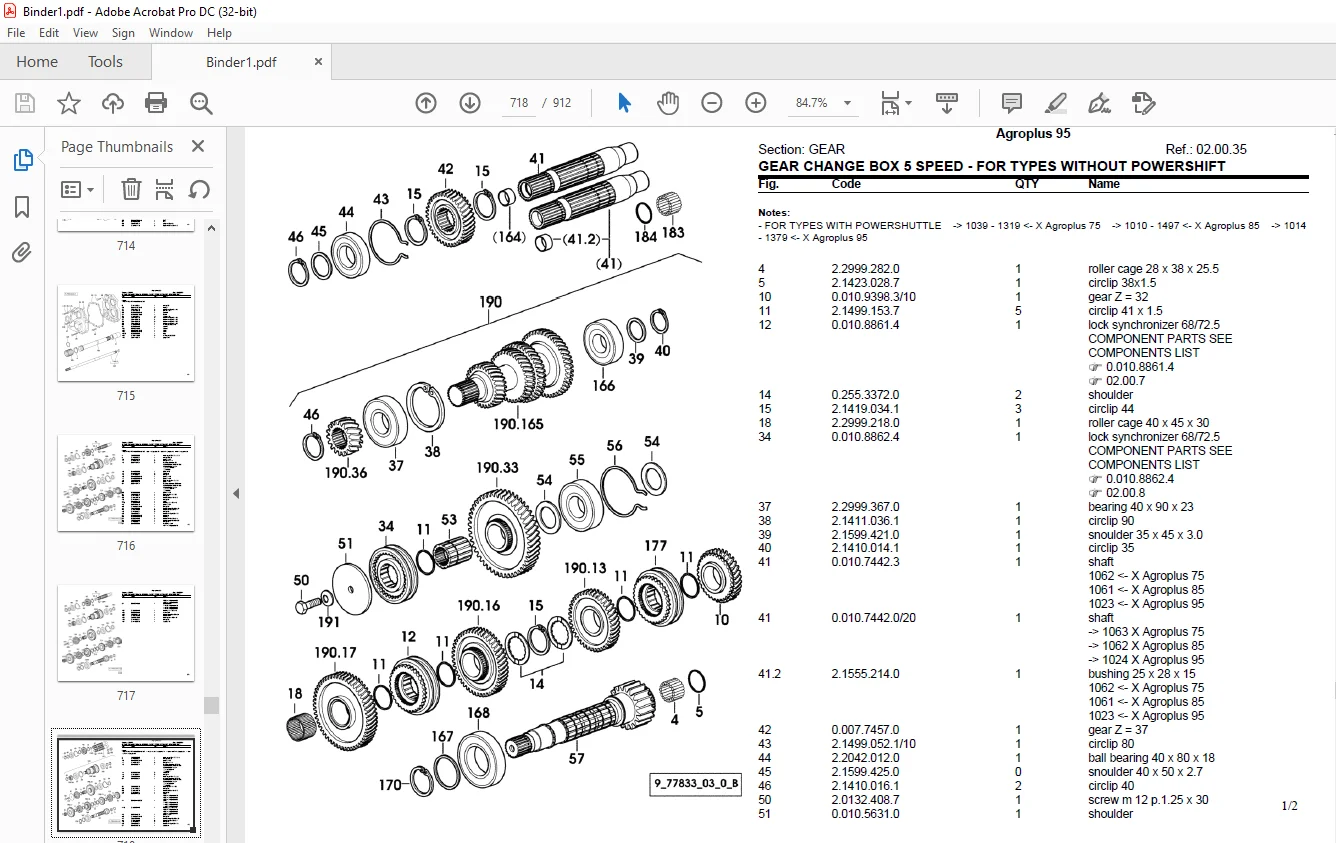

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

https://vimeo.com/810504701

TABLE OF CONTENTS:

Deutz Fahr Agroplus 95 Parts Catalog Manual – PDF DOWNLOAD

Accessories 1
Index 1
Agroplus 95 3
ACCESSORIES 3
GENERAL 3
4-WAY AUXILIARY DISTRIBUTOR SALAMI (0E 00 1) 3
4/8-WAY AUXILIARY DISTRIBUTOR SALAMI (0E 00 2) 4
4-WAY HYDRAULIC CONTROL VALVE SALAMI (0E 00 3) 6
8-WAY AUXILIARY DISTRIBUTOR SALAMI (0E 00 4) 7
8-WAY AUXILIARY DISTRIBUTOR SALAMI (0E 00 5) 8
4-WAY AUXILIARY DISTRIBUTOR BOSCH (0E 00 6) 9
4-WAY CONTROL VALVES – OIL RECOVERY (0E 00 7) 11
4-WAY HYDRAULIC CONTROL VALVE BOSCH (0E 00 8) 12
8-WAY AUXILIARY DISTRIBUTOR BOSCH (0E 00 9) 13
8-WAY CONTROL VALVES – OIL RECOVERY (0E 00 10) 15
8-WAY AUXILIARY DISTRIBUTOR BOSCH (0E 00 11) 16
4-WAY QUICK COUPLERS (0E 00 12) 17
8-WAY QUICK COUPLERS (0E 00 13) 18
8-WAY QUICK COUPLERS (0E 00 14) 19
OIL REGULATOR CONTROL (0E 00 15) 20
BRACKET (0E 00 17) 21
3 POINT HITCH (0E 00 18) 22
3-POINT LINKAGE WITH AUTOMATIC COUPLERS A = mm 34 (0E 00 20) 23
3-POINT LINKAGE WITH AUTOMATIC COUPLERS A = mm 34 (0E 00 21) 24
3-POINT LINKAGE WITH AUTOMATIC COUPLERS A = mm 30 (0E 00 22) 25
3 POINT HITCH (0E 00 23) 26
3-POINT HITCH – ADJUSTABLE RH LIFT RODS (0E 00 25) 27
3-POINT HITCH WITH HYDRAULIC LIFT ROD dx/rh/re (0E 00 27) 28
3 POINT HITCH (0E 00 29) 29
3 POINT HITCH (0E 00 30) 30
MANUAL LATERAL STABILIZERS (0E 00 31) 31
THREE-POINT HITCH – AUTOMATIC LATERAL STABILIZERS (0E 00 32) 32
BRACKET FOR TOP LINK SUPPORT SPRING (0E 00 33) 33
TOWING BAR (0E 00 34) 34
PICK-UP-HITCH (0E 00 35) 35
FRONT TOWING HITCH (0E 00 37) 36
FRONT TOWING HITCH (0E 00 38) 37
REAR TOWING HITCH (0E 00 39) 38
REAR TOWING HITCH CAT ” D2 ” (0E 00 40) 39
REAR TOWING HITCH CAT: “D2” GRASSI (0E 00 41) 40
REAR TOWING HITCH CAT: “D3″ GRASSI (0E 00 42) 41
REAR TOWING HITCH CAT ” D3 ” (0E 00 43) 42
DRAWBAR COUPLING CAT: “D” – ITALY (0E 00 44) 43
REAR TOWING HITCH CAT: “C” (0E 00 45) 44
REAR TOWING HITCH EXPORT CH (0E 00 46) 45
REAR TOWING HITCH (CRAMER) EXPORT D (0E 00 47) 46
REAR OSCILLATING HITCH – FOR MODELS WITH CLEVIS GRASSI (0E 00 48) 47
REAR OSCILLATING HITCH CAT ” A ” (0E 00 49) 48
FRONT WEIGHT CARRIER (0E 00 52) 49
BALLAST (0E 00 53) 50
BALLAST LOCK BAR (0E 00 54) 51
FRONT BALLAST 400 Kg (0E 00 55) 52
WHEEL BALLAST (0E 00 56) 53
WHEEL BALLAST (0E 00 57) 54
PNEUMATIC TRAILER BRAKING (0E 00 58) 55
AIR BRAKING FOR ‘ITALY’ TRAILER (0E 00 60) 56
AIR BRAKING FOR ‘ITALY’ TRAILER (0E 00 61) 58
AIR BRAKING FOR ‘ITALY’ TRAILER (0E 00 62) 59
AIR BRAKING FOR ‘EXPORT D’ TRAILER (0E 00 63) 61
AIR BRAKING FOR ‘EXPORT D’ TRAILER (0E 00 64) 62
AIR BRAKING FOR ‘EXPORT D’ TRAILER (0E 00 65) 63
AIR BRAKING FOR ‘EXPORT D’ TRAILER (0E 00 66) 64
AIR BRAKING FOR ‘EXPORT D’ TRAILER (0E 00 67) 65
AIR BRAKING FOR ‘EXPORT D’ TRAILER (0E 00 68) 66
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E 00 69) 68
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E 00 70) 69
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (0E 00 71) 70
LUBRICATOR (0E 00 72) 71
TOOL POUCH (0E 00 73) 72
REAR TOWING HITCH (0 007 7957 4 A) 73
Body_work 74
Index 74
Agroplus 95 76
BODY WORK 76
GENERAL 76
HOOD (07 00 1) 76
PRODUCT PLATE (07 00 5) 78
HOOD – SUPPORTS (07 00 7) 79
WATER COOLING (07 00 8) 81
WATER COOLING (07 00 9) 84
DASHBOARD – FOR TYPES WITHOUT POWERSHUTTLE (07 00 12) 87
DASHBOARD – FOR TYPES WITHOUT POWERSHUTTLE (07 00 13) 88
DASHBOARD – FOR TYPES WITH POWERSHUTTLE (07 00 14) 89
STEERING COLUMN SHROUD (07 00 15) 90
DASHBOARD – STEERING COVER – FOR TYPES WITH POWERSHUTTLE (07 00 16) 91
REAR INSTRUMENT PANEL SURROUND (07 00 17) 92
SPEED LABEL – 40 KM/H (07 00 18) 93
SPEED LABEL – 40 KM/H – REFLEX (07 00 19) 94
INFORMATION PLATE (07 00 20) 95
SPEED DATA PLATES 30 Km/h (07 00 21) 96
SPEED DATA PLATES 40 Km/h (07 00 23) 97
SPEED DATA PLATES 40 Km/h EXPORT U K (07 00 24) 98
PLATES OCDE (07 00 27) 99
PLATES ITALY (07 00 28) 100
PLATES EXPORT D (07 00 29) 101
PLATES EXPORT F (07 00 30) 102
THROTTLE – MECHANICAL – (07 00 31) 103
THROTTLE – MECHANICAL – (07 00 32) 104
THROTTLE – MECHANICAL – (07 00 33) 105
THROTTLE – MECHANICAL – (07 00 34) 106
ACCELERATOR PEDAL GASKET (07 00 35) 107
2WD – FRONT MUDGUARDS mm 240 (07 00 36) 108
2WD – FRONT MUDGUARDS mm 265 (07 00 37) 109
2WD – FRONT MUDGUARDS mm 310 (07 00 38) 110
4WD – SELF-ADJUSTING FRONT FENDERS – FOR TYPES WITHOUT “ASM SYSTEM” mm 310 (07 00 39) 111
4WD – SELF-ADJUSTING FRONT FENDERS – FOR TYPES WITH “ASM SYSTEM” mm 310 (07 00 40) 112
4WD – SELF-ADJUSTING FRONT FENDERS – FOR TYPES WITHOUT “ASM SYSTEM” mm 355 (07 00 41) 113
4WD – SELF-ADJUSTING FRONT FENDERS – FOR TYPES WITH “ASM SYSTEM” mm 355 (07 00 42) 115
4WD – SELF-ADJUSTING FRONT FENDERS – FOR TYPES WITHOUT “ASM SYSTEM” L = mm 400 (07 00 43) 117
4WD – SELF-ADJUSTING FRONT FENDERS – FOR TYPES WITH “ASM SYSTEM” L = mm 400 (07 00 44) 118
4WD – SELF-ADJUSTING FRONT FENDERS – FOR TYPES WITHOUT “ASM SYSTEM” mm 470 (07 00 45) 119
4WD – SELF-ADJUSTING FRONT FENDERS – FOR TYPES WITH “ASM SYSTEM” mm 470 (07 00 46) 120
PLATFORM (07 00 47) 121
MUDGUARDS EXTENSIONS – L = mm 180 (07 00 48) 122
MUDGUARDS EXTENSIONS – L = mm 240 (07 00 49) 123
SUPPORTS (07 00 50) 124
MAT FOR PLATOFRM (07 00 52) 125
FLOOR PLUG (07 00 53) 126
LADDER (07 00 54) 127
FENDERS – FOR MODELS WITHOUT CAB (07 00 55) 128
FENDERS – FOR MODELS WITH CAB (07 00 56) 129
LIGHT SUPPORT – FOR TYPES WITHOUT SAFETY FRAME (07 00 57) 130
SAFETY ARCH (07 00 58) 131
SUN GUARD ROOF – FOR MODELS WITHOUT CAB (07 00 59) 132
REARVIEW MIRROR dx/rh/re (07 00 60) 133
REARVIEW MIRROR sx/lh/li (07 00 61) 134
LICENCE PLATE HOLDER (07 00 62) 135
LICENCE PLATE HOLDER EXPORT F (07 00 63) 136
BATTERY SUPPORT (07 00 64) 137
TRIANGLE SUPPORT (07 00 65) 138
HOLDING DEVICE – WHEEL CHOCK – FOR MODELS WITHOUT CAB (07 00 66) 139
HOLDING DEVICE – WHEEL CHOCK – FOR MODELS WITH CAB (07 00 67) 140
HOLDING DEVICE – WHEEL CHOCK EXPORT CH (07 00 68) 141
FUEL SYSTEM – TANK (07 00 69) 142
FUEL SYSTEM – TANK (07 00 70) 143
FUEL PIPES (07 00 71) 145
FUEL SUPPLY – AIR FILTER 8″ (07 00 73) 146
AIR CLEANER HOSE (07 00 74) 147
FUEL SUPPLY – AIR FILTER (07 00 76) 148
AIR CLEANER EXTENSION (07 00 77) 149
CYCLONE AIR CLEANER EXTENSION (07 00 78) 150
PASSENGER SEAT – PLATFORM – FOR MODELS WITHOUT CAB (07 00 79) 151
SEAT FOR 2ND OPERATOR – FOR MODELS WITHOUT CAB (07 00 80) 152
SEAT FOR 2ND OPERATOR – FOR MODELS WITH CAB (07 00 81) 153
SEAT FOR 2ND OPERATOR – FOR MODELS WITH CAB (07 00 82) 154
SEAT SUPPORT BRACKET (07 00 83) 155
DRIVER’S SEAT (07 00 84) 156
DRIVER’S SEAT GRAMMER MSG83/20 (07 00 85) 157
DRIVER’S SEAT – PNEUMATIC SPRINGING (07 00 86) 158
Cab 159
Index 159
Agroplus 95 161
CAB 161
GENERAL 161
SINGLE-STRUCTURE CAB (0B 00 1) 161
WINDSCREEN (0B 00 2) 162
SIDE PLATE RIGHT/LEFT (0B 00 3) 163
SIDE PLATE RIGHT/LEFT (0B 00 4) 164
GLASSES AND SEALS (0B 00 5) 166
GLASSES AND SEALS (0B 00 6) 168
REAR WINDOW (0B 00 7) 171
GLASSES AND SEALS (0B 00 8) 173
DAMPER FOR REAR WINDOW HATCH – WITH WHITE ROOF – GREY (0B 00 9) 176
DAMPER FOR REAR WINDOW HATCH – ROOF GREEN COLOUR (0B 00 10) 177
DOOR HANDLE – CAB DOOR RIGHT/LEFT (0B 00 11) 178
CAB SOUNDPROOF PANELS (0B 00 12) 179
CAB SOUNDPROOF PANELS (0B 00 13) 181
CAB SOUNDPROOF PANELS (0B 00 14) 182
CAB SOUNDPROOF PANELS (0B 00 15) 183
CAB INSTALLATION COMPLETION (0B 00 16) 184
CAB SOUNDPROOF PANELS (0B 00 17) 185
SUN BLIND (0B 00 18) 186
SUN BLIND (0B 00 19) 187
INTERIOR TRIM – WITH WHITE ROOF – GREY (0B 00 20) 188
INTERIOR TRIM – ROOF GREEN COLOUR (0B 00 21) 189
INTERIOR TRIM “HIGHT VISIBILITY” – ROOF GREEN COLOUR (0B 00 22) 190
INTERIOR TRIM (0B 00 23) 192
INTERIOR TRIM – WITH HATCH (0B 00 24) 193
INTERIOR TRIM “HIGHT VISIBILITY” (0B 00 25) 194
INTERIOR TRIM “HIGHT VISIBILITY” (0B 00 26) 195
INTERIOR TRIM “HIGHT VISIBILITY” (0B 00 27) 197
CAB ROOF – FOR TRACTORS WITHOUT AIR CONDITIONING – WHITE (0B 00 28) 199
CAB ROOF – FOR TRACTORS WITHOUT AIR CONDITIONING – GREY (0B 00 29) 201
CAB ROOF – FOR TRACTORS WITH AIR CONDITIONING – WITH WHITE ROOF – GREY (0B 00 30) 202
ROOF WITH SKYLIGHT – GREEN COLOUR (0B 00 31) 203
CAB ROOF – FOR TRACTORS WITH AIR CONDITIONING – GREEN COLOUR (0B 00 32) 205
CAB ROOF “HIGHT VISIBILITY” (0B 00 33) 206
CAB ROOF “HIGHT VISIBILITY” – FOR TRACTORS WITH AIR CONDITIONING (0B 00 34) 207
LICENCE PLATE HOLDER – WITH WHITE ROOF – GREY EXPORT D (0B 00 35) 208
LICENCE PLATE HOLDER – ROOF GREEN COLOUR EXPORT D (0B 00 36) 209
LICENCE PLATE HOLDER – FOR TYPES WITH “HIGH VISIBILITY” EXPORT D (0B 00 37) 210
FRONT WINDSHIELD WIPER SYSTEM (0B 00 38) 211
FRONT WINDSHIELD WIPER SYSTEM “HIGHT VISIBILITY” (0B 00 39) 212
REAR WIPER WIRING SYSTEM (0B 00 40) 213
REAR WIPER WIRING SYSTEM “HIGHT VISIBILITY” (0B 00 41) 215
SUPPORT (0B 00 42) 216
FLASHING LIGHT SUPPORT – WITH WHITE ROOF – GREY (0B 00 43) 217
FLASHING LIGHT SUPPORT – ROOF GREEN COLOUR (0B 00 44) 218
VENTILATION – HEATING (0B 00 45) 219
VENTILATION – HEATING (0B 00 46) 220
VENTILATION – HEATING (0B 00 47) 221
VENTILATION – HEATING “HIGHT VISIBILITY” (0B 00 49) 222
VENTILATION – HEATING “HIGHT VISIBILITY” (0B 00 50) 224
VENTILATION – AIR CONDITIONING – HEATING (0B 00 51) 225
VENTILATION – AIR CONDITIONING – HEATING “HIGHT VISIBILITY” (0B 00 52) 227
COMPRESSOR (0B 00 53) 230
COMPRESSOR (0B 00 54) 231
VENTILATION – AIR CONDITIONING (0B 00 55) 232
VENTILATION – AIR CONDITIONING (0B 00 57) 233
VENTILATION – AIR CONDITIONING “HIGHT VISIBILITY” (0B 00 58) 235
CONDENSER – AIR CONDITIONING UNIT – WITH WHITE ROOF – GREY (0B 00 59) 237
CONDENSER – AIR CONDITIONING UNIT – ROOF GREEN COLOUR (0B 00 60) 239
Electrical_system 241
Index 241
Agroplus 95 243
ELECTRIC AL SYSTEM 243
GENERAL 243
HEADLAMP FOR RIGHT-HAND DRIVE (08 00 1) 243
HEADLAMP FOR LEFT-HAND DRIVE (08 00 2) 244
ELECTRIC LIGHTING SYSTEM – FOR MODELS WITHOUT CAB (08 00 3) 245
ELECTRICAL SYSTEM FOR TYPE WITH CAB (08 00 4) 246
WARNING BEACON (08 00 5) 248
LICENCE PLATE HOLDER – LICENCE PLATE LIGHT (08 00 6) 249
ELECTRIC LIGHTING SYSTEM – FOR MODELS WITHOUT CAB (08 00 7) 250
WORKING SPOTLIGHT FRONT BOTTOM – FOR MODELS WITH CAB (08 00 8) 251
WORKING SPOTLIGHT FRONT – WITH WHITE ROOF – GREY (08 00 9) 252
WORKING SPOTLIGHT FRONT – ROOF GREEN COLOUR (08 00 10) 253
WORKING SPOTLIGHT REAR – WITH WHITE ROOF – GREY (08 00 11) 254
WORKING SPOTLIGHT REAR – ROOF GREEN COLOUR (08 00 12) 255
WORKLIGHTS FOR “HIGH VISIBILITY” CAB (08 00 13) 256
REAR LIGHT (08 00 14) 257
ELECTRICAL SYSTEM (08 00 15) 258
ELECTRICAL EQUIPMENT FRONT (08 00 16) 260
ELECTRICAL EQUIPMENT REAR – FOR TYPES WITHOUT POWERSHUTTLE (08 00 18) 261
ELECTRICAL EQUIPMENT REAR – FOR TYPES WITH POWERSHUTTLE (08 00 19) 262
RETROREFLECTOR EXPORT CH (08 00 20) 263
ELECTRICAL SYSTEM – STEERING COLUMN SWITCH UNIT – FOR TYPES WITHOUT POWERSHUTTLE (08 00 21) 264
ELECTRICAL SYSTEM – STEERING COLUMN SWITCH UNIT – FOR TYPES WITH POWERSHUTTLE (08 00 22) 265
ELECTRICAL SYSTEM – STEERING COLUMN SWITCH UNIT – FOR TYPES WITH POWERSHUTTLE (08 00 23) 266
ELECTRICAL SYSTEM “HIGHT VISIBILITY” – FOR MODELS WITH CAB (08 00 24) 267
ELECTRICAL SYSTEM “HIGHT VISIBILITY” – WITH “HIGH VISIBILITY” CAB (08 00 25) 269
BATTERY LEADS (08 00 26) 272
BATTERY 12V 120Ah 520A (08 00 27) 273
BATTERY 12V 180Ah 800A (08 00 29) 274
ELECTRICAL SYSTEM – FOR TYPES WITH POWERSHUTTLE (08 00 30) 275
ELECTRICAL SYSTEM – FOR TYPES WITH POWERSHIFT + POWERSHUTTLE (08 00 31) 276
ELECTRICAL SYSTEM – FOR TYPES WITH POWERSHUTTLE (08 00 32) 277
ELECTRICAL SYSTEM – FOR TYPES WITH POWERSHIFT + POWERSHUTTLE (08 00 33) 278
CONTROL UNIT – GEARS (08 00 34) 279
4WD – ENGAGEMENT CONTROL – FOR TYPES WITH “ASM SYSTEM” (08 00 35) 280
4WD – ENGAGEMENT CONTROL (08 00 36) 281
SENSOR – SPEED – P T O SHAFT (08 00 37) 282
GROUND-OPERATED CONTROL FOR REAR LIFT (08 00 38) 283
SWITCH – FOR P T O FRONT (08 00 39) 284
P T O ENGAGEMENT CONTROL – REAR (08 00 40) 285
ELECTRICAL CONTROLS (08 00 41) 286
SWITCH FOR ROTATING BEACON (08 00 42) 287
SWITCH EXPORT CH (08 00 43) 288
ANALOGUE INSTRUMENT PANEL 30-40 Km/h (08 00 44) 289
DIGITAL INSTRUMENT PANEL (08 00 45) 290
PICK-UP – FOR TYPES WITH POWERSHUTTLE (08 00 46) 291
SPEED SENSOR (08 00 47) 292
POWER-LIFT ELECTRONIC SYSTEM (08 00 48) 293
DRAFT SENSOR – FOR TYPES WITH ELECTRONIC LIFTER (08 00 49) 295
DRAFT SENSOR – FOR TYPES WITH ELECTRONIC LIFTER (08 00 50) 296
ELECTRICAL WIRING – FOR TYPES WITH ELECTRONIC LIFTER (08 00 52) 297
POWER SHIFT ELECTRICAL SYSTEM – FOR TYPES WITH MECHANICAL LIFTER (08 00 53) 298
CONTROL UNIT – ELECTRONIC – LIFTING GEAR CONTROL – FOR TYPES WITHOUT “ASM SYSTEM” (08 00 54) 299
CONTROL UNIT – ELECTRONIC – LIFTING GEAR CONTROL – FOR TYPES WITH “ASM SYSTEM” (08 00 55) 300
INDUCTIVE POSITION ENCODER – FOR TYPES WITH “ASM SYSTEM” (08 00 56) 301
INDUCTIVE POSITION ENCODER – FOR TYPES WITH “ASM SYSTEM” (08 00 57) 302
RADAR (08 00 58) 303
RADAR – EXPORT GB (08 00 59) 304
OIL PREHEATING FOR ARTIC CONDITIONS (08 00 60) 305
WINDSHIELD WIPER SYSTEM (08 00 61) 306
ELECTRICAL LEAD FOR HYDRAULIC TRAILER BRAKING (08 00 62) 307
ELECTRICAL LEAD FOR HYDRAULIC TRAILER BRAKING (08 00 63) 308
PREARRANGED FOR RADIO INSTALLATION (08 00 64) 309
AERIAL EXTENSION (08 00 65) 310
HEADLAMP COMPONENTS (2 8059 080 0 A) 311
Engine 312
Index 312
Agroplus 95 317
ENGINE 317
GENERAL 317
FUEL PIPES (01 00 1) 317
FAN UNIT (01 00 4) 318
V-BELT – FOR TRACTORS WITHOUT AIR CONDITIONING (01 00 5) 320
PLUGS FOR HEATING WATER INLET/OUTLET HOLES (01 00 6) 322
INTERCOOLER (01 00 7) 323
AIR COMPRESSOR (01 00 8) 324
SIDE EXHAUST SILENCER – FOR MODELS WITH CAB (01 00 9) 325
EXHAUST SILENCER – FOR MODELS WITHOUT CAB (01 00 10) 326
EXHAUST SILENCER (01 00 13) 327
Crankcase 328
PISTON COOL NOZZLE (01 01 1) 328
FASTENINGS (01 01 2) 330
FILLER CAP (01 01 3) 332
BLEEDING TUBE (01 01 4) 334
CRANKCASE BREATHER (01 01 5) 336
FASTENINGS (01 01 6) 338
OIL FILLER NECK (01 01 7) 339
FRONT COVER (01 01 9) 341
CRANKCASE (01 01 10) 343
CRANKCASE (01 01 11) 345
CRANKCASE (01 01 12) 347
BLEEDING TUBE (01 01 13) 349
Oil pan 350
OIL PAN (01 02 1) 350
Crankshaft 352
FASTENINGS (01 05 1) 352
CRANKSHAFT (01 05 2) 353
V-GROOVED PULLEY (01 05 3) 356
DRIVER FLANGE (01 05 4) 358
FLYWHEEL (01 05 5) 359
COUNTERWEIGHTS (01 05 6) 360
FASTENINGS (01 05 7) 362
FASTENINGS (01 05 8) 363
FLYWHEEL (01 05 9) 364
COUNTERWEIGHTS (01 05 10) 365
PLUG (01 05 11) 366
Connecting rod 367
CONNECTING ROD (01 06 1) 367
Piston 369
PISTON (01 07 2) 369
Cylinder head 371
CYLINDER HEAD (01 08 1) 371
ENGINE MOUNTING (01 08 1) 374
ENGINE MOUNTING (01 08 2) 375
CYLINDER HEAD (01 08 2) 376
ROCKER ARMS COVER (01 08 3) 378
FASTENINGS (01 08 4) 380
CLOSING COMPONENTS (01 08 5) 382
ENGINE MOUNTING (01 08 6) 384
Timing chest 385
GEARCASE (01 09 1) 385
GEARCASE (01 09 2) 386
GEARCASE (01 09 3) 388
Camshaft 390
CAMSHAFT (01 10 1) 390
CAMSHAFT (01 10 2) 391
Timing gears 393
ROCKER ARM BRACKET (01 11 2) 393
VALVE DRIVE (01 11 3) 395
ROCKER ARM BRACKET (01 11 4) 397
Oil cooler, Lube oil filter 398
OIL RETURN (01 15 1) 398
FASTENINGS (01 15 2) 400
FASTENINGS (01 15 3) 401
OIL COOLER BOX (01 15 4) 403
OIL COOLER (01 15 5) 405
CLOSING COMPONENTS (01 15 6) 406
ACCESSORIES (01 15 7) 408
OIL COOLER BOX (01 15 8) 410
OIL COOLER BOX (01 15 9) 412
CLOSING COMPONENTS (01 15 10) 414
Oil pipes 415
OIL SUCTION PIPE (01 16 1) 415
Injection pump 417
ROLLER TAPPET (01 17 1) 417
FASTENINGS (01 17 2) 419
FUEL INJECT PUMP (01 17 3) 425
Injector 427
FASTENINGS (01 19 1) 427
FUEL INJECTOR (01 19 2) 429
FUEL INJECTOR (01 19 3) 432
FUEL INJECTOR (01 19 4) 433
FUEL INJECTOR (01 19 5) 435
Fuel filter 438
FUEL FILTER (01 20 1) 438
FASTENINGS (01 20 2) 439
FUEL SUPPLY PUMP (01 20 3) 441
FUEL FILTER (01 20 4) 443
Fuel pipes 445
OVERFLOW LINE (01 21 1) 445
HIGH PRESSURE PIPE (01 21 2) 447
FUEL LINE (01 21 3) 449
Air intake, Air cleaner 450
TUNNEL COVER (01 22 2) 450
TUNNEL COVER (01 22 3) 452
CLOSING COMPONENTS (01 22 4) 454
CHARGE AIR PIPE (01 22 5) 455
Controller 457
CLOSING COMPONENTS (01 27 1) 457
INTERMEDIATE GEAR (01 27 1) 458
FASTENINGS (01 27 2) 459
CONTROLLER (01 27 3) 461
INLET MANIFOLD (01 27 4) 464
CONTROL ROD (01 27 5) 466
FASTENINGS (01 27 6) 468
INTERMEDIATE GEAR (01 27 7) 470
Cooling water pump 472
FASTENINGS (01 37 1) 472
DRIVING PARTS (01 37 1) 474
COOLING WATER PUMP (01 37 2) 476
NARROW V-BELT (01 37 2) 477
V-GROOVED PULLEY (01 37 3) 479
COOLING WATER PUMP (01 37 4) 480
COOLING WATER PUMP (01 37 5) 481
Water pipes 482
CLOSING COMPONENTS (01 38 1) 482
COOLANT PIPE (01 38 1) 484
VENT PLUG (01 38 1) 486
CONNECTION (01 38 2) 488
THERMOSTAT (01 38 3) 490
CLOSING COMPONENTS (01 38 4) 492
COOLANT PIPE (01 38 5) 494
Cooling air blower 496
FAN SUPPORT (01 39 1) 496
FASTENINGS (01 39 2) 497
V-GROOVED PULLEY (01 39 3) 498
ADAPTER (01 39 4) 499
FAN SUPPORT (01 39 5) 501
FAN SUPPORT (01 39 6) 502
Exhaust manifold 504
FASTENINGS (01 41 1) 504
EXHAUST PIPE (01 41 2) 506
Turbocharger 508
RETURN LINE (01 43 1) 508
CLOSING COMPONENTS (01 43 2) 510
OIL LUBRICATION PIPE (01 43 3) 512
TURBOCHARGER (01 43 5) 514
Generator, Startet motor 516
GENERATOR (01 44 1) 516
PARTS OF ALTERNAT (01 44 2) 518
FASTENINGS (01 44 3) 520
DRIVING PARTS (01 44 4) 522
ACCESSORIES (01 44 5) 524
STARTER (01 44 6) 526
V-GROOVED PULLEY (01 44 7) 528
GENERATOR (01 44 8) 529
ACCESSORIES (01 44 9) 530
Engine mounting 531
ACCESSORIES (01 47 1) 531
ACCESSORIES (01 47 2) 532
ACCESSORIES (01 47 3) 533
ACCESSORIES (01 47 4) 534
ACCESSORIES (01 47 5) 535
Electrical accessories 536
FASTENINGS (01 48 1) 536
COVER PLATE (01 48 2) 538
ACCESSORIES (01 48 3) 540
OIL PRESSUR SWITCH (01 48 4) 542
CLOSING COMPONENTS (01 48 5) 543
OIL PRESSUR SWITCH (01 48 6) 545
OIL PRESSUR SWITCH (01 48 7) 546
CLOSING COMPONENTS (01 48 8) 547
ACCESSORIES (01 48 9) 548
Measuring instruments 549
TEMPER TRANSMITTER (01 51 1) 549
TEMPER TRANSMITTER (01 51 2) 550
TEMPER TRANSMITTER (01 51 3) 551
Clutch 552
BUSH (01 52 1) 552
Engine shutdown 554
ACCESSORIES (01 56 1) 554
SHUTDOWN DEVICE (01 56 2) 555
ACCESSORIES (01 56 3) 556
SHUTDOWN DEVICE (01 56 4) 558
Starting aid 560
SWITCHING DEVICE (01 63 1) 560
GLOW PLUG (01 63 2) 562
Heating system 564
HEATER CONNECTION (01 75 1) 564
Hydraulic pump 566
CLOSING COMPONENTS (01 83 1) 566
CLOSING COMPONENTS (01 83 2) 568
CLOSING COMPONENTS (01 83 3) 570
CLOSING COMPONENTS (01 83 4) 572
Sealing set 573
COOL SYST PROTECT (01 90 1) 573
GASKET SET (01 90 2) 575
Front_and_rear_pto 577
Index 577
Agroplus 95 578
FRONT AND REAR P T O 578
GENERAL 578
P T O FRONT (05 00 1) 578
P T O FRONT (05 00 2) 579
P T O – CLUTCH TRANSMISSION SHAFT – FOR TYPES WITHOUT POWERSHUTTLE (05 00 3) 581
P T O – ELECTROHYDRAULICALLY CONTROLLED HYDRAULIC CLUTCH (05 00 4) 582
P T O – ELECTROHYDRAULICALLY CONTROLLED HYDRAULIC CLUTCH (05 00 6) 583
P T O – PUMP CONTROL (05 00 7) 584
P T O – PUMP CONTROL (05 00 8) 585
P T O – 2 SPEED TYPE (05 00 9) 587
PTO – 2-SPEED WITH INSERTED END SHAFT (05 00 10) 588
4 SPEED P T O (05 00 11) 590
4 SPEED P T O (05 00 12) 591
P T O – 4-SPEED WITH INSERTED END SHAFT (05 00 13) 593
P T O ENGAGEMENT CONTROL 540 – 1000 (05 00 14) 595
LUBRICATION (05 00 15) 596
PTO – SEAL RING FOR INSERTED END SHAFT – STANDARD VERSION (05 00 22) 597
PTO – SEAL RING FOR INSERTED END SHAFT – WATER PROOF VERSION (05 00 23) 598
P T O – SYNCHRONIZED – WITH STANDARD SEALS (05 00 24) 599
P T O – SYNCHRONIZED – WITH STANDARD SEALS (05 00 25) 600
P T O – SYNCHRONIZED – WITH WATERPROOF SEALS (05 00 26) 601
COVER FOR TYPES WITHOUT SYNCHRO PTO (05 00 31) 602
P T O ENGAGEMENT CONTROL 540 – 1000 (05 00 32) 603
P T O – ECONOMICAL CONTROL (05 00 33) 604
P T O – ECONOMICAL CONTROL (05 00 35) 605
P T O – SYNCHRONIZED CONTROL (05 00 36) 606
P T O – SYNCHRONIZED CONTROL (05 00 38) 607
PTO DATA PLATE 540 – 1000 (05 00 39) 608
PTO DATA PLATE 540 – 1000 (05 00 40) 609
P T O SHAFT PROTECTOR REAR (05 00 41) 610
P T O SHAFT PROTECTOR REAR EXPORT GB (05 00 42) 611
P T O SHAFT PROTECTOR REAR EXPORT GB (05 00 43) 612
P T O – CLUTCH-PARTS (0 012 7103 4/20 A) 613
Front_axle 614
Index 614
Agroplus 95 615
FRONT AXEL 615
GENERAL 615
2WD – FRONT SUPPORT (04 00 1) 615
4WD – FRONT SUPPORT (04 00 2) 616
4WD – FRONT SUPPORT WITH FRONT PTO – FOR MODELS WITH FRONT LIFT (04 00 3) 617
4WD – FRONT SUPPORT MOUNTINGS (04 00 4) 618
FRONT SUPPORT – WITHOUT FRONT PTO AND LIFT (04 00 5) 619
JUNCTION CASE – FOR TYPES WITHOUT POWERSHUTTLE (04 00 6) 621
JUNCTION CASE – FOR TYPES WITH POWERSHUTTLE (04 00 7) 623
2WD – EXTENDIBLE AXLE – WITHOUT FRONT BRAKES (04 00 8) 625
2WD – EXTENDIBLE AXLE – FOR TYPES WITH FRONT BRAKES (04 00 9) 627
2WD – FRONT BRAKES – FOR TYPES WITH FRONT BRAKES (04 00 10) 628
2WD – EXTENDIBLE AXLE (04 00 11) 629
2WD – EXTENDIBLE AXLE (04 00 12) 630
4WD – FRONT DRIVE AXLE (04 00 13) 631
4WD – FRONT DRIVE AXLE – FOR TYPES WITHOUT “ASM SYSTEM” (04 00 14) 633
STEERING SENSOR SUPPORT – FOR TYPES WITH “ASM SYSTEM” (04 00 15) 634
STEERING SENSOR SUPPORT – FOR TYPES WITH “ASM SYSTEM” (04 00 16) 635
4WD – FRONT BRAKES – WITH STANDARD SEALS (04 00 17) 636
4WD – FRONT BRAKES – WITH WATERPROOF SEALS (04 00 18) 637
4WD – FLANGE – FOR TYPES WITHOUT “ASM SYSTEM” (04 00 19) 638
4WD – FLANGE – FOR TYPES WITH “ASM SYSTEM” (04 00 20) 639
4WD – POWER STEERING CYLINDER (04 00 21) 640
2WD – FRONT BRAKING SYSTEM (04 00 22) 641
4WD – FRONT BRAKING SYSTEM (04 00 24) 642
4WD – FRONT BRAKING SYSTEM (04 00 26) 643
4WD – FRONT DIFFERENTIAL LOCK – FOR TYPES WITHOUT “ASM SYSTEM” (04 00 27) 644
4WD – FRONT DIFFERENTIAL LOCK – FOR TYPES WITHOUT “ASM SYSTEM” (04 00 28) 646
4WD – FRONT DIFFERENTIAL LOCK – FOR TYPES WITH “ASM SYSTEM” (04 00 29) 647
BEVEL WHEEL GEAR – 30Km/h (04 00 30) 649
BEVEL WHEEL GEAR – 40Km/h (04 00 31) 650
4WD – AXLESHAFTS – FOR TYPES WITHOUT “ASM SYSTEM” (04 00 32) 651
4WD – AXLESHAFTS – FOR TYPES WITH “ASM SYSTEM” (04 00 33) 653
4WD – FRONT DIFFERENTIAL LOCK- STANDARD SEALING (04 00 34) 655
4WD – FRONT DIFFERENTIAL LOCK- WATER PROOF SEALING (04 00 35) 656
FRONT WHEEL HUB COVER (04 00 36) 657
FRONT WHEEL HUB COVER (04 00 37) 658
4WD – TRANSMISSION SHAFT (04 00 38) 659
4WD – TRANSMISSION SHAFT – WITH STANDARD SEALS (04 00 40) 660
4WD – TRANSMISSION SHAFT – WITH WATERPROOF SEALS (04 00 41) 661
4WD – MECHANICAL ENGAGEMENT CONTROL (04 00 42) 662
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL – FOR TYPES WITH “ASM SYSTEM” (04 00 44) 663
Front_power-lift 664
Index 664
Agroplus 95 665
FRONT HYDRAULIC POWER-LIFT 665
GENERAL 665
FRONT HYDRAULIC POWER-LIFT (0C 00 1) 665
FRONT LIFT – HYDRAULIC SYSTEM – FOR MODELS EQUIPPED WITH FRONT P T O (0C 00 2) 667
FRONT LIFT – HYDRAULIC SYSTEM – FOR MODELS EQUIPPED WITH FRONT P T O (0C 00 3) 669
FRONT LIFT – HYDRAULIC SYSTEM – FOR MODELS WITHOUT FRONT P T O (0C 00 4) 670
FRONT LIFT – HYDRAULIC SYSTEM – FOR MODELS WITHOUT FRONT P T O (0C 00 5) 672
FRONT LIFT – HYDRAULIC SYSTEM (0C 00 6) 674
FRONT LIFT – HYDRAULIC SYSTEM (0C 00 8) 675
FRONT LIFT – HYDRAULIC SYSTEM – FOR MODELS EQUIPPED WITH FRONT P T O (0C 00 9) 676
FRONT LIFT – HYDRAULIC SYSTEM – FOR MODELS EQUIPPED WITH FRONT P T O (0C 00 10) 677
FRONT LIFT – HYDRAULIC SYSTEM – FOR MODELS WITHOUT FRONT P T O (0C 00 11) 678
FRONT LIFT – HYDRAULIC SYSTEM – FOR MODELS WITHOUT FRONT P T O (0C 00 12) 679
Gear 680
Index 680
Agroplus 95 683
GEAR 683
GENERAL 683
CLUTCH 13″ (02 00 1) 683
CLUTCH CONTROL – FOR TYPES WITHOUT POWERSHUTTLE (02 00 3) 684
CLUTCH CONTROL – FOR TYPES WITHOUT POWERSHUTTLE (02 00 4) 685
CLUTCH CONTROL – FOR TYPES WITHOUT POWERSHUTTLE (02 00 5) 686
OIL RESERVOIR – FOR TYPES WITHOUT POWERSHUTTLE (02 00 6) 687
CLUTCH CONTROL – FOR TYPES WITH POWERSHUTTLE (02 00 7) 688
CLUTCH CONTROL – FOR TYPES WITH POWERSHUTTLE (02 00 8) 689
GEARBOX – FOR TYPES WITHOUT POWERSHUTTLE (02 00 9) 690
GEARBOX – FOR TYPES WITHOUT POWERSHUTTLE (02 00 10) 691
GEARBOX WITH HYDRAULIC SHUTTLE – FOR TYPES WITH POWERSHUTTLE (02 00 11) 692
GEARBOX WITH HYDRAULIC SHUTTLE – FOR TYPES WITH POWERSHUTTLE (02 00 12) 693
GEARBOX – WEARING PARTS (02 00 13) 694
COVER – FOR TYPES WITHOUT “ASM SYSTEM” (02 00 17) 695
2WD – COMPLETION (02 00 18) 696
DIPSTICK – FOR TYPES WITHOUT POWERSHUTTLE (02 00 19) 697
DIPSTICK – FOR TYPES WITHOUT POWERSHUTTLE (02 00 20) 698
DIPSTICK – FOR TYPES WITH POWERSHUTTLE (02 00 21) 699
GEAR BOX OIL FEED PIPES (02 00 23) 700
REAR GEARBOX BRACKETS (02 00 24) 701
GEAR CHANGE BOX 5 SPEED – FOR SYNCHROSPLIT TYPES (02 00 25) 702
GEAR CHANGE BOX 5 SPEED – FOR SYNCHROSPLIT TYPES (02 00 26) 703
GEAR CHANGE BOX 5 SPEED – FOR SYNCHROSPLIT TYPES (02 00 27) 705
GEAR CHANGE BOX 5 SPEED – FOR SYNCHROSPLIT TYPES (02 00 28) 707
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITHOUT POWERSHIFT (02 00 29) 709
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITHOUT POWERSHIFT (02 00 30) 710
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITHOUT POWERSHIFT (02 00 31) 712
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITHOUT POWERSHIFT (02 00 32) 714
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITHOUT POWERSHIFT (02 00 33) 715
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITHOUT POWERSHIFT (02 00 34) 716
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITHOUT POWERSHIFT (02 00 35) 718
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITHOUT POWERSHIFT (02 00 36) 720
GEAR CHANGE BOX 5 SPEED – FOR TYPES WITHOUT POWERSHIFT (02 00 37) 722
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 38) 723
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 39) 724
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 40) 725
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 41) 727
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 42) 730
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 43) 733
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 44) 734
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 45) 736
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 46) 738
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 47) 740
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 48) 743
GEAR CHANGE BOX 5 SPEED – FOR POWERSHIFT TYPES (02 00 49) 745
HYDRAULIC SHUTTLE (02 00 75) 746
HYDRAULIC SHUTTLE (02 00 76) 747
HYDRAULIC SHUTTLE (02 00 77) 748
HYDRAULIC SHUTTLE (02 00 78) 749
HYDRAULIC SHUTTLE (02 00 79) 750
REVERSING GEAR UNIT CONTROLS – FOR TYPES WITHOUT POWERSHIFT (02 00 80) 751
REVERSING GEAR UNIT CONTROLS – FOR POWERSHIFT TYPES (02 00 81) 754
SPEED RANGE REDUCTION GEAR SHAFT – FOR TYPES WITHOUT “ASM SYSTEM” (02 00 82) 756
SPEED RANGE REDUCTION GEAR SHAFT – FOR TYPES WITHOUT “ASM SYSTEM” (02 00 83) 757
SPEED RANGE REDUCTION GEAR SHAFT – FOR TYPES WITH “ASM SYSTEM” (02 00 84) 758
BEARING FOR RANGE GEARBOX SHAFT (02 00 85) 759
SPEED RANGE REDUCTION GEAR UNIT (02 00 87) 760
SPEED RANGE REDUCTION GEAR UNIT (02 00 88) 761
SPEED RANGE REDUCTION GEAR UNIT (02 00 89) 762
SPEED RANGE REDUCTION GEAR UNIT (02 00 90) 763
COMPLETION FOR 3 SPEED RANGE REDUCTION GEAR UNIT (02 00 95) 765
COMPLETION FOR 3 SPEED RANGE REDUCTION GEAR UNIT (02 00 96) 766
COMPLETION FOR 3 SPEED RANGE REDUCTION GEAR UNIT (02 00 97) 767
COMPLETION FOR 4 SPEED RANGE REDUCTION GEAR UNIT (02 00 98) 768
COMPLETION FOR 4 SPEED RANGE REDUCTION GEAR UNIT (02 00 99) 769
COMPLETION FOR 4 SPEED RANGE REDUCTION GEAR UNIT (02 00 100) 770
GEARSHIFT LEVER – FOR TYPES WITHOUT POWERSHUTTLE (02 00 101) 771
GEARSHIFT LEVER – FOR TYPES WITHOUT POWERSHUTTLE (02 00 102) 773
GEARSHIFT LEVER – FOR TYPES WITH POWERSHUTTLE (02 00 103) 775
GEARSHIFT LEVER – FOR TYPES WITH POWERSHUTTLE (02 00 104) 776
TRANSMISSION CONTROL LEVERS – FOR TYPES WITHOUT POWERSHUTTLE (02 00 105) 777
TRANSMISSION CONTROL LEVERS – FOR TYPES WITH POWERSHUTTLE (02 00 106) 779
DRIVE (02 00 107) 780
KNOB FOR 5-SPEED GEARBOX (02 00 108) 781
KNOB FOR 5-SPEED GEARBOX – FOR POWERSHIFT TYPES (02 00 109) 782
KNOB FOR 5-SPEED GEARBOX – FOR TYPES WITH POWERSHUTTLE (02 00 110) 783
KNOB FOR 5-SPEED GEARBOX – FOR TYPES WITH POWERSHIFT + POWERSHUTTLE (02 00 111) 784
KNOB FOR MECHANICAL SHUTTLE (02 00 112) 785
KNOB FOR MECHANICAL SHUTTLE – FOR SYNCHROSPLIT TYPES (02 00 113) 786
KNOB FOR 3-RANGE GEARBOX (02 00 114) 787
KNOB FOR 4-SPEED RANGE GEARBOX (02 00 115) 788
DIFFERENTIAL – FOR TYPES WITHOUT “ASM SYSTEM” (02 00 116) 789
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (02 00 117) 790
DIFFERENTIAL – FOR TYPES WITH “ASM SYSTEM” (02 00 119) 791
DIFFERENTIAL LOCK (02 00 120) 793
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (02 00 122) 794
DIFFERENTIAL BEVEL GEAR PAIR 30 Km/h – z=8 z=41 (02 00 124) 795
DIFFERENTIAL BEVEL GEAR PAIR 40 Km/h – z=10 z=39 (02 00 125) 796
Rear_axle 797
Index 797
Agroplus 95 798
REAR AXLE 798
GENERAL 798
REAR AXLE (03 00 1) 798
REAR AXLE (03 00 2) 799
REAR AXLE – MOUNTINGS (03 00 6) 800
HANDBRAKE BRACKET FOR TRAILER (03 00 8) 801
REAR REDUCTION GEARS AND AXLE SHAFTS (03 00 9) 802
REAR REDUCTION GEARS AND AXLE SHAFTS (03 00 10) 803
REAR BRAKES (03 00 13) 804
REAR BRAKES (03 00 14) 805
HAND BRAKE (03 00 17) 806
BRAKE CONTROLS (03 00 18) 807
PARTS SET REAR BRAKES (03 00 19) 808
BRAKE PIPES (03 00 20) 809
BLEEDING TUBE (03 00 22) 810
BLAKES BLOCK 2wd (03 00 24) 811
BRAKES CONTROL VALVE (03 00 25) 812
HAND BRAKE (03 00 26) 813
HAND BRAKE (03 00 27) 814
SAC 815
Index 815
Agroplus 95 816
S A C 816
GENERAL 816
POWER-LIFT CASE (0D 00 1) 816
POWER-LIFT CASE WITH ELECTRONIC CONTROL (0D 00 3) 817
POWER-LIFT CASE WITH ELECTRONIC CONTROL (0D 00 5) 818
FASTENINGS (0D 00 6) 819
LIFTING (0D 00 8) 820
LIFTING WITH ELECTRONIC CONTROL (0D 00 9) 821
LIFTING WITH ELECTRONIC CONTROL (0D 00 10) 823
HYDRAULIC CYLINDERS (0D 00 13) 824
HYDRAULIC CYLINDERS WITH ELECTRONIC CONTROL (0D 00 14) 825
INTERNAL AND EXTERNAL CONTROLS (0D 00 17) 826
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (0D 00 19) 827
LIFTING WITH ELECTRONIC CONTROL (0D 00 20) 828
INTERNAL AND EXTERNAL CONTROLS (0D 00 21) 829
ELECTRONIC LIFT LEVER PANEL WITH GUIDE SLOTS (0D 00 23) 830
CONTROL TIE RODS AND LEVERS – FOR TYPES WITH MECHANICAL LIFTER (0D 00 24) 831
CONTROL TIE RODS AND LEVERS – FOR TYPES WITH MECHANICAL LIFTER (0D 00 25) 832
CONTROL TIE RODS AND LEVERS – FOR TYPES WITH MECHANICAL LIFTER (0D 00 26) 833
CONTROL TIE RODS AND LEVERS – FOR TYPES WITH MECHANICAL LIFTER (0D 00 27) 834
CONTROL TIE RODS AND LEVERS (0D 00 28) 835
CONTROL TIE RODS AND LEVERS (0D 00 29) 836
S A C GROUND CONTROL (0D 00 32) 837
S A C GROUND CONTROL – FOR TYPES WITH MECHANICAL LIFTER (0D 00 33) 838
S A C GROUND CONTROL – FOR TYPES WITH MECHANICAL LIFTER (0D 00 34) 840
S A C GROUND CONTROL – FOR TYPES WITH MECHANICAL LIFTER (0D 00 35) 841
CONTROL CONSOLE FOR POWER-LIFT – FOR MODELS WITHOUT CAB (0D 00 36) 842
CONTROL CONSOLE FOR POWER-LIFT – FOR MODELS WITH CAB (0D 00 37) 843
CONTROL CONSOLE FOR POWER-LIFT – FOR TYPES WITH “HIGH VISIBILITY” (0D 00 38) 844
COVER (0D 00 39) 845
SENSITIVE ELEMENTS (0D 00 40) 846
SENSITIVE ELEMENTS (0D 00 41) 847
SENSING ELEMENTS WITH ELECTRONIC CONTROL (0D 00 43) 848
Steering_Hydraulics 849
Index 849
Agroplus 95 850
POWER STEERING – HYDRAULIC SYSTEM 850
GENERAL 850
STEERING WHEEL (06 00 1) 850
STEERING WHEEL CAP (06 00 2) 851
STEERING CONTROL (06 00 3) 852
STEERING CONTROL (06 00 4) 853
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06 00 5) 854
STEERING CONTROL WITH ADJUSTABLE STEERING WHEEL (06 00 6) 855
STEERING CONTROL (06 00 7) 856
2WD – POWER STEERING DANFOSS – 80 (06 00 8) 859
4WD – POWER STEERING DANFOSS – 125 (06 00 9) 860
PIPES FOR HYDROSTATIC STEERING (06 00 10) 861
2WD – POWER STEERING (06 00 11) 863
4WD – POWER STEERING (06 00 13) 864
4WD – POWER STEERING (06 00 14) 865
FUEL COOLER – GEAR OIL COOLER (06 00 17) 866
GEAR BOX OIL RADIATOR TUBES (06 00 18) 868
VALVE CASE AND HYDRAULIC SLAVE UNITS (06 00 20) 869
VALVE CASE AND HYDRAULIC SLAVE UNITS (06 00 21) 870
2WD – VALVE CASE AND HYDRAULIC SLAVE UNITS (06 00 22) 871
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (06 00 23) 872
4WD – FRONT DIFFERENTIAL LOCK – FOR TYPES WITH “ASM SYSTEM” (06 00 25) 873
PUMP FILTER SUCTION 17 CC (06 00 27) 874
PUMP FILTER SUCTION 16 CC (06 00 28) 875
PUMP FILTER SUCTION 22 5 CC (06 00 29) 876
OIL SUCTION (06 00 31) 878
AUXILIARY SERVICE CONTROL VALVE FEED BOSCH (06 00 33) 879
AUXILIARY SERVICE CONTROL VALVE FEED SALAMI (06 00 34) 880
GEAR SHIFT POWERSHIFT (06 00 35) 881
GEAR SHIFT – FOR TYPES WITH POWERSHIFT + POWERSHUTTLE (06 00 36) 882
EXHAUSTER POWER FOR ARTIC CONDITIONS (06 00 37) 883
Wheels 884
Index 884
Agroplus 95 885
WHEELS 885
GENERAL 885
2WD – FRONT WHEEL MOUNTING (09 00 1) 885
4WD – FRONT WHEEL MOUNTING (09 00 2) 886
REAR WHEEL BOLTS (09 00 3) 887
WHEELS 11 00×16″ pr 10 (09 00 4) 888
WHEELS 7 50 x 18” pr 10 (09 00 5) 889
WHEELS 12 4 R24″ A8 (09 00 6) 890
WHEELS 13 6R-24″ a8 (09 00 7) 891
WHEELS 14 9R-24″ a8 (09 00 8) 892
WHEELS 16 9R-34″ a8 (09 00 9) 893
WHEELS 16 9R-24″ a8 (09 00 10) 894
WHEELS 420/70 R24″ A8 (09 00 11) 895
WHEELS 460/70R-24″ a8 (09 00 12) 896
WHEELS 480/65R-24″ a8 (09 00 13) 897
WHEELS 12 4 R28″ A8 (09 00 14) 898
WHEELS 13 6R-28″ a8 (09 00 15) 899
WHEELS 440/65R-28″ a8 (09 00 17) 900
WHEELS 16 9R-30″ a8 (09 00 18) 901
WHEELS 18 4R-30″ a8 (09 00 19) 902
WHEELS 18 4R-34″ a8 (09 00 20) 903
WHEELS 480/70R34″ (09 00 21) 904
WHEELS 500/70 R34″ A8 (09 00 22) 905
WHEELS 520/70×34″ (09 00 23) 906
WHEELS 540/65R34″ (09 00 24) 907
WHEELS 540/70R-34″ a8 (09 00 25) 908
WHEELS 13 6R-38″ a8 (09 00 26) 909
WHEELS 14 9R-38″ (09 00 27) 910
WHEELS 16 9r38″ a8 (09 00 28) 911
WHEELS 540/65R-38″ (09 00 30) 912

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
