DEUTZ FAHR AGROPLUS F90 PARTS MANUAL 3001 – PDF
$33.95
DEUTZ FAHR AGROPLUS F90 PARTS MANUAL 3001 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
DEUTZ FAHR AGROPLUS F90 PARTS MANUAL 3001 – PDF DOWNLOAD
FILE DETAILS:
DEUTZ FAHR AGROPLUS F90 PARTS MANUAL 3001 – PDF DOWNLOAD
Language : English
Pages : 814
Downloadable : Yes
File Type : PDF

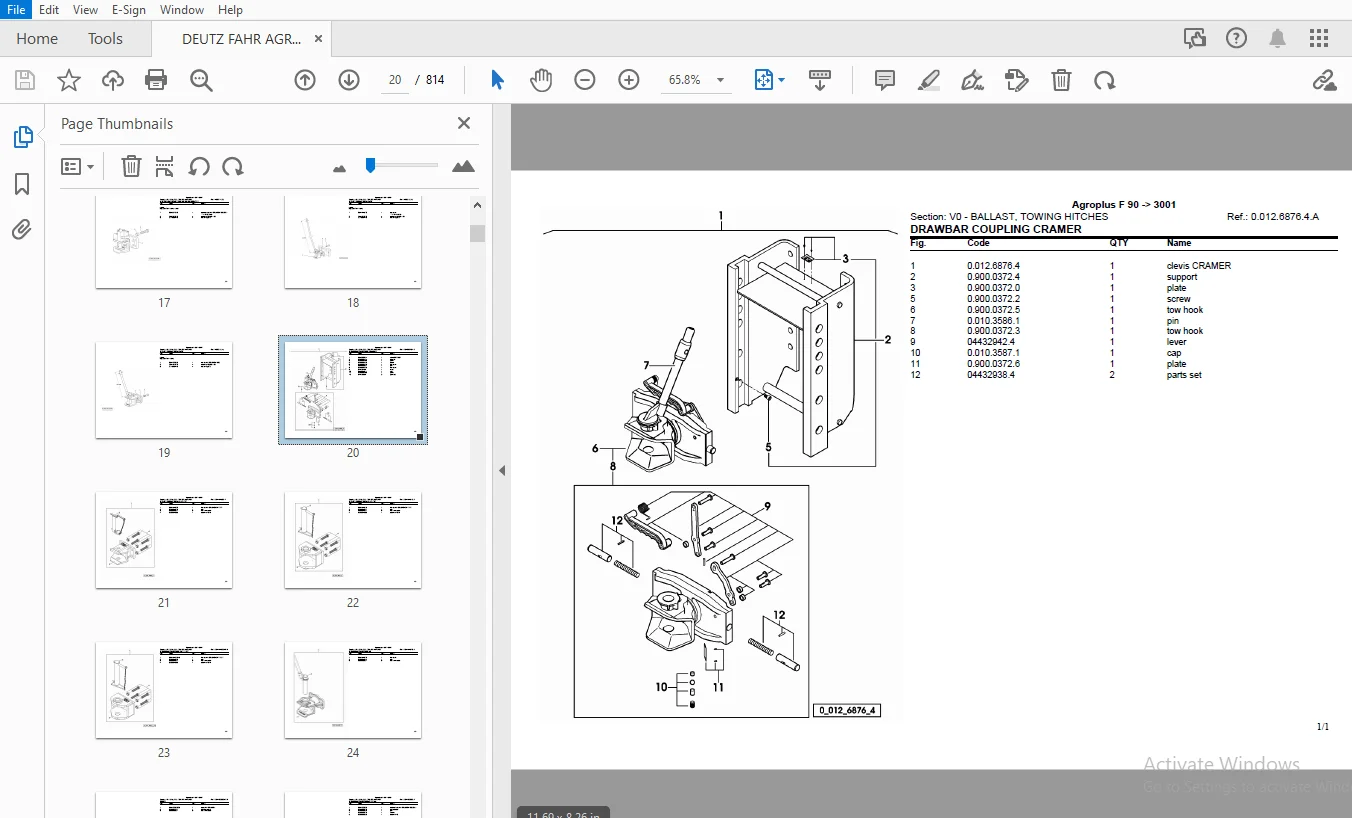

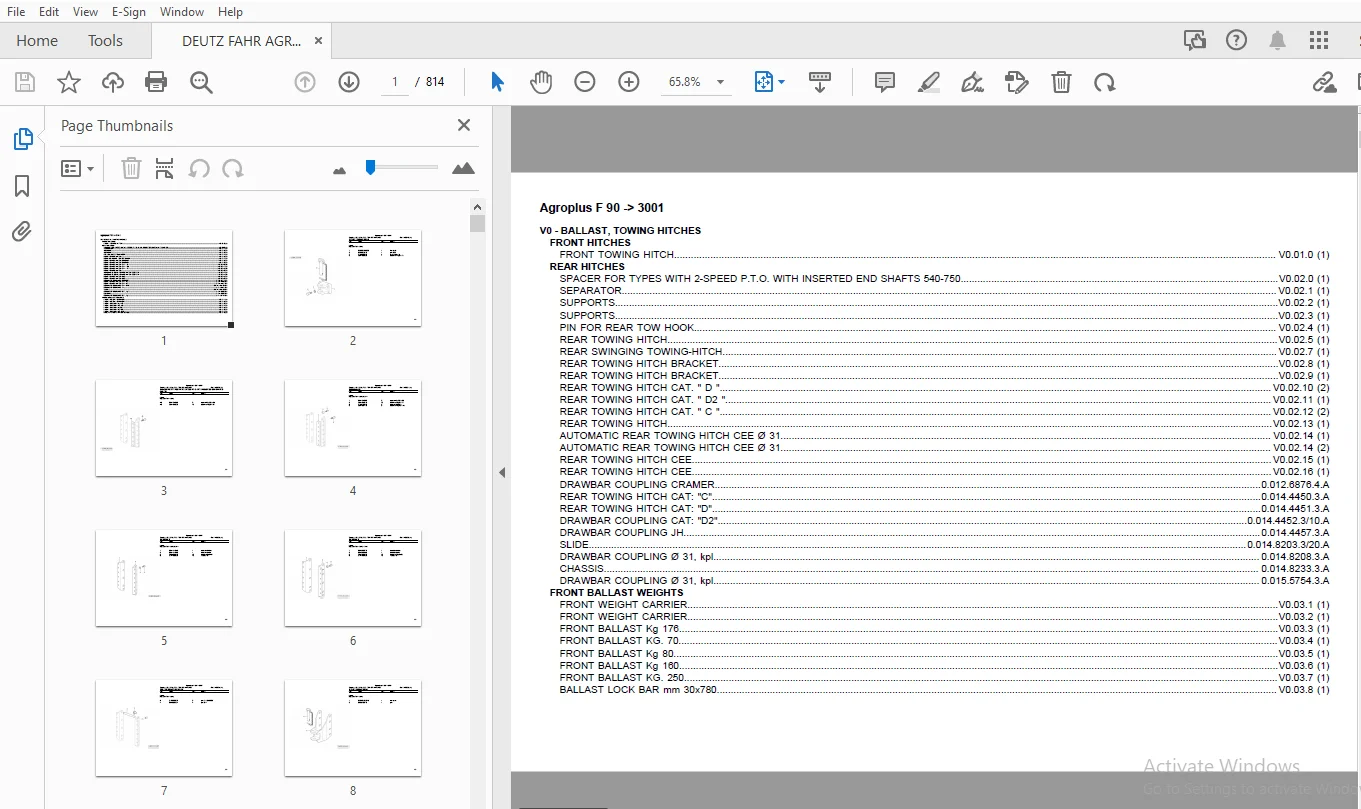

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
DEUTZ FAHR AGROPLUS F90 PARTS MANUAL 3001 – PDF DOWNLOAD
Index........................................................................................................... 1 Agroplus F 90 -> 3001........................................................................................... 2 V0 - BALLAST, TOWING HITCHES................................................................................ 2 FRONT HITCHES........................................................................................... 2 FRONT TOWING HITCH (V0.01.0 (1)).................................................................... 2 REAR HITCHES............................................................................................ 3 SPACER FOR TYPES WITH 2-SPEED P.T.O. WITH INSERTED END SHAFTS 540-750 (V0.02.0 (1))................. 3 SEPARATOR (V0.02.1 (1))............................................................................. 4 SUPPORTS (V0.02.2 (1)).............................................................................. 5 SUPPORTS (V0.02.3 (1)).............................................................................. 6 PIN FOR REAR TOW HOOK (V0.02.4 (1))................................................................. 7 REAR TOWING HITCH (V0.02.5 (1))..................................................................... 8 REAR SWINGING TOWING-HITCH (V0.02.7 (1))............................................................ 9 REAR TOWING HITCH BRACKET (V0.02.8 (1))............................................................. 10 REAR TOWING HITCH BRACKET (V0.02.9 (1))............................................................. 11 REAR TOWING HITCH CAT. " D " (V0.02.10 (2))......................................................... 12 REAR TOWING HITCH CAT. " D2 " (V0.02.11 (1))........................................................ 13 REAR TOWING HITCH CAT. " C " (V0.02.12 (2))......................................................... 14 REAR TOWING HITCH (V0.02.13 (1)).................................................................... 15 AUTOMATIC REAR TOWING HITCH CEE Ø 31 (V0.02.14 (1))................................................. 16 AUTOMATIC REAR TOWING HITCH CEE Ø 31 (V0.02.14 (2))................................................. 17 REAR TOWING HITCH CEE (V0.02.15 (1))................................................................ 18 REAR TOWING HITCH CEE (V0.02.16 (1))................................................................ 19 DRAWBAR COUPLING CRAMER (0.012.6876.4.A)............................................................ 20 REAR TOWING HITCH CAT: "C" (0.014.4450.3.A)......................................................... 21 REAR TOWING HITCH CAT: "D" (0.014.4451.3.A)......................................................... 22 DRAWBAR COUPLING CAT: "D2" (0.014.4452.3/10.A)...................................................... 23 DRAWBAR COUPLING JH (0.014.4457.3.A)................................................................ 24 SLIDE (0.014.8203.3/20.A)........................................................................... 25 DRAWBAR COUPLING Ø 31, kpl. (0.014.8208.3.A)........................................................ 26 CHASSIS (0.014.8233.3.A)............................................................................ 27 DRAWBAR COUPLING Ø 31, kpl. (0.015.5754.3.A)........................................................ 28 FRONT BALLAST WEIGHTS................................................................................... 29 FRONT WEIGHT CARRIER (V0.03.1 (1)).................................................................. 29 FRONT WEIGHT CARRIER (V0.03.2 (1)).................................................................. 30 FRONT BALLAST Kg 176 (V0.03.3 (1)).................................................................. 31 FRONT BALLAST KG. 70 (V0.03.4 (1)).................................................................. 32 FRONT BALLAST Kg 80 (V0.03.5 (1))................................................................... 33 FRONT BALLAST Kg 160 (V0.03.6 (1)).................................................................. 34 FRONT BALLAST KG. 250 (V0.03.7 (1))................................................................. 35 BALLAST LOCK BAR mm 30x780 (V0.03.8 (1))............................................................ 36 Index........................................................................................................... 37 Agroplus F 90 -> 3001........................................................................................... 43 G0 - BODYWORK - CAB......................................................................................... 43 HOOD - SIDE PANELS - SUPPORTS........................................................................... 43 HOOD FRONT PART (G0.01.12 (1))...................................................................... 43 HOOD UPPER PART (G0.01.24 (1))...................................................................... 44 HOOD - RIGHT SIDE PANEL (G0.01.37 (1)).............................................................. 45 HOOD - LEFT SIDE PANEL (G0.01.50 (1))............................................................... 46 HOOD SUPPORT (G0.01.51 (1))......................................................................... 47 HOOD SUPPORT (G0.01.52 (1))......................................................................... 48 FRONT HOOD FASTENERS (G0.01.53 (1))................................................................. 49 FRONT HOOD FASTENERS (G0.01.54 (1))................................................................. 50 HOOD SUPPORT (G0.01.55 (1))......................................................................... 51 HOOD SUPPORT (G0.01.56 (1))......................................................................... 52 HOOD PLUG (G0.01.57 (1))............................................................................ 53 HOOD - SUPPORTS DX/RH/RE (G0.01.58 (1))............................................................. 54 HOOD - SUPPORTS SX/LH/LI (G0.01.59 (1))............................................................. 55 PEDAL SUPPORT (G0.01.61 (1))........................................................................ 56 CONNECTION FRAME (G0.01.62 (1))..................................................................... 57 CONNECTION FRAME (G0.01.63 (1))..................................................................... 58 CONNECTION PLATE (G0.01.64 (1))..................................................................... 59 ENGINE HOOD GASKETS (G0.01.65 (1)).................................................................. 60 ENGINE HOOD GASKETS (G0.01.67 (1)).................................................................. 61 ENGINE HOOD GASKETS DX/RH/RE (G0.01.69 (1))......................................................... 62 ENGINE HOOD GASKETS SX/LH/LI (G0.01.71 (1))......................................................... 63 DEFLECTORS AND SUPPORTS (G0.01.73 (1)).............................................................. 64 WIRING SUPPORT BRACKETS (G0.01.75 (1)).............................................................. 65 BELT GUARDS (G0.01.76 (1)).......................................................................... 66 BELT GUARDS (G0.01.78 (1)).......................................................................... 67 BATTERY COVER (G0.01.80 (1))........................................................................ 68 BATTERY COVER (G0.01.81 (1))........................................................................ 69 BATTERY SUPPORT (G0.01.82 (1))...................................................................... 70 BATTERY SUPPORT (G0.01.82 (2))...................................................................... 71 SUPPORTS SX/LH/LI - DX/RH/RE (G0.01.84 (1))......................................................... 72 SUPPORTS SX/LH/LI - DX/RH/RE (G0.01.85 (1))......................................................... 73 SUPPORT sx/lh/li (G0.01.86 (1))..................................................................... 74 LETTERING............................................................................................... 75 MODEL PLATE (G0.02.14 (1)).......................................................................... 75 FRONT HOOD PRODUCT IDENTIFICATION PLATE (G0.02.26 (1)).............................................. 76 STEERING WHEEL PRODUCT IDENTIFICATION PLATE (G0.02.39 (1)).......................................... 77 BADGE FOR SPLASH GUARDS DEUTZ-FAHR (G0.02.41 (1))................................................... 78 PLATES (G0.02.44 (1))............................................................................... 79 PLATES (G0.02.45 (1))............................................................................... 80 PLATES (G0.02.45 (2))............................................................................... 81 PLATES (G0.02.46 (1))............................................................................... 82 PLATES (G0.02.47 (1))............................................................................... 83 WARNING PLATES (G0.02.48 (1))....................................................................... 84 WARNING PLATES (G0.02.49 (1))....................................................................... 85 P.T.O. WARNING PLATE FRONT (G0.02.50 (1))........................................................... 86 WARNING PLATE (G0.02.51 (1))........................................................................ 87 WARNING PLATES (G0.02.52 (1))....................................................................... 88 WATER COOLER IDENTIFICATION PLATE (G0.02.55 (1)).................................................... 89 INFORMATION PLATE (G0.02.56 (1)).................................................................... 90 REAR LIFT MOVEMENT WARNING LABEL DX/RH/RE (G0.02.57 (1))............................................ 91 REAR LIFT MOVEMENT WARNING LABEL DX/RH/RE (G0.02.58 (1))............................................ 92 REAR LIFT MOVEMENT WARNING LABEL DX/RH/RE (G0.02.59 (1))............................................ 93 REAR LIFT MOVEMENT WARNING LABEL DX/RH/RE (G0.02.60 (1))............................................ 94 REAR LIFT MOVEMENT WARNING LABEL - SX/LH/LI (G0.02.61 (1)).......................................... 95 REAR LIFT MOVEMENT WARNING LABEL - SX/LH/LI (G0.02.62 (1)).......................................... 96 IDENTIFICATION PLATE OCDE (G0.02.72 (1))............................................................ 97 IDENTIFICATION PLATE OCDE (G0.02.73 (1))............................................................ 98 RH CONSOLE IDENTIFICATION PLATES (G0.02.75 (1))..................................................... 99 RH CONSOLE IDENTIFICATION PLATES (G0.02.76 (1)).....................................................100 RH CONSOLE IDENTIFICATION PLATES (G0.02.77 (1)).....................................................101 RH CONSOLE IDENTIFICATION PLATES (G0.02.79 (1)).....................................................102 START ENABLE PLATE (G0.02.80 (1))...................................................................103 START ENABLE PLATE (G0.02.81 (1))...................................................................104 INFORMATION PLATE (G0.02.83 (1))....................................................................105 ELECTRONIC ACCELERATOR CONTROL IDENTIFICATION PLATE (G0.02.85 (1))..................................106 COVER FOR UNDERDRIVE (G0.02.89 (1)).................................................................107 3-RANGE REDUCTION UNIT COVER (G0.02.91 (1)).........................................................108 GROUNDSPEED P.T.O. COVER (G0.02.93 (1)).............................................................109 SPEED DATA PLATES - 30/40 Km/h (G0.02.94 (1)).......................................................110 SPEEDS PLATE MPH (G0.02.95 (1)).....................................................................111 PTO DATA PLATE 540/N (G0.02.96 (1)).................................................................112 PTO DATA PLATE 540-750 (G0.02.97 (1))...............................................................113 PTO DATA PLATE 540 - 750 + SYNCRO (G0.02.98 (1))....................................................114 PTO DATA PLATE 540-750-1000 (G0.02.99 (1))..........................................................115 SOLENOID VALVE IDENTIFICATION PLATES (G0.02.100 (1))................................................116 IDENTIFICATION PLATES FOR REAR CONNECTORS (G0.02.101 (1))...........................................117 IDENTIFICATION PLATES FOR REAR CONNECTORS (G0.02.102 (1))...........................................118 IDENTIFICATION PLATES FOR CENTRAL SOCKETS 2+1 (G0.02.103 (1)).......................................119 IDENTIFICATION PLATES FOR CENTRAL SOCKETS 2+1 (G0.02.104 (1)).......................................120 IDENTIFICATION PLATES FOR CENTRAL SOCKETS 4+1 (G0.02.105 (1)).......................................121 IDENTIFICATION PLATES FOR CENTRAL SOCKETS 4+1 (G0.02.106 (1)).......................................122 IDENTIFICATION PLATES FOR CENTRAL SOCKETS 9+1 (G0.02.107 (1)).......................................123 SPEED LABEL - 40 KM/H (G0.02.108 (1))...............................................................124 SPEED LABEL - 40 KM/H - REFLEX (G0.02.109 (1))......................................................125 CAB STRUCTURE - PLATFORM -SUSPENSION....................................................................126 PLATFORM (G0.03.6 (1))..............................................................................126 PLATFORM (G0.03.7 (1))..............................................................................127 CAB (G0.03.8 (1))...................................................................................128 FLOOR PLUG (G0.03.9 (1))............................................................................129 PLATTFORM: SUPPORTS SX/LH/LI - DX/RH/RE (G0.03.10 (1))..............................................130 DEFLECTOR SX/LH/LI - DX/RH/RE (G0.03.11 (1))........................................................131 FENDERS - FOOTSTEPS - EXTENSIONS........................................................................132 FRONT MUDGUARDS mm 265 (G0.04.2 (1))................................................................132 FRONT MUDGUARDS mm 310 (G0.04.3 (1))................................................................133 FRONT MUDGUARDS mm 265 (G0.04.4 (1))................................................................134 FRONT MUDGUARDS mm 265 (G0.04.5 (1))................................................................135 FRONT MUDGUARDS mm 310 (G0.04.6 (1))................................................................136 FRONT MUDGUARDS mm 310 (G0.04.7 (1))................................................................137 MUDGUARDS EXTENSIONS mm 80 (G0.04.8 (1))............................................................138 MUDGUARDS EXTENSIONS mm 120 (G0.04.9 (1))...........................................................139 MUDGUARDS EXTENSIONS mm 170 (G0.04.10 (1))..........................................................140 REAR FENDERS EXTENSION FIXINGS (G0.04.11 (1)).......................................................141 SPRAY GUARD DX/RH/RE (G0.04.13 (1)).................................................................142 SPRAY GUARD DX/RH/RE (G0.04.14 (1)).................................................................143 SPRAY GUARD DX/RH/RE (G0.04.15 (1)).................................................................144 SPRAY GUARD DX/RH/RE (G0.04.17 (1)).................................................................145 LH SPRAY GUARD AND SUPPORTS FOR LH-RH SPRAY GUARDS (G0.04.18 (1))...................................146 LH SPRAY GUARD AND SUPPORTS FOR LH-RH SPRAY GUARDS (G0.04.19 (1))...................................147 BRACKET - SPEED LABEL (G0.04.20 (1))................................................................148 DOORS - WINDOWS - WIPERS................................................................................149 GLASSES AND SEALS (G0.05.0 (1)).....................................................................149 GLASSES AND SEALS SX/LH/LI - DX/RH/RE (G0.05.1 (1)).................................................150 DOOR HANDLE - CAB DOOR RIGHT/LEFT (G0.05.2 (1)).....................................................152 REAR WINDOW (G0.05.3 (1))...........................................................................153 GASKETS (G0.05.4 (1))...............................................................................154 FRONT AND REAR WINDSCREEN WIPER SYSTEM (G0.05.5 (1))................................................155 FRONT AND REAR WINDSCREEN WIPER SYSTEM (G0.05.6 (1))................................................156 SCREEN WIPER FRONT (G0.05.7 (1))....................................................................157 SCREEN WIPER FRONT (G0.05.8 (1))....................................................................158 REAR WIPER WIRING SYSTEM (G0.05.9 (1))..............................................................159 SCREEN WASH SYSTEM (G0.05.10 (1))...................................................................160 SCREEN WASH SYSTEM (G0.05.11 (1))...................................................................161 INTERIOR TRIM...........................................................................................162 DASHBOARD (G0.06.0 (1)).............................................................................162 PLUG FOR VERSION WITHOUT CIGAR LIGHTER (G0.06.3 (1))................................................163 STEERING COLUMN SHROUD (G0.06.4 (1))................................................................164 FENDER COATINGS SX/LH/LI - DX/RH/RE (G0.06.6 (1))...................................................165 CONTROL CONSOLE DX/RH/RE (G0.06.8 (1))..............................................................166 CONTROL CONSOLE DX/RH/RE (G0.06.9 (1))..............................................................167 CONTROL CONSOLE DX/RH/RE (G0.06.10 (1)).............................................................168 CONTROL CONSOLE DX/RH/RE (G0.06.12 (1)).............................................................169 POWER LIFT CONTROL CONSOLE FIXING (G0.06.13 (1))....................................................170 CONSOLE HANDLE DX/RH/RE (G0.06.14 (1))..............................................................171 CONTROL CONSOLE - LOWER PART (G0.06.15 (1)).........................................................172 CONTROL CONSOLE - LOWER PART (G0.06.16 (1)).........................................................173 COVER (G0.06.17 (1))................................................................................174 PLUGS FOR PLATFORM (G0.06.19 (1))...................................................................175 MAT FOR PLATOFRM SX/LH/LI - DX/RH/RE (G0.06.20 (1)).................................................176 MAT FOR PLATOFRM SX/LH/LI - DX/RH/RE (G0.06.20 (2)).................................................177 CAB INTERIOR TRIM (G0.06.21 (1))....................................................................178 CAB INTERIOR TRIM (G0.06.21 (2))....................................................................179 CAB INTERIOR TRIM (G0.06.22 (1))....................................................................180 CAB INTERIOR TRIM (G0.06.23 (1))....................................................................181 CAB INTERIOR TRIM (G0.06.24 (1))....................................................................182 INTERNAL CAB LININGS (G0.06.25 (1)).................................................................183 INTERNAL CAB LININGS (G0.06.26 (1)).................................................................184 EXTERIOR TRIM - ROOF....................................................................................185 ROOF (G0.07.0 (1))..................................................................................185 ROOF (G0.07.1 (1))..................................................................................186 REAR ROOF PANEL (G0.07.2 (1)).......................................................................187 CARBON FILTER (G0.07.3 (1)).........................................................................188 PREARRANGEMENT FOR WARNING BEACON (G0.07.4 (1)).....................................................189 REARVIEW MIRROR SX/LH/LI - DX/RH/RE (G0.07.5 (1))...................................................190 REARVIEW MIRROR DX/RH/RE (G0.07.6 (1))..............................................................191 REARVIEW MIRROR sx/lh/li (0.009.8581.4.A)...........................................................192 REARVIEW MIRROR dx/rh/re (0.009.8582.4.A)...........................................................193 REARVIEW MIRROR (0.9234.147.4/10.A).................................................................194 SEATS...................................................................................................195 DRIVER'S SEAT - WITH MECHANICAL SUSPENSION (G0.08.0 (1))............................................195 DRIVER'S SEAT - WITH MECHANICAL SUSPENSION COBO-MT SC74/M200 PVC (G0.08.2 (1))......................196 DRIVER'S SEAT - PNEUMATIC SPRINGING (G0.08.4 (1))...................................................197 SEAT SUPPORT PLATE (G0.08.7 (1))....................................................................198 SAFETY BELT (G0.08.10 (1))..........................................................................199 SEAT-COMPONENTS (0.014.7066.4.A)....................................................................200 SEAT-COMPONENTS (0.014.7067.4.A)....................................................................201 SEAT-COMPONENTS (0.014.7068.4.A)....................................................................202 HEATING AND AIR CONDITIONING............................................................................203 VENTILATION - HEATING (G0.09.1 (1)).................................................................203 VENTILATION-AIR CONDITIONING-HEATING (G0.09.3 (1))..................................................204 HEATING AND AIR CONDITIONING SYSTEM (G0.09.4 (1))...................................................205 CONDENSER (G0.09.5 (1)).............................................................................206 CONDENSER (G0.09.5 (2)).............................................................................207 CONNECTING PIPING (G0.09.6 (1)).....................................................................208 HEATING SYSTEM (G0.09.9 (1))........................................................................209 COMPRESSOR (G0.09.11 (1))...........................................................................210 COMPRESSOR SUPPORTS (G0.09.12 (1))..................................................................211 COMPRESSOR PIPES (G0.09.14 (1)).....................................................................212 SPIN-ON FILTER (0.007.6265.4/20.A)..................................................................213 COMPRESSOR-PARTS (0.007.7197.4.A)...................................................................214 ENGAGEMENT (0.009.7202.4/20.A)......................................................................215 ENGAGEMENT (0.009.7203.4/20.A)......................................................................216 VENTILATION - HEATING (0.009.8274.4/10.A)...........................................................217 AIR-CONDITIONING HEATING (0.010.0001.4/10.A)........................................................218 MECHANICAL CLUTCH CONTROLS..............................................................................219 CLUTCH CONTROL (G0.10.0 (1))........................................................................219 MECHANICAL BRAKE CONTROLS...............................................................................220 BRAKE CONTROLS (G0.11.0 (1))........................................................................220 HAND BRAKE (G0.11.2 (1))............................................................................221 HAND BRAKE (G0.11.3 (1))............................................................................222 TRAILER HANDBRAKE CONTROL CABLE ITALY (G0.11.4 (1)).................................................223 HANDBRAKE BRACKET FOR TRAILER (G0.11.5 (1)).........................................................224 MECHANICAL - ELECTRONIC THROTTLE CONTROLS...............................................................225 THROTTLE (G0.12.0 (1))..............................................................................225 HAND CONTROL FOR ELECTRONIC THROTTLE (G0.12.1 (1))..................................................226 ELECTRONIC ACCELERATOR CONTROL (G0.12.2 (1))........................................................227 STEERING CONTROLS.......................................................................................228 STEERING WHEEL CAP (G0.13.3 (1))....................................................................228 STEERING COLUMN (G0.13.4 (1)).......................................................................229 STEERING COLUMN (G0.13.5 (1)).......................................................................230 MECHANICAL GEARSHIFT CONTROLS...........................................................................231 GEAR SHIFTING (G0.14.0 (1)).........................................................................231 GEAR SHIFTING (G0.14.1 (1)).........................................................................232 DRIVE INTERMEDIATE GEARS (G0.14.7 (1))..............................................................233 REDUCTION GEAR CONTROL (G0.14.8 (1))................................................................234 REDUCTION GEAR CONTROL (G0.14.10 (1))...............................................................235 PTO CONTROLS............................................................................................236 P.T.O. - EXTERNAL CONTROLS 540 - 750 + SYNCRO (G0.16.0 (1)).........................................236 P.T.O. - EXTERNAL CONTROLS 540-750 (G0.16.1 (1))....................................................237 P.T.O. - EXTERNAL CONTROLS 540-750-1000 (G0.16.2 (1))...............................................238 P.T.O. - EXTERNAL CONTROLS 540/N (G0.16.3 (1))......................................................239 P.T.O. SHAFT DRIVE (G0.16.4 (1))....................................................................240 P.T.O. SHAFT DRIVE (G0.16.5 (1))....................................................................241 P.T.O.-SYNCHRONIZED CONTROL (G0.16.6 (1))...........................................................242 LIFT CONTROLS...........................................................................................243 LIFT CONTROL LEVERS (G0.17.0 (1))...................................................................243 LIFT CONTROL LEVERS (G0.17.1 (1))...................................................................244 TIE RODS FOR LIFT CONTROL LEVERS (G0.17.2 (1))......................................................245 TIE RODS FOR LIFT CONTROL LEVERS (G0.17.3 (1))......................................................246 TIE RODS FOR LIFT CONTROL LEVERS (G0.17.4 (1))......................................................247 TIE RODS FOR LIFT CONTROL LEVERS (G0.17.5 (1))......................................................248 REMOTE VALVE CONTROLS...................................................................................249 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.5 (1))...................................249 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.6 (1))...................................250 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.7 (1))...................................251 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.8 (1))...................................252 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.9 (1))...................................253 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.10 (1))..................................254 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.11 (1))..................................255 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.12 (1))..................................256 CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.13 (1))..................................257 OIL REGULATOR CONTROL (G0.18.14 (1))................................................................258 ACCESSORIES.............................................................................................259 SUN BLIND (G0.19.0 (1)).............................................................................259 LICENCE PLATE HOLDER (G0.19.1 (1))..................................................................260 METAL TOOLBOX (G0.19.2 (1)).........................................................................261 METAL TOOLBOX (G0.19.3 (1)).........................................................................262 METAL TOOLBOX (G0.19.4 (1)).........................................................................263 LUBRICATOR (G0.19.5 (1))............................................................................264 SAFETY ROLL BAR.........................................................................................265 SAFETY ARCH (G0.20.0 (1))...........................................................................265 Index...........................................................................................................266 Agroplus F 90 -> 3001...........................................................................................270 L0 - ELECTRIC AL SYSTEM.....................................................................................270 BATTERY - ALTERNATOR....................................................................................270 BATTERY 12V 100Ah 650A (L0.01.0 (1))................................................................270 ALTERNATOR 14V - 65A - ISKRA (L0.01.1 (1))..........................................................271 ALTERNATOR 85A (L0.01.2 (1))........................................................................272 ALTERNATOR AND PULLEY SUPPORTS (L0.01.3 (1))........................................................273 ALTERNATOR AND PULLEY SUPPORTS (L0.01.4 (1))........................................................274 ALTERNATOR PARTS (2.9439.420.0/10.A)................................................................275 ALTERNATOR PARTS (2.9439.460.0/10.A)................................................................276 WIRING LOOMS............................................................................................277 ELECTRICAL EQUIPMENT FRONT (L0.02.4 (1))............................................................277 ELECTRICAL EQUIPMENT FRONT (L0.02.5 (1))............................................................278 CENTRAL WIRING LOOM (L0.02.13 (1))..................................................................279 CENTRAL WIRING LOOM (L0.02.14 (1))..................................................................280 ELECTRICAL EQUIPMENT REAR (L0.02.16 (1))............................................................281 ELECTRICAL EQUIPMENT REAR (L0.02.17 (1))............................................................282 CAB ELECTRICAL SYSTEM (L0.02.19 (1))................................................................283 CAB ELECTRICAL SYSTEM (L0.02.20 (1))................................................................284 HEADLIGHT, SIDELIGHT AND DIRECTION INDICATOR WIRING FOR CAB (L0.02.21 (1))..........................285 HEADLIGHT, SIDELIGHT AND DIRECTION INDICATOR WIRING FOR CAB (L0.02.22 (1))..........................286 CABLES FOR ROTATING BEACONS ON ROPS (L0.02.23 (1))..................................................287 CABLES FOR ROTATING BEACONS ON ROPS (L0.02.24 (1))..................................................288 3-POINT LINKAGE SYSTEM WITH ELECTROHYDRAULIC CONTROL (L0.02.25 (1)).................................289 ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0.02.26 (1))...........................................290 ELECTRICAL SYSTEM FOR 6-WAY FRONT CONTROL VALVE (L0.02.27 (1))......................................291 SHUTTLE LEVER ELECTRICAL CABLE (L0.02.28 (1)).......................................................292 SINGLE POLE SOCKET - LIGHTS FLASHER RELAY (L0.02.29 (1))...........................................293 SINGLE POLE SOCKET - LIGHTS FLASHER RELAY (L0.02.30 (1))...........................................294 TRAILER SOCKET-OUTLET (L0.02.31 (1))................................................................295 TRAILER SOCKET BRACKET (L0.02.32 (1))...............................................................296 BATTERY LEADS (L0.02.33 (1))........................................................................297 PLATFORM GROUND CABLE (L0.02.34 (1))................................................................298 CAB GROUND CABLE (L0.02.35 (1)).....................................................................299 POWER SUPPLY ELECTRICAL SYSTEM (L0.02.37 (1)).......................................................300 POWER SUPPLY ELECTRICAL SYSTEM (L0.02.39 (1)).......................................................301 FRONT P.T.O. SOLENOID VALVE ELECTRICAL CABLE (L0.02.40 (1))........................................302 ELECTRICAL CABLE FOR OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L0.02.41 (1))......................303 BRAKE SENSOR CABLES (L0.02.42 (1))..................................................................304 BRAKE SENSOR CABLES (L0.02.43 (1))..................................................................305 PRESSURE SWITCH WIRING FOR HYDRAULIC BRAKING SYSTEM ITALY (L0.02.44 (1))............................306 PREARRANGEMENT FOR WARNING BEACON (L0.02.45 (1))....................................................307 PREARRANGEMENT FOR WARNING BEACON (L0.02.46 (1))....................................................308 ELECTRICAL EQUIPMENT ROTARY WARN. LAMP (L0.02.48 (1))...............................................309 BATTERY LEADS (0.010.6708.3/20.A)...................................................................310 ELECTRICAL SYSTEM (0.011.2025.4/40.A)...............................................................311 FLASHING LIGHT SUPPORT (0.011.7840.4.A).............................................................312 ELECTRICAL SYSTEM (0.012.0101.4.A)..................................................................313 ELECTRICAL SYSTEM (0.013.6326.4.A)..................................................................314 ELECTRICAL SYSTEM (0.013.8399.4/10.A)...............................................................315 ELECTRICAL SYSTEM (0.013.8401.4.A)..................................................................316 ELECTRICAL SYSTEM (0.015.1729.4/10.A)...............................................................317 ELECTRICAL SYSTEM (0.015.1729.4/20.A)...............................................................318 ELECTRICAL WIRING (0.015.1730.4.A)..................................................................319 BRAKE SENSOR CABLES (0.015.2080.4.A)................................................................320 PARTS FOR ELECTRICAL SYSTEM (0.015.3149.4/20.A).....................................................321 ELECTRICAL WIRING (0.015.3154.4.A)..................................................................322 PARTS FOR ELECTRICAL SYSTEM (0.015.3159.4.A)........................................................323 ECUs....................................................................................................324 HYDRAULIC SHUTTLE CONTROL UNIT (L0.03.0 (1))........................................................324 ELECTRONICS BOX (L0.03.2 (1)).......................................................................325 ELECTRONICS BOX (L0.03.3 (1)).......................................................................326 ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0.03.4 (1))............................................327 CONTROL UNIT FOR SHUTTLE SPEED SENSOR ADAPTATION (L0.03.5 (1))......................................328 CONTROL UNIT - P.T.O. SHAFT (L0.03.11 (1))..........................................................329 SENSORS - POTENTIOMETERS - ENABLING SWITCHES............................................................330 COOLING SYSTEM MANIFOLD SENSORS (L0.04.3 (1)).......................................................330 COOLING SYSTEM MANIFOLD SENSORS (L0.04.4 (1)).......................................................331 AIR CLEANER AND ENGINE OIL FILTER CLOGGING PRESSURE SWITCH (L0.04.5 (1))............................332 ENGINE OIL PRESSURE SWITCH (L0.04.8 (1))............................................................333 HYDRAULIC SHUTTLE SENSOR (L0.04.9 (1))..............................................................334 HYDRAULIC SHUTTLE SENSOR (L0.04.9 (2))..............................................................335 SHUTTLE CONTROL ASSEMBLY PRESSURE SWITCH / OIL TEMPERATURE SENSOR AND LUBRICATION (L0.04.10 (1))....336 GEARBOX INPUT SHAFT SENSOR (L0.04.11 (1))...........................................................337 OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L0.04.12 (1))...........................................338 OIL FILTER CLOGGING SENSOR (L0.04.13 (1))...........................................................339 SPEED SENSOR (L0.04.15 (1)).........................................................................340 SPEED SENSOR (L0.04.16 (1)).........................................................................341 PICK-UP (L0.04.17 (1))..............................................................................342 START ENABLE SWITCH (L0.04.18 (1))..................................................................343 START ENABLE SWITCH PROTECTION (L0.04.20 (1)).......................................................344 UNDERDRIVE SWITCH (L0.04.21 (1))....................................................................345 PTO SPEED SENSOR 540/N WITH INTERCHANGEABLE OUTPUT SHAFTS (L0.04.22 (1))............................346 P.T.O. SWITCH (L0.04.23 (1))........................................................................347 SWITCHES FOR 2-SPEED PTO WITH FIXED OUTPUT SHAFT 540-750 (L0.04.24 (1))............................348 SWITCH FOR 2-SPEED P.T.O. WITH INSERTED END SHAFTS 540-750 (L0.04.25 (1))...........................349 SWITCHES FOR 2-SPEED WITH FIXED OUTPUT SHAFT + SYNCRO AND 3 SPEEDS (L0.04.26 (1))...................350 SWITCH FOR P.T.O. WITH INSERTED END SHAFTS - 2 -SPEED + GROUNDSP. AND 3- SPEED (L0.04.27 (1)).......351 SWITCHES AND SENSOR FOR 3-SPEED P.T.O. WITH INSERTED OUTPUT SHAFTS 540-750-1000 (L0.04.28 (1))......352 ELECTRONIC ACCELERATOR CONTROL SENSOR (L0.04.29 (1))................................................353 ELECTRONIC ACCELERATOR CONTROL SENSOR (L0.04.31 (1))................................................354 ELECTRONIC ACCELERATOR CONTROL SENSOR (L0.04.32 (1))................................................355 CLUTCH SENSOR AND SWITCH (L0.04.34 (1)).............................................................356 BRAKE CONTROL SWITCH (L0.04.36 (1)).................................................................357 GROUNDSPEED P.T.O. SWITCH (L0.04.37 (1))............................................................358 HAND BRAKE SWITCHES (L0.04.39 (1))..................................................................359 BRAKE SENSORS (L0.04.40 (1))........................................................................360 BRAKE SENSORS (L0.04.41 (1))........................................................................361 PRESSURE SWITCH FOR HYDRAULIC TRAILER BRAKING SYSTEM ITALY (L0.04.42 (1))...........................362 REAR LIFT POSITION SENSOR (L0.04.44 (1))............................................................363 INSTRUMENT PANEL........................................................................................364 DIGITAL INSTRUMENT PANEL (L0.05.0 (1))..............................................................364 ELECTRICAL CONTROLS - PUSHBUTTONS......................................................................365 GEAR SHIFTING (L0.07.1 (1)).........................................................................365 GEAR SHIFTING (L0.07.2 (1)).........................................................................366 KEYSWITCH BLOCK AND PUSHBUTTONS (L0.07.3 (1)).......................................................367 KEYSWITCH BLOCK AND PUSHBUTTONS (L0.07.3 (2)).......................................................368 KEYSWITCH BLOCK AND PUSHBUTTONS (L0.07.3 (3)).......................................................369 KEYSWITCH BLOCK AND PUSHBUTTONS (L0.07.4 (1)).......................................................370 KEYSWITCH BLOCK AND PUSHBUTTONS (L0.07.4 (2)).......................................................371 STEERING COLUMN SWITCH UNIT - REVERSING GEAR UNIT CONTROL (L0.07.6 (1)).............................372 ELECTRONIC ACCELERATOR MEMORY PUSHBUTTON (L0.07.8 (1))..............................................373 ELECTRONIC ACCELERATOR MEMORY PUSHBUTTON (L0.07.9 (1))..............................................374 STOP & GO AND PREHEATING BUTTON (L0.07.11 (1))......................................................375 STOP & GO AND PREHEATING BUTTON (L0.07.12 (1))......................................................376 OPERATION - FRONTP.T.O. SHAFT (L0.07.21 (1))........................................................377 DIFFERENTIAL LOCK CONTROL - ELECTROHYDRAUDLIC (L0.07.22 (1))........................................378 4WD - ELECTROHYDRAULIC ENGAGEMENT CONTROL (L0.07.23 (1))............................................379 SWITCH FOR ROTATING BEACON (L0.07.24 (1))...........................................................380 CONTROLS FOR 6-WAY FRONT CONTROL VALVE (L0.07.27 (1))...............................................381 ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0.07.28 (1))..........................................382 3-POINT LINKAGE CONTROLS WITH ELECTROHYDRAULIC CONTROL (L0.07.29 (1))...............................383 CAB TOP SWITCHES (L0.07.30 (1)).....................................................................384 CAB TOP SWITCHES (L0.07.31 (1)).....................................................................385 LIGHTING AND SIGNALLING.................................................................................386 FRONT LIGHTS - FOR RIGHT-HAND DRIVE (L0.08.0 (1))...................................................386 FRONT LIGHTS - FOR LEFT-HAND DRIVE (L0.08.1 (1))....................................................387 REAR LIGHTS (L0.08.4 (1))...........................................................................388 REAR LIGHTS (L0.08.5 (1))...........................................................................389 FRONT WORKLIGHTS ON CAB (L0.08.6 (1))...............................................................390 FRONT WORKLIGHTS ON CAB (L0.08.7 (1))...............................................................391 WORKING SPOTLIGHT REAR (L0.08.8 (1))................................................................392 REAR WORKLIGHT (L0.08.9 (1))........................................................................393 ROTATING BEACONS ON ROPS (L0.08.10 (1)).............................................................394 ROTATING BEACONS ON ROPS (L0.08.11 (1)).............................................................395 FRONT LIGHTS FOR CAB (L0.08.12 (1)).................................................................396 FRONT LIGHTS FOR CAB (L0.08.13 (1)).................................................................397 RETROREFLECTOR (L0.08.14 (1)).......................................................................398 RETROREFLECTOR (L0.08.15 (1)).......................................................................399 WARNING BEACON (L0.08.16 (1)).......................................................................400 LICENCE PLATE LIGHT (L0.08.17 (1))..................................................................401 HORN (L0.08.18 (1)).................................................................................402 COURTESY LIGHT (L0.08.19 (1)).......................................................................403 COURTESY LIGHT (L0.08.20 (1)).......................................................................404 HEADLAMP COMPONENTS (2.8019.960.0.A)................................................................405 HEADLAMP COMPONENTS (2.8019.970.0.A)................................................................406 HEADLAMP COMPONENTS (2.8029.240.0/10.A).............................................................407 HEADLAMP COMPONENTS (2.8029.300.0.A)................................................................408 HEADLAMP COMPONENTS (2.8029.730.0.A)................................................................409 ELECTRIC LIGHTING SYSTEM (2.8029.820.0/20.A)........................................................410 ELECTRIC LIGHTING SYSTEM (2.8029.830.0/20.A)........................................................411 HEADLAMP FOR RIGHT-HAND DRIVE dx/rh/re (2.8059.001.0.A).............................................412 HEADLAMP FOR LEFT-HAND DRIVE sx/lh/li (2.8059.002.0.A)..............................................413 HEADLAMP COMPONENTS (2.8059.440.0/10.A).............................................................414 HEADLAMP COMPONENTS (2.8059.450.0.A)................................................................415 HEADLAMP COMPONENTS (2.8059.460.0.A)................................................................416 HEADLAMP COMPONENTS (2.8059.490.0.A)................................................................417 HEADLAMP COMPONENTS (2.8059.523.0.A)................................................................418 HEADLAMP COMPONENTS (2.8059.524.0.A)................................................................419 INTERIOR LIGHT (2.8339.032.0.A).....................................................................420 ACCESSORIES.............................................................................................421 CIGAR LIGHTER (L0.09.0 (1)).........................................................................421 Index...........................................................................................................422 Agroplus F 90 -> 3001...........................................................................................424 B0 - ENGINE.................................................................................................424 CYLINDER BLOCK..........................................................................................424 CRANKCASE (B0.01.2 (1)).............................................................................424 CRANKCASE (B0.01.3 (1)).............................................................................425 MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (B0.01.4 (1)).............................................426 ENGINE OIL AND TURBO PRESSURE SWITCH UNION (B0.01.7 (1))............................................427 PLUG (B0.01.8 (1))..................................................................................428 CRANKSHAFT..............................................................................................429 CRANKSHAFT PULLEY (B0.02.0 (1)).....................................................................429 COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0.02.2 (1)).................................................430 COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0.02.5 (1)).................................................431 CRANKSHAFT (B0.02.8 (1))............................................................................432 ENGINE FLYWHEEL (B0.02.12 (1))......................................................................433 COUNTERWEIGHTS (B0.02.14 (1)).......................................................................434 CYLINDERS - PISTONS - CONNECTING RODS.................................................................435 CYLINDER - PISTON - CONNECTING ROD (B0.03.2 (1))....................................................435 TIMING..................................................................................................436 GUARD PLATE (B0.04.0 (1))...........................................................................436 TIMING CASE (B0.04.3 (1))...........................................................................437 TIMING CASE (B0.04.4 (1))...........................................................................438 CASING COVER (B0.04.6 (1))..........................................................................439 CAMSHAFT (B0.04.9 (1))..............................................................................440 CYLINDER HEAD...........................................................................................441 CYLINDER HEAD (B0.05.2 (1)).........................................................................441 LUBRICATION.............................................................................................442 ENGINE OIL PUMP (B0.06.4 (1)).......................................................................442 ENGINE OIL PUMP (B0.06.5 (1)).......................................................................443 LUBRICATION (B0.06.10 (1))..........................................................................444 LUBRICATION (B0.06.11 (1))..........................................................................445 LUBRICANT OIL SUCTION PIPE (B0.06.13 (1))...........................................................446 LUBRICATION (B0.06.18 (1))..........................................................................447 LUBRICATION (B0.06.19 (1))..........................................................................448 ENGINE OIL FILTER (B0.06.21 (1))....................................................................449 ENGINE OIL PAN (B0.06.23 (1)).......................................................................450 OIL PIPES FOR TURBOCHARGER (B0.06.25 (1))...........................................................451 FUEL INJECTION SYSTEM...................................................................................452 INJECTION PUMP - INJECTOR (B0.07.4 (1)).............................................................452 INJECTION PUMP - INJECTOR (B0.07.5 (1)).............................................................453 INJECTION PUMP DRIVE (B0.07.8 (1))..................................................................454 INJECTION PUMP DRIVE (B0.07.9 (1))..................................................................455 MECHANICAL - ELECTRONIC GOVERNOR........................................................................456 ELECTRONIC MOTOR CONTROLLER (B0.08.3 (1))...........................................................456 COOLING.................................................................................................457 COOLING SYSTEM MANIFOLD (B0.09.4 (1))...............................................................457 COOLING SYSTEM MANIFOLD (B0.09.5 (1))...............................................................458 ENGINE COOLING WATER PUMP (B0.09.6 (1)).............................................................459 ENGINE COOLING WATER PUMP (B0.09.7 (1)).............................................................460 COOLANT PIPE (B0.09.8 (1))..........................................................................461 COOLANT PIPE (B0.09.13 (1)).........................................................................462 COOLANT PIPE (B0.09.14 (1)).........................................................................463 COOLANT PUMP PULLEY (B0.09.16 (1))..................................................................464 WATER COOLING -SEALING (B0.09.18 (1))...............................................................465 HEAT EXCHANGER (B0.09.20 (1)).......................................................................466 HEAT EXCHANGER (B0.09.21 (1)).......................................................................467 COOLING WATER PUMP (0.015.2993.4.A).................................................................468 INTAKE - EXHAUST MANIFOLDS..............................................................................469 AIR INTAKE MANIFOLD - EXHAUST MANIFOLD (B0.10.2 (1))................................................469 INTAKE AND EXHAUST MANIFOLD GASKETS (B0.10.4 (1))...................................................470 TURBOCHARGER............................................................................................471 TURBOCHARGER (B0.11.1 (1))..........................................................................471 Index...........................................................................................................472 Agroplus F 90 -> 3001...........................................................................................474 C0 - ENGINE ACCESSORIES.....................................................................................474 RADIATORS - FANS........................................................................................474 BLOWER (C0.01.1 (1))................................................................................474 COOLING - COOLANT RADIATOR (C0.01.2 (1))............................................................475 COOLING - COOLANT RADIATOR (C0.01.3 (1))............................................................477 COOLING - EXPANSION TANK (C0.01.4 (1))..............................................................479 COOLING - EXPANSION TANK (C0.01.5 (1))..............................................................480 COOLANT PIPE (C0.01.10 (1)).........................................................................481 COOLANT PIPE (C0.01.12 (1)).........................................................................482 COOLING SYSTEM EXPANSION TANK (0.013.6322.4/30.A)...................................................483 INTERCOOLER - AIR CLEANER...............................................................................484 AIR CLEANER (C0.02.0 (1))...........................................................................484 AIR CLEANER (C0.02.1 (1))...........................................................................485 AIR CLEANER HOSE (C0.02.3 (1))......................................................................486 CYCLONE FILTER (C0.02.4 (1))........................................................................487 ENGINE HOOD GASKETS (C0.02.5 (1))...................................................................488 PRE-FILTER - COMPONENTS (2.4239.110.0.A)............................................................489 FUEL SYSTEM.............................................................................................490 FUEL TANK (C0.03.0 (2)).............................................................................490 FUEL TANK (C0.03.1 (2)).............................................................................491 FUEL FEED PUMP (C0.03.4 (1))........................................................................492 FUEL FEED PUMP (C0.03.5 (1))........................................................................493 FUEL FILTER (C0.03.6 (1))...........................................................................494 FUEL FILTER (C0.03.7 (1))...........................................................................495 FUEL FEED PIPES AND PREFILTER (C0.03.11 (1))........................................................496 FUEL PIPES (C0.03.12 (1))...........................................................................497 FUEL PIPES (C0.03.13 (1))...........................................................................498 SUPPLEMENTARY FUEL TANK PIPES (C0.03.15 (1))........................................................499 AUXILIARY TANK (C0.03.17 (1)).......................................................................500 SUPPLEMENTARY FUEL TANK PIPES (C0.03.19 (1))........................................................501 FUEL FILTER PARTS (2.4319.060.0/20.A)...............................................................502 PRE-FILTER - COMPONENTS (2.4319.220.0.A)............................................................503 FUEL FEED PUMP (2.4519.330.0/50.A)..................................................................504 PREHEATING..............................................................................................505 HEATING ELEMENT 12 V (C0.04.2 (1))..................................................................505 HEATING ELEMENT EARTH (C0.04.3 (1)).................................................................506 STARTER MOTOR...........................................................................................507 STARTER (C0.05.1 (1))...............................................................................507 STARTER MOTOR COVER (C0.05.2 (1))...................................................................508 STARTER PARTS (2.9619.390.0.A)......................................................................509 EXHAUST SILENCER........................................................................................510 EXHAUST SILENCER (C0.06.4 (1))......................................................................510 EXHAUST SILENCER PIPE (C0.06.5 (1)).................................................................511 ELECTRICAL ACCESSORIES..................................................................................512 SOLENOID VALVE (C0.08.2 (1))........................................................................512 SOLENOID VALVE PROTECTION (C0.08.3 (1)).............................................................513 SOLENOID VALVE 13 V - 20 W, ON/OFF 3/2 (2.3729.697.0/20.A)..........................................514 SEALING SET.............................................................................................515 GASKET SET FOR ENGINE ASSEMBLY (C0.09.1 (1))........................................................515 Index...........................................................................................................516 Agroplus F 90 -> 3001...........................................................................................517 F0 - FRONT AXLE.............................................................................................517 FRONT SUPPORT...........................................................................................517 FRONT SUPPORT (F0.01.0 (1)).........................................................................517 FRONT SUPPORT - WITH FRONT PTO AND LIFT (F0.01.1 (1))...............................................518 4WD - FRONT SUPPORT (F0.01.2 (1))...................................................................519 FRONT SUPPORT - FIXINGS (F0.01.3 (1))...............................................................520 COVER (F0.01.4 (1)).................................................................................521 4WD FRONT AXLE..........................................................................................522 4WD - FRONT DRIVE AXLE (F0.03.0 (1))................................................................522 4WD - FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0.03.1 (1))..........................................523 AIR BREATHER (F0.03.2 (1))..........................................................................524 4WD - STANDARD SEALING (F0.03.3 (1))................................................................525 STEERING ROD - MECH. STEERING - TELESCOPIC AXLE (0.010.0488.4/10.A).................................526 FRONT DIFFERENTIAL......................................................................................527 BEVEL WHEEL GEAR Z = 16 / 33 (F0.04.0 (1))..........................................................527 DIFFERENTIAL BEVEL GEAR PAIR (F0.04.1 (1))..........................................................528 4WD - FRONT DIFFERENTIAL LOCK- STANDARD SEALING (F0.04.2 (1)).......................................529 4WD - ELECTROHYDRAULIC DIFFERENTIAL LOCK (F0.04.3 (1))..............................................530 4WD - FLANGE (F0.04.4 (1))..........................................................................532 4WD - TRANSMISSION SHAFT (F0.04.6 (1))..............................................................533 4WD - PROPELLER SHAFT - GUARDS (F0.04.7 (1))........................................................534 4WD - PROPELLER SHAFT - GUARDS (F0.04.9 (1))........................................................535 STEERING CYLINDER.......................................................................................536 4WD - POWER STEERING CYLINDER (F0.05.0 (1)).........................................................536 CYLINDER PARTS (0.013.1401.4.A).....................................................................537 FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS.............................................................538 4WD - FRONT REDUCTION GEARBOX (F0.06.0 (2)).........................................................538 4WD - AXLESHAFTS (F0.06.1 (1))......................................................................539 FRONT WHEEL HUB COVER (F0.06.2 (1)).................................................................540 4WD - AXLESHAFTS (0.013.1400.4.A)...................................................................541 FRONT BRAKES............................................................................................542 4WD - FRONT BRAKES (F0.07.0 (1))....................................................................542 Index...........................................................................................................543 Agroplus F 90 -> 3001...........................................................................................544 N0 - FRONT LIFT.............................................................................................544 LIFT ASSEMBLY...........................................................................................544 FRONT HYDRAULIC POWER-LIFT (N0.01.1 (1))............................................................544 RED AND WHITE STRIPED WARNING SIGN (N0.01.2 (1))....................................................545 CYLINDER PARTS (0.264.6342.4/20.A)..................................................................546 Index...........................................................................................................547 Agroplus F 90 -> 3001...........................................................................................548 M0 - FRONT PTO..............................................................................................548 PTO INPUT SHAFT.........................................................................................548 INPUT SHAFT (M0.01.0 (1))...........................................................................548 FRONT PTO COVER - PROTECTIONS...........................................................................549 P.T.O. GUARD (M0.02.0 (1))..........................................................................549 GEARS AND CLUTCH........................................................................................550 P.T.O. FRONT (M0.03.0 (1))..........................................................................550 P.T.O. FRONT (M0.03.1 (1))..........................................................................552 HYDRAULIC SYSTEM........................................................................................553 FRONT PTO HYDRAULIC SYSTEM (M0.04.0 (1))...........................................................553 FRONT PTO HYDRAULIC SYSTEM (M0.04.1 (1))...........................................................554 SOLENOID VALVE (2.3729.340.0/50.A)..................................................................555 Index...........................................................................................................556 Agroplus F 90 -> 3001...........................................................................................559 H0 - HYDRAULIC AND PNEUMATIC SYSTEM|........................................................................559 HYDRAULIC SYSTEM........................................................................................559 GEARBOX OIL COOLER PIPES (H0.01.1 (1))..............................................................559 HYDRAULIC PUMP 16 cc - sx/lh/li (H0.01.3 (1)).......................................................560 HYDRAULIC PUMP 19 cc - sx/lh/li (H0.01.4 (1)).......................................................561 HYDRAULIC PUMP 22.5 cc - dx/rh/re (H0.01.5 (1)).....................................................562 HYDRAULIC PUMP 14 + 11 cm³, dx/rh/re (H0.01.6 (1))..................................................563 SUCTION HYDRAULIC SYSTEM (H0.01.7 (1))..............................................................564 SUCTION HYDRAULIC SYSTEM WITH 14 + 11 CC PUMP (H0.01.8 (1)).........................................565 SUCTION HYDRAULIC SYSTEM WITH 22.5 CC PUMP (H0.01.9 (1))............................................566 COMPLETING THE HYDRAULIC PUMP 14 + 11 cm³ (H0.01.10 (1))............................................567 COMPLETING THE HYDRAULIC PUMP 22.5 CM ³ (H0.01.11 (1))..............................................568 COMPLETING THE HYDRAULIC PUMP 14 + 11 cm³ (H0.01.12 (1))............................................569 SYSTEM FROM HYDRAULIC PUMP TO 6-WAY DIRECTIONAL CONTROL VALVE (H0.01.14 (1))........................570 SYSTEM FROM HYDRAULIC PUMP TO 3-POINT HITCH CONTROL SOLENOID VALVES (H0.01.15 (1))..................571 FRONT AUXILIARY CONTROL VALVE SYSTEM WITH 9+1 CENTRAL CONNECTORS (H0.01.16 (1)).....................572 ELECTRO-HYDRAULIC THREE-POINT HITCH PARTS KIT (H0.01.17 (1))........................................573 PIPE FROM AUX. CONTROL VALVE TO ELECTRONIC REAR LIFT CONTROL VALVE (H0.01.18 (1))...................574 PIPE FROM AUX. CONTROL VALVE TO MECHANICAL REAR LIFT CONTROL VALVE (H0.01.19 (1))...................575 LUBRIC. OIL FILTER 8 " (H0.01.20 (1))...............................................................576 POWER STEERING OIL FEED HYDRAULIC SYSTEM (H0.01.21 (1)).............................................577 OIL CONTROL VALVES HOUSING PIPES (H0.01.22 (1)).....................................................578 OIL CONTROL VALVES HOUSING PIPES (H0.01.22 (2)).....................................................579 HYDRAULIC SYSTEM (H0.01.23 (1)).....................................................................580 HYDRAULIC SYSTEM (H0.01.24 (1)).....................................................................581 GEAR BOX OIL FEED PIPES (H0.01.27 (1))..............................................................582 REAR GEARBOX OIL FILLER (H0.01.28 (1))..............................................................583 4WD - FRONT DIFFERENTIAL LOCK (H0.01.29 (1))........................................................584 FRONT DIFFERENTIAL LOCK CONTROL LINES (H0.01.30 (1))................................................585 REAR LIFT CYLINDER BARREL (H0.01.32 (1))............................................................586 REAR LIFT CYLINDER BARREL (H0.01.34 (1))............................................................587 DETAILS OF OIL FILTER (2.4419.610.0.A)..............................................................588 HYDRAULIC PUMP PARTS (2.4529.920.0.A)...............................................................589 HYDRAULIC PUMP PARTS (2.4539.090.0.A)...............................................................590 HYDRAULIC PUMP PARTS (2.4539.620.0/10.A)............................................................591 STEERING SYSTEM.........................................................................................592 HYDROSTATIC STEERING CONTROL VALVE (H0.02.0 (1))....................................................592 PIPES FOR HYDROSTATIC STEERING (H0.02.1 (1))........................................................593 PIPES FOR HYDROSTATIC STEERING 4 WD (H0.02.3 (1))...................................................594 SEPARATOR (H0.02.4 (1)).............................................................................595 HYDRAULIC STEERING GEAR (2.4569.007.0.A)............................................................596 TRANSMISSION - PTO COOLERS.............................................................................597 GEARBOX OIL COOLER (H0.03.0 (1))....................................................................597 FRONT LIFT..............................................................................................598 FRONT LIFT - HYDRAULIC SYSTEM (H0.05.1 (1)).........................................................598 FRONT LIFT - HYDRAULIC SYSTEM (H0.05.1 (2)).........................................................600 FRONT LIFT - HYDRAULIC SYSTEM (H0.05.2 (1)).........................................................601 FRONT LIFT - HYDRAULIC SYSTEM (H0.05.3 (1)).........................................................602 FRONT LIFT - HYDRAULIC SYSTEM (H0.05.3 (2)).........................................................603 FRONT LIFT - HYDRAULIC SYSTEM (H0.05.4 (1)).........................................................604 FRONT LIFT - HYDRAULIC SYSTEM (H0.05.4 (2)).........................................................605 FRONT LIFT - HYDRAULIC SYSTEM (H0.05.5 (1)).........................................................606 FRONT LIFT - HYDRAULIC SYSTEM (H0.05.5 (2)).........................................................607 PRESSURE CONTROL VALVE (0.009.2038.4/10.A)..........................................................608 FRONT REMOTE CONTROL VALVES.............................................................................609 AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 6 OIL WAYS - ON / OFF (H0.06.0 (1))......................609 9+1 MID-MOUNT HYDRAULIC COUPLERS - FRONT (H0.06.1 (2))..............................................610 9+1 MID-MOUNT HYDRAULIC COUPLERS - FRONT (H0.06.2 (1))..............................................611 9+1 MID-MOUNT HYDRAULIC COUPLERS - FRONT (H0.06.3 (1))..............................................612 BRACKETS FOR 9+1 MID-MOUNT HYDRAULIC COUPLERS (H0.06.4 (1)).........................................613 SUPPORTS SX/LH/LI - DX/RH/RE (H0.06.5 (1))..........................................................614 9+1 MID-MOUNT HYDRAULIC COUPLERS - REAR (H0.06.6 (1))...............................................615 9+1 MID-MOUNT HYDRAULIC COUPLERS - REAR (H0.06.7 (1))...............................................616 4+1 MID-MOUNT HYDRAULIC COUPLERS - FRONT (H0.06.8 (1))..............................................617 BRACKETS FOR 4+1 MID-MOUNT HYDRAULIC COUPLERS (H0.06.9 (1)).........................................618 4+1 MID-MOUNT HYDRAULIC COUPLERS - FRONT (H0.06.10 (1)).............................................619 BRACKETS FOR 4+1 MID-MOUNT HYDRAULIC COUPLERS (H0.06.11 (1))........................................620 4+1 MID-MOUNT HYDRAULIC COUPLERS - REAR (H0.06.12 (1))..............................................621 4+1 MID-MOUNT HYDRAULIC COUPLERS - REAR (H0.06.13 (1))..............................................622 2+1 MID-MOUNT HYDRAULIC COUPLERS - FRONT (H0.06.14 (1)).............................................623 BRACKETS FOR 2+1 MID-MOUNT HYDRAULIC COUPLERS (H0.06.15 (1))........................................624 2+1 MID-MOUNT HYDRAULIC COUPLERS - FRONT (H0.06.16 (1)).............................................625 BRACKETS FOR 2+1 MID-MOUNT HYDRAULIC COUPLERS (H0.06.17 (1))........................................626 2+1 MID-MOUNT HYDRAULIC COUPLERS - REAR (H0.06.18 (1))..............................................627 2+1 MID-MOUNT HYDRAULIC COUPLERS - REAR (H0.06.19 (1))..............................................628 ENGAGEMENT (0.98308.50.3/10.A)......................................................................629 ENGAGEMENT (0.98309.50.3/10.A)......................................................................630 DISTRIBUTOR (2.3729.500.0.A)........................................................................631 REAR REMOTE CONTROL VALVES..............................................................................632 6-WAY AUXILIARY DISTRIBUTOR (H0.07.1 (1))...........................................................632 AUXILIARY CONTROL VALVE SYSTEM (H0.07.2 (1))........................................................633 HYDRAULIC SYSTEM - FOR 6-WAY CONTROL VALVE (H0.07.5 (1))............................................634 HYDRAULIC SYSTEM - FOR 6-WAY CONTROL VALVE (H0.07.6 (1))............................................635 AUXILIARY CONTROL VALVE SYSTEM WITH 2+1 CENTRAL CONNECTORS (H0.07.7 (1))............................636 AUXILIARY CONTROL VALVE SYSTEM WITH 4+1 CENTRAL CONNECTORS (H0.07.8 (1))............................637 AUXILIARY CONTROL VALVE SYSTEM WITH 9+1 CENTRAL CONNECTORS (H0.07.9 (1))............................638 ENGAGEMENT (0.98309.50.3/10.A)......................................................................639 HYDRAULIC DISTRIBUTOR-PARTS (2.3719.740.0/20.A).....................................................640 BRAKING SYSTEM AND PNEUMATIC SYSTEM|....................................................................642 FLOW CONTROL VALVE (H0.09.0 (1))....................................................................642 BRAKES CONTROL VALVE (H0.09.2 (1))..................................................................643 BRAKING SYSTEM (H0.09.4 (1))........................................................................644 4WD - FRONT BRAKING SYSTEM (H0.09.6 (1))............................................................645 HYDRAULIC BREAKING FOR TRAILER - EXPORT F (H0.09.7 (1)).............................................646 HYDRAULIC BREAKING FOR TRAILER - ITALY - (H0.09.8 (1))..............................................647 BRAKING SYSTEM (H0.09.10 (1)).......................................................................648 SYSTEM FROM HYDRAULIC PUMP TO HYDRAULIC BRAKES (H0.09.11 (1)).......................................649 HYDRAULIC TRAILER BRAKING SYSTEM (H0.09.12 (1)).....................................................650 HYDRAULIC TRAILER BRAKING SYSTEM (H0.09.14 (1)).....................................................651 TRAILER BRAKE VALVE (2.3729.708.0.A)................................................................652 ELECTROHYDRAULICS.......................................................................................653 HYDRAULIC SHUTTLE CONTROL AND LUBRICATION (H0.10.0 (1)).............................................653 BYPASS VALVE ASSEMBLY (H0.10.1 (1)).................................................................654 BYPASS VALVE ASSEMBLY (H0.10.2 (1)).................................................................655 SOLENOID VALVE ASSEMBLY FOR 3-POINT LINKAGE CONTROL (H0.10.4 (1))...................................656 OIL FLOW CONTROL VALVE CASING (H0.10.5 (1)).........................................................657 OIL FLOW CONTROL VALVE CASING (H0.10.5 (2)).........................................................658 SOLENOID VALVE - 4WD (H0.10.6 (1))..................................................................659 SOLENOID VALVE (2.3729.330.0/50.A)..................................................................660 SOLENOID VALVE (2.3729.340.0/50.A)..................................................................661 SOLENOID VALVE 13 V - 20 W, ON/OFF 3/2 (2.3729.697.0/10.A)..........................................662 SOLENOID VALVE 13 V - 20 W, ON/OFF 3/2 (2.3729.697.0/20.A)..........................................663 SOLENOID VALVE (2.3729.698.0/10.A)..................................................................664 Index...........................................................................................................665 Agroplus F 90 -> 3001...........................................................................................666 E0 - REAR AXLE..............................................................................................666 REAR AXLE...............................................................................................666 REAR AXLE (E0.01.0 (1)).............................................................................666 REAR AXLE - MOUNTINGS (E0.01.1 (1)).................................................................667 REAR AXLE CROWN WHEEL (E0.01.2 (1)).................................................................668 PARTS SET FOR REAR AXLE - STANDARD SEAL (E0.01.3 (1))...............................................669 REAR DIFFERENTIAL / HALF-SHAFTS.........................................................................670 DIFFERENTIAL (E0.02.0 (1))..........................................................................670 DIFFERENTIAL LOCK CONTROL - ELECTROHYDRAUDLIC (E0.02.1 (1)).........................................671 REAR REDUCTION GEARS AND AXLE SHAFTS (E0.02.2 (1))..................................................672 HALF AXLES (E0.02.3 (1))............................................................................673 REAR BRAKES.............................................................................................674 REAR BRAKES (E0.03.0 (1))...........................................................................674 REAR BRAKES (E0.03.1 (1))...........................................................................675 Index...........................................................................................................676 Agroplus F 90 -> 3001...........................................................................................677 R0 - REAR LIFT..............................................................................................677 LIFT COVER..............................................................................................677 POWER-LIFT CASE (R0.01.0 (1)).......................................................................677 PLUG (R0.01.1 (1))..................................................................................678 LIFT FIXING COMPONENTS (R0.01.2 (1))................................................................679 LIFT FIXING COMPONENTS (R0.01.3 (1))................................................................680 LIFT ASSEMBLY...........................................................................................681 LIFTING (R0.02.0 (1))...............................................................................681 LIFTING (R0.02.2 (1))...............................................................................682 LIFT CONTROL VALVE......................................................................................683 FLOW CONTROL VALVE WITH MECHANICAL CONTROL (R0.03.0 (1))............................................683 REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (R0.03.1 (1))........................................685 DISTRIBUTOR PARTS (2.3729.320.0.A)..................................................................686 IN-CAB CONTROLS.........................................................................................687 INTERNAL CONTROLS (R0.04.0 (1)).....................................................................687 SENSOR..................................................................................................688 SENSITIVE ELEMENTS (R0.05.0 (1))....................................................................688 SENSING ELEMENTS WITH ELECTRONIC CONTROL (R0.05.1 (1))..............................................689 THREE-POINT LINKAGE - LINK ARMS.........................................................................690 LIFT ARMS TO GEARBOX LOCK PINS (R0.06.0 (1))........................................................690 LIFT ARMS TO GEARBOX LOCK PINS (R0.06.1 (1))........................................................691 THREE-POINT COUPLING - TOP/LOWER LINK (R0.06.2 (1)).................................................692 THREE-POINT COUPLING - TOP/LOWER LINK - AUTOM. (R0.06.3 (1))........................................693 THREE-POINT COUPLING (R0.06.4 (1))..................................................................694 3-POINT LINKAGE - ADJUSTABLE MECHANICAL TIE ROD dx/rh/re (R0.06.5 (1))..............................695 3-POINT LINKAGE - ADJUSTABLE HYDRAULIC TIE ROD (R0.06.6 (1))........................................696 3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (R0.06.7 (1)).......................................697 3-POINT LINKAGE HYDRAULIC SYSTEM WITH ELECTROHYDRAULIC CONTROL (R0.06.8 (1)).......................698 TOWING BAR (R0.06.9 (1))............................................................................699 LINKAGE (0.014.1412.3.A)............................................................................700 TOWING HITCH (0.014.1420.3.A).......................................................................701 HYDRAULIC CYLINDER (0.015.2274.4.A).................................................................702 Index...........................................................................................................703 Agroplus F 90 -> 3001...........................................................................................706 D0 - TRANSMISSION...........................................................................................706 HYDRAULIC SHUTTLE ASSEMBLY..............................................................................706 HYDRAULIC SHUTTLE (D0.03.0 (1)).....................................................................706 HML - HI-LO - SHML......................................................................................708 H-M-L UNIT (D0.04.0 (1))............................................................................708 H-M-L UNIT (D0.04.1 (1))............................................................................710 GEARBOX INPUT SHAFT.....................................................................................711 FLEXIBLE COUPLINGS (D0.05.0 (1))....................................................................711 GEARBOX INPUT SHAFT (D0.05.1 (1))...................................................................712 5-SPEED GEARBOX INPUT SHAFT (D0.05.5 (1))...........................................................713 5-SPEED GEARBOX INPUT SHAFT WITH UNDERDRIVE (D0.05.6 (1))...........................................714 SYNCHRONISERS (D0.05.10 (1))........................................................................715 SYNCHRONIZER PARTS (0.007.7620.4/10.A)..............................................................716 PTO INPUT SHAFT.........................................................................................717 P.T.O. - CLUTCH TRANSMISSION SHAFT (D0.06.0 (1))....................................................717 MAIN SHAFT..............................................................................................718 5-SPEED GEARBOX PRIMARY SHAFT (D0.07.0 (1)).........................................................718 5-SPEED GEARBOX PRIMARY SHAFT WITH UNDERDRIVE (D0.07.1 (1)).........................................719 SECONDARY SHAFT.........................................................................................720 TRANSMISSION SHAFT - FOR TYPES WITHOUT H-M-L (POWERSHIFT) (D0.08.0 (1)).............................720 H-M-L GEARBOX SECONDARY SHAFT (D0.08.1 (1)).........................................................721 5-SPEED GEARBOX SECONDARY SHAFT WITH UNDERDRIVE (D0.08.3 (1)).......................................722 5-SPEED GEARBOX SECONDARY SHAFT (D0.08.4 (1)).......................................................723 SYNCHRONISERS (D0.08.11 (1))........................................................................724 SYNCHRONISERS (D0.08.12 (1))........................................................................725 SYNCHRONIZER PARTS (0.007.7620.4/10.A)..............................................................726 SYNCHRONIZER PARTS (0.007.7621.4.A).................................................................727 GEARBOX.................................................................................................728 GEARBOX (D0.09.0 (1))...............................................................................728 GEARBOX (D0.09.0 (2))...............................................................................729 GEARBOX REAR (D0.09.1 (2))..........................................................................730 GEARBOX FRONT- FIXINGS (D0.09.4 (1))................................................................731 BEARING FLANGE (D0.09.5 (1))........................................................................732 COVER AND PLUG FOR GEARBOX WITH H-M-L (D0.09.8 (1)).................................................733 GEARBOX UPPER COVER (D0.09.11 (1))..................................................................734 GEARBOX UPPER COVER (D0.09.13 (1))..................................................................735 GEARBOX UPPER COVER (D0.09.14 (1))..................................................................736 PLUGS FOR GEARBOX (D0.09.17 (1))....................................................................737 SENSOR BRACKET (D0.09.18 (1)).......................................................................738 REAR GEARBOX PLUG (D0.09.20 (1))....................................................................739 PLUG FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D0.09.21 (1))..................................740 REAR GEARBOX PLUG (D0.09.24 (1))....................................................................741 INTERNAL AND EXTERNAL GEARBOX CONTROLS..................................................................742 INTERNAL CONTROLS OF 5-SPEED GEARBOX WITH UNDERDRIVE (D0.10.0 (1))..................................742 5-SPEED GEARBOX INTERNAL CONTROLS (D0.10.3 (1)).....................................................743 GEARBOX CONTROL ROD (D0.10.5 (1))...................................................................744 GEARBOX CONTROL ROD (D0.10.5 (2))...................................................................745 SPEED RANGE REDUCTION GEAR UNIT (D0.10.7 (1)).......................................................746 CONTROL FOR 3-RANGE GEARBOX (D0.10.8 (1))...........................................................747 DRIVE INTERMEDIATE GEARS (D0.10.12 (1)).............................................................748 GEAR SHIFTING (D0.10.13 (1))........................................................................749 REDUCTION GEAR CONTROL (D0.10.15 (1))...............................................................750 LOW SPEED RANGES........................................................................................751 BEVEL WHEEL GEAR Z = 10 / Z = 34 (D0.11.0 (1))......................................................751 BEVEL DRIVE PINION BEARING (D0.11.1 (1))............................................................752 SPEED RANGE REDUCTION GEAR SHAFT (D0.11.2 (1))......................................................753 SPEED RANGE REDUCTION GEAR UNIT (D0.11.4 (1)).......................................................754 3-RANGE BOX - 40 Km\h (D0.11.7 (1)).................................................................755 PHONIC WHEEL FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D0.11.9 (1))...........................756 HYDRAULIC REAR PTO CLUTCH..............................................................................757 P.T.O. - HYDRAULIC CLUTCH (D0.12.0 (2)).............................................................757 P.T.O. - HYDRAULIC CLUTCH (0.011.9686.4/40.A).......................................................758 P.T.O. - HYDRAULIC CLUTCH (0.011.9686.4/40.B).......................................................759 HYDRAULIC PUMP DRIVE....................................................................................760 P.T.O. - PUMP CONTROL (D0.13.0 (1)).................................................................760 PTO/GROUNDPSPEED DRIVE................................................................................761 P.T.O. - 2 SPEED TYPE 540-750 (D0.14.0 (1)).........................................................761 BEARINGS OF - 2-SPEED P.T.O. (D0.14.2 (1)).........................................................762 P.T.O. - 540/N - WITH FIXED OUTPUT SHAFT (D0.14.3 (1))..............................................763 P.T.O. - 540/N - WITH INSERTED END SHAFTS (D0.14.4 (1)).............................................764 P.T.O. - 540/N - WITH INSERTED END SHAFTS (D0.14.5 (1)).............................................765 CONTROL LEVER P.T.O. (D0.14.6 (1))..................................................................766 2-SPEED - PTO WITH FIXED OUTPUT SHAFT 540-750 (D0.14.7 (1)).........................................767 PTO - 2-SPEED WITH INSERTED END SHAFT 540-750 (D0.14.8 (1)).........................................768 PTO - 2-SPEED WITH INSERTED END SHAFT 540-750 (D0.14.9 (1)).........................................769 P.T.O. WITH FIXED OUTPUT SHAFT - 2 SPEEDS + SINCRO AND 3 SPEEDS (D0.14.10 (1))......................770 P.T.O. WITH INSERTED END SHAFTS - 2 -SPEED + GROUNDSP. AND 3- SPEED (D0.14.11 (1))..................771 P.T.O. SHAFT 540 - 750 + SYNCRO (D0.14.12 (1))......................................................772 P.T.O. SHAFT 540 - 750 + SYNCRO (D0.14.13 (1))......................................................773 3-SPEED P.T.O. WITH FIXED OUTPUT SHAFT 540-750-1000 (D0.14.14 (1))..................................774 PTO - 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0.14.15 (1))...................................775 PTO - 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0.14.16 (1))...................................776 PTO - 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0.14.17 (1))...................................777 PTO - 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0.14.17 (2))...................................778 PTO - 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0.14.18 (1))...................................779 PTO - 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0.14.19 (1))...................................780 P.T.O. - SYNCHRONIZED CONTROL (D0.14.20 (1))........................................................781 GUARD PLATE P.T.O. (D0.14.21 (1))...................................................................782 GUARD PLATE P.T.O. (D0.14.22 (1))...................................................................783 GUARD PLATE P.T.O. (D0.14.24 (1))...................................................................784 GUARD PLATE P.T.O. (D0.14.25 (1))...................................................................785 4WD ENGAGEMENT POWER TAKE-OFF - 4WD PARKING BRAKE.......................................................786 4WD - ELECTROHYDRAULIC ENGAGEMENT CONTROL (D0.15.0 (1)).............................................786 4WD - ENGAGEMENT CONTROL - STANDARD SEALS (D0.15.1 (1)).............................................787 HAND BRAKE (D0.15.3 (2))............................................................................788 Index...........................................................................................................789 Agroplus F 90 -> 3001...........................................................................................790 S0 - WHEELS.................................................................................................790 FRONT WHEEL BOLTS.......................................................................................790 4WD - FRONT WHEEL MOUNTING (S0.01.0 (1))............................................................790 REAR WHEEL BOLTS........................................................................................791 REAR WHEEL BOLTS (S0.02.0 (1))......................................................................791 REAR WHEEL BOLTS (S0.02.1 (1))......................................................................792 SPACER FOR REAR WHEEL RIMS (S0.02.2 (1))............................................................793 WHEELS..................................................................................................794 WHEELS 240/70 R16" (S0.04.1 (1))....................................................................794 WHEELS 280/70 R16" (S0.04.2 (1))....................................................................795 WHEELS 280/70 R16" (S0.04.3 (1))....................................................................796 WHEELS 280/70 R18" (S0.04.4 (1))....................................................................797 WHEELS 300/65R18" (S0.04.5 (1)).....................................................................798 WHEELS 7.50 x 20'' pr 6 (S0.04.6 (1))...............................................................799 WHEELS 250/85R20"(9.5R20") (S0.04.7 (1))............................................................800 WHEELS 280/70 R20" (S0.04.8 (1))....................................................................801 WHEELS 280/70 R20" (S0.04.9 (1))....................................................................802 WHEELS 300/70R20" (S0.04.10 (1))....................................................................803 WHEELS 380/70 R20" (S0.04.12 (1))...................................................................804 WHEELS 380/85R24"(14.9R24") (S0.04.14 (1))..........................................................805 WHEELS 420/85R24"(16.9R24") (S0.04.15 (1))..........................................................806 WHEELS 360/70 R24" (S0.04.16 (1))...................................................................807 WHEELS 380/70 R24'' (S0.04.17 (1))..................................................................808 WHEELS 420/70 R24" A8 (S0.04.18 (1))................................................................809 WHEELS 480/65R-24" (S0.04.20 (1))...................................................................810 WHEELS 340/85R28"(13.6R28") (S0.04.21 (1))..........................................................811 WHEELS 380/85R28"(14.9R28") (S0.04.22 (1))..........................................................812 WHEELS 380/70 R28" A8 (S0.04.23 (1))................................................................813 WHEELS 420/70 R28" A8 (S0.04.24 (1))................................................................814
