Deutz Fahr Agroplus S 90 (20) after 8001 Parts Manual – PDF DOWNLOAD

Description

Deutz Fahr Agroplus S 90 (20) after 8001 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agroplus S 90 (20) after 8001 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 862
Downloadable : Yes
File Type : PDF
Size: 39.6 MB

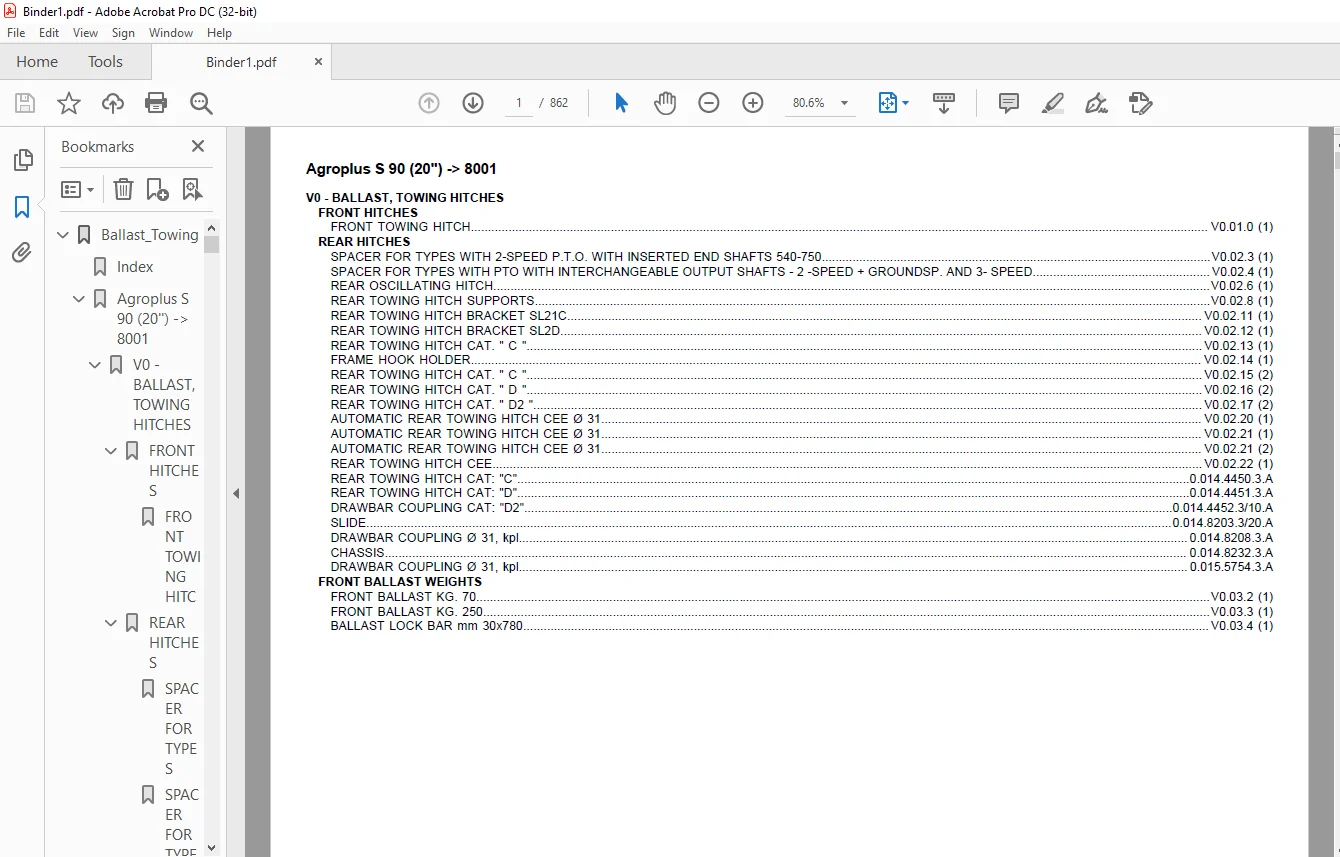

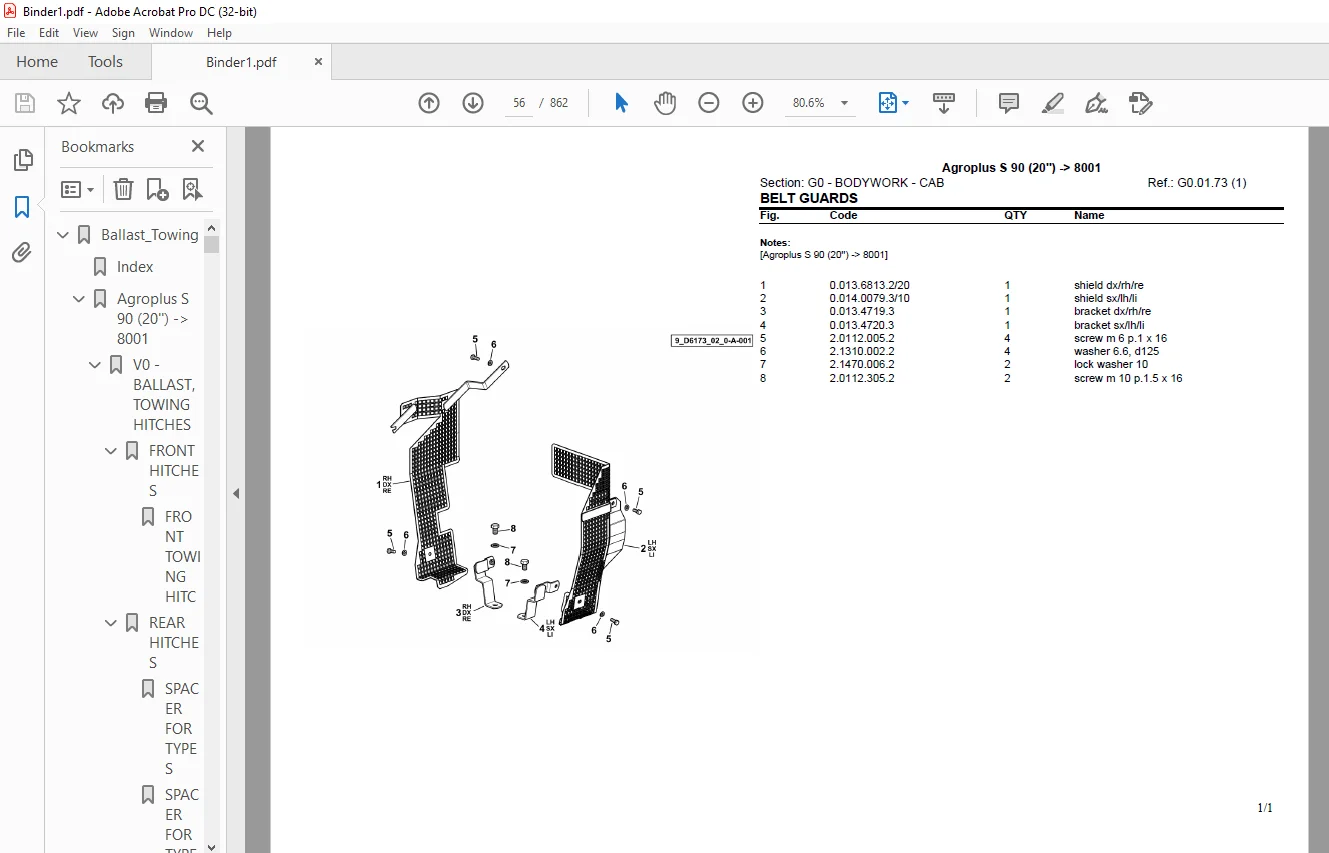

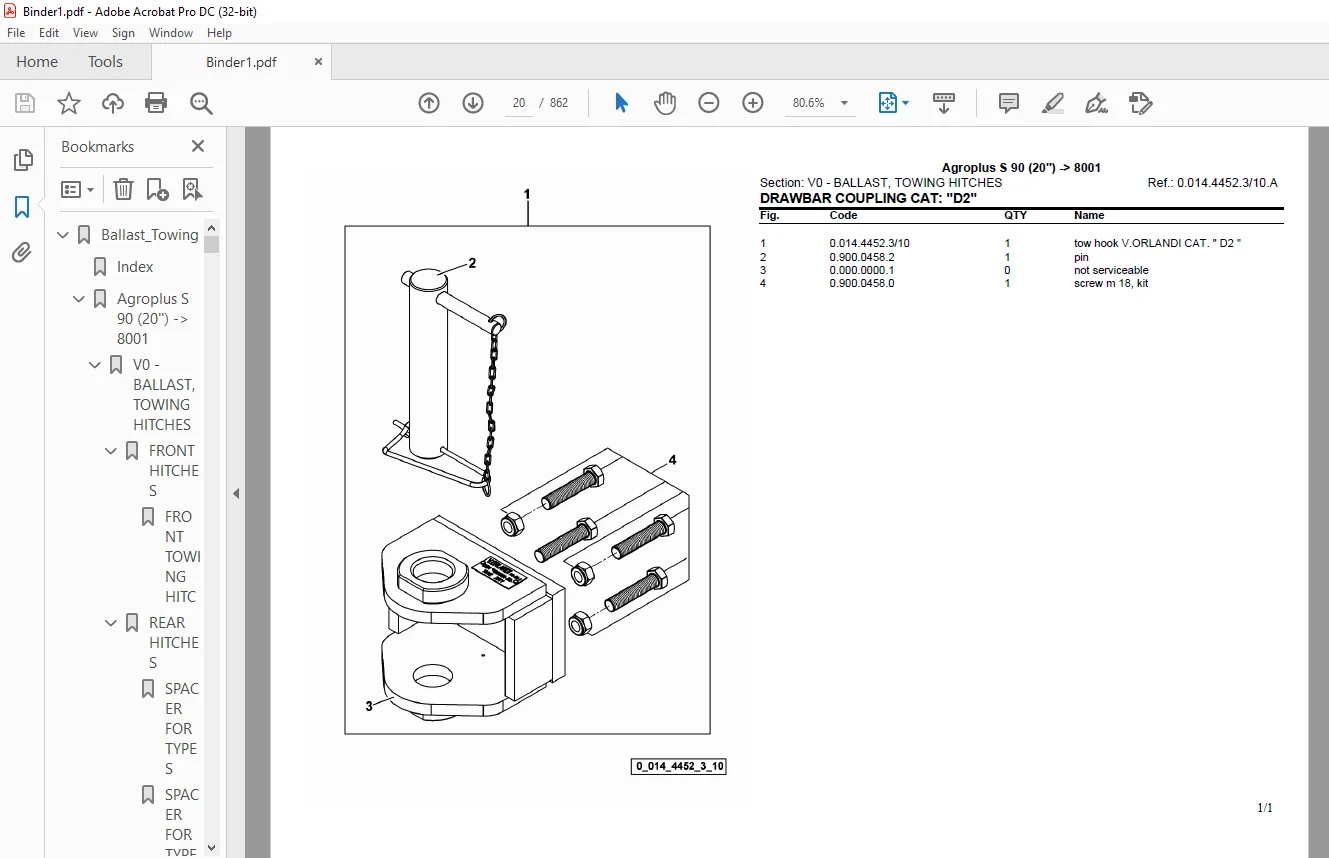

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Deutz Fahr Agroplus S 90 (20) after 8001 Parts Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
Agroplus S 90 (20”) -> 8001 2
V0 – BALLAST, TOWING HITCHES 2
FRONT HITCHES 2
FRONT TOWING HITCH (V0010 (1)) 2
REAR HITCHES 3
SPACER FOR TYPES WITH 2-SPEED PTO WITH INSERTED END SHAFTS 540-750 (V0023 (1)) 3
SPACER FOR TYPES WITH PTO WITH INTERCHANGEABLE OUTPUT SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (V0024 (1)) 4
REAR OSCILLATING HITCH (V0026 (1)) 5
REAR TOWING HITCH SUPPORTS (V0028 (1)) 6
REAR TOWING HITCH BRACKET SL21C (V00211 (1)) 7
REAR TOWING HITCH BRACKET SL2D (V00212 (1)) 8
REAR TOWING HITCH CAT ” C ” (V00213 (1)) 9
FRAME HOOK HOLDER (V00214 (1)) 10
REAR TOWING HITCH CAT ” C ” (V00215 (2)) 11
REAR TOWING HITCH CAT ” D ” (V00216 (2)) 12
REAR TOWING HITCH CAT ” D2 ” (V00217 (2)) 13
AUTOMATIC REAR TOWING HITCH CEE Ø 31 (V00220 (1)) 14
AUTOMATIC REAR TOWING HITCH CEE Ø 31 (V00221 (1)) 15
AUTOMATIC REAR TOWING HITCH CEE Ø 31 (V00221 (2)) 16
REAR TOWING HITCH CEE (V00222 (1)) 17
REAR TOWING HITCH CAT: “C” (001444503A) 18
REAR TOWING HITCH CAT: “D” (001444513A) 19
DRAWBAR COUPLING CAT: “D2″ (001444523/10A) 20
SLIDE (001482033/20A) 21
DRAWBAR COUPLING Ø 31, kpl (001482083A) 22
CHASSIS (001482323A) 23
DRAWBAR COUPLING Ø 31, kpl (001557543A) 24
FRONT BALLAST WEIGHTS 25
FRONT BALLAST KG 70 (V0032 (1)) 25
FRONT BALLAST KG 250 (V0033 (1)) 26
BALLAST LOCK BAR mm 30×780 (V0034 (1)) 27
Bodywork_Cab 28
Index 28
Agroplus S 90 (20”) -> 8001 34
G0 – BODYWORK – CAB 34
HOOD – SIDE PANELS – SUPPORTS 34
HOOD FRONT PART (G00112 (1)) 34
HOOD – RIGHT SIDE PANEL (G00126 (1)) 35
HOOD – LEFT SIDE PANEL (G00140 (1)) 36
HOOD – SUPPORTS SX/LH/LI (G00141 (1)) 37
HOOD – SUPPORTS DX/RH/RE (G00142 (1)) 38
HOOD UPPER PART (G00154 (1)) 39
HOOD PLUG (G00155 (1)) 40
HOOD SUPPORT (G00156 (1)) 41
HOOD SUPPORT (G00157 (1)) 42
HOOD SUPPORT (G00158 (1)) 43
HOOD SUPPORT (G00159 (1)) 44
FRONT HOOD FASTENERS (G00160 (1)) 45
FRONT HOOD FASTENERS (G00161 (1)) 46
ENGINE HOOD GASKETS (G00162 (1)) 47
ENGINE HOOD GASKETS DX/RH/RE (G00164 (1)) 48
ENGINE HOOD GASKETS (G00165 (1)) 49
ENGINE HOOD GASKETS SX/LH/LI (G00167 (1)) 50
PEDAL SUPPORT (G00168 (1)) 51
CONNECTION FRAME (G00169 (1)) 52
HOOD TO CAB CONNECTION FRAME (G00170 (1)) 53
HOOD TO CAB CONNECTION FRAME (G00171 (1)) 54
CONNECTION PLATE (G00172 (1)) 55
BELT GUARDS (G00173 (1)) 56
BELT GUARDS (G00175 (1)) 57
DEFLECTORS AND SUPPORTS (G00177 (1)) 58
WIRING SUPPORT BRACKETS (G00178 (1)) 59
SOLENOID VALVES PROTECTION CASING (G00179 (1)) 60
BATTERY SUPPORT (G00180 (1)) 61
BATTERY SUPPORT (G00180 (2)) 62
BATTERY COVER (G00182 (1)) 63
BATTERY COVER (G00183 (1)) 64
SUPPORTS SX/LH/LI – DX/RH/RE (G00187 (1)) 65
TOOL BOX SUPPORT (G00188 (1)) 66
SUPPORTS SX/LH/LI – DX/RH/RE (G00189 (1)) 67
LETTERING 68
PRODUCT PLATE (G00226 (1)) 68
FRONT HOOD PRODUCT IDENTIFICATION PLATE (G00239 (1)) 69
BADGE FOR SPLASH GUARDS DEUTZ-FAHR (G00243 (1)) 70
STEERING WHEEL PRODUCT IDENTIFICATION PLATE (G00247 (1)) 71
START ENABLE PLATE (G00248 (1)) 72
START ENABLE PLATE (G00249 (1)) 73
START ENABLE PLATE (G00250 (1)) 74
ELECTRONIC ACCELERATOR CONTROL IDENTIFICATION PLATE (G00252 (1)) 75
INFORMATION PLATE (G00253 (1)) 76
HEATING CONTROL IDENTIFICATION PLATE (G00254 (1)) 77
VENTILATION AND CONDITIONING CONTROL IDENTIFICATION PLATE (G00255 (1)) 78
RH CONSOLE IDENTIFICATION PLATES (G00256 (1)) 79
RH CONSOLE IDENTIFICATION PLATES (G00257 (1)) 80
RH CONSOLE IDENTIFICATION PLATES (G00258 (1)) 81
RH CONSOLE IDENTIFICATION PLATES (G00259 (1)) 82
COVER FOR UNDERDRIVE (G00260 (1)) 83
HANDBRAKE DATA PLATE (G00261 (1)) 84
3-RANGE REDUCTION UNIT COVER (G00262 (1)) 85
GROUNDSPEED PTO COVER (G00263 (1)) 86
SOLENOID VALVE IDENTIFICATION PLATES (G00264 (1)) 87
SPEED DATA PLATES – 30/40 Km/h (G00265 (1)) 88
SPEEDS PLATE MPH (G00266 (1)) 89
PLATES (G00267 (1)) 90
PLATES (G00267 (2)) 91
PLATES (G00268 (1)) 92
PLATES (G00269 (1)) 93
IDENTIFICATION PLATE ” CE ” (G00270 (1)) 94
INFORMATION PLATE (G00271 (1)) 95
WARNING PLATES (G00272 (1)) 96
PTO WARNING PLATE FRONT (G00273 (1)) 97
WATER COOLER IDENTIFICATION PLATE (G00274 (1)) 98
WARNING PLATE (G00275 (1)) 99
WARNING PLATES (G00278 (1))100
WARNING PLATES (G00279 (1))101
REAR LIFT MOVEMENT WARNING LABEL DX/RH/RE (G00280 (1))102
REAR LIFT MOVEMENT WARNING LABEL DX/RH/RE (G00281 (1))103
REAR LIFT MOVEMENT WARNING LABEL – SX/LH/LI (G00282 (1))104
REAR LIFT MOVEMENT WARNING LABEL – SX/LH/LI (G00283 (1))105
SPEED LABEL – 40 KM/H – REFLEX (G00284 (1))106
SPEED LABEL – 40 KM/H (G00285 (1))107
PTO DATA PLATE 540/N (G00286 (1))108
PTO DATA PLATE 540-750 (G00287 (1))109
PTO DATA PLATE 540 – 750 + SYNCRO (G00288 (1))110
PTO DATA PLATE 540-750-1000 (G00289 (1))111
IDENTIFICATION PLATES FOR REAR CONNECTORS (G00290 (1))112
IDENTIFICATION PLATES FOR REAR CONNECTORS (G00291 (1))113
IDENTIFICATION PLATES FOR CENTRAL SOCKETS 2+1 (G00293 (1))114
IDENTIFICATION PLATES FOR CENTRAL SOCKETS 4+1 (G00295 (1))115
IDENTIFICATION PLATES FOR CENTRAL SOCKETS 9+1 (G00296 (1))116
CAB STRUCTURE – PLATFORM -SUSPENSION117
PLATFORM 20” (G0030 (1))117
SINGLE-STRUCTURE CAB 20” (G0033 (1))118
FLOOR PLUG (G0035 (1))119
DEFLECTOR (G0036 (1))120
SILENTBLOCK AND SUPPORTS (G0037 (1))121
FASTENERS FOR SILENTBLOCK (G0038 (1))122
SUPPORTS FOR SILENTBLOCK (G0039 (1))123
FENDERS – FOOTSTEPS – EXTENSIONS124
FRONT MUDGUARDS mm 240 (G0040 (1))124
FRONT MUDGUARDS mm 240 (G0041 (1))125
FRONT MUDGUARDS mm 265 (G0042 (1))126
MUDGUARDS EXTENSIONS mm 50 (G0043 (1))127
MUDGUARDS EXTENSIONS mm 80 (G0044 (1))128
MUDGUARDS EXTENSIONS mm 120 (G0046 (1))129
REAR FENDERS EXTENSION FIXINGS (G0049 (1))130
LH SPRAY GUARD AND SUPPORTS FOR LH-RH SPRAY GUARDS (G00410 (1))131
LH SPRAY GUARD AND SUPPORTS FOR LH-RH SPRAY GUARDS (G00411 (1))132
SPRAY GUARD DX/RH/RE (G00412 (1))133
SPRAY GUARD DX/RH/RE (G00413 (1))134
SPRAY GUARD DX/RH/RE (G00414 (1))135
SPRAY GUARD DX/RH/RE (G00415 (1))136
BRACKET – SPEED LABEL (G00416 (1))137
DOORS – WINDOWS – WIPERS138
WINDSCREEN (G0050 (1))138
GLASSES AND SEALS (G0051 (1))139
SHOCK ABSORBERS (G0053 (1))141
DOOR HANDLE (G0055 (1))143
DOOR HANDLE (G0057 (1))144
HANDLE REAR WINDOW (G0058 (1))145
SCREEN WIPER FRONT/REAR (G00510 (1))146
SCREEN WIPER FRONT / REAR (G00511 (1))147
SPRAYERS (G00513 (1))148
SPRAYERS (G00514 (1))149
SPRAYERS (G00515 (1))150
SCREEN WASH RESERVOIR (G00516 (1))151
WATER TANK (001084672A)152
INTERIOR TRIM153
DASHBOARD (G0060 (1))153
PLUG FOR VERSION WITHOUT CIGAR LIGHTER (G0062 (1))154
STEERING COLUMN SHROUD (G0063 (1))155
PLUGS FOR PLATFORM (G0065 (1))156
MAT FOR PLATOFRM (G0066 (1))157
INTERIOR TRIM (G0068 (1))158
INTERIOR TRIM (G0069 (1))159
INTERIOR TRIM (G0069 (2))160
COVER (G00611 (1))161
CONTROL CONSOLE DX/RH/RE (G00612 (1))162
CONTROL CONSOLE DX/RH/RE (G00613 (1))163
CONTROL CONSOLE DX/RH/RE (G00614 (1))164
CONTROL CONSOLE DX/RH/RE (G00615 (1))165
CONSOLE HANDLE DX/RH/RE (G00616 (1))166
POWER LIFT CONTROL CONSOLE FIXING (G00617 (1))167
CONTROL CONSOLE – LOWER PART (G00618 (1))168
INTERIOR TRIM (G00621 (1))169
INTERNAL CAB LININGS (G00624 (1))170
INTERNAL CAB LININGS (G00627 (1))171
INTERIOR TRIM (G00629 (1))172
INTERIOR TRIM (G00630 (1))173
INTERIOR TRIM (G00631 (1))174
INTERNAL CAB LININGS (G00632 (1))175
INTERNAL CAB LININGS (G00633 (1))176
EXTERIOR TRIM – ROOF177
DRIVER’S CAB ROOF (G0071 (1))177
DRIVER’S CAB ROOF (G0072 (1))178
DRIVER’S CAB ROOF (G0073 (1))179
GUARDS (G0074 (1))180
GUARDS (G0075 (1))181
ROOF LATERAL GRILLE (G0077 (1))182
REAR ROOF PANEL (G0078 (1))183
ROOF LATERAL GRILLE (G0079 (1))184
CAB AIR FILTER (G00711 (1))185
CAB AIR FILTER (G00712 (1))186
CAB AIR FILTER (G00713 (1))187
CARBON FILTER (G00714 (1))188
CARBON FILTER (G00715 (1))189
FLASHING LIGHT SUPPORT (G00716 (1))190
PREARRANGEMENT FOR WARNING BEACON (G00717 (1))191
PREARRANGEMENT FOR WARNING BEACON (G00718 (1))192
REARVIEW MIRROR DX/RH/RE (G00719 (1))193
REARVIEW MIRROR – FIXINGS (G00720 (1))194
REARVIEW MIRROR (G00721 (1))195
REARVIEW MIRROR (001141994/20A)196
REARVIEW MIRROR (001142054/20A)197
REARVIEW MIRROR (092341474/10A)198
SEATS199
SEAT SUPPORT PLATE (G0080 (1))199
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION COBO-MT SC74/M200 PVC (G0081 (1))200
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION (G0082 (1))201
DRIVER’S SEAT – PNEUMATIC SPRINGING (G0083 (1))202
SAFETY BELT (G0084 (1))203
SEAT-COMPONENTS (001470664A)204
SEAT-COMPONENTS (001470674A)205
SEAT-COMPONENTS (001470684A)206
HEATING AND AIR CONDITIONING207
VENTILATION – HEATING (G0091 (1))207
VENTILATION – AIR CONDITIONING – HEATING (G0092 (1))208
VENTILATION – AIR CONDITIONING – HEATING (G0093 (1))209
CONDENSER (G0094 (1))210
CONDENSER (G0095 (1))211
CONDENSER PIPES (G0096 (1))212
CONDENSER PIPES (G0097 (1))213
PIPES FOR HEATING SYSTEM (G0098 (1))214
AIR CONDITIONING SYSTEM (G0099 (1))215
AIR CONDITIONING SYSTEM (G00910 (1))216
AIR CONDITIONING SYSTEM (G00911 (1))217
HEATING SYSTEM (G00914 (1))218
AIR CONDITIONING SYSTEM (G00915 (1))219
COMPRESSOR PIPES (G00917 (1))220
COMPRESSOR (G00918 (1))221
COMPRESSOR SUPPORTS (G00919 (1))222
COMPRESSOR-PARTS (000771974A)223
ENGAGEMENT (000972024/20A)224
ENGAGEMENT (000972034/20A)225
HEATER PARTS (001081084/30A)226
AIR CONDITIONER PARTS (001090464/20A)227
AIR-CONDITIONING HEATING PARTS (001092154/10A)228
AIR-CONDITIONING HEATING PARTS (001092154/30A)230
AIR CONDITIONER PARTS (001215684/30A)232
MECHANICAL CLUTCH CONTROLS233
CLUTCH CONTROL (G0100 (1))233
MECHANICAL BRAKE CONTROLS234
BRAKE CONTROLS (G0110 (1))234
HAND BRAKE (G0111 (1))235
HAND BRAKE (G0112 (1))236
HAND BRAKE (G0113 (1))237
HAND BRAKE (G0114 (1))238
TRAILER HANDBRAKE CONTROL CABLE (G0115 (1))239
HANDBRAKE BRACKET FOR TRAILER (G0116 (1))240
HANDBRAKE BRACKET FOR TRAILER (G0117 (1))241
MECHANICAL – ELECTRONIC THROTTLE CONTROLS242
THROTTLE (G0120 (1))242
HAND CONTROL FOR ELECTRONIC THROTTLE (G0123 (1))243
ELECTRONIC ACCELERATOR CONTROL (G0124 (1))244
STEERING CONTROLS245
STEERING WHEEL CAP (G0133 (1))245
STEERING COLUMN (G0134 (1))246
STEERING COLUMN (G0135 (1))247
MECHANICAL GEARSHIFT CONTROLS248
GEAR SHIFTING (G0140 (1))248
GEAR SHIFTING (G0141 (1))249
DRIVE INTERMEDIATE GEARS (G0142 (1))250
REDUCTION GEAR CONTROL (G0143 (1))251
REDUCTION GEAR CONTROL (G0144 (1))252
PTO CONTROLS253
PTO – EXTERNAL CONTROLS 540/N (G0160 (1))253
PTO – EXTERNAL CONTROLS 540-750 (G0161 (1))254
PTO – EXTERNAL CONTROLS 540 – 750 + SYNCRO (G0162 (1))255
PTO – EXTERNAL CONTROLS 540-750-1000 (G0163 (1))256
PTO SHAFT DRIVE (G0164 (1))257
PTO SHAFT DRIVE (G0165 (1))258
PTO-SYNCHRONIZED CONTROL (G0166 (1))259
LIFT CONTROLS260
LIFT CONTROL LEVERS (G0170 (1))260
LIFT CONTROL LEVERS (G0170 (2))261
TIE RODS FOR LIFT CONTROL LEVERS (G0173 (1))262
REMOTE VALVE CONTROLS263
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0183 (1))263
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0183 (2))264
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0184 (1))265
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0184 (2))266
6-WAY AUXILIARY HYDRAULIC CONTROL VALVE PLATE (G0185 (1))267
OIL REGULATOR CONTROL (G01814 (1))268
ACCESSORIES269
SUN BLIND (G0190 (1))269
METAL TOOLBOX (G0191 (1))270
LICENCE PLATE HOLDER (G0192 (1))271
LUBRICATOR (G0193 (1))272
TOOL POUCH (G0196 (1))273
SAFETY ROLL BAR274
SAFETY ARCH (G0200 (1))274
Electrical_system275
Index275
Agroplus S 90 (20”) -> 8001280
L0 – ELECTRIC AL SYSTEM280
BATTERY – ALTERNATOR280
BATTERY 12V 100Ah 650A (L0010 (1))280
ALTERNATOR 14V – 65A – ISKRA (L0011 (1))281
ALTERNATOR 85A (L0012 (1))282
ALTERNATOR AND PULLEY SUPPORTS (L0013 (1))283
ALTERNATOR AND PULLEY SUPPORTS (L0014 (1))284
ALTERNATOR PARTS (294394200/10A)285
ALTERNATOR PARTS (294394600/10A)286
WIRING LOOMS287
ELECTRICAL EQUIPMENT FRONT (L0023 (1))287
ELECTRICAL EQUIPMENT FRONT (L0024 (1))288
ELECTRICAL EQUIPMENT FRONT (L0025 (1))289
CENTRAL WIRING LOOM (L0027 (1))290
CENTRAL WIRING LOOM (L0028 (1))291
CENTRAL WIRING LOOM (L0029 (1))292
ELECTRICAL EQUIPMENT REAR (L00210 (1))293
ELECTRICAL EQUIPMENT REAR (L00211 (1))294
ELECTRICAL EQUIPMENT REAR (L00212 (1))295
CAB ELECTRICAL SYSTEM (L00213 (1))296
CAB ELECTRICAL SYSTEM (L00214 (1))297
CAB ROOF ELECTRIC SYSTEM (L00216 (1))298
CAB ROOF ELECTRIC SYSTEM (L00217 (1))299
CAB ROOF ELECTRIC SYSTEM (L00218 (1))300
CONDENSER WIRING (L00219 (1))301
CONDENSER WIRING (L00220 (1))302
HEATING SYSTEM (L00221 (1))303
AIR CONDITIONING SYSTEM (L00222 (1))304
SINGLE POLE SOCKET – DOUBLE POLE SOCKET – LIGHTS FLASHER RELAY (L00223 (1))305
SINGLE POLE SOCKET – LIGHTS FLASHER RELAY (L00224 (1))306
SINGLE POLE SOCKET – LIGHTS FLASHER RELAY (L00225 (1))307
SOCKET FOR ROTATING LAMP (L00226 (1))308
PREARRANGEMENT FOR WARNING BEACON (L00227 (1))309
PREARRANGEMENT FOR WARNING BEACON (L00228 (1))310
PREARRANGEMENT FOR WARNING BEACON (L00229 (1))311
ELECTRICAL EQUIPMENT ROTARY WARN LAMP (L00231 (1))312
CABLES FOR ROTATING BEACONS ON ROPS (L00232 (1))313
CABLES FOR ROTATING BEACONS ON ROPS (L00233 (1))314
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L00234 (1))315
3-POINT LINKAGE SYSTEM WITH ELECTROHYDRAULIC CONTROL (L00235 (1))316
ELECTRICAL SYSTEM FOR 6-WAY FRONT CONTROL VALVE (L00236 (1))317
POWER SUPPLY ELECTRICAL SYSTEM (L00239 (1))318
POWER SUPPLY ELECTRICAL SYSTEM (L00240 (1))319
BATTERY LEADS (L00241 (1))320
PLATFORM GROUND CABLE (L00242 (1))321
SHUTTLE LEVER ELECTRICAL CABLE (L00243 (1))322
ELECTRICAL CABLE FOR OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L00244 (1))323
BRAKE SENSOR CABLES (L00245 (1))324
BRAKE SENSOR CABLES (L00246 (1))325
PRESSURE SWITCH WIRING FOR TRAILER HYDRAULIC BRAKING SYSTEM (L00247 (1))326
TRAILER SOCKET BRACKET (L00248 (1))327
TRAILER SOCKET-OUTLET (L00249 (1))328
BATTERY LEADS (001067083/20A)329
ELECTRICAL SYSTEM (001072624/20A)330
ELECTRICAL LEADS (001090573A)331
ELECTRICAL SYSTEM (001120254/40A)332
FLASHING LIGHT SUPPORT (001178404A)333
ELECTRICAL SYSTEM (001201014A)334
ELECTRICAL SYSTEM (001218334A)335
ELECTRICAL SYSTEM (001218344/10A)336
ELECTRICAL SYSTEM (001218354/20A)337
ELECTRICAL SYSTEM (001363264A)338
ELECTRICAL SYSTEM (001383994/10A)339
ELECTRICAL SYSTEM (001384014A)340
ELECTRICAL SYSTEM (001447804/30A)341
BRAKE SENSOR CABLES (001520804A)342
PARTS FOR ELECTRICAL SYSTEM (001531494/20A)343
PARTS FOR ELECTRICAL SYSTEM (001531594A)344
ECUs345
ELECTRONICS BOX (L0030 (1))345
ELECTRONICS BOX (L0031 (1))346
ELECTRONICS BOX (L0032 (1))347
HYDRAULIC SHUTTLE CONTROL UNIT (L0033 (1))348
CONTROL UNIT FOR SHUTTLE SPEED SENSOR ADAPTATION (L0034 (1))349
REAR WINDOW WIPER CONTROL UNIT (L0035 (1))350
REAR WINDOW WIPER CONTROL UNIT (L0036 (1))351
CONTROL UNIT – PTO SHAFT (L0037 (1))352
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0038 (1))353
SENSORS – POTENTIOMETERS – ENABLING SWITCHES354
ENGINE OIL PRESSURE SWITCH (L0042 (1))354
COOLING SYSTEM MANIFOLD SENSORS (L0046 (1))355
COOLING SYSTEM MANIFOLD SENSORS (L0047 (1))356
AIR CLEANER AND ENGINE OIL FILTER CLOGGING PRESSURE SWITCH (L0048 (1))357
START ENABLE SWITCH (L0049 (1))358
START ENABLE SWITCH PROTECTION (L00410 (1))359
HYDRAULIC SHUTTLE SENSOR (L00411 (1))360
HYDRAULIC SHUTTLE SENSOR (L00411 (2))361
SPEED SENSOR (L00412 (1))362
SPEED SENSOR (L00413 (1))363
SPEED SENSOR (L00414 (1))364
GEARBOX INPUT SHAFT SENSOR (L00415 (1))365
UNDERDRIVE SWITCH (L00416 (1))366
OIL FILTER CLOGGING SENSOR (L00418 (1))367
OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L00420 (1))368
SHUTTLE CONTROL ASSEMBLY PRESSURE SWITCH / OIL TEMPERATURE SENSOR AND LUBRICATION (L00421 (1))369
ELECTRONIC ACCELERATOR CONTROL SENSOR (L00422 (1))370
ELECTRONIC ACCELERATOR CONTROL SENSOR (L00423 (1))371
ELECTRONIC ACCELERATOR CONTROL SENSOR (L00424 (1))372
ELECTRONIC ACCELERATOR CONTROL SENSOR (L00425 (1))373
CLUTCH SENSOR AND SWITCH (L00426 (1))374
BRAKE SENSORS (L00427 (1))375
BRAKE SENSORS (L00428 (1))376
PRESSURE SWITCH FOR HYDRAULIC TRAILER BRAKING SYSTEM (L00429 (1))377
BRAKE CONTROL SWITCH (L00430 (1))378
HAND BRAKE SWITCHES (L00431 (1))379
HAND BRAKE SWITCHES (L00432 (1))380
GROUNDSPEED PTO SWITCH (L00433 (1))381
PTO SWITCH (L00434 (1))382
PTO SPEED SENSOR 540/N WITH INTERCHANGEABLE OUTPUT SHAFTS (L00435 (1))383
SWITCHES FOR 2-SPEED PTO WITH FIXED OUTPUT SHAFT 540-750 (L00437 (1))384
SWITCH FOR 2-SPEED PTO WITH INSERTED END SHAFTS 540-750 (L00438 (1))385
SWITCHES FOR 3-SPEED PTO 540-750-1000 (L00440 (1))386
SWITCHES FOR 2-SPEED WITH FIXED OUTPUT SHAFT + SYNCRO AND 3 SPEEDS (L00441 (1))387
SWITCH FOR PTO WITH INSERTED END SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (L00442 (1))388
SWITCHES AND SENSOR FOR 3-SPEED PTO WITH INSERTED OUTPUT SHAFTS 540-750-1000 (L00443 (1))389
REAR LIFT POSITION SENSOR (L00444 (1))390
INSTRUMENT PANEL391
DIGITAL INSTRUMENT PANEL (L0050 (1))391
ELECTRICAL CONTROLS – PUSHBUTTONS392
IGNITION BLOCK AND CONSOLE BUTTONS (L0070 (1))392
KEYSWITCH BLOCK AND PUSHBUTTONS (L0071 (1))393
KEYSWITCH BLOCK AND PUSHBUTTONS (L0071 (2))394
KEYSWITCH BLOCK AND PUSHBUTTONS (L0071 (3))395
KEYSWITCH BLOCK AND PUSHBUTTONS (L0072 (1))396
KEYSWITCH BLOCK AND PUSHBUTTONS (L0072 (2))397
KEYSWITCH BLOCK AND PUSHBUTTONS (L0072 (3))398
STEERING COLUMN SWITCH UNIT – REVERSING GEAR UNIT CONTROL (L0073 (1))399
GEAR SHIFTING (L0074 (1))400
GEAR SHIFTING (L0075 (1))401
ELECTRONIC ACCELERATOR MEMORY PUSHBUTTON (L0076 (1))402
ELECTRONIC ACCELERATOR MEMORY PUSHBUTTON (L0077 (1))403
ELECTRONIC ACCELERATOR MEMORY PUSHBUTTON (L0078 (1))404
STOP & GO AND PREHEATING BUTTON (L00710 (1))405
STOP & GO AND PREHEATING BUTTON (L00711 (1))406
STOP & GO AND PREHEATING BUTTON (L00712 (1))407
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (L00713 (1))408
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (L00715 (1))409
SWITCH – FOR PTO FRONT (L00716 (1))410
OPERATION – FRONTPTO SHAFT (L00717 (1))411
SWITCH FOR REAR PTO (L00718 (1))412
SWITCH FOR REAR PTO (L00719 (1))413
SWITCH FOR ROTATING BEACON (L00720 (1))414
CAB TOP SWITCHES (L00721 (1))415
CAB TOP SWITCHES (L00722 (1))416
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L00723 (1))417
3-POINT LINKAGE CONTROLS WITH ELECTROHYDRAULIC CONTROL (L00724 (1))418
CONTROLS FOR 6-WAY FRONT CONTROL VALVE (L00725 (1))419
LIGHTING AND SIGNALLING420
HORN (L0080 (1))420
FRONT LIGHTS – FOR RIGHT-HAND DRIVE (L0083 (1))421
FRONT LIGHTS – FOR LEFT-HAND DRIVE (L0084 (1))422
ROTATING BEACONS ON ROPS (L0085 (2))423
ROTATING BEACONS ON ROPS (L0086 (2))424
FRONT LIGHTS FOR CAB (L0087 (1))425
FRONT LIGHTS FOR CAB (L0088 (1))426
REAR LIGHTS (L0089 (1))427
REAR LIGHTS (L00810 (1))428
WORKLIGHTS FOR CAB ROOF (L00812 (1))429
WORKLIGHTS FOR CAB ROOF (L00813 (1))430
WORKLIGHTS FOR CAB ROOF (L00814 (1))431
REAR WORKLIGHT (L00815 (1))432
WARNING BEACON (L00816 (1))433
COURTESY LIGHT (L00817 (1))434
COURTESY LIGHT (L00818 (1))435
LICENCE PLATE LIGHT (L00819 (1))436
RETROREFLECTOR (L00820 (1))437
RETROREFLECTOR (L00821 (1))438
HEADLAMP COMPONENTS (280199600A)439
HEADLAMP COMPONENTS (280199700A)440
HEADLAMP COMPONENTS (280292400/10A)441
HEADLAMP COMPONENTS (280293000A)442
HEADLAMP COMPONENTS (280297300A)443
ELECTRIC LIGHTING SYSTEM (280298200/20A)444
ELECTRIC LIGHTING SYSTEM (280298300/20A)445
HEADLAMP FOR RIGHT-HAND DRIVE dx/rh/re (280590010A)446
HEADLAMP FOR LEFT-HAND DRIVE sx/lh/li (280590020A)447
HEADLAMP COMPONENTS (280594400/10A)448
HEADLAMP COMPONENTS (280594500A)449
HEADLAMP COMPONENTS (280594600A)450
HEADLAMP COMPONENTS (280594900A)451
HEADLAMP COMPONENTS (280595230A)452
HEADLAMP COMPONENTS (280595240A)453
INTERIOR LIGHT (283390320A)454
ACCESSORIES455
CIGAR LIGHTER (L0090 (1))455
Engine456
Index456
Agroplus S 90 (20”) -> 8001458
B0 – ENGINE458
CYLINDER BLOCK458
CRANKCASE (B0012 (1))458
CRANKCASE (B0013 (1))459
MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (B0014 (1))460
ENGINE OIL AND TURBO PRESSURE SWITCH UNION (B0018 (1))461
PLUG (B0019 (1))462
CRANKSHAFT463
CRANKSHAFT (B0022 (1))463
CRANKSHAFT PULLEY (B0023 (1))464
ENGINE FLYWHEEL (B0025 (1))465
COUNTERWEIGHTS (B0026 (1))466
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0027 (1))467
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0028 (1))468
CYLINDERS – PISTONS – CONNECTING RODS469
CYLINDER – PISTON – CONNECTING ROD (B0032 (1))469
TIMING470
TIMING CASE (B0042 (1))470
TIMING CASE (B0043 (1))471
GUARD PLATE (B0044 (1))472
CASING COVER (B0045 (1))473
CAMSHAFT (B0049 (1))474
CYLINDER HEAD475
CYLINDER HEAD (B0052 (1))475
LUBRICATION476
ENGINE OIL PUMP (B0064 (1))476
ENGINE OIL PUMP (B0065 (1))477
LUBRICATION (B00610 (1))478
LUBRICATION (B00611 (1))479
LUBRICANT OIL SUCTION PIPE (B00613 (1))480
LUBRICATION (B00618 (1))481
LUBRICATION (B00619 (1))482
ENGINE OIL FILTER (B00621 (1))483
ENGINE OIL PAN (B00623 (1))484
OIL PIPES FOR TURBOCHARGER (B00625 (1))485
FUEL INJECTION SYSTEM486
INJECTION PUMP – INJECTOR (B0074 (1))486
INJECTION PUMP – INJECTOR (B0075 (1))487
INJECTION PUMP DRIVE (B0078 (1))488
INJECTION PUMP DRIVE (B0079 (1))489
MECHANICAL – ELECTRONIC GOVERNOR490
ELECTRONIC MOTOR CONTROLLER (B0083 (1))490
COOLING491
COOLING SYSTEM MANIFOLD (B0094 (1))491
COOLING SYSTEM MANIFOLD (B0095 (1))492
WATER COOLING -SEALING (B0099 (1))493
ENGINE COOLING WATER PUMP (B00910 (1))494
ENGINE COOLING WATER PUMP (B00911 (1))495
COOLANT PIPE (B00912 (1))496
COOLANT PIPE (B00917 (1))497
COOLANT PIPE (B00918 (1))498
COOLANT PUMP PULLEY (B00919 (1))499
HEAT EXCHANGER (B00921 (1))500
HEAT EXCHANGER (B00922 (1))501
COOLING WATER PUMP (001529934A)502
INTAKE – EXHAUST MANIFOLDS503
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (B0102 (1))503
INTAKE AND EXHAUST MANIFOLD GASKETS (B0104 (1))504
TURBOCHARGER505
TURBOCHARGER (B0111 (1))505
Engine_accessories506
Index506
Agroplus S 90 (20”) -> 8001508
C0 – ENGINE ACCESSORIES508
RADIATORS – FANS508
BLOWER (C0011 (1))508
COOLING – COOLANT RADIATOR (C0012 (1))509
COOLING – COOLANT RADIATOR (C0013 (1))511
COOLING – EXPANSION TANK (C0016 (1))513
COOLING – EXPANSION TANK (C0017 (1))514
COOLANT PIPE (C00110 (1))515
COOLANT PIPE (C00112 (1))516
COOLING SYSTEM EXPANSION TANK (001363224/30A)517
INTERCOOLER – AIR CLEANER518
CYCLONE FILTER (C0020 (1))518
ENGINE HOOD GASKETS (C0021 (1))519
AIR CLEANER (C0022 (1))520
AIR CLEANER (C0023 (1))521
AIR CLEANER HOSE (C0025 (1))522
PRE-FILTER – COMPONENTS (242391100A)523
FUEL SYSTEM524
FUEL FILTER (C0030 (1))524
FUEL FILTER (C0031 (1))525
FUEL FEED PUMP (C0034 (1))526
FUEL FEED PUMP (C0035 (1))527
FUEL PIPES (C0038 (1))528
FUEL PIPES (C0039 (1))529
FUEL FEED PIPES AND PREFILTER (C00311 (1))530
FUEL TANK (C00312 (1))531
FUEL TANK (C00312 (2))532
FUEL TANK (C00313 (1))533
FUEL TANK (C00313 (2))534
SUPPLEMENTARY FUEL TANK PIPES (C00315 (1))535
SUPPLEMENTARY FUEL TANK PIPES (C00316 (1))536
AUXILIARY TANK (C00317 (1))537
FUEL FILTER PARTS (243190600/20A)538
PRE-FILTER – COMPONENTS (243192200A)539
FUEL FEED PUMP (245193300/50A)540
PREHEATING541
HEATING ELEMENT 12 V (C0042 (1))541
HEATING ELEMENT EARTH (C0043 (1))542
STARTER MOTOR543
STARTER (C0051 (1))543
STARTER MOTOR COVER (C0052 (1))544
STARTER PARTS (296193900A)545
EXHAUST SILENCER546
EXHAUST SILENCER (C0062 (1))546
EXHAUST SILENCER PIPE (C0066 (1))547
EXHAUST SILENCER PIPE (C0067 (1))548
ELECTRICAL ACCESSORIES549
SOLENOID VALVE (C0082 (1))549
SOLENOID VALVE PROTECTION (C0083 (1))550
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/20A)551
SEALING SET552
GASKET SET FOR ENGINE ASSEMBLY (C0091 (1))552
Front_axle553
Index553
Agroplus S 90 (20”) -> 8001554
F0 – FRONT AXLE554
FRONT SUPPORT554
FRONT SUPPORT (F0010 (1))554
FRONT SUPPORT (F0011 (1))555
FROMT PLATE FOR IMPLEMENTS (F0012 (1))556
4WD FRONT AXLE557
FRONT AXLE (F0030 (1))557
FRONT AXLE (F0031 (1))558
4WD – FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0032 (1))559
4WD – FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0033 (1))560
AIR BREATHER AND STEERING STOP – 4WD (F0035 (1))561
4WD – STANDARD SEALING (F00320000 (1))562
FRONT DIFFERENTIAL563
BEVEL WHEEL GEAR Z = 23 / 43 (F0040 (1))563
4WD – FRONT DIFFERENTIAL (F0041 (1))564
4WD – STANDARD SEALING (F0042 (1))565
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (F0043 (1))566
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (F0044 (1))567
FORK FLANGE FOR DIFFERENTIAL (F0045 (1))568
FORK FLANGE FOR DIFFERENTIAL (F0046 (1))569
4WD – PROPELLER SHAFT (F0047 (1))570
4WD – PROPELLER SHAFT (F0049 (1))571
STEERING CYLINDER572
STEERING CYLINDER (F0051 (1))572
STEERING CYLINDER (F0052 (1))573
CYLINDER PARTS (001005084A)574
ADJUSTABLE LIFT ROD PARTS (001007984/30A)575
ADJUSTABLE LIFT ROD PARTS (001007994/30A)576
CYLINDER PARTS (001013254/10A)577
ADJUSTABLE LIFT ROD PARTS (001013264/20A)578
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS579
4WD – PLANETARY GEAR (F0060 (1))579
4WD – FRONT AXLE PLANET CARRIER WITH BRAKES (F0061 (1))580
4WD – FRONT AXLE PLANET CARRIER WITH BRAKES (F0062 (1))581
4WD – AXLESHAFTS (F0063 (1))582
4WD – AXLESHAFTS (F0064 (1))583
FRONT WHEEL HUB COVER (F0065 (1))584
4WD – AXLESHAFTS L = mm 5705 (001002304/10A)585
4WD – AXLESHAFTS L = mm 5705 (001101384/10A)586
FRONT BRAKES587
4WD – FRONT BRAKES (F0071 (1))587
4WD – FRONT BRAKES (F0072 (1))588
Front_lift589
Index589
Agroplus S 90 (20”) -> 8001590
N0 – FRONT LIFT590
LIFT ASSEMBLY590
FRONT HYDRAULIC POWER-LIFT (N0012 (1))590
FRONT HYDRAULIC POWER-LIFT (N0013 (1))591
RED AND WHITE STRIPED WARNING SIGN (N0014 (1))592
CYLINDER PARTS (026463424/20A)593
Front_pto594
Index594
Agroplus S 90 (20”) -> 8001595
M0 – FRONT PTO595
PTO INPUT SHAFT595
PTO INPUT SHAFT (M0010 (1))595
FRONT PTO COVER – PROTECTIONS596
PTO SHAFT PROTECTOR – FRONT (M0020 (1))596
GEARS AND CLUTCH597
PTO FRONT (M0030 (1))597
PTO FRONT (M0031 (1))598
PTO FRONT (M0032 (1))599
HYDRAULIC SYSTEM600
FRONT PTO HYDRAULIC SYSTEM (M0040 (1))600
FRONT PTO HYDRAULIC SYSTEM (M0041 (1))601
SOLENOID VALVE (237293400/50A)602
Hydraulic_and_pneumatic_system603
Index603
Agroplus S 90 (20”) -> 8001606
H0 – HYDRAULIC AND PNEUMATIC SYSTEM|606
HYDRAULIC SYSTEM606
GEARBOX OIL COOLER PIPES (H0011 (1))606
HYDRAULIC PUMP 16 cc – sx/lh/li (H0012 (1))607
HYDRAULIC PUMP 19 cc – sx/lh/li (H0013 (1))608
HYDRAULIC PUMP 14 + 11 cm³, dx/rh/re (H0014 (1))609
HYDRAULIC PUMP 225 cc – dx/rh/re (H0015 (1))610
SUCTION HYDRAULIC SYSTEM (H0016 (1))611
SUCTION HYDRAULIC SYSTEM WITH 14 + 11 CC PUMP (H0017 (1))612
SUCTION HYDRAULIC SYSTEM WITH 225 CC PUMP (H0018 (1))613
COMPLETING THE HYDRAULIC PUMP 14 + 11 cm³ (H0019 (1))614
COMPLETING THE HYDRAULIC PUMP 225 CM ³ (H00110 (1))615
SYSTEM FROM HYDRAULIC PUMP TO 6-WAY DIRECTIONAL CONTROL VALVE (H00112 (1))616
SYSTEM FROM HYDRAULIC PUMP TO 3-POINT HITCH CONTROL SOLENOID VALVES (H00113 (1))617
COMPLETING THE HYDRAULIC PUMP 14 + 11 cm³ (H00114 (1))618
FRONT AUXILIARY CONTROL VALVE SYSTEM WITH 9+1 CENTRAL CONNECTORS (H00115 (1))619
ELECTRO-HYDRAULIC THREE-POINT HITCH PARTS KIT (H00116 (1))620
PIPE FROM AUX CONTROL VALVE TO MECHANICAL REAR LIFT CONTROL VALVE (H00117 (1))621
PIPE FROM AUX CONTROL VALVE TO ELECTRONIC REAR LIFT CONTROL VALVE (H00118 (1))622
3-POINT LINKAGE HYDRAULIC SYSTEM WITH ELECTROHYDRAULIC CONTROL (H00119 (1))623
3-POINT LINKAGE HYDRAULIC SYSTEM WITH ELECTROHYDRAULIC CONTROL (H00120 (1))624
OIL FILTER 6 ” (H00121 (1))625
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H00123 (2))626
GEAR BOX OIL FEED PIPES (H00125 (1))627
OIL CONTROL VALVES HOUSING PIPES (H00126 (1))628
OIL CONTROL VALVES HOUSING PIPES (H00126 (2))629
HYDRAULIC SYSTEM (H00127 (1))630
HYDRAULIC SYSTEM (H00128 (1))631
REAR LIFT CYLINDER BARREL (H00129 (1))632
REAR LIFT CYLINDER BARREL (H00130 (1))633
4WD – FRONT DIFFERENTIAL LOCK (H00131 (1))634
FRONT DIFFERENTIAL PIPES (H00133 (1))635
FRONT DIFFERENTIAL PIPES (H00133 (2))636
DETAILS OF OIL FILTER (244197200A)637
HYDRAULIC PUMP PARTS (245299200A)638
HYDRAULIC PUMP PARTS (245390900A)639
HYDRAULIC PUMP PARTS (245396200/10A)640
STEERING SYSTEM641
HYDROSTATIC STEERING CONTROL VALVE (H0021 (1))641
PIPES FOR HYDROSTATIC STEERING (H0022 (1))642
SEPARATOR (H0023 (1))643
PIPES FOR HYDROSTATIC STEERING – 4WD (H0026 (1))644
STEERING CYLINDER PIPES (H0027 (1))645
STEERING CYLINDER PIPES (H0028 (1))646
HYDRAULIC STEERING GEAR (245690070A)647
TRANSMISSION – PTO COOLERS648
GEARBOX OIL COOLER (H0031 (1))648
FRONT LIFT649
FRONT LIFT – HYDRAULIC SYSTEM (H0050 (1))649
FRONT LIFT – HYDRAULIC SYSTEM (H0051 (1))650
FRONT LIFT – HYDRAULIC SYSTEM (H0051 (2))651
FRONT LIFT – HYDRAULIC SYSTEM (H0052 (1))652
FRONT LIFT – HYDRAULIC SYSTEM (H0052 (2))653
FRONT LIFT – HYDRAULIC SYSTEM (H0053 (1))654
FRONT LIFT – HYDRAULIC SYSTEM (H0053 (2))655
FRONT LIFT – HYDRAULIC SYSTEM (H0056 (1))656
FRONT LIFT – HYDRAULIC SYSTEM (H0057 (1))658
PRESSURE CONTROL VALVE (000920384/10A)659
FRONT REMOTE CONTROL VALVES660
2+1 MID-MOUNT HYDRAULIC COUPLERS – REAR (H0060 (1))660
2+1 MID-MOUNT HYDRAULIC COUPLERS – REAR (H0061 (1))661
2+1 MID-MOUNT HYDRAULIC COUPLERS – FRONT (H0064 (1))662
BRACKETS FOR 2+1 MID-MOUNT HYDRAULIC COUPLERS (H0065 (1))663
4+1 MID-MOUNT HYDRAULIC COUPLERS – REAR (H0066 (1))664
4+1 MID-MOUNT HYDRAULIC COUPLERS – REAR (H0067 (1))665
4+1 MID-MOUNT HYDRAULIC COUPLERS – FRONT (H00610 (1))666
BRACKETS FOR 4+1 MID-MOUNT HYDRAULIC COUPLERS (H00611 (1))667
9+1 MID-MOUNT HYDRAULIC COUPLERS – REAR (H00612 (1))668
9+1 MID-MOUNT HYDRAULIC COUPLERS – REAR (H00613 (1))669
9+1 MID-MOUNT HYDRAULIC COUPLERS – FRONT (H00614 (1))670
9+1 MID-MOUNT HYDRAULIC COUPLERS – FRONT (H00614 (2))671
9+1 MID-MOUNT HYDRAULIC COUPLERS – FRONT (H00615 (1))672
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 6 OIL WAYS – ON / OFF (H00616 (1))673
9+1 MID-MOUNT HYDRAULIC COUPLERS – FRONT (H00617 (1))674
BRACKETS FOR 9+1 MID-MOUNT HYDRAULIC COUPLERS (H00618 (1))675
ENGAGEMENT (098308503/10A)676
ENGAGEMENT (098309503/10A)677
DISTRIBUTOR (237295000A)678
REAR REMOTE CONTROL VALVES679
6-WAY AUXILIARY DISTRIBUTOR (H0072 (1))679
AUXILIARY CONTROL VALVE SYSTEM (H0073 (1))680
HYDRAULIC SYSTEM – FOR 6-WAY CONTROL VALVE (H0075 (1))681
HYDRAULIC SYSTEM – FOR 6-WAY CONTROL VALVE (H0076 (1))682
AUXILIARY CONTROL VALVE SYSTEM WITH 2+1 CENTRAL CONNECTORS (H0077 (1))683
AUXILIARY CONTROL VALVE SYSTEM WITH 4+1 CENTRAL CONNECTORS (H0078 (1))684
AUXILIARY CONTROL VALVE SYSTEM WITH 9+1 CENTRAL CONNECTORS (H0079 (1))685
ENGAGEMENT (098309503/10A)686
HYDRAULIC DISTRIBUTOR-PARTS (237197400/20A)687
BRAKING SYSTEM AND PNEUMATIC SYSTEM|689
FLOW CONTROL VALVE (H0090 (1))689
BRAKES CONTROL VALVE (H0091 (1))690
BRAKING SYSTEM (H0092 (1))691
BRAKE PIPES (H0096 (1))692
BRAKE PIPES (H0096 (2))693
HYDRAULIC BREAKING FOR TRAILER (H0097 (1))694
HYDRAULIC BREAKING FOR TRAILER (H0098 (1))695
BRAKING SYSTEM (H0099 (1))696
REAR GEARBOX OIL FILLER (H00910 (1))697
SYSTEM FROM HYDRAULIC PUMP TO HYDRAULIC BRAKES (H00911 (1))698
HYDRAULIC TRAILER BRAKING SYSTEM (H00912 (1))699
HYDRAULIC TRAILER BRAKING SYSTEM (H00913 (1))700
TRAILER BRAKE VALVE (237195500/50A)701
VALVE PARTS (237198100/20A)702
ELECTROHYDRAULICS703
OIL FLOW CONTROL VALVE CASING (H0100 (1))703
OIL FLOW CONTROL VALVE CASING (H0100 (2))704
SOLENOID VALVE – 4WD (H0101 (1))705
HYDRAULIC SHUTTLE CONTROL AND LUBRICATION (H0103 (1))706
BYPASS VALVE ASSEMBLY (H0104 (1))707
BYPASS VALVE ASSEMBLY (H0105 (1))708
SOLENOID VALVE ASSEMBLY FOR 3-POINT LINKAGE CONTROL (H0106 (1))709
SOLENOID VALVE (237293300/50A)710
SOLENOID VALVE (237293400/50A)711
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/10A)712
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/20A)713
SOLENOID VALVE (237296980/10A)714
Rear_axle715
Index715
Agroplus S 90 (20”) -> 8001716
E0 – REAR AXLE716
REAR AXLE716
REAR AXLE (E0010 (1))716
REAR AXLE CROWN WHEEL (E0013 (1))717
REAR AXLE – MOUNTINGS (E0015 (1))718
REAR DIFFERENTIAL / HALF-SHAFTS719
DIFFERENTIAL (E0020 (1))719
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (E0021 (1))720
REAR REDUCTION GEARS AND AXLE SHAFTS (E0022 (1))721
REAR BRAKES722
REAR BRAKES (E0030 (2))722
REAR BRAKES (E0031 (1))723
Rear_lift724
Index724
Agroplus S 90 (20”) -> 8001725
R0 – REAR LIFT725
LIFT COVER725
POWER-LIFT CASE (R0010 (1))725
LIFT FIXING COMPONENTS (R0011 (1))726
LIFT FIXING COMPONENTS (R0013 (1))727
PLUG (R0014 (1))728
LIFT ASSEMBLY729
LIFTING (R0020 (1))729
LIFTING (R0021 (1))730
LIFT CONTROL VALVE731
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (R0030 (1))731
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (R0031 (1))733
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (R0032 (1))735
DISTRIBUTOR PARTS (237293200A)736
IN-CAB CONTROLS737
INTERNAL CONTROLS (R0040 (1))737
SENSOR738
SENSITIVE ELEMENTS (R0050 (1))738
SENSING ELEMENTS WITH ELECTRONIC CONTROL (R0051 (1))739
THREE-POINT LINKAGE – LINK ARMS740
LIFT ARMS TO GEARBOX LOCK PINS (R0060 (1))740
LIFT ARMS TO GEARBOX LOCK PINS (R0062 (1))741
REAR BRACKETS ON GEARBOX (R0063 (1))742
3-POINT LINKAGE (R0065 (1))743
THREE-POINT COUPLING – TOP/LOWER LINK (R0066 (1))744
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R0067 (2))745
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R0068 (1))746
3-POINT LINKAGE (R0069 (1))747
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD (R00610 (1))748
3-POINT HITCH WITH HYDRAULIC LIFT ROD (R00611 (2))749
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (R00612 (1))750
HYDRAULIC CYLINDERS (R00613 (1))751
TOWING BAR (R00614 (1))752
TOWING HITCH (001017023A)753
CYLINDER PARTS (001149044A)754
LINKAGE (001414123A)755
TOWING HITCH (001414203A)756
CYLINDER PARTS (237490030A)757
Transmission758
Index758
Agroplus S 90 (20”) -> 8001761
D0 – TRANSMISSION761
HYDRAULIC SHUTTLE ASSEMBLY761
HYDRAULIC SHUTTLE (D0030 (1))761
HML – HI-LO – SHML763
H-M-L UNIT (D0040 (1))763
H-M-L UNIT (D0041 (1))765
GEARBOX INPUT SHAFT766
FLEXIBLE COUPLINGS (D0050 (1))766
GEARBOX INPUT SHAFT (D0051 (1))767
5-SPEED GEARBOX INPUT SHAFT (D0052 (1))768
5-SPEED GEARBOX INPUT SHAFT WITH UNDERDRIVE (D0053 (1))769
SYNCHRONISERS (D0055 (1))770
SYNCHRONIZER PARTS (000776204/10A)771
PTO INPUT SHAFT772
PTO – CLUTCH TRANSMISSION SHAFT (D0060 (1))772
MAIN SHAFT773
5-SPEED GEARBOX PRIMARY SHAFT (D0070 (1))773
5-SPEED GEARBOX PRIMARY SHAFT WITH UNDERDRIVE (D0071 (1))774
SECONDARY SHAFT775
TRANSMISSION SHAFT – FOR TYPES WITHOUT H-M-L (POWERSHIFT) (D0080 (1))775
H-M-L GEARBOX SECONDARY SHAFT (D0081 (1))776
5-SPEED GEARBOX SECONDARY SHAFT (D0082 (1))777
5-SPEED GEARBOX SECONDARY SHAFT WITH UNDERDRIVE (D0083 (1))778
SYNCHRONISERS (D0085 (1))779
SYNCHRONISERS (D0086 (1))780
SYNCHRONIZER PARTS (000776204/10A)781
SYNCHRONIZER PARTS (000776214A)782
GEARBOX783
GEARBOX FRONT- FIXINGS (D0090 (1))783
GEARBOX (D0091 (1))784
GEARBOX (D0092 (2))785
GEARBOX REAR (D0093 (2))786
BEARING FLANGE (D0094 (1))787
GEARBOX UPPER COVER (D0095 (1))788
GEARBOX UPPER COVER (D0096 (1))789
COVER AND PLUG FOR GEARBOX WITH H-M-L (D0097 (1))790
GEARBOX UPPER COVER (D0098 (1))791
REAR GEARBOX PLUG (D00910 (1))792
PLUG FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D00913 (1))793
REAR GEARBOX PLUG (D00914 (1))794
PLUGS FOR GEARBOX (D00915 (1))795
SENSOR BRACKET (D00916 (1))796
INTERNAL AND EXTERNAL GEARBOX CONTROLS797
INTERNAL CONTROLS OF 5-SPEED GEARBOX WITH UNDERDRIVE (D0100 (2))797
5-SPEED GEARBOX INTERNAL CONTROLS (D0102 (2))798
GEARBOX CONTROL ROD (D0103 (1))799
GEARBOX CONTROL ROD (D0103 (2))800
GEAR SHIFTING (D0104 (1))801
DRIVE INTERMEDIATE GEARS (D0105 (1))802
REDUCTION GEAR CONTROL (D0106 (1))803
SPEED RANGE REDUCTION GEAR UNIT (D0107 (1))804
CONTROL FOR 3-RANGE GEARBOX (D0108 (1))805
LOW SPEED RANGES806
BEVEL WHEEL GEAR Z = 10 / Z = 34 (D0110 (1))806
BEVEL DRIVE PINION BEARING (D0111 (1))807
SPEED RANGE REDUCTION GEAR SHAFT (D0112 (1))808
SPEED RANGE REDUCTION GEAR UNIT (D0113 (1))809
3-RANGE BOX (D0114 (1))810
PHONIC WHEEL FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D0118 (1))811
HYDRAULIC REAR PTO CLUTCH812
PTO – HYDRAULIC CLUTCH (D0120 (2))812
PTO – HYDRAULIC CLUTCH (001196864/40A)813
PTO – HYDRAULIC CLUTCH (001196864/40B)814
HYDRAULIC PUMP DRIVE815
PTO – PUMP CONTROL (D0130 (2))815
PTO/GROUNDPSPEED DRIVE816
BEARINGS OF – 2-SPEED PTO (D0141 (1))816
PTO – 540/N – WITH INSERTED END SHAFTS (D0142 (1))817
PTO – 540/N – WITH INSERTED END SHAFTS (D0143 (1))818
PTO – 540/N – WITH FIXED OUTPUT SHAFT (D0144 (1))819
PTO – 540/N – WITH FIXED OUTPUT SHAFT (D0144 (2))820
CONTROL LEVER PTO (D0145 (1))821
PTO – 3 SPEED TYPE 540-750-1000 (D01412 (1))822
PTO – 3 SPEED TYPE – FIXED END SHAFT (D01414 (1))823
PTO – PARTS SET WITH STANDARD SEALS (D01416 (1))824
PTO – 2 SPEED TYPE 540-750 (D01418 (1))825
2-SPEED – PTO WITH FIXED OUTPUT SHAFT 540-750 (D01419 (1))826
2-SPEED – PTO WITH FIXED OUTPUT SHAFT 540-750 (D01419 (2))827
PTO – 2-SPEED WITH INSERTED END SHAFT 540-750 (D01420 (1))828
PTO – 2-SPEED WITH INSERTED END SHAFT 540-750 (D01421 (1))829
PTO SHAFT 540 – 750 + SYNCRO (D01422 (1))830
PTO SHAFT 540 – 750 + SYNCRO (D01423 (1))831
PTO WITH FIXED OUTPUT SHAFT – 2 SPEEDS + SINCRO AND 3 SPEEDS (D01424 (1))832
PTO WITH FIXED OUTPUT SHAFT – 2 SPEEDS + SINCRO AND 3 SPEEDS (D01424 (2))833
REAR PTO COVER WITH STANDARD SEAL (D01425 (1))834
PTO WITH INSERTED END SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (D01426 (1))835
PTO – SYNCHRONIZED CONTROL (D01427 (1))836
3-SPEED PTO WITH FIXED OUTPUT SHAFT 540-750-1000 (D01428 (1))837
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D01429 (1))838
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D01430 (1))839
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D01431 (1))840
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D01432 (1))841
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D01432 (2))842
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D01433 (1))843
GUARD PLATE PTO (D01434 (1))844
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE845
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (D0151 (1))845
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (D0152 (1))846
HAND BRAKE (D0153 (2))847
Wheels848
Index848
Agroplus S 90 (20”) -> 8001849
S0 – WHEELS849
FRONT WHEEL BOLTS849
FRONT WHEEL MOUNTING (S0011 (1))849
REAR WHEEL BOLTS850
REAR WHEEL BOLTS (S0020 (1))850
REAR WHEEL BOLTS (S0021 (1))851
SPACER FOR REAR WHEEL RIMS (S0022 (1))852
WHEELS853
WHEELS 27×105-15″ (S0040 (1))853
WHEELS 280/60 R155″ (S0041 (1))854
WHEELS 650 R16″ PR 8 (S0042 (1))855
WHEELS 240/70 R16″ (S0044 (1))856
WHEELS 240/70 R16″ (S0045 (1))857
WHEELS 41×1400-20″ (S00411 (1))858
WHEELS 380/70 R20″ A8 (S00412 (1))859
WHEELS 280/85R24″(112R24″) (S00413 (1))860
WHEELS 320/70 R24″ A8 (S00414 (1))861
WHEELS 360/60 R24″ (S00416 (1))862

Contact us: [email protected]

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.M
