Deutz Fahr Agrotrac 125 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrotrac 125 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrotrac 125 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 459
Downloadable : Yes
File Type : PDF
Size: 19.6 MB

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Deutz Fahr Agrotrac 125 Parts Catalog Manual – PDF DOWNLOAD

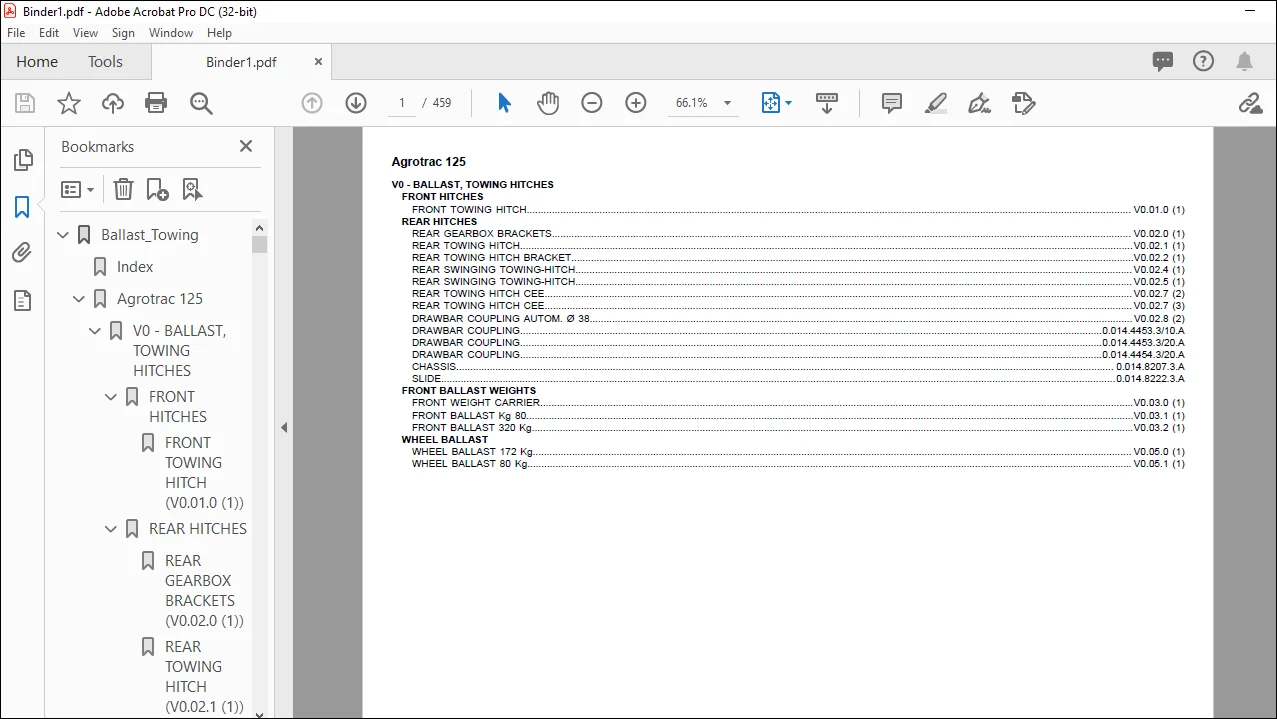

Ballast_Towing 1
Index 1
Agrotrac 125 2
V0 – BALLAST, TOWING HITCHES 2
FRONT HITCHES 2
FRONT TOWING HITCH (V0010 (1)) 2
REAR HITCHES 3
REAR GEARBOX BRACKETS (V0020 (1)) 3
REAR TOWING HITCH (V0021 (1)) 4
REAR TOWING HITCH BRACKET (V0022 (1)) 5
REAR SWINGING TOWING-HITCH (V0024 (1)) 6
REAR SWINGING TOWING-HITCH (V0025 (1)) 7
REAR TOWING HITCH CEE (V0027 (2)) 8
REAR TOWING HITCH CEE (V0027 (3)) 9
DRAWBAR COUPLING AUTOM Ø 38 (V0028 (2)) 10
DRAWBAR COUPLING (001444533/10A) 11
DRAWBAR COUPLING (001444533/20A) 12
DRAWBAR COUPLING (001444543/20A) 13

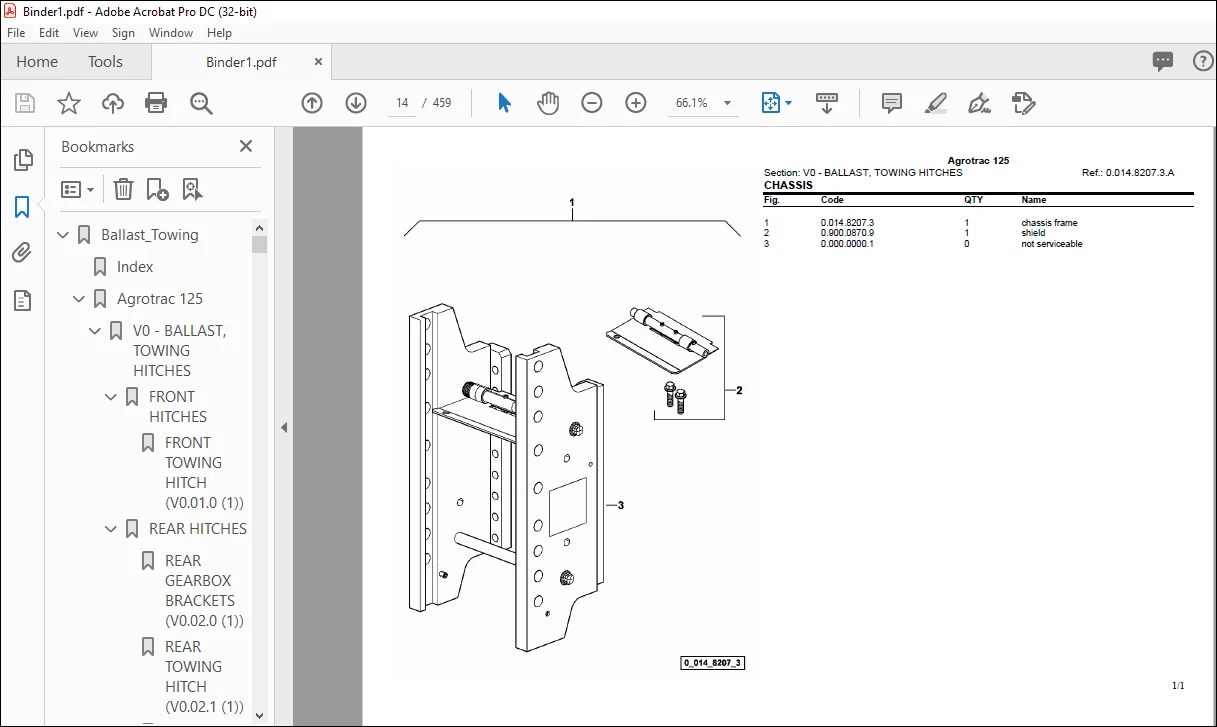

CHASSIS (001482073A) 14
SLIDE (001482223A) 15
FRONT BALLAST WEIGHTS 16
FRONT WEIGHT CARRIER (V0030 (1)) 16
FRONT BALLAST Kg 80 (V0031 (1)) 17
FRONT BALLAST 320 Kg (V0032 (1)) 18
WHEEL BALLAST 19
WHEEL BALLAST 172 Kg (V0050 (1)) 19
WHEEL BALLAST 80 Kg (V0051 (1)) 20
Bodywork_Cab 21
Index 21
Agrotrac 125 26
G0 – BODYWORK – CAB 26
HOOD – SIDE PANELS – SUPPORTS 26
BONNET – TOP PORTION (G0012 (1)) 26
BONNET – FRONT PORTION (G0015 (1)) 27
HOOD – RIGHT SIDE PANEL (G00110 (1)) 28
HOOD – LEFT SIDE PANEL (G00111 (1)) 29
HOOD – SUPPORTS (G00112 (2)) 30
BONNET – VARIOUS DETAILS (G00113 (2)) 31
CABLE CONDUIT (G00114 (1)) 32
CABLE CONDUIT (G00115 (1)) 33
AIR DUCT WALL (G00116 (1)) 34
BELT GUARDS (G00118 (1)) 35
BELT GUARDS (G00119 (1)) 36
BATTERY SUPPORT (G00120 (1)) 37
LETTERING 38
MODEL PLATE – DX/RH/RE (G0028 (1)) 38
MODEL PLATE – SX/LH/LI (G0029 (1)) 39
PRODUCT PLATE – FRONT (G00215 (1)) 40
BADGE FOR SPLASH GUARDS (G00216 (1)) 41
PRODUCT PLATE (G00219 (1)) 42
SPEED DATA IDENTIFICATION PLATES – COMMON GEAR SHIFT (G00221 (1)) 43
SPEED DATA IDENTIFICATION PLATES FOR TYPES WITH MINI-CREEPER (G00224 (1)) 44
HANDBRAKE DATA PLATE (G00225 (1)) 45
PTO DATA PLATE (G00226 (1)) 46
SIGN SET (G00227 (2)) 47
WARNING PLATES (G00228 (1)) 48
WARNING PLATES (G00228 (2)) 49
WARNING PLATES (G00228 (3)) 50
WATER COOLER IDENTIFICATION PLATE (G00229 (1)) 51
WARNING SIGNS ON WATER RADIATOR (G00230 (1)) 52
REAR LIFT MOVEMENT WARNING LABEL (G00237 (1)) 53
REAR LIFT MOVEMENT WARNING LABEL (G00238 (1)) 54
DIFFERENTIAL LOCK IDENTIFICATION PLATE (G00244 (1)) 55
IDENTIFICATION PLATE (G00246 (1)) 56
VENTILATION CONTROL IDENTIFICATION PLATE (G00247 (1)) 57
VENTILATION AND CONDITIONING CONTROL IDENTIFICATION PLATE (G00248 (1)) 58
HEATER DATA PLATE (G00249 (1)) 59
SHUTTLE AND CREEPER LEVER KNOB CAP (G00250 (1)) 60
SHUTTLE AND CREEPER KNOB COVER (G00251 (1)) 61
GEAR CONTROL KNOB AND REDUCTION GEAR CONTROL KNOB COVERS (G00252 (1)) 62
4WD ENGAGMENT KNOB IDENTIFICATION PLATE (G00253 (1)) 63
REAR LIFT GROUND CONTROL COVER (G00254 (1)) 64
DRAWBAR IDENTIFICATION PLATE (G00255 (1)) 65
CAB STRUCTURE – PLATFORM -SUSPENSION 66
PLATFORM (G0034 (1)) 66
PLATFORM SUPPORTS (G0036 (2)) 67
AIR DUCT WALL (G0038 (1)) 68
GRAB HANDLE (G0039 (1)) 69
CAB METAL STRUCTURES (G00310 (1)) 70
GRAB HANDLE (G00311 (1)) 71
AIR DUCT WALL (G00312 (1)) 72
PEDAL SUPPORT (G00313 (1)) 73
FENDERS – FOOTSTEPS – EXTENSIONS 74
4WD – FRONT MUDGUARDS mm 410 (G0040 (1)) 74
4WD – FRONT MUDGUARDS mm 470 (G0041 (1)) 75
REAR MUDGUARDS (G0045 (1)) 76
REAR MUDGUARDS AND EXTENSIONS (G00410 (1)) 77
EXTENSION FOR WING (G00412 (1)) 79
DOORS – WINDOWS – WIPERS 80
WINDSCREEN (G0050 (1)) 80
SIDE WINDOW GLASS AND SEALS (G0051 (1)) 81
GRAB HANDLE (G0052 (1)) 82
REAR WINDOW (G0053 (1)) 83
GLASSES AND SEALS (G0054 (1)) 84
SCREEN WIPER IN THE FRONT WINDSCREEN (G0055 (1)) 85
FRONT SCREEN WASH SYSTEM (G0056 (1)) 86
SCREEN WASH RESERVOIR (G0057 (1)) 87
WINDSCREEN WIPER PARTS (092335814/30A) 88
WATER TANK (092345584/10A) 89
INTERIOR TRIM 90
DASHBOARD CONSOLE (G0060 (1)) 90
DASHBOARD CONSOLE (G0061 (1)) 91
INSTRUMENT PANEL PLUG (G0062 (1)) 92
DASHBOARD (G0063 (1)) 93
INSTRUMENT PANEL SURROUND (G0066 (1)) 94
STEERING COLUMN SHROUD (G0067 (1)) 95
LEFT TRIM AND SECOND DRIVER HANDLE (G0068 (1)) 96
LH LINING (G0069 (1)) 97
CONTROL CONSOLE RIGHT (G00610 (1)) 98
CONTROL CONSOLE RIGHT (G00613 (1)) 99
CONVEYOR (G00614 (1))100
INTERNAL CAB LININGS (G00615 (1))101
INTERNAL CAB LININGS (G00616 (1))102
INTERNAL CAB LININGS (G00617 (1))104
CAB UNDER ROOF RECESSES (G00618 (1))105
OUTLETS FOR HEATING SYSTEM (G00619 (1))106
SOUND/HEAT INSULATION PANEL FOR CAB (G00620 (1))107
HEAT INSULATION PANEL FOR CAB (G00621 (1))108
RADIO FASCIA (G00622 (1))109
RADIO FASCIA WITH TIMER (G00623 (1))110
BRACKET RADIO (G00624 (1))111
EXTERIOR TRIM – ROOF112
ROOF WITH SKYLIGHT (G0070 (1))112
SUN GUARD ROOF (G0071 (1))113
AIR DUCTING HOOD (G0072 (1))114
REARVIEW MIRRORS (G0073 (1))115
REARVIEW MIRROR (G0074 (1))116
REARVIEW MIRROR (000761004/10A)117
REARVIEW MIRROR (000975474/20A)118
REARVIEW MIRROR (092341474/10A)119
REARVIEW MIRROR (092341484/10A)120
SEATS121
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION – IN FABRIC GRAMMER MSG85/721 (G0081 (1))121
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION – IN PVC GRAMMER MSG85/721 (G0082 (2))122
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION – IN PVC GRAMMER MSG85/721 (G0082 (3))123
SAFETY BELT (G0083 (1))124
SEAT MOUNTING (G0084 (1))125
DRIVER’S SEAT (G0085 (1))126
SEAT FOR 2ND OPERATOR (G0086 (1))127
SEAT FOR 2ND OPERATOR (G0087 (1))128
DRIVER’S SEAT MSG 85/721 (000937624/30A)129
DRIVER’S SEAT MSG 85/721 (000937624/30B)130
SEAT SPRINGING (001053564A)131
SEAT-COMPONENTS (001053594/10A)132
SEAT-COMPONENTS (001449474A)133
SEAT-COMPONENTS (001449474B)134
DRIVER’S SEAT (001449474/10A)135
DRIVER’S SEAT (001449474/10B)137
HEATING AND AIR CONDITIONING138
UNDER ROOF VENTILATION UNIT (G0090 (1))138
VENTILATION – AIR CONDITIONING (G0091 (1))139
AIR CONDITIONING (G0092 (1))140
COMPRESSOR SUPPORT (G0093 (1))141
HEATING SYSTEM (G0094 (1))142
PIPES FOR HEATING SYSTEM (G0095 (1))143
HEATING CONTROL (G0096 (1))144
FAN PARTS (000768404/20A)145
COMPRESSOR-PARTS (000976604A)146
SPIN-ON FILTER (001060244A)147
FAN PARTS (001175094A)148
HEATER PARTS (098708514/40A)149
MECHANICAL CLUTCH CONTROLS150

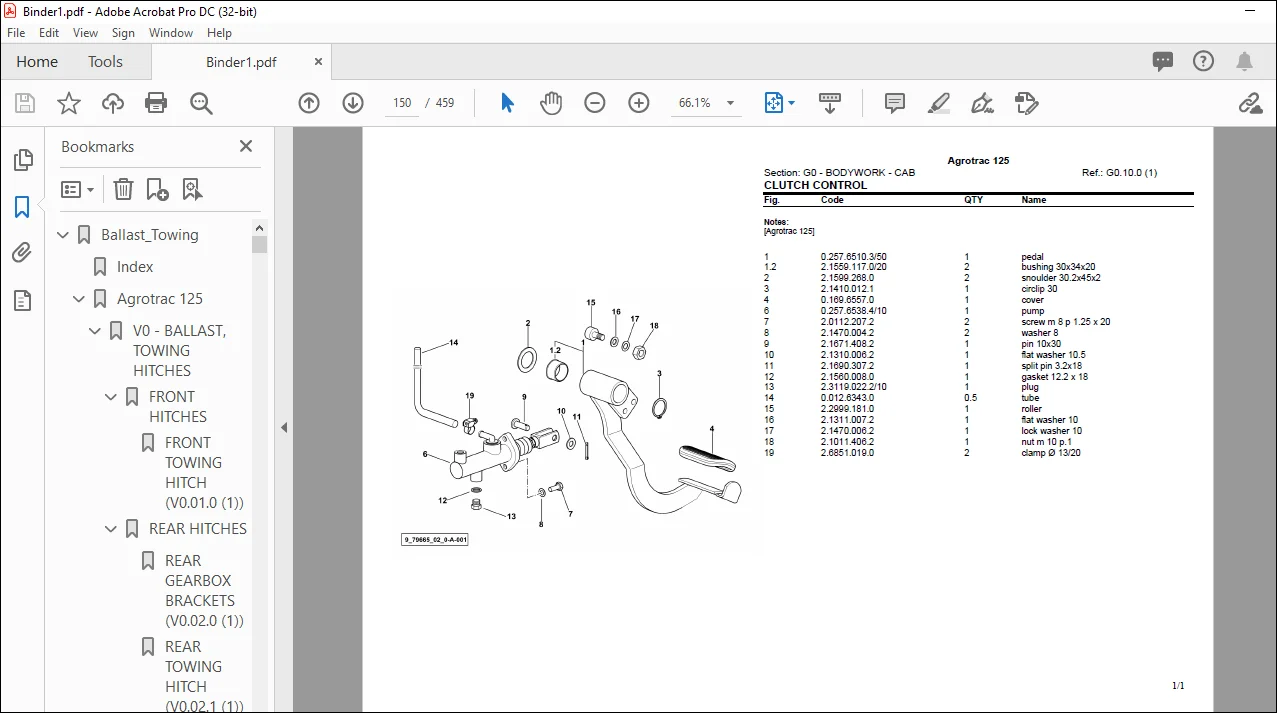

CLUTCH CONTROL (G0100 (1))150
CLUTCH CONTROL (G0101 (1))151
CLUTCH CONTROL (G0103 (1))152
BRACKETS FOR CLUTCH CYLINDER (G0105 (1))153
CYLINDER PARTS (025765374/40A)154
MECHANICAL BRAKE CONTROLS155
BRAKE CONTROLS (G0110 (1))155
BRAKE CYLINDER (G0111 (1))156
HAND BRAKE (G0113 (1))157
STOP FOR HAND BRAKE TIE ROD (G0114 (1))158
MECHANICAL – ELECTRONIC THROTTLE CONTROLS159
THROTTLE (G0120 (1))159
THROTTLE (G0121 (1))160
STEERING CONTROLS161
STEERING WHEEL (G0132 (1))161
STEERING COLUMN (G0133 (1))162
MECHANICAL GEARSHIFT CONTROLS163
TRANSMISSION CONTROL LEVERS (G0140 (1))163
4WD – DIFFERENTIAL LOCK CONTROLS164
4WD – ENGAGEMENT CONTROL (G0150 (1))164
REAR DIFFERENTIAL LOCK CONTROL (G0151 (1))165
DIFFERENTIAL LOCK HOLDER (G0152 (1))166
FRONT DIFFERENTIAL LOCK CONTROL (G0153 (1))167
PTO CONTROLS168
PTO SHAFT DRIVE (G0160 (1))168
PTO – EXTERNAL CONTROLS (G0161 (1))169
LIFT CONTROLS170
REAR LIFT CONTROL LEVERS (G0170 (1))170
REAR LIFT CONTROL (G0171 (1))171
REAR LIFT CONTROL TIERODS (G0172 (1))172
SAC GROUND CONTROL (G0173 (1))173
REMOTE VALVE CONTROLS174
DISTRIBUTOR CONTROL (G0180 (1))174
DISTRIBUTOR CONTROL (G0181 (1))175
CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (G0182 (1))176
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0183 (1))177
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0184 (1))178
ACCESSORIES179
SUN BLIND FRONT WINDSCREEN (G0190 (1))179
LICENCE PLATE HOLDER (G0191 (1))180
METAL TOOLBOX (G0192 (1))181
LUBRICATOR (G0194 (1))182
SAFETY ROLL BAR183
SAFETY ARCH (G0200 (1))183
Electrical_system184
Index184
Agrotrac 125186
L0 – ELECTRIC AL SYSTEM186
BATTERY – ALTERNATOR186
BATTERY 12V 120Ah 520A (L0010 (1))186
BATTERY 12V 180Ah 800A (L0011 (1))187
ALTERNATOR 85A (L0012 (1))188
ALTERNATOR AND PULLEY SUPPORTS (L0013 (1))189
ALTERNATOR 85A (L0014 (1))190
ALTERNATOR MOUNTINGS (L0015 (1))191
ALTERNATOR PARTS (294394600/10A)192
WIRING LOOMS193
ELECTRICAL EQUIPMENT FRONT – BATTERY LEADS (L0020 (2))193
CENTRAL WIRING LOOM (L0021 (1))194
CENTRAL WIRING LOOM (L0021 (2))195
ELECTRICAL EQUIPMENT REAR (L0022 (1))196
ELECTRICAL SYSTEM – FOR FUEL PREFILTER (L0023 (1))197
WIRING FOR OIL FILTER PRESSURE SWITCHES (L0024 (1))198
PREHEATING WIRING LOOM (L0025 (1))199
WIRING FOR CONDITIONING (L0026 (1))200
WIRING FOR CONDITIONING (L0027 (1))201
ELECTRIC WIRING FOR HEATER (L0028 (1))202
WIRING FOR HEADLIGHTS (L0029 (1))203
WORK LIGHT WIRING (L00210 (1))204
CABLE HARNESS LICENCE PLATE LIGHT (L00211 (1))205
2-POLE SOCKET – LIGHTS FLASHER RELAY (L00212 (1))206
WIRING FOR WINDSCREEN WIPER MOTOR (L00213 (1))207
WINDSCREEN WIPER PUMP WIRING (L00214 (1))208
DIGITAL CLOCK WIRING (L00215 (1))209
CENTRAL WIRING LOOM (000805404/20A)210
CENTRAL WIRING LOOM (000805404/30A)211
ELECTRICAL SYSTEM (000805483A)212
ELECTRICAL SYSTEM – FOR FUEL PREFILTER (001562204A)213
POWER OUTLET SOCKET (260320110A)214
SENSORS – POTENTIOMETERS – ENABLING SWITCHES215
COOLING SYSTEM MANIFOLD SENSOR (L0040 (1))215
ENGINE OIL PRESSURE SWITCH (L0042 (1))216
OIL FILTER CLOGGING SENSOR (L0043 (1))217
OIL FILTER CLOGGING SENSOR (L0044 (1))218
OIL FILTER CLOGGING SENSOR PTO (L0045 (1))219
PRESSURE SWITCH FOR AIR CLEANER CLOGGED WARNING LIGHT (L0046 (1))220
START ENABLE SWITCH (L0047 (1))221
PRESSURE SWITCH FOR BRAKE LIGHTS (L0048 (1))222
DIFFERENTIAL LOCK SWITCH (L0049 (1))223
4WD CONTROL SWITCH (L00410 (1))224
REAR WIRING SEALED SWITCH (L00411 (1))225
INSTRUMENT PANEL226
INSTRUMENTATION (L0050 (1))226
TANK INDICATOR (L0051 (1))227
ELECTRIC REV-HOUR RECORDER TACHOMETER (270499910/10A)228
TANK INDICATOR (270594100A)229
TEMPERTRANSMITTER (270690900A)230
ELECTRICAL CONTROLS – PUSHBUTTONS231
ELECTRICAL SYSTEM – STEERING COLUMN SWITCH UNIT (L0070 (1))231
ELECTRICAL SYSTEM – STEERING COLUMN SWITCH UNIT (L0071 (1))232
SWITCHES FOR WORKLIGHTS AND EMERGENCY LIGHTS (L0072 (1))233
SWITCHES FOR WORKLIGHTS AND EMERGENCY LIGHTS (L0072 (2))234
SWITCH FOR ELECTRIC FAN (L0073 (1))235
SWITCHING BLOCK PARTS (000813424/10A)236
STEERING COLUMN SWITCH UNIT (001160194A)237
LIGHTING AND SIGNALLING238
HEADLAMP FOR RIGHT-HAND DRIVE (L0080 (1))238
HEADLAMP FOR LEFT-HAND DRIVE (L0081 (1))239
FRONT PARKING AND INDICATOR LIGHT (L0082 (1))240
REAR LIGHT (L0083 (1))241
WORKING SPOTLIGHT FRONT/REAR (L0084 (1))242
DIRECTABLE REAR LIGHT (L0085 (1))243
LICENCE PLATE LIGHT (L0086 (1))244
RETROREFLECTOR (L0087 (1))245
COURTESY LIGHT (L0089 (1))246
HORN (L00810 (2))247
HEADLAMP COMPONENTS (280199600A)248
HEADLAMP COMPONENTS (280199700A)249
HEADLAMP COMPONENTS (280199800/20A)250
HEADLAMP COMPONENTS (280199900/20A)251
HEADLAMP COMPONENTS (280292400/10A)252
HEADLAMP COMPONENTS (280294200/30A)253
HEADLAMP COMPONENTS (280296900A)254
ACCESSORIES255
DIGITAL CLOCK (L0090 (1))255
Engine256
Index256
Agrotrac 125258
B0 – ENGINE258
CYLINDER BLOCK258
CRANKCASE (B0010 (1))258
MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (B0012 (1))259
ENGINE LIFTING BRACKET (B0013 (1))260
CRANKSHAFT261
CRANKSHAFT PULLEY (B0020 (1))261
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0021 (1))262
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0022 (1))263
CRANKSHAFT (B0023 (1))264
ENGINE FLYWHEEL (B0024 (1))265
CYLINDERS – PISTONS – CONNECTING RODS266
CYLINDER – PISTON – CONNECTING ROD (B0030 (1))266
TIMING267
GUARD PLATE (B0040 (1))267
TIMING CASE (B0041 (1))268
CASING COVER (B0042 (1))269
CAMSHAFT (B0043 (1))270
CYLINDER HEAD271
CYLINDER HEAD (B0050 (1))271
LUBRICATION272
LUBRICATION (B0060 (1))272
BLEEDING TUBE (B0061 (1))273
BLEEDING TUBE (B0062 (1))274
OIL FILTERS (B0063 (1))275
LUBRICATION (B0064 (1))276
ENGINE OIL PAN (B0065 (1))277
LUBRICATION (B0067 (1))278
OIL PIPES FOR TURBOCHARGER (B0068 (1))279
OIL PUMP (001001944/30A)280
FUEL INJECTION SYSTEM281
INJECTION PUMP – INJECTOR (B0070 (1))281
INJECTION PUMP DRIVE (B0072 (1))282
INJECTION PUMP PROTECTIONS (B0073 (1))283
INJECTION PUMP PROTECTIONS (B0074 (1))284
INJECTION PUMP PARTS – 555 – BOSCH (246190300/30A)285
INJECTOR NOZZLE HOLDER COMPONENTS (247191900A)286
MECHANICAL – ELECTRONIC GOVERNOR287
MECHANICAL ENGINE GOVERNOR CONTROL (B0080 (1))287
MECHANICAL ENGINE GOVERNOR (B0081 (1))288
PLUG FOR MECHANICAL REGULATOR (B0082 (1))289
CONTROLLER (008616504/80A)290
CONTROLLER (008616504/80B)292
COOLING293
COOLING SYSTEM MANIFOLD (B0090 (1))293
WATER PUMP – PULLEY – HOSES (B0092 (1))294
HEAT EXCHANGER (B0094 (1))295
INTAKE – EXHAUST MANIFOLDS296
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (B0100 (1))296
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (B0100 (2))297
TURBOCHARGER298
TURBOCHARGER (B0110 (1))298
Engine_accessories299
Index299
Agrotrac 125300
C0 – ENGINE ACCESSORIES300
INTERCOOLER – AIR CLEANER300
AIR CLEANER (C0022 (1))300
AIR PRE-CLEANER (C0023 (1))301
PRE-FILTER – COMPONENTS (242391600A)302
AIR FILTER PARTS (242493800A)303
FUEL SYSTEM304
FUEL TANK (C0030 (2))304
FUEL TANK SUPPORT (C0031 (1))305
FUEL TANK SUPPORT (C0032 (1))306
FUEL TANK DOUBLE (C0033 (2))307
FUEL TANK SUPPORT DOUBLE (C0034 (2))308
FUEL SUPPLY PUMP (C0038 (1))309
FUEL FILTER (C0039 (1))310
FUEL FILTER (C0039 (2))311
PRE-FILTER SUPPLY PIPE (C00310 (1))312
FUEL FILTER (C00311 (1))313
FUEL FILTER (C00311 (2))314
FUEL PRELIMINARY FILTER (C00312 (1))315
FUEL PIPES (C00313 (1))316
FUEL FILTER (04454769A)317
FUEL FILTER PARTS (243191800A)318
PRE-FILTER – COMPONENTS (243192200A)319
FUEL PUMP PARTS (245193100A)320
PREHEATING321
THERMO STARTER (C0040 (1))321
STARTER MOTOR322
STARTER (C0050 (1))322
STARTER MOTOR COVER (C0051 (1))323
STARTER PARTS (296193900A)324
EXHAUST SILENCER325
EXHAUST SILENCER (C0060 (1))325
SEALING SET326
ENGINE GASKET SET (C0090 (1))326
Front_axle327
Index327
Agrotrac 125328
F0 – FRONT AXLE328
FRONT SUPPORT328
FRONT SUPPORT (F0010 (1))328
4WD – FRONT SUPPORT (F0011 (1))329
4WD FRONT AXLE330
4WD – FRONT DRIVE AXLE (F0030 (1))330
BREATHER VALVE (F0031 (1))332
BREATHER VALVE COVER (F0032 (1))333
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (001004894/10A)334
FRONT DIFFERENTIAL335
4WD – FRONT DIFFERENTIAL (F0040 (1))335
4WD – DIFFERENTIAL LOCK CONTROL-FRONT (F0041 (1))336
FORK FLANGE FOR DIFFERENTIAL (F0042 (1))337
4WD – TRANSMISSION SHAFT (F0043 (1))338
STEERING CYLINDER339
4WD – POWER STEERING CYLINDER (F0050 (1))339
CYLINDER PARTS (001040704A)340
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS341
4 WD – FRONT REDUCTION UNIT AND HALFSHAFTS (F0060 (1))341
FRONT WHEEL HUB COVER (F0061 (1))342
4WD – AXLESHAFTS (001288704/10A)343
FRONT BRAKES344
4WD – FRONT BRAKES (F0070 (1))344
Hydraulic_and_pneumatic_system345
Index345
Agrotrac 125346
H0 – HYDRAULIC AND PNEUMATIC SYSTEM|346
HYDRAULIC SYSTEM346
GEARBOX OIL COOLER PIPES (H0010 (1))346
HYDRAULIC PUMP 14 cc dx/rh/re (H0011 (1))347
FILTER SUCTION – STEERING SYSTEM PUMP (H0012 (1))348
FILTER SUCTION – REAR LIFT PUMP (H0013 (1))349
PIPE FROM HYDRAULIC PUMP 225 cc TO REAR LIFT (H0014 (1))350
PRESSURE CONTROL VALVE (H0015 (1))351
HYDRAULIC PUMP PARTS (245299700A)352
HYDRAULIC PUMP PARTS (245299800A)353
HYDRAULIC PUMP PARTS (245393200/10A)354
HYDRAULIC PUMP PARTS (245393300A)355
STEERING SYSTEM356
HYDROSTATIC STEERING CONTROL VALVE (H0020 (1))356
PIPES FOR HYDROSTATIC STEERING (H0021 (1))357
PIPES FOR HYDROSTATIC STEERING (H0022 (2))358
HYDR STEERING DISTRIBUTOR PARTS (026463304A)359
TRANSMISSION – PTO COOLERS360
GEARBOX OIL COOLER (H0030 (1))360
REAR REMOTE CONTROL VALVES361
4-WAY AUXILIARY DISTRIBUTOR (H0070 (1))361
ELEMENTS FOR 6-WAY AUXILIARY SERVICE CONTROL VALVE (H0071 (1))362
ELEMENTS FOR 6-WAY AUXILIARY SERVICE CONTROL VALVE (H0072 (1))363
ENGAGEMENT (098309503/10A)364
DISTRIBUTOR PARTS (237296500/10A)365
DISTRIBUTOR PARTS (237296600A)366
DISTRIBUTOR (237296800A)367
BRAKING SYSTEM AND PNEUMATIC SYSTEM|368
BRAKING SYSTEM (H0090 (1))368
BRAKING SYSTEM (H0091 (1))369
FRONT BRAKING SYSTEM (H0092 (1))370
FRONT BRAKING SYSTEM (H0092 (2))371
HYDRAULIC BREAKING FOR TRAILER (H0093 (1))372
VALVE PARTS (237191600A)373
Rear_axle374
Index374
Agrotrac 125375
E0 – REAR AXLE375
REAR AXLE375
REAR AXLE (E0010 (1))375
REAR AXLE – MOUNTINGS (E0011 (1))376
REAR AXLE CROWN WHEEL (E0012 (1))377
REAR DIFFERENTIAL / HALF-SHAFTS378
REAR DIFFERENTIAL (E0020 (1))378
DIFFERENTIAL LOCK CONTROL (E0022 (1))379
REAR INTERNAL HALF-SHAFT (E0023 (1))380
REAR REDUCTION GEARS AND AXLE SHAFTS (E0024 (1))381
REAR BRAKES382
REAR BRAKE HOUSINGS (E0030 (1))382
REAR BRAKES (E0031 (1))383
REAR BRAKES (E0031 (2))384
Rear_lift385
Index385
Agrotrac 125386
R0 – REAR LIFT386
LIFT ASSEMBLY386
RAISE (R0020 (1))386
SUPPLEMENTARY CYLINDERS (R0021 (1))387
CYLINDER PARTS (091233304/30A)388
LIFT CONTROL VALVE389
REGULATING DISTRIBUTOR (R0030 (1))389
REGULATING DISTRIBUTOR (R0031 (1))391
IN-CAB CONTROLS393
INTERNAL REAR LIFT CONTROLS (R0040 (1))393
INTERNAL AND EXTERNAL CONTROLS (R0041 (1))394
INTERNAL REAR LIFT CONTROLS (R0042 (1))395
EXTERNAL REAR LIFT CONTROLS (R0043 (1))396
SENSOR397
SENSITIVE ELEMENTS (R0050 (1))397
THREE-POINT LINKAGE – LINK ARMS398
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R0060 (2))398
TOWING BAR (R0061 (1))400
TOWING BAR (R0062 (1))401
MANUAL LATERAL STABILIZERS (001052224/60A)402
LINKAGE (001414183A)403
TOWING HITCH cat 3 (001414213A)404
Transmission405
Index405
Agrotrac 125407
D0 – TRANSMISSION407
MAIN CLUTCH407
CLUTCH (D0010 (1))407
PTO INPUT SHAFT408
PTO INPUT SHAFT (D0060 (1))408
MAIN SHAFT409
MAIN SHAFT (D0070 (2))409
MAIN SHAFT (D0071 (1))410
MAIN SHAFT (D0072 (1))411
MAIN SHAFT (D0073 (1))412
SYNCHRONIZER PARTS (001401504/10A)413
SYNCHRONIZER PARTS (001401554/10A)414
SECONDARY SHAFT415
TRANSMISSION SHAFT (D0080 (2))415
SECONDARY SHAFT GEARS (D0081 (1))416
SYNCHRONIZER PARTS (001401504/10A)417
GEARBOX418
GEARBOX FRONT (D0090 (1))418
GEARBOX REAR (D0091 (1))420
GEARBOX UPPER COVER (D0092 (1))421
INTERNAL AND EXTERNAL GEARBOX CONTROLS422
INTERNAL GEARBOX AND REVERSE GEAR CONTROLS (D0100 (1))422
SHUTTLE AND CREEPER CONTROL RODS (D0101 (1))424
SHUTTLE AND CREEPER CONTROL RODS (D0102 (1))425
LOW SPEED RANGES426
BEVEL WHEEL GEAR Z = 10 / Z = 47 (D0110 (1))426
REDUCTION GEAR UNIT (D0112 (2))427
REDUCTION GEAR UNIT (D0112 (3))428
UNDERDRIVE GEARS (D0113 (1))429
CREEPER GEARS (D0114 (1))430
PARTS COMMON TO UNDERDRIVE AND CREEPER (D0115 (1))431
HYDRAULIC REAR PTO CLUTCH432
HYDRAULIC REAR PTO CLUTCH (D0120 (3))432
HYDRAULIC PUMP DRIVE434
HYDRAULIC PUMPS DRIVING GEAR (D0130 (1))434
HYDRAULIC PUMPS DRIVING GEAR (D0131 (1))435
PTO PUMP (D0132 (1))436
PTO/GROUNDPSPEED DRIVE437
REAR PTO FINAL DRIVE (D0140 (1))437
PTO – IN-CAB CONTROLS (D0141 (1))439
PTO SHAFT PROTECTOR REAR (D0142 (1))440
PTO SHAFT PROTECTOR REAR (D0143 (1))441
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE442
FRONT-WHEEL DRIVE ENGAGEMENT (D0150 (1))442
INDEPENDENT HAND BRAKE (D0151 (1))443
REVERSE|444
REVERSE GEAR INTERMEDIATE SHAFT (D0200 (1))444
REVERSE GEAR INTERMEDIATE SHAFT (D0201 (1))445
PARTS ON REVERSE GEAR INTERMEDIATE SHAFT (D0202 (1))446
Wheels447
Index447
Agrotrac 125448
S0 – WHEELS448
FRONT WHEEL BOLTS448
FRONT WHEEL MOUNTING (S0010 (1))448
REAR WHEEL BOLTS449
REAR WHEEL BOLTS (S0020 (1))449
WHEELS450
WHEELS 169R-28″ a8 (S0041 (1))450
WHEELS 380/85R28″(149R28″) (S0042 (2))451
WHEELS 420/70 R28″ A8 (S0043 (2))452
WHEELS 169R30″-137A8 (S0045 (1))453
TYRES 169-30″ PR 14 (S0046 (1))454
WHEELS 169R38″ A8 (S00412 (2))455
WHEELS 184R-38″ a8 (S00413 (1))456
WHEELS 208R38″ a8 (S00415 (1))457
WHEELS 208-38″ PR 14 (S00416 (1))458
WHEELS 480/70R-38″ a8 (S00417 (2))459

Need help? Contact: [email protected]

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
