Deutz Fahr Agrotron 120 Parts Manual 8164 1201 – PDF
$37.95
Deutz Fahr Agrotron 120 Parts Manual 8164 1201 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Deutz Fahr Agrotron 120 Parts Manual 8164 1201 – PDF DOWNLOAD
FILE DETAILS:
Deutz Fahr Agrotron 120 Parts Manual 8164 1201 – PDF DOWNLOAD
Language : English
Pages : 1551
Downloadable : Yes
File Type : PDF

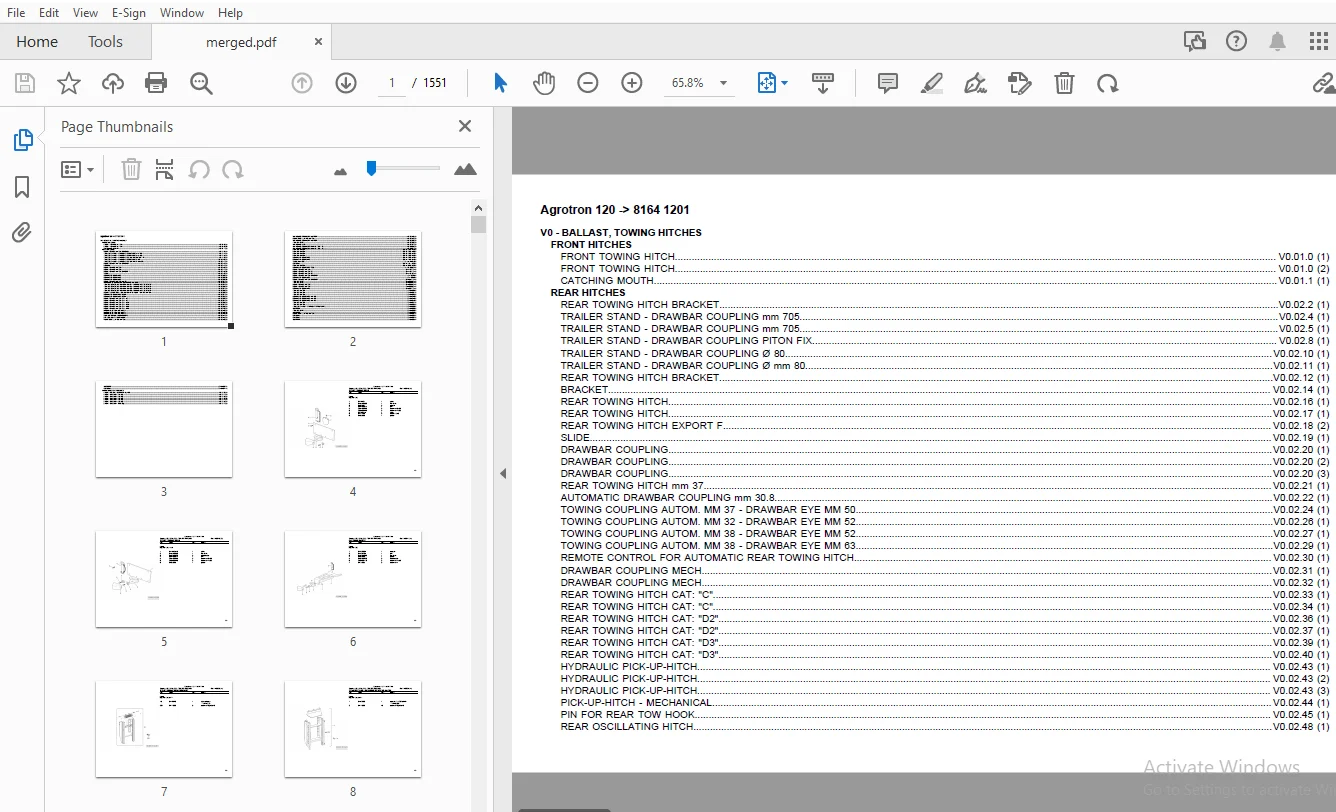

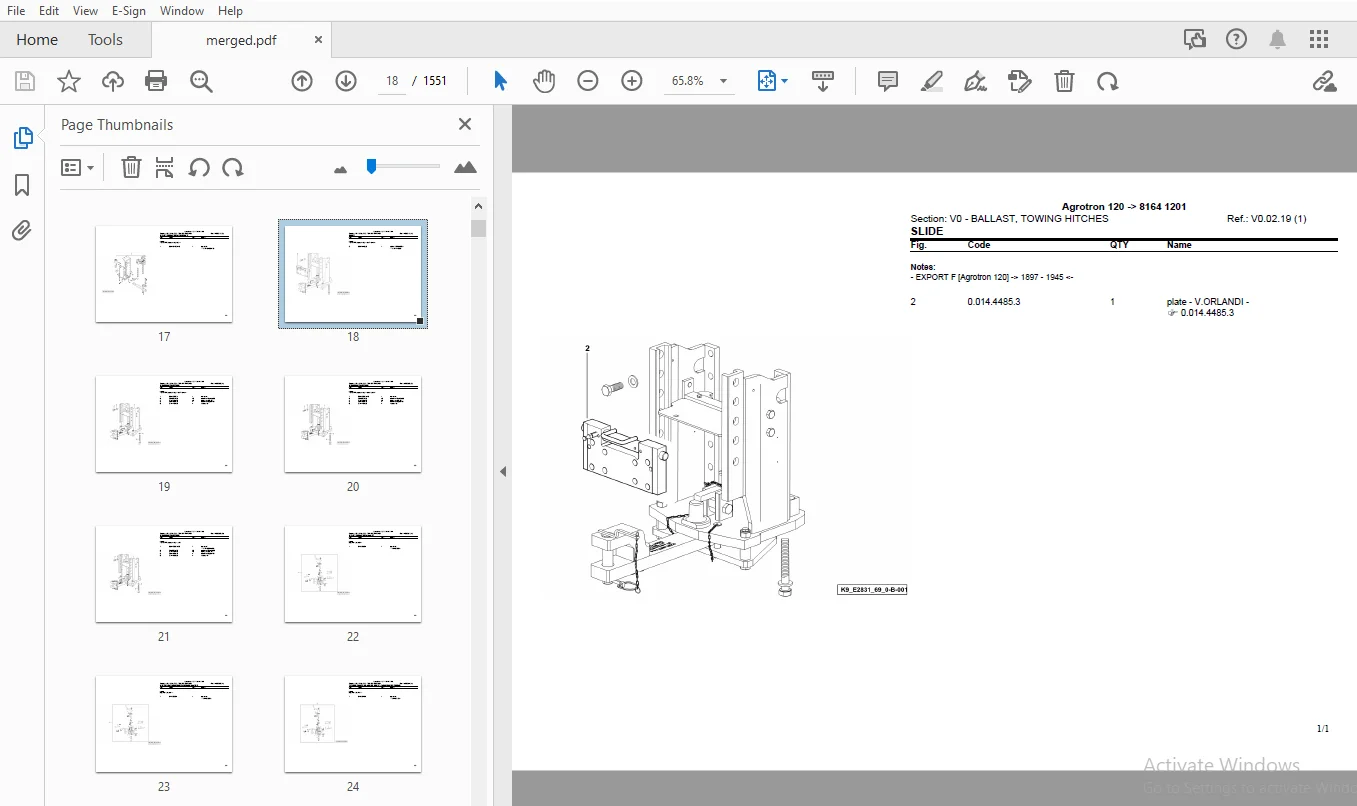

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Deutz Fahr Agrotron 120 Parts Manual 8164 1201 – PDF DOWNLOAD
Index...................................................................................... 1 Agrotron 120 -> 8164 1201.................................................................. 4 V0 - BALLAST, TOWING HITCHES........................................................... 4 FRONT HITCHES...................................................................... 4 FRONT TOWING HITCH (V0.01.0 (1))............................................... 4 FRONT TOWING HITCH (V0.01.0 (2))............................................... 5 CATCHING MOUTH (V0.01.1 (1))................................................... 6 REAR HITCHES....................................................................... 7 REAR TOWING HITCH BRACKET (V0.02.2 (1))........................................ 7 TRAILER STAND - DRAWBAR COUPLING mm 705 (V0.02.4 (1)).......................... 8 TRAILER STAND - DRAWBAR COUPLING mm 705 (V0.02.5 (1)).......................... 9 TRAILER STAND - DRAWBAR COUPLING PITON FIX (V0.02.8 (1))....................... 10 TRAILER STAND - DRAWBAR COUPLING Ø 80 (V0.02.10 (1))........................... 11 TRAILER STAND - DRAWBAR COUPLING Ø mm 80 (V0.02.11 (1))........................ 12 REAR TOWING HITCH BRACKET (V0.02.12 (1))....................................... 13 BRACKET (V0.02.14 (1))......................................................... 14 REAR TOWING HITCH (V0.02.16 (1))............................................... 15 REAR TOWING HITCH (V0.02.17 (1))............................................... 16 REAR TOWING HITCH EXPORT F (V0.02.18 (2))...................................... 17 SLIDE (V0.02.19 (1))........................................................... 18 DRAWBAR COUPLING (V0.02.20 (1))................................................ 19 DRAWBAR COUPLING (V0.02.20 (2))................................................ 20 DRAWBAR COUPLING (V0.02.20 (3))................................................ 21 REAR TOWING HITCH mm 37 (V0.02.21 (1))......................................... 22 AUTOMATIC DRAWBAR COUPLING mm 30.8 (V0.02.22 (1)).............................. 23 TOWING COUPLING AUTOM. MM 37 - DRAWBAR EYE MM 50 (V0.02.24 (1))................ 24 TOWING COUPLING AUTOM. MM 32 - DRAWBAR EYE MM 52 (V0.02.26 (1))................ 25 TOWING COUPLING AUTOM. MM 38 - DRAWBAR EYE MM 52 (V0.02.27 (1))................ 26 TOWING COUPLING AUTOM. MM 38 - DRAWBAR EYE MM 63 (V0.02.29 (1))................ 27 REMOTE CONTROL FOR AUTOMATIC REAR TOWING HITCH (V0.02.30 (1)).................. 28 DRAWBAR COUPLING MECH. (V0.02.31 (1)).......................................... 29 DRAWBAR COUPLING MECH. (V0.02.32 (1)).......................................... 30 REAR TOWING HITCH CAT: "C" (V0.02.33 (1))...................................... 31 REAR TOWING HITCH CAT: "C" (V0.02.34 (1))...................................... 32 REAR TOWING HITCH CAT: "D2" (V0.02.36 (1))..................................... 33 REAR TOWING HITCH CAT: "D2" (V0.02.37 (1))..................................... 34 REAR TOWING HITCH CAT: "D3" (V0.02.39 (1))..................................... 35 REAR TOWING HITCH CAT: "D3" (V0.02.40 (1))..................................... 36 HYDRAULIC PICK-UP-HITCH (V0.02.43 (1))......................................... 37 HYDRAULIC PICK-UP-HITCH (V0.02.43 (2))......................................... 38 HYDRAULIC PICK-UP-HITCH (V0.02.43 (3))......................................... 39 PICK-UP-HITCH - MECHANICAL (V0.02.44 (1))...................................... 40 PIN FOR REAR TOW HOOK (V0.02.45 (1))........................................... 41 REAR OSCILLATING HITCH (V0.02.48 (1)).......................................... 42 SWINGING DRAWBAR SUPPORT (V0.02.49 (1))........................................ 43 REAR OSCILLATING HITCH (V0.02.52 (1)).......................................... 44 SWINGING DRAWBAR SUPPORT (V0.02.53 (1))........................................ 45 TOWING BAR (V0.02.56 (1))...................................................... 46 SWINGING BAR (V0.02.57 (1)).................................................... 47 SWINGING DRAWBAR WITH PITON-FIX (V0.02.60 (1))................................. 48 SWINGING DRAWBAR WITH PITON-FIX (V0.02.61 (1))................................. 49 PICK-UP-HITCH (0.013.0535.4/20.A).............................................. 50 PICK-UP-HITCH (0.013.0535.4/30.A).............................................. 52 PICK-UP-HITCH (0.013.0538.4/10.A).............................................. 54 PICK-UP-HITCH (0.013.0538.4/20.A).............................................. 55 DRAWBAR COUPLING (0.014.0403.4/10.A)........................................... 56 DRAWBAR COUPLING (0.014.4453.3/10.A)........................................... 57 SLIDE mm 320 (0.014.4485.3.A).................................................. 58 CHASSIS (0.014.8237.4/20.A).................................................... 59 PICK-UP-HITCH (0.014.9769.4/20.A).............................................. 60 DRAWBAR COUPLING CEE (0.015.3396.4.A).......................................... 62 REAR TOWING HITCH (04418878.4.A)............................................... 63 REAR TOWING HITCH D2 (04418879.4.A)............................................ 64 REAR TOWING HITCH D3 (04419100.4.A)............................................ 65 REAR TOWING HITCH BRACKET (04419879.A)......................................... 66 DRAWBAR COUPLING (04419880.A).................................................. 67 REAR TOWING HITCH BRACKET (04424316.4.A)....................................... 68 TOWING BAR (04426438.4.A)...................................................... 69 TOWING BAR (04426458.4.A)...................................................... 70 REAR TOWING HITCH (04426656.4.A)............................................... 71 REAR TOWING HITCH (04426659.4.A)............................................... 72 DRAWBAR COUPLING (04438679.4.A)................................................ 73 TOWING HITCH (04451930.A)...................................................... 74 TOWING HITCH (04451931.A)...................................................... 75 TOWING HITCH (04451932.A)...................................................... 76 DRAWBAR COUPLING mm 38 (04451948.A)............................................ 77 DRAWBAR COUPLING mm 38 (04451949.A)............................................ 79 DRAWBAR COUPLING mm 32 (04451950.A)............................................ 81 TOWING HITCH (04451957.A)...................................................... 83 TOWING HITCH (04453692.A)...................................................... 84 TRAILER STAND - DRAWBAR COUPLING (04453693.A).................................. 85 SUPPORT (04454086.A)........................................................... 86 TOWING BAR (04454088.A)........................................................ 87 SUPPORT (04454089.A)........................................................... 88 REAR OSCILLATING HITCH (04454097.A)............................................ 89 CHASSIS (04454662.A)........................................................... 90 CHASSIS (04454664.A)........................................................... 91 SUPPORT (04454665.A)........................................................... 92 SUPPORT (04454667.A)........................................................... 93 CHASSIS (04454671.A)........................................................... 94 FRONT BALLAST WEIGHTS.............................................................. 95 FRONT WEIGHT CARRIER kg 100 (V0.03.0 (1))...................................... 95 FRONT BALLAST 240 Kg (V0.03.1 (1))............................................. 96 FRONT BALLAST 330 Kg (V0.03.2 (1))............................................. 97 FRONT BALLAST 330 Kg (V0.03.3 (2))............................................. 98 FRONT BALLAST 400 Kg (V0.03.4 (1))............................................. 99 FRONT BALLAST 600 Kg (V0.03.5 (1))............................................. 100 FRONT BALLAST 1000 Kg (V0.03.7 (1))............................................ 101 Index...................................................................................... 102 Agrotron 120 -> 8164 1201.................................................................. 109 G0 - BODYWORK - CAB.................................................................... 109 HOOD - SIDE PANELS - SUPPORTS...................................................... 109 HOOD FRONT PART (G0.01.9 (1)).................................................. 109 BONNET - FRONT PORTION (G0.01.14 (1)).......................................... 110 BONNET - FRONT PORTION (G0.01.14 (2)).......................................... 111 HOOD (G0.01.24 (1))............................................................ 112 HOOD (G0.01.25 (1))............................................................ 113 HOOD - SUPPORTS (G0.01.38 (1))................................................. 114 HOOD - SUPPORTS (G0.01.39 (1))................................................. 115 DEFLECTORS AND SUPPORTS (G0.01.44 (1))......................................... 116 DEFLECTORS AND SUPPORTS (G0.01.44 (2))......................................... 117 RELAY PROTECTION (G0.01.47 (1))................................................ 118 SUPPORTS FOR FUSEHOLDER PLATE (G0.01.48 (1))................................... 119 SUPPORTS FOR FUSEHOLDER PLATE (G0.01.49 (1))................................... 120 BATTERY SUPPORT (G0.01.50 (1))................................................. 121 BELTS GUARD (G0.01.54 (1))..................................................... 122 LETTERING.......................................................................... 123 FRONT HOOD PRODUCT IDENTIFICATION PLATE (G0.02.12 (1))......................... 123 PRODUCT PLATE - FRONT (G0.02.14 (1))........................................... 124 PRODUCT PLATE - FRONT (G0.02.15 (1))........................................... 125 PRODUCT PLATE (G0.02.18 (1))................................................... 126 STEERING WHEEL CAP (G0.02.23 (1)).............................................. 127 INFORMATION PLATE (G0.02.37 (1))............................................... 128 INFORMATION PLATE (G0.02.39 (1))............................................... 129 IDENTIFICATION PLATE (G0.02.44 (1))............................................ 130 PLATES (G0.02.45 (1)).......................................................... 131 IDENTIFICATION PLATES IN CAB (G0.02.46 (1)).................................... 132 PLATES (G0.02.47 (1)).......................................................... 133 PLATES (G0.02.48 (1)).......................................................... 134 WARNING DECAL - RADAR (G0.02.51 (1))........................................... 135 WARNING PLATES EXPORT PL (G0.02.52 (1))........................................ 136 INFORMATION PLATE (G0.02.53 (1))............................................... 137 WARNING PLATES (G0.02.54 (1)).................................................. 138 SPEEDS PLATE 40 KM/H (G0.02.55 (1))............................................ 139 SPEEDS PLATE 50 Km/h (G0.02.58 (1))............................................ 140 SPEED LABEL - 40 KM/H (G0.02.60 (1))........................................... 141 SPEED LABEL - 40 KM/H - REFLEX (G0.02.61 (1)).................................. 142 SPEED LABEL - 40 KM/H (G0.02.62 (1))........................................... 143 SPEED LABEL - 40 KM/H (G0.02.63 (1))........................................... 144 SPEED LABEL - 50 KM/H - REFLEX (G0.02.64 (1)).................................. 145 IDENTIFICATION PLATE OCDE (G0.02.66 (1))....................................... 146 IDENTIFICATION PLATE " CE " (G0.02.73 (1))..................................... 147 INFORMATION PLATE ITALY (G0.02.80 (1))......................................... 148 INFORMATION PLATE EXPORT F (G0.02.81 (1))...................................... 149 INFORMATION PLATE EXPORT D (G0.02.82 (1))...................................... 150 INFORMATION PLATE EXPORT E (G0.02.83 (1))...................................... 151 INFORMATION PLATE EXPORT P (G0.02.84 (1))...................................... 152 INFORMATION PLATE EXPORT DK (G0.02.85 (1))..................................... 153 INFORMATION PLATE EXPORT NL (G0.02.86 (1))..................................... 154 INFORMATION PLATE EXPORT FIN (G0.02.87 (1)).................................... 155 INFORMATION PLATE EXPORT GB (G0.02.88 (1))..................................... 156 INFORMATION PLATE (G0.02.90 (1))............................................... 157 INFORMATION PLATE (G0.02.92 (1))............................................... 158 WARNING PLATE (G0.02.94 (1))................................................... 159 WARNING PLATE (G0.02.94 (2))................................................... 160 WARNING PLATE (G0.02.96 (1))................................................... 161 WARNING PLATE (G0.02.96 (2))................................................... 162 PLATE FOR 4-WAY REMOTE VALVE OPEN CENTER (G0.02.97 (1))........................ 163 PLATE FOR 4-WAY REMOTE VALVE OPEN CENTER (G0.02.98 (1))........................ 164 PLATE FOR 4-WAY REMOTE VALVE LOAD SENSING (G0.02.99 (1))....................... 165 PLATE FOR 8-WAY REMOTE VALVE OPEN CENTER (G0.02.100 (1))....................... 166 PLATE FOR 8-WAY REMOTE VALVE OPEN CENTER (G0.02.101 (1))....................... 167 PLATE FOR 8-WAY REMOTE VALVE LOAD SENSING (G0.02.102 (1))...................... 168 PLATE FOR 4-WAY REMOTE VALVE OPEN CENTER (G0.02.111 (1))....................... 169 PLATE FOR 8-WAY REMOTE VALVE OPEN CENTER (G0.02.112 (1))....................... 170 PLATE FOR 8-WAY REMOTE VALVE LOAD SENSING (G0.02.113 (1))...................... 171 CAB STRUCTURE - PLATFORM -SUSPENSION............................................... 172 CAB STRUCTURE (G0.03.0 (1)).................................................... 172 TRACTOR LINKAGE DRAWBAR (G0.03.2 (1)).......................................... 173 END PLATE (G0.03.3 (1))........................................................ 174 REAR PANEL FLAP (G0.03.4 (1)).................................................. 175 CAB INSTALLATION COMPLETION (G0.03.5 (1))...................................... 176 LADDER (G0.03.6 (1))........................................................... 177 RUBBER CAB SUSPENSION (G0.03.7 (1))............................................ 178 RUBBER CAB SUSPENSION (G0.03.8 (1))............................................ 179 MECHANICAL CAB SUSPENSION (G0.03.11 (1))....................................... 180 CAB BEARING PNEUMATIC SPRINGING (G0.03.14 (1))................................. 181 CAB BEARING PNEUMATIC SPRINGING (G0.03.15 (1))................................. 182 RELAY VALVE (04432191.A)....................................................... 183 PRESSURE CONTROL VALVE (04432192.A)............................................ 184 FENDERS - FOOTSTEPS - EXTENSIONS................................................... 185 FRONT MUDGUARDS mm 320 (G0.04.0 (1))........................................... 185 FRONT MUDGUARDS mm 420 (G0.04.1 (1))........................................... 186 FRONT MUDGUARDS mm 470 (G0.04.2 (1))........................................... 187 FRONT MUDGUARDS mm 540 (G0.04.4 (1))........................................... 188 FRONT MUDGUARD SUPPORTS (G0.04.7 (1)).......................................... 189 FRONT MUDGUARD SUPPORTS (G0.04.8 (1)).......................................... 190 SUPPORTS FOR FRONT STEERING FENDERS (G0.04.9 (1)).............................. 191 ADJUSTABLE FRONT FENDERS mm 265 (G0.04.10 (1))................................. 192 FRONT MUDGUARDS mm 320 (G0.04.11 (1)).......................................... 193 FRONT MUDGUARDS mm 320 (G0.04.12 (1)).......................................... 194 ADJUSTABLE FRONT FENDERS mm 320 (G0.04.13 (1))................................. 195 ADJUSTABLE FRONT FENDERS mm 320 (G0.04.14 (1))................................. 196 ADJUSTABLE FRONT FENDERS mm 420 (G0.04.15 (1))................................. 197 ADJUSTABLE FRONT FENDERS mm 540 (G0.04.18 (1))................................. 198 FRONT FENDER SUPPORT FIXING (G0.04.20 (1))..................................... 199 FRONT FENDER SUPPORT FIXING (G0.04.21 (1))..................................... 200 FRONT FENDER SUPPORT FIXING (G0.04.22 (1))..................................... 201 REAR MUDGUARDS (G0.04.24 (1)).................................................. 202 REAR MUDGUARDS (G0.04.26 (1)).................................................. 203 REAR MUDGUARDS (G0.04.28 (1)).................................................. 204 REAR MUDGUARDS (G0.04.30 (1)).................................................. 205 WING SIDE PANEL (G0.04.31 (1))................................................. 206 REINFORCED FENDER (G0.04.32 (1))............................................... 207 EXTENSION FOR WING (G0.04.33 (1)).............................................. 208 MUDGUARDS EXTENSIONS mm 145 (G0.04.35 (1))..................................... 209 MUDGUARDS EXTENSIONS mm 250 (G0.04.36 (1))..................................... 210 MUDGUARDS EXTENSIONS (G0.04.37 (1))............................................ 211 REAR FENDER ANCILLARY PARTS KIT (G0.04.38 (1))................................. 212 WING HOLDER (04451215.4.A)..................................................... 213 WING HOLDER dx/rh/re (04451215.4/10.A)......................................... 214 WING HOLDER (04451216.4.A)..................................................... 215 WING HOLDER sx/lh/li (04451216.4/10.A)......................................... 216 DOORS - WINDOWS - WIPERS........................................................... 217 FIXED SCREEN WITH WIPER (G0.05.2 (2)).......................................... 217 OPENABLE WINDSCREEN (G0.05.3 (1)).............................................. 218 WINDSCREEN WIPER FOR OPENABLE WINDSCREEN (G0.05.4 (1))......................... 219 OPENABLE WINDSCREEN (G0.05.5 (1)).............................................. 220 WINDSCREEN WIPER FOR OPENABLE WINDSCREEN (G0.05.6 (1))......................... 221 FRONT WINDSHIELD WIPER SYSTEM (G0.05.7 (1)).................................... 222 FRONT WINDSHIELD WIPER SYSTEM (G0.05.8 (1)).................................... 223 FRONT WINDSHIELD WIPER SYSTEM (G0.05.9 (1)).................................... 224 LOWER/UPPER FRONT GLASS LH/RH (G0.05.10 (1))................................... 225 CAB DOOR DX/RH/RE (G0.05.11 (1))............................................... 226 DOOR HANDLE DX/RH/RE (G0.05.12 (1))............................................ 227 SIDE PANEL FIXED DX/RH/RE (G0.05.13 (1))....................................... 228 CAB DOOR SX/LH/LI (G0.05.14 (1))............................................... 229 DOOR HANDLE SX/LH/LI (G0.05.15 (1))............................................ 230 SIDE PANEL FIXED SX/LH/LI (G0.05.16 (1))....................................... 231 OPENABLE REAR DOOR (G0.05.17 (1)).............................................. 232 REAR HATCH WITH WIPER (G0.05.18 (1))........................................... 234 REAR HATCH WITH WIPER (G0.05.19 (1))........................................... 236 SCREEN WIPER REAR (G0.05.20 (1))............................................... 237 LOWER REAR WINDOW GLASS (G0.05.21 (1))......................................... 238 SCREEN WASH RESERVOIR (G0.05.22 (1))........................................... 239 SCREEN WASH RESERVOIR (G0.05.23 (1))........................................... 240 WINDSCREEN WIPER BLADE (0.011.5529.4.A)........................................ 241 DOOR HANDLE - CAB DOOR RIGHT/LEFT (0.013.0217.4.A)............................. 242 INTERIOR TRIM...................................................................... 243 CONSOLE - INSTRUMENT PANEL (G0.06.0 (1))....................................... 243 CONSOLE - INSTRUMENT PANEL (G0.06.1 (1))....................................... 244 DASHBOARD - STEERING COVER (G0.06.2 (1))....................................... 245 DASHBOARD - STEERING COVER (G0.06.3 (1))....................................... 246 INSTRUMENT PANEL - PEDALS SUPPORT (G0.06.4 (1))................................ 247 INSTRUMENT PANEL - PEDALS SUPPORT (G0.06.5 (1))................................ 248 PEDAL SUPPORT - FIXINGS (G0.06.6 (1)).......................................... 249 CONTROL CONSOLE (G0.06.9 (1)).................................................. 250 RIGHT-HAND CONSOLE PARTS KIT (G0.06.10 (1)).................................... 251 RIGHT-HAND CONSOLE PARTS KIT (G0.06.10 (2)).................................... 252 RIGHT-HAND CONSOLE PARTS KIT (G0.06.11 (1)).................................... 253 CONTROL CONSOLE dx/rh/re (G0.06.12 (1))........................................ 254 CONTROL CONSOLE - DX/RH/RE (G0.06.13 (1))...................................... 255 CONTROL CONSOLE RIGHT - TRIM (G0.06.14 (1)).................................... 256 OUTLET VENT (G0.06.15 (1))..................................................... 257 PLATE (G0.06.16 (1))........................................................... 258 PLATE (G0.06.17 (1))........................................................... 259 CONTROL CONSOLE - SX/LH/LI (G0.06.18 (1))...................................... 260 CONTROL CONSOLE - SX/LH/LI (G0.06.19 (1))...................................... 261 LEFT-HAND CONSOLE PARTS KIT (G0.06.20 (1))..................................... 262 CAB INTERIOR TRIM (G0.06.21 (1))............................................... 263 CAB INTERIOR TRIM (G0.06.22 (1))............................................... 265 CAB INTERIOR TRIM (G0.06.23 (1))............................................... 266 CABLE GROMMET (G0.06.24 (1))................................................... 267 PLUG (G0.06.25 (1))............................................................ 268 INTERIOR TRIM - WITH HATCH (G0.06.26 (1))...................................... 269 INTERIOR TRIM (G0.06.27 (1))................................................... 270 ROOF COVERING WITHOUT SKYLIGHT (G0.06.28 (1)).................................. 271 INTERNAL CAB LININGS (G0.06.29 (1))............................................ 272 FIXINGS FOR CAB INTERIOR TRIM (G0.06.30 (1))................................... 273 FIXINGS FOR CAB INTERIOR TRIM (G0.06.31 (1))................................... 274 FIXINGS FOR CAB INTERIOR TRIM (G0.06.32 (1))................................... 275 FIXINGS FOR CAB INTERIOR TRIM (G0.06.33 (1))................................... 276 FIXINGS FOR CAB INTERIOR TRIM (G0.06.34 (1))................................... 277 CAB SOUNDPROOF PANELS (G0.06.35 (1))........................................... 278 EXTERIOR TRIM - ROOF............................................................... 279 CAB ROOF "HIGHT VISIBILITY" (G0.07.0 (1))..................................... 279 CAB ROOF "HIGHT VISIBILITY" (G0.07.1 (1))..................................... 280 CAB ROOF "HIGHT VISIBILITY" (G0.07.2 (1))..................................... 281 CAB ROOF "HIGHT VISIBILITY" (G0.07.3 (1))..................................... 282 CAB ROOF "HIGHT VISIBILITY" (G0.07.4 (1))..................................... 283 CAB ROOF "HIGHT VISIBILITY" (G0.07.5 (1))..................................... 284 ROOF WITHOUT SKYLIGHT (G0.07.6 (1))............................................ 285 ROOF WITH FRONT-OPENING HATCH (G0.07.7 (1)).................................... 286 ROOF WITH REAR-OPENING HATCH (G0.07.8 (1))..................................... 287 AIR CLEANER (G0.07.9 (1))...................................................... 288 FRONT NUMBER PLATE BRACKET (G0.07.10 (1))...................................... 289 REARVIEW MIRROR SX/LH/LI (G0.07.11 (1))........................................ 290 REARVIEW MIRROR DX/RH/RE (G0.07.12 (1))........................................ 291 FLASHING LIGHT SUPPORT (G0.07.13 (1)).......................................... 292 FLASHING LIGHT SUPPORT (G0.07.14 (1)).......................................... 293 FLASHING LIGHT SUPPORT (G0.07.15 (1)).......................................... 294 BLANKING PLUGS FOR TYPES WITHOUT REAR WORKLIGHTS (G0.07.16 (1))................ 295 REARVIEW MIRROR (0.012.4392.4.A)............................................... 296 REARVIEW MIRROR (0.012.4393.4.A)............................................... 297 SEATS.............................................................................. 298 DRIVER'S SEAT GRAMMER MSG 95A/721 (G0.08.1 (1))................................ 298 DRIVER'S SEAT - PNEUMATIC SPRINGING GRAMMER MSG95A/721 (G0.08.2 (1))........... 299 DRIVER'S SEAT GRAMMER MSG95A/721 (G0.08.4 (1))................................. 300 DRIVER'S SEAT GRAMMER MSG85/721 (G0.08.6 (1)).................................. 301 DRIVER'S SEAT GRAMMER MSG85/721 (G0.08.7 (1)).................................. 302 DRIVER'S SEAT - WITH MECHANICAL SUSPENSION GRAMMER MSG85/721 (G0.08.8 (1))..... 303 DRIVER'S SEAT GRAMMER MSG95G/721 (G0.08.10 (1))................................ 304 DRIVER'S SEAT - PNEUMATIC SPRINGING (G0.08.11 (1))............................. 305 DRIVER'S SEAT MSG 95AL/721 (G0.08.12 (1))...................................... 306 DRIVER'S SEAT MSG 95AL/721 (G0.08.13 (1))...................................... 307 SEAT MOUNTING (G0.08.14 (1))................................................... 308 SAFETY BELT (G0.08.15 (1))..................................................... 309 SAFETY BELT (G0.08.15 (2))..................................................... 310 HEAD REST (G0.08.18 (1))....................................................... 311 HEAD REST (G0.08.19 (1))....................................................... 312 SEAT FOR 2ND OPERATOR (G0.08.22 (1))........................................... 313 PASSENGER SEAT WITH PROTECTIONS (G0.08.24 (1))................................. 314 SEAT-COMPONENTS GRAMMER (0.012.4552.4/10.A).................................... 315 SEAT-COMPONENTS GRAMMER (0.012.4552.4/10.B).................................... 317 SEAT-COMPONENTS GRAMMER (0.012.4553.4/10.A).................................... 319 SEAT-COMPONENTS GRAMMER (0.012.4553.4/10.B).................................... 321 SEAT-COMPONENTS (0.013.7685.4/10.A)............................................ 323 SEAT-COMPONENTS (0.013.7685.4/10.B)............................................ 325 SEAT-COMPONENTS (0.013.9593.4.A)............................................... 326 SEAT-COMPONENTS (0.013.9593.4.B)............................................... 328 SEAT-COMPONENTS (0.013.9595.4.A)............................................... 329 SEAT-COMPONENTS (0.013.9595.4.B)............................................... 331 SEAT-COMPONENTS (0.013.9596.4.A)............................................... 333 SEAT-COMPONENTS (0.013.9596.4.B)............................................... 335 SEAT-COMPONENTS (0.013.9598.4.A)............................................... 337 SEAT-COMPONENTS (0.013.9598.4.B)............................................... 339 SEAT-COMPONENTS (0.014.4947.4.A)............................................... 341 SEAT-COMPONENTS (0.014.4947.4.B)............................................... 342 SEAT-COMPONENTS (0.014.4949.4.A)............................................... 343 SEAT-COMPONENTS (0.014.4949.4.B)............................................... 345 SEAT-COMPONENTS (0.014.4949.4/10.A)............................................ 347 SEAT-COMPONENTS (0.014.4949.4/10.B)............................................ 348 HEATING AND AIR CONDITIONING....................................................... 349 CLIMATE CONTROL SYSTEM (G0.09.0 (1))........................................... 349 CLIMATE CONTROL SYSTEM (G0.09.0 (2))........................................... 350 AIR CONDITIONING UNIT - LINES (G0.09.1 (1)).................................... 351 CONDENSER (G0.09.2 (1))........................................................ 352 CONDENSER (G0.09.2 (2))........................................................ 353 CONDENSER (G0.09.2 (3))........................................................ 354 AIR CONDITIONING SYSTEM (G0.09.4 (1)).......................................... 355 AIR CONDITIONING SYSTEM (G0.09.4 (2)).......................................... 356 AIR CONDITIONER PARTS (0.010.9139.4/20.A)...................................... 357 AIR CONDITIONER PARTS (0.010.9139.4/40.A)...................................... 359 AIR CONDITIONER PARTS (04429205.4.A)........................................... 361 COMPRESSOR (04437339/10.A)..................................................... 362 MECHANICAL CLUTCH CONTROLS......................................................... 363 CLUTCH CONTROL WITH HYDRAULIC SHUTTLE (G0.10.0 (1))............................ 363 CLUTCH CONTROL WITH HYDRAULIC SHUTTLE (G0.10.1 (1))............................ 364 MECHANICAL BRAKE CONTROLS.......................................................... 365 BRAKE CONTROLS (G0.11.0 (1))................................................... 365 BRAKE CONTROLS (G0.11.1 (1))................................................... 366 HANDBRAKE SUPPORT FOR TRAILER (G0.11.3 (1)).................................... 367 HAND BRAKE (G0.11.4 (1))....................................................... 368 HAND BRAKE (G0.11.5 (1))....................................................... 369 BRAKE FLUID RESERVOIR (G0.11.8 (1))............................................ 370 TANK - PARTS (04432281.A)...................................................... 371 MECHANICAL - ELECTRONIC THROTTLE CONTROLS.......................................... 372 CONTROL PEDAL FOR MECHANICAL THROTTLE (G0.12.0 (1))............................ 372 ELECTRONIC ACCELERATOR CONTROL (G0.12.1 (1))................................... 373 ELECTRONIC ACCELERATOR CONTROL (G0.12.2 (1))................................... 374 STEERING CONTROLS.................................................................. 375 STEERING COLUMN (G0.13.0 (1)).................................................. 375 STEERING COLUMN (G0.13.0 (2)).................................................. 376 STEERING COLUMN (G0.13.0 (3)).................................................. 377 STEERING COLUMN (0.011.5612.4/20.A)............................................ 378 STEERING COLUMN (0.014.0533.4.A)............................................... 379 STEERING COLUMN (0.014.8752.4/10.A)............................................ 380 MECHANICAL GEARSHIFT CONTROLS...................................................... 381 GEAR SHIFTING (G0.14.0 (1)).................................................... 381 SUPER-REDUCTION CONTROL (G0.14.1 (1)).......................................... 382 TRANSMISSION CONTROL LEVERS (04422746.4/10.A).................................. 383 PTO CONTROLS....................................................................... 384 OPERATION - P.T.O. SHAFT - REAR (G0.16.0 (1)).................................. 384 P.T.O. SHAFT DRIVE (G0.16.1 (1))............................................... 385 P.T.O. SHAFT DRIVE (G0.16.2 (1))............................................... 386 P.T.O. - ECONOMICAL CONTROL (G0.16.3 (1))...................................... 387 REMOTE VALVE CONTROLS.............................................................. 388 FLOW CONTROL (G0.18.1 (1))..................................................... 388 FLOW CONTROL (G0.18.3 (1))..................................................... 389 CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.4 (1)).............. 390 REMOTE VALVE CROSS-GATE CONTROL (G0.18.5 (1)).................................. 391 CONTROLS FOR 8-WAY AUXILIARY SERVICES CONTROL VALVE (G0.18.6 (1)).............. 392 OPERATION (04429249/10.A)...................................................... 393 ACCESSORIES........................................................................ 394 SUN BLIND FRONT WINDSCREEN (G0.19.0 (1))....................................... 394 SUN BLIND REAR WINDOW (G0.19.1 (1))............................................ 395 METAL TOOLBOX (G0.19.2 (1)).................................................... 396 METAL TOOLBOX (G0.19.3 (1)).................................................... 397 CHOCK (G0.19.5 (1))............................................................ 398 LICENCE PLATE HOLDER (G0.19.6 (1))............................................. 399 LICENCE PLATE HOLDER (G0.19.7 (1))............................................. 400 WARNING TRIANGLE (G0.19.8 (1))................................................. 401 Index...................................................................................... 402 Agrotron 120 -> 8164 1201.................................................................. 407 L0 - ELECTRIC AL SYSTEM................................................................ 407 BATTERY - ALTERNATOR............................................................... 407 BATTERY 12V 170/180Ah (L0.01.1 (1))............................................ 407 BATTERY 12V 143Ah (L0.01.2 (1))................................................ 408 WIRING LOOMS....................................................................... 409 CABLE FOR FRONT AXLE WITHOUT ASM (L0.02.0 (1))................................. 409 ELECTR. EQUIPMENT - SPRUNG FRONT AXLE (L0.02.2 (1))............................ 410 ELECTR. EQUIPMENT - SPRUNG FRONT AXLE (L0.02.3 (1))............................ 411 WIRING FOR FRONT WORK LIGHTS (L0.02.4 (1))..................................... 412 WIRING FOR HEADLIGHTS (L0.02.16 (1))........................................... 413 WIRING FOR HEADLIGHTS (L0.02.17 (1))........................................... 414 ELECTRICAL EQUIPMENT FRONT (L0.02.24 (1))...................................... 415 BATTERY LEADS (L0.02.26 (1))................................................... 416 GEARBOX ELECTRICAL SYSTEM (L0.02.27 (1))....................................... 417 GEARBOX ELECTRICAL SYSTEM (L0.02.28 (1))....................................... 418 ELECTRICAL SYSTEM FOR HYDRAULIC SHUTTLE (L0.02.29 (1))......................... 419 ELECTRICAL SYSTEM FOR HYDRAULIC SHUTTLE (L0.02.30 (1))......................... 420 PRE-HEATING RELAY (L0.02.32 (1))............................................... 421 WIRING FOR LOAD SENSING HYDRAULIC PUMP SENSORS (L0.02.34 (1)).................. 422 ELECTRICAL SYSTEM - ROOF (L0.02.35 (1))........................................ 423 WIRING FOR BOTTOM FRONT WORK LIGHTS ON THE CAB (L0.02.36 (1)).................. 424 WORKLIGHTS WIRING FOR "HIGH VISIBILITY" CAB ROOF (L0.02.37 (1))................ 425 WORKLIGHTS WIRING FOR "HIGH VISIBILITY" CAB ROOF (L0.02.38 (1))................ 426 WIRING FOR REAR ROOF WORKLIGHTS (L0.02.39 (1))................................. 427 RELAY FOR SWITCH FOR REAR ROOF WORKLIGHTS (L0.02.40 (1))....................... 428 WORKLIGHT SWITCHES RELAY (L0.02.41 (1))...................................... 429 WORKLIGHT SWITCHES RELAY (L0.02.42 (1))...................................... 430 WORKLIGHT SWITCHES RELAY (L0.02.43 (1))...................................... 431 ROTATING BEACON WIRING (L0.02.44 (1)).......................................... 432 ROTATING BEACON WIRING (L0.02.45 (1)).......................................... 433 ROTATING BEACON WIRING (L0.02.46 (1)).......................................... 434 ROTARY BEACON WIRING FOR "HIGH VISIBILITY" CAB ROOF (L0.02.47 (1))............. 435 ROTARY BEACON WIRING FOR "HIGH VISIBILITY" CAB ROOF (L0.02.48 (1))............. 436 WIRING FOR WINDSCREEN WIPER MOTOR (L0.02.49 (1))............................... 437 CAB ELECTRICAL SYSTEM (L0.02.50 (1))........................................... 438 CAB ELECTRICAL SYSTEM (L0.02.51 (1))........................................... 439 CAB ELECTRICAL SYSTEM (L0.02.52 (1))........................................... 440 CAB ELECTRICAL SYSTEM (L0.02.53 (1))........................................... 441 GEARS DISPLAY ELECTRICAL SYSTEM (L0.02.54 (1))................................. 442 GEARS DISPLAY ELECTRICAL SYSTEM (L0.02.55 (1))................................. 443 FUSE HOLDER (L0.02.56 (1))..................................................... 444 FUSE HOLDER (L0.02.57 (1))..................................................... 445 POWER OUTLET SOCKETS (L0.02.58 (1))............................................ 446 CABLE HARNESS MULTIFUNCTION ARMREST (L0.02.59 (1))............................. 447 ELECTRICAL SYSTEM FOR REAR LIGHTS (L0.02.60 (1))............................... 448 REAR LIGHTING SYSTEM WITH LARGE FENDER (L0.02.61 (1)).......................... 449 REAR LIGHTING SYSTEM WITH SMALL FENDER (L0.02.62 (1)).......................... 450 REAR LIGHTING SYSTEM WITH SMALL FENDER (L0.02.63 (1)).......................... 451 CABLE HARNESS LICENCE PLATE LIGHT (L0.02.64 (1))............................... 452 WIRING FOR HYDRAULIC TRAILER BRAKING - ITALY (L0.02.65 (1)).................... 453 WIRING FOR AIR TRAILER BRAKING (L0.02.67 (1)).................................. 454 PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM (L0.02.69 (1))................... 455 TRAILER SOCKET-OUTLET - SINGLE-POLE (L0.02.74 (1))............................. 456 TRAILER SOCKET-OUTLET (L0.02.75 (1))........................................... 457 ELECTRICAL SYSTEM (0.012.8732.4/50.A).......................................... 458 ELECTRICAL SYSTEM (0.012.9727.4/40.A).......................................... 459 ELECTRICAL SYSTEM (0.012.9731.4.A)............................................. 460 ELECTRICAL SYSTEM (0.013.5916.4/40.A).......................................... 461 ELECTRICAL SYSTEM (04437846/20.A).............................................. 462 ECUs............................................................................... 463 CONTROL UNIT - SPRUNG - FRONT AXLE (L0.03.0 (1))............................... 463 HYDRAULIC SHUTTLE CONTROL UNIT (L0.03.1 (1))................................... 464 HYDRAULIC SHUTTLE CONTROL UNIT (L0.03.2 (1))................................... 465 CONTROL UNIT - AUTOM. REVERSING FLASHER SWITCH (L0.03.3 (1))................... 466 CONTROL UNIT P.T.O. SHAFT REAR (L0.03.4 (1))................................... 467 ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0.03.5 (1))....................... 468 SENSORS - POTENTIOMETERS - ENABLING SWITCHES....................................... 469 FRONT SUSPENSION POSITION SENSOR (L0.04.0 (1))................................. 469 GEARBOX REV COUNTER/BRACKET SENSOR (L0.04.1 (1))............................... 470 DOOR SWITCH (L0.04.2 (1))...................................................... 471 DOOR SWITCH (L0.04.3 (1))...................................................... 472 BRAKE CONTROL SWITCH (L0.04.4 (1))............................................. 473 BRAKE CONTROL SWITCH (L0.04.5 (1))............................................. 474 INDUCTIVE POSITION SENSOR WITH HYDRAULIC SHUTTLE (L0.04.7 (1))................. 475 INDUCTIVE POSITION SENSOR WITH HYDRAULIC SHUTTLE (L0.04.8 (1))................. 476 POSITION SENSOR FOR CREEPER CONTROL (L0.04.9 (1)).............................. 477 POSITION SENSOR (L0.04.10 (1))................................................. 478 ELECTRONIC ACCELERATOR CONTROL SENSOR (L0.04.11 (1))........................... 479 ELECTRONIC ACCELERATOR CONTROL SENSOR (L0.04.12 (1))........................... 480 HAND BRAKE SWITCHES (L0.04.13 (1))............................................. 481 RADAR km/h (L0.04.15 (1))...................................................... 482 RADAR MPH (L0.04.16 (1))....................................................... 483 RADAR MPH (L0.04.17 (1))....................................................... 484 SENSORS FOR LOAD SENSING HYDRAULIC PUMP (L0.04.19 (1))......................... 485 SENSORS FOR LOAD SENSING HYDRAULIC PUMP (L0.04.19 (2))......................... 486 HYDRAULIC SYSTEM PRESSURE SWITCH OPEN CENTER (L0.04.20 (1)).................... 487 HYDRAULIC SYSTEM PRESSURE SWITCH OPEN CENTER (L0.04.21 (1)).................... 488 HYDRAULIC SYSTEM PRESSURE SWITCH (L0.04.23 (1))................................ 489 AIR BRAKING SYSTEM PRESSURE SWITCH (L0.04.25 (1)).............................. 490 AIR BRAKING SYSTEM PRESSURE SWITCH (L0.04.27 (1)).............................. 491 SENSOR P.T.O. SHAFT (L0.04.32 (1))............................................. 492 REAR LIFT POSITION SENSOR (L0.04.33 (1))....................................... 493 OIL PRESSUR.SWITCH (L0.04.34 (1)).............................................. 494 INSTRUMENT PANEL................................................................... 495 DASHBOARD BOX INSTRUMENT PANEL (L0.05.0 (1))................................... 495 DASHBOARD BOX INSTRUMENT PANEL (L0.05.1 (1))................................... 496 GEARS DISPLAY (L0.05.2 (1)).................................................... 497 GEARS DISPLAY (L0.05.3 (1)).................................................... 498 MULTIFUNCTION ARMREST.............................................................. 499 MULTIFUNCTION CONTROL UNIT (L0.06.0 (1))....................................... 499 MULTIFUNCTION CONTROL UNIT (04438670.4.B)...................................... 500 ELECTRICAL CONTROLS - PUSHBUTTONS................................................. 501 IGNITION BLOCK (L0.07.0 (1))................................................... 501 IGNITION BLOCK (L0.07.0 (2))................................................... 502 IGNITION BLOCK (L0.07.1 (1))................................................... 503 IGNITION BLOCK (L0.07.1 (2))................................................... 504 P.T.O. SHAFT DRIVE - FRONT (L0.07.2 (1))....................................... 505 SWITCH - FOR P.T.O. FRONT (L0.07.3 (1))........................................ 506 SWITCH FOR FRONT AXLE SUSPENSION (L0.07.4 (1))................................. 507 ASM SWITCH (L0.07.5 (1))....................................................... 508 FRONT LIFT SWITCH (L0.07.6 (1))................................................ 509 ELECTRONIC ACCELERATOR CONTROL (L0.07.7 (1))................................... 510 STEERING COLUMN SWITCH UNIT - REVERSING GEAR UNIT CONTROL (L0.07.8 (1))........ 511 STEERING COLUMN SWITCH UNIT - REVERSING GEAR UNIT CONTROL (L0.07.9 (1))........ 512 INSTRUMENT PANEL BUTTONS AND INDICATOR LIGHTS (L0.07.10 (1))................... 513 INSTRUMENT PANEL BUTTONS AND INDICATOR LIGHTS (L0.07.11 (1))................... 514 TOP SWITCH (L0.07.12 (1))...................................................... 515 WORKLIGHTS SWITCH (L0.07.13 (1))............................................... 516 CAB-MOUNTED FRONT WORKLIGHTS SWITCH (L0.07.14 (1))............................. 517 CAB-MOUNTED FRONT WORKLIGHTS SWITCH (L0.07.15 (1))............................. 518 CAB-MOUNTED FRONT WORKLIGHTS SWITCH (L0.07.16 (1))............................. 519 SWITCH FOR ROTATING BEACON (L0.07.17 (1))...................................... 520 SWITCH FOR ROTATING BEACON (L0.07.18 (1))...................................... 521 SWITCH FOR ROTATING BEACON (L0.07.19 (1))...................................... 522 SWITCH FOR REAR ROOF WORKLIGHTS (L0.07.20 (1))................................. 523 RADAR SWITCH km/h (L0.07.21 (1))............................................... 524 RADAR SWITCH MPH (L0.07.22 (1))................................................ 525 RADAR SWITCH MPH (L0.07.23 (1))................................................ 526 REAR WINDOW WIPER SWITCH (L0.07.24 (1))........................................ 527 P.T.O. SWITCH (L0.07.25 (1))................................................... 528 CUTOFF - P.T.O. SHAFT REAR (L0.07.26 (1))...................................... 529 SWITCH FOR REAR PTO (L0.07.27 (1))............................................. 530 REAR LIFT GROUND CONTROL SWITCH (L0.07.30 (1))................................. 531 REAR P.T.O. GROUND CONTROL SWITCH (L0.07.31 (1))............................... 532 SWITCHES FOR REAR LIFT GROUND CONTROL AND PTO (L0.07.32 (1)).................. 533 SWITCHES FOR REAR LIFT GROUND CONTROL AND PTO (L0.07.33 (1)).................. 534 REAR LIFT CONTROL (L0.07.34 (1))............................................... 535 REAR LIFT CONTROL (L0.07.35 (1))............................................... 536 SHUTTLE LEVER (0.012.7076.4.A)................................................. 537 OPERATION (04419425.4/10.A).................................................... 538 CONTROL CONSOLE (04429597.4.A)................................................. 539 LIGHTING AND SIGNALLING............................................................ 540 FRONT LIGHTS (L0.08.9 (1))..................................................... 540 FRONT LIGHTS (L0.08.12 (1)).................................................... 541 FRONT LIGHTS (L0.08.13 (1)).................................................... 542 HORN (L0.08.17 (1))............................................................ 543 INTERIOR LIGHT (L0.08.19 (1)).................................................. 544 INTERIOR LIGHT (L0.08.20 (1)).................................................. 545 INTERIOR LIGHT (L0.08.21 (1)).................................................. 546 LOWER REAR WORKLIGHTS (L0.08.22 (1))........................................... 547 FRONT WORKLIGHTS ON CAB (L0.08.23 (1))......................................... 548 FRONT WORKLIGHTS ON CAB (L0.08.24 (1))......................................... 549 BOTTOM FRONT WORK LIGHTS (L0.08.25 (1))........................................ 550 WORKING SPOTLIGHT FRONT (L0.08.26 (1))......................................... 551 WORKING SPOTLIGHT FRONT (L0.08.27 (1))......................................... 552 WORKLIGHTS FOR "HIGH VISIBILITY" CAB ROOF (L0.08.28 (1))....................... 553 WORKLIGHTS FOR "HIGH VISIBILITY" CAB ROOF (L0.08.29 (1))....................... 554 WARNING BEACON (L0.08.30 (1)).................................................. 555 WARNING BEACON (L0.08.31 (1)).................................................. 556 WARNING BEACON (L0.08.32 (1)).................................................. 557 REAR LIGHTS / REFLECTORS (L0.08.33 (1))........................................ 558 REAR LIGHTING SYSTEM WITH LARGE FENDER (L0.08.34 (1)).......................... 559 REAR LIGHTING SYSTEM WITH SMALL FENDER (L0.08.35 (1)).......................... 560 REAR LIGHTING SYSTEM WITH SMALL FENDER (L0.08.36 (1)).......................... 561 RETROREFLECTOR (L0.08.37 (1)).................................................. 562 LOWER REAR WORKLIGHTS (L0.08.38 (1))........................................... 563 WORKING SPOTLIGHT REAR ROOF (L0.08.39 (1))..................................... 564 LICENCE PLATE LIGHT (L0.08.40 (1))............................................. 565 LICENCE PLATE LIGHT (L0.08.41 (1))............................................. 566 HEADLAMP COMPONENTS (04411920.4.A)............................................. 567 HEADLAMP COMPONENTS (04411921.4.A)............................................. 568 HEADLAMP COMPONENTS (04411937.4.A)............................................. 569 HEADLAMP COMPONENTS (04414087.4.A)............................................. 570 HEADLAMP COMPONENTS (04414088.4.A)............................................. 571 WARNING BEACON (04414773.A).................................................... 572 HEADLAMP COMPONENTS (04450666.A)............................................... 573 HEADLAMP COMPONENTS (2.8029.880.0/10.A)........................................ 574 HEADLAMP COMPONENTS (2.8039.160.0.A)........................................... 575 HEADLAMP COMPONENTS (2.8039.180.0/10.A)........................................ 576 REAR LIGHT (2.8039.190.0.A).................................................... 577 FRONT LIGHTS (2.8039.250.0.A).................................................. 578 ACCESSORIES........................................................................ 579 DIGITAL CLOCK (L0.09.0 (1)).................................................... 579 DIGITAL CLOCK (L0.09.1 (1)).................................................... 580 KIT RADIO (L0.09.2 (1))........................................................ 581 CIGAR LIGHTER (L0.09.3 (1)).................................................... 582 Index...................................................................................... 583 Agrotron 120 -> 8164 1201.................................................................. 588 B0 - ENGINE............................................................................ 588 GENERAL............................................................................ 588 ENGINE (B0.00.0 (1))........................................................... 588 ENGINE (B0.00.1 (1))........................................................... 589 ENGINE (B0.00.2 (1))........................................................... 590 CYLINDER BLOCK..................................................................... 591 FASTENINGS (B0.01.1007)........................................................ 591 GASKET SET (B0.01.1020)........................................................ 594 BLEEDING TUBE (B0.01.1034)..................................................... 597 BLEEDING TUBE (B0.01.1035)..................................................... 598 BLEEDING TUBE (B0.01.1041)..................................................... 601 BLEEDING TUBE (B0.01.1042)..................................................... 602 CRANKCASE BREATHER (B0.01.1051)................................................ 603 CRANKCASE (B0.01.1063)......................................................... 606 CRANKCASE (B0.01.1064)......................................................... 607 CRANKCASE (B0.01.1075)......................................................... 610 OIL FILLER NECK (B0.01.1088)................................................... 611 PLUG (B0.01.1113).............................................................. 614 ACCESSORIES (B0.01.1134)....................................................... 617 ACCESSORIES (B0.01.1135)....................................................... 620 ACCESSORIES (B0.01.1137)....................................................... 623 FILLER CAP (B0.01.1144)........................................................ 626 PISTON COOL.NOZZLE (B0.01.1160)................................................ 629 FLANGE (B0.01.1166)............................................................ 631 FLANGE (B0.01.1167)............................................................ 632 CRANKSHAFT......................................................................... 635 V-BELT - FOR TRACTORS WITH AIR CONDITIONING (B0.02.1 (1))...................... 635 FASTENINGS (B0.02.1002)........................................................ 636 FASTENINGS (B0.02.1003)........................................................ 639 CRANKSHAFT (B0.02.1034)........................................................ 640 CRANKSHAFT (B0.02.1035)........................................................ 641 CRANKSHAFT (B0.02.1041)........................................................ 643 VIBRATION DAMPER (B0.02.1053).................................................. 645 VIBRATION DAMPER (B0.02.1055).................................................. 646 FLYWHEEL (B0.02.1064).......................................................... 649 PLUG (B0.02.1077).............................................................. 652 ACCESSORIES (B0.02.1079)....................................................... 655 VIBRATION DAMPER (B0.02.1083).................................................. 658 CRANKSHAFT PULLEY (B0.02.1089)................................................. 659 CYLINDERS - PISTONS - CONNECTING RODS............................................ 662 PISTON (B0.03.1002)............................................................ 662 CONNECTING ROD (B0.03.1016).................................................... 665 CONNECTING ROD (B0.03.1018).................................................... 666 CONNECTING ROD (B0.03.1022).................................................... 667 CONNECTING ROD (B0.03.1023).................................................... 668 TIMING............................................................................. 670 FASTENINGS (B0.04.1011)........................................................ 670 BUSH (B0.04.1023).............................................................. 672 CAMSHAFT (B0.04.1060).......................................................... 674 CAMSHAFT (B0.04.1063).......................................................... 675 VALVE DRIVE (B0.04.1088)....................................................... 677 GEARCASE (B0.04.1105).......................................................... 680 GEARCASE (B0.04.1106).......................................................... 681 GEARCASE (B0.04.1108).......................................................... 682 CYLINDER HEAD...................................................................... 684 FASTENINGS (B0.05.1002)........................................................ 684 FASTENINGS (B0.05.1006)........................................................ 686 ENGINE MOUNTING (B0.05.1014)................................................... 688 ENGINE MOUNTING (B0.05.1015)................................................... 689 CYLINDER HEAD (B0.05.1030)..................................................... 692 CYLINDER HEAD (B0.05.1031)..................................................... 694 ROCKER ARMS COVER (B0.05.1060)................................................ 698 LUBRICATION........................................................................ 701 FASTENINGS (B0.06.1005)........................................................ 701 SEALING (B0.06.1018)........................................................... 704 OIL SUCTION PIPE (B0.06.1034).................................................. 706 OIL PAN (B0.06.1049)........................................................... 709 CLOSING COMPONENTS (B0.06.1084)................................................ 712 CLOSING COMPONENTS (B0.06.1085)................................................ 715 CLOSING COMPONENTS (B0.06.1086)................................................ 718 CLOSING COMPONENTS (B0.06.1087)................................................ 721 CLOSING COMPONENTS (B0.06.1088)................................................ 724 DRIVING PARTS (B0.06.1105)..................................................... 727 OIL COOLER BOX (B0.06.1115).................................................... 730 OIL COOLER BOX (B0.06.1133).................................................... 733 OIL COOLER BOX (B0.06.1136).................................................... 735 FUEL INJECTION SYSTEM.............................................................. 736 FASTENINGS (B0.07.1009)........................................................ 736 FASTENINGS (B0.07.1010)........................................................ 739 FASTENINGS (B0.07.1011)........................................................ 743 FASTENINGS (B0.07.1012)........................................................ 746 HIGH PRESSURE PIPE (B0.07.1021)................................................ 751 FUEL INJECT. PUMP (B0.07.1032)................................................. 753 FUEL INJECT. PUMP (B0.07.1033)................................................. 756 FUEL INJECTOR (B0.07.1040)..................................................... 757 FUEL INJECTOR (B0.07.1048)..................................................... 760 FUEL FEED PUMP (B0.07.1050).................................................... 761 FUEL FEED PUMP (B0.07.1051).................................................... 762 FUEL FILTER (B0.07.1054)....................................................... 764 FUEL LINE (B0.07.1070)......................................................... 767 FUEL LINE (B0.07.1071)......................................................... 770 FUEL LINE (B0.07.1073)......................................................... 773 ROLLER TAPPET (B0.07.1130)..................................................... 775 ROLLER TAPPET (B0.07.1131)..................................................... 777 PILOTED CHECK VALVE (B0.07.1139)............................................... 778 ACCESSORIES (B0.07.1162)....................................................... 779 ACCESSORIES (B0.07.1163)....................................................... 780 ACCESSORIES (B0.07.1164)....................................................... 781 HOLDING DEVICE FOR LEADS (B0.07.1187).......................................... 782 FUEL SUPPLY PUMP (B0.07.1192).................................................. 784 FUEL SUPPLY PUMP (B0.07.1197).................................................. 786 FUEL SUPPLY PUMP (B0.07.1199).................................................. 787 MECHANICAL - ELECTRONIC GOVERNOR................................................... 788 FASTENINGS (B0.08.1001)........................................................ 788 CONTROL ROD (B0.08.1009)....................................................... 791 ELECTRONIC CONTROL UNIT - ENGINE (B0.08.1016).................................. 794 PIPING (B0.08.1028)............................................................ 797 CLOSING COMPONENTS (B0.08.1031)................................................ 798 CLOSING COMPONENTS (B0.08.1033)................................................ 799 CLOSING COMPONENTS (B0.08.1035)................................................ 802 CLOSING COMPONENTS (B0.08.1036)................................................ 803 CLOSING COMPONENTS (B0.08.1037)................................................ 806 ACTUATOR (B0.08.1041).......................................................... 808 ACTUATOR (B0.08.1042).......................................................... 810 COOLING............................................................................ 811 FASTENINGS (B0.09.1008)........................................................ 811 FASTENINGS (B0.09.1009)........................................................ 812 FASTENINGS (B0.09.1010)........................................................ 813 FASTENINGS (B0.09.1011)........................................................ 816 FASTENINGS (B0.09.1012)........................................................ 819 FASTENINGS (B0.09.1015)........................................................ 822 THERMOSTAT (B0.09.1062)........................................................ 824 CLOSING COMPONENTS (B0.09.1073)................................................ 827 COOLING WATER PIPE (B0.09.1083)................................................ 830 MANIFOLD (B0.09.1100).......................................................... 833 MANIFOLD (B0.09.1101).......................................................... 834 MANIFOLD (B0.09.1102).......................................................... 835 MANIFOLD (B0.09.1104).......................................................... 837 FAN SUPPORT (B0.09.1111)....................................................... 838 FAN SUPPORT (B0.09.1112)....................................................... 839 FAN SUPPORT (B0.09.1120)....................................................... 842 FAN SUPPORT (B0.09.1122)....................................................... 843 BELT STRETCHER (B0.09.1136).................................................... 844 BELT STRETCHER (B0.09.1137).................................................... 845 CONNECTION (B0.09.1146)........................................................ 848 V-BELT (B0.09.1155)............................................................ 851 V-BELT (B0.09.1156)............................................................ 852 V-GROOVED PULLEY (B0.09.1176).................................................. 855 INTAKE - EXHAUST MANIFOLDS......................................................... 857 EXHAUST PIPE (B0.10.1003)...................................................... 857 FASTENINGS (B0.10.1025)........................................................ 860 TUNNEL COVER (B0.10.1045)...................................................... 863 TUNNEL COVER (B0.10.1046)...................................................... 866 THERMO STARTER (B0.10.1055).................................................... 869 THERMO STARTER (B0.10.1056).................................................... 870 THERMO STARTER (B0.10.1058).................................................... 872 MANIFOLD (B0.10.1073).......................................................... 874 CLOSING COMPONENTS (B0.10.1105)................................................ 877 CLOSING COMPONENTS (B0.10.1107)................................................ 879 CHARGED AIR MANIFOLD (B0.10.1126).............................................. 882 CHARGED AIR MANIFOLD (B0.10.1127).............................................. 883 TURBOCHARGER....................................................................... 886 TURBOCHARGER (B0.11.1003)...................................................... 886 TURBOCHARGER (B0.11.1004)...................................................... 887 TURBOCHARGER (B0.11.1008)...................................................... 888 TURBOCHARGER (B0.11.1009)...................................................... 889 TURBOCHARGER (B0.11.1015)...................................................... 890 OIL LUBRICATION PIPE (B0.11.1063).............................................. 891 OIL LUBRICATION PIPE (B0.11.1064).............................................. 894 CLOSING COMPONENTS (B0.11.1085)................................................ 897 CLOSING COMPONENTS (B0.11.1086)................................................ 900 Electrical accessories............................................................. 903 COVER PLATE (B0.12.1002)....................................................... 903 FASTENINGS (B0.12.1010)........................................................ 904 FASTENINGS (B0.12.1014)........................................................ 907 FASTENINGS (B0.12.1017)........................................................ 908 FASTENINGS (B0.12.1020)........................................................ 911 FASTENINGS (B0.12.1021)........................................................ 912 GENERATOR (B0.12.1058)......................................................... 914 ENGINE ELECTRICAL SYSTEM (B0.12.1080).......................................... 917 ENGINE ELECTRICAL SYSTEM (B0.12.1083).......................................... 918 ENGINE ELECTRICAL SYSTEM (B0.12.1085).......................................... 919 STARTER (B0.12.1127)........................................................... 922 ACCESSORIES (B0.12.1145)....................................................... 925 ACCESSORIES (B0.12.1149)....................................................... 928 ACCESSORIES (B0.12.1150)....................................................... 931 ACCESSORIES (B0.12.1151)....................................................... 932 DRIVING PARTS (B0.12.1189)..................................................... 935 OIL PRESSUR.SWITCH (B0.12.1193)................................................ 936 OIL PRESSUR.SWITCH (B0.12.1201)................................................ 937 OIL PRESSUR.SWITCH (B0.12.1205)................................................ 939 TEMPER.TRANSMITTER (B0.12.1217)................................................ 940 TEMPER.TRANSMITTER (B0.12.1219)................................................ 942 TEMPER.TRANSMITTER (B0.12.1222)................................................ 944 TEMPER.TRANSMITTER (B0.12.1224)................................................ 946 IMPULSETRANSMITTER (B0.12.1234)................................................ 947 IMPULSETRANSMITTER (B0.12.1235)................................................ 950 V-GROOVED PULLEY (B0.12.1236).................................................. 951 Index...................................................................................... 953 Agrotron 120 -> 8164 1201.................................................................. 954 C0 - ENGINE ACCESSORIES................................................................ 954 RADIATORS - FANS................................................................... 954 COOLING SYSTEM (C0.01.0 (1))................................................... 954 COOLING SYSTEM (C0.01.0 (2))................................................... 955 COOLING SYSTEM (C0.01.0 (3))................................................... 956 COOLING SYSTEM (C0.01.0 (4))................................................... 957 COOLING SYSTEM (C0.01.1 (1))................................................... 958 COOLING SYSTEM (C0.01.1 (2))................................................... 960 AIR DUCTING UPPER PART (C0.01.5 (1))........................................... 962 INTERCOOLER - AIR CLEANER.......................................................... 963 INTERCOOLER (C0.02.0 (1))...................................................... 963 INTERCOOLER (C0.02.0 (2))...................................................... 964 INTERCOOLER (C0.02.0 (3))...................................................... 965 DRY AIR FILTER (C0.02.2 (1))................................................... 966 AIR INTAKE TUBE (C0.02.3 (1)).................................................. 967 AIR FILTER (0.013.9314.4.A).................................................... 968 FUEL SYSTEM........................................................................ 969 FUEL TANK (C0.03.1 (1))........................................................ 969 FUEL TANK PIPES (C0.03.2 (1)).................................................. 970 FUEL TANK SUPPORTS (C0.03.3 (1))............................................... 971 FUEL TANK SUPPORTS (C0.03.3 (2))............................................... 972 FUEL COOLER - GEAR OIL COOLER (C0.03.9 (1)).................................... 973 FUEL COOLER - GEAR OIL COOLER (C0.03.9 (2)).................................... 974 FUEL COOLER - GEAR OIL COOLER (C0.03.9 (3)).................................... 975 FUEL COOLER - GEAR OIL COOLER (C0.03.9 (4)).................................... 976 EXHAUST SILENCER................................................................... 977 EXHAUST SILENCER (C0.06.1 (1))................................................. 977 AIR COMPRESSOR..................................................................... 978 AIR COMPRESSOR 229 cm³ (C0.07.1 (1))........................................... 978 AIR COMPRESSOR 229 cm³ (C0.07.2 (1))........................................... 979 AIR COMPRESSOR 229 cm³ (C0.07.7 (1))........................................... 980 AIR COMPRESSOR 229 cm³ (C0.07.8 (1))........................................... 981 COMPRESSOR-PARTS (04428408.4.A)................................................ 982 Index...................................................................................... 983 Agrotron 120 -> 8164 1201.................................................................. 984 F0 - FRONT AXLE........................................................................ 984 GENERAL............................................................................ 984 4WD - FRONT DRIVE AXLE (F0.00.1 (1))........................................... 984 4WD - FRONT DRIVE AXLE (F0.00.1 (2))........................................... 985 4WD - FRONT DRIVE AXLE (F0.00.3 (1))........................................... 986 DRIVEN FRONT AXLE (F0.00.5 (1))................................................ 987 DRIVEN FRONT AXLE (F0.00.7 (1))................................................ 988 DRIVEN FRONT AXLE - [641373] (0.014.0323.4/10.B)............................... 989 STEERING CYLINDER - [641373] (0.014.0323.4/10.C)............................... 990 BEVEL WHEEL GEAR - [641373] (0.014.0323.4/10.D)................................ 991 DIFFERENTIAL - [641373] (0.014.0323.4/10.E).................................... 992 DOUBLE COUPLING - [641373] (0.014.0323.4/10.F)................................. 993 WHEEL HUB - [641373] (0.014.0323.4/10.G)....................................... 994 PLANETARY GEAR - [641373] (0.014.0323.4/10.H).................................. 995 DRIVEN FRONT AXLE - [359577] (0.014.0323.4/30.A)............................... 996 STEERING CYLINDER - [359577] (0.014.0323.4/30.B)............................... 997 BEVEL WHEEL GEAR - [359577] (0.014.0323.4/30.C)................................ 998 DIFFERENTIAL - [359577] (0.014.0323.4/30.D).................................... 999 DOUBLE COUPLING - [359577] (0.014.0323.4/30.E).................................1000 WHEEL HUB - [359577] (0.014.0323.4/30.F).......................................1001 PLANETARY GEAR - [359577] (0.014.0323.4/30.G)..................................1002 DRIVEN FRONT AXLE - [641372] (0.014.0325.4/10.A)...............................1003 STEERING CYLINDER - [641372] (0.014.0325.4/10.B)...............................1004 BEVEL WHEEL GEAR - [641372] (0.014.0325.4/10.C)................................1005 DIFFERENTIAL - [641372] (0.014.0325.4/10.D)....................................1006 DOUBLE COUPLING - [641372] (0.014.0325.4/10.E).................................1007 WHEEL HUB - [641372] (0.014.0325.4/10.F).......................................1008 PLANETARY GEAR - [641372] (0.014.0325.4/10.G)..................................1009 FRONT SUPPORT......................................................................1010 FRONT SUPPORT (F0.01.0 (1))....................................................1010 4WD - FRONT SUPPORT (F0.01.1 (1))..............................................1011 4WD - FRONT CARRIER WITH SUSPENSION (F0.01.4 (1))..............................1012 FRONT COVER WITHOUT FRONT HOOK (F0.01.6 (1))...................................1013 CYLINDER PARTS OGNIBENE (0.013.9104.4.A).......................................1014 CYLINDER PARTS OGNIBENE (0.013.9105.4.A).......................................1015 FRONT DIFFERENTIAL.................................................................1016 4WD - TRANSMISSION SHAFT (F0.04.0 (1)).........................................1016 4WD - TRANSMISSION SHAFT (F0.04.1 (1)).........................................1017 Index......................................................................................1018 Agrotron 120 -> 8164 1201..................................................................1020 N0 - FRONT LIFT........................................................................1020 GENERAL............................................................................1020 FRONT HYDRAULIC POWER-LIFT (N0.00.0 (1)).......................................1020 FRONT HYDRAULIC POWER-LIFT (N0.00.1 (1)).......................................1021 FRONT HYDRAULIC POWER-LIFT (N0.00.2 (1)).......................................1022 FRONT HYDRAULIC POWER-LIFT (N0.00.3 (1)).......................................1023 FRONT HYDRAULIC POWER-LIFT (N0.00.7 (1)).......................................1024 FRONT HYDRAULIC POWER-LIFT (N0.00.8 (1)).......................................1025 FRONT HYDRAULIC POWER-LIFT (N0.00.9 (1)).......................................1026 FRONT HYDRAULIC POWER-LIFT (N0.00.10 (1))......................................1027 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITH SUSPENSION (04451364.4.A)..........1028 HYDRAULIC SYSTEM (04451364.4.B)................................................1029 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITH SUSPENSION (04451365.4.A)..........1030 HYDRAULIC SYSTEM (04451365.4.B)................................................1031 FRONT LIGHTS (04451365.4.C)....................................................1032 P.T.O. SHAFT (04451365.4.D)....................................................1033 P.T.O. SHAFT (04451365.4.E)....................................................1034 P.T.O. SHAFT (04451365.4.F)....................................................1036 P.T.O. SHAFT (04451365.4.G)....................................................1037 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITHOUT SUSPENSION (04451366.4/10.A)....1038 HYDRAULIC SYSTEM (04451366.4/10.B).............................................1039 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITHOUT SUSPENSION (04451367.4/10.A)....1040 HYDRAULIC SYSTEM (04451367.4/10.B).............................................1041 FRONT LIGHTS (04451367.4/10.C).................................................1042 P.T.O. SHAFT (04451367.4/10.D).................................................1043 P.T.O. SHAFT (04451367.4/10.E).................................................1044 P.T.O. SHAFT (04451367.4/10.F).................................................1046 P.T.O. SHAFT (04451367.4/10.G).................................................1047 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITH SUSPENSION (04454360.4.A)..........1048 BRACKET FOR FRONT LIFT (04454360.4.B)..........................................1049 HYDRAULIC SYSTEM (04454360.4.C)................................................1050 FRONT LIGHTS (04454360.4.D)....................................................1051 P.T.O. SHAFT (04454360.4.E)....................................................1052 P.T.O. SHAFT (04454360.4.F)....................................................1053 P.T.O. SHAFT (04454360.4.G)....................................................1055 P.T.O. SHAFT (04454360.4.H)....................................................1056 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITH SUSPENSION (04454361.4.A)..........1057 BRACKET FOR FRONT LIFT (04454361.4.B)..........................................1058 HYDRAULIC SYSTEM (04454361.4.C)................................................1059 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITHOUT SUSPENSION (04454362.4.A).......1060 BRACKET FOR FRONT LIFT (04454362.4.B)..........................................1061 HYDRAULIC SYSTEM (04454362.4.C)................................................1062 FRONT LIGHTS (04454362.4.D)....................................................1063 P.T.O. SHAFT (04454362.4.E)....................................................1064 P.T.O. SHAFT (04454362.4.F)....................................................1065 P.T.O. SHAFT (04454362.4.G)....................................................1067 P.T.O. SHAFT (04454362.4.H)....................................................1068 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITHOUT SUSPENSION (04454363.4.A).......1069 BRACKET FOR FRONT LIFT (04454363.4.B)..........................................1070 HYDRAULIC SYSTEM (04454363.4.C)................................................1071 Index......................................................................................1072 Agrotron 120 -> 8164 1201..................................................................1075 P0 - FRONT LOADER......................................................................1075 STRUCTURE - LETTERING..............................................................1075 FIXED FRAME (P0.01.0 (1))......................................................1075 FRONT PROTECTIONS (P0.01.1 (1))................................................1076 INSTALLATION KIT (P0.01.2 (1)).................................................1077 FRONT LOADER ARM (P0.01.3 (1)).................................................1078 FRONT LOADER ARM (P0.01.4 (1)).................................................1079 FRONT LOADER ARM (P0.01.5 (1)).................................................1080 FRONT LOADER ARM (P0.01.6 (1)).................................................1081 FRONT LOADER ARM (P0.01.7 (1)).................................................1082 FRONT LOADER ARM (P0.01.9 (1)).................................................1083 LOCKING SYSTEM (P0.01.12 (1))..................................................1084 HYDRAULIC IMPLEMENT HITCH (P0.01.13 (1)).......................................1085 HYDRAULIC IMPLEMENT HITCH (P0.01.14 (1)).......................................1086 HYDRAULIC IMPLEMENT HITCH SFAH L-4 - 30 (P0.01.17 (1)).........................1087 HYDRAULIC IMPLEMENT HITCH EFAH L-4 - 30 (P0.01.18 (1)).........................1088 MECHANICAL IMPLEMENT HITCH EFAM L-35 (P0.01.19 (1))............................1089 MECHANICAL IMPLEMENT HITCH SFAM L-35 (P0.01.20 (1))............................1090 MECHANICAL IMPLEMENT HITCH SFAM L-4 - 30 (P0.01.23 (1))........................1091 MECHANICAL IMPLEMENT HITCH EFAM L-4 - 30 (P0.01.24 (1))........................1092 PRODUCT PLATE (P0.01.26 (1))...................................................1093 MODEL PLATE (P0.01.29 (1)).....................................................1094 MODEL PLATE (P0.01.30 (1)).....................................................1095 MODEL PLATE (P0.01.32 (1)).....................................................1096 MODEL PLATE (P0.01.33 (1)).....................................................1097 SIGN SET - ITALY (P0.01.34 (1))................................................1098 SIGN SET - EXPORT GB (P0.01.35 (1))............................................1099 SIGN SET EXPORT DK (P0.01.36 (1))..............................................1100 SIGN SET EXPORT NL (P0.01.37 (1))..............................................1101 SIGN SET - EXPORT F (P0.01.38 (1)).............................................1102 SIGN SET - EXPORT D (P0.01.39 (1)).............................................1103 SIGN SET - EXPORT E (P0.01.40 (1)).............................................1104 SIGN SET EXPORT PL (P0.01.41 (1))..............................................1105 IDENTIFICATION PLATE (P0.01.42 (1))............................................1106 IDENTIFICATION PLATE (P0.01.43 (1))............................................1107 IDENTIFICATION PLATE (P0.01.44 (1))............................................1108 INFORMATION PLATE (P0.01.45 (1))...............................................1109 WARNING PLATE (P0.01.46 (1))...................................................1110 WARNING PLATE (P0.01.47 (1))...................................................1111 HYDRAULIC SYSTEM...................................................................1112 PIPING (P0.02.0 (1))...........................................................1112 ELECTRICAL SYSTEM..................................................................1113 HYDRAULIC IMPLEMENT ATTACHMENT SWITCH (P0.03.0 (1))............................1113 PROVISION FOR FRONT LOADER (P0.03.1 (1)).......................................1114 PROVISION FOR FRONT LOADER (P0.03.2 (1)).......................................1115 LOADER CONTROLS....................................................................1116 CONTROL LEVER (P0.04.0 (1))....................................................1116 DRIVE (0.014.4795.4/20.A)......................................................1117 ATTACHMENTS........................................................................1118 EARTH SHOVEL - EABU 150 N (P0.05.0 (1))........................................1118 EARTH SHOVEL - EABU 170 N (P0.05.1 (1))........................................1119 UNIVERSAL SHOVEL - UNBU 170 N (P0.05.2 (1))....................................1120 BUCKET FIOB 180 H (P0.05.3 (1))................................................1121 UNIVERSAL SHOVEL - UNBU 190 N (P0.05.4 (1))....................................1122 EARTH SHOVEL - EABU 190 N (P0.05.5 (1))........................................1123 BUCKET - FIOB 200 H (P0.05.8 (1))..............................................1124 BUCKET - FIOB 200 H (P0.05.8 (2))..............................................1125 MAXI SHOVEL - MABU 200 N (P0.05.9 (1)).........................................1126 UNIVERSAL SHOVEL - UNBU 205 N (P0.05.10 (1))...................................1127 EARTH SHOVEL - EABU 220 N (P0.05.13 (1)).......................................1128 UNIVERSAL SHOVEL - UNBU 235 N (P0.05.15 (1))...................................1129 MAXI SHOVEL - MABU 240 N (P0.05.17 (1))........................................1130 EARTH SHOVEL - EABU 205 N (P0.05.21 (1)).......................................1131 UNIVERSAL SHOVEL - UNBU 220 N (P0.05.23 (1))...................................1132 FORK-LIFT FOR MANURE - MAFO 150 L (P0.05.27 (1))...............................1133 FORK-LIFT FOR MANURE - MAFO 150 N (P0.05.28 (1))...............................1134 FORK-LIFT FOR MANURE - MAFO 175 H (P0.05.29 (1))...............................1135 FORK-LIFT FOR MANURE - MAFO 175 H (P0.05.29 (2))...............................1136 FORK-LIFT FOR MANURE - MAFO 175 N (P0.05.30 (1))...............................1137 FORK-LIFT FOR MANURE - MAFO 175 N (P0.05.30 (2))...............................1138 FORK-LIFT FOR MANURE (P0.05.31 (1))............................................1139 FORK-LIFT FOR MANURE - MAFO 200 N (P0.05.31 (2))...............................1140 FORK-LIFT FOR MANURE - MAFO 200 H (P0.05.32 (1))...............................1141 FORK-LIFT FOR MANURE - MAFO 200 H (P0.05.32 (2))...............................1142 BAIL FORK - BBFO 120 H (P0.05.35 (1))..........................................1143 BAIL FORK - BBFO 120 H (P0.05.35 (2))..........................................1144 FOLDING BAIL FORK - BBFA 120 H (P0.05.36 (1))..................................1145 BAIL FORK - RBHA 000 N (P0.05.37 (1))..........................................1146 PALLET FORK - PAFO 090 H (P0.05.38 (1))........................................1147 PALLET FORK - PAFO 090 H (P0.05.38 (2))........................................1148 PALLET FORK - PAFO 120 H (P0.05.39 (1))........................................1149 PALLET FORK - PAFO 120 H (P0.05.39 (2))........................................1150 BAIL FORK - BACL 205 H (P0.05.40 (1))..........................................1151 BAIL FORK - BACL 160 N (P0.05.41 (1))..........................................1152 SHOVEL WITH LOAD HOLDER -SBWG 160 H (P0.05.42 (1)).............................1153 SHOVEL WITH LOAD HOLDER - SBWG 180 N (P0.05.43 (1))............................1154 SHOVEL WITH LOAD HOLDER - SBWG 200 H (P0.05.44 (1))............................1155 SHOVEL WITH LOAD HOLDER - SBWG 220 H (P0.05.45 (1))............................1156 FORK WITH LOAD HOLDER - SIGR 120 H (P0.05.46 (1))..............................1157 FORK WITH LOAD HOLDER - SIGR 150 N (P0.05.47 (1))..............................1158 FORK WITH LOAD HOLDER - FWGR 170 N (P0.05.48 (1))..............................1159 SHOVEL WITH LOAD HOLDER - BWGR 170 N (P0.05.49 (1))............................1160 SHOVEL WITH LOAD HOLDER - BWGR 200 N (P0.05.50 (1))............................1161 FORK WITH LOAD HOLDER - FWGR 200 N (P0.05.51 (1))..............................1162 SHOVEL WITH LOAD HOLDER - BWGR 230 N (P0.05.52 (1))............................1163 FORK WITH LOAD HOLDER - FWGR 230 N (P0.05.53 (1))..............................1164 TRUNK FORK - STFO 130 N (P0.05.54 (1)).........................................1165 TRUNK FORK - STFH 104 N (P0.05.55 (1)).........................................1166 SWIVEL HOOK - LOHO 000 H (P0.05.56 (1))........................................1167 SHREDDER - SCGR 130 H (P0.05.57 (1))...........................................1168 SHREDDER - SCGR 150 N (P0.05.58 (1))...........................................1169 SHREDDER - SCGR 190 H (P0.05.59 (1))...........................................1170 SHOVEL AND FORK PROTECTION A = mm 1310 (P0.05.60 (1))..........................1171 SHOVEL AND FORK PROTECTION A = mm 1510 (P0.05.61 (1))..........................1172 SHOVEL AND FORK PROTECTION A = mm 1710 (P0.05.62 (1))..........................1173 SHOVEL AND FORK PROTECTION A = mm 1910 (P0.05.63 (1))..........................1174 SHOVEL AND FORK PROTECTION A = mm 2060 (P0.05.64 (1))..........................1175 SHOVEL AND FORK PROTECTION A = mm 2210 (P0.05.65 (1))..........................1176 SHOVEL AND FORK PROTECTION A = mm 2410 (P0.05.66 (1))..........................1177 Index......................................................................................1178 Agrotron 120 -> 8164 1201..................................................................1179 M0 - FRONT PTO.........................................................................1179 GENERAL............................................................................1179 P.T.O. FRONT (M0.00.0 (1)).....................................................1179 FRONT HYDRAULIC POWER-LIFT (M0.00.2 (1)).......................................1180 FRONT HYDRAULIC POWER-LIFT (M0.00.3 (1)).......................................1181 FRONT HYDRAULIC POWER-LIFT (M0.00.4 (1)).......................................1182 FRONT HYDRAULIC POWER-LIFT (M0.00.5 (1)).......................................1183 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITH SUSPENSION (04451365.4.A)..........1184 HYDRAULIC SYSTEM (04451365.4.B)................................................1185 FRONT LIGHTS (04451365.4.C)....................................................1186 P.T.O. SHAFT (04451365.4.D)....................................................1187 P.T.O. SHAFT (04451365.4.E)....................................................1188 P.T.O. SHAFT (04451365.4.F)....................................................1190 P.T.O. SHAFT (04451365.4.G)....................................................1191 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITHOUT SUSPENSION (04451367.4/10.A)....1192 HYDRAULIC SYSTEM (04451367.4/10.B).............................................1193 FRONT LIGHTS (04451367.4/10.C).................................................1194 P.T.O. SHAFT (04451367.4/10.D).................................................1195 P.T.O. SHAFT (04451367.4/10.E).................................................1196 P.T.O. SHAFT (04451367.4/10.F).................................................1198 P.T.O. SHAFT (04451367.4/10.G).................................................1199 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITH SUSPENSION (04454360.4.A)..........1200 BRACKET FOR FRONT LIFT (04454360.4.B)..........................................1201 HYDRAULIC SYSTEM (04454360.4.C)................................................1202 FRONT LIGHTS (04454360.4.D)....................................................1203 P.T.O. SHAFT (04454360.4.E)....................................................1204 P.T.O. SHAFT (04454360.4.F)....................................................1205 P.T.O. SHAFT (04454360.4.G)....................................................1207 P.T.O. SHAFT (04454360.4.H)....................................................1208 FRONT HYDRAULIC POWER-LIFT - FOR TYPES WITHOUT SUSPENSION (04454362.4.A).......1209 BRACKET FOR FRONT LIFT (04454362.4.B)..........................................1210 HYDRAULIC SYSTEM (04454362.4.C)................................................1211 FRONT LIGHTS (04454362.4.D)....................................................1212 P.T.O. SHAFT (04454362.4.E)....................................................1213 P.T.O. SHAFT (04454362.4.F)....................................................1214 P.T.O. SHAFT (04454362.4.G)....................................................1216 P.T.O. SHAFT (04454362.4.H)....................................................1217 P.T.O. SHAFT (9.04451482.A)....................................................1218 P.T.O. SHAFT (9.04451482.B)....................................................1219 P.T.O. SHAFT (9.04451482.C)....................................................1221 P.T.O. SHAFT (9.04451482.D)....................................................1222 Index......................................................................................1223 Agrotron 120 -> 8164 1201..................................................................1227 H0 - HYDRAULIC AND PNEUMATIC SYSTEM|...................................................1227 HYDRAULIC SYSTEM...................................................................1227 FRONT DIFFERENTIAL LOCK CONTROL LINES (H0.01.1 (1))............................1227 FRONT DIFFERENTIAL LOCK CONTROL LINES (H0.01.2 (1))............................1228 GEAR BOX OIL RADIATOR TUBES (H0.01.6 (1))......................................1229 OIL SUPPLY HYDRAULIC PUMP LOAD SENSING (H0.01.8 (1))...........................1230 OIL SUPPLY - HYDRAULIC PUMP - LOAD SENSING (H0.01.9 (1)).......................1232 OIL SUPPLY - HYDRAULIC PUMP - LOAD SENSING (H0.01.9 (2)).......................1234 OIL SUPPLY - HYDRAULIC PUMP - LOAD SENSING (H0.01.11 (1))......................1236 HYDRAULIC SYSTEM LOAD SENSING (H0.01.12 (1))...................................1237 HYDRAULIC SYSTEM LOAD SENSING (H0.01.13 (1))...................................1238 HYDRAULIC SYSTEM LOAD SENSING (H0.01.16 (1))...................................1239 HYDRAULIC SYSTEM LOAD SENSING (H0.01.17 (1))...................................1240 HYDRAULIC SYSTEM LOAD SENSING (H0.01.18 (1))...................................1241 HYDRAULIC SYSTEM LOAD SENSING (H0.01.19 (1))...................................1242 HYDRAULIC SYSTEM LOAD SENSING (H0.01.20 (1))...................................1243 HYDRAULIC SYSTEM LOAD SENSING (H0.01.21 (1))...................................1244 OIL SUPPLY HYDRAULIC PUMP (H0.01.26 (1)).......................................1245 OIL SUPPLY HYDRAULIC PUMP OPEN CENTER (H0.01.26 (2))...........................1246 OIL SUPPLY HYDRAULIC PUMP OPEN CENTER (H0.01.28 (1))...........................1247 HYDRAULIC SYSTEM OPEN CENTER (H0.01.29 (1))....................................1249 HYDRAULIC SYSTEM OPEN CENTER (H0.01.30 (1))....................................1250 HYDRAULIC SYSTEM OPEN CENTER (H0.01.33 (1))....................................1251 HYDRAULIC SYSTEM OPEN CENTER (H0.01.34 (1))....................................1252 HYDRAULIC SYSTEM OPEN CENTER (H0.01.35 (1))....................................1253 HYDRAULIC SYSTEM OPEN CENTER (H0.01.36 (1))....................................1254 HYDRAULIC SYSTEM OPEN CENTER (H0.01.37 (1))....................................1255 HYDRAULIC SYSTEM OPEN CENTER (H0.01.38 (1))....................................1256 HYDRAULIC SYSTEM - FOR 4-WAY DISTRIBUTOR OPEN CENTER (H0.01.43 (1))............1257 HYDRAULIC SYSTEM - FOR 4-WAY DISTRIBUTOR OPEN CENTER (H0.01.44 (1))............1258 HYDRAULIC SYSTEM - FOR 4-WAY DISTRIBUTOR LOAD SENSING (H0.01.49 (1))...........1259 HYDRAULIC SYSTEM - FOR 8-WAY CONTROL VALVE OPEN CENTER (H0.01.51 (1))..........1260 HYDRAULIC SYSTEM - FOR 8-WAY CONTROL VALVE OPEN CENTER (H0.01.53 (1))..........1261 HYDRAULIC SYSTEM - FOR 8-WAY CONTROL VALVE LOAD SENSING (H0.01.55 (1)).........1262 OIL PUMP (04432500/10.A).......................................................1263 OIL PUMP (04432500/10.B).......................................................1264 OIL PUMP (04432500/10.C).......................................................1265 DETAILS OF OIL FILTER (04437773.4.A)...........................................1266 HYDRAULIC PUMP PARTS (04450322.A)..............................................1267 VALVE PARTS (04450326.A).......................................................1268 HYDRAULIC PUMP PARTS (04450516.A)..............................................1269 SPIN-ON FILTER (04451877.A)....................................................1270 OIL PUMP (04452222/10.A).......................................................1271 OIL PUMP (04452222/10.B).......................................................1272 OIL PUMP (04452222/10.C).......................................................1273 OIL PUMP (04452222/10.D).......................................................1274 HYDRAULIC PUMP PARTS (2.4539.310.0.A)..........................................1275 HYDRAULIC PUMP PARTS (2.4539.310.0/10.A).......................................1276 STEERING SYSTEM....................................................................1277 HYDROSTATIC STEERING CONTROL VALVE (H0.02.0 (1))...............................1277 PIPES FOR HYDROSTATIC STEERING (H0.02.1 (1))...................................1278 PIPES FOR HYDROSTATIC STEERING (H0.02.2 (1))...................................1279 POWER STEERING (H0.02.3 (1))...................................................1280 PIPES FOR HYDROSTATIC STEERING (H0.02.4 (1))...................................1281 POWER STEERING (H0.02.5 (1))...................................................1282 POWER STEERING (H0.02.5 (2))...................................................1283 GUIDE PIPE (H0.02.10 (1))......................................................1284 GUIDE PIPE (H0.02.11 (1))......................................................1285 HYDRAULIC STEERING GEAR (04450329.A)...........................................1286 TRANSMISSION - PTO COOLERS........................................................1287 FUEL COOLER - GEAR OIL COOLER (H0.03.0 (1))....................................1287 FUEL COOLER - GEAR OIL COOLER (H0.03.0 (2))....................................1288 FUEL COOLER - GEAR OIL COOLER (H0.03.0 (3))....................................1289 FUEL COOLER - GEAR OIL COOLER (H0.03.0 (4))....................................1290 FRONT AXLE HYDRAULIC SUSPENSION....................................................1291 FRONT CARRIER SUSPENSION SYSTEM OPEN CENTER (H0.04.0 (1))......................1291 FRONT CARRIER SUSPENSION SYSTEM OPEN CENTER (H0.04.1 (1))......................1292 HYDRAULIC SYSTEM FOR SUSPENDED AXLE OPEN CENTER (H0.04.2 (1))..................1293 FRONT CARRIER SUSPENSION SYSTEM LOAD SENSING (H0.04.3 (1)).....................1295 FRONT CARRIER SUSPENSION SYSTEM LOAD SENSING (H0.04.4 (1)).....................1296 HYDRAULIC SYSTEM FOR SUSPENDED AXLE LOAD SENSING (H0.04.5 (1)).................1297 HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0.04.6 (1))..............................1299 HYDRAULIC SYSTEM FOR SUSPENDED AXLE OPEN CENTER (H0.04.10 (1)).................1300 HYDRAULIC SYSTEM FOR SUSPENDED AXLE LOAD SENSING (H0.04.14 (1))................1301 ACCUMULATOR COMPONENTS (04450418.A)............................................1302 ACCUMULATOR (04452756.A).......................................................1303 REAR REMOTE CONTROL VALVES.........................................................1304 4-WAY AUXILIARY DISTRIBUTOR OPEN CENTER (H0.07.3 (2))..........................1304 4-WAY AUXILIARY DISTRIBUTOR OPEN CENTER (H0.07.4 (2))..........................1306 4-WAY HYDRAULIC CONTROL VALVE OPEN CENTER (H0.07.6 (1))........................1308 4-WAY HYDRAULIC CONTROL VALVE LOAD SENSING (H0.07.7 (2)).......................1310 8-WAY AUXILIARY DISTRIBUTOR OPEN CENTER (H0.07.9 (2))..........................1311 8-WAY AUXILIARY DISTRIBUTOR OPEN CENTER (H0.07.10 (2)).........................1313 8-WAY HYDRAULIC CONTROL VALVE OPEN CENTER (H0.07.13 (1)).......................1315 8-WAY AUXILIARY DISTRIBUTOR LOAD SENSING (H0.07.15 (2))........................1317 8-WAY HYDRAULIC CONTROL VALVE LOAD SENSING (H0.07.16 (1))......................1319 REAR FREE RETURN - NOT PRESSURIZED (H0.07.17 (1))..............................1321 RETURN LINE REAR - UNPRESSURIZED (H0.07.19 (1))................................1322 PUSH-PULL QUICK COUPLERS FOR "POWER BEYOND" (H0.07.22 (1)).....................1323 PUSH-PULL QUICK COUPLERS FOR "POWER BEYOND" (H0.07.25 (1)).....................1324 4-WAY CONTROL VALVES - OIL RECOVERY (H0.07.28 (1)).............................1325 4-WAY CONTROL VALVES - OIL RECOVERY (H0.07.29 (1)).............................1326 4-WAY CONTROL VALVES - OIL RECOVERY (H0.07.30 (1)).............................1327 8-WAY CONTROL VALVES - OIL RECOVERY (H0.07.36 (1)).............................1328 8-WAY CONTROL VALVES - OIL RECOVERY (H0.07.37 (1)).............................1329 8-WAY QUICK COUPLERS (H0.07.38 (1))............................................1330 8-WAY CONTROL VALVES - OIL RECOVERY (H0.07.39 (1)).............................1331 ENGAGEMENT (04412157/10.A).....................................................1332 VALVE PARTS (04428917.4.A).....................................................1333 ENGAGEMENT (04450416.A)........................................................1334 ENGAGEMENT (04450417.A)........................................................1335 ENGAGEMENT (04452919.A)........................................................1336 DISTRIBUTOR PARTS (2.3729.480.0.A).............................................1337 DISTRIBUTOR PARTS (2.3729.520.0/10.A)..........................................1338 BRAKING SYSTEM AND PNEUMATIC SYSTEM|...............................................1339 BRAKING SYSTEM (H0.09.0 (1))...................................................1339 HYDRAULIC BREAKING FOR TRAILER - ITALY - (H0.09.6 (1)).........................1340 HYDRAULIC BREAKING FOR TRAILER - ITALY (H0.09.8 (1))...........................1342 HYDRAULIC BREAKING FOR TRAILER - ITALY - (H0.09.9 (1)).........................1343 HYDRAULIC BREAKING FOR TRAILER - ITALY - (H0.09.11 (1))........................1345 HYDRAULIC BREAKING FOR TRAILER - EXPORT F (H0.09.12 (1)).......................1346 HYDRAULIC BREAKING FOR TRAILER - EXPORT F (H0.09.14 (1)).......................1348 HYDRAULIC BREAKING FOR TRAILER - EXPORT F (H0.09.15 (1)).......................1349 HYDRAULIC BREAKING FOR TRAILER - EXPORT F (H0.09.17 (1)).......................1351 AIR BRAKING SYSTEM (H0.09.24 (1))..............................................1352 AIR BRAKING SYSTEM (H0.09.25 (1))..............................................1354 PNEUMATIC SYSTEM FOR SUSPENDED CAB (H0.09.26 (1))..............................1356 AIR BRAKING (H0.09.27 (1)).....................................................1357 AIR BRAKING (H0.09.28 (1)).....................................................1358 AIR BRAKING (H0.09.28 (2)).....................................................1359 AIR BRAKING SYSTEM (H0.09.34 (1))..............................................1360 AIR BRAKING SYSTEM (H0.09.35 (1))..............................................1361 PNEUMATIC SYSTEM FOR SUSPENDED CAB - ITALY (H0.09.36 (1))......................1363 AIR BRAKING - ITALY (H0.09.37 (1)).............................................1364 AIR BRAKING - ITALY (H0.09.38 (1)).............................................1365 AIR BRAKING - ITALY (H0.09.38 (2)).............................................1366 AIR BRAKING (H0.09.46 (1)).....................................................1367 AIR BRAKING (H0.09.47 (1)).....................................................1368 AIR BRAKING SYSTEM PARTS KIT (H0.09.48 (1))....................................1369 BRACKET FOR PNEUMATIC BRAKING SYSTEM (H0.09.49 (1))............................1370 AIR-PRESSURE GAUGE (H0.09.50 (1))..............................................1371 TRAILER SOCKET-OUTLET VALVE (0.012.1712.4.A)...................................1372 TRAILER SOCKET-OUTLET VALVE (02382049.4.A).....................................1373 TRAILER BRAKE VALVE (04419935.A)...............................................1374 TRAILER BRAKE VALVE (04424805.A)...............................................1375 PRESSURE REGULATOR (04434820.A)................................................1376 TRAILER BRAKE VALVE (04452780.A)...............................................1377 TRAILER BRAKE VALVE (04452780/10.A)............................................1378 PUMP-COMPONENTS (04453936.A)...................................................1379 Index......................................................................................1380 Agrotron 120 -> 8164 1201..................................................................1381 R0 - REAR LIFT.........................................................................1381 LIFT ASSEMBLY......................................................................1381 LIFTING CYLINDER Ø MM 80 (R0.02.0 (1)).........................................1381 LIFTING CYLINDER Ø MM 100 (R0.02.1 (1))........................................1382 CYLINDER PARTS (04411182.4/20.A)...............................................1383 CYLINDER PARTS mm 100 (04411184.4/10.A)........................................1384 SENSOR.............................................................................1385 AGROTRONIC (R0.05.0 (1)).......................................................1385 THREE-POINT LINKAGE - LINK ARMS....................................................1386 THREE POINT LINKAGE (R0.06.0 (1))..............................................1386 3 POINT HITCH - LIFTING ARMS (R0.06.5 (1)).....................................1387 3 POINT HITCH - LIFTING ARMS (R0.06.5 (2)).....................................1388 3 POINT HITCH - LIFTING ARMS (R0.06.5 (3)).....................................1389 3 POINT HITCH - LIFTING ARMS (R0.06.5 (4)).....................................1390 3-POINT HITCH - ADJUSTABLE RH RODS (R0.06.7 (1))..............................1391 THREE-POINT HITCH - AUTOMATIC LATERAL STABILIZERS (R0.06.8 (1))................1392 THREE-POINT HITCH - AUTOMATIC LATERAL STABILIZERS (R0.06.9 (1))................1393 THREE-POINT HITCH - AUTOMATIC LATERAL STABILIZERS (R0.06.10 (1))...............1394 THREE-POINT HITCH - AUTOMATIC LATERAL STABILIZERS (R0.06.11 (1))...............1395 THREE-POINT HITCH - AUTOMATIC LATERAL STABILIZERS (R0.06.11 (2))...............1396 THREE-POINT HITCH - MANUAL LATERAL STABILIZERS (R0.06.12 (1)).................1397 RETAINER FOR COLLECTING TRAY sx/lh/li (R0.06.13 (1))...........................1398 RETAINER FOR COLLECTING TRAY (R0.06.14 (1))....................................1399 TOWING BAR (R0.06.15 (1))......................................................1400 TOWING HITCH (0.010.1703.3.A)..................................................1401 MANUAL LATERAL STABILIZERS (0.010.5222.4/50.A).................................1402 MANUAL LATERAL STABILIZERS (0.010.5222.4/60.A).................................1403 AUTOMATIC LATERAL STABILIZERS (0.012.9801.4/10.A)..............................1404 LINKAGE (0.014.1415.3.A).......................................................1405 TOWING HITCH cat. 3 (0.014.1421.3.A)...........................................1406 STABILIZATION MECH. (04414942.4/10.A)..........................................1407 ADJUSTABLE LIFT ROD PARTS (04427241.A).........................................1408 STABILIZER (04452979.A)........................................................1409 STABILIZER (04452979/10.A).....................................................1410 Index......................................................................................1411 Agrotron 120 -> 8164 1201..................................................................1413 D0 - TRANSMISSION......................................................................1413 GENERAL............................................................................1413 GEAR CHANGE BOX (D0.00.0 (1))..................................................1413 GEAR CHANGE BOX (D0.00.2 (1))..................................................1414 GEARBOX INPUT SHAFT 2093 009 073 (04450654.4/10.01)............................1415 SPLITTER 2093 009 073 (04450654.4/10.02).......................................1416 SPLITTER 2093 009 073 (04450654.4/10.03).......................................1419 POWER SHIFT 2093 009 073 (04450654.4/10.04)....................................1422 GEARBOX 2093 009 073 (04450654.4/10.05)........................................1424 P.T.O. - POWER TAKE OFF 2093 009 073 (04450654.4/10.06)........................1425 P.T.O. - POWER TAKE OFF 2093 009 073 (04450654.4/10.07)........................1426 SUPER REDUCTION GEAR UNIT 2093 009 073 (04450654.4/10.08)......................1427 LAYSHAFT 2093 009 073 (04450654.4/10.09).......................................1428 MAIN SHAFT 2093 009 073 (04450654.4/10.10).....................................1430 MAIN SHAFT 2093 009 073 (04450654.4/10.11).....................................1432 FRONT TRANSMISSION 2093 009 073 (04450654.4/10.12).............................1433 FRONT TRANSMISSION 2093 009 073 (04450654.4/10.13).............................1435 GEARSHIFT CONTROL WITH HYDRAULIC SHUTTLE 2093 009 073 (04450654.4/10.14).......1436 DRIVE 2093 009 073 (04450654.4/10.15)..........................................1437 HYDR. CONTROL - CONTROL UNIT 2093 009 073 (04450654.4/10.16)...................1439 HYDR. CONTROL - CONTROL UNIT 2093 009 073 (04450654.4/10.17)...................1442 HYDR. CONTROL - CONTROL UNIT 2093 009 073 (04450654.4/10.18)...................1445 HYDRAULIC CONTROL 2093 009 073 (04450654.4/10.19)..............................1446 HYDRAULIC CONTROL 2093 009 073 (04450654.4/10.20)..............................1447 OIL SUPPLY 2093 009 073 (04450654.4/10.21).....................................1448 OIL SUPPLY 2093 009 073 (04450654.4/10.22).....................................1449 OIL SUPPLY 2093 009 073 (04450654.4/10.23).....................................1450 PUMP DRIVE 2093 009 073 (04450654.4/10.24).....................................1451 PUMP DRIVE 2093 009 073 (04450654.4/10.25).....................................1453 CLUTCH 2093 009 073 (04450654.4/10.26).........................................1454 ACCESSORIES 2093 009 073 (04450654.4/10.27)....................................1456 REAR GEARBOX CASE 2093 009 073 (04450654.4/10.28)..............................1457 DIFFERENTIAL 2093 009 073 (04450654.4/10.30)...................................1458 P.T.O. - POWER TAKE OFF 2093 009 073 (04450654.4/10.31)........................1459 SERVICE BRAKE 2093 009 073 (04450654.4/10.32)..................................1462 BRAKE CONTROLS 2093 009 073 (04450654.4/10.33).................................1463 LIFTING 2093 009 073 (04450654.4/10.34)........................................1464 GEARBOX INPUT SHAFT 2093 009 074 (04450655.4/10.01)............................1465 SPLITTER 2093 009 074 (04450655.4/10.02).......................................1466 SPLITTER 2093 009 074 (04450655.4/10.03).......................................1469 POWER SHIFT 2093 009 074 (04450655.4/10.04)....................................1472 GEARBOX 2093 009 074 (04450655.4/10.05)........................................1474 P.T.O. - POWER TAKE OFF 2093 009 074 (04450655.4/10.06)........................1475 P.T.O. - POWER TAKE OFF 2093 009 074 (04450655.4/10.07)........................1476 SUPER REDUCTION GEAR UNIT 2093 009 074 (04450655.4/10.08)......................1477 LAYSHAFT 2093 009 074 (04450655.4/10.09).......................................1478 MAIN SHAFT 2093 009 074 (04450655.4/10.10).....................................1480 MAIN SHAFT 2093 009 074 (04450655.4/10.11).....................................1482 FRONT TRANSMISSION 2093 009 074 (04450655.4/10.12).............................1483 FRONT TRANSMISSION 2093 009 074 (04450655.4/10.13).............................1485 GEARSHIFT CONTROL WITH HYDRAULIC SHUTTLE 2093 009 074 (04450655.4/10.14).......1486 DRIVE 2093 009 074 (04450655.4/10.15)..........................................1487 HYDR. CONTROL - CONTROL UNIT 2093 009 074 (04450655.4/10.16)...................1489 HYDR. CONTROL - CONTROL UNIT 2093 009 074 (04450655.4/10.17)...................1492 HYDR. CONTROL - CONTROL UNIT 2093 009 074 (04450655.4/10.18)...................1495 HYDRAULIC CONTROL 2093 009 074 (04450655.4/10.19)..............................1496 HYDRAULIC CONTROL 2093 009 074 (04450655.4/10.20)..............................1497 OIL SUPPLY 2093 009 074 (04450655.4/10.21).....................................1498 OIL SUPPLY 2093 009 074 (04450655.4/10.22).....................................1499 OIL SUPPLY 2093 009 074 (04450655.4/10.23).....................................1500 PUMP DRIVE 2093 009 074 (04450655.4/10.24).....................................1501 PUMP DRIVE 2093 009 074 (04450655.4/10.25).....................................1503 CLUTCH 2093 009 074 (04450655.4/10.26).........................................1504 ACCESSORIES 2093 009 074 (04450655.4/10.27)....................................1507 REAR GEARBOX CASE 2093 009 074 (04450655.4/10.28)..............................1508 DIFFERENTIAL 2093 009 074 (04450655.4/10.30)...................................1509 P.T.O. - POWER TAKE OFF 2093 009 074 (04450655.4/10.31)........................1510 SERVICE BRAKE 2093 009 074 (04450655.4/10.32)..................................1513 BRAKE CONTROLS 2093 009 074 (04450655.4/10.33).................................1514 LIFTING 2093 009 074 (04450655.4/10.34)........................................1515 GEARBOX INPUT SHAFT................................................................1516 FILEX COUPLING (D0.05.0 (1))...................................................1516 GEARBOX............................................................................1517 GEARBOX FASTENERS (D0.09.0 (1))................................................1517 INTERNAL AND EXTERNAL GEARBOX CONTROLS.............................................1518 SUPER-REDUCTION CONTROL (D0.10.0 (1))..........................................1518 PTO/GROUNDPSPEED DRIVE...........................................................1519 PTO OUTPUT SHAFT Z = 21 (D0.14.0 (1))..........................................1519 COMPLETION (D0.14.3 (1)).......................................................1520 P.T.O. SHAFT PROTECTOR REAR (D0.14.4 (1))......................................1521 P.T.O. SHAFT PROTECTOR REAR (D0.14.6 (1))......................................1522 Index......................................................................................1523 Agrotron 120 -> 8164 1201..................................................................1524 S0 - WHEELS............................................................................1524 FRONT WHEEL BOLTS..................................................................1524 FIXING WHEELS (S0.01.0 (1))....................................................1524 FRONT WHEEL MOUNTING m 20 p.1.5 (S0.01.1 (1))..................................1525 REAR WHEEL BOLTS...................................................................1526 REAR WHEEL BOLTS m 22 x 1.5 (S0.02.0 (1))......................................1526 FIXING WHEELS (S0.02.1 (1))....................................................1527 TWING WHEEL FIXINGS m 22 x 1.5 (S0.02.2 (1))...................................1528 WHEELS.............................................................................1529 TYRE VALVE (S0.04.0 (1)).......................................................1529 WHEELS 540/65R24" (S0.04.1 (1))................................................1530 WHEELS 420/70 R24" A8 (S0.04.2 (1))............................................1531 WHEELS 480/70R24" (S0.04.3 (1))................................................1532 WHEELS 480/70R24" (S0.04.4 (1))................................................1533 WHEELS 480/70R24" (S0.04.5 (1))................................................1534 WHEELS 540/65R24" (S0.04.6 (1))................................................1535 WHEELS 14.9R24" 126A8 (S0.04.7 (1))............................................1536 WHEELS 16.9R24" 134A8 (S0.04.8 (1))............................................1537 WHEELS 16.9R24" 134A8 (S0.04.9 (1))............................................1538 WHEELS 16.9R24" 134A8 (S0.04.10 (1))...........................................1539 WHEELS 11.2 R32" 134 A8 (S0.04.24 (1)).........................................1540 WHEELS 600/65R38" (S0.04.25 (1))...............................................1541 WHEELS 600/65R38" (S0.04.26 (1))...............................................1542 WHEELS 520/70xR38" a8 (S0.04.33 (1))..........................................1543 WHEELS 520/70xR38" a8 (S0.04.34 (1))..........................................1544 WHEELS 520/70xR38" a8 (S0.04.35 (1))..........................................1545 WHEELS 16.9R38" A8 (S0.04.41 (1))..............................................1546 WHEELS 16.9R38" A8 (S0.04.42 (1))..............................................1547 WHEELS 18.4R-38" a8 (S0.04.43 (1)).............................................1548 WHEELS 18.4R-38" a8 (S0.04.44 (1)).............................................1549 WHEELS 18.4R-38" a8 (S0.04.45 (1)).............................................1550 WHEELS 12.4 R46" (S0.04.52 (1))................................................1551
