Deutz Fahr Agrotron 160 after 8029 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrotron 160 after 8029 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrotron 160 after 8029 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 569
Downloadable : Yes
File Type : PDF
Size: 36.7 MB

TABLE OF CONTENTS:

Deutz Fahr Agrotron 160 after 8029 Parts Catalog Manual – PDF DOWNLOAD

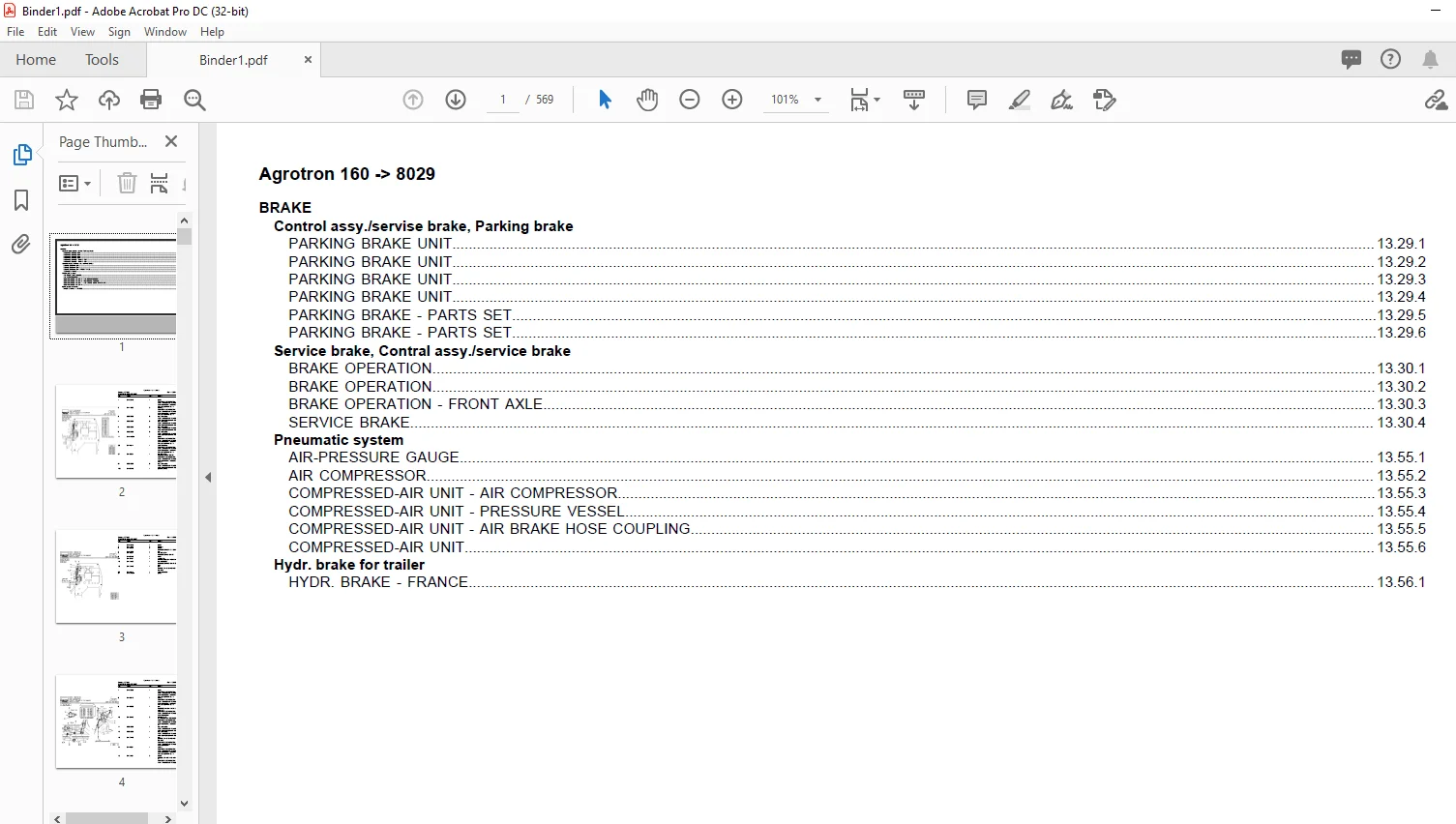

Brake 1
Index 1
Agrotron 160 -> 8029 2
BRAKE 2
Control assy/servise brake, Parking brake 2

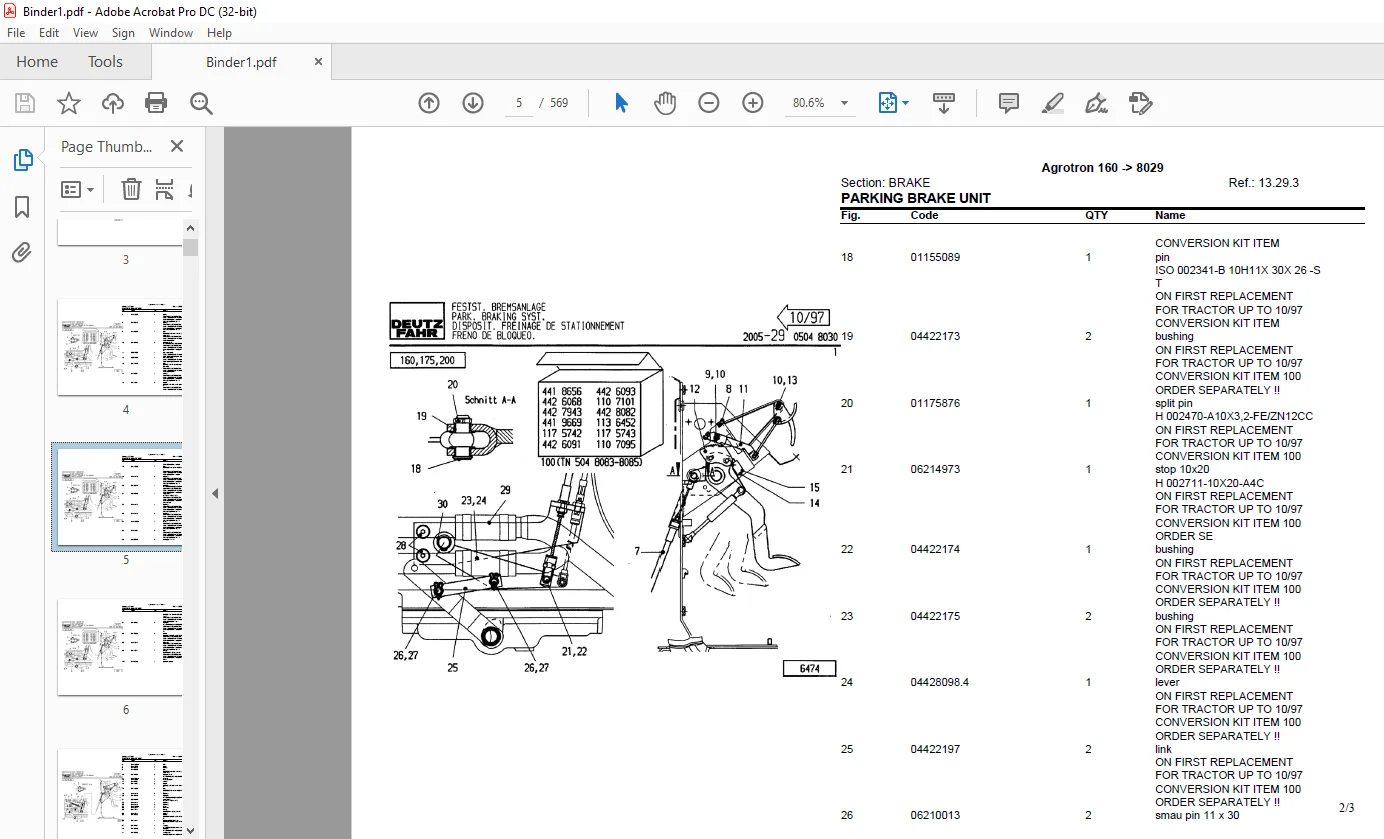

PARKING BRAKE UNIT (13291) 2
PARKING BRAKE UNIT (13292) 3
PARKING BRAKE UNIT (13293) 4
PARKING BRAKE UNIT (13294) 7
PARKING BRAKE – PARTS SET (13295) 8
PARKING BRAKE – PARTS SET (13296) 9
Service brake, Contral assy/service brake 10
BRAKE OPERATION (13301) 10
BRAKE OPERATION (13302) 12
BRAKE OPERATION – FRONT AXLE (13303) 13
SERVICE BRAKE (13304) 14
Pneumatic system 15
AIR-PRESSURE GAUGE (13551) 15
AIR COMPRESSOR (13552) 16
COMPRESSED-AIR UNIT – AIR COMPRESSOR (13553) 17
COMPRESSED-AIR UNIT – PRESSURE VESSEL (13554) 18
COMPRESSED-AIR UNIT – AIR BRAKE HOSE COUPLING (13555) 19
COMPRESSED-AIR UNIT (13556) 20
Hydr brake for trailer 21

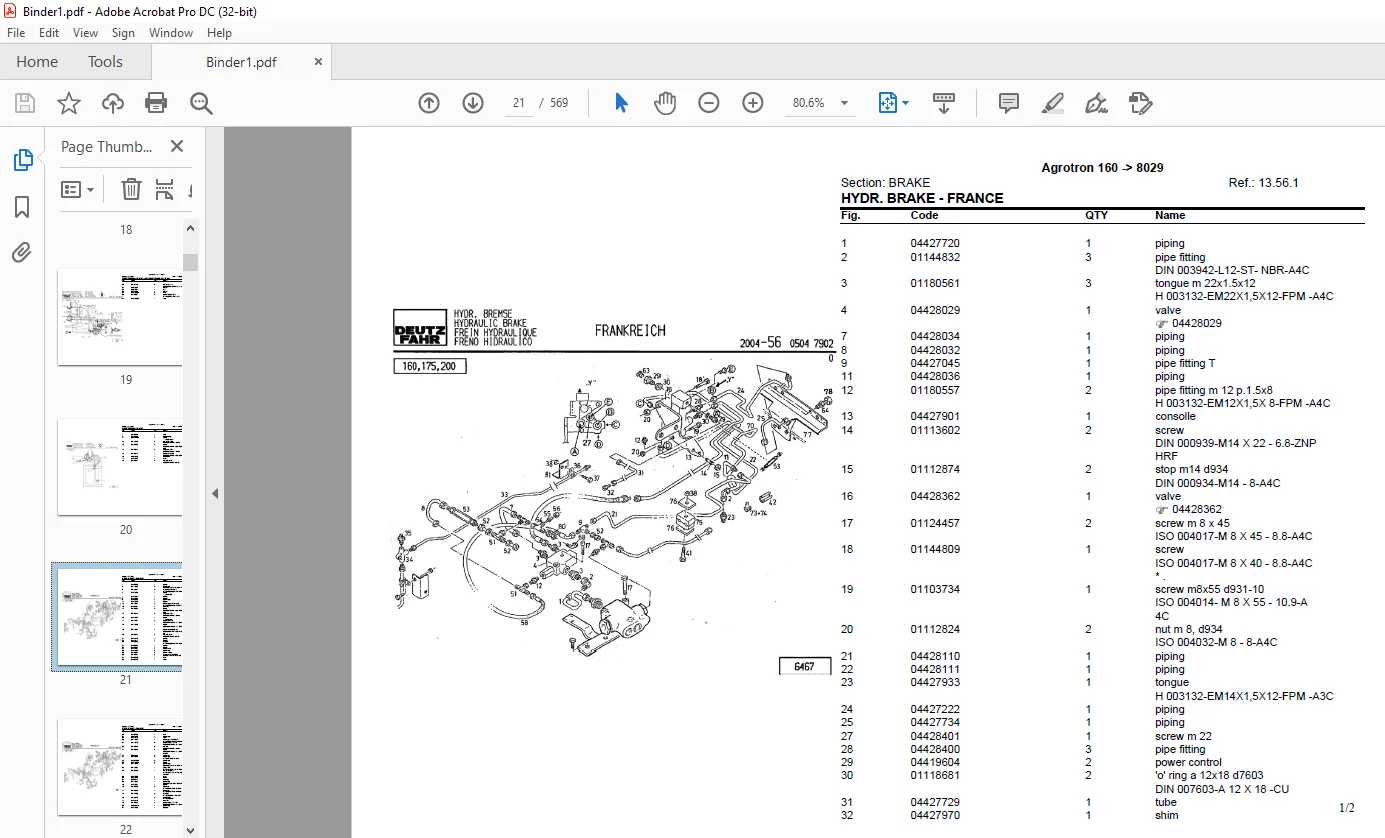

HYDR BRAKE – FRANCE (13561) 21
Built-on_accessories 23
Index 23
Agrotron 160 -> 8029 26
BUILT-ON ACCESSORIES 26
GENERAL 26
MECHANICAL CAB SUSPENSION (16001) 26
REAR MUDGUARDS (16001) 27
LICENCE PLATE HOLDER (16001) 28
CAB BEARING PNEUMATIC SPRINGING (16002) 29
CAB BEARING PNEUMATIC SPRINGING (16003) 30
RELAY VALVE (04432191A) 31
Cab 32
CAB (16371) 32
WINDSCREEN (16371) 33
CAB BEARING (16372) 34
WINDSCREEN (16372) 35
KNOCKOUT WINDOW FRONT (16373) 36
KNOCKOUT WINDOW FRONT (16374) 37
KNOCKOUT WINDOW FRONT (16375) 38
SUN BLIND FRONT WINDSCREEN (16376) 39
CAB DOOR RIGHT/LEFT (16377) 40
CAB DOOR RIGHT/LEFT (16378) 41
CAB DOOR RIGHT/LEFT (16379) 42
DOOR HANDLE – CAB DOOR RIGHT/LEFT (163710) 43
DOOR LOCK – CAB DOOR – RIGHT/LEFT (163711) 44
SUN BLIND DOOR WINDOW (163712) 45
FRONT WINDSCREEN BOTTOM (163713) 46
REAR WINDOW BOTTOM (163714) 47
SIDE PLATE RIGHT/LEFT (163715) 48
KNOCKOUT WINDOW REAR WITH REAR PANEL FLAP (163716) 49
REAR PANEL FLAP (163717) 50
KNOCKOUT WINDOW REAR (163718) 51
KNOCKOUT WINDOW REAR WITH REAR PANEL FLAP (163719) 52
SUN BLIND REAR WINDOW (163720) 53
ROOF WITH SKYLIGHT – GLASS – COVERING (163721) 54
ROOF WITH SKYLIGHT – GLASS – COVERING (163722) 55
ROOF WITH SKYLIGHT – GLASS – COVERING (163723) 56
ROOF WITH SKYLIGHT – GLASS – COVERING (163724) 57
SKYLIGHT WITH GLASS (163725) 58
SKYLIGHT WITH GLASS (163726) 59
SKYLIGHT WITH COVERING (163727) 60
SKYLIGHT WITH COVERING (163728) 61
SKYLIGHT WITH COVERING (163729) 62
FRAME – LOUDSPEAKER – REAR-VIEW MIRROR (163730) 63
SPOILER FRONT (163731) 64
Engine hood, Battery Carrier 65
LOCK HOOD (16411) 65
HOOD (16412) 66
HOOD (16413) 67
HOOD (16414) 68
Speed control device 69
SPEED ADJUSTMENT (16461) 69
INSULATION SPEED CONTROL (16462) 70
Rear mudguards, Rear panelling 71
EXTENSION FOR WING (16511) 71
PARTS SET (16511) 72
WING REAR (16512) 73
SIDE PANEL – SUPPORT (16512) 74
GEARBOX (16513) 75
REMOTE CONTROL – LIFTING GEAR CONTROL – PTO SHAFT (16514) 76
Front mudguards 77
RUBBER WING – DRIVEN STEERING AXLE – MM 510 (16521) 77
RUBBER WING – DRIVEN STEERING AXLE – MM 620 (16522) 78
Driver`s seat 79
DRIVER’S SEAT – AEROMAT (16541) 79
DRIVER’S SEAT – AEROMAT (16542) 80
DRIVER’S SEAT – AEROMAT (16543) 81
ADJUSTING DEVICE FOR MILTIFUNCT-ARMREST – AEROMAT (16544) 83
DRIVER’S SEAT – AEROMAT (16545) 84
DRIVER’S SEAT – AEROMAT (16546) 85
DRIVER’S SEAT – AEROMAT (16547) 86
DRIVER’S SEAT – AEROMAT (16548) 87
DRIVER’S SEAT – AEROMAT (16549) 88
DRIVER’S SEAT – AEROMAT (165410) 89
DRIVER’S SEAT (165411) 90
DRIVER’S SEAT – AEROMAT (165412) 91
Tank panelling, Instrument box, Front panelling 92
INSULATION CAB (16551) 92
SUPPORT (16552) 93
Toolbox 94
METAL TOOLBOX (16601) 94
Driving mirror 95
REAR-VIEW MIRROR TELESCOPIC (16671) 95
FRAME – REAR-VIEW MIRROR TELESCOPIC (16672) 96
Rear reflector 97
RETROREFLECTOR (16681) 97
Number plate bracket, Plates 98
LICENCE PLATE HOLDER (16711) 98
PRODUCT PLATE (16711) 99
SIGN SET (16712)100
MODEL PLATE (16713)101
Control console102
CONTROL CONSOLE RIGHT (16751)102
FLAP – CENTRAL ELECTRICS – COVER – ELECTRONICS (16752)103
COVER – CENTRAL ELECTRICS (16753)104
FLAP – HEIGHT OF LIFT (16754)105
CONTROL CONSOLE RIGHT – TRIM (16755)106
CONTROL CONSOLE RIGHT – TRIM (16756)107
Passenger seat108
SEAT FOR 2ND OPERATOR (16761)108
Foot plate109
STEP RIGHT/LEFT (16771)109
Chock110
CHOCK (16801)110
Cab panelling, Floor covering111
SIDE PANELLING LEFT (16861)111
TUNNEL COVER (16862)112
INTERNAL UPHOLSTERY (16863)113
INTERIOR TRIM – COLUMN – A/B (16864)114
INTERIOR TRIM – COLUMN (16865)115
INSULATION CAB (16866)116
INSULATION STEERING – STEERING CONSOLE (16867)117
SOUND-ABSORBING PARTS (16868)118
SOUND-ABSORBING PARTS (16869)119
SOUND-ABSORBING PARTS (168610)120
INSULATION CAB (168611)121
INSULATION CAB (168612)122
FIXING PARTS – INSULATION (168613)123
ROOF COVERING FOR SKYLIGHT (168614)124
FLOOR MAT FRONT/REAR (168615)125
Electrical_system126
Index126
Agrotron 160 -> 8029128
ELECTRIC AL SYSTEM128
Electrical equipment, Switch box w instruments, Pilot light, Screen washing system, Headlight, Lights128
BATTERY (18491)128
STARTER CABLE – BATTERY EARTHING STRAP – BATTERY HOLDER (18492)129
KIT RADIO (18493)130
SOCKET-OUTLET FOR HIGH CURRENT (18494)131
SOCKET-OUTLET – 7 POLE (18495)132
ELECTRICAL PARTS SET (18496)133
SOCKET-OUTLET EHR-D (18497)134
SOCKET-OUTLET 7 – POLE (18498)135
CABLE HARNESS MOTOR – 6 CYLINDER (18499)136
CABLE HARNESS MOTOR – 6 CYLINDER (184910)137
ELECTR EQUIPMENT – CABLE HARNESS FRONT – MOTOR (184911)138
ELECTR EQUIPMENT – CABLE HARNESS FRONT – MOTOR (184912)139
CABLE HARNESS MULTIFUNCTION ARMREST (184913)141
CABLE HARNESS WITH COMPRESSED-AIR UNIT AND POWERSHIFT (184914)142
CABLE HARNESS – COMPRESSED-AIR UNIT – BODY GROUP (184915)143
CABLE HARNESS – DASHBOARD CONSOLE (184916)144
CABLE HARNESS – DASHBOARD CONSOLE (184917)146
CABLE HARNESS – DASHBOARD CONSOLE (184918)148
CABLE HARNESS STOP LIGHT SWITCH (184919)150
CABLE HARNESS ROOF – SYNCHROSPLIT – POWERSHIFT (184920)151
CABLE HARNESS ROOF – SYNCROSPLIT – POWERSHIFT (184921)154
CABLE HARNESS ROOF – SYNCROSPLIT – POWERSHIFT (184922)156
CABLE HARNESS ROOF – SYNCROSPLIT – POWERSHIFT (184923)157
CABLE HARNESS ROOF – SYNCROSPLIT – POWERSHIFT (184924)159
CABLE HARNESS CONTROL CONSOLE – EHR-D/ASM (184925)161
CABLE HARNESS CONTROL CONSOLE – EHR-D/ASM (184926)162
CABLE HARNESS CONTROL CONSOLE – EHR-D/ASM (184927)163
CABLE HARNESS – CONTROL CONSOLE – EHR-D/ASM (184928)166
CABLE HARNESS – CONTROL CONSOLE – EHR-D/ASM (184929)168
CABLE HARNESS CONTROL CONSOLE – EHR-D/ASM (184930)169
CABLE HARNESS FAN (184931)170
CABLE HARNESS FAN (184932)171
CABLE HARNESS FAN (184933)172
CABLE HARNESS – CAB (184934)173
CABLE HARNESS SPRUNG FRONT AXLE – CAB (184935)174
CONTROL UNIT – SPRUNG – FRONT AXLE (184936)175
CABLE HARNESS WIPER FRONT (184937)176
CABLE SET, FLASHING INDICATOR, FRONT LIGHT (184938)177
CABLE HARNESS TAIL LIGHT (184939)178
CABLE HARNESS TAIL LIGHT (184940)179
CABLE SET – REAR LIGHT (184941)180
CABLE HARNESS – LICENCE PLATE LIGHT (184942)181
CABLE HARNESS ALL-ROUND LIGHT (184943)182
INSTRUMENTATION – INFOCENTER 3 (184944)183
INSTRUMENTATION – INFOCENTER 1-3 (184945)184
INDICATOR – POWERSHIFT (184946)185
ELECTR EQUIPMENT – DASHBOARD CONSOLE (184947)186
ELECTR EQUIPMENT – DASHBOARD CONSOLE (184948)187
CENTRAL ELECTRICS (184949)188
CENTRAL ELECTRICS – CONTROL CONSOLE – EHR-D/ASM (184950)189
RELAY (184951)190
FUSE 1A – 30A (184952)191
ADAPTER KIT – AUTOM – FEEDBACK (184953)192
SCREEN WASHER UNIT REAR (184954)193
SCREEN WASHER UNIT REAR (184955)194
SCREEN WIPER FRONT/REAR (184956)195
WATER TANK (184957)196
LAMP HOLDER – WORKING SPOTLIGHT FRONT UNDER (184958)197
LOCKING PARTS WITHOUT WORKING SPOTLIGHT WITHOUT SPOTLIGHT (184959)198
WORKING SPOTLIGHT FRONT – 55W (184960)199
WORKING SPOTLIGHT FRONT – 55W (184961)200
WORKING SPOTLIGHT REAR (184962)201
WORKING SPOTLIGHT REAR ROOF (184963)202
CABLE WORKING SPOTLIGHT REAR ROOF (184964)203
WORKING SPOTLIGHT FRONT (184965)204
WORKING SPOTLIGHT FRONT (184966)205
CABLE WORKING SPOTLIGHT FRONT (184967)206
WORKING SPOTLIGHT REAR (184968)207
TOP SPOTLIGHT LEFT TRAFFIC (184969)208
TOP SPOTLIGHT RIGHT TRAFFIC (184970)209
WARNING BEACON (184971)210
BEARER PLATE – PANELLING (184972)211
FLASHING POS LIGHT (184973)212
BRAKE TAIL LIGHT (184974)213
AGROTRONIC214
(AGROTRONIC – H – EHR) (18811)214
RADAR SENSOR (18812)215
Engine216
Index216
Agrotron 160 -> 8029221
ENGINE221
Crankcase221
PLUG (11011)221
FASTENINGS (11012)222
OIL PRESSURSWITCH (11013)223
FILLER CAP (11014)224
OIL FILLER NECK (11015)225
CRANKCASE BREATHER (11016)226
BLEEDING TUBE (11017)227
PISTON COOLNOZZLE (11018)228
FRONT COVER (11019)229
CRANKCASE (110110)230
FRONT COVER (110111)231
CRANKCASE (110112)232
CLOSING COMPONENTS (110113)233
PISTON COOLNOZZLE (110114)234
Oil pan235
OIL PAN (11021)235
Crankshaft236
VIBRATION DAMPER (11051)236
FASTENINGS (11052)237
FLYWHEEL (11053)238
V-GROOVED PULLEY (11054)239
CRANKSHAFT (11055)240
V-BELT (11056)242
VIBRATION DAMPER (11057)243
Connecting rod244
CONNECTING ROD (11061)244
CONNECTING ROD (11062)245
Piston246
PISTON (11071)246
PISTON (11072)247
PISTON (11073)248
Cylinder head249
ENGINE MOUNTING (11081)249
FASTENINGS (11082)250
CYLINDER HEAD (11083)251
ROCKER ARMS COVER (11084)252
CYLINDER HEAD (11085)253
CYLINDER HEAD (11086)254
Timing chest255
GEARCASE (11091)255
Camshaft256
CAMSHAFT (11101)256
CAMSHAFT (11102)257
Timing gears258
ROCKER ARM BRACKET (11111)258
ROCKER ARM BRACKET (11112)259
ROCKER ARM BRACKET (11113)260
FASTENINGS (11114)261
VALVE DRIVE (11115)262
VALVE DRIVE (11116)263
Oil cooler, Lube oil filter264
FILTER CARTRIDGE (11151)264
CLOSING COMPONENTS (11152)265
PLASTIC PROFILE (11153)266
FASTENINGS (11154)267
FASTENINGS (11155)268
OIL COOLER BOX (11156)269
OIL COOLER (11157)270
ADAPTER (11158)271
CLOSING COMPONENTS (11159)272
OIL COOLER BOX (111510)273
Oil pipes274
OIL SUCTION PIPE (11161)274
Injection pump275
ROLLER TAPPET (11171)275
FASTENINGS (11172)276
FUEL INJECT PUMP (11173)279
Injector280
FASTENINGS (11191)280
FUEL INJECTOR (11192)281
FUEL INJECTOR (11193)284
Fuel filter287
FASTENINGS (11201)287
FUEL SUPPLY PUMP (11202)288
SPIN-ON FILTER (11203)289
Fuel pipes290
OVERFLOW LINE (11211)290
FUEL LINE (11212)291
HIGH PRESSURE PIPE (11213)292
Air intake, Air cleaner293
TUNNEL COVER (11221)293
FASTENINGS (11222)294
CHARGED AIR MANIFOLD (11223)295
CHARGE AIR PIPE (11224)296
CHARGE AIR PIPE (11225)297
Controller298
CLOSING COMPONENTS (11271)298
CLOSING COMPONENTS (11271)299
FASTENINGS (11272)300
CONTROL ROD (11273)301
INLET MANIFOLD (11274)302
ACTUATOR (11275)303
ADJUSTER INSTRUMENT (11276)304
ADJUSTER INSTRUMENT (11277)305
ADJUSTER INSTRUMENT (11278)306
Cooling water pump307
FASTENINGS (11371)307
DRIVING PARTS (11371)308
COOLING WATER PUMP (11372)309
V-GROOVED PULLEY (11372)310
Water pipes311
COOLANT PIPE (11381)311
FASTENINGS (11381)312
VENT PLUG (11381)313
CONNECTION (11382)314
THERMOSTAT (11383)315
FASTENINGS (11384)316
THERMOSTAT (11385)317
COOLANT PIPE (11386)318
Cooling air blower319
NARROW V-BELT (11391)319
FAN SUPPORT (11392)320
ADAPTER (11393)321
FASTENINGS (11394)322
V-GROOVED PULLEY (11395)323
Exhaust manifold324
EXHAUST PIPE (11411)324
Turbocharger325
FASTENINGS (11431)325
FASTENINGS (11431)326
FEED LINE (11432)327
RETURN LINE (11433)328
TURBOCHARGER (11434)329
Generator, Startet motor330
GENERATOR (11441)330
PARTS OF ALTERNAT (11442)331
FASTENINGS (11443)332
DRIVING PARTS (11444)333
ACCESSORIES (11445)334
STARTER (11446)335
STARTER (11447)336
Engine mounting338
SUPPORT (11461)338
SUPPORT (11462)339
Engine mounting340
ACCESSORIES (11471)340
Electrical accessories341
COVER PLATE (11481)341
FASTENINGS (11482)342
TEMPERTRANSMITTER (11483)343
IMPULSETRANSMITTER (11484)344
OIL PRESSURSWITCH (11485)345
FASTENINGS (11486)346
CABLE EDGE CONNECTORS (11487)347
OIL PRESSURSWITCH (11488)348
OIL PRESSURSWITCH (11489)349
PLUG-IN CONNECTOR (114810)350
PLUG-IN CONNECTOR (114811)351
PLUG-IN CONNECTOR (114812)352
PLUG-IN CONNECTOR (114813)353
FASTENINGS (114814)354
ACCESSORIES (114815)355
TEMPERTRANSMITTER (114816)356
IMPULSETRANSMITTER (114817)357
CABLE EDGE CONNECTORS (114818)358
FASTENINGS (114819)359
Measuring instruments360
TEMPERTRANSMITTER (11511)360
Clutch361
BUSH (11521)361
Engine shutdown362
ACCESSORIES (11561)362
SHUTDOWN DEVICE (11562)363
CLOSING COMPONENTS (11563)364
Starting aid365
SWITCHING DEVICE (11631)365
CLOSING COMPONENTS (11632)366
GLOW PLUG (11633)367
Heating system368
HEATER CONNECTION (11751)368
Hydraulic pump369
CLOSING COMPONENTS (11831)369
CLOSING COMPONENTS (11832)370
Sealing set371
COOLSYSTPROTECT (11901)371
GASKET SET (11902)372
GASKET SET (11903)373
Front_axle_Steering374
Index374
Agrotron 160 -> 8029375
FRONT AXLE, STEERING ASSEMBLY375
GENERAL375
CYLINDER PARTS (15001)375
CYLINDER PARTS (04431482A)376
Joint shaft377
CARDAN SHAFT – DRIVEN STEERING AXLE – SPRUNG FRONT AXLE (15211)377
SHAFT – DRIVEN STEERING AXLE – SPRUNG FRONT AXLE (15212)378
CARDAN SHAFT (15213)379
SHAFT – DRIVEN STEERING AXLE (15214)380
CARDAN SHAFT PROTECTION – DRIVEN STEERING AXLE (15215)381
SHAFT PROTECTOR – DRIVEN STEERING AXLE (15216)382
Driven steering axle383
DRIVEN FRONT AXLE (15281)383
DRIVEN FRONT AXLE (15282)384
DRIVEN FRONT AXLE (15283)385
DRIVEN FRONT AXLE (15284)386
DRIVEN FRONT AXLE (15285)387
DRIVEN FRONT AXLE (15286)388
DRIVEN FRONT AXLE (15287)390
DRIVEN FRONT AXLE (15288)391
DRIVEN FRONT AXLE (15289)392
DRIVEN FRONT AXLE (152810)393
Front axle bracket394
AXLE BEARING BLOCK (15321)394
AXLE BEARING BLOCK – DRIVEN STEERING AXLE – SPRUNG FRONT AXLE (15322)395
CYLINDER PARTS (04431482A)396
Hydrostatic steering397
STEERING ADJUSTMENT (15891)397
STEERING – ADJUSTABLE (15892)398
STEERING – ADJUSTABLE (15893)399
CONTROL PUMP – ZF (15894)400
STEERING GEAR TRIM WITH INDICATOR SWITCH (15895)401
HYDRAULIC STEERING GEAR – BODY GROUP (15896)402
HYDRAULIC STEERING GEAR – BODY GROUP (15897)403
RETURN LINE (15898)404
Gearbox_Clutch405
Index405
Agrotron 160 -> 8029407
GEARBOX, CLUTCH407
Clutch407
DAMPER (12021)407
Clutch control assy408
CLUTCH OPERATION (12031)408
CLUTCH OPERATION (12032)409
CONTROL UNIT – CLUTCH OPERATION (12033)410
Control assy- pto clutch411
OPERATION – PTO SHAFT – REAR 750/1000 RPM (12041)411
Hydr pump gearbox, Lube oil supply, Pressure oil supply412
PIPING SET – POWER SHIFT GEAR (12071)412
DISTANCE PLATE – POWER SHIFT GEAR (12072)413
PRESSURE-OIL SUPPLY (12073)414
Transmission415
GEARBOX FRONT (12081)415
GEARBOX REAR (12082)416
CASING COVER (12083)417
Clutch housing, Control units for gearbox, Intermediate gear418
FIXING PARTS – MOTOR – GEARS (12091)418
CONTROL UNIT – GEARS (12092)419
CONTROL UNIT – GEARS (12093)420
Change-speed gearbox, Contr hydr front whell drive, Contr hydr/diff lock, Control assy hydr PTO shaft, rear421
GEAR CHANGE BOX (12111)421
GEAR CHANGE BOX (12112)422
GEAR CHANGE BOX (12113)423
GEAR CHANGE BOX (12114)424
GEAR CHANGE BOX – L-H (12115)425
POWER SHIFT GEAR – V-R (12116)426
POWER SHIFT GEAR – V-R (12117)427
POWER SHIFT GEAR – V-R (12118)428
POWER SHIFT GEAR – V-R (12119)430
POWER SHIFT GEAR – V-R (121110)432
POWER SHIFT GEAR – V-R (121111)434
UNDERDRIVE (121112)435
UNDERDRIVE (121113)436
PARTS SET WITHOUT CREEP SPEED GEARS (121114)437
CONTROL UNIT (121115)438
CONTROL UNIT (121116)439
Control assy intermediate gear, Gearshift assembly440
GEAR SHIFTING (12121)440
OPERATION – CREEP SPEED (12122)441
OPERATION – CREEP SPEED (12123)442
OPERATION FOR GEARS (12124)443
GEAR SHIFTING (12125)444
Control assy/ PTO shaft, front, PTO guard, front445
COVER PLATE FRONT WITH FRONT POWER LIFT WITHOUT FRONT PTO SHAFT (12151)445
Bevel drive, Intermediateshaft446
BEVEL GEAR SET (12231)446
Differential unit447
DIFFERENTIAL (12241)447
DIFFERENTIAL (12242)448
DIFFERENTIAL (12243)450
Front whell drive control, Planetary drive, Rear axle451
FRAME BAR (12271)451
PLANETARY GEAR (12272)452
PTO guard, rear, PTO shaft, rear453
PTO SHAFT DRIVE 750/1000 RPM (12771)453
PTO SHAFT REAR 750/1000 RPM (12772)454
PTO SHAFT REAR 750/1000 RPM (12773)455
PTO GUARD (12774)456
Heating_Air_conditioning457
Index457
Agrotron 160 -> 8029458
HEATING, AIR CONDITIONING SYSTEM458
Air-to-air heating, Ventilation, Oil-to-air heating, Aux heating, Air conditioning458
OPERATION – AIR CONDITIONING UNIT (19851)458
AIR FILTER – COVER (19852)459
AIR DUCT (19853)460
AIR DUCT (19854)461
AIR DUCT (19855)462
VAPORIZER HEATING – BLOWER (19856)463
CONDENSER – AIR CONDITIONING UNIT (19857)465
COMPRESSOR – AIR CONDITIONING UNIT (19858)467
AIR DUCT (19859)469
HOSE PIPE – AIR CONDITIONING UNIT (198510)470
FILTER BOX (198511)471
HEATING – AIR CONDITIONING SYSTEM (198512)472
RETROFIT KIT – AIR CONDITIONING UNIT (198513)473
Hitch474
Index474
Agrotron 160 -> 8029475
HITCH475
Hitch pin475
SOCKET PIN (1A111)475
Bracket, Drawbar476
PICK-UP-HITCH (1A141)476
PICK-UP-HITCH (1A142)478
DRAWBAR WITHOUT PITON FIX (1A143)479
DRAWBAR WITH PITON FIX (1A144)480
Towing clevis, Clevis481
CATCHING MOUTH (1A321)481
CATCHING MOUTH – FRONT DRAWBAR COUPLING (1A322)482
FRONT DRAWBAR COUPLING 40 Kg (1A323)483
Ballast carrier, Autom trailer hitch484
BALLAST CARRIER (1A621)484
BALLAST CARRIER – DISTANCE PLATE (1A622)485
BALLAST CARRIER 330 Kg (1A623)486
REMOTE CONTROL AUTOM – HITCH (1A624)487
LOCKING PARTS WITHOUT REMOTE CONTROL – AUTOM DRAWBAR COUPLING (1A625)488
REMOTE CONTROL – AUTOM HITCH (1A626)489
DRAWBAR COUPLING AUTOM (1A627)490
Hydraulic_system491
Index491
Agrotron 160 -> 8029493
HYDRAULIC SYSTEM493
Oil supply493
OIL SUPPLY (14011)493
OIL SUPPLY (14012)494
OIL SUPPLY (14013)495
OIL SUPPLY – LOAD SENSING (14014)496
OIL SUPPLY – LOAD SENSING (14015)497
PUMP DRIVE (14016)498
OIL SUPPLY – 19 CCM/H (14017)499
OIL SUPPLY (14018)500
OIL SUPPLY (14019)501
OIL SUPPLY 19/16/14 CCM/H (140110)502
HYDRAULIC PUMP 16/14 CCM/H (140111)503
OIL SUPPLY – LOAD SENSING (140112)504
Hydraulic lift, Electronic power lift control505
POWER LIFT (14081)505
POWER LIFT (14082)506
OPERATION – AGROTRONIC L – H – HD (14083)507
CABLE HARNESS – AGROTRONIC (14084)508
OPERATION – LIFTING GEAR CONTROL THROTTLE HAND LEVER (14085)509
CONTROL UNIT – ELECTRONIC – LIFTING GEAR CONTROL (14086)510
BEARING BLOCK – ELECTRONIC – LIFTING GEAR CONTROL (14087)511
Three-point hitch512
UPPER LINK (14111)512
LIFTING ROD (14112)513
UPPER LINK (14113)514
STABILIZING ROD AUTOM (14114)515
RETAINER FOR COLLECTING TRAY (14115)517
Toolbar/three-point hitch518
TRACTOR LINKAGE DRAWBAR (14121)518
Hydr cyl power lift, Hydr cylinder/lifting device, Hydr cylinder front power lift519
POWER LIFT – HYDRAULIC CYLINDER (14301)519
Control unit, DEUTZ520
CONTROL BLOCK FOR POSITIONS 1+2+3+4 (14401)520
CONTROL BLOCK FOR POSITIONS 1+2+3+4 (14402)521
CONNECTING PLATE FOR POSITION 1+2+3+4 (14403)522
ADDITIONAL CONTROL UNIT FOR POSITIONS 1+2+3+4 (14404)523
CONTROL DEVICE FOR POSITIONS 1+2+3+4 (14405)524
CONTROL DEVICE FOR POSITIONS 1+2+3+4 – LOAD SENSING (14406)525
END PLATE FOR POSITION 1+2+3+4 (14407)526
END PLATE FOR POSITION 1+2+3+4 (14408)527
CONNECTING PLATE FOR POSITION 1+2+3+4 (14409)528
DEUTZ control unit comb, Assyhydrcontrol, Remote connections529
OPERATION – HYDR CONTROLLER FOR POSITION 1+2+3+4 (14881)529
OPERATION – HYDR CONTROLLER FOR POSITION 1+2 CROSS LEVER (14882)530
OPERATION – HYDR CONTROLLER FOR POSITION 1+2 CROSS LEVER (14883)531
OPERATION – HYDR CONTROLLER FOR POSITION 3+4 CROSS LEVER (14884)532
HYDR CONTROL FOR POSITIONS 1+2+3+4 (14885)533
HYDR CONTROL FOR POSITIONS 1+2+3+4 (14886)534
HYDR CONTROL FOR POSITIONS 1+2+3+4 (14887)535
HYDR CONTROL FOR POSITIONS 1+2 (14888)536
HYDR CONTROL FOR POSITIONS 3+4 (14889)539
HYDR CONTROL (148810)541
HYDR CONTROL OIL – DRIP TRAY (148811)542
REMOTE-CONNECTION WITH DETACHING COUPLING (148812)543
REMOTE-CONNECTION FRONT WITHOUT DETACHING COUPLING (148813)544
REMOTE-CONNECTION FRONT WITHOUT DETACHING COUPLING (148814)545
REMOTE-CONNECTION FRONT WITHOUT DETACHING COUPLING (148815)546
REMOTE-CONNECTION FRONT WITHOUT DETACHING COUPLING (148816)547
RETURN LINE REAR – UNPRESSURIZED (148817)548
RETURN LINE FRONT – UNPRESSURIZED (148818)549
Motor_supply550
Index550
Agrotron 160 -> 8029551
MOTOR SUPPLY551
GENERAL551
FUEL FILTER (17001)551
Cooling system552
WATER COOLER (17391)552
COMPENSATOR RESERVOIR (17392)553
CHARGED AIR COOLER (17393)554
OIL COOLER (17394)555
FAN IMPELLER Ø MM 550 (17395)556
Fuel tank, Aux tank, Fuel filter557
FUEL TANK (17421)557
Air cleaner559
DRY AIR FILTER WITHOUT INTAKE TUBE (17431)559
DRY AIR FILTER – AIR INTAKE TUBE LEFT (17432)560
COMBI-AIR FILTER (17433)561
Exh Silencer562
EXHAUST SYSTEM – TAIL PIPE RIGHT (17441)562
Wheels_Ballast563
Index563
Agrotron 160 -> 8029564
WHEELS, BALLAST564
Disc wheels, front, Adj wheels, front564
10 HOLE – DISK WHEEL FRONT (1B581)564
WHEEL STUDS – WHEEL NUT – DRIVEN STEERING AXLE (1B582)565
Disc wheels, rear, Adj wheels, rear566
WATER FILLER VALVE (1B591)566
8 HOLE – DISK WHEEL REAR (1B592)567
Ballast weights,front568
FRONT BALLAST (1B621)568
FRONT BALLAST 1000 Kg (1B622)569

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
