Deutz Fahr Agrotron 165 MK3 after 8095 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrotron 165 MK3 after 8095 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrotron 165 MK3 after 8095 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 728
Downloadable : Yes
File Type : PDF
Size: 28.1 MB

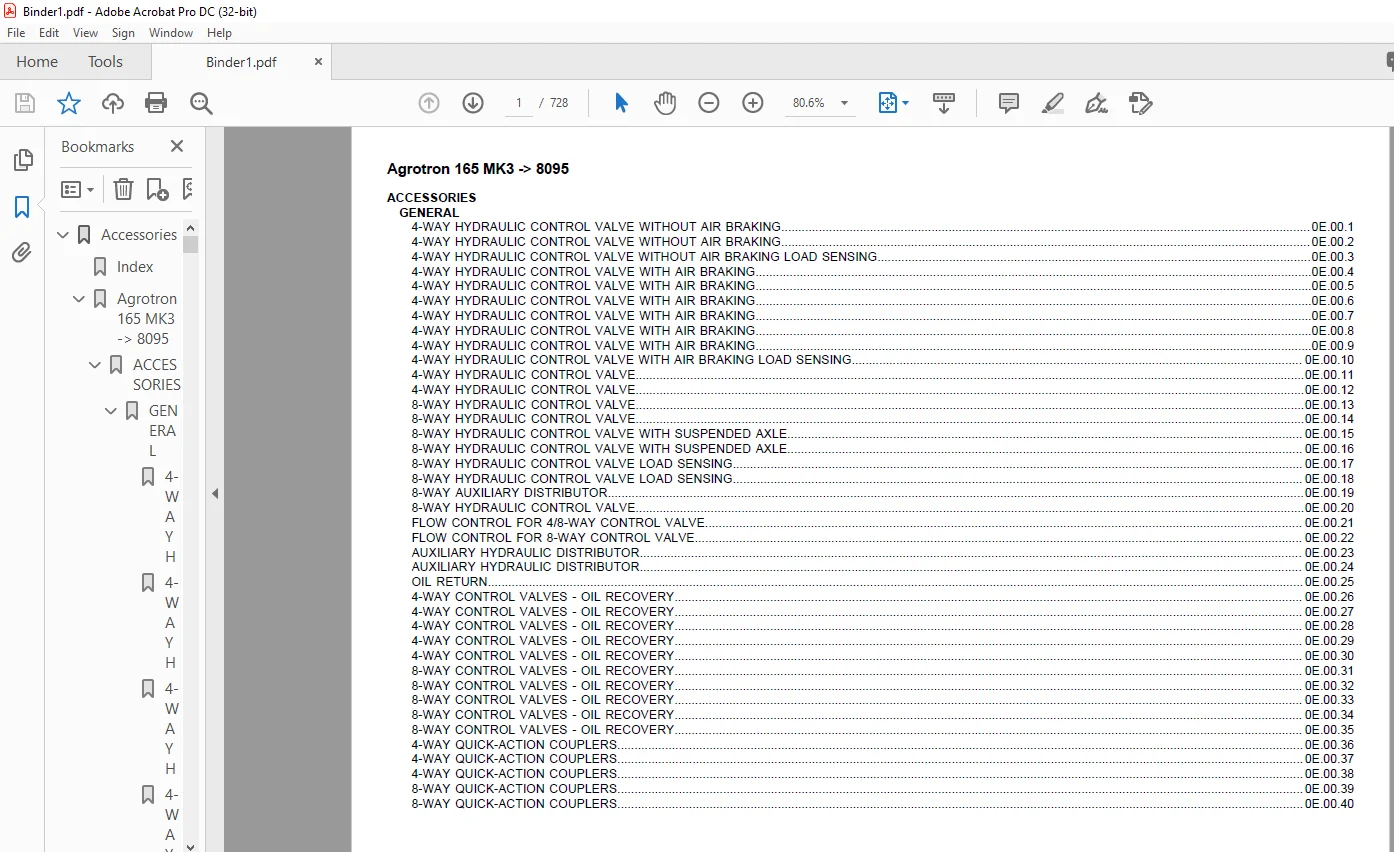

TABLE OF CONTENTS:

Deutz Fahr Agrotron 165 MK3 after 8095 Parts Catalog Manual – PDF DOWNLOAD

Accessories 1
Index 1
Agrotron 165 MK3 -> 8095 4
ACCESSORIES 4
GENERAL 4

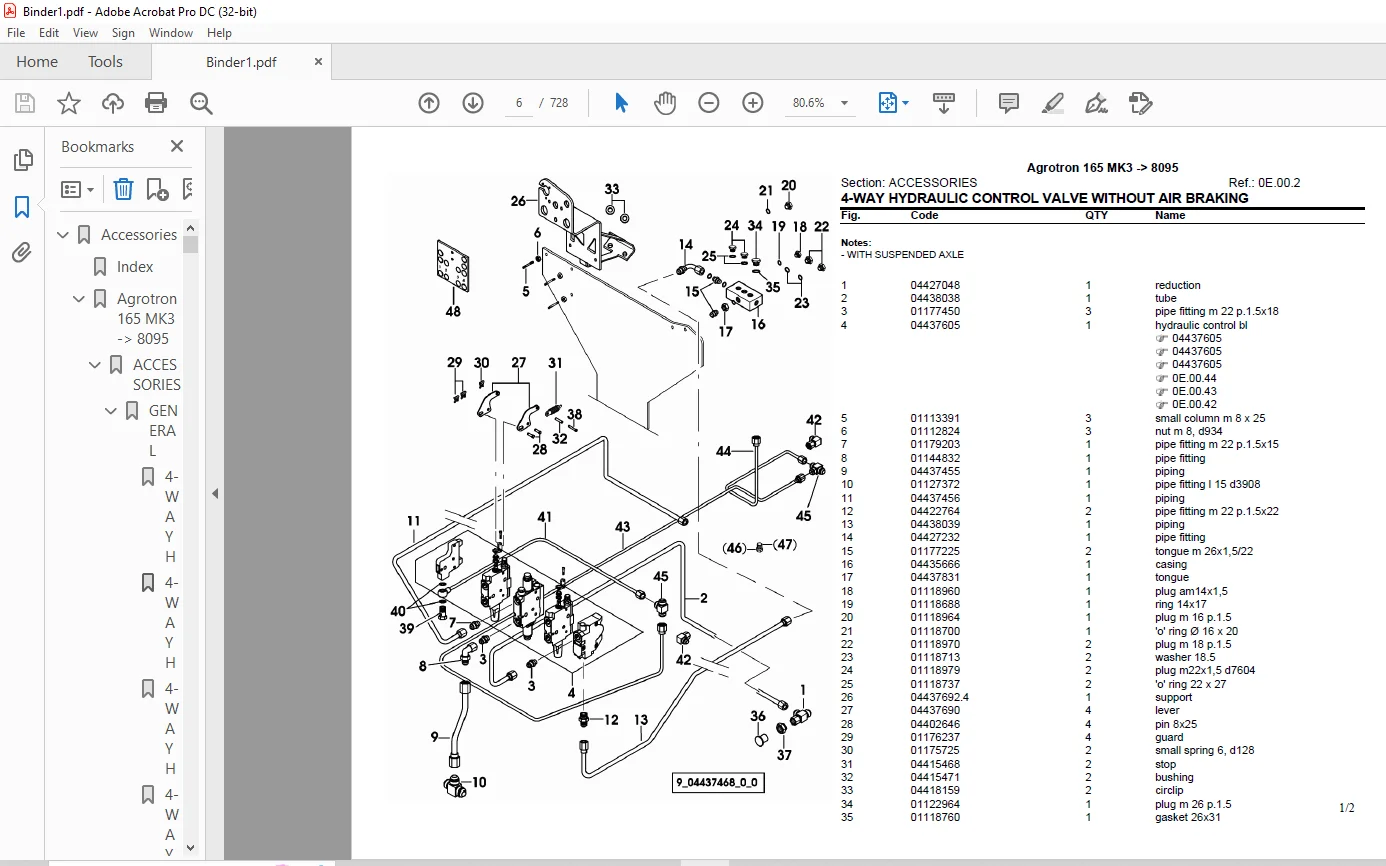

4-WAY HYDRAULIC CONTROL VALVE WITHOUT AIR BRAKING (0E001) 4
4-WAY HYDRAULIC CONTROL VALVE WITHOUT AIR BRAKING (0E002) 6
4-WAY HYDRAULIC CONTROL VALVE WITHOUT AIR BRAKING LOAD SENSING (0E003) 8
4-WAY HYDRAULIC CONTROL VALVE WITH AIR BRAKING (0E004) 10
4-WAY HYDRAULIC CONTROL VALVE WITH AIR BRAKING (0E005) 11
4-WAY HYDRAULIC CONTROL VALVE WITH AIR BRAKING (0E006) 12
4-WAY HYDRAULIC CONTROL VALVE WITH AIR BRAKING (0E007) 13
4-WAY HYDRAULIC CONTROL VALVE WITH AIR BRAKING (0E008) 14
4-WAY HYDRAULIC CONTROL VALVE WITH AIR BRAKING (0E009) 15
4-WAY HYDRAULIC CONTROL VALVE WITH AIR BRAKING LOAD SENSING (0E0010) 16
4-WAY HYDRAULIC CONTROL VALVE (0E0011) 18
4-WAY HYDRAULIC CONTROL VALVE (0E0012) 19
8-WAY HYDRAULIC CONTROL VALVE (0E0013) 20
8-WAY HYDRAULIC CONTROL VALVE (0E0014) 21
8-WAY HYDRAULIC CONTROL VALVE WITH SUSPENDED AXLE (0E0015) 22
8-WAY HYDRAULIC CONTROL VALVE WITH SUSPENDED AXLE (0E0016) 24
8-WAY HYDRAULIC CONTROL VALVE LOAD SENSING (0E0017) 25
8-WAY HYDRAULIC CONTROL VALVE LOAD SENSING (0E0018) 26
8-WAY AUXILIARY DISTRIBUTOR (0E0019) 27
8-WAY HYDRAULIC CONTROL VALVE (0E0020) 28
FLOW CONTROL FOR 4/8-WAY CONTROL VALVE (0E0021) 29
FLOW CONTROL FOR 8-WAY CONTROL VALVE (0E0022) 30
AUXILIARY HYDRAULIC DISTRIBUTOR (0E0023) 31
AUXILIARY HYDRAULIC DISTRIBUTOR (0E0024) 32
OIL RETURN (0E0025) 33
4-WAY CONTROL VALVES – OIL RECOVERY (0E0026) 34
4-WAY CONTROL VALVES – OIL RECOVERY (0E0027) 35
4-WAY CONTROL VALVES – OIL RECOVERY (0E0028) 36
4-WAY CONTROL VALVES – OIL RECOVERY (0E0029) 37
4-WAY CONTROL VALVES – OIL RECOVERY (0E0030) 38
8-WAY CONTROL VALVES – OIL RECOVERY (0E0031) 39
8-WAY CONTROL VALVES – OIL RECOVERY (0E0032) 40
8-WAY CONTROL VALVES – OIL RECOVERY (0E0033) 41
8-WAY CONTROL VALVES – OIL RECOVERY (0E0034) 42
8-WAY CONTROL VALVES – OIL RECOVERY (0E0035) 43
4-WAY QUICK-ACTION COUPLERS (0E0036) 44
4-WAY QUICK-ACTION COUPLERS (0E0037) 45
4-WAY QUICK-ACTION COUPLERS (0E0038) 46
8-WAY QUICK-ACTION COUPLERS (0E0039) 47
8-WAY QUICK-ACTION COUPLERS (0E0040) 48
8-WAY QUICK-ACTION COUPLERS (0E0041) 49
3 POINT HITCH (0E0042) 50
3 POINT HITCH (0E0043) 51
3 POINT HITCH (0E0044) 52
3-POINT HITCH – ADJUSTABLE RH RODS (0E0045) 53
3-POINT HITCH – ADJUSTABLE RH RODS (0E0046) 54
3-POINT HITCH – SIDE STABILIZERS (0E0047) 55
3-POINT HITCH – SIDE STABILIZERS (0E0048) 56
3-POINT HITCH – SIDE STABILIZERS (0E0049) 57
BRACKET (0E0050) 58
RETAINER FOR COLLECTING TRAY (0E0051) 59
RETAINER FOR COLLECTING TRAY (0E0052) 60
REAR TOWING HITCH CAT: “D3” ITALY (0E0053) 61
REAR TOWING HITCH CAT: “D2” ITALY (0E0054) 62
REAR TOWING HITCH CAT: “C” ITALY (0E0055) 63
REAR TOWING HITCH mm 37 (0E0056) 64
REAR TOWING HITCH mm 308 (0E0057) 65
REAR TOWING HITCH mm 37 X 50 Km/H (0E0058) 66
REAR TOWING HITCH (0E0059) 67
REAR TOWING HITCH BRACKET ITALY (0E0060) 68
REAR TOWING HITCH BRACKET (0E0061) 69
REAR TOWING HITCH BRACKET (0E0062) 70
REMOTE CONTROL FOR AUTOMATIC REAR TOWING HITCH (0E0063) 71
PIN FOR REAR TOW HOOK (0E0064) 72
PIN FOR REAR TOW HOOK mm 32 (0E0065) 73
PICK-UP-HITCH (0E0066) 74
PICK-UP-HITCH (0E0067) 75
FASTENINGS PICK-UP-HITCH (0E0068) 76
FRAME HOOK HOLDER (0E0069) 77
TOWING BAR cat III (0E0070) 78
TOWING BAR (0E0071) 79
TOWING BAR (0E0072) 80
PITON-FIX (0E0073) 81
CATCHING MOUTH (0E0074) 82
FRONT WEIGHT CARRIER Kg 40 (0E0075) 83
FRONT BALLAST 80 Kg (0E0076) 84
FRONT BALLAST 160 Kg (0E0077) 85
FRONT BALLAST 240 Kg (0E0078) 86
FRONT BALLAST 320 Kg (0E0079) 87
FRONT WEIGHT CARRIER (0E0080) 88
DISTANCE PLATE 330 Kg (0E0081) 89
BALLAST LOCK BAR (0E0082) 90
FRONT WEIGHT CARRIER (0E0083) 91
FRONT BALLAST 330 Kg (0E0084) 92
FRONT BALLAST 400 Kg (0E0085) 93
FRONT BALLAST 600 kg (0E0086) 94
FRONT BALLAST 1000 Kg (0E0087) 95
FRONT WEIGHT CARRIER (0E0088) 96
BALLAST WEIGHT FRONT DRAWBAR COUPLING (0E0089) 97

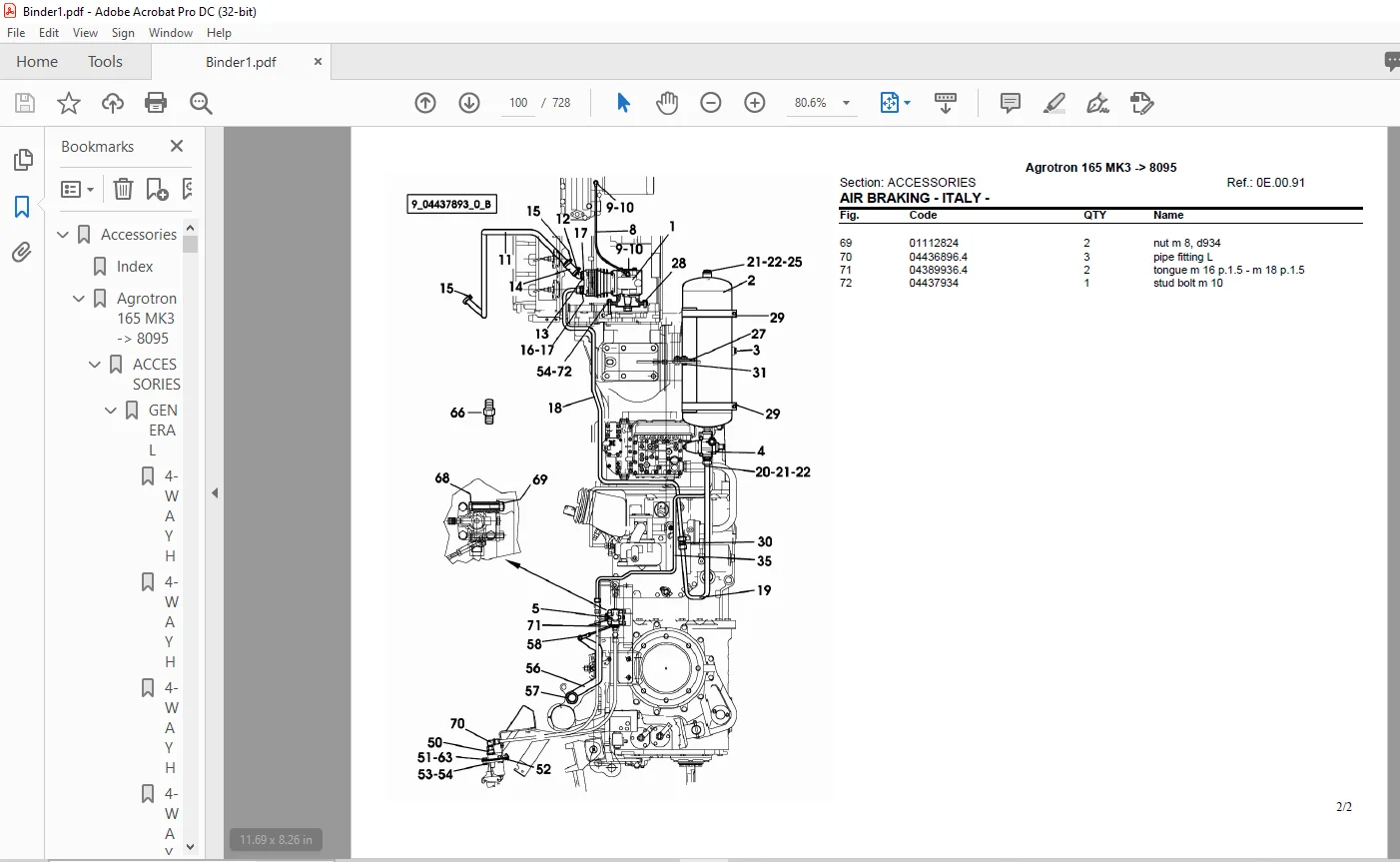

AIR BRAKING – ITALY – (0E0090) 98
AIR BRAKING – ITALY – (0E0091) 99
HYDRAULIC BREAKING FOR TRAILER – EXPORT F LOAD SENSING (0E0092)101
HYDRAULIC BREAKING FOR TRAILER – EXPORT F LOAD SENSING (0E0093)102
HYDRAULIC BREAKING FOR TRAILER – EXPORT F LOAD SENSING (0E0094)103
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (0E0095)104
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (0E0096)106
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (0E0097)107
AIR BRAKING (0E0098)108
AIR BRAKING (0E0099)109
HYDRAULIC BREAKING FOR TRAILER – ITALY – LOAD SENSING (0E00100)111
HYDRAULIC BREAKING FOR TRAILER – ITALY – LOAD SENSING (0E00101)112
HYDRAULIC BREAKING FOR TRAILER – ITALY – LOAD SENSING (0E00102)113
HYDRAULIC BREAKING FOR TRAILER – ITALY – LOAD SENSING (0E00103)114
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E00104)115
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E00105)117
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E00106)118
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E00107)119
AIR-PRESSURE GAUGE (0E00108)120
Body_work121
Index121
Agrotron 165 MK3 -> 8095123
BODY WORK123
GENERAL123
HOOD (07003)123
HOOD (07004)124
FRONT GRILLE FOR DRIVING ON LEFT (07005)125
FRONT GRILLE FOR DRIVING ON RIGHT (07006)126
BLANKING PARTS (07007)127
FASTENINGS (07008)128
MODEL PLATE (070012)129
DASHBOARD (070013)130
DASHBOARD (070014)131
AIR DUCTING HOOD (070015)132
CAB BEARING (070017)133
MECHANICAL CAB SUSPENSION dx/rh/re (070020)134
MECHANICAL CAB SUSPENSION sx/lh/li (070021)135
CAB BEARING PNEUMATIC SPRINGING dx/rh/re (070025)137
CAB BEARING PNEUMATIC SPRINGING sx/lh/li (070026)138
CAB BEARING PNEUMATIC SPRINGING (070027)140
REINFORCED FENDER (070028)141
WING SIDE PANEL (070029)142
WING REAR (070030)143
REAR MUDGUARDS (070031)144
EXTENSION FOR WING sx/lh/li (070032)145
EXTENSION FOR WING dx/rh/re (070033)146
MUDGUARDS EXTENSIONS mm 250 (070034)147
MUDGUARDS EXTENSIONS mm 145 (070035)148
FRONT MUDGUARDS mm 265 (070036)149
FRONT MUDGUARDS mm 265 (070037)150
FRONT MUDGUARDS mm 320 (070038)151
FRONT MUDGUARDS mm 320 (070039)152
FRONT MUDGUARDS mm 320 (070040)153
FRONT MUDGUARDS mm 320 (070041)154
FRONT MUDGUARDS mm 470 (070042)155
FRONT MUDGUARDS mm 470 (070043)156
FRONT MUDGUARDS mm 540 (070044)157
FRONT MUDGUARDS mm 540 (070045)158
FRONT MUDGUARDS mm 620 (070046)159
FRONT MUDGUARDS mm 620 (070047)160
FUEL SYSTEM – TANK (070050)161
FUEL SYSTEM – TANK (070051)162
FUEL SUPPLY – AIR FILTER (070052)163
DRY AIR FILTER (070053)164
THROTTLE (070054)165
ELECTRONIC ACCELERATOR CONTROL (070055)166
COOLING SYSTEM (070058)167
COOLING SYSTEM (070059)168
GEAR BOX OIL RADIATOR TUBES (070064)169
HOOP GUARD (070065)170
LADDER (070066)171
CHOCK (070067)172
METAL TOOLBOX (070068)173
LICENCE PLATE HOLDER (070069)174
LICENCE PLATE HOLDER (070070)175
FRONT NUMBER PLATE BRACKET (070071)176
FRONT NUMBER PLATE BRACKET (070072)177
SEAT FOR 2ND OPERATOR (070073)178
PASSENGER SEAT WITH PROTECTIONS (070074)179
WITHOUT PASSENGER SEAT (070075)180
SEAT SUPPORT BRACKET (070076)181
SEAT (070077)182
SEAT (070078)183
SEAT (070079)184
SEAT (070080)185
SEAT (070081)186
SEAT (070082)187
SEAT-COMPONENTS (070083)188
SPEED LABEL – 40 KM/H – REFLEX (070084)189
SPEED LABEL – 50 KM/H – REFLEX (070085)190
SPEED LABEL – 40 KM/H (070086)191
MODEL PLATE EXPORT D (070087)192
MODEL PLATE ITALY (070088)193
INFORMATION PLATE (070089)194
MODEL PLATE (0700104)195
MODEL PLATE EXPORT F (0700105)196
MODEL PLATE EXPORT E (0700106)197
MODEL PLATE (0700107)198
MODEL PLATE (0700108)199
SPEED LABEL 40 Km/h (0700112)200
SPEED LABEL 50 Km/h (0700113)201
Cab202
Index202
Agrotron 165 MK3 -> 8095204
CAB204
GENERAL204
CAB (0B001)204
CAB INSTALLATION COMPLETION (0B002)205
TRACTOR LINKAGE DRAWBAR (0B003)206
END PLATE (0B004)207
REAR PANEL FLAP (0B005)208
SIDE PANEL FIXED dx/rh/re (0B006)209
SIDE PANEL FIXED sx/lh/li (0B007)210
GLASSES AND SEALS dx/rh/re (0B008)211
GLASSES AND SEALS sx/lh/li (0B009)212
LOWER REAR WINDOW GLASS (0B0010)213
CAB DOOR sx/lh/li (0B0011)214
DOOR LOCK – CAB DOOR – LEFT (0B0012)215
CAB DOOR dx/rh/re (0B0013)216
DOOR LOCK – CAB DOOR – RIGHT (0B0014)217
WINDSCREEN (0B0015)218
OPENABLE WINDSCREEN (0B0016)221
“HIGH VISIBILITY” OPENABLE WINDSCREEN (0B0017)224
REAR PANEL FLAP (0B0018)227
REAR HATCH WITH WIPER (0B0019)231
KNOCKOUT WINDOW (0B0020)235
SCREEN WIPER REAR (0B0021)236
WATER TANK (0B0022)238
REARVIEW MIRROR sx/lh/li (0B0023)239
REARVIEW MIRROR dx/rh/re (0B0024)240
REARVIEW MIRROR sx/lh/li (0B0025)241
REARVIEW MIRROR dx/rh/re (0B0026)242
SUN BLIND FRONT WINDSCREEN (0B0027)243
SUN BLIND REAR WINDOW (0B0028)244
SUN BLIND DOOR WINDOW (0B0029)245
CONTROL CONSOLE (0B0030)246
CAB INTERIOR TRIM sx/lh/li (0B0031)247
CAB INTERIOR TRIM dx/rh/re (0B0032)248
CAB INTERIOR TRIM (0B0033)249
CONTROL CONSOLE LEFT (0B0034)250
CONTROL CONSOLE RIGHT (0B0035)251
CONTROL CONSOLE RIGHT (0B0036)252
CONTROL CONSOLE RIGHT (0B0037)254
CONTROL CONSOLE LEFT (0B0038)255
CONTROL CONSOLE LEFT (0B0039)256
SIDE PANELLING dx/rh/re (0B0040)257
COMPLETE ARMREST WITHOUT APS (0B0041)258
REAR LIFT CONTROL (0B0042)259
ROOF WITHOUT SKYLIGHT (0B0043)260
FLOOR COVERING (0B0044)261
INTERNAL UPHOLSTERY (0B0045)262
ROOF COVERING WITHOUT SKYLIGHT (0B0046)263
ROOF WITH FRONT-OPENING HATCH (0B0047)264
ROOF WITH REAR-OPENING HATCH (0B0048)266
ROOF COVERING FOR SKYLIGHT (0B0049)268
ROOF WITH SKYLIGHT – GLASS (0B0050)269
INTERIOR TRIM (0B0051)272
CAB ROOF “HIGHT VISIBILITY” (0B0052)273
CAB ROOF “HIGHT VISIBILITY” (0B0053)274
CAB ROOF “HIGHT VISIBILITY” (0B0054)275
CAB ROOF “HIGHT VISIBILITY” (0B0055)276
KIT RADIO (0B0056)277
AIR CONDITIONING UNIT – LINES (0B0057)278
CLIMATE CONTROL SYSTEM (0B0058)279
CARBON FILTER (0B0059)281
AIR CONDITIONING UNIT – COMPRESSOR (0B0061)282
CLIMATE CONTROL SYSTEM (0B0062)283
CLIMATE CONTROL SYSTEM (0B0063)284
FASTENINGS (0B0064)285
FIXINGS FOR CAB INTERIOR TRIM (0B0065)286
FIXINGS FOR CAB INTERIOR TRIM (0B0066)287
FIXINGS FOR CAB INTERIOR TRIM (0B0067)288
Electrical_system289
Index289
Agrotron 165 MK3 -> 8095290
ELECTRIC AL SYSTEM290
GENERAL290
RETROREFLECTOR (08001)290
FLASHING POS LIGHT (08002)291
REAR SIDELIGHTS WITH WIDE FENDERS (08003)292
WITHOUT FRONT WORKLIGHTS (08004)293
WITHOUT FRONT WORKLIGHTS (08005)294
ELECTRIC LIGHTING SYSTEM (08006)295
WORKING SPOTLIGHT FRONT 55W-12V (08007)296
WORKING SPOTLIGHT FRONT 55W-12V (08008)297
WORKING SPOTLIGHT (08009)298
WORKING SPOTLIGHT REAR (080010)299
WORKING SPOTLIGHT FRONT (080011)300
CONTROL UNIT – POWERSHUTTLE (080013)301
CABLE SET – MULTIFUNCTION ARMREST (080014)302
ELECTRICAL SYSTEM – STEERING COLUMN SWITCH UNIT – WITH HYDRAULIC SHUTTLE (080015)303
ELECTRICAL EQUIPMENT FRONT (080018)304
ELECTRICAL EQUIPMENT FRONT (080019)305
CABLE HARNESS – GEARBOX (080020)306
ELECTRICAL SYSTEM (080021)307
CABLE FOR FRONT AXLE WITHOUT ASM (080022)308
ELECTRICAL SYSTEM (080023)309
BATTERY SUPPORT (080024)310
BATTERY 12V 143Ah (080025)311
BATTERY 12V 170/180Ah (080026)312
WARNING BEACON (080027)313
SWITCH FOR ROTATING BEACON (080028)314
CONSOLE – INSTRUMENT PANEL (080029)315
CONSOLE – INSTRUMENT PANEL (080030)316
RADAR (080031)317
RADAR EXPORT UK (080032)318
ELECTRICAL CONTROL UNIT – SUPPORTS (080033)319
CENTRAL ELECTRICS (080034)321
ELECTR EQUIPMENT – SPRUNG FRONT AXLE (080035)322
ELECTRONICS BOX EHR-D/ASM (080036)323
PTO SWITCH (080037)324
REAR LIFT CONTROL (080038)325
PTO SHAFT DRIVE (080039)326
ASM SWITCH (080040)327
ELECTRIC LIGHTING SYSTEM (080041)328
Engine329
Index329
Agrotron 165 MK3 -> 8095334
ENGINE334
GENERAL334
EXHAUST SILENCER (01001)334
FILEX COUPLING (01002)335
Crankcase336
PLUG (01011)336
FASTENINGS (01012)338
OIL PRESSURSWITCH (01013)340
FILLER CAP (01014)342
OIL FILLER NECK (01015)344
CRANKCASE BREATHER (01016)346
BLEEDING TUBE (01017)348
PISTON COOLNOZZLE (01018)350
CRANKCASE (01019)352
FRONT COVER (010110)354
FRONT COVER (010111)355
FRONT COVER (010112)356
FRONT COVER (010113)357
CRANKCASE (010114)358
Oil pan360
OIL PAN (01021)360
Crankshaft362
FASTENINGS (01051)362
FLYWHEEL (01052)364
ACCESSORIES (01053)366
V-GROOVED PULLEY (01054)368
CRANKSHAFT (01055)370
V-BELT (01056)373
VIBRATION DAMPER (01057)374
V-GROOVED PULLEY (01058)376
Connecting rod378
CONNECTING ROD (01061)378
Piston380
PISTON (01071)380
Cylinder head382
FASTENINGS (01081)382
CYLINDER HEAD (01081)384
ROCKER ARMS COVER (01082)386
ENGINE MOUNTING (01082)388
ENGINE MOUNTING (01083)389
CYLINDER HEAD (01084)390
ENGINE MOUNTING (01085)392
CLOSING COMPONENTS (01086)393
CYLINDER HEAD (01087)394
Timing chest395
GEARCASE (01091)395
Camshaft397
CAMSHAFT (01101)397
Timing gears399
ROCKER ARM BRACKET (01111)399
ROCKER ARM BRACKET (01112)401
ROCKER ARM BRACKET (01113)403
FASTENINGS (01114)405
VALVE DRIVE (01115)407
Oil cooler, Lube oil filter409
FILTER CARTRIDGE (01151)409
CLOSING COMPONENTS (01152)411
PLASTIC PROFILE (01153)413
FASTENINGS (01154)415
ADAPTER (01155)417
OIL COOLER BOX (01156)419
CLOSING COMPONENTS (011510)422
Oil pipes423
OIL SUCTION PIPE (01161)423
Injection pump425
ROLLER TAPPET (01171)425
FASTENINGS (01172)427
FUEL INJECT PUMP (01173)431
Injector433
FASTENINGS (01191)433
FUEL INJECTOR (01192)435
FUEL INJECTOR (01194)438
Fuel filter441
FASTENINGS (01201)441
FUEL SUPPLY PUMP (01202)443
SPIN-ON FILTER (01203)445
Fuel pipes447
HIGH PRESSURE PIPE (01211)447
FUEL LINE (01212)449
OVERFLOW LINE (01213)451
OVERFLOW LINE (01214)452
OVERFLOW LINE (01215)453
FUEL LINE (01216)455
Air intake, Air cleaner456
TUNNEL COVER (01221)456
FASTENINGS (01222)458
CHARGED AIR MANIFOLD (01223)460
CHARGE AIR PIPE (01224)462
CHARGE AIR PIPE (01225)464
Controller466
CLOSING COMPONENTS (01271)466
CLOSING COMPONENTS (01272)467
FASTENINGS (01273)469
CONTROL ROD (01274)471
INLET MANIFOLD (01275)473
ACTUATOR (01276)474
ADJUSTER INSTRUMENT (01277)475
INLET MANIFOLD (01278)476
ACTUATOR (01279)478
ADJUSTER INSTRUMENT (012711)479
ADJUSTER INSTRUMENT (012712)480
ACTUATOR (012713)481
Cooling water pump482
FASTENINGS (01371)482
DRIVING PARTS (01371)483
V-GROOVED PULLEY (01372)484
COOLING WATER PUMP (01373)486
COOLING WATER PUMP (01374)488
Water pipes489
CLOSING COMPONENTS (01381)489
COOLANT PIPE (01381)491
FASTENINGS (01381)493
THERMOSTAT (01382)495
VENT PLUG (01383)496
CONNECTION (01384)498
COOLANT PIPE (01385)500
CLOSING COMPONENTS (01386)502
THERMOSTAT (01387)504
Cooling air blower506
NARROW V-BELT (01391)506
ADAPTER (01392)508
V-GROOVED PULLEY (01394)510
FAN SUPPORT (01395)511
FASTENINGS (01396)512
FAN SUPPORT (01398)513
V-GROOVED PULLEY (01399)514
FASTENINGS (013910)515
FAN SUPPORT (013911)516
Exhaust manifold517
EXHAUST PIPE (01411)517
EXHAUST PIPE (01412)518
Turbocharger520
FASTENINGS (01431)520
ACCESSORIES (01431)522
FEED LINE (01432)523
RETURN LINE (01433)525
TURBOCHARGER (01434)527
FASTENINGS (01435)529
Generator, Startet motor531
GENERATOR (01441)531
PARTS OF ALTERNAT (01442)533
FASTENINGS (01443)536
DRIVING PARTS (01444)538
ACCESSORIES (01445)540
STARTER (01446)542
Engine mounting544
ACCESSORIES (01471)544
ACCESSORIES (01472)545
ACCESSORIES (01473)546
Electrical accessories547
COVER PLATE (01481)547
FASTENINGS (01482)549
OIL PRESSURSWITCH (01483)551
PLUG-IN CONNECTOR (01484)553
OIL PRESSURSWITCH (01485)555
ACCESSORIES (01486)557
TEMPERTRANSMITTER (01487)559
IMPULSETRANSMITTER (01488)561
CABLE EDGE CONNECTORS (01489)563
FASTENINGS (014810)564
OIL PRESSURSWITCH (014811)565
TEMPERTRANSMITTER (014812)566
IMPULSETRANSMITTER (014813)567
FASTENINGS (014814)568
CABLE EDGE CONNECTORS (014815)569
CABLE EDGE CONNECTORS (014816)570
FASTENINGS (014817)572
PLUG-IN CONNECTOR (014818)574
PLUG-IN CONNECTOR (014819)575
PLUG-IN CONNECTOR (014820)576
Measuring instruments577
TEMPERTRANSMITTER (01511)577
TEMPERTRANSMITTER (01512)579
Clutch580
BUSH (01521)580
Engine shutdown582
CLOSING COMPONENTS (01561)582
ACCESSORIES (01562)583
SHUTDOWN DEVICE (01563)584
ACCESSORIES (01564)585
SHUTDOWN DEVICE (01565)586
Starting aid587
SWITCHING DEVICE (01631)587
GLOW PLUG (01632)589
Heating system591
HEATER CONNECTION (01751)591
Hydraulic pump593
CLOSING COMPONENTS (01831)593
CLOSING COMPONENTS (01832)595
CLOSING COMPONENTS (01833)597
Sealing set598
COOLSYSTPROTECT (01901)598
GASKET SET (01902)600
Front_and_rear_pto602
Index602
Agrotron 165 MK3 -> 8095603
FRONT AND REAR PTO603
GENERAL603
FRONT COVER WITHOUT FRONT PTO (05001)603
PTO SHAFT DRIVE (05002)604
PTO SHAFT DRIVE (05003)605
PTO SHAFT PROTECTOR REAR (05004)606
Front_axle607
Index607
Agrotron 165 MK3 -> 8095608
FRONT AXEL608
GENERAL608
FRONT SUPPORT (04001)608
FRONT CARRIER WITH SUSPENSION (04002)609
HYDRAULIC CONTROL UNIT – SPRUNG FRONT AXLE (04003)611
FRONT CARRIER SUSPENSION SYSTEM (04004)612
FRONT CARRIER SUSPENSION SYSTEM (04005)613
PROPELLER SHAFT – WITHOUT FRONT SUSPENSION (04006)615
PROPELLER SHAFT – WITH FRONT SUSPENSION (04007)616
DRIVEN FRONT AXLE (04008)617
DRIVEN STEERING AXLE – DIFFERENTIAL WITH ASM (04009)619
FRONT AXLE – FRONT SUSPENSION – DIFFERENTIAL WITH ASM (040010)621
DIFF GEAR LOCK (040011)623
BEVEL WHEEL GEAR (040012)626
REDUCTION GEAR UNIT (040013)628
REAR AXLE – STUB AXLE (040014)629
STEERING CYLINDER (040015)631
DIFFERENTIAL PIPES FOR RIGID AXLE (040016)632
DIFFERENTIAL PIPES FOR SUSPENDED AXLE (040017)633
Front_power-lift634
Index634
Agrotron 165 MK3 -> 8095635
FRONT HYDRAULIC POWER-LIFT635
GENERAL635
FRONT HYDRAULIC POWER-LIFT (0C001)635
FRONT POWER LIFT – LEADS (0C002)636
Gear637
Index637
Agrotron 165 MK3 -> 8095638
GEAR638
GENERAL638
CLUTCH CONTROL WITH HYDRAULIC SHUTTLE (02002)638
CLUTCH – WITH HYDRAULIC SHUTTLE (02005)640
GEARBOX FRONT (02006)644
GEARBOX WITH HYDRAULIC SHUTTLE (02007)645
GEARBOX WITH HYDRAULIC SHUTTLE (02009)646
GEARBOX WITH HYDRAULIC SHUTTLE (020010)649
INTERMEDIATE SHAFT (020013)650
MAIN SHAFT (020014)652
SUPER REDUCTION GEAR UNIT (020015)654
GEARSHIFT LEVER (020016)655
GEARSHIFT CONTROL WITH HYDRAULIC SHUTTLE (020018)658
POWERSHIFT (020022)659
POWERSHIFT (020023)661
POWERSHIFT (020024)664
DIFFERENTIAL (020025)667
DIFFERENTIAL (020026)669
DRIVE SHAFT (020029)670
FRONT-WHEEL DRIVE ENGAGEMENT (020030)671
HYDRAULIC CONTROL (020031)673
LUBRICATING OIL SUPPLY (020032)674
LUBRICATING OIL SUPPLY (020033)675
LUBRICATING OIL SUPPLY (020034)677
PUMP DRIVE (020035)678
PTO – POWER TAKE OFF (020036)680
PTO SHAFT (020037)681
PTO SHAFT (020038)684
ACCESSORIES (020039)685
SERVICE BRAKE (020040)686
BRAKE CONTROLS (020041)687
CONTROL UNIT (020042)688
LIFTING (020043)689
ADJUSTER INSTRUMENT (020044)690
ADJUSTER INSTRUMENT (020045)692
FASTENINGS (020046)693
SUPER-REDUCTION CONTROL (020047)694
SUPER-REDUCTION CONTROL WITH LOAD SENSING PUMP (020048)695
GEAR SHIFTING (020049)696
GEAR SHIFT – CREEP SPEED (020050)697
Rear_axle698
Index698
Agrotron 165 MK3 -> 8095699
REAR AXLE699
GENERAL699
BRAKE CONTROLS (03001)699
HAND BRAKE (03002)701
SAC702
Index702
Agrotron 165 MK3 -> 8095703
SAC703
GENERAL703
HYDRAULIC CYLINDERS (0D001)703
AGROTRONIC (0D002)704
Steering_Hydraulics705
Index705
Agrotron 165 MK3 -> 8095706
POWER STEERING – HYDRAULIC SYSTEM706
GENERAL706
POWER STEERING (06001)706
CONNECTION PIPES WITH HYDRAULIC SHUTTLE (06002)708
HYDROSTATIC STEERING WITHOUT FRONT SUSPENSION (06004)709
HYDROSTATIC STEERING WITH FRONT SUSPENSION (06005)710
OIL SUPPLY – HYDRAULIC PUMP (06006)711
OIL SUPPLY – LOAD SENSING (06007)712
OIL SUPPLY – LOAD SENSING (06008)714
Wheels715
Index715
Agrotron 165 MK3 -> 8095716
WHEELS716
GENERAL716
WHEELS 169R28″ 136 A8 (090013)716
WHEELS 169R28″ 136 A8 (090015)717
WHEELS 208R38″ 153 A8 (090024)718
WHEELS 208R38″ 153 A8 (090025)719
WHEELS 480/70R28″ 140 A8 (090033)720
WHEELS 480/70R28″ 140 A8 (090034)721
WHEELS 540/65 R28″ 137 A8 CF (090036)722
WHEELS 580/70R38″ 155 A8 (090043)723
WHEELS 580/70R38″ 155 A8 (090044)724
WHEELS 650/65R38″ 154 A8 (090051)725
TYRE VALVE (090054)726
FIXING WHEELS m 20 p15 (090055)727
FIXING WHEELS m 22 x 15 (090056)728

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.M
