Deutz Fahr Agrotron 260 after 8059 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrotron 260 after 8059 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrotron 260 after 8059 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 582
Downloadable : Yes
File Type : PDF
Size: 35.5 MB

TABLE OF CONTENTS:

Deutz Fahr Agrotron 260 after 8059 Parts Catalog Manual – PDF DOWNLOAD

Brake 1
Index 1
Agrotron 260 -> 8059 2
BRAKE 2
Control assy/servise brake, Parking brake 2
PARKING BRAKE UNIT (13291) 2
PARKING BRAKE UNIT (13292) 3
PARKING BRAKE UNIT (13293) 4
HAND BRAKE (13294) 5
Service brake, Contral assy/service brake 6
BRAKE OPERATION (13301) 6
BRAKE OPERATION (13302) 7
BRAKE OPERATION REAR AXLE (13303) 8
BRAKE OPERATION REAR AXLE (13304) 9
DISC BRAKE (13305) 10
Pneumatic system 11
AIR-PRESSURE GAUGE (13551) 11
COMPRESSED-AIR UNIT AIR VESSEL (13552) 12
AIR COMPRESSOR (13553) 13
AIR COMPRESSOR (13554) 14
PRESSURE REGULATOR (13555) 15
TRAILER SOCKET-OUTLET VALVE (13556) 16
COMPRESSED-AIR UNIT SOLENOID VALVE (13557) 17
COMPRESSED-AIR UNIT CUTOFF VALVE (13558) 18
COMPRESSED-AIR UNIT SHUTTLE VALVE (13559) 19
COMPRESSED-AIR UNIT CUTOFF VALVE (135510) 20
COMPRESSED-AIR UNIT SHUTTLE VALVE (135511) 21
COMPRESSED-AIR UNIT PIPELINE (135512) 22
PLASTIC PIPE (135513) 23
AIR BRAKE HOSE COUPLING (135514) 24
AIR BRAKE HOSE COUPLING (135515) 25
Built-on_accessories 26
Index 26
Agrotron 260 -> 8059 29
BUILT-ON ACCESSORIES 29
GENERAL 29
REAR MUDGUARDS (16001) 29
Cab 30
CAB (16371) 30
CAB BEARING RUBBER SPRINGING (16372) 31
PNEUMATIC CAB SUSPENSION (16373) 32
PNEUMATIC CAB SUSPENSION (16374) 34
WINDSCREEN (16375) 35
WINDSCREEN (16376) 36
KNOCKOUT WINDOW FRONT (16377) 37
KNOCKOUT WINDOW FRONT (16378) 38
KNOCKOUT WINDOW FRONT (16379) 39
SUN BLIND FRONT WINDSCREEN (163710) 40
CAB DOOR RIGHT/LEFT (163711) 41
CAB DOOR RIGHT/LEFT (163712) 42
CAB DOOR RIGHT/LEFT (163713) 43
DOOR HANDLE – CAB DOOR RIGHT/LEFT (163714) 44
DOOR LOCK – CAB DOOR – RIGHT/LEFT (163715) 45
SUN BLIND DOOR WINDOW (163716) 46
FRONT WINDSCREEN BOTTOM (163717) 47
REAR WINDOW BOTTOM (163718) 48
SIDE PLATE RIGHT/LEFT (163719) 49
KNOCKOUT WINDOW REAR WITH REAR PANEL FLAP (163720) 50
REAR PANEL FLAP (163721) 51
KNOCKOUT WINDOW REAR (163722) 52
HANDLE REAR WINDOW (163723) 53
KNOCKOUT WINDOW REAR WITH REAR PANEL FLAP (163724) 54
SUN BLIND REAR WINDOW (163725) 55
ROOF WITH SKYLIGHT – GLASS – COVERING (163726) 56
ROOF WITH SKYLIGHT – GLASS – COVERING (163727) 57
ROOF WITH SKYLIGHT – GLASS – COVERING (163728) 58
ROOF WITH SKYLIGHT – GLASS – COVERING (163729) 59
SKYLIGHT WITH GLASS (163730) 60
SKYLIGHT WITH GLASS (163731) 61
SKYLIGHT WITH COVERING (163732) 62
SKYLIGHT WITH COVERING (163733) 63
SKYLIGHT – CONVERSION KIT (163734) 64
FRAME – LOUDSPEAKER – REAR-VIEW MIRROR (163735) 65
RELAY VALVE (04432191A) 66
Engine hood, Battery Carrier 67
HOOD (16411) 67
SIDE PART HOOD (16412) 68
HOOD UPPER PART (16413) 69
HOOD FRONT PART (16414) 70
PARTITION REAR (16415) 71
Speed control device 72
SPEED ADJUSTMENT (16461) 72
INSULATION SPEED CONTROL (16462) 73
Rear mudguards, Rear panelling 74
EXTENSION FOR WING (16511) 74
REMOTE CONTROL – LIFTING GEAR CONTROL – PTO SHAFT (16512) 75
FRAME WING (16513) 76
Front mudguards 77
WING FRONT – MM 520 (16521) 77
WING FRONT – MM 620 (16522) 79
GUARD PLATE (16523) 81
WING FRONT (16524) 82
Driver`s seat 83
DRIVER’S SEAT – AEROMAT (16541) 83
DRIVER’S SEAT – AEROMAT (16542) 84
DRIVER’S SEAT – AEROMAT (16543) 85
DRIVER’S SEAT – AEROMAT (16544) 87
DRIVER’S SEAT – AEROMAT (16545) 88
DRIVER’S SEAT – AEROMAT (16546) 89
DRIVER’S SEAT – AEROMAT (16547) 90
DRIVER’S SEAT – AEROMAT (16548) 91
DRIVER’S SEAT – AEROMAT (16549) 92
DRIVER’S SEAT (165410) 93
DRIVER’S SEAT – AEROMAT (165411) 94
Tank panelling, Instrument box, Front panelling 95
INSULATION CAB (16551) 95
SUPPORT (16552) 96
Screw plug 97
PLUG (16571) 97
Toolbox 98
METAL TOOLBOX (16601) 98
Driving mirror 99
REAR-VIEW MIRROR TELESCOPIC (16671) 99
FRAME – REAR-VIEW MIRROR TELESCOPIC (16672)100
Rear reflector101
RETROREFLECTOR (16681)101
Number plate bracket, Plates102
LICENCE PLATE HOLDER (16711)102
LICENCE PLATE HOLDER (16712)103
PRODUCT PLATE (16713)104
GEARSHIFT DIAGRAM (16714)105
Control console106
CASING – CONTROL CONSOLE (16751)106
CASING – CONTROL CONSOLE (16752)107
COVER – CENTRAL ELECTRICS (16753)108
Passenger seat109
SEAT FOR 2ND OPERATOR (16761)109
Foot plate110
STEP – RIGHT / LEFT (16771)110
Chock111
CHOCK (16801)111
Cab panelling, Floor covering112
SIDE PANELLING LEFT (16861)112
TUNNEL COVER (16862)113
INTERNAL UPHOLSTERY (16863)114
INTERNAL UPHOLSTERY (16864)115
INSULATION CAB (16865)116
INSULATION STEERING – STEERING CONSOLE (16866)117
SOUND-ABSORBING PARTS (16867)118
SOUND-ABSORBING PARTS (16868)119
SOUND-ABSORBING PARTS (16869)120
INSULATION CAB (168610)121
INSULATION CAB (168611)122
FIXING PARTS – INSULATION (168612)123
ROOF COVERING FOR SKYLIGHT (168613)124
Electrical_system125
Index125
Agrotron 260 -> 8059127
ELECTRIC AL SYSTEM127
Electrical equipment, Switch box w instruments, Pilot light, Screen washing system, Headlight, Lights127
BATTERY (18491)127
STARTER CABLE – BATTERY EARTHING STRAP – BATTERY HOLDER (18492)128
KIT RADIO (18493)129
RETROFIT KIT – RADIO (18494)130
SOCKET-OUTLET FOR HIGH CURRENT (18495)131
TRAILER SOCKET-OUTLET – SINGLE-POLE (18496)132
ELECTRICAL PARTS SET (18497)133
SOCKET-OUTLET EHR-D (18498)134
SOCKET-OUTLET 7 – POLE (18499)135
RETROFIT SET (184910)136
CABLE HARNESS – ENGINE (184911)137
CABLE HARNESS – ENGINE (184912)140
CABLE HARNESS – ENGINE (184913)141
ELECTR EQUIPMENT – CABLE HARNESS FRONT – MOTOR (184914)142
ELECTR EQUIPMENT – CABLE HARNESS FRONT – MOTOR (184915)143
CABLE FRONT PTO SHAFT/ MOTOR (184916)144
CABLE HARNESS – GEARBOX (184917)145
CABLE HARNESS – GEARBOX (184918)147
CABLE HARNESS – GEARBOX (184919)148
CABLE SET – MULTIFUNCTION ARMREST (184920)149
CABLE HARNESS WITH COMPRESSED-AIR UNIT AND POWERSHIFT (184921)150
CABLE HARNESS – COMPRESSED-AIR UNIT – BODY GROUP (184922)151
CABLE HARNESS ARMATURE – POWERSHIFT (184923)152
CABLE HARNESS DASHBOARD CONSOLE – POWERSHIFT – SYNCROSPLIT (184924)154
CABLE HARNESS DASHBOARD CONSOLE – POWERSHIFT – SYNCROSPLIT (184925)155
CABLE HARNESS DASHBOARD CONSOLE – POWERSHIFT (184926)157
CABLE HARNESS ROOF – SYNCHROSPLIT – POWERSHIFT (184927)158
CABLE HARNESS ROOF – SYNCROSPLIT – POWERSHIFT (184928)161
CABLE HARNESS ROOF – SYNCROSPLIT – POWERSHIFT (184929)163
CABLE HARNESS ROOF – SYNCROSPLIT – POWERSHIFT (184930)164
CABLE HARNESS ROOF – SYNCROSPLIT – POWERSHIFT (184931)166
CABLE HARNESS HEATING – AIR CONDITIONING UNIT (184932)168
CABLE HARNESS – HEATING – AIR CONDITIONING (184933)170
CABLE HARNESS – HEATING – AIR CONDITIONING (184934)171
CABLE ADAPTER AIR CONDITIONING SYSTEM (184935)173
FIXING PLATE FOR AIR CONDITIONING UNIT (184936)174
CONTROL UNIT – SPRUNG – FRONT AXLE (184937)175
CABLE HARNESS – HYDR OIL FILTER WITHOUT COMPRESSED-AIR UNIT (184938)176
CABLE HARNESS – HYDR OIL FILTER WITH COMPRESSED-AIR UNIT (184939)177
RETROFIT KIT HYDR OIL FILTER MONITORING WITHOUT COMPRESSED-AIR UNIT (184940)178
RETROFIT KIT HYDR OIL FILTER MONITORING WITH COMPRESSED-AIR UNIT (184941)179
CABLE SET, FLASHING INDICATOR, FRONT LIGHT (184942)180
CABLE SET – REAR LIGHT (184943)181
INSTRUMENTATION – INFOCENTER 3 (184944)182
INSTRUMENTATION – INFOCENTER 1-3 (184945)183
INDICATOR – POWERSHIFT (184946)184
ELECTR EQUIPMENT – DASHBOARD CONSOLE (184947)185
CONTROL UNIT – AUTOM REVERSING FLASHER SWITCH (184948)186
SCREEN WASHER UNIT REAR (184949)187
SCREEN WASHER UNIT REAR (184950)188
SCREEN WIPER FRONT/REAR (184951)189
WATER TANK (184952)190
LOCKING PARTS WITHOUT WORKING SPOTLIGHT WITHOUT SPOTLIGHT (184953)191
WORKING SPOTLIGHT FRONT – 55W (184954)192
WORKING SPOTLIGHT FRONT – 55W (184955)193
WORKING SPOTLIGHT REAR (184956)194
WORKING SPOTLIGHT REAR ROOF (184957)195
CABLE WORKING SPOTLIGHT REAR ROOF (184958)196
WORKING SPOTLIGHT FRONT (184959)197
WORKING SPOTLIGHT FRONT (184960)198
CABLE WORKING SPOTLIGHT FRONT (184961)199
WORKING SPOTLIGHT REAR (184962)200
TOP SPOTLIGHT LEFT TRAFFIC (184963)201
TOP SPOTLIGHT RIGHT TRAFFIC (184964)202
WARNING BEACON (184965)203
BEARER PLATE – PANELLING (184966)204
FLASHING POS LIGHT (184967)205
REAR LIGHT REAR REFLECTOR (184968)206
REAR LIGHT HOLDER (184969)207
AGROTRONIC208
AGROTRONIC – H – EHR (18811)208
RADAR SENSOR (18812)209
Engine210
Index210
Agrotron 260 -> 8059215
ENGINE215
Crankcase215
PLUG (11011)215
FASTENINGS (11012)216
OIL PRESSURSWITCH (11013)217
OIL FILLER NECK (11014)218
CRANKCASE BREATHER (11015)219
BLEEDING TUBE (11016)220
PISTON COOLNOZZLE (11017)221
FILLER CAP (11018)222
FRONT COVER (11019)223
CRANKCASE (110110)224
FRONT COVER (110111)226
FRONT COVER (110112)227
CLOSING COMPONENTS (110113)228
PISTON COOLNOZZLE (110114)229
FRONT COVER (110115)230
CRANKCASE (110116)231
Oil pan232
OIL PAN (11021)232
Crankshaft233
FASTENINGS (11051)233
VIBRATION DAMPER (11052)234
VIBRATION DAMPER (11053)235
DRIVER FLANGE (11054)236
SEPARATOR (11055)237
CRANKSHAFT (11056)238
V-GROOVED PULLEY (11057)240
V-GROOVED PULLEY (11058)241
VIBRATION DAMPER (11059)242
SEPARATOR (110510)243
V-GROOVED PULLEY (110511)244
Connecting rod245
CONNECTING ROD (11061)245
CONNECTING ROD (11062)246
Piston247
PISTON (11071)247
PISTON (11072)248
Cylinder head249
ENGINE MOUNTING (11081)249
ENGINE MOUNTING (11081)250
FASTENINGS (11082)251
CLOSING COMPONENTS (11082)252
CYLINDER HEAD (11083)253
CYLINDER HEAD (11083)254
ROCKER ARMS COVER (11084)255
CYLINDER HEAD (11084)256
CYLINDER HEAD (11085)257
CYLINDER HEAD (11086)258
Timing chest259
GEARCASE (11091)259
Camshaft260
CAMSHAFT (11101)260
CAMSHAFT (11102)261
CAMSHAFT (11103)262
Timing gears263
ROCKER ARM BRACKET (11111)263
ROCKER ARM BRACKET (11112)264
ROCKER ARM BRACKET (11113)265
FASTENINGS (11114)266
VALVE DRIVE (11115)267
VALVE DRIVE (11116)268
Oil cooler, Lube oil filter269
FILTER CARTRIDGE (11151)269
CLOSING COMPONENTS (11152)270
FASTENINGS (11153)271
FASTENINGS (11154)272
OIL COOLER BOX (11155)273
OIL COOLER (11156)274
ADAPTER (11157)275
CLOSING COMPONENTS (11158)276
OIL COOLER BOX (11159)277
Oil pipes278
OIL SUCTION PIPE (11161)278
Injection pump279
ROLLER TAPPET (11171)279
FUEL INJECT PUMP (11172)280
FASTENINGS (11173)281
FASTENINGS (11174)286
Injector289
FASTENINGS (11191)289
FUEL INJECTOR (11192)290
FUEL INJECTOR (11193)292
FUEL INJECTOR (11194)294
FUEL INJECTOR (11195)295
Fuel filter296
FASTENINGS (11201)296
FUEL SUPPLY PUMP (11202)297
SPIN-ON FILTER (11203)298
Fuel pipes299
FUEL LINE (11211)299
OVERFLOW LINE (11212)300
HIGH PRESSURE PIPE (11213)301
FUEL LINE (11214)302
ACCESSORIES (11215)303
Air intake, Air cleaner304
TUNNEL COVER (11221)304
MANIFOLD (11222)305
FASTENINGS (11223)306
CHARGE AIR PIPE (11224)307
CHARGE AIR PIPE (11225)308
Controller309
CLOSING COMPONENTS (11271)309
CLOSING COMPONENTS (11271)310
FASTENINGS (11272)311
CONTROL ROD (11273)312
INLET MANIFOLD (11274)313
ACTUATOR (11275)314
ADJUSTER INSTRUMENT (11276)315
ADJUSTER INSTRUMENT (11277)316
ADJUSTER INSTRUMENT (11278)317
ADJUSTER INSTRUMENT (11279)318
ACTUATOR (112710)319
Cooling water pump320
NARROW V-BELT (11371)320
FASTENINGS (11371)321
DRIVING PARTS (11371)322
COOLING WATER PUMP (11371)323
COOLING WATER PUMP (11372)324
NARROW V-BELT (11372)325
V-GROOVED PULLEY (11373)326
Water pipes327
CLOSING COMPONENTS (11381)327
COOLANT PIPE (11381)328
FASTENINGS (11381)329
VENT PLUG (11381)330
CONNECTION (11382)331
THERMOSTAT (11383)332
FASTENINGS (11384)333
COOLANT PIPE (11385)334
THERMOSTAT (11386)335
CLOSING COMPONENTS (11387)336
Cooling air blower337
FAN SUPPORT (11391)337
FASTENINGS (11392)338
FASTENINGS (11393)339
FAN SUPPORT (11394)340
FAN SUPPORT (11395)341
Exhaust manifold342
EXHAUST PIPE (11411)342
EXHAUST PIPE (11412)343
Turbocharger344
FASTENINGS (11431)344
CLOSING COMPONENTS (11432)345
FASTENINGS (11433)346
FEED LINE (11434)347
RETURN LINE (11435)348
TURBOCHARGER (11436)349
TURBOCHARGER (11437)350
ACCESSORIES (11438)351
Generator, Startet motor352
GENERATOR (11441)352
FASTENINGS (11442)353
NARROW V-BELT (11443)354
STARTER (11444)355
ACCESSORIES (11445)356
V-GROOVED PULLEY (11446)357
ACCESSORIES (11447)358
V-GROOVED PULLEY (11448)359
Engine mounting360
SUPPORT (11461)360
SUPPORT (11462)361
Engine mounting362
ACCESSORIES (11471)362
ACCESSORIES (11472)363
ACCESSORIES (11473)364
ACCESSORIES (11474)365
Electrical accessories366
COVER PLATE (11481)366
FASTENINGS (11482)367
TEMPERTRANSMITTER (11483)368
IMPULSETRANSMITTER (11484)369
OIL PRESSURSWITCH (11485)370
FASTENINGS (11486)371
CABLE EDGE CONNECTORS (11487)372
OIL PRESSURSWITCH (11488)373
OIL PRESSURSWITCH (11489)374
PLUG-IN CONNECTOR (114810)375
ACCESSORIES (114811)376
TEMPERTRANSMITTER (114812)377
IMPULSETRANSMITTER (114813)378
CABLE EDGE CONNECTORS (114814)379
FASTENINGS (114815)380
CLOSING COMPONENTS (114816)381
Measuring instruments382
TEMPERTRANSMITTER (11511)382
Clutch383
BUSH (11521)383
Engine shutdown384
ACCESSORIES (11561)384
SHUTDOWN DEVICE (11562)385
ACCESSORIES (11563)386
SHUTDOWN DEVICE (11564)387
CLOSING COMPONENTS (11565)388
Starting aid389
SWITCHING DEVICE (11631)389
CLOSING COMPONENTS (11632)390
GLOW PLUG (11633)391
Heating system392
HEATER CONNECTION (11751)392
Hydraulic pump393
CLOSING COMPONENTS (11831)393
CLOSING COMPONENTS (11832)394
Sealing set395
COOLSYSTPROTECT (11901)395
GASKET SET (11903)396
Front_axle_Steering397
Index397
Agrotron 260 -> 8059398
FRONT AXLE, STEERING ASSEMBLY398
Joint shaft398
CARDAN SHAFT WITH PROTECTION (15211)398
Driven steering axle399
PARTS SET – DIFFERENTIAL LOCK (15281)399
DRIVEN FRONT AXLE (15282)400
DRIVE (15283)401
DIFF GEAR LOCK (15284)403
AXLE BRIDGE (15285)404
LINK BEARER (15286)408
PLANET CARRIER (15287)410
STEERING CYLINDER (15288)411
Front axle bracket412
AXLE BEARING BLOCK (15321)412
CYLINDER PARTS (04427442A)413
Hydrostatic steering414
STEERING ADJUSTMENT (15891)414
STEERING – ADJUSTABLE (15892)415
STEERING – ADJUSTABLE (15893)416
CONTROL PUMP – DANFOSS (15894)417
Gearbox_Clutch418
Index418
Agrotron 260 -> 8059420
GEARBOX, CLUTCH420
Clutch420
DRIVE CLUTCH (12021)420
CLUTCH (12022)421
CLUTCH (12023)422
Clutch control assy425
CLUTCH CONTROL (12031)425
CLUTCH CONTROL (12032)427
TANK – PARTS (04432281A)428
Control assy- pto clutch429
OPERATION – PTO SHAFT REAR 1000 RPM (12041)429
Hydr pump gearbox, Lube oil supply, Pressure oil supply430
PUMP DRIVE (12071)430
Transmission433
GEARBOX (12081)433
Clutch housing, Control units for gearbox, Intermediate gear434
INTERMEDIATE TRANSMISSION CASING WITH FIXING PARTS (12091)434
ADJUSTER INSTRUMENT (12092)435
ADJUSTER INSTRUMENT (12093)438
ADJUSTER INSTRUMENT (12094)439
Change-speed gearbox, Contr hydr front whell drive, Contr hydr/diff lock, Control assy hydr PTO shaft, rear441
DRIVE SHAFT (12111)441
TRANSMISSION SHAFT (12112)446
MAIN SHAFT (12113)448
INTERMEDIATE SHAFT (12114)452
UNDERDRIVE (12115)456
BLANKING PARTS (12116)457
PARTS SET – 30KM/H (12117)458
Control assy intermediate gear, Gearshift assembly459
OPERATION – CREEP SPEED (12121)459
OPERATION – CREEP SPEED (12122)460
OPERATION – CREEP SPEED (12123)461
REMOTE CONTROL (12124)462
GEAR SHIFTING (12125)463
PTO shaft, front465
PTO FRONT (12131)465
Control assy/ PTO shaft, front, PTO guard, front466
COVER PLATE FRONT WITH FRONT POWER LIFT WITHOUT FRONT PTO SHAFT (12151)466
Differential unit467
DIFFERENTIAL (12241)467
Front wheel drive469
FRONT-WHEEL DRIVE (12261)469
Front whell drive control, Planetary drive, Rear axle471
REAR AXLE HOUSING (12271)471
REAR AXLE (12272)472
REAR AXLE (12273)474
WHEEL STUDS – RETROFIT KIT (12274)475
PTO guard, rear, PTO shaft, rear476
PTO SHAFT (12771)476
PTO SHAFT (12772)477
PTO SHAFT (12773)482
ACCUMULATOR – PTO SHAFT (12774)483
PTO GUARD (12775)484
PTO SHAFT PROTECTOR WITHOUT DRAWBAR COUPLING (12776)485
Heating_Air_conditioning486
Index486
Agrotron 260 -> 8059487
HEATING, AIR CONDITIONING SYSTEM487
Air-to-air heating, Ventilation, Oil-to-air heating, Aux heating, Air conditioning487
OPERATION – AIR CONDITIONING UNIT (19851)487
AIR FILTER – COVER (19852)488
AIR DUCT (19853)489
AIR DUCT (19854)490
INSULATION, AIR-CONDITIONING SYSTEM (19855)491
AIR DUCT (19856)492
VAPORIZER HEATING – BLOWER (19857)493
FILTER CARTRIDGE AEROSOL CARTRIDGE (19858)495
CONDENSER – AIR CONDITIONING UNIT (19859)496
COMPRESSOR – AIR CONDITIONING UNIT (198510)497
AIR DUCT (198511)499
HOSE PIPE – AIR CONDITIONING UNIT (198512)500
FILTER BOX (198513)501
HEATING AIR CONDITIONING SYSTEM (198514)502
Hitch503
Index503
Agrotron 260 -> 8059504
HITCH504
Hitch pin504
SOCKET PIN (1A111)504
Towing clevis, Clevis505
CATCHING MOUTH (1A321)505
CATCHING MOUTH – FRONT DRAWBAR COUPLING (1A322)506
FRONT DRAWBAR COUPLING 40 Kg (1A323)507
FRONT DRAWBAR COUPLING (1A324)508
Ballast carrier, Autom trailer hitch509
BALLAST CARRIER – DISTANCE PLATE (1A621)509
BALLAST CARRIER 330 Kg (1A622)510
BALLAST CARRIER (1A623)511
REMOTE CONTROL AUTOM – HITCH (1A624)512
LOCKING PARTS WITHOUT REMOTE CONTROL – AUTOM DRAWBAR COUPLING (1A625)513
DRAWBAR COUPLING AUTOM Ø 32 (1A626)514
DRAWBAR COUPLING AUTOM Ø 37 (1A627)515
DRAWBAR COUPLING AUTOM Ø 32 PULLING EYEBOLT Ø 50 (1A628)516
TRAILER STAND WITHOUT PITON-FIX (1A629)517
TRAILER STAND WITH PITON-FIX (1A6210)518
Hydraulic_system519
Index519
Agrotron 260 -> 8059520
HYDRAULIC SYSTEM520
Oil supply520
OIL SUPPLY (14011)520
OIL SUPPLY (14012)521
INTAKE FILTER (14013)523
OIL SUPPLY (14014)524
OIL SUPPLY (14015)525
Hydraulic lift, Electronic power lift control526
POWER LIFT (14081)526
LIFTING ARM (14082)527
OPERATION – AGROTRONIC L – H – HD (14083)528
CABLE HARNESS – AGROTRONIC (14084)529
OPERATION – LIFTING GEAR CONTROL THROTTLE HAND LEVER (14085)530
ELECTRONIC MOTOR CONTROLLER (14086)531
Front power lift532
FRONT HYDRAULIC POWER-LIFT (14091)532
Three-point hitch533
UPPER LINK (14111)533
UPPER LINK HYDR ADJUSTMENT (14112)534
THREE-POINT COUPLING SUSPENSION PARTS (14113)535
LIFTING ROD (14114)536
UPPER LINK (14115)537
STABILIZATION AUTOM (14116)538
STABILIZING FRAME AUTOM (14117)540
RETAINER FOR COLLECTING TRAY (14118)541
Toolbar/three-point hitch542
TRACTOR LINKAGE DRAWBAR (14121)542
Control unit, DEUTZ543
CONTROL BLOCK FOR POSITIONS 1+2+3+4 (14401)543
ADDITIONAL CONTROL UNIT FOR POSITIONS 1+2+3+4 (14402)544
CONTROL DEVICE FOR POSITIONS 1+2+3+4 – LOAD SENSING (14403)545
END PLATE FOR POSITION 1+2+3+4 (14404)546
CONNECTING PLATE FOR POSITION 1+2+3+4 (14405)547
DEUTZ control unit comb, Assyhydrcontrol, Remote connections548
OPERATION – HYDR CONTROLLER FOR POSITION 1+2 CROSS LEVER (14881)548
OPERATION – HYDR CONTROLLER FOR POSITION 1+2 CROSS LEVER (14882)549
OPERATION – HYDR CONTROLLER FOR POSITION 3+4 CROSS LEVER (14883)550
HYDR CONTROL OIL – DRIP TRAY (14884)551
REMOTE-CONNECTION REAR (14885)552
RETURN LINE REAR – UNPRESSURIZED (14886)553
Motor_supply554
Index554
Agrotron 260 -> 8059555
MOTOR SUPPLY555
GENERAL555
FUEL FILTER (17001)555
Cooling system556
COOLING SYSTEM (17391)556
COOLING SYSTEM (17392)557
COOLING SYSTEM (17393)558
COOLING SYSTEM (17394)559
COOLING SYSTEM (17395)560
COOLING SYSTEM (17396)561
COOLING SYSTEM (17397)563
COOLING SYSTEM (17398)564
RETROFIT KIT COMPENSATOR – IVECO (17399)565
RETROFIT KIT COMPENSATOR – IVECO (173910)566
RETROFIT KIT COMPENSATOR – IVECO (173911)567
Fuel tank, Aux tank, Fuel filter568
FUEL TANK (17421)568
Air cleaner570
DRY AIR FILTER INTAKE TUBE LEFT (17431)570
Exh Silencer571
EXHAUST SYSTEM TAIL PIPE RIGHT (17441)571
EXHAUST SYSTEM TAIL PIPE RIGHT (17442)572
Other573
Index573
Agrotron 260 -> 8059574
OTHER574
Running material574
FUEL (1C731)574
Wheels_Ballast575
Index575
Agrotron 260 -> 8059576
WHEELS, BALLAST576
Ballast weight/towing clewis576
BALLAST WEIGHT FRONT DRAWBAR COUPLING (1B321)576
Disc wheels, front, Adj wheels, front577
10 HOLE – DISK WHEEL FRONT (1B581)577
Disc wheels, rear, Adj wheels, rear578
10 HOLE – DISK WHEEL REAR (1B591)578
Wheel ballast579
WHEEL BALLAST (1B611)579
Ballast weights,front580
FRONT BALLAST (1B621)580
FRONT BALLAST AXIS BEARING BLOCK (1B622)581
FRONT BALLAST 1000 Kg (1B623)582

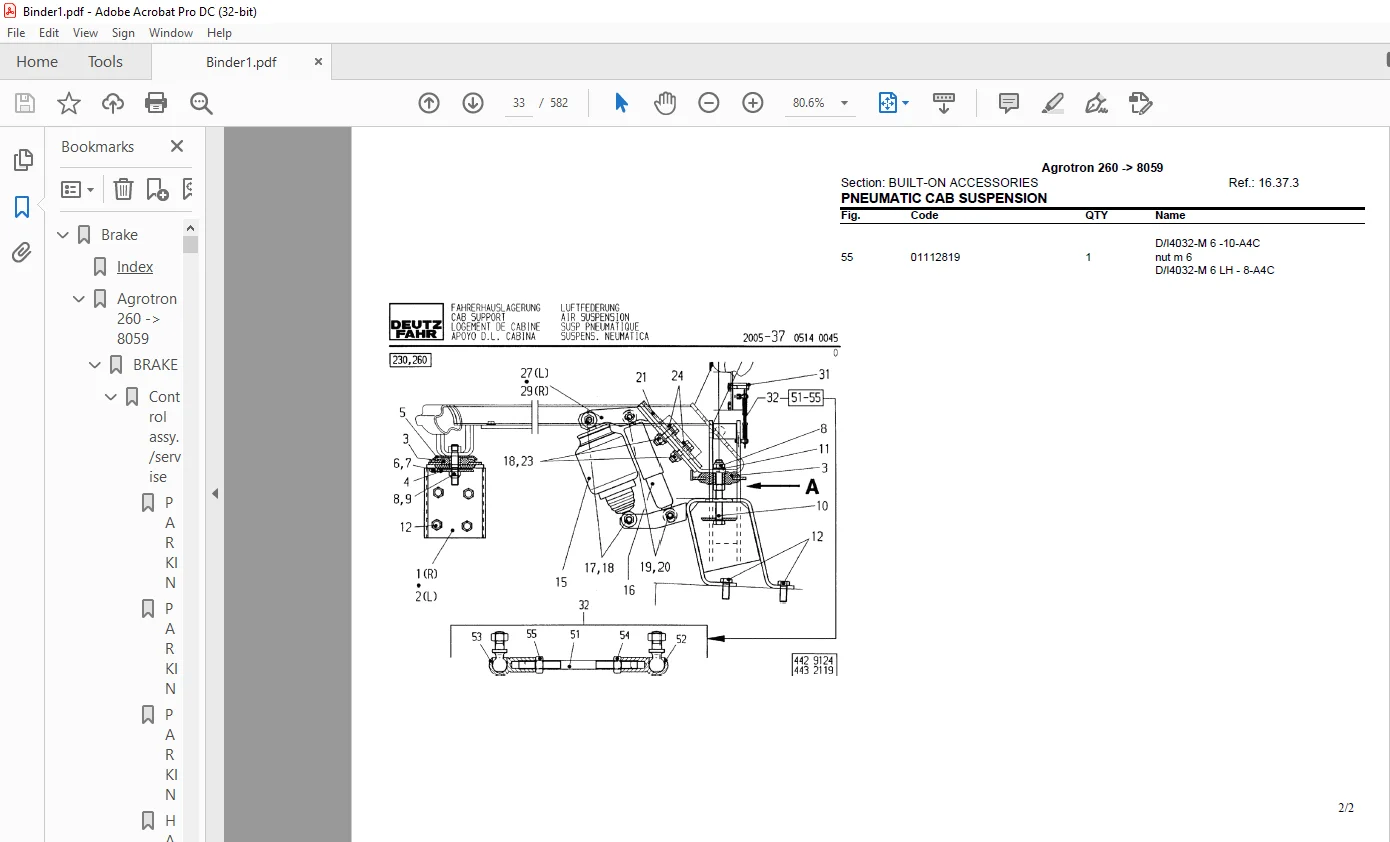

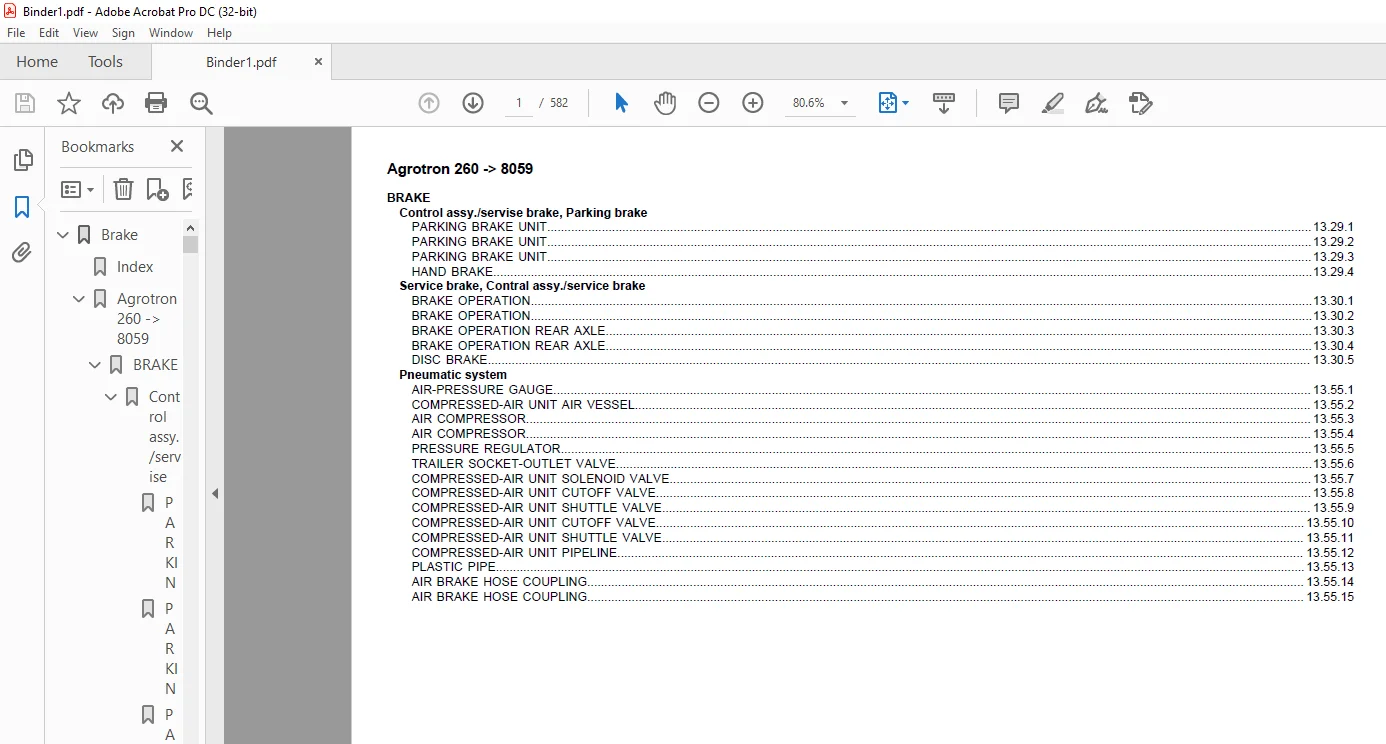

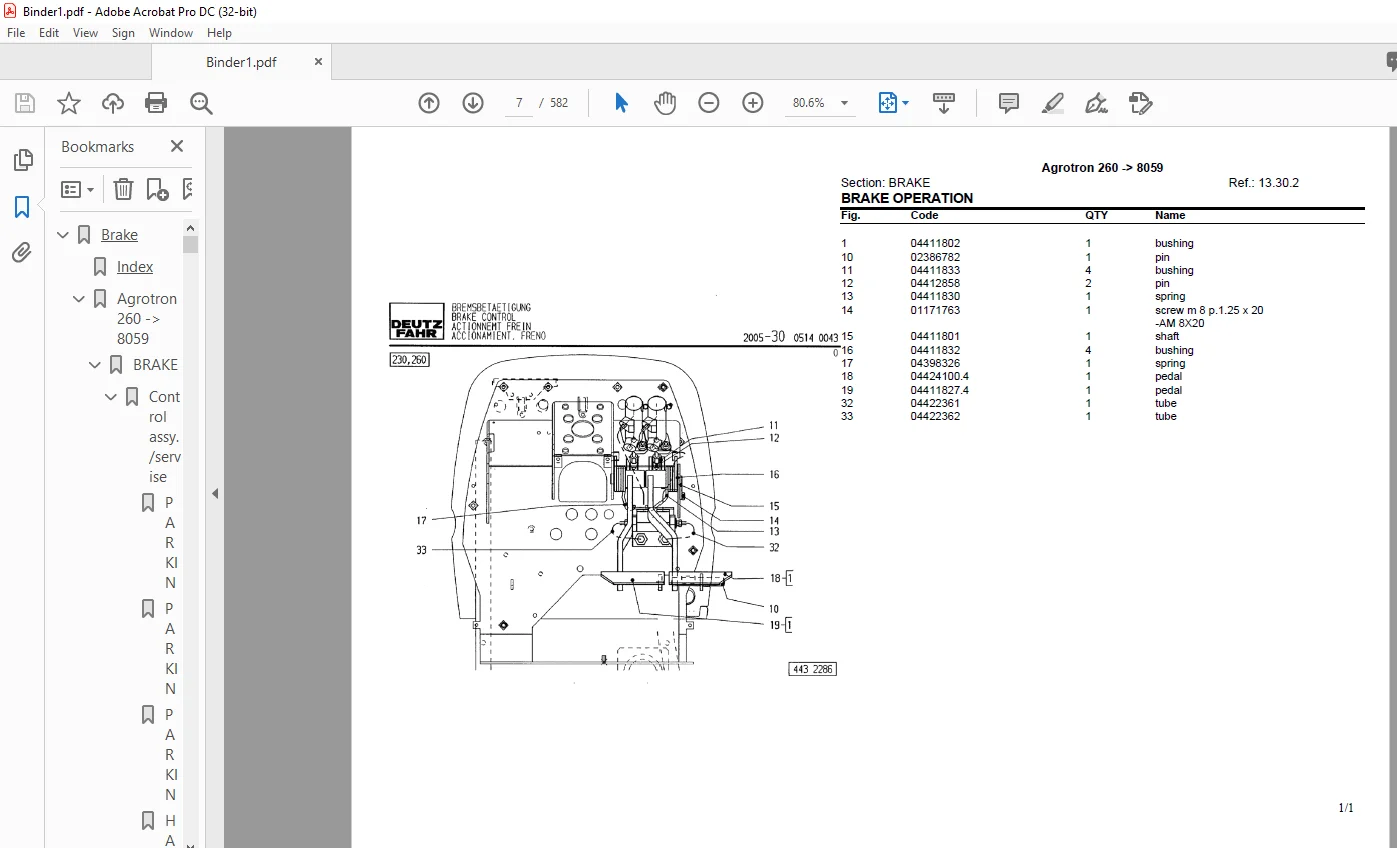

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.M
