Deutz Fahr Agrotron K90 Profiline After 8159 1001 Parts Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrotron K90 Profiline After 8159 1001 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrotron K90 Profiline After 8159 1001 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 918
Downloadable : Yes
File Type : PDF
Size: 40.6 MB

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

https://vimeo.com/812780169

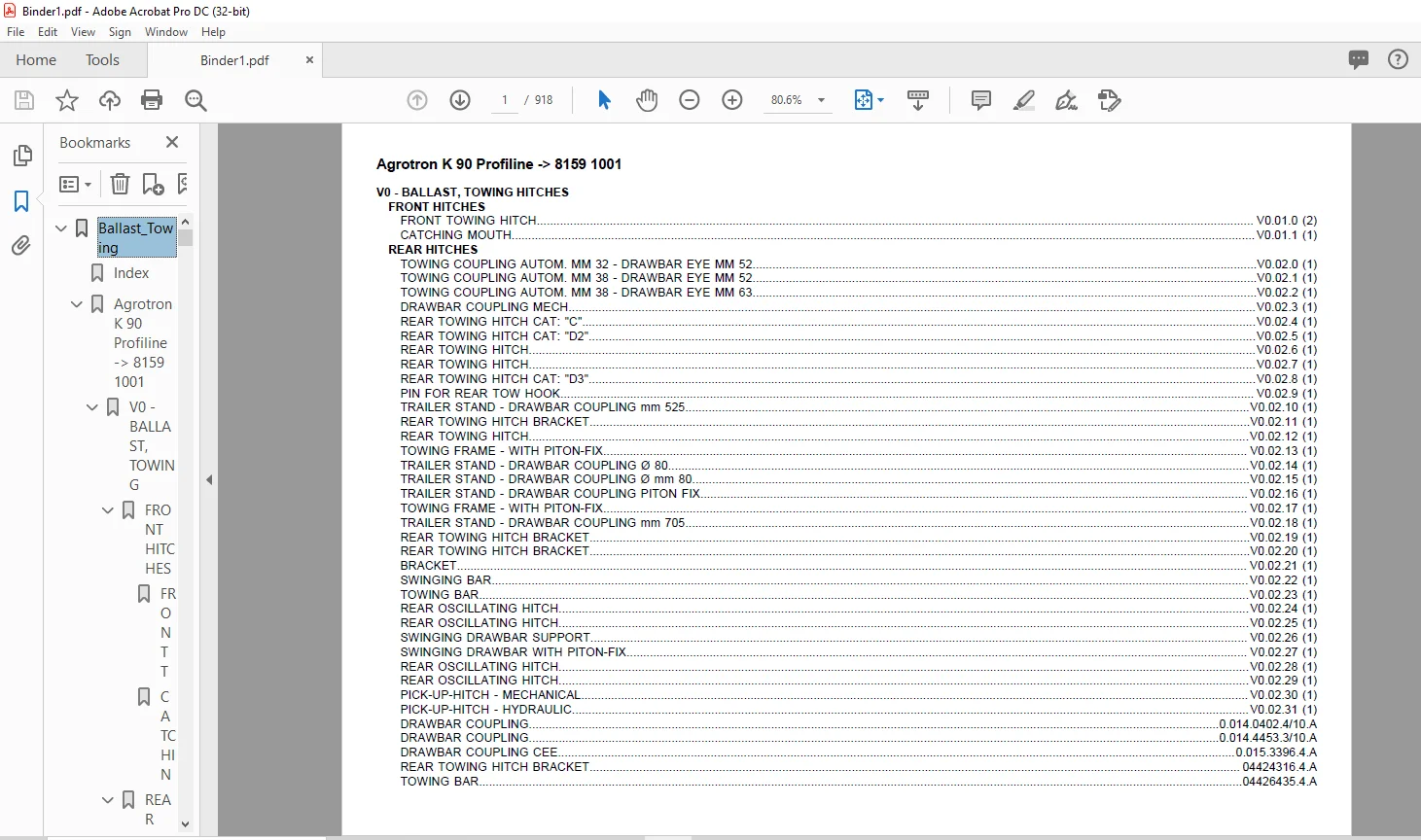

TABLE OF CONTENTS:

Deutz Fahr Agrotron K90 Profiline After 8159 1001 Parts Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
Agrotron K 90 Profiline -> 8159 1001 3
V0 – BALLAST, TOWING HITCHES 3
FRONT HITCHES 3
FRONT TOWING HITCH (V0 01 0 (2)) 3
CATCHING MOUTH (V0 01 1 (1)) 4
REAR HITCHES 5
TOWING COUPLING AUTOM MM 32 – DRAWBAR EYE MM 52 (V0 02 0 (1)) 5
TOWING COUPLING AUTOM MM 38 – DRAWBAR EYE MM 52 (V0 02 1 (1)) 6
TOWING COUPLING AUTOM MM 38 – DRAWBAR EYE MM 63 (V0 02 2 (1)) 7
DRAWBAR COUPLING MECH (V0 02 3 (1)) 8
REAR TOWING HITCH CAT: “C” (V0 02 4 (1)) 9
REAR TOWING HITCH CAT: “D2” (V0 02 5 (1)) 10
REAR TOWING HITCH (V0 02 6 (1)) 11
REAR TOWING HITCH (V0 02 7 (1)) 12
REAR TOWING HITCH CAT: “D3″ (V0 02 8 (1)) 13
PIN FOR REAR TOW HOOK (V0 02 9 (1)) 14
TRAILER STAND – DRAWBAR COUPLING mm 525 (V0 02 10 (1)) 15
REAR TOWING HITCH BRACKET (V0 02 11 (1)) 16
REAR TOWING HITCH (V0 02 12 (1)) 17
TOWING FRAME – WITH PITON-FIX (V0 02 13 (1)) 18
TRAILER STAND – DRAWBAR COUPLING Ø 80 (V0 02 14 (1)) 19
TRAILER STAND – DRAWBAR COUPLING Ø mm 80 (V0 02 15 (1)) 20
TRAILER STAND – DRAWBAR COUPLING PITON FIX (V0 02 16 (1)) 21
TOWING FRAME – WITH PITON-FIX (V0 02 17 (1)) 22
TRAILER STAND – DRAWBAR COUPLING mm 705 (V0 02 18 (1)) 23
REAR TOWING HITCH BRACKET (V0 02 19 (1)) 24
REAR TOWING HITCH BRACKET (V0 02 20 (1)) 25
BRACKET (V0 02 21 (1)) 26
SWINGING BAR (V0 02 22 (1)) 27
TOWING BAR (V0 02 23 (1)) 28
REAR OSCILLATING HITCH (V0 02 24 (1)) 29
REAR OSCILLATING HITCH (V0 02 25 (1)) 30
SWINGING DRAWBAR SUPPORT (V0 02 26 (1)) 31
SWINGING DRAWBAR WITH PITON-FIX (V0 02 27 (1)) 32
REAR OSCILLATING HITCH (V0 02 28 (1)) 33
REAR OSCILLATING HITCH (V0 02 29 (1)) 34
PICK-UP-HITCH – MECHANICAL (V0 02 30 (1)) 35
PICK-UP-HITCH – HYDRAULIC (V0 02 31 (1)) 36
DRAWBAR COUPLING (0 014 0402 4/10 A) 37
DRAWBAR COUPLING (0 014 4453 3/10 A) 38
DRAWBAR COUPLING CEE (0 015 3396 4 A) 39
REAR TOWING HITCH BRACKET (04424316 4 A) 40
TOWING BAR (04426435 4 A) 41
TOWING HITCH (04451930 A) 42
TOWING HITCH (04451931 A) 43
TOWING HITCH (04451932 A) 44

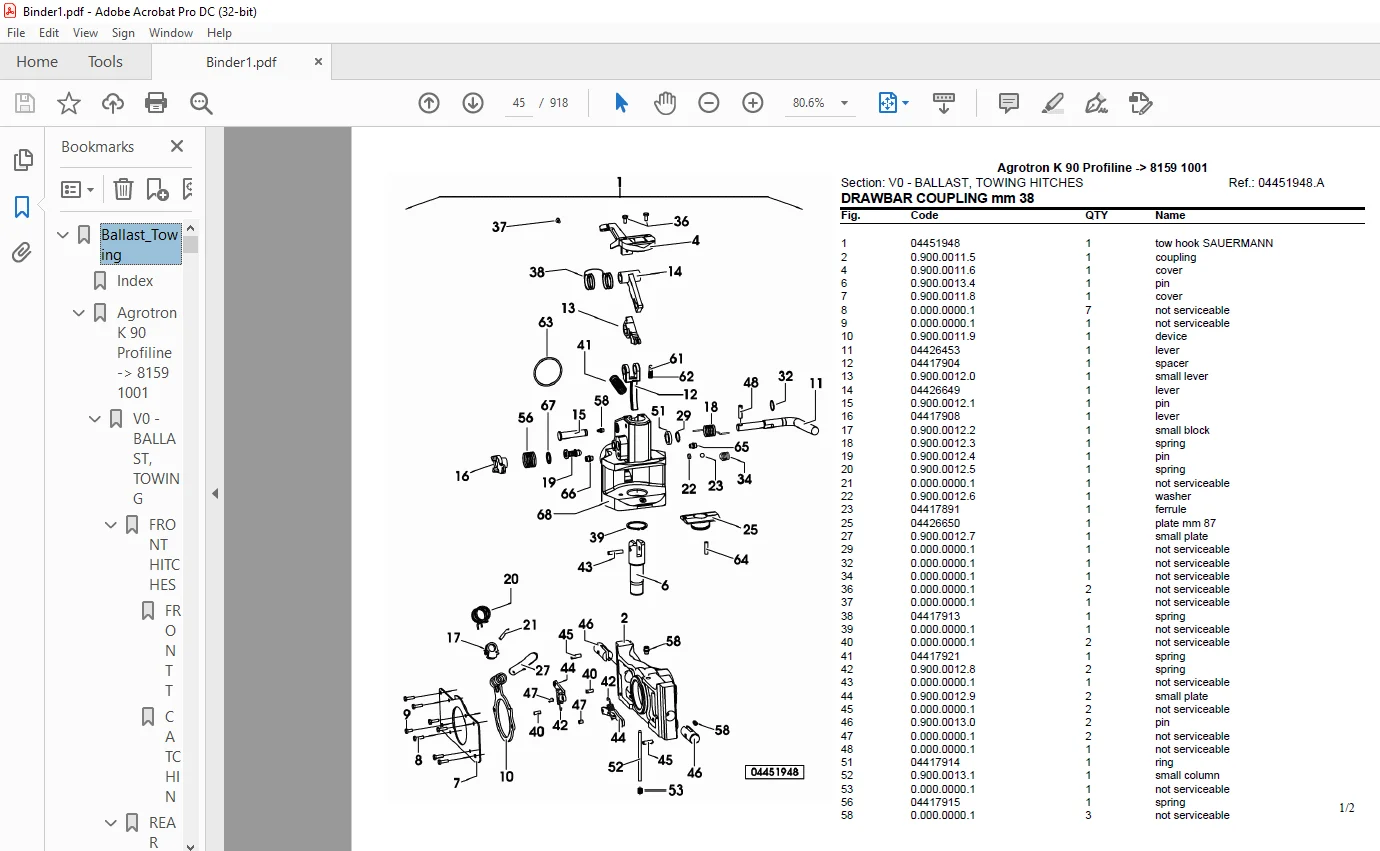

DRAWBAR COUPLING mm 38 (04451948 A) 45
DRAWBAR COUPLING mm 38 (04451949 A) 47
DRAWBAR COUPLING mm 32 (04451950 A) 49
TOWING HITCH (04451957 A) 51
TOWING HITCH (04453691 A) 52
TOWING HITCH (04453692 A) 53
TRAILER STAND – DRAWBAR COUPLING (04453693 A) 54
TRAILER STAND – DRAWBAR COUPLING (04453695 A) 55
SUPPORT (04454086 A) 56
TOWING BAR (04454088 A) 57
SUPPORT (04454089 A) 58
TRAILER STAND – DRAWBAR COUPLING (04454090 A) 59
REAR OSCILLATING HITCH (04454097 A) 60
SUPPORT (04454665 A) 61
SUPPORT (04454668 A) 62
FRONT BALLAST WEIGHTS 63
FRONT WEIGHT CARRIER kg 100 (V0 03 0 (1)) 63
FRONT BALLAST 600 Kg (V0 03 1 (1)) 64
FRONT BALLAST 400 Kg (V0 03 2 (1)) 65
FRONT BALLAST 330 Kg (V0 03 3 (2)) 66
FRONT BALLAST 1000 Kg (V0 03 4 (1)) 67
Bodywork_Cab 68
Index 68
Agrotron K 90 Profiline -> 8159 1001 75
G0 – BODYWORK – CAB 75
HOOD – SIDE PANELS – SUPPORTS 75
HOOD FRONT PART (G0 01 4 (1)) 75
HOOD FRONT PART (G0 01 5 (1)) 76
HOOD – SUPPORTS (G0 01 11 (2)) 77
HOOD – SUPPORTS (G0 01 11 (3)) 78
HOOD – SUPPORTS (G0 01 13 (1)) 79
HOOD – SUPPORTS (G0 01 17 (2)) 80
HOOD – SUPPORTS (G0 01 18 (1)) 81
HOOD – SUPPORTS (G0 01 19 (1)) 82
HOOD (G0 01 29 (1)) 83
HOOD (G0 01 30 (1)) 84
HOOD (G0 01 31 (1)) 85
BONNET – SIDES (G0 01 41 (1)) 86
BONNET – SIDES (G0 01 42 (1)) 87
BONNET – SIDES (G0 01 43 (1)) 88
PEDAL SUPPORT (G0 01 53 (1)) 89
HOOD TO CAB CONNECTION FRAME – FOR TYPES WITH SUSPENDED CAB (G0 01 54 (1)) 90
HOOD TO CAB CONNECTION FRAME – FOR TYPES WITH FIXED CAB (G0 01 56 (1)) 91
FAN BELT GUARD – EXPORT U S A (G0 01 58 (1)) 92
FAN BELT GUARD – EXPORT U S A (G0 01 59 (1)) 93
BATTERY SUPPORT (G0 01 61 (1)) 94
BATTERY SUPPORT (G0 01 62 (1)) 95
BATTERY SUPPORT (G0 01 63 (1)) 96
SUPPORT (G0 01 64 (1)) 97
LETTERING 98
FRONT HOOD PRODUCT IDENTIFICATION PLATE (G0 02 0 (1)) 98
FRONT HOOD PRODUCT IDENTIFICATION PLATE (G0 02 1 (1)) 99
FRONT HOOD PRODUCT IDENTIFICATION PLATE (G0 02 4 (1)) 100
PRODUCT PLATE (G0 02 6 (1)) 101
PRODUCT PLATE (G0 02 7 (1)) 102
MODEL PLATE (G0 02 11 (1)) 103
STEERING WHEEL TRIM (G0 02 25 (1)) 104
SPEED LABEL – 40 KM/H (G0 02 28 (1)) 105
SPEED LABEL – 40 KM/H (G0 02 29 (1)) 106
SPEED LABEL – 40 KM/H – REFLEX (G0 02 30 (1)) 107
SPEED LABEL – 50 KM/H – REFLEX (G0 02 31 (1)) 108
WARNING PLATES EXPORT PL (G0 02 32 (1)) 109
PLATES (G0 02 35 (1)) 110
PLATES (G0 02 36 (1)) 111
PLATES (G0 02 36 (2)) 112
PTO DATA PLATE (G0 02 37 (1)) 113
PLATES (G0 02 38 (1)) 114
HANDBRAKE DATA PLATE (G0 02 39 (1)) 115
INFORMATION PLATE (G0 02 40 (1)) 116
IDENTIFICATION PLATE (G0 02 41 (1)) 117
IDENTIFICATION PLATE (G0 02 42 (1)) 118
IDENTIFICATION PLATE (G0 02 43 (1)) 119
IDENTIFICATION PLATE (G0 02 44 (1)) 120
IDENTIFICATION PLATE (G0 02 45 (1)) 121
PLATES (G0 02 46 (1)) 122
WARNING PLATE – DX/RH/RE (G0 02 47 (1)) 123
WARNING PLATE – DX/RH/RE (G0 02 48 (1)) 124
WARNING PLATE – SX/LH/LI (G0 02 49 (1)) 125
WARNING PLATE – SX/LH/LI (G0 02 50 (1)) 126
WARNING PLATE – SX/LH/LI (G0 02 51 (1)) 127
WARNING PLATE – DX/RH/RE (G0 02 52 (1)) 128
PLATES- FOR 4-WAY DISTRIBUTOR (G0 02 57 (1)) 129
PLATES- FOR 4-WAY DISTRIBUTOR (G0 02 57 (2)) 130
IDENTIFICATION PLATES – FOR 8-WAY CONTROL VALVE (G0 02 58 (1)) 131
IDENTIFICATION PLATES – FOR 8-WAY CONTROL VALVE (G0 02 58 (2)) 132
IDENTIFICATION PLATES – FOR 8-WAY CONTROL VALVE (G0 02 59 (1)) 133
IDENTIFICATION PLATES – FOR 8-WAY CONTROL VALVE (G0 02 60 (1)) 134
IDENTIFICATION PLATES – FOR 8-WAY CONTROL VALVE (G0 02 61 (1)) 135
INFORMATION PLATE EXPORT D (G0 02 62 (1)) 136
SPEED DATA PLATES 40 Km/h (G0 02 64 (1)) 137
SPEED DATA PLATES 50 Km/h (G0 02 65 (1)) 138
CAB STRUCTURE – PLATFORM -SUSPENSION 139
SINGLE-STRUCTURE CAB (G0 03 0 (1)) 139
CAB BEARING RUBBER SPRINGING (G0 03 1 (1)) 140
MECHANICAL CAB SUSPENSION – FRONT (G0 03 3 (1)) 141
MECHANICAL CAB SUSPENSION – REAR (G0 03 4 (1)) 142
MECHANICAL CAB SUSPENSION – REAR (G0 03 4 (2)) 143
CAB BEARING PNEUMATIC SPRINGING – FRONT (G0 03 5 (1)) 144
CAB BEARING PNEUMATIC SPRINGING – REAR (G0 03 6 (1)) 145
CAB BEARING PNEUMATIC SPRINGING – REAR (G0 03 6 (2)) 146
CAB BEARING PNEUMATIC SPRINGING – REAR (G0 03 7 (1)) 147
CAB BEARING PNEUMATIC SPRINGING – REAR (G0 03 7 (2)) 148
LADDER (G0 03 8 (1)) 149
LADDER (G0 03 8 (2)) 150
LADDER (G0 03 8 (3)) 151
LADDER (G0 03 9 (1)) 152
LADDER (G0 03 9 (2)) 153
RELAY VALVE (04432191 A) 154
PRESSURE CONTROL VALVE (04432192 A) 155
FENDERS – FOOTSTEPS – EXTENSIONS 156
FRONT MUDGUARDS mm 420 (G0 04 0 (1)) 156
FRONT MUDGUARD SUPPORTS (G0 04 4 (1)) 157
SUPPORTS FOR FRONT STEERING FENDERS (G0 04 9 (1)) 158
SPACER FOR FRONT FENDER SUPPORT (G0 04 10 (1)) 159
FRONT MUDGUARDS mm 420 (G0 04 11 (1)) 160
FRONT MUDGUARDS mm 420 (G0 04 11 (2)) 161
SELF-ADJUSTING FRONT FENDERS mm 420 (G0 04 12 (1)) 162

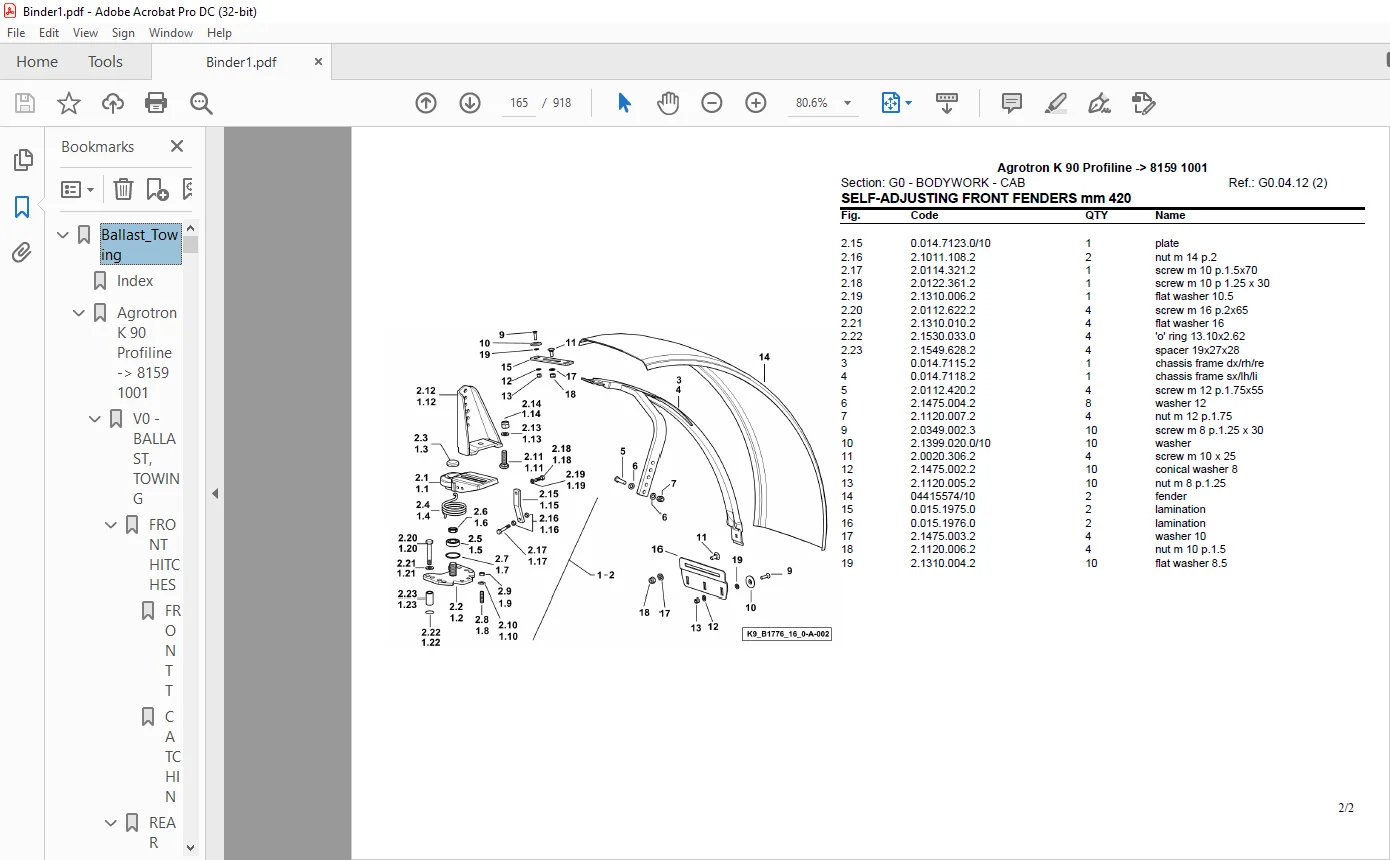

SELF-ADJUSTING FRONT FENDERS mm 420 (G0 04 12 (2)) 164
ADJUSTABLE FRONT FENDERS 470 MM (G0 04 13 (1)) 166
ADJUSTABLE FRONT FENDERS 470 MM (G0 04 13 (2)) 167
SELF-ADJUSTING FRONT FENDERS mm 470 (G0 04 14 (1)) 168
SELF-ADJUSTING FRONT FENDERS mm 470 (G0 04 14 (2)) 170
FRONT MUDGUARDS mm 540 (G0 04 15 (1)) 172
FRONT MUDGUARDS mm 540 (G0 04 15 (2)) 173
SELF-ADJUSTING FRONT FENDERS mm 540 (G0 04 16 (1)) 174
SELF-ADJUSTING FRONT FENDERS mm 540 (G0 04 16 (2)) 176
WING REAR – DX/RH/RE (G0 04 17 (1)) 178
WING REAR – DX/RH/RE (G0 04 17 (2)) 179
WING REAR – DX/RH/RE (G0 04 20 (1)) 180
WING REAR – DX/RH/RE (G0 04 20 (2)) 181
WING REAR – DX/RH/RE (G0 04 21 (1)) 182
WING REAR – SX/LH/LI (G0 04 22 (1)) 183
WING REAR – SX/LH/LI (G0 04 22 (2)) 184
WING REAR – SX/LH/LI (G0 04 25 (1)) 185
WING REAR – SX/LH/LI (G0 04 26 (1)) 186
MUDGUARD PROTECTORS (G0 04 27 (1)) 187
MUDGUARDS EXTENSIONS mm 140 (G0 04 28 (1)) 188
MUDGUARDS EXTENSIONS mm 220 (G0 04 29 (1)) 189
MUDGUARD PROTECTORS (G0 04 30 (1)) 190
WING HOLDER (04451215 4 A) 191
WING HOLDER dx/rh/re (04451215 4/10 A) 192
WING HOLDER (04451216 4 A) 193
WING HOLDER sx/lh/li (04451216 4/10 A) 194
DOORS – WINDOWS – WIPERS 195
FIXED SCREEN WITH WIPER (G0 05 0 (1)) 195
FIXED SCREEN WITH WIPER (G0 05 1 (1)) 196
FIXED SCREEN WITH WIPER (G0 05 1 (2)) 197
OPENING SCREEN WITH WIPER (G0 05 2 (1)) 198
WINDSCREEN WIPER FOR OPENABLE WINDSCREEN (G0 05 3 (1)) 199
OPENING SCREEN WITH WIPER 50 Km/h (G0 05 4 (1)) 200
WINDSCREEN WIPER FOR OPENABLE WINDSCREEN 50 Km/h (G0 05 5 (1)) 201
BOTTOM WINDOWS (G0 05 6 (1)) 202
OPENABLE SIDE WINDOW – DX/RH/RE (G0 05 7 (1)) 203
OPENABLE SIDE WINDOW – SX/LH/LI (G0 05 8 (1)) 204
SIDE PANEL FIXED (G0 05 9 (1)) 205
CAB DOOR – DX/RH/RE (G0 05 10 (1)) 206
CAB DOOR – DX/RH/RE (G0 05 11 (1)) 207
CAB DOOR – SX/LH/LI (G0 05 12 (1)) 208
CAB DOOR – SX/LH/LI (G0 05 13 (1)) 209
REAR HATCH WITH WIPER (G0 05 14 (1)) 210
REAR HATCH WITH WIPER (G0 05 15 (1)) 211
REAR PANEL FLAP (G0 05 16 (1)) 212
TAILGATE (G0 05 17 (1)) 213
WATER TANK – FOR FRONT WINDSHIEL WIPER (G0 05 18 (5)) 214
WATER TANK – FOR FRONT AND BACK WINDSHIELD WIPER (G0 05 19 (2)) 215
WATER TANK – FOR FRONT AND BACK WINDSHIELD WIPER (G0 05 19 (3)) 216
WATER TANK – FOR FRONT AND BACK WINDSHIELD WIPER (G0 05 19 (4)) 217
WATER TANK – FOR FRONT AND BACK WINDSHIELD WIPER (G0 05 19 (5)) 218
FRONT SCREEN WASH SYSTEM (G0 05 20 (1)) 219
SCREEN WASH SYSTEM (G0 05 21 (1)) 220
INTERIOR TRIM 221
DASHBOARD (G0 06 0 (1)) 221
DASHBOARD (G0 06 1 (1)) 222
INTERIOR TRIM (G0 06 2 (1)) 223
UNDER-MAT PLATES (G0 06 4 (1)) 224
CONVEYOR (G0 06 5 (1)) 225
CONVEYOR (G0 06 6 (1)) 226
CAB INTERIOR TRIM – DX/RH/RE (G0 06 7 (1)) 227
CONTROL CONSOLE RIGHT (G0 06 8 (1)) 228
CONTROL CONSOLE RIGHT (G0 06 8 (2)) 230
CONTROL CONSOLE FOR POWER-LIFT (G0 06 9 (2)) 232
PLUG (G0 06 10 (1)) 233
PLUG (G0 06 11 (1)) 234
CONNECTOR CONSOLE (G0 06 12 (1)) 235
CAB INTERIOR TRIM – SX/LH/LI (G0 06 13 (1)) 236
CONTROL CONSOLE LEFT (G0 06 14 (1)) 237
HANDBRAKE CONSOLE (G0 06 15 (1)) 238
COVER PLATE (G0 06 16 (1)) 239
COMPLETION – WITHOUT CREEP SPEED (G0 06 17 (1)) 240
COVER – FOR MODELS WITHOUT FRONT P T O (G0 06 18 (1)) 241
CAB ROOF LINING MASK (G0 06 19 (1)) 242
CAB ROOF LINING MASK (G0 06 20 (1)) 243
RADIO FASCIA (G0 06 21 (1)) 244
PLUG (G0 06 22 (1)) 245
CABLE PASSAGE BULKHEAD (G0 06 23 (1)) 246
PLUG (G0 06 24 (1)) 247
CAB ROOF LINING (G0 06 25 (1)) 248
CAB ROOF LINING (G0 06 26 (1)) 249
PACKAGE WITHOUT DISTRIBUTOR CONTROL (G0 06 27 (1)) 250
GLOVE BOX (G0 06 28 (1)) 251
CONTROL CONSOLE (0 013 8345 4/40 A) 252
EXTERIOR TRIM – ROOF 253
DRIVER’S CAB ROOF (G0 07 0 (1)) 253
DRIVER’S CAB ROOF (G0 07 2 (1)) 254
DRIVER’S CAB ROOF (G0 07 3 (1)) 255
DRIVER’S CAB ROOF (G0 07 6 (1)) 256
SKYLIGHT (G0 07 11 (1)) 257
SKYLIGHT (G0 07 12 (1)) 258
CARBON FILTER (G0 07 13 (1)) 259
DRY AIR FILTER – AIR CONDITIONING UNIT (G0 07 14 (1)) 260
DRY AIR FILTER – AIR CONDITIONING UNIT (G0 07 15 (1)) 261
DRY AIR FILTER – AIR CONDITIONING UNIT (G0 07 16 (1)) 262
DRY AIR FILTER – AIR CONDITIONING UNIT (G0 07 17 (1)) 263
REARVIEW MIRROR (G0 07 21 (1)) 264
HEATED REAR VIEW MIRROR (G0 07 22 (1)) 265
PREARRANGEMENT FOR WARNING BEACON (G0 07 23 (1)) 266
REARVIEW MIRROR dx/rh/re (0 014 1964 4 A) 267
REARVIEW MIRROR sx/lh/li (0 014 1966 4 A) 268
REARVIEW MIRROR DX / RH / RE (0 014 2021 4/10 A) 269
REARVIEW MIRROR SX / LH / LI (0 014 2022 4/10 A) 270
SEATS 271
DRIVER’S SEAT – PNEUMATIC SPRINGING GRAMMER MSG95A/721 (G0 08 0 (1)) 271
SEAT MOUNTING (G0 08 1 (1)) 272
HEAD REST (G0 08 2 (1)) 273
SAFETY BELT (G0 08 6 (1)) 274
SAFETY BELT (G0 08 6 (2)) 275
SEAT FOR 2ND OPERATOR (G0 08 7 (1)) 276
SEAT-COMPONENTS (0 014 5564 4 A) 277
SEAT-COMPONENTS (0 014 5564 4 B) 279
HEATING AND AIR CONDITIONING 281
MANUAL CLIMATE CONTROL SYSTEM (G0 09 0 (1)) 281
AUTOMATIC CLIMATE CONTROL SYSTEM (G0 09 1 (1)) 282
AUTOMATIC CLIMATE CONTROL SYSTEM (G0 09 1 (2)) 283
AIR CONDITIONING UNIT – LINES (G0 09 3 (1)) 284
AIR CONDITIONING UNIT – LINES (G0 09 3 (2)) 285
AIR CONDITIONING UNIT – LINES (G0 09 4 (2)) 286
AIR CONDITIONING UNIT – LINES (G0 09 4 (3)) 287
AIR CONDITIONING UNIT – LINES (G0 09 4 (4)) 288
AIR CONDITIONING UNIT – LINES (G0 09 4 (5)) 289
AIR CONDITIONING UNIT – LINES (G0 09 5 (1)) 290
AIR COMPRESSOR (G0 09 6 (1)) 291
COMPRESSOR (G0 09 6 (2)) 292
VENTILATION – AIR CONDITIONING (G0 09 8 (2)) 293
VENTILATION – AIR CONDITIONING (0 013 2169 4/10 A) 295
VENTILATION – AIR CONDITIONING (0 013 5753 4 A) 297
VENTILATION – AIR CONDITIONING (0 013 5753 4/10 A) 299
COMPRESSOR-PARTS (04437338 A) 301
MECHANICAL CLUTCH CONTROLS 302
CLUTCH CONTROL (G0 10 0 (1)) 302
MECHANICAL BRAKE CONTROLS 303
BRAKE CONTROLS (G0 11 0 (1)) 303
BRAKE AND CLUTCH FLUID RESERVOIR (G0 11 1 (1)) 304
TUBES FOR BRAKE OIL TANK (G0 11 1 (2)) 305
BRAKE AND CLUTCH FLUID RESERVOIR (G0 11 2 (1)) 306
TUBES FOR BRAKE OIL TANK (G0 11 2 (2)) 307
BRAKE AND CLUTCH FLUID RESERVOIR (G0 11 3 (1)) 308
BRAKE AND CLUTCH FLUID RESERVOIR (G0 11 4 (1)) 309
HAND BRAKE (G0 11 5 (1)) 310
HAND BRAKE (G0 11 6 (1)) 311
TANK – PARTS (04432281 A) 312
MECHANICAL – ELECTRONIC THROTTLE CONTROLS 313
CONTROL PEDAL FOR ELECTRONIC THROTTLE (G0 12 0 (1)) 313
STEERING CONTROLS 314
STEERING WHEEL (G0 13 0 (1)) 314
STEERING COLUMN (G0 13 5 (1)) 315
STEERING COLUMN (0 012 8914 4/30 A) 316
STEERING COLUMN (0 014 8754 4/10 A) 317
MECHANICAL GEARSHIFT CONTROLS 318
GEAR SHIFTING (G0 14 0 (1)) 318
DRIVE FOR GEAR CHANGE BOX (G0 14 1 (1)) 319
SUPER CREEPER – REDUCTION GEAR UNIT CONTROLS (G0 14 2 (1)) 320
SUPER CREEPER – REDUCTION GEAR UNIT CONTROLS (G0 14 2 (2)) 321
GEAR SHIFTING (0 013 3454 4 A) 322
GEAR SHIFTING (0 014 1376 3 A) 323
TRANSMISSION CONTROL LEVERS (0 014 4950 4 A) 324
PTO CONTROLS 325
P T O SHAFT DRIVE (G0 16 0 (1)) 325
P T O – ECONOMICAL CONTROL 540/1000 (G0 16 1 (1)) 326
COMPLETION (G0 16 2 (1)) 327
REMOTE VALVE CONTROLS 328
DISTRIBUTOR CONTROL (G0 18 0 (1)) 328
DISTRIBUTOR CONTROL (G0 18 0 (2)) 329
ACCESSORIES 330
SUN BLIND FRONT WINDSCREEN (G0 19 0 (1)) 330
SUN BLIND FRONT WINDSCREEN (G0 19 1 (1)) 331
METAL TOOLBOX (G0 19 2 (1)) 332
FRONT NUMBER PLATE BRACKET (G0 19 3 (1)) 333
CHOCK (G0 19 4 (1)) 334
WARNING TRIANGLE – SX/LH/LI (G0 19 5 (1)) 335
Engine 336
Index 336
Agrotron K 90 Profiline -> 8159 1001 340
B0 – ENGINE 340
GENERAL 340
ENGINE (B0 00 0 (1)) 340
ENGINE (B0 00 1 (1)) 341
CYLINDER BLOCK 342
FASTENINGS (B0 01 1007) 342
GASKET SET (B0 01 1021) 343
BLEEDING TUBE (B0 01 1035) 344
CRANKCASE BREATHER (B0 01 1051) 345
CRANKCASE (B0 01 1065) 346
CRANKCASE (B0 01 1082) 348
OIL FILLER NECK (B0 01 1088) 349
ACCESSORIES (B0 01 1134) 350
ACCESSORIES (B0 01 1135) 351
ACCESSORIES (B0 01 1137) 352
FILLER CAP (B0 01 1143) 353
PISTON COOL NOZZLE (B0 01 1160) 354
FLANGE (B0 01 1168) 355
CRANKSHAFT 356
COMPRESSOR BELT AND BELT TENSIONER (B0 02 1 (1)) 356
COMPRESSOR BELT AND BELT TENSIONER – EXPORT D (B0 02 3 (1)) 357
COMPRESSOR BELT AND BELT TENSIONER (B0 02 5 (1)) 358
COMPRESSOR BELT AND BELT TENSIONER (B0 02 8 (1)) 359
COMPRESSOR BELT AND BELT TENSIONER (B0 02 12 (1)) 360
FASTENINGS (B0 02 1002) 361
V-GROOVED PULLEY (B0 02 1018) 362
CRANKSHAFT (B0 02 1037) 363
CRANKSHAFT (B0 02 1040) 364
CRANKSHAFT (B0 02 1047) 365
FLYWHEEL (B0 02 1064) 366
PLUG (B0 02 1077) 367
ACCESSORIES (B0 02 1079) 368
COUNTERWEIGHTS (B0 02 1086) 369
CYLINDERS – PISTONS – CONNECTING RODS 370
PISTON (B0 03 1002) 370
CONNECTING ROD (B0 03 1018) 371
CONNECTING ROD (B0 03 1023) 372
TIMING 373
FASTENINGS (B0 04 1011) 373
BUSH (B0 04 1023) 374
CAMSHAFT (B0 04 1061) 375
CAMSHAFT (B0 04 1064) 376
CAMSHAFT (B0 04 1082) 377
VALVE DRIVE (B0 04 1088) 378
GEARCASE (B0 04 1105) 379
GEARCASE (B0 04 1106) 380
GEARCASE (B0 04 1108) 381
GEARCASE (B0 04 1122) 382
CYLINDER HEAD 383
FASTENINGS (B0 05 1003) 383
FASTENINGS (B0 05 1007) 384
ENGINE MOUNTING (B0 05 1015) 385
CLOSING COMPONENTS (B0 05 1025) 386
CYLINDER HEAD (B0 05 1032) 387
ROCKER ARMS COVER (B0 05 1061) 389
LUBRICATION 390
FASTENINGS (B0 06 1006) 390
SEALING (B0 06 1018) 391
OIL SUCTION PIPE (B0 06 1035) 392
OIL PAN (B0 06 1050) 393
CLOSING COMPONENTS (B0 06 1084) 394
CLOSING COMPONENTS (B0 06 1085) 395
CLOSING COMPONENTS (B0 06 1087) 396
CLOSING COMPONENTS (B0 06 1090) 397
ACCESSORIES (B0 06 1103) 398
ACCESSORIES (B0 06 1104) 399
DRIVING PARTS (B0 06 1105) 400
OIL COOLER BOX (B0 06 1116) 401
OIL COOLER BOX (B0 06 1122) 402
OIL COOLER BOX (B0 06 1125) 404
OIL COOLER BOX (B0 06 1149) 405
OIL RETURN (B0 06 1156) 406
FUEL INJECTION SYSTEM 407
SEPARATOR (B0 07 1003) 407
FASTENINGS (B0 07 1007) 408
FASTENINGS (B0 07 1009) 409
FASTENINGS (B0 07 1010) 410
FASTENINGS (B0 07 1012) 412
HIGH PRESSURE PIPE (B0 07 1021) 417
FUEL INJECT PUMP (B0 07 1032) 418
FUEL INJECT PUMP (B0 07 1033) 419
FUEL INJECTOR (B0 07 1040) 420
FUEL INJECTOR (B0 07 1048) 421
FUEL FEED PUMP (B0 07 1050) 422
FUEL FEED PUMP (B0 07 1051) 423
FUEL FILTER (B0 07 1055) 424
FUEL FILTER (B0 07 1056) 425
FUEL FILTER (B0 07 1060) 426
FUEL LINE (B0 07 1074) 427
FUEL LINE (B0 07 1085) 428
FUEL LINE (B0 07 1086) 429
FUEL LINE (B0 07 1087) 430
FUEL PUMP (B0 07 1118) 431
FUEL PUMP (B0 07 1119) 432
ROLLER TAPPET (B0 07 1130) 433
ROLLER TAPPET (B0 07 1131) 434
ROLLER TAPPET (B0 07 1134) 435
PILOTED CHECK VALVE (B0 07 1139) 436
NARROW V-BELT (B0 07 1142) 437
CLOSING COMPONENTS (B0 07 1157) 438
ACCESSORIES (B0 07 1165) 439
ACCESSORIES (B0 07 1166) 440
ACCESSORIES (B0 07 1167) 441
HOLDING DEVICE FOR LEADS (B0 07 1187) 442
CONNECTION (B0 07 1207) 443
MECHANICAL – ELECTRONIC GOVERNOR 444
FASTENINGS (B0 08 1001) 444
CONTROL ROD (B0 08 1010) 445
ELECTRONIC CONTROL UNIT – ENGINE (B0 08 1017) 446
ELECTRONIC CONTROL UNIT – ENGINE (B0 08 1026) 447
CLOSING COMPONENTS (B0 08 1033) 448
CLOSING COMPONENTS (B0 08 1035) 449
CLOSING COMPONENTS (B0 08 1036) 450
CLOSING COMPONENTS (B0 08 1037) 451
ACTUATOR (B0 08 1041) 452
ACTUATOR (B0 08 1042) 453
COOLING 454
FASTENINGS (B0 09 1013) 454
FASTENINGS (B0 09 1014) 455
SCREW PLUG (B0 09 1071) 456
DRIVING PARTS (B0 09 1079) 457
DRIVING PARTS (B0 09 1080) 458
HEATER CONNECTION (B0 09 1087) 459
FAN SUPPORT (B0 09 1113) 460
COOLING WATER PUMP (B0 09 1149) 461
COOLING WATER PUMP (B0 09 1153) 462
INTAKE – EXHAUST MANIFOLDS 463
EXHAUST PIPE (B0 10 1004) 463
FASTENINGS (B0 10 1029) 464
FASTENINGS (B0 10 1033) 465
THERMO STARTER (B0 10 1056) 466
THERMO STARTER (B0 10 1058) 467
MANIFOLD (B0 10 1079) 468
MANIFOLD (B0 10 1082) 469
MANIFOLD (B0 10 1089) 470
CLOSING COMPONENTS (B0 10 1105) 471
CLOSING COMPONENTS (B0 10 1107) 472
CLOSING COMPONENTS (B0 10 1110) 473
TURBOCHARGER 474
TURBOCHARGER (B0 11 1010) 474
RETURN LINE (B0 11 1043) 475
OIL LUBRICATION PIPE (B0 11 1065) 476
CLOSING COMPONENTS (B0 11 1085) 477
CLOSING COMPONENTS (B0 11 1086) 478
Electrical accessories 479
FASTENINGS (B0 12 1010) 479
FASTENINGS (B0 12 1017) 480
FASTENINGS (B0 12 1021) 481
IMPULSETRANSMITTER (B0 12 1053) 482
GENERATOR (B0 12 1059) 483
GENERATOR (B0 12 1076) 484
ENGINE ELECTRICAL SYSTEM (B0 12 1086) 485
ENGINE ELECTRICAL SYSTEM (B0 12 1088) 486
ENGINE ELECTRICAL SYSTEM (B0 12 1089) 487
V-GROOVED PULLEY (B0 12 1114) 488
GUARD PLATE (B0 12 1125) 489
GUARD PLATE (B0 12 1126) 490
STARTER (B0 12 1127) 491
STARTER (B0 12 1133) 492
ACCESSORIES (B0 12 1145) 493
ACCESSORIES (B0 12 1151) 494
ACCESSORIES (B0 12 1155) 495
ACCESSORIES (B0 12 1161) 496
ACCESSORIES (B0 12 1185) 497
OIL PRESSUR SWITCH (B0 12 1201) 498
OIL PRESSUR SWITCH (B0 12 1205) 499
TEMPER TRANSMITTER (B0 12 1217) 500
TEMPER TRANSMITTER (B0 12 1219) 501
TEMPER TRANSMITTER (B0 12 1222) 502
IMPULSETRANSMITTER (B0 12 1234) 503
Engine_accessories 504
Index 504
Agrotron K 90 Profiline -> 8159 1001 505
C0 – ENGINE ACCESSORIES 505
RADIATORS – FANS 505
COOLING SYSTEM (C0 01 0 (2)) 505
COOLING SYSTEM (C0 01 0 (3)) 506
COOLING SYSTEM (C0 01 0 (4)) 507
COOLING TANK (C0 01 1 (1)) 509
COOLING TANK (C0 01 1 (2)) 510
COOLING TANK (C0 01 1 (3)) 511
INTERCOOLER – AIR CLEANER 512
AIR FILTER AND INTERCOOLER PIPES (C0 02 0 (1)) 512
AIR FILTER AND INTERCOOLER PIPES (C0 02 0 (2)) 513
AIR CLEANER HOSE (C0 02 2 (1)) 514
INTERCOOLER (C0 02 3 (2)) 515
INTERCOOLER (C0 02 3 (3)) 516
AIR CLEANER (2 4249 716 0/30 A) 517
FUEL SYSTEM 518
FUEL TANK (C0 03 0 (1)) 518
FUEL TANK (C0 03 0 (2)) 519
FUEL PIPES (C0 03 2 (2)) 520
FUEL PIPES (C0 03 2 (3)) 521
FUEL PIPES (C0 03 4 (2)) 522
FUEL COOLER (C0 03 6 (1)) 523
FUEL COOLER (C0 03 6 (2)) 524
EXHAUST SILENCER 525
EXHAUST SILENCER (C0 06 0 (1)) 525
EXHAUST SILENCER (C0 06 0 (2)) 526
EXHAUST SILENCER (C0 06 1 (1)) 527
EXHAUST SILENCER (C0 06 1 (2)) 528
AIR COMPRESSOR 529
AIR COMPRESSOR (C0 07 1 (1)) 529
AIR COMPRESSOR – EXPORT D (C0 07 3 (1)) 530
AIR COMPRESSOR (C0 07 5 (1)) 531
AIR COMPRESSOR (C0 07 8 (1)) 532
AIR COMPRESSOR (C0 07 12 (1)) 533
COMPRESSOR-PARTS (04414768 A) 534
Front_axle 535
Index 535
Agrotron K 90 Profiline -> 8159 1001 537
F0 – FRONT AXLE 537
GENERAL 537
4WD – FRONT AXLE WITH SUSPENSION (F0 00 0 (1)) 537
4WD – FRONT DRIVE AXLE (F0 00 1 (1)) 538
4WD – FRONT DRIVE AXLE (F0 00 2 (1)) 539
4WD – FRONT DRIVE AXLE (F0 00 3 (1)) 540
DRIVEN FRONT AXLE – [641391] (0 014 0317 4/30 A) 541
STEERING CYLINDER – [641391] (0 014 0317 4/30 C) 542
BEVEL WHEEL GEAR – [641391] (0 014 0317 4/30 D) 543
DIFFERENTIAL – [641391] (0 014 0317 4/30 E) 544
DOUBLE COUPLING – [641391] (0 014 0317 4/30 F) 545
WHEEL HUB – [641391] (0 014 0317 4/30 G) 546
PLANETARY GEAR – [641391] (0 014 0317 4/30 H) 547
DRIVEN FRONT AXLE – [358850] (0 014 0317 4/40 B) 548
STEERING CYLINDER – [358850] (0 014 0317 4/40 C) 549
BEVEL WHEEL GEAR – [358850] (0 014 0317 4/40 D) 550
DIFFERENTIAL – [358850] (0 014 0317 4/40 E) 551
DOUBLE COUPLING – [358850] (0 014 0317 4/40 F) 552
WHEEL HUB – [358850] (0 014 0317 4/40 G) 553
PLANETARY GEAR – [358850] (0 014 0317 4/40 H) 554
DRIVEN FRONT AXLE – [641392] (0 014 0319 4/20 B) 555
STEERING CYLINDER – [641392] (0 014 0319 4/20 C) 556
BEVEL WHEEL GEAR – [641392] (0 014 0319 4/20 D) 557
DIFFERENTIAL – [641392] (0 014 0319 4/20 E) 558
DOUBLE COUPLING – [641392] (0 014 0319 4/20 F) 559
WHEEL HUB – [641392] (0 014 0319 4/20 G) 560
PLANETARY GEAR – [641392] (0 014 0319 4/20 H) 561
DRIVEN FRONT AXLE – [641394] (0 014 0320 4/20 B) 562
STEERING CYLINDER – [641394] (0 014 0320 4/20 C) 563
BEVEL WHEEL GEAR – [641394] (0 014 0320 4/20 D) 564
DIFFERENTIAL – [641394] (0 014 0320 4/20 E) 565
DOUBLE COUPLING – [641394] (0 014 0320 4/20 F) 566
WHEEL HUB – [641394] (0 014 0320 4/20 G) 567
PLANETARY GEAR – [641394] (0 014 0320 4/20 H) 568
DRIVEN FRONT AXLE – [641393] (0 014 0321 4/20 B) 569
STEERING CYLINDER – [641393] (0 014 0321 4/20 C) 570
BEVEL WHEEL GEAR – [641393] (0 014 0321 4/20 D) 571
DIFFERENTIAL – [641393] (0 014 0321 4/20 E) 572
DOUBLE COUPLING – [641393] (0 014 0321 4/20 F) 573
WHEEL HUB – [641393] (0 014 0321 4/20 G) 574
PLANETARY GEAR – [641393] (0 014 0321 4/20 H) 575
FRONT SUPPORT 576
4WD – FRONT SUPPORT (F0 01 0 (1)) 576
4WD – FRONT CARRIER WITH SUSPENSION (F0 01 2 (1)) 577
4WD – FRONT CARRIER WITH SUSPENSION (F0 01 3 (1)) 578
FRONT COVER WITHOUT FRONT HOOK (F0 01 4 (1)) 579
CYLINDER PARTS OGNIBENE (0 013 9104 4 A) 580
CYLINDER PARTS OGNIBENE (0 013 9105 4 A) 581
FRONT DIFFERENTIAL 582
4WD – TRANSMISSION SHAFT (F0 04 0 (1)) 582
4WD – TRANSMISSION SHAFT (F0 04 1 (1)) 583
Front_lift 584
Index 584
Agrotron K 90 Profiline -> 8159 1001 585
N0 – FRONT LIFT 585
GENERAL 585
FRONT HYDRAULIC POWER-LIFT (N0 00 0 (1)) 585
FRONT HYDRAULIC POWER-LIFT (N0 00 1 (1)) 586
FRONT HYDRAULIC POWER-LIFT (04453331/10 A) 587
HYDRAULIC SYSTEM (04453331/10 B) 588
HYDRAULIC SYSTEM (04453331/10 C) 589
FRONT LIGHTS (04453331/10 D) 590
FRONT HYDRAULIC POWER-LIFT (04453367 A) 591
HYDRAULIC SYSTEM (04453367 B) 592
HYDRAULIC SYSTEM (04453367 C) 593
Front_pto 594
Index 594
Agrotron K 90 Profiline -> 8159 1001 595
M0 – FRONT PTO 595
GENERAL 595
P T O FRONT (M0 00 0 (1)) 595
P T O SHAFT (04453333 A) 596
P T O SHAFT (04453333 B) 597
P T O SHAFT (04453333 C) 599
P T O SHAFT (04453333 D) 600
Hydraulic_and_pneumatic_system 601
Index 601
Agrotron K 90 Profiline -> 8159 1001 604
H0 – HYDRAULIC AND PNEUMATIC SYSTEM| 604
HYDRAULIC SYSTEM 604
FRONT DIFFERENTIAL PIPES (H0 01 0 (1)) 604
HYDROSTATIC STEERING PUMP (H0 01 2 (1)) 605
OIL SUPPLY – FILTER (H0 01 3 (1)) 606
HYDRAULIC SYSTEM (H0 01 5 (1)) 607
OIL SUPPLY – HYDRAULIC PUMP (H0 01 7 (1)) 608
OIL SUPPLY – HYDRAULIC PUMP (H0 01 8 (1)) 609
OIL TANK (H0 01 9 (1)) 610
OIL FILTER (04453674 A) 611
HYDRAULIC PUMP (04453684 A) 612
HYDRAULIC PUMP COMPONENTS (04453853 A) 613
STEERING SYSTEM 614
HYDROSTATIC STEERING CONTROL VALVE (H0 02 0 (1)) 614
POWER STEERING (H0 02 2 (1)) 615
POWER STEERING (H0 02 2 (2)) 616
PIPES FOR HYDROSTATIC STEERING (H0 02 4 (2)) 617
PIPES FOR HYDROSTATIC STEERING (H0 02 4 (3)) 618
PIPES FOR HYDROSTATIC STEERING (H0 02 5 (1)) 619
HYDRAULIC PUMP (04453673 A) 620
TRANSMISSION – PTO COOLERS 621
GEARBOX OIL COOLER (H0 03 1 (1)) 621
LUBRIC OIL COOLER (H0 03 2 (1)) 622
FRONT AXLE HYDRAULIC SUSPENSION 623
HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0 04 2 (1)) 623
HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0 04 2 (2)) 625
HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0 04 3 (1)) 627
HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0 04 4 (1)) 628
ACCUMULATOR (04452756 A) 629
ACCUMULATOR (04455149 A) 630
FRONT LIFT 631
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 0 (1)) 631
REAR REMOTE CONTROL VALVES 632
4-WAY HYDRAULIC CONTROL VALVE (H0 07 0 (1)) 632
8-WAY HYDRAULIC CONTROL VALVE (H0 07 1 (1)) 633
8-WAY HYDRAULIC CONTROL VALVE (H0 07 2 (1)) 634
8-WAY HYDRAULIC CONTROL VALVE (H0 07 3 (1)) 635
8-WAY HYDRAULIC CONTROL VALVE (H0 07 4 (1)) 636
CONNECTING PLATE (H0 07 5 (1)) 638
4-WAY QUICK COUPLERS (H0 07 6 (1)) 639
4 REAR QUICK ACTION COUPLERS (H0 07 7 (1)) 640
4-WAY CONTROL VALVES – OIL RECOVERY (H0 07 8 (1)) 641
4-WAY CONTROL VALVES – OIL RECOVERY (H0 07 9 (1)) 642
8-WAY QUICK-ACTION COUPLERS (H0 07 10 (1)) 643
8-WAY QUICK-ACTION COUPLERS (H0 07 11 (1)) 644
8-WAY QUICK-ACTION COUPLERS (H0 07 11 (2)) 645
8-WAY QUICK-ACTION COUPLERS (H0 07 12 (1)) 646
8-WAY CONTROL VALVES – OIL RECOVERY (H0 07 13 (1)) 647
8-WAY QUICK COUPLERS (H0 07 14 (1)) 648
8-WAY CONTROL VALVES – OIL RECOVERY (H0 07 15 (1)) 649
8-WAY CONTROL VALVES – OIL RECOVERY (H0 07 16 (1)) 650
8-WAY CONTROL VALVES – OIL RECOVERY (H0 07 17 (1)) 651
8-WAY CONTROL VALVES – OIL RECOVERY (H0 07 18 (1)) 652
REAR FREE RETURN – NOT PRESSURIZED (H0 07 19 (1)) 653
OIL RETURN PIPE (H0 07 20 (1)) 654
ENGAGEMENT (04412157/10 A) 655
ENGAGEMENT (04450416 A) 656
ENGAGEMENT (04450417 A) 657
DISTRIBUTOR PARTS (04451764 A) 658
DISTRIBUTOR (04451872 A) 659
ENGAGEMENT (04452919 A) 660
TRAILER BRAKE VALVE (04453963/10 A) 661
TRAILER BRAKE VALVE (04453964/10 A) 662
RELAY VALVE (04455074 A) 663
DISTRIBUTOR PARTS (2 3729 100 0/10 A) 664
BRAKING SYSTEM AND PNEUMATIC SYSTEM| 665
BRAKING SYSTEM (H0 09 0 (1)) 665
BRAKING SYSTEM (H0 09 0 (2)) 666
BRAKING SYSTEM (H0 09 1 (1)) 667
BRAKING SYSTEM (H0 09 2 (1)) 668
BRAKING SYSTEM (H0 09 2 (2)) 669
BRAKING SYSTEM (H0 09 3 (1)) 670
AIR-PRESSURE GAUGE 10 bar (H0 09 4 (1)) 671
TRAILER BRAKE VALVE FOR 6-WAY DIRECTIONAL CONTROL VALVE (H0 09 5 (1)) 672
TRAILER BRAKE VALVE FOR 6-WAY DIRECTIONAL CONTROL VALVE (H0 09 6 (1)) 673
PNEUMATIC TRAILER BRAKING (H0 09 10 (1)) 674
PNEUMATIC TRAILER BRAKING (H0 09 11 (1)) 675
PNEUMATIC TRAILER BRAKING (H0 09 12 (1)) 677
PNEUMATIC TRAILER BRAKING – EXPORT D (H0 09 16 (1)) 678
PNEUMATIC TRAILER BRAKING – EXPORT D (H0 09 17 (1)) 679
PNEUMATIC TRAILER BRAKING (H0 09 18 (1)) 680
PNEUMATIC TRAILER BRAKING (H0 09 22 (1)) 681
PNEUMATIC TRAILER BRAKING (H0 09 23 (1)) 682
PNEUMATIC TRAILER BRAKING (H0 09 24 (1)) 683
PNEUMATIC TRAILER BRAKING (H0 09 31 (1)) 684
PNEUMATIC TRAILER BRAKING (H0 09 32 (1)) 685
PNEUMATIC TRAILER BRAKING (H0 09 33 (1)) 686
PNEUMATIC SYSTEM FOR SUSPENDED CAB (H0 09 42 (1)) 687
PNEUMATIC SYSTEM FOR SUSPENDED CAB (H0 09 43 (1)) 688
PNEUMATIC TRAILER BRAKING (H0 09 44 (1)) 689
PNEUMATIC TRAILER BRAKING (H0 09 45 (1)) 690
PNEUMATIC TRAILER BRAKING (H0 09 45 (2)) 691
TRAILER SOCKET-OUTLET VALVE (02382049 4 A) 692
TRAILER BRAKE VALVE (04419935 A) 693
PRESSURE REGULATOR (04434820 A) 694
PUMP-COMPONENTS (04453936 A) 695
TRAILER BRAKE VALVE (04453963/10 A) 696
TRAILER BRAKE VALVE (04453964/10 A) 697
Rear_axle 698
Index 698
Agrotron K 90 Profiline -> 8159 1001 699
E0 – REAR AXLE 699
REAR AXLE 699
REAR AXLE – MOUNTINGS (E0 01 0 (1)) 699
REAR AXLE – MOUNTINGS (E0 01 0 (2)) 700
Rear_lift 701
Index 701
Agrotron K 90 Profiline -> 8159 1001 702
R0 – REAR LIFT 702
LIFT ASSEMBLY 702
POWER LIFT – HYDRAULIC CYLINDER (R0 02 0 (1)) 702
CYLINDER PARTS (04411182 4/10 A) 703
SENSOR 704
AGROTRONIC (R0 05 0 (1)) 704
THREE-POINT LINKAGE – LINK ARMS 705
3-POINT HITCH – ADJUSTABLE RH RODS (R0 06 0 (1)) 705
3-POINT HITCH – ADJUSTABLE RH RODS (R0 06 1 (1)) 706
3 POINT HITCH (R0 06 2 (1)) 707
3 POINT HITCH (R0 06 2 (2)) 708
3 POINT HITCH (R0 06 3 (1)) 709
3 POINT HITCH (R0 06 3 (2)) 710
THREE-POINT HITCH – MANUAL LATERAL STABILIZERS (R0 06 4 (1)) 711
THREE-POINT HITCH – AUTOMATIC LATERAL STABILIZERS – SX/LH/LI (R0 06 5 (1)) 712
THREE-POINT HITCH – AUTOMATIC LATERAL STABILIZERS SX/LH/LI – DX/RH/RE (R0 06 6 (1)) 713
RETAINER FOR COLLECTING TRAY sx/lh/li (R0 06 7 (1)) 714
TOWING BAR (R0 06 8 (1)) 715
MANUAL LATERAL STABILIZERS (0 010 5222 4/50 A) 716
AUTOMATIC LATERAL STABILIZERS (0 012 9825 4/10 A) 717
LINKAGE (0 014 1405 3 A) 718
TOWING HITCH (0 014 1420 3 A) 719
TOWING HITCH cat 3 (0 014 1421 3 A) 720
3 POINT HITCH (04454520 A) 721
Transmission 722
Index 722
Agrotron K 90 Profiline -> 8159 1001 725
D0 – TRANSMISSION 725
GENERAL 725
GEAR CHANGE BOX (D0 00 0 (1)) 725
GEAR CHANGE BOX (D0 00 1 (1)) 726
GEAR CHANGE BOX (D0 00 2 (1)) 727
GEARBOX – [2095 009 037] (04452937 4/40 03) 728
LAYSHAFT – [2095 009 037] (04452937 4/40 04) 729
MAIN SHAFT – [2095 009 037] (04452937 4/40 05) 731
DRIVE – [2095 009 037] (04452937 4/40 06) 732
P T O – POWER TAKE OFF – [2095 009 037] (04452937 4/40 07) 734
SUPER REDUCTION GEAR UNIT – [2095 009 037] (04452937 4/40 08) 735
BEVEL WHEEL GEAR – [2095 009 037] (04452937 4/40 09) 737
BEVEL WHEEL GEAR – [2095 009 037] (04452937 4/40 10) 739
FRONT TRANSMISSION – [2095 009 037] (04452937 4/40 11) 740
FRONT TRANSMISSION – [2095 009 037] (04452937 4/40 12) 742
OIL SUPPLY – [2095 009 037] (04452937 4/40 13) 743
HOLLOW DRIVE SHAFT – [2095 009 037] (04452937 4/40 14) 744
CONTROL UNIT – GEARS – [2095 009 037] (04452937 4/40 15) 745
CONTROL UNIT – GEARS – [2095 009 037] (04452937 4/40 16) 747
TRANSMISSION CONTROL UNIT – [2095 009 037] (04452937 4/40 17) 748
HYDRAULIC CONTROL – [2095 009 037] (04452937 4/40 18) 749
GEARBOX – [2095 009 037] (04452937 4/40 19) 750
SPLITTER – [2095 009 037] (04452937 4/40 20) 751
SPLITTER – [2095 009 037] (04452937 4/40 21) 753
CLUTCH – [2095 009 037] (04452937 4/40 22) 754
REAR GEARBOX CASE – [2095 009 037] (04452937 4/40 23) 756
DIFFERENTIAL – [2095 009 037] (04452937 4/40 24) 757
P T O SHAFT – [2095 009 037] (04452937 4/40 25) 758
P T O SHAFT – [2095 009 037] (04452937 4/40 26) 760
SERVICE BRAKES – [2095 009 037] (04452937 4/40 27) 761
BRAKE CONTROLS – [2095 009 037] (04452937 4/40 28) 762
LIFTING – [2095 009 037] (04452937 4/40 29) 763
DRIVE FOR GEAR CHANGE BOX – [2095 009 037] (04452937 4/40 30) 764
GEARBOX – [2095 009 047] (04452938 4/40 03) 765
LAYSHAFT – [2095 009 047] (04452938 4/40 04) 766
MAIN SHAFT – [2095 009 047] (04452938 4/40 05) 768
DRIVE – [2095 009 047] (04452938 4/40 06) 769
P T O – POWER TAKE OFF – [2095 009 047] (04452938 4/40 07) 771
SUPER REDUCTION GEAR UNIT – [2095 009 047] (04452938 4/40 08) 772
BEVEL WHEEL GEAR – [2095 009 047] (04452938 4/40 09) 775
BEVEL WHEEL GEAR – [2095 009 047] (04452938 4/40 10) 777
FRONT TRANSMISSION – [2095 009 047] (04452938 4/40 11) 778
FRONT TRANSMISSION – [2095 009 047] (04452938 4/40 12) 780
OIL SUPPLY – [2095 009 047] (04452938 4/40 13) 781
HOLLOW DRIVE SHAFT – [2095 009 047] (04452938 4/40 14) 782
CONTROL UNIT – GEARS – [2095 009 047] (04452938 4/40 15) 783
CONTROL UNIT – GEARS – [2095 009 047] (04452938 4/40 16) 785
TRANSMISSION CONTROL UNIT – [2095 009 047] (04452938 4/40 17) 786
HYDRAULIC CONTROL – [2095 009 047] (04452938 4/40 18) 787
GEARBOX – [2095 009 047] (04452938 4/40 19) 788
SPLITTER – [2095 009 047] (04452938 4/40 20) 789
SPLITTER – [2095 009 047] (04452938 4/40 21) 791
CLUTCH – [2095 009 047] (04452938 4/40 22) 792
REAR GEARBOX CASE – [2095 009 047] (04452938 4/40 23) 794
DIFFERENTIAL – [2095 009 047] (04452938 4/40 24) 795
P T O SHAFT – [2095 009 047] (04452938 4/40 25) 796
P T O SHAFT – [2095 009 047] (04452938 4/40 26) 798
SERVICE BRAKES – [2095 009 047] (04452938 4/40 27) 799
BRAKE CONTROLS – [2095 009 047] (04452938 4/40 28) 800
LIFTING – [2095 009 047] (04452938 4/40 29) 801
DRIVE FOR GEAR CHANGE BOX – [2095 009 047] (04452938 4/40 30) 802
GEARBOX – [2095 009 039] (04452939 4/40 03) 803
LAYSHAFT – [2095 009 039] (04452939 4/40 04) 804
MAIN SHAFT – [2095 009 039] (04452939 4/40 05) 806
DRIVE – [2095 009 039] (04452939 4/40 06) 807
P T O – POWER TAKE OFF – [2095 009 039] (04452939 4/40 07) 809
SUPER REDUCTION GEAR UNIT – [2095 009 039] (04452939 4/40 08) 810
BEVEL WHEEL GEAR – [2095 009 039] (04452939 4/40 09) 813
BEVEL WHEEL GEAR – [2095 009 039] (04452939 4/40 10) 815
FRONT TRANSMISSION – [2095 009 039] (04452939 4/40 11) 816
FRONT TRANSMISSION – [2095 009 039] (04452939 4/40 12) 818
OIL SUPPLY – [2095 009 039] (04452939 4/40 13) 819
HOLLOW DRIVE SHAFT – [2095 009 039] (04452939 4/40 14) 820
CONTROL UNIT – GEARS – [2095 009 039] (04452939 4/40 15) 821
CONTROL UNIT – GEARS – [2095 009 039] (04452939 4/40 16) 823
TRANSMISSION CONTROL UNIT – [2095 009 039] (04452939 4/40 17) 824
HYDRAULIC CONTROL – [2095 009 039] (04452939 4/40 18) 825
GEARBOX – [2095 009 039] (04452939 4/40 19) 826
SPLITTER – [2095 009 039] (04452939 4/40 20) 827
SPLITTER – [2095 009 039] (04452939 4/40 21) 829
CLUTCH – [2095 009 039] (04452939 4/40 22) 830
DIFFERENTIAL – [2095 009 039] (04452939 4/40 23) 832
P T O SHAFT – [2095 009 039] (04452939 4/40 24) 833
P T O SHAFT – [2095 009 039] (04452939 4/40 25) 835
REAR GEARBOX CASE – [2095 009 039] (04452939 4/40 26) 836
ROAD P T O SHAFT – [2095 009 039] (04452939 4/40 27) 838
SERVICE BRAKES – [2095 009 039] (04452939 4/40 28) 839
BRAKE CONTROLS – [2095 009 039] (04452939 4/40 29) 840
DRIVE FOR GEAR CHANGE BOX – [2095 009 039] (04452939 4/40 30) 841
LIFTING – [2095 009 039] (04452939 4/40 31) 842
GEARBOX INPUT SHAFT 843
FLEXIBLE COUPLINGS (D0 05 0 (1)) 843
INTERNAL AND EXTERNAL GEARBOX CONTROLS 844
SUPER CREEPER – REDUCTION GEAR UNIT CONTROLS (D0 10 0 (1)) 844
BRACKET (D0 10 1 (1)) 845
PTO/GROUNDPSPEED DRIVE 846
PTO OUTPUT SHAFT Z = 21 (D0 14 0 (1)) 846
COMPLETION (D0 14 1 (1)) 847
COMPLETION (D0 14 2 (1)) 848
P T O SHAFT PROTECTOR REAR (D0 14 3 (1)) 849
P T O SHAFT PROTECTOR REAR (D0 14 4 (1)) 850
Wheels 851
Index 851
Agrotron K 90 Profiline -> 8159 1001 853
S0 – WHEELS 853
FRONT WHEEL BOLTS 853
FRONT WHEEL MOUNTING (S0 01 0 (1)) 853
REAR WHEEL BOLTS 854
REAR WHEEL BOLTS (S0 02 0 (1)) 854
TWING WHEEL FIXINGS (S0 02 1 (1)) 855
WHEELS 856
TYRE VALVE (S0 04 0 (1)) 856
WHEELS 14 9R-24″ a8 (S0 04 1 (1)) 857
WHEELS 16 9R24″ 134A8 (S0 04 2 (1)) 858
WHEELS 16 9R-24″ a8 (S0 04 3 (1)) 859
WHEELS 420/65 R24″ (S0 04 5 (1)) 860
WHEELS 420/65 R24″ (S0 04 6 (1)) 861
WHEELS 420/70 R24″ A8 (S0 04 7 (1)) 862
WHEELS 420/70 R24″ A8 (S0 04 9 (1)) 863
WHEELS 420/70 R24″ A8 (S0 04 10 (1)) 864
WHEELS 480/65R-24″ (S0 04 11 (1)) 865
WHEELS 480/65R-24″ (S0 04 12 (1)) 866
WHEELS 480/70R24″ 138A8 (S0 04 17 (1)) 867
WHEELS 540/65R24″ (S0 04 18 (1)) 868
WHEELS 540/65R24″ (S0 04 19 (1)) 869
WHEELS 16 9R-24″ a8 (S0 04 21 (1)) 870
WHEELS 420/70 R24″ A8 (S0 04 23 (1)) 871
WHEELS 420/70 R24″ A8 (S0 04 24 (1)) 872
WHEELS 460/70R24″-132A8 (S0 04 25 (1)) 873
WHEELS 480/65R-24″ (S0 04 26 (1)) 874
WHEELS 480/65R-24″ (S0 04 27 (1)) 875
WHEELS 480/70r24″ a8 (S0 04 28 (1)) 876
WHEELS 540/65R24″ (S0 04 30 (1)) 877
WHEELS 380/70 R28″ A8 (S0 04 32 (1)) 878
WHEELS 380/70 R28″ A8 (S0 04 33 (1)) 879
WHEELS 380/70 R28″ A8 (S0 04 34 (1)) 880
WHEELS 440/65R-28″ a8 (S0 04 35 (1)) 881
WHEELS 380/70 R28″ A8 (S0 04 37 (1)) 882
WHEELS 380/70 R28″ A8 (S0 04 38 (1)) 883
WHEELS 440/65R-28″ a8 (S0 04 39 (1)) 884
WHEELS 540/65R30″ (S0 04 40 (1)) 885
WHEELS 540/65R30″ (S0 04 41 (1)) 886
WHEELS 11 2 R32″ 134 A8 (S0 04 42 (1)) 887
WHEELS 16 9R-34″ a8 (S0 04 43 (1)) 888
WHEELS 18 4r34″ a8 (S0 04 44 (1)) 889
WHEELS 480/70R34″ (S0 04 45 (1)) 890
WHEELS 480/70R34″ (S0 04 46 (1)) 891
WHEELS 520/70×34″ (S0 04 47 (1)) 892
WHEELS 520/70×34″ (S0 04 48 (1)) 893
WHEELS 540/65R34″ (S0 04 50 (1)) 894
WHEELS 540/65R34″ (S0 04 51 (1)) 895
WHEELS 540/70R34″-150A8 (S0 04 52 (1)) 896
WHEELS 600/65R34″ (S0 04 53 (1)) 897
WHEELS 18 4r34″ a8 (S0 04 55 (1)) 898
WHEELS 480/70R34″ (S0 04 56 (1)) 899
WHEELS 480/70R34″ (S0 04 57 (1)) 900
WHEELS 500/70 R34” 45A8 TL (S0 04 58 (1)) 901
WHEELS 520/70×34″ (S0 04 59 (1)) 902
WHEELS 520/70×34″ (S0 04 60 (1)) 903
WHEELS 540/65R34″ (S0 04 61 (1)) 904
WHEELS 540/70R34″-150A8 (S0 04 62 (1)) 905
WHEELS 600/65R34″ (S0 04 63 (1)) 906
WHEELS 600/65R34″ (S0 04 64 (1)) 907
WHEELS 16 9R38″ A8 (S0 04 65 (1)) 908
WHEELS 16 9R38″ A8 (S0 04 66 (1)) 909
WHEELS 480/70R-38″ a8 (S0 04 70 (1)) 910
WHEELS 540/65R-38″ (S0 04 75 (1)) 911
WHEELS 540/65R-38″ (S0 04 76 (1)) 912
WHEELS 540/65R-38″ (S0 04 77 (1)) 913
WHEELS 16 9R38″ A8 (S0 04 79 (1)) 914
WHEELS 480/70R-38″ a8 (S0 04 81 (1)) 915
WHEELS 480/70R-38″ a8 (S0 04 83 (1)) 916
WHEELS 540/65R-38″ (S0 04 85 (1)) 917
WHEELS 12 4 R46″ (S0 04 87 (1)) 918

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
