Deutz Fahr AGROTRON L720 after 10010 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr AGROTRON L720 after 10010 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr AGROTRON L720 after 10010 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 899
Downloadable : Yes
File Type : PDF
Size: 45.2 MB

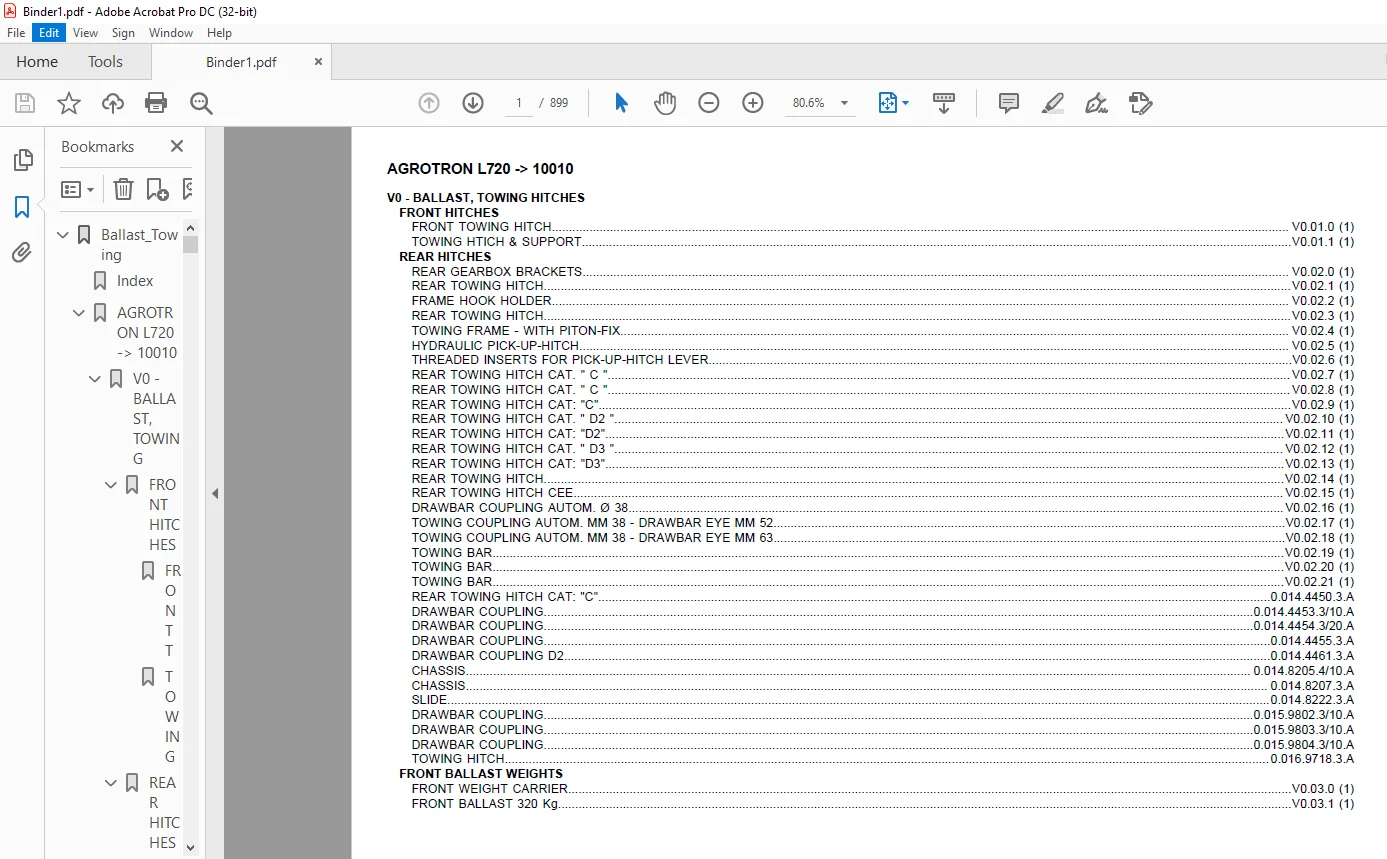

TABLE OF CONTENTS:

Deutz Fahr AGROTRON L720 after 10010 Parts Catalog Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
AGROTRON L720 -> 10010 3
V0 – BALLAST, TOWING HITCHES 3
FRONT HITCHES 3
FRONT TOWING HITCH (V0010 (1)) 3
TOWING HTICH & SUPPORT (V0011 (1)) 4
REAR HITCHES 5
REAR GEARBOX BRACKETS (V0020 (1)) 5
REAR TOWING HITCH (V0021 (1)) 6
FRAME HOOK HOLDER (V0022 (1)) 7
REAR TOWING HITCH (V0023 (1)) 8
TOWING FRAME – WITH PITON-FIX (V0024 (1)) 9
HYDRAULIC PICK-UP-HITCH (V0025 (1)) 10
THREADED INSERTS FOR PICK-UP-HITCH LEVER (V0026 (1)) 11
REAR TOWING HITCH CAT ” C ” (V0027 (1)) 12
REAR TOWING HITCH CAT ” C ” (V0028 (1)) 13
REAR TOWING HITCH CAT: “C” (V0029 (1)) 14
REAR TOWING HITCH CAT ” D2 ” (V00210 (1)) 15
REAR TOWING HITCH CAT: “D2″ (V00211 (1)) 16
REAR TOWING HITCH CAT ” D3 ” (V00212 (1)) 17
REAR TOWING HITCH CAT: “D3” (V00213 (1)) 18
REAR TOWING HITCH (V00214 (1)) 19
REAR TOWING HITCH CEE (V00215 (1)) 20
DRAWBAR COUPLING AUTOM Ø 38 (V00216 (1)) 21
TOWING COUPLING AUTOM MM 38 – DRAWBAR EYE MM 52 (V00217 (1)) 22
TOWING COUPLING AUTOM MM 38 – DRAWBAR EYE MM 63 (V00218 (1)) 23
TOWING BAR (V00219 (1)) 24
TOWING BAR (V00220 (1)) 25
TOWING BAR (V00221 (1)) 26
REAR TOWING HITCH CAT: “C” (001444503A) 27
DRAWBAR COUPLING (001444533/10A) 28
DRAWBAR COUPLING (001444543/20A) 29
DRAWBAR COUPLING (001444553A) 30
DRAWBAR COUPLING D2 (001444613A) 31
CHASSIS (001482054/10A) 32
CHASSIS (001482073A) 33
SLIDE (001482223A) 34
DRAWBAR COUPLING (001598023/10A) 35
DRAWBAR COUPLING (001598033/10A) 36
DRAWBAR COUPLING (001598043/10A) 37
TOWING HITCH (001697183A) 38
FRONT BALLAST WEIGHTS 39
FRONT WEIGHT CARRIER (V0030 (1)) 39
FRONT BALLAST 320 Kg (V0031 (1)) 40
FRONT BALLAST 1000 Kg (V0032 (1)) 41
FRONT BALLAST 1000 Kg (V0033 (1)) 42
FRONT BALLAST 1000 Kg (V0033 (2)) 43
FRONT BALLAST 1000 Kg (V0033 (3)) 44
Bodywork_Cab 45
Index 45
AGROTRON L720 -> 10010 50
G0 – BODYWORK – CAB 50
HOOD – SIDE PANELS – SUPPORTS 50
HOOD (G0017 (1)) 50

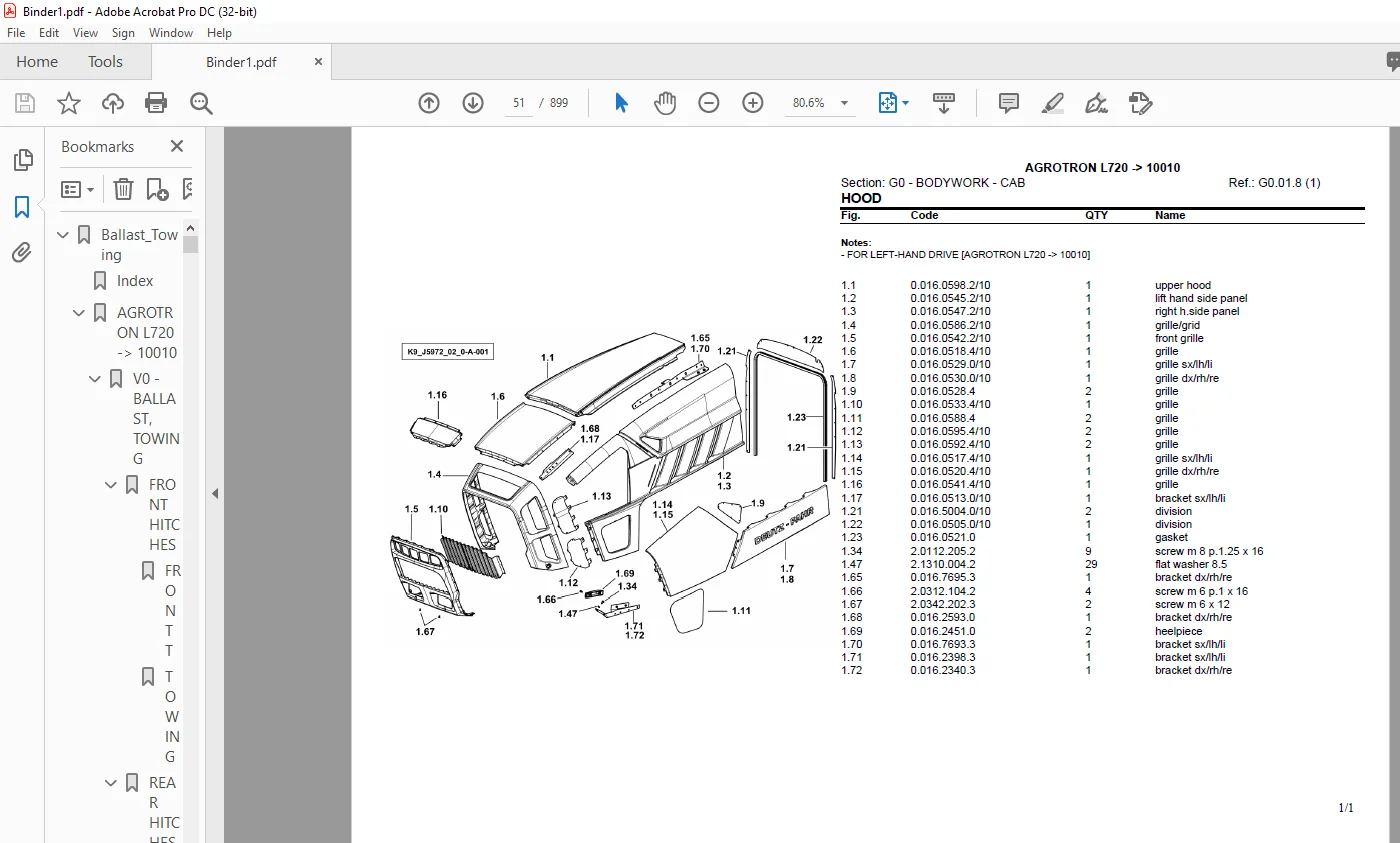

HOOD (G0018 (1)) 51
BONNET – SIDES (G0019 (1)) 52
HOOD – SUPPORTS (G00110 (1)) 53
HOOD – SUPPORTS (G00111 (1)) 54
HOOD – SUPPORTS (G00112 (1)) 55
HOOD – SUPPORTS (G00113 (1)) 56
FRONT HOOD GASKET (G00121 (1)) 57
FRONT HOOD GASKET (G00121 (2)) 58
CABLE FOR HOOD CLOSURE (G00122 (1)) 59
HOOD – SUPPORTS (G00123 (1)) 60
HOOD – SUPPORTS (G00123 (2)) 61

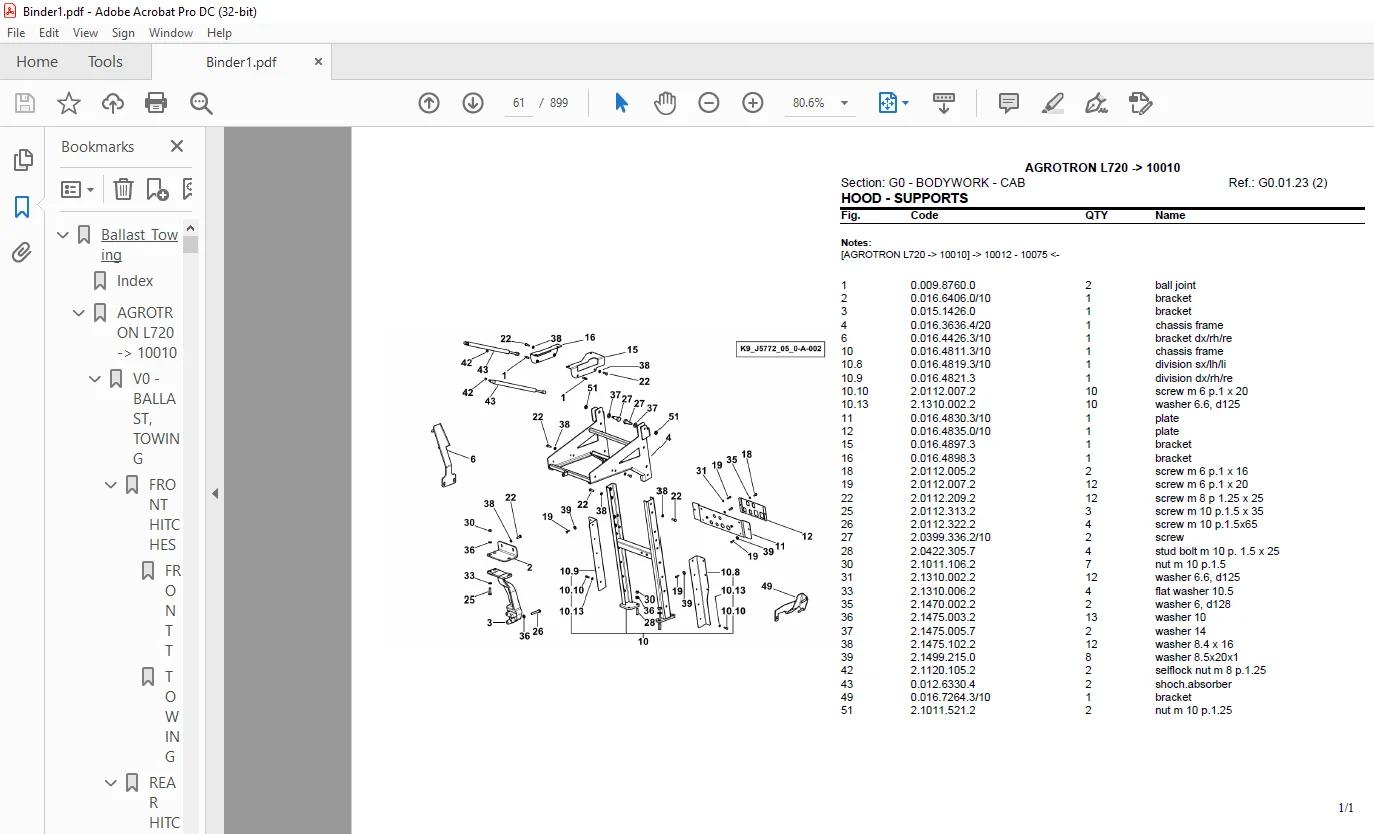

HOOD – SUPPORTS (G00123 (3)) 62
CONNECTION FRAME (G00124 (1)) 63
CONNECTION FRAME (G00124 (2)) 64
CONNECTION FRAME (G00124 (3)) 65
BATTERY SUPPORT (G00125 (1)) 66
BATTERY SUPPORT (G00125 (2)) 67
BATTERY SUPPORT FIXING (G00126 (1)) 68
CONTROL UNIT SUPPORT (G00127 (1)) 69
BELT GUARDS (G00128 (1)) 70
BELT GUARDS (G00128 (2)) 71
CABLE DUCTS (G00129 (1)) 72
CABLE DUCTS (G00130 (1)) 73
WIRING SUPPORT BRACKETS (G00131 (1)) 74
RELAY PROTECTION (G00132 (1)) 75
LETTERING 76
PRODUCT PLATE (G0029 (1)) 76
PRODUCT PLATE (G00210 (1)) 77
PRODUCT PLATE dx/rh/re (G00212 (1)) 78
PRODUCT PLATE sx/lh/li (G00213 (1)) 79
MODEL PLATE (G00214 (1)) 80
PRODUCT PLATE – REAR (G00215 (1)) 81
STEERING WHEEL PRODUCT IDENTIFICATION PLATE (G00216 (1)) 82
SPEED LABEL – 40 KM/H (G00225 (1)) 83
SPEED LABEL – 40 KM/H (G00226 (1)) 84
SPEED DATA PLATES (G00227 (1)) 85
WARNING SIGNS ON WATER RADIATOR (G00228 (1)) 86
WATER COOLER IDENTIFICATION PLATE (G00229 (1)) 87
WARNING PLATE (G00230 (1)) 88
WARNING PLATES (G00231 (1)) 89
WARNING PLATES (G00232 (1)) 90
REAR LIFT MOVEMENT WARNING LABEL (G00234 (1)) 91
INFORMATION PLATE (G00236 (1)) 92
START ENABLE PLATE (G00237 (1)) 93
FUSEBOX IDENTIFICATION PLATE (G00238 (1)) 94
FUSEBOX IDENTIFICATION PLATE (G00238 (2)) 95
PTO – CAP 750 -1000 (G00239 (1)) 96
CREEPER IDENTIFICATION PLATE (G00240 (1)) 97
IDENTIFICATION PLATES – FOR 8-WAY CONTROL VALVE (G00243 (1)) 98
IDENTIFICATION PLATES – FOR 8-WAY CONTROL VALVE (G00244 (1)) 99
SOLENOID VALVE IDENTIFICATION PLATES (G00245 (1))100
SOLENOID VALVE IDENTIFICATION PLATES (G00246 (1))101
FRONT QUICK COUPLER PLATES (G00247 (1))102
PLATE FOR 8-WAY REMOTE VALVE (G00248 (1))103
CAB STRUCTURE – PLATFORM -SUSPENSION104
SINGLE-STRUCTURE CAB (G0030 (1))104
PLUGS (G0031 (1))105
LADDER (G0032 (1))106
PEDAL SUPPORT (G0033 (1))107
COVER (G0034 (1))108
PNEUMATIC CAB SUSPENSION (G0035 (1))109
PNEUMATIC CAB SUSPENSION (G0035 (2))111
PNEUMATIC CAB SUSPENSION (G0035 (3))113
PNEUMATIC CAB SUSPENSION (G0036 (1))114
PNEUMATIC CAB SUSPENSION (G0036 (2))115
AIR SUPENSION TANK (G0037 (1))116
AIR SUSPENSION PACKAGE (G0038 (1))117
RELAY VALVE (04432191A)118
FENDERS – FOOTSTEPS – EXTENSIONS119
SELF-ADJUSTING FRONT FENDERS mm 470 (G0040 (1))119
SELF-ADJUSTING FRONT FENDERS mm 470 (G0040 (2))120
SELF-ADJUSTING FRONT FENDERS mm 520 (G0041 (1))121
SELF-ADJUSTING FRONT FENDERS mm 520 (G0041 (2))122
SELF-ADJUSTING FRONT FENDERS mm 580 (G0042 (1))123
SELF-ADJUSTING FRONT FENDERS mm 620 (G0043 (1))124
REAR MUDGUARDS (G0045 (1))125
FENDERS (G0047 (1))126
MUDGUARDS EXTENSIONS mm 240 (G0048 (1))127
FRONT FENDER SUPPORT dx/rh/re (001573914A)128
FRONT FENDER SUPPORT sx/lh/li (001573944A)129
DOORS – WINDOWS – WIPERS130
FRONT CAB GLASS SHIELD (G0050 (1))130
CAB DOOR dx/rh/re (G0051 (1))131
CAB DOOR DX/RH/RE (G0052 (1))132
CAB DOOR DX/RH/RE (G0053 (1))133
CAB DOOR – SX/LH/LI (G0054 (1))134
CAB DOOR – SX/LH/LI (G0054 (2))135
DRIVERS’S CAB DOOR LOCK – SX/LH/LI (G0055 (1))136
SIDE PLATE RIGHT/LEFT (G0056 (1))137
REAR WINDOW (G0057 (1))138
HANDLE REAR WINDOW (G0058 (1))139
KNOCKOUT WINDOW REAR (G0059 (1))140
SCREEN WIPER FRONT (G00510 (1))141
SCREEN WIPER FRONT (G00510 (2))142
SCREEN WIPER REAR (G00511 (1))143
WATER TANK (G00512 (1))144
WINDSHIELD WIPER SYSTEM (G00513 (1))145
WATER TANK (001142074/10A)146
WINDSCREEN WIPER BLADE (001155294A)147
DOOR HANDLE – CAB DOOR RIGHT/LEFT (001302174A)148
INTERIOR TRIM149
CONTROL CONSOLE sx/lh/li (G0060 (1))149
CONTROL CONSOLE sx/lh/li (G0061 (1))150
CONSOLE sx/lh/li (G0062 (1))151
CONSOLE sx/lh/li (G0062 (2))152
INTERNAL CAB LININGS (G0063 (1))153
CONTROL CONSOLE dx/rh/re (G0064 (1))154
CONTROL CONSOLE dx/rh/re (G0064 (2))155
RIGHT-HAND CONSOLE PARTS KIT (G0065 (1))156
PLUGS (G0066 (1))157
CAB SOUNDPROOF PANELS (G0067 (1))158
CONTROL VALVE LEVER SUPPORT (G0068 (1))159
CONTROL VALVE LEVER SUPPORT (G0069 (1))160
CONSOLE AND AIR DUCT (G00610 (1))161
CONSOLE AND AIR DUCT (G00610 (2))162
INTERNAL CAB LININGS (G00611 (1))163
INTERNAL CAB LININGS (G00611 (2))164
SUN CANOPY (G00612 (1))165
SUN CANOPY (G00612 (2))166
INTERNAL CAB LININGS (G00613 (1))167
INTERNAL CAB LININGS (G00613 (2))168
INTERNAL CAB LININGS (G00614 (1))169
INTERNAL CAB LININGS (G00614 (2))170
INTERNAL CAB LININGS (G00614 (3))171
INTERNAL CAB LININGS (G00615 (1))172
INTERNAL CAB LININGS (G00615 (2))173
PLUGS (G00616 (1))174
EXTERIOR TRIM – ROOF175
ELECTRIC REAR VIEW MIRROR AND FILTER dx/rh/re (G0070 (1))175
ELECTRIC REAR VIEW MIRROR AND FILTER dx/rh/re (G0070 (2))176
ELECTRIC REAR VIEW MIRROR AND FILTER sx/lh/li (G0071 (1))177
ELECTRIC REAR VIEW MIRROR AND FILTER sx/lh/li (G0071 (2))178
ELECTRIC REAR VIEW MIRROR AND FILTER sx/lh/li (G0072 (1))179
ELECTRIC REAR VIEW MIRROR AND FILTER sx/lh/li (G0072 (2))180
ELECTRIC REAR VIEW MIRROR AND FILTER dx/rh/re (G0073 (1))181
ELECTRIC REAR VIEW MIRROR AND FILTER dx/rh/re (G0073 (2))182
ELECTRIC REAR-VIEW MIRROR AND FILTER dx/rh/re (G0073 (3))183
CARBON FILTER (G0074 (1))184
UPRIGHT COVER (G0076 (1))185
FLASHING LIGHT SUPPORT (G0078 (1))186
FLASHING LIGHT SUPPORT (G0079 (1))187
ROOF WITH SKYLIGHT (G00710 (1))188
ROOF – SKYLIGHT (G00711 (1))189
ROOF – SKYLIGHT (G00711 (2))190
WINDSCREEN WIPER EXTERNAL COVER (G00712 (1))191
WINDSCREEN WIPER EXTERNAL COVER (G00712 (2))192
REARVIEW MIRROR (001243924A)193
REARVIEW MIRROR (001243934A)194
SEATS195
DRIVER’S SEAT MSG 95A/721 (G0080 (1))195
DRIVER’S SEAT MSG 95A/721 (G0080 (2))196
SAFETY BELT (G0081 (1))197
HEAD REST (G0083 (1))198
SEAT SUPPORT (G0085 (1))199
SEAT FOR 2ND OPERATOR (G0086 (1))200
SEAT FOR 2ND OPERATOR (G0087 (1))201
SEAT-COMPONENTS (001427074/10A)202
SEAT-COMPONENTS (001427074/10B)204
SEAT-COMPONENTS (001427074/20A)206
SEAT-COMPONENTS (001427074/20B)208
HEATING AND AIR CONDITIONING210
CONDENSER AND FILTER (G0090 (1))210
CONDENSER AND FILTER (G0090 (2))211
AIR CONDITIONING SYSTEM (G0091 (1))212
AIR CONDITIONING SYSTEM (G0091 (2))213
AIR CONDITIONING SYSTEM (G0091 (3))214
COMPRESSOR (G0092 (1))215
MANUAL CLIMATE CONTROL SYSTEM (G0093 (3))216
MANUAL CLIMATE CONTROL SYSTEM (G0093 (4))217
HEATING – PIPES (G0094 (1))218
ENGAGEMENT (000972024/20A)219
ENGAGEMENT (000972034/20A)220
AIR CONDITIONER PARTS (001091394/40A)221
AIR CONDITIONER PARTS (001091394/50A)223
COMPRESSOR (04437339/10A)225
MECHANICAL CLUTCH CONTROLS226
CLUTCH CONTROL (G0100 (1))226
MECHANICAL BRAKE CONTROLS227
BRAKE CONTROLS (G0110 (1))227
BRAKE CONTROLS (G0110 (2))228
BRAKE CYLINDER (G0111 (1))229
PARK SYSTEM – BRAKE (G0112 (1))230
PARK SYSTEM – BRAKE (G0112 (2))231
PARK SYSTEM – BRAKE (G0113 (1))232
PARK SYSTEM – BRAKE (G0113 (2))233
HANDBRAKE SUPPORT FOR TRAILER (G0114 (1))234
MECHANICAL – ELECTRONIC THROTTLE CONTROLS235
ELECTRONIC ACCELERATOR CONTROL (G0120 (1))235
STEERING CONTROLS236
STEERING WHEEL (G0131 (1))236
STEERING COLUMN (G0133 (1))237
STEERING COLUMN (001487534/10A)238
MECHANICAL GEARSHIFT CONTROLS239
CREEPER – CONTROLS (G0140 (1))239
PTO CONTROLS240
PTO SHAFT DRIVE (G0160 (1))240
PTO SHAFT DRIVE – 2 SPEED (G0161 (1))241
REMOTE VALVE CONTROLS242
CONTROL FOR 8-WAY CONTROL VALVE (G0182 (1))242
CONTROL FOR 8-WAY CONTROL VALVE (G0183 (1))243
HAND LEVER (001162554A)244
ACCESSORIES245
SUN BLIND FRONT WINDSCREEN (G0190 (1))245
SUN BLIND FRONT WINDSCREEN (G0190 (2))246
SUN BLIND REAR WINDOW (G0191 (1))247
SUN BLIND REAR WINDOW (G0191 (2))248
CHOCK (G0192 (1))249
METAL TOOLBOX (G0193 (1))250
LUBRICATOR (G0194 (1))251
TRAILER SOCKET FIXING (G0195 (1))252
TRAILER SOCKET AND NUMPER PLATE FIXING (G0195 (2))253
PARTS FOR SUNSHADE (001162844A)254
Electrical_system255
Index255
AGROTRON L720 -> 10010259
L0 – ELECTRIC AL SYSTEM259
BATTERY – ALTERNATOR259
BATTERY 12V 180Ah 800A (L0010 (1))259
AUXILIARY BATTERY 12V 4AH 60A (L0011 (1))260
WIRING LOOMS261
HEADLIGHTS / HORN WIRING (L0022 (1))261
HEADLIGHTS / HORN WIRING (L0023 (1))262
WORKLIGHT SWITCHES RELAY (L0026 (1))263
ELECTR EQUIPMENT – SPRUNG FRONT AXLE (L0027 (1))264
FRONT PTO SOLENOID VALVE ELECTRICAL CABLE (L0028 (1))265
FRONT PTO SOLENOID VALVE ELECTRICAL CABLE (L0029 (1))266
ELECTRICAL EQUIPMENT FRONT (L00210 (3))267
REAR WIRING dx/rh/re (L00211 (1))268
REAR WIRING sx/lh/li (L00212 (1))269
PREHEATING ELECTRICAL SYSTEM (L00213 (1))270
ENGINE INTERFACE WIRING (L00214 (1))271
CAB CONSOLE WIRING (L00215 (1))272
CAB CONSOLE WIRING (L00215 (2))273
FUSE HOLDER (L00216 (1))274
FUSE HOLDER (L00216 (2))275
CAB ROOF ELECTRIC SYSTEM (L00217 (1))276
ELECTRIC WIRING UNDER ROOF (L00218 (1))277
BATTERY LEADS (L00219 (2))278
BATTERY LEADS (L00219 (3))279
ELECTRICAL LEAD ( – ) (L00220 (1))280
COOLANT TANK ELECTRIC CABLE (L00221 (1))281
ROTATING BEACON WIRING (L00222 (1))282
ELECTRIC WIRING FOR HEATER (L00223 (1))283
BRAKES WIRING (L00224 (1))284
WIRING FOR AIR TRAILER BRAKING (L00225 (1))285
WIRING FOR AIR TRAILER BRAKING (L00225 (2))286
WIRING FOR AIR TRAILER BRAKING (L00226 (1))287
WIRING FOR HYDRAULIC TRAILER BRAKING ITALY (L00227 (1))288
TRAILER SOCKET FIXING (L00228 (1))289
TRAILER SOCKET AND NUMPER PLATE FIXING (L00228 (2))290
LIGHTS FLASHER RELAY – TRAILER SOCKET – 2-PIN SOCKET (L00229 (1))291
ELECTRICAL WIRING – FOR COLD CLIMATES (L00230 (1))292
ELECTRICAL WIRING – FOR COLD CLIMATES (L00231 (1))293
WIRING FOR REAR LIGHTS (L00232 (1))294
ELECTRICAL SYSTEM (001087114/30A)295
FUSE HOLDER (001612034/10A)296
FUSE HOLDER (001612034/20A)297
ECUs298
CONTROL UNIT – GEARS HLHP (L0030 (1))298
SERVICES CONTROL UNIT HLHP (L0031 (1))299
SENSORS – POTENTIOMETERS – ENABLING SWITCHES300
FRONT PTO SPEED SENSOR (L0040 (1))300
FRONT PTO SPEED SENSOR (L0040 (2))301
FRONT SUSPENSION POSITION SENSOR (L0041 (1))302
SBA SENSOR (L0042 (1))303
OIL PRESSURSWITCH (L0043 (1))304
DOOR SWITCH (L0044 (1))305
ELECTRONIC ACCELERATOR CONTROL SENSOR (L0045 (1))306
BRAKE CONTROL SWITCH (L0046 (1))307
CLUTCH SENSOR (L0047 (1))308
CLUTCH SENSOR (L0048 (1))309
CLUTCH PEDAL SWITCH (L0049 (1))310
RADAR (L00410 (1))311
RADAR (L00411 (1))312
SPEED SENSOR (L00412 (1))313
SPEED SENSOR (L00413 (1))314
SPEED SENSOR (L00414 (1))315
SPEED SENSOR (L00415 (1))316
RANGE GEAR POTENTIOMETER (L00416 (1))317
PRESSURE SWITCH FOR AIR CLEANER CLOGGED WARNING LIGHT (L00417 (1))318
HYDRAULIC PUMP PRESSURE SWITCH LOAD SENSING (L00418 (1))319
PRESSURE SWITCH FOR HYDRAULIC BRAKING SYSTEM ITALY (L00419 (1))320
AIR BRAKING SYSTEM PRESSURE SWITCH (L00420 (1))321
AIR BRAKING SYSTEM PRESSURE SWITCH (L00421 (1))322
OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L00422 (1))323
OIL PRESSURSWITCH (L00423 (1))324
POWER SHUTTLE VALVES BODY PRESSURE SWITCH (L00424 (1))325
OIL FILTER CLOGGING SENSOR (L00425 (1))326
OIL TEMPERATURE SENSOR (L00426 (1))327
OIL TEMPERATURE SENSOR (L00427 (1))328
OIL TEMPERATURE SENSOR (L00428 (1))329
REAR LIFT POSITION SENSOR (L00429 (1))330
SWITCH FOR 2-SPEED PTO WITH INSERTED END SHAFTS 750 – 1000 (L00430 (1))331
SWITCH FOR 2-SPEED PTO WITH INSERTED END SHAFTS 750 – 1000 (L00430 (2))332
BATTERY DISCONECT SWITCH (L00431 (1))333
BATTERY DISCONNECT SUPPORT (L00432 (1))334
INSTRUMENT PANEL335
DASHBOARD BOX (L0050 (1))335
MULTIFUNCTION ARMREST336
MULTIFUNCTION CONTROL UNIT (L0060 (1))336
MULTIFUNCTION CONTROL UNIT (L0060 (2))337
MULTIFUNCTION CONTROL UNIT (L0061 (1))338
MULTIFUNCTION CONTROL UNIT (L0061 (2))339
ELECTRICAL CONTROLS – PUSHBUTTONS340
STEERING COLUMN SWITCH UNIT – REVERSING GEAR UNIT CONTROL (L0070 (1))340
SWITCHES / IGNITION BLOCK (L0071 (1))341
SWITCHES (L0072 (1))342
SWITCH (L0073 (1))343
SWITCH – WORKING SPOTLIGHT FRONT (L0074 (1))344
SWITCHES (L0075 (1))345
SWITCHES (L0076 (1))346
REAR WINDOW WIPER SWITCH (L0077 (1))347
SWITCH FOR FRONT AXLE SUSPENSION (L0078 (1))348
SWITCH FOR HEATED REAR VIEW MIRROR (L0079 (1))349
ELECTICAL CONTROL FOR REARVIEW MIRRORS (L00710 (1))350
ELECTRIC CONTROLS FOR REAR-VIEW MIRROR (L00711 (1))351
AIR CONDITIONER CONTROLS UNIT (L00712 (1))352
AIR CONDITIONER PARTS (001157934A)353
SHUTTLE LEVER (001270764A)354
LIGHTING AND SIGNALLING355
HEADLIGHTS \ HORN (L0082 (1))355
HEADLIGHTS \ HORN (L0083 (1))356
FRONT LIGHTS (L0086 (1))357
FRONT LIGHTS (L0087 (1))358
LIGHT SUPPORT (L0088 (1))359
FLASHING POS LIGHT (L0089 (1))360
SIDELIGHT, DIRECTION INDICATOR AND REFLECTORS (L00810 (1))361
WORKING SPOTLIGHT FRONT BOTTOM (L00811 (1))362
WORKING SPOTLIGHT FRONT/REAR (L00812 (1))363
INTERIOR LIGHT (L00813 (1))364
WARNING BEACON (L00814 (1))365
WARNING BEACON (L00814 (2))366
REAR LIGHTS / REFLECTORS (L00815 (1))367
REFLECTORS (L00816 (1))368
LICENCE PLATE LIGHT (L00817 (1))369
HEADLAMP COMPONENTS (000967584/10A)370
HEADLAMP COMPONENTS (044119204A)371
HEADLAMP COMPONENTS (044119214A)372
HEADLAMP COMPONENTS (044140874A)373
HEADLAMP COMPONENTS (044140884A)374
HEADLAMP COMPONENTS (044280894/10A)375
HEADLAMP COMPONENTS (044280904/10A)376
HEADLAMP COMPONENTS (04450666A)377
HEADLAMP COMPONENTS (280292400/10A)378
HEADLAMP COMPONENTS (280390140A)379
HEADLAMP COMPONENTS (280390300/10A)380
HEADLAMP COMPONENTS (280391600A)381
FRONT LIGHTS (280392400A)382
FRONT LIGHTS (280392500A)383
HEADLAMP COMPONENTS (280593100/10A)384
HEADLAMP COMPONENTS (280593200/30A)385
ACCESSORIES386
LOUDSPEAKERS (L0090 (1))386
CIGAR LIGHTER (L0091 (1))387
DIGITAL CLOCK AND RADIO ANTENNA (L0092 (1))388
Engine389
Index389
AGROTRON L720 -> 10010393
B0 – ENGINE393
GENERAL393
DEUTZ ENGINE (B0001 (1))393
CYLINDER BLOCK394
FASTENINGS (B0011006)394
GASKET SET (B0011026)395
BLEEDING TUBE (B0011045)396
CRANKCASE BREATHER (B0011052)397
CRANKCASE BREATHER (B0011059)398
CRANKCASE (B0011070)399
OIL FILLER NECK (B0011087)400
PLUG (B0011113)401
FRONT COVER (B0011116)402
CLOSING COMPONENTS (B0011125)403
CLOSING COMPONENTS (B0011126)404
ACCESSORIES (B0011134)405
ACCESSORIES (B0011135)406
ACCESSORIES (B0011136)407
OIL PRESSURSWITCH (B0011141)409
FILLER CAP (B0011145)410
PISTON COOLNOZZLE (B0011161)411
OIL RETURN (B0011163)412
OIL RETURN (B0011164)413
CRANKSHAFT414
FASTENINGS (B0021002)414
CRANKSHAFT (B0021042)415
CRANKSHAFT (B0021046)416
VIBRATION DAMPER (B0021059)417
FLYWHEEL (B0021064)418
PLUG (B0021077)419
CYLINDERS – PISTONS – CONNECTING RODS420
PISTON (B0031008)420
CONNECTING ROD (B0031017)421
TIMING422
FASTENINGS (B0041010)422
FASTENINGS (B0041011)423
FASTENINGS (B0041013)424
BUSH (B0041023)425
ROCKER ARM BRACKET (B0041044)426
ROCKER ARM BRACKET (B0041045)427
ROCKER ARM BRACKET (B0041046)428
CAMSHAFT (B0041067)429
CAMSHAFT (B0041076)430
VALVE DRIVE (B0041090)431
GEARCASE (B0041110)432
GEARCASE (B0041124)433
CYLINDER HEAD434
FASTENINGS (B0051008)434
SEALING (B0051012)435
ENGINE MOUNTING (B0051015)436
CLOSING COMPONENTS (B0051024)437
CLOSING COMPONENTS (B0051027)438
CYLINDER HEAD (B0051039)439
CYLINDER HEAD (B0051048)441
VALVE MECHANCOVER (B0051055)443
ROCKER ARMS COVER (B0051064)444
LUBRICATION445
ADAPTER (B0061002)445
SEALING (B0061019)446
OIL SUCTION PIPE (B0061038)447
OIL PAN (B0061055)448
CLOSING COMPONENTS (B0061081)449
CLOSING COMPONENTS (B0061082)450
CLOSING COMPONENTS (B0061084)451
CLOSING COMPONENTS (B0061089)452
OIL COOLER BOX (B0061128)453
SPIN-ON FILTER (B0061151)454
SPIN-ON FILTER (B0061153)455
FUEL INJECTION SYSTEM456
FASTENINGS (B0071011)456
FASTENINGS (B0071014)457
FASTENINGS (B0071015)458
ADD-ON PARTS ENGINE (B0071019)459
HIGH PRESSURE PIPE (B0071025)460
HIGH PRESSURE PIPE (B0071030)461
FUEL INJECTOR (B0071044)462
FUEL FEED PUMP (B0071050)463
FUEL FILTER (B0071058)464
FUEL LINE (B0071078)465
FUEL LINE (B0071102)466
FUEL PUMP (B0071121)467
OVERFLOW OIL LINE (B0071125)468
OVERFLOW OIL LINE (B0071127)469
ROLLER TAPPET (B0071133)470
DISTRIBUTOR (B0071148)471
ENGINE FUEL PUMP (B0071175)472
COMMON RAIL (B0071210)473
MECHANICAL – ELECTRONIC GOVERNOR474
ELECTRONIC CONTROL UNIT – ENGINE (B0081021)474
CLOSING COMPONENTS (B0081038)475
COOLING476
FASTENINGS (B0091010)476
FASTENINGS (B0091019)477
FASTENINGS (B0091020)478
THERMOSTAT (B0091063)479
BELT STRETCHER (B0091067)480
COOLING WATER PIPE (B0091083)481
HEATER CONNECTION (B0091087)482
MANIFOLD (B0091103)483
MANIFOLD (B0091105)484
MANIFOLD (B0091107)485
FAN SUPPORT (B0091117)486
BELT STRETCHER (B0091137)487
CONNECTION (B0091146)488
V-BELT (B0091157)489
V-BELT (B0091169)490
V-GROOVED PULLEY (B0091177)491
INTAKE – EXHAUST MANIFOLDS492
EXHAUST PIPE (B0101008)492
FASTENINGS (B0101025)493
SEALING (B0101048)494
MANIFOLD (B0101084)495
CLOSING COMPONENTS (B0101109)496
GLOW PLUG (B0101121)497
GLOW PLUG (B0101122)498
CHARGED AIR MANIFOLD (B0101128)499
TURBOCHARGER500
TURBOCHARGER (B0111017)500
RETURN LINE (B0111047)501
OIL LUBRICATION PIPE (B0111076)502
CLOSING COMPONENTS (B0111085)503
CLOSING COMPONENTS (B0111086)504
Electrical accessories505
COVER PLATE (B0121004)505
FASTENINGS (B0121010)506
FASTENINGS (B0121023)507
IMPULSETRANSMITTER (B0121052)508
GENERATOR (B0121063)509
GENERATOR (B0121070)510
GENERATOR (B0121072)511
ENGINE ELECTRICAL SYSTEM (B0121092)512
STARTER (B0121127)513
STARTER (B0121133)514
ACCESSORIES (B0121145)515
ACCESSORIES (B0121151)516
ACCESSORIES (B0121162)517
ACCESSORIES (B0121163)518
ACCESSORIES (B0121164)519
ACCESSORIES (B0121166)520
ACCESSORIES (B0121181)521
ACCESSORIES (B0121182)522
ACCESSORIES (B0121185)523
DRIVING PARTS (B0121189)524
OIL PRESSURSWITCH (B0121194)525
OIL PRESSURSWITCH (B0121196)526
TEMPERTRANSMITTER (B0121222)527
Engine_accessories528
Index528
AGROTRON L720 -> 10010529
C0 – ENGINE ACCESSORIES529
RADIATORS – FANS529
ENGINE FAN (C0010 (1))529
BLOWER (C0010 (2))530
COOLING – COOLANT RADIATOR (C0011 (1))531
COOLING – COOLANT RADIATOR (C0012 (1))532
COOLING – COOLANT RADIATOR (C0012 (2))533
COOLING – EXPANSION TANK (C0013 (1))534
COOLING – EXPANSION TANK (C0013 (2))535
TANK – PARTS (001539424/20A)536
INTERCOOLER – AIR CLEANER537
INTERCOOLER (C0020 (1))537
AIR CLEANER (C0021 (1))538
AIR CLEANER (C0021 (2))539
AIR FILTER PARTS (242497130A)540
FUEL SYSTEM541
FUEL TANK (C0030 (1))541
FUEL TANK PIPES (C0031 (1))542
FUEL TANK PIPES (C0031 (2))543
TANK SUPPORTS (C0032 (1))544
TANK SUPPORTS (C0032 (2))545
TANK MOUNTING BRACKET (C0033 (1))546
FASTENERS FOR TANKSUPPORTS (C0034 (1))547
FUEL PRELIMINARY FILTER (C0035 (1))548
FUEL PRELIMINARY FILTER (C0035 (2))549
FUEL PRE-FILTER PIPES (C0036 (1))550
FUEL PRELIMINARY FILTER (C0037 (1))551
FUEL PRE-FILTER PIPES (C0038 (1))552
SCREW PLUG (001601514A)553
PRE-FILTER – COMPONENTS (243193000A)554
PRE-FILTER – COMPONENTS (243193000/10A)555
PREHEATING556
FUEL HEATER (C0040 (1))556
EXHAUST SILENCER557
EXHAUST SILENCER (C0060 (1))557
EXHAUST SILENCER (C0060 (2))559
AIR COMPRESSOR561
AIR COMPRESSOR (C0070 (1))561
COMPRESSOR-PARTS (044284084A)562
Front_axle563
Index563
AGROTRON L720 -> 10010565
F0 – FRONT AXLE565
FRONT SUPPORT565
FRONT SUPPORT (F0010 (1))565
FRONT SUPPORT (F0011 (1))566
FRONT CARRIER WITH SUSPENSION (F0012 (1))567
FRONT SUPPORT (F0013 (1))568
FRONT SUPPORT PACKAGE (F0014 (1))569
FRONT SUPPORT PACKAGE (F0014 (2))570
FRONT SUPPORT PACKAGE (F0014 (3))571
FRONT SUPPORT PACKAGE (F0015 (1))572
FRONT SUPPORT PACKAGE (F0015 (2))573
FRONT SUPPORT PACKAGE (F0016 (1))574
FRONT SUPPORT PACKAGE (F0017 (1))575
SUPPORTS (F0018 (1))576
SUPPORTS (F0019 (1))577
SUPPORTS (F00110 (1))578
4WD FRONT AXLE579
FRONT AXLE (F0030 (1))579
FRONT AXLE (F0031 (1))581
AIR BREATHER (F0032 (1))583
FRONT AXLE (F0033 (1))584
FRONT AXLE (F0034 (1))586
AIR BREATHER (F0035 (1))588
STEERING SENSOR SUPPORT (F0036 (1))589
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (001004894/10A)590
FRONT DIFFERENTIAL591
4WD – TRANSMISSION SHAFT (F0040 (1))591
4WD – TRANSMISSION SHAFT (F0041 (1))592
4WD – TRANSMISSION SHAFT (F0042 (3))593
4WD – TRANSMISSION SHAFT (F0043 (1))594
4WD – PROPELLER SHAFT CASING (F0044 (1))595
4WD – FLANGE (F0045 (1))596
DIFFERENTIAL (F0046 (1))597
DIFFERENTIAL (F0047 (1))599
4WD – FRONT DIFFERENTIAL LOCK- STANDARD SEALING (F0048 (1))601
BEVEL WHEEL GEAR (F0049 (1))602
BEVEL WHEEL GEAR (F00410 (1))603
STEERING CYLINDER604
ACTUATOR CYLINDER (F0050 (1))604
ACTUATOR CYLINDER (F0051 (1))605
CYLINDER PARTS (001040714A)606
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS607
FRONT REDUCTION UNIT AND DRIVE SHAFTS (F0060 (1))607
REDUCTION GEAR CROWN WHEEL (F0061 (1))608
REDUCTION GEAR CROWN WHEEL (F0062 (1))609
FRONT WHEEL HUB COVER (F0063 (1))610
FRONT BRAKES611
4WD – FRONT BRAKES (F0070 (1))611
4WD – FRONT BRAKES (F0071 (1))612
Front_lift613
Index613
AGROTRON L720 -> 10010614
N0 – FRONT LIFT614
LIFT ASSEMBLY614
FRONT HYDRAULIC POWER-LIFT (N0010 (1))614
FRONT HYDRAULIC POWER-LIFT (N0011 (1))615
FRONT HYDRAULIC POWER-LIFT – WITH SUSPENDED AXLE (N0012 (1))616
FRONT POWER LIFT – CONTROL CYLINDER (N0013 (1))617
LIFT PACKAGE WITHOUT PTO (N0014 (1))618
TOWING HITCH (001017023A)619
CYLINDER PARTS (001065024A)620
ADJUSTABLE LIFT ROD PARTS (001196673A)621
Front_pto622
Index622
AGROTRON L720 -> 10010623
M0 – FRONT PTO623
PTO INPUT SHAFT623
INPUT SHAFT (M0010 (1))623
FRONT PTO FLEXIBLE DRIVE COUPLING (M0011 (1))624
PTO INPUT SHAFT (M0012 (1))625
FRONT PTO COVER – PROTECTIONS626
FRONT PTO CASING (M0020 (1))626
FRONT PTO CASING (M0020 (2))627
TOP COVER FOR FRONT PTO CASING (M0021 (1))628
FRONT PTO FIXING COMPONENTS (M0022 (1))629
PTO SHAFT PROTECTOR FRONT (M0023 (1))630
GEARS AND CLUTCH631
PTO – HYDRAULIC CLUTCH (M0030 (1))631
PTO – HYDRAULIC CLUTCH (M0030 (2))632
PTO – HYDRAULIC CLUTCH (001668394A)633
PTO – HYDRAULIC CLUTCH (001668394/20A)634
HYDRAULIC SYSTEM635
FRONT PTO HYDRAULIC SYSTEM (M0040 (1))635
FRONT PTO HYDRAULIC SYSTEM (M0041 (1))636
FRONT PTO HYDRAULIC SYSTEM (M0042 (1))637
FRONT PTO FLANGE (M0043 (1))638
Hydraulic_and_pneumatic_system639
Index639
AGROTRON L720 -> 10010643
H0 – HYDRAULIC AND PNEUMATIC SYSTEM|643
HYDRAULIC SYSTEM643
HYDRAULIC PUMP CONTROL (H0010 (1))643
OIL TRANSFER PUMP ASSY (H0011 (1))644
HYDRAULIC SYSTEM – SUCTION LINE OIL LIFT PUMP (H0012 (1))645
SAC HYDRAULIC SYSTEM (H0013 (1))646
HYDRAULIC PUMP 225 cc dx/rh/re – BOSCH – (H0014 (1))647
SUCTION HYDRAULIC SYSTEM WITH 225 CC PUMP (H0015 (1))648
FRONT BRAKES LUBRICATION AND DIFFERENTIAL LOCK (H0016 (1))649
PTO BEARING LUBRICATION SYSTEM (H0017 (1))650
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H0018 (1))651
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H0018 (2))652
HYDRAULIC PUMPS COMMON SUCTION LINE (H0019 (1))653
PUMP AND OIL FILTER LOAD SENSING (H00110 (1))654
PUMP DELIVERY (H00111 (1))655
PUMP DELIVERY (H00112 (1))656
PUMP DELIVERY (H00113 (1))657
PUMP DELIVERY (H00113 (2))658
PUMP DELIVERY (H00114 (1))659
GEARBOX LUBRICATION HOSE (H00115 (1))660
GEARBOX LUBRICATION HOSE (H00115 (2))661
SHUTTLE LUBRICATION SYSTEM (H00116 (1))662
LUBRICATION OF THE REAR PTO (H00117 (1))663
LUBRICATION OF THE REAR PTO (H00117 (2))664
DELIVERY PIPE (H00118 (1))665
GEARBOX OIL COOLER PIPES (H00119 (1))666
GEARBOX OIL COOLER PIPES (H00119 (2))667
VALVE CASING ACCUMULATOR (H00120 (1))668
HYDRAULIC SYSTEM – OIL SUPPLY TO POWER SHUTTLE VALVES ASSY (H00121 (1))669
HYDRAULIC SYSTEM – OIL SUPPLY TO POWER SHUTTLE VALVES ASSY (H00121 (2))670
OIL FILTER (H00122 (1))671
OIL SUPPLY TO ACCOUSTIC FILTER (H00123 (1))672
OIL SUPPLY TO ACCOUSTIC FILTER (H00123 (2))673
FRONT SUSPENSION DELIVERY LINE (H00124 (1))674
OIL SUPPLY TO FRONT SUSPENSION AND POWER STEERING (H00125 (1))675
OIL SUPPLY TO FRONT SUSPENSION AND POWER STEERING (H00125 (2))676
PLUG (H00126 (1))677
POWER STEERING HYDRAULIC SYSTEM (H00127 (1))678
POWER STEERING HYDRAULIC SYSTEM (H00128 (1))679
OIL CONTROL VALVES HOUSING PIPES (H00129 (1))680
OIL CONTROL VALVES HOUSING PIPES (H00129 (2))681
FRONT DIFFERENTIAL LOCK PIPE (H00130 (1))682
FRONT DIFFERENTIAL LOCK PIPE (H00131 (1))683
OIL INTAKE FOR FRONT PTO (H00132 (1))684
OIL INTAKE FOR FRONT PTO (H00133 (1))685
CONNECTING PIPING (H00134 (1))686
SUPPLY TO LIFT CYLINDER (H00135 (1))687
VALVE PARTS (04450326A)688
DETAILS OF OIL FILTER (244194900/30A)689
HYDRAULIC PUMP PARTS (245393000A)690
HYDRAULIC PUMP PARTS (245396400A)691
PUMP-COMPONENTS (245398400/30A)692
PUMP-COMPONENTS (245398400/30B)693
PUMP-COMPONENTS (245398400/30C)694
PUMP-COMPONENTS (245398400/30D)695
STEERING SYSTEM696
HYDROSTATIC STEERING CONTROL VALVE (H0020 (1))696
HYDROSTATIC STEERING CONTROL VALVE (H0021 (1))697
PIPES FOR HYDROSTATIC STEERING (H0022 (1))698
PIPES FOR HYDROSTATIC STEERING (H0023 (1))699
PIPES FOR HYDROSTATIC STEERING (H0024 (1))700
HYDRAULIC STEERING GEAR (04450329A)701
TRANSMISSION – PTO COOLERS702
GEARBOX OIL COOLER (H0030 (1))702
FRONT AXLE HYDRAULIC SUSPENSION703
HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0040 (1))703
FRONT CARRIER SUSPENSION SYSTEM (H0041 (1))704
FRONT CARRIER SUSPENSION SYSTEM (H0042 (1))705
FRONT CARRIER SUSPENSION SYSTEM (H0043 (1))706
FRONT CARRIER SUSPENSION SYSTEM (H0044 (1))707
FRONT CARRIER SUSPENSION SYSTEM (H0045 (1))708
CYLINDER PARTS (001130584A)709
RELAY VALVE (001358340A)710
FRONT LIFT711
FRONT LIFT – HYDRAULIC SYSTEM (H0050 (1))711
FRONT LIFT – HYDRAULIC SYSTEM (H0050 (2))712
FRONT LIFT – HYDRAULIC SYSTEM (H0051 (1))713
FRONT LIFT – HYDRAULIC SYSTEM (H0052 (1))714
FRONT LIFT – HYDRAULIC SYSTEM (H0052 (2))715
PRESSURE CONTROL VALVE (000920384/10A)717
FRONT REMOTE CONTROL VALVES718
HOSES FOR QUICK ACTION FRONT COUPLERS (H0060 (1))718
HOSES FOR QUICK ACTION FRONT COUPLERS (H0060 (2))719
FRONT QUICK COUPLERS (H0061 (1))720
ENGAGEMENT (001098320A)721
REAR REMOTE CONTROL VALVES722
8-WAY AUXILIARY DISTRIBUTOR (H0070 (1))722
8-WAY AUXILIARY DISTRIBUTOR (H0071 (1))723
8-WAY AUXILIARY DISTRIBUTOR (H0071 (2))724
8-WAY AUXILIARY DISTRIBUTOR (H0072 (1))725
8-WAY AUXILIARY SERVICE CONTROL VALVE – ELECTRONIC CONTROL (H0073 (1))726
8-WAY AUXILIARY SERVICE CONTROL VALVE – ELECTRONIC CONTROL (H0073 (2))727
8-WAY AUXILIARY SERVICE CONTROL VALVE – ELECTRONIC CONTROL (H0074 (1))728
CONNECTING PLATE (H0075 (1))729
8-WAY CONTROL VALVES – OIL RECOVERY (H0076 (1))730
FREE OIL RETURN (H0077 (1))731
8-WAY QUICK COUPLERS (H0078 (1))732
8-WAY QUICK COUPLERS (H0079 (1))733
ENGAGEMENT (001084730A)734
ENGAGEMENT (001098320A)735
ENGAGEMENT (04412157/10A)736
RELAY VALVE (04455074A)737
DISTRIBUTOR PARTS (237291000/10A)738
DISTRIBUTOR (237291100/10A)739
DISTRIBUTOR PARTS (237291300A)740
DISTRIBUTOR PARTS (237291400A)741
DISTRIBUTOR PARTS (237291500/10A)742
BRAKING SYSTEM AND PNEUMATIC SYSTEM|743
FRONT BRAKING SYSTEM (H0090 (1))743
FRONT BRAKING SYSTEM (H0090 (2))744
FRONT BRAKING SYSTEM (H0091 (1))745
VALVE FOR FRONT BRAKES (H0092 (1))746
FRONT BRAKE PIPES (H0093 (1))747
FRONT BRAKE PIPES (H0094 (1))748
BRAKING SYSTEM (H0095 (1))749
BLAKES BLOCK (H0096 (1))750
BRAKING SYSTEM (H0097 (1))751
BRAKING SYSTEM (H0097 (2))752
REAR BRAKING SYSTEM (H0098 (1))753
BRAKES LIMITING VALVE (H0099 (1))754
AIR BRAKING (H00910 (1))755
AIR BRAKING (H00910 (2))756
AIR BRAKING (H00910 (3))757
AIR BRAKING (H00911 (1))758
AIR BRAKING (H00911 (2))759
AIR BRAKING (H00911 (3))760
AIR BRAKING (H00912 (2))762
AIR BRAKING (H00913 (2))763
AIR BRAKING (H00914 (1))764
COMPRESSED-AIR UNIT (H00915 (1))765
PRESSURE CONTROL VALVE (H00916 (1))766
PRESSURE CONTROL VALVE (H00916 (2))767
AIR-PRESSURE GAUGE (H00917 (1))768
AIR-PRESSURE GAUGE (H00918 (1))769
HYDRAULIC BREAKING FOR TRAILER – ITALY – (H00919 (1))770
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (H00920 (1))771
HYDRAULIC BREAKING FOR TRAILER (H00921 (1))772
HYDRAULIC BREAKING FOR TRAILER (H00921 (2))773
COUPLING PARTS CUNA (001045824A)774
TRAILER SOCKET-OUTLET VALVE (001217124A)775
VALVE PARTS (001233810A)776
TRAILER BRAKE VALVE (001244964A)777
TRAILER BRAKE VALVE (04453964/10A)778
TRAILER BRAKE VALVE (237297270A)779
ELECTROHYDRAULICS780
POWER SHIFT VALVES ASSY (H0100 (1))780
POWER SHUTTLE VALVES ASSY (H0101 (1))781
SOLENOID VALVE FOR SHUTTLE LUBRICATION (H0102 (1))782
OIL FLOW CONTROL VALVE CASING (H0103 (1))783
RANGE GEAR SOLENOID VALVES (H0104 (1))784
SOLENOID VALVE (237195100/10A)785
SOLENOID VALVE (237292700/50A)786
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/20A)787
Rear_axle788
Index788
AGROTRON L720 -> 10010789
E0 – REAR AXLE789
REAR AXLE789
REAR AXLE (E0010 (1))789
REAR AXLE – MOUNTINGS (E0011 (1))790
REAR DIFFERENTIAL / HALF-SHAFTS791
EXTENDIBLE AXLE SHAFT (E0020 (1))791
REAR HALF-SHAFTS WITH FLANGE (E0021 (1))792
REAR FINAL DRIVES (E0022 (1))793
REAR FINAL DRIVES (E0022 (2))794
REAR INTERNAL HALF-SHAFT AND FINAL DRIVE RING GEAR (E0023 (1))795
DIFFERENTIAL (E0024 (1))796
REAR DIFFERENTIAL (E0025 (1))797
REAR BRAKES798
REAR BRAKE HOUSINGS (E0030 (1))798
REAR BRAKE HOUSINGS (E0030 (2))799
REAR BRAKES (E0031 (1))800
REAR BRAKES (E0031 (2))801
REAR BRAKES (E0032 (1))802
REAR BRAKES (E0032 (2))803
REAR BRAKES (E0032 (3))804
REAR BRAKES sx/lh/li (001617764A)805
REAR BRAKES sx/lh/li (001617764/20A)806
REAR BRAKES dx/rh/re (001617774A)807
REAR BRAKES dx/rh/re (001617774/20A)808
Rear_lift809
Index809
AGROTRON L720 -> 10010810
R0 – REAR LIFT810
LIFT COVER810
POWER-LIFT CASE (R0010 (1))810
LIFT ASSEMBLY811
RAISE (R0020 (1))811
HYDRAULIC CYLINDERS Ø mm 70 (R0021 (1))812
CYLINDER PARTS (091233314/30A)813
SENSOR814
SENSITIVE ELEMENTS (R0050 (1))814
SENSITIVE ELEMENTS (R0051 (1))815
THREE-POINT LINKAGE – LINK ARMS816
THREE POINT LINKAGE (R0060 (1))816
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD – SX/LH/LI (R0061 (2))817
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD DX/RH/RE (R0062 (2))818
3-POINT LINKAGE – ADJUSTABLE HYDRAULIC TIE ROD (R0063 (1))819
3 POINT HITCH (R0064 (1))820
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD – SX/LH/LI (R0065 (1))821
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD – DX/RH/RE (R0066 (1))822
3-POINT LINKAGE – ADJUSTABLE HYDRAULIC TIE ROD (R0067 (1))823
THREE-POINT COUPLING (R0068 (1))824
3-POINT HITCH WITH HYDRAULIC LIFT ROD (R0069 (1))825
THREE-POINT HITCH – MANUAL LATERAL STABILIZERS (R00610 (2))826
THREE-POINT HITCH – AUTOMATIC LATERAL STABILIZERS (R00611 (2))827
THREE-POINT HITCH – AUTOMATIC LATERAL STABILIZERS (R00612 (2))828
TOWING BAR (R00613 (1))829
TOWING BAR (R00614 (1))830
MANUAL LATERAL STABILIZERS (001052224/60A)831
CYLINDER PARTS (001396104A)832
CYLINDER PARTS (001396154A)833
LINKAGE (001414153A)834
TOWING HITCH cat 3 (001414213A)835
STABILIZER (001541914A)836
STABILIZER (001541954A)837
CYLINDER PARTS (237490020A)838
Transmission839
Index839
AGROTRON L720 -> 10010841
D0 – TRANSMISSION841
CLUTCH HOUSING841
JUNCTION CASE (D0020 (1))841
JUNCTION CASE (D0020 (2))842
FIXING PARTS – MOTOR – GEARS (D0021 (1))843
HYDRAULIC SHUTTLE ASSEMBLY844
HYDRAULIC SHUTTLE (D0030 (1))844
HYDRAULIC SHUTTLE (D0031 (1))845
HYDRAULIC SHUTTLE (D0031 (2))846
HYDRAULIC SHUTTLE (D0032 (1))847
HYDRAULIC SHUTTLE (D0032 (2))848
HML – HI-LO – SHML849
H-M-L UNIT (D0040 (1))849
H-M-L UNIT (D0040 (2))850
H-M-L UNIT (D0041 (1))852
GEARBOX INPUT SHAFT853
FLEXIBLE COUPLINGS (D0050 (1))853
DAMPING COUPLING (D0051 (1))854
PTO INPUT SHAFT855
PTO INPUT SHAFT (D0060 (1))855
MAIN SHAFT856
MAIN SHAFT (D0070 (1))856
MAIN SHAFT (D0071 (1))857
SECONDARY SHAFT858
TRANSMISSION SHAFT (D0080 (1))858
TRANSMISSION SHAFT (D0081 (1))859
GEARBOX860
GEARBOX FRONT (D0090 (1))860
GEARBOX FRONT (D0090 (2))861
REAR GEARBOX CASE (D0091 (1))862
REAR GEARBOX CASE (D0091 (2))863
GEARBOX UPPER COVER (D0092 (1))864
GEARBOX LOWER COVER (D0093 (1))865
INTERNAL AND EXTERNAL GEARBOX CONTROLS866
SPEED RANGE REDUCTION GEAR UNIT (D0100 (1))866
SUPER REDUCTION GEAR UNIT (D0101 (1))867
SUPER REDUCTION GEAR UNIT (D0101 (2))868
LOW SPEED RANGES869
SPEED RANGE REDUCTION GEAR UNIT (D0110 (1))869
CREEPER PLANET CARRIER (D0111 (1))870
BEVEL WHEEL GEAR (D0112 (1))871
HYDRAULIC REAR PTO CLUTCH872
PTO – HYDRAULIC CLUTCH (D0120 (1))872
PTO – CLUTCH-PARTS (001602704A)873
PTO/GROUNDPSPEED DRIVE874
PTO – POWER TAKE OFF (D0140 (1))874
PTO – 2-SPEED WITH INSERTED END SHAFT 750 – 1000 (D0141 (1))875
PTO – 2-SPEED WITH INSERTED END SHAFT 750 – 1000 (D0141 (2))876
PTO SHAFT PROTECTOR REAR (D0142 (1))877
PTO SHAFT PROTECTOR REAR (D0143 (1))878
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE879
4WD-PTO (D0150 (1))879
4WD-PTO (D0150 (2))880
4WD-PTO (D0151 (1))881
Wheels882
Index882
AGROTRON L720 -> 10010883
S0 – WHEELS883
FRONT WHEEL BOLTS883
FRONT WHEEL MOUNTING (S0010 (1))883
REAR WHEEL BOLTS884
REAR WHEEL BOLTS (S0020 (1))884
WHEELS885
WHEELS 480/70R30″ (S0040 (1))885
WHEELS 540/65R30″ (S0041 (1))886
WHEELS 600/70R30″ (S0042 (1))887
WHEELS 420/85R34(169R34) (S0043 (1))888
WHEELS 480/70R34″ (S0044 (1))889
WHEELS 540/65R34″ (S0045 (1))890
WHEELS 540/65R34″ (S0046 (1))891
WHEELS 650/65R38″ (S0047 (1))892
WHEELS 710/70R38″ (S0048 (1))893
WHEELS 710/70R38″ (S0049 (1))894
WHEELS 208R-42″ (S00410 (1))895
WHEELS 580/70R-42″ (S00411 (1))896
WHEELS 650/65R-42″ (S00412 (1))897
WHEELS 650/65R-42″ (S00413 (1))898
WHEELS 650/65R-42″ (S00414 (1))899

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
