Deutz Fahr AGROTRON L720 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr AGROTRON L720 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr AGROTRON L720 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 708
Downloadable : Yes
File Type : PDF
Size: 34.5 MB

TABLE OF CONTENTS:

Deutz Fahr AGROTRON L720 Parts Catalog Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
AGROTRON L720 2
V0 – BALLAST, TOWING HITCHES 2
FRONT HITCHES 2
FRONT TOWING HITCH (V0010 (1)) 2
DRAWBAR COUPLING (V0011 (1)) 3
REAR HITCHES 4
REAR GEARBOX BRACKETS (V0020 (1)) 4
REAR TOWING HITCH BRACKET (V0021 (1)) 5
REAR TOWING HITCH BRACKET PITON FIX (V0022 (1)) 6
REAR TOWING HITCH CEE (V0023 (2)) 7
DRAWBAR COUPLING (V0024 (1)) 8
REAR TOWING HITCH (V0025 (1)) 9
DRAWBAR COUPLING AUTOM Ø 38 (V0026 (2)) 10
REAR TOWING HITCH CAT ” C ” (V0027 (2)) 11
REAR TOWING HITCH CAT ” D2 ” (V0028 (1)) 12
REAR TOWING HITCH CAT: “D3” (V0029 (2)) 13
THREADED INSERTS FOR PICK-UP-HITCH LEVER (V00210 (1)) 14
PICK-UP-HITCH (V00211 (1)) 15
TOWING BAR (V00212 (1)) 16
TOWING BAR (V00213 (1)) 17
TOWING BAR (V00214 (1)) 18
PICK-UP-HITCH (001273034A) 19
REAR TOWING HITCH CAT: “C” (001444503A) 21
DRAWBAR COUPLING (001444533/10A) 22
DRAWBAR COUPLING (001444543/20A) 23
DRAWBAR COUPLING (001444553A) 24
DRAWBAR COUPLING D2 (001444613A) 25
CHASSIS (001482054/10A) 26
DRAWBAR COUPLING (001482063A) 27
CHASSIS (001482073A) 28
SLIDE (001482223A) 29
FRONT BALLAST WEIGHTS 30
FRONT BALLAST 320 Kg (V0030 (1)) 30
FRONT WEIGHT CARRIER (V0032 (1)) 31
FRONT BALLAST 1000 Kg (V0035 (1)) 32
FRONT BALLAST 1000 Kg (V0036 (1)) 33
FRONT BALLAST 1000 Kg (V0036 (2)) 34
Bodywork_Cab 35
Index 35
AGROTRON L720 39
G0 – BODYWORK – CAB 39
HOOD – SIDE PANELS – SUPPORTS 39
BONNET – FRONT PORTION (G0010 (1)) 39
BONNET – SIDES (G0012 (1)) 40
HOOD – LEFT SIDE PANEL (G0013 (1)) 41
HOOD – RIGHT SIDE PANEL (G0014 (1)) 42
BONNET – TOP PORTION (G0015 (1)) 43
BONNET FRONT FRAME (G00125 (1)) 44
BONNET REAR FRAME (G00126 (1)) 45
CONNECTION FRAME (G00127 (1)) 46
CABLE CONDUIT (G00128 (1)) 47
CABLE CONDUIT (G00129 (1)) 48
BELT GUARDS (G00130 (1)) 49
BATTERY SUPPORT (G00131 (1)) 50
TANK SUPPORTS (G00132 (1)) 51
TANK MOUNTING BRACKET (G00133 (1)) 52
WIRING SUPPORT BRACKETS (G00134 (1)) 53
GUARD FOR ELECTRO VALVES (G00135 (1)) 54
LIGHT SUPPORT (G00136 (1)) 55
LETTERING 56
PRODUCT PLATE – FRONT (G0020 (1)) 56
PRODUCT PLATE sx/lh/li (G0025 (1)) 57
PRODUCT PLATE dx/rh/re (G0026 (1)) 58
PRODUCT PLATE – REAR (G00211 (1)) 59
STEERING WHEEL PRODUCT IDENTIFICATION PLATE (G00215 (1)) 60
SPEED LABEL – 40 KM/H – REFLEX (G00218 (1)) 61
SPEED LABEL – 40 KM/H (G00219 (1)) 62
WARNING PLATES (G00220 (2)) 63
WARNING PLATES (G00220 (3)) 64
PLATES (G00221 (1)) 65
SPEED DATA PLATES (G00223 (1)) 66
INFORMATION PLATE (G00224 (1)) 67
START ENABLE PLATE (G00225 (1)) 68
MODEL PLATE (G00226 (1)) 69
FUSEBOX IDENTIFICATION PLATE (G00227 (1)) 70
PTO – CAP 750 -1000 (G00228 (1)) 71
IDENTIFICATION PLATES FOR FRONT SOCKETS (G00229 (1)) 72
PTO DATA PLATE (G00230 (1)) 73
SOLENOID VALVE IDENTIFICATION PLATES (G00231 (1)) 74
SOLENOID VALVE IDENTIFICATION PLATES (G00233 (1)) 75
CREEPER IDENTIFICATION PLATE (G00234 (1)) 76
PLATES- FOR 6-WAY DISTRIBUTOR (G00235 (1)) 77
IDENTIFICATION PLATES – FOR 8-WAY CONTROL VALVE (G00237 (1)) 78
IDENTIFICATION PLATES – FOR 8-WAY CONTROL VALVE (G00239 (1)) 79
DRAWBAR IDENTIFICATION PLATE (G00241 (1)) 80
DRAWBAR IDENTIFICATION PLATE (G00242 (1)) 81
CAB STRUCTURE – PLATFORM -SUSPENSION 82
SINGLE-STRUCTURE CAB (G0030 (1)) 82
COVER (G0031 (1)) 83
LADDER (G0032 (1)) 84
CAB BEARING (G0033 (1)) 85
PNEUMATIC CAB SUSPENSION (G0034 (1)) 86
PNEUMATIC CAB SUSPENSION (G0035 (1)) 87
PNEUMATIC CAB SUSPENSION (G0036 (1)) 88
AIR SUSPENSION PACKAGE (G0037 (1)) 89
AIR SUPENSION TANK (G0038 (1)) 90
FENDERS – FOOTSTEPS – EXTENSIONS 91
SELF-ADJUSTING FRONT FENDERS – MM 470 (G0041 (1)) 91
SELF-ADJUSTING FRONT FENDERS – MM 520 (G0043 (1)) 92
SELF-ADJUSTING FRONT FENDERS – MM 520 (G0044 (1)) 93
SELF-ADJUSTING FRONT FENDERS – MM 580 (G0046 (1)) 94
SELF-ADJUSTING FRONT FENDERS – MM 580 (G0047 (1)) 95
REAR MUDGUARDS SX/LH/LI – DX/RH/RE (G0048 (1)) 96
MUDGUARDS EXTENSIONS mm 120 (G00411 (1)) 97
MUDGUARDS EXTENSIONS mm 240 (G00412 (1)) 98
FRONT FENDER SUPPORT dx/rh/re (001498684A) 99
FRONT FENDER SUPPORT sx/lh/li (001498694A)100
FRONT FENDER SUPPORT dx/rh/re (001573914A)101
FRONT FENDER SUPPORT sx/lh/li (001573944A)102
DOORS – WINDOWS – WIPERS103
GLASSES AND SEALS (G0050 (1))103
CAB DOOR RIGHT/LEFT (G0051 (1))104
CAB DOOR RIGHT/LEFT (G0052 (1))105
CAB DOOR RIGHT/LEFT (G0052 (2))106
GRAB HANDLE SX/LH/LI – DX/RH/RE (G0053 (1))107
SIDE PLATE RIGHT/LEFT (G0056 (1))108
REAR WINDOW (G0057 (1))109
HANDLE REAR WINDOW (G0058 (1))110
KNOCKOUT WINDOW REAR (G0059 (1))111
SCREEN WIPER FRONT (G00510 (1))112
SCREEN WIPER REAR (G00511 (1))113
WINDSHIELD WIPER SYSTEM (G00512 (1))114
WATER TANK (G00513 (1))115
WATER TANK (G00514 (1))116
WATER TANK (001142074/10A)117
WINDSCREEN WIPER BLADE (001155294A)118
DOOR HANDLE – CAB DOOR RIGHT/LEFT (001302174A)119
INTERIOR TRIM120
CONTROL CONSOLE sx/lh/li (G0060 (1))120
CONTROL CONSOLE sx/lh/li (G0061 (1))121
INTERNAL CAB LININGS (G0062 (1))122
CONTROL CONSOLE dx/rh/re (G0063 (1))123
RIGHT-HAND CONSOLE PARTS KIT (G0064 (1))124
PLUGS (G0065 (1))125
CAB SOUNDPROOF PANELS (G0066 (1))126
INTERNAL CAB LININGS (G0067 (1))127
INTERNAL CAB LININGS (G0068 (1))128
INTERNAL CAB LININGS (G0068 (2))129
CONSOLE AND AIR DUCT (G0069 (1))130
PEDAL SUPPORT (G00610 (1))131
CONTROL VALVE LEVER SUPPORT (G00611 (1))132
CONTROL VALVE LEVER SUPPORT (G00612 (1))133
CAB INTERIOR TRIM (G00613 (1))134
SUN BLIND (G00614 (1))135
EXTERIOR TRIM – ROOF136
REARVIEW MIRROR AND FILTERS (G0070 (1))136
CARBON FILTER (G0071 (1))137
UPRIGHT COVER SX/LH/LI – DX/RH/RE (G0072 (1))138
FLASHING LIGHT SUPPORT (G0075 (1))139
ROOF WITH SKYLIGHT (G0076 (1))140
ROOF – SKYLIGHT (G0077 (1))141
REARVIEW MIRROR (001243924A)142
REARVIEW MIRROR (001243934A)143
SEATS144
DRIVER’S SEAT (G0080 (2))144
HEAD REST (G0081 (1))145
SEAT SUPPORT (G0084 (1))146
SAFETY BELT (G0085 (1))147
SEAT FOR 2ND OPERATOR (G0086 (1))148
SEAT-COMPONENTS (001427074/10A)149
SEAT-COMPONENTS (001427074/10B)151
HEATING AND AIR CONDITIONING153
MANUAL CLIMATE CONTROL SYSTEM (G0090 (2))153
HEATING – PIPES (G0092 (1))154
CONDENSER, FILTER AND FANS (G0093 (1))155
PIPING (G0094 (1))156
AIR COMPRESSOR (G0095 (1))157
AIR COMPRESSOR (G0095 (2))158
SPIN-ON FILTER (000896044/10A)159
ENGAGEMENT (000972024/20A)160
ENGAGEMENT (000972034/20A)161
AIR CONDITIONER PARTS (001091394/40A)162
COMPRESSOR-PARTS (001103234A)164
COMPRESSOR-PARTS (001103234/10A)165
MECHANICAL CLUTCH CONTROLS166
CLUTCH CONTROL (G0100 (1))166
MECHANICAL BRAKE CONTROLS167
BRAKE CONTROLS (G0110 (1))167
HAND BRAKE (G0111 (1))168
BRACKET FOR HANDBRAKE (G0113 (1))169
BRAKE AND CLUTCH FLUID RESERVOIR (G0114 (1))170
HANDBRAKE SUPPORT FOR TRAILER (G0115 (1))171
AIR TRAILER BRAKING SYSTEM TIE ROD (G0116 (1))172
AIR BRAKING SYSTEM PACKAGE (G0117 (1))173
HYDRAULIC TRAILER BRAKING SYSTEM TIE ROD (G0118 (1))174
HYDRAULIC TRAILER BRAKING PARTS KIT (G0119 (1))175
MECHANICAL – ELECTRONIC THROTTLE CONTROLS176
CONTROL PEDAL FOR ELECTRONIC THROTTLE (G0120 (1))176
STEERING CONTROLS177
STEERING WHEEL (G0130 (1))177
STEERING COLUMN (G0133 (2))178
STEERING COLUMN (G0133 (3))179
STEERING COLUMN (G0135 (1))180
STEERING COLUMN (001487534A)181
STEERING COLUMN (001487534/10A)182
MECHANICAL GEARSHIFT CONTROLS183
CREEPER – CONTROLS (G0140 (1))183
PTO CONTROLS184
PTO SHAFT DRIVE (G0160 (1))184
REMOTE VALVE CONTROLS185
6 WAY SPOOL VALVES CONTROL (G0180 (1))185
CONTROL FOR 8-WAY CONTROL VALVE (G0182 (1))186
CONTROL FOR 8-WAY CONTROL VALVE (G0184 (1))187
HAND LEVER (001162554A)188
ACCESSORIES189
SUN BLIND (G0190 (1))189
DIGITAL CLOCK AND RADIO ANTENNA (G0191 (1))190
CHOCK (G0192 (1))191
LICENCE PLATE HOLDER (G0193 (1))192
METAL TOOLBOX (G0194 (1))193
LUBRICATOR (G0195 (1))194
PARTS FOR SUNSHADE (001162844A)195
Electrical_system196
Index196
AGROTRON L720199
L0 – ELECTRIC AL SYSTEM199
BATTERY – ALTERNATOR199
BATTERY 12V 180Ah 800A (L0010 (1))199
WIRING LOOMS200
ELECTRICAL EQUIPMENT FRONT (L0020 (1))200
WIRING FOR HEADLIGHTS IN BASSO (L0021 (1))201
ELECTR EQUIPMENT – SPRUNG FRONT AXLE (L0022 (1))202
ELECTRIC LEAD FOR PTO (L0023 (1))203
ENGINE INTERFACE WIRING (L0024 (1))204
CAB ELECTRICAL SYSTEM (L0026 (1))205
ELECTRIC WIRING UNDER ROOF (L0027 (1))206
ROTATING BEACON WIRING (L0028 (1))207
REAR WIRING (L0029 (1))208
WIRING FOR REAR LIGHTS (L00210 (1))209
WORKLIGHT SWITCHES RELAY (L00211 (1))210
COOLANT TANK ELECTRIC CABLE (L00212 (1))211
WIRING FOR AIR BRAKING (L00213 (1))212
WIRING FOR AIR BRAKING (L00214 (1))213
WIRING FOR HYDRAULIC TRAILER BRAKING (L00215 (1))214
ELECTRICAL SYSTEM (001087114/30A)215
PARTS FOR ELECTRICAL SYSTEM (001344624/10A)216
ELECTRICAL LEADS (001525354A)217
ECUs218
TRANSMISSION CONTROL UNIT (L0030 (1))218
CONTROL UNIT HPSA (L0031 (1))219
SAFETY CONTROL UNIT (L0032 (1))220
SENSORS – POTENTIOMETERS – ENABLING SWITCHES221
FRONT SUSPENSION POSITION SENSOR (L0040 (1))221
DOOR SWITCH (L0041 (1))222
CLUTCH AND BRAKE LIGHT SWITCHES (L0042 (1))223
SWITCH – HAND BRAKE (L0043 (1))224
CLUTCH SENSOR (L0044 (1))225
ELECTRONIC ACCELERATOR CONTROL SENSOR (L0045 (1))226
SBA SENSOR (L0046 (1))227
PRESSURE SWITCH FOR AIR CLEANER CLOGGED WARNING LIGHT (L0047 (1))228
RADAR (L0048 (1))229
RADAR (L0049 (1))230
SPEED SENSOR (L00410 (1))231
RANGE GEAR POTENTIOMETER (L00411 (1))232
GEARBOX OIL PRESSURE SWITCH (L00412 (1))233
OIL PRESSURSWITCH (L00414 (1))234
PRESSURE SWITCH / OIL TEMPERATURE SENSOR (L00416 (1))235
OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L00417 (1))236
OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L00418 (1))237
PRESSURE SWITCH FOR AIR BRAKING SYSTEM (L00419 (1))238
AIR BRAKING SYSTEM PRESSURE SWITCH (L00420 (1))239
SWITCH FOR 2-SPEED PTO WITH INSERTED END SHAFTS 750 – 1000 (L00421 (1))240
REAR LIFT POSITION SENSOR (L00422 (1))241
INSTRUMENT PANEL242
INSTRUMENTATION (L0050 (1))242
DASHBOARD BOX (283392350/50A)243
MULTIFUNCTION ARMREST244
MULTIFUNCTION CONTROL UNIT (L0060 (1))244
MULTIFUNCTION CONTROL UNIT (L0061 (1))245
MULTIFUNCTION CONTROL UNIT (001331704/30A)246
MULTIFUNCTION CONTROL UNIT (001331714/20A)247
ELECTRICAL CONTROLS – PUSHBUTTONS248
STEERING COLUMN SWITCH UNIT – REVERSING GEAR UNIT CONTROL (L0071 (1))248
IGNITION BLOCK (L0072 (1))249
IGNITION BLOCK (L0072 (2))250
CIGAR LIGHTER (L0073 (1))251
AIR CONDITIONER CONTROLS UNIT (L0074 (1))252
SWITCHES (L0075 (1))253
SWITCHES (L0076 (1))254
SWITCH FOR FRONT AXLE SUSPENSION (L0077 (1))255
SWITCH – WORKING SPOTLIGHT FRONT (L0078 (1))256
REAR WINDOW WIPER SWITCH (L0079 (1))257
SWITCHES (L00710 (1))258
SWITCHES (L00711 (2))259
SWITCHES (L00712 (1))260
AIR CONDITIONER PARTS (001157934A)261
SHUTTLE LEVER (001270764A)262
LIGHTING AND SIGNALLING263
FRONT LIGHTS – FOR RIGHT-HAND DRIVE (L0080 (1))263
FRONT LIGHTS – FOR LEFT-HAND DRIVE (L0081 (1))264
WORKING SPOTLIGHT FRONT (L0082 (1))265
FRONT LIGHTS (L0083 (1))266
FRONT LIGHTS (L0084 (1))267
HORN (L0085 (1))268
WORKING SPOTLIGHT FRONT/REAR (L0086 (1))269
WORKING SPOTLIGHT FRONT BOTTOM (L0088 (1))270
FLASHING POS LIGHT (L0089 (1))271
SIDELIGHT, DIRECTION INDICATOR AND REFLECTORS (L00810 (1))272
INTERIOR LIGHT (L00811 (1))273
WARNING BEACON (L00812 (1))274
REAR LIGHTS / REFLECTORS (L00813 (1))275
LICENCE PLATE LIGHT (L00814 (1))276
RETROREFLECTOR (L00815 (1))277
HEADLAMP COMPONENTS (000967584/10A)278
HEADLAMP COMPONENTS (044119204A)279
HEADLAMP COMPONENTS (044119214A)280
HEADLAMP COMPONENTS (044140874A)281
HEADLAMP COMPONENTS (044140884A)282
HEADLAMP COMPONENTS (044280894/10A)283
HEADLAMP COMPONENTS (044280904/10A)284
HEADLAMP COMPONENTS (04450666A)285
HEADLAMP COMPONENTS (280292400/10A)286
HEADLAMP COMPONENTS (280390140A)287
HEADLAMP COMPONENTS (280390300/10A)288
HEADLAMP COMPONENTS (280391200A)289
HEADLAMP COMPONENTS (280391300A)290
HEADLAMP COMPONENTS (280593100A)291
HEADLAMP COMPONENTS (280593200/20A)292
ACCESSORIES293
LOUDSPEAKERS (L0090 (1))293
Engine294
Index294
AGROTRON L720298
B0 – ENGINE298
GENERAL298
DEUTZ ENGINE (B0000 (1))298
CYLINDER BLOCK299
FASTENINGS (B0011006)299
GASKET SET (B0011026)300
CRANKCASE BREATHER (B0011052)301
CRANKCASE (B0011070)302
OIL FILLER NECK (B0011087)303
PLUG (B0011113)304
FRONT COVER (B0011116)305
CLOSING COMPONENTS (B0011125)306
CLOSING COMPONENTS (B0011126)307
ACCESSORIES (B0011134)308
ACCESSORIES (B0011135)309
ACCESSORIES (B0011136)310
OIL PRESSURSWITCH (B0011141)311
FILLER CAP (B0011145)312
PISTON COOLNOZZLE (B0011161)313
CRANKSHAFT314
FASTENINGS (B0021002)314
CRANKSHAFT (B0021042)315
VIBRATION DAMPER (B0021059)316
FLYWHEEL (B0021064)317
PLUG (B0021077)318
ACCESSORIES (B0021079)319
CYLINDERS – PISTONS – CONNECTING RODS320
PISTON (B0031008)320
CONNECTING ROD (B0031017)321
TIMING322
FASTENINGS (B0041010)322
FASTENINGS (B0041011)323
FASTENINGS (B0041013)324
BUSH (B0041023)325
ROCKER ARM BRACKET (B0041030)326
ROCKER ARM BRACKET (B0041031)327
ROCKER ARM BRACKET (B0041032)328
ROCKER ARM BRACKET (B0041044)329
ROCKER ARM BRACKET (B0041045)330
ROCKER ARM BRACKET (B0041046)331
CAMSHAFT (B0041067)332
VALVE DRIVE (B0041090)333
GEARCASE (B0041110)334
CYLINDER HEAD335
FASTENINGS (B0051008)335
SEALING (B0051012)336
ENGINE MOUNTING (B0051015)337
CLOSING COMPONENTS (B0051024)338
CLOSING COMPONENTS (B0051027)339
CYLINDER HEAD (B0051039)340
ROCKER ARMS COVER (B0051062)342
ROCKER ARMS COVER (B0051064)343
LUBRICATION344
ADAPTER (B0061002)344
SEALING (B0061019)345
OIL SUCTION PIPE (B0061038)346
OIL PAN (B0061055)347
CLOSING COMPONENTS (B0061081)348
CLOSING COMPONENTS (B0061082)349
CLOSING COMPONENTS (B0061084)350
CLOSING COMPONENTS (B0061089)351
OIL COOLER BOX (B0061128)352
OIL COOLER BOX (B0061129)353
SPIN-ON FILTER (B0061151)354
FUEL INJECTION SYSTEM355
FASTENINGS (B0071011)355
FASTENINGS (B0071014)356
FASTENINGS (B0071015)357
ADD-ON PARTS ENGINE (B0071019)358
HIGH PRESSURE PIPE (B0071025)359
FUEL INJECTOR (B0071044)360
FUEL FEED PUMP (B0071050)361
FUEL FEED PUMP (B0071051)362
FUEL FILTER (B0071058)363
FUEL LINE (B0071077)364
FUEL LINE (B0071078)365
FUEL LINE (B0071102)366
FUEL PUMP (B0071120)367
FUEL PUMP (B0071121)368
OVERFLOW OIL LINE (B0071125)369
OVERFLOW OIL LINE (B0071127)370
ROLLER TAPPET (B0071133)371
DISTRIBUTOR (B0071145)372
DISTRIBUTOR (B0071146)373
DISTRIBUTOR (B0071148)374
ENGINE FUEL PUMP (B0071172)375
ENGINE FUEL PUMP (B0071175)376
COMMON RAIL (B0071210)377
MECHANICAL – ELECTRONIC GOVERNOR378
ELECTRONIC CONTROL UNIT – ENGINE (B0081018)378
ELECTRONIC CONTROL UNIT – ENGINE (B0081021)379
CLOSING COMPONENTS (B0081038)380
COOLING381
FASTENINGS (B0091010)381
FASTENINGS (B0091019)382
FASTENINGS (B0091020)383
THERMOSTAT (B0091063)384
BELT STRETCHER (B0091067)385
COOLING WATER PIPE (B0091083)386
HEATER CONNECTION (B0091087)387
MANIFOLD (B0091103)388
FAN SUPPORT (B0091116)389
FAN SUPPORT (B0091117)390
BELT STRETCHER (B0091137)391
CONNECTION (B0091146)392
V-BELT (B0091157)393
V-GROOVED PULLEY (B0091177)394
INTAKE – EXHAUST MANIFOLDS395
EXHAUST PIPE (B0101008)395
EXHAUST PIPE ELBOW (B0101022)396
FASTENINGS (B0101025)397
MANIFOLD (B0101084)398
RELAY (B0101098)399
GLOW PLUG (B0101121)400
CHARGED AIR MANIFOLD (B0101128)401
TURBOCHARGER402
TURBOCHARGER (B0111017)402
RETURN LINE (B0111047)403
OIL LUBRICATION PIPE (B0111070)404
OIL LUBRICATION PIPE (B0111076)405
CLOSING COMPONENTS (B0111085)406
CLOSING COMPONENTS (B0111086)407
Electrical accessories408
FASTENINGS (B0121010)408
FASTENINGS (B0121022)409
FASTENINGS (B0121023)410
IMPULSETRANSMITTER (B0121052)411
GENERATOR (B0121063)412
ENGINE MOUNTING (B0121077)413
ENGINE ELECTRICAL SYSTEM (B0121091)414
ENGINE ELECTRICAL SYSTEM (B0121092)415
STARTER (B0121127)416
ACCESSORIES (B0121145)417
ACCESSORIES (B0121151)418
ACCESSORIES (B0121162)419
ACCESSORIES (B0121163)420
ACCESSORIES (B0121164)421
ACCESSORIES (B0121165)422
ACCESSORIES (B0121166)423
DRIVING PARTS (B0121189)424
OIL PRESSURSWITCH (B0121194)425
TEMPERTRANSMITTER (B0121222)426
Engine_accessories427
Index427
AGROTRON L720428
C0 – ENGINE ACCESSORIES428
RADIATORS – FANS428
ENGINE FAN (C0010 (1))428
COOLING – COOLANT RADIATOR (C0011 (1))429
COOLING – COOLANT RADIATOR (C0012 (1))430
COOLING – EXPANSION TANK (C0013 (1))431
TANK – PARTS (001539424/10A)432
INTERCOOLER – AIR CLEANER433
INTERCOOLER (C0020 (1))433
AIR CLEANER (C0021 (1))434
AIR FILTER PARTS (242497130A)435
FUEL SYSTEM436
FUEL PRELIMINARY FILTER (C0030 (1))436
FUEL PRE-FILTER PIPES (C0031 (1))437
FUEL TANK (C0032 (1))438
FUEL TANK PIPES (C0033 (1))439
PRE-FILTER – COMPONENTS (243193000A)440
EXHAUST SILENCER441
EXHAUST SILENCER (C0060 (1))441
AIR COMPRESSOR442
AIR COMPRESSOR (C0070 (1))442
COMPRESSOR-PARTS (044284084A)443
Front_axle444
Index444
AGROTRON L720445
F0 – FRONT AXLE445
FRONT SUPPORT445
FRONT SUPPORT (F0010 (1))445
FRONT CARRIER WITH SUSPENSION (F0011 (1))446
FRONT SUPPORT PACKAGE (F0012 (1))447
FRONT SUPPORT PACKAGE (F0013 (1))448
FRONT SUPPORT PACKAGE (F0014 (1))449
SUPPORTS (F0015 (1))450
SUPPORTS (F0016 (1))451
SUPPORTS (F0017 (1))452
4WD FRONT AXLE453
FRONT AXLE (F0030 (1))453
FRONT AXLE (F0031 (1))455
AIR BREATHER (F0032 (1))457
AIR BREATHER (F0033 (1))458
STEERING SENSOR SUPPORT (F0034 (1))459
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (001004894/10A)460
FRONT DIFFERENTIAL461
4WD – TRANSMISSION SHAFT (F0040 (1))461
4WD – TRANSMISSION SHAFT (F0041 (2))462
4WD – PROPELLER SHAFT CASING (F0042 (1))463
4WD – FLANGE (F0043 (1))464
4WD – FRONT DIFFERENTIAL LOCK- STANDARD SEALING (F0044 (1))465
DIFFERENTIAL (F0045 (2))466
DIFFERENTIAL (F0046 (1))468
BEVEL WHEEL GEAR (F0047 (1))470
BEVEL WHEEL GEAR (F0048 (1))471
CARDAN JOINT (001387354A)472
STEERING CYLINDER473
ACTUATOR CYLINDER (F0050 (1))473
ACTUATOR CYLINDER (F0051 (1))474
CYLINDER PARTS (001040714A)475
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS476
FRONT REDUCTION UNIT AND DRIVE SHAFTS (F0060 (1))476
REDUCTION GEAR CROWN WHEEL (F0061 (1))477
REDUCTION GEAR CROWN WHEEL (F0062 (1))478
FRONT WHEEL HUB COVER (F0063 (1))479
4WD – AXLESHAFTS (001042954A)480
4WD – AXLESHAFTS (001042964A)481
FRONT BRAKES482
4WD – FRONT BRAKES (F0070 (1))482
Front_lift483
Index483
AGROTRON L720484
N0 – FRONT LIFT484
LIFT ASSEMBLY484
FRONT HYDRAULIC POWER-LIFT (N0010 (1))484
FRONT HYDRAULIC POWER-LIFT – WITH SUSPENDED AXLE (N0011 (1))485
FRONT POWER LIFT – CONTROL CYLINDER (N0012 (1))486
FRONT HYDRAULIC POWER-LIFT (N0013 (1))487
TOWING HITCH (001017023A)488
CYLINDER PARTS (001065024A)489
ADJUSTABLE LIFT ROD PARTS (001196673A)490
Front_pto491
Index491
AGROTRON L720492
M0 – FRONT PTO492
PTO INPUT SHAFT492
INPUT SHAFT (M0010 (1))492
PTO FRONT (M0011 (1))493
FRONT PTO PACKAGE (M0012 (1))494
FRONT PTO COVER – PROTECTIONS495
PTO FRONT (M0020 (1))495
FRONT PTO FIXING COMPONENTS (M0021 (1))496
PTO SHAFT PROTECTOR – FRONT (M0022 (1))497
PTO FRONT (001483494A)498
PTO FRONT (001483494B)499
PTO FRONT (001483494C)501
HYDRAULIC SYSTEM502
FRONT PTO – PIPES (M0040 (1))502
Hydraulic_and_pneumatic_system503
Index503
AGROTRON L720506
H0 – HYDRAULIC AND PNEUMATIC SYSTEM|506
HYDRAULIC SYSTEM506
FRONT SUSPENSION DELIVERY LINE ITALY (H0010 (1))506
FRONT SUSPENSION DELIVERY LINE EXPORT F (H0011 (1))507
FRONT SUSPENSION DELIVERY LINE (H0012 (1))508
GEARBOX OIL COOLER PIPES (H0013 (1))509
PTO BEARING LUBRICATION SYSTEM (H0014 (1))510
GEAR BOX OIL FEED PIPES (H0015 (1))511
FILTER AND RESONATORS UNIT (H0017 (1))512
PUMP FILTER SUCTION (H0019 (1))513
PUMP FILTER SUCTION (H0019 (2))514
PUMP FILTER SUCTION (H00111 (1))515
OIL FLOW CONTROL VALVE CASING (H00112 (1))516
OIL FLOW CONTROL VALVE CASING (H00113 (1))517
VALVE CASING ACCUMULATOR (H00115 (1))518
PUMP DELIVERY (H00116 (1))519
OIL PUMP (H00117 (1))520
HYDRAULIC PUMP CONTROL (H00118 (1))521
SHUTTLE CONTROL PIPES (H00119 (1))522
MANIFOLD HML (H00120 (1))523
POWER SHIFT – CONNECTING PIPING (H00121 (1))524
REAR LIFT ASSEMBLY PACKAGE (H00122 (1))525
DETAILS OF OIL FILTER (244194900/20A)526
HYDRAULIC PUMP PARTS (245396400A)527
PUMP-COMPONENTS (245398400/30A)528
PUMP-COMPONENTS (245398400/30B)529
PUMP-COMPONENTS (245398400/30C)530
PUMP-COMPONENTS (245398400/30D)531
STEERING SYSTEM532
POWER STEERING (H0020 (1))532
PIPES FOR HYDROSTATIC STEERING (H0021 (1))533
PIPES FOR HYDROSTATIC STEERING (H0022 (1))534
HYDR STEERING DISTRIBUTOR PARTS (001140604A)535
TRANSMISSION – PTO COOLERS536
FRONT PTO OIL COOLER (H0030 (1))536
GEARBOX OIL COOLER (H0031 (1))537
FRONT AXLE HYDRAULIC SUSPENSION538
FRONT CARRIER SUSPENSION SYSTEM (H0040 (1))538
FRONT CARRIER SUSPENSION SYSTEM (H0041 (1))539
CYLINDER PARTS (001130584A)540
RELAY VALVE (001358340A)541
FRONT LIFT542
FRONT LIFT – HYDRAULIC SYSTEM (H0050 (1))542
FRONT LIFT – HYDRAULIC SYSTEM (H0051 (1))543
PRESSURE CONTROL VALVE (000920384/10A)545
FRONT REMOTE CONTROL VALVES546
2-WAY QUICK-ACTION FRONT COUPLERS (H0060 (1))546
6-WAY QUICK COUPLERS (H0061 (1))547
8-WAY QUICK COUPLERS (H0062 (1))548
ENGAGEMENT (001098320A)549
REAR REMOTE CONTROL VALVES550
8-WAY AUXILIARY DISTRIBUTOR (H0071 (1))550
8-WAY AUXILIARY DISTRIBUTOR (H0072 (1))552
6-WAY QUICK COUPLERS (H0074 (1))554
8-WAY QUICK COUPLERS (H0076 (1))555
8-WAY QUICK COUPLERS (H0077 (1))556
QUICK-ACTION PROTECTIONS – 8-WAY (H0078 (1))557
QUICK-ACTION PROTECTIONS – 8-WAY (H0079 (1))558
ENGAGEMENT (001084730A)559
ENGAGEMENT (001098320A)560
TANK – PARTS (001102123A)561
DISTRIBUTOR PARTS (237291000/10A)562
DISTRIBUTOR (237291100/10A)563
DISTRIBUTOR PARTS (237291300A)564
DISTRIBUTOR PARTS (237291400A)565
DISTRIBUTOR PARTS (237291500/10A)566
DISTRIBUTOR PARTS (237295400A)567
BRAKING SYSTEM AND PNEUMATIC SYSTEM|568
FRONT BRAKE PIPES (H0090 (1))568
FRONT BRAKE PIPES (H0091 (1))569
BRAKING SYSTEM (H0092 (1))570
SWITCH VALVE (H0093 (1))571
AIR BRAKING (H0094 (1))572
AIR BRAKING (H0095 (1))573
AIR BRAKING (H0096 (1))574
AIR BRAKING (H0097 (1))575
AIR BRAKING SYSTEM PIPES (H0098 (1))577
HYDRAULIC BREAKING FOR TRAILER (H0099 (1))578
HYDRAULIC BREAKING FOR TRAILER (H00910 (1))579
HYDRAULIC TRAILER BRAKING PARTS KIT (H00911 (1))580
AIR-PRESSURE GAUGE (H00912 (1))581
PRESSURE CONTROL VALVE (H00913 (1))582
COUPLING PARTS CUNA (001045824A)583
VALVE PARTS (001233810A)584
TRAILER BRAKE VALVE (001244964A)585
TRAILER SOCKET-OUTLET VALVE (023820494A)586
VALVE PARTS (237199300/10A)587
VALVE PARTS (237199400/40A)588
ELECTROHYDRAULICS589
SOLENOID VALVE (H0100 (1))589
SOLENOID VALVE (H0101 (1))590
HOUSING OF VALVES AND HYDRAULIC SERVICES / SOLENOID VALVES (H0103 (1))591
SOLENOID VALVE CASING (H0104 (1))593
SOLENOID VALVE CASING (H0105 (1))594
RANGE GEAR SOLENOID VALVES (H0106 (1))595
SOLENOID VALVE (237195100/10A)596
SOLENOID VALVE (237197500/40A)597
SOLENOID VALVE (237292700/40A)598
SOLENOID VALVE 13V – 20W (237293100/20A)599
SOLENOID VALVE 12 V – 21 W, ON/OFF 4/3 (237294100/30A)600
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/10A)601
Rear_axle602
Index602
AGROTRON L720603
E0 – REAR AXLE603
REAR AXLE603
REAR AXLE (E0010 (1))603
SEALING (E0011 (1))604
REAR AXLE – MOUNTINGS (E0012 (1))605
REAR DIFFERENTIAL / HALF-SHAFTS606
EXTENDIBLE AXLE SHAFT (E0020 (1))606
REAR HALF-SHAFTS WITH FLANGE (E0021 (1))607
REAR REDUCTION GEARS AND AXLE SHAFTS (E0022 (1))608
REAR REDUCTION GEARS AND AXLE SHAFTS (E0023 (1))609
DIFFERENTIAL (E0024 (1))610
DIFFERENTIAL (E0025 (1))611
DIFFERENTIAL (E0026 (1))612
REAR BRAKES613
REAR BRAKES (E0030 (1))613
REAR BRAKES (E0031 (1))614
Rear_lift615
Index615
AGROTRON L720616
R0 – REAR LIFT616
LIFT COVER616
VENT LINE (R0010 (1))616
POWER-LIFT CASE (R0011 (1))617
LIFT ASSEMBLY618
HYDRAULIC CYLINDERS (R0020 (1))618
LIFTING (R0021 (1))619
CYLINDER PARTS (091233314/20A)620
SENSOR621
SENSITIVE ELEMENTS (R0050 (1))621
THREE-POINT LINKAGE – LINK ARMS622
TOWING BAR (R0060 (1))622
TOWING BAR (R0061 (1))623
3 POINT HITCH (R0062 (1))624
3-POINT HITCH WITH HYDRAULIC LIFT ROD (R0063 (1))625
THREE-POINT HITCH – AUTOMATIC LATERAL STABILIZERS (R0064 (1))626
THREE-POINT HITCH – AUTOMATIC LATERAL STABILIZERS (R0064 (2))627
THREE-POINT HITCH – AUTOMATIC LATERAL STABILIZERS (R0065 (1))628
THREE-POINT HITCH – AUTOMATIC LATERAL STABILIZERS (R0065 (2))629
3-POINT HITCH – SIDE STABILIZERS (R0066 (1))630
3 POINT HITCH (R0067 (1))631
3-POINT HITCH – ADJUSTABLE RH RODS (R0068 (1))632
3 POINT HITCH (R0069 (1))633
3-POINT HITCH – ADJUSTABLE RH RODS (R00610 (1))634
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD (R00611 (1))635
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD (R00612 (1))636
3-POINT LINKAGE – ADJUSTABLE HYDRAULIC TIE ROD (R00613 (1))637
3-POINT LINKAGE – ADJUSTABLE HYDRAULIC TIE ROD (R00614 (1))638
MANUAL LATERAL STABILIZERS (001052224/50A)639
CYLINDER PARTS (001097764/20A)640
STABILIZER (001097794/20A)641
AUTOMATIC LATERAL STABILIZERS (001237824/10A)642
CYLINDER PARTS (001396104A)643
CYLINDER PARTS (001396154A)644
LINKAGE (001414153A)645
TOWING HITCH cat 3 (001414213A)646
STABILIZER (001541914A)647
STABILIZER (001541954A)648
CYLINDER PARTS (237490020A)649
Transmission650
Index650
AGROTRON L720652
D0 – TRANSMISSION652
HML – HI-LO – SHML652
H-M-L UNIT (D0040 (1))652
H-M-L UNIT (D0041 (1))653
H-M-L UNIT (D0042 (1))654
GEARBOX INPUT SHAFT655
FLEXIBLE COUPLINGS (D0050 (1))655
DAMPING COUPLING (D0051 (1))656
PTO INPUT SHAFT657
PTO – CLUTCH TRANSMISSION SHAFT (D0060 (1))657
MAIN SHAFT658
MAIN SHAFT (D0070 (1))658
MAIN SHAFT (D0071 (1))660
MAIN SHAFT (D0071 (2))661
REVERSE GEAR INTERMEDIATE SHAFT (D0072 (1))662
SECONDARY SHAFT663
TRANSMISSION SHAFT (D0080 (1))663
TRANSMISSION SHAFT (D0081 (1))665
SYNCHRONIZER PARTS (001327204/20A)666
GEARBOX667
MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (D0090 (1))667
DISTANCE PLATE (D0091 (1))668
GEARBOX – FRONT (D0092 (1))669
REAR GEARBOX CASE (D0093 (1))670
MANIFOLD PLATE (D0094 (1))671
INTERNAL AND EXTERNAL GEARBOX CONTROLS672
REVERSING GEAR UNIT CONTROL (D0100 (1))672
SPEED RANGE REDUCTION GEAR UNIT (D0101 (1))673
SUPER REDUCTION GEAR UNIT (D0102 (1))674
LOW SPEED RANGES675
SPEED RANGE REDUCTION GEAR UNIT (D0110 (1))675
CREEPER SHAFT (D0111 (1))676
CREEPER PLANET CARRIER (D0112 (1))677
BEVEL WHEEL GEAR (D0113 (1))678
HYDRAULIC REAR PTO CLUTCH679
PTO – HYDRAULIC CLUTCH (D0120 (1))679
PTO – CLUTCH-PARTS (001263184/50A)680
PTO/GROUNDPSPEED DRIVE681
PTO – 2-SPEED WITH INSERTED END SHAFT 750 – 1000 (D0140 (1))681
PTO – POWER TAKE OFF (D0141 (1))682
PTO SHAFT PROTECTOR REAR (D0142 (1))683
PTO SHAFT PROTECTOR REAR (D0143 (1))684
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE685
4WD-PTO (D0150 (1))685
4WD-PTO (D0151 (1))686
4WD – COMPLETION (D0152 (1))687
INDEPENDENT HAND BRAKE (D0153 (1))688
INDEPENDENT HAND BRAKE (D0154 (1))689
Wheels690
Index690
AGROTRON L720691
S0 – WHEELS691
FRONT WHEEL BOLTS691
FRONT WHEEL MOUNTING (S0010 (1))691
REAR WHEEL BOLTS692
REAR WHEEL BOLTS (S0020 (1))692
WHEELS693
WHEELS 480/70R30″ (S0041 (1))693
WHEELS 540/65R30″ (S0042 (1))694
WHEELS 600/70R30″ (S0043 (1))695
WHEELS 169R-34″ a8 (S0045 (1))696
WHEELS 480/70R34″ (S0046 (1))697
WHEELS 540/65R34″ (S0048 (1))698
WHEELS 580/70R38″ a8 (S0049 (1))699
WHEELS 650/65R38″ (S00410 (1))700
WHEELS 710/70R38″ (S00411 (1))701
WHEELS 710/70R38″ (S00412 (1))702
WHEELS 710/70R38″ (S00413 (1))703
WHEELS 710/70R38″ (S00414 (1))704
WHEELS 208R-42″ (S00415 (1))705
WHEELS 580/70R-42″ (S00416 (1))706
WHEELS 650/65R-42″ (S00418 (1))707
WHEELS 650/65R-42″ (S00419 (1))708

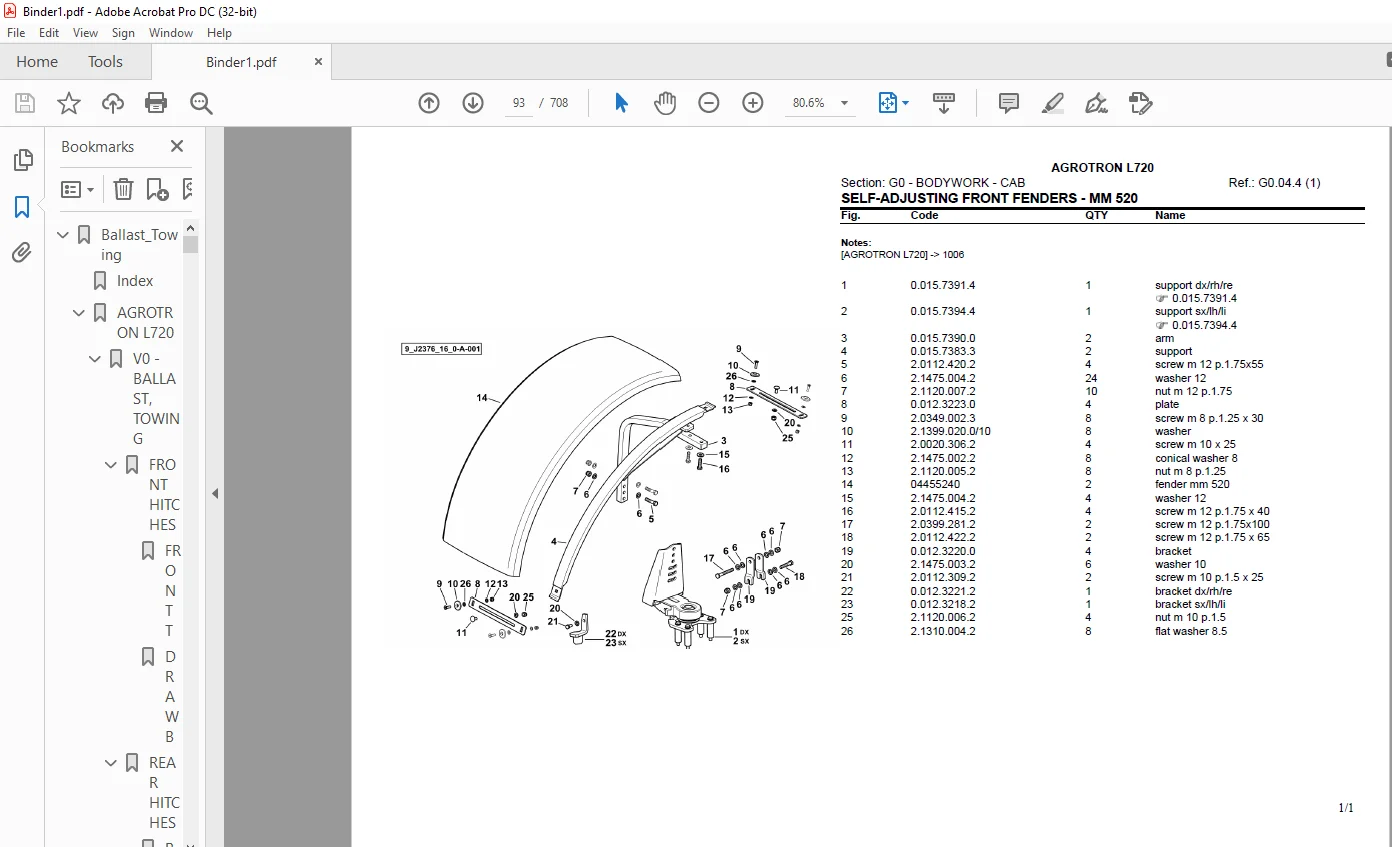

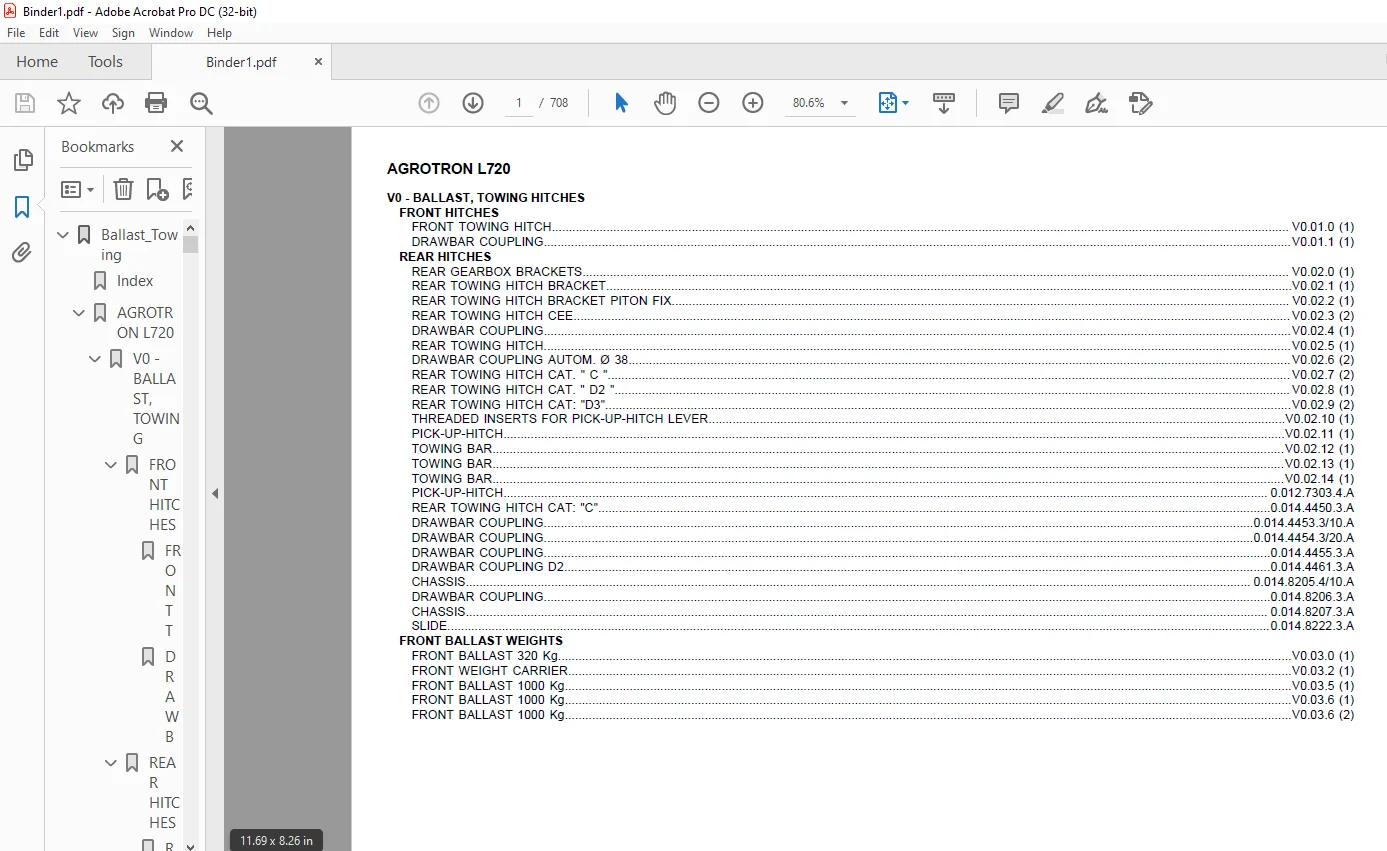

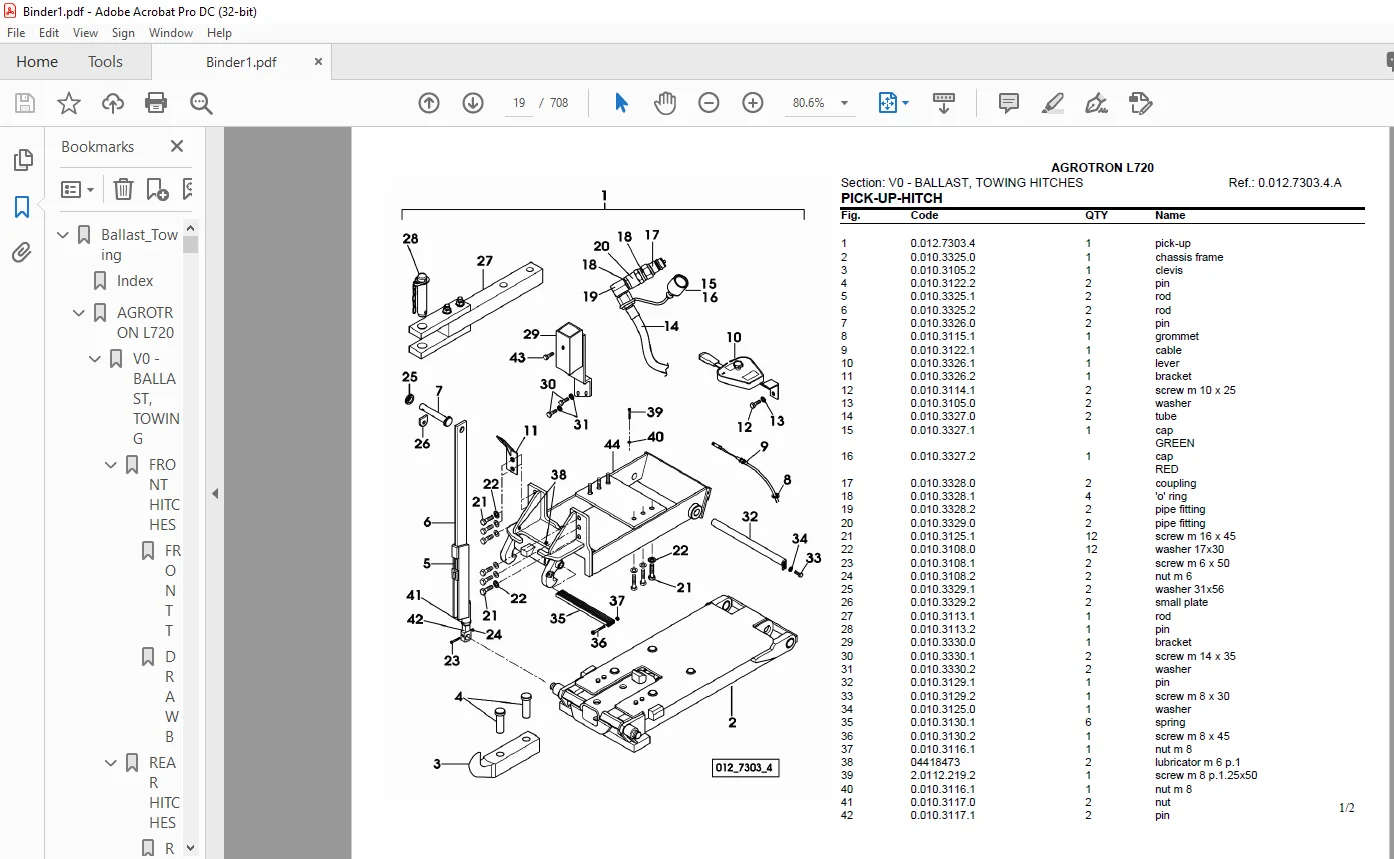

IMAGES PREVIEW OF THE MANUAL:

Questions? Email us: [email protected]

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.M
