Deutz Fahr Agrotron M 620 After 20001 Parts Catalog Manual – PDF DOWNLOAD

Description

Deutz Fahr Agrotron M 620 After 20001 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Deutz Fahr Agrotron M 620 After 20001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages :1175
Downloadable : Yes
File Type : PDF
Size:47.9 MB

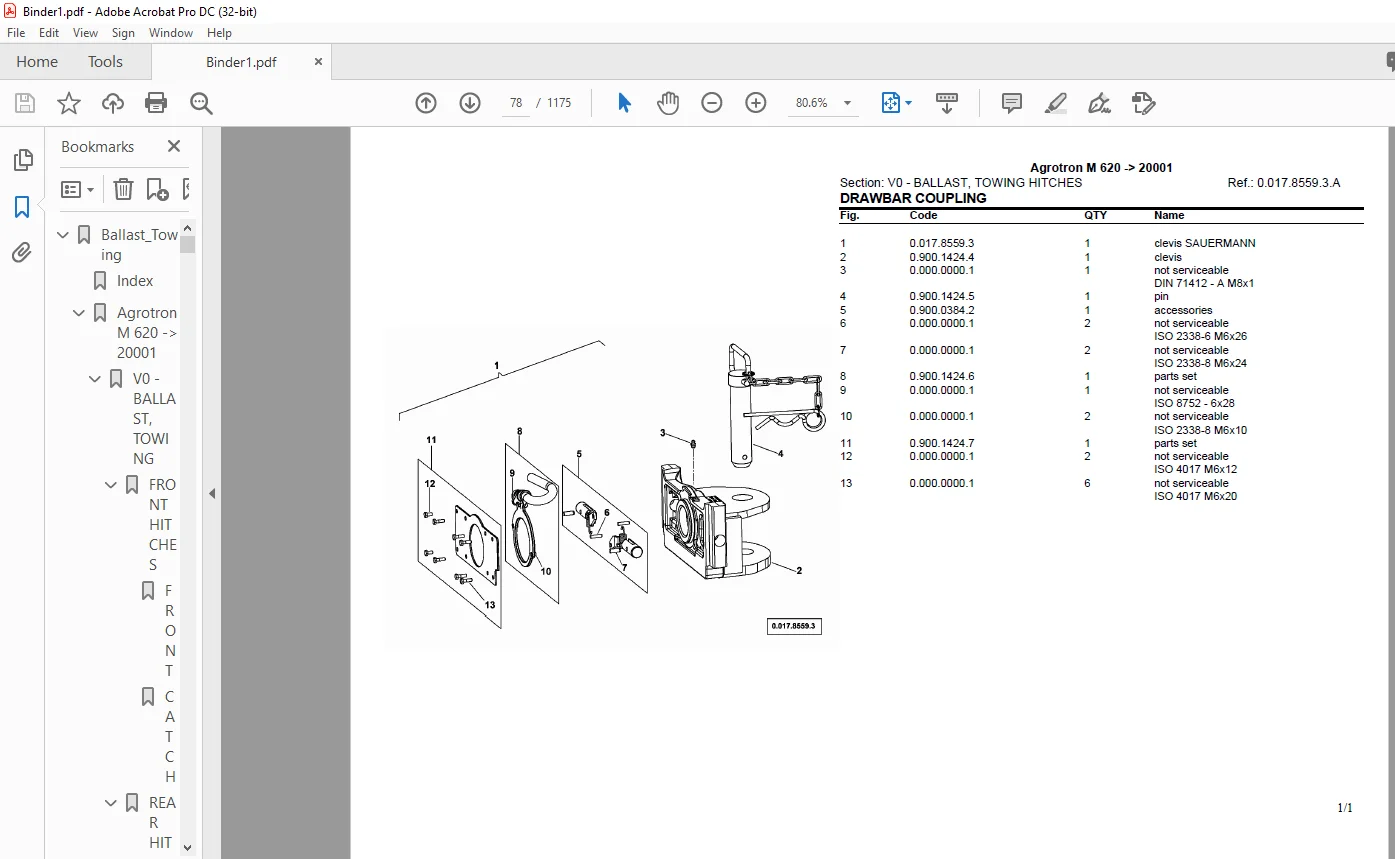

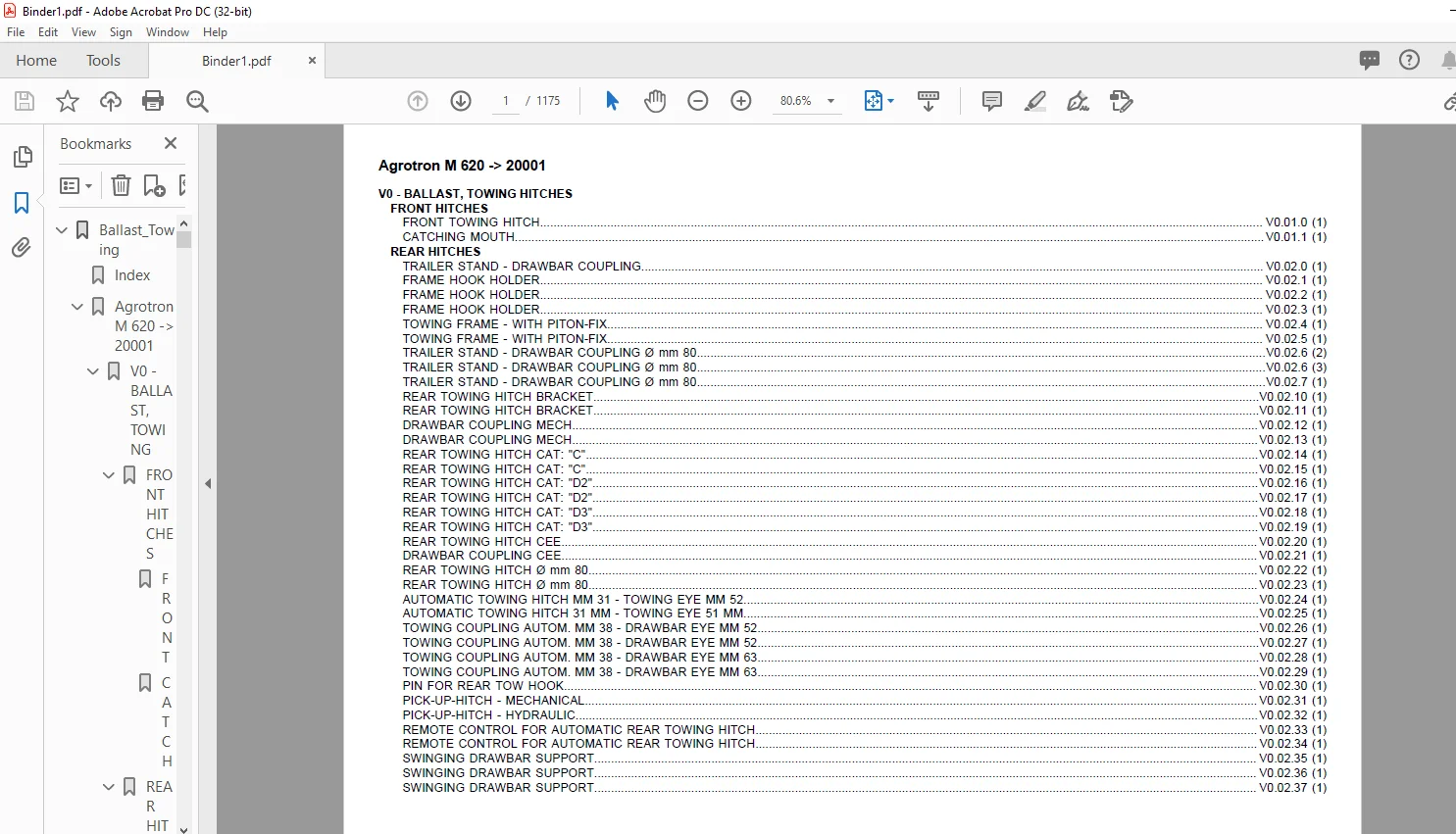

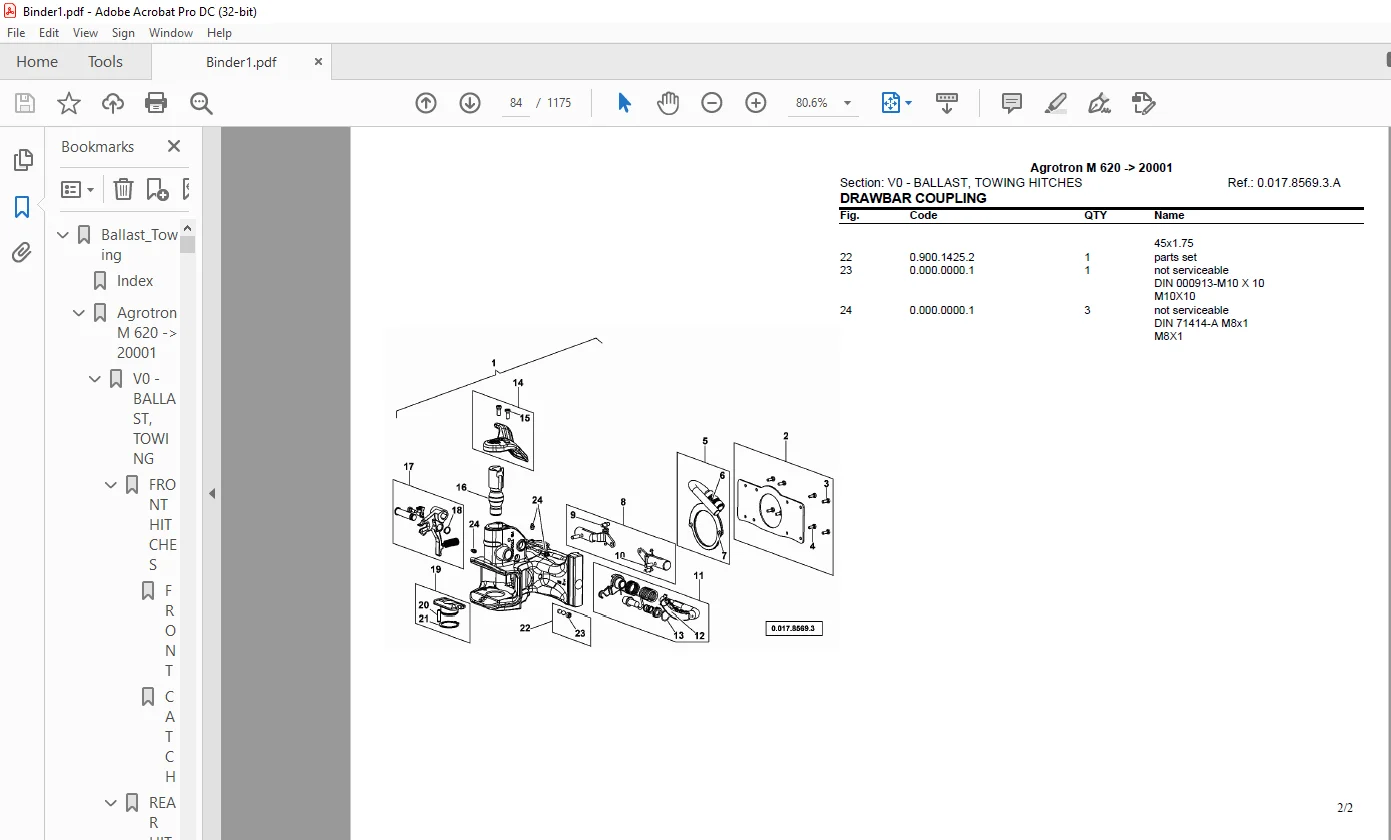

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Deutz Fahr Agrotron M 620 After 20001 Parts Catalog Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
Agrotron M 620 -> 20001 4
V0 – BALLAST, TOWING HITCHES 4
FRONT HITCHES 4
FRONT TOWING HITCH (V0010 (1)) 4
CATCHING MOUTH (V0011 (1)) 5
REAR HITCHES 6
TRAILER STAND – DRAWBAR COUPLING (V0020 (1)) 6
FRAME HOOK HOLDER (V0021 (1)) 7
FRAME HOOK HOLDER (V0022 (1)) 8
FRAME HOOK HOLDER (V0023 (1)) 9
TOWING FRAME – WITH PITON-FIX (V0024 (1)) 10
TOWING FRAME – WITH PITON-FIX (V0025 (1)) 11
TRAILER STAND – DRAWBAR COUPLING Ø mm 80 (V0026 (2)) 12
TRAILER STAND – DRAWBAR COUPLING Ø mm 80 (V0026 (3)) 13
TRAILER STAND – DRAWBAR COUPLING Ø mm 80 (V0027 (1)) 14
REAR TOWING HITCH BRACKET (V00210 (1)) 15
REAR TOWING HITCH BRACKET (V00211 (1)) 16
DRAWBAR COUPLING MECH (V00212 (1)) 17
DRAWBAR COUPLING MECH (V00213 (1)) 18
REAR TOWING HITCH CAT: “C” (V00214 (1)) 19
REAR TOWING HITCH CAT: “C” (V00215 (1)) 20
REAR TOWING HITCH CAT: “D2” (V00216 (1)) 21
REAR TOWING HITCH CAT: “D2” (V00217 (1)) 22
REAR TOWING HITCH CAT: “D3” (V00218 (1)) 23
REAR TOWING HITCH CAT: “D3” (V00219 (1)) 24
REAR TOWING HITCH CEE (V00220 (1)) 25
DRAWBAR COUPLING CEE (V00221 (1)) 26
REAR TOWING HITCH Ø mm 80 (V00222 (1)) 27
REAR TOWING HITCH Ø mm 80 (V00223 (1)) 28
AUTOMATIC TOWING HITCH MM 31 – TOWING EYE MM 52 (V00224 (1)) 29
AUTOMATIC TOWING HITCH 31 MM – TOWING EYE 51 MM (V00225 (1)) 30
TOWING COUPLING AUTOM MM 38 – DRAWBAR EYE MM 52 (V00226 (1)) 31
TOWING COUPLING AUTOM MM 38 – DRAWBAR EYE MM 52 (V00227 (1)) 32
TOWING COUPLING AUTOM MM 38 – DRAWBAR EYE MM 63 (V00228 (1)) 33
TOWING COUPLING AUTOM MM 38 – DRAWBAR EYE MM 63 (V00229 (1)) 34
PIN FOR REAR TOW HOOK (V00230 (1)) 35
PICK-UP-HITCH – MECHANICAL (V00231 (1)) 36
PICK-UP-HITCH – HYDRAULIC (V00232 (1)) 37
REMOTE CONTROL FOR AUTOMATIC REAR TOWING HITCH (V00233 (1)) 38
REMOTE CONTROL FOR AUTOMATIC REAR TOWING HITCH (V00234 (1)) 39
SWINGING DRAWBAR SUPPORT (V00235 (1)) 40
SWINGING DRAWBAR SUPPORT (V00236 (1)) 41
SWINGING DRAWBAR SUPPORT (V00237 (1)) 42
SWINGING DRAWBAR SUPPORT (V00238 (1)) 43
SWINGING DRAWBAR SUPPORT (V00239 (1)) 44
SWINGING DRAWBAR SUPPORT (V00240 (1)) 45
SWINGING DRAWBAR SUPPORT (V00241 (1)) 46
SWINGING DRAWBAR SUPPORT (V00242 (1)) 47
SWINGING BAR (V00243 (1)) 48
TOWING BAR (V00244 (1)) 49
TOWING BAR (V00245 (1)) 50
TOWING BAR (V00246 (1)) 51
SWINGING DRAWBAR WITH PITON-FIX (V00247 (1)) 52
SWINGING DRAWBAR WITH PITON-FIX (V00248 (1)) 53
SUPPORT (001597973A) 54
SUPPORT (001597973/20A) 55
BARRE DE TRACTION – EXPORT USA (001597983/10A) 56
DRAWBAR COUPLING (001598023/10A) 57
DRAWBAR COUPLING (001598033/10A) 58
DRAWBAR COUPLING (001598043/10A) 59
DRAWBAR COUPLING AUTOM (001598103/10A) 60
DRAWBAR COUPLING AUTOM (001598113/10A) 61
DRAWBAR COUPLING AUTOM (001598123/10A) 62
DRAWBAR COUPLING (001598133/10A) 63
DRAWBAR COUPLING (001598133/20A) 64
DRAWBAR COUPLING CEE (001598153/20A) 65
TOWING BAR (001598233/1000) 66
TOWING HITCH (001598253/10A) 67
TOWING FRAME – WITH PITON-FIX (001598273/2000) 68
DRAWBAR COUPLING (001598303/2000) 69
SUPPORT (001598323/10A) 70
SUPPORT (001598333/10A) 71
CHASSIS (001598353/10A) 72
SUPPORT (001618143/10A) 73
SUPPORT (001618153/10A) 74
TOWING HITCH (001697183A) 75
FRAME HOOK HOLDER (001785563A) 76
TOWING BAR (001785573A) 77
DRAWBAR COUPLING (001785593A) 78
DRAWBAR COUPLING (001785603A) 79
DRAWBAR COUPLING (001785613A) 80
DRAWBAR COUPLING (001785683A) 81
DRAWBAR COUPLING (001785693A) 83
DRAWBAR COUPLING AUTOM Ø 31 (001785703A) 85
DRAWBAR COUPLING (001785713A) 86
DRAWBAR COUPLING (001785733A) 87
TOWING BAR (001785753A) 88
SWINGING DRAWBAR WITH PITON-FIX (001785873A) 89
TOWING FRAME – WITH PITON-FIX (001785903A) 90
TRAILER STAND – DRAWBAR COUPLING mm 80 (001785933A) 91
SUPPORT (001785953A) 92
SUPPORT (001786003A) 93
SUPPORT (001786013A) 94
DRAWBAR COUPLING (001786093A) 95
AUTOMATIC DRAWBAR COUPLING (001796163A) 96
FRONT BALLAST WEIGHTS 98
FRONT WEIGHT CARRIER kg 100 (V0030 (1)) 98
FRONT BALLAST 240 Kg (V0031 (1)) 99
FRONT BALLAST 400 Kg (V0032 (1)) 100
FRONT BALLAST 330 Kg (V0033 (1)) 101
FRONT BALLAST 330 Kg (V0034 (1)) 102
FRONT BALLAST 600 Kg (V0035 (1)) 103
FRONT BALLAST 1000 Kg (V0036 (2)) 104
FRONT BALLAST 1000 Kg (V0036 (3)) 105
FRONT BALLAST 1000 Kg (V0037 (1)) 106
Bodywork_Cab 107
Index 107
Agrotron M 620 -> 20001 113
G0 – BODYWORK – CAB 113
HOOD – SIDE PANELS – SUPPORTS 113
HOOD (G0012 (1)) 113
HOOD (G0013 (1)) 115
HOOD – SUPPORTS (G0019 (1)) 117
BONNET – FRONT PORTION (G00110 (1)) 118
HOOD FRONT PART (G00111 (1)) 119
HOOD – SUPPORTS (G00116 (1)) 120
HOOD – SUPPORTS (G00116 (2)) 122
HOOD – SUPPORTS (G00116 (3)) 124
HOOD – SUPPORTS (G00117 (1)) 126
HOOD – SUPPORTS (G00117 (2)) 128
HOOD – SUPPORTS (G00117 (3)) 130
BELT GUARDS (G00119 (1)) 132
CONDENSER SUPPORT (G00121 (1)) 133
WIRING SUPPORT BRACKETS (G00122 (1)) 134
WIRING SUPPORT BRACKETS (G00122 (2)) 135
SUPPORT FOR FUSE BOX AND CONTROL UNITS (G00123 (1)) 136
RELAY PROTECTION (G00124 (1)) 137
RELAY PROTECTION (G00125 (1)) 138
BATTERY SUPPORT (G00126 (1)) 139
LETTERING 140
STEERING WHEEL CAP (G0021 (1)) 140
PRODUCT PLATE (G0026 (1)) 141
PRODUCT PLATE – FRONT (G00217 (1)) 142
PRODUCT PLATE – FRONT (G00218 (1)) 143
PRODUCT PLATE (G00219 (1)) 144
PRODUCT PLATE (G00220 (1)) 145
FUSEBOX IDENTIFICATION PLATE (G00221 (1)) 146
FUSEBOX IDENTIFICATION PLATE (G00222 (1)) 147
FUSEBOX IDENTIFICATION PLATE (G00223 (1)) 148
FUSEBOX IDENTIFICATION PLATE (G00224 (1)) 149
RECYCLING PLATE (G00225 (1)) 150
REMOTE VALVE CROSS-GATE CONTROL NAMEPLATE (G00226 (1)) 151
PTO WARNING PLATE FRONT (G00227 (1)) 152
PLATES (G00228 (1)) 153
PLATES (G00229 (1)) 154
INFORMATION PLATE (G00232 (1)) 155
WARNING PLATES (G00233 (2)) 156
WARNING PLATES (G00233 (3)) 157
WARNING PLATE (G00234 (1)) 158
WARNING PLATE (G00235 (1)) 159
WATER COOLER IDENTIFICATION PLATE (G00236 (1)) 160
WARNING DECAL – RADAR (G00237 (1)) 161
WARNING PLATE (G00239 (1)) 162
WARNING PLATE (G00240 (1)) 163
INFORMATION PLATE (G00243 (1)) 164
INFORMATION PLATE (G00245 (1)) 165
WARNING PLATE (G00246 (1)) 166
WARNING PLATE (G00247 (1)) 167
WARNING PLATE (G00248 (1)) 168
WARNING PLATE (G00249 (1)) 169
WARNING PLATE (G00250 (1)) 170
WARNING PLATE (G00251 (1)) 171
SPEED LABEL – 40 KM/H – REFLEX (G00252 (1)) 172
SPEED LABEL – 40 KM/H (G00253 (1)) 173
SPEED LABEL – 40 KM/H – REFLEX (G00254 (1)) 174
SPEED LABEL – 50 KM/H – REFLEX (G00255 (1)) 175
SPEED LABEL – 40 Km\h (G00257 (1)) 176
SPEED LABEL 50 Km/h (G00259 (1)) 177
PLATE FOR 4-WAY REMOTE VALVE OPEN CENTER (G00260 (1)) 178
PLATE FOR 8-WAY REMOTE VALVE OPEN CENTER (G00261 (1)) 179
PLATE FOR 8-WAY REMOTE VALVE LOAD SENSING (G00262 (1)) 180
CAB STRUCTURE – PLATFORM -SUSPENSION 181
SINGLE-STRUCTURE CAB (G0031 (1)) 181
CAB INSTALLATION COMPLETION (G0032 (2)) 182
END PLATE (G0033 (1)) 183
LADDER (G0034 (1)) 184
RUBBER CAB SUSPENSION (G0036 (1)) 185
MECHANICAL CAB SUSPENSION (G0037 (1)) 186
MECHANICAL CAB SUSPENSION (G0037 (2)) 187
CAB BEARING PNEUMATIC SPRINGING (G0038 (1)) 188
CAB BEARING PNEUMATIC SPRINGING (G0038 (2)) 189
CAB BEARING PNEUMATIC SPRINGING (G0039 (1)) 190
CAB BEARING PNEUMATIC SPRINGING (G00310 (1)) 191
CAB BEARING PNEUMATIC SPRINGING (G00310 (2)) 192
CAB BEARING PNEUMATIC SPRINGING (G00311 (1)) 193
RELAY VALVE (04432191A) 194
PRESSURE CONTROL VALVE (04432192A) 195
FENDERS – FOOTSTEPS – EXTENSIONS 196
FRONT MUDGUARDS mm 470 (G0040 (1)) 196
ADJUSTABLE FRONT FENDERS mm 470 (G0043 (1)) 197
ADJUSTABLE FRONT FENDERS mm 470 (G0043 (2)) 199
ADJUSTABLE FRONT FENDERS mm 470 (G0044 (1)) 201
FRONT MUDGUARDS mm 540 (G0045 (1)) 202
WING FRONT mm 540 (G0048 (1)) 203
ADJUSTABLE FRONT FENDERS mm 540 (G0049 (1)) 205
FRONT MUDGUARD SUPPORTS (G00410 (1)) 206
SUPPORTS FOR FRONT STEERING FENDERS (G00411 (1)) 207
FRONT FENDER SUPPORT FIXING (G00412 (1)) 208
REAR FENDER ANCILLARY PARTS KIT (G00414 (1)) 209
WING SIDE PANEL (G00415 (1)) 210
REINFORCED FENDER (G00416 (1)) 211
REAR MUDGUARDS (G00418 (1)) 212
REAR MUDGUARDS (G00420 (1)) 213
MUDGUARDS EXTENSIONS mm 145 (G00421 (1)) 214
MUDGUARDS EXTENSIONS mm 250 (G00422 (1)) 215
MUDGUARDS EXTENSIONS (G00423 (1)) 216
REAR MUDGUARDS (G00425 (1)) 217
REAR MUDGUARDS (G00426 (1)) 218
FENDERS (G00428 (1)) 219
DOORS – WINDOWS – WIPERS 220
OPENABLE WINDSCREEN (G0050 (1)) 220
WINDSCREEN WIPER FOR OPENABLE WINDSCREEN (G0051 (1)) 221
FIXED SCREEN WITH WIPER (G0052 (1)) 222
FIXED SCREEN WITH WIPER (G0053 (1)) 223
LOWER/UPPER FRONT GLASS LH/RH (G0054 (1)) 224
CAB DOOR SX/LH/LI (G0055 (1)) 225
CAB DOOR SX / LH / LI (G0056 (1)) 226
CAB DOOR DX/RH/RE (G0058 (1)) 227
CAB DOOR DX/RH/RE (G00510 (1)) 228
SIDE PANEL FIXED DX/RH/RE (G00511 (1)) 229
SIDE PANEL FIXED SX/LH/LI (G00512 (1)) 230
REAR PANEL FLAP (G00513 (1)) 231
REAR HATCH WITH WIPER (G00514 (1)) 233
REAR HATCH WITH WIPER (G00515 (1)) 235
LOWER REAR WINDOW GLASS (G00516 (1)) 236
SCREEN WIPER REAR (G00517 (1)) 237
WATER TANK (G00518 (1)) 238
PIPES FOR WINDSCREEN AND REAR SCREEN WIPERS (G00520 (1)) 239
WINDSCREEN WIPER BLADE (001155294A) 240
DOOR HANDLE – CAB DOOR RIGHT/LEFT (001302174A) 241
INTERIOR TRIM 242
CONSOLE – INSTRUMENT PANEL (G0060 (1)) 242
DASHBOARD – STEERING COVER (G0061 (1)) 243
INSTRUMENT PANEL – PEDALS SUPPORT (G0062 (1)) 244
PEDAL SUPPORT – FIXINGS (G0063 (1)) 245
CONTROL CONSOLE RIGHT (G0064 (1)) 246
CONTROL CONSOLE – DX/RH/RE (G0065 (1)) 248
CONTROL CONSOLE RIGHT (G0066 (1)) 250
CONTROL CONSOLE RIGHT – TRIM (G0067 (1)) 251
COVER PLATE (G0068 (1)) 252
OUTLET VENT (G0069 (1)) 253
CONTROL CONSOLE RIGHT (G00610 (1)) 254
CONTROL CONSOLE RIGHT (G00611 (1)) 255
PLATE (G00612 (1)) 256
CONTROL CONSOLE LEFT (G00613 (1)) 257
CONTROL CONSOLE – SX/LH/LI (G00614 (1)) 258
CONTROL CONSOLE LEFT (G00615 (1)) 259
CONTROL CONSOLE – SX/LH/LI (G00616 (1)) 260
CONTROL CONSOLE LEFT (G00617 (1)) 261
INTERIOR TRIM (G00618 (1)) 262
CABLE GROMMET (G00619 (1)) 263
FIXINGS FOR CAB INTERIOR TRIM (G00620 (1)) 264
INTERNAL CAB LININGS (G00621 (1)) 265
INTERNAL CAB LININGS (G00622 (1)) 266
CAB SOUNDPROOF PANELS (G00624 (1)) 267
CAB SOUNDPROOF PANELS (G00625 (1)) 268
INTERIOR TRIM (G00628 (1)) 269
EXTERIOR TRIM – ROOF 270
CAB ROOF (G0071 (1)) 270
DRIVER’S CAB ROOF (G0073 (1)) 271
CAB ROOF (G0075 (1)) 272
FRONT NUMBER PLATE BRACKET (G0076 (1)) 273
AIR CLEANER (G0077 (1)) 274
AIR CLEANER (G0077 (2)) 275
AIR CLEANER (G0078 (2)) 276
REARVIEW MIRROR DX/RH/RE (G0079 (1)) 277
REARVIEW MIRROR SX/LH/LI (G00710 (1)) 278
FLASHING LIGHT SUPPORT (G00711 (1)) 279
REARVIEW MIRROR (001243924A) 280
REARVIEW MIRROR (001243934A) 281
SEATS 282
HEAD REST (G0081 (1)) 282
DRIVER’S SEAT – PNEUMATIC SPRINGING (G0084 (1)) 283
DRIVER’S SEAT – PNEUMATIC SPRINGING (G0085 (1)) 284
DRIVER’S SEAT – PNEUMATIC SPRINGING (G0086 (1)) 285
SAFETY BELT (G0087 (1)) 286
MULTIFUNCTION ARMREST BRACKET (G0088 (1)) 287
SEAT FOR 2ND OPERATOR (G00810 (1)) 288
SEAT-COMPONENTS (001427074A) 289
SEAT-COMPONENTS (001427074B) 291
SEAT-COMPONENTS (001427074/10A) 293
SEAT-COMPONENTS (001427074/10B) 295
SEAT-COMPONENTS (001427074/20A) 297
SEAT-COMPONENTS (001427074/20B) 299
SEAT-COMPONENTS (001455644A) 301
SEAT-COMPONENTS (001455644B) 303
DRIVER’S SEAT MSG 95G/721 (001562064/10A) 305
DRIVER’S SEAT MSG 95G/721 (001562064/10B) 306
HEATING AND AIR CONDITIONING 308
AIR CONDITIONING SYSTEM (G0090 (1)) 308
AIR CONDITIONING SYSTEM (G0090 (2)) 309
AIR CONDITIONING SYSTEM (G0090 (3)) 310
AIR CONDITIONING SYSTEM (G0091 (1)) 311
AIR CONDITIONING SYSTEM (G0091 (2)) 312
AIR CONDITIONING UNIT – LINES (G0092 (1)) 313
AIR CONDITIONING UNIT – LINES (G0092 (2)) 314
CLIMATE CONTROL SYSTEM (G0093 (2)) 315
CLIMATE CONTROL SYSTEM (G0093 (3)) 317
CLIMATE CONTROL SYSTEM (G0094 (2)) 319
AIR CONDITIONER PARTS (001091394/50A) 320
AIR CONDITIONER PARTS (001703644A) 322
CLIMATE CONTROL (04429902A) 324
COMPRESSOR (04437339/10A) 325
MECHANICAL CLUTCH CONTROLS 326
CLUTCH CONTROL WITH HYDRAULIC SHUTTLE (G0100 (1)) 326
MECHANICAL BRAKE CONTROLS 327
BRAKE CONTROLS (G0110 (1)) 327
BRAKE CONTROLS (G0111 (1)) 328
BRAKE FLUID RESERVOIR (G0112 (1)) 329
BRAKE FLUID RESERVOIR (G0112 (2)) 330
BRAKE FLUID RESERVOIR (G0113 (1)) 331
BRAKE FLUID RESERVOIR (G0114 (1)) 332
TUBES FOR BRAKE OIL TANK (G0115 (1)) 333
HAND BRAKE (G0116 (1)) 334
HAND BRAKE (G0117 (1)) 335
HANDBRAKE SUPPORT FOR TRAILER (G0118 (1)) 336
TANK – PARTS (04432281A) 337
MECHANICAL – ELECTRONIC THROTTLE CONTROLS 338
ELECTRONIC ACCELERATOR CONTROL (G0120 (1)) 338
STEERING CONTROLS 339
STEERING COLUMN (G0132 (1)) 339
STEERING COLUMN (001487524/10A) 340
MECHANICAL GEARSHIFT CONTROLS 341
GEAR SHIFTING (G0140 (1)) 341
SUPER-REDUCTION CONTROL (G0141 (1)) 342
SUPER-REDUCTION CONTROL (G0142 (1)) 343
DRIVE FOR GEAR CHANGE BOX (001312264/20A) 344
GEAR LEVER KNOB (001336174A) 345
PTO CONTROLS 346
OPERATION – PTO SHAFT – REAR (G0160 (1)) 346
OPERATION – PTO SHAFT REAR (G0161 (1)) 347
OPERATION – PTO SHAFT – REAR (G0162 (2)) 348
LIFT CONTROLS 349
REAR LIFT CONTROL (G0170 (1)) 349
REAR LIFT CONTROL (G0171 (1)) 350
CONTROL CONSOLE (001577494A) 351
REMOTE VALVE CONTROLS 352
DISTRIBUTOR CONTROL (G0180 (1)) 352
DISTRIBUTOR CONTROL (G0181 (1)) 353
REMOTE VALVE CROSS-GATE CONTROL (G0182 (1)) 354
FLOW CONTROL (G0183 (2)) 355
FLOW CONTROL (G0184 (2)) 356
OPERATION (00176491400) 357
ACCESSORIES 358
SUN BLIND REAR WINDOW (G0190 (1)) 358
SUN BLIND FRONT WINDSCREEN (G0191 (1)) 359
LICENCE PLATE HOLDER (G0192 (1)) 360
LICENCE PLATE HOLDER (G0193 (1)) 361
METAL TOOLBOX (G0194 (1)) 362
METAL TOOLBOX (G0195 (1)) 363
CHOCK (G0196 (1)) 364
Electrical_system 365
Index 365
Agrotron M 620 -> 20001 369
L0 – ELECTRIC AL SYSTEM 369
BATTERY – ALTERNATOR 369
BATTERY 12v 150Ah 660A (L0010 (1)) 369
BATTERY 12V 180Ah 800A (L0011 (1)) 370
WIRING LOOMS 371
HEADLIGHTS / HORN WIRING (L0023 (1)) 371
WIRING FOR HEADLIGHTS (L0024 (1)) 372
WIRING FOR HEADLIGHTS (L0025 (1)) 373
BOTTOM FRONT WORK LIGHTS WIRING (L0028 (1)) 374
BOTTOM FRONT WORK LIGHTS WIRING XENON (L0029 (1)) 375
WIRING FOR LOWER REAR WORKLIGHTS XENON (L00210 (1)) 376
REAR MUDGUARDS ELECTRICAL SYSTEM (L00212 (1)) 377
REAR MUDGUARDS ELECTRICAL SYSTEM (L00213 (1)) 378
REAR ELECTRIC CABLE FOR PARKING/INDICATOR LIGHTS AND PTO/LIFT SWITCH (L00214 (1)) 379
WIRING FOR REAR LIGHTS (L00215 (1)) 380
ELECTRIC WIRING UNDER ROOF (L00216 (1)) 381
TOP LIGHTS WIRING (L00217 (1)) 382
CABLE HARNESS LICENCE PLATE LIGHT (L00218 (1)) 383
ELECTR EQUIPMENT – DASHBOARD CONSOLE (L00219 (1)) 384
ELECTRICAL SYSTEM – INSTRUMENT PANEL AND FLASHER (L00220 (1)) 385
RIGHT-HAND CONSOLE ELECTRICAL SYSTEM (L00221 (1)) 386
RIGHT-HAND CONSOLE ELECTRICAL SYSTEM (L00222 (1)) 387
ELECTRICAL SYSTEM FOR GEARBOX AND BATTERY CABLES (L00223 (1)) 388
ELECTRICAL SYSTEM FOR GEARBOX AND BATTERY CABLES (L00223 (2)) 389
ELECTRICAL SYSTEM FOR GEARBOX AND BATTERY CABLES (L00224 (1)) 390
ELECTRICAL SYSTEM FOR GEARBOX AND BATTERY CABLES (L00224 (2)) 391
BATTERY LEADS (L00225 (1)) 392
ELECTRICAL EQUIPMENT ENGINE / BATTERY (L00226 (1)) 393
FRONT AXLE WIRING (L00227 (1)) 394
WIRING FOR WINDSCREEN WIPER MOTOR (L00228 (1)) 395
WIRING FOR WINDSCREEN WIPER MOTOR (L00229 (1)) 396
COMFORT PACKAGE WIRING (L00230 (1)) 397
ISO 11786 SOCKET FOR ELECTRIONIC EQUIPMENT (L00231 (1)) 398
ELECTRICAL SYSTEM ISO 11786 (L00232 (1)) 399
BRAKING AND FRONT LIFT INTERFACE WIRING (L00233 (2)) 400
ELECTRICAL CLIMATE CONTROL SYSTEM (L00234 (1)) 401
ELECTRICAL CLIMATE CONTROL SYSTEM (L00235 (1)) 402
WIRING HARNESS FOR HYDRAULIC TRAILER BRAKING – ITALY VERSION (L00236 (1)) 403
ELECTRICAL LEAD FOR HYDRAULIC TRAILER BRAKING (L00237 (1)) 404
PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM (L00238 (1)) 405
PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM ITALY (L00239 (1)) 406
TRAILER SOCKET-OUTLET (L00240 (1)) 407
POWER OUTLET SOCKET (L00241 (1)) 408
POWER OUTLET SOCKET (L00242 (1)) 409
ROTATING BEACON WIRING (L00243 (1)) 410
WIRING FOR PTO SENSOR (L00244 (1)) 411
WIRING FOR A/C CONDENSER PRESSURE SWITCH (L00245 (1)) 412
RIGHT-HAND CONSOLE ELECTRICAL SYSTEM (001507404/80A) 413
RIGHT-HAND CONSOLE ELECTRICAL SYSTEM (001584544/50A) 414
ECUs 415
RIGHT-HAND CONSOLE CONTROL UNITS (L0030 (1)) 415
RIGHT-HAND CONSOLE CONTROL UNITS (L0031 (1)) 416
CONTROL UNIT ISO 11786 (L0032 (1)) 417
SENSORS – POTENTIOMETERS – ENABLING SWITCHES 418
SENSOR PTO SHAFT (L0040 (1)) 418
SENSOR PTO SHAFT (L0041 (1)) 419
ELECTRONIC ACCELERATOR CONTROL SENSOR (L0042 (1)) 420
INDUCTIVE POSITION SENSOR WITH HYDRAULIC SHUTTLE (L0043 (1)) 421
BRAKE CONTROL SWITCH (L0044 (1)) 422
BRAKE CONTROL SWITCH (L0045 (1)) 423
HAND BRAKE SWITCHES (L0046 (1)) 424
DOOR SWITCH (L0047 (1)) 425
REAR LIFT POSITION SENSOR (L0048 (1)) 426
FRONT SUSPENSION POSITION SENSOR (L0049 (1)) 427
AIR FILTER BLOCKAGE SENSOR (L00410 (1)) 428
OIL FILTER CLOGGING SENSOR (L00411 (1)) 429
OIL FILTER CLOGGING SENSOR (L00412 (1)) 430
LOAD SENSING HYDRAULIC SYSTEM PRESSURE SWITCH (L00413 (1)) 431
LOAD SENSING HYDRAULIC SYSTEM PRESSURE SWITCH (L00414 (1)) 432
HYDRAULIC SYSTEM PRESSURE SWITCH OPEN CENTER (L00415 (1)) 433
HYDRAULIC SYSTEM PRESSURE SWITCH OPEN CENTER (L00416 (1)) 434
AIR CONDITIONING SYSTEM CONDENSER PRESSURE SWITCH (L00417 (1)) 435
AIR CONDITIONING SYSTEM CONDENSER PRESSURE SWITCH (L00417 (2)) 436
AIR BRAKING SYSTEM PRESSURE SWITCH (L00418 (1)) 437
PRESSURE SWITCH FOR AIR BRAKING SYSTEM ITALY (L00419 (1)) 438
RADAR km/h (L00420 (1)) 439
RADAR (L00421 (1)) 440
RADAR (L00422 (1)) 441
INSTRUMENT PANEL 442
DASHBOARD BOX (L0050 (1)) 442
DASHBOARD BOX (L0051 (1)) 443
GEARS DISPLAY (L0052 (1)) 444
GEARS DISPLAY (L0053 (1)) 445
ELECTRIC REV-HOUR RECORDER TACHOMETER (044334224/60A) 446
MULTIFUNCTION ARMREST 447
MULTIFUNCTION ARMREST (L0060 (1)) 447
PLATE (L0061 (1)) 448
PLATE (L0062 (1)) 449
MULTIFUNCTION CONTROL UNIT (001517764/70A) 450
ELECTRICAL CONTROLS – PUSHBUTTONS 451
BATTERY DISCONECT SWITCH (L0070 (1)) 451
STEERING COLUMN SWITCH UNIT – REVERSING GEAR UNIT CONTROL (L0071 (1)) 452
SWITCHES / IGNITION BLOCK DX/RH/RE (L0072 (1)) 453
SWITCHES / IGNITION BLOCK DX/RH/RE (L0073 (1)) 454
SWITCHES (L0074 (1)) 455
SWITCHES (L0075 (1)) 456
BOTTOM FRONT WORK LIGHTS SWITCH (L0076 (1)) 457
BOTTOM FRONT WORK LIGHTS SWITCH XENON (L0077 (1)) 458
TOP SWITCH (L0078 (1)) 459
REAR WINDOW WIPER SWITCH (L0079 (1)) 460
SWITCH FOR FRONT AXLE SUSPENSION (L00710 (1)) 461
SWITCH – FOR PTO FRONT (L00711 (1)) 462
FRONT LIFT SWITCH (L00712 (1)) 463
FRONT LIFT SWITCH (L00712 (2)) 464
REAR LIFT GROUND CONTROL SWITCH (L00713 (1)) 465
REAR LIFT GROUND CONTROL SWITCH (L00713 (2)) 466
REAR PTO GROUND CONTROL SWITCH (L00714 (1)) 467
SWITCHES FOR REAR LIFT GROUND CONTROL AND PTO (L00716 (1)) 468
SWITCHES FOR REAR LIFT GROUND CONTROL AND PTO (L00716 (2)) 469
SWITCHES FOR REAR LIFT GROUND CONTROL AND PTO (L00718 (1)) 470
SWITCHES FOR REAR LIFT GROUND CONTROL AND PTO (L00718 (2)) 471
SHUTTLE LEVER (001270764A) 472
LIGHTING AND SIGNALLING 473
FRONT LIGHTS (L0082 (1)) 473
FRONT LIGHTS (L0083 (1)) 474
FRONT LIGHTS (L0086 (1)) 475
FRONT LIGHTS (L0087 (1)) 476
WORKING SPOTLIGHT FRONT TOP (L0088 (1)) 477
WORKING SPOTLIGHT FRONT TOP (L0089 (1)) 478
BOTTOM FRONT WORK LIGHTS (L00810 (1)) 479
BOTTOM FRONT WORK LIGHTS XENON (L00811 (1)) 480
SIDELIGHT, DIRECTION INDICATOR AND REFLECTORS (L00812 (1)) 481
REAR LIGHTING SYSTEM (L00814 (1)) 482
REAR LIGHTING SYSTEM (L00814 (2)) 483
REAR LIGHTING SYSTEM (L00815 (1)) 484
REAR LIGHTING SYSTEM (L00815 (2)) 485
LOWER REAR WORKLIGHTS (L00816 (1)) 486
LOWER REAR WORKLIGHTS (L00817 (1)) 487
LOWER REAR WORKLIGHTS XENON (L00818 (1)) 488
RETROREFLECTOR (L00819 (1)) 489
REAR LIGHTS / REFLECTORS (L00820 (1)) 490
WORKLIGHTS FOR CAB ROOF (L00822 (1)) 491
LICENCE PLATE LIGHT (L00823 (1)) 492
LICENCE PLATE LIGHT (L00824 (1)) 493
WARNING BEACON (L00825 (1)) 494
HORN (L00828 (1)) 495
HORN (L00829 (1)) 496
INTERIOR LIGHT (L00833 (1)) 497
HEADLAMP COMPONENTS (044119374A) 498
HEADLAMP COMPONENTS (044140874A) 499
HEADLAMP COMPONENTS (044140884A) 500
WARNING BEACON (04414773A) 501
HEADLAMP COMPONENTS (044280894/10A) 502
HEADLAMP COMPONENTS (044280904/10A) 503
HEADLAMP COMPONENTS (04450666A) 504
HEADLAMP COMPONENTS (280298800/10A) 505
WORK LAMP W XENON (280390160A) 506
HEADLAMP COMPONENTS (280391600A) 507
HEADLAMP COMPONENTS (280391800/10A) 508
FRONT LIGHTS (280392400A) 509
FRONT LIGHTS (280392500A) 510
ACCESSORIES 511
LOUDSPEAKERS AND RADIO ANTENNA (L0091 (1)) 511
CIGAR LIGHTER (L0092 (1)) 512
CIGAR LIGHTER (L0093 (1)) 513
Engine 514
Index 514
Agrotron M 620 -> 20001 517
B0 – ENGINE 517
GENERAL 517
MOTOR (B0002 (1)) 517
CYLINDER BLOCK 518
FASTENINGS (B0011007) 518
GASKET SET (B0011029) 520
BLEEDING TUBE (B0011045) 522
CRANKCASE BREATHER (B0011055) 524
CRANKCASE (B0011078) 526
OIL FILLER NECK (B0011088) 528
PLUG (B0011113) 530
CLOSING COMPONENTS (B0011125) 532
ACCESSORIES (B0011134) 534
ACCESSORIES (B0011135) 536
ACCESSORIES (B0011137) 538
FILLER CAP (B0011144) 540
PISTON COOLNOZZLE (B0011160) 542
OIL RETURN (B0011162) 544
FLANGE (B0011167) 546
FLANGE (B0011170) 548
CRANKSHAFT 549
V-BELT – FOR MODELS WITH COMPRESSOR (B0020 (1)) 549
FASTENINGS (B0021002) 550
FASTENINGS (B0021008) 552
CRANKSHAFT (B0021048) 554
FLYWHEEL (B0021073) 556
PLUG (B0021077) 558
ACCESSORIES (B0021079) 560
MAIN BEARINGS (B0021084) 562
CRANKSHAFT PULLEY (B0021090) 564
CYLINDERS – PISTONS – CONNECTING RODS 566
PISTON (B0031011) 566
CONNECTING ROD (B0031025) 568
TIMING 570
FASTENINGS (B0041011) 570
BUSH (B0041023) 572
ROCKER ARM BRACKET (B0041052) 574
ROCKER ARM BRACKET (B0041053) 576
ROCKER ARM BRACKET (B0041054) 578
ROCKER ARM BRACKET (B0041057) 580
CAMSHAFT (B0041079) 581
VALVE DRIVE (B0041091) 583
GEARCASE (B0041118) 585
GEARCASE (B0041123) 587
CYLINDER HEAD 588
FASTENINGS (B0051006) 588
SEALING (B0051013) 590
ENGINE MOUNTING (B0051015) 592
CLOSING COMPONENTS (B0051025) 594
CYLINDER HEAD (B0051043) 596
VALVE MECHANCOVER (B0051054) 598
LUBRICATION 600
SEALING (B0061018) 600
OIL SUCTION PIPE (B0061041) 601
OIL PAN (B0061058) 603
CLOSING COMPONENTS (B0061082) 605
CLOSING COMPONENTS (B0061084) 607
CLOSING COMPONENTS (B0061085) 609
CLOSING COMPONENTS (B0061086) 610
CLOSING COMPONENTS (B0061087) 612
DRIVING PARTS (B0061105) 614
OIL COOLER BOX (B0061133) 615
OIL COOLER BOX (B0061143) 617
FUEL INJECTION SYSTEM 619
FASTENINGS (B0071011) 619
FASTENINGS (B0071014) 621
FASTENINGS (B0071015) 623
ADD-ON PARTS ENGINE (B0071019) 625
HIGH PRESSURE PIPE (B0071028) 627
FUEL INJECTOR (B0071047) 629
FILTER HOUSING (B0071049) 631
FUEL FEED PUMP (B0071050) 633
FUEL FEED PUMP (B0071052) 635
FUEL LINE (B0071091) 636
FUEL LINE (B0071105) 639
FUEL PUMP (B0071121) 641
ROLLER TAPPET (B0071133) 643
DISTRIBUTOR (B0071148) 645
CLOSING COMPONENTS (B0071157) 647
ENGINE FUEL PUMP (B0071176) 649
SPIN-ON FILTER (B0071186) 651
MECHANICAL – ELECTRONIC GOVERNOR 653
ELECTRONIC CONTROL UNIT – ENGINE (B0081021) 653
CLOSING COMPONENTS (B0081033) 655
COOLING 657
FASTENINGS (B0091011) 657
FASTENINGS (B0091027) 659
FASTENINGS (B0091033) 661
THERMOSTAT (B0091062) 663
CLOSING COMPONENTS (B0091073) 665
COOLING WATER PIPE (B0091083) 667
MANIFOLD (B0091106) 669
FAN SUPPORT (B0091132) 671
BELT STRETCHER (B0091137) 673
CONNECTION (B0091146) 675
V-BELT (B0091170) 677
V-GROOVED PULLEY (B0091176) 679
INTAKE – EXHAUST MANIFOLDS 681
EXHAUST PIPE (B0101013) 681
FASTENINGS (B0101036) 683
FASTENINGS (B0101040) 685
TUNNEL COVER (B0101045) 687
TUNNEL COVER (B0101046) 689
MANIFOLD (B0101086) 691
GLOW PLUG (B0101122) 693
CHARGED AIR MANIFOLD (B0101128) 695
TURBOCHARGER 697
TURBOCHARGER (B0111031) 697
LUBRICATION (B0111039) 699
Electrical accessories 701
COVER PLATE (B0121004) 701
FASTENINGS (B0121010) 702
FASTENINGS (B0121030) 704
FASTENINGS (B0121035) 706
IMPULSETRANSMITTER (B0121052) 708
GENERATOR (B0121070) 710
GENERATOR (B0121072) 711
ENGINE ELECTRICAL SYSTEM (B0121101) 712
STARTER (B0121133) 714
ACCESSORIES (B0121145) 716
ACCESSORIES (B0121151) 718
ACCESSORIES (B0121166) 720
ACCESSORIES (B0121174) 722
ACCESSORIES (B0121180) 724
ACCESSORIES (B0121185) 726
DRIVING PARTS (B0121189) 727
OIL PRESSURSWITCH (B0121196) 729
TEMPERTRANSMITTER (B0121222) 731
Engine_accessories 733
Index 733
Agrotron M 620 -> 20001 734
C0 – ENGINE ACCESSORIES 734
RADIATORS – FANS 734
BLOWER (C0010 (1)) 734
COOLING SYSTEM (C0011 (1)) 735
COOLING SYSTEM (C0011 (2)) 737
COOLING SYSTEM EXPANSION TANK (001545314/10A) 739
INTERCOOLER – AIR CLEANER 740
INTERCOOLER (C0020 (1)) 740
AIR INTAKE TUBE (C0021 (1)) 741
DRY AIR FILTER (C0022 (1)) 742
AIR FILTER (001393144A) 743
FUEL SYSTEM 744
FUEL TANKS (C0030 (1)) 744
FUEL TANKS (C0030 (2)) 745
FUEL PRELIMINARY FILTER (C0031 (1)) 746
FUEL PRELIMINARY FILTER (C0031 (2)) 747
FUEL PRELIMINARY FILTER (C0031 (3)) 748
FUEL PRELIMINARY FILTER (C0031 (4)) 749
SUPPORT (C0032 (1)) 750
FUEL COOLER (C0033 (1)) 751
PRE-FILTER – COMPONENTS (243193000/10A) 752
EXHAUST SILENCER 753
EXHAUST SILENCER (C0060 (1)) 753
EXHAUST SILENCER (C0060 (2)) 754
EXHAUST SILENCER WITH DUST EJECTOR (C0061 (1)) 755
EXHAUST SILENCER WITH DUST EJECTOR (C0061 (2)) 756
EXHAUST SILENCER (044553804/10A) 757
EXHAUST SILENCER (044558024/10A) 758
AIR COMPRESSOR 759
AIR COMPRESSOR (C0070 (1)) 759
AIR COMPRESSOR (C0071 (1)) 760
AIR COMPRESSOR ITALY (C0072 (1)) 761
COMPRESSOR-PARTS (044284084A) 762
Front_axle 763
Index 763
Agrotron M 620 -> 20001 764
F0 – FRONT AXLE 764
GENERAL 764
4WD – FRONT DRIVE AXLE (F0001 (1)) 764
4WD – FRONT DRIVE AXLE (F0002 (1)) 765
4WD – FRONT DRIVE AXLE (F0005 (1)) 766
DRIVEN FRONT AXLE – [359578] (001403294/40A) 767
STEERING CYLINDER – [359578] (001403294/40B) 768
BEVEL WHEEL GEAR – [359578] (001403294/40C) 769
DIFFERENTIAL – [359578] (001403294/40D) 770
DOUBLE COUPLING – [359578] (001403294/40E) 771
WHEEL HUB – WITH FRONT BRAKES – [359578] (001403294/40F) 772
PLANETARY GEAR – [359578] (001403294/40G) 773
DRIVEN FRONT AXLE – [359579] (001403314/40A) 774
STEERING CYLINDER – [359579] (001403314/40B) 775
BEVEL WHEEL GEAR – [359579] (001403314/40C) 776
DIFFERENTIAL – [359579] (001403314/40D) 777
DOUBLE COUPLING – [359579] (001403314/40E) 778
WHEEL HUB – [359579] (001403314/40F) 779
PLANETARY GEAR – [359579] (001403314/40G) 780
DRIVEN FRONT AXLE – [370485] (001586764/20A) 781
STEERING CYLINDER – [370485] (001586764/20B) 782
BEVEL WHEEL GEAR – [370485] (001586764/20C) 783
DIFFERENTIAL – [370485] (001586764/20D) 784
DOUBLE COUPLING – [370485] (001586764/20E) 785
WHEEL HUB – [370485] (001586764/20F) 786
PLANETARY GEAR – [370485] (001586764/20G) 787
FRONT SUPPORT 788
4WD – FRONT SUPPORT (F0010 (1)) 788
4WD – FRONT CARRIER WITH SUSPENSION (F0011 (1)) 789
FRONT COVER WITHOUT FRONT HOOK (F0012 (1)) 790
HYDRAULIC CYLINDER (04455060/10A) 791
HYDRAULIC CYLINDER (04455061/10A) 792
FRONT DIFFERENTIAL 793
4WD – PROPELLER SHAFT (F0040 (1)) 793
4WD – PROPELLER SHAFT (F0040 (2)) 794
4WD – PROPELLER SHAFT (F0041 (1)) 795
4WD – PROPELLER SHAFT (F0041 (2)) 796
Front_lift 797
Index 797
Agrotron M 620 -> 20001 798
N0 – FRONT LIFT 798
GENERAL 798
FRONT HYDRAULIC POWER-LIFT (N0000 (1)) 798
FRONT HYDRAULIC POWER-LIFT (N0001 (2)) 799
FRONT HYDRAULIC POWER-LIFT (044558924A) 800
HYDRAULIC SYSTEM (044558924B) 801
FRONT LIGHTS (044558924C) 803
FRONT HYDRAULIC POWER-LIFT (044558934/10A) 804
HYDRAULIC SYSTEM (044558934/10B) 805
Front_loader 806
Index 806
Agrotron M 620 -> 20001 808
P0 – FRONT LOADER 808
STRUCTURE – LETTERING 808
FIXED FRAME (P0010 (1)) 808
INSTALLATION KIT (P0011 (1)) 809
FRONT PROTECTIONS (P0012 (1)) 810
FRONT LOADER ARM (P0015 (1)) 811
FRONT LOADER ARM (P0016 (1)) 812
LOCKING SYSTEM (P0017 (1)) 813
MECHANICAL IMPLEMENT HITCH EFAM L-50 (P00110 (1)) 814
MECHANICAL IMPLEMENT HITCH SFAM L-50 (P00111 (1)) 815
PRODUCT PLATE (P00113 (1)) 816
MODEL PLATE (P00117 (1)) 817
MODEL PLATE (P00118 (1)) 818
MODEL PLATE (P00119 (1)) 819
SIGN SET – ITALY (P00120 (1)) 820
SIGN SET – EXPORT GB (P00121 (1)) 821
SIGN SET EXPORT DK (P00122 (1)) 822
SIGN SET EXPORT NL (P00123 (1)) 823
SIGN SET – EXPORT F (P00124 (1)) 824
SIGN SET – EXPORT D (P00125 (1)) 825
SIGN SET – EXPORT E (P00126 (1)) 826
SIGN SET EXPORT PL (P00127 (1)) 827
INFORMATION PLATE (P00128 (1)) 828
WARNING PLATE (P00129 (1)) 829
IDENTIFICATION PLATE (P00130 (1)) 830
IDENTIFICATION PLATE (P00131 (1)) 831
IDENTIFICATION PLATE (P00132 (1)) 832
WARNING PLATE (P00133 (1)) 833
HYDRAULIC SYSTEM 834
DISTRIBUTOR (P0020 (1)) 834
PIPING LOAD SENSING (P0021 (1)) 835
PIPING OPEN CENTER (P0022 (1)) 836
PIPING OPEN CENTER (P0023 (1)) 837
ELECTRICAL SYSTEM 838
PROVISION FOR FRONT LOADER (P0030 (1)) 838
FRONT LOADER ELECTRICAL SYSTEM (P0031 (1)) 839
BRACKET (P0032 (1)) 840
LOADER CONTROLS 841
CONTROL LEVER (P0040 (1)) 841
FRONT LOADER CONTROL SUPPORT (P0041 (1)) 842
DRIVE (001447954/20A) 843
ATTACHMENTS 844
BUCKET EABU190R (P0050 (1)) 844
BUCKET EABU205R (P0051 (1)) 845
BUCKET EABU220R (P0052 (1)) 846
BUCKET UNBU190R (P0053 (1)) 847
BUCKET UNBU205R (P0054 (1)) 848
BUCKET UNBU220R (P0055 (1)) 849
BUCKET EBWT190R (P0056 (1)) 850
BUCKET EBWT205R (P0057 (1)) 851
BUCKET EBWT220R (P0058 (1)) 852
BUCKET – FIOB 200 H (P0059 (1)) 853
SHREDDER – SCGR 150 N (P00510 (1)) 854
SHREDDER – SCGR 190 H (P00511 (1)) 855
SHOVEL WITH LOAD HOLDER – SBWG 180 N (P00512 (1)) 856
SHOVEL WITH LOAD HOLDER – SBWG 220 H (P00513 (1)) 857
SHOVEL WITH LOAD HOLDER – BWGR 200 N (P00514 (1)) 858
SHOVEL WITH LOAD HOLDER – BWGR 230 N (P00515 (1)) 859
FORK WITH LOAD HOLDER – SIGR 150 N (P00516 (1)) 860
FORK WITH LOAD HOLDER – FWGR 200 N (P00517 (1)) 861
FORK WITH LOAD HOLDER – FWGR 230 N (P00518 (1)) 862
FORK-LIFT FOR MANURE – MAFO 200 H (P00521 (1)) 863
FORK-LIFT FOR MANURE – MAFO 200 N (P00522 (1)) 864
FORK-LIFT FOR MANURE – MAFO 235 L (P00523 (1)) 865
FORK-LIFT FOR MANURE – MAFO 235 N (P00524 (1)) 866
FOLDING BAIL FORK – BBFA 120 H (P00525 (1)) 867
BAIL FORK – BBFO 120 H (P00526 (1)) 868
PALLET FORK – PAFO 090 H (P00527 (1)) 869
PALLET FORK – PAFO 120 H (P00528 (1)) 870
SHOVEL AND FORK PROTECTION A = mm 1310 (P00529 (1)) 871
SHOVEL AND FORK PROTECTION A = mm 1510 (P00530 (1)) 872
SHOVEL AND FORK PROTECTION A = mm 1710 (P00531 (1)) 873
SHOVEL AND FORK PROTECTION A = mm 1910 (P00532 (1)) 874
SHOVEL AND FORK PROTECTION A = mm 2060 (P00533 (1)) 875
SHOVEL AND FORK PROTECTION A = mm 2210 (P00534 (1)) 876
SHOVEL AND FORK PROTECTION A = mm 2410 (P00535 (1)) 877
BAIL FORK – RBHA 000 N (P00536 (1)) 878
BAIL FORK – BACL 160 N (P00537 (1)) 879
BAIL FORK – BACL 205 H (P00538 (1)) 880
TRUNK FORK – STFH 104 N (P00539 (1)) 881
TRUNK FORK – STFO 130 N (P00540 (1)) 882
Front_pto 883
Index 883
Agrotron M 620 -> 20001 884
M0 – FRONT PTO 884
GENERAL 884
PTO FRONT (M0000 (1)) 884
PTO FRONT (044558604A) 885
PTO FRONT (044558604B) 886
PTO FRONT (044558604C) 888
ELECTRICAL SYSTEM PTO (044558604D) 889
Hydraulic_and_pneumatic_system 890
Index 890
Agrotron M 620 -> 20001 893
H0 – HYDRAULIC AND PNEUMATIC SYSTEM| 893
HYDRAULIC SYSTEM 893
FRONT DIFFERENTIAL LOCK CONTROL LINES (H0010 (1)) 893
GEAR BOX OIL RADIATOR TUBES (H0011 (1)) 894
GEAR BOX OIL RADIATOR TUBES (H0012 (1)) 895
GEAR BOX OIL RADIATOR TUBES (H0012 (2)) 896
GEAR BOX OIL RADIATOR TUBES (H0012 (3)) 897
HYDRAULIC SYSTEM LOAD SENSING (H0013 (1)) 898
HYDRAULIC SYSTEM LOAD SENSING (H0014 (1)) 899
HYDRAULIC SYSTEM LOAD SENSING (H0015 (1)) 900
HYDRAULIC SYSTEM LOAD SENSING (H0016 (1)) 901
HYDRAULIC SYSTEM LOAD SENSING (H0016 (2)) 902
HYDRAULIC SYSTEM OPEN CENTER (H0017 (1)) 903
HYDRAULIC SYSTEM OPEN CENTER (H0018 (1)) 905
HYDRAULIC SYSTEM LOAD SENSING (H0019 (1)) 906
HYDRAULIC SYSTEM LOAD SENSING (H00110 (1)) 908
HYDRAULIC SYSTEM LOAD SENSING (H00111 (1)) 909
HYDRAULIC SYSTEM LOAD SENSING (H00112 (1)) 911
HYDRAULIC SYSTEM LOAD SENSING (H00113 (1)) 912
HYDRAULIC SYSTEM OPEN CENTER (H00114 (1)) 913
HYDRAULIC SYSTEM OPEN CENTER (H00115 (1)) 915
HYDRAULIC SYSTEM OPEN CENTER (H00116 (1)) 916
HYDRAULIC SYSTEM OPEN CENTER (H00117 (1)) 918
FLANGE (00290646A) 919
DETAILS OF OIL FILTER (044377734A) 920
HYDRAULIC PUMP PARTS (04450322A) 921
VALVE PARTS (04450326A) 922
HYDRAULIC PUMP PARTS (04450516A) 923
SPIN-ON FILTER (04451877A) 924
OIL PUMP (04452222/10A) 925
OIL PUMP (04452222/10B) 926
OIL PUMP (04452222/10C) 927
OIL PUMP (04452222/10D) 928
HYDRAULIC PUMP PARTS (245393100/10A) 929
STEERING SYSTEM 930
HYDROSTATIC STEERING CONTROL VALVE (H0020 (1)) 930
PIPES FOR HYDROSTATIC STEERING (H0021 (1)) 931
GUIDE PIPE (H0022 (1)) 932
GUIDE PIPE (H0022 (2)) 933
HYDROSTATIC STEERING FIXING COMPONENTS (H0023 (1)) 934
HYDRAULIC STEERING GEAR (04450329A) 935
TRANSMISSION – PTO COOLERS 936
GEARBOX OIL COOLER (H0030 (1)) 936
FRONT AXLE HYDRAULIC SUSPENSION 937
HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0040 (1)) 937
HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0041 (1)) 938
HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0042 (1)) 939
HYDRAULIC SYSTEM FOR SUSPENDED AXLE OPEN CENTER (H0043 (1)) 940
HYDRAULIC SYSTEM FOR SUSPENDED AXLE OPEN CENTER (H0044 (1)) 941
HOSE SUPPORT BRACKET (H0045 (1)) 942
ACCUMULATOR (04455149/40A) 943
FRONT LIFT 944
FRONT LIFT – HYDRAULIC SYSTEM (H0050 (1)) 944
REAR REMOTE CONTROL VALVES 945
4-WAY HYDRAULIC CONTROL VALVE OPEN CENTER (H0070 (2)) 945
4-WAY HYDRAULIC CONTROL VALVE OPEN CENTER (H0070 (3)) 947
8-WAY HYDRAULIC CONTROL VALVE OPEN CENTER (H0071 (2)) 949
8-WAY HYDRAULIC CONTROL VALVE OPEN CENTER (H0071 (3)) 951
8-WAY HYDRAULIC CONTROL VALVE LOAD SENSING (H0072 (2)) 953
8-WAY HYDRAULIC CONTROL VALVE LOAD SENSING (H0072 (3)) 955
BRACKET (H0073 (1)) 957
QUICK COUPLERS FOR TYPES WITH FRONT LIFT (H0074 (1)) 958
4-WAY QUICK COUPLERS (H0076 (1)) 959
4-WAY QUICK COUPLERS (H0078 (1)) 960
8-WAY QUICK COUPLERS (H00710 (1)) 961
8-WAY QUICK COUPLERS (H00712 (1)) 962
PUSH-PULL QUICK COUPLERS FOR “POWER BEYOND” (H00713 (1)) 963
RETURN LINE REAR – UNPRESSURIZED (H00714 (1)) 964
RETURN LINE REAR – UNPRESSURIZED (H00714 (2)) 965
ENGAGEMENT (04412157/10A) 966
VALVE PARTS (044289174A) 967
ENGAGEMENT (04450416A) 968
ENGAGEMENT (04450417A) 969
DISTRIBUTOR PARTS (237294800A) 970
DISTRIBUTOR PARTS (237295200/10A) 971
BRAKING SYSTEM AND PNEUMATIC SYSTEM| 972
BRAKING SYSTEM (H0090 (1)) 972
BRAKING SYSTEM (H0091 (1)) 973
BRAKING SYSTEM (H0092 (1)) 974
BRAKING SYSTEM (H0093 (1)) 975
BRAKING SYSTEM (H0094 (1)) 976
BRAKING SYSTEM KIT OPEN CENTER (H0095 (1)) 977
FRONT BRAKE PIPES (H0096 (1)) 978
VALVE FOR FRONT BRAKES (H0097 (1)) 979
HYDRAULIC BREAKING FOR TRAILER – ITALY – (H0098 (1)) 980
HYDRAULIC BREAKING FOR TRAILER – ITALY – (H0098 (2)) 981
HYDRAULIC BREAKING FOR TRAILER – ITALY – (H0099 (1)) 982
HYDRAULIC BREAKING FOR TRAILER – ITALY – (H0099 (2)) 983
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (H00910 (1)) 984
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (H00910 (2)) 985
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (H00911 (1)) 986
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (H00911 (2)) 987
PNEUMATIC SYSTEM FOR SUSPENDED CAB (H00912 (1)) 988
PNEUMATIC SYSTEM FOR SUSPENDED CAB (H00913 (1)) 989
AIR BRAKING (H00914 (1)) 990
AIR BRAKING (H00915 (1)) 991
AIR BRAKING (H00916 (1)) 992
AIR BRAKING (H00917 (1)) 993
AIR BRAKING (H00918 (1)) 994
BRAKING SYSTEM KIT (H00919 (1)) 995
AIR BRAKING – ITALY – (H00920 (1)) 996
AIR BRAKING – ITALY – (H00921 (1)) 997
AIR BRAKING – ITALY – (H00922 (1)) 998
BRACKET FOR PNEUMATIC BRAKING SYSTEM (H00923 (1)) 999
AIR-PRESSURE GAUGE (H00924 (1))1000
TRAILER SOCKET-OUTLET VALVE (001217124A)1001
TRAILER BRAKE VALVE (04419935A)1002
TRAILER BRAKE VALVE (04424805A)1003
PRESSURE REGULATOR (04434820A)1004
TRAILER BRAKE VALVE (04452780/10A)1005
PUMP-COMPONENTS (04453936A)1006
BRAKES CONTROL VALVE (237297220/20A)1007
Rear_lift1008
Index1008
Agrotron M 620 -> 200011009
R0 – REAR LIFT1009
LIFT ASSEMBLY1009
LIFTING CYLINDER Ø MM 80 (R0020 (1))1009
LIFTING CYLINDER Ø MM 80 (R0020 (2))1010
LIFTING CYLINDER Ø MM 100 (R0021 (1))1011
LIFTING CYLINDER Ø MM 100 (R0021 (2))1012
CYLINDER PARTS (044111824/20A)1013
CYLINDER PARTS mm 100 (044111844/10A)1014
HYDRAULIC CYLINDER (237490110A)1015
HYDRAULIC CYLINDER (237490120A)1016
SENSOR1017
AGROTRONIC (R0050 (1))1017
AGROTRONIC (R0050 (2))1018
THREE-POINT LINKAGE – LINK ARMS1019
3 POINT HITCH – LIFTING ARMS (R0060 (1))1019
3-POINT HITCH – ADJUSTABLE RH RODS (R0061 (1))1020
3-POINT HITCH – SIDE STABILIZERS (R0062 (1))1021
3-POINT HITCH – SIDE STABILIZERS (R0063 (1))1022
3-POINT HITCH – SIDE STABILIZERS (R0064 (1))1023
3-POINT HITCH – SIDE STABILIZERS (R0065 (1))1024
3-POINT HITCH – SIDE STABILIZERS (R0066 (1))1025
RETAINER FOR COLLECTING TRAY – SX/LH/LI (R0067 (1))1026
RETAINER FOR COLLECTING TRAY (R0068 (1))1027
TOWING BAR (R0069 (1))1028
MANUAL LATERAL STABILIZERS (001052224/60A)1029
LINKAGE (001414153A)1030
TOWING HITCH cat 3 (001414213A)1031
STABILIZER (001540234A)1032
STABILIZER (001540294A)1033
STABILIZER (001576874A)1034
Transmission1035
Index1035
Agrotron M 620 -> 200011037
D0 – TRANSMISSION1037
GENERAL1037
GEAR CHANGE BOX (D0001 (1))1037
GEAR CHANGE BOX (D0003 (1))1038
GEARBOX – [2093 009 100] (044553624/2001)1039
LAYSHAFT – [2093 009 100] (044553624/2002)1040
MAIN SHAFT – [2093 009 100] (044553624/2003)1042
MAIN SHAFT – [2093 009 100] (044553624/2004)1045
GEARSHIFT LEVER – [2093 009 100] (044553624/2005)1046
PTO – POWER TAKE OFF – [2093 009 100] (044553624/2006)1048
SUPER REDUCTION GEAR UNIT – [2093 009 100] (044553624/2007)1049
PUMP DRIVE – [2093 009 100] (044553624/2008)1050
LUBRICANT OIL SUPPLY – [2093 009 100] (044553624/2009)1053
FRONT TRANSMISSION – [2093 009 100] (044553624/2010)1054
FRONT TRANSMISSION – [2093 009 100] (044553624/2011)1056
LUBRICANT OIL SUPPLY – [2093 009 100] (044553624/2012)1057
ADJUSTER INSTRUMENT – [2093 009 100] (044553624/2013)1058
ADJUSTER INSTRUMENT – [2093 009 100] (044553624/2014)1061
ADJUSTER INSTRUMENT – [2093 009 100] (044553624/2015)1064
POWER SHIFT – [2093 009 100] (044553624/2016)1065
GEARBOX – [2093 009 100] (044553624/2017)1067
SPLITTER – [2093 009 100] (044553624/2018)1068
SPLITTER – [2093 009 100] (044553624/2019)1071
HYDRAULIC CONTROL – [2093 009 100] (044553624/2020)1074
HYDRAULIC CONTROL – [2093 009 100] (044553624/2021)1075
GEARBOX INPUT SHAFT – [2093 009 100] (044553624/2022)1076
CLUTCH – [2093 009 100] (044553624/2023)1077
ACCESSORIES – [2093 009 100] (044553624/2024)1080
REAR GEARBOX CASE – [2093 009 100] (044553624/2026)1081
DIFFERENTIAL – [2093 009 100] (044553624/2027)1083
PTO – POWER TAKE OFF – [2093 009 100] (044553624/2028)1085
SERVICE BRAKES – [2093 009 100] (044553624/2029)1089
BRAKE CONTROLS – [2093 009 100] (044553624/2030)1090
LIFTING – [2093 009 100] (044553624/2031)1091
GEAR SHIFTING – [2093 009 100] (044553624/2032)1092
GEARBOX – [2093 009 105] (044553634/2001)1093
LAYSHAFT – [2093 009 105] (044553634/2002)1094
MAIN SHAFT – [2093 009 105] (044553634/2003)1096
MAIN SHAFT – [2093 009 105] (044553634/2004)1099
GEARSHIFT LEVER – [2093 009 105] (044553634/2005)1100
PTO – POWER TAKE OFF – [2093 009 105] (044553634/2006)1102
SUPER REDUCTION GEAR UNIT – [2093 009 105] (044553634/2007)1103
PUMP DRIVE – [2093 009 105] (044553634/2008)1104
LUBRICANT OIL SUPPLY – [2093 009 105] (044553634/2009)1107
FRONT TRANSMISSION – [2093 009 105] (044553634/2010)1108
FRONT TRANSMISSION – [2093 009 105] (044553634/2011)1110
LUBRICANT OIL SUPPLY – [2093 009 105] (044553634/2012)1111
ADJUSTER INSTRUMENT – [2093 009 105] (044553634/2013)1112
ADJUSTER INSTRUMENT – [2093 009 105] (044553634/2014)1115
ADJUSTER INSTRUMENT – [2093 009 105] (044553634/2015)1118
POWER SHIFT – [2093 009 105] (044553634/2016)1119
GEARBOX – [2093 009 105] (044553634/2017)1121
SPLITTER – [2093 009 105] (044553634/2018)1122
SPLITTER – [2093 009 105] (044553634/2019)1125
HYDRAULIC CONTROL – [2093 009 105] (044553634/2020)1128
HYDRAULIC CONTROL – [2093 009 105] (044553634/2021)1129
GEARBOX INPUT SHAFT – [2093 009 105] (044553634/2022)1130
CLUTCH – [2093 009 105] (044553634/2023)1131
ACCESSORIES – [2093 009 105] (044553634/2024)1133
REAR GEARBOX CASE – [2093 009 105] (044553634/2026)1134
DIFFERENTIAL – [2093 009 105] (044553634/2027)1136
PTO – POWER TAKE OFF – [2093 009 105] (044553634/2028)1138
SERVICE BRAKES – [2093 009 105] (044553634/2029)1142
BRAKE CONTROLS – [2093 009 105] (044553634/2030)1143
LIFTING – [2093 009 105] (044553634/2031)1144
GEAR SHIFTING – [2093 009 105] (044553634/2032)1145
GEARBOX INPUT SHAFT1146
FLEXIBLE COUPLINGS (D0050 (1))1146
GEARBOX1147
GEARBOX FASTENERS (D0090 (1))1147
SEPARATOR mm 35 (D0091 (1))1148
SEPARATOR 15 mm (D0092 (1))1149
INTERNAL AND EXTERNAL GEARBOX CONTROLS1150
GEAR SHIFTING (D0100 (1))1150
SUPER-REDUCTION CONTROL (D0101 (1))1151
SUPER-REDUCTION CONTROL (D0101 (2))1152
LINKAGE (001639694/1000)1153
PTO/GROUNDPSPEED DRIVE1154
PTO OUTPUT SHAFT z = 21 (D0140 (1))1154
PTO OUTPUT SHAFT 1″ 3/4, Z = 6 (D0141 (1))1155
PTO OUTPUT SHAFT 1″3/4, Z = 20 (D0142 (1))1156
COMPLETION (D0143 (1))1157
PTO SHAFT PROTECTOR REAR (D0144 (1))1158
Wheels1159
Index1159
Agrotron M 620 -> 200011160
S0 – WHEELS1160
FRONT WHEEL BOLTS1160
FRONT WHEEL MOUNTING m 20 p15 (S0010 (1))1160
REAR WHEEL BOLTS1161
FRONT WHEEL MOUNTING m 22 x 1,5 (S0020 (1))1161
TWING WHEEL FIXINGS m 22×15 (S0021 (1))1162
WHEELS1163
TYRE VALVE (S0040 (1))1163
WHEELS 169 R28″ 136 A8 TL (S0048 (1))1164
WHEELS 480/70 R28″ A8 (S0049 (1))1165
WHEELS 480/70 R28″ A8 (S00410 (1))1166
WHEELS 540/65R28″ A8 (S00411 (1))1167
WHEELS 540/65R28″ A8 (S00412 (1))1168
WHEELS 540/65 R28″ 137 A8 CF (S00413 (1))1169
WHEELS 208R38″ a8 (S00417 (1))1170
WHEELS 580/70R38″ a8 (S00421 (1))1171
WHEELS 580/70R38″ a8 (S00422 (1))1172
WHEELS 650/65R38″ (S00424 (1))1173
WHEELS 650/65R38″ 154 A8 (S00425 (1))1174
WHEELS 650/65R38″ 154 A8 (S00426 (1))1175

Questions? Email us: [email protected]

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.M
