Deutz Fahr Agrotron M 620 Parts Manual 20001 – PDF
$35.95
Deutz Fahr Agrotron M 620 Parts Manual 20001 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Deutz Fahr Agrotron M 620 Parts Manual 20001 – PDF DOWNLOAD
FILE DETAILS:
Deutz Fahr Agrotron M 620 Parts Manual 20001 – PDF DOWNLOAD
Language : English
Pages : 1175
Downloadable : Yes
File Type : PDF

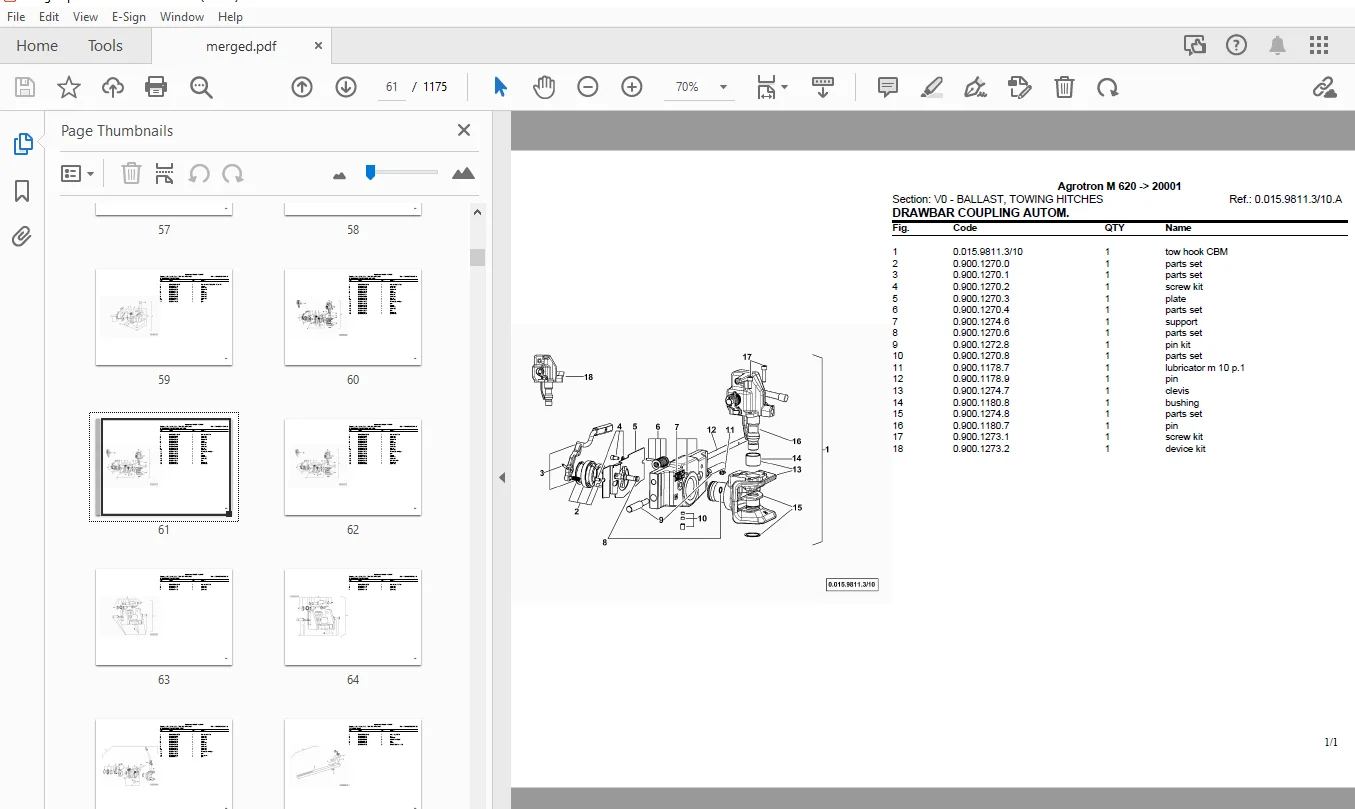

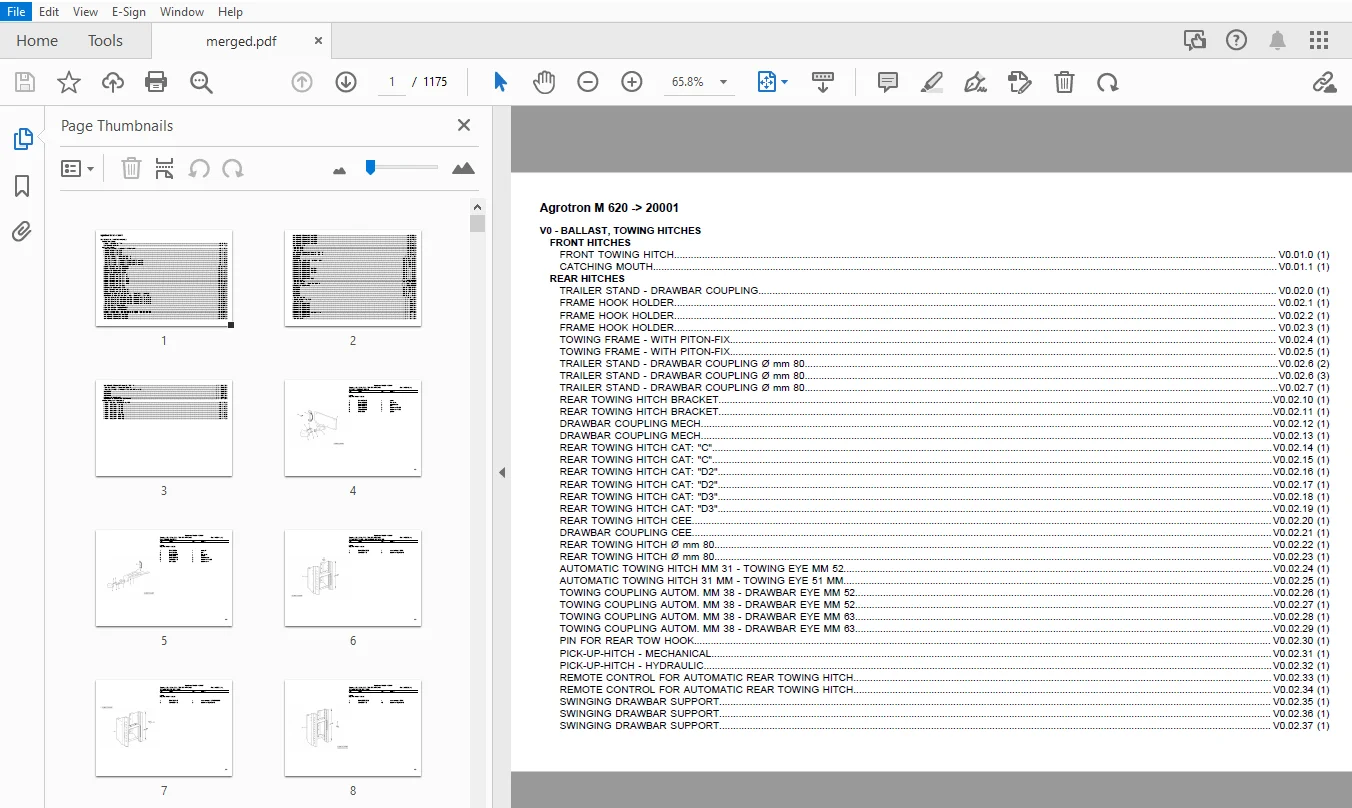

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Deutz Fahr Agrotron M 620 Parts Manual 20001 – PDF DOWNLOAD
Index.............................................................................................. 1 Agrotron M 620 -> 20001............................................................................ 4 V0 - BALLAST, TOWING HITCHES................................................................... 4 FRONT HITCHES.............................................................................. 4 FRONT TOWING HITCH (V0.01.0 (1))....................................................... 4 CATCHING MOUTH (V0.01.1 (1))........................................................... 5 REAR HITCHES............................................................................... 6 TRAILER STAND - DRAWBAR COUPLING (V0.02.0 (1))......................................... 6 FRAME HOOK HOLDER (V0.02.1 (1))........................................................ 7 FRAME HOOK HOLDER (V0.02.2 (1))........................................................ 8 FRAME HOOK HOLDER (V0.02.3 (1))........................................................ 9 TOWING FRAME - WITH PITON-FIX (V0.02.4 (1))............................................ 10 TOWING FRAME - WITH PITON-FIX (V0.02.5 (1))............................................ 11 TRAILER STAND - DRAWBAR COUPLING Ø mm 80 (V0.02.6 (2))................................. 12 TRAILER STAND - DRAWBAR COUPLING Ø mm 80 (V0.02.6 (3))................................. 13 TRAILER STAND - DRAWBAR COUPLING Ø mm 80 (V0.02.7 (1))................................. 14 REAR TOWING HITCH BRACKET (V0.02.10 (1))............................................... 15 REAR TOWING HITCH BRACKET (V0.02.11 (1))............................................... 16 DRAWBAR COUPLING MECH. (V0.02.12 (1)).................................................. 17 DRAWBAR COUPLING MECH. (V0.02.13 (1)).................................................. 18 REAR TOWING HITCH CAT: "C" (V0.02.14 (1)).............................................. 19 REAR TOWING HITCH CAT: "C" (V0.02.15 (1)).............................................. 20 REAR TOWING HITCH CAT: "D2" (V0.02.16 (1))............................................. 21 REAR TOWING HITCH CAT: "D2" (V0.02.17 (1))............................................. 22 REAR TOWING HITCH CAT: "D3" (V0.02.18 (1))............................................. 23 REAR TOWING HITCH CAT: "D3" (V0.02.19 (1))............................................. 24 REAR TOWING HITCH CEE (V0.02.20 (1))................................................... 25 DRAWBAR COUPLING CEE (V0.02.21 (1)).................................................... 26 REAR TOWING HITCH Ø mm 80 (V0.02.22 (1))............................................... 27 REAR TOWING HITCH Ø mm 80 (V0.02.23 (1))............................................... 28 AUTOMATIC TOWING HITCH MM 31 - TOWING EYE MM 52 (V0.02.24 (1))......................... 29 AUTOMATIC TOWING HITCH 31 MM - TOWING EYE 51 MM (V0.02.25 (1))......................... 30 TOWING COUPLING AUTOM. MM 38 - DRAWBAR EYE MM 52 (V0.02.26 (1))........................ 31 TOWING COUPLING AUTOM. MM 38 - DRAWBAR EYE MM 52 (V0.02.27 (1))........................ 32 TOWING COUPLING AUTOM. MM 38 - DRAWBAR EYE MM 63 (V0.02.28 (1))........................ 33 TOWING COUPLING AUTOM. MM 38 - DRAWBAR EYE MM 63 (V0.02.29 (1))........................ 34 PIN FOR REAR TOW HOOK (V0.02.30 (1))................................................... 35 PICK-UP-HITCH - MECHANICAL (V0.02.31 (1)).............................................. 36 PICK-UP-HITCH - HYDRAULIC (V0.02.32 (1))............................................... 37 REMOTE CONTROL FOR AUTOMATIC REAR TOWING HITCH (V0.02.33 (1)).......................... 38 REMOTE CONTROL FOR AUTOMATIC REAR TOWING HITCH (V0.02.34 (1)).......................... 39 SWINGING DRAWBAR SUPPORT (V0.02.35 (1))................................................ 40 SWINGING DRAWBAR SUPPORT (V0.02.36 (1))................................................ 41 SWINGING DRAWBAR SUPPORT (V0.02.37 (1))................................................ 42 SWINGING DRAWBAR SUPPORT (V0.02.38 (1))................................................ 43 SWINGING DRAWBAR SUPPORT (V0.02.39 (1))................................................ 44 SWINGING DRAWBAR SUPPORT (V0.02.40 (1))................................................ 45 SWINGING DRAWBAR SUPPORT (V0.02.41 (1))................................................ 46 SWINGING DRAWBAR SUPPORT (V0.02.42 (1))................................................ 47 SWINGING BAR (V0.02.43 (1))............................................................ 48 TOWING BAR (V0.02.44 (1)).............................................................. 49 TOWING BAR (V0.02.45 (1)).............................................................. 50 TOWING BAR (V0.02.46 (1)).............................................................. 51 SWINGING DRAWBAR WITH PITON-FIX (V0.02.47 (1))......................................... 52 SWINGING DRAWBAR WITH PITON-FIX (V0.02.48 (1))......................................... 53 SUPPORT (0.015.9797.3.A)............................................................... 54 SUPPORT (0.015.9797.3/20.A)............................................................ 55 BARRE DE TRACTION - EXPORT USA (0.015.9798.3/10.A)..................................... 56 DRAWBAR COUPLING (0.015.9802.3/10.A)................................................... 57 DRAWBAR COUPLING (0.015.9803.3/10.A)................................................... 58 DRAWBAR COUPLING (0.015.9804.3/10.A)................................................... 59 DRAWBAR COUPLING AUTOM. (0.015.9810.3/10.A)............................................ 60 DRAWBAR COUPLING AUTOM. (0.015.9811.3/10.A)............................................ 61 DRAWBAR COUPLING AUTOM. (0.015.9812.3/10.A)............................................ 62 DRAWBAR COUPLING (0.015.9813.3/10.A)................................................... 63 DRAWBAR COUPLING (0.015.9813.3/20.A)................................................... 64 DRAWBAR COUPLING CEE (0.015.9815.3/20.A)............................................... 65 TOWING BAR (0.015.9823.3/10.00)........................................................ 66 TOWING HITCH (0.015.9825.3/10.A)....................................................... 67 TOWING FRAME - WITH PITON-FIX (0.015.9827.3/20.00)..................................... 68 DRAWBAR COUPLING (0.015.9830.3/20.00).................................................. 69 SUPPORT (0.015.9832.3/10.A)............................................................ 70 SUPPORT (0.015.9833.3/10.A)............................................................ 71 CHASSIS (0.015.9835.3/10.A)............................................................ 72 SUPPORT (0.016.1814.3/10.A)............................................................ 73 SUPPORT (0.016.1815.3/10.A)............................................................ 74 TOWING HITCH (0.016.9718.3.A).......................................................... 75 FRAME HOOK HOLDER (0.017.8556.3.A)..................................................... 76 TOWING BAR (0.017.8557.3.A)............................................................ 77 DRAWBAR COUPLING (0.017.8559.3.A)...................................................... 78 DRAWBAR COUPLING (0.017.8560.3.A)...................................................... 79 DRAWBAR COUPLING (0.017.8561.3.A)...................................................... 80 DRAWBAR COUPLING (0.017.8568.3.A)...................................................... 81 DRAWBAR COUPLING (0.017.8569.3.A)...................................................... 83 DRAWBAR COUPLING AUTOM. Ø 31 (0.017.8570.3.A).......................................... 85 DRAWBAR COUPLING (0.017.8571.3.A)...................................................... 86 DRAWBAR COUPLING (0.017.8573.3.A)...................................................... 87 TOWING BAR (0.017.8575.3.A)............................................................ 88 SWINGING DRAWBAR WITH PITON-FIX (0.017.8587.3.A)....................................... 89 TOWING FRAME - WITH PITON-FIX (0.017.8590.3.A)......................................... 90 TRAILER STAND - DRAWBAR COUPLING mm 80 (0.017.8593.3.A)................................ 91 SUPPORT (0.017.8595.3.A)............................................................... 92 SUPPORT (0.017.8600.3.A)............................................................... 93 SUPPORT (0.017.8601.3.A)............................................................... 94 DRAWBAR COUPLING (0.017.8609.3.A)...................................................... 95 AUTOMATIC DRAWBAR COUPLING (0.017.9616.3.A)............................................ 96 FRONT BALLAST WEIGHTS...................................................................... 98 FRONT WEIGHT CARRIER kg 100 (V0.03.0 (1)).............................................. 98 FRONT BALLAST 240 Kg (V0.03.1 (1))..................................................... 99 FRONT BALLAST 400 Kg (V0.03.2 (1))..................................................... 100 FRONT BALLAST 330 Kg (V0.03.3 (1))..................................................... 101 FRONT BALLAST 330 Kg (V0.03.4 (1))..................................................... 102 FRONT BALLAST 600 Kg (V0.03.5 (1))..................................................... 103 FRONT BALLAST 1000 Kg (V0.03.6 (2)).................................................... 104 FRONT BALLAST 1000 Kg (V0.03.6 (3)).................................................... 105 FRONT BALLAST 1000 Kg (V0.03.7 (1)).................................................... 106 Index.............................................................................................. 107 Agrotron M 620 -> 20001............................................................................ 113 G0 - BODYWORK - CAB............................................................................ 113 HOOD - SIDE PANELS - SUPPORTS.............................................................. 113 HOOD (G0.01.2 (1))..................................................................... 113 HOOD (G0.01.3 (1))..................................................................... 115 HOOD - SUPPORTS (G0.01.9 (1)).......................................................... 117 BONNET - FRONT PORTION (G0.01.10 (1)).................................................. 118 HOOD FRONT PART (G0.01.11 (1))......................................................... 119 HOOD - SUPPORTS (G0.01.16 (1))......................................................... 120 HOOD - SUPPORTS (G0.01.16 (2))......................................................... 122 HOOD - SUPPORTS (G0.01.16 (3))......................................................... 124 HOOD - SUPPORTS (G0.01.17 (1))......................................................... 126 HOOD - SUPPORTS (G0.01.17 (2))......................................................... 128 HOOD - SUPPORTS (G0.01.17 (3))......................................................... 130 BELT GUARDS (G0.01.19 (1))............................................................. 132 CONDENSER SUPPORT (G0.01.21 (1))....................................................... 133 WIRING SUPPORT BRACKETS (G0.01.22 (1))................................................. 134 WIRING SUPPORT BRACKETS (G0.01.22 (2))................................................. 135 SUPPORT FOR FUSE BOX AND CONTROL UNITS (G0.01.23 (1)).................................. 136 RELAY PROTECTION (G0.01.24 (1))........................................................ 137 RELAY PROTECTION (G0.01.25 (1))........................................................ 138 BATTERY SUPPORT (G0.01.26 (1))......................................................... 139 LETTERING.................................................................................. 140 STEERING WHEEL CAP (G0.02.1 (1))....................................................... 140 PRODUCT PLATE (G0.02.6 (1))............................................................ 141 PRODUCT PLATE - FRONT (G0.02.17 (1))................................................... 142 PRODUCT PLATE - FRONT (G0.02.18 (1))................................................... 143 PRODUCT PLATE (G0.02.19 (1))........................................................... 144 PRODUCT PLATE (G0.02.20 (1))........................................................... 145 FUSEBOX IDENTIFICATION PLATE (G0.02.21 (1))............................................ 146 FUSEBOX IDENTIFICATION PLATE (G0.02.22 (1))............................................ 147 FUSEBOX IDENTIFICATION PLATE (G0.02.23 (1))............................................ 148 FUSEBOX IDENTIFICATION PLATE (G0.02.24 (1))............................................ 149 RECYCLING PLATE (G0.02.25 (1))......................................................... 150 REMOTE VALVE CROSS-GATE CONTROL NAMEPLATE (G0.02.26 (1))............................... 151 P.T.O. WARNING PLATE FRONT (G0.02.27 (1)).............................................. 152 PLATES (G0.02.28 (1)).................................................................. 153 PLATES (G0.02.29 (1)).................................................................. 154 INFORMATION PLATE (G0.02.32 (1))....................................................... 155 WARNING PLATES (G0.02.33 (2)).......................................................... 156 WARNING PLATES (G0.02.33 (3)).......................................................... 157 WARNING PLATE (G0.02.34 (1))........................................................... 158 WARNING PLATE (G0.02.35 (1))........................................................... 159 WATER COOLER IDENTIFICATION PLATE (G0.02.36 (1))....................................... 160 WARNING DECAL - RADAR (G0.02.37 (1))................................................... 161 WARNING PLATE (G0.02.39 (1))........................................................... 162 WARNING PLATE (G0.02.40 (1))........................................................... 163 INFORMATION PLATE (G0.02.43 (1))....................................................... 164 INFORMATION PLATE (G0.02.45 (1))....................................................... 165 WARNING PLATE (G0.02.46 (1))........................................................... 166 WARNING PLATE (G0.02.47 (1))........................................................... 167 WARNING PLATE (G0.02.48 (1))........................................................... 168 WARNING PLATE (G0.02.49 (1))........................................................... 169 WARNING PLATE (G0.02.50 (1))........................................................... 170 WARNING PLATE (G0.02.51 (1))........................................................... 171 SPEED LABEL - 40 KM/H - REFLEX (G0.02.52 (1)).......................................... 172 SPEED LABEL - 40 KM/H (G0.02.53 (1))................................................... 173 SPEED LABEL - 40 KM/H - REFLEX (G0.02.54 (1)).......................................... 174 SPEED LABEL - 50 KM/H - REFLEX (G0.02.55 (1)).......................................... 175 SPEED LABEL - 40 Km\h (G0.02.57 (1))................................................... 176 SPEED LABEL 50 Km/h (G0.02.59 (1))..................................................... 177 PLATE FOR 4-WAY REMOTE VALVE OPEN CENTER (G0.02.60 (1))................................ 178 PLATE FOR 8-WAY REMOTE VALVE OPEN CENTER (G0.02.61 (1))................................ 179 PLATE FOR 8-WAY REMOTE VALVE LOAD SENSING (G0.02.62 (1))............................... 180 CAB STRUCTURE - PLATFORM -SUSPENSION....................................................... 181 SINGLE-STRUCTURE CAB (G0.03.1 (1))..................................................... 181 CAB INSTALLATION COMPLETION (G0.03.2 (2)).............................................. 182 END PLATE (G0.03.3 (1))................................................................ 183 LADDER (G0.03.4 (1))................................................................... 184 RUBBER CAB SUSPENSION (G0.03.6 (1)).................................................... 185 MECHANICAL CAB SUSPENSION (G0.03.7 (1))................................................ 186 MECHANICAL CAB SUSPENSION (G0.03.7 (2))................................................ 187 CAB BEARING PNEUMATIC SPRINGING (G0.03.8 (1)).......................................... 188 CAB BEARING PNEUMATIC SPRINGING (G0.03.8 (2)).......................................... 189 CAB BEARING PNEUMATIC SPRINGING (G0.03.9 (1)).......................................... 190 CAB BEARING PNEUMATIC SPRINGING (G0.03.10 (1))......................................... 191 CAB BEARING PNEUMATIC SPRINGING (G0.03.10 (2))......................................... 192 CAB BEARING PNEUMATIC SPRINGING (G0.03.11 (1))......................................... 193 RELAY VALVE (04432191.A)............................................................... 194 PRESSURE CONTROL VALVE (04432192.A).................................................... 195 FENDERS - FOOTSTEPS - EXTENSIONS........................................................... 196 FRONT MUDGUARDS mm 470 (G0.04.0 (1))................................................... 196 ADJUSTABLE FRONT FENDERS mm 470 (G0.04.3 (1)).......................................... 197 ADJUSTABLE FRONT FENDERS mm 470 (G0.04.3 (2)).......................................... 199 ADJUSTABLE FRONT FENDERS mm 470 (G0.04.4 (1)).......................................... 201 FRONT MUDGUARDS mm 540 (G0.04.5 (1))................................................... 202 WING FRONT mm 540 (G0.04.8 (1))........................................................ 203 ADJUSTABLE FRONT FENDERS mm 540 (G0.04.9 (1)).......................................... 205 FRONT MUDGUARD SUPPORTS (G0.04.10 (1))................................................. 206 SUPPORTS FOR FRONT STEERING FENDERS (G0.04.11 (1))..................................... 207 FRONT FENDER SUPPORT FIXING (G0.04.12 (1))............................................. 208 REAR FENDER ANCILLARY PARTS KIT (G0.04.14 (1))......................................... 209 WING SIDE PANEL (G0.04.15 (1))......................................................... 210 REINFORCED FENDER (G0.04.16 (1))....................................................... 211 REAR MUDGUARDS (G0.04.18 (1)).......................................................... 212 REAR MUDGUARDS (G0.04.20 (1)).......................................................... 213 MUDGUARDS EXTENSIONS mm 145 (G0.04.21 (1))............................................. 214 MUDGUARDS EXTENSIONS mm 250 (G0.04.22 (1))............................................. 215 MUDGUARDS EXTENSIONS (G0.04.23 (1)).................................................... 216 REAR MUDGUARDS (G0.04.25 (1)).......................................................... 217 REAR MUDGUARDS (G0.04.26 (1)).......................................................... 218 FENDERS (G0.04.28 (1))................................................................. 219 DOORS - WINDOWS - WIPERS................................................................... 220 OPENABLE WINDSCREEN (G0.05.0 (1))...................................................... 220 WINDSCREEN WIPER FOR OPENABLE WINDSCREEN (G0.05.1 (1))................................. 221 FIXED SCREEN WITH WIPER (G0.05.2 (1)).................................................. 222 FIXED SCREEN WITH WIPER (G0.05.3 (1)).................................................. 223 LOWER/UPPER FRONT GLASS LH/RH (G0.05.4 (1))............................................ 224 CAB DOOR SX/LH/LI (G0.05.5 (1))........................................................ 225 CAB DOOR SX / LH / LI (G0.05.6 (1)).................................................... 226 CAB DOOR DX/RH/RE (G0.05.8 (1))........................................................ 227 CAB DOOR DX/RH/RE (G0.05.10 (1))....................................................... 228 SIDE PANEL FIXED DX/RH/RE (G0.05.11 (1))............................................... 229 SIDE PANEL FIXED SX/LH/LI (G0.05.12 (1))............................................... 230 REAR PANEL FLAP (G0.05.13 (1))......................................................... 231 REAR HATCH WITH WIPER (G0.05.14 (1))................................................... 233 REAR HATCH WITH WIPER (G0.05.15 (1))................................................... 235 LOWER REAR WINDOW GLASS (G0.05.16 (1))................................................. 236 SCREEN WIPER REAR (G0.05.17 (1))....................................................... 237 WATER TANK (G0.05.18 (1)).............................................................. 238 PIPES FOR WINDSCREEN AND REAR SCREEN WIPERS (G0.05.20 (1))............................. 239 WINDSCREEN WIPER BLADE (0.011.5529.4.A)................................................ 240 DOOR HANDLE - CAB DOOR RIGHT/LEFT (0.013.0217.4.A)..................................... 241 INTERIOR TRIM.............................................................................. 242 CONSOLE - INSTRUMENT PANEL (G0.06.0 (1))............................................... 242 DASHBOARD - STEERING COVER (G0.06.1 (1))............................................... 243 INSTRUMENT PANEL - PEDALS SUPPORT (G0.06.2 (1))........................................ 244 PEDAL SUPPORT - FIXINGS (G0.06.3 (1)).................................................. 245 CONTROL CONSOLE RIGHT (G0.06.4 (1)).................................................... 246 CONTROL CONSOLE - DX/RH/RE (G0.06.5 (1))............................................... 248 CONTROL CONSOLE RIGHT (G0.06.6 (1)).................................................... 250 CONTROL CONSOLE RIGHT - TRIM (G0.06.7 (1))............................................. 251 COVER PLATE (G0.06.8 (1)).............................................................. 252 OUTLET VENT (G0.06.9 (1)).............................................................. 253 CONTROL CONSOLE RIGHT (G0.06.10 (1))................................................... 254 CONTROL CONSOLE RIGHT (G0.06.11 (1))................................................... 255 PLATE (G0.06.12 (1))................................................................... 256 CONTROL CONSOLE LEFT (G0.06.13 (1)).................................................... 257 CONTROL CONSOLE - SX/LH/LI (G0.06.14 (1)).............................................. 258 CONTROL CONSOLE LEFT (G0.06.15 (1)).................................................... 259 CONTROL CONSOLE - SX/LH/LI (G0.06.16 (1)).............................................. 260 CONTROL CONSOLE LEFT (G0.06.17 (1)).................................................... 261 INTERIOR TRIM (G0.06.18 (1))........................................................... 262 CABLE GROMMET (G0.06.19 (1))........................................................... 263 FIXINGS FOR CAB INTERIOR TRIM (G0.06.20 (1))........................................... 264 INTERNAL CAB LININGS (G0.06.21 (1)).................................................... 265 INTERNAL CAB LININGS (G0.06.22 (1)).................................................... 266 CAB SOUNDPROOF PANELS (G0.06.24 (1))................................................... 267 CAB SOUNDPROOF PANELS (G0.06.25 (1))................................................... 268 INTERIOR TRIM (G0.06.28 (1))........................................................... 269 EXTERIOR TRIM - ROOF....................................................................... 270 CAB ROOF (G0.07.1 (1))................................................................. 270 DRIVER'S CAB ROOF (G0.07.3 (1))........................................................ 271 CAB ROOF (G0.07.5 (1))................................................................. 272 FRONT NUMBER PLATE BRACKET (G0.07.6 (1))............................................... 273 AIR CLEANER (G0.07.7 (1)).............................................................. 274 AIR CLEANER (G0.07.7 (2)).............................................................. 275 AIR CLEANER (G0.07.8 (2)).............................................................. 276 REARVIEW MIRROR DX/RH/RE (G0.07.9 (1))................................................. 277 REARVIEW MIRROR SX/LH/LI (G0.07.10 (1))................................................ 278 FLASHING LIGHT SUPPORT (G0.07.11 (1)).................................................. 279 REARVIEW MIRROR (0.012.4392.4.A)....................................................... 280 REARVIEW MIRROR (0.012.4393.4.A)....................................................... 281 SEATS...................................................................................... 282 HEAD REST (G0.08.1 (1))................................................................ 282 DRIVER'S SEAT - PNEUMATIC SPRINGING (G0.08.4 (1))...................................... 283 DRIVER'S SEAT - PNEUMATIC SPRINGING (G0.08.5 (1))...................................... 284 DRIVER'S SEAT - PNEUMATIC SPRINGING (G0.08.6 (1))...................................... 285 SAFETY BELT (G0.08.7 (1)).............................................................. 286 MULTIFUNCTION ARMREST BRACKET (G0.08.8 (1))............................................ 287 SEAT FOR 2ND OPERATOR (G0.08.10 (1))................................................... 288 SEAT-COMPONENTS (0.014.2707.4.A)....................................................... 289 SEAT-COMPONENTS (0.014.2707.4.B)....................................................... 291 SEAT-COMPONENTS (0.014.2707.4/10.A).................................................... 293 SEAT-COMPONENTS (0.014.2707.4/10.B).................................................... 295 SEAT-COMPONENTS (0.014.2707.4/20.A).................................................... 297 SEAT-COMPONENTS (0.014.2707.4/20.B).................................................... 299 SEAT-COMPONENTS (0.014.5564.4.A)....................................................... 301 SEAT-COMPONENTS (0.014.5564.4.B)....................................................... 303 DRIVER'S SEAT MSG 95G/721 (0.015.6206.4/10.A).......................................... 305 DRIVER'S SEAT MSG 95G/721 (0.015.6206.4/10.B).......................................... 306 HEATING AND AIR CONDITIONING............................................................... 308 AIR CONDITIONING SYSTEM (G0.09.0 (1)).................................................. 308 AIR CONDITIONING SYSTEM (G0.09.0 (2)).................................................. 309 AIR CONDITIONING SYSTEM (G0.09.0 (3)).................................................. 310 AIR CONDITIONING SYSTEM (G0.09.1 (1)).................................................. 311 AIR CONDITIONING SYSTEM (G0.09.1 (2)).................................................. 312 AIR CONDITIONING UNIT - LINES (G0.09.2 (1))............................................ 313 AIR CONDITIONING UNIT - LINES (G0.09.2 (2))............................................ 314 CLIMATE CONTROL SYSTEM (G0.09.3 (2))................................................... 315 CLIMATE CONTROL SYSTEM (G0.09.3 (3))................................................... 317 CLIMATE CONTROL SYSTEM (G0.09.4 (2))................................................... 319 AIR CONDITIONER PARTS (0.010.9139.4/50.A).............................................. 320 AIR CONDITIONER PARTS (0.017.0364.4.A)................................................. 322 CLIMATE CONTROL (04429902.A)........................................................... 324 COMPRESSOR (04437339/10.A)............................................................. 325 MECHANICAL CLUTCH CONTROLS................................................................. 326 CLUTCH CONTROL WITH HYDRAULIC SHUTTLE (G0.10.0 (1)).................................... 326 MECHANICAL BRAKE CONTROLS.................................................................. 327 BRAKE CONTROLS (G0.11.0 (1))........................................................... 327 BRAKE CONTROLS (G0.11.1 (1))........................................................... 328 BRAKE FLUID RESERVOIR (G0.11.2 (1)).................................................... 329 BRAKE FLUID RESERVOIR (G0.11.2 (2)).................................................... 330 BRAKE FLUID RESERVOIR (G0.11.3 (1)).................................................... 331 BRAKE FLUID RESERVOIR (G0.11.4 (1)).................................................... 332 TUBES FOR BRAKE OIL TANK (G0.11.5 (1))................................................. 333 HAND BRAKE (G0.11.6 (1))............................................................... 334 HAND BRAKE (G0.11.7 (1))............................................................... 335 HANDBRAKE SUPPORT FOR TRAILER (G0.11.8 (1))............................................ 336 TANK - PARTS (04432281.A).............................................................. 337 MECHANICAL - ELECTRONIC THROTTLE CONTROLS.................................................. 338 ELECTRONIC ACCELERATOR CONTROL (G0.12.0 (1))........................................... 338 STEERING CONTROLS.......................................................................... 339 STEERING COLUMN (G0.13.2 (1)).......................................................... 339 STEERING COLUMN (0.014.8752.4/10.A).................................................... 340 MECHANICAL GEARSHIFT CONTROLS.............................................................. 341 GEAR SHIFTING (G0.14.0 (1))............................................................ 341 SUPER-REDUCTION CONTROL (G0.14.1 (1)).................................................. 342 SUPER-REDUCTION CONTROL (G0.14.2 (1)).................................................. 343 DRIVE FOR GEAR CHANGE BOX (0.013.1226.4/20.A).......................................... 344 GEAR LEVER KNOB (0.013.3617.4.A)....................................................... 345 PTO CONTROLS............................................................................... 346 OPERATION - P.T.O. SHAFT - REAR (G0.16.0 (1)).......................................... 346 OPERATION - P.T.O. SHAFT REAR (G0.16.1 (1))............................................ 347 OPERATION - P.T.O. SHAFT - REAR (G0.16.2 (2)).......................................... 348 LIFT CONTROLS.............................................................................. 349 REAR LIFT CONTROL (G0.17.0 (1))........................................................ 349 REAR LIFT CONTROL (G0.17.1 (1))........................................................ 350 CONTROL CONSOLE (0.015.7749.4.A)....................................................... 351 REMOTE VALVE CONTROLS...................................................................... 352 DISTRIBUTOR CONTROL (G0.18.0 (1))...................................................... 352 DISTRIBUTOR CONTROL (G0.18.1 (1))...................................................... 353 REMOTE VALVE CROSS-GATE CONTROL (G0.18.2 (1)).......................................... 354 FLOW CONTROL (G0.18.3 (2))............................................................. 355 FLOW CONTROL (G0.18.4 (2))............................................................. 356 OPERATION (0.017.6491.4.00)............................................................ 357 ACCESSORIES................................................................................ 358 SUN BLIND REAR WINDOW (G0.19.0 (1)).................................................... 358 SUN BLIND FRONT WINDSCREEN (G0.19.1 (1))............................................... 359 LICENCE PLATE HOLDER (G0.19.2 (1))..................................................... 360 LICENCE PLATE HOLDER (G0.19.3 (1))..................................................... 361 METAL TOOLBOX (G0.19.4 (1))............................................................ 362 METAL TOOLBOX (G0.19.5 (1))............................................................ 363 CHOCK (G0.19.6 (1)).................................................................... 364 Index.............................................................................................. 365 Agrotron M 620 -> 20001............................................................................ 369 L0 - ELECTRIC AL SYSTEM........................................................................ 369 BATTERY - ALTERNATOR....................................................................... 369 BATTERY 12v 150Ah 660A (L0.01.0 (1))................................................... 369 BATTERY 12V 180Ah 800A (L0.01.1 (1))................................................... 370 WIRING LOOMS............................................................................... 371 HEADLIGHTS / HORN WIRING (L0.02.3 (1))................................................. 371 WIRING FOR HEADLIGHTS (L0.02.4 (1)).................................................... 372 WIRING FOR HEADLIGHTS (L0.02.5 (1)).................................................... 373 BOTTOM FRONT WORK LIGHTS WIRING (L0.02.8 (1)).......................................... 374 BOTTOM FRONT WORK LIGHTS WIRING XENON (L0.02.9 (1)).................................... 375 WIRING FOR LOWER REAR WORKLIGHTS XENON (L0.02.10 (1)).................................. 376 REAR MUDGUARDS ELECTRICAL SYSTEM (L0.02.12 (1))........................................ 377 REAR MUDGUARDS ELECTRICAL SYSTEM (L0.02.13 (1))........................................ 378 REAR ELECTRIC CABLE FOR PARKING/INDICATOR LIGHTS AND PTO/LIFT SWITCH (L0.02.14 (1)).... 379 WIRING FOR REAR LIGHTS (L0.02.15 (1)).................................................. 380 ELECTRIC WIRING UNDER ROOF (L0.02.16 (1)).............................................. 381 TOP LIGHTS WIRING (L0.02.17 (1))....................................................... 382 CABLE HARNESS LICENCE PLATE LIGHT (L0.02.18 (1))....................................... 383 ELECTR. EQUIPMENT - DASHBOARD CONSOLE (L0.02.19 (1))................................... 384 ELECTRICAL SYSTEM - INSTRUMENT PANEL AND FLASHER (L0.02.20 (1))........................ 385 RIGHT-HAND CONSOLE ELECTRICAL SYSTEM (L0.02.21 (1)).................................... 386 RIGHT-HAND CONSOLE ELECTRICAL SYSTEM (L0.02.22 (1)).................................... 387 ELECTRICAL SYSTEM FOR GEARBOX AND BATTERY CABLES (L0.02.23 (1))........................ 388 ELECTRICAL SYSTEM FOR GEARBOX AND BATTERY CABLES (L0.02.23 (2))........................ 389 ELECTRICAL SYSTEM FOR GEARBOX AND BATTERY CABLES (L0.02.24 (1))........................ 390 ELECTRICAL SYSTEM FOR GEARBOX AND BATTERY CABLES (L0.02.24 (2))........................ 391 BATTERY LEADS (L0.02.25 (1))........................................................... 392 ELECTRICAL EQUIPMENT ENGINE / BATTERY (L0.02.26 (1))................................... 393 FRONT AXLE WIRING (L0.02.27 (1))....................................................... 394 WIRING FOR WINDSCREEN WIPER MOTOR (L0.02.28 (1))....................................... 395 WIRING FOR WINDSCREEN WIPER MOTOR (L0.02.29 (1))....................................... 396 COMFORT PACKAGE WIRING (L0.02.30 (1)).................................................. 397 ISO 11786 SOCKET FOR ELECTRIONIC EQUIPMENT (L0.02.31 (1)).............................. 398 ELECTRICAL SYSTEM ISO 11786 (L0.02.32 (1))............................................. 399 BRAKING AND FRONT LIFT INTERFACE WIRING (L0.02.33 (2))................................. 400 ELECTRICAL CLIMATE CONTROL SYSTEM (L0.02.34 (1))....................................... 401 ELECTRICAL CLIMATE CONTROL SYSTEM (L0.02.35 (1))....................................... 402 WIRING HARNESS FOR HYDRAULIC TRAILER BRAKING - ITALY VERSION (L0.02.36 (1))............ 403 ELECTRICAL LEAD FOR HYDRAULIC TRAILER BRAKING (L0.02.37 (1))........................... 404 PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM (L0.02.38 (1))........................... 405 PRESSURE SWITCH WIRING FOR AIR BRAKING SYSTEM ITALY (L0.02.39 (1))..................... 406 TRAILER SOCKET-OUTLET (L0.02.40 (1))................................................... 407 POWER OUTLET SOCKET (L0.02.41 (1))..................................................... 408 POWER OUTLET SOCKET (L0.02.42 (1))..................................................... 409 ROTATING BEACON WIRING (L0.02.43 (1)).................................................. 410 WIRING FOR PTO SENSOR (L0.02.44 (1))................................................... 411 WIRING FOR A/C CONDENSER PRESSURE SWITCH (L0.02.45 (1))................................ 412 RIGHT-HAND CONSOLE ELECTRICAL SYSTEM (0.015.0740.4/80.A)............................... 413 RIGHT-HAND CONSOLE ELECTRICAL SYSTEM (0.015.8454.4/50.A)............................... 414 ECUs....................................................................................... 415 RIGHT-HAND CONSOLE CONTROL UNITS (L0.03.0 (1))......................................... 415 RIGHT-HAND CONSOLE CONTROL UNITS (L0.03.1 (1))......................................... 416 CONTROL UNIT ISO 11786 (L0.03.2 (1))................................................... 417 SENSORS - POTENTIOMETERS - ENABLING SWITCHES............................................... 418 SENSOR P.T.O. SHAFT (L0.04.0 (1))...................................................... 418 SENSOR P.T.O. SHAFT (L0.04.1 (1))...................................................... 419 ELECTRONIC ACCELERATOR CONTROL SENSOR (L0.04.2 (1)).................................... 420 INDUCTIVE POSITION SENSOR WITH HYDRAULIC SHUTTLE (L0.04.3 (1))......................... 421 BRAKE CONTROL SWITCH (L0.04.4 (1))..................................................... 422 BRAKE CONTROL SWITCH (L0.04.5 (1))..................................................... 423 HAND BRAKE SWITCHES (L0.04.6 (1))...................................................... 424 DOOR SWITCH (L0.04.7 (1)).............................................................. 425 REAR LIFT POSITION SENSOR (L0.04.8 (1))................................................ 426 FRONT SUSPENSION POSITION SENSOR (L0.04.9 (1))......................................... 427 AIR FILTER BLOCKAGE SENSOR (L0.04.10 (1)).............................................. 428 OIL FILTER CLOGGING SENSOR (L0.04.11 (1)).............................................. 429 OIL FILTER CLOGGING SENSOR (L0.04.12 (1)).............................................. 430 LOAD SENSING HYDRAULIC SYSTEM PRESSURE SWITCH (L0.04.13 (1))........................... 431 LOAD SENSING HYDRAULIC SYSTEM PRESSURE SWITCH (L0.04.14 (1))........................... 432 HYDRAULIC SYSTEM PRESSURE SWITCH OPEN CENTER (L0.04.15 (1))............................ 433 HYDRAULIC SYSTEM PRESSURE SWITCH OPEN CENTER (L0.04.16 (1))............................ 434 AIR CONDITIONING SYSTEM CONDENSER PRESSURE SWITCH (L0.04.17 (1))....................... 435 AIR CONDITIONING SYSTEM CONDENSER PRESSURE SWITCH (L0.04.17 (2))....................... 436 AIR BRAKING SYSTEM PRESSURE SWITCH (L0.04.18 (1))...................................... 437 PRESSURE SWITCH FOR AIR BRAKING SYSTEM ITALY (L0.04.19 (1))............................ 438 RADAR km/h (L0.04.20 (1)).............................................................. 439 RADAR (L0.04.21 (1))................................................................... 440 RADAR (L0.04.22 (1))................................................................... 441 INSTRUMENT PANEL........................................................................... 442 DASHBOARD BOX (L0.05.0 (1))............................................................ 442 DASHBOARD BOX (L0.05.1 (1))............................................................ 443 GEARS DISPLAY (L0.05.2 (1))............................................................ 444 GEARS DISPLAY (L0.05.3 (1))............................................................ 445 ELECTRIC REV-HOUR RECORDER TACHOMETER (04433422.4/60.A)................................ 446 MULTIFUNCTION ARMREST...................................................................... 447 MULTIFUNCTION ARMREST (L0.06.0 (1)).................................................... 447 PLATE (L0.06.1 (1)).................................................................... 448 PLATE (L0.06.2 (1)).................................................................... 449 MULTIFUNCTION CONTROL UNIT (0.015.1776.4/70.A)......................................... 450 ELECTRICAL CONTROLS - PUSHBUTTONS......................................................... 451 BATTERY DISCONECT SWITCH (L0.07.0 (1))................................................. 451 STEERING COLUMN SWITCH UNIT - REVERSING GEAR UNIT CONTROL (L0.07.1 (1))................ 452 SWITCHES / IGNITION BLOCK DX/RH/RE (L0.07.2 (1))....................................... 453 SWITCHES / IGNITION BLOCK DX/RH/RE (L0.07.3 (1))....................................... 454 SWITCHES (L0.07.4 (1))................................................................. 455 SWITCHES (L0.07.5 (1))................................................................. 456 BOTTOM FRONT WORK LIGHTS SWITCH (L0.07.6 (1)).......................................... 457 BOTTOM FRONT WORK LIGHTS SWITCH XENON (L0.07.7 (1)).................................... 458 TOP SWITCH (L0.07.8 (1))............................................................... 459 REAR WINDOW WIPER SWITCH (L0.07.9 (1))................................................. 460 SWITCH FOR FRONT AXLE SUSPENSION (L0.07.10 (1))........................................ 461 SWITCH - FOR P.T.O. FRONT (L0.07.11 (1))............................................... 462 FRONT LIFT SWITCH (L0.07.12 (1))....................................................... 463 FRONT LIFT SWITCH (L0.07.12 (2))....................................................... 464 REAR LIFT GROUND CONTROL SWITCH (L0.07.13 (1))......................................... 465 REAR LIFT GROUND CONTROL SWITCH (L0.07.13 (2))......................................... 466 REAR P.T.O. GROUND CONTROL SWITCH (L0.07.14 (1))....................................... 467 SWITCHES FOR REAR LIFT GROUND CONTROL AND PTO (L0.07.16 (1)).......................... 468 SWITCHES FOR REAR LIFT GROUND CONTROL AND PTO (L0.07.16 (2)).......................... 469 SWITCHES FOR REAR LIFT GROUND CONTROL AND PTO (L0.07.18 (1)).......................... 470 SWITCHES FOR REAR LIFT GROUND CONTROL AND PTO (L0.07.18 (2)).......................... 471 SHUTTLE LEVER (0.012.7076.4.A)......................................................... 472 LIGHTING AND SIGNALLING.................................................................... 473 FRONT LIGHTS (L0.08.2 (1))............................................................. 473 FRONT LIGHTS (L0.08.3 (1))............................................................. 474 FRONT LIGHTS (L0.08.6 (1))............................................................. 475 FRONT LIGHTS (L0.08.7 (1))............................................................. 476 WORKING SPOTLIGHT FRONT TOP (L0.08.8 (1)).............................................. 477 WORKING SPOTLIGHT FRONT TOP (L0.08.9 (1)).............................................. 478 BOTTOM FRONT WORK LIGHTS (L0.08.10 (1))................................................ 479 BOTTOM FRONT WORK LIGHTS XENON (L0.08.11 (1)).......................................... 480 SIDELIGHT, DIRECTION INDICATOR AND REFLECTORS (L0.08.12 (1))........................... 481 REAR LIGHTING SYSTEM (L0.08.14 (1)).................................................... 482 REAR LIGHTING SYSTEM (L0.08.14 (2)).................................................... 483 REAR LIGHTING SYSTEM (L0.08.15 (1)).................................................... 484 REAR LIGHTING SYSTEM (L0.08.15 (2)).................................................... 485 LOWER REAR WORKLIGHTS (L0.08.16 (1))................................................... 486 LOWER REAR WORKLIGHTS (L0.08.17 (1))................................................... 487 LOWER REAR WORKLIGHTS XENON (L0.08.18 (1))............................................. 488 RETROREFLECTOR (L0.08.19 (1)).......................................................... 489 REAR LIGHTS / REFLECTORS (L0.08.20 (1))................................................ 490 WORKLIGHTS FOR CAB ROOF (L0.08.22 (1))................................................. 491 LICENCE PLATE LIGHT (L0.08.23 (1))..................................................... 492 LICENCE PLATE LIGHT (L0.08.24 (1))..................................................... 493 WARNING BEACON (L0.08.25 (1)).......................................................... 494 HORN (L0.08.28 (1)).................................................................... 495 HORN (L0.08.29 (1)).................................................................... 496 INTERIOR LIGHT (L0.08.33 (1)).......................................................... 497 HEADLAMP COMPONENTS (04411937.4.A)..................................................... 498 HEADLAMP COMPONENTS (04414087.4.A)..................................................... 499 HEADLAMP COMPONENTS (04414088.4.A)..................................................... 500 WARNING BEACON (04414773.A)............................................................ 501 HEADLAMP COMPONENTS (04428089.4/10.A).................................................. 502 HEADLAMP COMPONENTS (04428090.4/10.A).................................................. 503 HEADLAMP COMPONENTS (04450666.A)....................................................... 504 HEADLAMP COMPONENTS (2.8029.880.0/10.A)................................................ 505 WORK LAMP W XENON (2.8039.016.0.A)..................................................... 506 HEADLAMP COMPONENTS (2.8039.160.0.A)................................................... 507 HEADLAMP COMPONENTS (2.8039.180.0/10.A)................................................ 508 FRONT LIGHTS (2.8039.240.0.A).......................................................... 509 FRONT LIGHTS (2.8039.250.0.A).......................................................... 510 ACCESSORIES................................................................................ 511 LOUDSPEAKERS AND RADIO ANTENNA (L0.09.1 (1))........................................... 511 CIGAR LIGHTER (L0.09.2 (1))............................................................ 512 CIGAR LIGHTER (L0.09.3 (1))............................................................ 513 Index.............................................................................................. 514 Agrotron M 620 -> 20001............................................................................ 517 B0 - ENGINE.................................................................................... 517 GENERAL.................................................................................... 517 MOTOR (B0.00.2 (1)).................................................................... 517 CYLINDER BLOCK............................................................................. 518 FASTENINGS (B0.01.1007)................................................................ 518 GASKET SET (B0.01.1029)................................................................ 520 BLEEDING TUBE (B0.01.1045)............................................................. 522 CRANKCASE BREATHER (B0.01.1055)........................................................ 524 CRANKCASE (B0.01.1078)................................................................. 526 OIL FILLER NECK (B0.01.1088)........................................................... 528 PLUG (B0.01.1113)...................................................................... 530 CLOSING COMPONENTS (B0.01.1125)........................................................ 532 ACCESSORIES (B0.01.1134)............................................................... 534 ACCESSORIES (B0.01.1135)............................................................... 536 ACCESSORIES (B0.01.1137)............................................................... 538 FILLER CAP (B0.01.1144)................................................................ 540 PISTON COOL.NOZZLE (B0.01.1160)........................................................ 542 OIL RETURN (B0.01.1162)................................................................ 544 FLANGE (B0.01.1167).................................................................... 546 FLANGE (B0.01.1170).................................................................... 548 CRANKSHAFT................................................................................. 549 V-BELT - FOR MODELS WITH COMPRESSOR (B0.02.0 (1))...................................... 549 FASTENINGS (B0.02.1002)................................................................ 550 FASTENINGS (B0.02.1008)................................................................ 552 CRANKSHAFT (B0.02.1048)................................................................ 554 FLYWHEEL (B0.02.1073).................................................................. 556 PLUG (B0.02.1077)...................................................................... 558 ACCESSORIES (B0.02.1079)............................................................... 560 MAIN BEARINGS (B0.02.1084)............................................................. 562 CRANKSHAFT PULLEY (B0.02.1090)......................................................... 564 CYLINDERS - PISTONS - CONNECTING RODS.................................................... 566 PISTON (B0.03.1011).................................................................... 566 CONNECTING ROD (B0.03.1025)............................................................ 568 TIMING..................................................................................... 570 FASTENINGS (B0.04.1011)................................................................ 570 BUSH (B0.04.1023)...................................................................... 572 ROCKER ARM BRACKET (B0.04.1052)........................................................ 574 ROCKER ARM BRACKET (B0.04.1053)........................................................ 576 ROCKER ARM BRACKET (B0.04.1054)........................................................ 578 ROCKER ARM BRACKET (B0.04.1057)........................................................ 580 CAMSHAFT (B0.04.1079).................................................................. 581 VALVE DRIVE (B0.04.1091)............................................................... 583 GEARCASE (B0.04.1118).................................................................. 585 GEARCASE (B0.04.1123).................................................................. 587 CYLINDER HEAD.............................................................................. 588 FASTENINGS (B0.05.1006)................................................................ 588 SEALING (B0.05.1013)................................................................... 590 ENGINE MOUNTING (B0.05.1015)........................................................... 592 CLOSING COMPONENTS (B0.05.1025)........................................................ 594 CYLINDER HEAD (B0.05.1043)............................................................. 596 VALVE MECHAN.COVER (B0.05.1054)........................................................ 598 LUBRICATION................................................................................ 600 SEALING (B0.06.1018)................................................................... 600 OIL SUCTION PIPE (B0.06.1041).......................................................... 601 OIL PAN (B0.06.1058)................................................................... 603 CLOSING COMPONENTS (B0.06.1082)........................................................ 605 CLOSING COMPONENTS (B0.06.1084)........................................................ 607 CLOSING COMPONENTS (B0.06.1085)........................................................ 609 CLOSING COMPONENTS (B0.06.1086)........................................................ 610 CLOSING COMPONENTS (B0.06.1087)........................................................ 612 DRIVING PARTS (B0.06.1105)............................................................. 614 OIL COOLER BOX (B0.06.1133)............................................................ 615 OIL COOLER BOX (B0.06.1143)............................................................ 617 FUEL INJECTION SYSTEM...................................................................... 619 FASTENINGS (B0.07.1011)................................................................ 619 FASTENINGS (B0.07.1014)................................................................ 621 FASTENINGS (B0.07.1015)................................................................ 623 ADD-ON PARTS ENGINE (B0.07.1019)....................................................... 625 HIGH PRESSURE PIPE (B0.07.1028)........................................................ 627 FUEL INJECTOR (B0.07.1047)............................................................. 629 FILTER HOUSING (B0.07.1049)............................................................ 631 FUEL FEED PUMP (B0.07.1050)............................................................ 633 FUEL FEED PUMP (B0.07.1052)............................................................ 635 FUEL LINE (B0.07.1091)................................................................. 636 FUEL LINE (B0.07.1105)................................................................. 639 FUEL PUMP (B0.07.1121)................................................................. 641 ROLLER TAPPET (B0.07.1133)............................................................. 643 DISTRIBUTOR (B0.07.1148)............................................................... 645 CLOSING COMPONENTS (B0.07.1157)........................................................ 647 ENGINE FUEL PUMP (B0.07.1176).......................................................... 649 SPIN-ON FILTER (B0.07.1186)............................................................ 651 MECHANICAL - ELECTRONIC GOVERNOR........................................................... 653 ELECTRONIC CONTROL UNIT - ENGINE (B0.08.1021).......................................... 653 CLOSING COMPONENTS (B0.08.1033)........................................................ 655 COOLING.................................................................................... 657 FASTENINGS (B0.09.1011)................................................................ 657 FASTENINGS (B0.09.1027)................................................................ 659 FASTENINGS (B0.09.1033)................................................................ 661 THERMOSTAT (B0.09.1062)................................................................ 663 CLOSING COMPONENTS (B0.09.1073)........................................................ 665 COOLING WATER PIPE (B0.09.1083)........................................................ 667 MANIFOLD (B0.09.1106).................................................................. 669 FAN SUPPORT (B0.09.1132)............................................................... 671 BELT STRETCHER (B0.09.1137)............................................................ 673 CONNECTION (B0.09.1146)................................................................ 675 V-BELT (B0.09.1170).................................................................... 677 V-GROOVED PULLEY (B0.09.1176).......................................................... 679 INTAKE - EXHAUST MANIFOLDS................................................................. 681 EXHAUST PIPE (B0.10.1013).............................................................. 681 FASTENINGS (B0.10.1036)................................................................ 683 FASTENINGS (B0.10.1040)................................................................ 685 TUNNEL COVER (B0.10.1045).............................................................. 687 TUNNEL COVER (B0.10.1046).............................................................. 689 MANIFOLD (B0.10.1086).................................................................. 691 GLOW PLUG (B0.10.1122)................................................................. 693 CHARGED AIR MANIFOLD (B0.10.1128)...................................................... 695 TURBOCHARGER............................................................................... 697 TURBOCHARGER (B0.11.1031).............................................................. 697 LUBRICATION (B0.11.1039)............................................................... 699 Electrical accessories..................................................................... 701 COVER PLATE (B0.12.1004)............................................................... 701 FASTENINGS (B0.12.1010)................................................................ 702 FASTENINGS (B0.12.1030)................................................................ 704 FASTENINGS (B0.12.1035)................................................................ 706 IMPULSETRANSMITTER (B0.12.1052)........................................................ 708 GENERATOR (B0.12.1070)................................................................. 710 GENERATOR (B0.12.1072)................................................................. 711 ENGINE ELECTRICAL SYSTEM (B0.12.1101).................................................. 712 STARTER (B0.12.1133)................................................................... 714 ACCESSORIES (B0.12.1145)............................................................... 716 ACCESSORIES (B0.12.1151)............................................................... 718 ACCESSORIES (B0.12.1166)............................................................... 720 ACCESSORIES (B0.12.1174)............................................................... 722 ACCESSORIES (B0.12.1180)............................................................... 724 ACCESSORIES (B0.12.1185)............................................................... 726 DRIVING PARTS (B0.12.1189)............................................................. 727 OIL PRESSUR.SWITCH (B0.12.1196)........................................................ 729 TEMPER.TRANSMITTER (B0.12.1222)........................................................ 731 Index.............................................................................................. 733 Agrotron M 620 -> 20001............................................................................ 734 C0 - ENGINE ACCESSORIES........................................................................ 734 RADIATORS - FANS........................................................................... 734 BLOWER (C0.01.0 (1))................................................................... 734 COOLING SYSTEM (C0.01.1 (1))........................................................... 735 COOLING SYSTEM (C0.01.1 (2))........................................................... 737 COOLING SYSTEM EXPANSION TANK (0.015.4531.4/10.A)...................................... 739 INTERCOOLER - AIR CLEANER.................................................................. 740 INTERCOOLER (C0.02.0 (1)).............................................................. 740 AIR INTAKE TUBE (C0.02.1 (1)).......................................................... 741 DRY AIR FILTER (C0.02.2 (1))........................................................... 742 AIR FILTER (0.013.9314.4.A)............................................................ 743 FUEL SYSTEM................................................................................ 744 FUEL TANKS (C0.03.0 (1))............................................................... 744 FUEL TANKS (C0.03.0 (2))............................................................... 745 FUEL PRELIMINARY FILTER (C0.03.1 (1)).................................................. 746 FUEL PRELIMINARY FILTER (C0.03.1 (2)).................................................. 747 FUEL PRELIMINARY FILTER (C0.03.1 (3)).................................................. 748 FUEL PRELIMINARY FILTER (C0.03.1 (4)).................................................. 749 SUPPORT (C0.03.2 (1)).................................................................. 750 FUEL COOLER (C0.03.3 (1)).............................................................. 751 PRE-FILTER - COMPONENTS (2.4319.300.0/10.A)............................................ 752 EXHAUST SILENCER........................................................................... 753 EXHAUST SILENCER (C0.06.0 (1))......................................................... 753 EXHAUST SILENCER (C0.06.0 (2))......................................................... 754 EXHAUST SILENCER WITH DUST EJECTOR (C0.06.1 (1))....................................... 755 EXHAUST SILENCER WITH DUST EJECTOR (C0.06.1 (2))....................................... 756 EXHAUST SILENCER (04455380.4/10.A)..................................................... 757 EXHAUST SILENCER (04455802.4/10.A)..................................................... 758 AIR COMPRESSOR............................................................................. 759 AIR COMPRESSOR (C0.07.0 (1))........................................................... 759 AIR COMPRESSOR (C0.07.1 (1))........................................................... 760 AIR COMPRESSOR ITALY (C0.07.2 (1))..................................................... 761 COMPRESSOR-PARTS (04428408.4.A)........................................................ 762 Index.............................................................................................. 763 Agrotron M 620 -> 20001............................................................................ 764 F0 - FRONT AXLE................................................................................ 764 GENERAL.................................................................................... 764 4WD - FRONT DRIVE AXLE (F0.00.1 (1))................................................... 764 4WD - FRONT DRIVE AXLE (F0.00.2 (1))................................................... 765 4WD - FRONT DRIVE AXLE (F0.00.5 (1))................................................... 766 DRIVEN FRONT AXLE - [359578] (0.014.0329.4/40.A)....................................... 767 STEERING CYLINDER - [359578] (0.014.0329.4/40.B)....................................... 768 BEVEL WHEEL GEAR - [359578] (0.014.0329.4/40.C)........................................ 769 DIFFERENTIAL - [359578] (0.014.0329.4/40.D)............................................ 770 DOUBLE COUPLING - [359578] (0.014.0329.4/40.E)......................................... 771 WHEEL HUB - WITH FRONT BRAKES - [359578] (0.014.0329.4/40.F)........................... 772 PLANETARY GEAR - [359578] (0.014.0329.4/40.G).......................................... 773 DRIVEN FRONT AXLE - [359579] (0.014.0331.4/40.A)....................................... 774 STEERING CYLINDER - [359579] (0.014.0331.4/40.B)....................................... 775 BEVEL WHEEL GEAR - [359579] (0.014.0331.4/40.C)........................................ 776 DIFFERENTIAL - [359579] (0.014.0331.4/40.D)............................................ 777 DOUBLE COUPLING - [359579] (0.014.0331.4/40.E)......................................... 778 WHEEL HUB - [359579] (0.014.0331.4/40.F)............................................... 779 PLANETARY GEAR - [359579] (0.014.0331.4/40.G).......................................... 780 DRIVEN FRONT AXLE - [370485] (0.015.8676.4/20.A)....................................... 781 STEERING CYLINDER - [370485] (0.015.8676.4/20.B)....................................... 782 BEVEL WHEEL GEAR - [370485] (0.015.8676.4/20.C)........................................ 783 DIFFERENTIAL - [370485] (0.015.8676.4/20.D)............................................ 784 DOUBLE COUPLING - [370485] (0.015.8676.4/20.E)......................................... 785 WHEEL HUB - [370485] (0.015.8676.4/20.F)............................................... 786 PLANETARY GEAR - [370485] (0.015.8676.4/20.G).......................................... 787 FRONT SUPPORT.............................................................................. 788 4WD - FRONT SUPPORT (F0.01.0 (1))...................................................... 788 4WD - FRONT CARRIER WITH SUSPENSION (F0.01.1 (1))...................................... 789 FRONT COVER WITHOUT FRONT HOOK (F0.01.2 (1))........................................... 790 HYDRAULIC CYLINDER (04455060/10.A)..................................................... 791 HYDRAULIC CYLINDER (04455061/10.A)..................................................... 792 FRONT DIFFERENTIAL......................................................................... 793 4WD - PROPELLER SHAFT (F0.04.0 (1)).................................................... 793 4WD - PROPELLER SHAFT (F0.04.0 (2)).................................................... 794 4WD - PROPELLER SHAFT (F0.04.1 (1)).................................................... 795 4WD - PROPELLER SHAFT (F0.04.1 (2)).................................................... 796 Index.............................................................................................. 797 Agrotron M 620 -> 20001............................................................................ 798 N0 - FRONT LIFT................................................................................ 798 GENERAL.................................................................................... 798 FRONT HYDRAULIC POWER-LIFT (N0.00.0 (1))............................................... 798 FRONT HYDRAULIC POWER-LIFT (N0.00.1 (2))............................................... 799 FRONT HYDRAULIC POWER-LIFT (04455892.4.A).............................................. 800 HYDRAULIC SYSTEM (04455892.4.B)........................................................ 801 FRONT LIGHTS (04455892.4.C)............................................................ 803 FRONT HYDRAULIC POWER-LIFT (04455893.4/10.A)........................................... 804 HYDRAULIC SYSTEM (04455893.4/10.B)..................................................... 805 Index.............................................................................................. 806 Agrotron M 620 -> 20001............................................................................ 808 P0 - FRONT LOADER.............................................................................. 808 STRUCTURE - LETTERING...................................................................... 808 FIXED FRAME (P0.01.0 (1)).............................................................. 808 INSTALLATION KIT (P0.01.1 (1))......................................................... 809 FRONT PROTECTIONS (P0.01.2 (1))........................................................ 810 FRONT LOADER ARM (P0.01.5 (1))......................................................... 811 FRONT LOADER ARM (P0.01.6 (1))......................................................... 812 LOCKING SYSTEM (P0.01.7 (1))........................................................... 813 MECHANICAL IMPLEMENT HITCH EFAM L-50 (P0.01.10 (1)).................................... 814 MECHANICAL IMPLEMENT HITCH SFAM L-50 (P0.01.11 (1)).................................... 815 PRODUCT PLATE (P0.01.13 (1))........................................................... 816 MODEL PLATE (P0.01.17 (1))............................................................. 817 MODEL PLATE (P0.01.18 (1))............................................................. 818 MODEL PLATE (P0.01.19 (1))............................................................. 819 SIGN SET - ITALY (P0.01.20 (1))........................................................ 820 SIGN SET - EXPORT GB (P0.01.21 (1)).................................................... 821 SIGN SET EXPORT DK (P0.01.22 (1))...................................................... 822 SIGN SET EXPORT NL (P0.01.23 (1))...................................................... 823 SIGN SET - EXPORT F (P0.01.24 (1))..................................................... 824 SIGN SET - EXPORT D (P0.01.25 (1))..................................................... 825 SIGN SET - EXPORT E (P0.01.26 (1))..................................................... 826 SIGN SET EXPORT PL (P0.01.27 (1))...................................................... 827 INFORMATION PLATE (P0.01.28 (1))....................................................... 828 WARNING PLATE (P0.01.29 (1))........................................................... 829 IDENTIFICATION PLATE (P0.01.30 (1)).................................................... 830 IDENTIFICATION PLATE (P0.01.31 (1)).................................................... 831 IDENTIFICATION PLATE (P0.01.32 (1)).................................................... 832 WARNING PLATE (P0.01.33 (1))........................................................... 833 HYDRAULIC SYSTEM........................................................................... 834 DISTRIBUTOR (P0.02.0 (1)).............................................................. 834 PIPING LOAD SENSING (P0.02.1 (1))...................................................... 835 PIPING OPEN CENTER (P0.02.2 (1))....................................................... 836 PIPING OPEN CENTER (P0.02.3 (1))....................................................... 837 ELECTRICAL SYSTEM.......................................................................... 838 PROVISION FOR FRONT LOADER (P0.03.0 (1))............................................... 838 FRONT LOADER ELECTRICAL SYSTEM (P0.03.1 (1))........................................... 839 BRACKET (P0.03.2 (1)).................................................................. 840 LOADER CONTROLS............................................................................ 841 CONTROL LEVER (P0.04.0 (1))............................................................ 841 FRONT LOADER CONTROL SUPPORT (P0.04.1 (1))............................................. 842 DRIVE (0.014.4795.4/20.A).............................................................. 843 ATTACHMENTS................................................................................ 844 BUCKET EABU190R (P0.05.0 (1)).......................................................... 844 BUCKET EABU205R (P0.05.1 (1)).......................................................... 845 BUCKET EABU220R (P0.05.2 (1)).......................................................... 846 BUCKET UNBU190R (P0.05.3 (1)).......................................................... 847 BUCKET UNBU205R (P0.05.4 (1)).......................................................... 848 BUCKET UNBU220R (P0.05.5 (1)).......................................................... 849 BUCKET EBWT190R (P0.05.6 (1)).......................................................... 850 BUCKET EBWT205R (P0.05.7 (1)).......................................................... 851 BUCKET EBWT220R (P0.05.8 (1)).......................................................... 852 BUCKET - FIOB 200 H (P0.05.9 (1))...................................................... 853 SHREDDER - SCGR 150 N (P0.05.10 (1))................................................... 854 SHREDDER - SCGR 190 H (P0.05.11 (1))................................................... 855 SHOVEL WITH LOAD HOLDER - SBWG 180 N (P0.05.12 (1)).................................... 856 SHOVEL WITH LOAD HOLDER - SBWG 220 H (P0.05.13 (1)).................................... 857 SHOVEL WITH LOAD HOLDER - BWGR 200 N (P0.05.14 (1)).................................... 858 SHOVEL WITH LOAD HOLDER - BWGR 230 N (P0.05.15 (1)).................................... 859 FORK WITH LOAD HOLDER - SIGR 150 N (P0.05.16 (1))...................................... 860 FORK WITH LOAD HOLDER - FWGR 200 N (P0.05.17 (1))...................................... 861 FORK WITH LOAD HOLDER - FWGR 230 N (P0.05.18 (1))...................................... 862 FORK-LIFT FOR MANURE - MAFO 200 H (P0.05.21 (1))....................................... 863 FORK-LIFT FOR MANURE - MAFO 200 N (P0.05.22 (1))....................................... 864 FORK-LIFT FOR MANURE - MAFO 235 L (P0.05.23 (1))....................................... 865 FORK-LIFT FOR MANURE - MAFO 235 N (P0.05.24 (1))....................................... 866 FOLDING BAIL FORK - BBFA 120 H (P0.05.25 (1)).......................................... 867 BAIL FORK - BBFO 120 H (P0.05.26 (1)).................................................. 868 PALLET FORK - PAFO 090 H (P0.05.27 (1))................................................ 869 PALLET FORK - PAFO 120 H (P0.05.28 (1))................................................ 870 SHOVEL AND FORK PROTECTION A = mm 1310 (P0.05.29 (1)).................................. 871 SHOVEL AND FORK PROTECTION A = mm 1510 (P0.05.30 (1)).................................. 872 SHOVEL AND FORK PROTECTION A = mm 1710 (P0.05.31 (1)).................................. 873 SHOVEL AND FORK PROTECTION A = mm 1910 (P0.05.32 (1)).................................. 874 SHOVEL AND FORK PROTECTION A = mm 2060 (P0.05.33 (1)).................................. 875 SHOVEL AND FORK PROTECTION A = mm 2210 (P0.05.34 (1)).................................. 876 SHOVEL AND FORK PROTECTION A = mm 2410 (P0.05.35 (1)).................................. 877 BAIL FORK - RBHA 000 N (P0.05.36 (1)).................................................. 878 BAIL FORK - BACL 160 N (P0.05.37 (1)).................................................. 879 BAIL FORK - BACL 205 H (P0.05.38 (1)).................................................. 880 TRUNK FORK - STFH 104 N (P0.05.39 (1))................................................. 881 TRUNK FORK - STFO 130 N (P0.05.40 (1))................................................. 882 Index.............................................................................................. 883 Agrotron M 620 -> 20001............................................................................ 884 M0 - FRONT PTO................................................................................. 884 GENERAL.................................................................................... 884 P.T.O. FRONT (M0.00.0 (1))............................................................. 884 P.T.O. FRONT (04455860.4.A)............................................................ 885 P.T.O. FRONT (04455860.4.B)............................................................ 886 P.T.O. FRONT (04455860.4.C)............................................................ 888 ELECTRICAL SYSTEM P.T.O. (04455860.4.D)................................................ 889 Index.............................................................................................. 890 Agrotron M 620 -> 20001............................................................................ 893 H0 - HYDRAULIC AND PNEUMATIC SYSTEM|........................................................... 893 HYDRAULIC SYSTEM........................................................................... 893 FRONT DIFFERENTIAL LOCK CONTROL LINES (H0.01.0 (1)).................................... 893 GEAR BOX OIL RADIATOR TUBES (H0.01.1 (1)).............................................. 894 GEAR BOX OIL RADIATOR TUBES (H0.01.2 (1)).............................................. 895 GEAR BOX OIL RADIATOR TUBES (H0.01.2 (2)).............................................. 896 GEAR BOX OIL RADIATOR TUBES (H0.01.2 (3)).............................................. 897 HYDRAULIC SYSTEM LOAD SENSING (H0.01.3 (1))............................................ 898 HYDRAULIC SYSTEM LOAD SENSING (H0.01.4 (1))............................................ 899 HYDRAULIC SYSTEM LOAD SENSING (H0.01.5 (1))............................................ 900 HYDRAULIC SYSTEM LOAD SENSING (H0.01.6 (1))............................................ 901 HYDRAULIC SYSTEM LOAD SENSING (H0.01.6 (2))............................................ 902 HYDRAULIC SYSTEM OPEN CENTER (H0.01.7 (1))............................................. 903 HYDRAULIC SYSTEM OPEN CENTER (H0.01.8 (1))............................................. 905 HYDRAULIC SYSTEM LOAD SENSING (H0.01.9 (1))............................................ 906 HYDRAULIC SYSTEM LOAD SENSING (H0.01.10 (1))........................................... 908 HYDRAULIC SYSTEM LOAD SENSING (H0.01.11 (1))........................................... 909 HYDRAULIC SYSTEM LOAD SENSING (H0.01.12 (1))........................................... 911 HYDRAULIC SYSTEM LOAD SENSING (H0.01.13 (1))........................................... 912 HYDRAULIC SYSTEM OPEN CENTER (H0.01.14 (1))............................................ 913 HYDRAULIC SYSTEM OPEN CENTER (H0.01.15 (1))............................................ 915 HYDRAULIC SYSTEM OPEN CENTER (H0.01.16 (1))............................................ 916 HYDRAULIC SYSTEM OPEN CENTER (H0.01.17 (1))............................................ 918 FLANGE (00290646.A).................................................................... 919 DETAILS OF OIL FILTER (04437773.4.A)................................................... 920 HYDRAULIC PUMP PARTS (04450322.A)...................................................... 921 VALVE PARTS (04450326.A)............................................................... 922 HYDRAULIC PUMP PARTS (04450516.A)...................................................... 923 SPIN-ON FILTER (04451877.A)............................................................ 924 OIL PUMP (04452222/10.A)............................................................... 925 OIL PUMP (04452222/10.B)............................................................... 926 OIL PUMP (04452222/10.C)............................................................... 927 OIL PUMP (04452222/10.D)............................................................... 928 HYDRAULIC PUMP PARTS (2.4539.310.0/10.A)............................................... 929 STEERING SYSTEM............................................................................ 930 HYDROSTATIC STEERING CONTROL VALVE (H0.02.0 (1))....................................... 930 PIPES FOR HYDROSTATIC STEERING (H0.02.1 (1))........................................... 931 GUIDE PIPE (H0.02.2 (1))............................................................... 932 GUIDE PIPE (H0.02.2 (2))............................................................... 933 HYDROSTATIC STEERING FIXING COMPONENTS (H0.02.3 (1))................................... 934 HYDRAULIC STEERING GEAR (04450329.A)................................................... 935 TRANSMISSION - PTO COOLERS................................................................ 936 GEARBOX OIL COOLER (H0.03.0 (1))....................................................... 936 FRONT AXLE HYDRAULIC SUSPENSION............................................................ 937 HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0.04.0 (1))...................................... 937 HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0.04.1 (1))...................................... 938 HYDRAULIC SYSTEM FOR SUSPENDED AXLE (H0.04.2 (1))...................................... 939 HYDRAULIC SYSTEM FOR SUSPENDED AXLE OPEN CENTER (H0.04.3 (1)).......................... 940 HYDRAULIC SYSTEM FOR SUSPENDED AXLE OPEN CENTER (H0.04.4 (1)).......................... 941 HOSE SUPPORT BRACKET (H0.04.5 (1))..................................................... 942 ACCUMULATOR (04455149/40.A)............................................................ 943 FRONT LIFT................................................................................. 944 FRONT LIFT - HYDRAULIC SYSTEM (H0.05.0 (1))............................................ 944 REAR REMOTE CONTROL VALVES................................................................. 945 4-WAY HYDRAULIC CONTROL VALVE OPEN CENTER (H0.07.0 (2))................................ 945 4-WAY HYDRAULIC CONTROL VALVE OPEN CENTER (H0.07.0 (3))................................ 947 8-WAY HYDRAULIC CONTROL VALVE OPEN CENTER (H0.07.1 (2))................................ 949 8-WAY HYDRAULIC CONTROL VALVE OPEN CENTER (H0.07.1 (3))................................ 951 8-WAY HYDRAULIC CONTROL VALVE LOAD SENSING (H0.07.2 (2))............................... 953 8-WAY HYDRAULIC CONTROL VALVE LOAD SENSING (H0.07.2 (3))............................... 955 BRACKET (H0.07.3 (1)).................................................................. 957 QUICK COUPLERS FOR TYPES WITH FRONT LIFT (H0.07.4 (1))................................. 958 4-WAY QUICK COUPLERS (H0.07.6 (1))..................................................... 959 4-WAY QUICK COUPLERS (H0.07.8 (1))..................................................... 960 8-WAY QUICK COUPLERS (H0.07.10 (1)).................................................... 961 8-WAY QUICK COUPLERS (H0.07.12 (1)).................................................... 962 PUSH-PULL QUICK COUPLERS FOR "POWER BEYOND" (H0.07.13 (1))............................. 963 RETURN LINE REAR - UNPRESSURIZED (H0.07.14 (1))........................................ 964 RETURN LINE REAR - UNPRESSURIZED (H0.07.14 (2))........................................ 965 ENGAGEMENT (04412157/10.A)............................................................. 966 VALVE PARTS (04428917.4.A)............................................................. 967 ENGAGEMENT (04450416.A)................................................................ 968 ENGAGEMENT (04450417.A)................................................................ 969 DISTRIBUTOR PARTS (2.3729.480.0.A)..................................................... 970 DISTRIBUTOR PARTS (2.3729.520.0/10.A).................................................. 971 BRAKING SYSTEM AND PNEUMATIC SYSTEM|....................................................... 972 BRAKING SYSTEM (H0.09.0 (1))........................................................... 972 BRAKING SYSTEM (H0.09.1 (1))........................................................... 973 BRAKING SYSTEM (H0.09.2 (1))........................................................... 974 BRAKING SYSTEM (H0.09.3 (1))........................................................... 975 BRAKING SYSTEM (H0.09.4 (1))........................................................... 976 BRAKING SYSTEM KIT OPEN CENTER (H0.09.5 (1))........................................... 977 FRONT BRAKE PIPES (H0.09.6 (1))........................................................ 978 VALVE FOR FRONT BRAKES (H0.09.7 (1))................................................... 979 HYDRAULIC BREAKING FOR TRAILER - ITALY - (H0.09.8 (1))................................. 980 HYDRAULIC BREAKING FOR TRAILER - ITALY - (H0.09.8 (2))................................. 981 HYDRAULIC BREAKING FOR TRAILER - ITALY - (H0.09.9 (1))................................. 982 HYDRAULIC BREAKING FOR TRAILER - ITALY - (H0.09.9 (2))................................. 983 HYDRAULIC BREAKING FOR TRAILER - EXPORT F (H0.09.10 (1))............................... 984 HYDRAULIC BREAKING FOR TRAILER - EXPORT F (H0.09.10 (2))............................... 985 HYDRAULIC BREAKING FOR TRAILER - EXPORT F (H0.09.11 (1))............................... 986 HYDRAULIC BREAKING FOR TRAILER - EXPORT F (H0.09.11 (2))............................... 987 PNEUMATIC SYSTEM FOR SUSPENDED CAB (H0.09.12 (1))...................................... 988 PNEUMATIC SYSTEM FOR SUSPENDED CAB (H0.09.13 (1))...................................... 989 AIR BRAKING (H0.09.14 (1))............................................................. 990 AIR BRAKING (H0.09.15 (1))............................................................. 991 AIR BRAKING (H0.09.16 (1))............................................................. 992 AIR BRAKING (H0.09.17 (1))............................................................. 993 AIR BRAKING (H0.09.18 (1))............................................................. 994 BRAKING SYSTEM KIT (H0.09.19 (1))...................................................... 995 AIR BRAKING - ITALY - (H0.09.20 (1))................................................... 996 AIR BRAKING - ITALY - (H0.09.21 (1))................................................... 997 AIR BRAKING - ITALY - (H0.09.22 (1))................................................... 998 BRACKET FOR PNEUMATIC BRAKING SYSTEM (H0.09.23 (1)).................................... 999 AIR-PRESSURE GAUGE (H0.09.24 (1))......................................................1000 TRAILER SOCKET-OUTLET VALVE (0.012.1712.4.A)...........................................1001 TRAILER BRAKE VALVE (04419935.A).......................................................1002 TRAILER BRAKE VALVE (04424805.A).......................................................1003 PRESSURE REGULATOR (04434820.A)........................................................1004 TRAILER BRAKE VALVE (04452780/10.A)....................................................1005 PUMP-COMPONENTS (04453936.A)...........................................................1006 BRAKES CONTROL VALVE (2.3729.722.0/20.A)...............................................1007 Index..............................................................................................1008 Agrotron M 620 -> 20001............................................................................1009 R0 - REAR LIFT.................................................................................1009 LIFT ASSEMBLY..............................................................................1009 LIFTING CYLINDER Ø MM 80 (R0.02.0 (1)).................................................1009 LIFTING CYLINDER Ø MM 80 (R0.02.0 (2)).................................................1010 LIFTING CYLINDER Ø MM 100 (R0.02.1 (1))................................................1011 LIFTING CYLINDER Ø MM 100 (R0.02.1 (2))................................................1012 CYLINDER PARTS (04411182.4/20.A).......................................................1013 CYLINDER PARTS mm 100 (04411184.4/10.A)................................................1014 HYDRAULIC CYLINDER (2.3749.011.0.A)....................................................1015 HYDRAULIC CYLINDER (2.3749.012.0.A)....................................................1016 SENSOR.....................................................................................1017 AGROTRONIC (R0.05.0 (1))...............................................................1017 AGROTRONIC (R0.05.0 (2))...............................................................1018 THREE-POINT LINKAGE - LINK ARMS............................................................1019 3 POINT HITCH - LIFTING ARMS (R0.06.0 (1)).............................................1019 3-POINT HITCH - ADJUSTABLE RH RODS (R0.06.1 (1))......................................1020 3-POINT HITCH - SIDE STABILIZERS (R0.06.2 (1)).........................................1021 3-POINT HITCH - SIDE STABILIZERS (R0.06.3 (1)).........................................1022 3-POINT HITCH - SIDE STABILIZERS (R0.06.4 (1)).........................................1023 3-POINT HITCH - SIDE STABILIZERS (R0.06.5 (1)).........................................1024 3-POINT HITCH - SIDE STABILIZERS (R0.06.6 (1)).........................................1025 RETAINER FOR COLLECTING TRAY - SX/LH/LI (R0.06.7 (1))..................................1026 RETAINER FOR COLLECTING TRAY (R0.06.8 (1)).............................................1027 TOWING BAR (R0.06.9 (1))...............................................................1028 MANUAL LATERAL STABILIZERS (0.010.5222.4/60.A).........................................1029 LINKAGE (0.014.1415.3.A)...............................................................1030 TOWING HITCH cat. 3 (0.014.1421.3.A)...................................................1031 STABILIZER (0.015.4023.4.A)............................................................1032 STABILIZER (0.015.4029.4.A)............................................................1033 STABILIZER (0.015.7687.4.A)............................................................1034 Index..............................................................................................1035 Agrotron M 620 -> 20001............................................................................1037 D0 - TRANSMISSION..............................................................................1037 GENERAL....................................................................................1037 GEAR CHANGE BOX (D0.00.1 (1))..........................................................1037 GEAR CHANGE BOX (D0.00.3 (1))..........................................................1038 GEARBOX - [2093 009 100] (04455362.4/20.01)............................................1039 LAYSHAFT - [2093 009 100] (04455362.4/20.02)...........................................1040 MAIN SHAFT - [2093 009 100] (04455362.4/20.03).........................................1042 MAIN SHAFT - [2093 009 100] (04455362.4/20.04).........................................1045 GEARSHIFT LEVER - [2093 009 100] (04455362.4/20.05)....................................1046 P.T.O. - POWER TAKE OFF - [2093 009 100] (04455362.4/20.06)............................1048 SUPER REDUCTION GEAR UNIT - [2093 009 100] (04455362.4/20.07)..........................1049 PUMP DRIVE - [2093 009 100] (04455362.4/20.08).........................................1050 LUBRICANT OIL SUPPLY - [2093 009 100] (04455362.4/20.09)...............................1053 FRONT TRANSMISSION - [2093 009 100] (04455362.4/20.10).................................1054 FRONT TRANSMISSION - [2093 009 100] (04455362.4/20.11).................................1056 LUBRICANT OIL SUPPLY - [2093 009 100] (04455362.4/20.12)...............................1057 ADJUSTER INSTRUMENT - [2093 009 100] (04455362.4/20.13)................................1058 ADJUSTER INSTRUMENT - [2093 009 100] (04455362.4/20.14)................................1061 ADJUSTER INSTRUMENT - [2093 009 100] (04455362.4/20.15)................................1064 POWER SHIFT - [2093 009 100] (04455362.4/20.16)........................................1065 GEARBOX - [2093 009 100] (04455362.4/20.17)............................................1067 SPLITTER - [2093 009 100] (04455362.4/20.18)...........................................1068 SPLITTER - [2093 009 100] (04455362.4/20.19)...........................................1071 HYDRAULIC CONTROL - [2093 009 100] (04455362.4/20.20)..................................1074 HYDRAULIC CONTROL - [2093 009 100] (04455362.4/20.21)..................................1075 GEARBOX INPUT SHAFT - [2093 009 100] (04455362.4/20.22)................................1076 CLUTCH - [2093 009 100] (04455362.4/20.23).............................................1077 ACCESSORIES - [2093 009 100] (04455362.4/20.24)........................................1080 REAR GEARBOX CASE - [2093 009 100] (04455362.4/20.26)..................................1081 DIFFERENTIAL - [2093 009 100] (04455362.4/20.27).......................................1083 P.T.O. - POWER TAKE OFF - [2093 009 100] (04455362.4/20.28)............................1085 SERVICE BRAKES - [2093 009 100] (04455362.4/20.29).....................................1089 BRAKE CONTROLS - [2093 009 100] (04455362.4/20.30).....................................1090 LIFTING - [2093 009 100] (04455362.4/20.31)............................................1091 GEAR SHIFTING - [2093 009 100] (04455362.4/20.32)......................................1092 GEARBOX - [2093 009 105] (04455363.4/20.01)............................................1093 LAYSHAFT - [2093 009 105] (04455363.4/20.02)...........................................1094 MAIN SHAFT - [2093 009 105] (04455363.4/20.03).........................................1096 MAIN SHAFT - [2093 009 105] (04455363.4/20.04).........................................1099 GEARSHIFT LEVER - [2093 009 105] (04455363.4/20.05)....................................1100 P.T.O. - POWER TAKE OFF - [2093 009 105] (04455363.4/20.06)............................1102 SUPER REDUCTION GEAR UNIT - [2093 009 105] (04455363.4/20.07)..........................1103 PUMP DRIVE - [2093 009 105] (04455363.4/20.08).........................................1104 LUBRICANT OIL SUPPLY - [2093 009 105] (04455363.4/20.09)...............................1107 FRONT TRANSMISSION - [2093 009 105] (04455363.4/20.10).................................1108 FRONT TRANSMISSION - [2093 009 105] (04455363.4/20.11).................................1110 LUBRICANT OIL SUPPLY - [2093 009 105] (04455363.4/20.12)...............................1111 ADJUSTER INSTRUMENT - [2093 009 105] (04455363.4/20.13)................................1112 ADJUSTER INSTRUMENT - [2093 009 105] (04455363.4/20.14)................................1115 ADJUSTER INSTRUMENT - [2093 009 105] (04455363.4/20.15)................................1118 POWER SHIFT - [2093 009 105] (04455363.4/20.16)........................................1119 GEARBOX - [2093 009 105] (04455363.4/20.17)............................................1121 SPLITTER - [2093 009 105] (04455363.4/20.18)...........................................1122 SPLITTER - [2093 009 105] (04455363.4/20.19)...........................................1125 HYDRAULIC CONTROL - [2093 009 105] (04455363.4/20.20)..................................1128 HYDRAULIC CONTROL - [2093 009 105] (04455363.4/20.21)..................................1129 GEARBOX INPUT SHAFT - [2093 009 105] (04455363.4/20.22)................................1130 CLUTCH - [2093 009 105] (04455363.4/20.23).............................................1131 ACCESSORIES - [2093 009 105] (04455363.4/20.24)........................................1133 REAR GEARBOX CASE - [2093 009 105] (04455363.4/20.26)..................................1134 DIFFERENTIAL - [2093 009 105] (04455363.4/20.27).......................................1136 P.T.O. - POWER TAKE OFF - [2093 009 105] (04455363.4/20.28)............................1138 SERVICE BRAKES - [2093 009 105] (04455363.4/20.29).....................................1142 BRAKE CONTROLS - [2093 009 105] (04455363.4/20.30).....................................1143 LIFTING - [2093 009 105] (04455363.4/20.31)............................................1144 GEAR SHIFTING - [2093 009 105] (04455363.4/20.32)......................................1145 GEARBOX INPUT SHAFT........................................................................1146 FLEXIBLE COUPLINGS (D0.05.0 (1)).......................................................1146 GEARBOX....................................................................................1147 GEARBOX FASTENERS (D0.09.0 (1))........................................................1147 SEPARATOR mm 35 (D0.09.1 (1))..........................................................1148 SEPARATOR 15 mm (D0.09.2 (1))..........................................................1149 INTERNAL AND EXTERNAL GEARBOX CONTROLS.....................................................1150 GEAR SHIFTING (D0.10.0 (1))............................................................1150 SUPER-REDUCTION CONTROL (D0.10.1 (1))..................................................1151 SUPER-REDUCTION CONTROL (D0.10.1 (2))..................................................1152 LINKAGE (0.016.3969.4/10.00)...........................................................1153 PTO/GROUNDPSPEED DRIVE...................................................................1154 PTO OUTPUT SHAFT z = 21 (D0.14.0 (1))..................................................1154 PTO OUTPUT SHAFT 1" 3/4, Z = 6 (D0.14.1 (1))...........................................1155 PTO OUTPUT SHAFT 1"3/4, Z = 20 (D0.14.2 (1))...........................................1156 COMPLETION (D0.14.3 (1))...............................................................1157 P.T.O. SHAFT PROTECTOR REAR (D0.14.4 (1))..............................................1158 Index..............................................................................................1159 Agrotron M 620 -> 20001............................................................................1160 S0 - WHEELS....................................................................................1160 FRONT WHEEL BOLTS..........................................................................1160 FRONT WHEEL MOUNTING m 20 p.1.5 (S0.01.0 (1))..........................................1160 REAR WHEEL BOLTS...........................................................................1161 FRONT WHEEL MOUNTING m 22 x 1,5 (S0.02.0 (1))..........................................1161 TWING WHEEL FIXINGS m 22x1.5 (S0.02.1 (1)).............................................1162 WHEELS.....................................................................................1163 TYRE VALVE (S0.04.0 (1))...............................................................1163 WHEELS 16.9 R28" 136 A8 TL (S0.04.8 (1))...............................................1164 WHEELS 480/70 R28" A8 (S0.04.9 (1))....................................................1165 WHEELS 480/70 R28" A8 (S0.04.10 (1))...................................................1166 WHEELS 540/65R28" A8 (S0.04.11 (1))....................................................1167 WHEELS 540/65R28" A8 (S0.04.12 (1))....................................................1168 WHEELS 540/65 R28" 137 A8 CF (S0.04.13 (1))............................................1169 WHEELS 20.8R38" a8 (S0.04.17 (1))......................................................1170 WHEELS 580/70R38" a8 (S0.04.21 (1))....................................................1171 WHEELS 580/70R38" a8 (S0.04.22 (1))....................................................1172 WHEELS 650/65R38" (S0.04.24 (1)).......................................................1173 WHEELS 650/65R38" 154 A8 (S0.04.25 (1))................................................1174 WHEELS 650/65R38" 154 A8 (S0.04.26 (1))................................................1175
