DEUTZ FAHR F 390 Spare Parts Manual – PDF DOWNLOAD

Description

DEUTZ FAHR F 390 Spare Parts Manual – PDF DOWNLOAD

FILE DETAILS:

DEUTZ FAHR F 390 Spare Parts Manual – PDF DOWNLOAD

Size:12.1 MB
Pages :328
Format: PDF
Language: English
Brand: DEUTZ

DESCRIPTION:

DEUTZ FAHR F 390 Spare Parts Manual – PDF DOWNLOAD

Directives for Spare Parts orders GB Orders are to be addressed to the competent dealer, and should include the following specifications:

1. Machine type and chassis number
2. Quantity of desired spare parts
3. Order number and designation of desired parts
4. Desired mode of dispatch
5. Exact address with PZN
In case of dispatch by railway specify also station

• The illustrations given in the Spare Parts List do not correspond always to the original part since it could occur that the latter has been modified after the ultimate impression of the List. Therefore you should not be guided exclusively by the illustrations of the Spare Parts List.
• For parts whose number cannot be found out definitely, you should enclose a sample in order to avoid any wrong delivery
• Not reclaimed samples will be scrapped.
• Early maintenance works, already during Winter, save time and money.
• Parts for which gratuitous compensation is demanded, have to be forwarded free of charges.
• Use exclusively original FAHR spare parts which are manufactured in our works always according to the same method ensuring you perfect matching and outstanding quality

Tips on Hydraulics and P.T.O. Shaft Parts

In case of repair of a hydraulic cylinder or control apparatus we recommend to replace the packings only. For all the other parts please make request for an exchange cylinder or control apparatus.

When fitting, shorten to the required length profiled tubes, protection tubes and funnel shaped guards

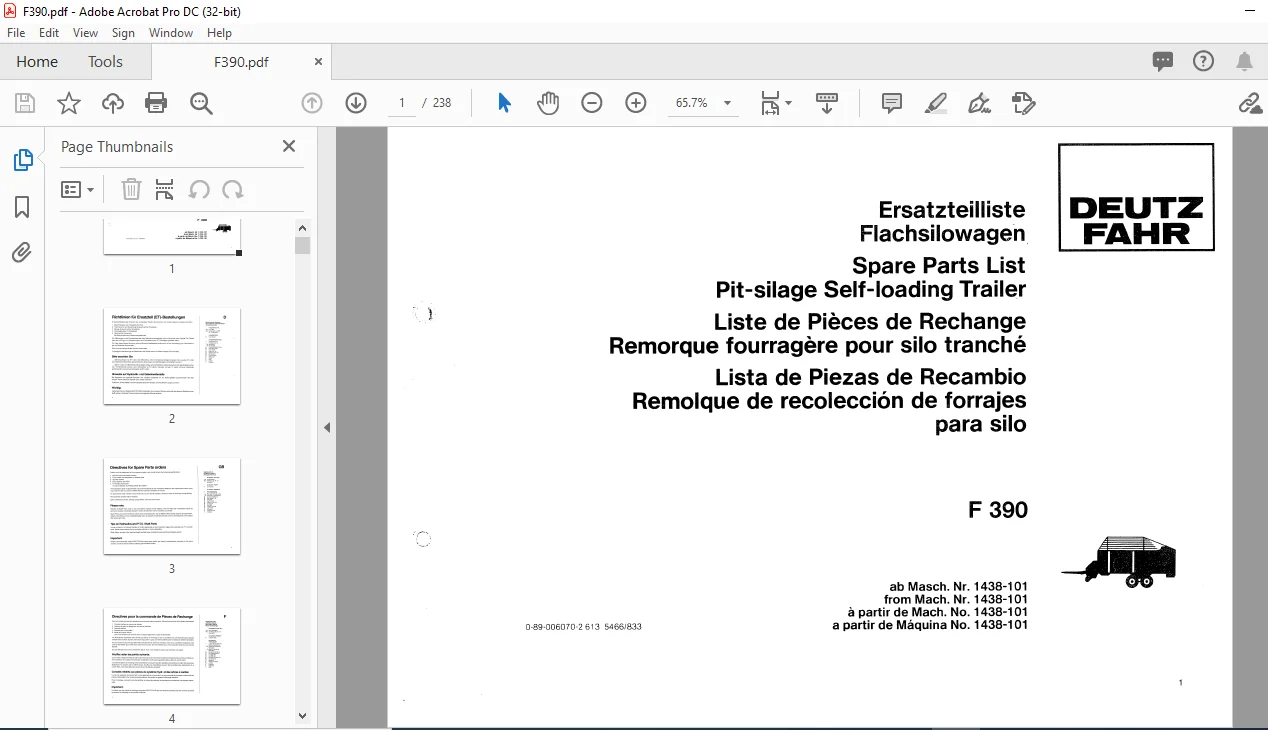

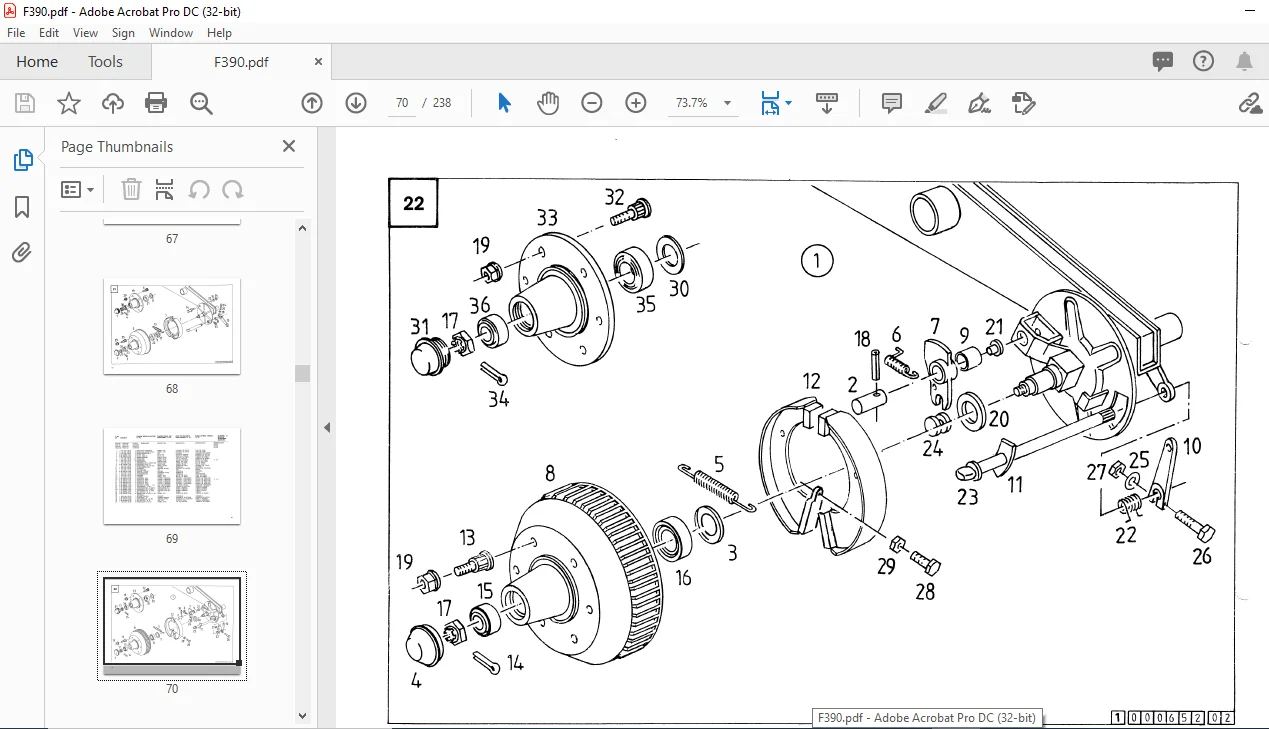

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
