DEUTZ FAHR HD 360 Spare Parts MANUAL – PDF DOWNLOAD

Description

DEUTZ FAHR HD 360 Spare Parts MANUAL – PDF DOWNLOAD

FILE DETAILS:

DEUTZ FAHR HD 360 Spare Parts MANUAL – PDF DOWNLOAD

Language : English
Pages :154
Downloadable : Yes
File Type : PDF
Size:6.49 MB

DESCRIPTION:

DEUTZ FAHR HD 360 Spare Parts MANUAL – PDF DOWNLOAD

Directives for Spare Parts orders

Orders are to be addressed to the compedent dealer.and should include the following specifications:

1. Machine type and chassis number
2. Part number and designation of desired parts
3. Quantity desired
4. Exact address with PZN
5. Forwarding instructions

• In case of dispatch by railway specify also station
• The illustrations given in Spare Parts Lists and microfiches do not correspond always to the original part since it could occur that the latter has been modified after the ultimate impression of the List.
• For parts whose order number cannot be found out,you should enclose a sample in order to avoid any wrong delivery. No reclaimed samples will be scraped. Early maintenance works.already during Winter,save time and money.
• Not reclaimed samples will be scrapped.
• Early maintenance works, already during Winter, save time and money.
• Parts for which gratuitous compensation is demanded, have to be forwarded free of charges.
• Use exclusively original FAHR spare parts which are manufactured in our works always according to the same method ensuring you perfect matching and outstanding quality

Tips on Hydraulics and P.T.O. Shaft Parts

• In case of repair of a hydraulic cylinder or control apparatus we recommend to replace the packings only. For all the other parts please make request for an exchange cylinder or control apparatus.
• When fitting, shorten to the required length profiled tubes, protection tubes and funnel shaped guards

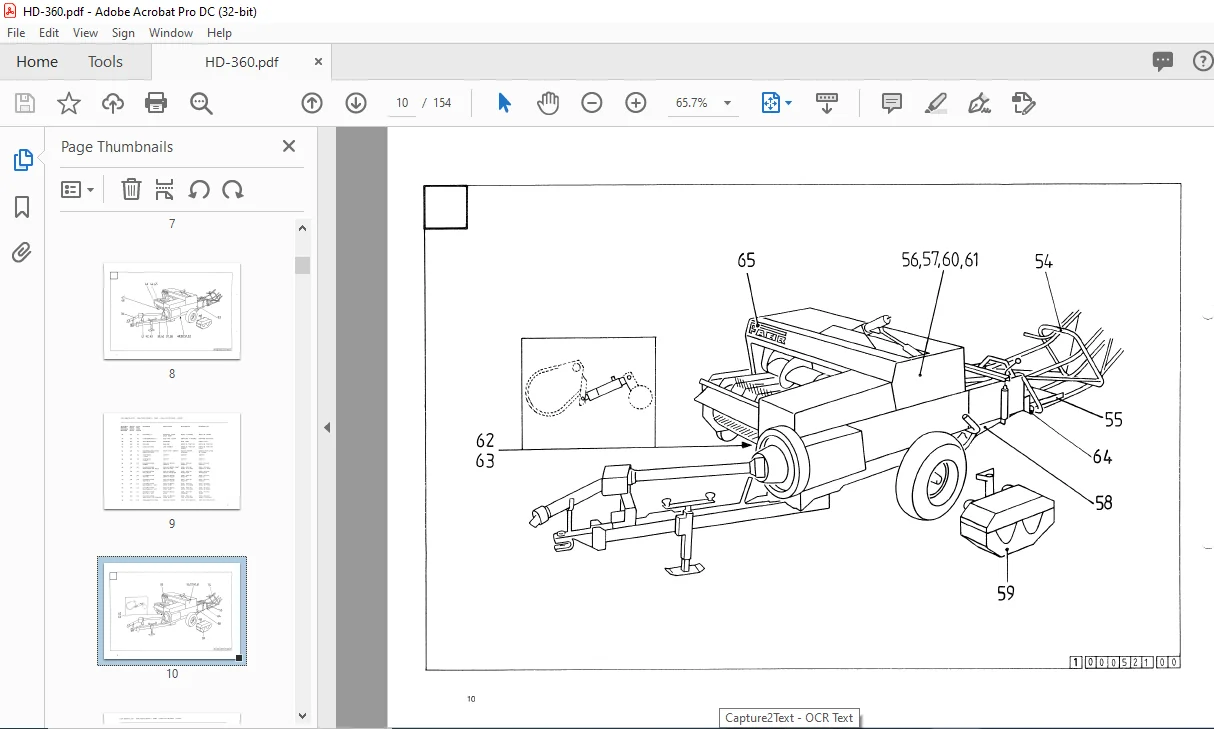

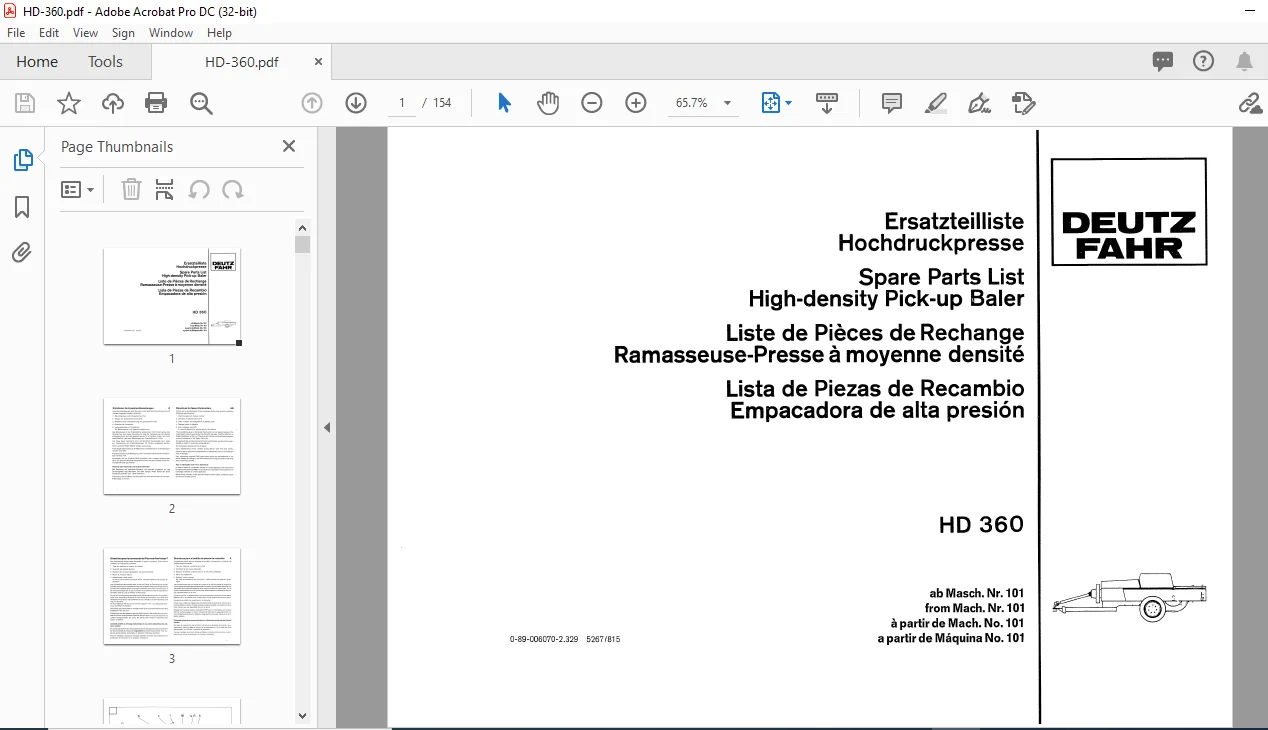

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.M
