DEUTZ FAHR KM 2.23S Spare Parts Manual – PDF DOWNLOAD

Description

DEUTZ FAHR KM 2.23S Spare Parts Manual – PDF DOWNLOAD

FILE DETAILS:

DEUTZ FAHR KM 2.23S Spare Parts Manual – PDF DOWNLOAD

Language : English
Pages :52
Downloadable : Yes
File Type : PDF
Size:2.49 MB

DESCRIPTION:

DEUTZ FAHR KM 2.23S Spare Parts Manual – PDF DOWNLOAD

Directives for Spare Parts orders

Orders are to be addressed to the compedent dealer.and should include the following specifications:

1. Machine type and chassis number
2. Part number and designation of desired parts
3. Quantity desired
4. Exact address with PZN
5. Forwarding instructions

• In case of dispatch by railway specify also station
• The illustrations given in Spare Parts Lists and microfiches do not correspond always to the original part since it could occur that the latter has been modified after the ultimate impression of the List.
• For parts whose order number cannot be found out,you should enclose a sample in order to avoid any wrong delivery. No reclaimed samples will be scraped. Early maintenance works.already during Winter,save time and money.

Please note:

• Reprints of Spare Parts Lists or new microfiches replace former editions.The new lists and microfiches include all technical changes introduced during the whole development of the machines concerned.
• Spare Parts Lists and microfiches cannot issue simultaneously,due to different times being required for elaboration.

Tips on Hydraulics and P.T.O

Shaft Parts In case of repair of a hydraulic cylinder or control apparatus we recommend to replace the packings only. For all other parts,please make request for an exchange cylinder or control apparatus. When fitting,shorten to the required length profiled tubes,protection tubes and funnel shaped guards.

Important:

Please use exclusively original spare parts which are always manufactured according to the same process and thus ensure perfect matching and excellent quality

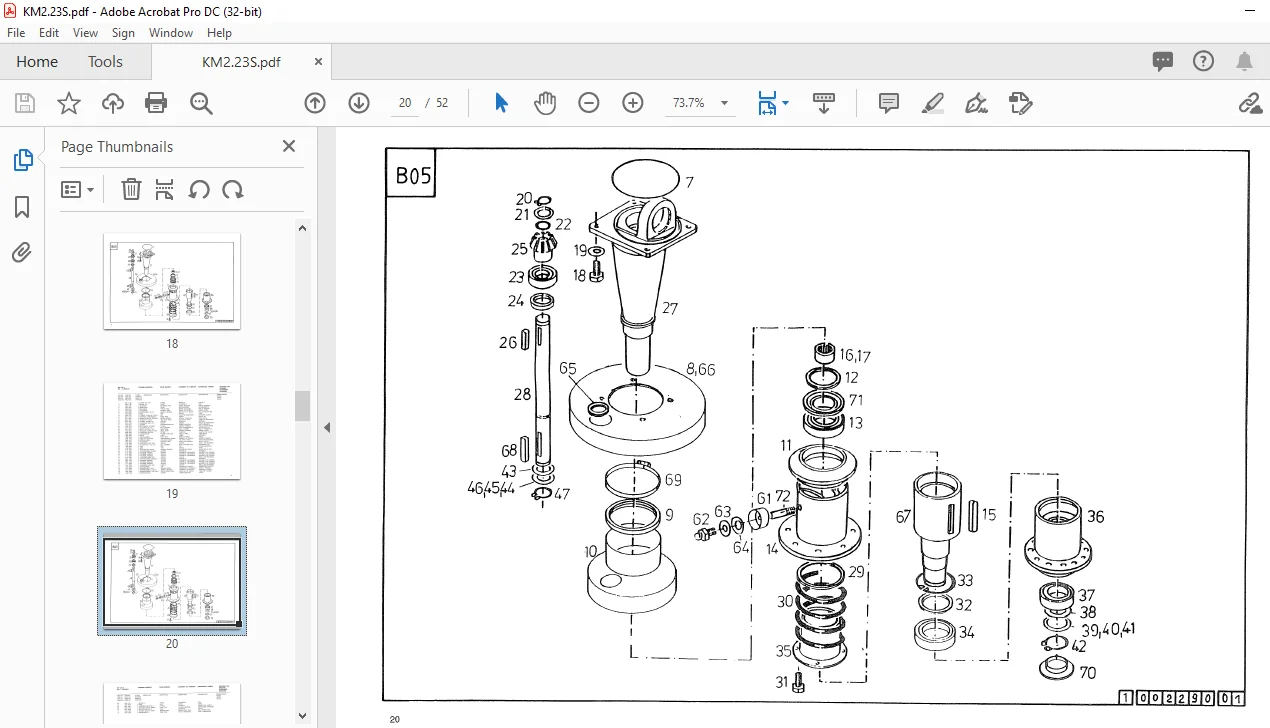

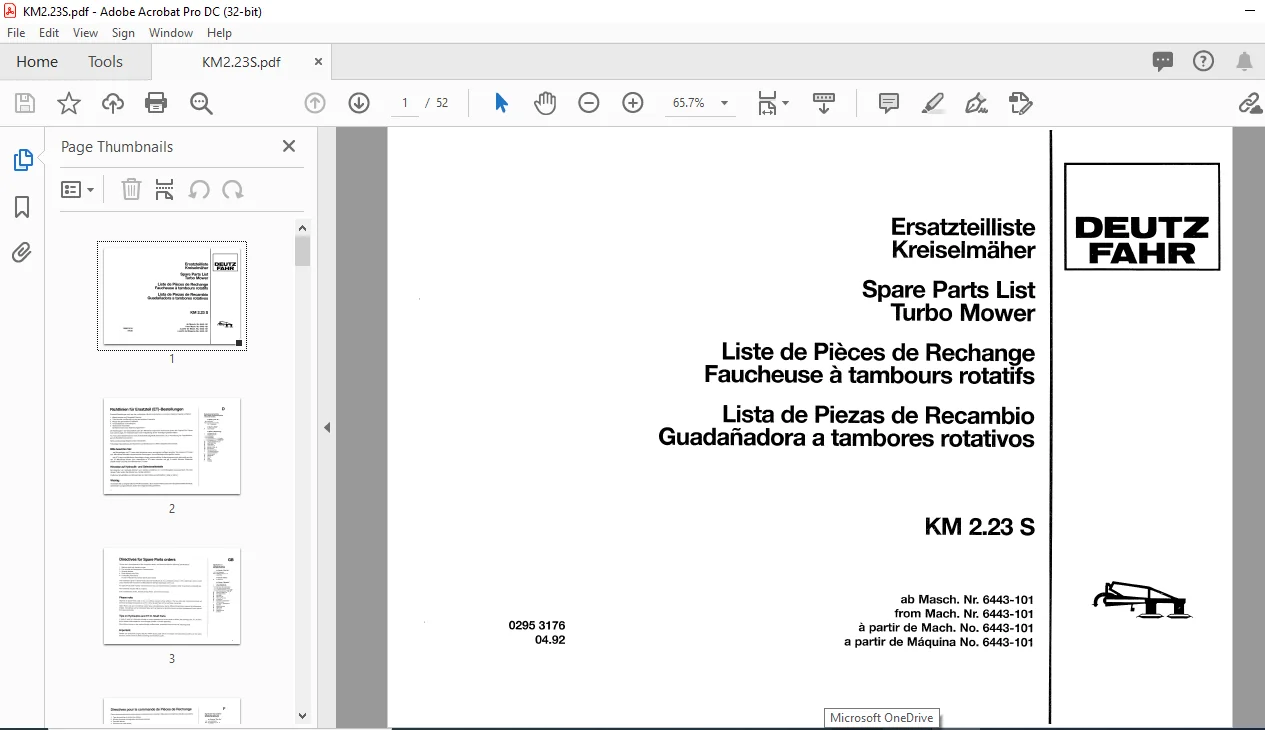

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
