DEUTZ FAHR M1202 COMBINE HARVESTER PARTS MANUAL – PDF
$26.95
DEUTZ FAHR M1202 COMBINE HARVESTER PARTS MANUAL – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
DEUTZ FAHR M1202 COMBINE HARVESTER PARTS MANUAL – PDF DOWNLOAD
FILE DETAILS:
DEUTZ FAHR M1202 COMBINE HARVESTER PARTS MANUAL – PDF DOWNLOAD
Language : English
Pages : 147
Downloadable : Yes
File Type : PDF

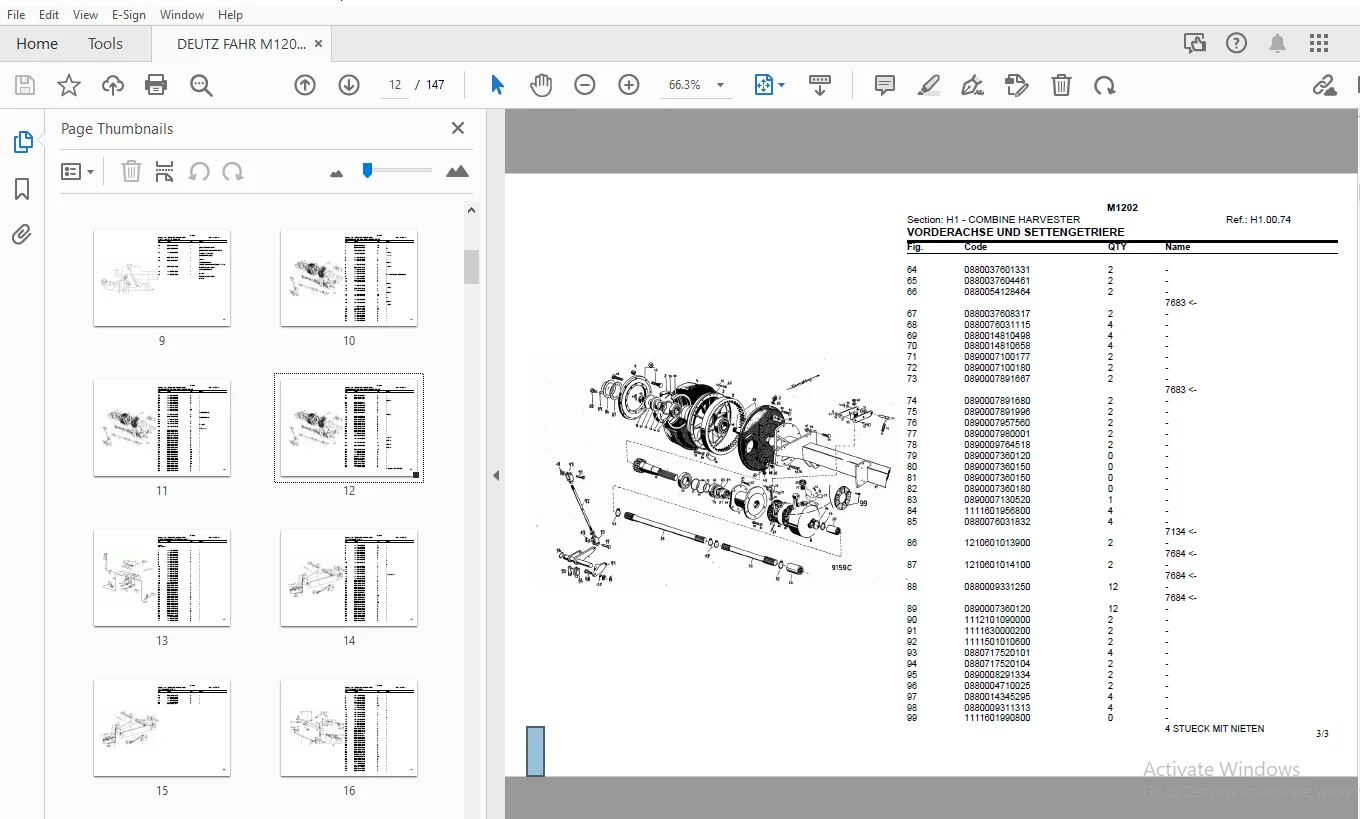

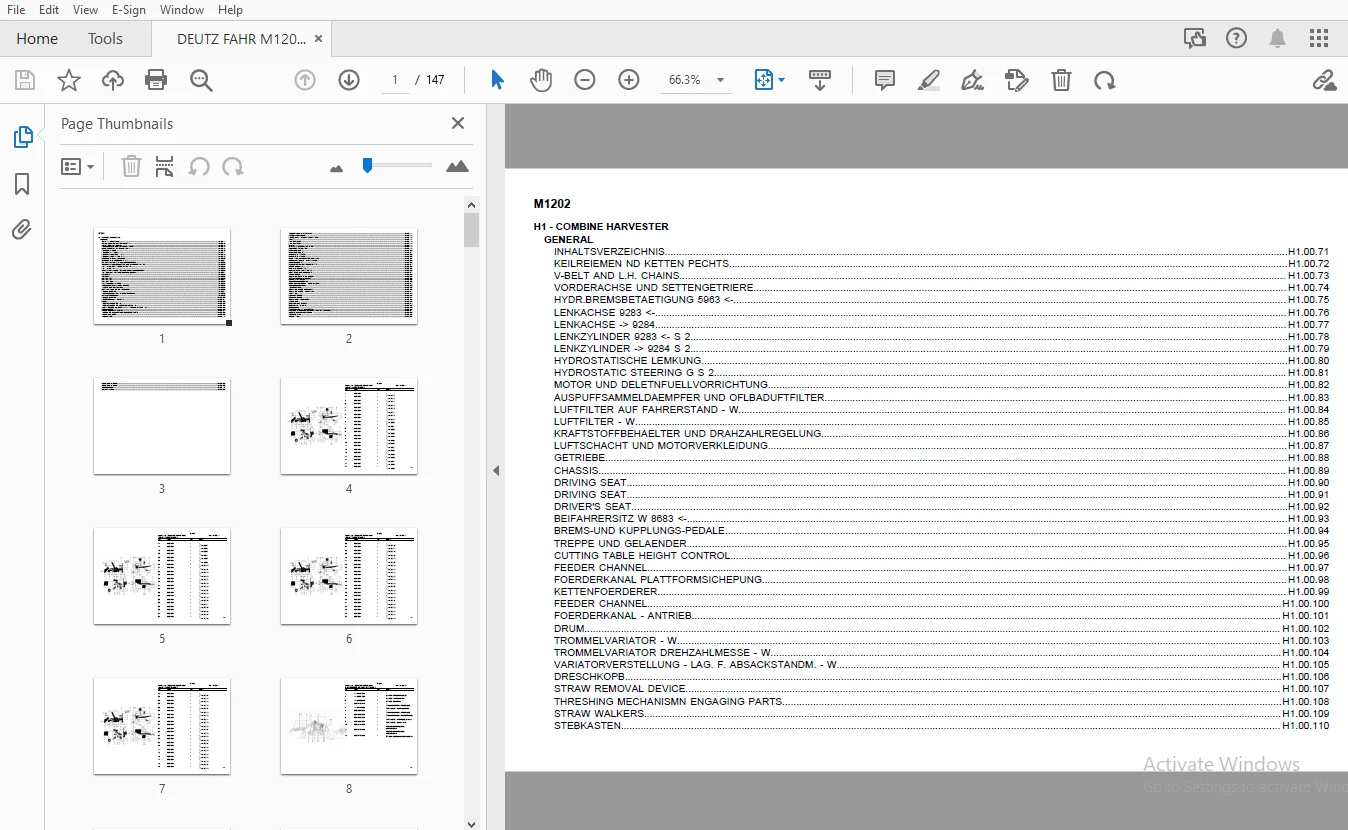

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
DEUTZ FAHR M1202 COMBINE HARVESTER PARTS MANUAL – PDF DOWNLOAD
Index...................................................................... 1 M1202...................................................................... 4 H1 - COMBINE HARVESTER................................................. 4 GENERAL............................................................ 4 INHALTSVERZEICHNIS (H1.00.71).................................. 4 KEILREIEMEN ND KETTEN PECHTS (H1.00.72)........................ 8 V-BELT AND L.H. CHAINS (H1.00.73).............................. 9 VORDERACHSE UND SETTENGETRIERE (H1.00.74)...................... 10 HYDR.BREMSBETAETIGUNG 5963 <- (H1.00.75)...................... 13 LENKACHSE 9283 <- (H1.00.76)................................... 14 LENKACHSE -> 9284 (H1.00.77)................................... 16 LENKZYLINDER 9283 <- S 2 (H1.00.78)............................ 18 LENKZYLINDER -> 9284 S 2 (H1.00.79)............................ 19 HYDROSTATISCHE LEMKUNG (H1.00.80).............................. 20 HYDROSTATIC STEERING G S 2 (H1.00.81).......................... 22 MOTOR UND DELETNFUELLVORRICHTUNG (H1.00.82).................... 23 AUSPUFFSAMMELDAEMPFER UND OFLBADUFTFILTER (H1.00.83)........... 25 LUFTFILTER AUF FAHRERSTAND - W (H1.00.84)...................... 27 LUFTFILTER - W (H1.00.85)...................................... 28 KRAFTSTOFFBEHAELTER UND DRAHZAHLREGELUNG (H1.00.86)............ 29 LUFTSCHACHT UND MOTORVERKLEIDUNG (H1.00.87).................... 31 GETRIEBE (H1.00.88)............................................ 33 CHASSIS (H1.00.89)............................................. 34 DRIVING SEAT (H1.00.90)........................................ 37 DRIVING SEAT (H1.00.91)........................................ 39 DRIVER'S SEAT (H1.00.92)....................................... 41 BEIFAHRERSITZ W 8683 <- (H1.00.93)........................... 42 BREMS-UND KUPPLUNGS-PEDALE (H1.00.94).......................... 43 TREPPE UND GELAENDER (H1.00.95)................................ 45 CUTTING TABLE HEIGHT CONTROL (H1.00.96)........................ 47 FEEDER CHANNEL (H1.00.97)...................................... 48 FOERDERKANAL PLATTFORMSICHEPUNG (H1.00.98)..................... 50 KETTENFOERDERER (H1.00.99)..................................... 52 FEEDER CHANNEL (H1.00.100)..................................... 54 FOERDERKANAL - ANTRIEB (H1.00.101)............................. 56 DRUM (H1.00.102)............................................... 58 TROMMELVARIATOR - W (H1.00.103)................................ 61 TROMMELVARIATOR DREHZAHLMESSE - W (H1.00.104).................. 63 VARIATORVERSTELLUNG - LAG. F. ABSACKSTANDM. - W (H1.00.105).... 64 DRESCHKOPB (H1.00.106)......................................... 66 STRAW REMOVAL DEVICE (H1.00.107)............................... 68 THRESHING MECHANISMN ENGAGING PARTS (H1.00.108)................ 70 STRAW WALKERS (H1.00.109)...................................... 71 STEBKASTEN (H1.00.110)......................................... 73 STEBKASTENAUFHAENGUNG (H1.00.111).............................. 74 PENDELVORGELEGE (H1.00.112).................................... 76 VORGELEGE - SCHUETTLERANTRIEB (H1.00.113)...................... 78 SIEBE (H1.00.114).............................................. 79 FAN VARIATOR (H1.00.115)....................................... 80 FAN VARIATOR (H1.00.116)....................................... 82 WANNE (H1.00.117).............................................. 83 WANNE - KOERNERELEVATOR (H1.00.118)............................ 85 RECOVERY ELEVATOR (H1.00.119).................................. 87 VERKLEODUNG, L (H1.00.120)..................................... 89 VERKLEODUNG, R (H1.00.121)..................................... 90 HYDRAULIC SYSTEM (H1.00.122)................................... 91 HYDRAULIC SYSTEM (H1.00.123)................................... 93 HYDR. AUSLAUFROHR-VERSTELLUNG (H1.00.124)...................... 95 HASPELHYDRAULIK - KUPPLUNGEN (H1.00.125)....................... 97 HURZYLINDER S 2 (H1.00.126).................................... 98 DELBEHAELTER HYDROPUMPE S 2 (H1.00.127).......................100 DRUCKSPEICHER (H1.00.128)......................................101 CONTROL BLOCK S 2 (H1.00.129)..................................102 HUBZYLINDER VARIATOR S 2 (H1.00.130)...........................104 WERKZEUG UND ZUBEHOER (H1.00.131)..............................105 STRAW HOOD (H1.00.132).........................................106 ELEVATOR HEAD WITH AUGER (H1.00.133)...........................107 AUSLAUFROHRHALTERUNG (H1.00.134)...............................109 GRAIN TANK COVER (H1.00.135)...................................110 SCHNECKENLAGERUNG (H1.00.136)..................................111 HYDR.AUSLAUFROHR - VERSTELLUNG (H1.00.137).....................113 SCHNECKENANTRIEB (H1.00.138)...................................114 TRANSMISSION (H1.00.139).......................................116 SCHALTGETRIEBE KUPPLUNG (H1.00.140)............................118 SCHALTGETRIEBE - KUPPLUNG (H1.00.141)..........................119 VARIATOR (H1.00.142)...........................................120 PARKING BRAKE (H1.00.143)......................................122 PARKING BRAKE (H1.00.144)......................................123 SCHALTUNG - KUPPLUNG (H1.00.145)...............................124 BEREIFUNG (H1.00.146)..........................................125 ELEXTRISCHE ANLAGE (H1.00.147).................................127 ELECTRICAL SYSTEM (H1.00.148)..................................130 DASHBOARD (H1.00.149)..........................................132 KABELBAFUME - E-LEITUNGEN (H1.00.150)..........................134 BELEUCHTUNGSAUSRUESTUNG FUER DIE SCHWEIZ (H1.00.151)...........135 ZUSATZ-SCHETNWERFERANL. w (H1.00.152)..........................137 ABSACKSTAND (H1.00.153)........................................138 SCKRUTSCHE (H1.00.154).........................................140 SORTTERZYLINDER (H1.00.155)....................................142 SORTTERZYLINDER (H1.00.156)....................................144 SONNENDACH (H1.00.157).........................................146 COLOUR LABEL (H1.00.158).......................................147
