DEUTZ FAHR RAPS RVM CUTTING TABLE & FEEDING ELEVATOR PARTS MANUAL – PDF
$16.95
DEUTZ FAHR RAPS RVM CUTTING TABLE & FEEDING ELEVATOR PARTS MANUAL – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
DEUTZ FAHR RAPS RVM CUTTING TABLE & FEEDING ELEVATOR PARTS MANUAL – PDF DOWNLOAD
FILE DETAILS:
DEUTZ FAHR RAPS RVM CUTTING TABLE & FEEDING ELEVATOR PARTS MANUAL – PDF DOWNLOAD
Language : English
Pages : 55
Downloadable : Yes
File Type : PDF

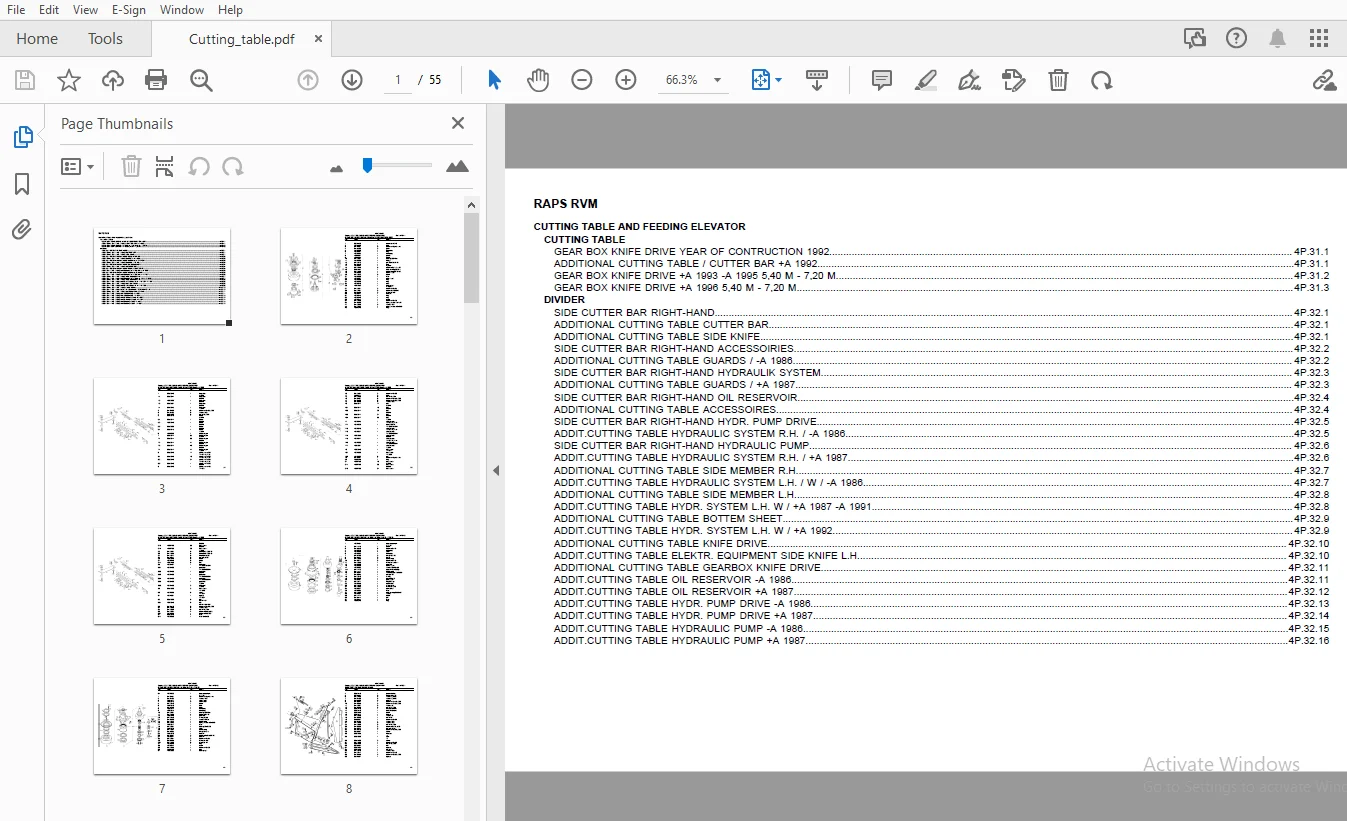

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
DEUTZ FAHR RAPS RVM CUTTING TABLE & FEEDING ELEVATOR PARTS MANUAL – PDF DOWNLOAD
Index.............................................................................. 1 RAPS RVM........................................................................... 2 CUTTING TABLE AND FEEDING ELEVATOR............................................. 2 CUTTING TABLE.............................................................. 2 GEAR BOX KNIFE DRIVE YEAR OF CONTRUCTION 1992 (4P.31.1)................ 2 ADDITIONAL CUTTING TABLE / CUTTER BAR +A 1992 (4P.31.1)................ 3 GEAR BOX KNIFE DRIVE +A 1993 -A 1995 5,40 M - 7,20 M (4P.31.2)......... 6 GEAR BOX KNIFE DRIVE +A 1996 5,40 M - 7,20 M (4P.31.3)................. 7 DIVIDER.................................................................... 8 SIDE CUTTER BAR RIGHT-HAND (4P.32.1)................................... 8 ADDITIONAL CUTTING TABLE CUTTER BAR (4P.32.1).......................... 9 ADDITIONAL CUTTING TABLE SIDE KNIFE (4P.32.1)..........................13 SIDE CUTTER BAR RIGHT-HAND ACCESSOIRIES (4P.32.2)......................15 ADDITIONAL CUTTING TABLE GUARDS / -A 1986 (4P.32.2)....................16 SIDE CUTTER BAR RIGHT-HAND HYDRAULIK SYSTEM (4P.32.3)..................17 ADDITIONAL CUTTING TABLE GUARDS / +A 1987 (4P.32.3)....................19 SIDE CUTTER BAR RIGHT-HAND OIL RESERVOIR (4P.32.4).....................21 ADDITIONAL CUTTING TABLE ACCESSOIRES (4P.32.4).........................22 SIDE CUTTER BAR RIGHT-HAND HYDR. PUMP DRIVE (4P.32.5)..................24 ADDIT.CUTTING TABLE HYDRAULIC SYSTEM R.H. / -A 1986 (4P.32.5)..........25 SIDE CUTTER BAR RIGHT-HAND HYDRAULIC PUMP (4P.32.6)....................27 ADDIT.CUTTING TABLE HYDRAULIC SYSTEM R.H. / +A 1987 (4P.32.6)..........28 ADDITIONAL CUTTING TABLE SIDE MEMBER R.H. (4P.32.7)....................30 ADDIT.CUTTING TABLE HYDRAULIC SYSTEM L.H. / W / -A 1986 (4P.32.7)......32 ADDITIONAL CUTTING TABLE SIDE MEMBER L.H. (4P.32.8)....................34 ADDIT.CUTTING TABLE HYDR. SYSTEM L.H. W / +A 1987 -A 1991 (4P.32.8)....37 ADDITIONAL CUTTING TABLE BOTTEM SHEET (4P.32.9)........................39 ADDIT.CUTTING TABLE HYDR. SYSTEM L.H. W / +A 1992 (4P.32.9)............41 ADDITIONAL CUTTING TABLE KNIFE DRIVE (4P.32.10)........................42 ADDIT.CUTTING TABLE ELEKTR. EQUIPMENT SIDE KNIFE L.H. (4P.32.10).......45 ADDITIONAL CUTTING TABLE GEARBOX KNIFE DRIVE (4P.32.11)................46 ADDIT.CUTTING TABLE OIL RESERVOIR -A 1986 (4P.32.11)...................48 ADDIT.CUTTING TABLE OIL RESERVOIR +A 1987 (4P.32.12)...................49 ADDIT.CUTTING TABLE HYDR. PUMP DRIVE -A 1986 (4P.32.13)................51 ADDIT.CUTTING TABLE HYDR. PUMP DRIVE +A 1987 (4P.32.14)................52 ADDIT.CUTTING TABLE HYDRAULIC PUMP -A 1986 (4P.32.15)..................54 ADDIT.CUTTING TABLE HYDRAULIC PUMP +A 1987 (4P.32.16)..................55
