DH36 Auto Hematology Analyzer Service Manual – PDF Download

Description

DH36 Auto Hematology Analyzer Service Manual – PDF Download

Description

This DH36 Auto Hematology Analyzer Service Manual (PDF) is the official technical maintenance and repair guide issued by Shenzhen Dymind Biotechnology Co., Ltd.
It is specifically written for trained service engineers, biomedical technicians, and laboratory maintenance professionals responsible for keeping the DH36 analyzer operating accurately and safely.

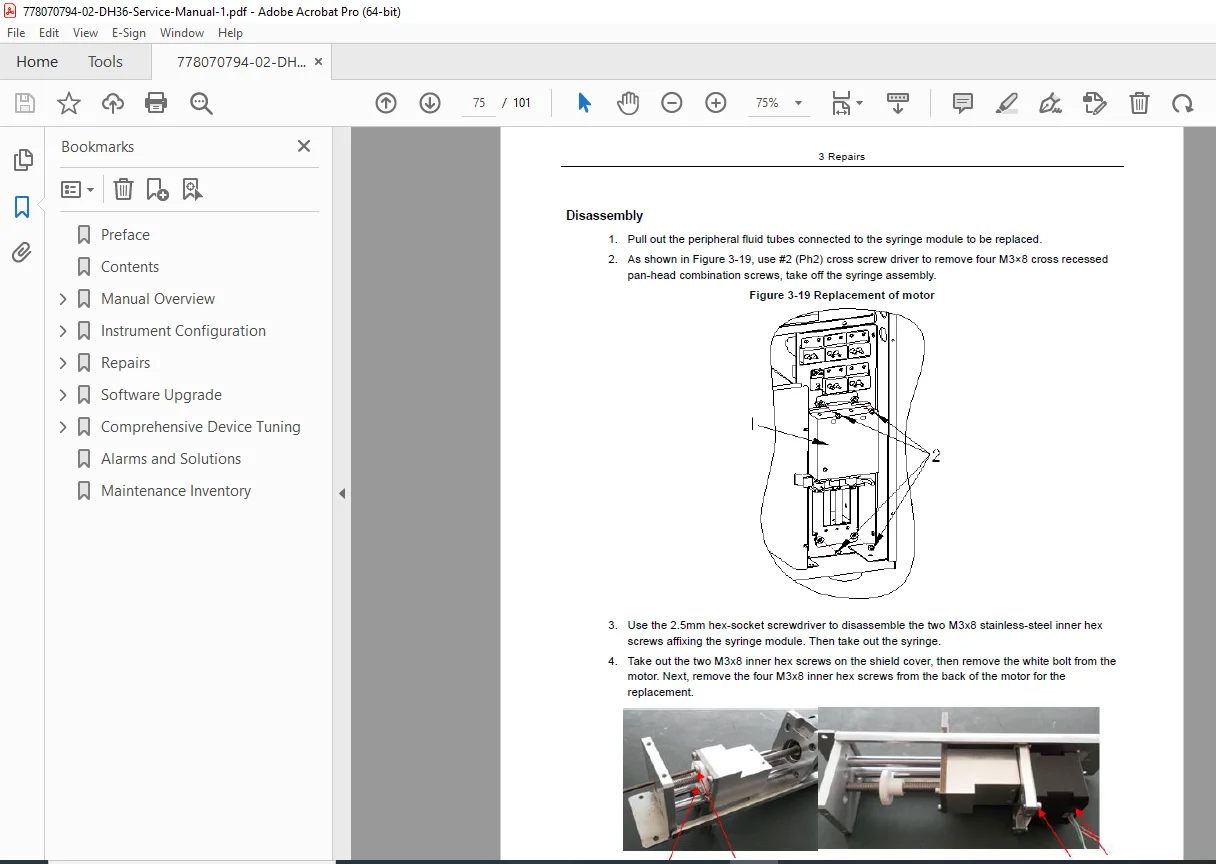

The manual provides deep technical insight into the analyzer’s mechanical structure, hydraulic systems, electronic control boards, measurement channels, calibration procedures, and fault diagnostics. Every major subsystem is explained with schematics, flowcharts, exploded views, and step-by-step service instructions, making this an essential reference for both routine maintenance and complex repairs.

What This Service Manual Covers

1. Manual Overview & Safety

• Intended audience & technical skill requirements

• Symbols, legends, and warnings

• Electrical, mechanical, and biohazard safety instructions

2. Instrument Configuration

• Mechanical components layout

• Front, side, and rear panel identification

• Internal assemblies and modules

3. Hydraulics System (Very Detailed)

• Hydraulic system schematic diagrams

• WBC/HGB measurement channel

• RBC/PLT measurement module

• Sampling & blood-dispensing module

• Power supply & waste discharge system

• Status monitoring sensors

• Valve, pump, syringe, bath, and tubing specifications

4. Measurement Principles

• Impedance method

• Colorimetric HGB measurement

• Whole-blood mode operation

• Predilute mode operation

• Complete dilution and measurement flowcharts

5. Repairs & Component Replacement

• Display screen replacement

• Sampling assembly repairs

• Sample probe replacement

• Valve, pump, and pressure chamber replacement

• Syringe motor replacement

• WBC & RBC bath replacement

• Control panel and sensor replacement

6. Software & Calibration

• Software upgrade procedure

• Touchscreen calibration

• Gain calibration

• HGB voltage gain settings

• Whole-blood and predilute calibration

7. Maintenance & Cleaning

• Swab cleaning procedures

• WBC and RBC bath cleaning

• Aperture backflushing

• Preventive maintenance steps

8. Troubleshooting & Alarms

• Valve clogging diagnosis

• Pump clogging resolution

• Aperture blockage solutions

• Overflow troubleshooting

• Leak detection and repair

• Alarm codes and corrective actions

9. Maintenance Inventory

• Hydraulic components list

• Tubing types and specifications

• Connectors and fittings

Why This Manual Is Essential

• Eliminates guesswork during repairs

• Reduces analyzer downtime

• Ensures accurate CBC results

• Protects sensitive hydraulic and electronic components

• Required reference for authorized service work

File Details

⚡ Fix, calibrate, and maintain your DH36 analyzer with confidence.
Download this official service manual instantly and get precise, step-by-step guidance trusted by biomedical professionals worldwide.
