Dinli DL-901 450cc ATV Quad Service Repair Manual PDF Download
Original price was: $95.00.$25.95Current price is: $25.95.
Official Dinli DL-901 450cc ATV service and repair manual covering all major systems of this 4-stroke DOHC liquid-cooled quad. This comprehensive Dinli DL-901 workshop manual includes engine removal & reassembly, brakes, suspension, electrical system, wheels/tires, frame, carburetor, and full troubleshooting guide — complete with periodic maintenance chart, wiring diagram, and detailed specifications for DIY mechanics and professional technicians.
Description
Dinli DL-901 450cc ATV Quad Service Repair Manual PDF DOWNLOAD
Description

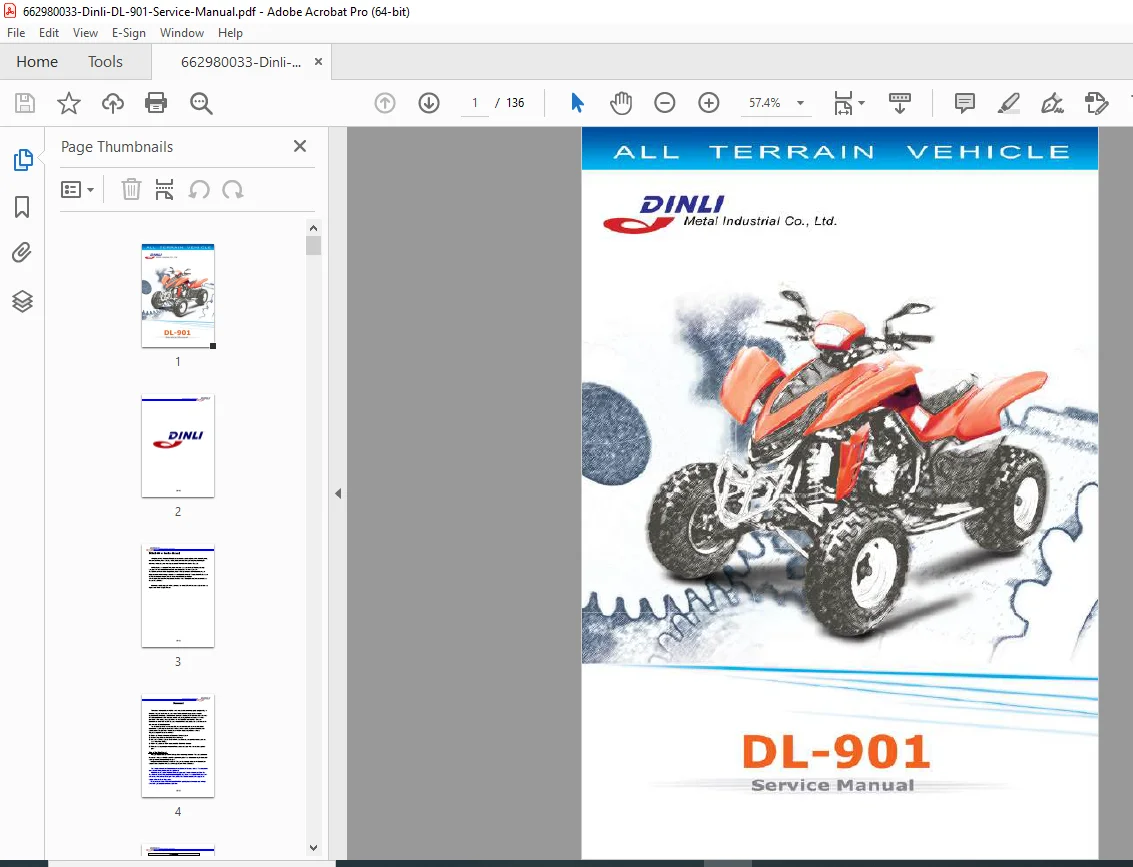

Dinli DL-901 450cc ATV — Official Service & Repair Manual
This is the official Dinli Metal Industrial Co., Ltd. service manual for the Dinli DL-901 450cc ATV, a high-performance 4-stroke DOHC liquid-cooled sport quad. Covering all 8 major system chapters with detailed step-by-step procedures, this Dinli DL-901 repair guide is the definitive field reference for independent ATV mechanics, Dinli dealers, and capable owner-technicians performing routine maintenance, component replacement, and full engine rebuilds on the DL-901.
📋 File Details
| Detail | Info |
|---|---|
| Manual Name | Dinli 450cc Service Manual |
| Model Covered | Dinli DL-901 |
| Engine | 4-stroke, DOHC, 448cc, Liquid-Cooled |
| Manufacturer | Dinli Metal Industrial Co., Ltd. |
| Year | 2006 |
| PDF Quality | Clean searchable digital PDF |
| Total Pages | 136 |
📐 Dinli DL-901 Key Specifications
Engine & Drivetrain
| Specification | Detail |
|---|---|
| Engine Type | 4-stroke, DOHC |
| Displacement | 448cc |
| Bore × Stroke | 94mm × 64.6mm |
| Compression Ratio | 11.6:1 |
| Cooling System | Liquid-cooled |
| Carburetor | Mikuni BSR42 |
| Ignition | DC-CDI |
| Starting System | Electric |
| Transmission | 5-speed with reverse |
| Final Drive | 2WD / Chain (520 O-ring type) |
| Clutch | Manual release, multi-plate wet (8 plates) |
| Engine Idle Speed | 1600 rpm |
| Spark Plug | NGK DCPR8E |
| Spark Plug Gap | 0.9mm |
| Lubrication | Dry sump |
| Engine Oil | 4-cycle 10W-40, Grade SF or higher |
| Alternator Output | DC 14V – 13.7A @ 3000 rpm |
| Thermostat Opening | 71°C |
Chassis & Dimensions
| Specification | Detail |
|---|---|
| Frame | Steel |
| Overall Length | 183 cm |
| Overall Width | 109 cm |
| Overall Height | 115 cm |
| Wheelbase | 1250 mm |
| Seat Height | 85 cm |
| Ground Clearance | 200 mm |
| Dry Weight | ~210 kg |
| Loading Limit | 200 kg (rider + cargo) |
| Fuel Capacity | 12 L (RON 98+ Unleaded) |
| Front Tire | 21 × 7–10 (Kenda K300F-002, Tubeless) |
| Rear Tire | 20 × 11–9 (Kenda K300-004, Tubeless) |
| Tire Pressure (Cold) | 35 kPa / 35 kPa |
| Front Suspension Travel | 11 inches |
| Rear Suspension Travel | 10 inches |
| Water Crossing Depth (Max) | 575 mm |
| Turning Radius | 2.0 m |
| Brake Fluid | DOT 4 |
| Battery | 12V, GS GTX14-BS |
| Fuse | 20A |
| Drive Chain Slack | 30–35 mm |
| Min. Brake Pad Thickness | 2.0 mm |
| Min. Brake Disc Thickness | 3.5 mm |
Table of Contents — Chapter by Chapter
Chapter 1 — General Information
- Before Servicing — 20-point procedural guide (dirt, battery ground, torque sequences, bearing installation, oil seals, cir-clips, wire identification, inspection standards)
- Model Identification — engine serial number and VIN location guide
- General Specifications — full engine, chassis, and performance data table
- Periodic Maintenance Chart — scheduled service intervals at break-in (1 hr), 10 hrs, 1 month, 3 months, 6 months, 200 km, 500 km, 1000 km covering: warning labels, frame, fuel system, battery, throttle, air filter, airbox drain, spark plug, idle speed, exhaust, switches, lighting, engine oil, oil filter, drive chain, brake fluid, brake system, clutch, coolant, suspension, swingarm, steering, seat, wheels/tires, A-arm bushings, tie rod ends, nuts/bolts
Chapter 2 — Wheels / Tires
- Specifications — toe-in standards, tire sizes, pressure specs
- Wheel Alignment — steering centering inspection and adjustment; toe-in inspection and adjustment (25–40mm standard)
- Wheels (Rims) — removal, installation, inspection, replacement
- Tires — removal, installation, inspection
- Front Hub — removal and installation
- Rear Hub — installation, disassembly and assembly
Chapter 3 — Brake System
- Brake Fluid — recommendation (DOT 4), level inspection, fluid change, air bleeding
- Master Cylinder — removal and installation (front and rear)
- Calipers — removal and installation (front and rear)
- Brake Pads — removal, installation, wear inspection (min. 2.0mm)
- Brake Discs — cleaning, removal, installation, wear inspection (min. 3.5mm), runout check
- Brake Hoses — inspection and replacement
- Rear Brake — pedal position inspection and adjustment, pedal free play, pedal/caliper/master cylinder/disc procedures
Chapter 4 — Suspension & Steering
- Shock Absorbers — front and rear removal, installation, inspection, preload adjustment, scrapping/disposal
- Suspension Arms (A-arms) — removal, installation, disassembly and assembly (bushing/ball joint service)
- Swingarm — removal, installation, bearing removal/installation/inspection/lubrication
- Steering — stem removal/installation, steering knuckle removal/installation, tie-rod removal/installation, tie-rod end removal/installation
- Steering Maintenance — inspection, stem warp check, lubrication, stem clamp inspection, tie-rod end and knuckle joint inspection
- Handlebar — removal and installation
Chapter 5 — Frame & Body
- Seat — removal and installation
- Front & Rear Fenders — front cover, front fender, rear fender removal and installation
- Radiator — removal procedure
- Foot Steps — removal procedure
Chapter 6 — Engine
- Engine Removal and Installation
- Engine Inspection — detailed internal component inspection procedures
- Engine Reassembly — step-by-step reassembly sequence
Chapter 7 — Electrical System
- Specifications — electrical system specs
- Parts Location and Wiring Precautions
- Electrical Wiring — wiring inspection procedures
- Battery — charging, charging procedures, battery test charging
- Regulator/Rectifier — output voltage inspection
- Alternator — inspection procedure

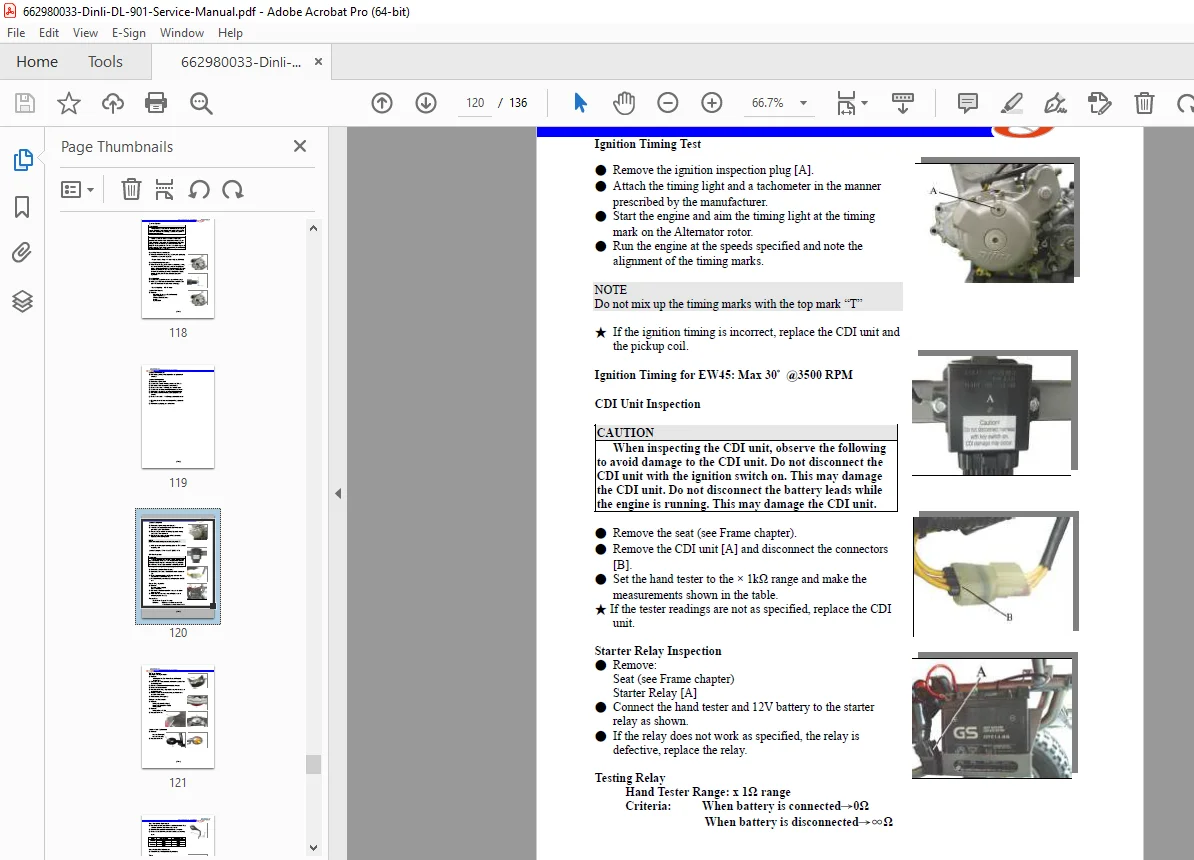

- Ignition System — spark plug removal/installation/cleaning/inspection/gap; ignition coil removal/installation/inspection; ignition timing test; CDI unit inspection
- Lighting System — headlight, taillight, indicator, neutral light bulb replacement; rear-view mirror replacement
- Fuses — main fuse removal and inspection
- Wiring Diagram — full colour wiring schematic
Chapter 8 — Appendix
- Considerations for Various Riding Conditions — carburetor jetting, fuel system, spark plug adjustments for altitude/temperature/terrain
- Clutch Adjustment — cable and lever free play (2–4mm)
- Troubleshooting Guide — fault finding for common DL-901 issues
🔧 Carburetor & Altitude/Condition Notes
The Appendix includes specific guidance for Mikuni BSR42 carburetor adjustments based on riding conditions, with tuning recommendations for:
- High-altitude operation
- Cold weather starting
- Dusty/sandy environments
- Hard enduro/trail use
💡 Why You Need This Manual
Dinli DL-901 service manuals are notoriously difficult to source — don’t let that stop you from keeping your quad running at peak performance. With factory torque values, detailed exploded procedures, a full wiring diagram, and a complete periodic maintenance schedule all in one place, this is everything you need to work confidently on your DL-901. Purchase now, download instantly, and get wrenching today.
