Ditch Witch 3610 Operator ‘s Manual 054-478 PDF
$26.95
The Ditch Witch 3610 Operator’s Manual (054-478) is a comprehensive guide, providing essential instructions for safe and efficient operation of the Ditch Witch 3610 trencher, ensuring user understanding and equipment longevity.
Description
Ditch Witch 3610 trencher Operator ‘s Manual 054-478 – PDF DOWNLOAD
FILE DETAILS:
Ditch Witch 3610 trencher Operator ‘s Manual 054-478 – PDF DOWNLOAD
Language : English
Pages : 124
Downloadable : Yes
File Type : PDF
IMAGES PREVIEW OF THE MANUAL:

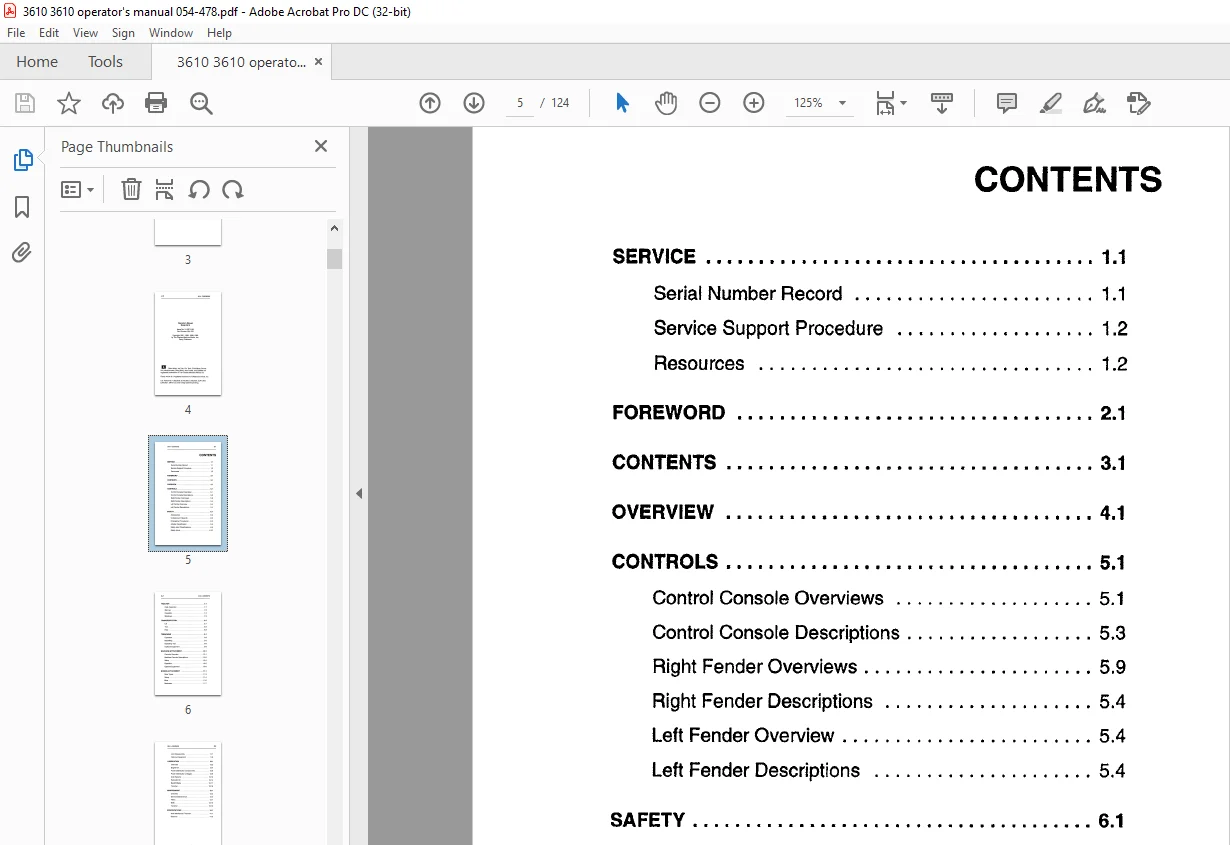

TABLE OF CONTENTS:
Ditch Witch 3610 trencher Operator ‘s Manual 054-478 – PDF DOWNLOAD
CONTENTS
SERVICE 1.1
Serial Number Record 1.1
Service Support Procedure 1.2
Resources 1.2
FOREWORD 2.1
CONTENTS 3.1
OVERVIEW 4.1
CONTROLS 5.1
Control Console Overviews 5.1
Control Console Descriptions 5.3
Right Fender Overviews 5.9
Right Fender Descriptions 5.4
Left Fender Overview 5.4
Left Fender Descriptions 5.4
SAFETY 6.1
Accessories , 6.2
Underground Hazards 6.2
Emergency Procedures 6.3
Jobsite Classification 6.6
Safety Alert Classifications 6.9
Safety Alerts 6.1 O
3.2 3610 – CONTENTS
TRACTOR 7 1
Daily Inspection 7.1
Start-up 7.2
Operation 7.4
Shutdown 7.5
TRANSPORTATION 8.1
Lift 8.1
Tow 8.2
Haul 8.3
TRENCHING 9.1
Operation 9.2
Backfilling 9.5
Operating Tips 9.6
Optional Equipment 9.8
BACKHOE ATTACHMENT 10.1
Controls Overview 10.1
Backhoe Controls Descriptions 10.2
Setup 10.4
Operation 10.5
Optional Equipment 10.6
BORING ATTACHMENT 11.1
Bore Types 11.3
Setup 11.4
Bore 11.6
Backream 11. 7
3610 • CONTENTS
Joint Disassembly 11.7
Optional Equipment 11.8
LUBRICATION 12.1
Overview 12.2
Engine Oil 12.4
Power Distribution Components 12.6
Power Distribution Linkages 12.9
Axle Systems 12.12
Hydraulic Oil 12.14
Backfill Blade 12.17
Trencher 12.18
MAINTENANCE 13.1
Overview 13.2
General Maintenance 13.3
Filters 13. 7
Belts 13.10
Trencher 13.12
SPECIFICATIONS 14.1
3610 Mechanical Trencher 14.1
Backhoe 14.6
