Ditch Witch 5010 Parts Manual 050-650 PDF
$19.95
The Ditch Witch 5010 Trencher Parts Manual (050-650) is a crucial reference, detailing components for maintenance and repairs of the Ditch Witch 5010 Trencher, ensuring optimal functionality and longevity.
Description
Ditch Witch 5010 Trencher Parts Manual 050-650 – PDF DOWNLOAD
FILE DETAILS:
Ditch Witch 5010 Trencher Parts Manual 050-650 – PDF DOWNLOAD
Language : English
Pages : 80
Downloadable : Yes
File Type : PDF
IMAGES PREVIEW OF THE MANUAL:

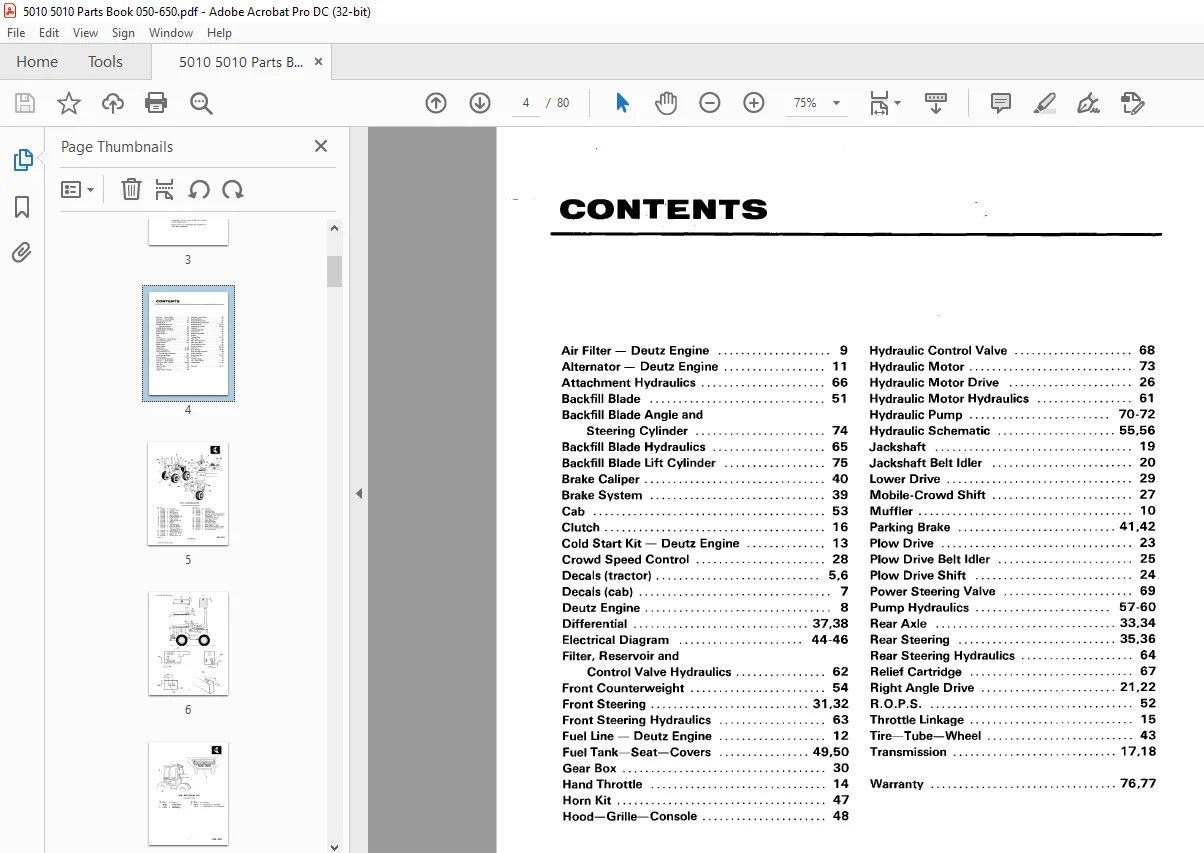

TABLE OF CONTENTS:
Ditch Witch 5010 Trencher Parts Manual 050-650 – PDF DOWNLOAD
Air Filter – Deutz Engine 9
Alternator – Deutz Engine 11
Attachment Hydraulics 66
Backfill Blade 51
Backfill Blade Angle and
Steering Cylinder 74
Backfill Blade Hydraulics 65
Backfill Blade Lift Cylinder 75
Brake Caliper 40
Brake System 39
Cab 53
Clutch 16
Cold Start Kit – Deutz Engine 13
Crowd Speed Control 28
Decals (tractor) 5,6
Decals (cab) 7
Deutz Engine 8
Differential 37 ,38
Electrical Diagram 44-46
Filter, Reservoir and
Control Valve Hydraulics 62
Front Counterweight 54
Front Steering 31,32
Front Steering Hydraulics 63
Fuel Line – Deutz Engine 12
Fuel Tank-Seat-Covers 49,50
Gear Box 30
Hand Throttle 14
Horn Kit 47
Hood-Grille-Console 48
Hydraulic Control Valve 68
Hydraulic Motor 73
Hydraulic Motor Drive 26
Hydraulic Motor Hydraulics 61
Hydraulic Pump 70-72
Hydraulic Schematic 55,56
Jackshaft 19
Jackshaft Belt Idler 20
Lower Drive 29
Mobile-Crowd Shift 27
Muffler 10
Parking Brake 41 ,42
Plow Drive 23
Plow Drive Belt Idler 25
Plow Drive Shift 24
Power Steering Valve 69
Pump Hydraulics 57-60
Rear Axle 33,34
Rear Steering 35,36
Rear Steering Hydraulics 64
Relief Cartridge 67
Right Angle Drive 21,22
R 0 P S 52
Throttle Linkage 15
Tire-Tube-Wheel 43
Transmission 17, 18
Warranty 76,77
