Ditch Witch 860JT-RS860 Parts manual – PDF DOWNLOAD

Description

Ditch Witch 860JT-RS860 Parts manual – PDF DOWNLOAD

FILE DETAILS:

Ditch Witch 860JT-RS860 Parts manual – PDF DOWNLOAD

Language : English
Pages :328
Downloadable : Yes
File Type : PDF

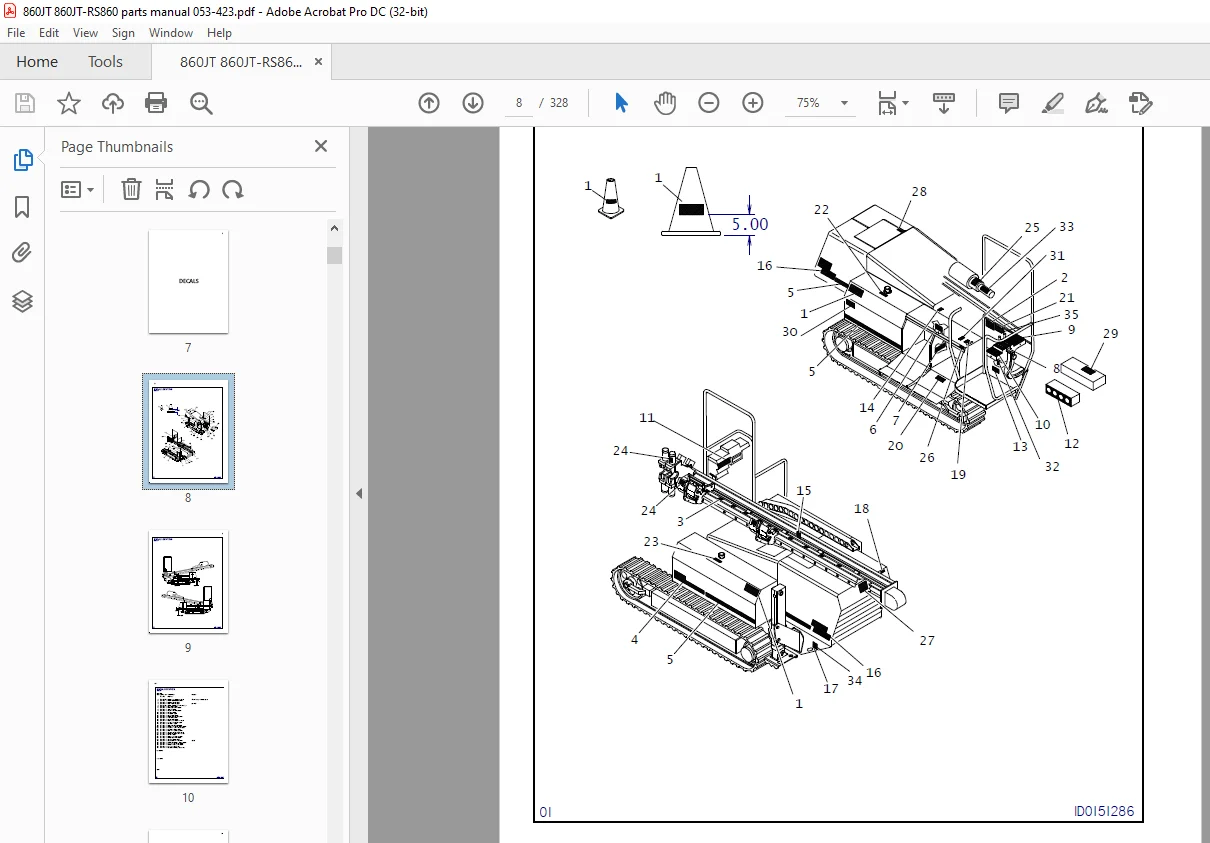

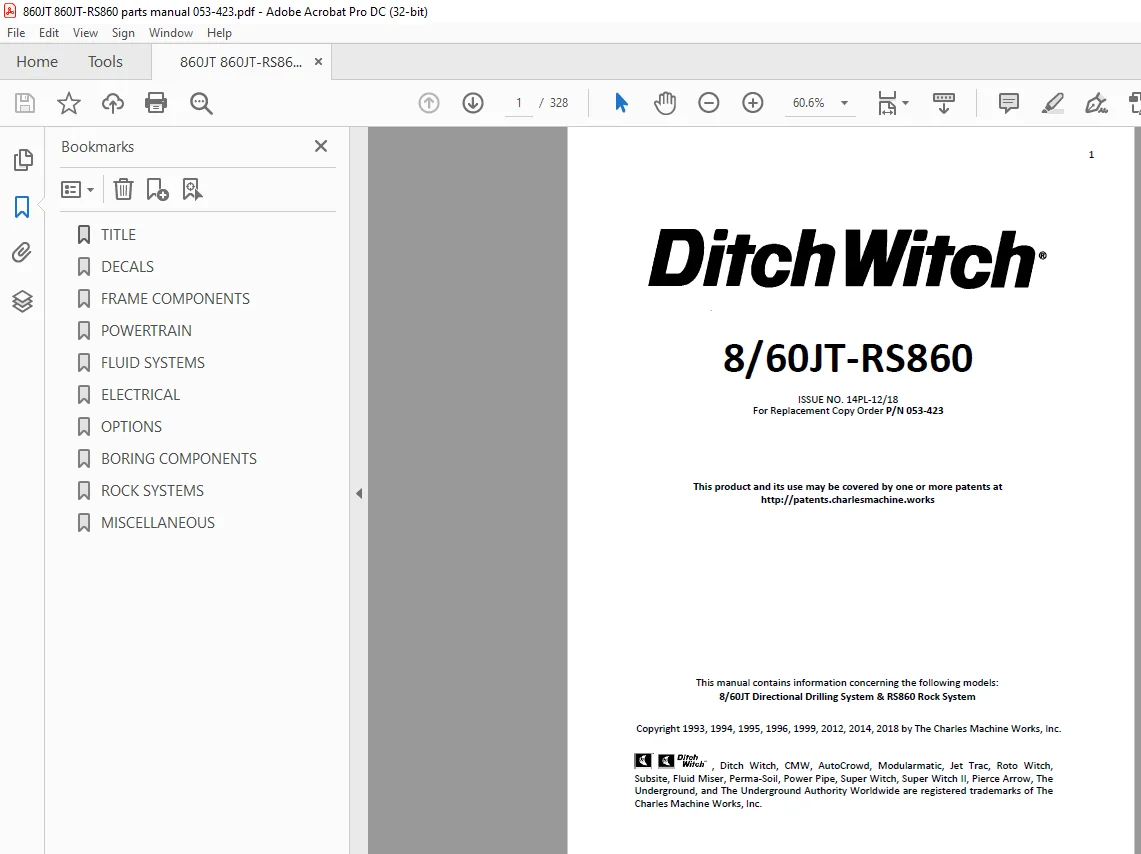

IMAGES PREVIEW OF THE MANUAL:

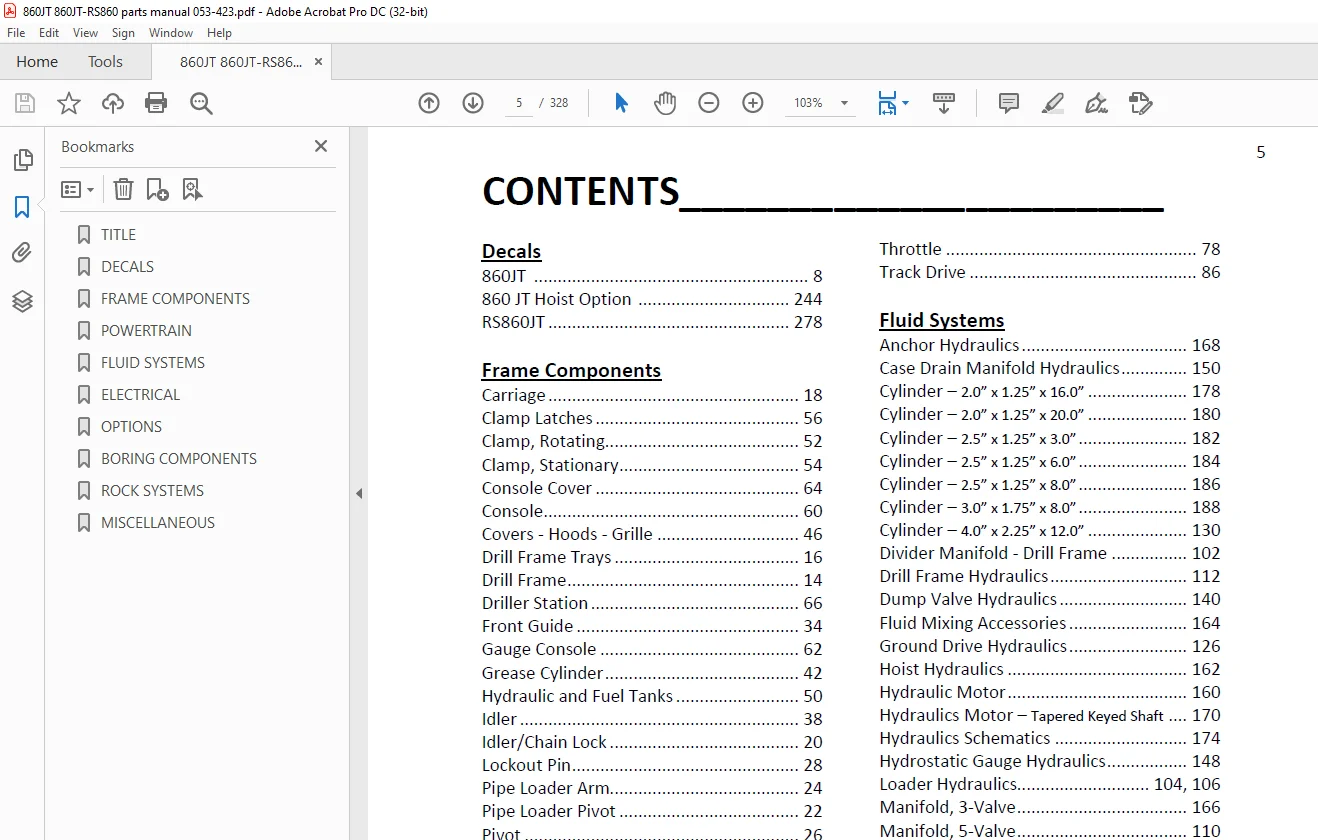

TABLE OF CONTENTS:

Ditch Witch 860JT-RS860 Parts manual – PDF DOWNLOAD

Decals
860JT 8
860 JT Hoist Option 244
RS860JT 278
Frame Components
Carriage 18
Clamp Latches 56
Clamp, Rotating 52
Clamp, Stationary 54
Console Cover 64
Console 60
Covers – Hoods – Grille 46
Drill Frame Trays 16
Drill Frame 14
Driller Station 66
Front Guide 34
Gauge Console 62
Grease Cylinder 42
Hydraulic and Fuel Tanks 50
Idler 38
Idler/Chain Lock 20
Lockout Pin 28
Pipe Loader Arm 24
Pipe Loader Pivot 22
Pivot 26
Roller 40
Set-Up Operator Station 58
Sound Insulation 48
Spring 44
Stabilizer, Front 32
Stabilizer, Rear 30
Track Group 36
Powertrain
Alternator 76
Cooler 74
Engine 70
Engine Mount 72
Fuel Line 80
Planetary Gearbox – Rotation 84
Planetary Gearbox – Thrust 82
Throttle 78
Track Drive 86
Fluid Systems
Anchor Hydraulics 168
Case Drain Manifold Hydraulics 150
Cylinder – 20” x 125” x 160” 178
Cylinder – 20” x 125” x 200” 180
Cylinder – 25” x 125” x 30” 182
Cylinder – 25” x 125” x 60” 184
Cylinder – 25” x 125” x 80” 186
Cylinder – 30” x 175” x 80” 188
Cylinder – 40” x 225” x 120” 130
Divider Manifold – Drill Frame 102
Drill Frame Hydraulics 112
Dump Valve Hydraulics 140
Fluid Mixing Accessories 164
Ground Drive Hydraulics 126
Hoist Hydraulics 162
Hydraulic Motor 160
Hydraulics Motor – Tapered Keyed Shaft 170
Hydraulics Schematics 174
Hydrostatic Gauge Hydraulics 148
Loader Hydraulics 104, 106
Manifold, 3-Valve 166
Manifold, 5-Valve 110
Manifold, Charge 122
Manifold, Dump 142, 144
Manifold, Gripper 108
Manifold, Lift Cylinder 132
Manifold, Shift 116
Mud Plumbing 146
Oil Filter Hydraulics 118
Pilot Valve Circuit 120
Pipe Clamp Cylinder 96
Pump Mounting/ Neutral Valve 90
Rotating Clamp Hydraulics 92, 94
Rotation Motor Flushing 156, 158
Rotation Motor Hydraulics 152, 154
Shift Cylinder Hyd – w/o Hoist Option 114
Spindle Brake Hydraulics 172
Stabilizer Holding Valve 138
Stabilizer Hydraulics, Front 136
5
CONTENTS______________________
ID0040917
Stabilizer Hydraulics, Rear 134
Stationary Clamp Hydraulics 98, 100
Thrust Motor Hydraulics 124
Tilt Cylinder Hydraulics 128
Electrical
Alarm and Strobe Light 202
Battery Box – Electronic Components Side 204
Battery Box 208
Cable, Console 214
Diagram – Valve Hydraulics 224
Electrical Schematic 236
Electrical Strike Control Module 200
Ground Hardware (ESS) – Heavy 196
Ground Hardware (ESS) – Standard 198
Ground Hardware (New) – Heavy 192
Ground Hardware (New) – Standard 194
Harness, Console 212
Harness, Console/Bore Setup 226
Harness, Control Box 232
Harness, Drill Frame/Loader Grip 216
Harness, Engine 218
Harness, Frame 222
Harness, Hoist 220
Harness, Relay Panel 228
Hoist Control Handle Assembly 210
Relay Panel Hardware 206
Options
Anchor Parts 254
Anchor System, Heavy Duty 252
Cold Start Kit 256
Drill Pipe Center Support 260
Dual Battery Kit 258
Hoist Trolley 248
Hoist 246
Mounting Kit 264
Pipe Grabber 250
Working Light Kit 262
Boring Components
Rod Box 268
Saver Sub 270, 272
Water Swivel 274
Rock System
Dump Valve Hydraulics 306
Electrical Schematic 314
Hoist Hydraulics 310
Hose Trays 296
Hydraulic Cylinder – 25” x 125” x 80” 316
Loader Hydraulics 308
Oil Filter Hydraulics 300
Pilot Valve Circuit 304
Pipe Box 294
Pipe Loader Arm 290
Pipe Loader Pivot 288
Pipe Retainer 292
Planetary Drive 286
Rock System Control Box 298
Second Spindle Hydraulic 302
Shaft Base 282
Spindle Guard 284
Spindle Housing 312
Miscellaneous
Bolt/Nut Torque Chart 320
Filters 326
Optional Kits 326
Related Publications 326
Replacement O-Ring Chart 325
Warranty Registration 328

SM 11/24
