Ditch Witch H400 Series Carrier Attachments Parts Manual 053-406 PDF
$28.95
The Ditch Witch H400 Series Parts Manual (053-406) is a comprehensive guide detailing H411, H412 Trencher, H431 Plow, H450 Combo, and RLCR45 Reel Carrier Attachments. Essential for operators and technicians, it outlines components and specifications for maintenance and optimal performance.
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Ditch Witch H400 Series H411, H412 Trencher, H431 Plow, H450 Combo & RLCR45 Reel Carrier Attachments Parts Manual 053-406 – PDF DOWNLOAD
FILE DETAILS:
Ditch Witch H400 Series H411, H412 Trencher, H431 Plow, H450 Combo & RLCR45 Reel Carrier Attachments Parts Manual 053-406 – PDF DOWNLOAD
Language : English
Pages : 223
Downloadable : Yes
File Type : PDF
H411, H412 Trencher, H431 Plow, H450 Combo & RLCR45 Reel Carrier Attachments
Attachments for – 4500

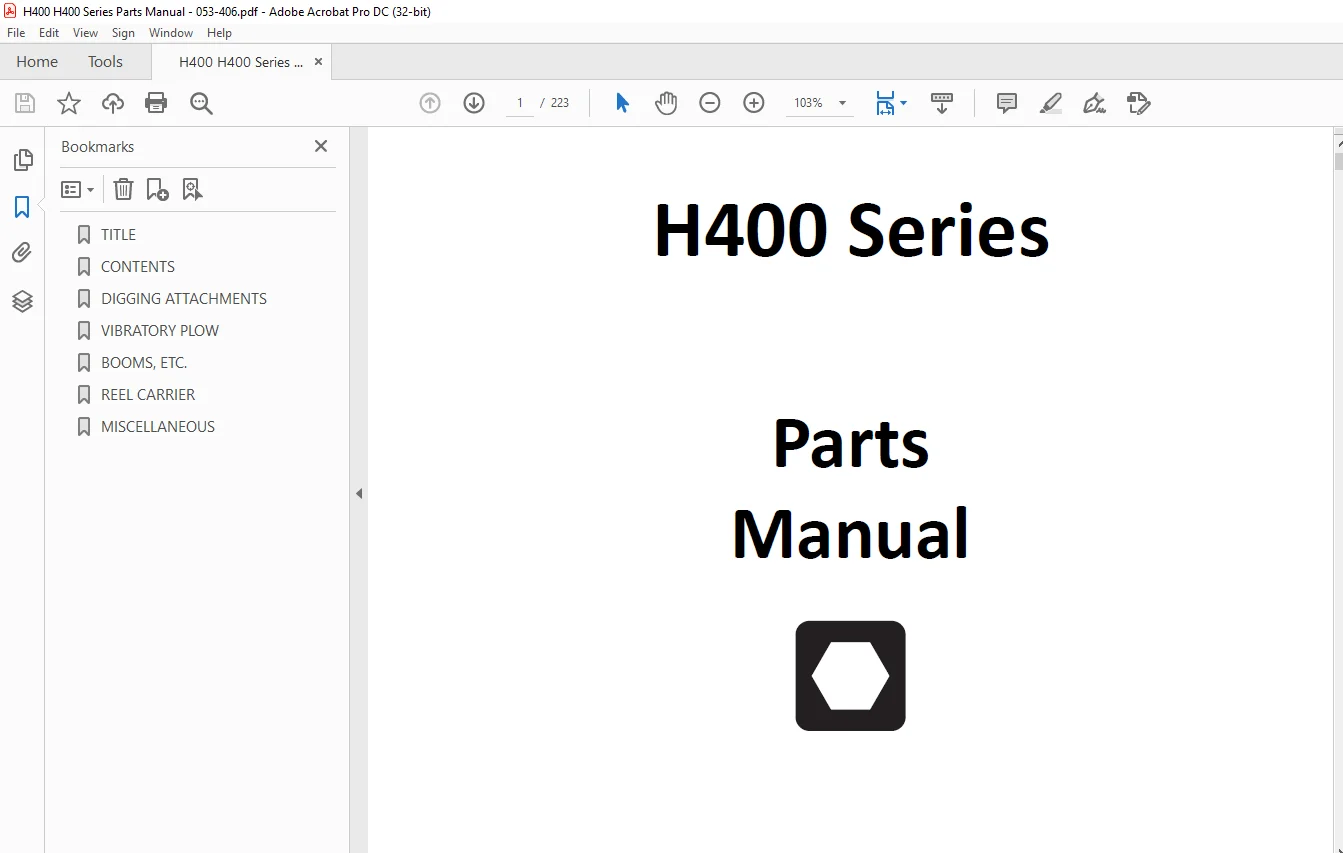

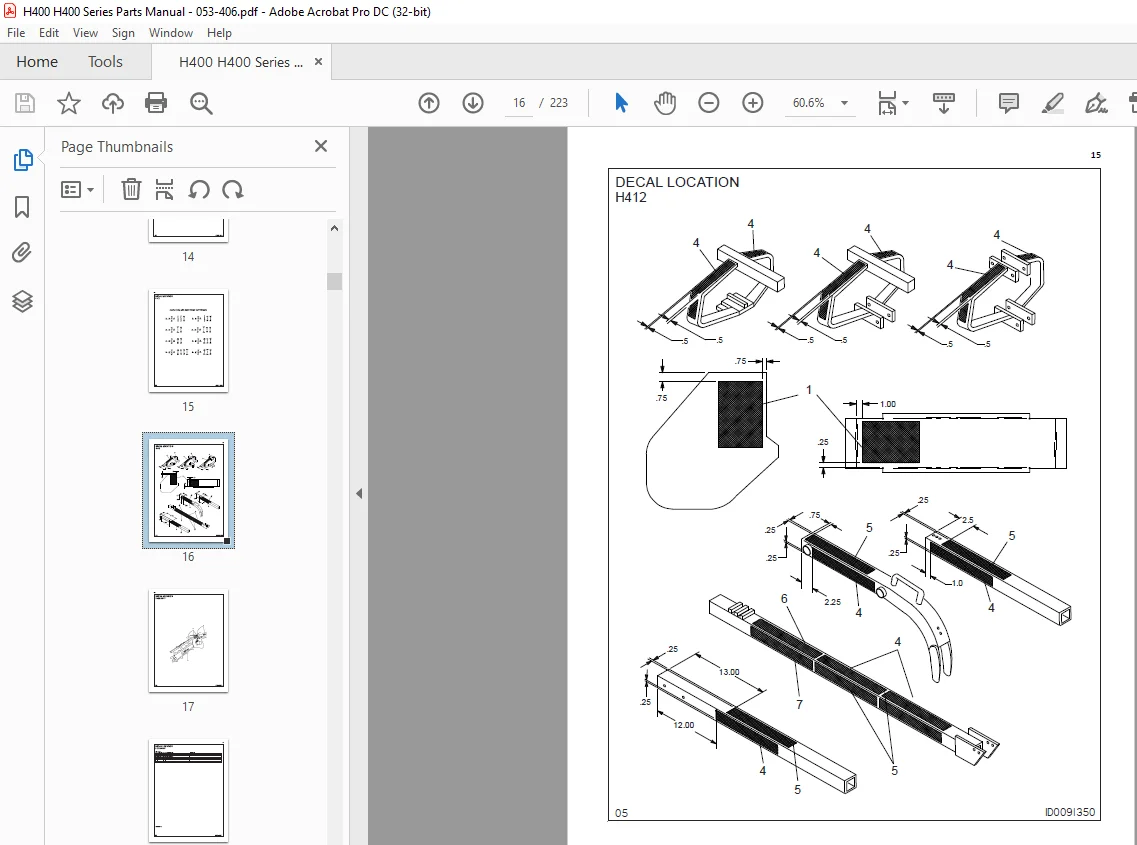

IMAGES PREVIEW OF THE MANUAL:

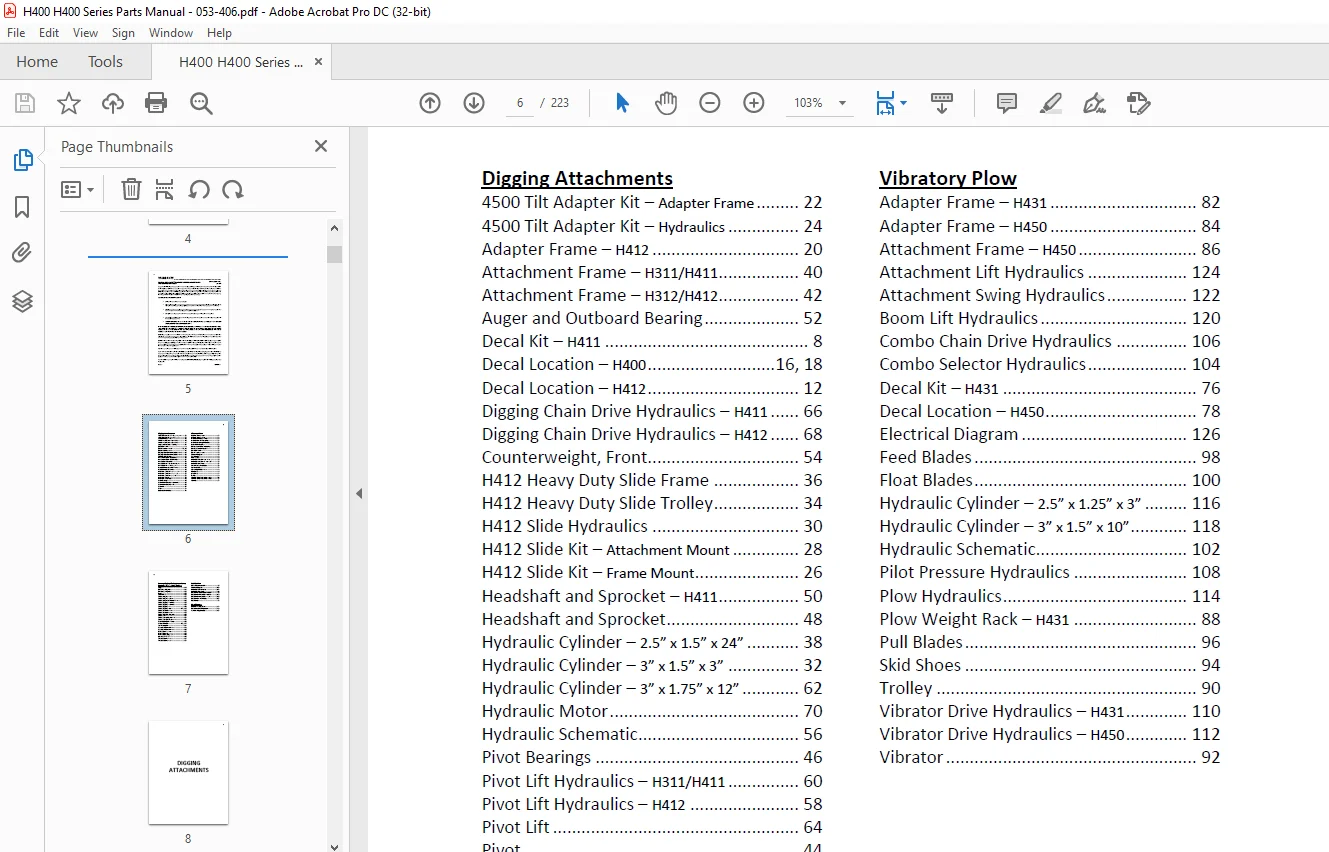

TABLE OF CONTENTS:
Ditch Witch H400 Series H411, H412 Trencher, H431 Plow, H450 Combo & RLCR45 Reel Carrier Attachments Parts Manual 053-406 – PDF DOWNLOAD
H411, H412 Trencher, H431 Plow, H450 Combo & RLCR45 Reel Carrier Attachments
Attachments for – 4500
Digging Attachments
4500 Tilt Adapter Kit – Adapter Frame 22
4500 Tilt Adapter Kit – Hydraulics 24
Adapter Frame – H412 20
Attachment Frame – H311/H411 40
Attachment Frame – H312/H412 42
Auger and Outboard Bearing 52
Decal Kit – H411 8
Decal Location – H400 16, 18
Decal Location – H412 12
Digging Chain Drive Hydraulics – H411 66
Digging Chain Drive Hydraulics – H412 68
Counterweight, Front 54
H412 Heavy Duty Slide Frame 36
H412 Heavy Duty Slide Trolley 34
H412 Slide Hydraulics 30
H412 Slide Kit – Attachment Mount 28
H412 Slide Kit – Frame Mount 26
Headshaft and Sprocket – H411 50
Headshaft and Sprocket 48
Hydraulic Cylinder – 2 5” x 1 5” x 24” 38
Hydraulic Cylinder – 3” x 1 5” x 3” 32
Hydraulic Cylinder – 3” x 1 75” x 12” 62
Hydraulic Motor 70
Hydraulic Schematic 56
Pivot Bearings 46
Pivot Lift Hydraulics – H311/H411 60
Pivot Lift Hydraulics – H412 58
Pivot Lift 64
Pivot 44
Solenoid Hydraulics 72
Vibratory Plow
Adapter Frame – H431 82
Adapter Frame – H450 84
Attachment Frame – H450 86
Attachment Lift Hydraulics 124
Attachment Swing Hydraulics 122
Boom Lift Hydraulics 120
Combo Chain Drive Hydraulics 106
Combo Selector Hydraulics 104
Decal Kit – H431 76
Decal Location – H450 78
Electrical Diagram 126
Feed Blades 98
Float Blades 100
Hydraulic Cylinder – 2 5” x 1 25” x 3” 116
Hydraulic Cylinder – 3” x 1 5” x 10” 118
Hydraulic Schematic 102
Pilot Pressure Hydraulics 108
Plow Hydraulics 114
Plow Weight Rack – H431 88
Pull Blades 96
Skid Shoes 94
Trolley 90
Vibrator Drive Hydraulics – H431 110
Vibrator Drive Hydraulics – H450 112
Vibrator 92
5
Booms, Digging Chains, Auger Parts,
Restraint Bars, Trench Cleaners
Auger 146
Bit Puller, Alligator 184
Bit Punch, Alligator 186
Boom 138
Chain Jaws 188
Chain, Alligator – 2P 172
Chain, Alligator – 3 067P 178
Chain, Alligator/Duratooth – 2P 160
Chain, Digging – 2P50K2PS 166
Chain, Digging – 2P50K4PS 168
Chain, Digging – 2P 170
Chain, Digging – 3 067P 174, 176
Chain, Duratooth – 2P 158
Chain, Duratooth – 4P 156
Chain, Premium Alligator 180
Chain, Shark 182
Chain, Shark/Alligator – 2P 164
Chain, Shark/Duratooth – 2P 162
Electrical Diagram – H450 190
Grease Cylinder 142, 144
Low Headshaft 134
Personnel Restraint – 2P 148
Personnel Restraint – 3P 150
Roller Boom – 3” Pitch 132
Roller Boom 3P 136
Roller Boom, Large Tail 130
Sprocket 2P & 3P 140
Trench Cleaner – 2P 152
Trench Cleaner – 3P 154
Reel Carrier
Cable Guide Assembly 196
Electrical Diagram 208
Hydraulic Control Valve 204
Hydraulic Schematic 210
Reel Carrier Cable Guide Mount 198
Reel Carrier Hydraulics – RLCR45 200
Reel Carrier Hydraulics – Tractor 206
Reel Carrier Lift Cylinder 202
Reel Carrier 194
Miscellaneous
Bolt/Nut Torque Chart 214
Replacement O-Ring Chart 219
Warranty Registration 222
4500 Tilt Adapter Kit – Adapter Frame 22
4500 Tilt Adapter Kit – Hydraulics 24
Adapter Frame – H412 20
Attachment Frame – H311/H411 40
Attachment Frame – H312/H412 42
Auger and Outboard Bearing 52
Decal Kit – H411 8
Decal Location – H400 16, 18
Decal Location – H412 12
Digging Chain Drive Hydraulics – H411 66
Digging Chain Drive Hydraulics – H412 68
Counterweight, Front 54
H412 Heavy Duty Slide Frame 36
H412 Heavy Duty Slide Trolley 34
H412 Slide Hydraulics 30
H412 Slide Kit – Attachment Mount 28
H412 Slide Kit – Frame Mount 26
Headshaft and Sprocket – H411 50
Headshaft and Sprocket 48
Hydraulic Cylinder – 2 5” x 1 5” x 24” 38
Hydraulic Cylinder – 3” x 1 5” x 3” 32
Hydraulic Cylinder – 3” x 1 75” x 12” 62
Hydraulic Motor 70
Hydraulic Schematic 56
Pivot Bearings 46
Pivot Lift Hydraulics – H311/H411 60
Pivot Lift Hydraulics – H412 58
Pivot Lift 64
Pivot 44
Solenoid Hydraulics 72
Vibratory Plow
Adapter Frame – H431 82
Adapter Frame – H450 84
Attachment Frame – H450 86
Attachment Lift Hydraulics 124
Attachment Swing Hydraulics 122
Boom Lift Hydraulics 120
Combo Chain Drive Hydraulics 106
Combo Selector Hydraulics 104
Decal Kit – H431 76
Decal Location – H450 78
Electrical Diagram 126
Feed Blades 98
Float Blades 100
Hydraulic Cylinder – 2 5” x 1 25” x 3” 116
Hydraulic Cylinder – 3” x 1 5” x 10” 118
Hydraulic Schematic 102
Pilot Pressure Hydraulics 108
Plow Hydraulics 114
Plow Weight Rack – H431 88
Pull Blades 96
Skid Shoes 94
Trolley 90
Vibrator Drive Hydraulics – H431 110
Vibrator Drive Hydraulics – H450 112
Vibrator 92
5
Booms, Digging Chains, Auger Parts,
Restraint Bars, Trench Cleaners
Auger 146
Bit Puller, Alligator 184
Bit Punch, Alligator 186
Boom 138
Chain Jaws 188
Chain, Alligator – 2P 172
Chain, Alligator – 3 067P 178
Chain, Alligator/Duratooth – 2P 160
Chain, Digging – 2P50K2PS 166
Chain, Digging – 2P50K4PS 168
Chain, Digging – 2P 170
Chain, Digging – 3 067P 174, 176
Chain, Duratooth – 2P 158
Chain, Duratooth – 4P 156
Chain, Premium Alligator 180
Chain, Shark 182
Chain, Shark/Alligator – 2P 164
Chain, Shark/Duratooth – 2P 162
Electrical Diagram – H450 190
Grease Cylinder 142, 144
Low Headshaft 134
Personnel Restraint – 2P 148
Personnel Restraint – 3P 150
Roller Boom – 3” Pitch 132
Roller Boom 3P 136
Roller Boom, Large Tail 130
Sprocket 2P & 3P 140
Trench Cleaner – 2P 152
Trench Cleaner – 3P 154
Reel Carrier
Cable Guide Assembly 196
Electrical Diagram 208
Hydraulic Control Valve 204
Hydraulic Schematic 210
Reel Carrier Cable Guide Mount 198
Reel Carrier Hydraulics – RLCR45 200
Reel Carrier Hydraulics – Tractor 206
Reel Carrier Lift Cylinder 202
Reel Carrier 194
Miscellaneous
Bolt/Nut Torque Chart 214
Replacement O-Ring Chart 219
Warranty Registration 222
