Ditch Witch HT100 Parts Manual PN 050-572 PDF
$27.95
Ditch Witch HT100 Tractor Parts Manual (PN 050-572) – PDF DOWNLOAD is a detailed digital guide for accurate identification and replacement of components. It ensures efficient maintenance for optimal performance of the specified equipment.
Description
Ditch Witch HT100 Tractor Parts Manual PN 050-572 – PDF DOWNLOAD
FILE DETAILS:
Ditch Witch HT100 Tractor Parts Manual PN 050-572 – PDF DOWNLOAD
Language : English
Pages :191
Downloadable : Yes
File Type : PDF

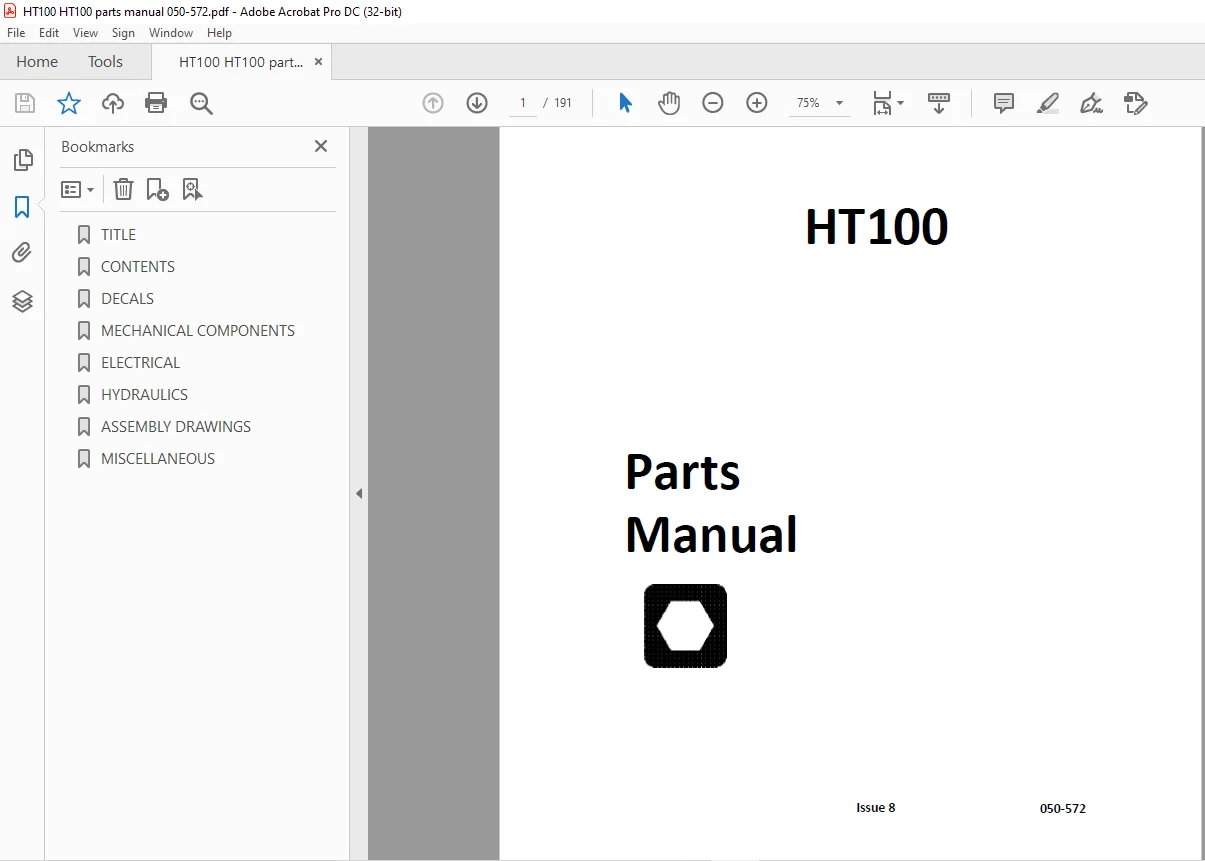

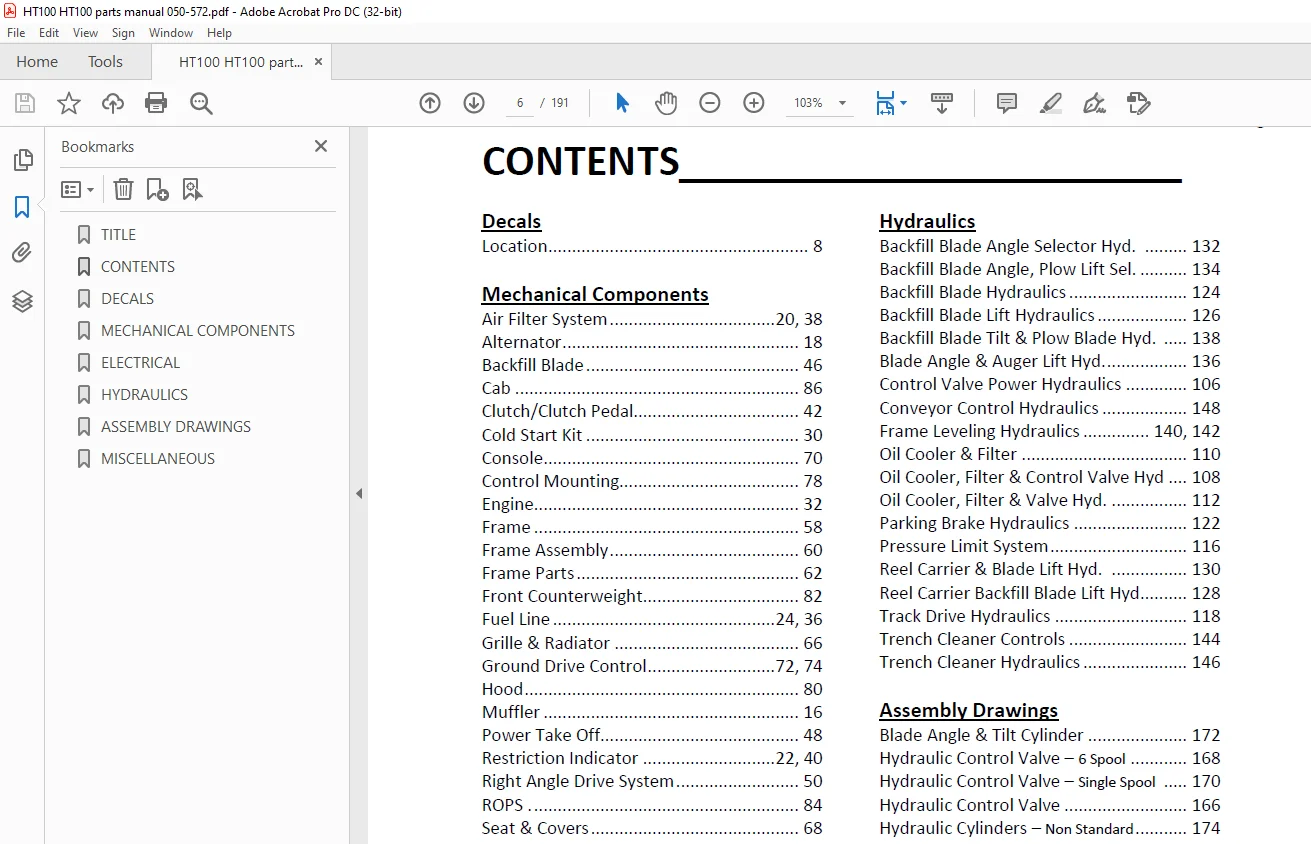

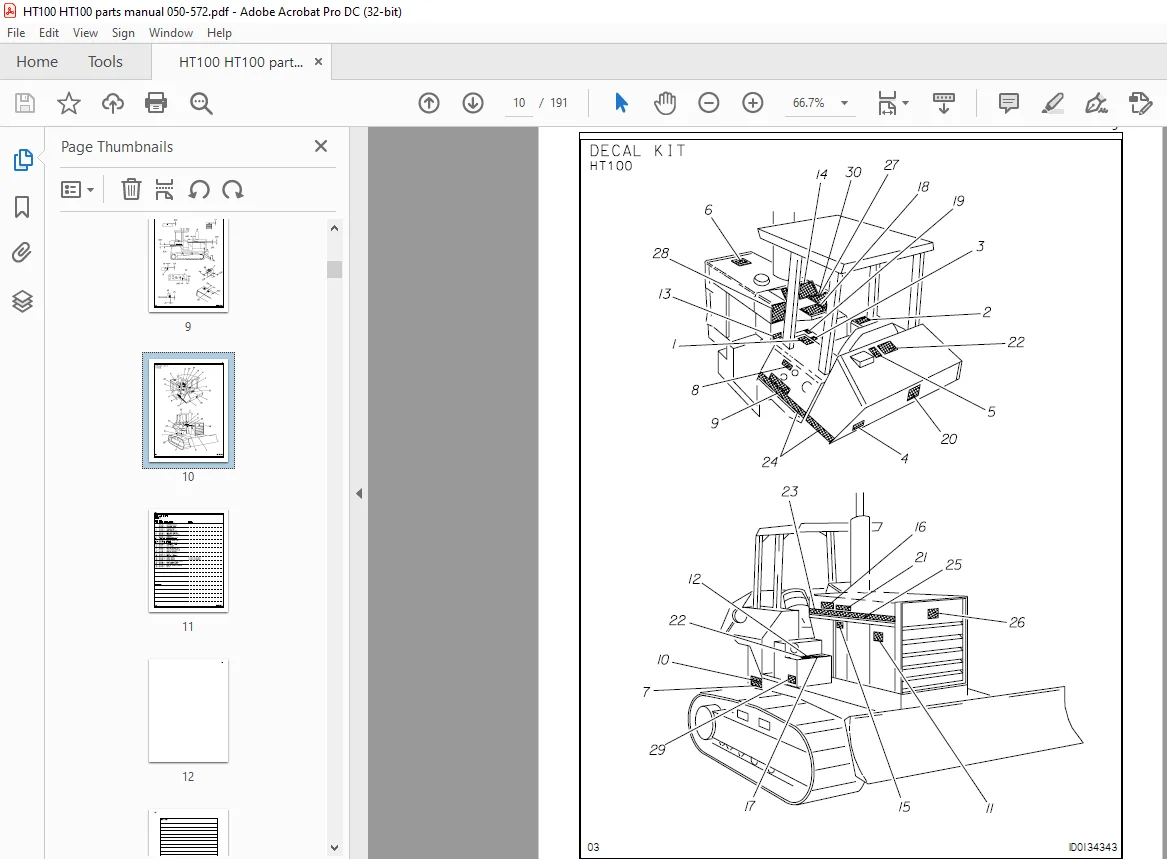

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Ditch Witch HT100 Tractor Parts Manual PN 050-572 – PDF DOWNLOAD
Decals
Location 8
Mechanical Components
Air Filter System 20, 38
Alternator 18
Backfill Blade 46
Cab 86
Clutch/Clutch Pedal 42
Cold Start Kit 30
Console 70
Control Mounting 78
Engine 32
Frame 58
Frame Assembly 60
Frame Parts 62
Front Counterweight 82
Fuel Line 24, 36
Grille & Radiator 66
Ground Drive Control 72, 74
Hood 80
Muffler 16
Power Take Off 48
Restriction Indicator 22, 40
Right Angle Drive System 50
ROPS 84
Seat & Covers 68
Step & Battery Box 64
Throttle 26, 28, 44
Track 52
Track Frame 56
Track Speed Control 76
Wheel Lift Hydraulics 14
Electric System Diagram
Electrial Diagram – Deere 94
Electrial Diagram – Perkins 90
Electrical Schematic 98
Frame & Engine Harness 102
Hydraulics
Backfill Blade Angle Selector Hyd 132
Backfill Blade Angle, Plow Lift Sel 134
Backfill Blade Hydraulics 124
Backfill Blade Lift Hydraulics 126
Backfill Blade Tilt & Plow Blade Hyd 138
Blade Angle & Auger Lift Hyd 136
Control Valve Power Hydraulics 106
Conveyor Control Hydraulics 148
Frame Leveling Hydraulics 140, 142
Oil Cooler & Filter 110
Oil Cooler, Filter & Control Valve Hyd 108
Oil Cooler, Filter & Valve Hyd 112
Parking Brake Hydraulics 122
Pressure Limit System 116
Reel Carrier & Blade Lift Hyd 130
Reel Carrier Backfill Blade Lift Hyd 128
Track Drive Hydraulics 118
Trench Cleaner Controls 144
Trench Cleaner Hydraulics 146
Assembly Drawings
Blade Angle & Tilt Cylinder 172
Hydraulic Control Valve – 6 Spool 168
Hydraulic Control Valve – Single Spool 170
Hydraulic Control Valve 166
Hydraulic Cylinders – Non Standard 174
Hydraulic Pump – Control Valve 162
Jackshaft & Pillow Block Bearing 158
Pump Drive – Deere Engine 178
Pump Drive – HT100 176
Pump Drive – R100 156
Relief Cartridge 160
Selector Valve – 6 Port 164
Transmission 152
Miscellaneous
Bolt/Nut Torque Chart 182
Replacement O-Right Chart 187
Warranty Registration 190
