Ditch Witch HT275 Parts Manual 053-3154 – PDF DOWNLOAD
$28.95
The Ditch Witch HT275 Parts Manual (053-3154) is a comprehensive guide for operators and technicians, detailing components and specifications for effective maintenance. Essential for ensuring optimal performance of the HT275 trencher attachment.
Description
Ditch Witch HT275 Parts Manual 053-3154 – PDF DOWNLOAD
FILE DETAILS:
Ditch Witch HT275 Parts Manual 053-3154 – PDF DOWNLOAD
Language : English
Pages : 299
Downloadable : Yes
File Type : PDF

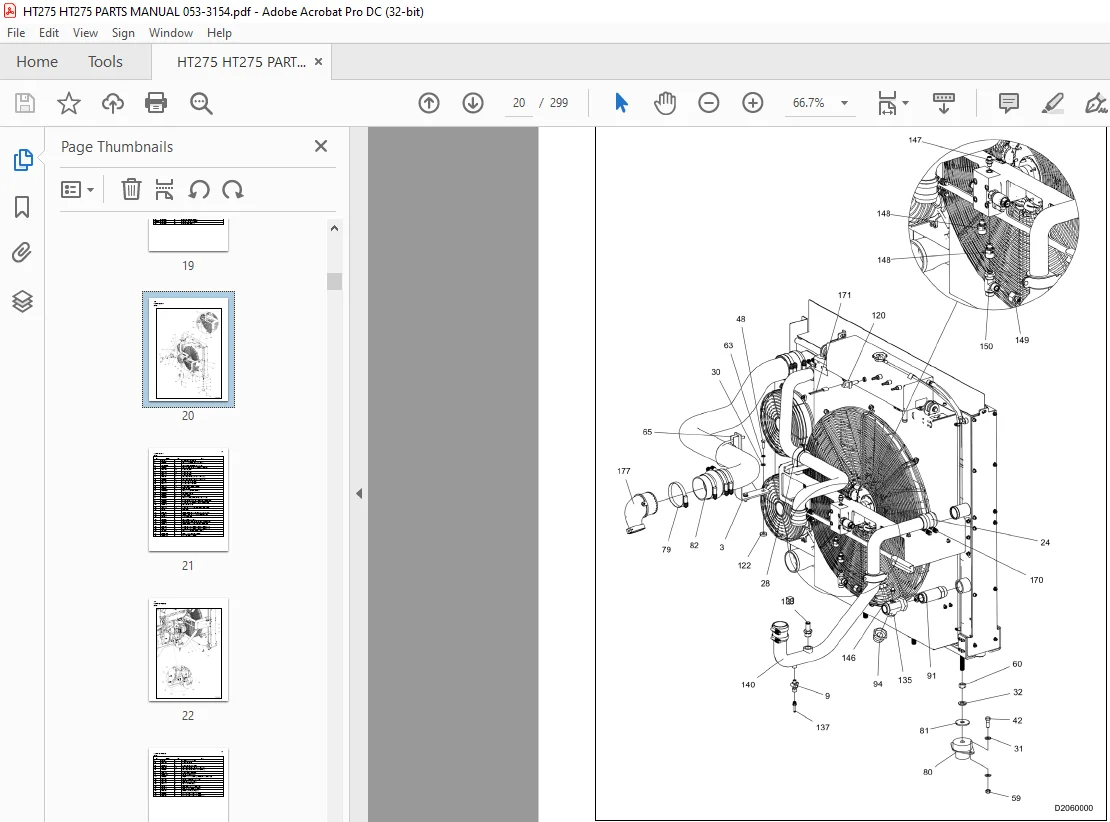

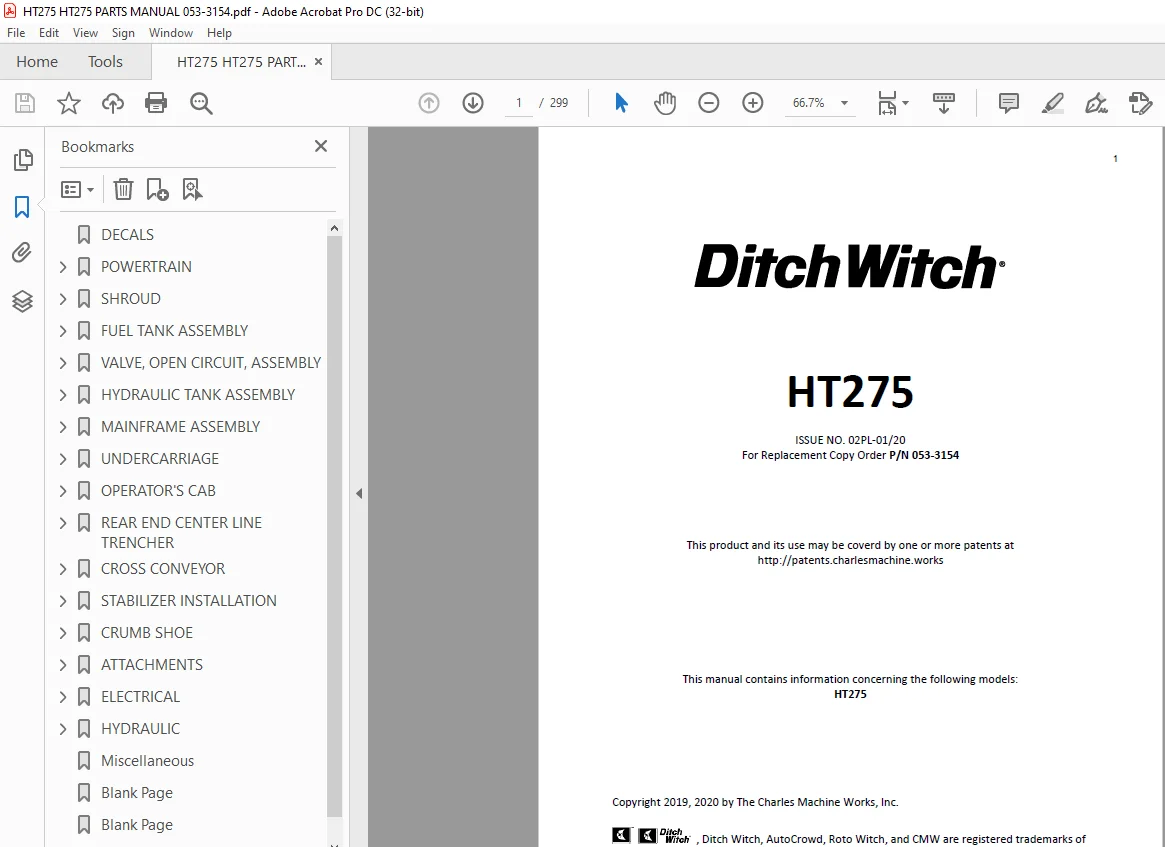

IMAGES PREVIEW OF THE MANUAL:

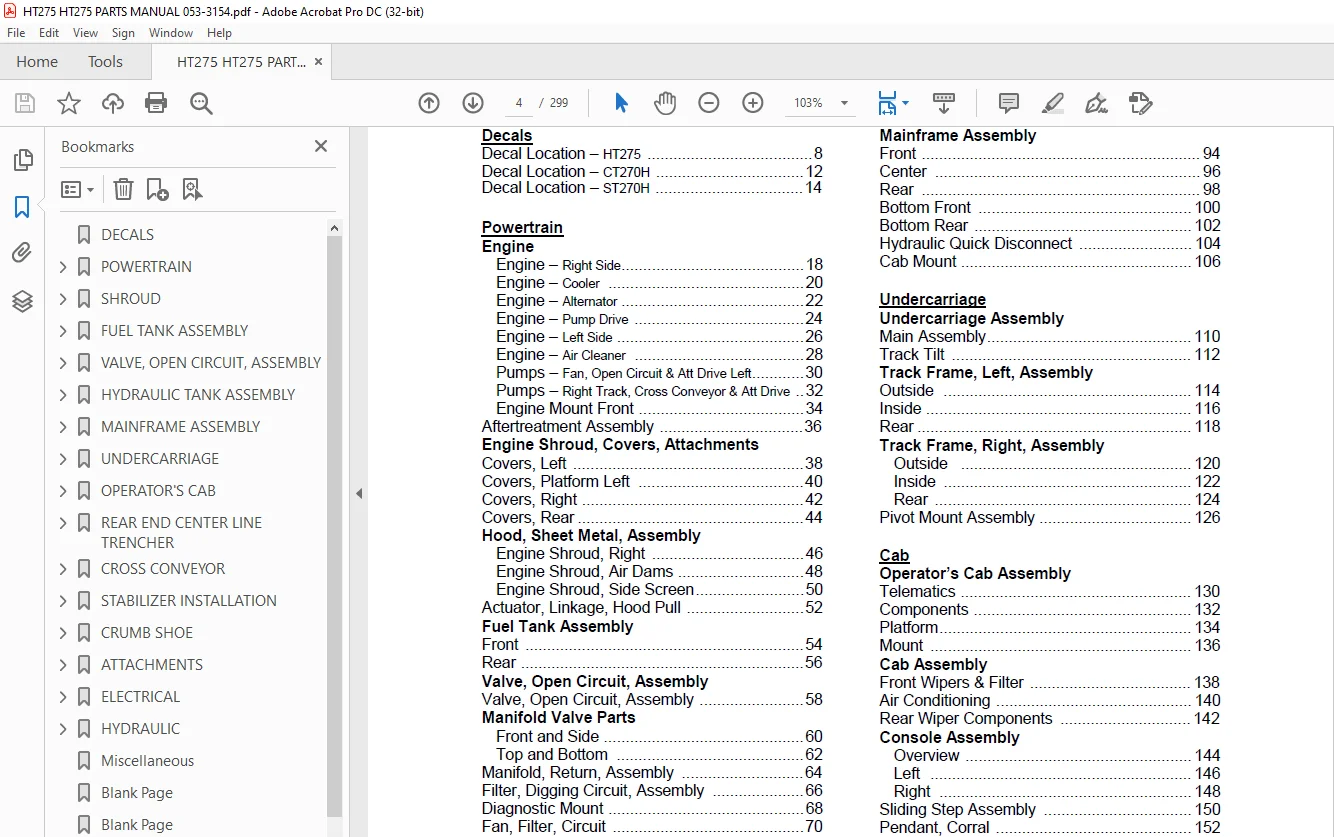

TABLE OF CONTENTS:
Ditch Witch HT275 Parts Manual 053-3154 – PDF DOWNLOAD
DECALS 7
POWERTRAIN 17
ENGINE 18
ENGINE – RIGHT SIDE 18
ENGINE – COOLER 20
ENGINE – ALTERNATOR 22
ENGINE – PUMP DRIVE 24
ENGINE – LEFT SIDE 26
ENGINE – AIR CLEANER 28
PUMPS – FAN, OPEN CIRCUIT & TRACK DRIVE LEFT 30
PUMPS – RIGHT TRACK, CROSS CONVEYOR & ATTACHMENT DRIVE 32
ENGINE MOUNT FRONT 34
AFTERTREATMENT ASSEMBLY 36
SHROUD 38
ENGINE SHROUD, COVERS, ATTACHMENTS 38
COVERS – LEFT 38
COVERS – PLATFORM, LEFT 40
COVERS – RIGHT 42
COVERS – REAR 44
HOOD, SHEET METAL, ASSEMBLY 46
ENGINE SHROUD – RIGHT 46
ENGINE SHROUD – AIR DAMS 48
ENGINE SHROUD – SIDE SCREEN 50
ACTUATOR, LINKAGE, HOOD PULL 52
FUEL TANK ASSEMBLY 54
FUEL TANK – FRONT 54
FUEL TANK – REAR 56
VALVE, OPEN CIRCUIT, ASSEMBLY 58
VALVE, OPEN CIRCUIT, ASSEMBLY 58
MANIFOLD VALVE PARTS 60
MANIFOLD VALVE FRONT AND SIDE 60
MANIFOLD VALVE TOP AND BOTTOM 62
MANIFOLD, RETURN, ASSEMBLY 64
FILTER, DIGGING CIRCUIT, ASSEMBLY 66
DIAGNOSTIC MOUNT 68
FAN, FILTER, CIRCUIT 70
MOUNT, HYDRAULIC, ASSEMBLY 72
LOCK, CABIN, ASSEMBLY 74
QUICK DISCONNECT ASSEMBLY 76
HOSE CARRIER ASSEMBLY 78
CASE DRAIN MANIFOLD 80
CHARGE FILTER ASSEMBLY 82
KIT, TRACTOR TILT COUNTERBALANCE 84
HYDRAULIC TANK ASSEMBLY 86
HYDRAULIC TANK – REAR 86
HYDRAULIC TANK – FRONT 88
HYDRAULIC TANK – BATTERY BOX 90
HYDRAULIC TANK – INSIDE 92
MAINFRAME ASSEMBLY 94
MAINFRAME – FRONT 94
MAINFRAME – CENTER 96
MAINFRAME – REAR 98
MAINFRAME – BOTTOM FRONT 100
MAINFRAME – BOTTOM REAR 102
MAINFRAME – HYDRAULIC QUICK DISCONNECT 104
MAINFRAME – CAB MOUNT 106
UNDERCARRIAGE 110
UNDERCARRIAGE ASSEMBLY 110
UNDERCARRIAGE – MAIN ASSEMBLY 110
UNDERCARRIAGE – TRACK TILT 112
TRACK FRAME, LEFT , ASSEMBLY 114
TRACK FRAME, LEFT – OUTSIDE 114
TRACK FRAME, LEFT – INSIDE 116
TRACK FRAME, LEFT – REAR 118
TRACK FRAME, RIGHT, ASSEMBLY 120
TRACK FRAME, RIGHT – OUTSIDE 120
TRACK FRAME, RIGHT – INSIDE 122
TRACK FRAME, RIGHT – REAR 124
PIVOT MOUNT ASSEMBLY 126
OPERATOR’S CAB 130
OPERATOR’S CAB ASSEMBLY 130
OPERATOR’S CAB – TELEMATICS 130
OPERATOR’S CAB – COMPONENTS 132
OPERATOR’S CAB – PLATFORM 134
OPERATOR’S CAB – MOUNT 136
CAB ASSEMBLY 138
CAB – FRONT WIPERS & FILTER 138
CAB – AIR CONDITIONING 140
CAB – REAR WIPER COMPONENTS 142
CONSOLE ASSEMBLY 144
CONSOLE – OVERVIEW 144
CONSOLE – LEFT 146
CONSOLE – RIGHT 148
SLIDING STEP ASSEMBLY 150
PENDANT, CORRAL 152
REAR END CENTER LINE TRENCHER 156
REAR END CENTER LINE ASSEMBLY 156
REAR END CENTER LINE – LEFT 156
REAR END CENTER LINE – GEARBOX 158
REAR END CENTER LINE – TOP 160
REAR END ATTACHMENT ASSEMBLY 162
REAR END ATTACHMENT 162
REAR END CENTERLINE – RIGHT 162
REAR END CENTERLINE – ACCUMULATOR 164
REAR END CENTERLINE – HYDRAULIC QUICK DISCONNECT 166
REAR END CENTERLINE – GENERAL 168
DUST CURTAIN, LEFT 170
HEADSHAFT ASSEMBLY 172
HEADSHAFT – RIGHT 172
HEADSHAFT – LEFT 174
BOOM HOOD ASSEMBLY 176
KICKSTAND ASSEMBLY 178
CROSS CONVEYOR 180
CROSS CONVEYOR INSTALLATION 180
CROSS CONVEYOR ASSEMBLY 182
PULLEY DRIVE ASSEMBLY 184
IDLER ASSEMBLY 186
CROSS CONVEYOR LINKAGE 188
GUIDE, CROSS CONVEYOR, LEFT 190
GUIDE, CROSS CONVEYOR, RIGHT 192
STABILIZER INSTALLATION 194
STABILIZER ASSEMBLY 194
STABILIZER MANIFOLD, DOWN PRESSURE 196
DEPTH INDICATOR ASSEMBLY 198
MANIFOLD, TRENCHING MOTOR 200
GEARBOX BREATHER 202
CRUMB SHOE 204
CRUMB SHOE – OVERVIEW 204
CRUMB SHOE – CYLINDER PINS 206
ATTACHMENTS 208
UPPER BOOM, DOUBLE LINE 208
UPPER BOOM, WELDMENT, DOUBLE LINE 210
BOOM EXTENSION 212
BOOM EXTENSION WELDMENT 214
BOOM TAIL WHEEL DOUBLE LINE 216
WELDMENT, BOOM, TAIL WHEEL, DOUBLE LINE 218
TAIL WHEEL ASSEMBLY 30 INCH DOUBLE 220
SPROCKET, KIT, DOUBLE 222
CHAIN, DOUBLE LINE, 6 FOOT X 24 INCH WIDE 224
MANIFOLD, TRACK TILT 226
ELECTRICAL 230
ELECTRICAL ASSSEMBLY 230
SCHEMATIC 231
CONTROLS 235
HARNESSES 250
CONSOLE HARNESSES 273
HYDRAULIC 290
HYDRAULIC SCHEMATIC 290
Miscellaneous 293
