The Ditch Witch HT300 Tractor Parts Manual (053-1349) is a crucial guide for operators and technicians, detailing components and specifications for effective maintenance. Essential for ensuring optimal performance of the HT300 tractor model.
Description
Ditch Witch HT300 Tractor Parts Manual 053-1349 – PDF DOWNLOAD
FILE DETAILS:
Ditch Witch HT300 Tractor Parts Manual 053-1349 – PDF DOWNLOAD
Language : English
Pages : 173
Downloadable : Yes
File Type : PDF

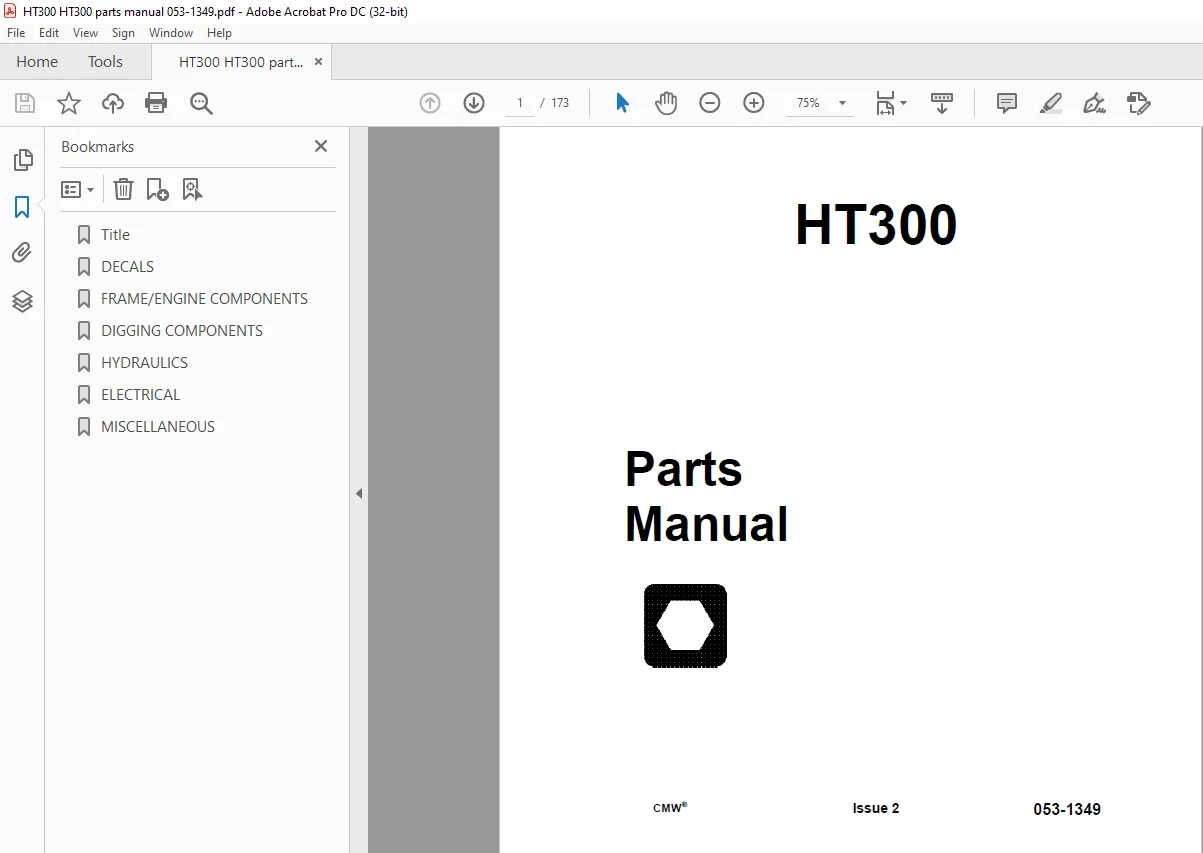

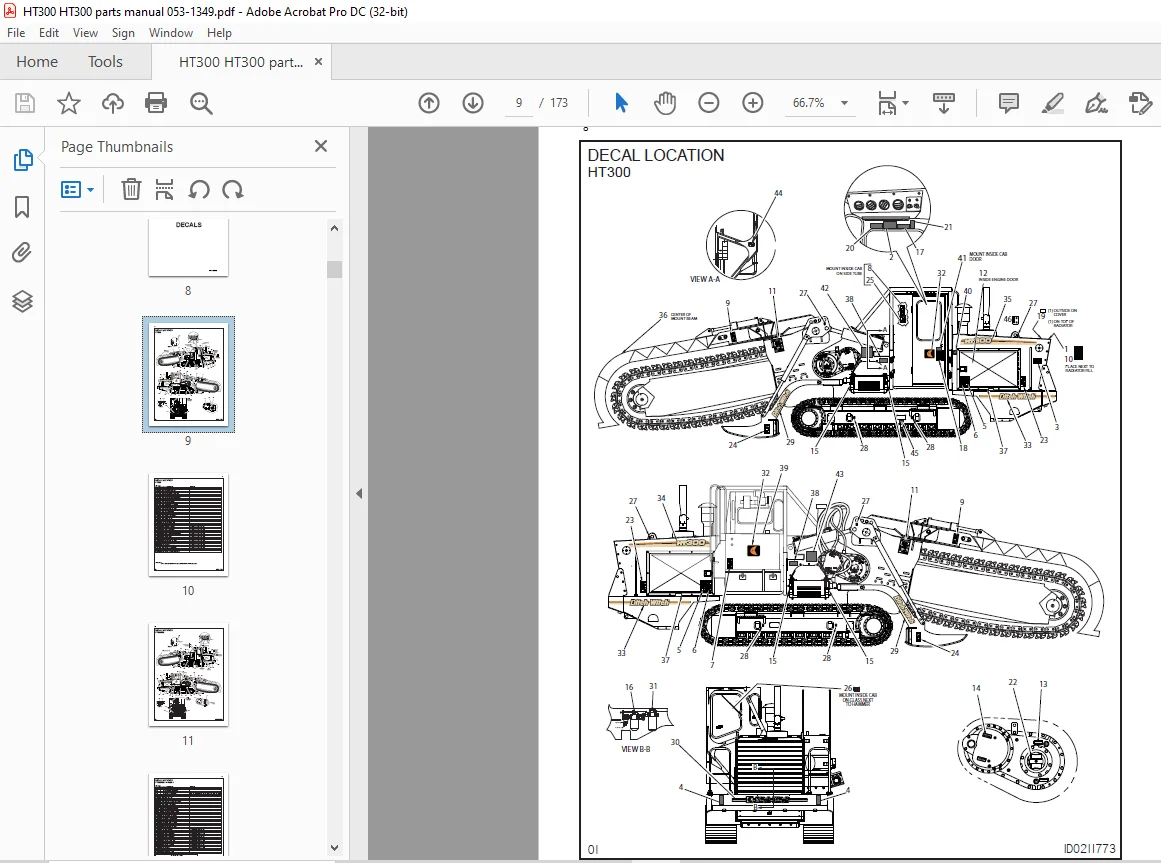

IMAGES PREVIEW OF THE MANUAL:

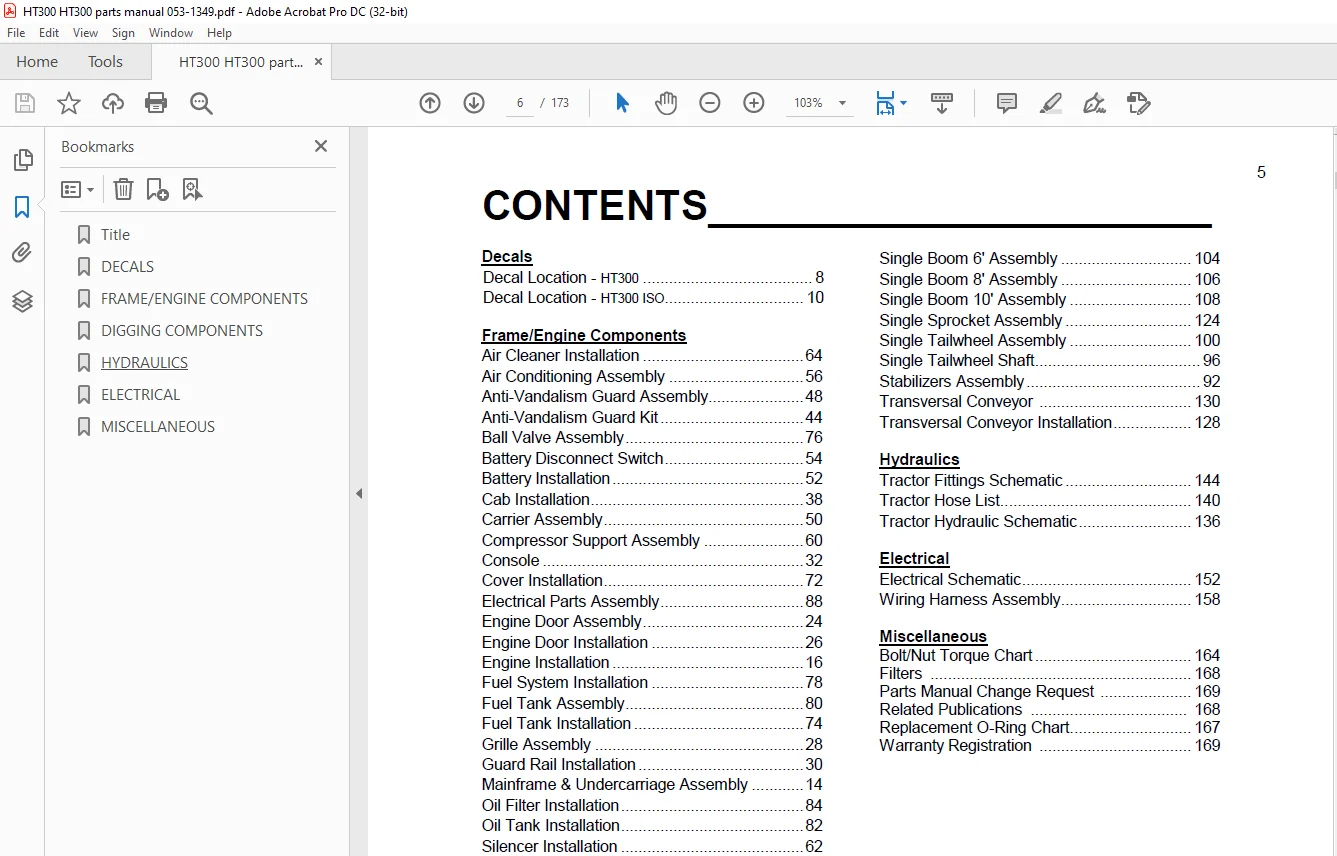

TABLE OF CONTENTS:
Ditch Witch HT300 Tractor Parts Manual 053-1349 – PDF DOWNLOAD
Decals
Decal Location – HT300 8
Decal Location – HT300 ISO 10
Frame/Engine Components
Air Cleaner Installation 64
Air Conditioning Assembly 56
Anti-Vandalism Guard Assembly 48
Anti-Vandalism Guard Kit 44
Ball Valve Assembly 76
Battery Disconnect Switch 54
Battery Installation 52
Cab Installation 38
Carrier Assembly 50
Compressor Support Assembly 60
Console 32
Cover Installation 72
Electrical Parts Assembly 88
Engine Door Assembly 24
Engine Door Installation 26
Engine Installation 16
Fuel System Installation 78
Fuel Tank Assembly 80
Fuel Tank Installation 74
Grille Assembly 28
Guard Rail Installation 30
Mainframe & Undercarriage Assembly 14
Oil Filter Installation 84
Oil Tank Installation 82
Silencer Installation 62
Track Assembly 66
Track Drive Assembly 68
Valve Installation 70
Windows Assembly 42
Working Light Kit 86
Digging Attachments
6′-8′ Crumbshoe Assembly 116
10′ Crumbshoe Assembly 118
Conveyor Shift 132
Crumbshoe Extension 8′-10′ 120
Double Link Sprocket Assembly 122
Double Sprocket Assembly 126
Double Tailwheel Assembly 102
Double Tailwheel Assembly 98
Double Tailwheel Shaft 94
Headshaft 112
Inner Shroud Assembly 110
Scoop Plate Installation 114
Single Boom 6′ Assembly 104
Single Boom 8′ Assembly 106
Single Boom 10′ Assembly 108
Single Sprocket Assembly 124
Single Tailwheel Assembly 100
Single Tailwheel Shaft 96
Stabilizers Assembly 92
Transversal Conveyor 130
Transversal Conveyor Installation 128
Hydraulics
Tractor Fittings Schematic 144
Tractor Hose List 140
Tractor Hydraulic Schematic 136
Electrical
Electrical Schematic 152
Wiring Harness Assembly 158
Miscellaneous
Bolt/Nut Torque Chart 164
Filters 168
Parts Manual Change Request 169
Related Publications 168
Replacement O-Ring Chart 167
Warranty Registration 169
