Ditch Witch JT2511 Spare Parts Manual 053-454 PDF

Description

Ditch Witch JT2511 Parts Manual 053-454 – PDF DOWNLOAD

FILE DETAILS:

Ditch Witch JT2511 Parts Manual 053-454 – PDF DOWNLOAD

Language : English
Pages :260
Downloadable : Yes
File Type : PDF

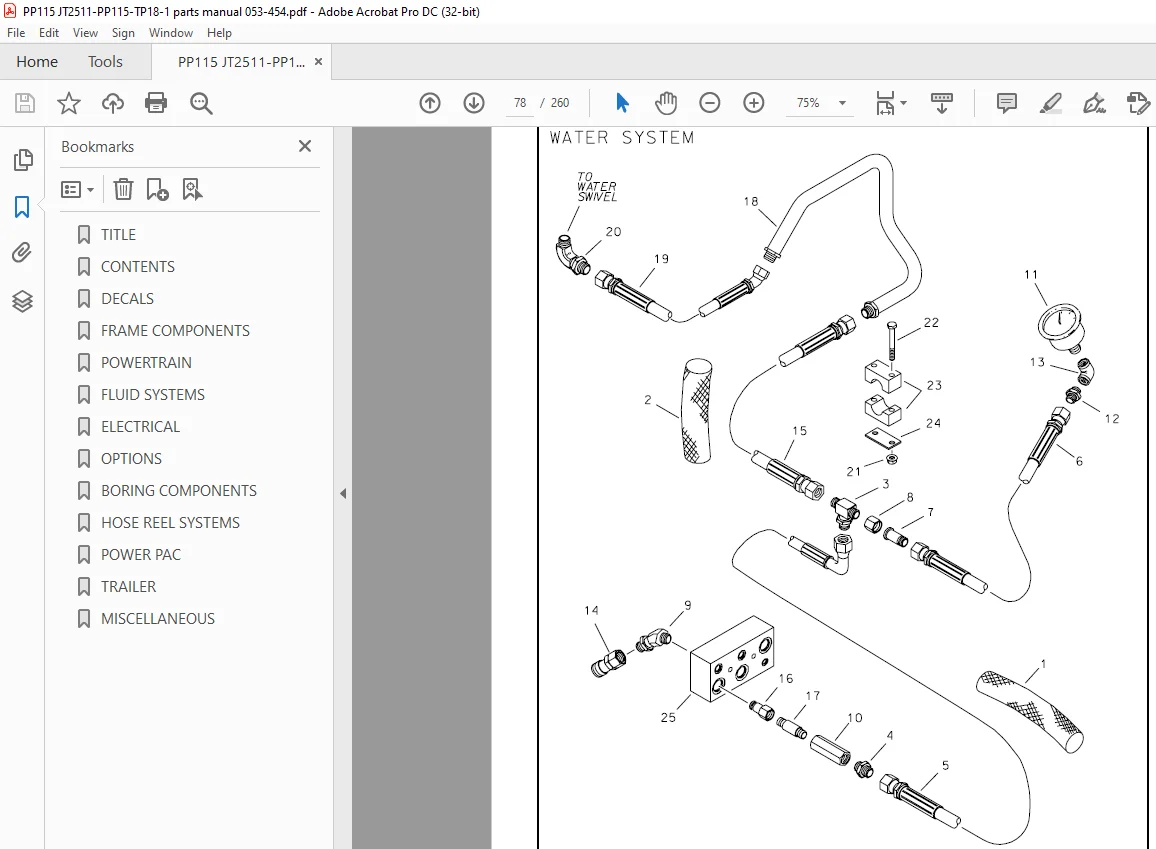

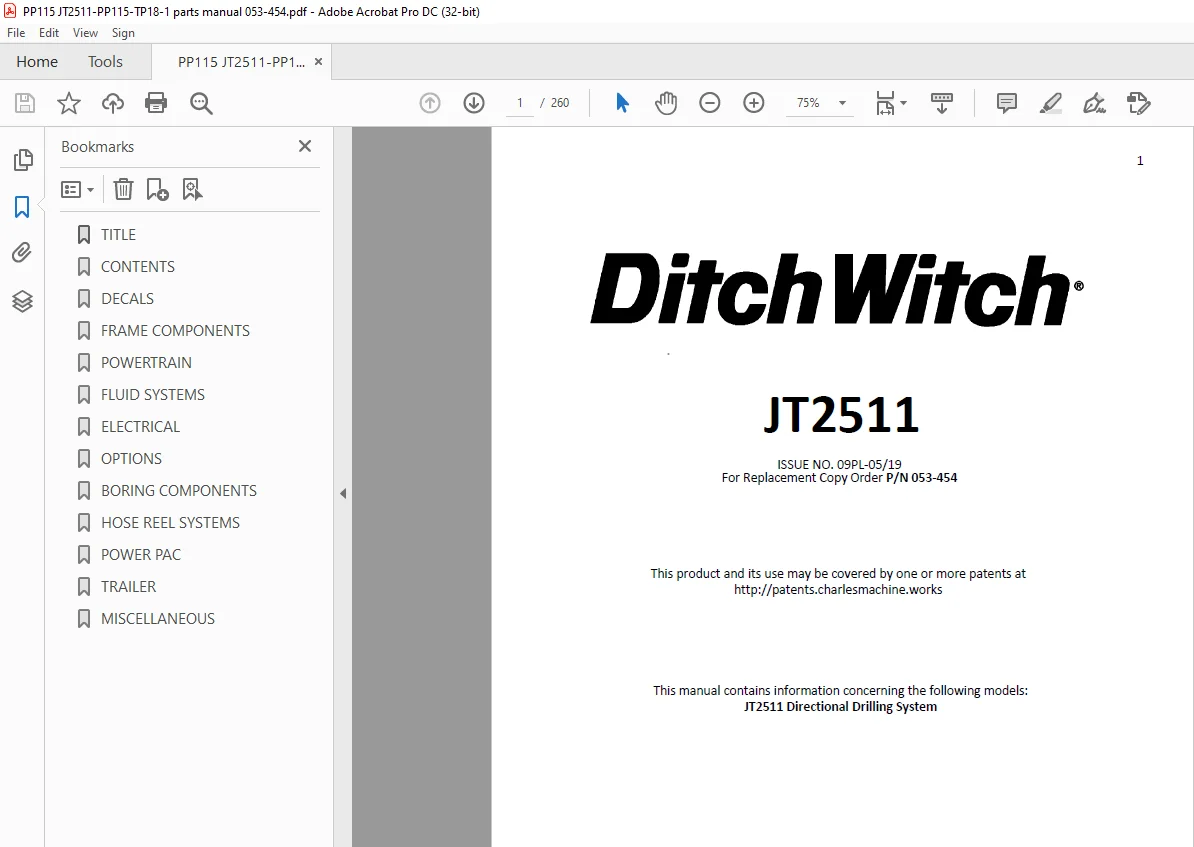

IMAGES PREVIEW OF THE MANUAL:

2

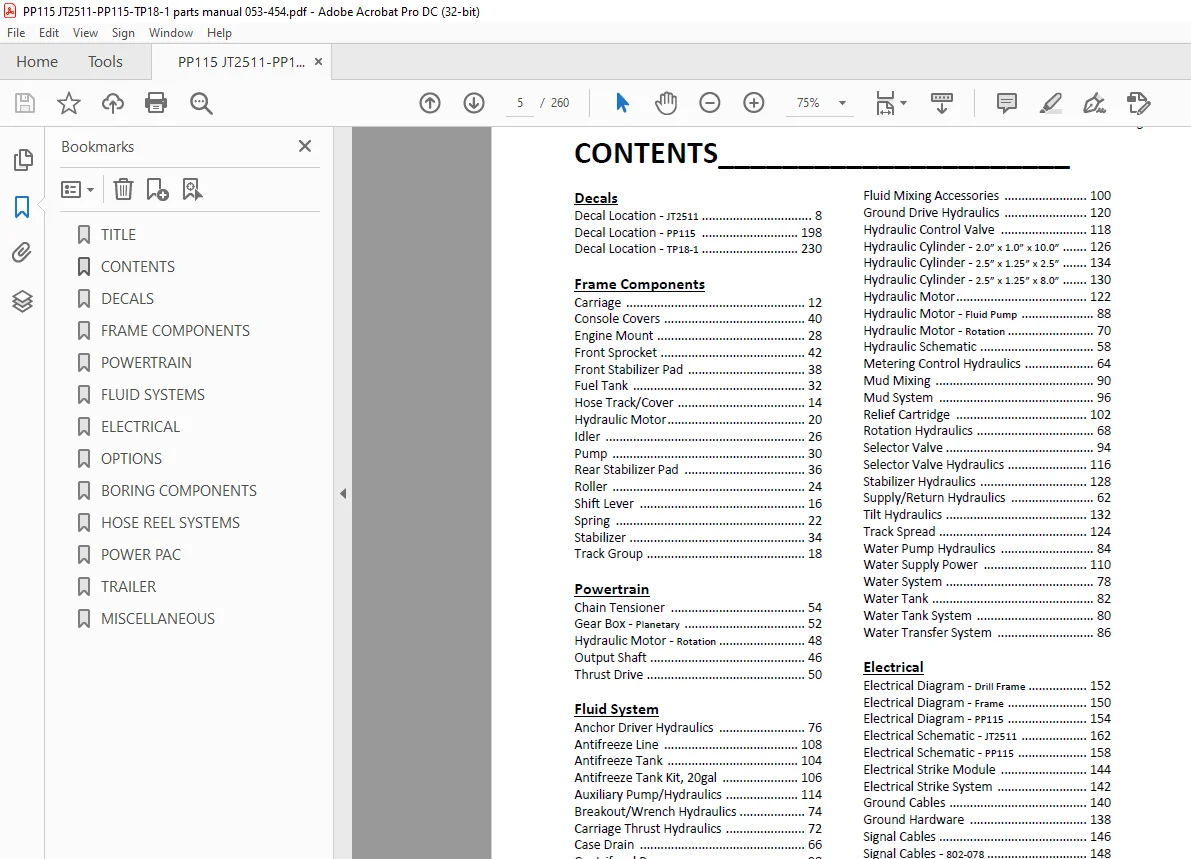

TABLE OF CONTENTS:

Ditch Witch JT2511 Parts Manual 053-454 – PDF DOWNLOAD

Decals
Decal Location – JT2511 8
Decal Location – PP115 198
Decal Location – TP18-1 230
Frame Components
Carriage 12
Console Covers 40
Engine Mount 28
Front Sprocket 42
Front Stabilizer Pad 38
Fuel Tank 32
Hose Track/Cover 14
Hydraulic Motor 20
Idler 26
Pump 30
Rear Stabilizer Pad 36
Roller 24
Shift Lever 16
Spring 22
Stabilizer 34
Track Group 18
Powertrain
Chain Tensioner 54
Gear Box – Planetary 52
Hydraulic Motor – Rotation 48
Output Shaft 46
Thrust Drive 50
Fluid System
Anchor Driver Hydraulics 76
Antifreeze Line 108
Antifreeze Tank 104
Antifreeze Tank Kit, 20gal 106
Auxiliary Pump/Hydraulics 114
Breakout/Wrench Hydraulics 74
Carriage Thrust Hydraulics 72
Case Drain 66
Centrifugal Pump 98
Control Valve Levers 60
Drilling Fluid Pump 112
Fluid Mixing Accessories 100
Ground Drive Hydraulics 120
Hydraulic Control Valve 118
Hydraulic Cylinder – 2 0” x 1 0” x 10 0” 126
Hydraulic Cylinder – 2 5” x 1 25” x 2 5” 134
Hydraulic Cylinder – 2 5” x 1 25” x 8 0” 130
Hydraulic Motor 122
Hydraulic Motor – Fluid Pump 88
Hydraulic Motor – Rotation 70
Hydraulic Schematic 58
Metering Control Hydraulics 64
Mud Mixing 90
Mud System 96
Relief Cartridge 102
Rotation Hydraulics 68
Selector Valve 94
Selector Valve Hydraulics 116
Stabilizer Hydraulics 128
Supply/Return Hydraulics 62
Tilt Hydraulics 132
Track Spread 124
Water Pump Hydraulics 84
Water Supply Power 110
Water System 78
Water Tank 82
Water Tank System 80
Water Transfer System 86
Electrical
Electrical Diagram – Drill Frame 152
Electrical Diagram – Frame 150
Electrical Diagram – PP115 154
Electrical Schematic – JT2511 162
Electrical Schematic – PP115 158
Electrical Strike Module 144
Electrical Strike System 142
Ground Cables 140
Ground Hardware 138
Signal Cables 146
Signal Cables – 802-078 148
Anchor Parts – 802-303 172
Anchor Parts – 803-599 174
Anchoring Hydraulics 176
Anchoring Parts 166
Hydraulic Motor 178
Hydraulic Stake Driver 168
Wash Wand 170
Working Light Kit 180
Boring Components
Pipe Rack and Accessories 184
Hose Reel
Electrical Protection Reel 194
Hose Reel Controls 188
Hose Reel Plumbing 192
Hose Reel Power 190
Power Pac
Air Filter System 220
Cooler 212
Engine – Deere 218
Engine Gauges 202
Engine Mount 222
Fuel Tank 210
Grille/Frame 204
Hood 206
Hydraulic Cylinder – 2 5” x 1 25” x 8 0” 226
Hydraulic Schematic 200
Pump Hydraulics 214
Sound Insulation 208
Throttle 224
Trailer
Drum/Hub 242
Electrical Brake 246
Electrical Diagram 248
Frame 234
Slipper Spring 240
Tire/Wheel 244
Tongue 238
Tool Box 236
Miscellaneous
Bolt/Nut Torque Chart 252
Replacement O-Ring Chart 257
Warranty Registration 260
