Ditch Witch SK752 Parts Manual 053-2864 – PDF DOWNLOAD
$28.95
The Ditch Witch SK752 Parts Manual (053-2864) is a comprehensive guide for identifying and ordering genuine replacement parts for the SK752 mini skid steer loader. This manual facilitates efficient maintenance and repairs, ensuring optimal performance and longevity of the equipment.
Description
Ditch Witch SK752 Parts Manual 053-2864 – PDF DOWNLOAD
FILE DETAILS:
Ditch Witch SK752 Parts Manual 053-2864 – PDF DOWNLOAD
Language : English
Pages : 163
Downloadable : Yes
File Type : PDF

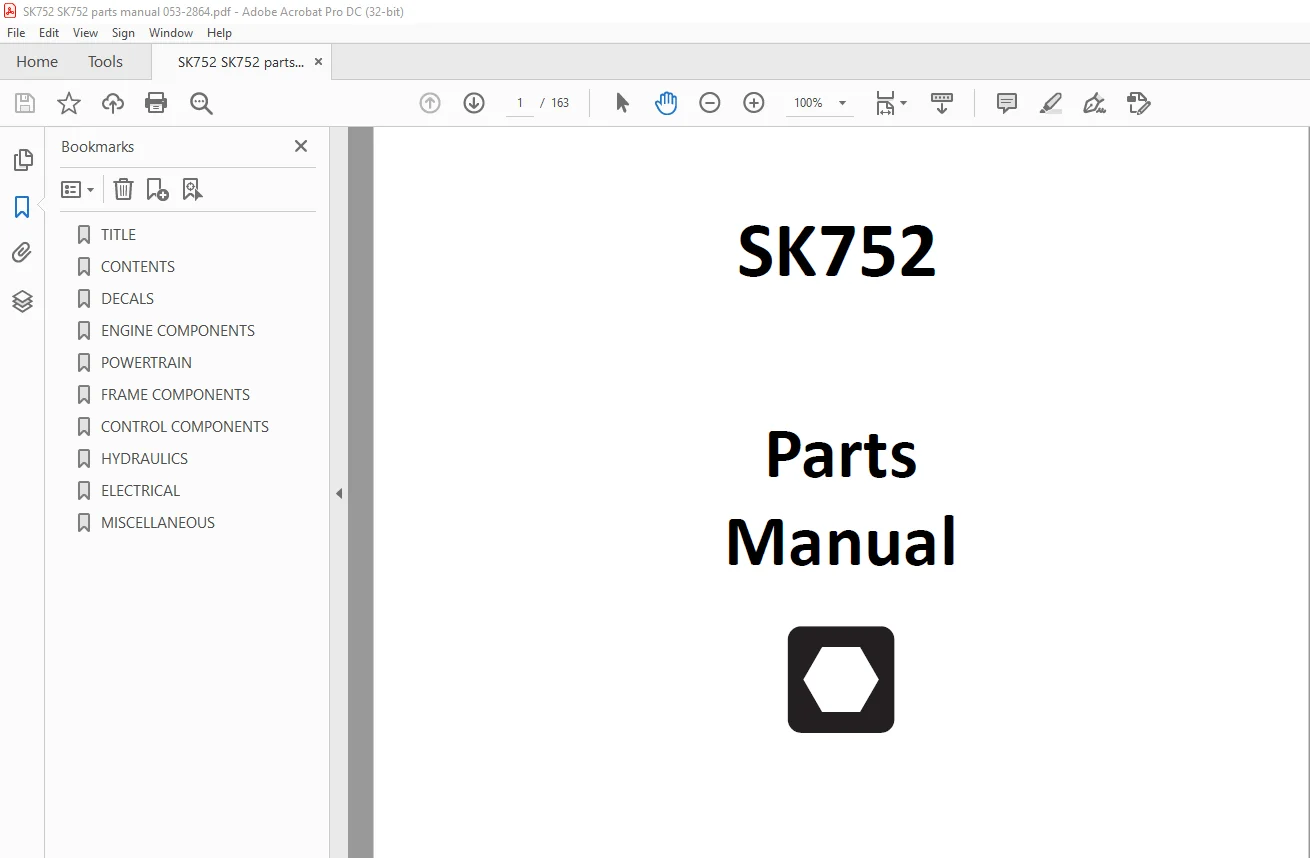

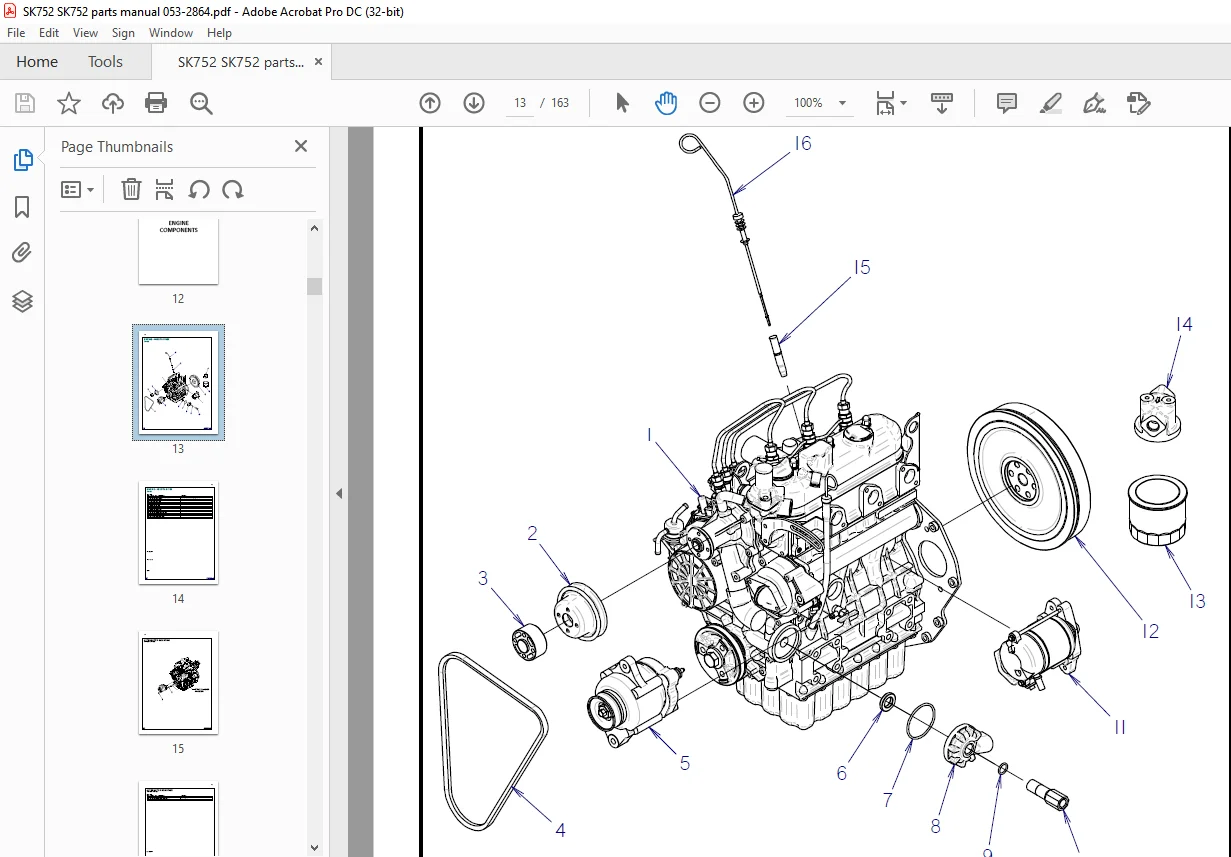

IMAGES PREVIEW OF THE MANUAL:

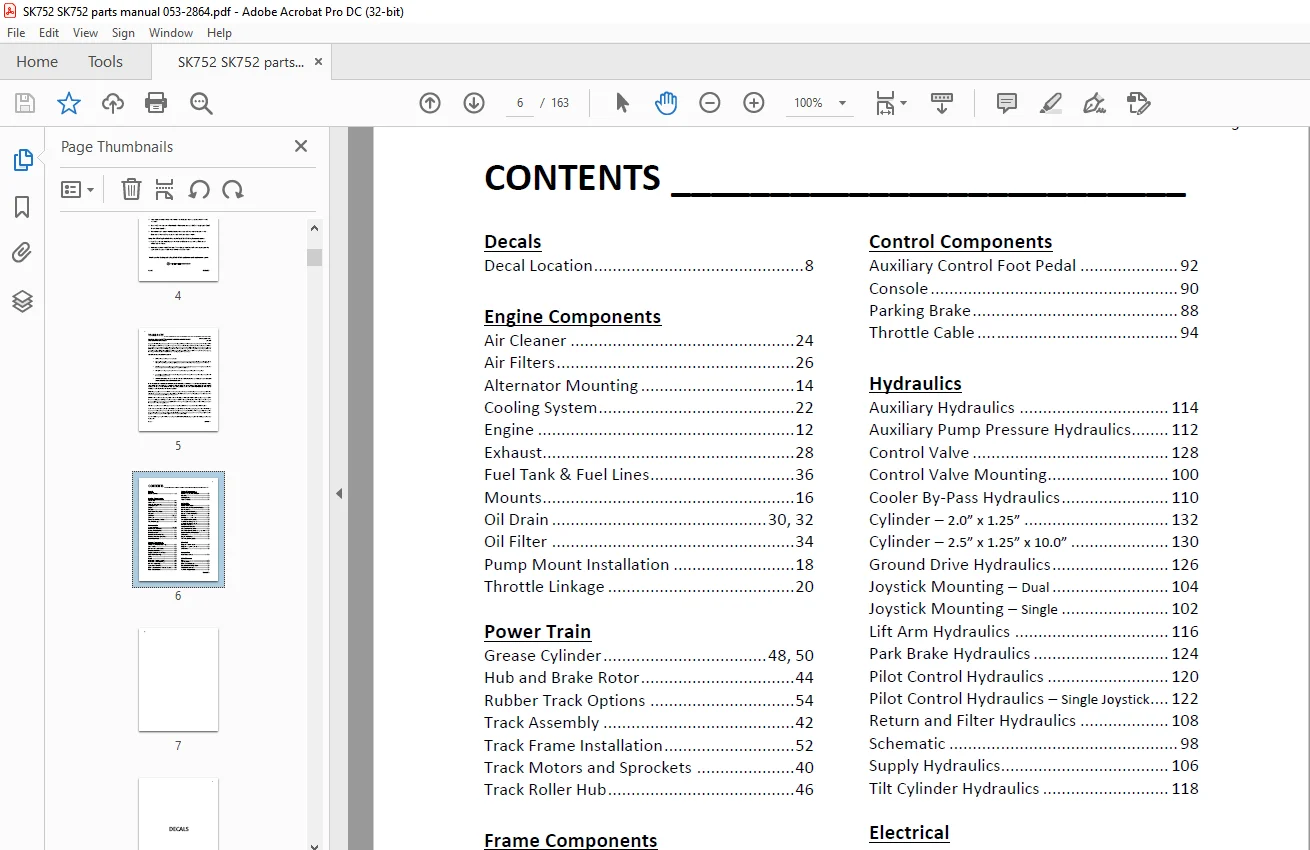

TABLE OF CONTENTS:
Ditch Witch SK752 Parts Manual 053-2864 – PDF DOWNLOAD
Decals
Decal Location 8
Engine Components
Air Cleaner 24
Air Filters 26
Alternator Mounting 14
Cooling System 22
Engine 12
Exhaust 28
Fuel Tank & Fuel Lines 36
Mounts 16
Oil Drain 30, 32
Oil Filter 34
Pump Mount Installation 18
Throttle Linkage 20
Power Train
Grease Cylinder 48, 50
Hub and Brake Rotor 44
Rubber Track Options 54
Track Assembly 42
Track Frame Installation 52
Track Motors and Sprockets 40
Track Roller Hub 46
Frame Components
Attachment Plate Mounting 82
Auto Latch 84
Battery Base and Cables 68
Brackets and Braces 66
Engine Compartment Flaps 64
Fuel Tank Mounting 58
Grille 72
Hood 76
Hydraulic Tank Assembly 60
Hydraulic Tank Mounting 62
Lift Arm Mounting 80
Operator’s Platform 70
Rear Access Cover & Manual Comp 78
Rear & Side Covers 74
Control Components
Auxiliary Control Foot Pedal 92
Console 90
Parking Brake 88
Throttle Cable 94
Hydraulics
Auxiliary Hydraulics 114
Auxiliary Pump Pressure Hydraulics 112
Control Valve 128
Control Valve Mounting 100
Cooler By-Pass Hydraulics 110
Cylinder – 2 0” x 1 25” 132
Cylinder – 2 5” x 1 25” x 10 0” 130
Ground Drive Hydraulics 126
Joystick Mounting – Dual 104
Joystick Mounting – Single 102
Lift Arm Hydraulics 116
Park Brake Hydraulics 124
Pilot Control Hydraulics 120
Pilot Control Hydraulics – Single Joystick 122
Return and Filter Hydraulics 108
Schematic 98
Supply Hydraulics 106
Tilt Cylinder Hydraulics 118
Electrical
Diagram – Battery Cable 146
Diagram – Engine/Frame Harness 140
Schematic 136
Accessories
Side Guard Covers 150
Miscellaneous
Filters 160
Optional Kits 160
Related Publications 160
Replacement O-Ring Chart 159
Torque Information 154
Warranty Registration 162
