Ditch Witch VP120Q Parts Manual 053-2892 PDF

Description

Ditch Witch VP120Q Parts Manual 053-2892 – PDF DOWNLOAD

FILE DETAILS:

Ditch Witch VP120Q Parts Manual 053-2892 – PDF DOWNLOAD

Language : English
Pages : 77
Downloadable : Yes
File Type : PDF

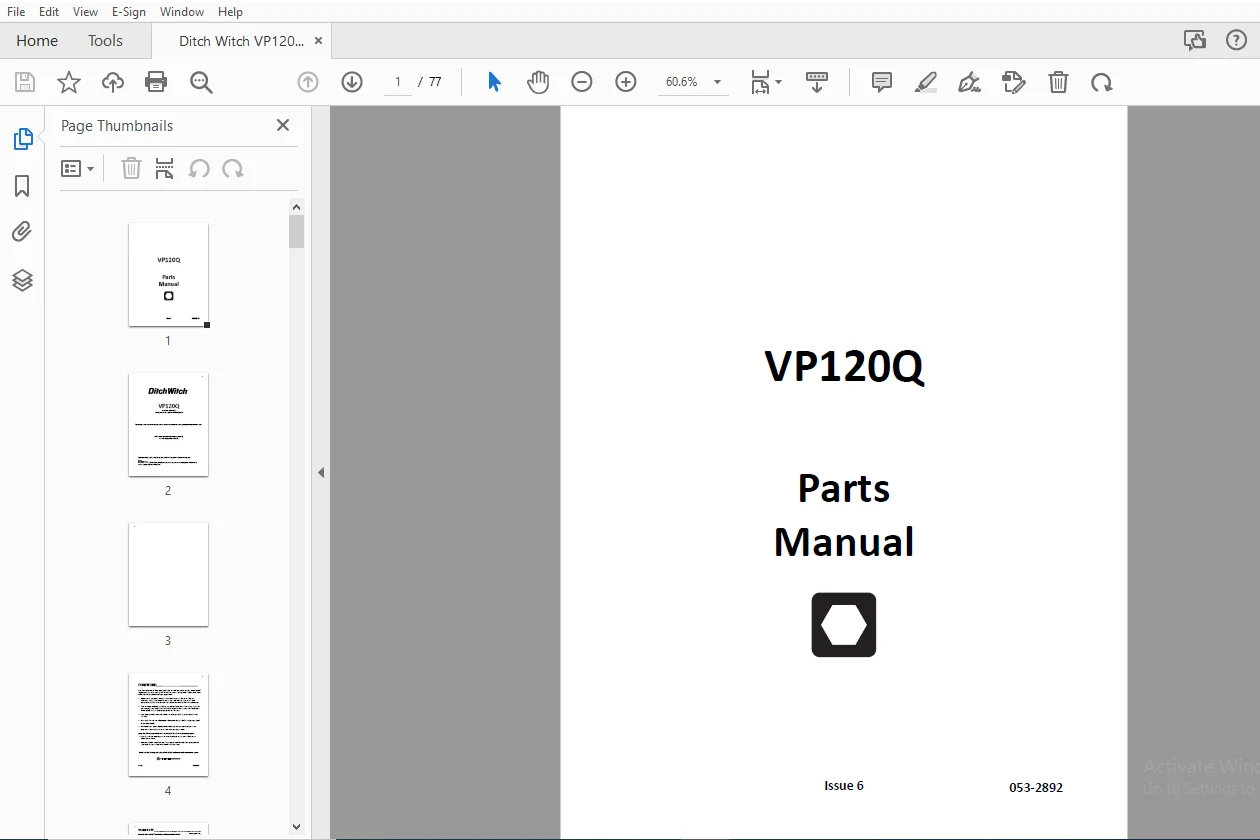

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ditch Witch VP120Q Parts Manual 053-2892 – PDF DOWNLOAD

Decals
Decal Location 8
Attachments
Arm, Lower (and Swingpost) 16
Arm, Upper 14
Attachment Frame/Mounting 12
Clevis, Lower 26
Clevis, Upper 18
Skid Shoes/Sod Cutter/Pins 24
Stow Lock Options 30
Valve and Controller 28
Vibrator Housing 20
Vibrator Weights 22
Hydraulics
Blade Steer 36
Cylinder – 2 5” x 1 5” 48
Cylinder – 3” x 1 5” 50
Cylinder – 4” x 2” x 15” 46
Plow Lift 38
Plow Swing 40
Schematic 34
Valve Service 44
Vibrator Drive 42
Electrical
RT Electrical Schematic Reference 54
Accessories
Cable Guide 58
HD Sod Cutter 62
Pipe Puller 64
Plow Blades 60
Miscellaneous
Torque Information 68
Optional Kits 74
Related Publications 74
Replacement O-Ring Chart 73
Warranty Registration 76
