DongFeng ZB45 Tractor Parts Manual – PDF

Description

DongFeng ZB45 Tractor Parts Manual – PDF DOWNLOAD

FILE DETAILS:

DongFeng ZB45 Tractor Parts Manual – PDF DOWNLOAD

Language : English & Chinese
Pages : 184
Downloadable : Yes
File Type : PDF

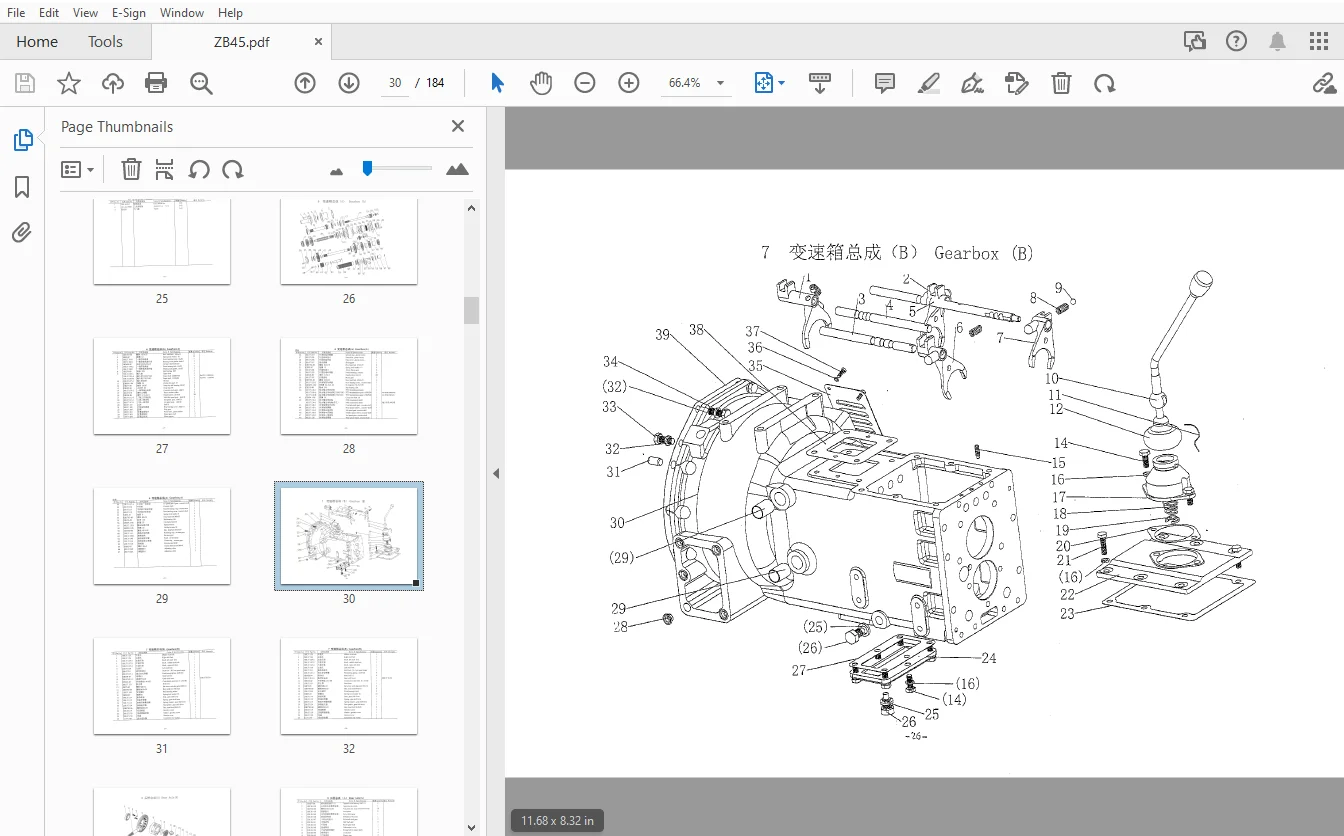

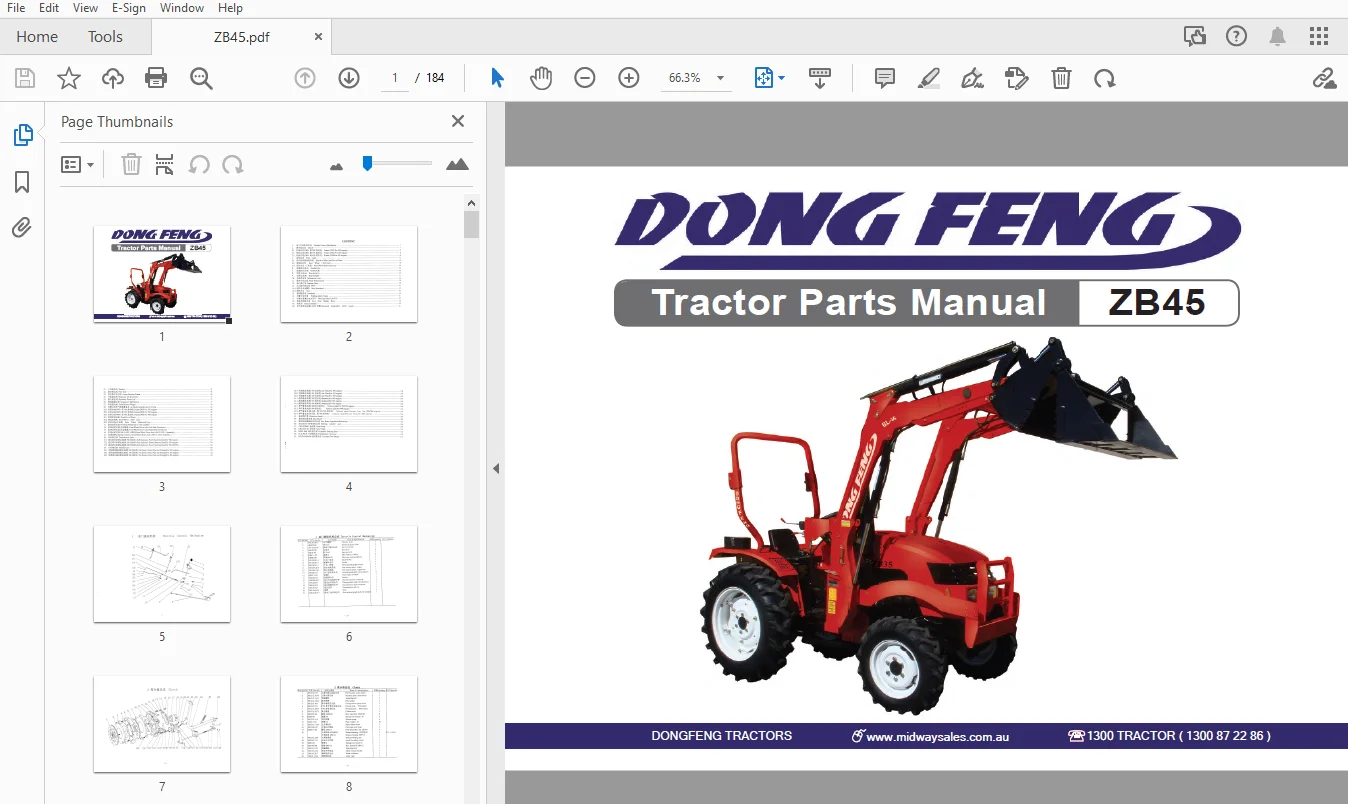

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

DongFeng ZB45 Tractor Parts Manual – PDF DOWNLOAD

• 油门操纵机构总成 – Throttle Control Mechanism
• 离合器总成 – Clutch Assembly
  3.1 390) Frame (2WD For 390 engine)
  3.2 395) Frame (2WD For 395 engine)
  3.3 490) Frame (2WD For 490 engine)
• 前轴总成 – Front Axle
  5.1 导向轮和驱动轮总成 – Directive Wheel and Drive Wheel
  5.2 草地胎后轮 – Rear Wheel (Turf tyre)
  5.3 (I) Rear Wheel (Industrial tyre)
• (A) Gearbox (A)
• (B) Gearbox (B)
• (A) Rear Axle(A)
• (B) Rear Axle(B)
• 差速锁 – Differential Lock
• 最终传动总成 – Final Transmission
• 转向器总成 – Steering Gear
• 动力输出轴总成 – PTO (Power Take-Off)
  14.1 Seat (Absorber)
  14.2 座椅总成 – Seat Assembly
• 遮阳棚总成 – Sunshade
• 折叠式安全架 – Folding Safety Frame
• (AU07) Hood and Panel (AU07)
• 地板挡泥板总成 – Foot Mud Shields Rest
• 电池支架 – Battery Bracket
• (AU07) Electrical System (For AU07 hood)
• 工具箱总成 – Toolbox
• 燃油箱总成 – Fuel Tank
• 摆式牵引杆总成 – Swing Drawbar Frame
• 液压油分配器 – Hydraulic Oil Distributor
• 液压提升系统 – Hydraulic Power Lift
• 悬挂机构 – Suspension Mechanism
• 前平衡重 – Front Balance Weight
• 前驱动轮 – Front Drive Wheel
  29.1 (4WD 390) Frame (2WD For 390 engine)
  29.2 (4WD 395) Frame (2WD For 395 engine)
  29.3 (4WD 490) Frame (2WD For 490 engine)
  30.1 (I) Front Wheel (Industrial tyre)
  30.2 (F) Front Wheel Drive Axle (middle)
  30.3 (1) Front Wheel Drive Axle (Left Side-Slowdown)
• (304.31.022-1 #4) 前轮驱动轴 (304.31.022-1 组件) – Front Wheel Drive Axle (304.31.022-1 Assembly)
• (304.31.014A) 前轮驱动轴 (304.31.014A 组件) – Front Wheel Drive Axle (304.31.014A Assembly)
• 传动轴 – Transmission Shaft
• (390) 全液压动力转向器 (用于390发动机) – Full Hydraulic Power Steering Gear (For 390 engine)
• (395) 全液压动力转向器 (用于395发动机) – Full Hydraulic Power Steering Gear (For 395 engine)
• 液压转向系统总成 (配490发动机) – Full Hydraulic Power Steering Gear (For 490 engine)
• 转向器总成 (配390/395发动机) – Steering Gear Assembly (For 390/395 engine)
• 传动箱 – Transfer Case
  39.1 (390) 油泵、滤清器、管道和配件 (用于390发动机) – Oil Pump, Filter, Pipe and Fittings (For 390 engine)
  39.2 (395) 油泵、滤清器、管道和配件 (用于395发动机) – Oil Pump, Filter, Pipe and Fittings (For 395 engine)
  39.3 (490) 油泵、滤清器、管道和配件 (用于490发动机) – Oil Pump, Filter, Pipe and Fittings (For 490 engine)
  40.1 (390) 空气滤清器 (用于390发动机) – Air Filter (For 390 engine)
  40.2 (395) 空气滤清器 (用于395发动机) – Air Filter (For 395 engine)
  40.3 (490) 空气滤清器 (用于490发动机) – Air Filter (For 490 engine)
  41.1 (390) 散热器 (用于390发动机) – Radiator (For 390 engine)
  41.2 (395) 散热器 (用于395发动机) – Radiator (For 395 engine)
  41.3 (490) 散热器 (用于490发动机) – Radiator (For 490 engine)
  42.1 排气管总成 (配390/395发动机) – Exhaust Pipe Assembly (For 390/395 engine)
  42.2 排气管总成 (配490发动机) – Exhaust Pipe Assembly (For 490 engine)
  42.3 排气管总成 (防火星, 配390/395发动机) – Exhaust Pipe Assembly (Spark Arrestor, For 390/395 engine)
  42.4 排气管总成 (防火星, 配490发动机) – Exhaust Pipe Assembly (Spark Arrestor, For 490 engine)
• 保护罩 – Protective Shield
• 盘式制动器总成 – Disc Brake Assembly
• 盘式制动器操纵机构总成 – Disc Brake Operation Mechanism Assembly
• 304.40.033 转向缸总成 – Steering Cylinder Assembly
• CRN-E306B 齿轮泵 – Gear Pump
• CBN-E314B 齿轮泵 – Gear Pump
• BZZ1-E80 液压转向器 – Hydraulic Steering Gear
• FLD-F6-H 分流阀总成 – Distributary Valve Assembly
• HLCB-D006/06 恒流泵 – Constant Flow Pump
