DRE Infantia NB1 Infant Incubator Service Manual – Complete Medical Equipment Documentation

This official DRE Infantia NB1 service manual provides comprehensive installation, maintenance, and repair procedures for the Infantia NB1 infant incubator. Published as Edition/Revision A/0, this manual is the authoritative technical reference for trained, qualified biomedical technicians and clinical engineers servicing infant incubator repair guide equipped neonatal intensive care units (NICUs).

Equipment Overview – DRE Infantia NB1

Equipment Type: Infant Incubator (Neonatal Thermoregulation Device)
Model: Infantia NB1
Manufacturer: DRE (Dre Medical Equipment)
Edition/Revision: A/0
Manual Pages: 101 pages
Classification: Class I, Type BF Medical Device (IEC 60601-1)

Infantia NB1 System Description

The Infantia NB1 is a sophisticated infant incubator designed to provide a controlled thermal environment for premature and ill newborns:

Dual Temperature Control Modes:

• Air Temperature Mode – Controls ambient air temperature (25-37°C)
• Skin Temperature Mode – Direct infant skin temperature control (34-37°C)

Key Features:

• Digital temperature displays (Set Temperature and Real Temperature)
• Quiet latch access doors for minimal disturbance
• Stepless tilt mechanism (±12 degrees range)
• IV Pole with 20kg load capacity
• Optional infant scale integration
• Blue light phototherapy capability (optional)
• Guard rails for safety
• Multiple access points (elliptic doors, circular ports)
• Water cup for humidity control
• Cabinet stand with lockable wheels

Complete Service Manual Contents

SECTION 1 – GENERAL INFORMATION

Introduction:

• Manual scope and purpose
• Intended for trained, qualified service personnel only
• Separate operator manual reference
• Safety precautions

Description:

• System overview and capabilities
• Skin or Air Temperature Mode selection
• Digital display features
• Cabinet integration
• Optional infant scale capability

Accessories:

• Blue Light Radiant Box for phototherapy
• IV Pole assembly
• Hood components
• Elliptic Access Door and Circular Ports
• Water Cup for humidification
• Temperature Control panel
• Guard Rails
• Cabinet with wheels
• Component illustrations (Figure 1.1)

SECTION 2 – INSTALLATION

Unpacking Procedures:

• Cabinet stand unpacking
• Incubator main body unpacking
• Surface protection during handling
• Packing material removal

Stand Assembly:

• Complete parts list for stand assembly:
  • Left and right stands
  • Connecting crosspiece
  • Square frame
  • Hardware (screws, washers, nuts)
  • Wheels (2 with brake, 2 without brake)
• Step-by-step installation procedure:
  • Tool requirements (spanner)
  • Connecting crosspiece attachment
  • Square frame assembly
  • Wheel installation
  • Brake wheel positioning (front of stand)

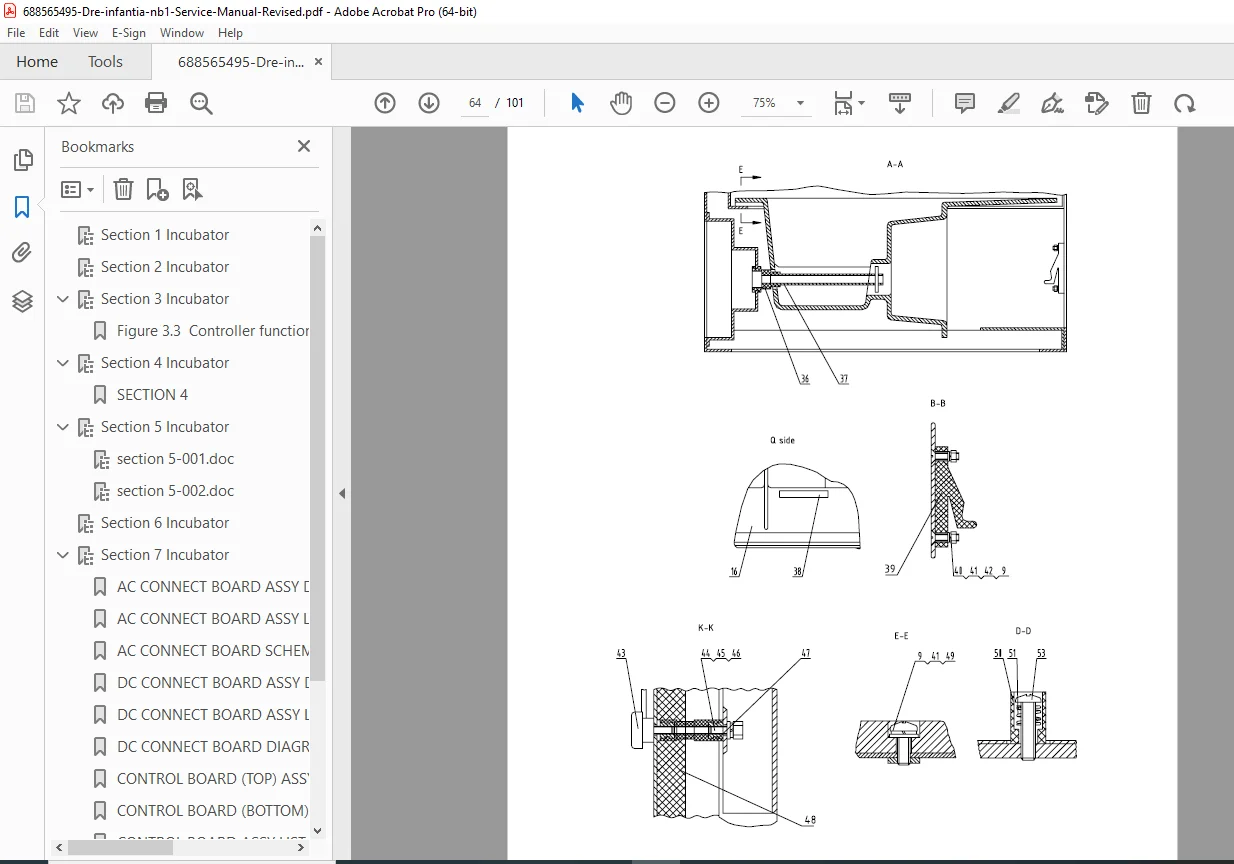

Hood Assembly Options:

• Assembling hood on stand (stand-alone configuration)
• Assembling hood on cabinet (cabinet configuration)
• Wheel installation on cabinet
• Lock mechanism attachment
• Secure mounting procedures

IV Pole Installation:

• Support pole assembly
• Fix seat positioning (Fix Seat 1 and Fix Seat 2)
• Inner hexagon bolt tightening
• Height adjustment procedures
• Tray installation on IV pole
• Proper tray orientation
• I.V. pole for radiant box assembly

Critical Installation Warnings:

• Incubator must be securely attached to cabinet
• Failure risks separation if tilted
• Particularly dangerous with hood open
• Proper clamp engagement verification

Pre-Use Safety Checks:

• Wheel stability testing on slopes
• Each wheel must be tested individually
• Locked front wheels mandatory
• Test procedure requires two people
• Minimum 100kg weight for testing
• DO NOT use if wheels loosened

Infant Scale Installation:

• Reference to separate user manual
• Integration procedures

Operational Checks:

• Power system verification
• Alarm system testing
• Temperature controller checks
• Battery backup testing

SECTION 2 – INSTALLATION (Continued)

Comprehensive Alarm Verification:

Motor Failed Alarm Check:

• Air passage sealing test
• Audible and visual alarm activation
• Motor alarm indicator verification

Deviation Alarm (Air Mode):

• Door and window closure verification
• Set temperature to 32°C
• Temperature alarm checkout state entry
• High deviation alarm (+3°C) testing
• Low deviation alarm (-3°C) testing
• Ambient temperature considerations

Deviation Alarm (Skin Temperature Control Mode):

• Skin sensor plug connection
• Proper sensor orientation (arrow facing upward)
• Critical handling warnings:
  • Hand-hold plug during insertion/removal
  • Never pull by cord
  • Never place under infant
  • Never use rectally
  • Avoid bending connector
• Temperature trough testing (37°C and 33°C)
• ±1°C deviation verification

Skin Temperature Sensor Alarm:

• Sensor disconnection test
• Audible and visual alarm activation
• Reset/Silent key operation
• Sensor reconnection procedure
• Maximum temperature testing

Over Temperature Alarm:

• Air Temperature Control Mode testing
• Skin Temperature Control Mode testing
• Simultaneous key press sequence (Up, Down, Reset/Silent)
• Heating indicator verification
• Over temperature activation (<38°C air mode, <40°C skin mode)
• Reset/Silence key to exit test mode
• 5-minute alarm silence feature

Power-Off Alarm:

• Supply power disconnect
• Emergency-off alarm verification

Battery Backup Testing:

• Rechargeable battery system
• Yellow light (charging state)
• Green light (full charge)
• Automatic voltage checking
• Charge/discharge cycling

SECTION 3 – TECHNICAL INFORMATION

Complete Equipment Specifications:

Power Requirements:

• Input voltage: AC 220V-230V, 50/60Hz
• Power consumption: 680VA
• Power outlet: AC 220V-230V, 50/60Hz, Max 1A
• Protective earth: <0.1Ω
• Earth leakage current:
  • Normal condition: <0.5mA
  • Single fault condition: <1mA
• Patient leakage current:
  • Normal condition: <0.1mA
  • Single fault condition: <0.5mA
  • Mains voltage on applied part (single fault): <5mA
• Classification: Class I, Type BF (IEC 60601-1)
• Operation: Continuous

Comprehensive Alarm System:

Power Alarm:

• Power failure detection
• Accidental cord disconnect detection

Motor Alarm:

• Motor failure detection
• Motor speed monitoring (below 1000rpm)
• Air flow stoppage detection (cloth obstruction)

Sensor Alarms:

• Air Temperature Sensor Failure (short line, open circuit, disconnect)
• Skin Sensor Failure (short line, open circuit, disconnect)
• Skin Sensor Out of Position (skin mode only)
• Isolate Overheating Sensor Failure
• Air Flow Sensor Failure

High Temperature Deviation Alarms:

• High Air Temperature: +3.0°C above set point
• High Skin Temperature: +1.0°C above set point

Low Temperature Deviation Alarms:

• Low Air Temperature: -3.0°C below set point
• Low Skin Temperature: -1.0°C below set point

Over Temperature Alarms:

• Air Temperature Control Mode: Incubator temperature <38°C
• Skin Temperature Control Mode: Incubator temperature <40°C
• E²ROM Failed: Internal malfunction

Temperature Control Specifications:

Control Ranges:

• Air Mode Control: 25-37°C
• Skin Mode Control: 34-37°C
• Temperature Rise Time: <30 minutes (typical +22°C ambient)
• Temperature Variability: <0.5°C
• Temperature Uniformity: <0.8°C (level mattress, after equilibrium)
• Skin Sensor Precision: <0.3°C

Environmental Specifications:

Operating Conditions:

• Temperature Range: +20°C to +30°C
• Humidity Range: 30-75% RH (non-condensing)
• Atmospheric Pressure: 700hPa to 1060hPa
• Ambient Air Velocity: <0.3m/s

Storage Conditions:

• Temperature Range: -40°C to +55°C
• Humidity Range: <93% RH (non-condensing)
• Atmospheric Pressure: 500hPa to 1060hPa

Physical Specifications:

Mattress Dimensions:

• Width: 35cm
• Length: 63cm
• Maximum Load: 10kg

Additional Specifications:

• Noise Level: <55dB(A) within hood (ambient <45dB(A))
• CO₂ Level: <0.5% (750ml/min at 10cm above mattress center)
• Air Velocity Over Mattress: <0.35m/s
• IV Pole Max Load: 2kg
• Tray Max Load: 3.5kg
• Hood Max Load: 4kg
• Mattress Tilt: Continuously variable to ±12° (Trendelenburg)
• Weight of Incubator: Approximately 100kg
• Blue Light Radiation: ≥500μW/cm² (average)

Timer Specifications:

• Lifetime: ≥6 years
• Range: 0-9999 hrs 59 min
• Accumulative Error: ≤0.002%

Service Life:

• General Service Life: 8 years
• Variable based on usage frequency and environment

Reset/Silent Key Function:

• 5-minute alarm silence capability
• Automatic alarm restoration after 5 minutes
• Double-press for direct alarm cancellation
• Applies to all temperature and sensor alarms

Factory Default Settings:

• Temperature Control Mode: Air Mode
• Air Set Temperature: 32°C
• Skin Set Temperature: 34°C
• Temperature Units: °C (Celsius)

Description of Operation:

Air Circulation System:

• Motor-driven impeller air circulation
• Room air intake through filter
• Air return filter path
• Temperature sensing sensor integration
• Automatic temperature modulation
• Detailed air circulation diagrams (Figure 3.1)

Control System Block Diagrams:

• MCU (Microcontroller) based control
• Keyboard control interface
• Temperature display systems
• Functional alarm integration
• Temperature control outputs (A and B)
• Amplifier circuits for sensors
• Air temperature sensor feedback
• Skin temperature sensor feedback
• Motor test circuitry

Safety and Regulatory Compliance

Medical Device Classification:

• IEC 60601-1 compliant (Class I, Type BF)
• Continuous operation capability
• Patient safety standards met
• Electrical safety verified

Critical Safety Warnings:

• Infant removal before general operation
• Discontinue use if safety checks fail
• Secure cabinet attachment mandatory
• Proper wheel locking essential
• Sensor handling protocols critical
• Air filter maintenance affects oxygen concentration
